Supporting Efﬁcient Global Moves on Sequences in Constraint-based

Local Search Engines

Renaud De Landtsheer, Gustavo Ospina, Yoann Guyot, Fabian Germeau and Christophe Ponsard

CETIC Research Centre, Charleroi, Belgium

Keywords:

Sequence, Local Search, CBLS, Global Constraints, Global Moves, OscaR.cbls.

Abstract:

Constraint-Based Local Search (CBLS) is an approach for quickly building local search solvers based on

a declarative modelling framework for specifying input variables, constraints and objective function. An

underlying engine can efﬁciently update the optimization model to reﬂect any change to the input variables,

enabling fast exploration of neighbourhoods as performed by local search procedures. This approach suffers

from a weakness when moves involve modifying the value of a large set of input variables in a structured

fashion. In routing optimization, if one implements the optimization model by means of integer variables, a

two-opt move that ﬂip a portion of route requires modifying the value of many variables. The constraint on

this problems are then notiﬁed about many updates, but they need to infer that these updates constitute a ﬂip,

and waste a lot of time. This paper presents this multi-variable limitation, discusses approaches to mitigate it,

and proposes an efﬁcient implementation of a variable type that represents sequences of integers to avoid it.

The proposed implementation offers good complexities for updating and querying the value of sequences of

integers and some mechanisms to enable the use of state-of-the art incremental global constraints.

1 INTRODUCTION

Constraint-Based Local Search (CBLS) is an ap-

proach for representing declarative optimization mod-

els for local search optimization where the optimiza-

tion problem is represented by means of variables and

invariants (Van Hentenryck and Michel, 2009). In-

variants are directed constraints that have designated

input and output variables and that maintain the value

of these output variables according to their speciﬁca-

tion and to the value of the input variables. Decision

variables are not the output of any such directed con-

straints. A local search procedure can explore neigh-

bourhoods by modifying these decision variables and

query the value of a variable that is maintained by the

model and represents the objective function.

This is the approach implemented by the frame-

works Comet, Kangaroo, OscaR.cbls, LocalSolver,

and InCELL (Van Hentenryck and Michel, 2009;

Newton et al., 2011; De Landtsheer and Ponsard,

2013; Benoist et al., 2011; Pralet and Verfaillie,

2013). In such frameworks, several variable types

might be available, such as Boolean, Integer, Float,

Set of Integer, and List of Integer. A key aspect that

updating invariant should be as efﬁcient as possible in

order to provide fast neighbourhood exploration.

An important drawback of the CBLS approach is

the potential loss of efﬁciency of the model compared

to a dedicated model to evaluate structured moves

involving several variables. We call it the multi-

variable limitation. The multi-variable limitation oc-

curs when a move requires modifying a large number

of input variables altogether, and this move actually

implements some structurally consistent modiﬁcation

of the model that could be captured in a more sym-

bolic and global way with a O(1) sized representa-

tion. Such more symbolic representation of the move

would typically enable efﬁcient global reasoning of

the impact of that move onto the constraint of the

problem.

For instance, a routing problem, such as a Travel-

ling Salesman Problem (TSP) (Schrijver, 2005), can

be represented by a series of integer variables, called

“next”, each of them being associated with a node

of the routing problem, and specifying the node that

must be reached when leaving the associated node.

Evaluating a 2-opt move, that ﬂips a section of a

route, requires modifying each “next” variable asso-

ciated with nodes included in the ﬂipped section, thus

requiring O(n) updates (Croes, 1958). An invariant

maintaining the routed distance from a distance ma-

trix is then notiﬁed about the change of each modiﬁed

De Landtsheer R., Ospina G., Guyot Y., Germeau F. and Ponsard C.

Supporting Efﬁcient Global Moves on Sequences in Constraint-based Local Search Engines.

DOI: 10.5220/0006201901710180

In Proceedings of the 6th International Conference on Operations Research and Enterprise Systems (ICORES 2017), pages 171-180

ISBN: 978-989-758-218-9

171

variable and is therefore updated in O(n) time, sim-

ply because it is notiﬁed about O(n) updates. The

cost of evaluating such move is therefore O(n) time,

because of the O(n) updated variables, and the O(n)

notiﬁcations sent to the listening invariant. A routing

optimization engine implemented with a dedicated al-

gorithm could easily reason on the logical meaning of

a 2-opt and evaluate the same neighbour in O(1) time,

especially if the distance matrix is symmetric (Glover

and Kochenberger, 2003).

There are several ways to mitigate the multi-

variable limitation, namely, change the order of ex-

ploration, transmit more symbolic information beside

variables, use symbolic differentiation, or add more

structured variable types. Let us review them in order

to motivate our approach.

Choosing the Order of Exploration of the

Neighbourhood (Glover and Kochenberger, 2003).

In the case of the aforementioned 2-opt move, one

can gradually widen the ﬂipped route segment, so that

each neighbour can be explored in turn, and going

from one neighbour to another one requires moving

two points. We call this exploration mode the circle

mode, as opposed to the star mode. In star mode, the

state of the model is rolled back to the initial state

between each explored neighbour. Circle mode ex-

ploration is however hard to combine with heuristics

such as selecting nodes among the k-nearest ones in

vehicle routing, that allows one to suggest a few rele-

vant neighbours among e.g. a 2-opt and explore these

moves exclusively.

Transmitting additional symbolic information

through the model, e.g. by proposing the notion of

“aggregate of variables” such as “array of integer vari-

ables” and transmit the symbolic nature of the move to

the invariants listening to the aggregate, so that they

can update their output value efﬁciently using global

algorithms. This approach would not fully solve the

issue because the O(n) variables involved in the move

would be updated anyway since they exist, and their

value might be queried by the invariants listening to

the aggregate.

Performing symbolic differentiation of the

model to automatically use the best algorithm for

evaluating neighbours. This option is complex be-

cause it requires reasoning on the structure and global

semantic of the model. It also requires to deploy

additional reasoning tool, e.g. SMT-solvers like Z3

(De Moura and Bjørner, 2008).

Introducing structured variable types, so that

complex moves are performed on the value of the

variable and can be described in a more symbolic way

as a delta on this value. Those moves can be imple-

mented efﬁciently and then used as powerful primi-

tives for writing efﬁcient global algorithms.

This paper focuses on this last approach and pro-

poses an implementation of a variable type represent-

ing sequences of integers, suitable for a CBLS solver.

The goal is to achieve similar algorithmic complexity

to the one achievable by a dedicated implementation,

while still providing a high degree of declarativity as

proposed by the CBLS approach.

We focus on this type of variable for two reasons.

First, sequence of integers could be deployed to rep-

resent various optimization problems that have a no-

tion of sequencing including car sequencing, routing,

ﬂow-shop scheduling, etc. Routing optimization is an

area where local search is widely used; it can beneﬁt

from our sequence variable. Second, string solving is

an active topic of research (Abdulla et al., 2015; Fu

et al., 2013; Ganesh et al., 2011; Scott et al., 2015).

Providing a variable of type ”sequence of integers”

supporting efﬁcient global updates within a generic

local search engine can constitute an opportunity to

make the development inherent to such research eas-

ier (Bj

ordal, 2016).

This paper is focusing a lot on the efﬁciency of the

underlying data-structures for representing sequences

of integers. It often uses the complexity notation

O(...). It implicitly refers to the time complexity, un-

less otherwise speciﬁed.

The paper is structured as follows: Section 2

presents various frameworks for implementing local

search and the way they support global constraints

on sequences, it also introduces the OscaR.cbls en-

gine with more details; Section 3 presents the require-

ments over an implementation of such sequence vari-

able in a CBLS framework; Section 4 discusses the

data-structure and the API of our implementation and

concludes with complexity; Section 5 validates our

approach by presenting how global constraints can

easily be implemented based on our API (Applica-

tion Programming Interface); Section 6 presents some

benchmarks of our implementation; Finally, Section 7

concludes.

2 BACKGROUND

This section ﬁrst presents several CBLS frameworks,

and then introduces the necessary vocabulary of

CBLS for the remaining of the paper, based on the

OscaR.cbls engine.

2.1 Local Search Frameworks

Local search frameworks aim at making the devel-

opment of local search solutions much simpler. To

ICORES 2017 - 6th International Conference on Operations Research and Enterprise Systems

172

this end, they provide different degrees of support for

the modelling of the problem or the elaboration of the

search procedure.

EasyLocal++ is a framework that requires a ded-

icated model to be developed from scratch using ad-

hoc algorithms. It mainly provides support for declar-

ing the search procedure (Di Gaspero and Schaerf,

2003). As such, it does not suffer from the multi-

variable limitation, but it does not provide as much

assistance in the development of a model as a CBLS

framework would. Notably it does not allow the de-

veloper to package efﬁcient global constraints that can

be instantiated on demand.

There are a few tools supporting constraint-based

local search, namely: Comet (Van Hentenryck and

Michel, 2009), Kangaroo (Newton et al., 2011), Os-

caR.cbls (OscaR Team, 2012), LocalSolver (Benoist

et al., 2011), and InCELL (Pralet and Verfaillie,

2013).

Comet, Kangaroo, and OscaR.cbls support Inte-

gers and Sets of Integers. InCELL supports a notion

of variable that is a sequence of other variables. How-

ever, it does not offer a uniﬁed data structure for rea-

soning on the sequence itself, and no information is

available about the added value of such sequence of

variables (Pralet and Verfaillie, 2013). LocalSolver

supports a variable of type list of integers, where each

value can occur at most once (Benoist et al., 2011).

No detail is given about how these lists of integers are

actually implemented and it supports very few invari-

ants and constraints related to this list variable.

Beside CBLS tools, there are many global con-

straint algorithms that have been developed, notably

for routing optimization. The most classical exam-

ple is the route distance invariants that computes the

distance driven by a vehicle, given its route, and that

quickly updates this distance when a routing move

is performed such as a 2-opt or a 3-opt (Glover and

Kochenberger, 2003). Another example is the travel-

ling delivery man problem described in (Mladenovi

et al., 2013) that relies on pre-computation to update

a complex metrics in O(1) for a large proportion of

classical routing moves. Such global constraints only

require a high-level description of the move to per-

form their update efﬁciently. Implementing such al-

gorithm therefore requires something in the vein of

our proposed sequence variable. Our contribution

is to propose such implementation within a generic

framework, under the form of a dedicated variable

with the appropriate underlying data structure, so that

these global constraints can be implemented easily,

and instantiated in a ﬂexible way as done with other

constraints in a CBLS engine.

2.2 CBLS, the OscaR Way

Since this contribution has been done in the context

of the OscaR.cbls tool, we further introduce the ba-

sic concepts of CBLS using the vocabulary of Os-

caR.cbls. As usual in local search, solving a problem

involves specifying a model and a search procedure.

The model is composed of incremental variables

(integers and set of integers at this point), and invari-

ants which are incremental directed constraints main-

taining one or more output variables according to the

atomic expressions they implement (e.g. Sum: the

sum of inputs). Constraints are special invariants that

maintain their violation as an output variable. They

are Lagrangian relaxations of their speciﬁcation. Be-

side they also maintain some information about which

variable cause the violation.

The search procedure is expressed using neigh-

bourhoods, which can be queried for a move, given

the current state of the model, an acceptance crite-

rion, and an objective function. Combinators are a set

of operators on neighbourhoods that combine them

and incorporate various metaheuristics, so that a com-

plex search strategy is represented by a composite

neighbourhood totally expressed in a declarative way

(De Landtsheer et al., 2015). A library of combina-

tors is available for specifying standard metaheuris-

tics (e.g. simulated annealing, restart, hill climbing),

for managing solution (e.g. when to save the current

state, or restore a saved state), and for expressing stop

criteria.

In order to set up the ﬂoor for the introduction of

the new sequence variable, we give details on how

the model is represented and it is updated during the

search.

The data structure behind a model is a graph,

called the propagation graph, which we can approxi-

mate to a directed acyclic graph, where the nodes are

variables and invariants. Variables have an associ-

ated type and implement speciﬁc algorithms related

to their type. Invariants have speciﬁc deﬁnitions, and

implement this deﬁnition mostly through incremental

algorithms. Edges in the graph represent data ﬂows

from variables to listening invariants and from in-

variants to controlled variables. The directed acyclic

graph starts with input (a.k.a. decision) variables, and

typically ends at a variable whose value is maintained

to be the one of the objective function. Figure 1 il-

lustrates a propagation graph for a simple warehouse

location problem.

In such engine, propagation is about propagating

updates along the propagation graph in such a way

that a node is reached at most once by the update

wave, and only if one of its inputs has changed and

Supporting Efﬁcient Global Moves on Sequences in Constraint-based Local Search Engines

173

if needed by the model update. OscaR.cbls manages

this wave by sorting the nodes based on the distance

from the decision variables. The propagation is co-

ordinated through a dedicated heap that aggregates

nodes at the same distance in a list. This offers a

slightly better time complexity than the classical ap-

proach based on topological sort initially presented in

(Van Hentenryck and Michel, 2009).

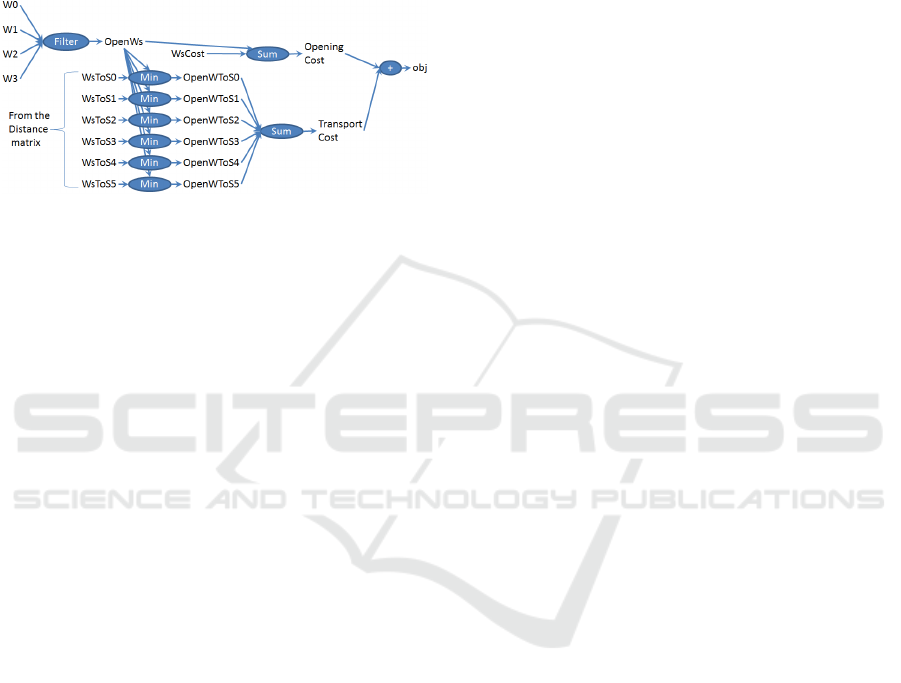

Figure 1: Propagation graph on a warehouse location prob-

lem.

The search for a solution starts from an initial

solution and explores the speciﬁed neighbourhood.

Each neighbour solution is examined by modifying

the input variables, and querying the objective func-

tion of the model which is updated through propaga-

tion.

During propagation, variables notify each invari-

ant listening to them about their value change. Such

notiﬁcations carry the necessary information about

the value change of the variable. For integer variables,

it carries a reference to the variable, and the old and

new value of the variable. For set variables, it carries

a reference to the variable, the old value of the vari-

able, the new value of the variable, and both the set

of values that have been added and removed from the

variable. All values transmitted by variables, through

notiﬁcation or through queries to the variables are im-

mutable, to make the implement of algorithms in in-

variants easier.

3 REQUIREMENTS OVER A

SEQUENCE VARIABLE

Our contributed sequence variable implements the

following set of requirements, which have been iden-

tiﬁed from the way such variables are to be used in a

CBLS engine, and from opportunities that they could

open up, notably for supporting efﬁcient global con-

straints:

• speed-exploration Sequence variables value

should be updated very quickly in the context of

neighbourhood exploration to reﬂect moves that

are typically explored in routing, such as insert

value, remove value, 1-opt, 2-opt, 3-opt.

• symbolic-large-delta Sequence variables should

transmit the symbolic structure of such move that

involve large modiﬁcation of their value, so that

invariants that derive values out of sequences of

integer receive the high-level information of the

delta that the variable has encountered.

• pre-computation There should be some kind of

mechanism for invariants to know when they can

perform pre-computation on the current value of

a sequence variable, so that they can exploit such

pre-computation in order to quickly update the

neighbour values during neighbourhood explo-

ration.

• speed-move-taken Sequence variables should be

updated quickly to reﬂect move that are being

taken, considering the same moves as the require-

ment speed-exploration. This requirement has a

lower priority than speed-exploration since there

are more neighbours explored than moves taken.

• immutable-value The value representing a se-

quence of integers should be non-mutable, that

is: once transmitted to an invariant or saved, it

should not be modiﬁed. A variable can of course

change its value. This requirement is relevant be-

cause sequences are represented by complex and

non-atomic data structures.

From the set of neighbourhoods mentioned in

the speed-exploration and speed-move-taken require-

ments, we identify the following basic updates that

our implementation must support:

• insert an integer value at a given position, and

shift the tail of the sequence by one position up-

wards. The parameters of this update are: the po-

sition of the insert, and the inserted value.

• delete the integer value at a given position, and

shift the tail of the sequence by one position

downwards. This update has one parameter that

is the position of the deleted integer.

• seq-move that moves a sub-sequence to another

position, and optionally, ﬂip it during the move.

This update has four parameters: the start posi-

tion of the moved segment, the end position of the

moved segment, the position after which the seg-

ment must be moved to, and a Boolean specifying

if the subsequence is ﬂipped during the move.

These updates can be composed together to consti-

tute a composite update, such as a two point move in

Pick-up and Delivery Problems (PDP) (Savelsbergh

and Sol, 1995), or a value assign in string optimiza-

tion that is a composition of delete and insert.

ICORES 2017 - 6th International Conference on Operations Research and Enterprise Systems

174

4 IMPLEMENTATION

This section presents our implementation of a se-

quence of integers. It starts by a description of our

dedicated data structures for representing immutable

sequence values. Then, we introduce how sequence

variables interact with sequence values, as well as our

check-pointing mechanisms. We wrap up with a ta-

ble presenting the complexity of all the queries and

update operations of our sequence variable.

4.1 Sequences as Mappings

Sequences can be represented using several data

structures. Typically, they can be represented using

lists, arrays or mappings from positions to values. All

these data-structures can be mutable or non-mutable.

Mutable data structures are forbidden altogether in

our approach because of the immutable-value require-

ment. Non-mutable lists and array have O(n) com-

plexity for insert, delete and seq-move operations.

Besides, lists do not enable accessing their elements

by positions efﬁciently.

Our approach is to represent sequences of inte-

gers as a continuous mapping from positions to val-

ues, where positions are integer values ranging from

zero to the length of the sequence minus one.

Exploring such relations for consecutive values

is therefore costly because they are typically imple-

mented through O(log(n)) balanced trees data struc-

tures. Our implementation provides a standard mech-

anism for speeding up sequence explorations. An ex-

plorer is a temporary non-mutable object represent-

ing a certain position in a given sequence. It can be

queried for the position in the sequence and the value

at its position. Besides, an explorer can be queried for

the explorer at the next or at the previous position in

the sequence. For instance, an explorer on a red-black

tree supports the value and position queries in O(1)

and the next and prev operation in O(1), amortized.

4.2 Stacked and Concrete Updates

Thanks to the representation as a map, we can im-

plement the speed-exploration requirement through

stacked updates: when a move is explored, a dedi-

cated non-mutable class is created that offers the same

API as a sequence, and behaves according to the value

it represents by translating and forwarding queries it

receives to the original non-modiﬁed sequence. Such

dedicated non-mutable class representing modiﬁed

sequences can be instantiated in O(1) and are called

stacked updates because they constitute a stack of up-

dates, starting at the concrete sequence. For each of

the three update classes (insert, remove, seq-move),

a dedicated class implementing a sequence modiﬁed

according to this move class can be implemented.

For instance, considering the remove operation,

the query that gets the value at a given position is im-

plemented as follows:

c l a s s R emov ed Po in tS eq ue nc e (

o r i g i n a l S e q u e n c e : I n t S e q u e n c e ,

p os i t io n O fR e m ov e : I n t )

e x t en d s I n t S e q u e n c e {

d ef g e t V a l u e A t P o s i t i o n ( po s : I n t ) =

o r i g i n a l S e q u e n c e . g e t V a l u e A t P o s i t i o n (

i f ( p os < p o s it i o nO f R em o v e ) pos

e l s e p os +1)

}

Each forwarding performed by the stacked up-

dates adds up to the complexity of such queries, gen-

erally a O(1) term, which can have a more-less im-

portant constant weight. Stacked updates are de-

signed for neighbourhood exploration, provided the

exploration is performed in a star mode, and provided

each move is performed on the initial value of the se-

quence. They are however not adapted to exploration

performed in circle mode, nor to committing moves

when they are actually taken, because they would ac-

cumulate and the overhead would make them imprac-

tical. Such updates are therefore performed on the

concrete representation of sequences.

The concrete representation of a sequence repre-

sents the map from positions to values through a dou-

ble mapping that maps positions to an internal posi-

tion and then maps the internal position to the actual

value.

The ﬁrst mapping is a piecewise afﬁne bijection,

where each afﬁne piece has a slope +1 or −1 and

an offset. Each of these afﬁne transformations apply

within a given interval of value taken from the range

of positions in the sequence. A red-black tree maps

the starting value of the interval of each afﬁne trans-

formation to the actual transformation. Given a po-

sition in the sequence, the corresponding internal po-

sition can thus be identiﬁed in O(log(k)) where k is

the number of afﬁne transformations in this mapping.

The reverse transformation is also available with the

same representation. This mapping is illustrated in

Figure 2.

The second mapping is made of two red black

trees, one maps the internal position to the actual

value, and the other is the reverse; it maps a value

to the set of internal positions where it occurs.

The purpose of the double mapping is that the ﬁrst

mapping can be efﬁciently updated in O(k ∗ log(k))

to reﬂect the three update operations considered here.

Applying such update can increase or decrease the

Supporting Efﬁcient Global Moves on Sequences in Constraint-based Local Search Engines

175

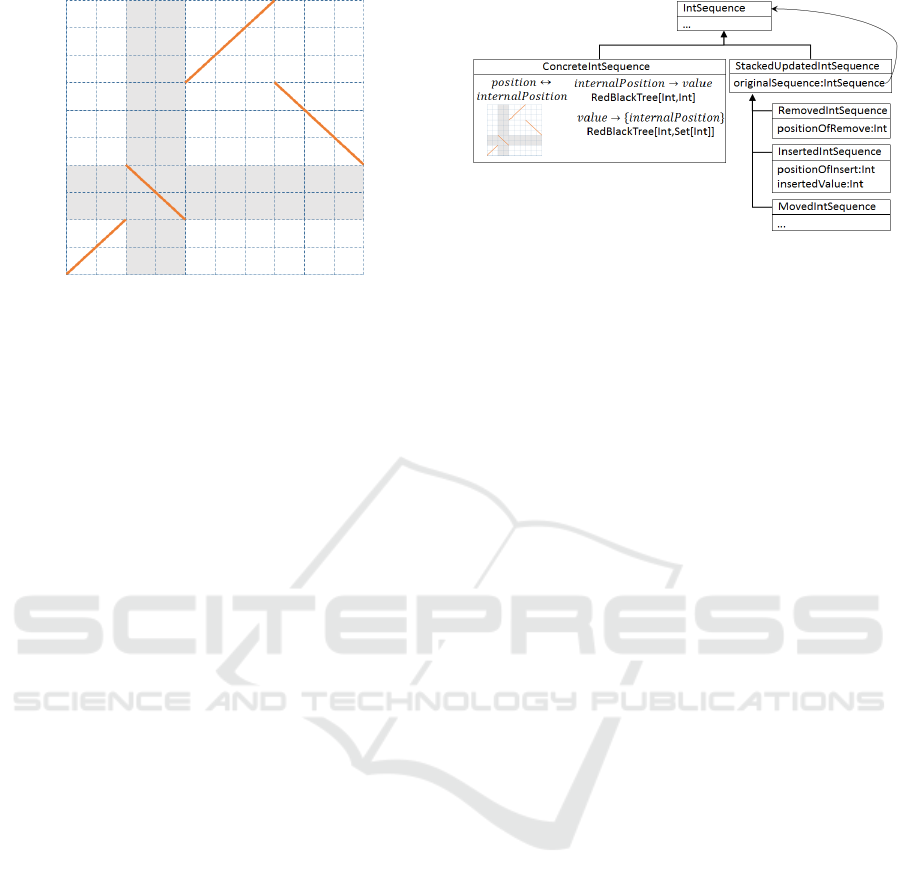

Figure 2: Illustrating the piecewise afﬁne bijection that

maps positions to internal positions.

number of afﬁne functions in the ﬁrst mapping. The

update procedure of this mapping ensures that the

number of afﬁne functions is minimal, in most cases.

This is how the requirement speed-move-taken is im-

plemented in our system.

To avoid a signiﬁcant increase of the number of

afﬁne segments in the ﬁrst mapping, it is bounded at

start-up to a maximal value. Whenever this value is

reached, a regularization operation is performed to

simplify the ﬁrst mapping to the identify function, and

correct the two potentially large red black trees of the

second mapping accordingly. The choice of this max-

imal k value is a key choice and will be investigated in

more detail later in this paper, both from the theoreti-

cal point of view of the resulting complexity and from

the practical point of view through some benchmarks.

The concrete representation and the stacked up-

dates are all implemented through non-mutable data

structures exclusively to comply with the requirement

immutable-value.

An illustration of the object actually created in

shown in Figure 3 in the case of a sequence with a

stacked delete update. It shows the internal structure

of the concrete sequence, with its bijection and the

two red black trees, and the stacked update represent-

ing the sequence where the value at a given position

has been deleted. They both implement the API of

IntSequence.

4.3 Checkpointing

Sequence variables support a notion of checkpoint

that serves the following purposes:

• notify invariants about the possibility to perform

pre-computation that they can exploit in order

to evaluate neighbour solutions in the context of

neighbourhood exploration. Neighbourhoods op-

erating on a sequence variable are therefore re-

quired to notify to the variable when they start

Figure 3: Architecture behind our sequence data structure.

a star-mode exploration and register the current

value as a checkpoint, and must release the check-

point after the exploration is completed.

• provide an operation “roll back to checkpoint”

to neighbourhoods, so that a neighbourhood can

simply invoke this update operation, and the vari-

able can reload the previous value in O(1) by re-

verting to the previous value (which is still stored

in the internal structure of the variable)

• provide a notiﬁcation message that the sequence

variable can send to the invariant to notify that

the value has been reverted to the latest declared

checkpoint. Invariants might be able to update

their output and/or internal state efﬁciently, know-

ing this high-level information.

The OscaR.cbls framework supports the cross-

product of neighbourhoods (De Landtsheer et al.,

2015). It is implemented by nesting one neighbour-

hood into another, with optional, user-speciﬁed prun-

ing. The check-pointing mechanism proposed here

must therefore support stacked checkpoints, so that

the outer and the inner neighbourhoods can both de-

clare their checkpoint and interact with the variable as

if they were operating alone.

We can distinguish three strategies for communi-

cating checkpoints between neighbourhoods and in-

variants. First, a transparent-checkpoint approach can

be used, where all checkpoint deﬁnition and release

are communicated to the listening invariant. Sec-

ond, only the topmost checkpoint is communicated,

third, only the latest checkpoint is communicated; ad-

ditional release instructions are inserted in this last

communication by the sequence variable to ensure a

coherent presentation of the checkpoint deﬁnition and

release. So far, Our system so far incorporates the

latest-checkpoint strategy.

To use this mechanism, neighbourhoods must ﬁrst

notify that they will explore around the current value

of the variable, setting it as a checkpoint, so that in-

variants are notiﬁed that they should perform their

pre-computations on this value. Then, the neighbour-

ICORES 2017 - 6th International Conference on Operations Research and Enterprise Systems

176

hood can perform its exploration by repeatedly mov-

ing to a neighbour solution, evaluating the objective

function, and performing a roll-back to the declared

checkpoint. When the exploration is completed, the

neighbourhood must release its checkpoint through a

dedicated method call.

This mechanism of checkpoint is not to be mixed

up with the one presented in (Van Hentenryck and

Michel, 2005). The checkpoints presented here aim

at performing pre-computation, making it possible to

reach the efﬁciency of what Comet calls differentia-

tion (Van Hentenryck and Michel, 2009).

4.4 The Sequence Variable and its Delta

To modify a sequence variable, neighbourhoods use

the update operations supported by the sequence

value. They can also specify a checkpoint to the vari-

able, and call a rollBackToCheckpoint to this deﬁned

checkpoint. These operations are available through

the API of sequence variables.

Upon propagation, a sequence variable notiﬁes its

update to all its listening invariants through dedicated

data structures representing the succession of updates

that have been performed on it since its previous prop-

agation, namely: a succession of insert, delete, seq-

move, and checkpoint deﬁnitions, starting up with a

roll-back to a deﬁned checkpoint, an assignment, or a

marker denoting the previously last notiﬁed value.

4.5 Complexity of Operations on

Sequence Values

The complexity of the main queries implemented on

sequence values are summarized in Table 1, where k

is the maximal number of afﬁne functions in the ﬁrst

mapping of the concrete sequence, and n is the length

of the sequence. It shows the cost on the concrete se-

quence as well as the additional cost for each stacked

update. Computing value at position if logarithmic

both in n and k while computing position at value is

less efﬁcient. Moving to the next value using an ex-

plorer is O(1) in amortized cost.

The complexity of the main update operations are

summarized in Table 2. The ﬁrst column shows the

complexity of quick updates. The second column

represent the complexities of the concrete updates

assuming that no regularization occurs. The third

column is the complexity of the concrete updates,

considering the amortized complexity of regulariza-

tion. The regularization operation has a complexity

of O(n ∗ log(k)), takes place at most every Ω(k) up-

dates, so it adds O(n ∗ log(k)/k) amortized complex-

ity. The regularization is not O(n ∗ log(n)) although

it requires rebuilding red black trees of size O(n) be-

cause the trees are built in a batch mode on already

sorted keys, thus in O(n). To compare with, the com-

plexities of these updates on a concrete representation

made of a single mapping through red black trees is

O(n) for each of these updates.

Concretely, in our implementation, the user can

control the value of k through a percentage of the ratio

k/n with a default value of 4%

The overall run time of a full-ﬂedged local search

solver is dominated by the cost of exploring neigh-

bours, and in a much smaller way, by the cost of

performing the moves and performing some pre-

computations. Pre-computations being performed by

the invariants, they are not considered here. If we

exclusively focus on the cost incurred by the data

structures, these amount to O(1) per neighbour, and

O(log(x) + log(k) ∗ (k + n/k)) (with x being n or k,

depending on the move), respectively.

Table 1: Time complexity of queries on a sequence value.

value at position positions of value explorer explorer.next

concrete O(log(n) O(#positions ∗ log(k) O(log(n) O(1) amortized

sequence +log(k)) +log(n)) +log(k))

added cost for O(1) O(#positions) O(1) O(1) amortized

each stacked update

Table 2: Time complexity of updates on a sequence value.

quick update concrete update concrete update

without regularization with amortized regularization

insert O(1) O(log(n) + k ∗ log(k)) O(log(n) + log(k ) ∗ (k + n/k))

delete O(1) O(log(n) + k ∗ log(k)) O(log(n) + log(k ) ∗ (k + n/k))

seq-move O(1) O(k ∗ log(k)) O(log(k) ∗ (k + n/k))

Supporting Efﬁcient Global Moves on Sequences in Constraint-based Local Search Engines

177

5 VALIDATING THE CONCEPT

OF SEQUENCE VARIABLE

This section validates our concept of sequence vari-

able by explaining how a few representative global

constraints or objective functions can be modelled

and beneﬁt from our state-of-the-art algorithms. We

focus on three examples, two of them are taken from

the context of vehicle routing problem: symmetric

constant routing distance, and node-vehicle restric-

tions. The last example is more generic: sequence

ﬂipping.

The routes of v vehicles are represented as a single

sequence of integers where each integer is present at

most once, and represent a node of the routing prob-

lem. Their start nodes are 0 to v−1 and should always

be in the sequence, and in this order. A vehicle implic-

itly comes back to its start node at the end of its route.

Figure 4 shows this encoding for a problem with 3 ve-

hicles and 9 nodes. Also, there is a convention that a

subsequence that is moved by a seq-move cannot in-

cludes a start node. All our routing neighbourhoods

have such behaviour.

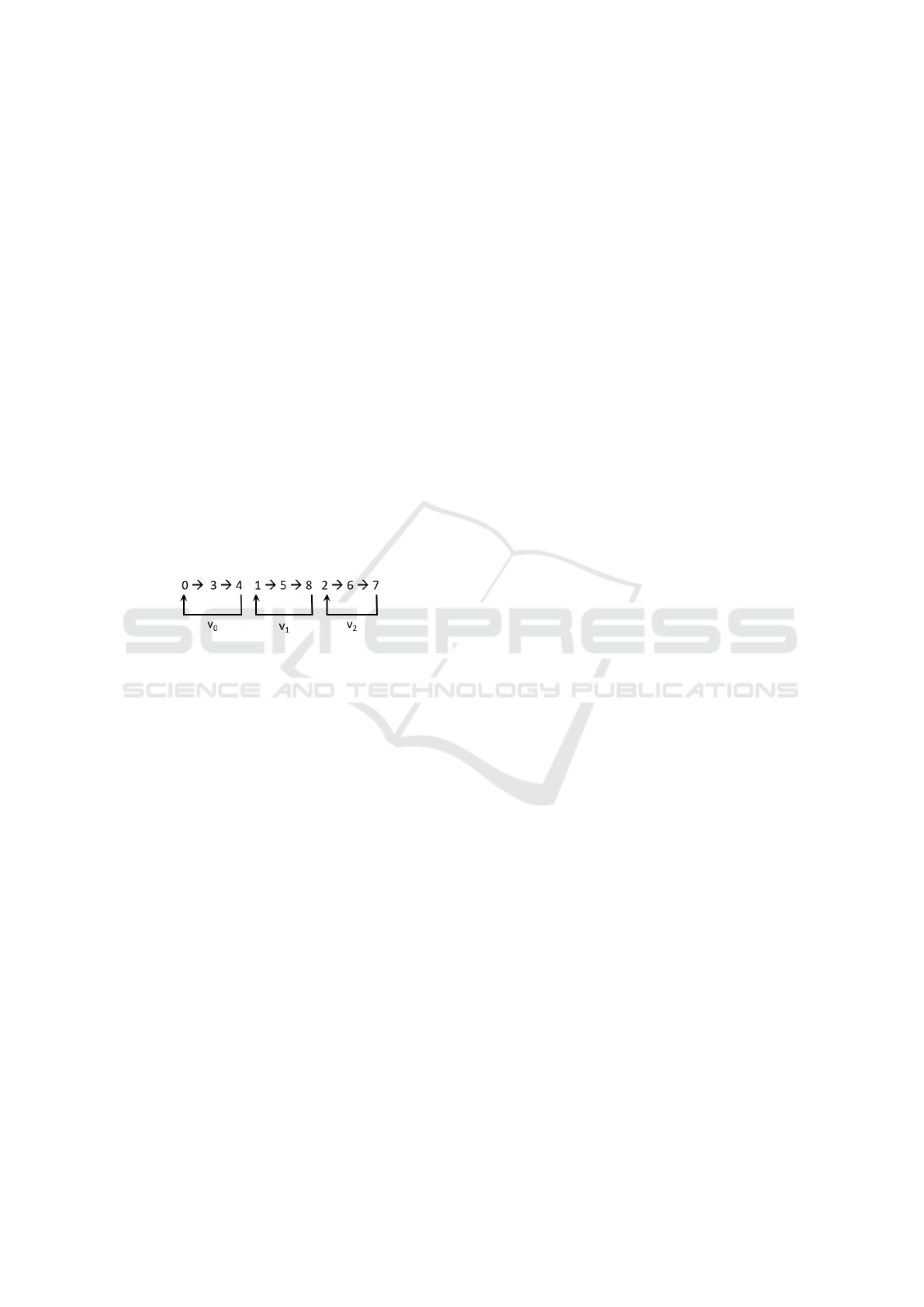

Figure 4: Encoding of a routing problem with three vehicles

using a single sequence.

The rationale for this representation is that moves

involving two vehicles can be performed efﬁciently

using our efﬁcient data structures since there is no

need to transfer data between two sequences.

5.1 Symmetric Constant Routing

Distance

Symmetric constant routing distance is an invariant

that maintains the total distance driven by all vehicles,

based on a distance matrix specifying the distance be-

tween each pair of node, knowing that this matrix is

symmetric. This metric is very frequent at least in

academic literature. It is also a classic example where

a global constraint can update its value in O(1) run

time against the classical routing neighbourhoods (1-

opt, 2-opt, 3-opt) (Glover and Kochenberger, 2003).

We illustrate it on the 2-opt only for conciseness and

consider a single vehicle.

Upon a two-opt move, the global constraint is no-

tiﬁed about a mode update, which is a simple ﬂip.

This update speciﬁes a start position and an end po-

sition in the sequence that are the start and end of

the ﬂipped segment. From these value, it is able to

compute the delta on the global distance driven by the

considered vehicle since it only is impacted by the

changes at the extremities of the ﬂipped segment.

5.2 Node-vehicle Restriction

Given a number of atomic constraints specifying for-

bidden couples (node; vehicle), a global constraint for

node-vehicle restrictions maintains a degree of viola-

tion, i.e. the number of such couples that occur in

the current routes. A fundamental observation is that

the violation degree only changes when nodes are in-

serted, deleted or when a segment of route is moved

from one vehicle to another one. We focus on the last

move exclusively as the two others are trivial.

This invariant relies on pre-computation to evalu-

ate such moves efﬁciently. The pre-computation pro-

cess examines the routes at the checkpoint, and dec-

orates each step of each route with a map relying

each vehicle to number of nodes since the start of the

route that cannot be reached by this vehicle, accord-

ing to given individual constraints. Evaluating a move

that moves a segment from one vehicle to another

one requires counting the number of nodes within the

moved segment that cannot be reached by the vehicle

from which the segment is removed, and the number

of such nodes that cannot be reached by the vehicle to

which the segment is moved. These two values can be

obtained in O(log(v)) from the pre-computed values,

since we need to identify the vehicles involved by the

moves.

5.3 Sequence Flipping

This invariant maintains an output sequence variable

to be the ﬂipped value of an input sequence variable.

It is not speciﬁcally related to routing and clearly

demonstrates the ﬂexibility of our framework. This

invariant is implemented by translating the moves on

the input sequence variable into moves operated on

the output sequence variable. It mainly requires trans-

lating all indices i appearing in notiﬁcation messages

received from the input sequence variable by trans-

forming them into length − i when the message are

forwarded to the output sequence variable.

6 BENCHMARKING

This section presents a benchmark to illustrate the ef-

ﬁciency of sequence variables and the impact of the k

factor of our sequence of integers.

The benchmark exclusively focuses on this vari-

able; run times are to be considered with the greatest

ICORES 2017 - 6th International Conference on Operations Research and Enterprise Systems

178

care since they are heavily dependent on the search

procedure in use. The latter is under the responsibil-

ity of the OR practitioner.

The benchmark is a VRP with 100 vehicles and

various numbers of nodes on a symmetric distance

matrix and no other constraint. The total distance

driven by all vehicles must be minimized. The prob-

lem roughly declares as follows, using various bricks

of our framework:

v a l r o u t e s =

CBLSSeqVar (m, 0 t o v−1, n −1 ,

KNFacto r )

v a l t o t a l D i s t a n c e =

C o n s t a n t R o u t i n g D i s t a n c e ( r o u t e s , v ,

s y m m e t r i c D i s t a n c e M a t r i x )

v a l o b j = t o t a l D i s t a n c e

+ 1 00 00 ∗( n − S i z e ( r o u t e s ) )

It starts with no node routed, and uses a mix of in-

sert point, one point move, two opt and three opt with

various parameters. An important parameter of these

neighbourhood is a w factor; when considering neigh-

bour nodes, only the w nearest one are considered by

the neighbourhood. For the sake of completeness, the

search procedure is given here below. It is instan-

tiated using neighbourhood combinators (De Landt-

sheer et al., 2015). It combines different classical

VRP neighbourhoods using a variant of hill climbing,

and ends up with tree opt neighbourhood with a larger

w factor.

v a l s e a r c h =

B e s t S l o p e F i r s t (

I n s e r t P o i n t U n r o u t e d F i r s t (w= 1 0 ) ,

I n s e r t P o i n t R o u t e d F i r s t (w=1 0 ) ,

on ePo int Mo ve (w= 1 0) ,

twoOpt (w= 2 0 ) ,

t h r e e O p t (w= 1 0 ) )

e xh a us t t h r e e O p t (w=20 )

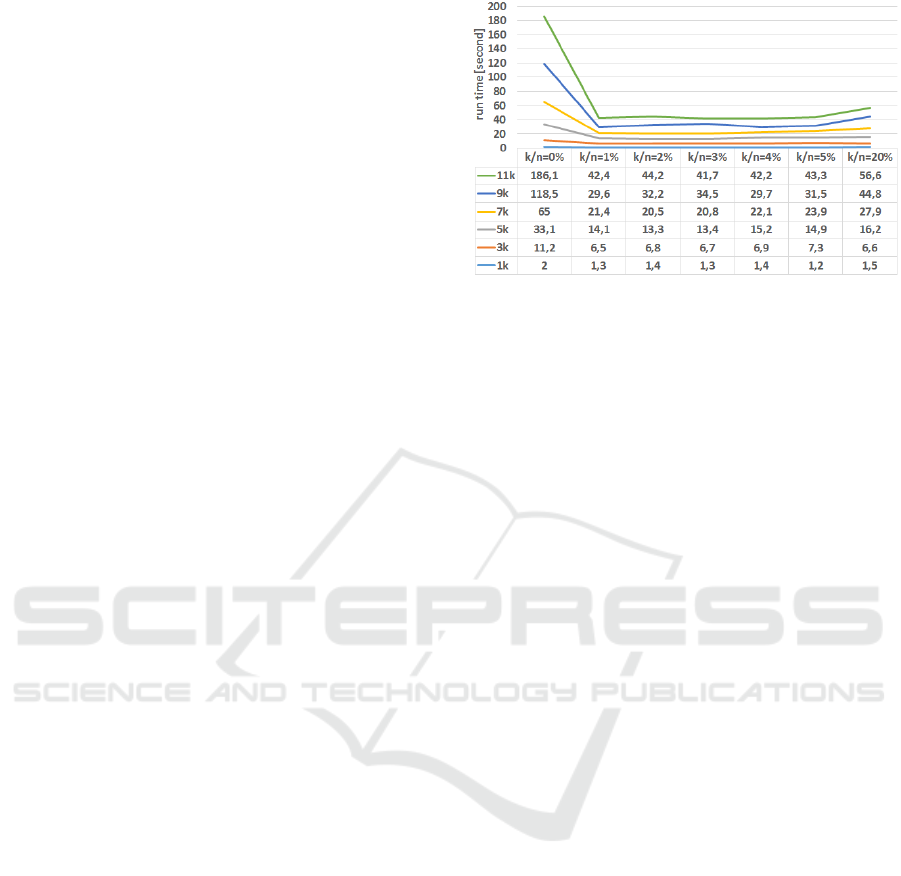

Figure 5 shows the run time of the optimization

engine for various values of the k/n percentage. Each

curve reports on a set of benchmark performed with

a given value for n, ranging from 1k to 11k by step

of 2k. The runs have been performed three times, and

the median value is reported. The benchmarks have

been executed on a laptop with Intel Core i7 2.3GHz

with 16Go of RAM, and 4 Gb allocated to the Java

Runtime Environment.

On this diagram, we clearly see the impact of the

k/n percentage on the run time. A value of zero

is clearly suboptimal; it actually disables the system

of piecewise afﬁne bijection presented in Section 4.

Above 1, the impact of this factor on the run time

reaches a plateau. Efﬁciency decreases again if the

k/n ratio gets too large; a sample value of 20 is il-

Figure 5: Run time (in seconds) vs. various values of k/n

for various values of n.

lustrated. Another phenomenon to be noted is that

the impact of this mechanism grows with the size of

the considered problem; this is probably due to the

non-linear nature of the complexities, as presented in

Section 4.5. A last phenomenon that is clearly visi-

ble on the ﬁgure is that all curves seem to experience

the same behaviour at the same value, although this

is possibly due to the coarse steps used in the bench-

mark. This is an indication that controlling the k via a

ratio k/n is an adequate approach.

7 CONCLUSION

This paper presented an implementation of variables

of type “sequence of integers” that is suited for declar-

ative local search frameworks that manipulate con-

cepts such as variable and invariants, also known as

Constraint-Based Local Search. The goal is to efﬁ-

ciently represent and apply global moves such as the

ones applied in vehicle routing, and to communicate

such moves in a concise way to invariants, so that they

can apply efﬁcient global algorithms.

A very important open issue to validate our work

is to perform comparative benchmark between our ap-

proach and other implementations. Such benchmark

is however not easy to set up since similar tools men-

tioned in the background use different models and dif-

ferent search procedure with different trade-offs be-

tween seed and optimality. The efﬁciency of such tool

is somehow the product of the efﬁciency of the model

and the efﬁciency of the search procedure.

Having deﬁned the possible updates to sequence

values, and a few global invariants, our next step will

be to extend our library of invariants with additional

global invariants operating on sequences. The trav-

elling delivery man metrics deﬁned in (Mladenovi

et al., 2013) is an example of relevant global con-

straints that can be added to our framework. Such

Supporting Efﬁcient Global Moves on Sequences in Constraint-based Local Search Engines

179

extension will be of course tailored to our API, which

will force us to have quite generic implementations

that can operate on any neighbourhoods, since they

express their moves through the sequence API. Sim-

ilarly, an appropriate set of generic neighbourhoods

operating on sequences must also be proposed to

make this sequence variable fully usable. So far, only

routing neighbourhoods have been implemented.

Our sequence variable features a checkpoint

mechanism that is useful for global constraints to per-

form pre-computations. As discussed above, there are

several policies on how to manage such checkpoints.

Our framework only implements one of these poli-

cies, but other policies can be added to the engine. Be-

sides, this mechanism is restricted to sequence vari-

ables. It should be made pervasive in the model, so

that invariants with other type of variables could also

perform such pre-computations.

This new variable type will be included in the

CBLS engine of OscaR 4.0 to be released in Spring

2017 (OscaR Team, 2012). With this additional

type of variable, we hope that OscaR.cbls will be

even more appealing both to users that beneﬁt from

highly efﬁcient global constraints in a declarative lo-

cal search engine, and to researchers who aim at de-

veloping new global constraints and will beneﬁt from

the whole environment of OscaR.cbls, so they can fo-

cus on their own contribution. This implementation

will also offer a common benchmarking environment

to compare the efﬁciency of e.g. global constraints

within a standard setting.

ACKNOWLEDGEMENTS

This research was conducted under the SAMOBI

CWALITY research project from the Walloon Region

of Belgium (grant number 1610019).

REFERENCES

Abdulla, P. A., Atig, M. F., Chen, Y.-F., Hol

ık, L., Rezine,

A., R

ummer, P., and Stenman, J. (2015). Norn: An

SMT Solver for String Constraints, pages 462–469.

Springer International Publishing, Cham.

Benoist, T., Estellon, B., Gardi, F., Megel, R., and Nouioua,

K. (2011). Localsolver 1.x: a black-box local-search

solver for 0-1 programming. 4OR, 9(3):299 – 316.

ordal, G. (2016). String variables for constraint-based

local search. Master’s thesis, UPPSALA university.

Croes, G. A. (1958). A method for solving traveling sales-

man problems. Operations Research, 6:791–812.

De Landtsheer, R., Guyot, Y., Ospina, G., and Ponsard, C.

(2015). Combining neighborhoods into local search

strategies. In Proceedings of MIC’2015.

De Landtsheer, R. and Ponsard, C. (2013). Oscar.cbls :

an open source framework for constraint-based local

search. In Proceedings of ORBEL’27.

De Moura, L. and Bjørner, N. (2008). Z3: An efﬁ-

cient SMT solver. In Proc. of the Theory and Prac-

tice of Software, 14th Int. Conf.on Tools and Algo-

rithms for the Construction and Analysis of Systems,

TACAS’08/ETAPS’08.

Di Gaspero, L. and Schaerf, A. (2003). EASYLOCAL++:

an object-oriented framework for the ﬂexible design

of local-search algorithms. Software: Practice and

Experience, 33(8):733–765.

Fu, X., Powell, M. C., Bantegui, M., and Li, C.-C. (2013).

Simple linear string constraints. Formal Aspects of

Computing, 25(6):847–891.

Ganesh, V., Kie

zun, A., Artzi, S., Guo, P. J., Hooimeijer,

P., and Ernst, M. (2011). HAMPI: A String Solver for

Testing, Analysis and Vulnerability Detection, pages

1–19. Springer Berlin Heidelberg, Berlin, Heidelberg.

Glover, F. and Kochenberger, G. (2003). Handbook of

Metaheuristics. International Series in Operations Re-

search & Management Science. Springer US.

Mladenovi

c, N., Uro

sevi

c, D., and Hanaﬁ, S. (2013). Vari-

able neighborhood search for the travelling delivery-

man problem. 4OR, 11(1):57–73.

Newton, M. A. H., Pham, D. N., Sattar, A., and Maher, M.

(2011). Kangaroo: an efﬁcient constraint-based local

search system using lazy propagation. In Proceedings

of CP’11, pages 645–659.

OscaR Team (2012). OscaR: Operational research in

Scala. Available under the LGPL licence from

https://bitbucket.org/oscarlib/oscar.

Pralet, C. and Verfaillie, G. (2013). Dynamic online plan-

ning and scheduling using a static invariant-based

evaluation model. In ICAPS.

Savelsbergh, M. W. P. and Sol, M. (1995). The general

pickup and delivery problem. Transportation Science,

29:17–29.

Schrijver, A. (2005). On the history of combinatorial opti-

mization (till 1960). In K. Aardal, G. N. and Weisman-

tel, R., editors, Discrete Optimization, volume 12 of

Handbooks in Operations Research and Management

Science, pages 1 – 68. Elsevier.

Scott, J., Flener, P., and Pearson, J. (2015). Constraint solv-

ing with bounded string variables. In Michel, L., ed-

itor, CP-AI-OR 2015, volume 9075 of LNCS, pages

373–390. Springer.

Van Hentenryck, P. and Michel, L. (2005). Control abstrac-

tions for local search. Constraints, 10(2):137–157.

Van Hentenryck, P. and Michel, L. (2009). Constraint-based

Local Search. MIT Press.

ICORES 2017 - 6th International Conference on Operations Research and Enterprise Systems

180
