Modelling Behavioural Requirements and Alignment with Veriﬁcation in

the Embedded Industry

Grischa Liebel

1,2

, Anthony Anjorin

, Eric Knauss

1,2

, Florian Lorber

and Matthias Tichy

Chalmers University of Technology, Gothenburg, Sweden

University of Gothenburg, Gothenburg, Sweden

Universit

at Paderborn, Paderborn, Germany

Aalborg University, Aalborg, Denmark

University of Ulm, Ulm, Germany

Keywords:

Requirements Modelling, Veriﬁcation, Test Case Generation, Empirical Software Engineering, Model-based

Engineering, Model-Driven Engineering.

Abstract:

Formalising requirements has the potential to solve problems arising from deﬁciencies in natural language

descriptions. While behavioural requirements are rarely described formally in industry, increasing complexity

and new safety standards have renewed the interest in formal speciﬁcations. The goal of this paper is to explore

how behavioural requirements for embedded systems can be formalised and aligned with veriﬁcation tasks.

Over the course of a 2.5-year project with industry, we modelled existing requirements from a safety-critical

automotive software function in several iterations. Taking practical limitations and stakeholder preferences

into account, we explored the use of models on different abstraction levels. The ﬁnal model was used to

generate test cases and was evaluated in three interviews with relevant industry practitioners. We conclude

that models on a high level of abstraction are most suitable for industrial requirements engineering, especially

when they need to be interpreted by other stakeholders.

1 INTRODUCTION

Requirements Engineering (RE) has a substantial im-

pact on the success of software projects (Procac-

cino et al., 2002). Using natural language to spec-

ify requirements poses numerous challenges includ-

ing avoiding ambiguity, inconsistencies, and contra-

dictions. Perhaps even more problematic is the task of

keeping such informal requirements in sync with cor-

responding acceptance tests and implementation arte-

facts. Textual natural language requirements speciﬁ-

cations are, nonetheless, still the norm in the embed-

ded industry (Sikora et al., 2011; Graaf et al., 2003).

A viable approach with the potential to solve at

least some of these problems is to replace informal

requirements with formal models, e.g., to enable au-

tomated analyses such as consistency checks and test

generation. Although expressing requirements as for-

mal models has been studied for a long time, e.g., in

(Lubars et al., 1993), widespread adoption of formal

methods in industry has not yet been achieved (Wood-

cock et al., 2009). Increasing complexity and new

standards have, however, led to renewed interest in

model-based requirements engineering in industry, as

seen with joint industry-academia projects targeting

model-based requirements engineering, such as CE-

SAR (CESAR Project, 2011) or CRYSTAL (CRYS-

TAL Project, 2013). To improve the adoption of for-

mal requirements models in industry, we report in

this paper on our experience in an industry-academia

project with the aim of exploring requirements mod-

elling. Our work was guided by the following two

research questions.

RQ1: How can formal models be used to capture

real-world requirements?

RQ2: Do formal models for requirements provide

added value in practice? What are the challenges

involved?

Over the course of 2.5 years, we created several

formal models of the requirements of a safety-critical

Adjustable Speed Limiter (ASL) function from a real-

life automotive requirements speciﬁcation. One of

the models was used for the automated generation of

Liebel G., Anjorin A., Knauss E., Lorber F. and Tichy M.

Modelling Behavioural Requirements and Alignment with Veriﬁcation in the Embedded Industry.

DOI: 10.5220/0006205604270434

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 427-434

ISBN: 978-989-758-210-3

427

test cases, which we compared to existing, manually

speciﬁed test cases, provided by our industrial part-

ner. We complement our own reﬂections with data

collected in multiple interviews and workshops con-

ducted together with relevant professionals at our in-

dustrial partner. While we explored different formal

notations, we report here on the use of timed automata

(TA) (Alur and Dill, 1994) only, as most resources

were spent on creating these models.

2 RESEARCH METHOD

The study presented in this paper follows the de-

sign science research paradigm, roughly following the

guidelines of Wieringa (Wieringa, 2014) to structure,

plan, and execute the study. The two main activities in

design science research are the design and the inves-

tigation of an artefact in its context (Wieringa, 2014).

These activities take place in two iterative cycles, the

design cycle and the evaluation cycle. The outcome of

each iteration is an evaluated artefact, a requirements

model in the case of our study.

The design problem in our case was to create for-

mal models of existing requirements that correctly

represent these and enable further analyses. For

each of the iterations, the corresponding knowledge

questions were therefore “Does the artefact (require-

ments model) correctly represent the textual require-

ments?” and “What kind of analyses are enabled by

the model?”.

Our investigation was exploratory in nature. The

project sponsor rather wanted us to sketch different

solutions and possibilities using formal requirements

models.

The context of the design science project is the

current process at the case company, an automotive

original equipment manufacturer (OEM), and a pro-

vided demonstrator system. Furthermore, the align-

ment of RE with veriﬁcation was identiﬁed as an im-

portant aspect during initial discussions.

In this study, the model resulting from each itera-

tion apart from the ﬁnal iteration was evaluated ana-

lytically, without collecting empirical evidence. That

is, we evaluated whether we succeeded in express-

ing the entire textual requirements speciﬁcation as a

model or not. Furthermore, the models were dis-

cussed multiple times in presentations with experts

from the case company. The focus of these discus-

sions was mainly to evaluate the adequacy and to plan

the direction for future iterations.

The ﬁnal artefact was evaluated empirically using

three interviews with veriﬁcation engineers at the case

company. The focus of this ﬁnal evaluation was on

the interaction of the produced artefact with its con-

text. That is, whether the artefact was appropriate in

terms of abstraction, modelling notation, and enabled

analyses, for an industrial application.

2.1 Validity Threats

We applied several measures in order to reduce the

threats to validity in this study as much as possible.

To avoid misinterpretation of concepts and inter-

viewer bias, we discussed and reﬁned the interview

guide

for the ﬁnal iteration among the authors and

conducted one pilot interview.

Selection threats cannot be ruled out as poten-

tial interviewees were selected from our network and

the network of contact persons at the case company.

While this is a potential threat to validity, the inter-

viewees participated on a voluntary basis and were

granted anonymity.

Design science instead aims at middle-range gen-

eralisations (Wieringa, 2014), which only make real-

istic assumptions about the object of study. As the

case company selected a demonstrator system which

they deemed representative for the case company, we

expect that our ﬁndings apply to the context of the au-

tomotive domain. However, the low number of evalu-

ation interviews could further limit this generalisabil-

ity.

3 ADJUSTABLE SPEED LIMITER

The Adjustable Speed Limiter (ASL) is an active

safety function of an automobile that automatically

adjusts the current vehicle speed to keep to a target

speed set by the user and can be overridden using the

kickdown pedal. The function is part of the cruise

control functionality that controls the engine and the

brakes of a vehicle.

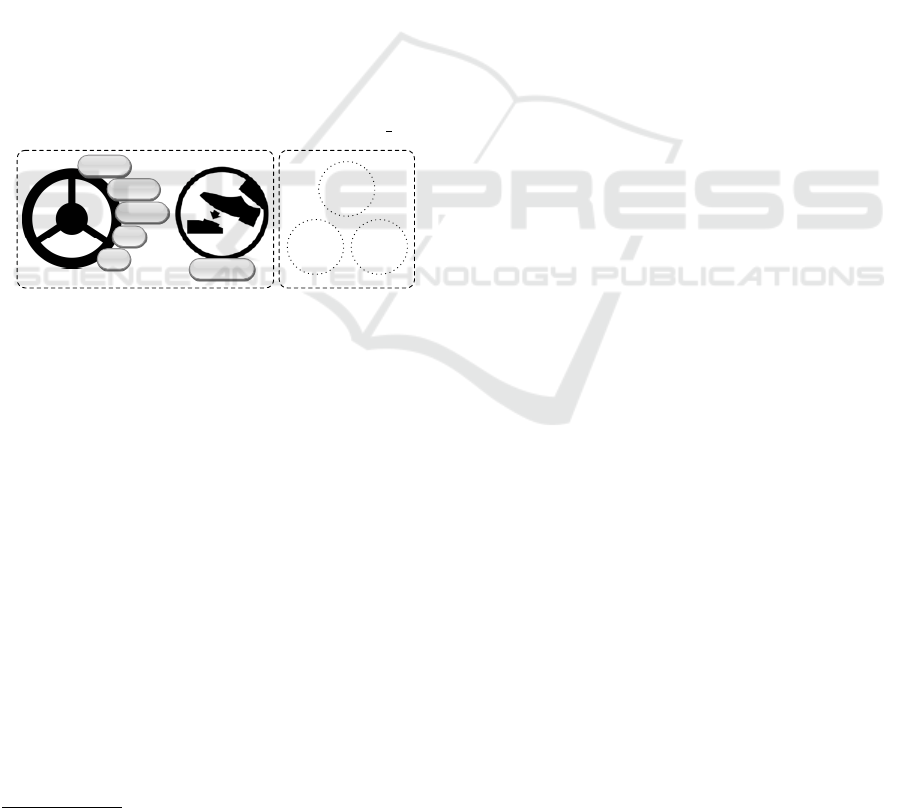

A schematic overview of the controls and vari-

ables of the function is depicted in Fig. 1. Typical

controls comprise a series of buttons that can be at-

tached to the steering wheel (depicted schematically

to the left of Fig. 1 as buttons Off, Resume, Preset,

+, and - on the steering wheel), as well as ﬁrmly de-

pressing the accelerator pedal (depicted schematically

to the left of Fig. 1 as a so called kickdown action).

A set of variables (depicted to the right of Fig. 1

as a rectangle containing dotted circles) is used by

the ASL function to store: the current vehicle speed

current, the currently set target speed set, and a pre-

set value for the target speed preset. The expected

The interview guide is available at http://

grischaliebel.de/data/research/LAKLT ModTCG.zip.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

428

behaviour of the ASL is informally speciﬁed in the

following with these controls and variables:

• Pressing Off deactivates the ASL.

• Pressing Resume activates the ASL, which imme-

diately starts adjusting the current vehicle speed to

keep to the target speed. If the target speed set is

0, however, the current vehicle speed current is

ﬁrst assigned to set before the ASL is activated.

• Pressing Preset has a similar effect, i.e., it acti-

vates the ASL, only that a preset speed preset is

assigned to the target speed set before the ASL is

activated.

• Pressing + (-) either activates the ASL with the

current vehicle speed current as target speed

or, when the ASL is already active, increments

(decrements) set.

• Finally, the ASL can be temporarily deactivated

by ﬁrmly depressing the accelerator pedal, re-

ferred to as a kickdown. This function is used,

e.g., to temporarily taking control of the vehicle

speed for overtaking another vehicle. A kickdown

deactivates the ASL and starts a counter. The ASL

is automatically reactivated after a timeout t max.

Resume

Preset

Off

Kickdown

current

set

preset

current

presetset

Figure 1: Events users can trigger (left) and variables of the

system (right).

For our work on the ASL case study, we were pro-

vided with the following documents by our industrial

partner:

1. A textual requirements speciﬁcation for the ASL

subsystem in the same detail as would be provided

to a supplier. This speciﬁcation consisted of 50

pages containing 40 functional (design) require-

ments and numerous requirements describing le-

gal constraints and conﬁguration options.

2. A set of 52 manual

system tests, developed man-

ually to test the ASL function.

3. Presentations and other high-level documentation

of the ASL function.

4 RESULTS

In the course of the project we speciﬁed multiple

This means the tests must be executed manually.

models representing the same requirements but on

different levels of abstraction. Changing the level of

abstraction was mainly driven by our and our stake-

holders’ needs.

4.1 Analyses with Uppaal

With the help of numerous clariﬁcations with a do-

main expert at our industrial partner, we were able to

formalise the provided requirement speciﬁcation as a

network of timed automata. Our primary goal with

this step was to represent the requirements as faith-

fully as possible, without any simpliﬁcations. This

was indeed possible using timed automata as sup-

ported by Uppaal, and resulted in a relatively low-

level network consisting of 13 automata with a total

of 43 states in all automata. While we aimed for hav-

ing a one-to-one mapping between requirements and

single timed automata, this was not always possible

or feasible. For example, requirements addressing the

deactivation of the ASL system had to be incorporated

into all automata addressing ASL activation, as they

had to return to their initial states.

Although our results indicate that timed automata

as a formalism was expressive enough to capture

exactly what was informally speciﬁed, the resulting

model was complex and could not be used for any

manual checks including manual reviews and inspec-

tions to check for conformance. This was mainly due

to the large amount of system and external environ-

ment variables that had to be provided and under-

stood, e.g., the different engine and vehicle states.

Apart from having a high complexity in itself,

the resulting model required a suitable environment

model in order to be simulated properly. For example,

information about the automobile being switched on

or off would have been needed. The fact that we did

not have such a model made the requirements model

difﬁcult to use for automated checks. This is an inter-

esting observation for industrial practice as well, as

a supplier would lack environment information in a

similar fashion.

To simplify communication within our team and

make progress towards other goals, we derived a fur-

ther network of timed automata on a medium level of

abstraction.

The medium-level model we obtained consisted of

8 automata and 15 states, and was now better suited

for manual and semi-automated tasks, which require

a deep understanding of the modelled functionality.

We performed semi-automated conformance checks

using the test cases we had, by implementing a simu-

lator in Uppaal by additionally specifying an environ-

ment model.

Modelling Behavioural Requirements and Alignment with Veriﬁcation in the Embedded Industry

429

4.2 Manual Inspection

To achieve our goal of checking the adequacy of the

provided tests, we derived a ﬁnal, high-level model

of the requirements, this time as a single timed au-

tomaton with only three states. Concerning consis-

tency, we were able to perform manual inspections

and reviews in the team, discussing how exactly the

requirements are to be interpreted and identifying par-

ticularly confusing aspects. This iterative review and

reﬁnement process identiﬁed two issues that were ver-

iﬁed as outdated aspects of the requirements by our

industrial partners.

4.3 Manual Conformance Checks

We were able to manually test the conformance of

our high-level model to the provided tests by convert-

ing the tests to the same formalism as the high-level

model (effectively formalising the test cases as timed

automata). To do this, however, we had to exclude

all tests that covered aspects abstracted away in our

model and were left with 9 tests from an initial 52

. As a comparison, 18 tests could be executed on our

medium-level model, 40 tests on our low-level model,

and 12 tests were entirely out of scope of our require-

ments speciﬁcation, as they addressed parts not cov-

ered in the provided requirements speciﬁcation, e.g.,

GUI elements.

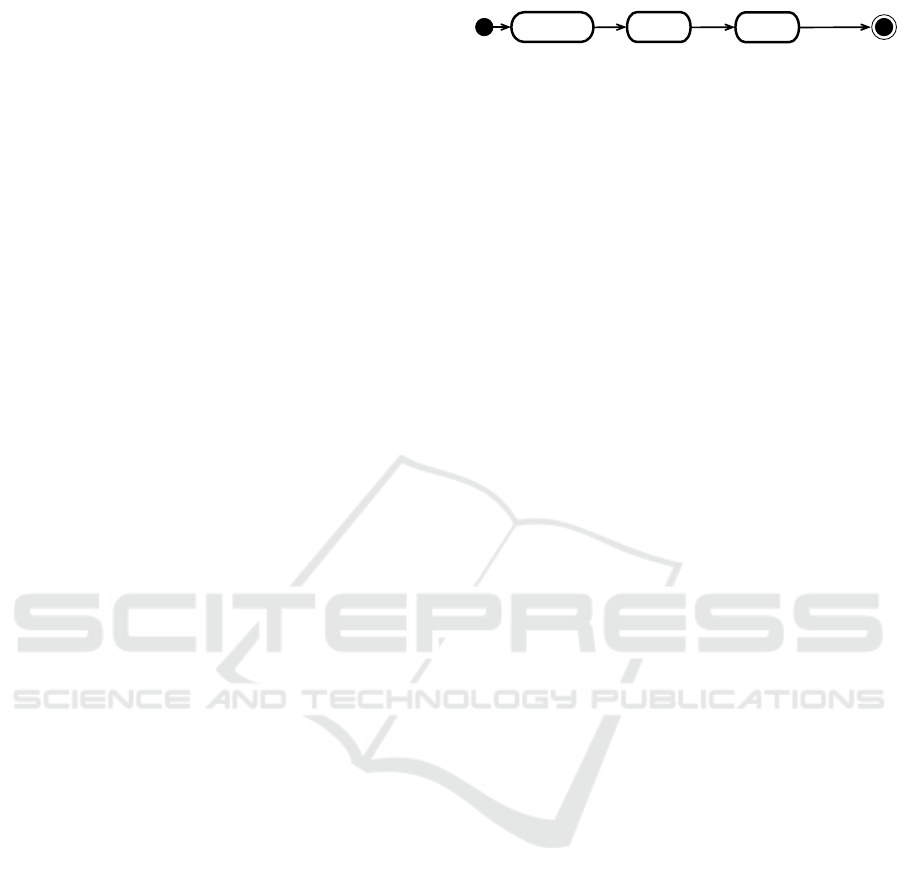

Figure 2 depicts one of these 9 provided tests, test-

ing in this case a combination of + and Preset. The

test is also depicted in the UML statechart visual con-

crete syntax and is to be interpreted as follows: the

states are expected states of the System Under Test

(SUT), i.e., if these states do not match then the test

fails. This means that a precondition of the test is that

the SUT is deactivated. Events in the test are stimuli

for the SUT, e.g., the event + simulates a user press-

ing the + button (and the SUT is expected to tran-

sition to Limiting). Conditions such as [set ==

preset] are assertions on the variables of the SUT.

A test passes if it reaches the ﬁnal state PASS and fails

otherwise (a suitable timeout is used to enforce termi-

nation).

In this manner, we were able to manually verify

that our high-level model conforms to at least these 9

tests. Via this manual conformance check, we were

able to identify and correct “mistakes” in our model,

mainly due to a mismatch between tests and require-

ments, which could also be veriﬁed by our industrial

partners.

Limiting

Preset [set == preset]

Limiting

PASS

Deactivated

Figure 2: High-level model of a provided test case.

4.4 Mutation-based Test Generation

Our ﬁnal high-level model was not only simple

enough to enable manual inspections and confor-

mance checks, but could also be handled by Mo-

MuT::TA and used for mutation-based test genera-

tion. Mutation-based test generation involves the cre-

ation of a set of intentionally faulty models, called

mutants, according to a set of fault models. Traces

that lead to situations in which the mutants behave

differently than the original model are then searched

for, and test cases are generated based on these traces.

The resulting test suite guarantees the absence of the

inserted faults, if they run through on a deterministic

SUT.

We performed mutation-based test case genera-

tion using MoMuT::TA as follows:

1. After ﬁltering and formalising all tests that could

be run for the high-level model, this set of tests

was used as an initial “seed” for MoMuT::TA.

This means that the tool is forced to start from

this possibly sub-optimal set of tests and generate

additional tests to achieve full coverage of all mu-

tants. By also performing the test case generation

without the initial seed, one can create a minimal

set of test cases and thus detect whether some of

the initial tests are redundant.

2. The high-level model was supplied to Mo-

MuT::TA as the input model and used to generate

a set of mutants. Note that this set of mutants was

based on general experience with test case gener-

ation and not on speciﬁc domain knowledge of the

case study.

3. In our case, MoMuT::TA classiﬁed all 9 provided

tests as necessary, and generated an additional 11

tests to achieve full coverage (to kill all generated

mutants).

4. We then inspected these additionally generated 11

tests and their corresponding mutants manually,

compared them with the initially provided 9 tests,

and attempted to understand why they were nec-

essary.

From our comparative analysis, we determined

that the generated tests were largely of comparable

size and complexity as the provided, manually spec-

iﬁed tests, and we were able to identify three main

sources of additionally generated tests:

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

430

Self-transitions in the Timed Automata. Self-

transitions were implicit in the requirements and were

not tested explicitly, i.e., were completely missing in

the provided tests. The additionally generated tests

for such transitions appear useful and sensible, and

the corresponding mutants represent interesting, test-

worthy cases. 6 tests were generated in total as a result

of such explicit self-transitions in the model.

Missing Combinations. An additional 3 tests were

generated due to missing combinations of certain

events that were simply not covered by the provided

tests. Note that our test generation approach is not

combinatoric, i.e., we did not employ a brute force

combination of all possibilities. This means that in

all 3 of these cases, we could always inspect the cor-

responding mutant to understand why this particular

combination was chosen by the test case generator.

Missing Tests. The 2 remaining tests were gener-

ated for elements in the model that were simply not at

all covered by any provided test. Again the potential

of automatically reacting to changes in the require-

ment model is to be noted here, and not the particular

aspects identiﬁed as being missing.

5 EVALUATION

In order to evaluate the resulting TA model and the

generated tests with respect to suitability for industrial

use, we conducted three semi-structured interviews

with professionals at the industrial partner. As the in-

terviewees needed to be able to compare the model

and the generated tests to the current baseline, we

chose subjects from the area of veriﬁcation on sys-

tem level. The interviews were aimed at answering

the following interview questions which together ad-

dress our second research question RQ2:

IQ1. What would be the potential of model-based re-

quirements and of test case generation to the case

company?

IQ2. Are the tests generated from the TA model com-

parable to existing manual tests?

IQ3. What would be the primary challenges involved

in introducing this technique at the case company?

Interviews started with a short introduction of our

activities, the resulting TA model, and the generated

tests. The remaining questions were grouped into

three categories addressing the generated tests (IQ2),

model-based requirements in general (IQ1 and IQ3),

and the usefulness of potential features of test case

generation for industry (IQ1 and IQ3).

5.1 Potential of Model-based

Requirements and Test Case

Generation

All interviewees stressed that the presented approach

of formalising requirements in an abstract automata

model is highly interesting and relevant to the case

company. One interviewee stated that replacing natu-

ral language requirements with models is “Something

I’m actively working towards today. But it takes a lot

of convincing.”. Similarly, another interviewee stated

“As long as you can create logical requirements, such

a model should be the solution.”.

While we expected the abstract timed automata

model, which we used to generate tests, to be much

too simple and lacking too much information, all in-

terviewees stated that this level of abstraction is in-

deed relevant and useful for system testing. Further-

more, one interviewee mentioned that the existing

manual system tests might even be too detailed, as

they are derived from design requirements and there-

fore contain lots of additional information.

5.2 Generated vs. Manual Tests

Regarding the tests addressing self-transitions in the

automata model, the interviewees stated that these

could be relevant for regression testing. However,

they would have to be automated in order to reduce

the testing effort and would probably not be priori-

tised if test execution must be performed manually. In

fact, multiple interviewees stated that the case com-

pany had such tests in the past, but removed them

due to time constraints once the system became sta-

ble. They all agreed that once test execution can be

fully automated, this class of tests would indeed add

value and should be incorporated again into the test

suite.

The second class of generated tests, combinations

of behaviour tested in the manual tests, was eval-

uated differently by the interviewees. While they

found them generally useful, one interviewee stated

that many of these combinations are tested indirectly

due to setup routines. For example, a test case might

require the ASL function to be active, which requires

a setup that activates this function ﬁrst. Such a setup

followed by a test case could then be equivalent to one

of the “missing” combinations.

The third class of tests, functionality not at all

tested in the manual tests, was considered very use-

ful by the interviewees. Even though we pointed out

that some of these missing tests might have been re-

moved due to our abstraction, interviewees stated that

especially the feedback that such a test is missing is

Modelling Behavioural Requirements and Alignment with Veriﬁcation in the Embedded Industry

431

useful. Given this information, veriﬁcation engineers

can then judge whether it needs to be added, is already

covered on a lower level of abstraction, or is not rele-

vant.

Regarding the issues we found with the existing

requirements and system tests, interviewees stated

that they were all well aware that requirements can

be wrong or outdated. One interviewee stated: “We

report everything that we think is bad with the re-

quirements. But since it is a huge amount of issues,

it is difﬁcult to handle them all.”. However, another

interviewee added that ﬁnding these issues could be

useful as it is difﬁcult to identify such mismatches

between tests and requirements “if you only look at

high-level requirements”. You would instead need to

consider “all (detailed) requirements together and see

the whole picture”. Essentially, this quote describes

very well the process we went through in the different

iterations.

One interviewee stated that visualising mutants

that are killed by a test case (which faulty behaviour

it tests) could be very useful in the context of safety-

critical functions. Test cases could then be ranked

according to severity, e.g., according to the critical-

ity level of the tested function. This could help when

prioritising requirements, for coverage analysis, and

for choosing a (small) subset of tests that can be ex-

ecuted manually for given resources. A study show-

ing how visual representations of timed automata mu-

tants can be used for debugging has already been con-

ducted (Aichernig et al., 2014) and the same tech-

nique could also be applied in the case company.

5.3 Challenges of Model-based

Requirements and Test Case

Generation

As challenges the presented approach faces, the in-

terviewees named mainly the effort to create require-

ments models, and industrial tool support. Interest-

ingly, the former challenge is not related to the com-

plexity of creating models and the knowledge to do

so, but concerns rather the costs of formalising exist-

ing requirements. When asked about the challenges of

introducing model-based requirements and test case

generation, one interviewee stated that the challenge

is “First of all, to have the time to do it.”.

Regarding tooling, interviewees stated that it is es-

sential to integrate the chosen modelling tool into the

existing tool chain. Furthermore, professional support

for this tool and test case generation must be provided.

One interviewee mentioned that it could be a prob-

lem to get support from management, stating that it is

difﬁcult “To have the people with the budget aware

of what we get if we do this.”. Another interviewee

mentioned lacking support from developers as an is-

sue, stating that they would not see the problems with

textual requirements: “Not everyone thinks like that.

Especially developers without a testing background,

as you don’t encounter the problems without having

the exactly deﬁned behaviour.”.

None of the interviewees did however express a

concern that formal methods could be difﬁcult to ap-

ply given an engineers’ typical education. This could

be attributed to the fact that many of the engineers

in this domain are used to modelling notations such

as Simulink. This is an interesting result as training

effort is commonly mentioned in the related work as

a challenge in model-driven and model-based tech-

niques, e.g., in (Agner et al., 2013; Hutchinson et al.,

2011; Liebel et al., 2016).

While we were especially concerned with estab-

lishing trust in generated tests, the interviewees did

not share this concern to the same extent. One person

stated that “I’d say from a testing point of view there

are certain trust issues in some places. But generally,

I would say that we are for a model-based approach.

Deﬁnitely.”. They did however all agree that it would

be helpful to be able to understand on an abstract level

what is tested by a test case and that visualising mu-

tants could be helpful (and this of course increases

trust in the approach).

6 RELATED WORK

Using models to specify requirements has been ex-

plored extensively over the last decades. In the con-

text of automotive and embedded software, several

studies report on experiences with modelling lan-

guages that prescribe the structure of the requirements

speciﬁcation. For example, Boulanger and V

an de-

scribe a methodology to develop embedded automo-

tive systems, using EAST-ADL and SysML for re-

quirements modelling (Boulanger and V

an, 2008).

Similarly, Piques and Andrianarison report on indus-

trial experiences with using SysML in the automotive

domain (Piques and Andrianarison, 2011). Albinet et

al. introduce a similar approach, but use the UML

proﬁle MARTE for real-time systems (Albinet et al.,

2008). All three approaches have in common that the

requirements themselves are expressed in natural lan-

guage and only the structure of the speciﬁcation is

prescribed by the modelling language.

For expressing requirements as models, differ-

ent languages have been used in the embedded do-

main, for example, formal speciﬁcation languages as

in (Zave, 1982) and (Broy et al., 1992). Such lan-

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

432

guages are, however, often aimed at system design

and are on a too detailed level to be considered re-

quirements. In some cases, they could nonetheless be

on a level of abstraction comparable to our ﬁrst, low-

level requirements model.

An early empirical study by Lubars et al. (Lubars

et al., 1993) also reports that languages such as Entity-

Relationship diagrams, ﬂow diagrams, and object-

oriented models were already commonly used in RE

during the early 90s. The popularity of models at that

time could partly stem from the widespread use of

methods and processes such as the Rational Uniﬁed

Process and Structured Analysis, which both include

the use of models during RE. However, a more recent

study by Sikora et al. (Sikora et al., 2011) reports

that practitioners in the embedded industry advocate

a more intensive use of models during RE. The au-

thors attribute this to the automation possibilities that

RE models could offer.

More recently, B

ohm et al. (B

ohm et al., 2014)

used the tool AutoFOCUS3 in an industrial project

to model requirements of a train automation system.

Braun et al. (Braun et al., 2014) use several different

models to express automotive requirements, e.g., goal

models.

Regarding the area of test case generation, timed

automata have been used for test case generation mul-

tiple times. Nielsen and Skou (Nielsen and Skou,

2001) propose a test case generation framework for

timed automata. The UPPAAL tool chain contains

the tool Tron (Mikucionis et al., ) performing online

testing and the tool CoVer (Hessel and Pettersson,

2007) that allows coverage-based ofﬂine test genera-

tion from timed automata. However, these approaches

are not mutation-based. Mutation-based test case gen-

eration has been performed on several different for-

malisms, including timed automata (Aichernig et al.,

2013), pushdown automata (Belli et al., 2012), UML

state machines (Aichernig et al., 2015a) and require-

ment interfaces (Aichernig et al., 2015b).

All approaches presented above, academic or not,

have in common that the contribution is the result-

ing model, generated tests, or a discussion thereof. In

contrast to this, we discuss the iterative process using

different languages and levels of abstraction to for-

malise real-life requirements from the automotive do-

main and generate tests from them. Additionally, we

provide empirical evidence in the form of qualitative

data gathered from interviews with industrial practi-

tioners. The focus is therefore on the entire process

and the lessons learned throughout it, in contrast to

single steps in the chain.

7 CONCLUSION AND FUTURE

WORK

In this paper, we reported on the outcome of a 2.5-

year project carried out together with an automo-

tive OEM with the goal of exploring the potential

of model-based requirements engineering in the em-

bedded domain. Over the course of the project, we

created several models on different levels of abstrac-

tions of a real-life, safety-critical requirements spec-

iﬁcation. Using timed automata as modelling lan-

guage, we created three different models, going from

the lowest level of abstraction, directly translating the

design requirements, to a single automaton with only

three states. We used this ﬁnal automaton to gener-

ate test cases and evaluated the overall outcome with

system-level veriﬁcation engineers at our industrial

partner.

Our evaluation indicates that it is indeed possible

to use formal models to capture real-world require-

ments from the automotive domain, thus answering

our ﬁrst research question. Based on our experience,

models on a very high level of abstraction appear to

be especially suitable for detecting inconsistencies in

requirements and for generating useful test cases.

Our interviewees indicated that the approach is

highly interesting and relevant, and that they are in

fact currently planning to introduce a model-based ap-

proach for requirements engineering and connected

to veriﬁcation, answering our second research ques-

tion. As challenges, the interviewees see the effort

to create requirements models of an existing require-

ments base, appropriate tool support and tool integra-

tion, and the (lack of) support from management and

developers.

ACKNOWLEDGEMENTS

The research leading to these results has re-

ceived partial funding from the European Union’s

Seventh Framework Program (FP7/2007-2013) for

CRYSTAL-Critical System Engineering Acceleration

Joint Undertaking under grant agreement N

332830,

from Vinnova under DIARIENR 2012-04304, and

from the Austrian Research Promotion Agency (FFG)

under grant agreement N

838498.

REFERENCES

Agner, L. T. W., Soares, I. W., Stadzisz, P. C., and Sim

ao,

J. M. (2013). A brazilian survey on UML and model-

driven practices for embedded software development.

Modelling Behavioural Requirements and Alignment with Veriﬁcation in the Embedded Industry

433

Journal of Systems and Software, 86(4):997–1005.

{SI} : Software Engineering in Brazil: Retrospective

and Prospective Views.

Aichernig, B. K., Brandl, H., J

obstl, E., Krenn, W., Schlick,

R., and Tiran, S. (2015a). Killing strategies for model-

based mutation testing. Software Testing, Veriﬁcation

and Reliability, 25(8):716–748.

Aichernig, B. K., H

ormaier, K., and Lorber, F. (2014). De-

bugging with timed automata mutations. In Com-

puter Safety, Reliability, and Security - 33rd Interna-

tional Conference, SAFECOMP 2014, Florence, Italy,

September 10-12, 2014. Proceedings, pages 49–64.

Aichernig, B. K., H

ormaier, K., Lorber, F., Nickovic, D.,

and Tiran, S. (2015b). Require, test and trace IT. In

Formal Methods for Industrial Critical Systems - 20th

International Workshop, FMICS 2015, Oslo, Norway,

June 22-23, 2015 Proceedings, pages 113–127.

Aichernig, B. K., Lorber, F., and Nickovic, D. (2013). Time

for mutants - model-based mutation testing with timed

automata. In Tests and Proofs - 7th International Con-

ference, TAP 2013, Budapest, Hungary, June 16-20,

2013. Proceedings, pages 20–38.

Albinet, A., Begoc, S., Boulanger, J., Casse, O., Dal, I.,

Dubois, H., Lakhal, F., Louar, D., Peraldi-Frati, M.,

Sorel, Y., et al. (2008). The memvatex methodology:

from requirements to models in automotive applica-

tion design. In 4th European Congress on Embedded

Real Time Software (ERTS ’08).

Alur, R. and Dill, D. L. (1994). A theory of timed automata.

Theoretical computer science, 126(2):183–235.

Belli, F., Beyazit, M., Takagi, T., and Furukawa, Z. (2012).

Model-based mutation testing using pushdown au-

tomata. IEICE Transactions, 95-D(9):2211–2218.

ohm, W., Junker, M., Vogelsang, A., Teuﬂ, S., Pinger, R.,

and Rahn, K. (2014). A formal systems engineering

approach in practice: An experience report. In Pro-

ceedings of the 1st International Workshop on Soft-

ware Engineering Research and Industrial Practices,

SER&IPs 2014, pages 34–41.

Boulanger, J.-L. and V

an, Q. D. (2008). Requirements engi-

neering in a model-based methodology for embedded

automotive software. In IEEE International Confer-

ence on Research, Innovation and Vision for the Fu-

ture (RIVF ’08).

Braun, P., Broy, M., Houdek, F., Kirchmayr, M., M

uller,

M., Penzenstadler, B., Pohl, K., and Weyer, T.

(2014). Guiding requirements engineering for

software-intensive embedded systems in the automo-

tive industry. Computer Science - Research and De-

velopment, 29(1):21–43.

Broy, M., Dederichs, F., Dendorfer, C., Fuchs, M., Gritzner,

T. F., and Weber, R. (1992). The design of distributed

systems: an introduction to Focus. Technische Uni-

versit

at M

unchen.

CESAR Project (2011). CESAR - Cost-efﬁcient methods

and processes for safety relevant embedded systems.

http://www.cesarproject.eu. last accessed Mar. 2016.

CRYSTAL Project (2013). CRYSTAL - CRitical sYS-

Tem engineering AcceLeration. http://www.crystal-

artemis.eu. last accessed Jan. 2016.

Graaf, B., Lormans, M., and Toetenel, H. (2003). Embed-

ded software engineering: the state of the practice.

IEEE Software, 20(6):61–69.

Hessel, A. and Pettersson, P. (2007). Cover-a test-case gen-

eration tool for timed systems. Testing of Software and

Communicating Systems, pages 31–34.

Hutchinson, J., Whittle, J., Rounceﬁeld, M., and Kristof-

fersen, S. (2011). Empirical assessment of mde in in-

dustry. In Software Engineering (ICSE), 2011 33rd

International Conference on, pages 471–480.

Liebel, G., Marko, N., Tichy, M., Leitner, A., and Hansson,

J. (2016). Model-based engineering in the embedded

systems domain: an industrial survey on the state-of-

practice. Software & Systems Modeling, pages 1–23.

Lubars, M., Potts, C., and Richter, C. (1993). A review of

the state of the practice in requirements modeling. In

IEEE International Symposium on Requirements En-

gineering (RE ’93), pages 2–14.

Mikucionis, M., Nielsen, B., and Larsen, K. G. Real-time

system testing on-the-ﬂy. In Sere, K. and Wald

en, M.,

editors, NWPT 2003, number 34 in B, pages 36–38.

Abo Akademi, Department of Computer Science, Fin-

land.

Nielsen, B. and Skou, A. (2001). Automated test genera-

tion from timed automata. In TACAS 2001, held as

Part of ETAPS 2001 Genova, Italy, April 2-6, 2001,

Proceedings, pages 343–357.

Piques, J. and Andrianarison, E. (2011). Sysml for embed-

ded automotive systems: lessons learned. Interfaces,

3:3b.

Procaccino, J. D., Verner, J. M., Overmyer, S. P., and Darter,

M. E. (2002). Case study: factors for early prediction

of software development success. Information and

Software Technology, 44(1):53–62.

Sikora, E., Tenbergen, B., and Pohl, K. (2011). Require-

ments engineering for embedded systems: An inves-

tigation of industry needs. In Berry, D. and Franch,

X., editors, Requirements Engineering: Foundation

for Software Quality, volume 6606 of Lecture Notes

in Computer Science, pages 151–165.

Wieringa, R. J. (2014). Design science methodology

for information systems and software engineering.

Springer.

Woodcock, J., Larsen, P. G., Bicarregui, J., and Fitzgerald,

J. (2009). Formal methods: Practice and experience.

ACM Comput. Surv., 41(4):19:1–19:36.

Zave, P. (1982). An operational approach to requirements

speciﬁcation for embedded systems. IEEE Transac-

tions on Software Engineering, SE-8(3):250–269.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

434
