Supporting Software Architecture Evolution by

Functional Decomposition

∗

David Faitelson

, Robert Heinrich

and Shmuel Tyszberowicz

Afeka Tel-Aviv Academic College of Engineering, Tel Aviv, Israel

Institute for Program Structures and Data Organization, Karlsruhe Institute of Technology, Karlsruhe, Germany

School of Computer Science, The Academic College Tel Aviv-Yaffo, Tel Aviv, Israel

Keywords:

Decomposition, Coupling, Cohesion, Visualization, Evolution, Maintenance.

Abstract:

Software systems evolve during their lifetime to reﬂect the changes in their users needs. However, unless

implemented carefully, such changes may degrade the quality of the system’s architecture by reducing the co-

hesion and increasing the coupling between its subsystems. It is therefore important to systematically analyze

the changes and modify the system’s structure to accommodate the changes without degrading the system’s

architecture. However, looking just at functional aspects is not enough, because we may decide on a redesign

that is too expensive to implement. In this paper we combine a functional decomposition analysis technique

with a nonfunctional impact analysis technique to avoid this pitfall. The functional decomposition technique

generates a set of plausible decompositions that accommodate the required evolutionary changes, and the im-

pact analysis technique acts as a ﬁlter that selects only those decompositions that satisfy the cost constraints

of the required changes. We brieﬂy describe both techniques and then illustrate the approach with an example

of a parking lot management system.

1 INTRODUCTION

A good software architecture arranges the system into

a set of highly cohesive yet lowly coupled subsys-

tems. However, as time goes by and the system

evolves, more functionality is added. As a result, the

coupling of subsystems tends to increase and their

cohesion decreases. Thus the system becomes less

understandable for developers, resulting in declining

quality and a system that is more difﬁcult to main-

tain. Software evolution cannot be prevented because

software systems that do not evolve become progres-

sively less useful (Lehman, 1980). It is therefore im-

portant to ensure that the architecture’s quality does

not degrade as the software evolves (Cuesta et al.,

2013) (Williams and Carver, 2010).

In previous work (Faitelson and Tyszberowicz,

2015) we have described a technique for systemati-

cally decomposing a system into subsystems. We can

use this technique to evaluate the effects of evolution-

ary changes to the system’s structure, and to ﬁnd good

∗

This work has been partially supported by GIF (grant

No. 1131-9.6/2011) and the DFG (German Research Foun-

dation) under the Priority Programme SPP1593.

functional decompositions that will prevent the struc-

ture from degrading. However, if we ignore nonfunc-

tional constraints, we may not be able to implement

the changes: for example, the cost of implementing

them may be too high or the performance of the sug-

gested decomposition might be too low. Therefore,

we must assess the nonfunctional implications of the

suggested decompositions and ﬁnd a compromise that

balances both the functional modularity of the system

and the nonfunctional constraints.

Our contribution is an approach that addresses

exactly this challenge. It combines two seemingly

unrelated approaches: one is the functional decom-

position approach described above, and the other

is the KAMP

approach (Rostami et al., 2015) for

architecture-based maintenance effort estimation. By

using them together, we ensure a good balance of

functional modularity and nonfunctional concerns.

We illustrate our approach with an example of

an evolving parking lot management system. When

given a set of new functional requirements, we use

our approach to select a good subsystem decompo-

sition while staying within the budget allocated for

Karlsruhe Architectural Maintainability Prediction

Faitelson D., Heinrich R. and Tyszberowicz S.

Supporting Software Architecture Evolution by Functional Decomposition.

DOI: 10.5220/0006206204350442

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 435-442

ISBN: 978-989-758-210-3

435

implementing the new requirements.

The reminder of the paper is structured as follows.

In Section 2 we introduce the running example. The

functional decomposition approach is described in

Section 3. In Section 4 we explain how we transform

the decomposition notation into a notation that the

KAMP tool suite can understand. In Section 5 we de-

scribe the KAMP approach. Section 6 combines func-

tional decomposition with architecture-based change

impact analysis. We then conclude with related work

and a short summary.

2 RUNNING EXAMPLE

We use a parking lot management system as a running

example. The parking lot has a set of parking spaces,

a camera that detects license plate numbers, and an

entrance gate that it may open (or close) to allow cars

to enter the parking lot.

In addition, it maintains a

registry of authorized cars—only authorized cars may

enter the parking lot. Table 1 summarizes the opera-

tions provided by the system.

Table 1: A summary of the operations provided by the park-

ing lot management system.

Operation Description

approach a car is detected by the entry sensor

leave a car at the gate drives away

enter a car enters the parking lot

exit a car exits the parking lot

park a car parks at a parking space

depart a car departs from its parking space

add authorize a car to enter the lot

remove unauthorize a car

We use a relational framework to model the sys-

tem. The system’s state variables hold sets or rela-

tions that represent the information that the system

keeps track of. For example, the variable inside holds

the set of cars that are currently inside the parking lot,

and the variable parked records which cars are parked

in which parking spaces. We model system operations

using predicates that specify the behavior of the oper-

ation in terms of current and new system states. See

Fig. 1 for a summary of the system model. The entire

model (given in the Alloy (Jackson, 2012) notation) is

available online: http://goo.gl/m5gnW3. For a more

detailed exposition of relational models see (Faitelson

and Tyszberowicz, 2015).

Cars leave the parking lot through a one way exit gate.

Parking Lot

atGate: lone Car

inside : set Car

authorized : set Car

available : set Space

occupiedBy : Space → Car

parked : Car → Space

depart

exit

approach leave

enter

park add remove

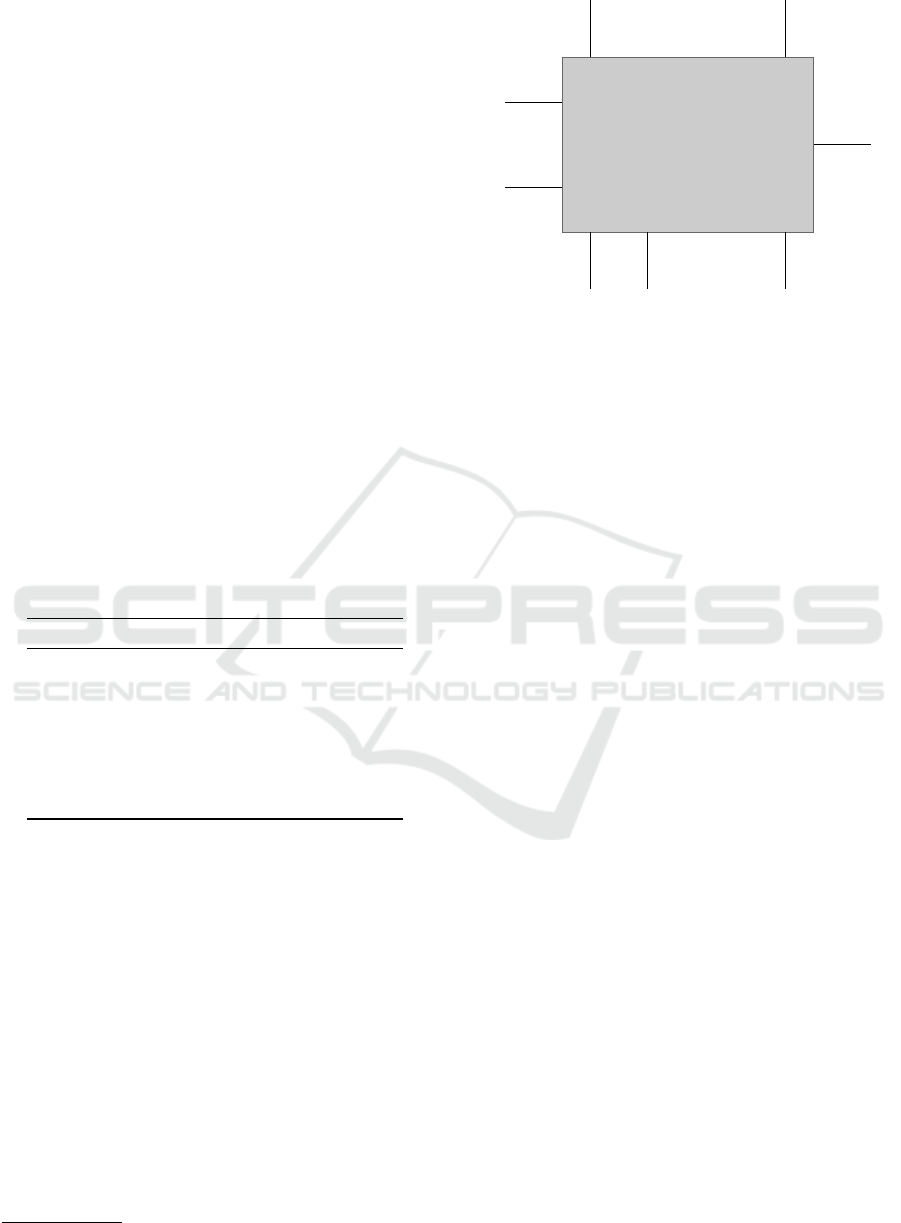

Figure 1: A subsystem diagram that summarizes the entire

parking lot system. The system is displayed as a box with its

name at the top and the list of state variables inside the box.

The system operations appear as line segments emanating

from the box, each labeled with the operation name. The

keyword lone means a set of at most one member.

3 SYSTEM DECOMPOSITION

As we have argued in (Faitelson and Tyszberowicz,

2015), rather than using classes as atomic units of de-

composition, it is better to take individual relations

(associations and attributes) as atomic units of decom-

position. We can then partition them between the sub-

systems according to how they are used by the system

operations. This also facilitates selection of good de-

compositions (i.e., low coupling and high cohesion).

In our approach, we visualize the relationships be-

tween the system operations and the state variables

that they access in such a way that we can recognize

clusters of dense relationships that are weakly con-

nected to other clusters. Each such cluster is a good

candidate for a component. In the rest of this section

we illustrate how we use our approach to partition the

parking lot management system into subsystems. To

visualize the clusters, we begin by recording—in an

operation/relation table—the usage relationships be-

tween the system operations and the state variables

that they read and manipulate. For each system oper-

ation we note which relational state variables it reads

and writes. Table 2 records the operation/relation de-

pendencies in the parking lot system. The informa-

tion necessary to build this table is taken from the

functional model of the system. An operation reads

a variable if it references the variable only at the cur-

rent system state. An operation writes to a variable if

the variable is referenced in the next system state.

From the operation/relation table we build an

undirected bipartite graph whose vertices are the sys-

tem’s state variables and operations. An edge con-

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

436

Table 2: An operation/relation table for the parking lot sys-

tem. Each column represents one state variable and each

row represents one operation. If the operation in the i-th

row reads (writes) the state variable in the j-th column, the

table’s (i, j) entry will contain r (w).

Operation State variable (relation)

inside atGate authorized parked

approach r w

leave w

add w

remove r w

enter w w r

exit w r

park r w

depart w

nects operation p to variable v if and only if p uses v

(either reads or writes to v). We also assign a weight

to each edge, depending on the nature of the con-

nection. A read connection has the lowest weight

(currently 1) and a write connection has the highest

weight (currently 2). Finally, we use a spring model

based drawing algorithm (Kamada and Kawai, 1989)

to visualize the graph.

The algorithm draws undi-

rected graphs such that nodes that are close to each

other in graph theoretic space are close to each other

in the drawing. The result clearly visualizes the de-

pendencies between the operations and system’s state

variables. For instance, we can see in Fig. 2 that

the atGate state variable is used by just three oper-

ations: enter, approach, and leave. No other oper-

ation needs this variable. Similarly, the authorized

state variable is used only by enter, remove, and add.

Figure 2 shows a partition based on the graph. Fig-

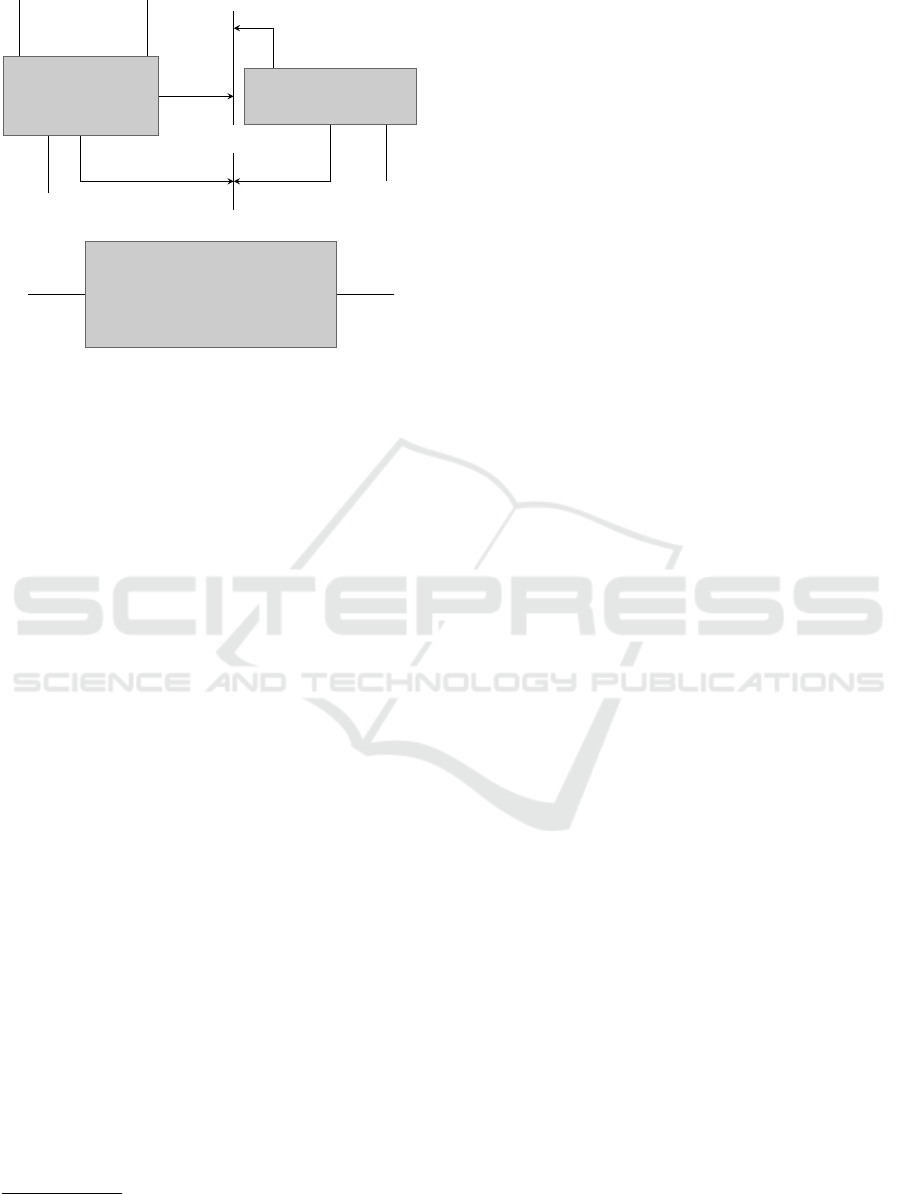

ure 4 presents a subsystem diagram that summarizes

the structure of the decomposition, and Fig. 3 shows

the UML version of this decomposition.

Note that in this decomposition style, there is no

direct communication between the subsystems. In-

stead, the system itself must orchestrate the informa-

tion ﬂow between the subsystems. For example, to

implement the enter operation, the system ﬁrst asks

the registry subsystem if the vehicle is authorized to

enter, and then directs the gate subsystem to open

the gate. This signiﬁcantly reduces the coupling be-

tween the subsystems, because they are now com-

pletely oblivious to the existence of each other. The

effect is similar to the pipe and ﬁlter architectural

style, but instead of insulating the subsystems from

each other with pipes, there is a single system man-

ager component that insulates the subsystems. The

role of the system manager is similar to that of the

control object in the entity/boundary/control design

More speciﬁcally, we use NEATO (North, 2004).

approach

leave

add

remove

enter

exit

park

depart

inside

atGate

authorized

parked

G R

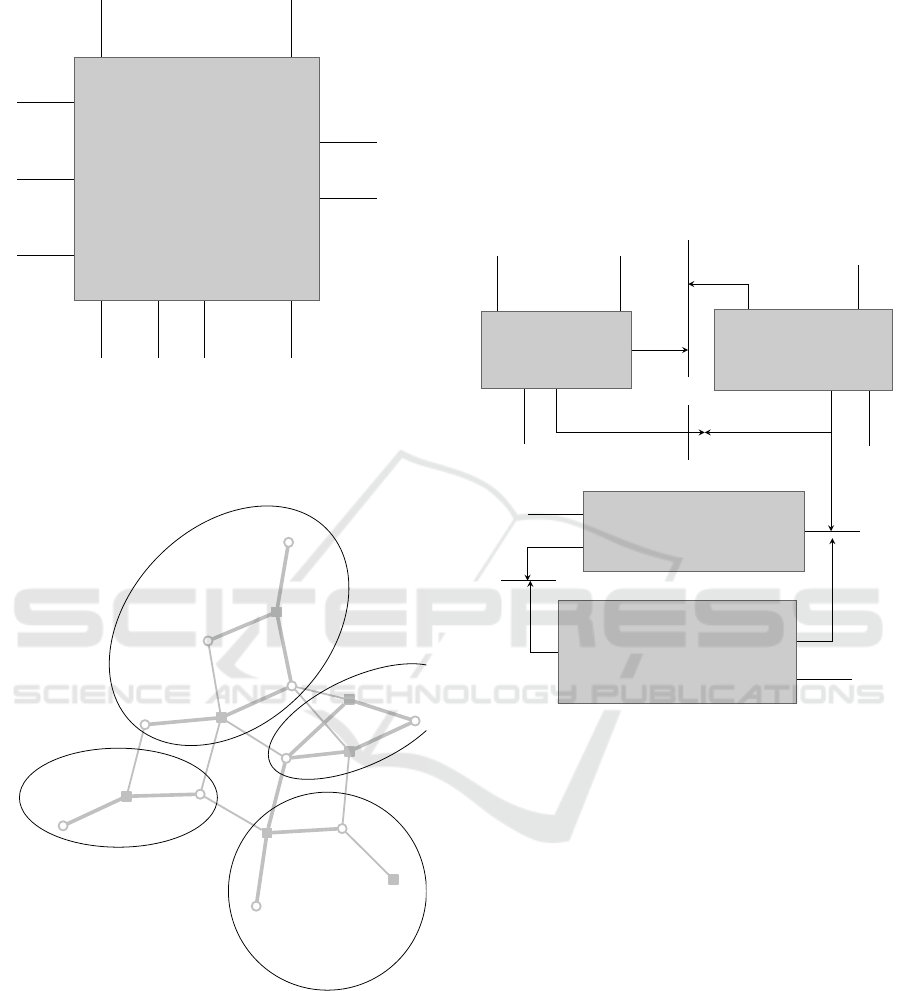

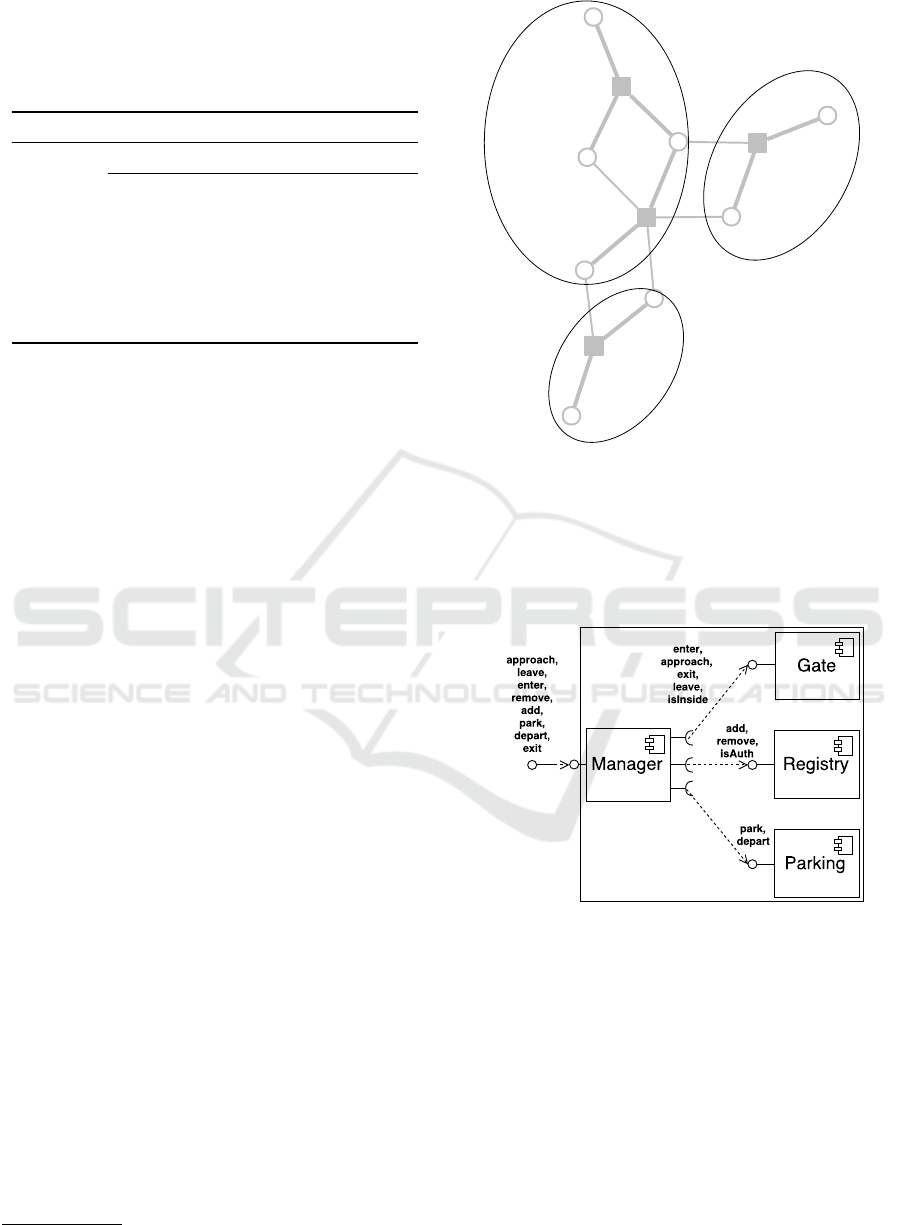

Figure 2: A dependency diagram of the parking lot with a

suggested partition. Each subsystem candidate is enclosed

in an ellipse. The edges that cross the partitions (when they

exist) are few and weak. This partition corresponds to the

decomposition in Section 3: (P) manages which car parks

in which space, (R) manages the authorized list, and (G)

manages the entry and exit to and from the parking lot.

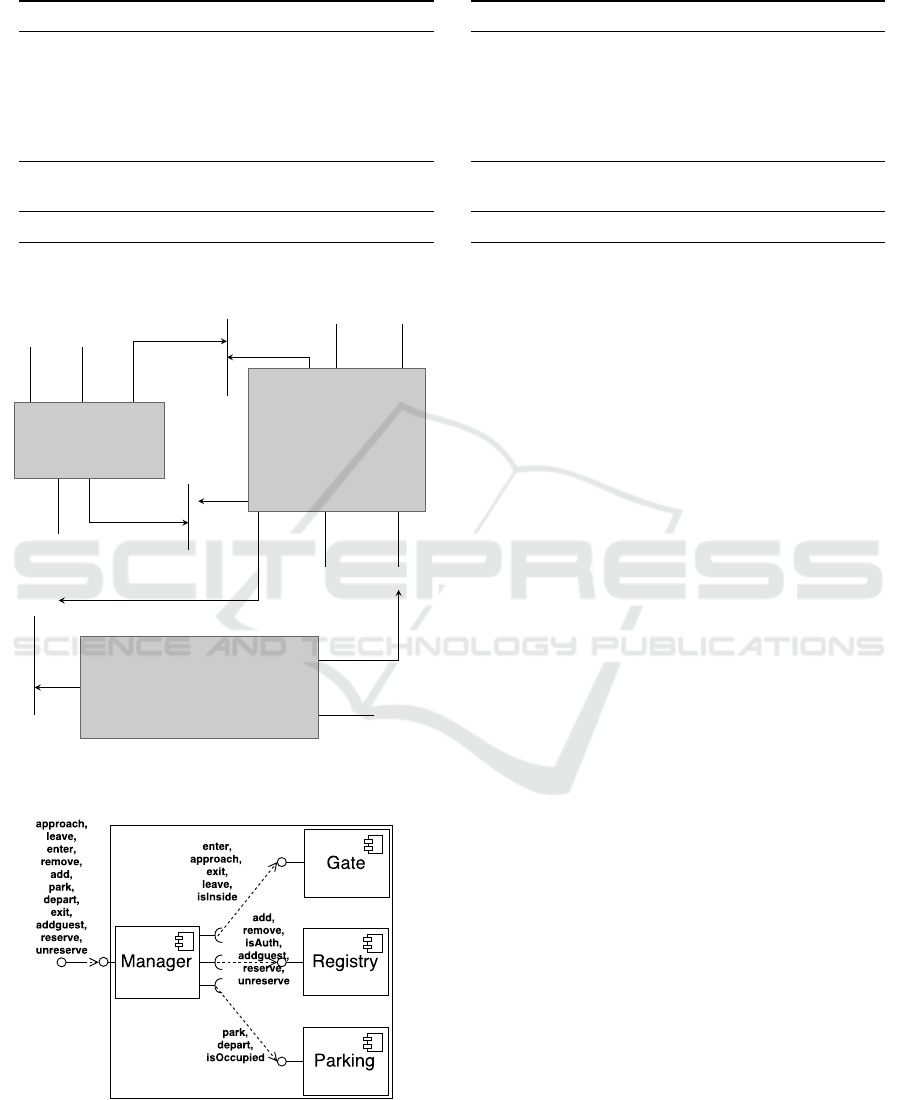

Figure 3: Component model of the initial parking system.

classiﬁcation (Jacobson et al., 1992), but instead of

orchestrating the control ﬂow of individual objects, it

manages entire subsystems.

4 MAPPING DECOMPOSITION

DIAGRAMS TO UML

COMPONENT DIAGRAMS

Because the KAMP approach requires the system ar-

chitecture to be presented in the form of a UML-

Supporting Software Architecture Evolution by Functional Decomposition

437

Gate

atGate: lone Car

inside: set Car

Registry

authorized: set Car

Parking

available: set Space

occupiedBy : Space → Car

parked : Car → Space

exit

approach

leave

isInside

enter

isAuth

remove

enter

park

depart

remove

add

Figure 4: A subsystem diagram of the parking lot. Each box

holds a subset of the system’s state variables and operations.

All system operations must appear in the diagram. When a

system operation is supported by a single subsystem, we

draw a line on the border of the subsystem labeled with the

operation’s name. When several subsystems collaborate to

support a system operation, we connect the operations of

each subsystem to the system operation. E.g., there are ar-

rows from the gate enter and registry isAuth operations to

the system enter operation since enter requires the cooper-

ation of the gate and the registry subsystems.

like component diagram (cf. (Reussner, Ralf H. et

al., 2016)), we must transform the decomposition di-

agrams produced by the functional decomposition ap-

proach to UML component diagrams. However, be-

cause UML component diagrams do not support a re-

lationship of used-by

between system and subsystem

level operations, we must introduce the system man-

ager component explicitly into the diagram.

Given a subsystem diagram, we can create a UML

component diagram which serves as input to KAMP

by the following procedure: (1) Create a system com-

ponent with a provides interface for all system oper-

ations. (2) In the system component, create a com-

ponent for each subsystem with a provides interface

for all subsystems operations. (3) In the system com-

ponent, create a manager component with a provides

interface for all system operations and a requires in-

terface for all the interfaces provided by the subsys-

tems. (4) Connect each subsystem operation to the

corresponding requires interface of the manager. (5)

Use a delegation connector to connect each system

operation to the corresponding manager operation.

To illustrate this transformation, compare Fig. 4 to

the corresponding component diagram in Fig. 3.

The requires/provid es connection is a used-by relation-

ship between components, not between operations.

5 ARCHITECTURE-BASED

CHANGE IMPACT ANALYSIS

The KAMP approach aims at supporting software ar-

chitects assessing the effects of change requests on

technical and organizational work areas during soft-

ware evolution. KAMP supports modeling the ini-

tial software architecture, named the base architec-

ture, and the architecture after a certain change re-

quest is implemented in the model, the target ar-

chitecture. Examples of such modiﬁcations may be

adding new features for guest visitors and reserved

parking spaces in the parking lot management sys-

tem. Then, the KAMP tools calculate the differences

between the base and the target architectural models,

analyses the propagation of changes, and generates a

maintenance task list reﬂecting the structural propa-

gation of changes as well as corresponding mainte-

nance tasks such as test case development and execu-

tion, build and deployment conﬁguration updates.

KAMP consists of: (i) meta-models to describe

system parts and their dependencies, (ii) a procedure

to automatically identify system parts to be changed

for a given change request, and (iii) a procedure to

automatically derive required change tasks, to sim-

plify the identiﬁcation of a change effort and thus the

maintainability estimation. KAMP relies on the in-

sight that effort estimation for ﬁne-grained tasks is

much easier and more reliable than for course-grained

tasks. Aggregating the estimations for the single tasks

allows for estimating the overall effort for implement-

ing a change.

In previous work, KAMP has been used to ana-

lyze change propagation in architectural models for

solving performance bottlenecks, e.g. by replacing a

database (Heinrich et al., 2015) or by splitting an in-

terface (Heger and Heinrich, 2014). In the next sec-

tion we will use KAMP to assess the impact of evo-

lutionary functional changes on the nonfunctional as-

pects of the system.

6 IMPACT ANALYSIS EXAMPLE

After the parking lot management system has been

working for a while, the customer asked to extend its

functionality with two major features. The ﬁrst fea-

ture is the ability to reserve parking spaces in advance

and the second one is to support occasional, visiting,

guests. Guests must ask for an entrance permit for a

speciﬁc date. We have added these two features to the

original parking lot model. The system diagram of the

updated parking lot management system is shown in

Fig. 5. Then we have updated the operation/relation

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

438

Parking Lot

atGate: lone Car

inside : set Car

authorized : set Car

available : set Space

occupiedBy : Space → Car

parked : Car → Space

guest : Car → Date

avail :set Space

reserved : Space → Car

enter

exit

reserve

unreserve

approach leave

depart

park add addguest remove

Figure 5: A subsystem diagram that summarizes the en-

tire updated parking lot system. We have added operations

for reserving parking spaces, and state variables that record

guests and reserved parking spaces.

approach

leave

add

remove

enter

exit

park

depart

reserve

unreserve

inside

atGate

authorized

guest

reserved

parked

avail

Figure 6: The dependency diagram of the parking lot after it

was extended with two features: guest visitors and reserved

parking spaces. We also see the partition that we have se-

lected. The community detection algorithm has suggested

the same partition. We can see that the old structure was

preserved but that subsystem R has additional functionality

to support the management of guests, and a new subsystem

was introduced to manage the reservations.

table, from which we rebuilt the bipartite graph which

then was visualized. Fig. 6 shows a partition based on

the visualized graph.

After performing the decomposition, the system

has changed as follows. We have added a new subsys-

tem (Reservations) to manage the reserved parking

spaces, and we have added to the Registry subsystem

a new variable (guest) to keep track of guests. The

new variable keeps track of the dates on which guest

cars may enter the parking lot. The Gate and Parking

subsystems were not affected by these changes. Fig-

ure 7 presents the subsystem diagram of the evolved

system after adding the two new features.

Gate

atGate: lone Car

inside: set Car

Registry

authorized: set Car

guest : Car → Date

Reservations

avail : set Space

reserved : Space → Car

Parking

available: set Space

occupiedBy : Space → Car

parked : Car → Space

exit

approach

leave

enter

isInside

remove

isAuth

addguest

enter

park

depart

remove

add

reserve

unrserve

isReserved

park

isOccupied

Figure 7: Subsystem diagram of the evolved system. The

registry subsystem has an additional variable (guest) that

records which guest cars may enter at which dates. In ad-

dition there is a new subsystem that manages parking space

reservations. Reserving a car requires cooperation with the

registry and parking subsystems.

We will now apply KAMP to assess the impact of

the new decomposition in terms of the cost of imple-

menting the changes. To apply KAMP we operate in

three phases: preparation phase, analysis phase, and

interpretation phase. In the preparation phase, an ar-

chitectural model is created by using a meta-modeled

architecture description languages (Reussner, Ralf H.

et al., 2016). In our running example, the architectural

model represents the initial parking lot system (base

architecture), as depicted in Fig. 3. Each compo-

nent in the base architecture is annotated with several

test cases, a build script, and deployment information.

Furthermore, another architectural model (target ar-

chitecture) is created to reﬂect the parking lot system

after modiﬁcation, as depicted in Fig. 8. This archi-

tectural model reﬂects the restructuring, if necessary,

according to our approach.

Supporting Software Architecture Evolution by Functional Decomposition

439

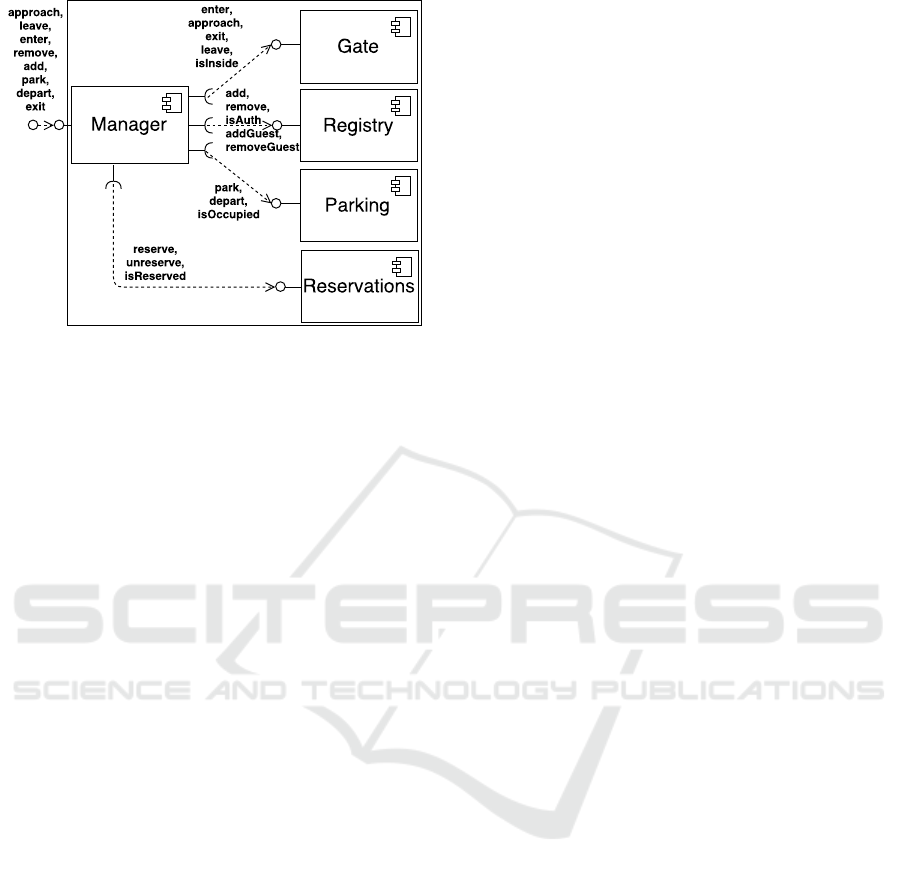

Figure 8: Component model of the evolved parking lot man-

agement system.

In the analysis phase, KAMP automatically calcu-

lates the expected structural changes and their prop-

agation, while transferring the base architecture into

the target architecture. First the delta between the ini-

tial architectural model and the evolved architectural

model is determined automatically by a model diff.

Each delta results in a change request to the system,

which is the starting point of the change propagation

in KAMP (Rostami et al., 2015).

In step 1, changes are propagated through the sys-

tem along the interfaces between the components.

The result of the change propagation is a task list of

detailed maintenance tasks for each change request,

directly derived from the architecture. See the middle

columns of Table 3.

In step 2, annotations to the components—test

cases, built scripts, and deployment information—are

applied to extend the task list for additional main-

tenance tasks. For example, three test cases must

be added for the new Reservations component, one

for each of the operations reserve, unreserve, and

isReserved. Moreover, a build script and the deploy-

ment of the new component must be speciﬁed. The

test cases for the operations of the parking compo-

nent must be modiﬁed, as the new parking functional-

ity in the evolved systems uses the Reservations com-

ponent. Furthermore, the registry component in the

evolved system provides functionality for guest park-

ing. Thus, existing test cases may be modiﬁed, and

new test cases must be added. The task list is extended

by the corresponding tasks, as shown in excerpts of

test cases for the reservation functionality in Table 3.

Finally, in the interpretation phase, change efforts

are estimated by software developers based on the

task list identiﬁed by KAMP. To illustrate, we pro-

vide hypothetical cost estimates for each task. These

estimates are not a part of KAMP; however, they are

important for determining if we can implement the

changes within the given budget. We have determined

the costs by considering the effort it takes to imple-

ment not only the functionality but also the user inter-

face, testing, optimization, etc. In our estimates it is

more expensive to add a new component compared to

incorporating the functionality into the existing com-

ponents. This reﬂects the fact that in order to create

a more modular and reusable system we must often

invest more time and effort upfront (hopefully reap-

ing the rewards in the future). We use these estimates

to illustrate the approach; however one may come up

with different estimates, in which case the decisions

may be different, but the approach remains the same.

Table 3 shows an excerpt of the maintenance tasks

and costs. The budget provided for the tasks in the

table is limited to 9 Man/Months. On the left side

we list the cost of adding a new Reservations com-

ponent and on the right we list the cost of incorpo-

rating the new functionality into the existing compo-

nents. Unfortunately, the maintainability analysis re-

veals that the cost of decomposing the system accord-

ing to the original functional analysis is too high (11

Man/Months). That is, in this case, it is not possible to

implement the more modular design within the given

budget (9 Man/Months).

This result demonstrates a typical situation in the

engineering of complex systems. We cannot use a

greedy approach to solve the problem, as optimizing

one aspect (functional decomposition) without regard

for others (implementation cost) may result in a bad

solution. In this case it will cost too much to im-

plement. Instead, we must ﬁnd a compromise that

results in a good overall solution. That is, a sys-

tem with good modularity that can be implemented

within the given budget. One reasonable compromise

is to merge the Reservations and the Registry com-

ponents. The result can be seen in Fig. 10. Whereas

merging the two components reduces the cohesion of

the Registry component, it also lowers the develop-

ment cost to an acceptable level. We replace the four

Man/Month units of work that went into the devel-

opment of a new Reservations component with one

Man/Month of work for adding the reservation func-

tionality to the existing Registry component. The rest

of the work has not changed. As a result the total cost

is reduced to 9 Man/Months, exactly as allowed by

the budget.

7 RELATED WORK

Vanya et-al. (Vanya et al., 2013) suggest to assess the

current decomposition by considering its past evolu-

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

440

Table 3: Task lists produced by KAMP. On the left we see the cost estimate for the version in which we add a new reservation

component, and on the right we see the cost estimate for the version in which we only modify existing components.

Step Maintenance Task Cost

add Component Reservation 4

add Provided Interface of Reservations 1

add Required Interface of Manager 1

modify Component Manager 2

modify Provided Interface of Manager 1

modify Provided Interface of System 1

Add test cases for reserve(), 1

unreserve(), and isReserved()

total cost 11

Cost estimation for adding a new component

Step Maintenance Task Cost

modify Provided Interface of Registry 1

modify Component Registry 2

modify Required Interface of Manager 1

modify Component Manager 2

modify Provided Interface of Manager 1

modify provided Interface of System 1

Add test cases for reserve(), 1

unreserve(), and isReserved()

total cost 9

Cost estimation for modifying existing components

Gate

atGate: lone Car

inside: set Car

Registry

authorized: set Car

guest : Car → Date

avail : set Space

reserved : Space →

Car

Parking

available: set Space

occupiedBy : Space → Car

parked : Car → Space

exit

approach

leave

enter

isInside

remove

add

addguest

enter

park

depart

isAuth

unreserve reserve

isReserved

park

isOccupied

Figure 9: Subsystem diagram of the alternative decomposi-

tion that groups reservations with the registry.

Figure 10: A revised component model of the evolved park-

ing lot management system.

tion, searching for components that often changed to-

gether. This is useful for assessing the current state

of the system; however, unlike our work, it cannot be

used to evaluate the impact of future changes.

An approach to restructuring software architec-

tures to support engineers with modernizing existing

legacy systems is introduced in (Streekmann, 2011).

There are two important differences between this

work and our work. First, it expects the user to manu-

ally supply dependency weights between the original

system elements. Second, it takes the target decompo-

sition as a given goal. Thus this work is more relevant

for the actual process of implementing the transfor-

mation, whereas our work is more relevant for ini-

tially exploring the space of possible transformations.

Work related to change effort identiﬁcation and

maintainability estimation can be put into four cate-

gories as described in (Rostami et al., 2015): (i) Task-

based project planning, e.g. COCOMO II (Boehm

et al., 2000), only applies coarse-grained architec-

tural artifacts which make accurate predictions dif-

ﬁcult. (ii) Architecture-based project planning, e.g.

(Paulish and Bass, 2001), and (iii) Architecture-based

software evolution, e.g. (Garlan et al., 2009), do

not support change effort estimation and impact anal-

ysis. (iv) Scenario-based architecture analysis, e.g.

(Clements et al., 2002), use the architecture to de-

compose planned software changes into various tasks

to realize the changes. However, exiting approaches

only use a structural view of the architecture and

therefore do not consider management costs.

8 SUMMARY

As illustrated in this paper, determining the system’s

architecture by considering a single aspect is danger-

ous, because we might ignore other essential aspects

of the system. We have seen that if we simply follow

Supporting Software Architecture Evolution by Functional Decomposition

441

the ideal functional decomposition (in terms of cou-

pling and cohesion), the implementation cost might

be too high. On the other hand, without a system-

atic functional analysis we may reduce the cost of the

decomposition but degrade the system’s modularity.

Thus, the two approaches are essential. The designer

must use them in tandem to explore and ﬁlter the de-

sign space, and to eventually converge on a good solu-

tion that balances the functional and the nonfunctional

concerns. In consequence, the approach proposed in

this paper not only allows for identifying the effort

for implementing a new feature, but also the effort for

maintaining a good system structure in case that the

new feature tends to the system’s structure.

REFERENCES

Boehm, B. W. et al. (2000). Software Cost Estimation with

Cocomo II with Cdrom. Prentice Hall.

Clements, P. et al. (2002). Evaluating Software Architec-

tures: Methods and Case Studies. Addison-Wesley.

Cuesta, C. E., Navarro, E., Perry, D. E., and Roda, C.

(2013). Evolution styles: using architectural knowl-

edge as an evolution driver. Journal of Software: Evo-

lution and Process, 25(9):957–980.

Faitelson, D. and Tyszberowicz, S. (2015). Improving de-

sign decomposition. In Li, X., Liu, Z., and Yi, W., ed-

itors, SETTA, volume 9409 of LNCS, pages 185–200.

Springer.

Garlan, D. et al. (2009). Evolution styles: Foundations and

tool support for software architecture evolution. In

Software Architecture, WICSA/ECSA, pages 131–140.

IEEE.

Heger, C. and Heinrich, R. (2014). Deriving work plans

for solving performance and scalability problems. In

Computer Performance Engineering, volume 8721 of

LNCS, pages 104–118. Springer.

Heinrich, R., Rostami, K., Stammel, J., Knapp, T., and

Reussner, R. (2015). Architecture-based analysis

of changes in information system evolution. 17th

Workshop Software-Reengineering & Evolution, SWT-

Trends, 34(3).

Jackson, D. (2012). Software Abstractions: Logic, Lan-

guage, and Analysis. The MIT Press.

Jacobson, I., Christerson, M., Jonsson, P., and

Overgaard,

G. (1992). Object-oriented software engineering - a

use case driven approach. Addison-Wesley.

Kamada, T. and Kawai, S. (1989). An algorithm for draw-

ing general undirected graphs. Information processing

letters, 31(1):7–15.

Lehman, M. M. (1980). On understanding laws, evolution,

and conservation in the large-program life cycle. Jour-

nal of Systems and Software, 1:213–221.

North, S. C. (2004). Drawing graphs with NEATO. NEATO

User’s Manual.

Paulish, D. J. and Bass, L. (2001). Architecture-Centric

Software Project Management: A Practical Guide.

Addison-Wesley.

Reussner, Ralf H. et al., editor (2016). Modeling and

Simulating Software Architectures – The Palladio Ap-

proach. MIT Press.

Rostami, K., Stammel, J., Heinrich, R., and Reussner, R.

(2015). Architecture-based assessment and planning

of change requests. In QoSA, pages 21–30.

Streekmann, N. (2011). Clustering-Based Support for Soft-

ware Architecture Restructuring. Software Engineer-

ing Research. Vieweg+Teubner Verlag.

Vanya, A., Klusener, S., Premraj, R., and van Vliet,

H. (2013). Supporting software architects to im-

prove their software system’s decomposition - lessons

learned. Journal of Software: Evolution and Process,

25(3):219–232.

Williams, B. J. and Carver, J. C. (2010). Characterizing

software architecture changes: A systematic review.

Inf. Softw. Technol., 52(1):31–51.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

442
