CyTrONE: An Integrated Cybersecurity Training Framework

Razvan Beuran, Cuong Pham, Dat Tang, Ken-ichi Chinen, Yasuo Tan and Yoichi Shinoda

Japan Advanced Institute of Science and Technology, Nomi, Ishikawa, Japan

Keywords:

Cybersecurity Training, Cybersecurity Education, Cyber Range, Information Security Testing and Assess-

ment.

Abstract:

In a world in which cyber-attacks occur on a daily basis, cybersecurity education and training are indispens-

able. Current training programs rely on manual setup and conﬁguration for hands-on activities, which is a

tedious and error-prone task. In this paper we present CyTrONE, an integrated cybersecurity training frame-

work that we designed and implemented to address such shortcomings. The key insight is automating the

training content generation and environment setup tasks. The advantages of this approach are: (i) improve the

accuracy of the training setup; (ii) decrease the setup time and cost; (iii) make training possible repeatedly, and

for a large number of participants. In the paper we thoroughly discuss the architecture and implementation of

the framework, and we evaluate it from several perspectives in order to demonstrate that CyTrONE meets the

aforementioned objectives.

1 INTRODUCTION

Cyber-attacks occur worldwide on a daily basis. The

cyber breach at the Target stores in the U.S. in 2013

compromised the credit and debit card information of

40 million shoppers. In 2015 the Japan Pension Ser-

vice was hacked, which led to the exposure of per-

sonal data of 1.25 million of its users. A recently

disclosed breach at Yahoo, that actually occurred in

2014, compromised the accounts of more than 500

million users—and it is considered to be the largest

discovered breach in the history of Internet so far.

In this context cybersecurity education and train-

ing are becoming more and more relevant, as the only

way in which such cyber breaches can be prevented

and handled adequately. There is a plethora of avail-

able training programs, most of them paid, but also

several to which participation is free. In Japan, for

instance, CYDER (MIC, 2016) is a program coordi-

nated by the Ministry of Internal Affairs and Commu-

nications for providing hands-on training to IT per-

sonnel of government organizations and large com-

panies. Hardening Project (WASForum, 2016) is a

security contest organized by the Web Application

Security Forum in Japan, in which teams of secu-

rity experts and IT professionals compete with each

other in terms of the security improvements they can

provide in a realistic e-commerce company network.

Also in Japan, enPiT-Security (SecCap) (enPiT Uni-

versity Consortium, 2016) is an education program

targeting students that is supported by the Ministry

of Education, Culture, Sports, Science and Technol-

ogy, and organized by a consortium of ﬁve universi-

ties. Amongst the paid cybersecurity education and

training programs available internationally, we men-

tion the training provided by the SANS Institute, both

as live courses and online training (NetWars) (SANS

Institute, 2016).

Such education and training programs make use of

speciﬁcally set-up training environments for hands-

on activities meant to improve the practical skills of

the participants. However, many of the current train-

ing programs rely on the manual setup and conﬁgu-

ration of these environments, which is a tedious and

error-prone task. Although some training programs

may employ various tools behind the scenes to facil-

itate setup tasks, such tools are not disclosed, there-

fore they do not beneﬁt the public at large. Thus, our

analysis of training programs in Japan (Beuran et al.,

2016) has shown that only one of the surveyed pro-

grams, namely Hardening Project, is consistently au-

tomating setup tasks, even though the said automation

refers only to the execution environment itself, and

not to security content creation, which is still done

manually.

We believe in the democratization of cybersecu-

rity training. We believe that, while the improvement

of the skills of current security professionals in vari-

ous organizations, companies and in the military is of

course important, the only solution for making it pos-

sible to cope with the ever increasing cybersecurity

threats is to have large-scale education and training

programs that reach young people in universities, col-

leges and even high schools.

Beuran, R., Pham, C., Tang, D., Chinen, K-i., Tan, Y. and Shinoda, Y.

CyTrONE: An Integrated Cybersecurity Training Framework.

DOI: 10.5220/0006206401570166

In Proceedings of the 3rd International Conference on Information Systems Security and Privacy (ICISSP 2017), pages 157-166

ISBN: 978-989-758-209-7

157

For this reason we have proceeded to design and

implement CyTrONE (Cybersecurity Training and

Operation Network Environment), a cybersecurity

training framework that aims to facilitate training ac-

tivities by providing an open-source framework that

automates the training content generation and envi-

ronment setup tasks. The advantages of this approach

are threefold: (i) improve the accuracy of the training

setup; (ii) decrease the setup time and cost; (iii) make

training possible repeatedly, for many participants.

We stress that CyTrONE is not a cloud con-

troller, such as OpenStack (The OpenStack Founda-

tion, 2016), nor simply a management tool, such as

Ansible (Red Hat, Inc., 2016) or Chef (Chef, 2016),

although it shares some features with such systems.

CyTrONE is indeed an integrated framework for cy-

bersecurity training that covers all the necessary func-

tionality, from user interfaces for both organizers and

trainees, continuing with training content generation

and security content creation, and ﬁnishing with train-

ing environment setup and cleanup.

The main contributions of the present paper are:

• Present the design and implementation of the

CyTrONE cybersecurity training framework;

• Evaluate the CyTrONE framework from several

perspectives to demonstrate that it meets the

aforementioned goals;

• Discuss future directions for improving the

present framework in particular, and cybersecu-

rity training in general.

The remainder of the paper is organized as fol-

lows. In Section 2 we discuss in more detail the prin-

ciples that guided the framework design, and how we

addressed them in practice. Then, in Section 3, we

provide more technical details about the actual frame-

work implementation, and about its components. This

is followed (Section 4) by a multi-perspective eval-

uation of the framework which demonstrates that it

meets the design requirements. Finally, in Section 5,

we discuss our vision for further improving cyberse-

curity education and training. The paper ends with

conclusions and references.

2 CyTrONE OVERVIEW

In this section we present some background informa-

tion, the design requirements that have driven the de-

velopment of CyTrONE, and the actual design.

2.1 Background

The training environments used in cybersecurity

training are typically known as cyber ranges. The un-

derlying concept of this kind of practical training is

illustrated in Figure 1. Thus, in addition to theoretical

lectures, the trainees have access to a network envi-

ronment in which they can practice and improve their

skills. Such an environment could contain traces of

cyber-attacks, for use in forensics training, but could

also be subjected to live attacks by white-hat hack-

ers, for use in defense and even attack training (see

(Beuran et al., 2016) for a more detailed description

of security training methodologies).

Whit e-hat

hacker

Trai nees

Cy be r &R a n g e

Trai nees Instruc tors

Staff

Netwo rk(Environment

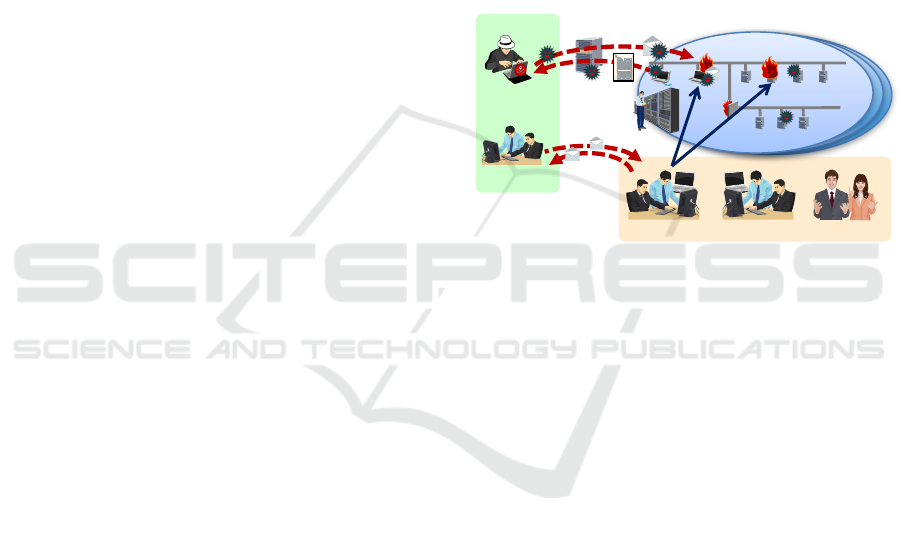

Figure 1: The concept of cybersecurity training conducted

using cyber range environments.

For a realistic training, trainees could also com-

municate with staff members, similarly to what would

be required in the case of a real cyber-attack, for in-

stance in order to report the issue to management, to

request assistance from a cybersecurity company, etc.

2.2 Design Requirements

The issues of current cybersecurity education and

training programs need to be considered for improv-

ing their effectiveness. A deep analysis conducted

in (Beuran et al., 2016) led to the establishment of a

set of requirements for any effective security training

program:

• The training content should be appropriate for the

target audience in terms of knowledge and ability

levels;

• The training content should be in accordance with

the skills that the program aims to develop;

• The training program should use hands-on activi-

ties for developing practical abilities, so as to en-

sure that trainees can subsequently deal with real-

life incidents;

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

158

• The training program should reach a large audi-

ence, in order to have a signiﬁcant impact on the

cybersecurity readiness of a country;

• The training program should have good

cost/performance characteristics, so that it is

sustainable on long term.

These requirements can be reﬂected in practice by

noting that they refer to two key aspects: (i) train-

ing content, and (ii) hands-on activities. Therefore, in

terms of practical implementation, the above require-

ments can be mapped into two features that are nec-

essary for creating an effective cybersecurity training

framework:

1. Ability to modify and add new training content in

an easy manner;

2. Ability to automatically create and manage the

training environment.

2.3 Framework Design

We designed the cybersecurity training framework

CyTrONE speciﬁcally to meet the aforementioned re-

quirements; an overview of the framework design is

shown in Figure 2.

Tr ain i n g '

Database

CyTrONE

Cyber&

Range

e-Learning

Training

Organizer

Trainees

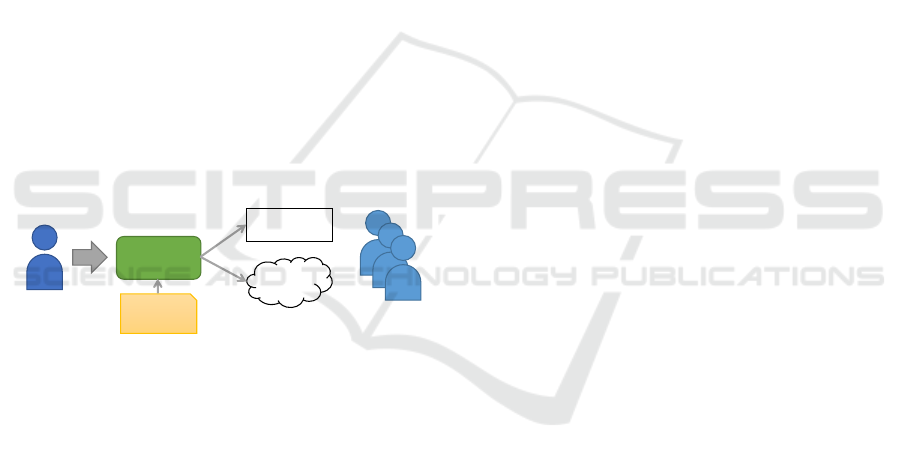

Figure 2: Design overview of the CyTrONE cybersecurity

training framework.

Speciﬁcally, based on training organizer input,

CyTrONE will generate the training content for a par-

ticular training session, and upload it to an e-Learning

system (also known as Learning Management Sys-

tem, or LMS). Simultaneously, CyTrONE will create

the cyber range training environment corresponding

to that training content. This automatic generation is

made possible through the use of an easily updatable

training database, which contains all the necessary in-

formation, both regarding the training content that is

shown to the trainees, and the properties of the associ-

ated training environment. This design addresses the

requirements in Section 2.2 as detailed next.

2.3.1 Training Content Management

To deal with the ﬁrst implementation requirement re-

garding the easy modiﬁcation and addition of training

content, we decided to use the YAML text-based for-

mat (Evans, 2016) for representing the training sce-

narios (descriptions, questions, and answers). Thus,

this information can be easily updated by the train-

ing organizers, without a need for signiﬁcant techni-

cal knowledge. Moreover, we envisage that in the fu-

ture questions could also be partially generated based

on meta-level descriptions, such as training topics,

by using information from a richer training database

(see also Section 5.2). In all cases, the correspond-

ing training content as shown to trainees is produced

automatically, without any direct intervention.

2.3.2 Cyber Range Creation

Current cyber ranges are highly customized, and their

setup requires a high level of cybersecurity expertise.

This makes it prohibitive to setup complex environ-

ments, which leads to high training costs. The reuse

of cyber range environments for subsequent training

sessions is often considered as an acceptable solu-

tion, but this limits the quality of the training, since

the environments cannot be updated if the need arises.

Moreover, it engenders the possibility of information

leakage, hence it decreases the effectiveness of the cy-

ber range as a skill-evaluation tool. The automatic cy-

ber range instantiation functionality in our framework

addresses this issue, and thus meets the second im-

plementation requirement for effective cybersecurity

training: the automatic creation and management of

the practice environment.

2.4 Advantages

We outline below some of the advantages and possible

uses of our integrated training framework:

• Bridge the gap between descriptions of train-

ing content, such as the U.S. NIST Technical

Guide to Information Security Testing and As-

sessment (Scarfone et al., 2008), and the environ-

ment in which the corresponding training activi-

ties should occur;

• Provide ﬂexibility in creating cyber ranges and

updating their content based on information re-

garding recent security incidents, the skill level

of the participants, etc. Consequently, improve

the effectiveness of the training through ensuring

a higher variability of the scenarios;

• Decrease the cost of setting up complex train-

ing environments, and thus improve the scalability

of cybersecurity training, by allowing for a large

number of training sessions and participants.

CyTrONE: An Integrated Cybersecurity Training Framework

159

3 CyTrONE IMPLEMENTATION

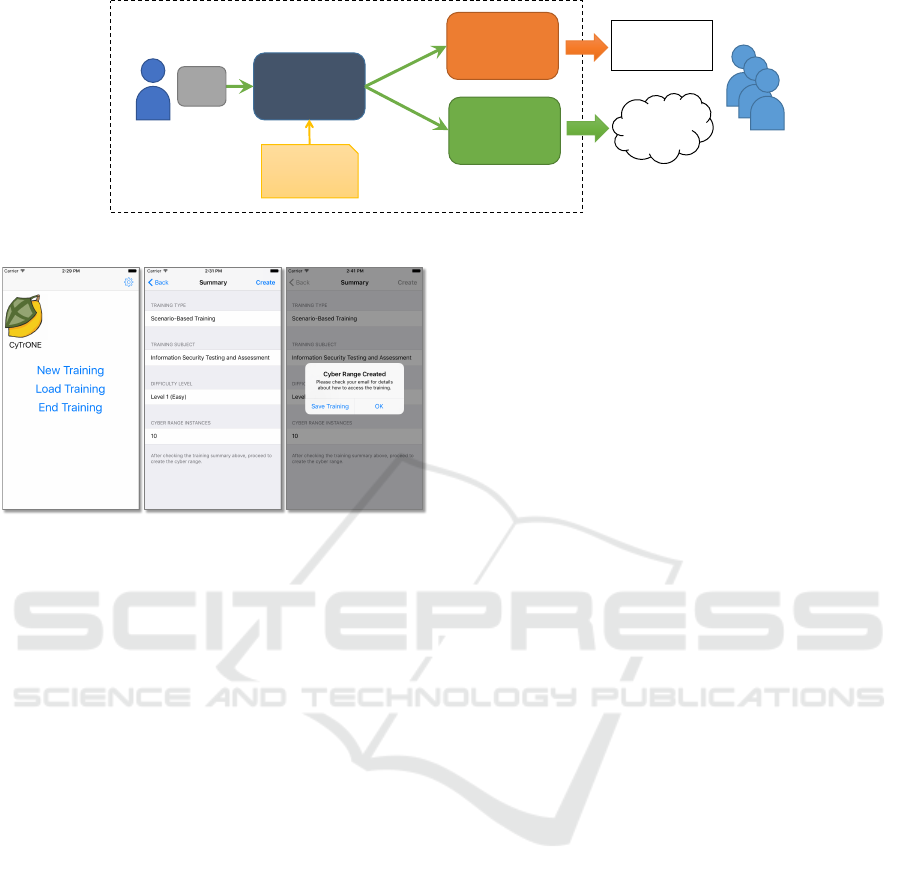

The detailed architecture of the CyTrONE cybersecu-

rity training framework is shown in Figure 3. Next we

shall provide more details about each component.

3.1 User Interface

The user interface (UI) in Figure 3 is intended for the

training organizers. Assuming the training database is

already set up as needed, the UI should make it possi-

ble for organizers to decide the content of a particular

training session as easily as possible. The current im-

plementation of the UI uses the Swift programming

language, and thus the UI can run on any iOS device.

Nevertheless, as the UI uses the standard HTTP pro-

tocol and JSON format (Crockford, 2006) to commu-

nicate with the training server, other implementations

are possible in the future (e.g., web application, Java,

etc.).

The UI employs a wizard-like paradigm, and it

guides the organizer through selecting the type of

training (“Scenario Based”, “Topic Based”), the class

of training (e.g., “Security Testing and Assessment”,

“Incident Detection and Response”), and ﬁnally the

training difﬁculty level (e.g., “Easy”, “Moderate”,

“Hard”). The last screen summarizes the training pa-

rameters; the organizer can create the actual training

session, or go back and modify some of the choices.

Several screenshots of the UI are shown in Fig-

ure 4. From left to right we present: (i) the initial

screen providing several actions to the user; (ii) the

conﬁrmation screen displaying a summary of the set-

tings for the cyber range to be created; (iii) the cyber

range creation notiﬁcation shown when the setup pro-

cedure is completed.

The UI also has a settings screen for conﬁguring

aspects such as the hostname or IP address of the

training server, the number of cyber range instances

to be created, output ﬁle formats, etc.

3.2 Training Database

Currently we employ the same training paradigm with

many other training programs, in that trainees are pre-

sented questions that they have to answer by carrying

out an investigation in the cyber range. For our future

plans regarding a more realistic training approach see

Section 5.2.

We have already prepared some sample content

that follows the U.S. NIST technical guide mentioned

previously (Scarfone et al., 2008), and we envisage

that training organizers could easily add more con-

tent as they see suited. We hope that eventually such

content will be released publicly for the beneﬁt of the

entire community, or at least licensed to other training

programs.

As mentioned already, the training content in

our framework is described using the YAML format,

therefore it is easily editable for modiﬁcations or ad-

ditions. Figure 5 contains a brief example that in-

cludes the overall description of a training level, and

one training question.

The associated cyber range is also described in

YAML, in the form of a template. In Figure 6 we in-

clude an example cyber range speciﬁcation template

that includes: (i) host settings regarding the physical

host(s) on which the cyber range is to be instantiated;

(ii) guest settings regarding the content that is to be

prepared on the cyber range virtual machines (VMs);

(iii) clone settings concerning the replication of VMs

to create multiple cyber range instances for trainees.

Note that the ﬁelds that depend on practical as-

pects such as training location, identity of the or-

ganizer, and so on, make use of variables that will

be replaced by the Training Description Generation

module based on user settings, in a manner similar

to Ansible (Red Hat, Inc., 2016) variables. For in-

stance, the value of the management IP address of the

host on which the instantiation is to be done (variable

host mgmt addr on line 4 in Figure 6) is only decided

and allocated at cyber range creation time, based on

the information regarding the hosts allocated to a par-

ticular organizer.

3.3 Training Description Generation

The Training Description Generation is a key compo-

nent of CyTrONE. Its function is to generate a de-

tailed description of the training that is to be con-

ducted. For this purpose the organizer input is used

to select the appropriate sources from the training

database, which was described in Section 3.2 above.

The training description has two components. Re-

garding training content, a Content Description sim-

ilar to what was shown in Figure 5 will be created

and sent to the Content Description Processing mod-

ule (see Section 3.4 below). Communication takes

place using the HTTP protocol and JSON format.

As for cyber range instantiation, a template similar

to the one shown in Figure 6 will be combined with

actual user settings (IP address of the hosts, etc.) to

create an actual Cyber Range Speciﬁcation that will

be sent to the Cyber Range Instantiation module (see

Section 3.5). In this case too communication takes

place using the HTTP protocol and JSON format.

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

160

Training '

Descri pti on

Generation

Cyber'Range

Instantiation

Cyber

Range

Training

Databa se

Content'

Descri pti on'

Processing

LMS

(Moodle)

Cyber Range

Specification

Content

Description

Training

Organizer

Trainees

Figure 3: Architecture of the CyTrONE cybersecurity training framework.

Figure 4: Screenshots of the wizard-like UI aimed at train-

ing organizers; from left to right: the initial screen, the con-

ﬁrmation screen, and the range creation notiﬁcation.

3.4 Content Description Processing

Our framework proposes the use of e-learning sys-

tems as a simple, ﬂexible and scalable manner to pro-

vide a user interface for the trainees, so that they can

refer to the training questions, request hints, etc. The

e-learning system also veriﬁes their answers, compute

result statistics, and so on.

The function of the Content Description Process-

ing module is mainly to convert the training content

description (cf. Figure 5) that is generated by the

Training Description Generation module to a format

that is suitable for e-learning systems. For this pur-

pose we have selected the SCORM format, which is

widely used for representing e-learning content (Ad-

vanced Distributed Learning Initiative, 2016). The re-

sulting SCORM ﬁle can thus be imported into most

e-learning systems.

We currently use Moodle as e-learning sys-

tem (The Moodle Project, 2016), since it appears to

be popular in many communities and well supported.

We are now working on improving the user experi-

ence both for organizers and trainees through a deeper

integration of our framework with Moodle. Thus, ap-

propriate plugins will make it possible to automate

tasks such as importing the SCORM package, will

allow trainees more control of the cyber range, etc.

Although the tight integration with Moodle leads to

---

- training:

- id: NIST-Level1

description: >

Investigate the security of a desktop

computer.

header: >

Today is your first day on the job as

a sysadmin. Your boss tells you that he

suspects somebody tried to hack into

your company’s network, and asks you to

investigate a possible cyber-attack

that may have happened when the system

administrator was a guy called Daniel

Craig. The boss sits you in front of

the previous sysadmin’s computer, and

wishes you good luck.

You glance at the machine and reluctantly

get to work.

level: 1

questions:

- id: NIST-L1-Q01

type: fill

content: >

The operating system and kernel

release (version) can tell you about

the possible vulnerabilities of a

computer. Find out the kernel release

of the machine (e.g., 3.4.56-789).

choice: "null"

answer: 3.10.0-327

hints:

- hint: >

You can use the command uname to

find out OS details.

- hint: $ uname -r

- hint: >

An alternative solution is to check

the version file: $ cat /proc/version

Figure 5: Excerpt of a training content description in YAML

format that contains a level header and one question.

a loss of generality, we see it as an optional added

value that training organizers can choose to ignore if

they prefer other LMSs.

CyTrONE: An Integrated Cybersecurity Training Framework

161

---

- host_settings:

- id: host_1

mgmt_addr: {{ host_mgmt_addr }}

virbr_addr: {{ host_virbr_addr }}

account: {{ host_account }}

- guest_settings:

- id: desktop

ip_addr: {{ guest_ip_addr }}

basevm_host: host_1

basevm_config_file: /123456/basevm_desktop.xml

basevm_type: kvm

basevm_name: basevm_desktop

tasks:

- add_account:

- account: daniel

passwd: daniel_passwd

- account: trainee

passwd: trainee_passwd

- install_package:

- package_manager: yum

version: 1.8.10

- package_manager: yum

- emulate_attack:

- attack_type: ssh_attack

target_account: daniel

attempt_number: 123

- emulate_malware:

- name: spyeye

cpu_utilization: 40

mode: dummy_calculation

- clone_settings:

- range_id: 123456

mgmt_network: {{ clone_mgmt_network }}

hosts:

- host_id: host_1

guests:

- guest_id: desktop

mgmt_addr_list: {{ clone_mgmt_addr_list }}

Figure 6: Sample of a cyber range speciﬁcation template in

YAML format that represents a basic setup.

3.5 Cyber Range Instantiation

A key component of the CyTrONE framework,

named CyRIS (Cyber Range Instantiation System),

has already been developed for automatically creating

a cyber range based on its speciﬁcation (Pham et al.,

2016).

The Cyber Range Speciﬁcation created within

CyTrONE is compatible with CyRIS, thus our frame-

work can use all the functionality of the instantiation

system. This includes: (i) training environment setup

functions, such as account management, tool instal-

lation, network conﬁguration, etc.; and (ii) security

content generation functions, such as log generation,

ﬁrewall conﬁguration, malware and cyber-attack em-

ulation, and so on (cf. Table 1).

One important characteristic of CyRIS in the con-

text of this paper is that the messages associated with

all the setup steps involved in the cyber range instan-

tiation are logged. At the end, the logs are automat-

ically checked for errors, so that the correctness of

the entire setup is validated. For more details about

CyRIS please consult the reference cited above.

4 EVALUATION

In what follows we shall discuss the evaluation of

CyTrONE from two perspectives:

Functionality. The types of cybersecurity training

that can currently be conducted using CyTrONE;

Performance. The performance characteristics of

CyTrONE, especially regarding cyber range in-

stantiation at large scale.

4.1 Functionality Evaluation

The ﬁrst type of evaluation we present bears on the

features of the CyTrONE framework in terms of the

types of cyber ranges that can be created using it,

hence the kinds of training that are possible.

The U.S. NIST Technical Guide to Information

Security Testing and Assessment (Scarfone et al.,

2008) that we used as reference for our implemen-

tation contains three classes of technical assessment

techniques:

1. Review techniques: Documentation review, log

review, ruleset review, system conﬁguration re-

view, network snifﬁng, and ﬁle integrity checking;

2. Target identiﬁcation and analysis techniques:

Network discovery, network port and service

identiﬁcation, vulnerability scanning, and wire-

less scanning;

3. Target vulnerability validation techniques: Pass-

word cracking, penetration testing, and social en-

gineering.

In Table 1 we show that the cyber range creation

features of CyTrONE can be combined in order to set

up environments that cover the requirements for all

the techniques included in the NIST guideline. Thus,

we conclude that our framework provides functional-

ity that is broad enough as to support all the training

topics related to security testing and assessment, at

least as they were envisaged when the said guideline

was released.

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

162

Table 1: Coverage of the U.S. NIST Technical Guide to Information Security Testing and Assessment (Scarfone et al., 2008)

through a combination of environment setup and content generation features.

Information Security

Testing and Assessment

Techniques

Training Environment Setup Security Content Generation

Account

Management

Tool

Installation

File

Copy

Script

Execution

Network

Conﬁguration

Log

Generation

Firewall

Conﬁguration

Malware

Emulation

Attack

Emulation

Trafﬁc

Capture

Log Review    

Ruleset Review   

System Conﬁguration Review     

Network Snifﬁng     

File Integrity Checking   

Network Discovery   

Port and Service Identiﬁcation    

Vulnerability Scanning        

Wireless Scanning    

Password Cracking  

Penetration Testing        

Social Engineering  

4.2 Performance Evaluation

The second kind of evaluation we conducted refers

to the performance of CyTrONE, in particular related

to cyber range instantiation. We have already men-

tioned that the democratization of large-scale training

is a target of our research. We are currently in dis-

cussions with representatives of the union of techni-

cal colleges in Japan for integrating our framework

with the cybersecurity program they will initiate na-

tionwide. We expect that in the future professors in

such colleges will try to set up many parallel training

sessions for hundreds of students.

4.2.1 Evaluation Setup

To assess the framework performance in such condi-

tions, we have conducted experiments on the large-

scale network testbed StarBED (NICT, 2016), and

used a total of up to 30 physical hosts. Note that the

cyber range instantiation process is divided into three

stages:

1. Preparation of the base images for VMs, currently

conducted on one of the hosts, the master host;

2. Content installation into the VMs prepared above,

also conducted on the master host;

3. Cloning of the VMs on multiple hosts, which is

mainly composed of the time to copy the VM base

images from the master host to the other hosts,

and the actual time for starting the VMs on each

host from the copied base images.

For VM base image copying we use parallel copy-

ing to all the other hosts using the parallel-scp

command; if a cyber range instance contains multi-

ple base images, then they are also copied in parallel.

We conducted the performance evaluation using

two training scenarios, as follows:

Level 1. A basic training which includes topics such

as log and system conﬁguration review, network

snifﬁng, and vulnerability scanning; one VM,

playing the role of a desktop PC, is needed for

this training scenario;

Level 2. A training of medium difﬁculty on topics

such as network discovery, password cracking,

and penetration testing; two VMs, a “desktop”

and a “web server”, are required for this training.

4.2.2 Evaluation Results

The ﬁrst performance measurements were conducted

with a ﬁxed number of virtual machines (20) that are

instantiated on 1, 2, 5, and 10 hosts (with 20, 10,

4, and 2 VMs per host, respectively), so as to study

the effects of distributed execution. In Figure 7 we

present the average time required to instantiate cyber

ranges in this experiment, for each step of the instan-

tiation procedure and in total. The results show that

the preparation time doubles for Level 2 compared to

Level 1, which is expected given that Level 1 uses

only one VM, whereas two VMs are used in Level 2.

The installation time also increases for Level 2 com-

pared to Level 1, but not necessarily doubles, since

it depends on the actual content to be generated and

installed for each type of VM.

The most signiﬁcant effect is observed for the

cloning stage. For the 1 host case (which is actually

the master host), as there is no need to copy the VM

base images, time is only needed to start the VMs on

the master host from these images. For more hosts,

the copy process, even done in parallel, becomes im-

portant. Nevertheless, although for Level 2 it is nec-

essary to copy two VMs to each host instead of one

VM for Level 1, the time is not much different until

the right-most case of 10 hosts.

The total creation time plots show that, following

the initial increase because of the need to copy the

prepared VMs to the other hosts that was explained

above—due to our parallelization— there is no signif-

icant increase in setup time afterwards. In most cases

CyTrONE: An Integrated Cybersecurity Training Framework

163

0 2 4 6 8 10

Number of hosts (20 VMs total)

Cyber range creation time [min]

Level 1 [prepare]

Level 2 [prepare]

Level 1 [install]

Level 2 [install]

Level 1 [clone]

Level 2 [clone]

Level 1 [total]

Level 2 [total]

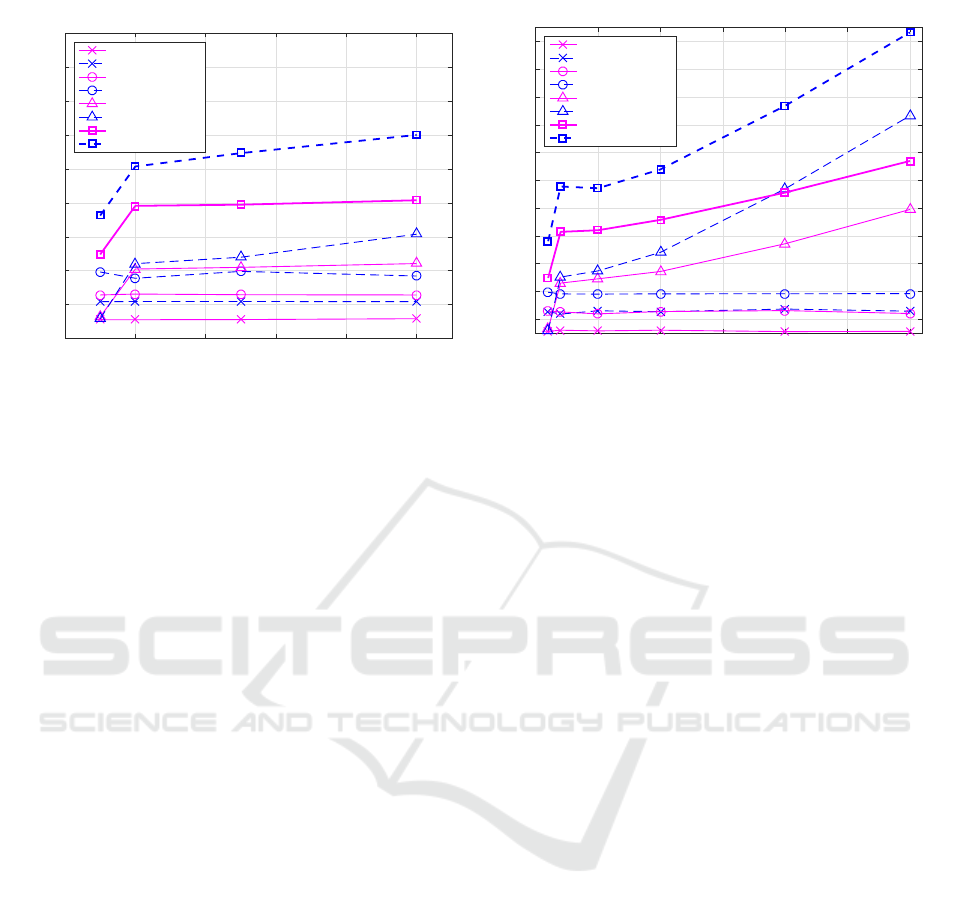

Figure 7: Cyber range creation time versus the number of

hosts when using a total ﬁxed number of 20 VMs and up

to 10 instantiation hosts, for Level 1 (i.e., 20 trainees) and

Level 2 (i.e., 10 trainees) scenarios.

creation ﬁnishes in a reasonable time of under 10 min-

utes, and only in the worst case (Level 2, 10 hosts) the

creation time reaches about 12 minutes.

For the second series of measurements, we de-

cided to keep the number of VMs per host constant

(20), and assess performance for a large-scale sce-

nario with up to a total of 600 VMs on 30 hosts (rep-

resenting 600 cyber ranges for Level 1, or 300 cyber

ranges for Level 2). The results shown in Figure 8

show that for preparation and installation there is ba-

sically no difference with respect to the lower-scale

experiments shown before, since these operations are

the same in both cases.

The cloning phase exhibits an exponential in-

crease for the required time, with a higher exponent

for Level 2, which requires copying a double number

of VM base images. This is caused by the fact that, as

the total amount of throughput in the interconnecting

network increases, transfer times increase as well.

Nevertheless, the total creation time results show

that, in a relatively large-scale setup for 100 trainees,

creation can be ﬁnished in under 10 minutes for Level

1 (100 VMs), and in under 15 minutes for Level 2

(200 VMs), durations that we consider reasonable

given the typical 10 minute breaks between classes.

In the extreme case of using 600 VMs, for Level 1

(600 trainees) the setup is completed in under 15 min-

utes, and even for Level 2 (300 trainees) the setup is

completed in about 22 minutes.

We believe that through further optimization we

can reduce even more the total cyber range creation

time. We are currently investigating the possibility to

tackle the long cloning time issues by allowing each

host to set up its own VMs (after an initial copy of raw

0 100 200 300 400 500 600

Number of virtual machines (20 VMs per host)

Cyber range creation time [min]

Level 1 [prepare]

Level 2 [prepare]

Level 1 [install]

Level 2 [install]

Level 1 [clone]

Level 2 [clone]

Level 1 [total]

Level 2 [total]

Figure 8: Cyber range creation time versus the number of

virtual machines when using a ﬁxed number of 20 VMs per

host and up to 30 instantiation hosts, for Level 1 (i.e., up to

600 trainees) and Level 2 (i.e., up to 300 trainees) scenarios.

VM images, which only needs to be done once before

the very ﬁrst training). This approach will not require

copying the VMs from the master host during instan-

tiation, as it is done now, and will eliminate the expo-

nential increase seen in Figure 8; thus we expect that

the total creation time results will become relatively

ﬂat for any number of hosts. The only inconvenient

would be that all the hosts need to be provided access

to the repositories containing the required packages

and tools to be installed, which may pose a security

risk in some circumstances.

For a more detailed analysis of cyber range in-

stantiation performance at low scale, and the differ-

ences with respect to other environment setup tools

see (Pham et al., 2016).

5 DISCUSSION

In this section we compare CyTrONE to similar

frameworks, and discuss two additional directions on

which we plan to focus in the near future.

5.1 Comparison

Realistic cybersecurity training using cyber ranges is

currently mainly conducted in military environments,

and the proprietary systems that are available publicly

are expensive and have a low conﬁgurability. To the

best of our knowledge CyTrONE is the ﬁrst open-

source cybersecurity training framework that is fully

conﬁgurable and ﬂexible.

Facebook has recently released an open-source

CTF (Capture The Flag) platform, supporting quiz

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

164

type, ﬂag type and king-of-the-hill type of CTF train-

ing (Facebook, Inc., 2016). However, the Facebook

CTF platform is mainly a cool UI for the training,

and it does not provide assistance with a full environ-

ment setup as CyTrONE does. Moreover, there is no

support for generating security content either. These

tasks remain the organizer responsibility, and conse-

quently are still tedious.

In (Raj et al., 2016), the use of application

containers is proposed as a solution for improving

the scalability of CTF contests. The approach fo-

cuses only on deployment though, as content creation

and management still have to be handled manually.

CyTrONE has a much more thorough and general ap-

proach, and we are planning to investigate in the fu-

ture the possibility of using container technology in-

stead of virtual machines to improve the scalability of

our framework.

Closed, proprietary systems, such as the Boe-

ing Cyber-Range-in-a-Box (CRIAB) create a vendor

lock-in, both in terms of software and hardware. On

the other hand, our open-source framework makes it

possible to decouple the training content from the exe-

cution infrastructure, making it possible to update the

content and also to expand the infrastructure depend-

ing on actual needs. The open-source approach also

brings about perspectives for standardization of the

training content format; this would create opportuni-

ties for training companies to easily produce content

adapted to various levels of trainee skills, age, back-

ground, and so on, and license it without having to

worry about the details of the platform on which the

content is actually used.

By using CyTrONE, with automatic environment

setup and content generation based on YAML de-

scriptions, it becomes possible for practically anyone

to conduct security training anytime and anywhere

(given that host servers are available for the cyber

range creation), thus leading to the democratization

of cybersecurity training. The ﬂexibility of the frame-

work, in association with the use of a Learning Man-

agement System, means that not only classical CTFs,

but any other kind of training can be conducted, for

instance by leveraging the advances of modern edu-

cation methodologies, such as adaptive learning, etc.

We have currently reached the ﬁrst concrete goal

of our project: develop the fully-conﬁgurable cyber-

security training framework that based on organizer

input and a training database will automatically pro-

duce the training content and training environment

necessary for that training. Once its testing is ﬁnal-

ized, we shall publicly release CyTrONE as an open-

source project, so that it can be used by other organi-

zations; the release is planned for the end of the cur-

rent Japanese ﬁscal year (March 2017).

5.2 Training Database

Our framework currently uses a classical training

paradigm of scenario-based and topic-based questions

that are prepared in advance. At release we shall in-

clude samples of such training content targeting var-

ious audiences, such as technical college students,

company employees, etc. However, while this ap-

proach undoubtedly serves many training purposes,

especially for beginners, we are planning to also de-

velop a new training paradigm, by which actual inci-

dent information is used to automatically recreate the

corresponding training environment.

In this context, the framework of the ITU-T

X.1500 recommendation for structured cybersecurity

information exchange techniques (CYBEX) (ITU-T,

2016) is extremely relevant, and detailed informa-

tion about the incidents can be obtained in stan-

dard machine-readable formats, such as Structured

Threat Information eXpression (STIX) (OASIS CTI

Technical Committee, 2016) or Incident Object De-

scription Exchange Format (IODEF) (Danyliw et al.,

2007). This information is the basis for reproduc-

ing the incident; furthermore, vulnerability databases

such as CVE (Common Vulnerabilities and Expo-

sures) (MITRE Corporation, 2016) will be used to

recreate the target (victim) environment, and public

websites such as the Exploit Database (EDB) (Of-

fensive Security, 2016) will be used to obtain exploit

code for recreating the attack in the cyber range.

The novelty of this approach is that, through the

use of de-facto standards as the source of the database

content included in our framework, it becomes possi-

ble to conduct training in similar conditions to a cer-

tain incident and/or vulnerability as soon as the cor-

responding information is made public. This would

make it possible for IT professionals to immediately

gain ﬁrst-hand knowledge and develop response tac-

tics, so that the said incident is avoided elsewhere.

5.3 User Trials and Integration

Once the development of the framework is ﬁnalized,

we shall proceed with several usability tasks. First

of all, we’ll do a series of user trials to validate the

system in various training scenarios, from the point

of view of: (i) content and training environment, and

(ii) user interfaces both for organizers and trainees.

Secondly, we’ll proceed with the integration of the

framework into the workﬂow of existing training pro-

grams, such as CYDER and Hardening Project that

were mentioned in beginning of the paper, through

CyTrONE: An Integrated Cybersecurity Training Framework

165

our already established contacts with those program

organizers.

The usability testing we shall carry out will ensure

that the framework is operating correctly in a wide

range of scenarios, and the integration with existing

training projects will ensure a clear and immediate

contribution to society.

As more training content is added to the frame-

work, we shall also conduct tests and surveys regard-

ing the training quality improvement ensuing from the

use of CyTrONE, which is another measure of train-

ing effectiveness.

6 CONCLUSIONS

In this paper we have presented the design and im-

plementation of an integrated cybersecurity training

framework named CyTrONE. Through the develop-

ment of this framework we aim to increase the effec-

tiveness of cybersecurity training by improving the

accuracy of the training environment setup, and de-

creasing the setup time and costs, thus making large-

scale security training possible.

The CyTrONE framework was evaluated in terms

of its functionality, and we have shown that it cov-

ers all the security testing and assessment techniques

discussed in the relevant U.S. NIST guideline.

We have also evaluated the framework perfor-

mance regarding cyber ranges instantiation, and we

have demonstrated that it meets reasonable target

times for cyber range creation: within 10 minutes for

100 participants for a basic setup with one VM per

trainee (Level 1), and within 15 minutes for 100 par-

ticipants when using a more advanced training setup

with two VMs per trainee (Level 2). Even for a total

of 300 participants, the setup time is under 10 min-

utes for Level 1, and only a little above 20 minutes

for Level 2.

Our future work includes several main directions:

(i) improve the performance of the current system; (ii)

introduce a new training paradigm in which machine-

readable incident reports are used to automatically

generate the corresponding training environments;

(iii) conduct user trials for the overall framework, and

integrate it with existing training programs.

REFERENCES

Advanced Distributed Learning Initiative. SCORM Ofﬁcial

Website. http://www.adlnet.gov/adl-research/scorm/.

Beuran, R., Chinen, K., Tan, Y., and Shinoda, Y. (2016). To-

wards Effective Cybersecurity Education and Train-

ing. Technical Report IS-RR-2016-003, Japan Ad-

vanced Institute of Science and Technology (JAIST).

C. Evans. The Ofﬁcial YAML Website.

http://www.yaml.org/.

Chef. Chef - Automate Your Infrastructure.

https://www.chef.io/chef/.

Crockford, D. (2006). IETF RFC 4627: The applica-

tion/json Media Type for JavaScript Object Notation

(JSON) . In Internet Requests for Comments, Internet

Engineering Task Force.

Danyliw, R., Meijer, J., and Demchenko, Y. (2007). Inci-

dent Object Description Exchange Format (IODEF),

IETF RFC 5070.

enPiT University Consortium. enPiT-Security

(SecCap) Training Program (in Japanese).

https://www.seccap.jp/.

Facebook, Inc. Platform to host Capture the Flag competi-

tions. https://github.com/facebook/fbctf.

ITU-T. Revised structured cybersecurity information ex-

change technique. Recommendation X.1500 (2011)

Amendment 9 (03/16).

Ministry of Internal Affairs and Communications (MIC),

Japan. Cyber Defense Exercise with Recur-

rence (CYDER) Training Program (press release).

http://www.soumu.go.jp/main sosiki/joho tsusin/eng/

Releases/Telecommunications/130925 02.html.

MITRE Corporation. Common Vulnerabilities and Expo-

sures (CVE). https://cve.mitre.org/.

National Institute of Information and Communications

Technology (NICT), Japan. Hokuriku StarBED Tech-

nology Center. http://starbed.nict.go.jp/en/index.html.

OASIS Cyber Threat Intelligence (CTI) Technical Com-

mittee. Structured Threat Information eXpression

(STIX). https://stixproject.github.io/.

Offensive Security. The Exploit Database (EDB).

https://www.exploit-db.com/.

Pham, C., Tang, D., Chinen, K., and Beuran, R. (2016).

CyRIS: A Cyber Range Instantiation System for Fa-

cilitating Security Training. In Proceedings of the In-

ternational Symposium on Information and Commu-

nication Technology (SoICT).

Raj, A. S., Alangot, B., Prabhu, S., and Achuthan, K.

(2016). Scalable and Lightweight CTF Infrastructures

Using Application Containers. In Proceedings of the

2016 USENIX Workshop on Advances in Security Ed-

ucation (ASE ’16).

Red Hat, Inc. Ansible is Simple IT Automation.

https://www.ansible.com/.

SANS Institute. SANS NetWars Training Courses.

https://www.sans.org/netwars.

Scarfone, K., Souppaya, M., Cody, A., and Orebaugh, A.

(2008). National Institute of Standards and Technol-

ogy – Technical Guide to Information Security Testing

and Assessment.

The Moodle Project. Moodle – Open-source Learning Plat-

form. https://moodle.org/.

The OpenStack Foundation. OpenStack –

Open Source Cloud Computing Software.

https://www.openstack.org/.

Web Application Security Forum (WASForum). Hardening

Project (in Japanese). http://wasforum.jp/hardening-

project/.

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

166
