The Power of a Model-Driven Approach to Handle Evolving Data

Warehouse Requirements

Said Taktak

, Saleh Alshomrani

, Jamel Feki

and Gilles Zurfluh

University of Sfax, FSEGS Faculty, Miracl Laboratory, Sfax, Tunisia

Faculty of Computing and IT, University of Jeddah, Jeddah, Saudi Arabia

University of Toulouse 1 Capitole, IRIT Laboratory, Toulouse, France

Keywords: Data Warehouse, Evolution Modeling, OLAP Requirements, MDA, M2M, M2T.

Abstract: The Data Warehouse (DW) is characterized by complex architecture, specific modeling and design

approaches. It integrates data issued from operational data sources in order to meet decision-makers’ needs

by providing answers for OLAP queries (On-Line Analytical Processing). In practice, both data source

models and decision-makers’ analytical requirements evolve over time and, therefore, lead to changes in the

DW multidimensional model. In this evolving context, we have developed the DWE (Data Warehouse

Evolution) framework. DWE automatically propagates the changes of the data source data-model on the

DW data-model. This paper proposes a model-driven approach for extending DWE in order to consider a

further related evolutionary aspect: The evolution of decision-makers’ needs. It deals with the propagation

of these evolutions on the DW multidimensional model. This approach relies on a classification of evolution

scenarios and a set of transformation rules for the identification of evolution operations to apply on the DW.

1 INTRODUCTION

DW modeling has been considered, for more than

one decade, as a real challenging research topic for

which several approaches are proposed. Three major

categories of approaches for designing a DW

schema (i.e., data-model) are well known in the

literature: Top-down (Kimball and Ross, 2002),

bottom-up (Golfarelli et al., 2001; Rusu et al., 2005),

and mixed (Nabli et al., 2005) approaches.

All these DW design methods rely on a rigid

assumption that the conceptual model of the DW

istime-invariant. However, in practice, this

assumption restricts the evolution of the real world

and, therefore, does not hold most of the time since,

the DW model may evolve due to internal and/or

external factors (e.g., business processes,

organization environment). Furthermore, it is

difficult to determine definitively the DW model at

the design phase; in fact, for sustainability issues, it

is often necessary to undergo changes after its

implementation. These changes are due to two main

reasons: (a) Evolution of analytical needs of

decision-makers: changes in these needs might

require extending the DW model (e.g. adding new

axes or subject of analysis), and (b) Evolution of

data source model (DS) dictated by the evolution of

the organization business processes (e.g., adding or

even deleting conceptual entities). To the best of our

knowledge, we claim that the problem of changes in

the DW model has not been sufficiently addressed

yet neither by the research community nor by the

DW software editors. As well, all evolution

strategies of the literature are at a single modeling

level: schemas before and after changes are conform

to the same meta-model. To the best of our

knowledge, in the DW domain, the evolution of

schemas expressed in different models have not yet

received their full part of investigation.

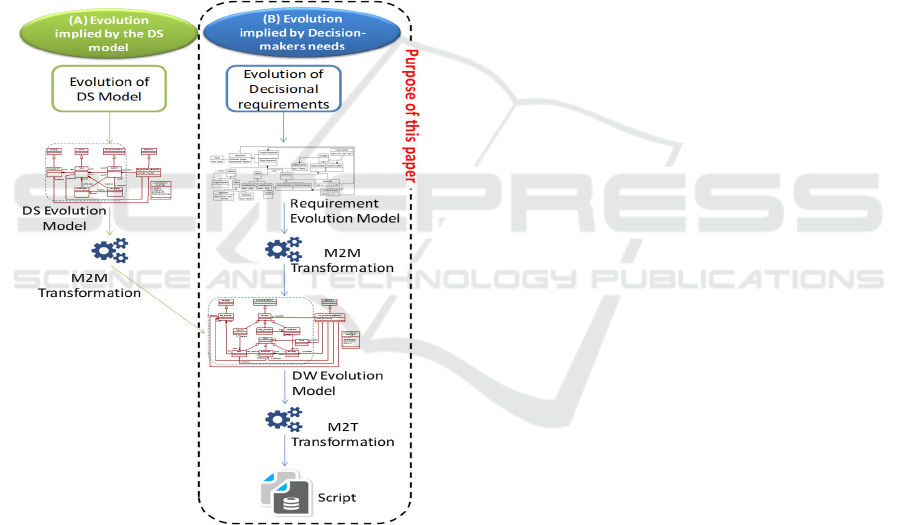

To alleviate this problem, we proposed in

(Taktak et al., 2015) an MDA (Model Driven

Architecture) approach that automates the

propagation of the evolution of the DS model

towards its associated DW model. In this paper, we

extend our contribution by considering the impacts

of changes of decision-makers’ requirements on the

DW data-model (DW). In this context, we suggest

an approach based on a classification of evolution

scenarios and a set of transformation rules for the

identification of evolution operations to apply on the

DW model.

Taktak S., Alshomrani S., Feki J. and Zurﬂuh G.

The Power of a Model-Driven Approach to Handle Evolving Data Warehouse Requirements.

DOI: 10.5220/0006209001690181

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 169-181

ISBN: 978-989-758-210-3

169

This paper is organized as follows. In Section 2,

we give a review of works dealing with the DW

evolution problem. Section 3 describes our MDA-

based approach for the propagation of decisional

requirements evolution towards the

multidimensional DW model; this approach extends

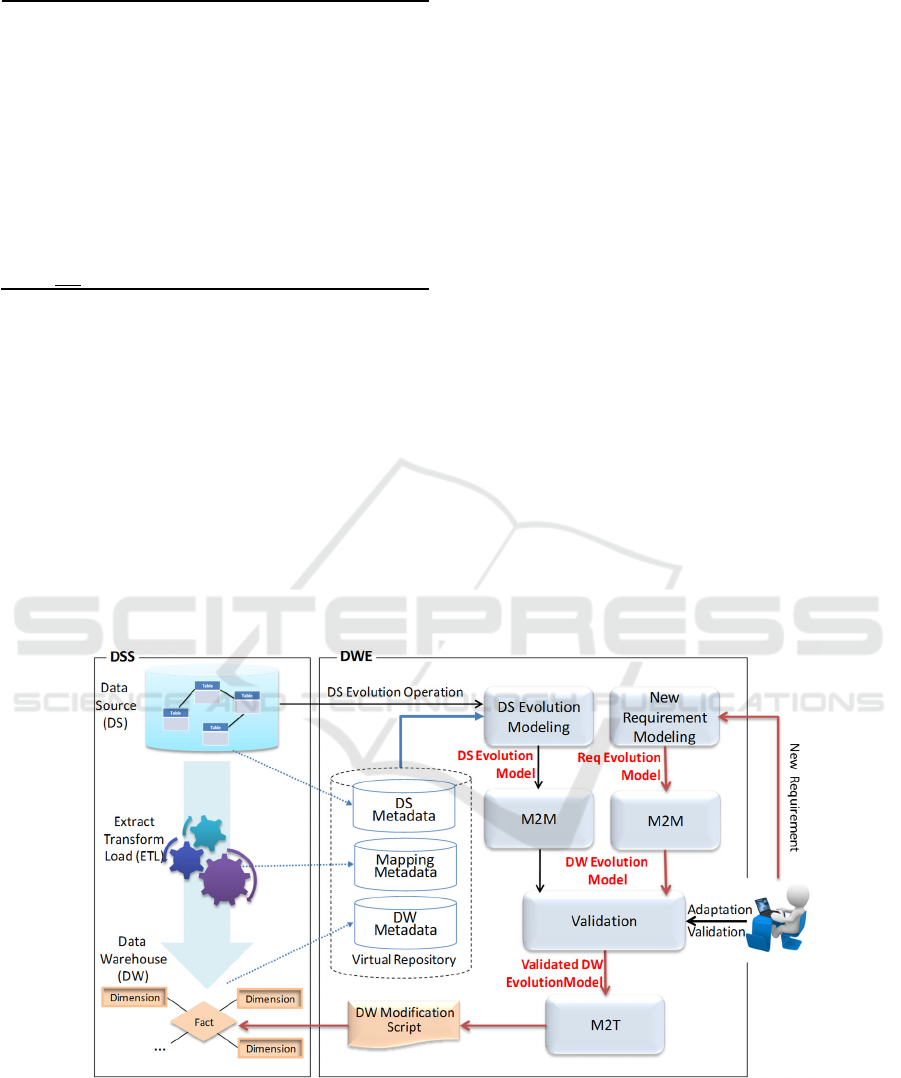

our framework DWE «Data Warehouse Evolution».

Section 4 introduces our classification of evolutions

of plausible decisional requirements. Section 5

details our extension; it presents the process of

identifying DW evolution alternatives according to

our classification; in addition, it develops a set of

algorithms to derive the appropriate changes that

should apply on the DW model. Section 6 describes

the DWE technical implementation including MDA

transformations at two levels: Model-To-Model

(M2M) and Model-To-Text (M2T). The conclusion

section summarizes the paper and enumerates its

perspectives.

2 RELATED WORKS

The DW evolution problem has been the main topic

for several research studies. It is considered from

two main viewpoints: (a) Evolution of business

requirements of decision-makers, and (b) Evolution

of data source model. Hereafter, we review the

approaches for each trend.

2.1 Approaches based on DS Evolution

Model

Organizations’ business processes evolve over time.

This is due to the modification of existing processes

or to the emergence of new processes with new real

world objects. These evolutions affect the data-

model of the information system that feeds the DW.

In turn, the DW cannot be immunized against these

evolutions in its data source; consequently this

evolution deserves to be studied so that it becomes

semi-(automatically) propagated towards the DW

data-model, the DW ETL (Extract Transformed and

Load) process, and stored data. This evolution

problem was addressed from different viewpoints.

We can classify the related works into three main

categories: (i) Evolution of the DW multidimensional

model, (ii) Maintenance of materialized views, and

(iii) Adaptation of the ETL process.

Works addressing views maintenance consider

the DW as a set of materialized views directly built

on, and loaded from, the DS. In this category of

approaches, any change in the DS data-model

requires views maintenance efforts. As a practical

extension, Rundensteiner et al. (1997) and

Bellahsene (2002) proposed approaches for a

dynamic adaptation of materialized views in

response to an evolution of the DS DM. These

approaches maintain not only the schema views, but

also their instances (i.e., data). The main idea of this

contribution is to avoid recalculating views after DS

changes so that a new schema view derives from the

old one. More details on views maintenance in

multidimensional context are available in

(Bellahsene, 2002).

Other research contributions have offered

solutions for adapting the ETL process during the

DS data-model evolution. Among these works,

solutions proposed in (Papastefanatos et al., 2009)

and (El Akkaoui et al., 2011) provide a mechanism

for adapting the ETL tasks to the changes occurred

in the DS data-model. However, this study was

restricted to the ETL process without treating the

impact of the DS evolution on the DW model

(Dimensions, facts, hierarchies …).

To address these shortcomings, the authors of

(Wrembel and Bebel, 2007) defined a formal model

for a multi-version DW. They presented a set of

evolution operations that affect the DW schema and

its instances. These authors have distinguished two

types of DW versions: real version and alternative

version. The DW real version reflects the changes in

the real world environment of the organization

whereas the DW alternative version simulates the

change process; it bases on “What-If” analyses. In

order to validate their approach, they developed the

MVDW (Multi-Version Data Warehouse) prototype

for the maintenance of the DW and the management

of its versions. The major drawback of this solution

is the manual identification of the DW evolution

operations; it mostly requires high expertise of the

DW administrator and then is out of reach of end-

users.

2.2 Approaches based on Business

Requirement Evolution

Let us note that in mixed approaches (Phipps and

Davis, 2002; Nabli et al., 2005), the DW design is

based firstly on the DS model and, secondly, on the

decision-makers requirements. Obviously, we note

that decision-makers needs are not static since they

evolve through time. Therefore, the DW created

based on initial requirements may become obsolete

and not satisfy the new requirements. To overcome

this issue, it is necessary to consider the new

analytical requirements and adapt the DW to

encompass them. Among the research works of this

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

170

category, the authors in (Favre et al., 2007)

suggested an approach for the customization of

analyses based on "If-Then" rules model; this model

allows the users to integrate their own knowledge in

order to enlarge the analysis alternatives of the DW

by changing its schema. The suggested evolution

operations affect only two components of the DW:

dimensions and hierarchies. The authors have

developed a prototype called WEDriK (Warehouse

Evolution Driven by Knowledge) based on a set of

DW evolution algorithms to create new analytical

axes. The main goal of this work is the analytical

requirements introduced by each user are processed

and transformed into DW evolution operations.

However, the authors assume that users are skilled

enough to intervene properly during this task.

Moreover, note that the proposed changes are

simple: they do not cover all cases that decision-

makers may ask for.

To surmount this problem, Talwar and Gosain

(2012) studied the evolution of complex hierarchies

(multiple alternative hierarchies, dependent and

independent parallel hierarchies). They defined a set

of evolution operations equipped with constraints to

ensure data integrity and schema consistency of the

new DW model. Operations and constraints are

defined in ULD (Uni-Level Description language)

and MDD (Multilevel Dictionary Definition). This

study is an extension of the work of (Thakur and

Gosain, 2011) where the authors presented a

conceptual requirement-oriented framework called

DWEVOLVE for DW evolution. It analyzes the

changes in the requirements specified by

stakeholders as well as developers, and then

incorporates them into the DW by performing

appropriate additions, deletions and updates.

Nevertheless, the authors do not suggest mechanism

for automatic inference of evolution operations from

the decision-makers new needs. In fact, this task is

borne entirely by the DW administrator.

In the same context, authors in (Solodovnikova

et al., 2015) have also investigated the problem of

business requirements evolution. They defined a

formalism for modeling the new needs of decision-

makers and proposed a semi-automatic approach to

adjust and create a new version of the DW model.

However, the evolution operations supported by this

solution are simple and lack precision. For example,

when adding an attribute, the proposed algorithm is

able to identify the dimension to change but not the

role of the new attribute in the dimension: create a

new hierarchy, insert a level into an existing

hierarchy... Details about this operation are really a

heavy task left to a skilled user.

2.3 Discussion

The related works have focused on two

complementary categories of evolutions in DW

systems, namely evolution of the DS model and

evolution of decision-makers’ needs. We have

identified three deficiencies concerning i)

complementarity, ii) complexity of the evolutions,

and iii) automatic propagation of changes.

First, concerning the complementarity, to the

best of our knowledge, no solution has combined the

DS evolution with business requirements evolution.

Indeed, contributions have addressed these two

categories of evolution independently.

Secondly, few works were interested in studying

the DS evolution effects on the multidimensional

model. Moreover, most of these works provide

solutions touching a few isolated aspects and

treating simple evolution cases (i.e., Dimension

evolution, Fact evolution, ETL evolution)

Thirdly, automatic propagation was not a

concern in these works, and when addressed, it was

carried out in a traditional way.

Finally, from the technological side, we note that

all proposed solutions were realized in a

conventional software engineering context;

therefore, implementations are platform-dependent.

Obviously, using the MDA approach (OMG, 2004)

allows benefiting from its multiple advantages.

The objective of this paper is to extend our DWE

(Data Warehouse Evolution Framework) (Taktak et

al., 2015) initially designed to automate the

propagation of changes from DS towards the

multidimensional DW. This extension consists of

enriching DWE to accommodate the evolution of

decision-makers’ needs. This extension should

provide for a complete solution that will cover the

DS evolution and the decision-makers’ requirements

evolution. Our solution is compliant with the Model

Driven Engineering (MDE) methodology that

promotes the semi-automatic propagation of

business requirements towards the multidimensional

DW. Relying on MDE technology in DWE is a

challenging proof. In fact, MDE facilitates the

realization of the proposed extension. Consequently,

our proposed approach inherits benefits from this

technology (i.e. independence from platforms,

reduction of efforts, and improvement of the quality

of result). The strength of MDE is the reuse of

models; we profit from this advantage to reuse the

models of evolution and transformation mechanisms

already implemented in our DWE. Furthermore, we

introduce a new model to define the decision-

makers’ needs evolutions. In the remaining of this

The Power of a Model-Driven Approach to Handle Evolving Data Warehouse Requirements

171

paper, we present our approach that addresses the

DW model evolution problem, and we focus on

evolutions stemming from decision-makers.

3 OVERVIEW OF THE

PROPOSED APPROACH

Our MDA-based approach aims to automate the

propagation of the changes raised by decision-

makers, as new needs, towards the DW

multidimensional model. Figure 1 shows our

approach where the evolution of the DW model is

due either to an evolution of its DS model (Figure 1,

panel A) already treated in (Taktak et al., 2015), or

to an evolution of decision-makers needs (panel B)

which will be the focus of this paper.

Figure 1: Overview of our DW evolution approach.

For this purpose, we define an appropriate evolution

model for the new decision-makers’ needs; this

enables us reusing our DW evolution model (Taktak

et al., 2014) so that we keep the same M2T (Model-

To-Text) transformation rules for code generation.

Our approach bases on three evolution models:

i) DS Evolution Model (DSEM), ii) DW Evolution

Model (DWEV), and iii) Requirements Evolution

Model (REM). Besides, it applies two types of

transformations: M2M and M2T.

-DSEM: This model describes all evolution

operations that may affect the relational DS

elements (table, column...).

-DWEM: It describes all operations that may

affect the multidimensional structures (dimensions,

facts ...). These operations should derive from the

DS evolution model.

-REM: It describes the new needs of decision-

makers in terms of subject and axes of analysis. It

also allows defining the knowledge introduced by

the user (e.g. rules, formulas). This model will

transform into DWEM.

-M2M transformation: Generates the DWEM

from REM. It relies on automatic mapping

between these two models. M2M transformation

rules are implemented in QVT (Query-View-

Transformation) and use a set of meta-models

stored upstream as Ecore files.

-M2T transformation: Generates the code that

performs the DW model alteration; the generated

code results from the DWEM previously generated

by applying a set of transformation rules we have

formalized in MOF2Text. M2T process takes as

input the physical model (PSM) along with the

DW evolution models; it produces SQL script

file(s) for creating or modifying the DW model.

We have defined Acceleo templates for

transforming DWEM operations into an executable

script. This transformation process is valid as well

for the treatment of the DS evolution as for the

treatment of the needs evolution. In fact, this reuse

is feasible because these two transformations start

from the same DWEM evolution model.

In the next section, we classify decision-makers

needs into three classes; this helps us defining the

impact of each class on the DW multidimensional

model as a set of common operations.

4 CLASSIFICATION OF

DECISIONAL REQUIREMENTS

AND EVOLUTION SCENARIOS

The evolution of the decision-makers’ needs leads to

several cases of evolution on the DW model. We

group these evolution cases in three classes namely:

Evolution by derivation, Evolution by

reorganization, and Evolution by extension.

For illustration examples, we refer to the

multidimensional DW and its associated relational

DS modeled described in Figure 2.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

172

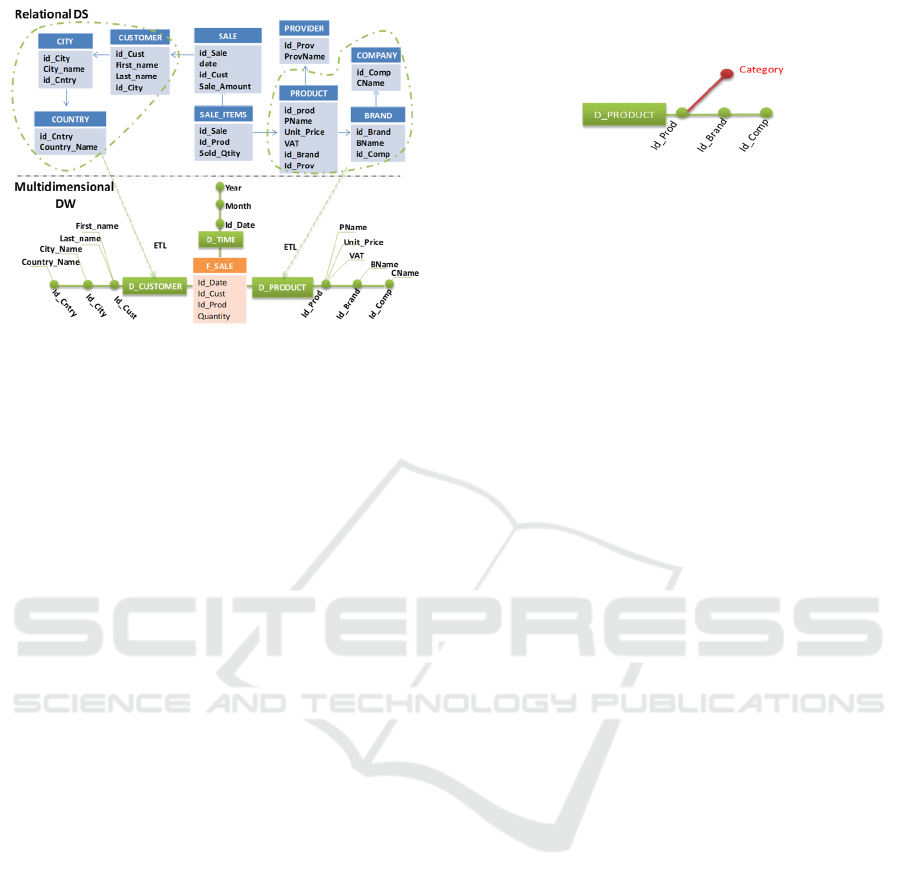

Figure 2: Data Source model and its DW model.

4.1 Evolution by Derivation

This class of evolutions consists of using elements

of the DW model for which we derive new elements.

The DW administrator should be skilled enough to

provide knowledge to achieve this evolution.

Knowledge expressed as rules or formulae.

4.1.1 Derivation by Rule

For this derivation type, simply we need to define

rule(s) to apply on an element of the DW model in

order to derive a new element to integrate into the

same DW model. The general derivation form of this

could be of the following form:

n =



(a)

where n is the derived attribute,



is a user-defined

extraction function, and a is a DW attribute.

The derivation by rule is convenient for complex

codes of entities (i.e., identifiers composed of small

pieces of information), as the French civil identifier

INSEE code (2-digits department code + 3-digits

city code), or a product code including the product

category and sub-category or even the country of

origin. We can easily derive (extract) new data from

these codes. In addition, a Date attribute likely to

generate the day, month, quarter… for a Time

dimension.

As an illustrative example, consider the DW in

Figure 2, and let us assume that a decision-maker

chooses to analyze the sales by Category of

products. The criterion of analysis Category (i.e.,

hierarchic parameter) is not currently present in the

multidimensional model despite it exists implicitly

in the data source. Nevertheless, the decision-maker

knows that the last digit of the product identifier

(Id_Prod) indicates the product category. The

derivation of the category exploits this knowledge as

an extraction rule.

Figure 3: Category created with a new hierarchy.

But, how to deal with the new extracted data

called Category? What is the role of this Category in

the DW model (is it a dimension, parameter within a

new or an existing hierarchy?). Here the insertion of

the Category creates a new hierarchy for the

D_PRODUCT dimension (cf. Figure 3). Logically,

the new hierarchy links the Id_Prod to the Category.

4.1.2 Derivation by Formula

This type of derivation consists of using a formula to

derive a new element to integrate into the DW

model. This derivation expresses as below:

n = F(a)

where n is the derived attribute, F is an arithmetic

function, and a is a DW attribute.

Let us proceed with our running sample DW and

assume that the decision-maker wants to analyze the

amount of Value Added Tax (VAT)of Sales according

to the three dimensions D_PRODUCT,D_TIME and

D_CUSTOMER. The VAT amount is not a measure

in the F_SALE fact; nevertheless, it is derivable by

the following formula:

VAT_Amount = Quantity * Unit price * VAT_Rate

Weak attributes VAT and Unit_Price in the

dimension D_PRODUCT, along with the measure

Quantity in the F_SALE fact are useful for

computing the required measure Amount_VAT for

the F_SALE fact.

4.2 Evolution by Reorganization

The second class of evolution consists of creating

new links between the DW model elements. This is

suitable since it avoids duplicating or recreating

existing elements. The reorganization process affects

mainly the temporal or spatial dimensions; however,

other scenarios could be possible. For example,

assume that the DW contains two facts: F_SALE for

Sales analysis associated with dimensions

D_CUSTOMER and D_PRODUCT (cf., Figure 4,

(1)), and the F_STOCK fact associated with

dimensions D_RETAIL_OUTLET and

D_PRODUCT (cf., Figure 4, (2)). If the decision-

The Power of a Model-Driven Approach to Handle Evolving Data Warehouse Requirements

173

maker chooses to analyze the Sales by

RETAIL_OUTLET and PRODUCT, the F_SALE fact

will then have to be connected to the dimension

D_RETAIL_OUTLET(cf., (Figure 4, (3)).

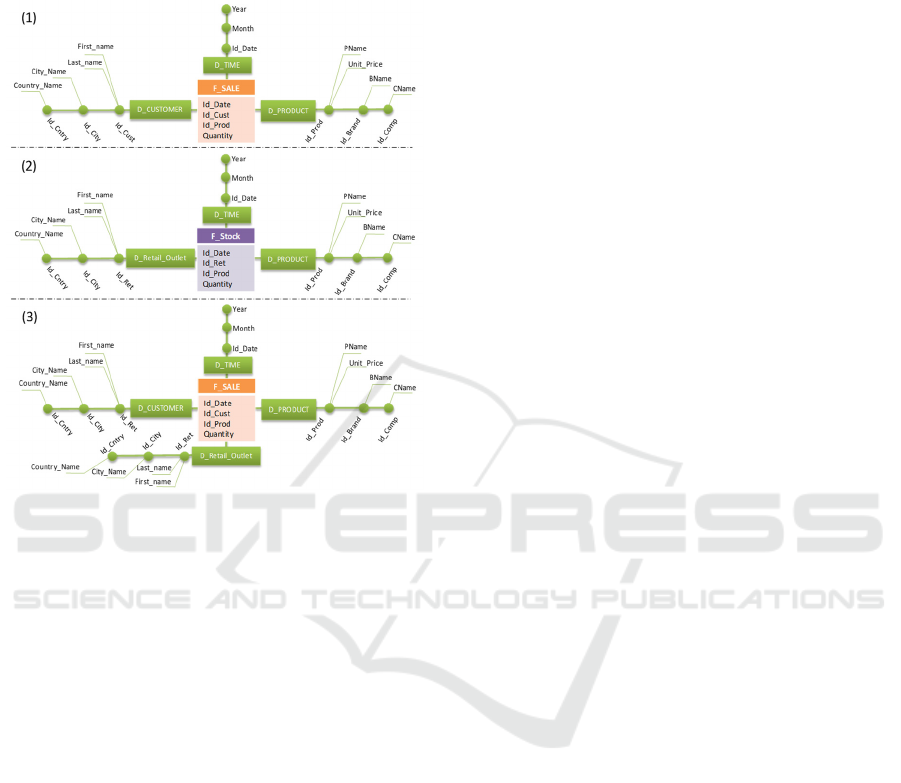

Figure 4: Reuse of the D_Retail_Outlet dimension.

4.3 Evolution by Extension

The third class of Evolution requires extending the

DW model by new elements extracted from its

associated DS. These evolutions apply when the

current DW model is inadequate to meet the new

requirement either by derivation or by reformulation.

In this case, it is necessary to identify which element

from the DS we should add to the DW.

For example, the decision-maker needs to

analyzing sales according to the products’ providers.

This data is currently absent in the DW but the

Provider table exists in the DS. Besides, we have a

Foreign Key constraint from Product to Provider

indicating the existence of a functional dependency

associating each product to its provider. PRODUCT

feeds the dimension D_PRODUCT of the F_SALE

fact then Provider becomes a hierarchic level

(parameter) in the D_PRODUCT dimension.

These sample evolution examples highlights the

importance of propagating the evolutions of the

decision-makers’ requirements towards the DW.

Two issues arise concerning the DW evolution: 1)

Which modifications to bring to the DW model to

meet the new needs (i.e. creating dimension, fact, or

level), 2) How to accomplish these modifications

efficiently and especially fast; speed is a vital factor

for some decision-making systems.

The trivial solution completely rebuild the DW

starting from the new collection of decision-makers’

needs. This solution is inadequate since the DW

reconstruction is a heavy and complex task, which

requires a lot of time, efforts and high costs. More

accurately, it is not feasible especially in domains

where the evolution frequency is high (Bellatreche

and Wrembel, 2013).

To deal with this problem, we proposed a model

driven approach for propagating changes of the

decision-makers’ requirements towards the DW

model in an almost automatic way, thus avoiding the

need for full reconstruction of the DW. To do so, we

have defined a set of transformation rules to

transform new decision-makers’ requirements into

DW evolution operations. Subsequently, we present

these transformation rules textually (as algorithms)

then we formalize them using QVT.

5 TRANSFORMATION RULES

BY EVOLUTION STRATIGIES

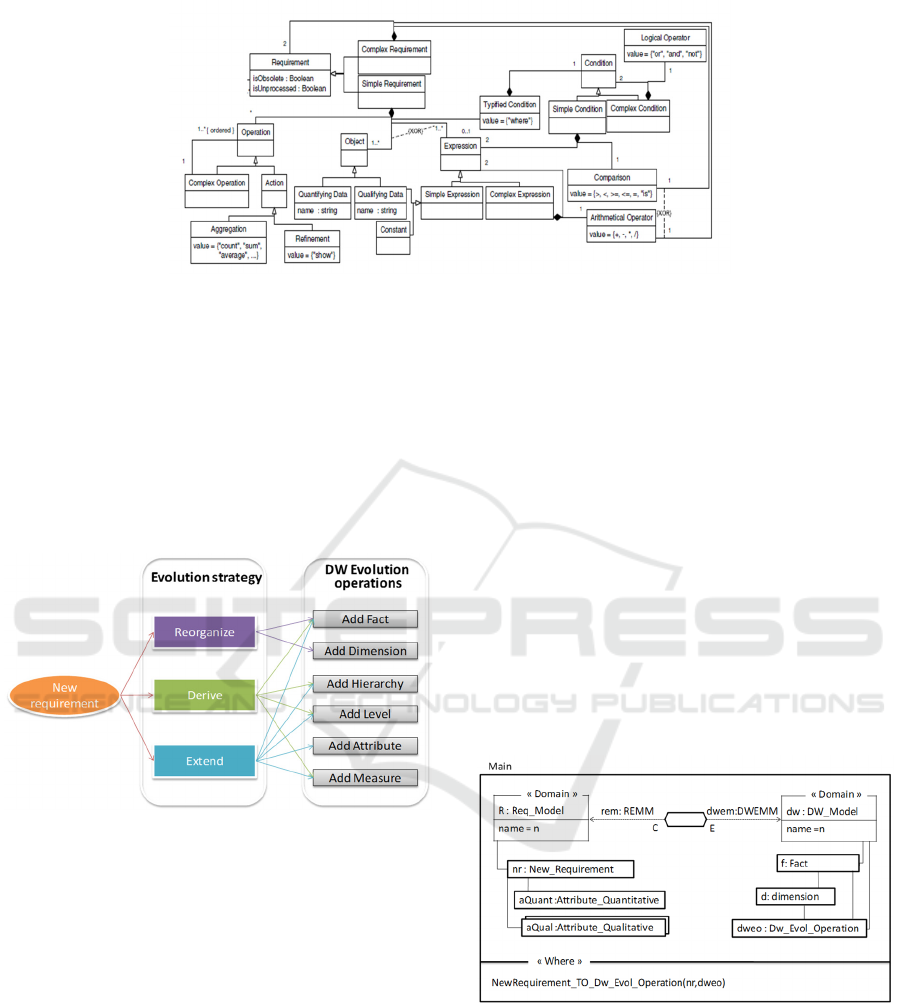

We textually explain the transformation rules for

generating the modifications to apply on the DW

multidimensional model due to the evolution of

decision-makers’ requirements. To do so, we rely on

the evolutions classification introduced in the

previous section for determining the different

evolution cases. These cases are:

- Statico: Nothing to change if the current DW

model allows meeting the new requirement.

Otherwise, we verify if a reorganization of the DW

model is possible.

- Reorganization: Applies when the necessary

elements for the new requirement (i.e., measure or

attribute) already exist in the DW model but their

current role is not adequate. In this case, we

redefine the role of these elements to support the

new requirement.

- Derivation: If a necessary element for the

new requirement does not exist in the DW model,

we verify whether it is derivable from another DW

element. In such a case, the derivation applies

according to knowledge introduced by the DW

administrator (i.e., rule or expression). Otherwise,

if the missing element is derivable from the DS,

we extend the DW model with the derived

element.

- Extension: This alternative is the most

delicate evolution. It consists of expanding the

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

174

current DW model with new elements to extract

from the DS.

Choosing the evolution alternative to apply to the

DW model (i.e., Reordering, Derivation, and

Extension) relates to the Main algorithm.

Note that these alternatives are usable

independently or in combination.

In the following, we detail these alternatives and

we specify for each case the evolution operations to

apply on the DW multidimensional model. To do

so, we consider the following notation:

- Req: a new requirement

- A: the set of attributes describing Req; A

divides into two subsets A = A

quant

∪

qual

- A

qual

: all qualitative attributes of Req

- A

quant

: all quantitative attributes of Req,

- DW: the set of elements of the DW

multidimensional model (i.e., schema)

- DS: the set of elements of the DS model.

The Main algorithm depicts the principle of

defining the evolution strategy. It calls three

algorithms Reorganize (cf., Algorithm 2), Derive

(cf., Algorithm 3) and Extend (cf., Algorithm 4).

Algorithm 1: Main.

10.

11.

12.

13.

14.

Input:

Req, DW, DS

Begin:

if DW_answer(Req) then

Null // No changes to do on the DW model

else if A ⊆ DW then

Reorganize( ) // see Reorganize algorithm

else

for each a ∈ A

if a ∉ DW and (Rule(a) or Formula(a)) then

Derive( ) // see Derive algo

else if a ∉ DW and a ∈ DS then

Extend( ) // see Extend algo

end if

end for

end if

End.

DW_answer(Req)is a Boolean function that returns

True if the DW model can already meet the new

requirement (Req),and False otherwise.

Rule(a) is a Boolean function True if the attribute

a is defined through a rule, and False otherwise.

Formula(a) is a Boolean function True if

attribute a is defined through a formula, and False

otherwise.

5.1 Reorganization

The starting point of the reorganization process (see

algorithm 2) is the identification of the DW model

elements (fact, dimensions) that meet the new

requirement. This is through two functions

Find_Fact and Find_Dimension; they return

respectively the fact containing quantitative

attributes A

quant

and dimensions containing

qualitative attributes A

qual

. The fact f

new

will be

enriched with the set of measures A

quant

attributes.

Dimensions containing A

qual

attributes are refined by

the function Refine before their link to the new fact.

This function prunes hierarchies by eliminating

unnecessary attributes for the new requirement.

Algorithm 2: Reorganize.

10.

11.

12.

13.

Input:

quant

, A

qual

Begin:

f = Find_Fact(A

quant

)

D= Find_Dimensions(A

qual

)

if f ==Then

new

.M = A

quant

else

new

= f

end if

for each d ∈ D

new

= Refine(d)

new

.f = f

new

Add_Dimension(d

new

)

end for

Add_Fact(f

new

)

End.

5.2 Derivation

The Derive algorithm describes the derivation

process; it takes as input the attribute to derive as

well as the knowledge given by the DW admin as

rules or formulae. We treat differently qualitative

and quantitative attributes of this class.

If the derived attribute a

is quantitative, and if

there is a fact f related to the dimension that contains

the qualitative attributes of the new requirement,

then a

adds to f as new measure m

new

. Otherwise,

we create a new fact f

new

for the derived attribute a

If the derived attribute a

is a qualitative

attribute, it necessarily belongs to a dimension; its

position generally depends on the a

source

attribute in

the rules. If a

source

belongs to a terminal level l

then

new

becomes a terminal level l

new

in the same

hierarchy as l

. Otherwise, we create a new hierarchy

new

that contains l

level and all its predecessors

The Power of a Model-Driven Approach to Handle Evolving Data Warehouse Requirements

175

levels. l

new

adds to the new hierarchy as a new

terminal level.

Algorithm 3: Derive.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

Input:

: a derived Attribute

source

: an attribute of DS model used within a rule or formula

quant

, A

qual.

Begin:

if a

∈A

quant

and formula(a

) then

f = Find_Fact(A

qual

) //find the fact linked to dimensions

containing A

qual

if f == then

new

.M = f

new

.M a

// define the measure of the new fact

new

.D = Find_Dimensions(A

qual

) //find dimensions

containing A

qual

Add_Fact (f

new

)

else

new

= a

; m

new

.fact = f

Add_Measure (m

new

)

end if

else if a

∈A

qual

and Rule(a

) then

= Find_Level(a

source

) // return level containing a

source

if Terminal_Level( l

) then

new

.h = l

.h //hierarchy of level l

new

is l

hierarchy

new

.p = a

// parameter of l

new

is the derived attribute a

new

.pred = l

// the predecessor level of l

new

is l

else

new

.d = l

.h.d //dimension of h

new

is the dimension of l

new

.L = l

..l

//the levels of h

new

are all l

predecessor levels

Add_ hierarchy (h

new

)

new

.p = a

; l

new

.pred = l

; l

new

.h = h

new

end if

Add_ Level(l

new

)

end if

End.

5.3 Extension

The Extend algorithm defines the principle of this

extension, which enriches the DW model with

elements extracted from the DS according to the

new decision-maker requirement. We assume that a

semi-automatic association between attributes of the

new requirement and the DS attributes is provided;

this treatment could use a semantic resource or a

dictionary of the DS attributes. The role of each

element depends on the type (quantitative or

qualitative) of its associated attribute and its

membership table in the DS.

If the attribute to extract a

belongs to a table

t) is qualitative, four situations arise to define the

role of a

in the multidimensional model:

- If table t feeds a level l then it becomes a low

attribute by applying the Add_Attribute evolution

operation.

- If t feeds no levels, and if t is referenced by a table

t’ which feeds a terminal level l’, then a

becomes an

attribute for a new terminal level l

new

by applying the

Add_Level evolution operation.

- If t does not feed any level, and if t is a table

referenced by t' and refers to a table t”, t' and t”

respectively feed the two successive levels l’ and l",

can then feed a hierarchical level inserted between

the two levels l’ and l".

- If t does not feed any level and if t is referenced by

table t’ which feeds a non-terminal level l’ then a

creates a new hierarchy h

new

by calling the

Add_Hierarchy evolution operation. h

new

contains

the level l’ and all its predecessors levels of the

hierarchy of l’. Then, we create a new terminal level

new

for the new hierarchy h

new

When the extracted attribute a

is quantitative, if t

(table of a

) feeds a fact f, then a

becomes a

measure of f. Otherwise, we create a new fact with

the new measure a

Algorithm 4: Extend.

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

Input:

DW, DS,

: attribute to retrieve from the data source

Begin:

t = Find_Table(a

)// return the table which contains a

if a

∈A

qual

then

l = Load_Level(t) //return the level which is loaded from t

if l == null then

t’ = ref(t) // return the table which references table t

t’’ = IsRef (t) // return the table which is referenced by t

if t’ not null and t’’ not null then

l’= Load_Level(t’)

l’’ = Load_Level(t’’)

if l’’.pred == l’ then

new

.h = l’.h ; l

new

.pred = l’ ; l

new

.succ = l’’

Add_Level(l

new

) // add level l

new

end if

else if t’ is not null then

l’ = Load_Level (t’)

if Terminal_Level (l’) then // add terminal level

new

.p = a

; l

new

.pred = l’ ; l

new

.h = l’.h

else // add hierarchy and a new level

new

.d = l

.h.d

new

.L = l

.. l’ // the level in the new hierarchy

Add_Hierarchy (h

new

)

new

.p = a

; l

new

.pred = l’ ; l

new

.h = h

new

Add_Level (l

new

)

end if

else

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

176

27.

28.

29.

30.

31.

32.

33.

34.

35.

36.

37.

38.

new

.p = l.p

Add_Attribute(a

new

)

end if

else

f = Load_Fact(t)

if f not null then

new

= a

; m

new

.fact = f

Add_Measure (m

new

) // add measure m

new

to the fact f

else

new

. M = a

e ;

Add_Fact(f

new

) // add fact f

new

end if

End.

6 IMPLEMENTATION

To validate our approach, we are currently

improving our software prototype DWE (Data

the platform Eclipse Modeling Framework (EMF)

which is a complete environment for MDA

paradigm. Figure 5 shows the overall architecture of

Evolution of DW model according to changes

occurred in its DS model, which is developed in

(Taktak et al., 2015); ii) Evolution of the DW model

to meet the new needs of decision-makers. This

paper focuses on this latter feature.

The DW evolution process starts with the modeling

of the new requirements and aims to generate the

requirement evolution model (REM). Next is the

M2M step that transforms the REM into DWEM.

Once the DWEM is generated, thereafter the new

DW model displays graphically; this enables the

DW administrator to observe and study the effects

(i.e., suggested changes) of the DW-evolutions

operations. At this stage, the DW administrator can

validate these changes or adapt them according to

the evolution requirements. Finally, the M2T

process executes; it transforms the DWEM into

script for DW alteration. Next, we detail these steps.

6.1 Modeling Decision-makers

Requirements

This step takes as input the new requirements

expressed as queries, rules or formulae and returns a

Requirements Evolution Model (REM) compliant to

the Meta-Model in (Solodovnikova et al., 2015)

depicted in Figure 6. A new requirement has

quantitative and qualitative attributes, arithmetic

operations (i.e., formulations) and logical

expressions (i.e., rules).

Figure 5: Architecture of the DWE prototype.

The Power of a Model-Driven Approach to Handle Evolving Data Warehouse Requirements

177

Figure 6: Requirements Evolution Meta-Model (Solodovnikova et al., 2015).

6.2 Implementation of M2M

Transformations in QVT

The first aim of our approach is to determine the

evolution operations to apply on the DW model after

the emergence of new analytical needs. Figure 7 lists

transformations potentially applicable to the DW

according to the evolution strategies. Several

evolution situations occur.

Figure 7: DW evolution operations for new requirements.

In this section, due to space constraint, we illustrate

only the definition of transformation rules, which

transform a new requirement into the Add_Fact

evolution operation on the DW.

Each new requirement, defined through a

dedicated model for analytical needs, automatically

converts into evolution operations in the target

model (DW evolution model).

In QVT, a set of relations specify a

transformation between two models. A relation has:

- Two or more domains: Each domain has a

set of elements related to the candidate model;

- Checkonly / Enforce: A domain can be

marked Checkonly or Enforce.

Checkonly (C) checks if there is a match in the

model that satisfies the relation. If the match is not

satisfied then the domain must not be modified.

When a domain is marked Enforce (E) and the

match is not satisfied, then the model must be

modified in order to satisfy the relation:

- Pattern matching: A pattern appears in a

domain and allows the selection of a portion of the

candidate model.

- When: Defines the necessary conditions in

order to verify the relation (i.e. Precondition).

- Where: Defines the conditions that all

elements of the involved model in the relation

must satisfy (i.e. Post-condition).

In a transformation, we find two types of

relations: top-level and non-top-level. The execution

of a transformation causes the execution of many

top-level relations. Non-top-level relations are

invoked from the Where clause of top-level relations

or from other non-top-level relations OMG (2009).

Figure 8: Graphical representation of the QVT relation

Main.

Now, we illustrate the QVT formalization of the

NewRequirement_To_AddFactrule.

We present the relation Main that is the entry

point of the transformation process. It contains

elements of the two following models (cf. Figure 8):

- « rem » model conforms to REMM

(Requirement Evolution Meta-model),

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

178

- « dwem » model conforms to DWEMM

(DW Evolution Meta-model).

The Domain element of the « rem » model is

marked with « C » (Checkonly); this means when a

transformation occurs in this direction (i.e. the

direction of a checkonly domain) it simply checks if

there is a valid match in the relevant model that

satisfies the relationship. The domain of the « dwem

» model is marked with « E » (Enforce); this means

when a transformation occurs in this direction (i.e.

the direction of the model of an enforced domain), if

the checking fails then the target model « dwem » is

modified to satisfy this relation. The left side of this

relation describes the elements of the source model «

rem », which transforms into elements of the target

model « dwem ». More specifically, a new

requirement from the left « nr: New_Requirement »

transforms into evolution operation(s) for the DW «

dweo: Dw_Evol_Operation» by invoking the

relation

New_Requirement_TO_Dw_Evolution_Operation

(nr, dweo) specified in the where clause.

Consequently, the following relations perform:

- New_Requirement_To_AddDimension,

- New_Requirement_AddLevel,

- New_Requirement_To_AddFact,

- New_Requirement_To_AddMeasure,

- New_Requirement_To_AddParameter, and

- New_Requirement_To_AddAttribute.

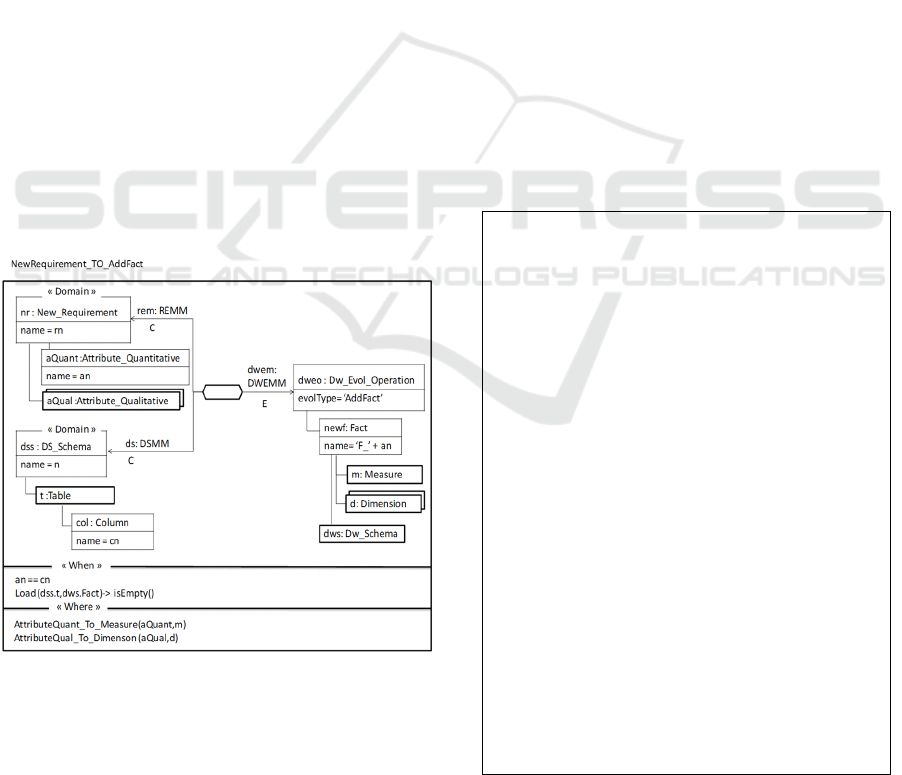

Figure 9: QVT relation NewRequirement_To_AddFact.

We focus on the definition of

New_Requirement_TO_Add_Fact relation. Figure 9

describes the relation that transforms a new

requirement « nr » into a DW evolution operation

Add_Fact. Since we are treating the DW evolution

according to the extension strategy, we have

elements from the DS model (« Domain:

Ds_Schema» ) in the New_Requirement_

TO_Add_Fact relation. In fact, a quantitative

attribute a

Quant

(in a new requirement nr) which

belongs to a table t of the DS model « dss» may

create a new fact newf in the DW model « dws», if

the table t does not load any fact of the « dws».

Then, the A

Quant

attribute feeds a measure of the new

fact newf via the relation AttributeQuant_

to_Measure(a

Quant

,m). The dimensions of newf will

be deducted from the qualitative attributes present in

the new requirement nr using the relation

AttributeQual_To_Dimension (a

Qual

,d).

6.3 Implementing M2T

Transformations

We use Acceleo plugin that implements the

MOFM2T standard of the OMG (OMG, 2009).

Acceleo provides tools for generating codes from

models. This generation of code conforms to a

template-based approach. A template is a text

containing placeholders to fill with information

extracted from the input model. For our running

example, the input model is the DW evolution model

issued from the requirement evolution model

(REM)

[

comment encoding = UTF-8 /]

[modulegenerate('DWEV_MODELS/META-

MODELS/DW_EV_MM.ecore')]

[templatepublicgenerate(y : dwevm)]

[comment @main /]

[file ('script OMB.txt',false,'UTF-8')]

OMBCONNECT

orcl/orcl@localhost:1522:ORCL

OMBLIST PROJECTS

OMBCC 'MY_PROJECT'

OMBLIST ORACLE_MODULES

OMBCC 'SOURCE'

[for (op :

DW_Evolution_Operation|y.DW_Evolution_Oper

ation)]

<%if (op.evolutionType == 'AddFact') {%>

MBCREATE CUBE

'[op.fnew.name.trim().toUpper()/]'\

ET PROPERTIES (BUSINESS

NAME,

DESCRIPTION, DEPLOYMENT_OPTIONS)\

Figure 10: Extract from the Acceleo template for the

generation of OMB script.

The Power of a Model-Driven Approach to Handle Evolving Data Warehouse Requirements

179

VALUES ('[op.fnew.name/]

Cube',

'[op.fnew.name/]_Cube', 'Deploy All')

[for (m : measure|op.fnew.measure)]

OMBALTER CUBE

'[op.fnew.name.trim().toUpper()/]' ADD

MEASURE '[m.name/]'\

SET PROPERTIES

DATATYPE,PRECISION,SCALE,BUSINESS_NAME,DE

SCRIPTION)\

VALUES

('NUMBER',10,2,'[op.fnew.name/][m.name/]'

,'[op.fnew.name/][m.name/]')

[/for]<%}%>

#...............................

[/template]

Figure 10: Extract from the Acceleo template for the

generation of OMB script (Cont.).

For M2T transformations, we developed a PSM

(Platform Specific Model) as an Acceleo Template

for generating the code (cf., Figure 10) for the target

platform Oracle Warehouse Builder (OWB). Our

Template generates OMB (Oracle MetaBase) script

that runs under OMB-Plus with an Oracle

JDeveloper or in an OMB-Plus console. The

execution of this template generates the code to

connect to OWB; it modifies the DW data-model.

7 CONCLUSION

In this paper, we have addressed the problem of

evolution in the decision support systems. In

particular, we have studied the effect of the

evolution of decision-makers’ requirements on the

multidimensional DW model. To do so, we have

proposed an extension of our DWE (DW Evolution)

prototype that addresses evolutions coming from

data sources as well as evolutions due to the new

requirements of decision-makers. We have

elaborated a classification of scenarios of possible

evolutions namely reorganization, extension or

diversion. Furthermore, for each of these evolution

classes, we have proposed a process for identifying

DW evolution operations (add fact, add level...). Our

approach takes advantage of the Model-To-Text

transformations implanted in our DWE, which we

reuse to transform these new evolution operations

into OMB executable scripts.

This work is currently opening up many

perspectives. First, we plan for a case study to

evaluate the efficiency of transformation rules. As a

further step, we intend to study the effect of such

evolutions on the ETL (Extract-Transform-Load)

process, which in turn, must evolve to take into

account the effects of the DW changes on the

existing loading procedures.

REFERENCES

Bellahsene, Z., 2002. Schema Evolution in Data

Warehouses. Knowledge and Information

Systems, 4(3), (pp. 283-304).

Bellatreche, L., Wrembel, R. (2013). Evolution and

Versioning in Semantic Data Integration Systems.

Journal on Data Semantics, (2), (pp. 57-59).

El Akkaoui, Z., Zimànyi, E., Mazón, J. N., Trujillo. J.,

2011. A model-driven framework for ETL process

development. In Proceedings of the ACM 14th

international workshop on Data Warehousing and

OLAP (DOLAP '11), (pp. 45-52). New York, USA.

Favre, C., Bentayeb, F., Boussaid, O., (2007). Dimension

Hierarchies Updates in Data Warehouses: a User-

driven Approach. In 9

International Conference on

Enterprise Information Systems (ICEIS’07), (pp. 206-

211), Madeira, Portugal.

Golfarelli, M., Rizzi, S., Vrdoljak, B., 2001. Data

Warehouse Design from XML Sources. In

proceedings of ACM International Workshop on Data

Warehousing and OLAP (DOLAP’01), (pp. 40-47),

Atlanta, GA, USA.

Kimball, R., Ross, M., 2002. The Data Warehouse Toolkit.

Wiley & Sons. New York, 2

edition.

Nabli, A., Soussi, A., Feki, J., Ben Abdallah, H., Gargouri,

F., 2005. Towards an Automatic Data Warehouse and

Data Mart Design, 7

International Conference on

Enterprise Information Systems (ICEIS’05), (pp. 226-

231), Miami, USA.

OMG, 2004. Object Management Group: Model Driven

Architecture (MDA).

http://www.omg.org/cgibin/doc?formal/03-06-01.

OMG, 2009. Object Management Group: Meta Object

Facility (MOF) 2.0 Query/View/Transformation,

version 1.1. http://www.omg.org/spec/QVT/1.1/Beta2/

Papastefanatos, G., Vassiliadis, P., Simitsis, A., Sellis, T.

Vassiliou, Y., 2009. Rule based Management of

Schema Changes at ETL Sources. International

Workshop on Managing Evolution of Data

Warehouses (MEDWa’09), (pp. 55-62), Riga, Latvia.

Phipps, C., Davis, K., 2002. Automating data warehouse

conceptual schema design and evaluation. In the 4th

Intern. workshop Design and Management of Data

Warehouses. Canada, 2002, (pp. 23-32).

Rundensteiner, E. A., Nica, A., Lee, A. J., 1997. On

Preserving Views in Evolving Environments. In the 4

International Workshop Knowledge Representation

Meets Databases (pp.131–141).

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

180

Rusu, L. I., Rahayu, W., Taniar, D., 2005. A methodology

for Building XML DW. In International Journal of

Data warehousing & Mining, 1(2), (pp.67-92).

Solodovnikova, D., Niedrite, L., Kozmina, N., 2015.

Handling Evolving Data Warehouse Requirements. In

the East European Conference on Advances in

Databases and Information Systems (pp. 334-345).

Springer International Publishing.

Taktak, S., Feki, J., Zurfluh, G., 2014. Toward Evolution

Models for Data Warehouses. 2

Intern. Conference

on Model-Driven Engineering and Software

Development. Lisbon, Portugal, (pp. 472-479).

Taktak S., Alshomrani S., Feki J., Zurfluh, G., 2015. An

MDA Approach for the Evolution of Data

Warehouses. Intern. Journal of Decision Support

System Technology (IJDSST), 7(3) (pp. 65-89).

Talwar, K., Gosain. A., 2012. Implementing schema

evolution in data warehouse through complex

hierarchy semantics. In the International Journal of

Scientific and Engineering Research 3 (pp.917–922).

Thakur, G., Gosain, A., 2011. DWEVOLVE: A

Requirement Based Framework for DW Evolution. In

SIGSOFT Softw. Eng. Notes 36, 6 (pp. 1-8).

Wrembel, R., Bębel, B., 2007. Metadata Management in a

Multiversion DW. In Journal on data semantics VIII

(pp. 118-157). Springer Berlin Heidelberg.

The Power of a Model-Driven Approach to Handle Evolving Data Warehouse Requirements

181
