Model-based Development of Modular Complex Systems for

Accomplishing System Integration for Industry 4.0

Kunal Suri

1,2

, Arnaud Cuccuru

, Juan Cadavid

, Sebastien Gerard

, Walid Gaaloul

and Samir Tata

3,2

CEA, LIST, Laboratory for Model-driven Engineering for Embedded Systems, P.C. 174, 91191, Gif-sur-Yvette, France

Telecom SudParis, UMR 5157 Samovar, Université Paris-Saclay, Evry, France

IBM Research, San Jose, CA, U.S.A.

Keywords:

Industry 4.0, Smart Factory, Model-driven Engineering, MDE, Model Execution, UML, Modularity, Integra-

tion, CPS, Lego EV3 Robot.

Abstract:

Industry 4.0 provides a framework for integration of cyber-physical systems (CPS), internet of things (IoT),

internet of services (IoS) and internet of data (IoD) with the manufacturing domain so as to make it smart, ﬂex-

ible and adaptable to the dynamic market changes and the customer requirements. It will enable companies

to form a connected "smart manufacturing" ecosystem having interconnections between the suppliers, manu-

facturers, distributors and even the products in order to provide better services to the end customer. However,

due to the presence of heterogeneous systems that might not adhere to the industrial standards, there is a gap

in achieving this vision of an interconnected ecosystem. In this paper, we focus on providing a solution for

the modularity and interoperability issues related to the Industry 4.0 from a systems integration viewpoint.

We propose a model-based approach for modular complex systems development by separating (1) the behav-

ior model and (2) the implementation logic (execution) of the system. Moreover, we use uniﬁed modeling

language (UML) based modeling techniques to model system behavior and connect the behavior models to

the application programming interface (API) of the CPS. Thus, instead of generating source code for the CPS

using models, we directly execute the CPS in the physical world via model execution. The model execution is

supported by the standard execution semantics of UML. Using our approach, multiple heterogeneous systems

can be modeled and integrated together to create a "plug and play" ecosystem needed for achieving the vision

of Industry 4.0.

1 INTRODUCTION

In recent years, the dawn of the forth Industrial rev-

olution (Industry 4.0) has created a great enthusiasm

among companies and researchers by providing them

an opportunity to pave the path towards the vision of

the "smart factory". This interest in Industry 4.0 is due

to the fact that, it is for the ﬁrst time in the history of

an industrial revolution that, it has been predicted a-

priori, rather than being observed ex-post (Hermann

et al., 2016). Industry 4.0 provides a framework for

integration of CPS, IoT, IoS, IoD with the manufac-

turing domain to make it smart, ﬂexible and adapt-

able to the dynamic market changes and the customer

requirements. It is envisioned to have a great eco-

nomic impact for companies in many ways, such as,

enabling factories to be reconﬁgured over a weekend

instead of taking a month, creating customized prod-

ucts for the end users, reducing wastage of resources

such as energy. It will provide the possibility of cre-

ating new business opportunities by making efﬁcient

use of human resources and having end to end con-

nected supply chain management. Additionally, In-

dustry 4.0 is based on six design principles which

are, interoperability, virtualization, decentralization,

real-time capability, service orientation and modular-

ity (Hermann et al., 2016). Moreover, it is this very

need for creation of new business opportunities that

requires the factories to be ﬂexible (for e.g. easy re-

conﬁguration) in context of Industry 4.0.

Furthermore, the system integration can be seen

from two viewpoints, as shown in ﬁgure 1, (1) hor-

izontal integration and (2) vertical integration. The

horizontal integration (or inter-company integration)

will be the base for a strong collaboration between

various companies and their stake-holders. These

companies will interact with each other and create a

seamless inter-connected ecosystem. Moreover, for

Suri K., Cuccuru A., Cadavid J., Gerard S., Gaaloul W. and Tata S.

Model-based Development of Modular Complex Systems for Accomplishing System Integration for Industry 4.0.

DOI: 10.5220/0006210504870495

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 487-495

ISBN: 978-989-758-210-3

487

these systems to be interoperable they need to be de-

veloped in a platform-independent manner based on

industrial standards. This will enable them to ex-

change data or information and avoid vendor lock-

in issues. In the same way, the vertical integration

(or intra-company integration) shall also be based on

standards.

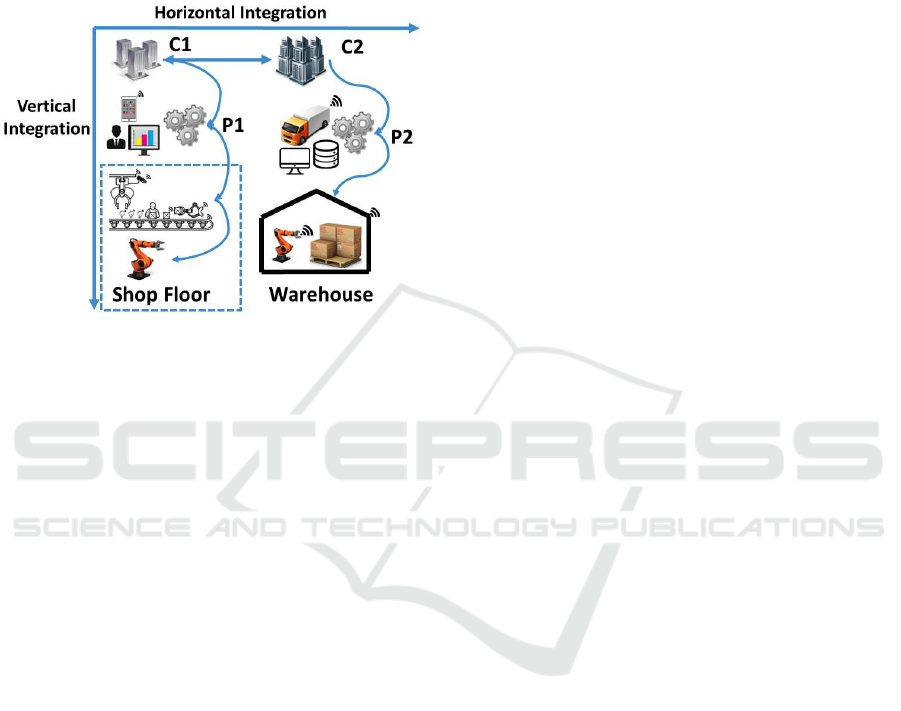

Figure 1: Vertical and Horizontal Integration.

In this paper, we focus on the "vertical integration"

of system using the model-driven engineering (MDE)

approach. In vertical integration the models (for e.g.

a production process model) that are modeled by a

certain stakeholder (for e.g. production analysts) will

have a traceable link with other ﬁne-grained models

(for e.g. a robots behavior models) modeled by an-

other stakeholder (for e.g. a systems engineer). This

traceability will help in achieving a better manage-

ment of information between various layers within an

organization along with a better impact analysis of

the changes made in different layers. Moreover, as

these models are based on standards, the same mod-

els can be used for the purpose of simulation and

also for execution of the systems that they depict.

For instance, the execution of a industrial robot on

a shop ﬂoor will beneﬁt from the model-based execu-

tion approach wherein, there is a separation between

its behavior model (control ﬂow) and its actual im-

plementation logic. The behavior can be modeled us-

ing industrial standard such as, the uniﬁed modeling

language (UML) activity diagram that will describe

"how to achieve a certain task". These models can

be used to perform simulations for depicting how the

system works. The same models will then be exe-

cuted based on the standardized semantics of UML

model execution. As, the semantics of UML model

execution provides a standard mechanism to connect

and communicate with external software and tools, it

will allow the models to communicate and execute the

robots in the physical world via standard APIs of the

robots ﬁrmware .

In contrast to the state of the art of model-driven

approaches in robotics, we view our approach based

on model execution as an "on-line" execution. In

our approach the CPS executes live in sync with the

model being executed, where as, in most of the other

model-based approaches the models are used to create

source code for the CPS which is then installed on it

making it a "of-line" execution. In other words, rather

than creating source code from our models, we di-

rectly execute the CPS in the physical world through

model execution. This provides a good mechanism

for tackling co-simulation problem for CPS (Rahman

and Mizukawa, 2013)

Moreover, for simplicity reasons, we consider a

simple robot as one of the concrete depiction of a

CPS in context of the Industry 4.0. We validated our

approach by using a Lego EV3 robot (EV3, 2013)

installed with an open-source java based ﬁrmware

called LeJOS (Lejos, 2015). The model design and

model execution is performed using Papyrus frame-

work (Papyrus, 2016) .

This article is structured as follows. Section 2 de-

scribes the context of this work in relation to com-

plex system development and model-driven engineer-

ing (MDE) for Industry 4.0. Section 3 provides some

insight on the related work. Section 4 describes our

approach followed with experimentation in Section 5.

This is followed by discussion in Section 6. We con-

clude our paper in Section 7.

2 CONTEXT

2.1 Industry 4.0 and Smart Factory

One of the goals for the Industry 4.0 vision is to cre-

ate manufacturing ecosystems that are smart, ﬂexible

and adaptable to dynamic market changes and cus-

tomer requirements. Such smart factories will under-

stand the state of a production process and will react

accordingly with minimal human intervention. More-

over, in case of system fault if the cyber-physical sys-

tem (CPS) or the cyber-physical production systems

(CPPS) needs human support, the system itself will

assist the humans with appropriate contextual infor-

mation to avoid cognitive overload on them (Wieland

et al., 2010).

Recently, various research in context of Industry

4.0 is being focused towards understanding howMDE

can beneﬁt the Industry 4.0 vision as a key technol-

ogy enabler. In their recent work, the authors (Ca-

david et al., 2015) provide arguments about the im-

portance of MDE for smart manufacturing and how

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

488

MDE with its underlying concepts such as, domain

speciﬁc modelling languages, modelling abstractions

based on view-points, model-based formal analysis

and automated model transformations would help to

transform the vision of Industry 4.0 into a reality.

2.2 Model-Driven Engineering for

Complex Systems

A complex system, such as a cyber-physical system

(CPS), an industrial robot or a service robot, con-

sists of a large number of component such as, actu-

ators, sensors, auxiliary tools along with the ﬁrmware

that are all seamlessly integrated together and need

to work as a single entity. These complex systems

would also interact with other complex systems to

perform certain tasks. Thus, it is very important to

design these complex systems keeping the principle

of modularity in mind so as to allow ease of integra-

tion between various systems.

In addition to above, a complex system also con-

sists of different parts relating to different kinds of

engineering disciplines such as, mechanical, electri-

cal, software. Thus, these systems are required to be

veriﬁed and tested both (1) at the componentlevel and

(2) at a system level. Therefore, MDE can help in re-

ducing the inherent complexity of these systems by

providing standard modeling languages, and provid-

ing tools and frameworks that supports various design

principles. For example, using the principles of "sep-

aration of concerns" we can abstract various aspects

of a system and can view only the things that are im-

portant to us, thus reducing complexity.

3 RELATED WORK

In recent years, a number of research contributions in

MDE have been looking at the applications of MDE

in design and execution of complex systems such

as, industrial robots. On the same lines, the authors

(Steck et al., 2011) put forward the importance of

moving from code-driven to model-driven engineer-

ing for industrial-strength service robotic systems.

Their work is focused on the entire life-cycle of robot

development wherein they provide a model-centric

view on the whole (robotic) system covering both the

design time and the run time of the robot. The model-

driven development will support the decision mak-

ing process of a robot during its run-time based on

parameters, properties and resource information that

were modelled at design-time. This will enable it

to handle a large number of situations. Plus, mod-

eling would help to reduce the complexity for differ-

ent stakeholders based on the principle of "separation

of concerns". Similarly, in the work done by (Rah-

man and Mizukawa, 2013), the authors describe the

difﬁculty faced in achieving a holistic system-level

veriﬁcation along with the problem of fulﬁlling the

requirements of different stakeholders using only de-

scriptive systems models (SysML). Thus, they pro-

posed to combine the descriptive and simulation mod-

els by providing a collaborative design framework

which brings SysML, Simulink, and Simscape pro-

ﬁles within the domain of robotic modeling.

Likewise, (Inglés-Romeroet al., 2013) express the

need to create a domain speciﬁc language (DSL) for

expressing variability for the non-functional proper-

ties for a robotic system. They argue that in con-

text of a service robot there will always be unfore-

seen situations that are needed to be tackled at run-

time but, may have not been modelled at design time.

They used the variability modelling language (VML)

at design time to resolve such problems. The authors

(Gherardi and Brugali, 2014), provide a development

process containing guidelines to exploit existing best

practices and reference architectures for robotic soft-

ware. Similarly, in their work (Romero-Garcés et al.,

2013) present four DSLs wherein each DSL has a

speciﬁc perspective for deﬁning a robot component

and are all based on model-driven techniques. They

compare and analyse the effort based on lines of code

for robot development before and after making use of

these DSLs. They argue that these DSLs, reduce the

workload of the developers depending on what "con-

cerns" they need to focus during the robots life-cycle.

They also describe the improvements in ﬂexibility,

scalability and maintenance for RoboComp frame-

work using MDE along with the beneﬁt from model-

to-model, model-to-text transformations approaches

and to generate source code automatically. Other au-

thors, such as, (Schlegel et al., 2015), have described

steps need to create a software business ecosystem

in robotics using model-driven software development

and model-driven software systems integration

Furthermore, in their work (Harrand et al., 2016),

the authors reinforce the beneﬁts of model-based sys-

tems engineering (MBSE) for increasing productiv-

ity by automated code generation from models. They

provide an open-source project called "ThingML"

which includes a modelling language and tool de-

signed for supporting code generation using highly

customizable multi-platform code generator targeting

heterogeneous platforms. Their work may beneﬁt the

heterogeneous systems environment in context of the

Industry 4.0. Other researchers like (Kovalenko et al.,

2015) explored the AutomationML format which is

an emerging data exchange standard for supporting

Model-based Development of Modular Complex Systems for Accomplishing System Integration for Industry 4.0

489

the Industry 4.0 vision. This standards can be repre-

sented via two modelling approaches, MDE and Se-

mantic Web. They pointed out the differences in these

approaches and provide the applications of these ap-

proached for improving the production processes in

manufacturing domain. In context of real-time sys-

tems, the authors (Perseil et al., 2011), presented a

modeling and execution framework through which it

will be possible to analyse, design and verify com-

plex systems. This approach would help to tackle spe-

ciﬁc concerns of the real-time and embedded systems

(RTE) domain.

In particluar, (Tatibouët et al., 2014) discussed the

use of UML proﬁle mechanism for designing a DSL

in their work. They arguedthe need for having an exe-

cution semantics for UML proﬁles as the current pro-

ﬁle design methodology only considers the syntactic

part of the language, keeping the execution semantics

description as informal. In their work, they provide

a systematic approach to formalize the execution se-

mantics of UML proﬁles. To realize their approach

they make use of foundational UML (normative spec-

iﬁcation) which deﬁnes a precise semantics for a sub-

set of UML.

4 APPROACH

In this section, we describe our approach for de-

velopment and executing of a model-based modu-

lar system using open standards. This approach will

enable heterogeneous systems to communicate with

each other in a cohesive but loose coupled manner.

For our approach, we used Uniﬁed Modeling Lan-

guage (UML2.5, 2015), which is a general-purpose,

developmental, modeling language in the ﬁeld of soft-

ware engineering. Additionally, in this work we de-

pict a cyber-physical system (CPS) as a simple robot

that will expose its functionality using standard APIs

which will be called by the executingbehavior models

(activity model in our case).

4.1 Conceptual Approach

In context of Industry 4.0, we have already estab-

lished the need to develop systems based on indus-

trial standards keeping the principle of modularity in

mind. This will help to achieve interoperability and

a plug and play kind of environment as envisioned

for Industry 4.0. In our approach, we separated the

concerns of developing and executing the robot. The

robot executes based on instructions (events) it re-

ceives from the control ﬂow layer. This, separation

helps to achieve a loose coupled system. In particu-

lar, this approach has been developed keeping indus-

trial robots in mind which perform standard repetitive

tasks. But, these robots need to be ﬂexible (for e.g.

easy to reconﬁgure) so as to perform new tasks as and

when needed. Also, these robots should be able to

communicate with other similar or non-similar robots

present in the ecosystem of a smart factory.

In the ﬁgure 2, we show the two separate layers

i.e. the model-based behavior layer (control ﬂow)

and robots implementation layer. In our approach, the

software layer on the robot will be kept as minimal as

possible. The execution of the robot is done using API

calls through an executing model (on-line execution)

rather than deploying the source code on the complex

system (of-line execution). This approach will allow

creation of complex systems having sensors and actu-

ators with low computational power and low energy

usage. In such a setting, the models while executing

would send control events to the software (middle-

ware or ﬁrmware) layer of the robots and the robots

should respond to them with status event.

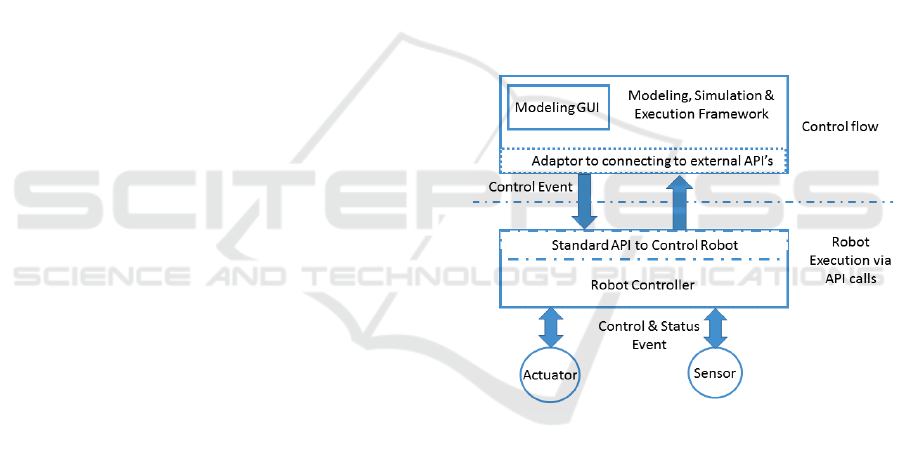

Figure 2: Conceptual Approach for Modular Complex Sys-

tem Development.

4.2 Reﬁnement of the Approach

To concretize the above conceptual approach, we

make use of the Papyrus framework for designing

the models and execution of the EV3 robot. Papyrus

framework is a part of the Eclipse foundation and

PolarSys (PolarSys, 2016). It provides a graphical

editing tool for UML as deﬁned by Object Manage-

ment Group (OMG, 2016). Additionally, it provides

tool support for executable UML modeling through

the Moka execution engine (Moka, 2016) . Papyrus

provides a fully customizable environment to deﬁne

custom graphical, textual or tabular notation. Being

based on UML proﬁle it allows reuse of standard lan-

guages or creation of new modeling language. Fur-

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

490

thermore, the execution and debugging of models is

handled by Moka which itself relies on an implemen-

tation of the OMG standards called "Semantics Of

A Foundational Subset For Executable UML Mod-

els" (FUML, 2013) and "Precise Semantics of UML

Composite Structures" (PSCS, 2015) . These speciﬁ-

cations formalize the execution semantics of a UML

subset. In Papyrus, the editing part relies on the OMG

standard called "Action Language For Foundational

UML" (ALF, 2013), with an editor and compiler for

that language.

Most importantly, Papyrus framework provides

the possibility to connect with external softwares and

tools which is essential for our model-based devel-

opment approach. In particular, a robot is composed

of different components that need to work together

seamlessly. Many of these components belong to dif-

ferent kinds of engineering disciplines such as, me-

chanical, electrical, computers and will be built using

various software’s having their own simulation envi-

ronments. Normally, each component can be easily

modeled and simulated for verifying its correctness

at a component level but there are not many standard

frameworks available that provide a co-simulation ap-

proach to assess the correctness of the overall system

model. Thus, a FUML based simulation tool that con-

nects to different external tools would be very useful

for doing a system level co-simulation in context of

CPS in general.

Moreover, FUML 1.1 (FUML, 2013) provides

"opaque behaviors" which shall be hooked to a con-

crete "OpaqueBehaviorExecution" implementing its

own semantics and these implementations can be used

to communicate with external tools (Guermazi et al.,

2015). In context of Papyrus Moka, during a model

execution, when a call is made to an opaque behavior

from a model element, it drives the execution ﬂow to

the logic that enables the connection to a speciﬁc tool

or library. Once the speciﬁc library (tool) executes the

execution ﬂow comes back to the running model.

The ﬁgure 3 depicts the concretization of the con-

ceptual approach initially described in the ﬁgure 2. It

is visible from the ﬁgure 3 that the model-based con-

trol ﬂow layered is based on the Papyrus framework,

which provides both (1) the modeling GUI and (2)

the model execution and simulation engine known as

Moka. We designed a UML activity diagram in pa-

pyrus modeler and then connected the model elements

to the opaque behaviors designed as plugins. The

opaque behavior follow the FUML semantics and en-

able the connection to the external tools (third party).

In the implementation part of the opaque behavior,

we created adaptors to connect to LeJOS ﬁrmware

(Lejos, 2015) which have been installed on Lego EV3

(EV3, 2013). LeJOS is an open-source java based op-

erating system (OS) for a Lego EV3 controller. There

are also other OS such as EV3Dev

but we chose

LeJOS as it was java based and provided remote APIs

to connect and control EV3.

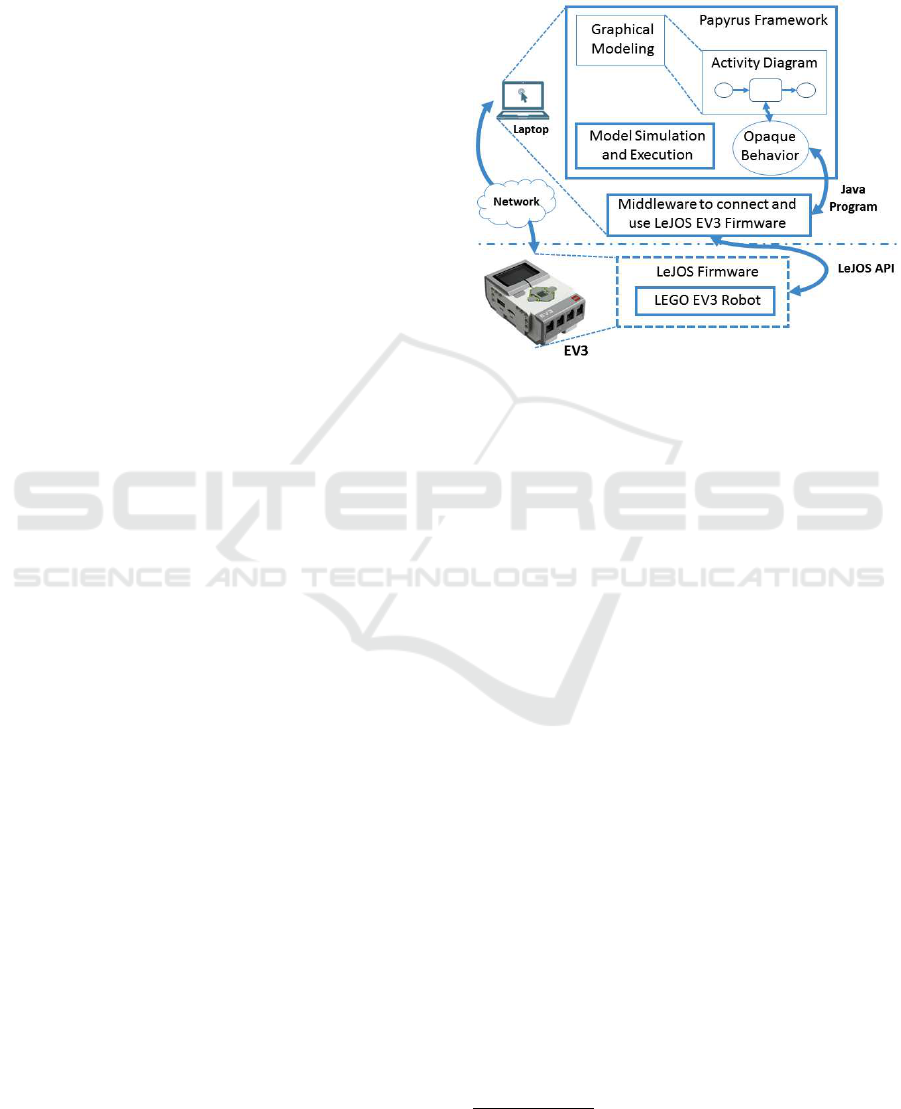

Figure 3: Concrete Approach using Papyrus Framework

and Lego EV3 Robot.

5 EXPERIMENTATION

In this section, we implement our approach described

in section 4.2 by creating an experiment with a Lego

EV3 robot. A Lego EV3 might be a simpliﬁed exam-

ple of a CPS, but it useful in showing our approach

successfully and we can argue that the same approach

can be applied to more complex robots or multiple

heterogeneous robots. During our experimentation,

the models, the java based adaptors for LeJOS and the

model execution are all done using Eclipse Papyrus

framework.

5.1 Implementation: Lego EV3 Robot

5.1.1 Background

Firstly, we selected a Lego EV3 robot to implement

our approach for depicting a model-based execution

of a system as, (1) a Lego EV3 robot matches our

need to depict a system that can execute actuators and

sensors. (2) Lego EV3 is plug and play, not very ex-

pensive and can be easily build to depict different sce-

narios. (3) It has a strong community of users and de-

velopers along with the availability of various open-

source software. Additionally, it is important to men-

tion that Lego provides its own proprietary software

http://www.ev3dev.org/

Model-based Development of Modular Complex Systems for Accomplishing System Integration for Industry 4.0

491

tool called "Lego Mindstorms" based on LabVIEW

to build executable code for EV3 robot in a model-

driven manner. Moreover, Lego claims that the pro-

cess of using GUI based robot modeling technique

for modeling robot behaviour on their proprietary tool

is quite easy and intuitive. It is easy enough such

that a 10 year old can use it to build their own robot

(LEGO-Education, 2016). This reconﬁrms our point

that MDE is one of the good techniques available for

developing complex systems such as robots.

In contrast to the beneﬁts, there are certain shortcom-

ings of the Lego Mindstorm software due to which we

can’t use it as such. These shortcomings are, (1) the

tool is proprietary and not open-source thus, we can-

not make changes to the APIs (2) it does not follow

any open standards (3) to the best of our knowledge,

the Lego Mindstorm software does not provide any

kind of standard API to control EV3 from external

tool (such as Papyrus framework) (4) the tool is used

to deploy the code directly on the EV3 (ofﬂine mode)

and doesn’t provide any mechanism to allow execu-

tion of EV3 from an executing model.

To tackle the above mentioned problem with Lego

proprietary software, we make use of an open-source

java based ﬁrmware for EV3 called LeJOS. We use

this tool for following reasons, (1) it provide connec-

tion to EV3 via its remote API using IP address (de-

picting the ideas of an IoT), (2) each actuator and sen-

sor can be controlled independently using the port id

and IP address.

For our experimentation, we created a Lego

robotic car using two large motors (actuator) as shown

in the ﬁgure 4.

Figure 4: Lego EV3 Robotic Car.

http://www.ni.com/labview/

5.1.2 Setup

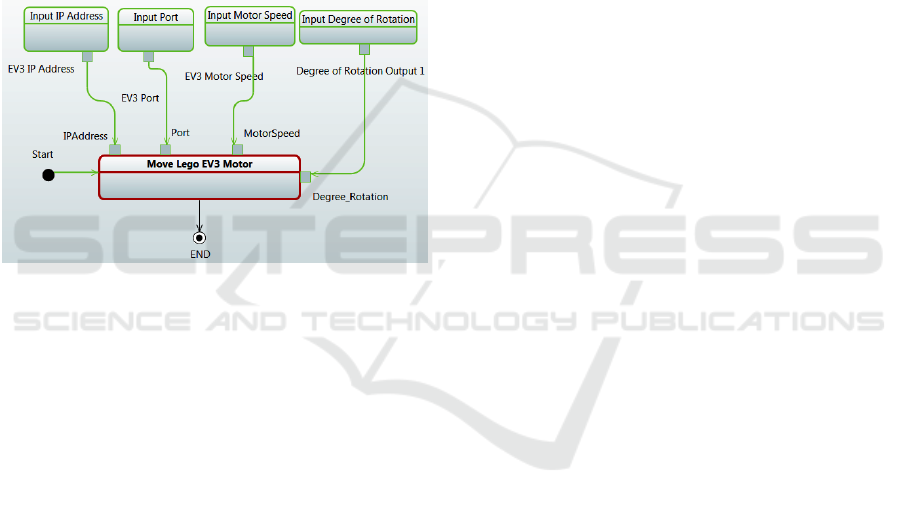

The ﬁgure 5 shows a behavior model (activity model)

having a behavior called "Move Lego EV3 Motor".

This activity has four input values. The input values

are used to providethe IP address of the robot, the port

of the actuator, the speed of the motor and the degree

of rotation for the robot (number of revolution).

Figure 5: Model showing the UML Activity Model to Move

the Car.

In order to execute the robotic Lego car, i.e. to

make it move in the physical world, we execute the

behaviour model by making use of the FUML based

Moka engine. This is achieved by creating an opaque

behavior called "RotateEV3MotorExecution". This

behavior extends "OpaqueBehaviorExecution" and

connects to the remote APIs of the LeJOS to control

and move the EV3 robot car. These opaque behav-

iors are reusable and can be used for any number of

separate models by providing different values for in-

put variables. In our case, the input values needed to

move the robot are, the IP address, port, motor speed

and the degree of rotation.

When the model is executed, it calls the above

mentioned opaque behavior and then passes the con-

trol to the adaptor created for the robot. The java

based adaptor in-return calls the LeJOS APIs and pro-

vide the incoming input values of the model to the

ﬁrmware. The LeJOS ﬁrmware on the EV3 robot gets

these values and executes the command to move the

actuator. As a note, Lego EV3 also has sensors for

data collection such as, color sensor, ultrasound sen-

sor but to keep our experiment simple we do not make

use any sensor data in this current work.

5.1.3 Model-based Execution

The ﬁgure 6 shows the execution of the UML be-

havior model (activity model) using FUML based Pa-

pyrus Moka engine. In the Papyrus framework, when

a model element has been executed (completed) the

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

492

color of the element changes to green. While the red

color indicates that a model element is currently be-

ing executed. While executing the model, Moka will

pass the input values to the underlying opaque behav-

ior and the robot will start moving as explained in the

above section. In case, of any kind of problem with

the underlying robot such as, issues with connection

between robot and computer, the same model can still

be executed like a normal simulation without the ac-

tual physical executing of the underlying robot. The

error handling will displaying the error message to the

developers for rectifying the problems. For e.g., one

of such common error message is "connection refused

to host: 10.0.1.1", which occurs when there is a prob-

lem in the wired connection between the robot and the

laptop.

Figure 6: FUML based Model Execution.

5.2 Evaluation

In this section, we evaluate some of the use cases for

EV3 robot using our approach as follows:

(1) Changes to the Behavior Model

Description: In case of a new system requirement,

how beneﬁcial is the model-based execution ap-

proach?

Experience: Firstly, this approach provides loose

coupling between the control ﬂow and execution

code. Secondly, as the execution of the robot is based

on execution of the models via API calls, we can

argue that the changes to the system can be tackled

easily. For e.g., initially, we created the "EV3 car

movement" process to move the EV3 car only in the

forward direction. This process consisted of a single

activity "Go Front". But, when there was a need to

move the EV3 in backward direction, we created a

new task called "Go Back" and used the same opaque

behavior created before with different input values.

In our experience, the addition of the new task and

the update to the model was fast and simple, like a

drag and drop of the activity task and then addition of

the opaque behavior to it with different input values.

Thus, using our approach a behavior model can be

updated quickly along with the reuse of existing

opaque behavior(s), creating a ﬂexible and easy to

reconﬁgure complex systems environment.

(2) Interchanging Similar EV3 Robots or Actua-

tors

Description: In case of a need to change or update a

EV3 controller or an actuator, how beneﬁcial is this

approach to manage such changes?

Experience: Due to the separation between the model

execution (control ﬂow) and the robot execution us-

ing API calls, it is easy to manage such a need. To

change a problematic EV3 with a new EV3, only the

IP address of the new EV3 needs to be updated in

the activity model. Similarly, to change or update the

EV3 actuator, only the port id needs to be updated in

the behaviour model. Thus, we can argue that using

model-based execution it is possible to create a plug-

and-play environment.

Likewise, as this approach uses standard API calls

of the robot via IP address, we can argue that this ap-

proach can help to realize an IoT environment.

6 DISCUSSIONS

The following points are noteworthy for model-based

developmentfor complex systems in context of Indus-

try 4.0:

(1) Model-based development of CPS provides

easy system integration due to the use of standard tool

and languages (UML). It helps in creation of an inter-

operable and "plug and play" type ecosystem. More-

over, MDE provides need based abstraction of a sys-

tem to various stake holders for different concerns.

It also provide traceability between the various view-

points leading to a better management. For example,

exchange of information between strategy level (man-

agement) and business process analysts view in con-

text of Industry 4.0.

(2) Model-based execution of CPS using standard

execution semantics such as FUML provides a possi-

bility to connect to different software’s and external

tool and perform co-simulation using the same mod-

els.

(3) "Virtual factory" which is a "digital replica" of

the physical factory is an important feature of Industry

4.0. The model-based execution techniques will help

to create and use common model that can be used (A)

in the virtual factory to do simulations and (B) the

same models will be updated or enriched with data

coming form the virtual factory to do an optimized ex-

Model-based Development of Modular Complex Systems for Accomplishing System Integration for Industry 4.0

493

ecution of the real machines in the physical world, i.e.

a shop ﬂoor. Thus, knowledge gained via simulations

performed in the virtual factories will be transferred

to the physical factories for saving real materials and

resources in the physical world.

(4) Various software and tool providers involved

in Industry 4.0 will continue to build their solutions

based on industry standards. The use of standards

would help to resolve the issues related to interop-

erability between different tools. Moreover, instead

of creating dedicated middlewares, the model-based

approach for co-simulation can help to integrate and

exchange data between the various systems.

(5) Model-based CPS execution beneﬁts from

concepts such as, "separation of concerns" that will

provide abstraction to various layer of the system

(viewpoints) along with concepts of loose coupling.

Thus, in case of replacement of the old system with

a new one, there will be no need to redesign the be-

havior models from scratch. The same models can be

reused by creation new connection or adaptors to the

external tool. However, this seamless change would

only be possible provided the new system provides

all the functionality of the old system.

(6) Furthermore, model-based execution enhances

understandability of the exact state of execution of a

machine. MBSE provides another advantages, such

as, a strong community and standards based open-

source tools. This help to achieve "digital continu-

ity" wherein, a system model created in one stan-

dard is transformed into another standards (model-to-

model or model-to-text). In context of Industry 4.0,

this is beneﬁcial as, an activity model can be trans-

formed into a business process modeling and notation

(BPMN) model and can be executed on a manufac-

turing execution system (MES) which executes ma-

chines on industrial shop ﬂoor.

6.1 Limitations

Our work is based on the assumption that the CPS

will expose standard API for communication. More-

over, we map or glue the functionality of the CPS via

APIs to the opaque behavior(s) created in the mod-

eling framework (based on FUML semantics). How-

ever, a system model cannot execute a functionality

which is not provided by the API of the CPS.

Initially, this work was done keeping industrial

robots in the mind that perform standard repetitive

tasks. This approach was not built in context of au-

tonomous robots. Furthermore, at this stage we did

not create a domain speciﬁc language (DSL) for our

approach, but as this approach is based on UML stan-

dards, it is possible to extend this work for creating a

DSL without much effort. Most importantly, the im-

plementation of this approach is tightly coupled to the

modeling and execution framework or tool, thus the

model execution would be effected by the limitation

and performance issues of the tools.

7 CONCLUSION AND FUTURE

WORK

Industry 4.0 presents great opportunities for the man-

ufacturing sector, but it also lays great challenges on

the development of complex industrial systems that

will realize the vision of the connected, ﬂexible and

smart industry. In this paper, we discussed several of

those challenges, namely, horizontal and vertical inte-

gration, interoperability and modularity. These chal-

lenges can be tackled through the use of model-driven

engineering, mainly, for the description or design and

execution of the industrial cyber-physical processes

and robotic systems.

The main contribution of this paper is a concep-

tual model-based approach for modular complex sys-

tem development, which can be applied to indus-

trial cyber-physical systems. This approach treats the

model as the ﬁrst-class citizen of system develop-

ment, since the model is used for (1) modeling and

simulation (the "digital world") and (2) actual exe-

cution of industrial processes and robots (the "real

world"). The model thus becomes the pivot for both

horizontal and vertical integration. The approach was

validated with an implementation based on Lego EV3

robot and the Papyrus modeling environment with

Moka as model execution engine. The outcome is an

overall approach where the actual industrial automa-

tion systems are piloted from abstract models, while

keeping interoperability intact thanks to the use of a

standard API to communicate with the physical sys-

tems and its components.

In the future, we plan to extend this work and per-

form co-simulation with heterogeneous robots such

as, "NAO" the the humanoid robot. We also plan

to experiment and reﬁne the approach with industrial

robots such as, Kuka. Plus, we plan to explore the

working of this approach in a service-oriented model-

driven way.

REFERENCES

ALF (2013). Action Language For Foundational UML

(ALF), Version 1.0.1. http://www.omg.org/spec/ALF/

1.0.1/PDF.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

494

Cadavid, J., Alférez, M., Gérard, S., and Tessier, P. (2015).

Conceiving the model-driven smart factory. In Pro-

ceedings of the 2015 International Conference on

Software and System Process, pages 72–76. ACM.

EV3 (2013). LEGO Mindstorms. https://www.lego.com/en-

us/mindstorms.

FUML (2013). Semantics Of A Foundational Subset

For Executable UML Models (FUML), Version 1.1.

http://www.omg.org/spec/FUML/1.1/PDF.

Gherardi, L. and Brugali, D. (2014). Modeling and

reusing robotic software architectures: the hyperﬂex

toolchain. In 2014 IEEE International Conference on

Robotics and Automation (ICRA), pages 6414–6420.

IEEE.

Guermazi, S., Tatibouet, J., Cuccuru, A., Seidewitz, E.,

Dhouib, S., and Gérard, S. (2015). Executable mod-

eling with fuml and alf in papyrus: Tooling and ex-

periments. In Proceedings of the 1st International

Workshop on Executable Modeling co-located with

ACM/IEEE 18th International Conference on Model

Driven Engineering Languages and Systems (MOD-

ELS 2015), Ottawa, Canada, September 27, 2015.,

pages 3–8.

Harrand, N., Fleurey, F., Morin, B., and Husa, K. E. (2016).

Thingml: a language and code generation framework

for heterogeneous targets. In Proceedings of the

ACM/IEEE 19th International Conference on Model

Driven Engineering Languages and Systems, pages

125–135. ACM.

Hermann, M., Pentek, T., and Otto, B. (2016). Design

principles for industrie 4.0 scenarios. In 2016 49th

Hawaii International Conference on System Sciences

(HICSS), pages 3928–3937. IEEE.

Inglés-Romero, J. F., Lotz, A., Chicote, C. V., and Schlegel,

C. (2013). Dealing with run-time variability in service

robotics: towards a dsl for non-functional properties.

arXiv preprint arXiv:1303.4296.

Kovalenko, O., Wimmer, M., Sabou, M., Lüder, A., Ekapu-

tra, F. J., and Bifﬂ, S. (2015). Modeling automationml:

Semantic web technologies vs. model-driven engi-

neering. In 2015 IEEE 20th Conference on Emerging

Technologies & Factory Automation (ETFA), pages 1–

4. IEEE.

LEGO-Education (2016). LEGO for Education.

https://education.lego.com/en-au.

Lejos (2015). LEJOS - Java for LEGO Mindstorms.

http://www.lejos.org.

Moka (2016). Papyrus Moka. Eclipse Papyrus Framework,

http://git.eclipse.org/c/papyrus/org.eclipse.papyrus-

moka.git/.

OMG (2016). Object Management Group (OMG). http://

www.omg.org/.

Papyrus (2016). Eclipse Papyrus Framework. https://

eclipse.org/papyrus/.

Perseil, I., Pautet, L., Rolland, J.-F., Filali, M., Delanote,

D., Baelen, S. V., Joosen, W., Berbers, Y., Mallet,

F., Bertrand, D., Faucou, S., Zitouni, A., Boufaida,

M., Seinturier, L., Champeau, J., Abdoul, T., Feiler,

P. H., Mraidha, C., and Gérard, S. (2011). An efﬁ-

cient modeling and execution framework for complex

systems development. In Proceedings of the 2011

16th IEEE International Conference on Engineering

of Complex Computer Systems, ICECCS ’11, pages

317–331, Washington, DC, USA. IEEE Computer So-

ciety.

PolarSys (2016). PolarSys-Open Source Solutions for Sys-

tems Engineering and Embedded Systems. Eclipse In-

dustry Working Group, http://www.polarsys.org/.

PSCS (2015). Precise Semantics Of UML Composite

Structures (PSCS), Version 1.0. http://www.omg.org/

spec/PSCS/1.0/PDF.

Rahman, M. A. A. and Mizukawa, M. (2013). Model-based

development and simulation for robotic systems with

sysml, simulink and simscape proﬁles. International

Journal of Advanced Robotic Systems, 10.

Romero-Garcés, A., Manso, L., Gutierez, M. A., Cintas,

R., and Bustos, P. (2013). Improving the lifecy-

cle of robotics components using domain-speciﬁc lan-

guages. arXiv preprint arXiv:1301.6022.

Schlegel, C., Lotz, A., Lutz, M., Stampfer, D., Inglés-

Romero, J. F., and Vicente-Chicote, C. (2015). Model-

driven software systems engineering in robotics: cov-

ering the complete life-cycle of a robot. it-Information

Technology, 57(2):85–98.

Steck, A., Lotz, A., and Schlegel, C. (2011). Model-

driven engineering and run-time model-usage in ser-

vice robotics. In ACM SIGPLAN Notices, volume 47,

pages 73–82. ACM.

Tatibouët, J., Cuccuru, A., Gérard, S., and Terrier, F. (2014).

Towards a systematic, tool-independent methodology

for deﬁning the execution semantics of uml proﬁles

with fuml. In Model-Driven Engineering and Soft-

ware Development (MODELSWARD), 2014 2nd In-

ternational Conference on, pages 182–192. IEEE.

UML2.5 (2015). Uniﬁed Modeling Language (UML), Ver-

sion 2.5. http://www.omg.org/spec/UML/2.5/PDF.

Wieland, M., Leymann, F., Schäfer, M., Lucke, D., Con-

stantinescu, C., and Westkämper, E. (2010). Using

context-aware workﬂows for failure management in a

smart factory. In Proc. of the Fourth Intl. Conf. on

Mobile Ubiquitous Computing, Systems, Services and

Technologies, pages 379–384.

Model-based Development of Modular Complex Systems for Accomplishing System Integration for Industry 4.0

495
