Platform-agnostic Low-intrusion Optical Data Exfiltration
Arthur Costa Lopes and Diego F. Aranha
Institute of Computing, University of Campinas, Campinas, Brazil
Keywords:
Covert Channel, Data Exfiltration, Information Hiding, Air-gapped Machines, Error-correcting Codes.
Abstract:
Information leakage through covert channels is a growing and persistent threat, even for physical perimeters
considered as highly secure. We study a new approach for data exfiltration using a malicious storage device
which subtly transmits data through blinking infrared LEDs. This approach could be used by an attacker
trying to leak sensitive data stored in the device, such as credentials, cryptographic keys or a small classified
document. An ideal application for this approach is when an attacker is capable of sneaking a malicious device
inside a protected perimeter and has remote control over a camera inside such perimeter. The device can then
collect information and transmit directly to the attacker, without the need of recovering the device to obtain the
captured information, erase evidence or prevent a forensic investigation. We discuss techniques for improving
communication efficiency up to 15 bits per second per LED, and possible countermeasures for mitigation.
1 INTRODUCTION
With the major advances in computing observed in
the last decades and widespread availability of com-
puter systems, all kinds of organizations make exten-
sive use of computers to store and exchange informa-
tion, sometimes of extremely sensitive nature. Tech-
niques developed by the information security field are
critical to protect and prevent such data from leak-
ing in several ways, for example by data breaches and
malicious data exfiltration activities. The concept of
data exfiltration consists in the extraction of data from
a closed network after a malicious software has infil-
trated such network. A convert channel is typically
employed for the task, posing a challenge to current
monitoring capabilities.
The Snowden leaks (Verble, 2014) were among
the first of a series of high-profile leakage cases in
recent years, after which security processes have se-
riously started to consider the threat of data exfiltra-
tion. Various forms of prevention have been recom-
mended and adopted, including compartmentalization
of storage, data encryption at rest, and machine iso-
lation from networks, in a so-called air-gapped sys-
tem (Maass, 2013). For these reasons, this paper aims
to explore new low-intrusive optical methods for data
exfiltration and their efficiency and limitations. The
goals are two-fold: by anticipating the impact of this
threat and proposing countermeasures, organizations
become able to protect data from exfiltration and de-
sign mitigation strategies; by improving low-intrusive
exfiltration mechanisms, activists and whistleblow-
ers can be informed about plausible ways to subtly
and efficiently collect evidence of misbehavior or leak
sensitive information.
In this paper, we study an efficient and ingenious
approach for data exfiltration, involving a malicious
storage device that leaks its critical contents. It as-
sumes a scenario where the attacker is able to in-
sert the malicious device in the security perimeter and
wait until it is used to copy data from or between air-
gapped machines. After the device detects the stor-
age of critical data, it starts transmitting information
through blinking infrared LEDs to a nearby camera
under the control of the attacker. We claim the as-
sumption is realistic, since there is growing evidence
that users will simply plug in or even use USB drives
they find (Tischer et al., 2016). This can happen even
in tight security perimeters (Langner, 2011). Since no
modifications are required in any of the air-gapped at-
tacked machines, the approach requires a low level of
intrusion and is agnostic to choices of operating sys-
tem and software security mechanisms.
The approach has several advantages when com-
pared to recent results in the research literature. For
example, a recent paper (Sepetnitsky et al., 2014)
builds an optical covert channel from hard-to-detect
luminosity changes in a monitor LED. Similarly, the
exfiltrated data can then be captured by a receiving
device controlled by the attacker in the same environ-
474
Lopes, A. and Aranha, D.
Platform-agnostic Low-intrusion Optical Data Exfiltration.
DOI: 10.5220/0006211504740480
In Proceedings of the 3rd International Conference on Information Systems Security and Privacy (ICISSP 2017), pages 474-480
ISBN: 978-989-758-209-7
Copyright
c
 2017 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

ment. However, this and other approaches (Zaddach
et al., 2013; Guri et al., 2015b; Guri et al., 2016a;
Guri et al., 2016d; Guri et al., 2016c) require a vul-
nerability to be exploited and malicious software to
be installed in the air-gapped machine, because hard-
ware control typically requires local privileges. Re-
quiring a target-specific exploit to be crafted may not
be always under the capabilities of the attacker; and
the installed software component can be found and
dissected afterwards in case of detection, representing
obstacles in practice. In comparison, our approach re-
quires only a flash drive to be inserted in the target en-
vironment, perhaps by employing social engineering
skills (Abraham and Chengalur-Smith, 2010). After
the flash drive is connected to the air-gapped machine
and data is received, the malicious device can start
transmitting without requiring privileges or interfer-
ing in any way with the attacked system. The attacker
does not need to retrieve the flash drive later, since
data can then be captured by a networked camera or
a smartphone inside the security perimeter. Because
no actual changes have to be made in the attacked
system, this imposes further obstacles to forensic in-
vestigations for collecting evidence of the malicious
activities. Optical data exfiltration through blinking
LEDs also offers higher bandwidth compared to heat-
based methods (Loughry and Umphress, 2002), al-
lowing the attacker to leak larger pieces of data. The
additional flexibility allows the idea to be used in sev-
eral scenarios.
The paper is organized as follows. Section 2 dis-
cusses data exfiltration techniques and related work
available in the research literature. Section 3 proposes
a threat model and presents our prototype device and
protocol design. Section 4 collects preliminary re-
sults, Section 5 discusses proposed countermeasures
and Section 6 concludes the paper.
2 RELATED WORK
Data exfiltration can be defined as an unauthorized
way of obtaining and transmitting data from a closed
or private network. To prevent detection, the trans-
mission commonly employs a process not meant to
transfer data, such as covert channels or stegano-
graphic techniques (Cheddad et al., 2010). This type
of attack creates a subliminal channel to transmit sen-
sitive data from inside a security perimeter directly to
the attacker. Performance is usually low, in the order
of a few bits per second, due to low signal-to-noise
ratios or limited bandwidth.
Electromagnetic emanations (Kuhn and Ander-
son, 1998) and keyboard LEDs (Loughry and
Umphress, 2002) were amid the first covert channels
applied to data exfiltration, but there has been signif-
icant interest in other types of covert channels in re-
cent years. Several studies focus on using optical ef-
fects, heat, sound, radio and have been demonstrated
to work in machines not connected to external net-
works. Low-intrusive approaches may employ opti-
cal channels and a receiver device infected with soft-
ware under remote control of the attacker, but there
are several other ways to accomplish this, with differ-
ent trade-offs in terms of efficiency and intrusiveness.
Techniques exploiting optical effects include
LEDs (Loughry and Umphress, 2002; Sepetnitsky
et al., 2014) or projecting whole images on a reflect-
ing LCD monitor (Guri et al., 2016a). Transmission
rate is generally low, compared to other means of
transmission, due to limitations in both software and
hardware. Frequently, there is some inherent limita-
tion in the components that imposes an upper bound
on transmission rate, such as the number of times a
LED can be blinked in a time unit (25Hz) and its
luminosity, or the screen brightness. This can make
the attacks unreliable and hard to port across differ-
ent machines. The low bandwidth restricts the ap-
proach to transmit cryptographic keys and other short
sensitive bit strings. Heat can be exploited in an ex-
tremely subtle way (Guri et al., 2015b), by increas-
ing computing load until a nearby machine can cap-
ture changes in temperature. A severe limitation is
inefficient communication due to the time required to
heat up and cool down a computer just by running
software in user space, thus resulting in extremely
restricted bandwidth and transmission rates. Covert
channels can also be built from sounds emitted by me-
chanical hardware components, such as the computer
fan (Guri et al., 2016d) or the hard drive (Guri et al.,
2016c); or inaudible sound transmitted through the
speakers (Hanspach and Goetz, 2014), with various
transmission rates. The most efficient methods are
based on radio transmission emanating from display
cables (Guri et al., 2014), the USB bus (Guri et al.,
2016b) and CPU instructions for multi-rate data trans-
fers (Guri et al., 2015a); which can be then captured
by a conventional cell phone or dedicated equipment.
In practice, a lot of variables can disturb the trans-
mission and efficient reception mechanisms are often
difficult to design or even impractical. There could be
also unexpected obstacles between the machine and
receiver using optical channels or interference from
heat or sound emitting objects nearby. The exfiltra-
tion effort can also be detected and disrupted if oper-
ational security is sophisticated enough to block radio
signals or other means of communication.
Another disadvantage of those methods is the high
Platform-agnostic Low-intrusion Optical Data Exfiltration
475

level of intrusiveness regarding the air-gapped ma-
chine, requiring an internal component to be tampered
with (like in Fansmitter (Guri et al., 2016d) or Disk-
Filtration (Guri et al., 2016c)) before it is installed in-
side the target machine. This may be hard to manage
in a real attack and perhaps can be detected. In terms
of software, in some cases low-level access to oper-
ating system data is necessary for fine-grained sta-
tus information such as CPU temperature(Guri et al.,
2015b) or to control LEDs in peripherals (Loughry
and Umphress, 2002; Sepetnitsky et al., 2014). These
drawbacks limit the the applicability of these ideas,
since the target machine necessarily needs to be in-
fected with malicious software before transmission,
making the attack unreliable across different operat-
ing systems or work against multiple software secu-
rity mechanisms. The software artifact can also be
discovered after the attack and inspected in a later
forensic investigation, even if attribution may be dif-
ficult to resolve (Tsagourias, 2012).
Table 1 summarizes some aspects of different ap-
proaches for data exfiltration proposed in the liter-
ature. Approaches requiring intrusive access to the
target air-gapped machine for introducing malicious
components or local execution privileges are marked
high. Approaches requiring user space software ex-
ecution in the target machine are marked as medium,
and the introduction of a malicious device in the se-
curity perimeter are marked low. Although there
are previous works about data exfiltration using flash
drives and hard drives (Clark et al., 2009; Zaddach
et al., 2013), the optical approach we pursue is new
and untested. The proposed method was designed to
circumvent many of restrictions in other approaches
and obtain a better trade-off between speed and level
of intrusiveness. In our case, no malware infection,
hardware tampering or any general modifications are
required, since the malicious device needs only to be
attached to the target machine. Additionally, no soft-
ware execution or privileges are needed in the air-
gapped machine. These features should allow the
method to be hard to detect in practice or during a
forensic investigation.
3 OPTICAL DATA
EXFILTRATION
In this section, we describe in detail our approach for
data exfiltration. First, we define a threat model and
a possible application scenario. Then, we present the
design of the prototype transmitter and receiver de-
vices, and the transmission protocol.
3.1 Threat Model and Scenario
In our scenario, communication is established be-
tween a transmitter and receiver. The transmitter is
a malicious thumb drive connected to the target air-
gapped machine from which the attacker wants to leak
information from. We assume the device was previ-
ously introduced in the environment using social en-
gineering skills. The malicious device is equipped
with blinking infrared LEDs and looks just like a sim-
ple USB flash drive, although the firmware is modi-
fied to check stored files for critical information and
subsequent transmission. The file extensions or pat-
terns for locating critical information are programmed
in the firmware before the device is deployed.
For reception, we assume the attacker as capable
of infecting a connected machine with malware that
controls the camera. This machine can be either a
networked computer or a smartphone inside the se-
curity perimeter. The camera monitors its view and
waits for LEDs to start blinking in a predetermined
specific way, as a handshake sequence to synchronize
the transmitter and receiver. After the camera reads
the LED and completes the handshake, it starts trans-
missting the captured data to an attacker-controlled
remote server. The diagram in Figure 1 illustrates how
the studied optical data exfiltration method works.
3.2 Transmitter
The main component of our prototype transmitting
device is a Teensy2 board
1
to simulate the mass stor-
age device. The LUFA framework (acronym for
Lightweight Framework for AVRs) (Camera, 2013)
and additional software
2
were employed for assem-
bling the firmware portion. An SD card attached to
the board works as the storage memory of the device.
Two infrared LEDs finish the design.
Figure 2 presents the latest version of the trans-
mitter. It is connected to a computer using a com-
mon USB connector and can be used as a regular flash
drive, communicating to the SD card normally. Al-
though the prototype is clearly different than a regu-
lar flash drive, we claim that an improved version can
be built to be much closer in appearance than a typi-
cal USB stick; and the LEDs can also be made much
smaller. This is very important for our approach, be-
cause targeted users must find the device convincing
enough for daily use. With a realistic appearance, the
device can be easily used in a real situation, effort-
lessly deceiving the target.
1
https://www.pjrc.com/store/teensy.html
2
http://elasticsheep.com/2010/04/teensy2-usb-mass-
storage-with-an-sd-card/
ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy
476

Table 1: Comparison of different data exfiltration methods presented in the recent literature using various covert channels,
resulting in different performance characteristics and requiring different levels of intrusiveness. Our approach tries to maxi-
mize transmission speed without requiring highly intrusive mechanisms (malware infection and local execution privileges in
the target machine).
Work Type Speed Intrusiveness Transmission rate
Monitor LED (Sepetnitsky et al., 2014) Light Low High < 25Hz
VisiSploit (Guri et al., 2016a) Light High High –
BitWhisper (Guri et al., 2015b) Heat Low Medium 1-8 bits/h (< 1 bps)
Fansmitter (Guri et al., 2016d) Sound Low High 900 bits/h (< 1 bps)
Diskfiltration (Guri et al., 2016c) Sound Low High 180 bits/min (3 bps)
Ultrasound (Hanspach and Goetz, 2014) Sound Medium High 20 bps
AirHopper (Guri et al., 2014) Radio High High 104-408 bps
USBee (Guri et al., 2016b) Radio High High 1200-4800 bps
GSMem (Guri et al., 2015a) Radio Low High 1-2 or 100-1000 bps
This work Light Medium Low 30 bps
Figure 1: Diagram illustrating the process of data exfiltration. The malicious device is attached to the air-gapped machine,
while the camera under control of the attacker is part of the receiver. A simple transmission protocol ensures synchronized
communication between the two.
Our first attempt at building the transmitter
consisted in repurposing the open source project
BadUSB (Caudill, 2014) to control a Phison micro-
controller in a way that the LED would flash in a con-
trolled way. Unfortunately, modifying the firmware
in the way we wanted was problematic. We also
started using a single activity LED, commonly found
in flash drives, but limited bandwidth suggested mul-
tiple LEDs as an alternative. Using multiple LEDs
introduced a new problem: the device may now look
unusual and suspicious during high activity, risking
detection. We mitigated this threat by using light in-
visible to the human eye, augmenting the device with
infrared LEDs. The current version of the transmitter
can send multiple bits at a time, substantially increas-
ing the bandwidth, without facilitating means of de-
tection. We argue that such a device would be used
by unsuspicious users, or even security-aware profes-
sionals.
3.3 Receiver
A webcam or a smartphone camera are ideal choices
at the receiving end. Both of these devices do not have
Figure 2: The final prototype of our malicious data exfil-
tration device, with focus given to two infrared LEDs in the
rear part of the device.
the best resolution available in the market, but re-
produce realistic conditions with a capture rate of no
more than 30 frames per second and a resolution up
to 720p. Another requirement for the receiver is a sta-
Platform-agnostic Low-intrusion Optical Data Exfiltration
477

tionary position, so we consider that a smartphone is
being held steadily or that a fixed webcam is already
targeting the LEDs to simplify the capture.
We implemented the software component using
the OpenCV 3.0 library (Itseez, 2015). The soft-
ware monitors the captured images and identifies the
source of data being transmitted, keeping track of
each individual LED and its behaviour. After the
handshake, the received bit string can then be stored
in the remote-controlled machine or be sent to a web
server through the smartphone mobile connection or
the computer network. This web server is assumed to
be under adversarial control, providing a safe haven
for the data do be finally extracted.
The algorithm for LED detection and location is
simple. Basically, it looks for differences between
two consecutive frames and determines what portions
of the image have the blinking LEDs. The infrared
light produces a very distinctive color when captured,
allowing for background noise to be detected and iso-
lated. After the initial handshake protocol has fin-
ished, the receiver knows the location of each LED
and can monitor the states to receive incoming mes-
sages. The bits are transmitted in the simplest way
possible: a value 1 is represented by turning the LED
on, and a value 0 contrariwise.
Figure 3 shows the reception process after the
handshake has been completed. The image is a frame
captured by a standard webcam. The distance be-
tween the device and the camera in this experiment
was about one meter.
Figure 3: A screenshot of the exfiltration process after the
handshake, as per the receiving view. The red rectangles
show the location of each LED, only one is turned on in the
picture, showcasing the distinctive color of infrared light.
3.4 Protocol
The transmission protocol starts from the handshake
sequence transmitted at the beginning of the message,
implementing a simple kind of synchronization. This
is used to mark when transmission is starting again
so the receiver can stop decoding new bits and start
looking for any missing piece of information that has
been lost in the last attempt. Another purpose for the
handshake is to provide additional time for the camera
to locate the LEDs in the start phase.
After the handshake protocol is finished, the mes-
sage bits are transmitted through the blinking LEDs.
However, this kind of noisy transmission introduces
some errors in the data being sent. Because of the
time the LED takes to light up or turn off, sometimes
the bit is incorrectly read and ends up flipped at the
receiving end. The easiest way we found to cope
with this problem was to employ a Hamming(7,4)-
code (Hamming, 1986) that allows for the correction
of one bit per word. This choice was apparently suf-
ficient in our tests with one and multiple LEDs and
has solved the cases in which the error occurs when
the LED starts to fade and the camera captures this
transitory moment, resulting in a flipped bit.
One important feature about the designed proto-
col was the low quantity of parity bits, decreasing the
available bandwidth just a little. More sophisticated
types of error-correcting codes were considered, but
discarded due to a much higher number of parity bits.
Another positive aspect about Hamming codes is their
classical and well-understood nature, allowing simple
implementation and usage.
Figure 4 presents an overview of our approach,
with short descriptions of the process for transmission
and reception.
4 RESULTS AND DISCUSSION
We experimentally evaluated our approach with the
main goal of transmitting specific small pieces of in-
formation from the attached SD card, such as creden-
tials and cryptographic keys. The data is transmitted
using two infrared LEDs, each one representing a dif-
ferent bit.
The biggest observed limitation is the camera
frame rate at the receiving end, because each LED
is capable of transmitting more than 30 bits per sec-
ond. In terms of speed, we achieved rates of 10-15
bits per second per LED, which is efficient enough
for our purposes. The main restriction in the transmis-
sion is the time that the LED takes to light up or turn
completely off. Our results are not so far from some
ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy
478

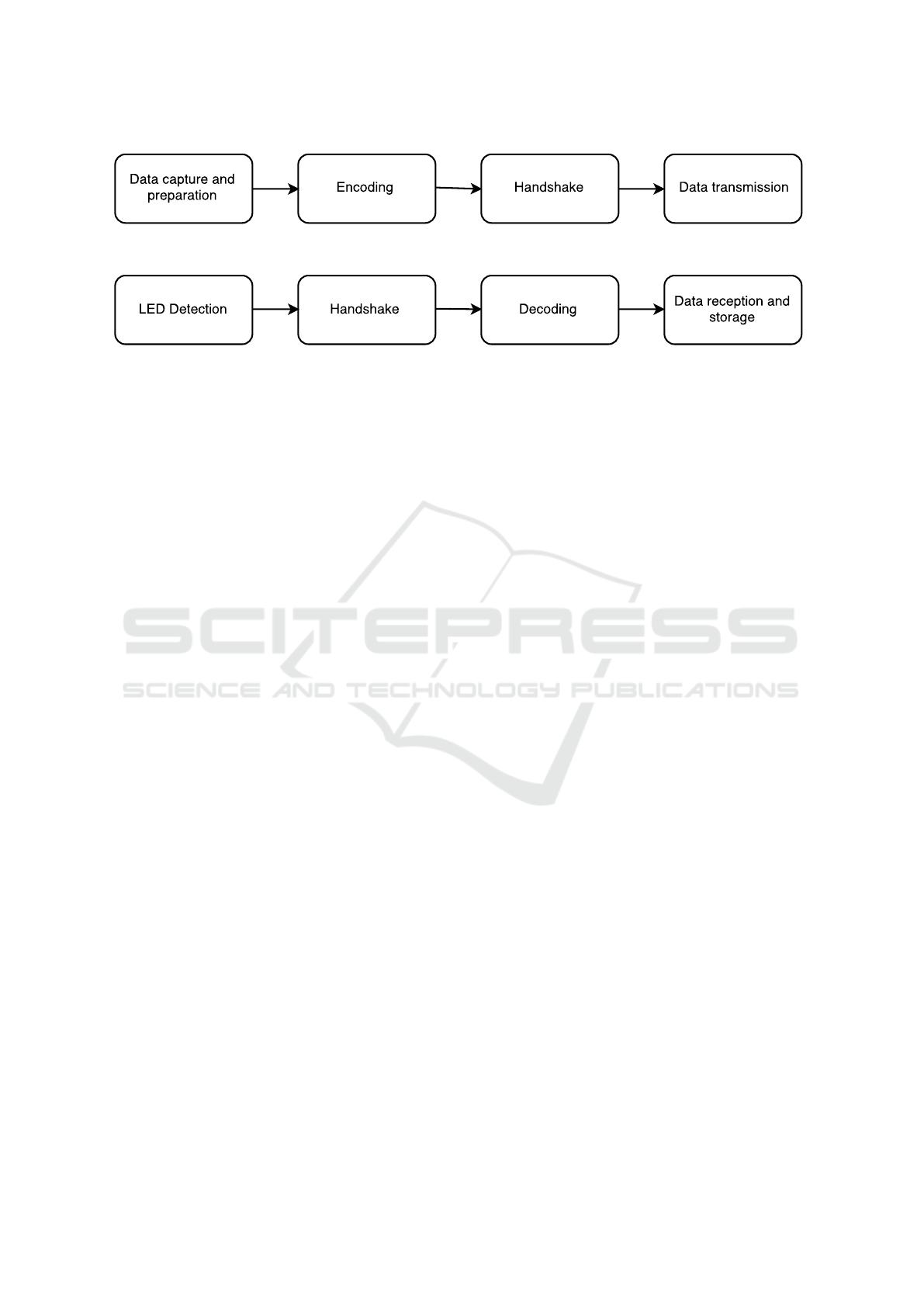

(a) Overview of the transmission process. Data is first captured and encoded for transmission using an error-correcting code.
After the handshake sequence is sent, data can be transmitted.
(b) Overview of the reception process. The receiver camera first locates the LEDs and waits for the synchronization sequence
(handshake). After the handshake, data can be decoded and stored for retrieval by the attacker.
Figure 4: Description of the steps required by our studied approach for data exfiltration, encompassing the transmission and
reception of data.
published related works (Sepetnitsky et al., 2014) and
represent an improvement in terms of level of intru-
sion and stealthiness. Given the limitations of the op-
tical approach, the achieved speed appears promising,
making it possible to send data like passwords and
cryptographic keys in just a few seconds, and some
small files in minutes.
We observed three critical factors from the envi-
ronment that may interfere with the transmission: (i)
level of brightness, (ii) distance between the transmit-
ter and receiver, and (iii) device positioning. Because
the infrared light is weaker than regular light from a
common LED, the infrared LED will fade if the envi-
ronment is too bright, which may incur in additional
loss during the transmission, since the capture would
lose track of the device more easily. The distance
between transmitter and receiver interferes in a sim-
ilar way. If the distance between the two increases,
the amount of noise in the environment that interferes
with the transmission will increase too, since other
external LEDs and lights may appear in the camera’s
view. Another important factor to the transmission
is the positioning of the device regarding the camera.
The data transmitting LEDs are located in the oppo-
site side from the USB port, and the camera needs
to be able to capture the image of the LEDs directly,
otherwise the entire process will fail.
Our preliminary results were obtained in an ambi-
ent light room and with a distance of about one meter
between the device and the camera. During the ex-
periment we tried to minimize the amount of noise
introduced from the environment while still keeping
it realistic. Improving the quality of the camera at the
receiving end allows both the distance and transmis-
sion rate to be increased, but this may not be compat-
ible with real scenarios.
5 COUNTERMEASURES
Countermeasures for defensive purposes are certainly
possible and mostly require improved operational
procedures (Zander et al., 2007). Ensuring that USB
ports are not visible in the air-gapped machines (e.g.
using the machine in a closed environment with re-
stricted access and tinted windows) and sanitizing ex-
ternal devices by default should mitigate the exfiltra-
tion threats posed by our approach. The main sug-
gested point of entrance for the malicious device in
the security perimeter is through an employee tar-
geted by social engineering. Raising security aware-
ness of the staff through user training is thus essential
to prevent data exfiltration efforts.
6 CONCLUSION
We explored a new data exfiltration approach using
an optical covert channel. The approach is platform-
agnostic and does not require malware infection or
any other modifications to be performed in the tar-
get air-gapped machine. It involves a malicious flash
drive equipped with infrared LEDs for transmission
and a connected camera for reception. Compared to
related work, it achieves moderate speed with a low
level of intrusiveness. As a result, it can be used to
transmit small pieces of sensitive information, such
as credentials, cryptographic keys or a short confiden-
tial document. A prototype was built and experimen-
tally evaluated, reaching transmission rates of 30 bps
of exfiltrated data using two LEDs. This can be easily
improved by including more LEDs and adjusting the
reception software accordingly.
Platform-agnostic Low-intrusion Optical Data Exfiltration
479

ACKNOWLEDGEMENTS
We thank FAPESP (S
˜
ao Paulo Research Foundation)
for financial support through process 2015/13876-7.
REFERENCES
Abraham, S. and Chengalur-Smith, I. (2010). An overview
of social engineering malware: Trends, tactics, and
implications. Technology in Society, 32(3):183–196.
Camera, D. (2013). LUFA - Lightweight USB Framework
for AVRs. http://www.fourwalledcubicle.com.
Caudill, A. (2014). Phison 2251-03 (2303) Custom
Firmware and Existing Firmware Patches (BadUSB).
https://github.com/adamcaudill/Psychson.
Cheddad, A., Condell, J., Curran, K., and McKevitt, P.
(2010). Digital image steganography: Survey and
analysis of current methods. Signal Processing,
90(3):727–752.
Clark, J., Leblanc, S., and Knight, S. (2009). Hardware tro-
jan horse device based on unintended USB channels.
In NSS, pages 1–8. IEEE.
Guri, M., Hasson, O., Kedma, G., and Elovici, Y. (2016a).
VisiSploit: An Optical Covert-Channel to Leak Data
through an Air-Gap. CoRR, abs/1607.03946.
Guri, M., Kachlon, A., Hasson, O., Kedma, G., Mirsky,
Y., and Elovici, Y. (2015a). Gsmem: Data exfiltra-
tion from air-gapped computers over GSM frequen-
cies. In USENIX Security Symposium, pages 849–864.
USENIX Association.
Guri, M., Kedma, G., Kachlon, A., and Elovici, Y. (2014).
Airhopper: Bridging the air-gap between isolated net-
works and mobile phones using radio frequencies. In
MALWARE, pages 58–67. IEEE.
Guri, M., Monitz, M., and Elovici, Y. (2016b). USBee:
Air-Gap Covert-Channel via Electromagnetic Emis-
sion from USB. CoRR, abs/1608.08397.
Guri, M., Monitz, M., Mirski, Y., and Elovici, Y. (2015b).
BitWhisper: Covert Signaling Channel between Air-
Gapped Computers Using Thermal Manipulations. In
CSF, pages 276–289. IEEE.
Guri, M., Solewicz, Y. A., Daidakulov, A., and Elovici,
Y. (2016c). DiskFiltration: Data Exfiltration from
Speakerless Air-Gapped Computers via Covert Hard
Drive Noise. CoRR, abs/1608.03431.
Guri, M., Solewicz, Y. A., Daidakulov, A., and Elovici,
Y. (2016d). Fansmitter: Acoustic Data Exfiltration
from (Speakerless) Air-Gapped Computers. CoRR,
abs/1606.05915.
Hamming, R. W. (1986). Coding and information theory
(2. ed.). Prentice Hall.
Hanspach, M. and Goetz, M. (2014). Recent developments
in covert acoustical communications. In Sicherheit,
volume 228 of LNI, pages 243–254. GI.
Itseez (2015). Open source computer vision library, version
3.0. https://github.com/itseez/opencv.
Kuhn, M. G. and Anderson, R. J. (1998). Soft tempest: Hid-
den data transmission using electromagnetic emana-
tions. In Information Hiding, volume 1525 of Lecture
Notes in Computer Science, pages 124–142. Springer.
Langner, R. (2011). Stuxnet: Dissecting a cyberwarfare
weapon. IEEE Security & Privacy, 9(3):49–51.
Loughry, J. and Umphress, D. A. (2002). Information leak-
age from optical emanations. ACM Trans. Inf. Syst.
Secur., 5(3):262–289.
Maass, P. (2013). How Laura Poitras Helped Snow-
den Spill His Secrets. New York Times.
http://www.nytimes.com/2013/08/18/magazine/laura-
poitras-snowden.html.
Sepetnitsky, V., Guri, M., and Elovici, Y. (2014). Exfiltra-
tion of information from air-gapped machines using
monitor’s LED indicator. In JISIC, pages 264–267.
IEEE.
Tischer, M., Durumeric, Z., Foster, S., Duan, S., Mori, A.,
Bursztein, E., and Bailey, M. (2016). Users really do
plug in USB drives they find. In IEEE Symposium on
Security and Privacy, pages 306–319. IEEE Computer
Society.
Tsagourias, N. (2012). Cyber attacks, self-defence and the
problem of attribution. Journal of Conflict and Secu-
rity Law.
Verble, J. (2014). The NSA and Edward Snowden: surveil-
lance in the 21st century. SIGCAS Computers and So-
ciety, 44(3):14–20.
Zaddach, J., Kurmus, A., Balzarotti, D., Blass, E., Fran-
cillon, A., Goodspeed, T., Gupta, M., and Koltsi-
das, I. (2013). Implementation and implications of
a stealth hard-drive backdoor. In ACSAC, pages 279–
288. ACM.
Zander, S., Armitage, G. J., and Branch, P. (2007). A sur-
vey of covert channels and countermeasures in com-
puter network protocols. IEEE Communications Sur-
veys and Tutorials, 9(1-4):44–57.
ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy
480
