Combining Techniques to Verify Service-based Components

Pascal André, Christian Attiogbé and Jean-Marie Mottu

LINA CNRS UMR 6241 - University of Nantes 2, rue de la Houssinière, F-44322 Nantes Cedex, France

Keywords:

Component, Service, Model-driven Development, Contract, Proof, Model-checking, Test.

Abstract:

Early veriﬁcation is essential in system development because late error detection involves a costly correction

and approval process. Modelling real life systems covers three aspects of a system (structure, dynamics and

functions) and one veriﬁcation technique is not sufﬁcient to check the properties related to these aspects.

Considering Service-based Component Models, we propose a unifying schema called multi-level contracts

that enables a combination of veriﬁcation techniques (model checking, theorem proving and model testing) to

cover the model V&V. This proposal is experimented using the Kmelia language and its COSTO tool.

1 INTRODUCTION

Early veriﬁcation is essential in system development

because late error detection involves a costly correc-

tion (and approval) process. In Model-Driven De-

velopment, the model correctness is essential to start

any transformation process and to develop software.

Since (abstract) Platform Independent Models (PIM)

are the starting points for MDD, we need to trust

them.

Despite the implementation details of Platform

Speciﬁc Models (PSM) are omitted, the complexity

of veriﬁcation and validation (V&V) remains impor-

tant when the PIM elements cover three orthogonal

system aspects: structure, dynamic behaviour (inter-

action) and functional behaviour (computations). Ac-

cordingly one veriﬁcation technique does not sufﬁce

to check the properties related to these aspects.

We address the issue of verifying multi-aspect

models from the practitioner’s point of view. We

consider Service-based Component (SbC) Mod-

els (Crnkovic and Larsson, 2002; Beek et al., 2006)

that promote the (re)use of components and services

coming from third party developers to build new sys-

tems. The success of the large-scale development of

SbC depends on the correctness of the parts before

assembling them. A service speciﬁcation covers the

three above aspects: structure (service dependency,

data), dynamics (service interaction, service protocol)

and functions (pre/post conditions, statements). Es-

tablishing their correctness is complex and requires

the use of various veriﬁcation techniques.

We propose a method based on multi-level con-

tracts where the properties are classiﬁed by require-

ments levels and structure levels. The service con-

tract paradigm acts as a glue between the three above

aspects. Classifying the properties enables us to se-

lect the adequate technique to cover the V&V re-

quirements; model checking, theorem proving, model

testing. The interaction properties are veriﬁed us-

ing model checking; the consistency properties are

checked using theorem proving and the behaviour

conformance with the functional contract is checked

using a speciﬁc model testing technique. We exper-

iment this method on an embedded system using the

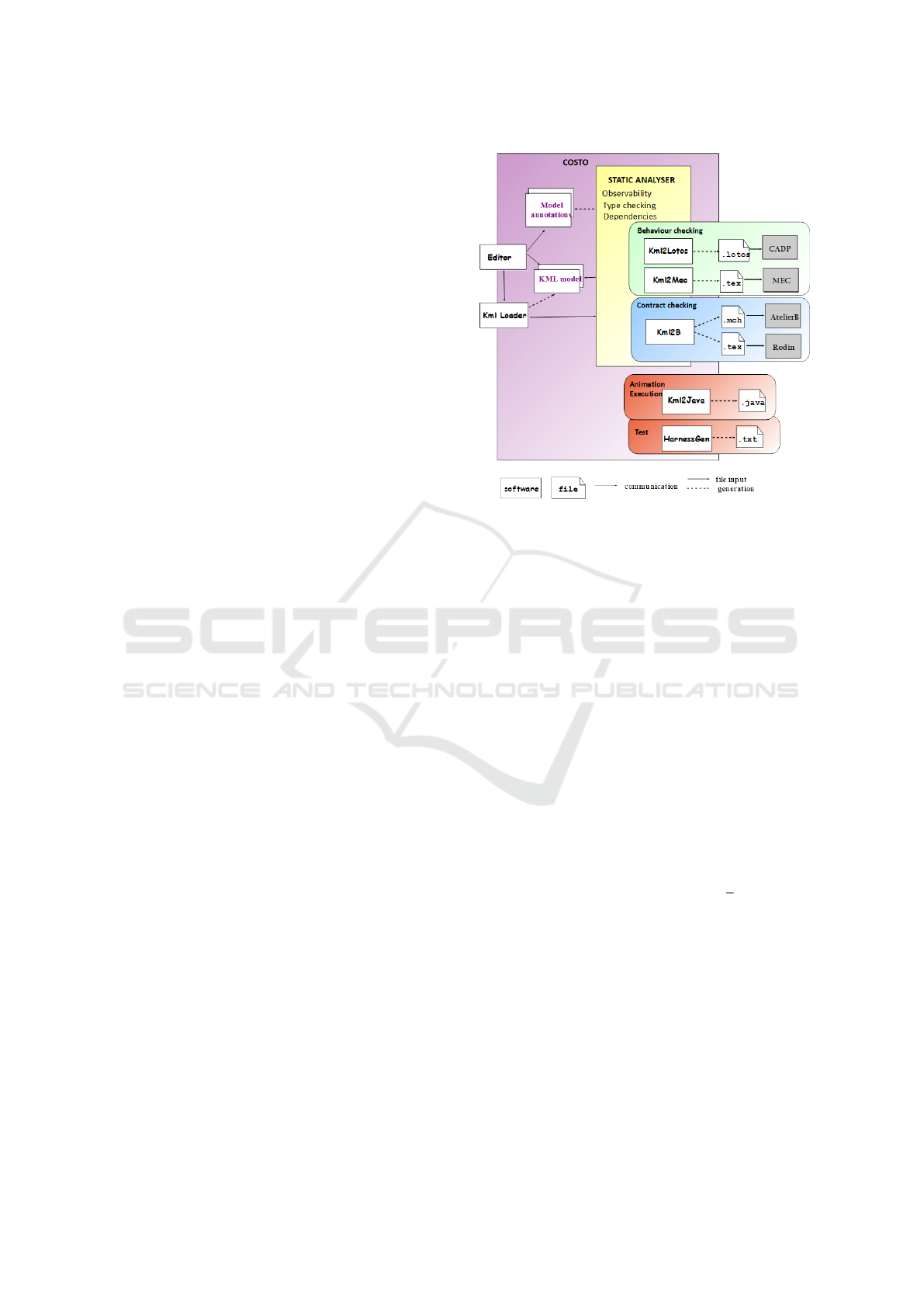

Kmelia modelling language and its associated COSTO

toolbox (André et al., 2010). This modelling language

is formal enough to specify SbC elements and con-

tracts.

Applying the proposed method increases conﬁ-

dence in the SbC models early in the development

process: they are correct with respect to the speci-

ﬁed properties and embed tests for code transforma-

tions. Thus the method allows one to apply thereafter

advanced development techniques such as agile ones

(thanks to the qualiﬁed test cases and data we con-

structed) or Design-by-Contract techniques (thanks to

the used contracts).

In the remaining of the article, we sketch the

Service-based Component model in Section 2; multi-

level contracts are introduced in Section 3. Section 4

describes the combination of V&V techniques. We il-

lustrate the proposed method and framework with the

Kmelia/COSTO toolbox in Section 5. Section 6 dis-

cusses related works and we conclude in Section 7.

André, P., Attiogbé, C. and Mottu, J-M.

Combining Techniques to Verify Service-based Components.

DOI: 10.5220/0006212106450656

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 645-656

ISBN: 978-989-758-210-3

645

service

assembly link

(wire)

reference

Provided

service

Required

service

component

call

configuration

service

mid:

VerySimple

CristalVehicle

driver :

VerySimple

CristalDriver

last :

VerySimple

CristalVehicle

autonomousSimplePlatoon::PlatoonSystem

Compute

Speed

conf

run

pilotspeed

pilotpos

speed

pos

pilotspeed

pilotpos

speed

pos

speed

pos

Compute

Speed

pos

speed

conf

run

pos

speed

state

variables

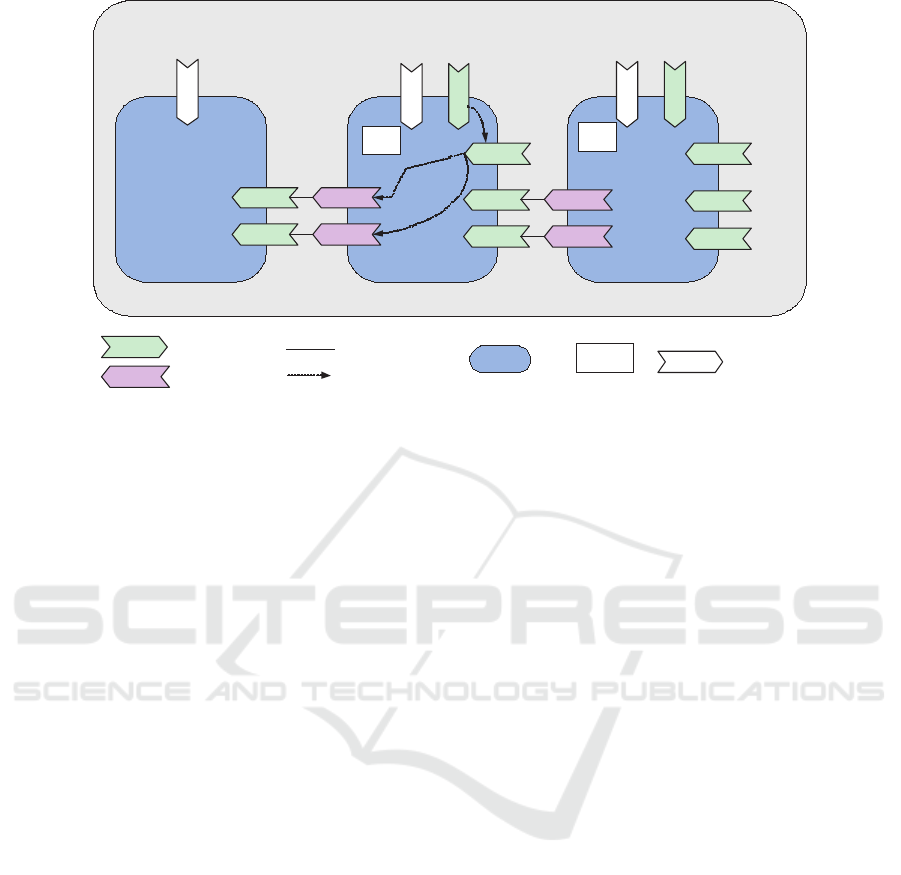

Figure 1: Component model of the Platoon system.

2 SERVICE-BASED COMPONENT

MODELS

In Service-based Component (SbC) models, a func-

tionality is implemented by the services provided by

some components. Provided services are not nec-

essarily atomic calls and may have a complex be-

haviour, in which other services might be needed

(called). These needs are either satisﬁed internally

by other services of the same component, or speci-

ﬁed as required services in the component’s interface.

The required services can then be bound to provided

services from other components, which might also re-

quire others, and so on. A provided service needs all

its direct and indirect dependencies satisﬁed in order

to be available for use. Modelling languages, such as

UML2, AADL, rCOS or Sofa (Rausch et al., 2008),

can be used to specify SbC systems.

The support example is a reduced software model

of a platoon of vehicles. Using SCA (OSOA, 2007),

Figure 1 shows a small architecture composed of a

driver and two vehicle components. Each component

has a conﬁguration service conf (used when instanti-

ating the component), a main service run to activate

the vehicle behaviour and services to give their posi-

tion and speed. The computeSpeed service reads the

vehicle’s state and the run and conf services assign

values to the vehicle’s state. Auxiliary services like

stop which interrupts a vehicle, have been omitted for

simplicity. We extend here the SCA notation to make

explicit the component’s state (its variables) and the

service calling, reading and writing.

The service run calls computeSpeed which re-

quires pilotspeed and pilotpos services. We consider

only the speed and the position (X axis only) of the

vehicles. The vehicles are designed to follow their

predecessor (which they consider to be their pilot) ex-

cept the ﬁrst one which follows a component taking

the role of the driver. The driver is assumed to be a

special kind of vehicle that controls its own values

according to a target position. Each running vehi-

cle can compute its own speed by considering its cur-

rent speed and position, its predecessor’s position and

speed and a safety distance with its predecessor. This

example serves to the experimentations in Section 5.

3 MULTI-LEVEL CONTRACTS

According to (Meyer, 2003), a Trusted Component is

a reusable software element possessing speciﬁed and

guaranteed property qualities. The notion of contract

is helpful to model various kinds of correctness prop-

erties. But it should be made precise and extended

to cope with the expressiveness of the SbC models.

The properties, e.g. interoperability, are classiﬁed at

hierarchical requirement level (RL):

1. Static: the compatibility of interface signatures;

e.g. does a component give enough information

in order to be (re)usable by others?

2. Architectural: the well-formedness of compo-

nents and service assemblies; e.g. are required

components and services available?

3. Functional: the correctness of functional con-

tracts; e.g. do the services, components and com-

AMARETTO 2017 - International Special Session on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

646

posites do what they must do?

4. Behavioural: the correct interaction between ser-

vices; the properties depends on various features:

sequential vs. concurrent, call vs. synchronisa-

tions, synchronous vs asynchronous, pair vs. mul-

tipart communication, shared data, atomic/struc-

tured actions...

5. Quality of service: the non-functional require-

ments (time, size...) are fulﬁlled. Note that this

level will not be detailed in this paper.

The requirements level are inclusive: level 5 implies

level 4, which implies level 3, and so on.

A multi-level contract is a contract deﬁned at

different SbC structure levels (SL) (service, compo-

nent, assembly, composition) according to different

expected requirement levels (RL) (Messabihi et al.,

2010). This vision of contracts provides a convenient

framework to master both the incremental construc-

tion of SbC and the veriﬁcation of multi-aspect prop-

erties by combined techniques. Table 1 summarises

the crossing of the structure levels properties with the

requirement levels.

Table 1: Multi-level Contracts and Properties.

RL Structure Level

service component assembly composite

1 type type service signature ssic

checking checking compatibility (ssic)

2 well- service service structure sstc

formedness accessibility consistency (sstc)

3 functional component service sco

correctness consistency compliance (sco)

4 behavioural protocol behavioural bhc

consistency correctness compatibility (bhc)

Multi-level contracts are useful to deﬁne interoper-

ability levels between different SbC languages. e.g. a

Corba component with IDL interfaces can be compat-

ible with components deﬁned with other SbC models

at the ﬁrst level only. We detail now the main proper-

ties of each structure level.

Service Contract. It expresses that the service ter-

minates in a consistent state. This contract deals

mainly with two properties.

• The behavioural consistency property states that

the execution of the service actions does not lead

to inconsistent states (such as deadlock).

• The functional correctness property expresses

that a service achieves what it is supposed to

do. The functional correctness of a service

of is deﬁned using the Hoare-style speciﬁcation

(Pre-condition, Statement, Post-condition) where

Statement is the service behaviour. This prop-

erty should be checked with respect to the require-

ments of the owner component.

Component Contract. The component is conﬁ-

dently reusable. It is ensured with three main prop-

erties.

• The service accessibility property states that the

services deﬁned in the interface of a component

are available. This is related to intra-component

traceability of service dependency.

• The component consistency property states that

the invariant properties of the component are pre-

served by all the services embodied in the com-

ponent. Considering that a component equipped

with services is consistent if its properties are

always satisﬁed whatever the behaviour of the

services is, one can set a consistency preserva-

tion contract between the services and their owner

component to ensure that property.

• The protocol correctness property expresses that

the order in which the services are to be invoked

by clients is correct with respect to the rules given

by the services’ speciﬁcation. A component pro-

tocol is deﬁned here as the set of all the valid se-

quences of service invocations.

Assembly Contract. In an assembly, made of

linked trusted components, each component will con-

tribute to the well-formedness of the links by requir-

ing or ensuring appropriate assertions: this is the

coarse-grained contract. The link establishes a clien-

t/supplier relationship. The assembly contract covers

correctness properties with four requirement levels:

• The ﬁrst level deals with service signature com-

patibility among the services of the interfaces

of the assembled components. The service call

should respect the service signature. The signa-

ture matching between the involved services of

component interfaces covers at least name reso-

lution, visibility rules, typing and subtyping rules.

• The second level deals with service structure con-

sistency of the assembled components. Assum-

ing that services can be composed from other

(sub)services, connecting services is possible only

if their structures are compatible (but not neces-

sary identical).

• The third level deals with service compliance of

assembled components. If the services use a

Hoare-like speciﬁcation, post-conditions relate to

their pre-conditions (Zaremski and Wing, 1997).

The caller pre-condition is stronger than the called

Combining Techniques to Verify Service-based Components

647

one. The called post-condition is stronger than the

caller’s one. Each part involved in the assembly

should fulﬁl its counterpart of the contract.

• The fourth level deals with behavioural compat-

ibility between the linked services of the assem-

bled components. It ensures the correct interac-

tion between two or more components which are

combined through their services.

Composite Contract. It is similar, up to speciﬁc ex-

pressions, to the one of assemblies.

4 COMBINING V&V

TECHNIQUES

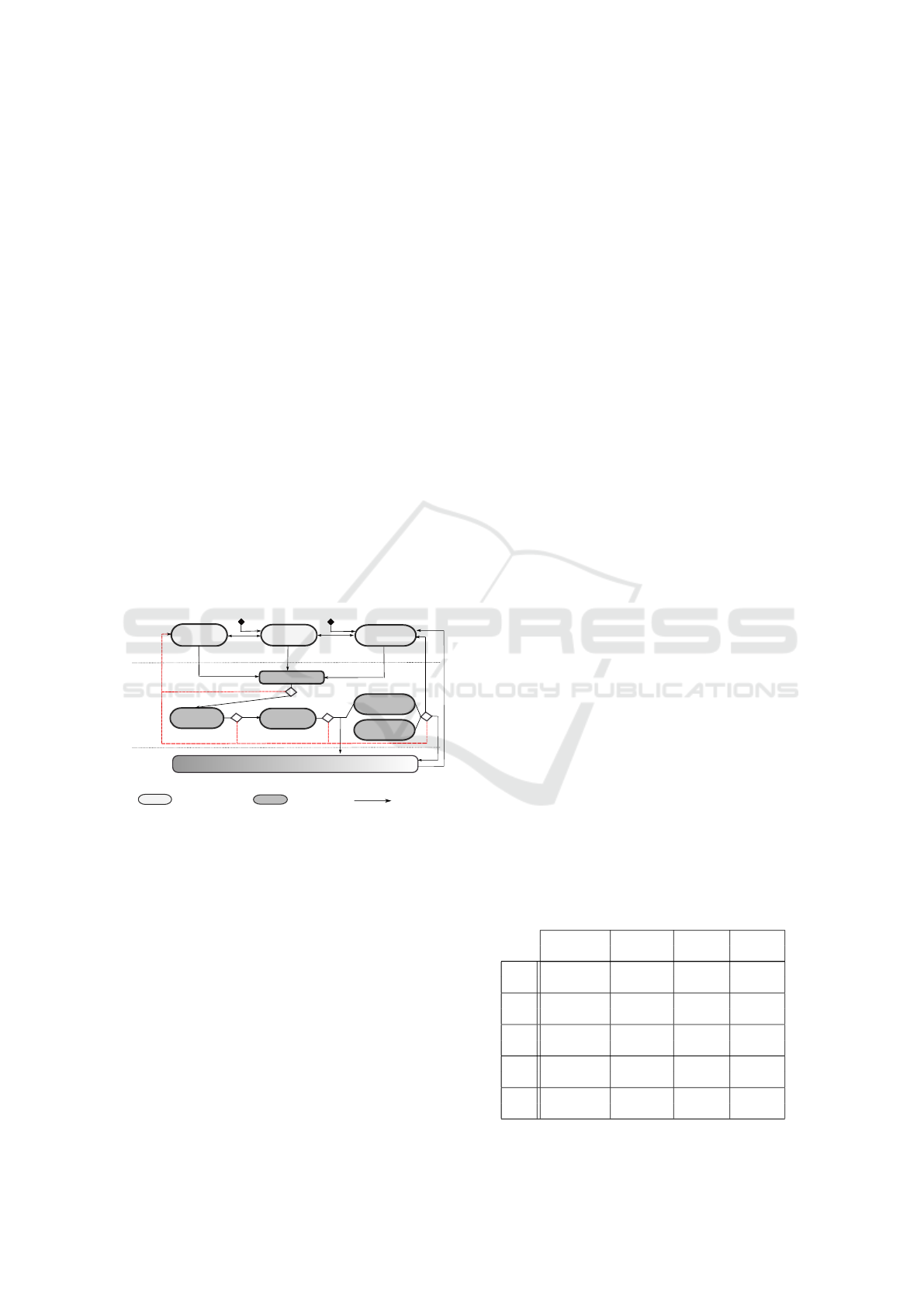

Modelling and V&V are mutually dependent during

the PIM design. As depicted in Figure 2, multi-level

contracts are set during the speciﬁcation activities and

checked during the formal analysis activities. The

structure levels are represented here by columns. The

design workﬂow is presented as a whole but the activ-

ities can be performed iteratively in any order.

Services

Component

Assembly/

Composite

Service

Speciﬁca�on

Consistency

Checking

Functional

Correctness

Static Analysis

APC

Verification

Behavioural

Compatibility

Specification

activity

Verification

activity

Modelling

V&V

Trusted Components & Assemblies

not ok

System

Design

not ok

Workflow

Component

Speciﬁca�on

Figure 2: Integrated process for design veriﬁcation.

From a practical point of view, the speciﬁer would

switch from one activity to another according to a

customised methodology, inspired from top-down or

bottom-up approaches, with a component or system

orientation. For example the speciﬁer may work only

at the service and component levels (the left part of

Figure 2) to deliver off the shelf components.

Modelling: Making Contracts Explicit. Mod-

elling includes three activities: software system de-

sign (assembly/composition), software component

speciﬁcation and service speciﬁcation. In a top-down

approach, the system design activity starts ﬁrst. It de-

ﬁnes the system as a collection of interacting subsys-

tems and components. If components or assemblies

that match the requirements already exist on the shelf,

they can be directly integrated in the system design.

Otherwise, the component speciﬁcation activity will

produce the new component(s). Once the component

structure is established, the detailed service speciﬁca-

tion activity proceeds. The main concern is that the

contracts must be explicitly written at each level in

order to be checked.

V&V : Checking Contract Properties. The mod-

els produced during the speciﬁcation are analysed by

checking the contracts properties. The veriﬁcation

process iterates on ﬁve V&V activities as depicted in

Figure 2, each activity refers to the contracts proper-

ties of Section 3.

1. The Static Analysis (SA) activity checks the syn-

tactic correctness at all levels, the service acces-

sibility of the component level, and the static in-

teroperability of the assembly level, which itself

covers the service signature compatibility and the

service structure consistency.

2. The Functional Correctness (FC) activity checks

the behavioural consistency property at the ser-

vice level and a part of the protocol correctness

property at the component level.

3. The Consistency Checking (CC) activity covers

the component consistency property at the com-

ponent level.

4. The Behavioural Compatibility (BC) activity

checks the behavioural consistency property at

the service level, a part of the protocol correct-

ness property at the component level and the be-

havioural compatibility at the assembly level.

5. The Assembly/Promotion contracts (APC) veri-

ﬁcation activity checks the service compliance of

the assembled components at the assembly level

and the composite level.

Table 2 overviews how each technique contributes

to a veriﬁcation activity of multi-level contracts.

Table 2: Multi-level contracts and veriﬁcation techniques.

Static Theorem Model Model

Analysis Proving Checking Testing

types

SA structures

See details in assertions

FC Section 4.4 oracle

assertions

CC invariant

deadlock

BC liveness

reﬁnement

APC aggregation

AMARETTO 2017 - International Special Session on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

648

Next sections provide insights on these techniques.

4.1 Structural Correctness by Static

Analysis

The static analysis checks the structural correctness

of models. It includes the syntax analysis, the

type checking and the veriﬁcation of well-formedness

rules (WFR). For example, the service dependency

satisfaction WFR states: to be executable, all the ser-

vices called (directly or indirectly) by a service must

be available. The checking algorithm of veriﬁcation

is speciﬁed here using the Z notation (Spivey, 1992),

which is a concise formal description. We consider

only a part of it, the abstract deﬁnition of types for

components, services, state spaces. Let Composition

be a speciﬁcation of components, services and com-

positions where IP S is the power set of S, X ↔ Y is

the set of relations from X to Y and X 7→ Y is the set

of partial functions from X to Y .

[COMP, SERV, STATE] //the basic sets

Composition b=

[components : IP COMP;states : COMP 7→ STAT E;

services : SERV 7→ COMP; inter f ace : SERV 7→ COMP;

provided,required : IP SERV ;intrequires : SERV ↔ SERV ;

extrequires : SERV ↔ SERV ; composite : COMP 7→ COMP;

alink : SERV 7→ SERV ; plink : SERV 7→ SERV | ...]

The service dependency is the closure (denoted

with

) of the requires relations restricted (denoted

with -) to the provided services (provided), while tak-

ing into account the assembly and promotion links

(alink, plink). Note that the closure should preserve

the component encapsulation.

∀Composition; dependency : SERV ↔ SERV •

dependency = (((intrequires ∪ extrequires)

-provided) ∪ alink ∪ plink)

If the system is ready to run, its basic depen-

dency is valid if there are no unsatisﬁed services

i.e. dependency =

0. This constraint is too strong

when working with an incomplete architecture, so

we restrict the dependency to the target provided ser-

vices (the source), which are the services under test

(source  dependency =

0). If the source must be-

long to the root of the system component, we add

service(source) ∈ (components \ dom composite).

Building a test architecture is equivalent to apply-

ing a sequence of model transformations, also deﬁned

by a Z operation. The operation precondition ensures

the preservation of the Composition system invariant.

Trans f ormation b= [∆Composition;

newComp? : SystemComponents

composite? : COMP 7→ COMP; nalink? : SERV 7→ SERV

ralink? : SERV 7→ SERV ; nplink? : SERV 7→ SERV

rplink? : SERV 7→ SERV ; plink? : SERV 7→ SERV | ...]

A sequence of architecture transformations T

...

is valid if there are no unsatisﬁed required services

(required

 dependency

0).

4.2 Consistency by Theorem Proving

Theorem proving techniques are helpful to prove the

Component Consistency (CC) and the Assembly/Pro-

motion Contract (APC).

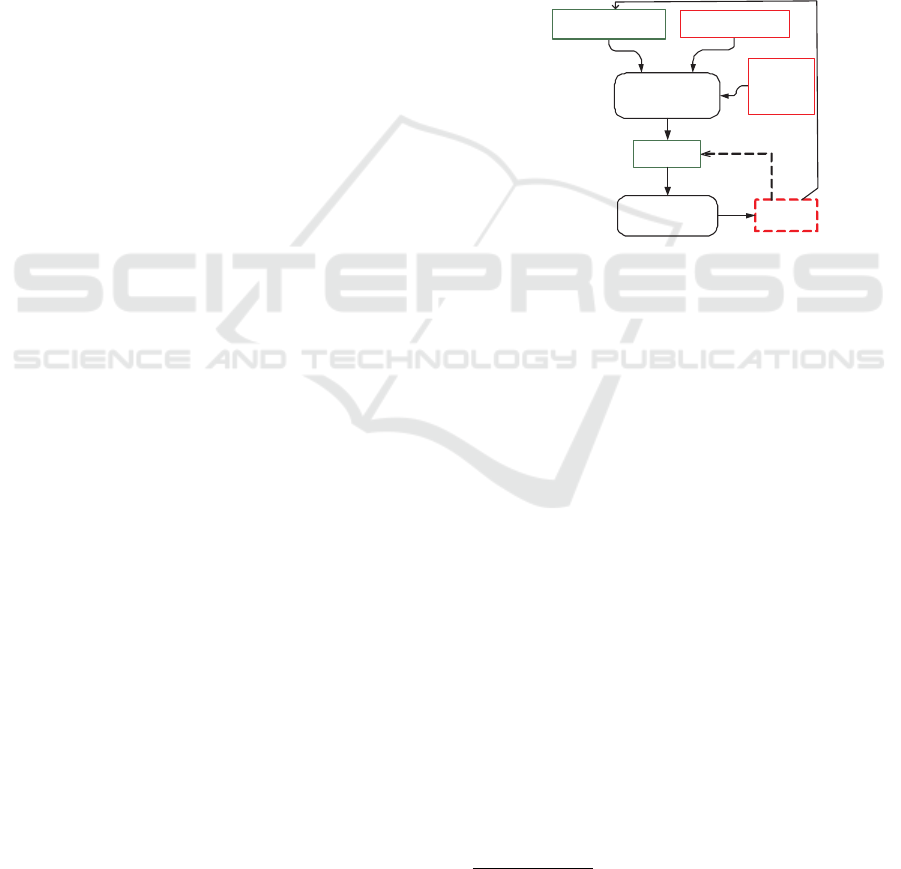

The proving process (Figure 3) consists in writing

model transformations in the target prover language

and proving the theorems using the associated proof

support. Some expertise in the proof environment is

usually required.

TP

Transformation

SbC Model (PIM) Property to check

Analysis

Proof

Results

TP source

Theorem

Prover

Language

modify

Figure 3: Theorem proving process overview.

Component Consistency (CC). At the component

level, we have to check the Invariant consistency vs.

pre/post conditions for its observable features (a kind

of read-only visibility) and its non-observable fea-

tures. Powerful tools like Atelier-B

and Rodin

are

appropriate to prove that kind of property with high

level data types; the difﬁculty is to transform proper-

ties into the input language of the prover.

Assembly/Promotion Contract (APC). At the as-

sembly level, we have to check the Assembly Link

Contract correctness; this ensures that the contract

for a required service is compliant with the one of the

provider linked to it, up to data and message map-

pings. Based on a service assembly link, the main is-

sue is to decide whether the provided service matches

with the required service it is linked to. The match-

ing condition is: the pre-condition of required service

Req is stronger than the one of provided service Prov

and the post-condition of Req is weaker than the one

of Prov. In term of B proof obligations this property

is viewed as: the provided service reﬁnes the required

service.

http://www.atelierb.eu/

http://rodin-b-sharp.sourceforge.net

Combining Techniques to Verify Service-based Components

649

At the composite level, we have to check the Promo-

tion Link Contract correctness; this ensures that the

contract for a promoted service is compliant with the

one of the original provider linked to it, up to data and

message mappings. In term of B proof obligations

this property is viewed as: the provided service re-

ﬁnes the promoted required service and the promoted

required service reﬁnes the base required service. Ac-

tually these are strong conditions but light alternatives

are detailed in (André et al., 2010).

4.3 Behavioural Compatibility by

Model Checking

Model checking techniques are helpful to prove the

Behavioural compatibility (BC). We assume that ser-

vices are neither atomic nor executed as transac-

tions. Checking the behavioural compatibility means

that services can synchronize and exchange data

with other services without any troubles and termi-

nate (Yellin and Strom, 1997; Attie and Lorenz, 2003;

Bracciali et al., 2005). It often relies on checking

the behaviour of a (component-based) system through

the construction of a ﬁnite state automaton. To avoid

state explosion problems (Attie and Lorenz, 2003)

we work with peer services instead of the whole as-

sembly. Ensuring dynamic behavioural compatibil-

ity of communicating processes is a property usu-

ally checked by model checkers. The checking pro-

cess (Figure 4) consists in writing model transforma-

tions to target languages (one per veriﬁcation tool)

and proving the properties using the dedicated model

checker (Spin, Uppaal, CADP...). Depending on the

model checker, the properties can be deﬁned sepa-

rately from the model (e.g. temporal logics) or not and

a transformation may be needed for a single property.

The veriﬁcation process is improved when the result

of a property veriﬁcation is re-injected at the model

level. Note that if the SbC formalism is very different

from the target language, the transformation is difﬁ-

cult and an expertise in the target language is required

to prove the properties.

4.4 Functional Correctness by Model

Testing

The basic idea of Functional correctness (FC) is to

evaluate all paths of a service behaviour and to deter-

mine whether it is compliant with the post-condition

or not. This is a non-trivial problem similar to the

one of model-checking a program. As soon as the

modelling language includes high level data types and

computation statements (e.g. loops) the provers reach

their limits to prove. Model testing is used here to

MC

Transformation

SbC Model (PIM) Properties to check

Model Checking Results

TP source

Model

Checker

Language

feedback

MC source

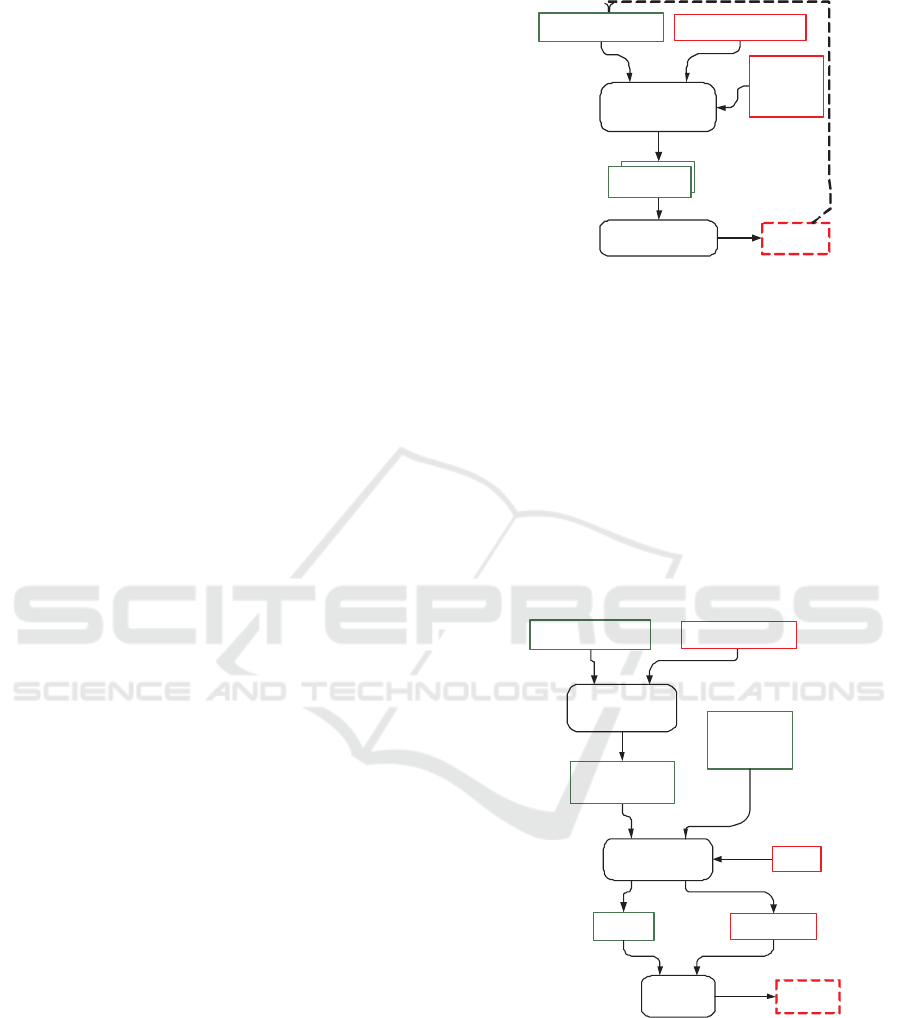

Figure 4: Model checking process overview.

supply the missing veriﬁcations of automatic and in-

teractive provers. In (André et al., 2013) we argued

for early testing at the model level to detect plat-

form independent errors without melting them with

implementation errors. Indeed, plunging the model

in a middleware decreases the testability and is of-

ten a burden to the V&V process. The model testing

(not model-based testing) process consists in building

a test application from a test intention (a test goal with

data deﬁnitions and an oracle expression) and running

it on test cases (Figure 5). It reduces the test complex-

ity and improves both the application and test evolu-

tivity.

Test Harness

Transformation

SUT Model (PIM) Test Intention (TI)

Test

Execution

Verdict

Data source

Harness + SUT

(TSM)

Code

Mappings

Transformation

Operational

Framework

(PDM)

Data

Figure 5: Testing process overview.

A tool must assist the tester in managing the way

the test data can be provided: some of them by the

conﬁguration, other ones by mocks, and the oracle by

a test driver. To achieve this, the tool can:

• select a subset of the System Under Test (SUT)

model according to a test intention;

• check if the Test Speciﬁc Model (TSM) is satis-

AMARETTO 2017 - International Special Session on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

650

fying properties to be a SbC application: no bad

connections right, no missing data or services;

• bind required services to mocks provided by li-

braries;

• check the TSM consistency and completeness ac-

cording to its test intention (it may be improved/-

completed during the test harness building);

• generate a test component including the test case

services;

• launch the test harness with several test data val-

ues sets and collect the verdicts.

5 EXPERIMENTATIONS

We experimented the above techniques through the

Kmelia language and the related COSTO toolbox.

The tool and the case study material are available at

costo.univ-nantes.fr.

Modelling with the Kmelia Language

Kmelia is an abstract formal component model dedi-

cated to the speciﬁcation and development of correct

components (André et al., 2010; André et al., 2010).

A Kmelia component system is an assembly of com-

ponents, which can themselves be composite. A com-

ponent is a container of services; it is described with

a state space constrained by an invariant. A service

describes a functionality; it is more than a simple op-

eration; it has a pre-condition, a post-condition and

a behaviour described with a labelled transition sys-

tem (LTS). Moreover a Kmelia service may give ac-

cess to other (sub)services. The behaviour supports

communication interactions, dynamic evolution rules

and service composition. Kmelia is supported with an

Eclipse-based analysis platform called COSTO (see

Figure 6).

Using Kmelia, the platoon system elements (vehi-

cles and driver) are components assembled through

their services. Figure 1 illustrates the design of the

platoonSyst assembly in the spirit of Kmelia: a com-

posite component including the component assem-

bly, which is statically deﬁned over the three com-

ponents initialized by a internal service of a compos-

ite. Each component provides an initialisation service

(used when assembling), a main run to activate the

vehicle behaviour and a stop service to interrupt or to

end the vehicle. The driver and the vehicles are de-

signed similarly with a run main (asynchronous) ser-

vice. The goal to reach belongs to the driver state

space. The vehicles require their predecessor posi-

tion pilotpos and speed pilotspeed to update their own

Figure 6: COSTO Tool Architecture.

state. The start and stop services model the system

environment actions.

Combined Veriﬁcations with COSTO

We illustrate the above combination of veriﬁcation

techniques on services at different speciﬁcation levels

(service contract, interactions, behaviour) in Figure 6.

Structural Correctness by Static Analysis. The

structural properties (such as syntax, correctness,

consistency, accessibility, observability rules...) are

checked during the compilation of the Kmelia speciﬁ-

cation by COSTO (cf. Figure 7).

Consistency by Theorem Proving. We developed

a series of plugins named Kml2B in the Figure 6 to ex-

tract B speciﬁcations. For each Kmelia component K

we build an (Event-)B model called C, its state space

is extracted from the component’s one. The provided

services srv

in K are translated into srv i operations

within the C model. The extracted speciﬁcation is im-

ported and checked in Atelier-B or Rodin. The B tools

enable the veriﬁcation of invariant consistency at the

Kmelia level.

CC. At the component level, we check the Invariant

consistency vs. pre/post conditions for both the

observable features (a kind of read-only visibility)

of it and the non-observable features.

APC. At the assembly and the composite levels, each

service link, up to data and message mappings,

leads to a reﬁnement relation and a related proof

obligation.

Combining Techniques to Verify Service-based Components

651

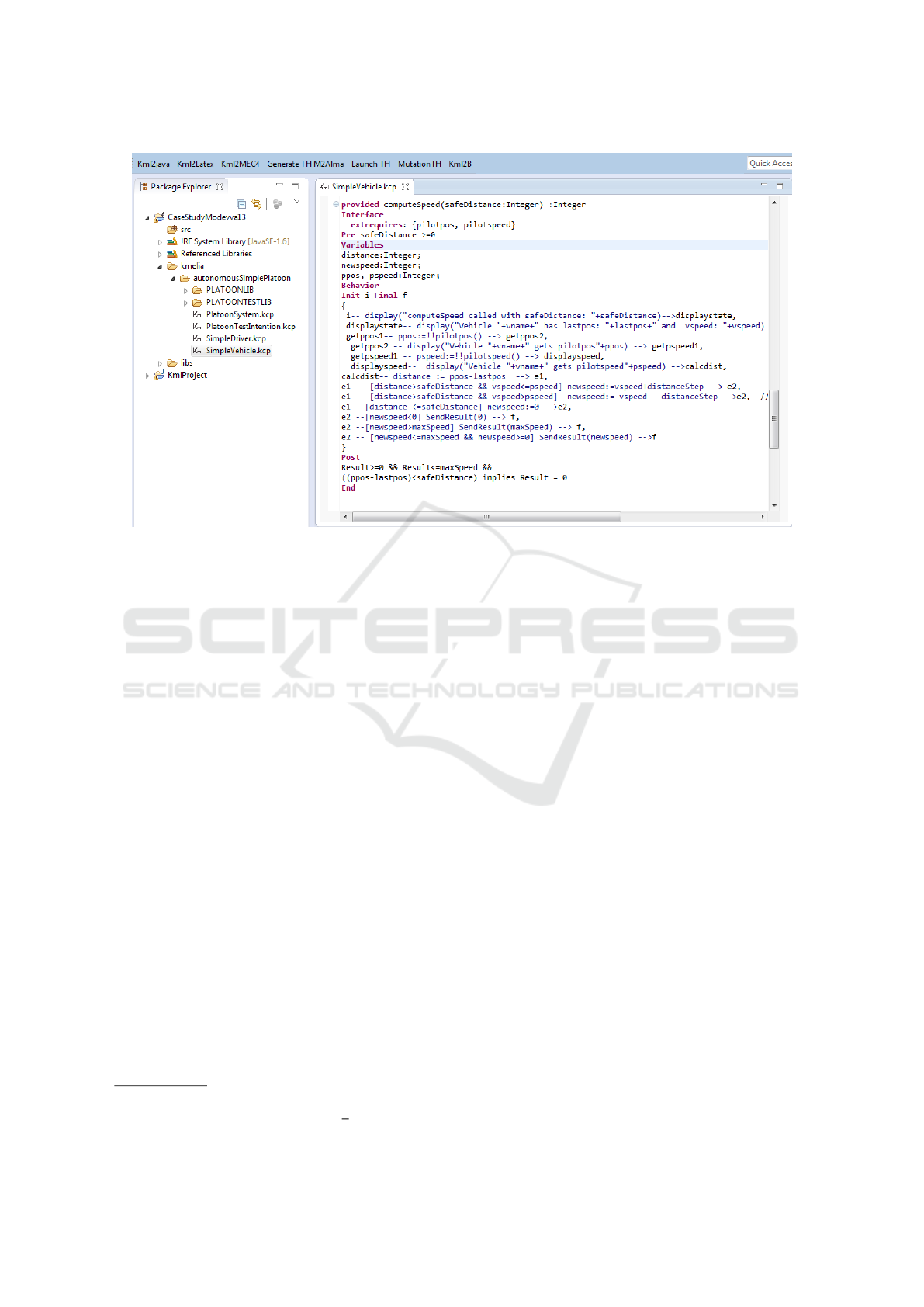

Figure 7: Speciﬁcation of service computeSpeed.

In the case of the computeSpeed service, the Atelier-

B generated seven proof obligations. At ﬁrst at-

tempt four of them were automatically proved. The

three others could not be proved because the orig-

inal Kmelia speciﬁcations was insufﬁciently precise

and complete: parameter ranges, over ranged speed

values, missing speed assignment. Once corrected in

Kmelia model and updated in the B speciﬁcations, the

seven PO were proved correct.

Behavioural Compatibility by Model Checking.

We developed a couple of plugins named Kml2Mec

(resp. Kml2Lotos) in the Figure 6 to extract ﬁnite

state machines (resp. processes) speciﬁcations. For

each assembly link, a corresponding MEC (or LO-

TOS) speciﬁcation is generated that includes the syn-

chronisations of the communications. The promotion

links are gateways for the communications and need

no speciﬁc proof. The translation details are given

in (Attiogbé et al., 2006). The veriﬁcation is achieved

using model-checking techniques provided by exist-

ing tools (Lotos/CADP

and MEC

). The advantage

of MEC is that it preserves the ﬁnite state machine

(FSM) structure of Kmelia services, so we could de-

velop a plugin to interpret the result of the model

checking.

To prove the Functional correctness (FC) we ﬁrst

tried model checkers but they could not support high

level data and functions. We then investigated B tools,

http://www.inrialpes.fr/vasy/cadp/

http://altarica.labri.fr/wiki/tools:mec 4

including ProB a model checker for B. We had to

turn back to more appropriate tools because B tools

needed additional material to prove loop invariants

and ProB was not powerful enough.

We also investigated the Key tool (Beckert et al.,

2007). Key accepts JML speciﬁcations as input; in

order to prove properties of Java programs. The idea

was to transform the Kmelia services into JML and

check with Key. However this fails in practice be-

cause plain Java is not sufﬁcient to capture the service

multi-threading and communications. An execution

and communication framework is required. Hence we

adopted model testing.

Functional Correctness by Model Testing. We de-

veloped a Model Testing Tool (named COSTOTest) as

speciﬁed in section 4.4.

The test process is illustrated on the

computeSpeed service in the mid platoon vehi-

cle. Its speciﬁcation is given in the Figure 7. The

result of the computeSpeed service depends on

several data: the recommended safe distance from

the pilot (previous vehicle), the position and speed of

the current Vehicle and the position and speed of the

pilot. This is represented by the test intention of List-

ing 1. For each test intention, a test harness (TSM)

is elaborated during an iterative building process.

As an example, Figure 8 represents a component

application for testing the service computeSpeed

in the mid Vehicle. The test and the corresponding

oracle are encapsulated into a testComponent tc,

AMARETTO 2017 - International Special Session on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

652

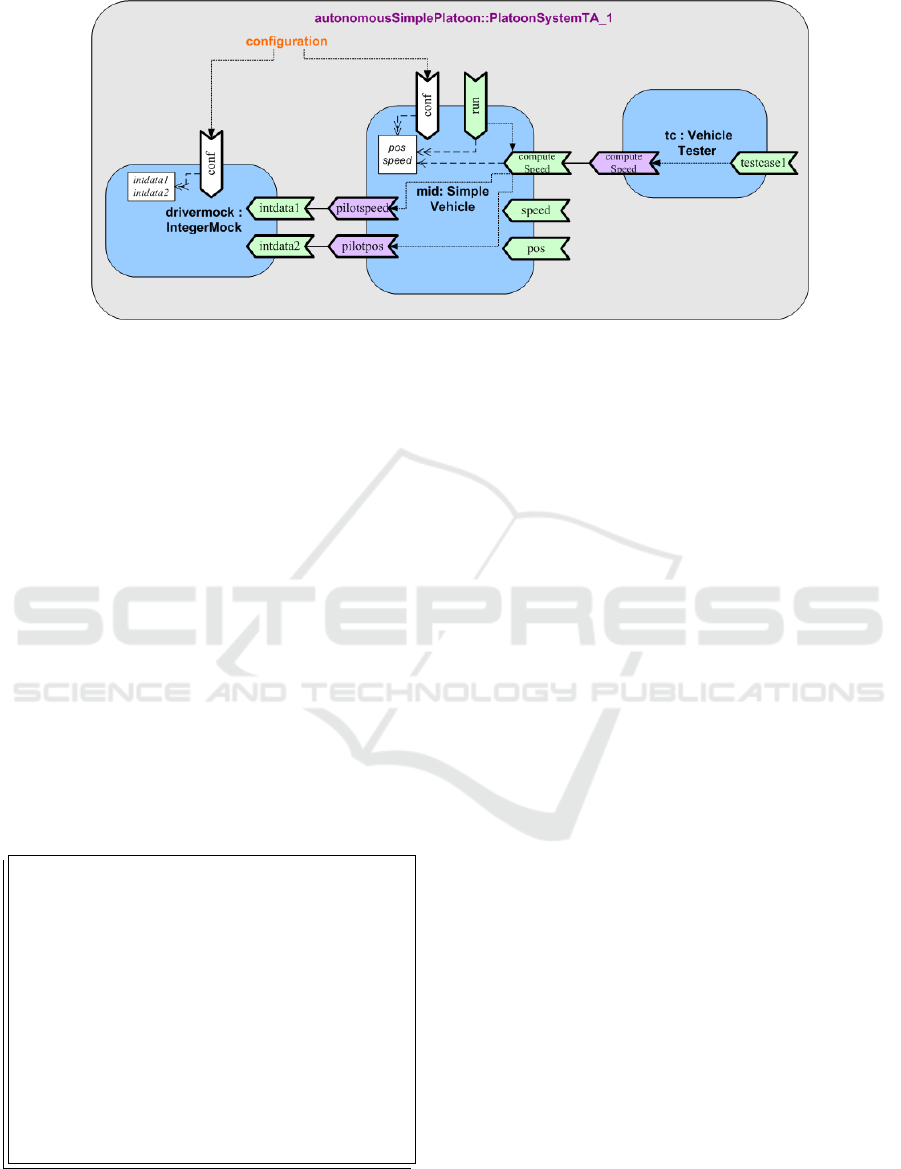

Figure 8: Test architecture for service computeSpeed.

and a Mock component has replaced the Driver to

offer better control. The last Vehicle has not been

selected here because it is not needed to test the

computeSpeed service of the mid Vehicle, but a

more complex architecture could have been retained.

The service testcase1 of testComponent contains

a simple computeSpeed call and oracle evaluation.

Every data is obtained by using abstract functions in

the model that are mapped to concrete data providers.

In the following we will detail the process that al-

lows us to create test applications like the one we pre-

sented in Figure 8. The testing process is a sequence

of model transformations which successively merge

models, integrating features into them, as illustrated

in Figure 5. The input System Under Test is a PIM

of the SbC and a test intention is also a model de-

scribed in cf. Listing 1. The process is made of two

successive model transformations which return an ex-

ecutable code of the test harness.

Listing 1: Test intention for computeSpeed service.

TEST_INTENTION P l a t o o n T e s t I n te n t i o n

DESCRIPTION " t e s t o f the s e r vi c e computS peed ,

co v er i ng c o n t r o l f lo w graph "

USES { PLATOONTESTLIB}

INPUT VARIABLES

l a s t p os : I n t e g e r ;

vspeed : I n t e g e r ;

sa f e Dis t ance : I n t e g e r ;

p i l o t p o s : I n t e g e r ;

p i l ot s p e ed : I n t e g e r ;

OUTPUT VARIABLES

spe ed : I n t e g e r ;

o r ac l e d at a : I n t e g e r ;

ORACLE

spe ed=or a cl ed a ta

The ﬁrst model transformation is a model-to-

model transformation. It builds the test harness as

an assembly of selected parts of the SUT with test

components (mocks, test driver), and returns a Test

Speciﬁc Model (TSM). It is semi-automatic transfor-

mation: the test intention is provided by the tester and

COSTOTest asks her/him to make choices that are se-

lected on the basis of static analysis of the PIM. Dur-

ing this step, the aim for the tester is to build a harness

as the one illustrated in the bottom of Figure 8.

The second transformation is a model-to-code

transformation; COSTOTest generates the code to

simulate the behaviour of the harness, then it merges

the harness with a Platform Description Model

(PDM) to get code (Java code in this case). It can be

executed, because the model of the components de-

scribes the behaviour of the services, in the form of

communicating ﬁnite state machines. The test data

and test oracle providers are designed in the PDM,

thanks to the input “Data”. A “data source” is gener-

ated, it is an XML ﬁle, with a structure corresponding

to the test intention, that should be fulﬁlled with con-

crete values by the tester.

Finally, the test execution consists in setting the

test data and then “run” the test harness component.

COSTOTest proposes interactive screens to enter all

the data values into the XML ﬁle generated by the

second model transformation. The tester can also

provide the test data values in a CSV ﬁle which is

transformed into the XML ﬁle. We consider the test

of computeSpeed service, covering its control ﬂow

graph to generate test data. We create 45 test cases

and run them getting the verdicts. The data source

XML ﬁle will also store the verdicts (cf. Figure 9).

6 RELATED WORK

The combination of formal veriﬁcation and testing is

not new but the way they are combined varies with

the veriﬁcation goals (Bousse, 2013), e.g. hybrid

Combining Techniques to Verify Service-based Components

653

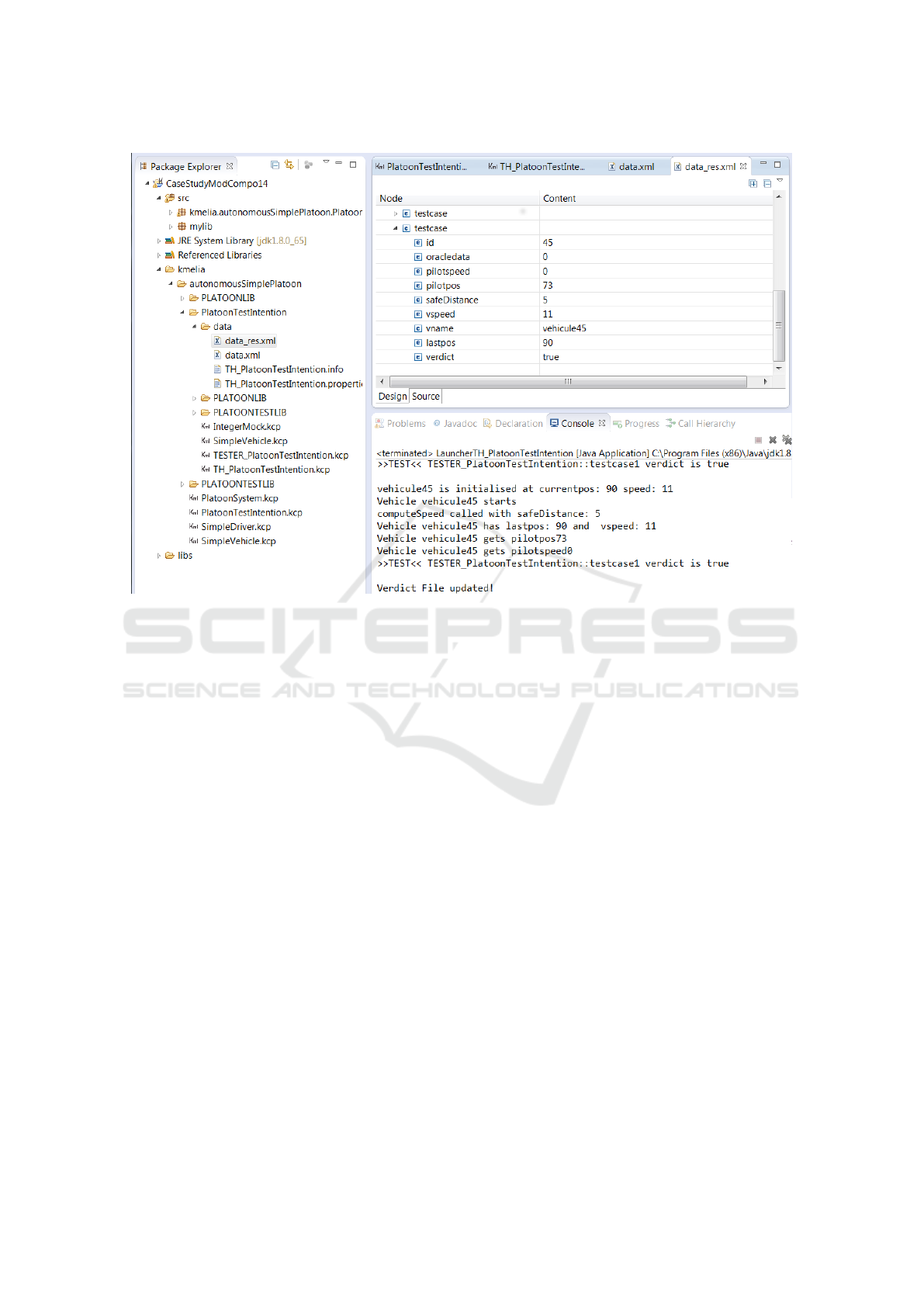

Figure 9: Test harness assignments: verdict stored in the XML ﬁle.

approaches for functional veriﬁcation (Bhadra et al.,

2007).

Many works that combine tests and proofs use ﬁ-

nite state machines dialect as modelling DSL (Con-

stant et al., 2007; Falzon and Pace, 2012; Artho et al.,

2005). In the spirit of Model Based Testing (MBT),

the authors focus on conformance checking and the

goal is to generate test cases from a formal speciﬁ-

cation to check whether an implementation conforms

to the model (Constant et al., 2007) or to monitor

runtime veriﬁcation (Falzon and Pace, 2012). Her-

ber et al. generate conformance tests to complete the

model-checking of SystemC designs (Herber et al.,

2009). Conversely Dybjer et al. use testing to avoid

the effort of costing proofs (Dybjer et al., 2004), their

method interweaves proving steps and testing steps

while usually the proofs are done ﬁrst on the model.

Similarly Sharygina and Peled use testing (with PET)

prior to the actual veriﬁcation (with SPIN) and during

the evaluation of counter examples (Sharygina and

Peled, 2001), testing is thus a kind of heuristics to

reduce the state space explosion. However their ob-

jective is not to get a correct-by-construction code but

to check whether the C++ code is correct by translat-

ing to model (reverse-engineering); no tool support is

provided for the translations.

We can get inspired by the above techniques but

none is a direct answer to our goal which is (i) cen-

tred on the veriﬁcation of correctness, (ii) at the

model level, (iii) for heterogeneous models and prop-

erties (structure, dynamics, functions) that suppose

some completeness. As mentioned by E. Bousse

in (Bousse, 2013), the question is "How to perform

effective V&V on such complex and potentially het-

erogeneous models?". He mentioned several pitfalls:

the V&V tools have limited application ﬁelds, low

expressive power, low scalability, low integrability,

semantic gap between domains... Consequently one

pivot language cannot catch all the aspects. Sev-

eral years later, he proposed a transformation based

approach to align SysML with B (Bousse et al.,

2012) that managed to prove safety properties. The

alignable subset of SysML is covered but the problem

remains open for the unaligned aspects.

We are convinced that the solution is a collabora-

tive approach for model testing instead of an unifying

approach. The forthcoming question is what makes

the glue between the heterogeneous aspects. A possi-

ble answer is the concept of contract because it has

the same underlying semantics that crosses the ap-

proaches, especially those related to services. A con-

tract is the agreement between clients and providers

and the interesting point is that it includes clauses that

can focus on the heterogeneous aspects (rights and

AMARETTO 2017 - International Special Session on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

654

duties, quality of service...) (Beugnard et al., 1999).

The notion of multi-level contract that we promote

here can be an unifying paradigm for the functional

contracts of Meyer (Meyer, 2003) or the behavioural

contracts (Acciai et al., 2013; Fenech et al., 2009).

Contracts are a basis for property veriﬁcation as well

as for testing oracles (Le Traon et al., 2006). We

agree with Dwyer and Elbaum that noted the risk

of focusing on individual techniques (Dwyer and El-

baum, 2010); Table 2 deﬁnes a way to characterise

their property-behaviour coverage.

Contracts and services have been studied in the

context of service composition. From a service com-

position point of view e.g. BPEL, the behavioural as-

pect is preeminent (ter Beek et al., 2007). Consid-

ering only the formal models, composition is mainly

based on automata, Petri nets and process algebra, as

illustrated by the orchestration calculus of Mazzara

and Lanese (Mazzara and Lanese, 2006); therefore

the contracts focus mainly on dynamic compatibility.

Conversely the contracts (in the sense of design-by-

contract) are taken into account in (Milanovic, 2005)

(using abstract machines) but not the dynamic be-

haviour. Kmelia handles both aspects. In (Brogi,

2010), the contract is supported at four levels (sig-

nature, quality of service, ontology, behaviour) but

none of them handle the functional contract. The ser-

vice concept is a key one. The component architec-

ture (SCA) approaches (Ding et al., 2008) empha-

size the service concept, like Kmelia does; but un-

fortunately contract features are not introduced yet in

SCA. Testing LTS behaviours is performed in (Schätz

and Pfaller, 2010). The authors customize compo-

nent testing at the level of component in a system use.

Our framework also allows to customize the testing

through the deﬁnition of the testing perimeter and the

selection of mock services, then it applies the same

kind of tests with a mutation analysis. In (Lei et al.,

2010), the authors target robustness testing of com-

ponents using rCOS. Their CUT approach involves

functional contracts and a dynamic contract (proto-

col). Our approach does not target robustness, but the

mutation analysis exploits the kind of errors of (Lei

et al., 2010) (bad call sequence / invalid parameter) in

a more systematic manner.

7 CONCLUSION

Reusability and composability belong to the founda-

tions of service and components systems and their

conﬁdence must be ensured at early stages of the de-

sign of systems, by veriﬁcation and validation tech-

niques. In practice, to face this challenge, one must

combine several techniques and the notion of multi-

level contracts including the right/duty clauses on the

orthogonal aspects of a system (structure, dynamic

and functional behaviour) seems a promising uni-

fying paradigm. We experimented these idea with

the Kmelia language to specify SbC systems and the

COSTO tool which includes static checkers and trans-

formations to speciﬁc V&V tool support. But the

principle can be replayed with other SbC languages

and other V&V tools. For pedagogical reasons, the

example was simple. But thanks to service compo-

sition, the veriﬁcation invest is not exponential when

the system grows.

The current state of the proposal requires addi-

tional work and tool improvement. Additional work

concerns the speciﬁcation and veriﬁcation of quality

of service, related to the non-functional properties.

New language primitives have to be implemented to

specify additional constraints on time and resources.

Related V&V techniques have to be experimented.

The main issues on tool improvement concern plat-

form facilities and abstraction because the veriﬁcation

stages require expertise in domain speciﬁc provers.

At best, the modeller would need to know the proof

techniques but not the proof tools. This is mainly the

case with model checking and testing where the GUI

can hide the implementation level but additional work

has to be done for provers.

REFERENCES

Acciai, L., Boreale, M., and Zavattaro, G. (2013). Be-

havioural contracts with request-response operations.

Sci. Comput. Program., 78(2):248–267.

André, P., Ardourel, G., Attiogbé, C., and Lanoix, A.

(2010). Using assertions to enhance the correctness

of kmelia components and their assemblies. ENTCS,

263:5 – 30. Proceedings of FACS 2009.

André, P., Ardourel, G., and Messabihi, M. (2010). Compo-

nent Service Promotion: Contracts, Mechanisms and

Safety. In 7th International Workshop on Formal As-

pects of Component Software(FACS 2010), LNCS. to

be published.

André, P., Mottu, J.-M., and Ardourel, G. (2013). Build-

ing test harness from service-based component mod-

els. In proceedings of the Workshop MoDeVVa (Mod-

els2013), pages 11–20, Miami, USA.

Artho, C., Barringer, H., Goldberg, A., Havelund, K., Khur-

shid, S., Lowry, M., Pasareanu, C., Rosu, G., Sen, K.,

Visser, W., and Washington, R. (2005). Combining

test case generation and runtime veriﬁcation. Theor.

Comput. Sci., 336(2-3):209–234.

Attie, P. and Lorenz, D. H. (2003). Correctness of Model-

based Component Composition without State Explo-

sion. In ECOOP 2003 Workshop on Correctness of

Model-based Software Composition.

Combining Techniques to Verify Service-based Components

655

Attiogbé, C., André, P., and Ardourel, G. (2006). Check-

ing Component Composability. In 5th International

Symposium on Software Composition, SC’06, volume

4089 of LNCS. Springer.

Beckert, B., Hähnle, R., and Schmitt, P. H., editors (2007).

Veriﬁcation of Object-Oriented Software: The KeY

Approach. LNCS 4334. Springer-Verlag.

Beek, M., Bucchiarone, A., and Gnesi, S. (2006). A survey

on service composition approaches: From industrial

standards to formal methods. In In Technical Report

2006TR-15, Istituto, pages 15–20. IEEE CS Press.

Beugnard, A., Jézéquel, J.-M., Plouzeau, N., and Watkins,

D. (1999). Making components contract aware. Com-

puter, 32(7):38–45.

Bhadra, J., Abadir, M. S., Wang, L.-C., and Ray, S. (2007).

A survey of hybrid techniques for functional veriﬁca-

tion. IEEE Des. Test, 24(2):112–122.

Bousse, E. (2013). Combining veriﬁcation and valida-

tion techniques. In Doctoral Symposium of ECMFA,

ECOOP and ECSA 2013, page 10, Montpellier,

France.

Bousse, E., Mentr’e, D., Combemale, B., Baudry, B., and

Takaya, K. (2012). Aligning sysml with the b method

to provide v&v for systems engineering. In Model-

Driven Engineering, Veriﬁcation, and Validation 2012

(MoDeVVa 2012), Innsbruck, Austria.

Bracciali, A., Brogi, A., and Canal, C. (2005). A formal ap-

proach to component adaptation. Journal of Systems

and Software, 74(1):45–54.

Brogi, A. (2010). On the Potential Advantages of Exploit-

ing Behavioural Information for Contract-based Ser-

vice Discovery and Composition. Journal of Logic

and Algebraic Programming.

Constant, C., Jéron, T., Rusu, V., and Marchand, H. (2007).

Integrating formal veriﬁcation and conformance test-

ing for reactive systems. IEEE Transactions on Soft-

ware Engineering, 33(8):558–574.

Crnkovic, I. and Larsson, M., editors (2002). Building Re-

liable Component-Based Software Systems. Artech

House publisher.

Ding, Z., Chen, Z., and Liu, J. (2008). A rigorous model of

service component architecture. Electr. Notes Theor.

Comput. Sci., 207:33–48.

Dwyer, M. B. and Elbaum, S. (2010). Unifying veriﬁca-

tion and validation techniques: Relating behavior and

properties through partial evidence. In Proceedings

of the FSE/SDP Workshop on Future of Software En-

gineering Research, FoSER ’10, pages 93–98, New

York, NY, USA. ACM.

Dybjer, P., Haiyan, Q., and Takeyama, M. (2004). Verifying

haskell programs by combining testing, model check-

ing and interactive theorem proving. Information &

Software Technology, 46(15):1011–1025.

Falzon, K. and Pace, G. J. (2012). Combining testing

and runtime veriﬁcation techniques. In Machado,

R. J., Maciel, R. S. P., Rubin, J., and Botterweck,

G., editors, Model-Based Methodologies for Perva-

sive and Embedded Software, 8th International Work-

shop, MOMPES 2012, Essen, Germany, September 4,

2012. Revised Papers, volume 7706 of Lecture Notes

in Computer Science, pages 38–57. Springer.

Fenech, S., Pace, G. J., Okika, J. C., Ravn, A. P., and

Schneider, G. (2009). On the speciﬁcation of full con-

tracts. Electr. Notes Theor. Comput. Sci., 253(1):39–

55.

Herber, P., Friedemann, F., and Glesner, S. (2009). Com-

bining Model Checking and Testing in a Continu-

ous HW/SW Co-veriﬁcation Process, pages 121–136.

Springer Berlin Heidelberg, Berlin, Heidelberg.

Le Traon, Y., Baudry, B., and Jézéquel, J.-M. (2006). De-

sign by contract to improve software vigilance. IEEE

Transactions on Software Engineering, 32(8):571–

586.

Lei, B., Liu, Z., Morisset, C., and Li, X. (2010). State

based robustness testing for components. Electr. Notes

Theor. Comput. Sci., 260:173–188.

Mazzara, M. and Lanese, I. (2006). Towards a unifying

theory for web services composition. In Bravetti,

M., Núñez, M., and Zavattaro, G., editors, WS-FM,

volume 4184 of Lecture Notes in Computer Science,

pages 257–272. Springer.

Messabihi, M., André, P., and Attiogbé, C. (2010). Multi-

level contracts for trusted components. In Cámara, J.,

Canal, C., and Salaün, G., editors, WCSI, volume 37

of EPTCS, pages 71–85.

Meyer, B. (2003). The Grand Challenge of Trusted Com-

ponents. In Proceedings of 25th International Confer-

ence on Software Engineering, pages 660–667. IEEE

Computer Society.

Milanovic, N. (2005). Contract-based web service com-

position framework with correctness guarantees. In

Malek, M., Nett, E., and Suri, N., editors, ISAS,

volume 3694 of Lecture Notes in Computer Science,

pages 52–67. Springer.

OSOA (2007). Service component architecture (sca): Sca

assembly model v1.00 speciﬁcations. Speciﬁcation

Version 1.0, Open SOA Collaboration.

Rausch, A., Reussner, R., Mirandola, R., and Plasil, F., ed-

itors (2008). The Common Component Modeling Ex-

ample: Comparing Software Component Models, vol-

ume 5153 of LNCS. Springer, Heidelberg.

Schätz, B. and Pfaller, C. (2010). Integrating component

tests to system tests. Electr. Notes Theor. Comput. Sci.,

260:225–241.

Sharygina, N. and Peled, D. A. (2001). A combined test-

ing and veriﬁcation approach for software reliability.

In Oliveira, J. N. and Zave, P., editors, FME 2001:

Formal Methods for Increasing Software Productivity,

International Symposium of Formal Methods Europe,

Berlin, Germany, March 12-16, 2001, Proceedings,

volume 2021 of Lecture Notes in Computer Science,

pages 611–628. Springer.

Spivey, J. M. (1992). Z Notation - a reference manual (2.

ed.). Prentice Hall International Series in Computer

Science. Prentice Hall.

ter Beek, M., Bucchiarone, A., and Gnesi, S. (2007). For-

mal methods for service composition. Annals of Math-

ematics, Computing & Teleinformatics, 1(5):1–10.

Yellin, D. and Strom, R. (1997). Protocol Speciﬁcations

and Component Adaptors. ACM Transactions on Pro-

gramming Languages and Systems, 19(2):292–333.

Zaremski, A. M. and Wing, J. M. (1997). Speciﬁcation

matching of software components. ACM Transaction

on Software Engeniering Methodolology, 6(4):333–

369.

AMARETTO 2017 - International Special Session on domAin speciﬁc Model-based AppRoaches to vEriﬁcaTion and validaTiOn

656
