Lag Correlation Discovery and Classification for Time Series

Georgios Dimitropoulos

, Estela Papagianni

and Vasileios Megalooikonomou

Department of Mathematics, University of Patras, Rio-Patras, Greece

Department of Computer Engineering and Informatics, University of Patras, Rio-Patras, Greece

Keywords: Data Mining, HSLC Algorithm, Data Streams, Time series, Classification, Lag Correlation, Incremental

SVM Learning Algorithm, Stock Trend Prediction, Features Extraction.

Abstract: Time series data are ubiquitous and their analysis necessitates the use of effective data mining methods to

aid towards decision making. The mining problems that are studied in this paper are lag correlation

discovery and classification. For the first problem, a new lag correlation algorithm for time series, the

Highly Sparse Lag Correlation (HSLC) is proposed. This algorithm is a combination of Boolean Lag

Correlation (BLC) and Hierarchical Boolean Representation (HBR) algorithms and aims to improve the

time performance of Pearson Lag Correlation (PLC) algorithm. The classification algorithm that is

employed for data streams is an incremental support vector machine (SVM) learning algorithm. To verify

the effectiveness and efficiency of the proposed schemes, the lag correlation discovery algorithm is

experimentally tested on electroencephalography (EEG) data, whereas the classification algorithm that

operates on streams is tested on real financial data. The HSLC algorithm achieves better time performance

than previous state-of-the-art methods such as the PLC algorithm and the incremental SVM learning

algorithm that we adopt, increases the accuracy achieved by non-incremental models.

1 INTRODUCTION

The high volume of time series data in various

domains (e.g. medicine, financial markets)

necessitates the use of effective data mining methods

to aid towards decision making. The mining

problems that are studied in this paper are lag

correlation discovery and classification. The purpose

of lag correlation discovery is to detect correlations

with lag that are present in time series. The most

common way for detecting correlation is the Pearson

correlation coefficient. In many applications, due to

the fact that there is a great number of time series

that have a high correlation, it is necessary for a

method to accept only the pairs that have correlation

greater than a threshold. Such a method is the

Pearson Lag Correlation (PLC) algorithm that can be

used, not only for time series, but also for data

streams. However, for online applications, the time

performance of the algorithm is questionable. There

is a rich body of literature on lag correlation

algorithms for data streams. The Muscles algorithm

proposed by Yi et al. (2000) is able to adapt to

changing correlations on data streams, handle a great

number of long sequences efficiently and predict

precisely the missing values. Another approach is

the StatStream incremental algorithm proposed by

Zhu et al. (2002) which is based on Discrete Fourier

Transform (DFT) and a time interval hierarchy of

three levels, to calculate efficiently high correlation

among all pairs of streams. The Boolean Lag

Correlation (BLC) algorithm proposed by Zhang et

al. (2011) and the Hierarchical Boolean

Representation (HBR) algorithm proposed by Zhang

et al. (2009) calculate lag correlation among

multiple data streams and are based on boolean

representation. HBR is based on the fact that, in the

majority of applications, only a small fraction of all

possible pairs have a high correlation. Thus, in order

to reduce the computational time, a technique that

spots only the pairs which are correlated is used.

The purpose of classification for time series on

the other hand is to create a matching of a set of

unknown features into some known categories. For

classification of data streams there is a rich body of

research work related to incremental SVM learning

algorithms. A framework for exact incremental

learning and adaption of SVM classifiers has been

studied by Poggio et al. (2001) and Diehl et al.

(2003). The algorithm that is used is able to learn

Dimitropoulos, G., Papagianni, E. and Megalooikonomou, V.

Lag Correlation Discovery and Classiﬁcation for Time Series.

DOI: 10.5220/0006215901810188

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 181-188

ISBN: 978-989-758-245-5

181

and unlearn manifold examples, adapt the current

SVM to changes in regularization and kernel

parameters and evaluate generalization performance.

In terms of applications, the medical and

macroeconomic environments are fields in which

there has been extensive research regarding

classification algorithms of time series. The

prediction of certain events in EEG or ECG has been

studied among others by Mporas et al. (2015).

Similarly, indicators in the financial market and

recognition of patterns in stocks, known as stock

trends, has been studied among others by Edwards et

al. (2007). Kim (2003) has used SVMs for the

prediction of the trend of the daily Korea Composite

Stock Price Index (KOSPI).

In this paper, we focus on lag correlation

algorithms for time series and classification

algorithms for data streams and examine their

applications on medical and financial data

respectively. The main contributions of this work

can be summarized as follows:

 Better time performance on lag correlation

discovery of time series: the new HSLC

algorithm achieves better computational time

than the PLC algorithm.

 Better accuracy on classification of data

streams: we improve the classification

accuracy accomplished by Kim (2003) on the

KOSPI dataset by employing the incremental

SVM learning algorithm proposed by Diehl et

al. (2003) concluding that the way of training

models for streams should be incremental.

In Section 2 the Highly Sparse Lag Correlation

(HSLC) is presented, whereas in Section 3 the

incremental SVM learning approach is analyzed.

Both algorithms are experimentally studied in

Section 4 followed by some remarks. Section 5

concludes the paper.

2 HIGHLY SPARSE LAG

CORRELATION ALGORITHM

In the case of a large number of time series or data

streams the set of all possible correlated pairs is

rapidly increased. In order to be able to examine

them for possible correlation it is vital to use

algorithms which limit calculations to a smaller set

and provide faster implementation through accurate

approximations. The proposed approach, HSLC,

calculates lag correlation on time series and can be

used in applications where the number of highly

correlated pairs is much smaller than the number of

all possible pairs. Given

time series of length n,

the algorithm calculates lag correlation by first

calculating the pairs that have lag correlation which

is greater than a threshold and returning these

correlated pairs and the value of their lag l. It is

based on the HBR To cope with the high

computational cost, the algorithm uses a correlated

pair detection technique based on the BLC algorithm

including the Boolean Representation method. After

that, the lag correlation is calculated for the set of

pairs which were detected using the Pearson

correlation coefficient. Before the presentation of the

HSLC algorithm, we give some definitions:

Definition 2.1 (Pearson correlation coefficient)

The Pearson correlation coefficient for two time

series

and

with the same length

for lag

with



 is given by the formula:

()(Y)

()

()(Y)

ttl

nnl

tl t

XX Y

rlag







 

 



 





(1)

where:









(2)











(3)

Definition 2.2 (Boolean series) The transformation

of a time series X

of length n into the corresponding

Boolean series W

of the same length n is given by:













(4)

where:





(5)

Definition 2.3 (Correlation coefficient for Boolean

series) The calculation of the lag correlation

coefficient for two Boolean series

(, )

is given

by the formula:



( ) max ( ), ( ) 0,1,...,

pos neg

lllforl





(6)

() 1 ()

pos

lcorrl







(7)

() ()

neg

lcorrl







(8)

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

182

()

tl t

wXORw

corr l











(9)

The proposed algorithm is described below:

HSLC algorith

Input:

time series

12 k

X ,X ,...,X

_, _detection threshold correlation threshold

// detection threshold: used to find

if the boolean series have a

correlation; correlation_threshold:

used to find if the time series,

which were detected through the

previous calculation of their

corresponding boolean series, have a

correlation; set C: contains the

pairs of time series (X

)which have

corresponding boolean series with

correlation coefficient bigger than

the detection_threshold //

Output: (X

), max, lag

// (X

): the correlated pairs (if

any);

max

: the maximum value of the

Pearson correlation coefficient for

every possible value of the

lagl

for

the pairs (X

); lag: the value of

where the Pearson correlation

coefficient takes its maximum value//

C

for each time series

Calculate

;

//mean value of

Calculate

;

//the transformed

Boolean series of time series

calculated by eq. 4 (Def. 2.2.)//

end for

for each pair of series

and

=0max

;

//maximum positive or

negative correlation//

for

=0l

n/2

Calculate the Boolean

correlation coefficient δ(l)

using eq. 6(Def. 2.3)

δ(l) > max

then

max = δ(l)

;

end if

end for

if |max|>=detection_threshold then

Add the pair

(

X,X)

to the set C

end if

end for

for each pair of time series

and

that belong to the set C do

ax = 0

;

//maximum positive or

negative correlation//

for

Calculate the Pearson

correlation coefficient

R(l)

using eq. 1 (Def. 2.1)

(l) > max

then

ax = R(l)

;

ag = l

;

end if

end for



ax correlation_threshold

then

return

(

X ,X ),max,lag

end if

end for

For k time series of length n, the time complexity

of the HSLC algorithm for the transformation of the

initial time series into the Boolean ones is O(kn).

The corresponding time complexity for the

calculation of the correlation on the Boolean series

is O(1) as it only involves calculations on bits. So,

the total time of detecting the correlated pairs is

O(kn). Finally, the time complexity for the

calculation of the correlation on the pairs which

belong to the set C

using the Pearson correlation

coefficient is O(ck) where c is the number of the

correlated pairs which is very small. Thus, the

aggregate time complexity of the algorithm is O(kn)

in contrast to the time complexity of O(k

n) of the

naive PLC method.

In the experiments the above algorithm was

tested on EEG data from 22

different channels with

a variety of sensors types and a frequency of 256

Hz.

An example of features of an input series is as

follows: {Sensor id: EEG1, Frequency: 256, Value: -

1.8, Sensor Type: Fp2AV, Time Stamp: 15/08/2016

17:30:55}.

3 SVM INCREMENTAL MODEL

3.1 Support Vector Machines and

Incremental Learning for Stock

Prediction

SVMs are among the best classifiers available today.

They consider data items as points in a n-

dimensional space (where n is the number of

features) and perform classification by finding the

hyper-plane that best differentiates the classes that

are present. In this paper the Gaussian function is

used (due to its speed), expressed in the form of

Lag Correlation Discovery and Classiﬁcation for Time Series

183

(,)

cale

kxz e









(10)

where

(12)m





, are the support vectors (margin,

error and reserve),

(1 12)





is the input vector,

scale is the support vectors’ size and m

is the

support vectors’ number.

Traditional data mining algorithms calculate

their results for a pre-defined set of data. However,

in the vast majority of applications, the set of data is

not known from the beginning. Thus, it is vital for

the algorithms to be adapted to the new upcoming

data. This means that algorithms use the knowledge

that had developed from their previous

implementations and so are able to increase the

precision in their results. This process is referred as

incremental learning. Such approaches that have

looked at the above problem through SVMs, have

been employed by Poggio et al. (2001) and Syed et

al. (1999). In our work, we adopt the case that is

studied Poggio et al. (2001).

The proposed model for stock trend prediction

involves as a second step the extraction of features.

These features should be able to be separated by the

classification algorithm into two classes, the

upwards and the downwards trend of the index

respectively. These features are technical indicators,

such as the William & R, A/D Oscillator, which are

used for the creation of the SVM model that predicts

the direction of the KOSPI and they have also been

used by a variety of similar papers (e.g., (Shin,

2005)). In this paper the twelve indicators case was

adopted and implemented following the approach

described by Kim (2003).

3.2 SVM Incremental Model

The streams in the aforementioned implemented

model are the financial indicators previously

mentioned. The constructed model is able not only

to be adapted to the upcoming data but also maintain

its existing knowledge through the adaption of the

hyperplane of separation. More specifically, the

incremental SVM learning algorithm (no instance

memory) is used. Subsequently, our model classifies

the test set into two classes, the upward and the

downward trend of the indicators. Concurrently, this

test set becomes part of the current training set, thus

an increase of model’s knowledge is achieved.

Finally, the model is used to predict the trend

(upward or downward) that the stock is going to

have in the next days.

This model consists of the following parts and it

constantly evolves as there are new input data,

therefore the knowledge increases providing updated

predictions:

1. INPUT: It receives the data streams that consist

of Date, Open, High, Low, Close, and Volume

for each stock.

2. FEATURE EXTRACTION: The system

calculates the twelve technical indicators (Kim,

2003) along with an additional feature, the

trend which has the value (+1, if

Close(t)<Close(t+1), upward trend), for time t,

otherwise it has the value (-1, downward

trend).

3. MODEL INCREMENT: It receives the above

indicators through overlapping windows of

fixed size and is adapted to these in order to be

able to increase its knowledge. It uses the

incremental SVM learning algorithm (Diehl,

2003). Every time that there is an increase in

the knowledge through the algorithm, a new

model is derived as an output. Thus, for time t,

we have the model T(i), where i is the set of

samples which has been already processed by

the system, and for a new input window, we

have the model T(i+w), where w is the

predefined length of the input. The number of

margin vectors (which are constantly increased

as the system increases its knowledge), the

number of reserve vectors (which are increased

at a slower rate than the margin vectors) and

the number of error vectors (which are only a

few, during the whole implementation) are

obtained as an output.

4. PREDICTION: After the adaptation, the model

predicts the trend of the stocks for the next

days and finds the class that they belong to.

5. OUTPUT: It receives the above results and

presents the trend prediction (upward or

downward).

An example of features from an input stream as

retrieved from the Google/Finance (2016) database

is: {Date: 12-Dec-14, Open: 1921.6, High: 1926.6,

Low: 1915, Close: 1921.7, Volume: 36347000}. This

file had 2965 rows, where each row represents a

different day. To create and handle the streams we

used the Microsoft StreamInsight Platform (2016)

and to implement our functions we used Matlab. An

input adapter in Microsoft StreamInsight was

generated, which reads the input file (.csv format)

and matches each row to a sample stream, whereas

each column is an input feature with the field Date

to be the key for the creation of the streams. In order

to create the model of incremental learning we run

the incremental SVM learning algorithm proposed

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

184

by Diehl et al. (2003) through the library Diehl

(2011) which is implemented in Matlab.

4 EXPERIMENTS

The experimental procedure includes two parts. In

the first part, the lag correlation discovery on time

series is considered, applying the HSLC algorithm

on EEG data. In the second part, experimentation

with data stream classification is conducted, by

implementing the SVM incremental learning

algorithm and testing it on the KOSPI data set.

4.1 Time series Lag Correlation

Discovery

The algorithms HSLC, PLC and BLC were

implemented in Matlab and compared. The

experiments are separated into two parts. In the first

part we split the time series in windows and in the

second part the lag correlation on them was

calculated in their whole length. The precision of an

algorithm

in comparison to the theoretical correct

results of an algorithm X is given by the formula:

(11)

where TP (True Positives) are the correlated pairs

that were detected correctly by the algorithm Y



compared to the ones that the algorithm X



had

detected, FP (False Positives) are the pairs that were

detected as correlated by the algorithm Y but not by

X, FN (False Negatives) are the pairs that were

correlated according to X, but they were not detected

by Y and

lag

is the output of the algorithms for the

pair i, i=1,2,…,N, where

N is the number of all pairs

that we examined, except for the

TN (True

Negatives). The final value of the variable precision

is the mean of the vector precision(i).

4.1.1 Lag Correlation with the Use of

Windows

The input time series, where each of them has 2000

values, are split in windows. In particular, we use a

128-element sliding window in each EEG channel.

Thus, the lag correlation on the subsets of the time

series is calculated for every slide of the window.

The results of the experiments follow below:

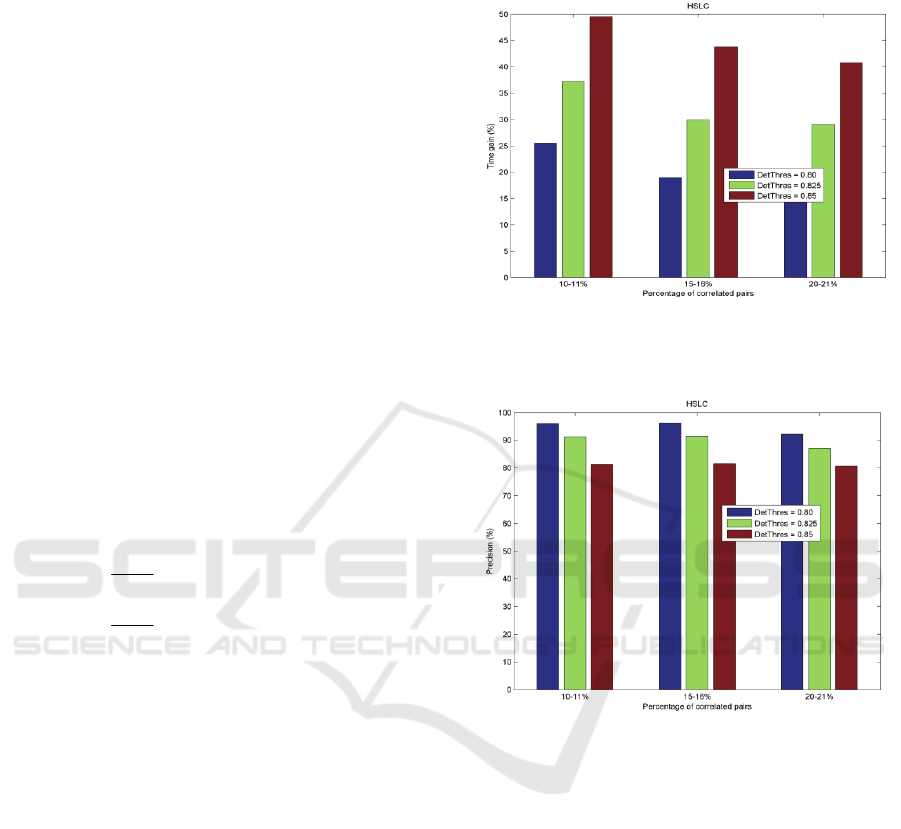

Figure 1: HSLC algorithm. Time gain in detection

threshold and in percentage of the correlated pairs of the

time series (Number of time series =8).

Figure 2: HSLC algorithm. Precision in detection

threshold and in percentage of the correlated pairs of the

time series. (Number of time series =8).

Figures 1 and 2 show that the time gain ranges

from 18.3% to 49.5% and the precision from 83.2%

to 95.3%. Moreover, when the detection threshold is

increased, the time gain is also increased but the

precision is decreased. This happens due to the fact

that, when there is a higher detection threshold the

algorithm detects fewer correlated pairs and needs

less time for the calculation of the correlation

coefficients. Thus, there is a trade-off on time gain

and precision. When the percentage of the correlated

pairs is increased, the time gain is decreased and the

precision remains the same. This is because when

we have a higher percentage of correlated pairs the

detection technique has a smaller time gain.

, ,for the TP pairs

() , ,fortheTPpairs

lag X

lag X lag Y

lag Y

precision i lag X lag Y

lag X

for theTP or FN pairs























Lag Correlation Discovery and Classiﬁcation for Time Series

185

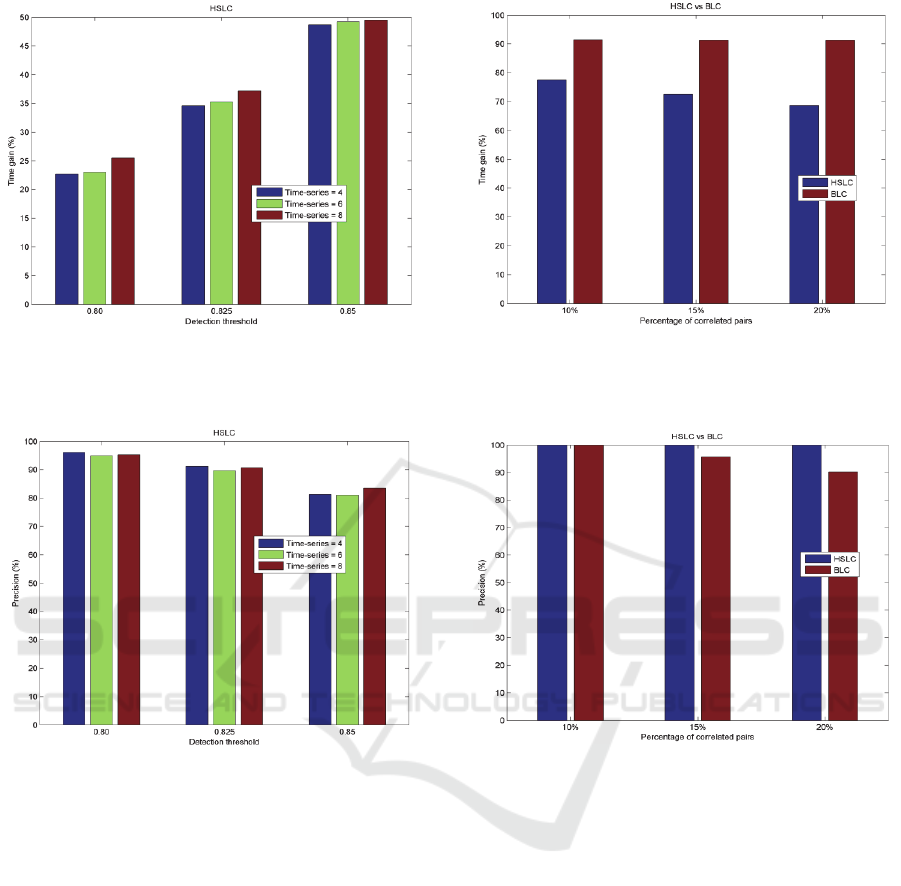

Figure 3: HSLC algorithm. Time gain in number of the

time series and in detection threshold. (Percentage of

correlated pairs = 10%-11%).

Figure 4: HSLC algorithm. Precision in number of the

time series and in detection threshold. (Percentage of

correlated pairs =10%-11%).

Figures 3 and 4 show that when the number of

time series increases, there is a slight increase in

time gain while the precision remains nearly the

same. This is because for a greater number of time

series there are more possible correlated pairs and

the detection technique leads to a larger time gain.

4.1.2 Lag Correlation without Sliding

Windows

Here we calculate the lag correlation on time series

in their whole length. We also implemented the BLC

algorithm which is the detection part of the HSLC as

it has a very high time gain in the case that there are

no sliding windows.

Figure 5: HSLC & BLC algorithms. Time gain in

percentage of correlated pairs. (Number of time series =

25).

Figure 6: HSLC & BLC algorithms. Precision in

percentage of correlated pairs. (Number of time series =

25).

Figures 5 and 6 show that the time gain for the

HSLC and BLC is in the range of 68.6%-77.6% and

91.4%-91.5% respectively. The precision for the

HSLC is 100% for all cases and for BLC it ranges

from 90.2%-100%. Subsequently, the HSLC has a

smaller time gain than BLC, but it has an

infinitesimal error in precision in contrast to BLC.

HSLC, when the percentage of correlated pairs is

increased, the time gain in decreased and the

precision remains the same. In contrast, in BLC,

when the percentage of correlated pairs is increased,

the time gain remains nearly the same and the

precision is decreased. Thus, the algorithms have an

opposite behavior in time gain and precision.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

186

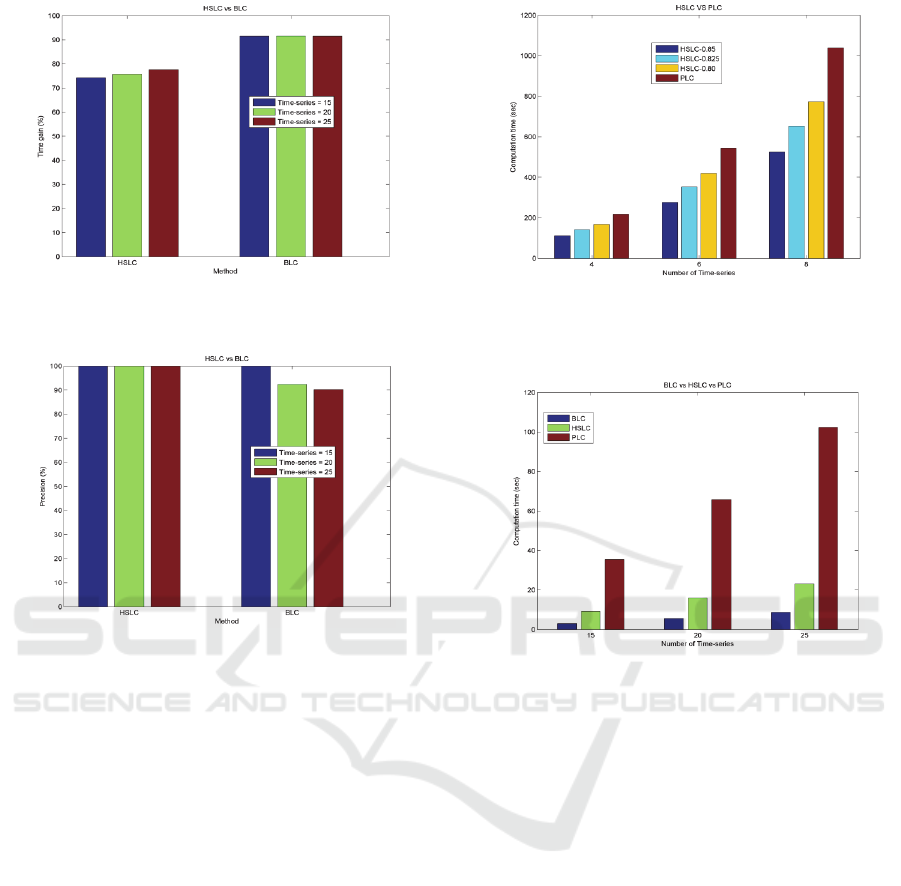

Figure 7: HSLC & BLC algorithms. Time gain in number

of time series. (Percentage of correlated pairs = 10%).

Figure 8: HSLC & BLC algorithms. Precision in number

of time series. (Percentage of correlated pairs =10%).

Figures 7 and 8 show that in HSLC when the

number of time series is increased there is a slight

increase in time gain while the precision remains the

same. In contrast, in BLC, when the number of time

series increases the time gain remains nearly the

same and the precision decreases. Figures 9 and 10

show the general performance of the algorithms. In

case that we use windows, the HSLC has a

considerable reduction in computational time in

comparison to PLC. The degree of the reduction

depends on the value that the user provides for the

detection threshold by taking into account the

tradeoff on time and precision. When no windows

are used HSLC has a dramatic reduction in

computational time compared to PLC regardless of

the value of the detection threshold (0.825 in this

experiment). Thus, in this case we do not have to

take into account a tradeoff as we achieve the

maximum precision (100%)



and a very high time

gain with the above value of the detection threshold.

In the implementation without windows, BLC

could also be used as it achieves a smaller

computational time than HSLC. However, it does

Figure 9: With sliding windows. Comparison of the

computational time of HSLC & PLC algorithms in number

of time series. (Percentage of correlated pairs =10%-11%).

Figure 10: Without sliding windows. Computational time

of BLC, HSLC & PLC for different number of time series.

(Percentage of correlated pairs

10%

not ensure an infinitesimal error as we noticed

above.

4.2 Data Stream Classification

In the classification experiments we compare our

model with three other versions of the SVM

algorithm. In our approach, we train the incremental

SVM learning algorithm with the first 3000

examples then increase its knowledge with feedback

from the next 3000 examples. Thus, the test set

becomes part of the training set. We use a window

that has a size of

examples. The second approach

is the classic SVM which is trained with the same

first set of 3000 examples and then tested with the

next 3000 examples. The third version is the static

incremental SVM algorithm which uses the same

training and test sets of 3000

samples each. The

difference in the latter case is the use of the SVM

incremental learning algorithm instead of the classic

SVM. However, it is only trained once, in contrast to

Lag Correlation Discovery and Classiﬁcation for Time Series

187

our approach. The fourth version is the online SVM

algorithm which is trained with the same first 3000

examples and then increases the initial training set

with the following 3000

samples. The difference

between this and our method is that this model is re-

trained every time a new instance arrives (full

instance memory). Table 1 shows the average

accuracy the methods achieved in predicting the

price of stock for 3000 examples. The incremental

SVM algorithm achieves the highest accuracy which

is increased with the increase of the training set. It

achieves 71% accuracy for the first half of the

training set and 77% for the second half.

Table 1: Accuracy of various SVM algorithms.

ALGORITHM ACCURACY

Classic SVM 52%

Static Incremental SVM 60%

Online SVM 62%

Incremental SVM Learning 74%

5 CONCLUSION

In this paper we proposed two different data miming

techniques for time series and data streams. The first

is associated with the problem of lag correlation

discovery of time series. The proposed HSLC

algorithm achieved a reduction in time complexity in

contrast to the state-of-the-art method PLC while

preserving high accuracy in the results. Furthermore,

it has an infinitesimal error for both the value of the

lag and the value of the correlation coefficient for

every detected correlated pair of series. In the

second part of this paper, we examined the problem

of classification of data streams and evaluated

several approaches on a stock prediction case.

Specifically, an incremental SVM learning

algorithm used for data mining on streams was

employed on the KOSPI dataset. The algorithm

achieved higher accuracy compared to three other

versions of the SVM algorithm concluding that the

training models for the stock prediction problem

should follow an incremental iteration methodology.

ACKNOWLEDGEMENTS

This work was supported in part by the European

Union’s Horizon 2020 research and innovation

programme under grant agreement No 690140.

REFERENCES

Diehl, C. P. and Cauwenberghs, C. (2003) SVM

Incremental Learning, Adaption and Optimization. In:

Proceedings of the IEEE International Joint

Conference on Neural Networks, pp. 2685-2690.

Edwards, R.D., Magee, J. and Bassetti, W.H.C. (2007)

Technical Analysis of Stock Trends, 9

ed.

Kim, Kyoung-jae (2003) Financial time series forecasting

using support vector machines. Neurocomputing

Journal, 55(1-2), pp. 307-319.

Mporas I., Tsirka, V., Zacharaki, E. I., Koutroumanidis,

M., Richardson, M., Megalooikonomou, V. (2015)

Seizure detection using EEG and ECG signals for

computer-based monitoring, analysis and management

of epileptic patients. Expert Systems with Applications,

42(6), pp. 3227-3233.

Poggio, T. and Cauwenberghs, C. (2001) Incremental and

Decremental Support Vector Machine Learning. In:

Proceedings of the 2000 Conference on Advances in

Neural Information Processing Systems, Vol. 13, MIT

Press.

Shin, K.S., Lee, T.S. and Kim, H. (2005) An application

of support vector machines in bankruptcy model.

Expert Systems with Applications, 28(1), pp. 127-135.

Syed, N. A., Liu, H. and Sung, K. (1999) Incremental

Learning with Support Vector Machines. In:

Proceedings of the International Joint Conference on

Artificial Intelligence.

Yi, B.-K., Sidiropoulos, N.D., Johnson, T., Jagadish, H.V.,

Faloutsos, C., Biliris, A. (2000) Online Data Mining

for Co-Evolving Time Sequences. In Proceedings of

the 16

International Conference on Data

Engineering, pp. 13-22.

Zhang, T., Yue, D., Gu, Y., Wang, Y. and Yu, G. (2009)

Adaptive correlation analysis in stream time series

with sliding windows. Computers & Mathematics with

Applications, 57(6), pp. 937-948.

Zhang, T., Yue, D., Wang, Y. and Yu, G. (2011) A Novel

Approach for Mining Multiple Data Streams based on

Lag Correlation. In: Proceedings of the Control and

Decision Conference, pp. 2377-2382.

Zhu, Y. and Shasha, D. (2002) StatStream: Statistical

Monitoring of Thousands of Data Streams in Real

Time: In: Proceedings of the 28

International

Conference on Very Large Data Bases, pp. 358-369.

Google/Finance. (2014). [Online] Available from:

http://www.google.com/finance. [Accessed 14/3/17].

Microsoft StreamInsight. (2016). [Software]

[Online]Available from: https://technet.microsoft.com/

enus/library/ee362541.

Diehl, C. (2011). Github, inc. [Online] Available from:

https://github.com/diehl/Incremental-SVM-Learning-

in-MATLAB.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

188
