Towards Automated Generation of Regulation Rule Bases using MDA

Deepali Kholkar, Sagar Sunkle and Vinay Kulkarni

Tata Consultancy Services, Pune, India

{deepali.kholkar, sagar.sunkle, vinay.vkulkarni}@tcs.com

Keywords:

Model Driven Architecture, Business Rule Management Systems, Rule Engines, Production Rule Systems,

SBVR, CIM, PIM, PSM, Fact-oriented Model, Model Transformation, Formal Compliance Checking,

Defeasible Logic.

Abstract:

Enterprises today face the problem of complying with ever-increasing regulation. Use of rule engines for

implementing compliance is widespread, however, the rule base needs to be encoded manually. We present

a method using model-driven architecture (MDA) to automate generation of rules in a rule language, from

a platform-independent model derived from a speciﬁcation given by domain experts. We demonstrate how

a Semantics of Business Vocabulary and Rules (SBVR) model of regulation rules can serve as the common

source model for generating rules on various categories of rule engine platforms. The approach is illustrated

using a real-life case study from the MiFID-2 ﬁnancial regulation.

1 INTRODUCTION

The regulatory environment in which enterprises op-

erate is steadily growing in complexity as more and

more regulations come into force. Enterprises grapple

with the problem of implementing compliance while

managing costs, time to market, accuracy and correct-

ness. Compliance is mandatory and non-compliance

entails heavy penalties and reputational risk. Regula-

tory compliance therefore ﬁgures among the top few

concerns of enterprises worldwide

Compliance implementations in enterprise IT sys-

tems are broadly classiﬁed into two categories: one

where rule checks are implemented directly in appli-

cation code, and the other where rule engines are used

to encode and check rules in an orthogonal manner,

outside of application code.

The rule engine approach is increasingly being

adopted since it allows a declarative speciﬁcation of

rules to be maintained separately from the processes

and workﬂow encoded in applications. Rules main-

tained in such business rule management systems

(BRMS) may originate not just from regulations, but

organizational policies, business requirements, or any

other source. The business rule approach (Bauer,

2009), as this is called, allows rules to be maintained

by users without the need to modify IT systems.

Although BRMS are in widespread use, they re-

Top Ten Problems Faced by Business, http://www.bmgi.

com/resources/articles/top-ten-problems-faced-business

quire rules to be manually encoded from their natural

language source, i.e. legal text of regulations, into the

target rule language. Compliance implementation and

subsequent change management therefore require in-

tensive involvement of human experts, to encode rules

as well as compute impact when there is a change on

the regulation or enterprise side. The implementation

team needs to be conversant with technicalities of the

rule-checking platform, posing a severe challenge for

effective participation of domain and legal experts.

Automation is highly desirable to address all of

these issues, especially, an approach that allows do-

main experts to specify rules in domain terms, yet

enables automated derivation of the formal speciﬁca-

tion of rules. Direct derivation of formal speciﬁcation

from a natural language format speciﬁed by domain

experts is not possible, as also discussed in (Levy and

Nazarenko, 2013). We advocate creation of models as

an intermediate step.

In this paper, we demonstrate the applicability

of the the model-driven engineering process pre-

scribed by Object Management Group (OMG)

their Model-Driven Architecture

T M

(MDA

T M

) stan-

dard, to the problem of automated rule generation

from their natural language speciﬁcation. Speciﬁ-

cally, we show how such an architecture can be imple-

mented using the Semantics of Business Vocabular-

OMG Model Driven Architecture, http://www.omg.org/

mda/

Kholkar, D., Sunkle, S. and Kulkarni, V.

Towards Automated Generation of Regulation Rule Bases using MDA.

DOI: 10.5220/0006216406170628

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 617-628

ISBN: 978-989-758-210-3

617

Problem specification

in domain language

Computation-independent

Model (CIM)

Platform-specific Model

(PSM)

Platform-independent

Model (PIM)

Solution design comprising

structure and behavior details

Platform-specific details

Domain

expert

Analysis

Design

Requirement Gathering

Coding

Code

Implementation on

specific platform

Transformation

CIV

PIV

PSV

CIV: Computation-Independent Viewpoint

PIV: Platform-Independent Viewpoint

PSV: Platform-Specific Viewpoint

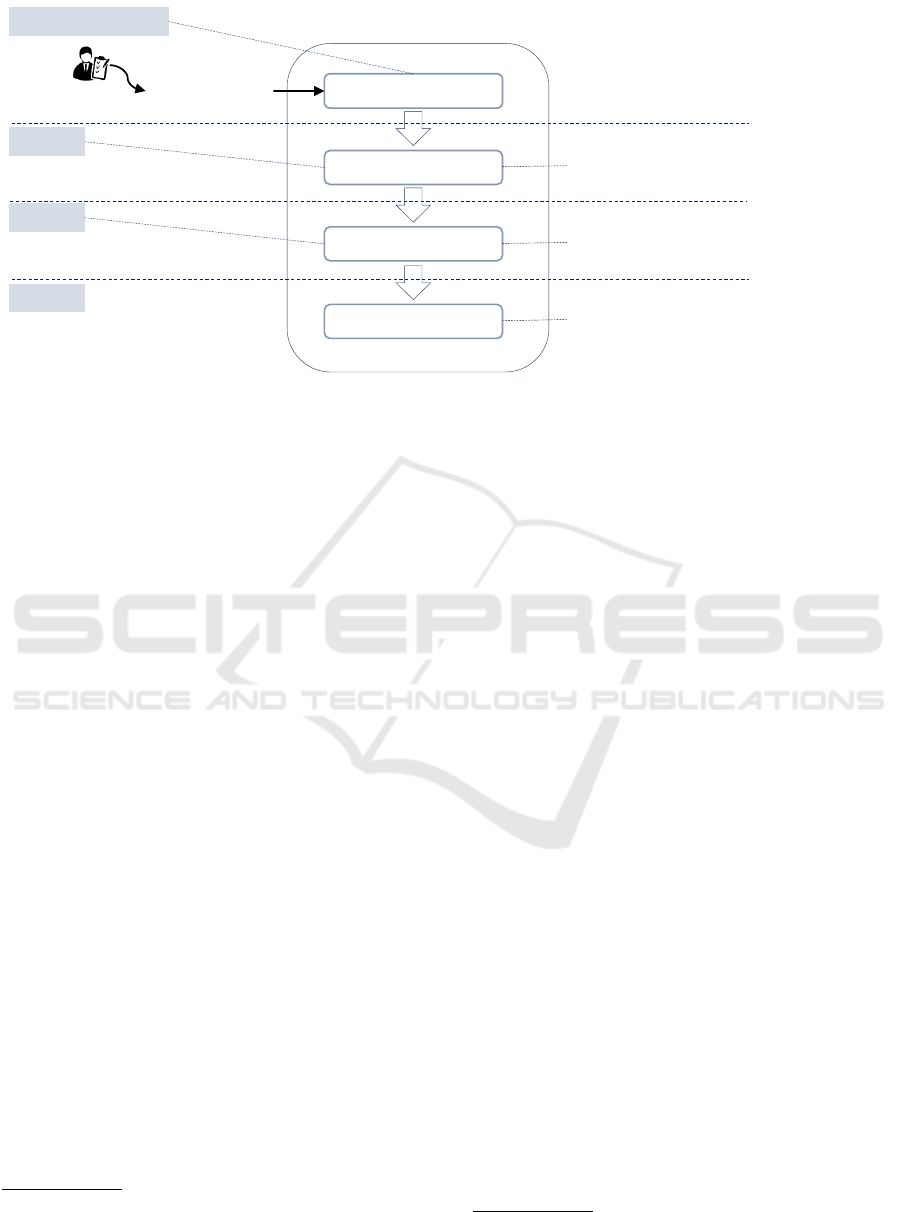

Figure 1: Layers in MDA.

ies and Rules

T M

(SBVR

T M

) standard by OMG

. We

demonstrate how SBVR is highly suitable for building

a platform-independent model of rules from which

any platform-speciﬁc rule implementation can be de-

rived. We discuss rule generation for two rule plat-

forms, viz. DR-Prolog (Dimaresis, 2007) and JBoss

Drools

The following sections outline the principles of

MDA and describe their application to the problem

of rule base generation, the choice of models in our

architecture, their mappings, a detailed illustration

of rule generation for DR-Prolog using a case study

example. We show how the architecture easily en-

ables mapping and generation onto a different kind of

rule platform, i.e. Drools, from the same platform-

independent model.

2 OVERVIEW OF MDA

MDA advocates creation of abstract, machine-

readable models of the problem and solution space,

stored in standardized repositories (Kleppe et al.,

2003). These models can then be repeatedly ac-

cessed to generate implementation artefacts such as

schemas, code, test harnesses, deployment scripts

(Kleppe et al., 2003; Kulkarni and Reddy, 2003).

Models give a higher-level abstraction over code, that

is easier to understand and maintain.

Semantics of Business Vocabulary and Business Rules,

http://www.omg.org/spec/SBVR/1.2/

RedHat Drools BRMS, http://www.drools.org/

2.1 Principles of MDA

MDA emphasizes separation of concerns, where do-

main, structural, and platform details are encapsu-

lated in separate layers of abstraction (Kulkarni and

Reddy, 2003). A description of the problem in purely

domain-speciﬁc terms is captured in the computation-

independent model (CIM)

. The next layer is the

platform-independent model (PIM) that captures de-

sign details of the solution in terms of structure and

behavior. The PIM is devoid of any technology plat-

form details. Finally, there is the platform-speciﬁc

model (PSM) that is the realization of the PIM on

a speciﬁc technology platform. The three layers of

MDA are illustrated in Figure 1.

Separation of concerns enables details of each as-

pect to be clearly speciﬁed without getting entangled

with another. This makes the speciﬁcation maintain-

able.

2.2 MDA Layers and SDLC

As can be seen from the deﬁnitions of the MDA lay-

ers in Section 2.1, each layer corresponds to a phase

in the software development lifecycle (SDLC). CIM

is the speciﬁcation of a system created in the Require-

ments Gathering phase, while PIM corresponds to the

Analysis, and PSM to the Design phase (Alhir, 2003),

as shown in Figure 1.

Model Driven Architecture - A Technical Perspective,

http://www.omg.org/cgi-bin/doc?ormsc/2001-07-01

IndTrackMODELSWARD 2017 - MODELSWARD - Industrial Track

618

Computation-independent

Model (CIM)

Platform-specific Model

(PSM)

Platform-independent

Model (PIM)

CIM-PIM

meta-model

mapping

Implementation on specific

platform

Model-to-model

Transformation

Model-to-model

Transformation

Model-to-text

Transformation

PIM-PSM

meta-model

mapping

CIM Meta-model

PIM Meta-model

PSM Meta-model

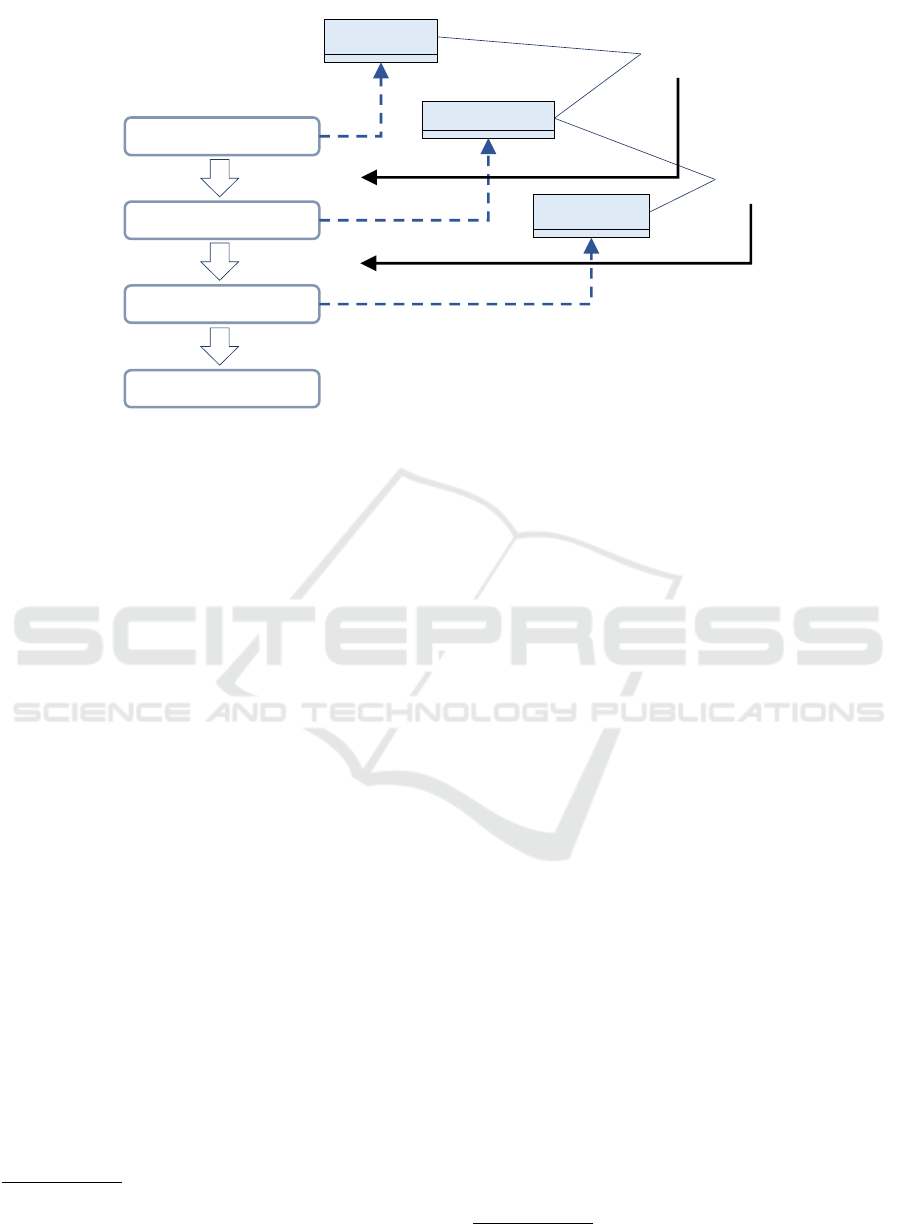

Figure 2: Model mapping and transformations in MDA.

2.3 Model Mapping and

Transformation

The advantage of MDA is that models are machine

operable. Successive layers of the model, i.e. PIM

and PSM can be derived from the previous layers, i.e.

CIM and PIM respectively, by meta-model mapping

and automated transformation. This results in pro-

ductivity and cost beneﬁts. It also enables tracking

impact of changes in one layer on another, making

change management easier. Moving to new technol-

ogy platforms or a different design choice requires

only the relevant part of the model or mapping to be

changed. Downstream model layers can be generated

afresh to reﬂect the changes. For instance, to derive

the PSM for a different technology platform, the PIM

needs only to be mapped to the meta-model for the

new platform, and its PSM generated.

The mapping and transformations between the

three layers are illustrated in Figure 2. A mapping

is a set of rules for deriving one model layer from

another, and is based on the meta-models of the two

layers. PIM-PSM mapping can be used to gener-

ate a realization of the logical PIM on physical ex-

ecution infrastructure

. If both PIM and PSM are

MOF-compliant models, model-to-model transforma-

tion techniques and tools such as QVT

can be used to

generate the PSM. The implementation on the chosen

technology platform can then be generated from the

PSM using model-to-text transformation. In the next

Model Driven Architecture - A Technical Perspective,

http://www.omg.org/cgi-bin/doc?ormsc/2001-07-01

Meta Object Facility (MOF) 2.0 Query/View/Transforma

tion Speciﬁcation, http://www.omg.org/spec/QVT/1.2/

section, we describe our approach of applying MDA

to the problem of creating and maintaining a rule base

in a BRMS.

3 MDA FOR RULE BASE

GENERATION

BRMS or rule engines work on the basic premise that

the truth status of deﬁned rules needs to be deter-

mined, given information available as facts.

Rule engines can be classiﬁed into the following

three principal kinds

based on the reasoning algo-

rithm used

1. Pure inferencing engines such as Prolog, DR-

Prolog. These either use forward chaining i.e.

data-driven inferencing about rules based on

available data or information, or backward chain-

ing, i.e. goal-driven inferencing beginning with a

goal or query given by the user, and testing for the

truth value of its contained goals one by one.

2. Production Rule Systems (PRS) such as JBoss

Drools that combine inferencing using forward or

backward chaining or both, called hybrid reason-

ing, and take actions based on the conclusions

drawn.

3. Reactive rule engines that do complex event pro-

cessing, i.e. detect events from available informa-

tion, and react to them.

Production Rule Representation

T M

, http://www.omg.org/

spec/PRR/

Towards Automated Generation of Regulation Rule Bases using MDA

619

Conceptual

schema

SBVR Meta-

model

Enterprise

data as facts

Generic

layer

Domain-

specific

layer

Fact

population

Ground

facts

Knowledge

Meta-

knowledge

Regulation

model

Rules

Fact Types

Concepts

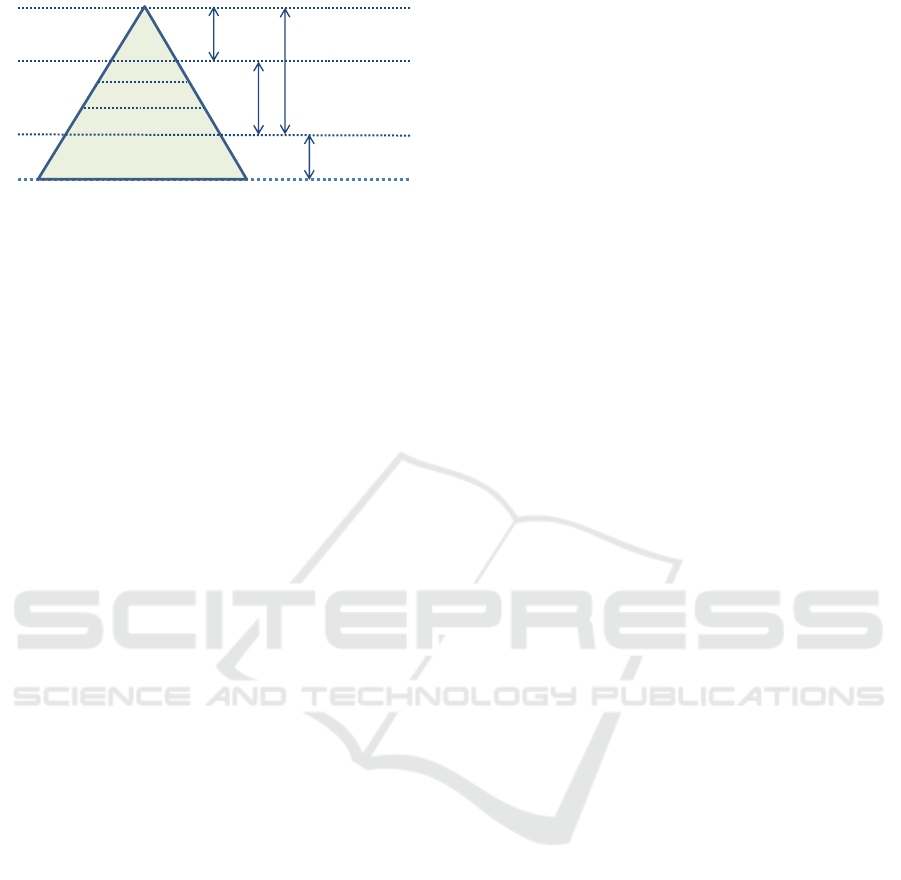

Figure 3: Layers of a fact-oriented model.

Rule languages for these engines differ in their

syntax, but are based on a common paradigm called

fact-oriented modeling (FOM). A fact-oriented model

captures rules as compositions of facts. A fact is a re-

lation between concepts. The layers of a fact-oriented

model are illustrated in Figure 3.

Similar to application code, rules in these lan-

guages need to be coded by development teams con-

versant with language syntax, whereas their require-

ments are understood only by domain experts. Rules

are the most critical component of any business appli-

cation and drive all the processes in the organization.

It is therefore imperative that domain experts are able

to directly specify, maintain, and control business rule

repositories. Production rule systems though widely

used, are unfortunately not usable by domain experts.

We opine that MDA is highly applicable to this

problem scenario, and provides an alternative to man-

ual encoding of rules. We propose use of a model-

driven architecture for automated generation of rule

bases. A high-level speciﬁcation of rules in domain

language, given by domain experts forms the CIM of

rules. The common conceptual model used by all rule

engines, comprising rules dependent on facts, consti-

tutes a PIM of rules, since it gives a structure for def-

inition of rules. Individual rule languages denote the

PSM of rules. The PIM is common to all rule lan-

guages and can be mapped to the PSM for individual

rule languages. The implementation in individual rule

language can then be generated from this PIM-PSM

mapping. This offers the possibility of switching to or

maintaining different implementations of a rule base

on various platforms using a common PIM.

The characteristics each model layer must have, as

speciﬁed by OMG, are listed below.

• CIM should be able to express details about the

problem domain in the language of the domain

expert, with no references to how they should be

implemented, whether in terms of design or tech-

nology.

• PIM needs to capture high-level design details of

the solution. These include structure, relations,

and behavior of various entities, also details of

implementation, without being bound to a speciﬁc

technology platform.

• PSM should be able to capture low-level design of

the solution as the platform-speciﬁc interpretation

of the PIM.

In the next few sections, we discuss our choice of

modeling languages for each layer.

3.1 The CIM and PIM Layers

Several general-purpose rule languages and notations

exist, such as SBVR, Production Rule Representation

(PRR), RuleML, SWRL, W3C RIF. SWRL, RuleML

and W3C RIF are specially designed for capturing on-

tologies. SWRL combines the capabilities of RuleML

and OWL. PRR has been explicitly devised to create a

generic representation of rules that addresses all types

of production rule systems.

SBVR was devised by OMG as a standard for

capturing the vocabulary used by a business domain,

deﬁnitions and relations between terms, and business

rules governing the domain. SBVR is a fact-oriented

modeling notation (Nijssen, 2007; Halpin, 2007), that

captures rules as compositions of facts. This is the

same conceptual model as that used by all rule en-

gines, making SBVR the natural choice of model.

SBVR has a MOF-compliant meta-model, and

also its own controlled natural language notation for

specifying the model, called SBVR Structured En-

glish (SE). SBVR SE is a restricted subset of natu-

ral language, with a well deﬁned set of keywords that

connect natural language phrases denoting concepts

and their relations. We use SBVR SE for the CIM,

since it is a structured, yet near-natural language nota-

tion in which the vocabulary and rules for any domain

can be speciﬁed, fulﬁlling the criteria for a CIM.

SE is intended as a means to populate the SBVR

model, hence its elements have direct correspondence

with the SBVR meta-model. A translation scheme

from SE to an SBVR model can thus be worked out.

It therefore follows that we use SBVR as the PIM.

SBVR SE and SBVR model have often been clubbed

in literature and classiﬁed as a CIM (Diouf et al.,

2007). We choose to treat SE as a CIM notation,

and the SBVR model as a PIM since it captures struc-

ture and behaviour of domain entities using a speciﬁc

meta-model. A concept model captures the structure,

while rules captured as logical formulations built on

the concept model encode the behaviour.

We choose SBVR as PIM because its seman-

tic fact-oriented model captures the complete depen-

dence hierarchy of rules on fact types and concepts,

crucial for the inferencing done by rule engines. We

choose SBVR over other languages for its inherent

mapping to SE. Any other rule language as PIM

IndTrackMODELSWARD 2017 - MODELSWARD - Industrial Track

620

Meaning

Concept

Noun concept Fact Type/ Verb concept

Characteristic

incorporates

Logical Formulation

Modal Formulation

Obligation Formulation

Logical Operation

logicalOperand

isBasedOn

embeds

Proposition

General Concept

Concept Type

isMeantBy

Legend Meaning vocabulary

Logical Formulation of

Semantics vocabulary

Rule vocabulary

Rule

Definitional Rule

Role

Verb Concept Role

Logical Negation Binary Logical Operation

Conjunction

Disjunction

Implication

Atomic Formulation

Role Binding

rolebinding

role

rolebinding

antecedent

consequent

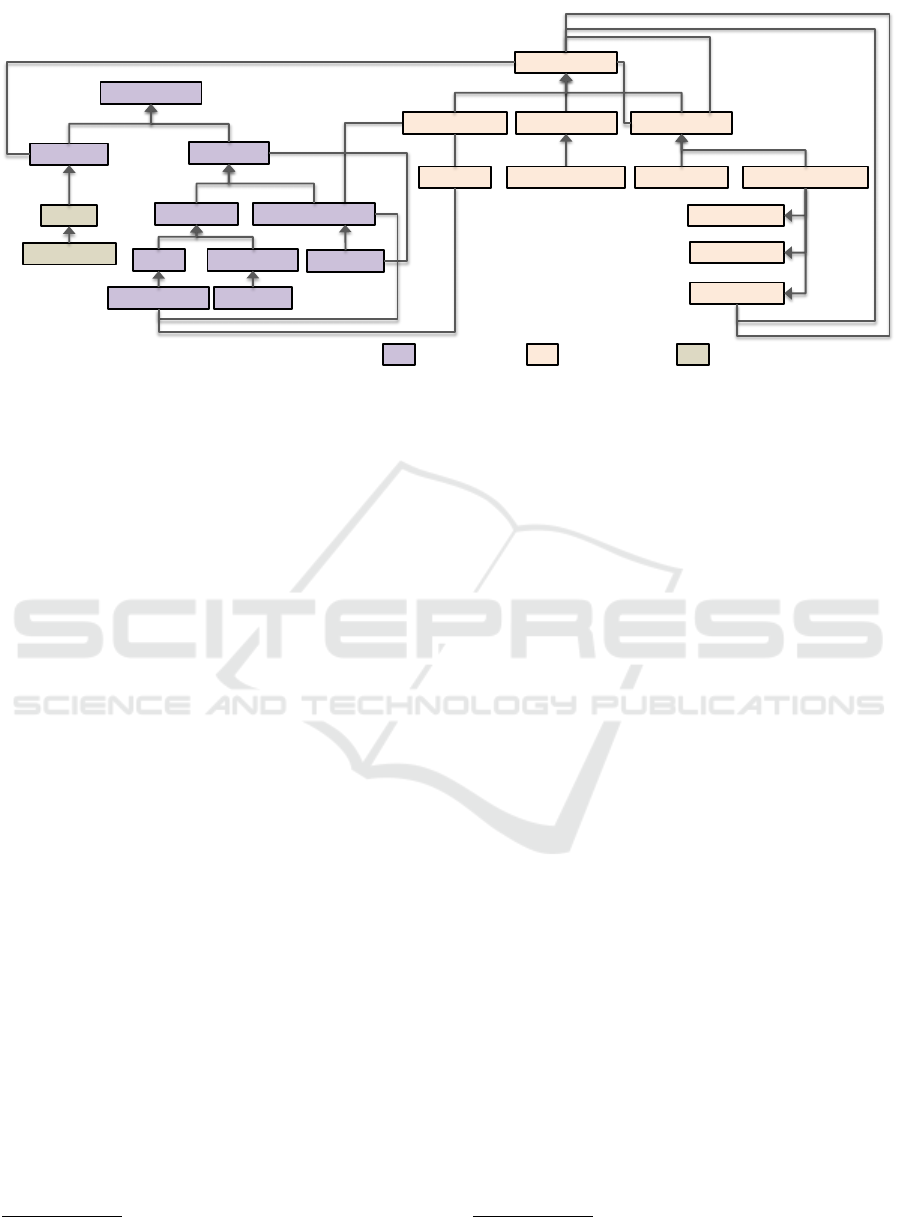

Figure 4: SBVR meta-model.

would require designing the CIM-PIM mapping from

SE. SBVR captures both structure and behavior in a

single notation, whereas when PRR is used to capture

rules, structure needs to be deﬁned using UML class

models.

The expressiveness of SBVR is sufﬁcient to cap-

ture a generic platform-independent representation of

rules. The generic SBVR meta-model can be mapped

to the platform-speciﬁc conceptual models of DR-

Prolog as well as a PRS, as we illustrate in the next

few sections. The SBVR meta-model subset we use

is shown in Figure 4, and described in detail in the

next section.

3.2 SBVR Meta-model

We use a subset of the OMG SBVR meta-model

for

capturing regulation rules, shown in Figure 4. The

meta-model comprises three sections, as shown in the

ﬁgure.

1. Meaning Vocabulary: This is the meta-model for

capturing structure or the body of concepts. Noun

concepts denote entities, while verb concepts, also

called fact types, signify relations. Fact types

take the form role verb role, where role denotes

a noun concept. General concepts and concept

types specialize concepts and help create concept

hierarchies. Attributes of a concept are captured

as characteristics.

2. Logical Formulation of Semantics Vocabulary:

This section comprises logical formulations of

fact types. Compound logical formulations e.g.

Semantics of Business Vocabulary and Business Rules,

http://www.omg.org/spec/SBVR/1.2/

conjunctions, implications, negations are com-

posed of atomic formulations. Each atomic for-

mulation is based on a fact type from the body of

concepts.

3. Rule vocabulary: This section speciﬁes rules,

based on logical formulations. We use three types

of rules: rules to denote obligations, deﬁnitional

rules to denote necessity formulations, and oper-

ational rules to denote actions to be executed. A

rule inherits from Proposition, that is meant by a

logical formulation that is a formal expression of

the rule in terms of fact types.

SBVR thus provides a comprehensive meta-model for

capturing the semantics of rules as logical formula-

tions over fact types and concepts.

The next subsection discusses platform-speciﬁc

models for rules.

3.3 The PSM Layer

We select DR-Prolog and JBoss Drools as our target

platforms for rule generation. Each is representative

of a separate class of rule engines, viz. backward-

chaining and production rule systems respectively.

Our objective is to demonstrate that MDA helps gen-

erate code onto multiple platforms using a single PIM.

The DR-Prolog and Drools rule deﬁnition meta-

models are the PSMs for our MDA for rules. DR-

Prolog attempts to answer queries by working back-

wards from the query through its constituent goals to

the available information to see whether the query

is satisﬁed. Drools and other production rule sys-

tems use the hybrid reasoning Rete algorithm

to in-

RedHat Drools BRMS, https://www.drools.org/learn/

documentation.html

Towards Automated Generation of Regulation Rule Bases using MDA

621

Computation-

independent Model

(CIM)

SBVR Structured

English

DR-Prolog

SBVR model

Platform-independent

Model (PIM)

Platform-specific

Model (PSM)

Domain Vocabulary and Rules in

controlled natural language

Formal model of

concepts and rules

Rules in specific

rule language

Drools

DR-Prolog

meta-model

Meta-model for each rule

language

Implementation on

target platform

Drools

meta-model

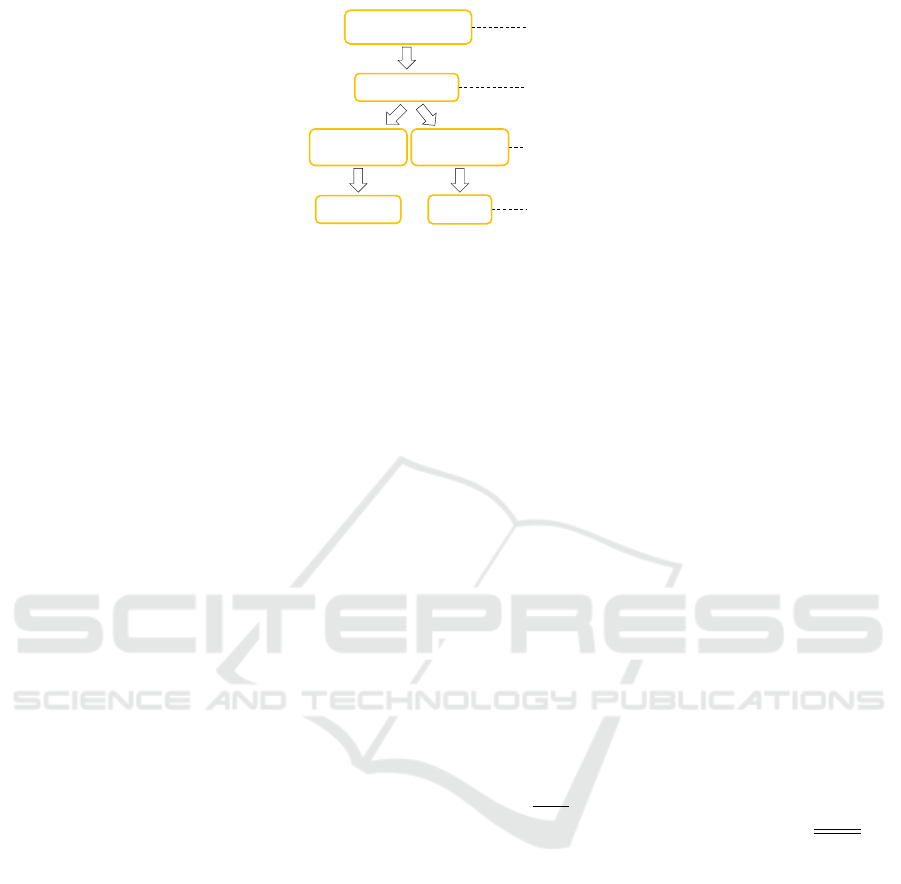

Figure 5: Layers of MDA for Rule base generation.

fer which rules of the form when condition then ac-

tion apply, and trigger the corresponding action which

changes the state of the system. Applicable rules have

to be freshly recomputed on the new system state and

this cycle continues.

Although rule syntax and execution semantics dif-

fer in the two rule engines, their rule deﬁnition meta-

models follow the fact-oriented modeling paradigm

and therefore easily map to the SBVR meta-model.

We create the PIM-PSM meta-model map for the spe-

ciﬁc platform, say, DR-Prolog, and use it for trans-

formation of the PIM instance to PSM instance. We

then translate the PSM instance to rules in DR-Prolog

syntax. Our model driven architecture for rule base

generation is depicted in Figure 5.

MDA also allows multiple PIM-PSM layers to be

used, with each PSM becoming the PIM for the next

layer. For instance, it was possible to use SBVR as

PIM and PRR as a PSM, since it captures the model

for the PRS class of systems. The PRR model then

becomes the PIM for a Drools PSM.

The next section describe the method for generat-

ing the rule base in the chosen rule language, using

this architecture.

4 METHOD FOR RULE BASE

GENERATION

The method for rule base generation comprises cre-

ation of the CIM and PIM of regulation rules using

SBVR, mapping the PIM i.e. SBVR meta-model to

the PSM, i.e. meta-model of the chosen rule language,

and ﬁnally, PIM to PSM transformation from SBVR

to the rule language. These steps are detailed in the

next couple of sections.

4.1 Create CIM and PIM of Regulation

Rules in SBVR

We use the Eclipse Modeling Framework (EMF)

(IBM, 2016) model-to-model conversion tools and

code generators to generate code for an SBVR editor.

We convert the MOF-compliant SBVR meta-model

available on the OMG SBVR website to EMF Ecore

format and use it as the basis for generating editor

code.

We build the CIM and PIM of regulation rules us-

ing SBVR in the following steps

1. Domain experts mark in the NL regulation text,

the statements representing rules to be checked,

deﬁnitions of terms used in the rules, and data de-

scriptions relevant to the rules.

2. The domain experts then write each NL rule state-

ment in the controlled natural language SBVR

Structured English (SE). This is the CIM of the

regulation. SBVR SE is written using a restricted

English vocabulary and speciﬁc font styles, viz.

the term font for designating noun concepts, gen-

eral concepts, concept types and roles; Name font

for individual concepts or names; verb font for

designations of fact types; and keyword font for

other words in deﬁnitions and statements.

3. We mapped the SE meta-model to the SBVR

meta-model. We create the SBVR PIM corre-

sponding to the captured SE statements manually

using the SBVR editor. Automation of the CIM-

PIM translation from SE to SBVR model is our

ongoing work and its description is outside the

scope of this paper.

The next section describes PIM to PSM transforma-

tion, from SBVR to our chosen rule language, DR-

Prolog.

IndTrackMODELSWARD 2017 - MODELSWARD - Industrial Track

622

Table 1: SBVR to DR-Prolog mapping.

SBVR element DR-Prolog construct DR-Prolog syntax

Element of guidance Defeasible rule defeasible(rule name, obligation, rule

consequent, [rule antecedent]).

Logical formulation Rule

Implication (consequent, an-

tecedent)

Implication rule (conse-

quent, antecedent)

fact(consequent):- fact(antecedent).

Conjunction (operands) Conjunction rule (operands) fact(conjunction):- fact(operand1),

fact(operand2).

Disjunction (operands) Disjunction rule (operands) fact(disjunction):- fact(operand1).

fact(disjunction):- fact(operand2).

Negation (operand) Negation rule (operand) fact(negation):- fact(not(operand)).

Atomic formulation based

on verb concept

Predicate fact(verbConcept(role-list)).

Concept (Delimiting charac-

teristic, characteristics)

Predicate (key

attribute,attribute-list)

fact(concept(key attribute,attribute-

list)).

General concept (Special-

ization of concept)

Implication (consequent, an-

tecedent)

fact(concept1(key attribute,attribute-

list):- fact(concept2(key

attribute,attribute-list)).

Characteristic of concept Unary predicate (Delimiting

characteristic of concept)

fact(characteristic(key attribute of con-

cept))

Delimiting characteristic of

concept

Primary key of predicate fact(concept(key attribute, attribute-

list)).

Fact type (concept-list) Predicate (concept-list) fact(factType(list of key attributes of

concepts)).

Ground facts Ground facts fact(concept(key value, value-list)).

4.2 Transform PIM to PSM: SBVR to

DR-Prolog

In order to transform rules from SBVR PIM to DR-

Prolog, we create the PIM-PSM map between SBVR

and DR-Prolog meta-models, shown in the ﬁrst two

columns of Table 1. The conceptual model of DR-

Prolog has almost a one-to-one correspondence with

the SBVR meta-model.

We have written a custom program to use this

PIM-PSM map to generate the DR-Prolog PSM in-

stance model from the SBVR PIM instance model.

From the DR-Prolog PSM, another program generates

rules in the corresponding textual DR-Prolog syntax

shown in the third column of Table 1.

In the next section, we illustrate our approach us-

ing a real-life case study example from the MiFID-2

regulation

MiFID2: http://ec.europa.eu/ﬁnance/securities/isd/miﬁd

2/index en.htm

5 CASE STUDY

The MiFID-2 (Markets in Financial Instruments Di-

rective) regulation lays down obligations on ﬁnancial

institutions regarding the types of transactions that

must be included/ excluded in reporting trades to the

regulatory body. We illustrate here the relevant ex-

cerpt from the original regulation text and the chain

of models created for the regulation rules.

5.1 Regulation Text

The original regulation text containing inclusion and

exclusion rules for transactions is shown below.

Meaning of transaction

1. For the purposes of Article 26 of Regulation (EU)

No 600/2014, the conclusion of an acquisition

or disposal of a ﬁnancial instrument referred to

in Article 26(2) of Regulation (EU) No 600/2014

shall constitute a transaction.

2. An acquisition referred to in paragraph 1 shall in-

clude:

(a) a purchase of a ﬁnancial instrument;

Towards Automated Generation of Regulation Rule Bases using MDA

623

Inclusion rule

model

FactType

transaction is an

acquisition

FactType

transaction is a

disposal

Rule

Rule_Inclusion

FactType

transaction is purchase

FactType

transaction is

enteringDerivativeContract

FactType

transaction is included in

MiFID Reporting

FactType

transaction is

sale

isMeantBy

ObligationFormulation

Implication

embeds

AtomicFormulation

consequent isBasedOn

Disjunction

reportable Transaction

antecedent

AtomicFormulationAtomicFormulation

Role

transaction

ImplicationImplication

AtomicFormulation

Disjunction

consequent

antecedent

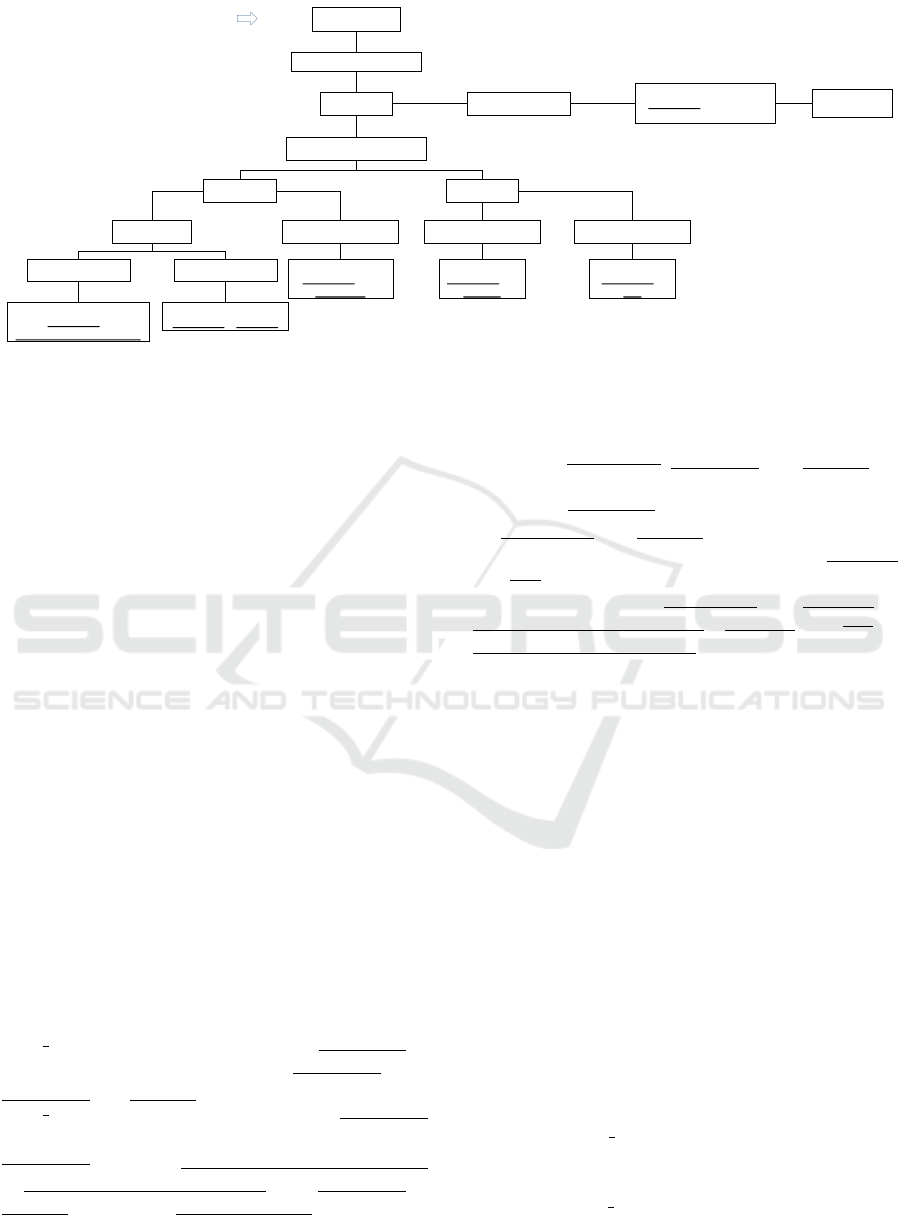

Figure 6: SBVR model of rules.

(b) entering into a derivative contract in a ﬁnancial

instrument.

3. A disposal referred to in paragraph 1 shall in-

clude:

(a) sale of a ﬁnancial instrument;

(b) closing out of a derivative contract in a ﬁnan-

cial instrument.

4. A transaction for the purposes of Article 26 of

Regulation (EU) No 600/2014 shall not include:

(a) a securities ﬁnancing transaction as deﬁned

in Regulation [Securities Financing Transac-

tions]

(b) a contract arising exclusively for clearing or

settlement purposes;

of custodial activity;

The next sub-section illustrates the CIM created by

writing the above natural-language regulation rules in

Structured English.

5.2 CIM of Regulation Rules in SE

The inclusion and exclusion rules from the regulation

text are encoded in SBVR SE as below.

Rule Inclusion: It is obligatory that transaction is

included in MiFID reporting if the transaction is an

acquisition or a disposal.

Rule Exclusion: It is obligatory that transaction

is excluded from MiFID reporting if the

transaction is a securities ﬁnancing transaction

or clearing or settlement contract or an acquisition or

disposal arising from custodial activity.

Here, the keywords It is obligatory that denote the

obligation modality of the rule. The rule is built upon

fact types transaction is included in MiFID report-

ing, transaction is an acquisition, and transaction is

a disposal. Transaction, acquisition, and disposal are

concepts; is included in MiFID reporting is a charac-

teristic of a transaction.

Acquisition and disposal are high-level concepts

deﬁned in terms of other concepts, e.g. purchase

and sale. These deﬁnitions are captured as deﬁni-

tional rules as follows Acquisition is a purchase or

entering a derivative contract. Disposal is a sale or

closing a derivative contract.

The next section shows the SBVR model con-

structed from these SE rules.

5.3 PIM of Rules in SBVR

The SBVR model corresponding to the above SE

rules is created using the SBVR editor, and shown

in Figure 6. This PIM of rules is programmatically

translated to a DR-Prolog model of MiFID rules and

from there to MiFID rules in DR-Prolog syntax, illus-

trated in the next sub-section.

5.4 Translated Regulation Rules in

DR-Prolog

The inclusion and exclusion rules in DR-Prolog syn-

tax generated from the SBVR model illustrated in

Figure 6 as per the mapping shown in Table 1 are

shown below.

defeasible (rule inclusion, obligation, includeIn-

MiFIDReporting (TransRef), [reportableTransac-

tion(TransRef)]).

defeasible (rule exclusion, obligation, excludeIn-

MiFIDReporting(TransRef), [exclusionTransac-

tion(TransRef)]).

IndTrackMODELSWARD 2017 - MODELSWARD - Industrial Track

624

Since the antecedent reportableTransaction of the

inclusion rule is a disjunction of acquisition and dis-

posal, the implications or simple DR-Prolog rules

specifying this relation follow.

fact (reportableTransaction(TransRef)) :- fact (acqui-

sition(TransRef)).

fact (reportableTransaction(TransRef)) :- fact (dis-

posal(TransRef)).

Deﬁnitional rules get translated as simple DR-

Prolog rules, as

fact (acquisition(TransRef)) :- fact (pur-

chase(TransRef)).

fact (acquisition(TransRef)) :- fact (enteringDeriva-

tiveContractInFI(TransRef)).

The generic SBVR-to-DR-Prolog meta-model

mapping and translator can thus be used to translate

any SBVR model of rules to a rule base in DR-Prolog

in an automated manner.

In the next section, we discuss insights and lessons

learnt in applying our approach.

5.5 Discussion and Lessons Learnt

In the course of development of this architecture and

during its application, we came across several impor-

tant considerations that are discussed here.

In theory, writing SE rules is not hard for do-

main experts, with a little training, given that SE is

a restricted subset of English with well-deﬁned key-

words. However, there are several ways in which

rules can be expressed in SE, with the same meaning,

compounding the risk of making syntactic errors. We

created an SE editor that checks syntax, to get around

this problem. Even so, manual encoding of SE rules,

as well as identifying rule statements to be encoded

from the voluminous NL text of regulations are effort-

intensive tasks. Intelligent assistance in these tasks

to signiﬁcantly reduce experts’ burden is needed, so

that their time is utilized efﬁciently. Towards this

end, we are working on automated rule extraction us-

ing natural-language processing and machine learning

techniques. These techniques are semi-automated,

and extract SE rules from NL text of regulations, so

that domain experts can validate them. Availability

of bilingual corpora is important for the accuracy and

success of these techniques. Initially some effort may

need to be expended, to create such corpora.

Manually translating SE rules to SBVR as we

did for the case study is even more cumbersome and

error-prone than coding SE rules, since SBVR syn-

tax is complex. Similar to SE, SBVR also provides

several ways of encoding a rule. We are therefore

working on automating this step. This makes correct-

ness of SE rules all the more important. To avoid er-

rors, the SE-SBVR mapping and translation must be

validated, again using a bilingual corpus. Since the

SBVR model can be built in several ways, we found

that deciding on modeling standards and guidelines

upfront was essential to maintain consistency in the

model. This is necessary even when translation from

SE is automated.

Although automation speeds up the process, do-

main experts’ review can become a bottleneck when

applying the approach in the real world. Other practi-

cal considerations are managing multiple users work-

ing on creating various parts of the model at the same

time, allowing sharing of models, and preventing du-

plication.

OMG’s provision of SE as a controlled natural-

language interface to SBVR is an invaluable feature

that makes it possible for domain experts to interact

with and review the generated model, that would be

hard to do directly with SBVR. Since SE is usable by

domain experts, it provides a way to create the CIM

in OMG’s MDA process. SE is the key link that helps

create a model from natural-language speciﬁcations.

OMG’s MDA process gives a method for using

models and model-based techniques effectively for

generating code. The most important consideration in

choice of modeling languages is their expressiveness

with respect to the requirements of the problem con-

text. However, all features needed in the problem con-

text may not be available in each modeling language

chosen for our architecture. Workarounds need to be

implemented by specifying construct-speciﬁc trans-

formation rules in the CIM-PIM and PIM-PSM model

mapping to take care of such cases, so that there is

no loss of information. For instance, real-world ap-

plications make use of temporal constructs that can

be modeled in SE. However, temporal constructs are

not directly supported by SBVR and DR-Prolog, but

are encoded using available arithmetic functions and

variables to denote time. On the other hand, Drools

supports temporal constructs, which makes it better

suited as a PSM for real-world business applications.

An important consideration in using model-based

techniques is model validation. In our approach, we

validated the models and transformations manually,

as well as by testing the generated rules using the rule

engine and test bed data. Any discrepancies with ex-

pected results were manually traced back through the

model chain to arrive at the source of the error.

Domain experts validated the SE rules written by

us for our case study application. They validated the

generated rules by examining the results of rule ex-

ecution on their test data comprising a set of actual

transactions from one of their systems. They exam-

ined the rules executed, their success/ failure status,

Towards Automated Generation of Regulation Rule Bases using MDA

625

Table 2: SBVR to Drools mapping of constructs.

SBVR element Drools construct Drools syntax

Element of guidance Rule rule rule name attribute-list when

antecedent-list then action-list end

Logical formulation Constraint

Implication Rule rule rule name attribute-list when

antecedent-list then action-list end

Conjunction (operands) Conjunction (constraints) condition, condition

Disjunction (operands) Disjunction (constraints) condition or condition

Negation (operand) Negation (constraint) not(condition)

Concept (characteristics) Type (attributes) declare concept name attribute-list

Characteristic of Concept Attribute of Type attribute name : Type

Delimiting characteristic of

Concept

Key attribute of Type @key attribute name : Type

General Concept (Special-

ization of Concept)

Type extends type declare concept name extends con-

cept name

Fact type Attribute within source

Type, of type target Type

declare source-concept-name

target-concept-name : Type

and the data facts output by the compliance engine

in support of the success/ failure result, and veriﬁed

these for correctness. The quality of generated rules

depends upon the quality of SE rules input to the

framework. We may need to help domain experts

reviewing SE rules by providing tools for organising

and presenting the rules for easy readability and edit-

ing.

Choice of modeling languages and correct speciﬁ-

cation of mapping and model transformation rules be-

tween layers is a one-time investment in setting up a

model-based automated engineering process. The ini-

tial investment in time and cost as well as the prospect

of change are the principal deterrents to the prolifera-

tion of MDE in practice. Both can be overcome only

by increased usage of MDE, coming up with better

tools, sharing of artefacts such as models and map-

pings, and reporting on experience.

In the next section, we discuss the extensibility of

this architecture for generation onto other rule plat-

forms, using Drools as an example.

6 GENERATION ONTO

MULTIPLE RULE PLATFORMS

The general rule speciﬁcation in SBVR can be

mapped to another rule PSM, to generate an imple-

mentation on a different rule platform. We now il-

lustrate a mapping of the SBVR meta-model to the

Drools rule language meta-model, with the objective

of demonstrating that rules on the Drools platform

can be generated from the same SBVR PIM of rules.

The implementation of this SBVR-Drools translation

is work in progress.

The Drools rule engine too expects speciﬁcation

in a structure similar to DR-Prolog, i.e. rules and

facts. The SBVR rule meta-model therefore maps di-

rectly to the Drools rule model. We create an SBVR-

Drools meta-model map, i.e. our PIM-PSM map, il-

lustrated in Table 2. This map can be used to gen-

erate a Drools PSM instance from the SBVR PIM of

rules. Rules in corresponding Drools syntax shown in

Table 2 can then be generated from the Drools PSM

instance, as we did for DR-Prolog.

Drools being a PRS, expects additionally, a proce-

dural speciﬁcation of rule consequents or actions that

change the system state. We therefore need special

interpretation for the rule actions in Drools. This is

done by deﬁning special transformation rules for op-

erative business rules deﬁned in SBVR to action spec-

iﬁcations for Drools and similar PRS. Consequents of

operative business rules in SBVR are interpreted as

action speciﬁcations by extracting the Drools func-

tion name and parameters from the consequent log-

ical formulation and its operands respectively. To be

able to do this, the rule consequent should be modeled

accordingly by the user in the SBVR model.

The same SBVR PIM of rules for a problem do-

main can thus be translated to rule bases on multi-

ple platforms, using the generic PIM-PSM mapping

for each platform. The next section discusses related

work.

7 RELATED WORK

We discuss related work under three heads, viz.

IndTrackMODELSWARD 2017 - MODELSWARD - Industrial Track

626

model-driven rule generation, formal representations

of regulations, and SBVR-related work.

7.1 Model-driven Rule Generation

A model-driven rule generation approach has been

proposed in (Diouf et al., 2007), that suggests using a

combination of MDA and Ontology Deﬁnition Meta-

model (ODM) for generating rules. Use of SBVR as

CIM and the authors’ own proprietary general pur-

pose rule language as PIM is proposed, however, the

language or its mapping to SBVR or PSMs was yet to

be worked out.

7.2 Representations of Regulation Rules

Compliance checking approaches in the literature

(Governatori and Rotolo, 2013; Awad et al., 2010;

Governatori et al., 2009; Governatori, 2005) use for-

mal representations of regulation rules. A system for

defeasible logic representation of regulations is pre-

sented in (Dimaresis, 2007) that we use as the compli-

ance engine in our work. In all of these, experts need

to directly code rules in the rule language, high-level

models or speciﬁcation-based generative methods are

not used.

7.3 SBVR and Fact-oriented Modeling

Several approaches use SBVR for encoding rules,

such as semi-automated approaches to generate

SBVR from natural language descriptions (Bajwa

et al., 2011; Levy and Nazarenko, 2013; Njonko

and Abed, 2012), expression of anti-money launder-

ing rules in SBVR (Abi-Lahoud et al., 2013), pre-

cise capture of legal rules to reveal inconsistencies

(Johnsen and Berre, 2010), but the SBVR models are

not used for automated generation of rule bases in

a rule language. Rules are written in SE and man-

ually translated to rules in a BRMS in (Levy and

Nazarenko, 2013). Requirements for translation from

SBVR to Formal Contract Logic (FCL), a propri-

etary defeasible logic language are deﬁned in (Ka-

mada et al., 2010). The source SBVR and desired

target FCL speciﬁcation are given, however, the map-

ping or transformation between the two speciﬁcations

is not dealt with.

8 CONCLUSION AND FUTURE

WORK

The ideas proposed in MDA have been long been

hailed for their promise of productivity enhancement

and efﬁcient change management, especially for large

systems. MDA has worked well for technical prob-

lem spaces e.g. software development and evolution

through code generation. We explored if this idea can

work for business problem spaces as well e.g. regula-

tory compliance.

Modeling technologies are evolving to be usable

by domain experts who are the real owners of business

requirement model repositories. SBVR and Business

Process Modeling Notation (BPMN) are two cases in

point. We described an approach for generation of

rule bases using SBVR Structured English as a CIM

of rules and the corresponding SBVR model as PIM.

We demonstrated how the SBVR model serves as a

general-purpose PIM for rules, that can be used to

map to various platform-speciﬁc rule language meta-

models, even if they have different execution seman-

tics, like DR-Prolog and Drools.

We illustrated automated generation of the rule

implementation in DR-Prolog using the PIM-PSM

mapping. We also illustrated the PIM-PSM mapping

for the Drools platform. Actual generation of rule

implementation in Drools using this mapping is part

of ongoing work, as is automated translation of the

SBVR SE CIM to SBVR PIM.

However, our generators described in this work

are custom-written programs. We plan to implement

speciﬁcation-based PIM to PSM and PSM to rule

language transformation using QVT and/ or Eclipse

model transformation tools in order to fully exploit

the power of MDA.

We plan to conduct a detailed study of the expres-

sive power and adequacy of SBVR, Drools and DR-

Prolog using a bigger real-world case study, as part of

future work.

REFERENCES

Abi-Lahoud, E., Butler, T., Chapin, D., and Hall, J. (2013).

Interpreting regulations with sbvr. Fodor, P., Roman,

D., Anicic, D., Wyner, A., Palmirani, M., Sottara, D.,

Lvy, F., eds.: Joint Proceedings of the 7th Interna-

tional Rule Challenge, the Special Track on Human

Language Technology and the 3rd RuleML Doctoral

Consortium, Seattle, USA, July 11 -13, 2013. Vol-

ume 1004 of CEUR Workshop Proceedings., CEUR-

WS.org.

Alhir, S. S. (2003). Understanding the model driven archi-

tecture.

Awad, A., Weidlich, M., and Weske., M. (2010). Consis-

tency checking of compliance rules. In BIS 2010:

106-11.

Bajwa, I., Lee, M., and Bordbar, B. (2011). Sbvr business

rules generation from natural language speciﬁcation.

Towards Automated Generation of Regulation Rule Bases using MDA

627

AAAI Spring Symposium: AI for Business Agility.

pp. 28. AIII.

Bauer, E. (2009). The business rules approach.

Dimaresis, N. (2007). A system for modal and deontic de-

feasible reasoning. In Int. J. Cooperative Inf. Syst.

14(2-3): 181-216.

Diouf, M., Maabout, S., and Musumbu, K. (2007). Merging

model driven architecture and semantic web for busi-

ness rules generation. In Web Reasoning and Rule Sys-

tems, First International Conference, RR 2007, Inns-

bruck , Austria, June 7-8, 2007, Proceedings, pages

118–132.

Governatori, G. (2005). Representing business contracts in

ruleml. In Int. J. Cooperative Inf. Syst. 14(2-3): 181-

216.

Governatori, G., Hoffmann, J., Sadiq, S., and Weber, I.

(2009). Detecting regulatory compliance for busi-

ness process models through semantic annotations. In

Ardagna, D., Mecella, M., Yang, J., eds.: Business

Process Management Workshops. Volume 17 of Lec-

ture Notes in Business Information Processing. 517.

Springer Berlin Heidelberg.

Governatori, G. and Rotolo, A. (2013). A conceptually rich

model of business process compliance. In APCCM

2010: 3-12.

Halpin, T. (2007). Fact oriented modeling past, present

and future. In Conceptual Modelling in Information

Systems Engineering, J.Krogstie, A. L. Opdahl, and

S. Brinkkemper (eds.) pp. 19-38. Berlin Heidelberg:

Springer-Verlag.

IBM (2016). Eclipse modeling framework.

Johnsen, A. and Berre, A. (2010). A bridge between legis-

lator and technologist - formalization in sbvr for im-

proved quality and understanding of legal rules. In-

ternational Workshop on Business Models, Business

Rules and Ontologies, Bressanone, Brixen, Italy.

Kamada, A., Governatori, G., and Sadiq, S. (2010). Trans-

formation of sbvr compliant business rules to exe-

cutable fcl rules. RuleML 2010: 4th International Web

Rule Symposium. Number 6403, Springer (2010)

153161.

Kleppe, A., Warmer, J., and Bast, W. (2003). MDA ex-

plained - the Model Driven Architecture: practice and

promise. Addison Wesley object technology series.

Addison-Wesley.

Kulkarni, V. and Reddy, S. (2003). Separation of concerns

in model-driven development. IEEE Softw., 20(5):64–

69.

Levy, F. and Nazarenko, A. (2013). Formalization of natural

language regulations through sbvr structured english

(tutorial). Morgenstern, L., Stefaneas, P., Levy, F.,

Wyner, A., Paschke, A. (eds.) RuleML 2013. LNCS,

vol. 8035, pp. 19-33. Springer, Heidelberg.

Nijssen, G. (2007). SBVR: Semantics for business.

Njonko, P. and Abed, W. E. (2012). From natural language

business requirements to executable models via sbvr.

Systems and Informatics (ICSAI), 2012 International

Conference on. IEEE.

IndTrackMODELSWARD 2017 - MODELSWARD - Industrial Track

628
