A Systematic Review of Anonymous Communication Systems

Ramzi A. Haraty

, Maram Assi

and Imad Rahal

Department of Computer Science and Mathematics, Lebanese American University, Beirut, Lebanon

Department of Computer Science, College of Saint Benedict & Saint John’s University, Collegeville, MN, U.S.A.

Keywords: Anonymous Systems, Crowds, FreeNet, NetCamo, Mixmaster, Tarzan, TOR.

Abstract: Privacy and anonymity are important concepts in the field of communication. Internet users seek to adopt

protective measures to ensure the privacy and security of the data transmitted over the network. Encryption

is one technique to secure critical information and protect its confidentiality. Although there exist many

encryption algorithms, hiding the identity of the sender can only be achieved through an anonymous

network. Different classifications of anonymous networks exist. Latency level and system model

architecture are two essential criteria. In this paper, we present a description of a set of anonymous systems

including NetCamo, TOR, I2P and many others. We will show how these systems work and contrast the

advantages and disadvantages of each one of them.

1 INTRODUCTION

Due to the increasing use of the Internet and the

emergence of wireless technologies, the value of

security and privacy is becoming more significant.

New online activities have arisen during the last

decade with the advancement of the electronic

communication. People can now shop online, send

and receive emails, pay their mobile bills, and make

diverse banking operations. These types of

electronic activities produced new challenges. Two

main goals the sender of information over the

network seeks to ensure: the privacy and the security

of the communicated information. Confidentiality

and protection of the data can be achieved through

encryption mechanisms. Encryption in general is

capable of hiding the content of the information in

the network. Moreover, in some cases, the sender

might wish to hide his/her identity. This objective

can be achieved through the use of anonymous

systems.

Traffic analysis is the art of examining and

intercepting messages transmitted over the network

to infer information, thus it violates user privacy.

Several technologies exist to ensure data integrity

and the security of the transmitted information that

might be very critical in certain cases. Anonymous

communication protects the identities of the sender

and the receiver from third parties and keeps the

identity of the user hidden from remote parties

(Mittal 2012). Hiding the user-server relationship is

another crucial goal behind any communication. For

example, let us consider a client that wishes to

communicate with a web server. This client might

prefer to stay anonymous. One of the protective

measures that help hiding the identity of users

communicating through the internet is anonymous

network. These networks allow users to surf the

Web without leaving any tracking information.

In (Chaum 1981), Chaum presented almost the

first architecture allowing the transmission of

untraceable email. The main idea behind the

proposed architecture is to allow communicating

peers to transmit data through cascade proxies

known as Onion Routers. Anonymity is achieved by

the use of public key cryptography. Most other

proposed anonymous systems nowadays are based

on Chaum’s scheme. While the main goal behind

anonymous system is to protect the identity of the

sender or the receiver, several other motivations

exist. Some common ones include freedom of

speech, censorships and personal privacy in order to

prevent data mining and tracking. Anonymous

systems can be classified into two main types: high

latency and low latency. In the former category of

networks, the transmitted message takes several

hours or even several days to reach the desired

destination. Quick response is not required for such

application including email systems for example

(Wiangsripanawan, 2007). For interactive and real-

time applications like instant messaging, a low

Haraty, R., Assi, M. and Rahal, I.

A Systematic Review of Anonymous Communication Systems.

DOI: 10.5220/0006216802110220

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 211-220

ISBN: 978-989-758-248-6

211

latency communication network is required because

of the timing constraint. TOR and I2P are two

examples of low latency anonymous systems that

will be discussed in the next section (Zantout,

2011)(Haraty, 2014). From an architecture point of

view, anonymous systems can be divided into two

categories client-server communication system and

peer-to-peer based anonymous network. In fact, in

the client-server model, only few nodes are selected

to provide anonymity to the rest of the users. One

disadvantage of this architecture is that the number

of server nodes is small, and an attacker can easily

track the traffic. The P2P architecture overcomes

this challenge. The main idea behind this model is

that there is no distinction between a server and a

user (Zhang, 2011). In these systems, it is hard to

distinguish the sender and the receiver nodes. As a

matter of fact, all nodes in the network are

considered universal receivers and universal senders

making it difficult to detect whether a specific node

is transmitting or receiving data.

This paper investigates the network anonymous

systems that seek to protect the identity of the sender

of information transmitted over the Internet and that

provide secrecy. Each upcoming section describes

how a specific system works to achieve anonymity.

A contrast of the advantages and disadvantages of

each technology is illustrated later. Finally, the last

section summarizes the major ideas discussed in this

paper.

2 BACKROUND

Throughout the research that was conducted during

the preparation of this paper, a number of

observations where noted for the design and

implementation of the new methodology. They are

as follows:

1. No Real End-to-End Traffic Analysis

Prevention Assurance:

Although many of the previously mentioned

implementations claimed avoiding traffic analysis,

the possibility for this to occur is extremely high and

unavoidable in unmanaged Local Area Networks

(LAN).

Securing LAN environments could be a costly,

and sometimes an overkill (cost wise), for

organizations of different sizes. Using any of the

implementations in unsecured LAN environments

such as computer labs, work environments, or

wireless networks is somehow a hassle and rarely

found. Therefore man-in-the-middle attacks can

occur at any of these locations or even public

networks whereby a malicious attacker can sniff

packets being transmitted and received by a

particular user or a number of users, and then apply

traffic analysis techniques. One has to note here that

preventing traffic analysis at the end-to-end level is

realistically impossible if infrastructure network

security measurements are not implemented on the

infrastructure level.

2. Trust is in “Cathy”

In any security model example or illustration,

authors tend to use Bob and Alice as two entities

wishing to receive and send information from/to

each other with a trusted entity called Cathy, and a

malicious attacker called Eve. The aim of any traffic

analysis avoidance algorithm considers Eve as an

eavesdropper that will only sniff information.

Hence, the algorithm designed by security personnel

tries as much as possible to circumvent traffic being

passed to Alice and Bob through many and different

routes while camouflaging and encrypting data in

order not to allow Eve to sniff this information.

What is somewhat confusing is that sometimes one

only considers Eve to be on one of the routes that

information is being sent to and from Alice and Bob,

and that Eve is only capable of sniffing abilities and

not injecting information or even tampering with the

data being sent through a route or different routes.

Moreover, in any security model, the adoption of

a trusted entity, Cathy, is a must to verify the

identity of senders and receivers and later to validate

the data being transmitted and received from parties

involved. Cathy happens to be a fixed host that is

susceptible to attacks by Eve also, and any

compromise done to Cathy renders the whole

security model useless sometimes. As a simple

example, if Eve is capable of injecting information

onto a stream whereby Cathy has been compromised

by Eve, the receiving entity will try to validate this

information against Eve and not the trusted entity

Cathy. Data integrity is a vital part of any security

system and having a single point of failure is

ultimately a drawback in any security model. In an

ever growing world of communication and

networks, one has to consider alternatives to basic

security models and concepts. Decentralization of

trusted entities needs to be seriously considered in

anonymous systems hence the reason why I2P was

invented.

3. Questionable Host Reliability and Security

Almost every traffic analysis avoidance design and

implementation relies on hosts that belong to users

for creating different routes and therefore passing

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

212

data through different hops on the network or the

Internet.

What some of the implementations lack, is

catering for the reliability and security of such hosts

mainly because of many factors such as:

a. How trustful are these hosts really? If a host

decides to join a network for anonymous

communication then should that host be trusted

immediately and therefore have data sent to it to

route to other hosts. Consider Eve to be a

distributed form of traffic analysis whereby a

number of malicious hosts join an anonymous

communication model at strategically selected

locations or routes. Data being transmitted on

this network would no longer be anonymous

because Eve can now collect information from

all hosts on the network and perform traffic

analysis on a compilation of streams instead of

one.

Some authors (like Tor developers) argue that

the more the number of hosts joining an

anonymous system and participating in traffic

then more anonymity of traffic being sent and

received becomes possible.

b. Hosts are usually personal computers and

workstations that could be located at users’

homes, labs, and work. These hosts usually have

limited bandwidth allocated to them due to

network lab restrictions or because of

asynchronous bandwidth limitations enforced by

Internet service providers (DSL).

Communication with these hosts could suffer

from factors like intermittent connections, lack

of reliability because of host reboots, signoffs,

power shutdowns, security

vulnerabilities/checks, or even policies enforced

by organizations’ firewall implementations, not

to mention downtime for hosts because of

day/night time making the number of available

nodes much less during non-congestion hours.

Accordingly, and although many

implementations have managed in deploying

their design successfully on the Internet (such as

Tor), they have introduced dedicated reliable

servers worldwide and continue to encourage

users to donate and deploy dedicated servers in

order to make their network reliable to

compensate users’ computer usage behaviors.

However how wise is this?

4. No Dynamic Hops

Some anonymous systems require a number of host

hops or anonymous-router hops for traffic to pass

through, before sending the information to its proper

destination. The reason for this is obviously adding

more anonymity to the transmission of traffic and

also hiding the identity of the sender. However this

also adds more latency and overhead on the

communication stream. The worst case scenario

could be taken geographically whereby regional

traffic may travel to remote hops and then come

back to the receiver that happens to be close to the

sender’s region. Hence, dynamic, geographically

distributed hops need to exist in order to predict

sender and receiver locations and therefore select a

certain number of hops that is ideal for

communication.

3 SYSTEM DESCRIPTION

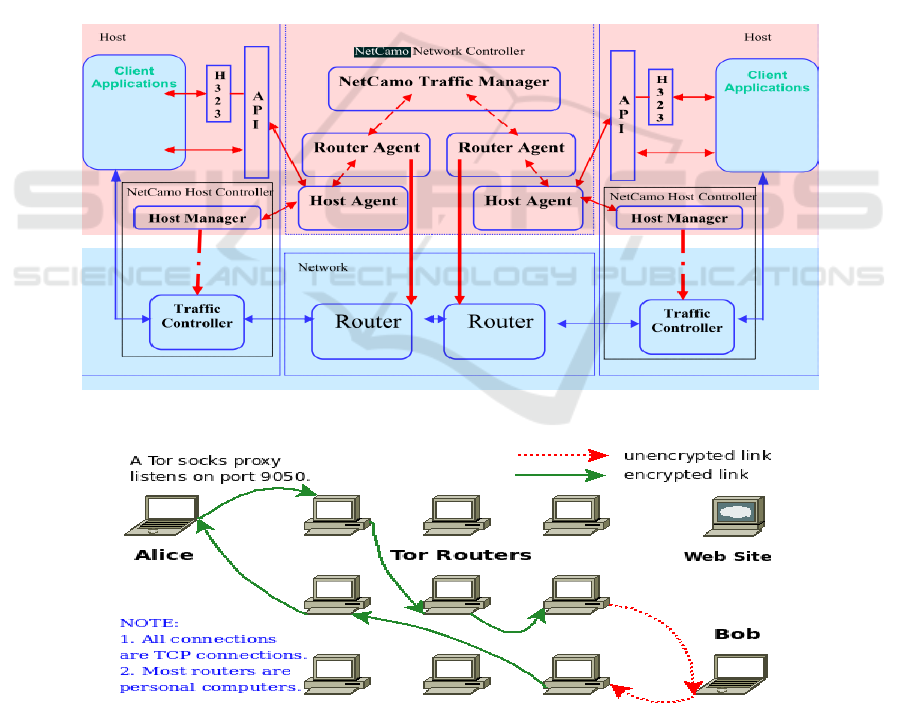

1. NetCamo which stands for Network

Camouflage is a system designed to provide both

security and efficiency for real time systems while

avoiding traffic analysis (see figure 1). Traffic

analysis avoidance is ensured by two different

requirements: Traffic padding and traffic rerouting.

In the traffic padding, encrypted data is padded with

meaningless data. In other words, in order to

camouflage the packets sent over the network,

additional packets are inserted into the payload. In

the traffic rerouting, unlike the default behavior of

transferring the data from source to destination

through a single path, data is transmitted through

different routes (camouflaged traffic pattern) to

reach its destination.

According to the authors in (Guan, 2001), the

main challenge in NetCamo is to ensure that the

traffic analysis prevention is performed in a realistic

time (suiting the nature of the interactive

applications). This objective becomes hard to

achieve when the network becomes full of padded

traffic. Actually, the communication over the system

passes through three phases: The system

configuration phase where the traffic pattern is

determined, the admission control phase where new

communication streams are accepted or rejected and

the runtime phase where the actual camouflaging of

data is done (Haraty, 2015).

2. TOR, as predicted in figure 2, is a low-latency

anonymous communication system. It is considered

an improved version of the traditional Onion

Routing that includes new integrated features. There

are three main entities participating in the proposed

approach: Tor client which is the sender that wishes

to establish an anonymous communication, the Tor

servers that are the Onion routers responsible for

routing streams to next nodes and the recipient. In

A Systematic Review of Anonymous Communication Systems

213

summary, Tor is made up of a collection of onion

routers where each one sends information in a secure

way to the next hop. Any client can become a server

acting as a Tor onion router. To ensure

camouflaging the type of data being transferred, data

is sent in encrypted format with fixed size packets

called cells which are relayed without revealing their

content or their complete route. This is achieved

through cell encapsulation and multilevel

encryption.

To start communication, the client contacts a Tor

management node which maintains the list of bridge

nodes which accept connections for which a specific

handshake occurs. When the client determines the

participating nodes, it sends a “create” cell to each

of them without allowing any of them to know the

presence of the other.

One of the disadvantages of Tor resulting from

its architecture is that the central directory

containing the list of servers is often a target for the

attackers. Another problem with Tor is that it serves

a large number of users, therefore the use of a

limited number of servers to build an anonymous

path will which leads to performance issues. In

addition, users must keep track of all the available

servers, especially when the number of servers

becomes large as this may cause a deterioration of

performance due to bandwidth contention.

3. I2P, known as Invisible Internet Project is a

low latency anonymizing mix network. Its main

scope is anonymous file-sharing and web hosting

(Timpanaro, 2014). I2P presents some similarities

with tor however, a major difference between the

two can lies in the fact that tor focuses on hiding the

anonymity of the sender, while I2P also hides the

identity of the receiver (Erdin, 2015). It operates on

the network layer. One main characteristic of this

system is that it distinguishes between user online

identity and its geographical location. In fact, the

user is not identified by its IP address and port

number but by another identifier independent of its

location. I2P is message based instead of circuit

based. It is a fully distributed system for anonymous

P2P communications and not browsing which does

not rely on centralized directory servers. Previously

encrypted onion cells are grouped together with

extra padding as well as delay/no-delay instructions

to other I2P nodes and then packaged in so called

garlic cloves which are passed in encrypted format.

The system uses different types of cryptographic

algorithms. I2P is portrayed in figure 3.

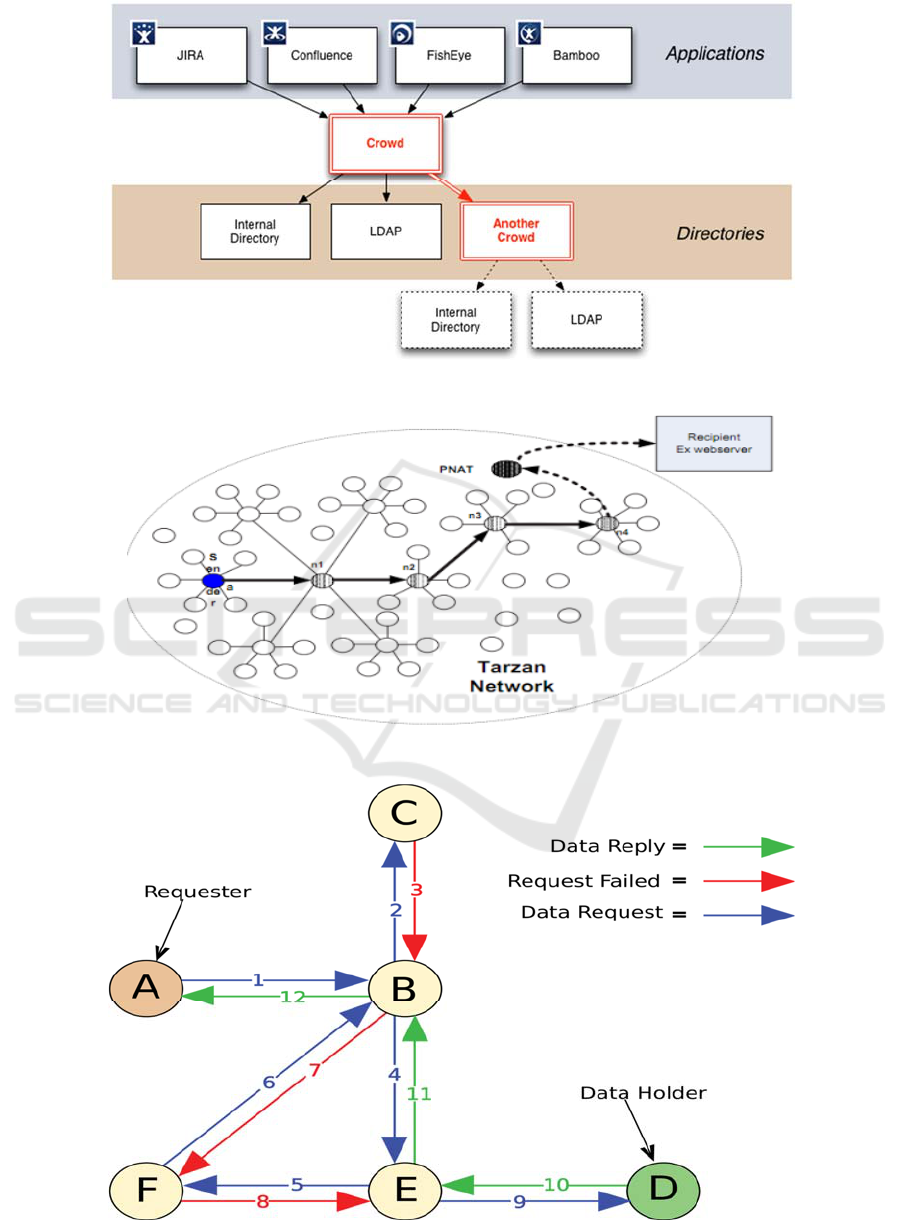

4. Crowds is a proposed anonymity system for

web transactions. It allows users to surf the web

anonymously as shown in figure 4. It is named for

the notion of “blending into a crowd” where users

are grouped into a large and geographically diverse

group. Requests are then issued by the group on

behalf of its members, thus web servers will not be

able to know the exact source of a request as it might

have been issued from any of the crowd members.

Even members of the same crowd cannot

differentiate between the originator of a request and

a member that is only forwarding the request. Each

participant in the group is simultaneously protected

and protects other user as well. Therefore each

participant is playing the role of a proxy (Sui, 2003).

5. Based on Chaum’s mix approach, Tarzan is yet

another low-latency anonymous communication

system (see figure 5). Its main goal is to offer

anonymity for different applications including

instant messaging and web applications. It is a

decentralized P2P anonymous network that provides

IP service which makes it general purpose and

transparent to applications. Each node in the Tarzan

model can be both the client and the relay. It

supports layered encryption and multilevel routing

where a client chooses a path of peers in a restricted

way that protects communication against

adversaries. It also uses a protocol to ensure

unbiased selection of peers. Its cover trafﬁc

mechanism offers protection against trafﬁc analysis

of message volume or content, against message

ﬂooding, and against DoS attacks.

Nodes participating in the communication run

software that discovers other participating nodes,

intercepts packets generated by local applications

that should be anonymized, manages tunnels through

chains of other nodes to anonymize these packets,

forwards packets to implement other nodes’ tunnels,

and operates a NAT (network address translator) to

forward other participants’ packets onto the ordinary

Internet. Therefore, the receiver is not necessary

belongs to the Tarzan network.

6. FreeNet is decentralized P2P network

application for storage and retrieval of files in such a

way that protects the anonymity of both senders and

receivers. The system works as a location-

independent distributed file system where many

individual computers that cooperate in routing the

requests.

Nodes participating in the Freenet network

provide their data storage to the network. Each node

maintains its own data store that it makes available

to the network and a routing table which contains the

addresses of other nodes. Requests are passed

through a series of proxys where every node locally

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

214

decides the next node to receive the request. Hence,

each node in the proxy chain is only aware of the

node it received the request from and the node it

forwards it to which makes infeasible to determine if

a particular node is the actual originator of the

requests or a forwarder. This is revealed in figure 6.

In addition, files are dynamically replicated in

locations close to requesters and removed from

locations where no requests for them are made.

Some disadvantages of Freenet system related to

the performance are that it sometimes poorly locates

files and it presents a low speed in downloading

found files (Skogh 2006).

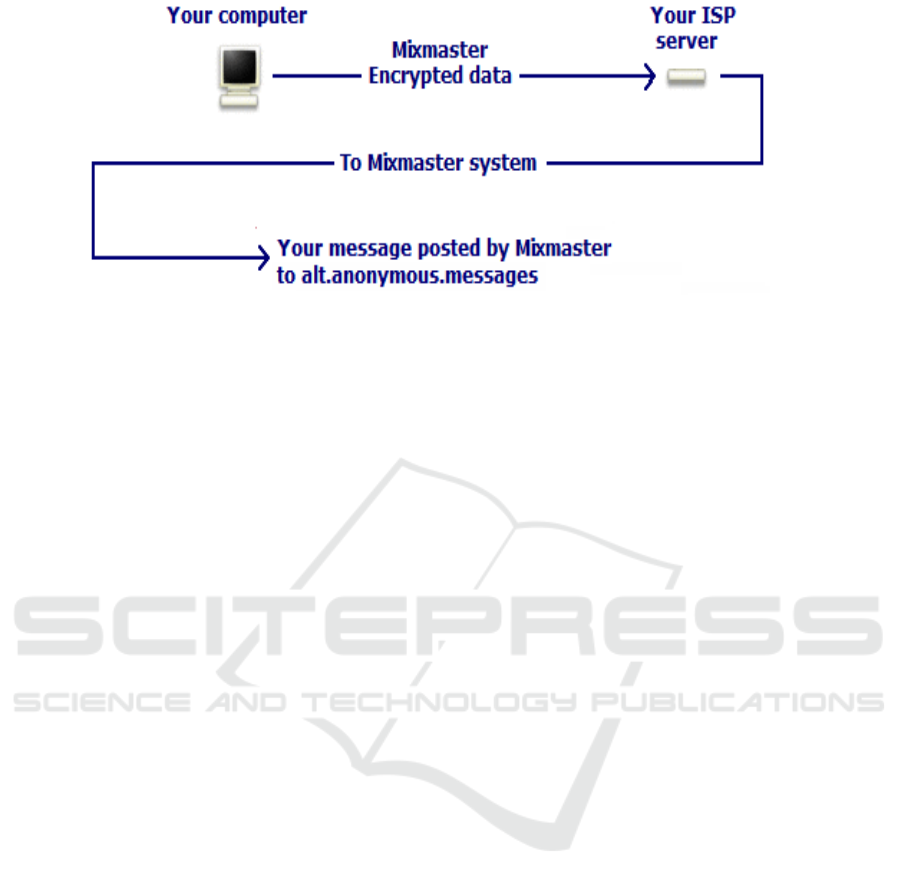

7. Mixmaster is the most widely deployed and

used remailer system. Remailers are servers whose

main goal is to send email without providing any

information about the source. Messages are

encrypted while keeping their size is kept constant

by appending random noise at the end of the

message. This noise is generated using a secret

shared between the remailer and the sender which

makes allows protecting the integrity of the header

and content of the message. Besides protecting

anonymity, Mixmaster allows sending large emails

without the need to use special software. It also

protects against traffic analysis. Mixmaster is

illustrated in figure 7.

4 ANONYMOUS SYSTEMS

COMPARISON

Each of the mentioned anonymous communication

systems has its own characteristics and architecture.

Some follow the client-server architecture, some

other adopt the peer-to-peer design. Different

systems are suitable for different type of

applications. Real-time application requires low-

latency communication systems whereas high-

latency systems can fit to other applications.

Moreover, these anonymous communication models

are susceptible to various attacks (Haraty, 2015).

Table 1 presents the advantages and the

disadvantages of the discussed approaches and help

deciding which model is best proper to each

application.

5 CONCLUSIONS

In this paper, we discussed how protecting the

information shared by users over the Internet, and

the identity of the users themselves are very

important. Adopting anonymous systems is one way

to achieve secrecy of the user’s identity. Each of the

mentioned technologies has its own limitations. In

fact, some are not applicable for real time

applications and some others might not be able to

detect malicious attacks. As each system has its

challenges, we can explain the conflict in each

system between its advantages and its drawbacks.

Besides the various implemented systems hiding the

identity of the users, studies in the field of

anonymous networks continue to grow.

ACKNOWLEDGEMENTS

This work was funded by the Lebanese American

University in Beirut, Lebanon.

REFERENCES

A. A. M Direct. Retrieved on February 11, 2017 from

http://aamdirect.sourceforge.net/.

Atlassian Documentation. Retrieved on February 11, 2017

from https://confluence.atlassian.com/display/

CROWD/Crowd+2.2.2+Release+Notes.

Chaum, D. 1981. Untraceable electronic mail, return

addresses, and digital pseudonyms. Communications

of the ACM, pp. 84-90.

Erdin, E., Zachor, C., and Gunes, M. 2015. How to find

hidden users: A survey of attacks on anonymity

networks. IEEE Communications Surveys & Tutorials

pp. 2296-2316.

Guan, Y., Fu, X., Xuan, D., Shenoy, P., Bettati, R., and

Zhao, W. (n.d.). 2001. NetCamo: Camouflaging

network traffic for QoS-guaranteed mission critical

applications. IEEE Transactions on Systems, Man, and

Cybernetics - Part A, pp. 253-265.

Guide (n.d). Retrieved on February 11, 2017 from https://

trac.i2p2.de/attachment/wiki/Content/i2prouting.png.

Haraty, R. and Zantout, B. 2014. The TOR data

communication system – a survey. In Proceedings of

the Sixth IEEE International Workshop on

Performance Evaluation of Communications in

Distributed Systems and Web based Service

Architectures (PEDISWESA’2014). Madeira, Portugal.

Haraty, R. and Zantout, B. 2014. The TOR data

communication system. Journal of Communications

and Networks, 16 (4) (2014) ISSN 1229-2370.

Haraty, R. and Zantout, B. 2015. A Collaborative-based

Approach to Avoiding Traffic Analysis and Assuring

Data Integrity in Anonymous Systems. Computers in

Human Behavior Journal. Volume 51, Part B, pp.

780–791.

Haraty, R. and Zantout, B. 2015. The NetCamo data

communication system. Advanced Science Letters.

Volume 21, Number 3, pp. 472-477.

A Systematic Review of Anonymous Communication Systems

215

Mittal, P., and Borisov, N. 2012. Information leaks in

structured peer-to-peer anonymous communication

systems. ACM Transactions on Information and

System Security, pp. 1-28.

Skogh, H., Haeggstrom, J., Ghodsi, A., and Ayani, R.

2006. Fast Freenet: Improving Freenet performance by

preferential partition routing and file mesh

propagation. In Proceedings of the Sixth IEEE

International Symposium on Cluster Computing and

the Grid.

Sui, H., Wang, J., Chen, J., and Chen, S. 2003. An

analysis of forwarding mechanism in crowds. In

Proceedings of the IEEE International Conference on

Communications.

Sysmagazine. Anonymous networks and timing attacks:

Tarzan and MorphMix. Retrieved on February 11,

2017 from: http://sysmagazine.com/posts/117586/.

Timpanaro, J., Chrisment, I., and Festor, O. 2014. Group-

based characterization for the I2P anonymous file-

sharing environment. In Proceedings of the 6th

International Conference on New Technologies,

Mobility and Security (NTMS).

Tor - The Onion HTTP Router. Retrieved on February 11,

2017from http://tohr.sourceforge.net/.

Wiangsripanawan, R., Susilo. W., Safavi-Naini, R. (2007)

Design principles for low latency anonymous network

systems secure against timing attacks. In Proceedings

of the Fifth Australasian Symposium on ACSW

Frontiers, Balart, Australia.

Zantout, B. and Haraty R. 2011. I2P Data Communication

System. In Proceedings of the Tenth International

Conference on Networks (ICN 2011), pp. 401-409, St.

Maarten, The Netherlands Antilles.

Zeinalipour-Yazti, D., Kalogeraki, V., and Gunopulos, D.

2003. Information Retrieval in Peer-to-Peer Systems.

University of California at Riverside. Available: http://

www.cs.ucr.edu/~csyiazti/papers/cise2003/cise2003.pdf.

Zhang, J., Duan, H., Liu, W., and Wu, J. 2011.

Anonymity analysis of P2P anonymous

communication systems. Computer

Communications, pp. 358-366.

Figure 1: Architecture of NetCamo (Guan, 2001).

Figure 2: Tor architecture (TOR - The Onion HTTP Router, 2017).

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

216

Table 1: Comparison of the different anonymous systems Advantages.

Disadvantages

BitTorent

 Excellent peer-to-peer communication technique for

utilizing peer bandwidth.

 In case file transfer is interrupted, only the missing

pieces are re-downloaded and hence saving time and

bandwidth.

 Bandwidth chocking and throttling are efficient to

assure bandwidth reliability and availability for both

existing and new peers.



Blocked by most ISPs based on fingerprinting due to the excessive

traffic it generates.

 To enhance traffic, a P2P caching appliance was created which still

constitutes a security risk as many portions of downloaded files are

cached for new coming peers, so spoofing techniques may allow

any user to stream existing cached information.

 Strictly used for file transfer and does not contain any substantial

security measures.

 Cannot be used for real time communication like secure shell,

Telnet, VoIP…

NetCamo

The system is able to distribute traffic through

different predetermined paths and routes in order to

prevent against traffic analysis.



It does not consider geographical distribution of hosts and routes.

 Dependent on hosts and routers where a single managing

component takes control of all routers and hosts to determine

acceptance or rejection of a traffic stream which is hard to

implement in the real world.

 Dependent on routers to set the rate of traffic and control the

network flow.

 Since the system is centralized, attacks on the main node can

render the system useless.

 Traffic padding is performed at a rate of 1/α where α can be

determined if kept constant.

 Un-trusted hosts can join. They can drop packets or interfere in

malicious ways to make the system unreliable.

 End-to-end prevention for data sniffing and traffic analysis is

impossible when it comes attacks occurring at the LAN level

TOR

Protects against strong and weak attackers based on Tor

design as well as encryption techniques.

Protects anonymity of sensitive published content.

Tor nodes are not aware of the complete plan of

communication, so even if one node is acting

maliciously, it can only know little.

The addition of more Tor nodes adds more anonymity.

Contacting nodes gradually adds more security as

building the path is based on a list of bridge nodes.



Directory information server can be blocked.

 Blocking based on fingerprinting Tor`s connection: handshakes are

clear to authorities thus any intelligent firewall can detect them and

block them.

 Centralization of directory servers for managing the Tor network:

attackers can fake the identity of the Tor directory by redirecting

traffic to a local server, the attacker can maliciously modify a Tor

client and then repackage it for users to download.

 Single path for a data stream moving inside a circuit: saving the

traffic for latter analysis may reveal the identity of sender and

receiver.

 Malicious attackers and relayers may not be identified.

 Slow performance: more load on Tor dedicated nodes which

decreases anonymity, security and reliability.

 Successes or failures in data integrity checks may render a circuit

useless.

 Website fingerprinting and backtrack attack due to lack of packet

camouflaging.

I2P

Message based instead of circuit based: which leads to

the decrease in overhead and odds randomness while

allowing hops to control data delivery.

Various protocols support: offers a wide range of

internal services, anonymous hidden services...

New P2P infrastructure over the Internet: P2P activities

become anonymous to all participating parties.

Different encryption techniques: good set of algorithms

(symmetric, asymmetric..

Decentralized System: protected against attacks on its

directory serves.

Different types of un-directional tunnels which

enhances the amount of peers participating in

communication and therefore increasing number of

hops.

End user Node Participating in communication:

encourages every node joining I2P to use part of its

bandwidth as relay node which adds more hops and

thus leads to randomness.



Vulnerable to partitioning attacks: may disconnect targets in the

system and reveal identities of all parties involved.

 Possible intersection attacks: attacker may eliminate nodes that

have not participated in communication with target until target's

paths are narrowed down which makes nodes participating exposed

for monitoring.

 Lack of node and bandwidth monitoring, participating peers

variably change their relay capabilities and random joins and

departures may allow wide distributed attacks resource

consumption attacks without being detected.

 NetDB conflicts and resolution

 DOS attacks:

1. Greedy user attack: users willing to download more than upload

which decreases traffic replay, less anonymity since the number of

hopes is less.

2. Starvation attack: bad and intermittent communication for end

users.

A Systematic Review of Anonymous Communication Systems

217

Table 1: Comparison of the different anonymous systems Advantages (cont.).

Crowds

It offers the user some degree of deniability for her

observed browsing behavior, if it is possible that she

was using Crowds.

No single failure discontinues all ongoing web

transactions

Privacy is enhanced by increasing the average number

of times a request is forwarded among members before

being submitted to the end server with less impact on

the performance because of the use public private key

operations…

Probability of receiver anonymity increases as size of

crowd.

Sender anonymity against end servers

Protection against timing attacking the crowd

Good performance due to load balancing



A user may be incorrectly suspected of originating a request

 It cannot protect user`s anonymity if the content of her web

transaction reveals her identity to the webserver

 It can be undermined by executable web content that, if

downloaded into the user`s browser, can open network connections

directly from the browser bypassing Crowds and exposing the user

to the end server.

 No effort to defend against DOS attacks by crowd members

 No sender anonymity against local eavesdropper and no receiver

anonymity against end servers

 Firewalls represent a barrier to wide-scale inter-corporation

adoption of Crowds

Tarzan

Reduces effort needed to incorporate anonymity into

existing designs without the need to change them.

Self-organizing and fully-decentralized.

Scales to much larger networks.

Better protection against static adversaries than Crowds

and Onion Routing

Effective and efficient peer-discovery mechanism

Its cover trafﬁc mechanism offers protection against

trafﬁc analysis of message volume or content, against

message ﬂooding, and against DoS attacks of slowing

incoming rates.

Prevents information leakage at exit points by using

integrity checks

Fast packet forwarding rate, high throughput, and

reasonable tunnel-setup latency.



No sender protection against malicious routers.

 It may be susceptible to some attacks that use additional

application-layer information.

 No real protection against information that leaks through

application-layer interaction.

 A new tunnel is unlikely to traverse the same small path thus long-

term node observation or time-intensive attacks are less effective.

Freenet

It keeps information available while remaining highly

scalable.

Sender`s anonymity is preserved beyond suspicion

against collaboration of malicious nodes.

Key anonymity and stronger sender anonymity are

achieved by pre-routing of messages.

Protection of data source by the occasional resetting of

the data source field.



Since routing depends on knowledge of the key, key anonymity is

not possible in the basic FreeNet scheme.

 Against local eavesdropper, there is no protection of messages

between user and the first node contacted.

 Requested files can be modified by malicious nodes in addition to

data being vulnerable to dictionary attacks

 Subject to DoS attacks.

Mixmaster

Supports sender anonymity.

Allows large emails to be transmitted without the use of

special software and messages to be transmitted

multiple times using different paths.

Protects against email spammers.

Protects content by including a hash of the message in

the header.



No analysis on the impact of its anonymity features has ever been

performed.

 No filtering of content.

Figure 3: I2P architecture (Guide, 2017).

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

218

Figure 4: Architecture of Crowds (Altassian, 2017).

Figure 5: Tarzan Architecture based on simulators (Anonymous networks, 2017).

Figure 6: The Freenet architecture (Zeinalipour-Yazti, 2003).

A Systematic Review of Anonymous Communication Systems

219

Figure 7: The Mixmaster remailer model (AAM Direct, 2017).

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

220
