On the Security of Safety-critical Embedded Systems:

Who Watches the Watchers? Who Reprograms the Watchers?

Carlos Moreno and Sebastian Fischmeister

Department of Electrical and Computer Engineering, University of Waterloo, Waterloo, Ontario, Canada

{cmoreno, sﬁschme}@uwaterloo.ca

Keywords:

Embedded Systems Security, Physical Unclonable Functions, Safety-critical Systems, Runtime Monitoring.

Abstract:

The increased level of connectivity makes security an essential aspect to ensure that safety-critical embedded

systems deliver the level of safety for which they were designed. However, embedded systems designers

face unique technological and economics challenges when incorporating security into their products. In this

paper, we focus on two of these challenges unique to embedded systems, and propose novel approaches to

address them. We ﬁrst deal with the difﬁculties in successfully implementing runtime monitoring to ensure

correctness in the presence of security threats. We highlight the necessity to implement runtime monitors as

physically isolated subsystems, preferably with no (direct) connectivity, and we propose the use of program

tracing through power consumption to this end. A second critical aspect is that of remote ﬁrmware upgrades:

this is an essential mechanism to ensure the continuing security of a system, yet the mechanism itself can

introduce severe security vulnerabilities. We propose a novel approach to ensure secure remote upgrades

and sketch the details of an eventual implementation. It is our goal and hope that the computer security and

embedded systems communities will discuss and evaluate the ideas that we present in this paper, to assess

their effectiveness and applicability in practice.

1 INTRODUCTION

Security is an essential component in safety-critical

embedded systems to ensure the required level of

safety given the ever-increasing level of connectiv-

ity of these systems. The Internet of Things (IoT)

and the prospect of connected vehicles makes the em-

bedded devices an equally or more attractive target

for cybercriminals, compared to the world of PCs.

Research studies such as the Jeep Cherokee hack by

Miller and Valasek (Miller and Valasek, 2015; Miller

and Valasek, 2016), the pacemaker hack by Barn-

aby Jack (Computerworld Magazine, 2012), and real-

world incidents such as Stuxnet in the nuclear do-

main (Langner, 2011) demonstrate the realistic na-

ture of this threat. The increasing complexity and

more sophisticated functionality of modern systems

(including vehicles, medical devices, industrial con-

trol systems, etc.) only makes the task of adding se-

curity more challenging.

Correctness and reliability are also essential in

safety-critical systems (Avizienis et al., 2004). These

systems in general require runtime monitoring sub-

systems to enforce these aspects during the devices’

operation phase (Pnueli and Zacks, 2006; Havelund,

2008; Navabpour et al., 2013). Indeed, regulatory

standards mandate runtime monitoring at least for

high criticality systems such as aerospace (RTCA /

EUROCAE, 2012) and nuclear facilities (IEC, 2006);

in the automotive ﬁeld, ISO-26262 lists runtime mon-

itoring as “highly recommended”for compliance with

high safety integrity levels (ISO, 2011).

Adapting these ideas to the embedded systems se-

curity context poses unique and important difﬁculties:

any efforts to ensure correctness and reliability, in-

cluding fault-tolerance and redundancy mechanisms

as well as runtime monitoring are in vain if a mali-

cious attacker has the ability to reprogram the system

or some key subsystems. Moreover, any monitoring

speciﬁcally targeting security (i.e., the integrity of the

system as it operates) is also susceptible to the threat

of reprogramming the ﬁrmware of the device if it runs

in the same hardware as the system being monitored.

This was effectively demonstrated by the Jeep Chero-

kee hack (Miller and Valasek, 2015).

Problem Statement

Two key challenges are closely related to the above

aspect, and constitute the motivating problem state-

ment for this work:

Moreno, C. and Fischmeister, S.

On the Security of Safety-critical Embedded Systems: Who Watches the Watchers? Who Reprograms the Watchers?.

DOI: 10.5220/0006228304930498

In Proceedings of the 3rd International Conference on Information Systems Security and Pr ivacy (ICISSP 2017), pages 493-498

ISBN: 978-989-758-209-7

493

• How do we effectively monitor the integrity of

the operation of an embedded device? In par-

ticular, how do we incorporate runtime monitor-

ing techniques that are virtually immune to the

threat of remote attackers, including reprogram-

ming ﬁrmware?

• How do we securely perform remote ﬁrmware

upgrades? One key aspect is that ensuring secu-

rity during the operation of a system requires hav-

ing the ability to (remotely) reprogram it, so that

security vulnerabilities can be corrected promptly

after being discovered; thus, it is necessary to en-

sure that such mechanism cannot be abused by

attackers to reprogram devices with malware of

their choice.

Our Contributions

This paper addresses the two challenges highlighted

above, and proposes novel and practical approaches

to solve these problems. For the runtime monitoring

aspect, we highlight the necessity of designing the se-

curity runtime monitor as a physicallyisolated device;

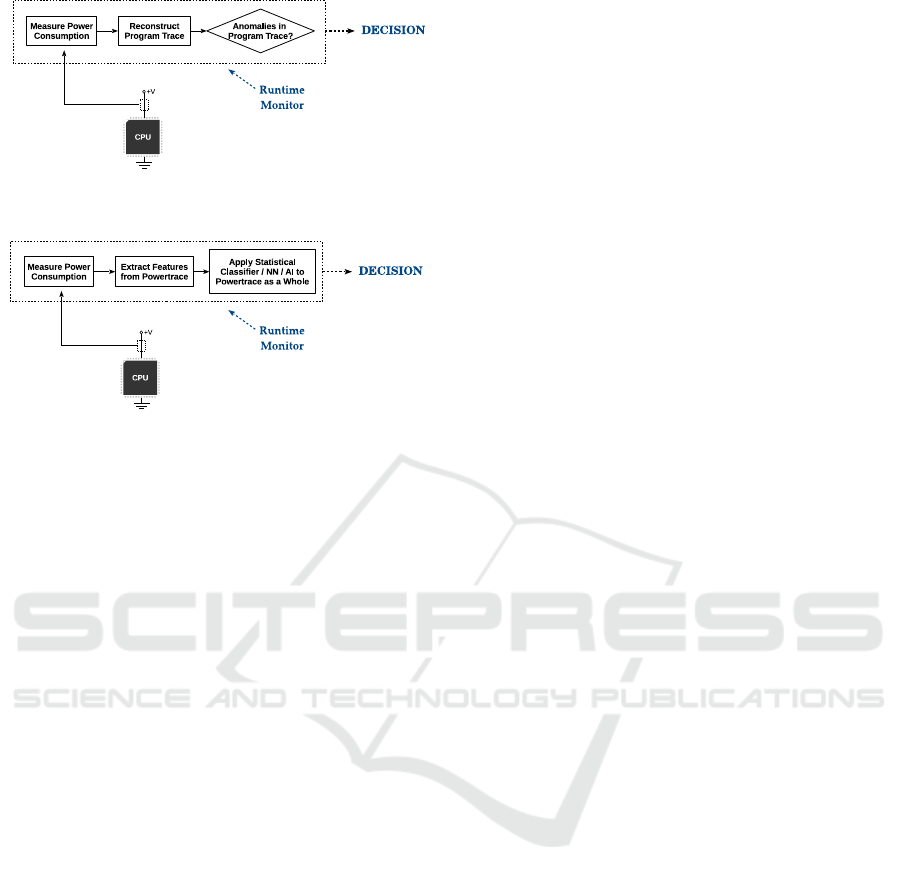

to this end, we survey techniques where power con-

sumption is used for anomaly detection or program

trace reconstruction and argue in favor of mechanisms

based on this promising approach.

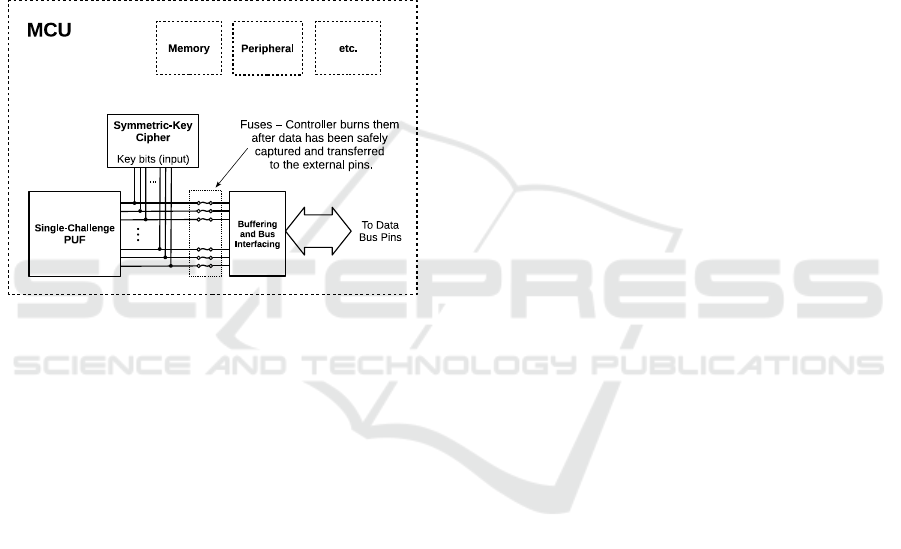

We also propose a novel mechanism for se-

cure ﬁrmware upgrade based on Physical Unclonable

Functions (PUF), and present a sketch of a potential

implementation; the novelty in our scheme is centered

around the use of a single-challenge PUF to gener-

ate an encryption key that only the legitimate user has

access to. Given the high level of resilience against

physical attacks that PUFs exhibit, we believe that

our proposed mechanism has the potential to provide

a substantially high level of security.

Organization of the Paper

The remaining of this paper is organized as follows:

Section 2 provides background on PUFs. Section 3

presents our proposed techniques, including power-

based runtime monitoring in Section 3.1 and our pro-

posed mechanism for secure ﬁrmware upgrade in Sec-

tion 3.2. Section 4 includes a brief discussion and fu-

ture work, followed by some concluding remarks in

Section 5.

2 BACKGROUND – PHYSICAL

UNCLONABLE FUNCTIONS

Physical Unclonable Functions (PUFs) are a rel-

atively new and promising primitive where func-

tions physically unique to each device can be pro-

duced (Herder et al., 2014). This has interesting ap-

plications as mechanisms for devices to authenticate

themselves or for generation of encryption keys.

The main beneﬁt of PUFs is their increased re-

silience to reverse-engineering compared to tamper

prevention or tamper-resistance techniques used to

protect some embedded secret information such as

cryptographic keys. This derives from the fact that

the uniqueness of this generated information comes

from the unique variations in the manufacturing pro-

cess at the microscopic level. Techniques typically

rely on intentional race conditions in the hardware

where the factor that resolves these race conditions

is the unique microscopic characteristics of each de-

vice given by random variations in the manufactur-

ing process beyond anyone’s control. These micro-

scopic characteristics are virtually impossible to mea-

sure and clone, even with the most sophisticated and

expensive equipment and state-of-the-art techniques.

PUFs are classiﬁed into two main types: single-

challenge and multiple-challenge. A single-challenge

PUF can be seen as a constant function—the hard-

ware produces a ﬁxed output, with the important char-

acteristic that this ﬁxed value is unique to each device.

Single-challengePUFs are suitable to produce crypto-

graphic keys. Multiple-challenge PUFs in general in-

volve hardware that interacts with external input sig-

nals, and are useful for device authentication. This

work relies on single-challenge PUFs, so we omit any

additional details on multiple-challenge PUFs; the in-

terested reader can ﬁnd more details in (Herder et al.,

2014).

PUFs are in general combined with some form of

error correction code, to ensure that the output from

the PUF is consistent across accesses (Herder et al.,

2014); this is necessary to compensate for the fact that

the race conditions in some cases may be resolved by

the noise, producing outputs that vary across multi-

ple accesses. This is especially important for single-

challenge PUFs with outputs used as a cryptographic

key.

3 OUR PROPOSED TECHNIQUES

This section presents our proposed techniques, along

with our arguments to support the ideas and sketches

of possible implementation details.

3.1 Runtime Monitoring Through

Power Consumption

We propose the idea that, in addition to the stan-

dard runtime monitoring techniques implemented in

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

494

safety-critical systems to ensure correctness and re-

liability, these systems should include runtime mon-

itors to enforce security properties, including the in-

tegrity of the software being executed. Ensuring in-

tegrity of the execution is essential, as several studies

have demonstrated the ability of an attacker to repro-

gram the ﬁrmware of a device, bypassing any run-

time monitoring subsystems that are running in the

same processor as the standard functionality (Miller

and Valasek, 2015; Computerworld Magazine, 2012).

Running the runtime monitors in the same pro-

cessor as the standard functionality introduces im-

portant challenges in terms of risk of breaking extra-

functional requirementssuch as timing or resource us-

age as well as ensuring isolation between the moni-

tor and the standard functionality. Moreover, “system

crashes” due to corruption in the execution environ-

ment (e.g., stack or memory corruption) can disrupt

or entirely disable the runtime monitor. This con-

stitutes an important advantage for runtime monitors

that are physically isolated from the processor being

monitored. This aspect is even more critical when we

consider security, given the threat to the integrity of

the software being executed.

On the other hand, running in the same processor

alongside the software being monitored has the ad-

vantage that more information is available to the run-

time monitor, increasing its potential effectiveness.

Thus, we posit the approach of using two runtime

monitors: one that runs in the same processor as the

software being monitored to enforce correctness and

reliability; and one that runs as an isolated device

to ensure security— possibly in addition to enforcing

properties related to correctness and reliability. We

observe that a system crash, regardless of whether it

is related to a security attack, is detected by the exter-

nal monitor.

It is also important in a practical implementation

to ensure that the external monitor system is phys-

ically isolated from the Internet or in general from

any form of remote connectivity. At the very least,

a carefully designed air gap mechanism should be in-

cluded, ensuring that the monitor lacks any capabil-

ities of wireless connectivity and any ﬁrewall func-

tionality implemented in FPGA or otherwise repro-

grammable ﬁrmware.

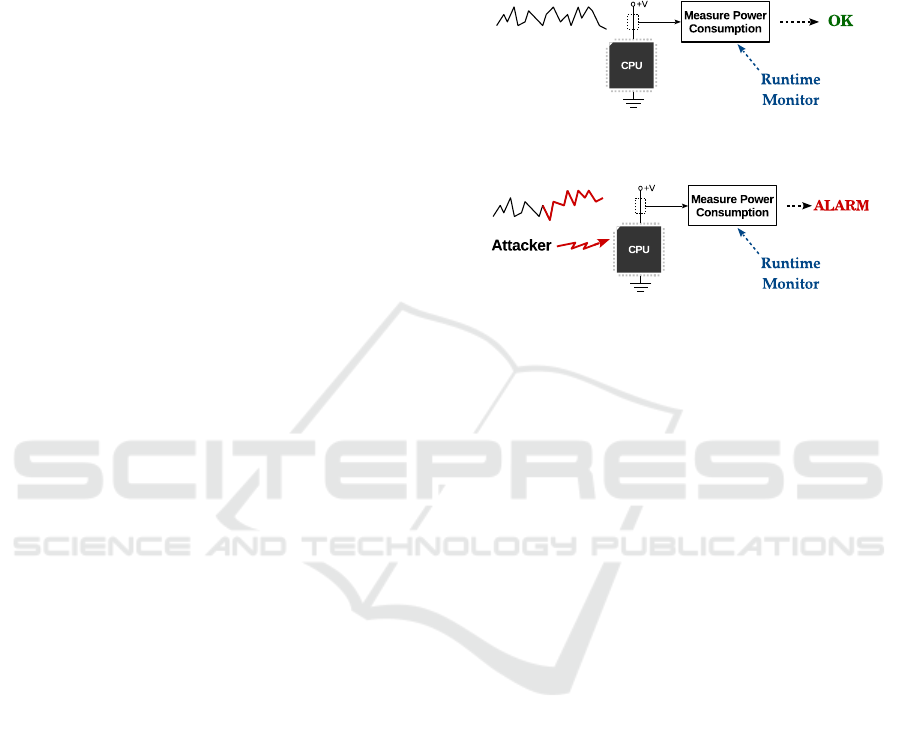

We propose the use monitoring through power

consumption, since this is a technique with a remark-

able potential for effectiveness. Given the strict phys-

ical relationship between execution and power con-

sumption, an attacker would have to “bend the Laws

of Physics” to be able to inject malware that exhibits

the same power consumption proﬁle as the original

software in the device. At the very least, the attacker

would be limited to executing software that produces

a power consumption proﬁle “close enough” to the

original (which they may or may not know, depending

on the speciﬁc system), and yet do something useful

for the attacker. Figure 1 illustrates this approach.

(a) Authentic Execution

(b) Attacker Injects Malware

Figure 1: Runtime Monitoring Through Power Consump-

tion.

Two different approaches have recently appeared

in the literature: the monitor system can reconstruct

the execution trace and then analyze the program’s ex-

ecution directly, or it can analyze characteristics of the

power trace and detect deviations from normal pat-

terns. This is illustrated in Figure 2.

The former approach has been demonstrated in

(Moreno and Fischmeister, 2016; Liu et al., 2016;

Moreno et al., 2013; Msgna et al., 2013). These

techniques can be combined with the work presented

in (Moreno et al., 2016), where a compiler optimiza-

tion stage is used to reorder instructions in the gen-

erated binary code to maximize distinguishability be-

tween the power traces for different sections of the

program, potentially increasing the effectiveness of

the program trace reconstruction.

Clark et al. (Clark et al., 2013) presented an ap-

proach based on applying pattern classiﬁcation tech-

niques to the power trace as a whole. This tech-

nique can be useful for devices with simple and highly

repetitive tasks (as those presented in that work), and

it may also be suitable for analysis of a power trace

containing power consumption of multiple devices,

where it may be easier than attempting to disaggre-

gate the data in the power trace. Though the work by

Clark et al. uses a statistical pattern recognition ap-

proach, this technique may be combined with neural

networks or any other machine learning techniques,

even if, to the best of our knowledge, none of these

have been attempted by the research community.

On the Security of Safety-critical Embedded Systems: Who Watches the Watchers? Who Reprograms the Watchers?

495

(a) Reconstruct Execution Trace and Analyze

(b) Apply Classiﬁcation Techniques to the Power Trace

Figure 2: Runtime Monitoring – Processing Approaches.

3.2 Secure Remote Firmware Upgrades

Though the standard practice of software upgrades

with security ﬁxes to patch vulnerabilities as they are

found has been criticized, no convincing and prac-

tical alternatives have been proposed. The evidence

pointing to the need of this practice at the very least

as a “safety net” is compelling: examples such as

Heartbleed (OpenSSL Team, 2014), Bash Shellshock

(NIST, 2014), and POODLE (M¨oller et al., 2014)

highlight the importance of upgrade mechanisms; the

use of recognized tools that are assumed to be secure

could have unexpected critical security ﬂaws, poten-

tially introducing severe vulnerabilities in our system.

Indeed, (McAfee, 2015) describes this practice as es-

sential to ensure security in automotive systems while

reducing the cost of recalls. (SAE, 2016) mentions

this aspect as a recovery mechanism that still requires

more research to be securely applied and accepted by

customers.

However, this practice is especially difﬁcult given

the unsupervised nature of embedded systems, mak-

ing it hard to prevent abuse of this mechanism for the

purpose of reprogramming the ﬁrmware with the at-

tackers’ malware. (McAfee, 2015) mentions “appro-

priate user controls and safety precautions”, but it pro-

vides no concrete examples of any efﬁcient and effec-

tive methods to accomplish it.

In low-criticality systems, where the required se-

curity level is moderate, the designer can embed a

public-key in the device so that ﬁrmware upgrades

can be digitally signed. The device veriﬁes the sig-

nature and only applies the upgrade if the veriﬁca-

tion passes. However, this requires tamper-resistance

mechanisms to protect the integrity of the embedded

public-key, which may not provide a high enough se-

curity level for use in safety-critical systems.

We propose a secure remote ﬁrmware upgrade

mechanism based on an alternative form of using

single-challenge PUFs. We describe the operation

of this mechanism and provide a sketch of possible

implementation details. Our goal and hope is that the

communities of computer security and embedded sys-

tems (including industry) will discuss, evaluate and

critique our proposed technique, eventually leading to

practical implementations.

The approach is based on using the output of a

single-challenge PUF as the cryptographic key that

will be used to encrypt the binary with the new

ﬁrmware that the device receives. However, using en-

cryption keys generated by PUFs leads us to a tricky

situation: if the device never outputs this key, then

it is only useful to encrypt data at rest (i.e., data en-

crypted by the device that only the device itself will

read and decrypt at a later time). If we want to use

this PUF to generate a key to communicate with the

device in a way that the device can rely on the au-

thenticity of the source, then the situation gets more

complicated: the (legitimate) user has to possess this

key so that they can encrypt the data transmitted to

the device. Thus, a mechanism for the user to request

the key from the device is necessary. This introduces

a problem: if the user can request the device to output

the key, then an attacker can also request and obtain

the key. We observe that encrypting that very trans-

mission (the device transmitting the key) or attempt-

ing to authenticate ourselves to the device, so that it

only outputs the key to the legitimate user, are not ef-

fective approaches: to be able to accomplish that, we

need an additional shared secret with the device; that

is, we need another secret key embedded in the de-

vice. However, the premise is that PUFs provide a

superior mechanism to hide secrets in a device, so an

additional auxiliary secret would simply introduce a

weaker link, making the use of the PUF pointless.

With ECC (or in general with public-key cryptog-

raphy), we could get around this limitation, but only

in one direction and would not solve the above prob-

lem: the device could use the output of the PUF as

the private key, and generate the corresponding pub-

lic key (examples and details can be found in (Han-

kerson et al., 2004)), which can be disclosed with-

out any restrictions. The problem then is that any-

one can use this public key to encrypt transmissions

to the device, and the device has no way to authenti-

cate the sender of those transmissions (again, unless

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

496

some other shared secret is available, which as men-

tioned is not a valid option).

The key observation is that the legitimate user of

the devices has one important advantage: it can be the

ﬁrst party to ever request the device to disclose the

key (the output of the PUF). In our proposed mecha-

nism, the device incorporates a protocol for one-time

disclosure of this key, with this disclosure being un-

conditionally followed by a step that physically severs

the path from the PUF to device bus or external pins.

Thus, we can safely use this key to communicate with

the device, since it is virtually guaranteed that no-one

else will be able to obtain the key. Figure 3 illustrates

this idea.

Figure 3: Mechanism for One-Time Disclosure of Encryp-

tion Key.

We notice that an insecure alternatively would be

for the device to include an externally issued com-

mand that severs the path between the PUF and the

outside of the device. This certainly provides more

ﬂexibility, but it introduces two risks: (1) the user

could fail to issue the command to sever the path

from the PUF to the outside, leaving the key acces-

sible without any restriction; and much more severe,

(2) a malicious manufacturer of the chips with this

functionality (or a manufacturer with its infrastruc-

ture compromised) or a malicious entity in the supply

chain could steal and keep the keys before shipping

the chips to the legitimate user. We need the device-

enforced aspect of self-destruction upon ﬁrst access,

so that if someone steals the key, the legitimate user

will detect it and they will simply discard the device.

The particular scenario of interest to us is that

where the output of a PUF is used as the encryp-

tion key for a ﬁrmware upgrade. The vendor of the

devices in this case extracts the key for each device

before shipping them and securely stores them in a

database. These keys can be later used to encrypt

the transmitted binaries with the new ﬁrmware. This

mechanism prevents anyone other than the manufac-

turer from replacing the ﬁrmware of those devices.

The guarantee is quite strong on the side of the device,

since it has the same advantages as PUFs in general.

If the mechanism to physically sever the path from the

PUF to the outside world is properly implemented,

then we can have a strong assurance that no-one else

will be able to extract the key from the device. One

point of failure does remain, of course: the keys are

stored in a database under the manufacturer’s control,

which may be subject to attacks. However, with the

legitimate operator of the system being in physical

possession of that database, strong layers of security

can (and must, of course) be added.

Multiple instances of this mechanism (i.e., multi-

ple PUFs with one-time output disclosure) could be

included for various purposes; for example, an addi-

tional encryption key could be used for regular com-

munications where the device needs to authenticate

incoming transmissions. Though the same key gen-

erated by the one PUF in the device could be used

for multiple purposes, using separate keys for differ-

ent purposes provides an increased level of security,

so we suggest that at least the key used for encrypting

the binaries in ﬁrmware upgrades should be separate

from any keys for other purposes.

4 DISCUSSION AND FUTURE

WORK

Some important challenges need to be solved for

our proposals to be feasible approaches in practice.

Though we plan to tackle some of these issues, we

hope that the communities of computer security and

embedded systems will also take on these challenges.

For the power-based runtime monitoring, the as-

pect of an adequate action by the system upon de-

tection of anomalous behavior is crucial. We believe

that this is rather an engineering aspect, and it is spe-

ciﬁc to the particular system and application domain

where the technique is used. Aspects such as real-

time operation given reasonable amount of comput-

ing power and minimization of training database size

are also important. Information from additional chan-

nels could further improve performance by providing

clues about the current operation of the program. An

example of this is the use of timing of communica-

tions in the CAN bus (Cho and Shin, 2016).

Our proposed remote ﬁrmware upgrade mecha-

nism also has important engineering aspects that need

to be solved, such as storage and management of the

devices’ keys, and protocols for the actual upgrades,

which require generation of unique encrypted binaries

for each device. On the research side, the communi-

On the Security of Safety-critical Embedded Systems: Who Watches the Watchers? Who Reprograms the Watchers?

497

ties still need to investigate the feasibility and effec-

tiveness of the method, eventually leading to practi-

cal implementations. Regarding the use of one-time-

disclosed PUF-generated cryptographic keys for mul-

tiple applications, we emphasize our recommendation

of the use of separate keys for different purposes, or

at the very least, one separate encryption key for the

purpose of ﬁrmware upgrades.

5 CONCLUSIONS

In this paper, we have proposed and discussed tech-

niques for runtime monitoring of security properties

in safety-critical embedded systems and for secure re-

mote ﬁrmware upgrades. These techniques are aimed

at solving two related problems that become critical

as the level of connectivity of these systems increases.

Some important challenges remain to be solved be-

fore these techniques can be effectively applied in

practical systems, and it is our hope that the com-

munities of computer security and embedded systems

will evaluate and discuss these techniques, eventually

leading to practical implementations.

ACKNOWLEDGEMENTS

This research was supported in part by the Natu-

ral Sciences and Engineering Research Council of

Canada and the Ontario Research Fund.

REFERENCES

Avizienis et al. (2004). Basic Concepts and Taxonomy of

Dependable and Secure Computing. IEEE Transac-

tions on Dependable and Secure Computing, 1(1):11–

33.

Cho, K.-T. and Shin, K. G. (2016). Fingerprinting Elec-

tronic Control Units for Vehicle Intrusion Detection.

USENIX Security Symposium.

Clark et al. (2013). WattsUpDoc: Power Side Channels

to Nonintrusively Discover Untargeted Malware on

Embedded Medical Devices. USENIX Workshop on

Health Information Technologies.

Computerworld Magazine (2012). Pacemaker Hack Can

Deliver Deadly 830-Volt Jolt.

Hankerson, D., Menezes, A., and Vanstone, S. (2004).

Guide to Elliptic Curve Cryptography. Springer-

Verlag.

Havelund, K. (2008). Runtime Veriﬁcation of C Programs.

In International Conference on Testing of Software

and Communicating Systems.

Herder, C., Yu, M.-D., Koushanfar, F., and Devadas, S.

(2014). Physical Unclonable Functions and Applica-

tions: A Tutorial. Proceedings of the IEEE, 102(8).

International Electrotechnical Commission (2006). Nuclear

Power Plants – Instrumentation and Control Systems

Important to Safety – Software Aspects for Computer-

Based Systems Performing Category A Functions

(IEC-60880).

International Ofﬁce for Standardization (2011). Interna-

tional Standard ISO-26262 – Road Vehicles Func-

tional Safety.

Langner, R. (2011). Stuxnet: Dissecting a Cyberwarfare

Weapon. IEEE Security & Privacy.

Liu et al. (2016). On Code Execution Tracking via Power

Side-Channel. In ACM Conference on Computer and

Communications Security. ACM.

McAfee (2015). Automotive security best practices.

Miller, C. and Valasek, C. (2015). Remote Exploitation of

an Unaltered Passenger Vehicle.

Miller, C. and Valasek, C. (2016). Advanced CAN Injection

Techniques for Vehicle Networks.

M¨oller, B., Duong, T., and Kotowicz, K. (2014). This POO-

DLE Bites: Exploiting The SSL 3.0 Fallback – Secu-

rity Advisory.

Moreno, C. and Fischmeister, S. (2016). Non-intrusive

Runtime Monitoring Through Power Consumption: A

Signals and SystemAnalysis Approach to Reconstruct

the Trace. International Conference on Runtime Veri-

ﬁcation (RV’16).

Moreno, C., Fischmeister, S., and Hasan, M. A. (2013).

Non-intrusive Program Tracing and Debugging of

Deployed Embedded Systems Through Side-Channel

Analysis. Conference on Languages, Compilers and

Tools for Embedded Systems.

Moreno, C., Kauffman, S., and Fischmeister, S. (2016).

Efﬁcient Program Tracing and Monitoring Through

Power Consumption – With A Little Help From The

Compiler. In Design, Automation, and Test in Europe

(DATE).

Msgna, M., Markantonakis, K., and Mayes, K. (2013). The

B-side of side channel leakage: control ﬂow security

in embedded systems. In International Conference

on Security and Privacy in Communication Systems,

pages 288–304. Springer.

Navabpour et al. (2013). RiTHM: A Tool for Enabling

Time-triggered Runtime Veriﬁcation for C Programs.

In Foundations of Software Engineering. ACM.

National Institute for Standards in Technology (2014).

BASH Shellshock – CVE-2014-6271 (Exported func-

tion through environment variable).

OpenSSL Team (2014). OpenSSL Heartbeat Read Overrun

– CVE-2014-0160.

Pnueli, A. and Zacks, A. (2006). PSL Model Checking and

Run-Time Veriﬁcation via Testers. International Sym-

posium on Formal Methods.

RTCA / EUROCAE (2012). DO-178C: Software Consider-

ations in Airborne Systems and Equipment Certiﬁca-

tion.

SAE International (2016). Cybersecurity Guidebook for

Cyber-Physical Vehicle Systems.

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

498
