A CKAN Plugin for Data Harvesting to the Hadoop Distributed File

System

Robert Scholz, Nikolay Tcholtchev, Philipp Lämmel and Ina Schieferdecker

Fraunhofer Institute for Open Communication Systems (FOKUS), Berlin, Germany

Keywords: Smart Cities, Open Data, Distributed Processing, Hadoop, CKAN.

Abstract: Smart Cities will mainly emerge around the opening of large amounts of data, which are currently kept closed

by various stakeholders within an urban ecosystem. This data requires to be cataloged and made available to

the community, such that applications and services can be developed for citizens, companies and for

optimizing processes within a city itself. In that scope, the current work seeks to develop concepts and

prototypes, in order to enable and demonstrate, how data cataloging and data storage can be merged towards

the provisioning of large amounts of data in urban environments. The developed concepts, prototype, case

study and belonging evaluations are based on the integration of common technologies from the domains of

Open Data and large scale data processing in data centers, namely CKAN and Hadoop.

1 INTRODUCTION

Data Processing is at the heart of future Smart

Cities. Current Smart City projects often include the

provisioning of a metadata storage which helps to

keep track of the available datasets and offers a

unified way of accessing information regarding

belonging data, such as format, size and licensing.

Smart City solutions utilize the data described in

metadata catalogs and subsequently require the

integration of big and diverse data on distributed

systems. Currently, there seems to be a lack of

attempts and research efforts concerning the seamless

integration of such systems and the provisioning of a

unified interface and data processing capabilities in

direct association with a metadata catalog. As of now,

required data(-sets) need to be manually collected,

transferred onto the processing system and kept up-

to-date, thereby forfeiting potential advantages

offered by the aforementioned cataloging systems.

The Comprehensive Knowledge Archive

Network (CKAN; CKAN Association, 2015) is one

of the two most widely used metadata storage systems

and a core component in various Smart City projects

(Matheus and Manuella, 2014; Lapi et al., 2012;

Marienfeld et al., 2012). CKAN’s metadata catalog

holds entries for resources from a diverse set of

sources and is updated automatically on a periodic

basis in order to ensure the topicality of the data. Its

harvester (Mercader et al., 2012) extends the manual

way of publishing of datasets by enabling the

automatic inclusion of sources such as other metadata

hubs or similar by means of harvester-plugins.

Hadoop (The Apache Software Foundation [TASF],

2017a) is a popular and the currently most widely

used open source framework for distributed storage

and processing of big amounts of data.

This paper describes a novel concept for the

integration of CKAN and the Hadoop Distributed File

System (HDFS; Shvachko et al., 2010), which is the

starting point for further storage and processing

within other Hadoop subsystems. The concept builds

on the CKAN platform and utilizes the core structure

of a CKAN plugin. This concept and belonging

prototype is denoted as HdfsStorer plugin and

constitutes the key contribution of this work. It serves

the purpose of integrating CKAN as a metadata store

with the powerful capabilities of Hadoop in order to

enable the efficient handling of large (open) data sets

in urban environments.

As already mentioned, metadata catalogs such as

CKAN, even though providing some features, can

hardly satisfy the requirements - with respect to data

storage - posed to a logically centralized data hub, but

can instead deliver an entry point for its realization.

Distributed file systems, such as the HDFS, are more

suitable for big data storage.

The HDFS is the underlying distributed file

system for storing data for the Hadoop data

Scholz, R., Tcholtchev, N., Lämmel, P. and Schieferdecker, I.

A CKAN Plugin for Data Harvesting to the Hadoop Distributed File System.

DOI: 10.5220/0006230200470056

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 19-28

ISBN: 978-989-758-243-1

processing system. Its inherent reliability and

scalability with regard to storage capacity and

computing resources renders the HDFS suitable for

coping with the vast amounts of data encountered in

a Smart City. Therefore, in the scope of this work,

CKAN is extended by the possibility for uploading

the data referenced in its metadata catalog to the

HDFS. This extension - designed, developed and

evaluated in the scope of German national and

European projects related to Open Data and Smart

Cities - is presented in the current paper and referred

to as HdfsStorer.

The following paragraphs describe this extension

in detail and outline its advantages and disadvantages.

The second section encompasses a short review of

already existing tools and is followed by section 3 that

elaborates the functional and non-functional

requirements for the plugin. Afterwards, the

architecture of the plugin is described in section 4 and

its performance is evaluated by means of a prototype

(described in section 5) and a use-case scenario in

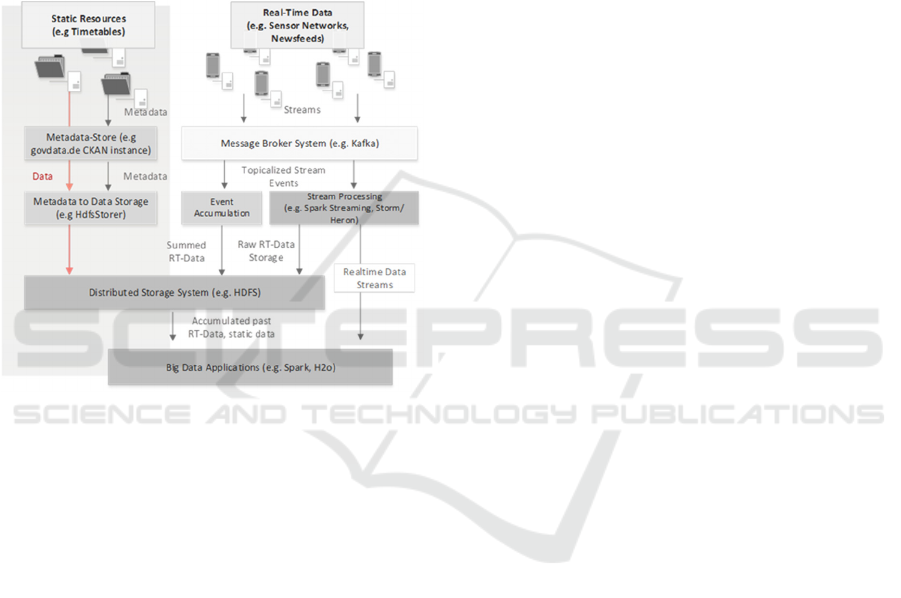

section 6. Furthermore, a description of a possible

real world Smart City application for the plugin is

provided in section 7. The paper is concluded by a

general discussion section and a summary of the

contribution.

2 RELATED WORK

In addition to the HDFS, a multitude of other

distributed file storage systems exists, such as Apache

Cassandra (TASF, 2017b; Fan et al., 2015) - a

distributed design with multiple entry points/where

each node can also act as a master, or Open Stack

Swift and Cinder (Rosado and Bernardino, 2014),

which are distributed object and block storages

respectively, abbreviated as OS-S/C (Open Stack –

Swift and Cinder). Commercial solutions, such as the

Ceph file system (CephFS; Weil et al., 2006) and the

Amazon S3 cloud (Amazon.com, 2017) are also

available. Furthermore, there are a variety of add-ons

or pluggable systems that allow for the

interoperability of the various associated

technology stacks. These include OS Sahara (Thaha

et al., 2014), formerly known as Savanna, which

allows Hadoop processing engines to work on data

stored on OS-S/C, as well as the CephFS Hadoop

plugin (Red Hat, 2014), that makes data stored in the

CephFS available to the above mentioned Hadoop

processing engines. In this work we will focus on the

HDFS as it offers the most straightforward entry point

for further processing by a maximum amount of

processing engines.

Stream processing tools such as Kafka (Kreps,

Narkhede and Rao, 2011) already provide the

possibility of pushing streaming data (in contrast to

batch data, which shall be the focus of this work) from

a variety of sources onto the HDFS, where it will be

available for long term usage. So far, there is also no

integration with metadata portals that register and

catalog such data streams. However, as the amount of

data, which ultimately has to be manually transferred,

is limited to access information about the stream - e.g.

Kafka related information for accessing the data

stream - such integration is also not of major

importance.

To shift batches of data from one repository to

another, appropriate protocols are needed. Ahuja and

Moore (2013) pointed out a weakness regarding the

consumption of computing resources by the

Transmission Control Protocol (TCP) during the

transfer of big amounts of data. Therefore Tierney et

al. (2012) suggest the usage of the Remote Direct

Memory Access protocol over Converged Ethernet

(RoCE) for data transfer to/from and between

repositories.

To the authors’ best knowledge, the question of

automated data import on the basis of metadata

storage engines/catalogs has not been addressed yet.

As an example, Khan et al. (2015) state that they use

the data from the Bristol Open Data portal (Bristol

City Council, 2015), but do not mention how it is

being accessed and transferred to the utilized

distributed file system. The current work aims at

bridging this gap on the concept level, as well as on

the level of case studies and prototype

implementations.

3 REQUIREMENTS FOR THE

HDFS-HARVESTER

Based on the inherent properties of big data itself and

with regard to the presence of very diverse

environments in which both CKAN and Hadoop find

their applications - a similar diversity can also be

found within the field of Smart Cities - the following

main requirements for an integrating

component/plugin can be derived:

Req. 1: Seamless integration of the HdfsStorer

with CKAN: The user experience should not be

disturbed by the plugin running in the background.

Req. 2: Timeliness of resources: Every time a

new resource is created and provided, an existing

resource updated or respectively deleted, these

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

changes should be mirrored on the distributed file

system (HDFS).

Req. 3: Network Usage Economization: Files on

the HDFS should only be updated if the source data

has changed, not upon every harvesting process.

(CKAN checks periodically for changes in remote

datasets).

Req. 4: Completeness: Files irrespective of their

size or format should be uploaded to the file system.

Especially, there should be no upper limit for file

upload as has been the case with the CKAN-internal

Filestore.

Req. 5: Backwards-compatibility: A way for

importing datasets to the HDFS that have been

registered with CKAN prior to the activation of the

plugin should be available.

Based on these key requirements, the next

sections proceed with devising the architecture of the

HdfsStorer plugin, evaluating it based on a prototype,

as well presenting the belonging case study and

measurements.

4 ARCHITECTURE OF THE

HDFS-HARVESTER

CKAN offers different points of entry for plugin

development. These are given by programming

interfaces. Mainly there are three important events to

consider in the lifecycle of a data resource: 1) the

creation of a new resource, 2) the update of an

existing resource, and finally 3) the deletion of it. The

interface, which is foreseen to handle these events, is

the IResourceController within the Python based

CKAN platform, offering the functions after_create,

after_update and before_delete. The other functions

provided are left out of consideration, as they won’t

have to be implemented.

There are certain peculiarities in CKAN with

respect to metadata and dataset cataloging that have

to be considered. In CKAN, a package generally

describes a set of data and stores information about

the dataset along with all given attributes and a list of

the resources belonging to it. These resources

describe single external files (actual data), referenced

by an URL. Resources and packages, which are

deleted within CKAN, remain within their respective

PostgreSQL (Momjian, 2001) database and only a

single attribute is changed, which prevents them from

appearing in the catalog. A user with appropriate

authorization can still access them. Only after their

purging by a system administrator, either through the

CKAN web interface, or from the corresponding

database directly, resources and packages are fully

removed. Unfortunately, there is no possibility for

intercepting purge events (e.g. a function called

“after_purge”), so that in the course of each deletion,

i.e. on each call of the before_delete function, the

belonging dataset file has to be fully removed from

the HDFS storage. This procedure relates to another

interesting aspect within CKAN given by the fact that

package deletion does not automatically result in the

deletion of the embedded resources, i.e. resources

included/referred in this package/metadata.

Therefore, complementary to the core HdfsStorer

functionality, each package deletion event has to be

intercepted by implementing the IPackageController

interface and belonging embedded resources must be

removed.

The description of the architecture is further

refined in the next subsections by introducing a view

on the components of HdfsStorer as well as on the

process flows and interactions amongst these

components.

4.1 Components and Dynamic Aspects

The general architecture of the plugin including a

flow of operations – i.e. an enumeration of a sequence

of operations – is illustrated in Figure 1. Thereby the

HdfsStorer plugin is depicted as accommodated

within the CKAN harvesting eco-system, since it

essentially resembles a CKAN extension.

Figure 1: Plugin Architecture (highlighted in orange).

Deletion pathway is not included.

Harvester

HdfsStorer

Harvest Packages

1b) Send

resource

packages

3) Exchange of

Fileinfo and

Redirect

4a) Upload and Download of

(Parts of) Files

API

2) Resource

Packages

1a) Creation

and Request

of Resources

Feedback

/Link to

Webhdfs

Harvest Sources

CKAN User

Internal Communication

* Optional Function

4b) Internal

Forwarding

Namenode

Webhdfs

DataNode 1

Webhdfs

DataNode 2

Webhdfs

Direct Download

A CKAN Plugin for Data Harvesting to the Hadoop Distributed File System

Once a resource is created or updated with respect

to its metadata in CKAN, the referenced data resource

(file) needs to be uploaded to the HDFS - operations

(1a), (1b), (2), (3) and (4a-b) in Figure 1. In turn, if a

resource or package is deleted, the corresponding

resource files have to be removed again. These files

can be identified by means of the resource IDs, as for

each ID a separate directory is created on the file

system.

CKAN’s native deletion events trigger API calls

to the methods implemented by the HdfsStorer

plugin. Upon creation, update and deletion of a

resource in CKAN, the corresponding ID and a

reference to the up-to-date file are carried along in the

parameters. If an entire package is to be deleted in

CKAN, only the package ID is given, requiring an

additional lookup in a database table for resource

identification and removal.

Communication and data exchanges - mainly

operations (3-4) in Figure 1 - between the HdfsStorer

plugin and the HDFS (in the upper right part of the

figure) are managed over the WebHDFS - a

Representational State Transfer-API for Hypertext

Transfer Protocol/TCP-based manipulation of

resources stored on the HDFS (TASF, 2013).

The employed WebHDFS operations are given in

Table 1 and encompass functionalities such as 1)

checking for the existence of a file or directory, 2) the

access and download (of parts) of a file, 3) the

creation of directories, 4) access to the location for

writing a new file thereby overriding old resource

files, 5) appending to a newly created resource file

and 6) the deletion of resource files and folders. The

order in the table corresponds to the order of the

enumeration.

Table 1: List of WebHDFS operations.

Method Operation Fields

HTTP

Return Type

GET liststatus

200 (OK) +

JSON

GET open

200 (OK) +

FILE

PUT mkdirs

200 (OK) +

JSON

PUT createfile data=' '

203

(redirect)

POST append

data;

content-

type

200

DELETE delete 200 + JSON

5 PLUGIN IMPLEMENTATION

In the following, the detailed description of the plugin

implementation is provided, starting with the

procedure for resource creation and updates.

5.1 Creation and Update of Resources

Before a new resource is created on CKAN - either

by means of manually adding it through the web

interface or by harvesting it from another source - the

before_create methods found in all plugins classes

implementing the IResourceController interface are

called whereby the data (dictionary) structure holding

information about the new resource is passed as

parameter. This is followed by internal addition of the

resource in CKAN and the call of the respective

after_create methods. A similar path is followed

during the update and deletion of resources.

The procedure implemented within the

HdfsStorer plugin is illustrated in Figure 2. Upon the

call of the after_create method implemented by the

HdfsStorer plugin, a folder named after the ID of the

resource is created on the HDFS. This folder can be

found inside the resource storage folder, which has

been previously created on the HDFS and specified in

an additional parameter within the CKAN

configuration. Subsequently, a new empty file with

identical name to the remote resource file is created.

For further appending of data, a redirect to the HDFS

DataNode, on which the new empty file lies, is

provided. Consequently, chunk by chunk of the

original file is read and appended to the previously

created file. By chunking and appending, even (larger

than the machine’s memory) files can be transferred -

the biggest file transferred during testing had a size of

roughly 30 GB. Therefore, Requirement (4) can be

deemed as fulfilled. Should the file size exceed the

specified HDFS block size, the remaining data is then

automatically forwarded to a newly created block on

a different DataNode. Data replication is also

conducted on the fly in the background.

The concept of hashing plays an important role in

the current circumstances. As only resource files

should be updated, whose contents have actually

changed since the last update, a hash check was

implemented (on the right in Figure 2), satisfying

Requirement (3). Normally, a check sum is built on

the basis of entire files.

For the computation of a checksum, the files

normally have to exist locally on one machine. As it

cannot be assumed that every data provider will also

include appropriate checksums along with their files

and the HDFS only provides a so called distributed

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

checksum for files stored on it, both files would have

to be downloaded to a single machine in order to

calculate and compare their checksums. This would

result in additional network traffic and thus requires

further elaboration.

Figure 2: Upload of new or updated Resources to the HDFS

through the Plugin. Possible occurring errors are shown in

red.

Depending on the nature of the files implied in the

application context, one of the two following

approaches can be taken instead: 1) the comparison is

skipped entirely and on every update the resource file

is uploaded anew to the HDFS or 2) comparison of

the files is done on the basis of a partial checksum.

For the (CKAN-)HdfsStorer plugin the second

approach (partial checksum check) was taken in

anticipation of the large bodies of data needed for the

realization of Smart City solutions. It has to be noted,

that the filename is not taken into consideration for

the creation of this partial checksum, as simple

renaming of a file does not necessarily come with a

change in the contents of a file. A difference in file

size is a good indicator for differences in the contents

of a file and therefore the file size makes up one

constituent for the hash key. Files like logs, which do

constitute a big part of what has to be processed on

big data engines, are usually changed by either

appending to the back or front of a file. Usually, this

would also trigger a change in file size, and thus be

detectable by looking at the file size only. Given the

special case of a constant size log - such as for

example logs only saving data for the X-recent days,

or only saving X-number of entries - this does not

hold anymore. By chunking a specific number of

bytes at either the front or the back of a file (or both)

and including these as further ingredients into the

hash key, changes of such files could be detected. If

the number of bytes is high enough, the entire

checksum of smaller files (e.g. configuration files or

images) is computed within the presented approach.

The downside is that files with no difference in

file size after update, which are larger than the defined

chunk size, with static header (beginning of the file)

and footer (last bytes of the file) will still remain

undetected. These files are not suited very well for

distributed processing, as they are usually hard to

split. Furthermore, the very rare case of having only

minor differences in a large splittable, identically

sized file remains undetected. As usually individual

items from a big dataset are only of minor importance

to the final result (after processing the entire dataset)

and the more single items are changed, the more

likely a difference in file size can be detected, this

drawback can be deemed acceptable in the majority

of cases.

5.2 Parallel Upload of Data

In order to not negatively influence the performance

of the CKAN system and thus conform to

Requirement (1), the decision was taken to not have

the data uploads to the HDFS run in parallel, as -

depending on the specific setting - many concurrent

uploads will likely use up the entire bandwidth of the

server. This should be noted when setting the

repetition period for harvesting, as a single harvesting

circle might be slowed down markedly and might

result in an ever-increasing queue of harvesting jobs

and thus outdated data. The setup of a second CKAN

server only for the purpose of harvesting with

periodical synchronization of its database with the

main CKAN server could allow for parallel data

upload without infringing on Requirement (1).

Similar setups are already under development and

employment.

5.3 Deletion of Resources

The deletion of a single resource on CKAN results in

the call of the before_delete function of the

IResourceController interface implemented by the

plugin. Package deletion in CKAN does not result in

the deletion of the respective resources and thus does

NewResource

iscreated

ResourceisUpdated

Overridewithemptyfile

AppendChunktolocalFil e

GetfirstXBytesof

remoteFile+Filelength

GetfirstXBytesof

existingFile+File length

Finishe d

DIFFERENT

SAME

Cannot

retrieve

Chunk

YES

Bothfil es

exist?

ComputeHashes

Compare

Hash

YES

GetChunkof

RemoteFile

Chunks

remaining?

A CKAN Plugin for Data Harvesting to the Hadoop Distributed File System

not result in the call of any functions from the

IResourceController interface. Therefore, package

deletion has to be intercepted by the (CKAN-)

HdfsStorer plugin by implementing the after_delete

function from the IPackageController interface.

After retrieval of the corresponding resource IDs in

both of these two function, the deletion of the specific

directories on the HDFS and their contents is

triggered through the WebHDFS API. This ensures

Requirement (2).

Figure 3: Import of already existing Resources to the

HDFS.

5.4 Backwards Compatibility

In order to fulfil Requirement (5), which refers to

the handling of legacy CKAN datasets, another

module was developed. This module is basically in

charge of reading the data in the CKAN Datastore

(Winn, 2013; CKAN Association, 2017) and pushing

it to HDFS thereby taking care of consistency. The

process flow within this module is illustrated in

Figure 3. The resource information for each resource

registered within CKAN is read from the internal

PostgreSQL-database and thereupon uploaded to the

HDFS. In order to allow for fast recovery of recently

deleted packages and resources, CKAN does not

remove them directly from the database, but only

marks them as deleted. These are excluded from

uploading to the HDFS.

6 PROOF OF CONCEPT

In order to exemplify the feasibility and the

workflow of the plugin, a use case was defined

based on an algorithm from the field of Machine

Learning on two different processing engines for

classification of data points. The usage of two

different systems is intended to be representative of

the variety of paths the data can take once it has

been imported to the HDFS (due to free choice of

processing engines). Thereby, the HdfsStorer is the

enabler for such evaluations by allowing large scale

Big Data and Open Data to be integrated and

efficiently used in the scope of Smart Cities.

Building an application that takes as input a dataset,

which is linked to in the CKAN-catalog, essentially

consists of three major steps elucidated and

exemplified in turn.

6.1 Import of the Dataset(S) to the

HDFS by Means of the HdfsStorer

The used input dataset (Alinat and Pierrel, 1993)

held entries about phoneme properties (such as place

of articulation) and the corresponding classification

of those into phoneme classes. It was split into a

training and an evaluation part, stored in different

files.

Once the files are registered in CKAN, they

are automatically transferred to the HDFS by the

plugin.

6.2 Selection of the Appropriate

Processing Engine and Program

Logics

Both standard Hadoop MapReduce and its more

flexible in-memory counterpart Spark (TASF, 2016)

were used separately to train Artificial Neural

Networks (ANN) on the training set. A standard

backpropagation algorithm was employed for that

purpose, the details of which can be found in Liu, Li

and Miao (2010). The trained ANNs then served to

classify the data points of the evaluation set.

6.3 Job Execution and Result Retrieval

Jobs were executed through the command line. The

resulting classifications, based on the HdfsStorer

data uploads, can be retrieved from the HDFS

filesystem or the command console respectively. As

the target of this work is not to evaluate the

classification quality of different implementations,

only the training step will be considered in the

CurrentResource

Row

CurrentPackage

Row

Getthecontentsofbothtables

sortedbypackageID

Incrementuntilthenew

Resourcehasadifferent

Package ID

YES

UploadResource

FilestoHDFS

YES

Increment

byone

Same Package

ID?

Packagenot

markedas

de leted?

Resourcenot

de leted?

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

following, in order to exemplify the performance of

two key approaches (Hadoop MapReduce and Spark).

Execution time was measured as the time

difference between job application submission and

job termination. The illustration of Spark and Hadoop

execution times in Figure 4 indicates that for the

current data set - imported over CKAN and the

HdfsStorer plugin - not only Spark execution times

are significantly shorter, whilst varying with the

number of ANN iterations, but also rise more slowly

than Hadoop execution times, probably due to its

much lower overhead for each iteration.

Moreover, Figure 5 depicts the mean memory

usage of both Hadoop and Spark during idle and

program execution with 100 iterations on top of the

open dataset that was imported over the HdfsStorer

plugin and CKAN. The vertical axis shows the

memory usage in Mb.

Due to the comparably small size of the data set,

expected tendencies (such as the much higher

memory usage by Spark) in the absolute RAM usage

statistics have not been evident. The difference

between idle and work intensive periods is greater for

both slaves in the Spark deployment than that of the

slaves in the Hadoop deployment, indicating the

stronger memory dependence of Spark during

processing. Hence, we see on how HdfsStorer can

enable the efficient evaluation of various distributed

processing engines for various real word datasets and

scenarios in Smart Cities and urban environments.

This evaluation gives an idea of the importance of

choosing the right processing engine for the

efficiency of the overall application. The usage of the

HDFS thereby enables the free choice of the

processing engine, as it is the basis for a wide range

thereof. The evaluation can be done on a wider basis

or can be targeting specific datasets or scenarios in

Smart Cities. This setup is overall enabled by the

HdfsStorer plugin, designed and prototyped in the

current work.

7 A SMART CITY SCENARIO

USING HADOOP AND CKAN

After having shown the general workflow of the

plugin and evaluated its principal applicability, it is

also possible to envision its working in the context of

a more complex scenario. For that purpose, we

envision the scenario that the public transport system

of a forthcoming Smart City is to be streamlined and

optimized. This includes schedule improvements

following the dynamic identification of peak traffic

hours and the possibility for both, delay and

occupancy prediction integrated with trip planning,

thus providing a better travel experience to

passengers This can help, as an example, to answer

questions such as “Will the airport express bus

normally arrive on time and should I worry about

fitting in along with my baggage? What about the

next bus? Is it worth to wait another ten minutes?”.

The data required for this particular scenario is

composed of two different classes: static and real-

time. The current schedule and past occupancy and

punctuality statistics along with the past road and

weather condition records are spread over different

data stores as static data and their location and other

information is indexed in the CKAN-catalog.

Periodical harvesting through CKAN keeps this

catalog up-to-date. Information about the current

weather, road and traffic conditions and the amount

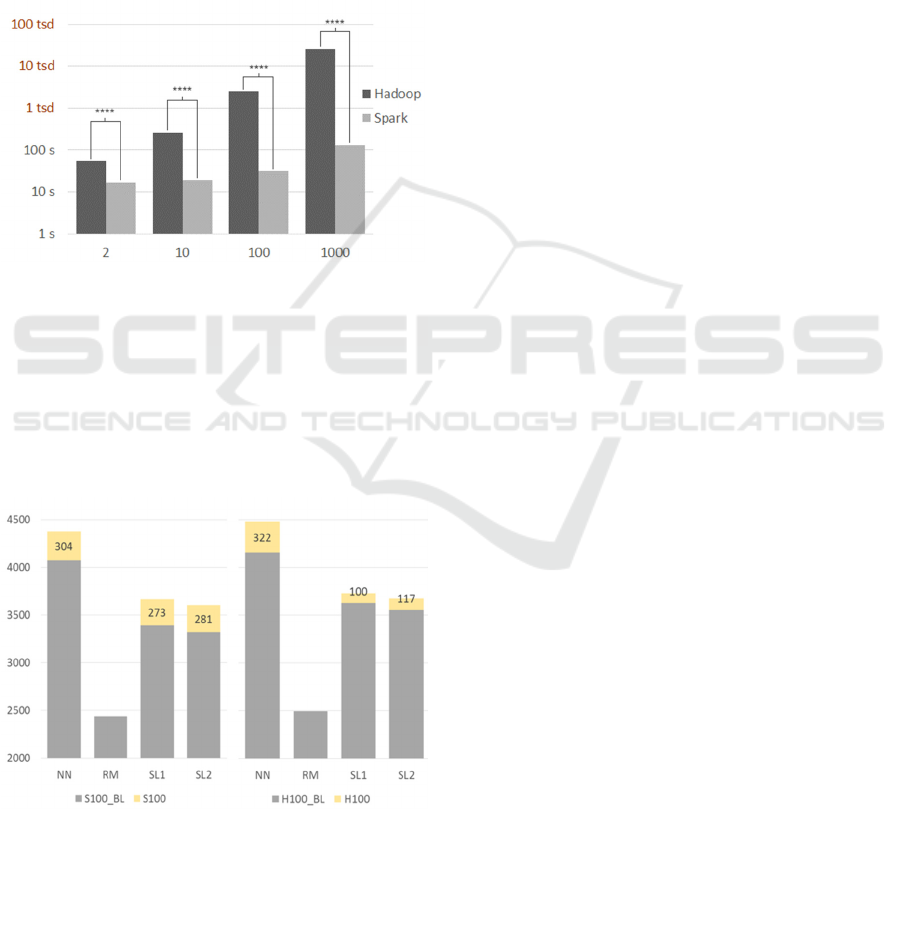

Figure 4: Comparison of Spark and Hadoop Executio

Times. Four stars indicate a significant deviation of the

means with a p-value less than 0.0001.

Figure 5: Hadoop (H) and Spark (S) Memory Usage during

idle ("Baseline” BL) and work intensive Periods shown for

eural Network Training with 100 Iterations. NN:

ameNode/MasterServer, RM: ResourceManager, SL1/2:

Slaves.

A CKAN Plugin for Data Harvesting to the Hadoop Distributed File System

of passenger measured by sensors inside the transport

vehicle are provided as streaming data.

Integration of these two types of data in Hadoop

is sketched in Figure 6. The HdfsStorer plugin serves

hereby as the intermediate for importing static data to

the HDFS according to information provided in the

CKAN-catalog (such as location of the original

dataset). Thereupon, different processing engines,

that can make use of the files stored on the HDFS and

data streams provided through message brokers,

integrate all this information and thus allow for said

enhancements.

A full implementation of a similar procedure can

be found e.g. on the H2O.ai github-page (H2O.ai,

2016). Therein Spark is used in combination with the

H2O extension (=Sparkling water) to create a flight

arrival delay prediction system based on past data and

current weather information. In contrast to our

scenario, the used dataset is already believed to be

existent on the HDFS right from the beginning, e.g.

by prior manual transfer. We extend such legacy

solutions by a more convenient way for data import

to a distributed filesystem, making use of a widely

applied data cataloging system (i.e. CKAN) in the

Smart City context.

8 DISCUSSION

This work described a possible realization of data

import on the basis of the CKAN metadata catalog to

the HDFS. The resulting CKAN plugin suits well the

requirements of many use cases that can be

encountered in a Smart City or during research.

According to the type of application, different ways

of realization are suitable for data import.

Furthermore, the structure of the implicated systems

has been described in detail and an overview about

current research efforts in the field of ICT for Smart

Cities and the state-of-the-art in the field of

distributed processing has been provided, along with

some intuition about possible future developments

and improvements therein. The choice of the HDFS

as target has been majorly motivated by the fact that

a multitude of popular processing systems can make

use of it. In the following, some prospects are

discussed, which are enabled through the HDFS

import of data, facilitated by the developed plugin.

Furthermore, the results of the current work are

briefly summarized and related to the possible

research directions.

CKAN is currently one of the two most employed

metadata storage systems. A multitude of Smart City

initiatives embrace the idea of creating a unified

publically accessible portal, where mostly various

governmental entities, but also other stakeholders, are

publishing their data. This is done with the hope that

once the data is available, private citizens and

companies will use it, in order to realize their own

ideas and make use of that portal, where mostly

various governmental entities, but also other

stakeholders, are publishing their data. New business

models are created and the public benefits emerge

through better services based on the published data.

For certain applications it is advantageous to

process the vast amounts of provided data in a

distributed fashion. For this purpose, the user would

normally have to accesses the web portal and search

for each dataset. In order to make use of the resources

provided therein, he or she has to download them

separately from the referenced websites. After this,

those files have to be uploaded in turn to the

distributed file system in order to enable their

processing. This way of accessing big data sets has

some major drawbacks: It is likely that the resource

size exceeds local file system storage capabilities

(and thus resource transfer wouldn’t work at all) and

it also takes quite some time going through the whole

process manually.

The current (CKAN-)HdfsStorer plugin was

developed from the perspective of a CKAN instance

operator. Making use of the CKAN plugin interface

structure for data import has the following

advantages: There is no need for writing a separate

client for handling requests to the CKAN API and

response parsing. The CKAN harvesters possess rich

extensions for harvesting other non-CKAN sources

Figure 6: Distributed Integration of Static and Real-Time

Data from different Sources.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

(e.g. other metadata catalogs or specialized formats)

and the data described in there can be easily imported

without the need for further solutions.

Additionally, operators of already existing CKAN

instances are provided with a convenient way of

going over from metadata-only storage to having

access to the full set of data, accumulated from a

multitude of different sources. This could be one

simple way for the creation of a Smart City Data Hub

on which centralized data processing could then take

place. Coupling the data import with CKAN has the

further advantage of ensuring the timeliness of the

data. A more elaborate data upload logic could also

contribute towards streamlining this process.

Aside of the usage in the context of a Smart City,

also other areas could benefit from the combined

power of CKAN and Hadoop: The field of

computational linguistics uses big corpora of text for

language research and as the basis for speech

production and translation engines (Wuebker, Ney

and Zens, 2012). The creation of big corpora

consumes a lot of time and poses a great challenge

especially for smaller research groups as they usually

do not have access to sufficient sources. Therefore, a

few corpora are re-used repeatedly. This is a useful

for the comparison of different solutions to a specific

problem, as the number of confounding variables is

decreased, but has the drawback that only a small and

possibly not representative subset of a language is

looked at. More resources and corpora would mean a

better abstraction of the results and avoidance of

possible biases. Ad-hoc creation of new specialized

corpora could give rise to insights into the

characteristics of situative (e.g. newspaper articles,

law texts, search queries, chat logs or email

correspondence) and group-specific (e.g. youth,

elderly, the scientific community, cross cultural

communications) language usage. CKAN instances

provide an entry point for finding a high number of

diverse resources and the metadata allows for easy

identification of textual material and its classification

according to situation and types/classes/groups of

data. By means of harvesting a specific set of CKAN

instances, and possibly also other user defined

sources, the desired type of corpus can be

accumulated on the HDFS in a time efficient manner

by even a small group of people. Within the HDFS

this corpus can then be readily processed by means of

the distributed nature of Hadoop. According to the

specific application, these non-annotated corpora can

either be used directly or further pre-processed. The

example of machine translation making use of aligned

corpora has already been mentioned previously. The

alignment of corpora can also be done on the HDFS

grace to the availability of governmental documents

in different languages, as there are often multiple

official languages in a single administrative union

(Steinberger et al., 2014).

The above described prospects outline possible

further developments on top of the CKAN-

HdfsStorer plugin. Some of these directions will be

pursued in the course of emerging and running

national and international projects regarding the topic

of Urban Data Platforms.

9 SUMMARY & CONCLUSIONS

The current paper presented our recent work on the

integration of metadata harvesting and data importing

within Smart Cities. The concepts are exemplified

based on two widely used systems – CKAN for

metadata aspects and HDFS/Hadoop for enabling the

distributed processing of Big/Open Data. The paper

presents an architecture for such a component

integrating the harvesting processes of CKAN and the

storage of data to HDFS for further usage by different

processing engines.

The architecture and concepts were prototyped

and various evaluations were conducted which

illustrated the benefits of the proposed solutions. A

special section discusses the various application areas

of our component and thus points to potential future

developments and applications (e.g. Linguistics,

Public Transportation) within urban environments.

REFERENCES

Ahuja, S. P. and Moore, B. 2013. State of big data analysis

in the cloud. Network and Communication

Technologies, 2(1), 62.

Alinat, P. and Pierrel, J. 1993. Esprit II project 5516 Roars:

robust analytic speech recognition system.

Amazon.com. Amazon Simple Storage Service. Available

at: https://aws.amazon.com/de/s3/ [Accessed on 20

Feburary 2016].

Bristol City Council. 2015. Bristol Open Data Portal.

Available at: https://www.bristol.gov.uk/data-

protection-foi/open-data [Accessed on 20 Feburary

2016].

CKAN Association. CKAN Overview. 2015. Available at:

http://ckan.org [Accessed on 20 Feburary 2016].

CKAN Association. DataStore Extension. 2017. Available

at:

http://docs.ckan.org/en/latest/maintaining/datastore.ht

ml [Accessed on 20 Feburary 2016].

Fan, H., Ramaraju, A., McKenzie, M., Golab, W., & Wong,

B. 2015. Understanding the causes of consistency

A CKAN Plugin for Data Harvesting to the Hadoop Distributed File System

anomalies in Apache Cassandra. Proceedings of the

VLDB Endowment, 8(7), 810-813.

H2O.ai. AirlinesWithWeatherDemo. 2016. Available at:

https://github.com/h2oai/sparkling-

water/tree/master/examples/ [Accessed on 20 Feburary

2016].

Khan, Z., Anjum, A., Soomro, K., and Tahir, M. A. 2015.

Towards cloud based big data analytics for smart future

cities. Journal of Cloud Computing, 4(1), 1.

Kreps, J., Narkhede, N. and Rao, J. 2011, June. Kafka: A

distributed messaging system for log processing. In

Proceedings of the NetDB (pp. 1-7).

Lapi, E., Tcholtchev, N., Bassbouss, L., Marienfeld, F. and

Schieferdecker, I. 2012, July. Identification and

utilization of components for a linked open data

platform. In Computer Software and Applications

Conference Workshops (COMPSACW), 2012 IEEE

36th Annual (pp. 112-115). IEEE.

Liu, Z., Li, H. and Miao, G. 2010, August. MapReduce-

based backpropagation neural network over large scale

mobile data. In 2010 Sixth International Conference on

Natural Computation (Vol. 4, pp. 1726-1730). IEEE.

Marienfeld, F., Schieferdecker, I., Lapi, E., and Tcholtchev,

N. 2013, August. Metadata aggregation at GovData. de:

an experience report. In Proceedings of the 9th

International Symposium on Open Collaboration (p.

21). ACM.

Matheus, R. and Manuella, M. 2014. Case study: open

government data in Rio de Janeiro City. Open Research

Network.

Mercader, A. et al. 2012. ckanext-harvest - remote

harvesting extension. Available at: https://github.com/

ckan/ckanext-harvest [Accessed on 20 Feburary 2016].

Momjian, B. 2001. PostgreSQL: introduction and concepts

(Vol. 192). New York: Addison-Wesley.

Red Hat, Inc. Using Hadoop with CephFS.. 2014. Available

at: http://docs.ceph.com/docs/jewel/cephfs/hadoop

[Accessed on 20 Feburary 2016].

Rosado, T. and Bernardino, J., 2014, July. An overview of

openstack architecture. In Proceedings of the 18th

International Database Engineering & Applications

Symposium (pp. 366-367). ACM.

Shvachko, K., Kuang, H., Radia, S. and Chansler, R. 2010,

May. The hadoop distributed file system. In 2010 IEEE

26th symposium on mass storage systems and

technologies (MSST) (pp. 1-10). IEEE.

Steinberger, R., Ebrahim, M., Poulis, A., Carrasco-Benitez,

M., Schlüter, P., Przybyszewski, M., & Gilbro, S. 2014.

An overview of the European Union’s highly

multilingual parallel corpora. Language Resources and

Evaluation, 48(4), 679-707.

Thaha, A.F., Singh, M., Amin, A.H., Ahmad, N.M. and

Kannan, S., 2014, December. Hadoop in openstack:

Data-location-aware cluster provisioning. In

Information and Communication Technologies

(WICT), 2014 Fourth World Congress on (pp. 296-

301). IEEE.

The Apache Software Foundation. WebHDFS REST API.

2013. Available at: http://hadoop.apache.org/docs/

r1.0.4/webhdfs.html [Accessed on 20 Feburary 2016].

The Apache Software Foundation. Apache Spark:

Lightning-fast cluster computing. 2016. Available at:

http://spark.apache.org/ [Accessed on 20 Feburary

2016].

The Apache Software Foundation. Hadoop Project

Webpage. 2017a. Available at:

http://hadoop.apache.org/ [Accessed on 20 Feburary

2016].

The Apache Software Foundation. Apache Cassandra.

2017b. Available at: http://cassandra.apache.org/

[Accessed on 20 Feburary 2016].

Tierney, B., Kissel, E., Swany, M. and Pouyoul, E. 2012.

Efficient data transfer protocols for big data. In E-

Science (e-Science), 2012 IEEE 8th International

Conference on (pp. 1-9). IEEE.

Weil, S. A., Brandt, S. A., Miller, E. L., Long, D. D. and

Maltzahn, C. 2006, November. Ceph: A scalable, high-

performance distributed file system. In Proceedings of

the 7th symposium on Operating systems design and

implementation (pp. 307-320). USENIX Association.

Winn, J. 2013. Research Data Management using CKAN:

A Datastore, Data Repository and Data Catalogue.

IASSIST Conference.

Wuebker, J, Ney, H and Zens, R. 2012. Fast and scalable

decoding with language model look-ahead for phrase-

based statistical machine translation. In Proceedings of

the 50th Annual Meeting of the Association for

Computational Linguistics: Short Papers-Volume 2.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science
