Smuggling Multi-cloud Support into Cloud-native Applications using

Elastic Container Platforms

Nane Kratzke

Center of Excellence for Communication, Systems and Applications (CoSA),

ubeck University of Applied Sciences, 23562 L

ubeck, Germany

Keywords:

Cloud-native Application, Multi-cloud, Elastic Platform, Container, Microservice, Portability, Transferability,

MAPE, AWS, GCE, OpenStack, Kubernetes, Docker, Swarm.

Abstract:

Elastic container platforms (like Kubernetes, Docker Swarm, Apache Mesos) ﬁt very well with existing cloud-

native application architecture approaches. So it is more than astonishing, that these already existing and

open source available elastic platforms are not considered more consequently in multi-cloud research. Elastic

container platforms provide inherent multi-cloud support that can be easily accessed. We present a solution

proposal of a control process which is able to scale (and migrate as a side effect) elastic container platforms

across different public and private cloud-service providers. This control loop can be used in an execution

phase of self-adaptive auto-scaling MAPE loops (monitoring, analysis, planning, execution). Additionally,

we present several lessons learned from our prototype implementation which might be of general interest for

researchers and practitioners. For instance, to describe only the intended state of an elastic platform and let a

single control process take care to reach this intended state is far less complex than to deﬁne plenty of speciﬁc

and necessary multi-cloud aware workﬂows to deploy, migrate, terminate, scale up and scale down elastic

platforms or applications.

1 INTRODUCTION

Cloud-native applications (CNA) are large scale elas-

tic systems being deployed to public or private cloud

infrastructures. The capability to design, develop and

operate a CNA can create enormous business growth

and value in a very limited amount of time. Compa-

nies like Instagram, Netﬂix, Dropbox, etc. proofed

that imposingly. They operate these kind of applica-

tions often on large scale elastic container-based clus-

ters with up to thousands of nodes. However, due

to slender standardization in cloud computing it can

be tricky to operate CNA across differing public or

private infrastructures in multi-cloud or hybrid cloud

scenarios. CNA – even when written from scratch –

are often targeted for a speciﬁc cloud only. The ef-

fort for porting in a different cloud is usually a one

time exercise and can be very time consuming and

complex. For instance, Instagram had to analyze their

existing services for almost one year to derive a vi-

able migration plan how to transfer their services from

Amazon Web Services (AWS) to Facebook datacenters.

This migration worked at last, but it was accompanied

by severe outages. This phenomenon is called a ven-

dor lock-in and CNA seem to be extremely vulnera-

ble for it. Almost no recent multi-cloud survey study

(see Section 6) considered elastic container platforms

(see Table 1) as a viable and pragmatic option to sup-

port multi-cloud handling. It is very astonishing that

this kind of already existing and open source available

technology is not considered more consequently in

multi-cloud research (see Section 6). That might have

to do with the fact, that ”the emergence of containers,

especially container supported microservices and ser-

vice pods, has raised a new revolution in [...] resource

management. However, dedicated auto-scaling solu-

tions that cater for speciﬁc characteristics of the con-

tainer era are still left to be explored.” (Ch. Qu and R.

N. Calheiros and R. Buyya, 2016). The acceptance of

container technologies and corresponding elastic con-

tainer platforms has gained substantial momentum in

recent years. That resulted in a lot of technological

progress driven by companies like Docker, Netﬂix,

Google, Facebook, Twitter who released their solu-

tions very often as Open Source software. So, from

the current state of technology existing multi-cloud

approaches (often dated before container technologies

have been widespread) seem very complex – much

Kratzke, N.

Smuggling Multi-cloud Support into Cloud-native Applications using Elastic Container Platforms.

DOI: 10.5220/0006230700570070

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 29-42

ISBN: 978-989-758-243-1

Table 1: Some popular open source elastic platforms and

their major contributing organizations.

Platform Contributors URL

Kubernetes Google http://kubernetes.io

Swarm Docker https://docker.io

Mesos Apache http://mesos.apache.org/

Nomad Hashicorp https://nomadproject.io/

too complex for a lot of use cases of cloud-native

applications which have become possible due to the

mentioned technological progress of the last three or

four years. This paper considers this progress and has

mainly two contributions:

• A control loop (see Section 4.2) is presented being

able to scale elastic container platforms in multi-

cloud scenarios. This single control loop is ca-

pable to handle common multi-cloud workﬂows

like to deploy, to migrate/transfer, to terminate, to

scale up/down CNAs. The control loop is provid-

ing not just scalability but federation and transfer-

ability across multiple IaaS cloud infrastructures

as a side-effect.

• This scaling control loop is intended to be used in

the execution phase of higher-level auto-scaling

MAPE loops (monitoring, analysis, planning, ex-

ecution) as systematized by (Pahl and Jamshidi,

2015; Ch. Qu and R. N. Calheiros and R. Buyya,

2016) and more. To some degree, the proposed

control loop makes the necessity for complex

and IaaS infrastructure-speciﬁc multi-cloud work-

ﬂows redundant.

The remainder of this paper is outlined as follows.

Section 2 will investigate how CNAs are being build.

This is essential to understand how to avoid vendor

lock-in in a pragmatic and often overlooked way. Sec-

tion 3 will focus some requirements which should

be fulﬁlled by multi-cloud capable CNAs and will

show how already existing open source elastic con-

tainer platforms can contribute pragmatically. The

reader will see that these kind of platforms contribute

to operate cloud-native applications in a resilient and

elastic way. We provide a multi-cloud aware proof-

of-concept in Section 4 and derive several lessons

learned from the evaluation in Section 5. The pre-

sented scaling control loop is related to other work

in Section 6. Similarities and differences are summa-

rized.

2 WHAT IS A CNA?

Although the term CNA is vague, there exist sim-

ilarities of various view points (Kratzke and Quint,

2017b). According to common motivations for CNA

architectures are to deliver software-based solutions

more quickly (speed), in a more fault isolating, fault

tolerating, and automatic recovering way (safety),

to enable horizontal (instead of vertical) application

scaling (scale), and ﬁnally to handle a huge diver-

sity of (mobile) platforms and legacy systems (client

diversity) (Stine, 2015). (Fehling et al., 2014) pro-

pose that a CNA should be IDEAL. It should have an

isolated state, is distributed in its nature, is elastic in

a horizontal scaling way, operated via an automated

management system and its components should be

loosely coupled.

These common motivations and properties are ad-

dressed by several application architecture and in-

frastructure approaches (Balalaie et al., 2015): Mi-

croservices represent the decomposition of mono-

lithic (business) systems into independently deploy-

able services that do ”one thing well” (Namiot and

Sneps-Sneppe, 2014; Newman, 2015). The main

mode of interaction between services in a cloud-

native application architecture is via published and

versioned APIs (API-based collaboration). These

APIs often follow the HTTP REST-style with JSON

serialization, but other protocols and serialization

formats can be used as well. Single deployment

units of the architecture are designed and intercon-

nected according to a collection of cloud-focused

patterns like the twelve-factor app collection, the cir-

cuit breaker pattern and a lot of further cloud comput-

ing patterns (Fehling et al., 2014). And ﬁnally, self-

service elastic platforms are used to deploy and oper-

ate these microservices via self-contained deployment

units (containers). These platforms provide additional

operational capabilities on top of IaaS infrastructures

like automated and on-demand scaling of application

instances, application health management, dynamic

routing and load balancing as well as aggregation of

logs and metrics. Some open source examples of such

kind of elastic platforms are listed in Table 1. So, this

paper follows this understanding of a CNA:

A cloud-native application is a distributed, elas-

tic and horizontal scalable system composed of

(micro)services which isolates state in a min-

imum of stateful components. The applica-

tion and each self-contained deployment unit of

that application is designed according to cloud-

focused design patterns and operated on a self-

service elastic platform. (Kratzke and Quint,

2017b)

It is essential to understand that CNAs are operated

on elastic – often container-based – platforms. There-

fore, the multi-cloud aware handling of these elastic

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

platforms is focused throughout this paper.

3 MULTI-CLOUD SPECIFICS

Several transferability, awareness and security re-

quirements come along with multi-cloud approaches

(Barker et al., 2015; Petcu and Vasilakos, 2014; Toosi

et al., 2014; Grozev and Buyya, 2014). We will inves-

tigate these requirements in this section and show how

already existing elastic container platforms contribute

to fulﬁll these requirements.

3.1 Transferability Requirements

Cloud computing is basically a computing model

based on ubiquitous network access to a shared and

virtualized pool of computing resources. The prob-

lem is, that this conceptual model is implemented by

a large number of service providers in different and

not necessarily standardized or compatible ways. So,

portability or transferability has to be requested

for CNA by reasons varying from optimal selection

regarding utilization, costs or proﬁts, to technology

changes, as well as legal issues (Petcu and Vasilakos,

2014).

Elastic container platforms (see Table 1) integrate

container hosts (nodes) into one single and higher

level logical cluster. These technologies provide self-

service elastic platforms for cloud-native applica-

tions (Stine, 2015) in an obvious but also often over-

looked way. Furthermore, some of these platforms

are really ”bulletproofed”. Apache Mesos (Hindman

et al., 2011) has been successfully operated for years

by companies like Twitter or Netﬂix to consolidate

hundreds of thousands of compute nodes. More re-

cent approaches are Docker Swarm and Google’s Ku-

bernetes, the open-source successor of Google’s in-

ternal Borg system (Verma et al., 2015). (Peinl and

Holzschuher, 2015) provide an excellent overview for

interested readers. From the author’s point of view,

there are four main beneﬁts using these elastic con-

tainer platforms, starting with the integration of sin-

gle nodes (container hosts) into one logical clus-

ter (1st beneﬁt). This integration can be done within

an IaaS infrastructure (for example only within AWS)

and is mainly done for complexity management rea-

sons. However, it is possible to deploy such elastic

platforms across public and private cloud infrastruc-

tures (for example deploying some hosts of the clus-

ter to AWS, some to Google Compute Engine (GCE)

and some to an on-premise OpenStack infrastruc-

ture). Even if these elastic container platforms are

deployed across different cloud service providers

(2nd beneﬁt) they can be accessed as one logical sin-

gle cluster, which is of course a great beneﬁt from

a vendor lock-in avoiding (3rd beneﬁt) point of

view. Last but not least, these kind of platforms are

designed for failure, so they have self-healing ca-

pabilities: Their auto-placement, auto-restart, auto-

replication and auto-scaling features are designed to

identﬁy lost containers (due to whatever reasons, e.g.

process failure or node unavailability). In these cases

they restart containers and place them on remaining

nodes (without any necessary user interaction). The

cluster can be resized simply by adding or removing

nodes to the cluster. Affected containers (due to a

planned or unplanned node removal) will be resched-

uled transparently to other available nodes. If clus-

ters are formed up of hundreds or thousands of nodes,

some single nodes are always in an invalid state and

have to be replaced almost at any time. So, these fea-

tures are absolutely necessary to operate large-scale

elastic container platforms in a resilient way. How-

ever, exactly the same features can be used inten-

tionally to realize transferability requirements (4th

beneﬁt). For instance, if we want to migrate from

AWS to GCE, we simply attach additional nodes pro-

visioned by GCE to the cluster. In a second step,

we shut down all nodes provided by AWS. The elas-

tic platform will recognize node failures and will

reschedule lost containers accordingly. From an inner

point of view of the platform, expectable node failures

occur and corresponding rescheduling operations are

tasked. From the outside it is a migration from one

provider to another provider at run-time. We will

explain the details in Section 4. At this point it should

be sufﬁcient to get the idea. Further multi-cloud op-

tions like public cloud exits, cloud migrations, public

multi-clouds, hybrid clouds, overﬂow processing and

so on are presented in Figure 1 and can be handled

using the same approach.

3.2 Awareness Requirements

Beside portability/transferability requirements,

(Grozev and Buyya, 2014) emphasizes that multi-

cloud applications need to have several additional

awarenesses:

1. Data location awareness: The persistent data and

the processing units of an application should be in

the same data center (even on the same rack) and

should be connected with a high-speed network.

Elastic container platforms like Kubernetes intro-

duced the pod concept to ensure such kind of data

locality (Verma et al., 2015).

2. Geo-location awareness: Requests should be

scheduled near the geographical location of their

Smuggling Multi-cloud Support into Cloud-native Applications using Elastic Container Platforms

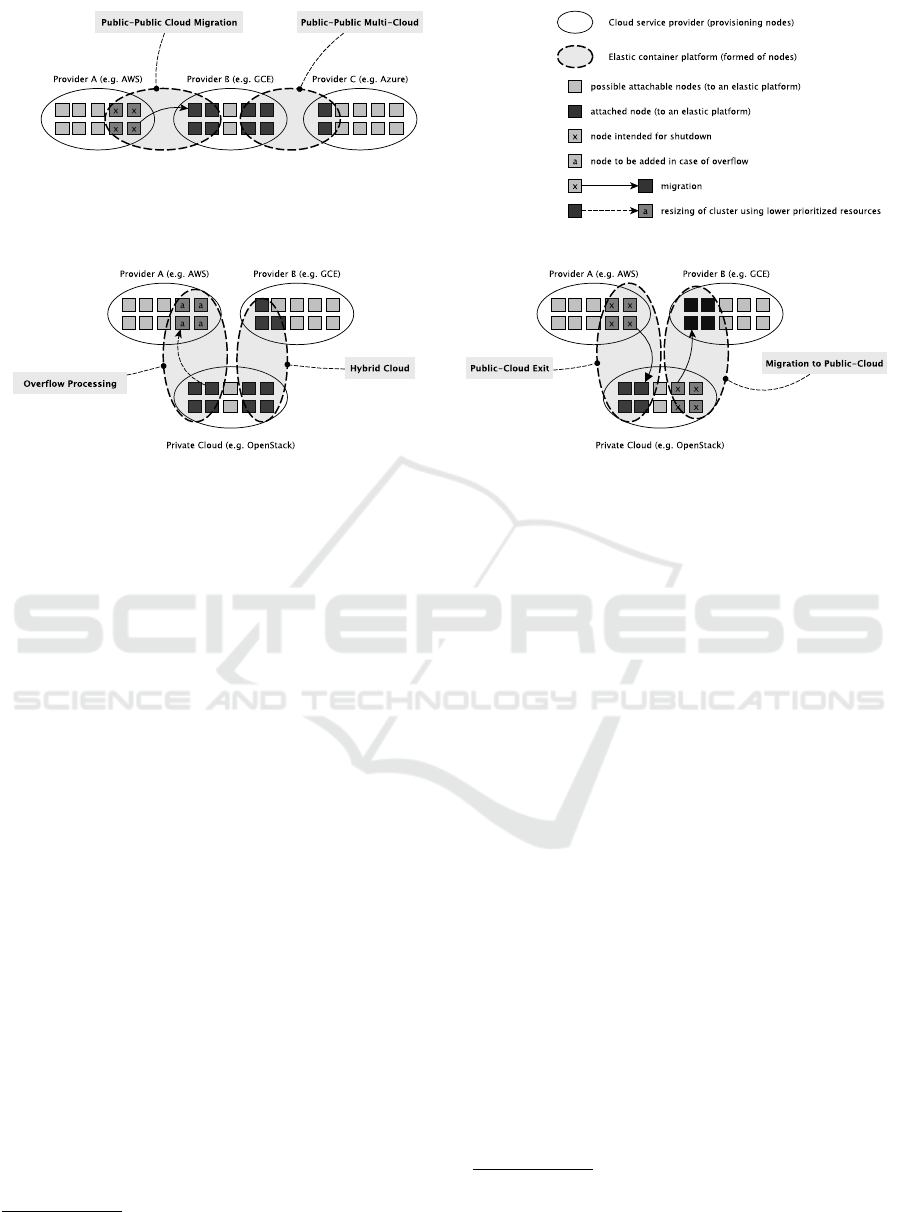

Figure 1: Some deployment options and transferability opportunities of elastic container platforms.

origin to achieve better performance.

3. Pricing awareness: An application scheduler

needs up to date information about providers’

prices to perform ﬁscally efﬁcient provisioning.

4. Legislation/policy awareness: For some applica-

tions legislative and political considerations upon

provisioning and scheduling must be taken into

account. For example, some services could be re-

quired to avoid placing data outside a given coun-

try.

5. Local resources awareness: It is often that the

usage of in-house resources should have higher

priority than that of external ones (overﬂow pro-

cessing into a public cloud).

Platforms like Kubernetes, Mesos, Docker Swarm

are able to tag nodes of their clusters with arbitrary

key/value pairs. These tags can be used to code

geo-locations, prices, policies and preferred local re-

sources (and arbitrary further aspects) and considered

in scheduling strategies to place containers accord-

ingly to the above mentioned awareness requirements.

For instance, Docker Swarm uses constraint ﬁlters

for that kind of purpose. Arbitrary tags like a location

tag ”Germany” can be assigned to a node. This tag-

ging can be deﬁned in a cluster deﬁnition ﬁle and will

be assigned to a node in the install node step shown in

Figure 3(b). This tagging is considered by schedulers

of the mentioned platforms. Docker Swarm would de-

ploy a database container only on nodes which are

See https://docs.docker.com/v1.11/swarm/

scheduler/filter/ (last access 15th Feb. 2017)

tagged as ”location=Germany” if a constraint ﬁlter is

applied like shown.

docker run \

-e constraint:location==Germany \

couchdb

Kubernetes provides similar tag-based concepts

called node selectors and even more expressive (anti-

)afﬁnities which are considered by the Kubernetes

scheduler

. The Marathon framework for Mesos uses

constraints

. Obviously, all of these concepts rely on

the same idea, are tagged-based and therefore can be

used to cover mentioned awareness requirements in a

consistent way by platform drivers (see Figure 2).

3.3 Security Requirements

Furthermore, security requirements have to be con-

sidered for multi-cloud scenarios because such kind

of platforms can span different providers and there-

fore data is likely to be submitted via the ”open and

unprotected” internet. Again, platforms like Docker’s

Swarm Mode (since version 1.12) provide an en-

crypted data and control plane via overlay networks

to handle this. Kubernetes can be conﬁgured to

use encryptable overlay network plugins like Weave.

Accompanying network performance impacts can be

contained (Kratzke and Quint, 2015b; Kratzke and

Quint, 2017a).

see https://kubernetes.io/docs/user-guide/

node-selection/ (last access 15th Feb. 2017)

see https://mesosphere.github.io/marathon/

docs/constraints.html (last access 15th Feb. 2017)

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

3.4 Summary

Existing open source elastic container platforms ful-

ﬁll common transferability, awareness and security

requirements in an elastic and resilient manner. The

following Section 4 will explain a proof-of-concept

solution how to access these opportunities using a

simple control process.

4 PROOF OF CONCEPT

The proposed solution is implemented as a proto-

typic Ruby command line tool which could be trig-

gered in the execution phase of a MAPE auto-scaling

loop (Ch. Qu and R. N. Calheiros and R. Buyya,

2016). Although a MAPE loop needs always on com-

ponents, this execution loop alone does not need any

central server component, no permanent cluster con-

nection, and can be operated on a single machine (out-

side the cloud). The tool scales elastic container plat-

forms according to a simple control process (see Fig-

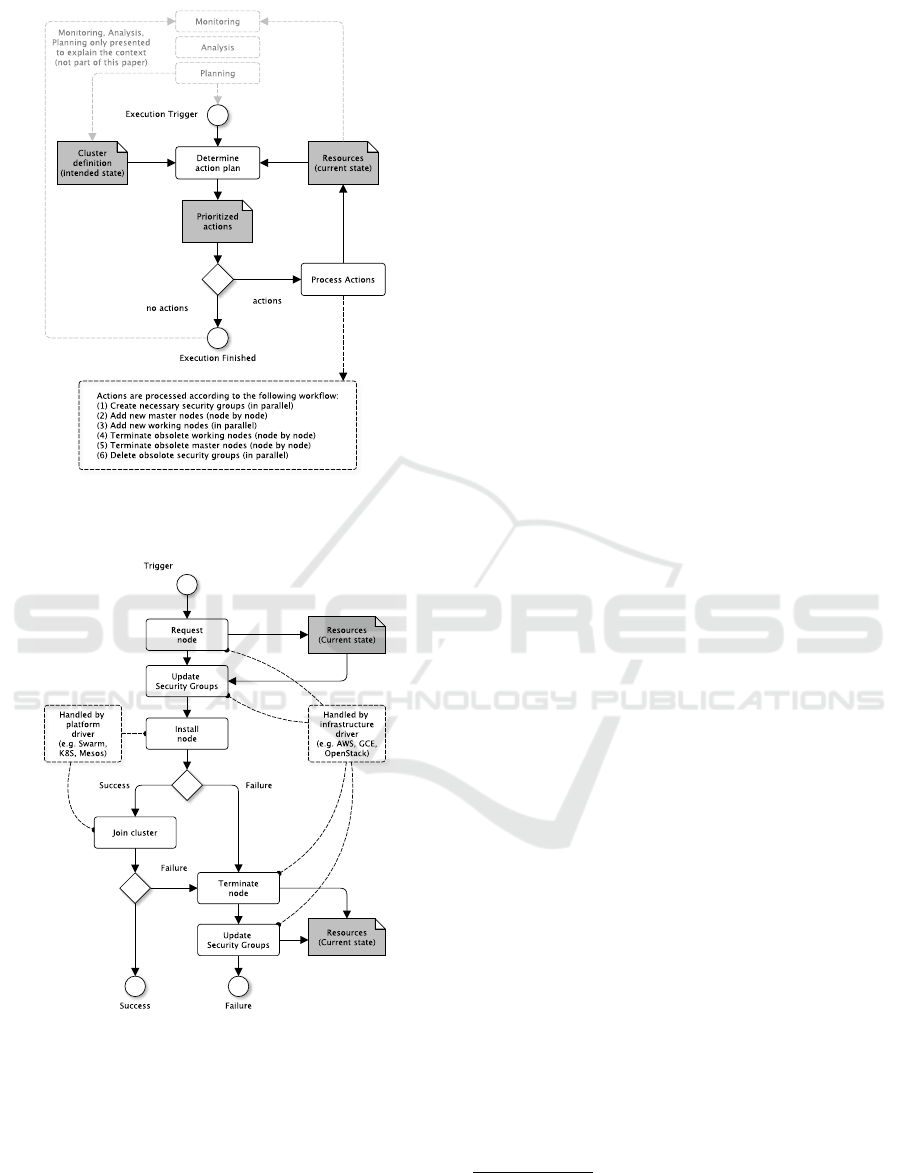

ure 3(a)). This control process realizes all necessary

multi-cloud transferability requirements. The control

process evaluates a JSON encoded cluster descrip-

tion format (the intended state of the container cluster,

see Appendix: Listing 1) and the current state of the

cluster (attached nodes, existing security groups). If

the intended state differs from the current state nec-

essary adaption tasks are deduced (attach/detachment

of nodes, creation and termination of security groups).

The control process reaches the intended state and ter-

minates if no further adaption tasks can be deduced.

4.1 Description of Elastic Platforms

The description of elastic platforms in multi-cloud

scenarios must consider arbitrary IaaS cloud service

providers. This is done by the conceptual model

shown in Figure 2. Two main approaches can be

identiﬁed how public cloud service providers orga-

nize their IaaS services: project- and region-based

service delivery. GCE and OpenStack infrastructures

are examples following the project-based approach.

To request IaaS resources like virtual machines one

has to create a project and within the project one has

access to resources on whatever regions. AWS is an

example for region-based service provisioning. Re-

sources are requested per region (Europe, US, Asia,

...) and they are not assigned to a particular project.

So, one can access easily resources within a region

(and across projects) but it gets complicated to ac-

cess resources outside a region. Both approaches have

their advantages and disadvantages as the reader will

see. Region-based approaches seem to provide better

adaption performances (see Section 5). However, it

is not worth discussing – the approaches are given.

Multi-cloud solutions simply have to consider that

both approaches occur in parallel. They key idea to

integrate both approaches is the introduction of a con-

cept called District (see Figure 2).

One provider region or project can map to one or

more Districts and vice versa. A District is sim-

ply a user deﬁned ”datacenter” which is provided by a

speciﬁc cloud service provider (following the project-

or region-based approach). This additional layer pro-

vides maximum ﬂexibility in deﬁning multi-cloud de-

ployments of elastic container platforms. A multi-

cloud deployed elastic container platform can be de-

ﬁned using two descriptive and JSON encoded deﬁni-

tion formats (cluster.json and districts.json).

The deﬁnition formats are exemplary explained in the

Appendix in Listings 1, 2, and 3 in more details.

A Cluster (elastic platform) is deﬁned as a list of

Deployments. Both concepts are deﬁned in a cluster

deﬁnition ﬁle format (see Appendix, Listing 1). A

Deployment deﬁnes how many nodes of a speciﬁc

Flavor should perform a speciﬁc cluster role in a

speciﬁed District. Most elastic container platforms

are assuming two roles of nodes in a cluster. A ”mas-

ter” role to perform scheduling, control and manage-

ment tasks and a ”worker” role to execute contain-

ers. Our solution can work with arbitrary roles and

role(names). However, these roles have to be con-

sidered by Platform drivers (see Figure 2) in their

install, join and leave cluster hooks (see Figure

3(b)). So, role and container platform speciﬁcs can be

isolated in Platform drivers. A typical Deployment

can be expressed using this JSON snippet.

{

"district": "gce-europe",

"flavor": "small",

"role": "master",

"quantity": 3

"tags": {

"location": "Europe",

"policy": "Safe-Harbour",

"scheduling-priority": "low",

"further": "arbitrary tags"

}

A complete cluster can be expressed as a list of

such Deployments. Machine Flavors (e.g. small,

medium and large machines) and Districts are

user deﬁned and have to be mapped to concrete

cloud service provider speciﬁcs. This is done us-

ing the districts.json deﬁnition ﬁle (see Ap-

pendix, Listing 3). A District object is responsi-

ble to execute deployments (adding or removing ma-

Smuggling Multi-cloud Support into Cloud-native Applications using Elastic Container Platforms

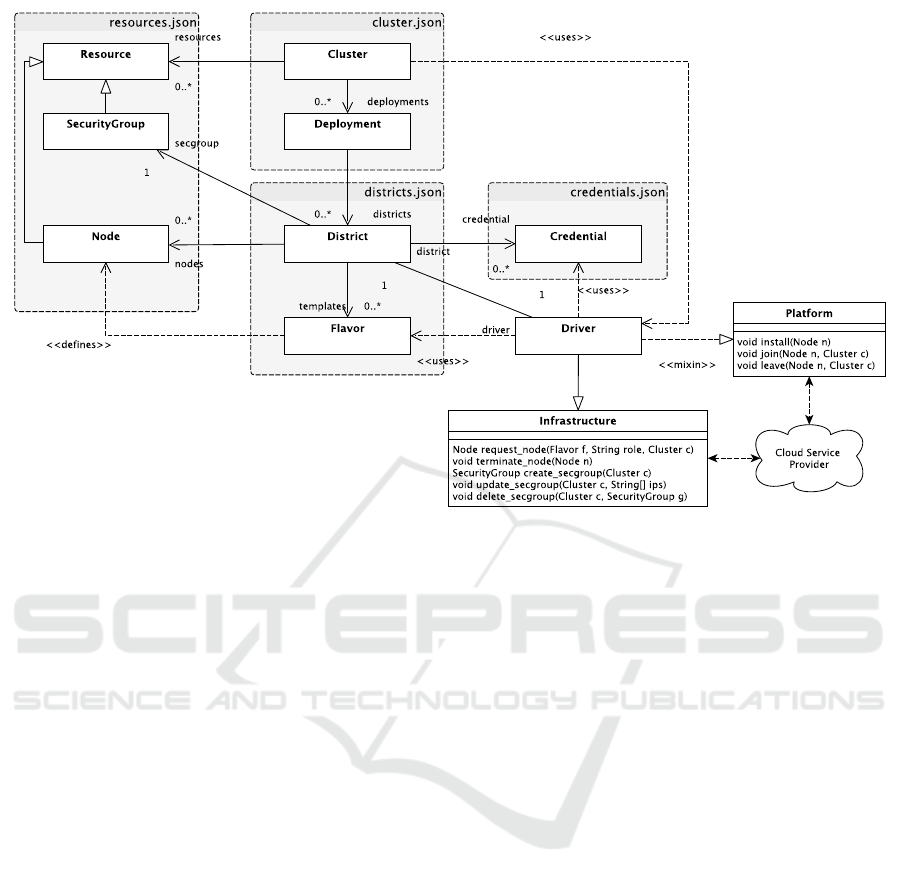

Figure 2: The conceptual model and its relation to descriptive cluster deﬁnition formats (please compare with Appendix).

chines to the cluster as well as tagging them to han-

dle the awareness requirements mentioned in Sec-

tion 3). The execution is delegated to a Driver

object which encapsules and processes all neces-

sary cloud service provider and elastic container

platform speciﬁc requests. The driver uses ac-

cess Credentials for authentication (see Appendix,

Listing 2). The Driver generates Resource ob-

jects (Nodes and SecurityGroups) representing re-

sources (current state of the cluster, encoded in a

resources.json ﬁle) provided by the cloud ser-

vice provider (District). SecurityGroups are

used to allow internal platform communication across

IaaS infrastructures. These basic security means are

provided by all IaaS infrastructures under different

names (ﬁrewalls, security groups, access rules, net-

work rules, ...). This resources list is used by the

control process to build the delta between the in-

tended state (encoded in cluster.json) and the cur-

rent state (encoded in resources.json).

4.2 One Control Process for All

The control process shown in Figure 3(a) is responsi-

ble to command and control all necessary actions to

reach the intended state (encoded in cluster.json).

This cybernetic understanding can be used to handle

common multi-cloud workﬂows.

• A fresh deployment of a cluster can be understood

as executing the control loop on an initially empty

resources list.

• A shutdown can be expressed by setting all de-

ployment quantities to 0.

• A migration from one District A to another

District B can be expressed by setting all

Deployment quantities of A to 0 and adding the

former quantities of A to the quantities of B.

Having this cybernetic understanding it is easy to re-

alize all (and more) multi-cloud deployment options

and transferability opportunities shown in Figure 1.

The control loop derives a prioritized action plan to

reach the intended state. The current implementation

realizes this according to the workﬂow shown in Fig-

ure 3(a). However, other workﬂow sequences might

work as well and could show faster adaption cycles.

The reader should be aware that the workﬂow must

keep the affected cluster in a valid and operational

state at all times. The currently implemented strategy

considers practitioner experience to reduce ”stress”

for the affected elastic container platform. Only ac-

tion steps (2) and (3) of the control loop are explained

(shown in Figure 3(b)). The other steps are not pre-

sented due to triviality and page limitations.

Whenever a new node attachment is triggered by

the control loop, the corresponding Driver is called

to launch a new Node request. The Node is added

to the list of requested resources (and extends there-

fore the current state of the cluster). Then all exist-

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

(a) The execution control loop (monitoring, analy-

sis, planning are only shown to indicate the context

of a full elastic setting)

(b) Add master/worker action, steps (2) and (3)

Figure 3: The control loop embedded in a MAPE loop.

ing SecurityGroups are updated to allow incoming

network trafﬁc from the new Node. These steps are

handled by an IaaS Infrastructure driver. Next,

the control is handed over to a Platform driver. This

driver is performing necessary software installs via

SSH-based scripting. Finally, the node is joined to

the cluster using platform (and maybe role-)speciﬁc

joining calls provided by the Platform driver. If in-

stall or join operations were not successful, the ma-

chine is terminated and removed from the resources

list by the Infrastructure driver. In these cases the

current state could not be extended and a next round

of the control loop would do a retry. Therefore, the

control-loop is automatically designed for failure and

will take care to retry failed install and joining ac-

tions.

4.3 IaaS Infrastructures and Platforms

The workﬂows shown in Figure 3 are designed

to handle arbitrary IaaS Infrastructures and ar-

bitrary elastic Platforms. However, the infras-

tructure and platform speciﬁcs must be handled as

well. This is done using an extendable driver con-

cept (see Figure 2). The classes Platform and

Infrastructure are two extension points to provide

support for IaaS infrastructures like AWS, GCE,

Azure, DigitalOcean, RackSpace, ..., and for elas-

tic container platforms like Docker Swarm, Kuber-

netes, Mesos/Marathon, Nomad, and so on. Infras-

tructures and platforms can be integrated simply by

extending the Infrastructure class (for IaaS in-

frastructures) or Platform class (for additional elas-

tic container platforms). Both concerns can be com-

bined to enable the operation of a Platform on an

IaaS Infrastructure. The current state of imple-

mentation provides platform drivers for the elastic

container platforms Kubernetes and Docker’s Swarm-

Mode and infrastructure drivers for the public IaaS

infrastructures AWS, GCE and the private IaaS in-

frastructure OpenStack. Due to the mentioned ex-

tension points further container Platforms and IaaS

Infrastructures are easily extendable.

5 EVALUATION

The solution was evaluated using two elastic plat-

forms (Docker’s 1.12 Swarm Mode and Kubernetes

1.4) on three public and private cloud infrastructures

(GCE, eu-west1 region; AWS, eu-central-1 region and

OpenStack, research institutions private datacenter).

The platforms operated two multi-tier web applica-

tions (a Redis-based guestbook and a reference ”sock-

shop” application

. Both CNAs are often used by

practitioners to demonstrate elastic container platform

features.

see https://github.com/kubernetes/

kubernetes/tree/master/examples/guestbook

and https://github.com/microservices-demo/

microservices-demo (last access 19th Feb. 2017)

Smuggling Multi-cloud Support into Cloud-native Applications using Elastic Container Platforms

Figure 4: Launching and terminating o a elastic container platform (single-cloud experiments E1 and E2)

5.1 Experiments

The implementation was tested using a 10 node clus-

ter composed of one master node and 9 worker nodes

executing the above mentioned reference applica-

tions. The following experiments demonstrate elas-

tic container platform deployments, terminations, and

complete or partial platform transfers across differ-

ent cloud service infrastructures. Additionally, the ex-

periments were used to measure runtimes to execute

these kind of operations.

• E1: Launch a 10 node cluster in AWS and GCE

(single-cloud).

• E2: Terminate a 10 node cluster in AWS and GCE

(single-cloud).

• E3: Transfer 1 node of a 10 node cluster from

AWS to GCE (multi-cloud) and vice versa.

• E4: Transfer 5 nodes of a 10 node cluster from

AWS to GCE (multi-cloud) and vice versa.

• E5: Transfer a complete 10 node cluster from

AWS to GCE (multi-cloud) and vice versa.

To compare similar machine types in AWS and GCE

it was decided to use n1-standard-2 machine types

from GCE and m3.large machine types from AWS.

These machine types show high similarities regard-

ing processing, networking, I/O and memory perfor-

mance (Kratzke and Quint, 2015a). Additionally, a

machine type on the institutes on-premise OpenStack

infrastructure has been deﬁned with comparable per-

formance characteristics like the mentioned ”refer-

ence machine types” selected from GCE and AWS.

Each experiment was repeated at least 10 times.

Due to page limitations only data for Docker Swarm

is presented. It turned out that most of runtimes are

due to low level IaaS infrastructure operations and not

due to elastic container platform installation/conﬁgu-

ration and rescheduling operations. So, the data for

Kubernetes is quite similar. It is to admit that the mea-

sured data is more suited as a performance compari-

son of AWS and GCE infrastructure operations than it

is suited to be a performance measurement of the pro-

posed control loop. So far, one can say that the pro-

posed control loop is slow on slow infrastructures and

fast on fast infrastructures. That is not astonishing.

However, some interesting ﬁndings especially regard-

ing software deﬁned network aspects in multi-cloud

scenarios and reactiveness of public cloud service in-

frastructures could be derived.

OpenStack performance is highly dependent on

the physical infrastructure and detail conﬁgura-

tion. So, although it was tested against institutes

on-premise OpenStack private cloud infrastructure

(OpenStack is somewhere in between AWS and GCE),

it is likely that this data is not representative. That is

why only data for AWS and GCE is presented.

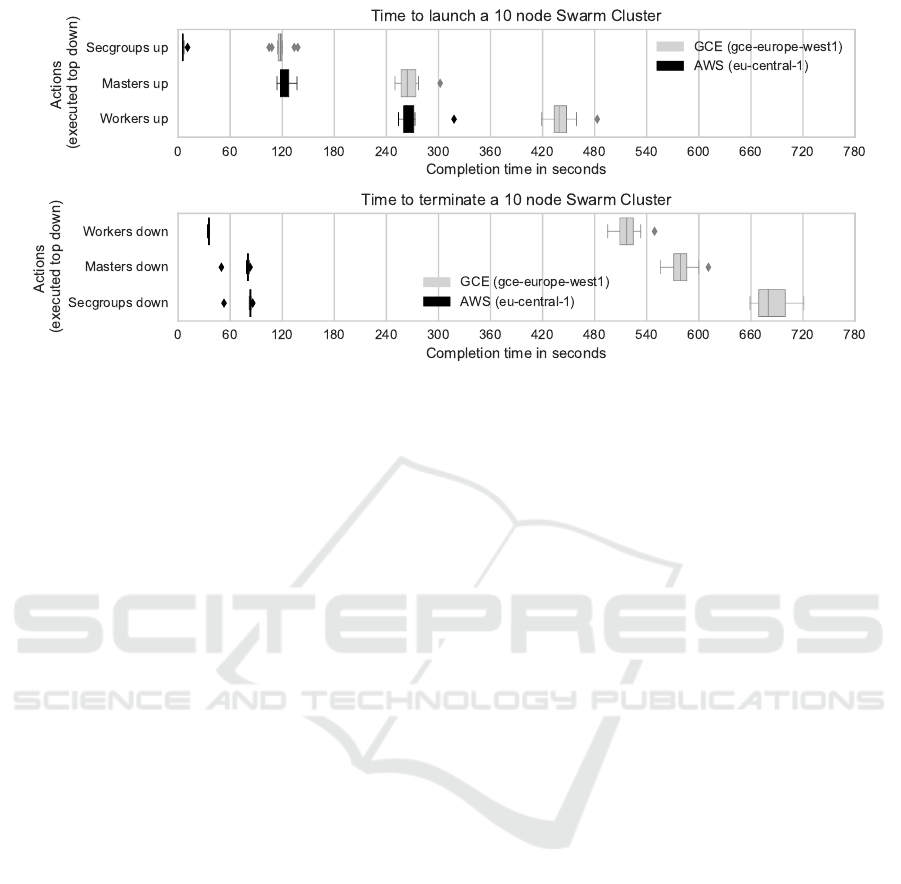

Figure 4 shows the results of the experiments E1 and

E2 by boxplotting the completion times when all se-

curity groups, master and worker nodes were up/-

down. The cluster was in an initial operating mode

when the master node was up, and it was fully oper-

ational when all worker nodes were up. The reader

might be surprised, that GCE infrastructure opera-

tions are taking much longer than AWS infrastruc-

ture operations. The cluster was launched on AWS

in approximately 260 seconds and on GCE in 450

seconds (median values). The analysis turned out,

that the AWS infrastructure is much more reactive re-

garding adjustments of network settings than GCE

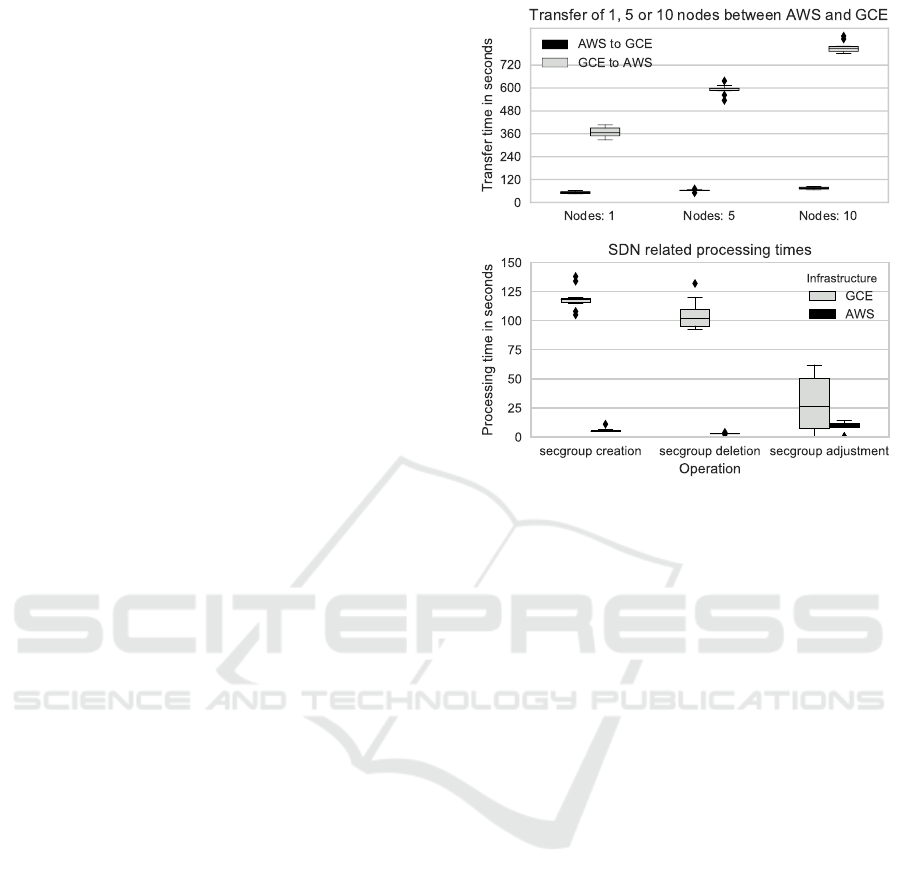

(see SDN related processing times in Figure 5). The

security groups on AWS can be created in approxi-

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

mately 10 seconds but it takes almost two minutes

on GCE. There are similar severe performance differ-

ences when adjustments on these security groups are

necessary (so when nodes are added or removed). We

believe this has to do with network philosophies of

both infrastructures. Security groups in AWS are re-

gion speciﬁc. Firewalls and networks in GCE are de-

signed to be used in GCE projects and GCE projects

can be deployed across all available GCE regions. So,

AWS has to acivate SDN changes only in one region

(that means within one datacenter). But GCE has to

activate changes in all regions (so in all of their dat-

acenters). From a cloud customer perspective GCE

networking is much more comfortable but adaptions

are slow compared with the AWS infrastructure. The

runtime effects for deployment visualizes Figure 4.

The termination is even more worse. A cluster can

be terminated in approximately 90 seconds on AWS

but it takes up to 720 seconds on GCE. Our analy-

sis turned out that the CLI (command line interface)

of AWS works mainly asynchronous while the CLI of

GCE works mainly synchronous. The control loop

terminates nodes node by node in order to reduce

rescheduling stress for the elastic platform (node re-

questing is done in parallel because a node adding

normally does not involve immediate rescheduling of

the workload). So, on AWS a node is terminated by

deregistering it from its master of the elastic con-

tainer platform and than its termination is launched.

The CLI does not wait until termination is completed

and just returns. The effect is, that nodes are dereg-

istered sequentially from the platform (which only

takes one or two seconds) and subsequent termination

of all nodes is done mainly in parallel (a termination

is started almost every 2 seconds but take almost a

minute). The reader should be aware, that this results

in much more rescheduling stress for the container

platform. However, no problems with that higher

stress level in the experiments were observable on the

AWS side. The CLI of GCE is synchronous. So, when

a node is terminated, the GCE CLI waits until the ter-

mination is completed (which takes approximately a

minute). Additionally, every time a node is removed

the GCE ﬁrewalls have to be adapted and this is a

time consuming operation as well in GCE (approxi-

mately 25 seconds for GCE but only 10 seconds for

AWS). That is why termination durations show these

dramatic differences.

Figure 5 shows the results of the experiments E3, E4

and E5 (Transfer times between AWS and GCE). It

was simply measured how long it took to transfer 1,

5 or all 10 cluster nodes from AWS to GCE or vice

versa. Transfer speeds are dependent of the origin

provider. Figure 5 shows that a transfer from AWS to

Figure 5: Detail data of multi-cloud experiments E3, E4, E5

GCE (6 minutes) is more than two times faster than

from GCE to AWS (13 minutes). Furthermore, it is

astonishing that a transfer of only one single node

from AWS to GCE takes almost as long as a complete

single-cloud cluster launch on AWS (both operations

take approximately 4 minutes). However, a complete

cluster transfer (10 nodes) from AWS to GCE is only

slightly slower (6 minutes, but not 40 minutes!). A

transfer from one provider to another is obviously

a multi-cloud operation and multi-cloud operation

always involve operations of the ”slower” provider

(in the case of the experiments E3, E4, E5 this in-

volved SDN adjustments and node terminations). It

turned out, that the runtime behaviour of the slow-

est provider is dominating the overall runtime be-

haviour of multi-cloud operations. In the analyzed

case, slower GCE SDN related processing times and

node termination times were the dominating factor to

slow down operations on the AWS side. This can re-

sult in surprising effects. A complete cluster transfer

from a ”faster” provider (AWS) to a ”slower” provider

(GCE) can be done substantially faster than from a

”slower” provider to a ”faster” provider.

Taking all together, IaaS termination operations

should be launched asynchronously to improve the

overall multi-cloud performance.

5.2 Critical Discussion

Each cloud provider has speciﬁc requirements and

the proposed control loop is designed to be generic

Smuggling Multi-cloud Support into Cloud-native Applications using Elastic Container Platforms

enough to adapt to each one. The presented control

loop was even able to handle completely different tim-

ing behaviors without being explicitly designed for

that purpose. However, this ”genericness” obviously

can not be proofed. There might be an IaaS cloud

infrastructure not suitable for the proposed approach.

But the reader should be aware that – intentionally –

only very basic IaaS concepts are used. The control

loop should work with every public or private IaaS in-

frastructure providing concepts like virtual machines

and IP-based network access control concepts like

security groups (AWS) or network/ﬁrewalls (GCE).

These are very basic concepts. An IaaS infrastructure

not providing these basic concepts is hardly imagin-

able and to the best of our knowledge not existing.

The proposed solution tries to keep the cluster in

a valid and operational state under all circumstances

(whatever it costs). A migration from one infrastruc-

ture A to another infrastructure B could be expressed

by setting all quantities of A to 0 and all quantities

of B to the former quantities of B (that is basically

the experiment E5). The current implementation of

the control loop is not very sophisticated and executes

simply a worst case scaling. Node creation steps have

a higher priority than node deletion steps. So, a mi-

gration increases the cluster to its double size in a ﬁrst

step. In a second step, the cluster will be shrinked

down to its intended size in its intended infrastructure.

This leaves obviously room for improvement.

Furthermore, the control loop is designed to be

just the execution step of a higher order MAPE loop.

If the planning step (or the operator) deﬁnes an in-

tended state which is not reachable, the execution

loop may simply have no effect. Imagine a cluster un-

der high load. If the intended state would be set to half

of the nodes (due to whatever reasons), the execution

loop would not be able to reach this state. Why? Be-

fore a node is terminated by the control loop, the con-

trol loop informs the container scheduler to mark this

node as unscheduleable with the intent that the con-

tainer platform will reschedule all load of this node

to other nodes (draining the node). For these kind of

purposes elastic container platforms have operations

to mark nodes as unschedulable (Kubernetes has the

cordon command, Docker has a drain concept and so

on). Only in the case that the container platform could

successfully drain the node, the node will be deleted.

However, in high load scenarios the scheduler of the

container platform will simply answer that draining is

not possible. The control loop will not terminate the

node and will simply try to drain the next node on its

list (which will not work as well). In consequence it

will ﬁnish its cycle without substantially changing the

current state. The analyzing step of the MAPE loop

will still identify a delta between the intended and the

current state and will consequently trigger the execu-

tion control loop one more time. That is not perfect

but at last the cluster is kept in an operational state.

5.3 Lessons Learned

Finally, several lessons learned can be derived

from performed software engineering activities which

might be of interest for researchers or practitioners.

1. Just Use Very Basic Requests to Launch, Ter-

minate and Secure Virtual Machines. Try to

avoid cloud-init. It is not identically supported by

all IaaS infrastructures especially in timing rele-

vant public/private IP assignments. Use ssh-based

scripting instead.

2. Consider Secure Networking Across Different

Providers. If you want to bridge different IaaS

cloud service providers you have to work with

public IPs from the very beginning! However, this

is not the default operation for most elastic plat-

forms. Additionally, control and data plane en-

cryption must be supported by the used overlay

network of your elastic platform.

3. Do Never Use IaaS Infrastructure Elasticity

Features. They are not 1:1 portable across

providers. The elastic platform has to cover this.

4. Separate IaaS Support and Elastic Platform

Support Concerns from Each Other. They can

be solved independently from each other using

two independent extension points.

5. Describe Intended States of an Elastic Platform

and Let a Control Process Take Care to Reach

This Intended State. Do not think in TOSCA-

like and IaaS infrastructure speciﬁc workﬂows

how to deploy, scale, migrate and terminate an

elastic platform. All this can be solved by a single

control loop.

6. Separate Description Concerns of the Intended

State. Try to describe the general cluster as an

intended state in a descriptive way. Do not mix

the intended state with infrastructure speciﬁcs and

access credentials.

7. Consider What Causes Stress to an Elastic

Platform. Adding nodes to a platform is less

stressfull than to remove nodes. It seems to be a

good and defensive strategy to add nodes in paral-

lel but to shutdown nodes sequentially. However,

this increases the runtime of the execution phase

of a MAPE loop. To investigate time optimal ex-

ecution strategies could be a fruitful research di-

rection to make MAPE loops more reactive.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

8. Respect Resilience Limitations of an Elastic

Platform. Never shutdown nodes before you at-

tached compensating nodes (in case of transfer-

ability scaling actions) is an obvious solution! But

it is likely not ressource efﬁcient. To investigate

resilient and resource efﬁcient execution strate-

gies could be a fruitful research direction to op-

timize MAPE loops for transferability scenarios.

9. Platform Roles Increase Avoidable Deploy-

ment Complexity. Elastic container platforms

should be more P2P-like and composed of homo-

geneous and equal nodes. This could be a fruitful

research direction either.

10. Asynchronous CLIs or APIs Are Especially

Preferable for Terminating Operatings. Elastic

container platforms will show much more reactive

behavior (and faster adaption cycles) if operated

on IaaS infrastructures providing asynchronous

terminating operations (see Figure 4).

6 RELATED WORK

According to (Barker et al., 2015; Petcu and Vasi-

lakos, 2014; Toosi et al., 2014; Grozev and Buyya,

2014) there are several promising approaches deal-

ing with multi-cloud scenarios. However, none of

these surveys identiﬁed elastic container platforms as

a viable option. Just (Petcu and Vasilakos, 2014)

identify the need to ”adopt open-source platforms”

and ”mechanisms for real-time migration” at run-

time level but did not identiﬁed (nor integrated) con-

crete and existing platforms or solutions. All surveys

identiﬁed approaches ﬁtting mainly in the following

ﬁelds: Volunteer federations for groups of ”cloud

providers collaborating voluntarily with each other to

exchange resources” (Grozev and Buyya, 2014). In-

dependent federations (or multi-clouds) ”when mul-

tiple clouds are used in aggregation by an application

or its broker. This approach is essentially indepen-

dent of the cloud provider” and focus the client-side

of cloud computing (Toosi et al., 2014).

This contribution focus independent federations

(multi-clouds). We do not propose a broker-based

solution (Barker et al., 2015) because cloud-brokers

have the tendency just to shift the vendor lock-in

problem to a broker. However, the following ap-

proaches show some similarities. The following para-

graphs brieﬂy explain how the proposed approach is

different.

Approaches like OPTIMIS (Ferrer et al., 2012),

ConTrail (Carlini et al., 2012) or multi-cloud PaaS

platforms (Paraiso et al., 2012) enable dynamic pro-

visioning of cloud services targeting multi-cloud ar-

chitectures. These solutions have to provide a lot

of plugins to support possible implementation lan-

guages. (Paraiso et al., 2012) mention at least 19 dif-

ferent plugins (just for a research prototype). This in-

creases the inner complexity of such kind of solutions.

Container-based approaches might be better suited to

handle this kind of complexity. Approaches like mO-

SAIC (Petcu et al., 2011) or Cloud4SOA (Kamateri

et al., 2013) assume that an application can be divided

into components according to a service oriented ap-

plication architecture (SOA). These approaches rely

that applications are bound to a speciﬁc run-time en-

vironment. This is true for the proposed approach as

well. However, this paper proposes a solution where

the run-time environment (elastic container platform)

is up to a user decision as well.

The proposed deployment description format is

based on JSON. And it is not at all unlike the kind of

deployment description languages used by TOSCA

(Brogi et al., 2014), CAMEL (A. Rossini, 2015) or

CloudML (Lushpenko et al., 2015). In fact, some

EC-funded projects like PaaSage

(Baur and Do-

maschka, 2016) combine such deployment speciﬁca-

tion languages with runtime environments. Nonethe-

less, this contribution is focused on a more container-

centric approach. Finally, several libraries have been

developed in recent years like JClouds, LibCloud,

DeltaCloud, SimpleCloud, Nuvem, CPIM (Giove

et al., 2013) to name a few. All these libraries unify

differences in the management APIs of clouds and

provide control over the provisioning of resources

across geographical locations. Also conﬁguration

management tools like Chef or Puppet address de-

ployments. But, these solutions do not provide any

(elastic) runtime environments.

Taking all together, the proposed approach intends

to be more ”pragmatic”, ”lightweight” and complex-

ity hiding using existing elastic container platforms.

On the downside, it might be only applicable for

container-based applications. But to use container

platforms gets more and more common in CNA en-

gineering.

7 CONCLUSIONS

As it was emphasized throughout this contribution,

elastic container platforms are a viable and pragmatic

option to support multi-cloud handling which should

be considered more consequently in multi-cloud re-

search. Elastic container platforms provide inherent –

see http://www.paasage.eu/ (last access 15th Feb.

2017)

Smuggling Multi-cloud Support into Cloud-native Applications using Elastic Container Platforms

but astonishingly often overlooked – multi-cloud sup-

port. Multi-cloud workﬂows to deploy, scale, migrate

and terminate elastic container platforms across dif-

ferent public and private IaaS cloud infrastructures

can be complex and challenging. Instead of that,

this paper proposed to deﬁne an intended multi-cloud

state of an elastic platform and let a control process

take care to reach this state. This paper presented an

implementation of such kind of control process be-

ing able to migrate and operate elastic container plat-

forms across different cloud-service providers. It was

possible to transfer a 10 node cluster from AWS to

GCE in approximately six minutes. This control pro-

cess can be used as execution phase in auto-scaling

MAPE loops (Ch. Qu and R. N. Calheiros and R.

Buyya, 2016). The presented cybernetic approach

could evaluated successfully using common elastic

container platforms (Docker’s Swarm Mode, Kuber-

netes) and IaaS infrastructures (AWS, GCE, and Open-

Stack). Furthermore, fruitful lessons learned about

runtime behaviors of IaaS operations and promising

research directions like more P2P-based and control-

loop based designs of elastic container platforms

could be derived. The reader should be aware that the

presented approach might be not feasible for applica-

tions and services outside the scope of CNAs. Nev-

ertheless, it seems that CNA architectures are getting

a predominant architectural style how to deploy and

operate services in the cloud.

ACKNOWLEDGEMENTS

This research is funded by German Federal Ministry

of Education and Research (03FH021PX4). I would

like to thank Peter Quint, Christian St

uben, and Arne

Salveter for their hard work and their contributions to

the Project Cloud TRANSIT. Finally, let me thank all

anonymous reviewers for their valuable feedback that

improved this paper.

REFERENCES

A. Rossini (2015). Cloud Application Modelling and Exe-

cution Language (CAMEL) and the PaaSage Work-

ﬂow. In Advances in Service-Oriented and Cloud

Computing—Workshops of ESOCC 2015, volume

567, pages 437–439.

Balalaie, A., Heydarnoori, A., and Jamshidi, P. (2015).

Migrating to Cloud-Native Architectures Using Mi-

croservices: An Experience Report. In 1st Int. Work-

shop on Cloud Adoption and Migration (CloudWay),

Taormina, Italy.

Barker, A., Varghese, B., and Thai, L. (2015). Cloud Ser-

vices Brokerage: A Survey and Research Roadmap.

In 2015 IEEE 8th International Conference on Cloud

Computing, pages 1029–1032. IEEE.

Baur, D. and Domaschka, J. (2016). Experiences from

Building a Cross-cloud Orchestration Tool. In Proc.

of the 3rd Workshop on CrossCloud Infrastructures &

Platforms, CrossCloud ’16, pages 4:1–4:6, New York,

NY, USA. ACM.

Brogi, A., Soldani, J., and Wang, P. (2014). TOSCA in a

Nutshell: Promises and Perspectives, pages 171–186.

Springer Berlin Heidelberg, Berlin, Heidelberg.

Carlini, E., Coppola, M., Dazzi, P., Ricci, L., and Righetti,

G. (2012). Cloud Federations in Contrail. pages 159–

168. Springer Berlin Heidelberg.

Ch. Qu and R. N. Calheiros and R. Buyya (2016). Auto-

scaling Web Applications in Clouds: A Taxonomy and

Survey. CoRR, abs/1609.09224.

Fehling, C., Leymann, F., Retter, R., Schupeck, W., and Ar-

bitter, P. (2014). Cloud Computing Patterns: Funda-

mentals to Design, Build, and Manage Cloud Appli-

cations. Springer Publishing Company, Incorporated.

Ferrer, A. J., Hernandez, F., Tordsson, J., Elmroth, E., Ali-

Eldin, A., Zsigri, C., Sirvent, R., Guitart, J., Badia,

R. M., Djemame, K., Ziegler, W., Dimitrakos, T., Nair,

S. K., Kousiouris, G., Konstanteli, K., Varvarigou, T.,

Hudzia, B., Kipp, A., Wesner, S., Corrales, M., Forgo,

N., Sharif, T., and Sheridan, C. (2012). OPTIMIS: A

holistic approach to cloud service provisioning. Fu-

ture Generation Computer Systems, 28(1):66–77.

Giove, F., Longoni, D., Yancheshmeh, M. S., Ardagna, D.,

and Di Nitto, E. (2013). An Approach for the Devel-

opment of Portable Applications on PaaS Clouds. In

Proceedings of the 3rd International Conference on

Cloud Computing and Services Science, pages 591–

601. SciTePress - Science and and Technology Publi-

cations.

Grozev, N. and Buyya, R. (2014). Inter-Cloud architectures

and application brokering: taxonomy and survey. Soft-

ware: Practice and Experience, 44(3):369–390.

Hindman, B., Konwinski, A., Zaharia, M., Ghodsi, A.,

Joseph, A. D., Katz, R. H., Shenker, S., and Stoica,

I. (2011). Mesos: A Platform for Fine-Grained Re-

source Sharing in the Data Center. In 8th USENIX

Conf. on Networked systems design and implementa-

tion (NSDI’11), volume 11.

Kamateri, E., Loutas, N., Zeginis, D., Ahtes, J., D’Andria,

F., Bocconi, S., Gouvas, P., Ledakis, G., Ravagli,

F., Lobunets, O., and Tarabanis, K. A. (2013).

Cloud4SOA: A Semantic-Interoperability PaaS Solu-

tion for Multi-cloud Platform Management and Porta-

bility. pages 64–78. Springer Berlin Heidelberg.

Kratzke, N. and Quint, P.-C. (2015a). About Automatic

Benchmarking of IaaS Cloud Service Providers for a

World of Container Clusters. Journal of Cloud Com-

puting Research, 1(1):16–34.

Kratzke, N. and Quint, P.-C. (2015b). How to Operate Con-

tainer Clusters more Efﬁciently? Some Insights Con-

cerning Containers, Software-Deﬁned-Networks, and

their sometimes Counterintuitive Impact on Network

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

Performance. International Journal On Advances in

Networks and Services, 8(3&4):203–214.

Kratzke, N. and Quint, P.-C. (2017a). Investigation of Im-

pacts on Network Performance in the Advance of a

Microservice Design. In Helfert, M., Ferguson, D.,

Munoz, V. M., and Cardoso, J., editors, Cloud Com-

puting and Services Science Selected Papers, Com-

munications in Computer and Information Science

(CCIS). Springer.

Kratzke, N. and Quint, P.-C. (2017b). Understanding

Cloud-native Applications after 10 Years of Cloud

Computing - A Systematic Mapping Study. Journal

of Systems and Software, 126(April):1–16.

Lushpenko, M., Ferry, N., Song, H., Chauvel, F., and Sol-

berg, A. (2015). Using Adaptation Plans to Control

the Behavior of Models@Runtime. In Bencomo, N.,

otz, S., and Song, H., editors, MRT 2015: 10th

Int. Workshop on Models@run.time, co-located with

MODELS 2015: 18th ACM/IEEE Int. Conf. on Model

Driven Engineering Languages and Systems, volume

1474 of CEUR Workshop Proceedings. CEUR.

Namiot, D. and Sneps-Sneppe, M. (2014). On micro-

services architecture. Int. Journal of Open Informa-

tion Technologies, 2(9).

Newman, S. (2015). Building Microservices. O’Reilly Me-

dia, Incorporated.

Pahl, C. and Jamshidi, P. (2015). Software architecture

for the cloud – A roadmap towards control-theoretic,

model-based cloud architecture. In Lecture Notes in

Computer Science (including subseries Lecture Notes

in Artiﬁcial Intelligence and Lecture Notes in Bioin-

formatics), volume 9278.

Paraiso, F., Haderer, N., Merle, P., Rouvoy, R., and Sein-

turier, L. (2012). A Federated Multi-cloud PaaS In-

frastructure. In 2012 IEEE Fifth International Con-

ference on Cloud Computing, pages 392–399. IEEE.

Peinl, R. and Holzschuher, F. (2015). The Docker Ecosys-

tem Needs Consolidation. In 5th Int. Conf. on Cloud

Computing and Services Science (CLOSER 2015),

pages 535–542.

Petcu, D., Craciun, C., Neagul, M., Lazcanotegui, I., and

Rak, M. (2011). Building an interoperability API for

Sky computing. In 2011 International Conference

on High Performance Computing & Simulation, pages

405–411. IEEE.

Petcu, D. and Vasilakos, A. V. (2014). Portability in clouds:

approaches and research opportunities. Scalable Com-

puting: Practice and Experience, 15(3):251–270.

Stine, M. (2015). Migrating to Cloud-Native Application

Architectures. O’Reilly.

Toosi, A. N., Calheiros, R. N., and Buyya, R. (2014). In-

terconnected Cloud Computing Environments. ACM

Computing Surveys, 47(1):1–47.

Verma, A., Pedrosa, L., Korupolu, M. R., Oppenheimer, D.,

Tune, E., and Wilkes, J. (2015). Large-scale cluster

management at Google with Borg. In 10th. Europ.

Conf. on Computer Systems (EuroSys ’15), Bordeaux,

France.

APPENDIX

Exemplary Cluster Deﬁnition File (JSON)

This cluster deﬁnition ﬁle deﬁnes a Swarm cluster

with the intended state to be deployed in two districts

provided by two providers GCE and AWS. It deﬁnes

three type of user deﬁned node types (ﬂavors): small,

med, and large. 3 master and 3 worker nodes should

be deployed on small virtual machine types in dis-

trict gce-europe. 10 worker nodes should be deployed

on small virtual machine types in district aws-europe.

The ﬂavors small, med, large are deﬁned in Listing 3.

{ " ty pe ": " c lust e r ",

" pla t fo rm ": " Sw arm " ,

// [...] , S im pl if ie d for r e a d a bi li ty

" f la vo rs ": [" smal l " ," med " ," la rge "] ,

" dep lo y m e nt s ": [

{ " dis tr ic t ": " gce - e uro pe ",

" f la vor ": " s mal l " ,

" r o le ": " mas ter " ,

" qua n ti ty ": 3

{ " dis tr ic t ": " gce - e uro pe ",

" f la vor ": " s mal l " ,

" r o le ": " wor ker " ,

" qua n ti ty ": 3

{ " dis tr ic t ": " aws - e uro pe ",

" f la vor ": " s mal l " ,

" r o le ": " wor ker " ,

" qua n ti ty ": 10

}

]

}

Listing 1: Cluster Deﬁnition (cluster.json).

Exemplary Credentials File (JSON)

The following credential ﬁle provides access creden-

tials for customer speciﬁc GCE and AWS accounts

as identiﬁed by the district deﬁnition ﬁle (gce default

and aws default).

[ { " type ": " cr ed e n t i a l " ,

" id ": " gc e_ de fa ul t ",

" pro v id er ": " gce ",

" gce _ k e y_ fi le ": " path - to - key . json "

{ " ty pe ": " cr ed en ti al " ,

" id ": " aw s_ de fa ul t ",

" pro v id er ": " aws ",

" aw s_ ac c es s _ k ey _ id ": " A KID ",

" aw s_ s ec r e t _ a c ce s s_ k ey ": " SEC R ET "

}

]

Listing 2: Credentials (credentials.json).

Smuggling Multi-cloud Support into Cloud-native Applications using Elastic Container Platforms

Exemplary District Deﬁnition File (JSON)

The following district deﬁnition deﬁnes provider

speciﬁc settings and mappings. The user deﬁned dis-

trict gce-europe should be realized using the provider

speciﬁc GCE zones europe-west1-b and europe-

west1-c. Necessary and provider speciﬁc access set-

tings like project identiﬁers, regions, and credentials

are provided as well. User deﬁned ﬂavors (see clus-

ter deﬁnition format above) are mapped to concrete

provider speciﬁc machine types. The same is done

for the AWS district aws-europe.

[

{

" t y pe ": " di st r ic t ",

" id ": " gce - eu ro p e ",

" pro v id er ": " gce ",

" cre d en ti al _ id ": " gce _ d e f a ul t ",

" gc e _ pr oj e ct _i d ": " your - proj - id " ,

" gce _r eg io n ": " europe - w est 1 " ,

" gce _z on es ": [

" europe - west1 - b " ,

" europe - west1 - c "

" f la vo rs ": [

{ " flav or ": " s m all " ,

" mac h i n e_ ty pe ": " n1 - st anda r d - 1 "

{ " flav or ": " med ",

" mac h i n e_ ty pe ": " n1 - st anda r d - 2 "

{ " flav or ": " l a rge " ,

" mac h i n e_ ty pe ": " n1 - st anda r d - 4 "

}

]

{

" t y pe ": " di st r ic t ",

" id ": " aws - eu ro p e ",

" pro v id er ": " aws ",

" cre d en ti al _ id ": " aws _ d e f a ul t ",

" aws _r eg io n ": " eu - cent r al -1" ,

" f la vo rs ": [

{ " flav or ": " s m all " ,

" ins t an ce _t y pe ": " m3 . med ium "

{ " flav or ": " med ",

" ins t an ce _t y pe ": " m4 . larg e "

{ " flav or ": " l a rge " ,

" ins t an ce _t y pe ": " m4 . xla rge "

}

]

}

]

Listing 3: District Deﬁnitions (districts.json).

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science
