Automatic Quantification of Vocal Cord Paralysis

An Application of Fibre-optic Endoscopy Video Processing

Radhika Menon

, Lykourgos Petropoulakis

, John J. Soraghan

, Heba Lakany

Kenneth MacKenzie

, Omar Hilmi

and Gaetano Di Caterina

Department of Electronic & Electrical Engineering, University of Strathclyde, 204 George Street, Glasgow, U.K.

Department of Biomedical Engineering, University of Strathclyde, 106 Rottenrow East, Glasgow, U.K.

NHS Greater Glasgow & Clyde, Glasgow, U.K.

Keywords: Motion Estimation, Automatic Segmentation, Computer-assisted Diagnosis, Fibre-optic Endoscopy, Vocal

Cord Motion.

Abstract: Full movement of the vocal cords is necessary for life sustaining functions. To enable correct diagnosis of

reduced vocal cord motion and thereby potentially enhance treatment outcomes, it is proposed to objectively

determine the degree of vocal cord paralysis in contrast to the current clinical practice of subjective

evaluation. Our study shows that quantitative assessment can be achieved using optical flow based motion

estimation of the opening and closing movements of the vocal cords. The novelty of the proposed method

lies in the automatic processing of fibre-optic endoscopy videos to derive an objective measure for the

degree of paralysis, without the need for high-end data acquisition systems such as high speed cameras or

stroboscopy. Initial studies with three video samples yield promising results and encourage further

investigation of vocal cord paralysis using this technique.

1 INTRODUCTION

The co-ordinated movement of the vocal cords in the

human throat facilitates breathing, swallowing and

voice production. Partial or complete paralysis of the

vocal cords adversely affects these vital functions. In

order to appropriately treat this condition, it is

essential to determine the degree of paralysis as

accurately as possible. However, in the current

clinical practice, the judgement of the extent of

paralysis is made subjectively by visual inspection

of the vocal cords using endoscopy. It is therefore

challenging for clinicians to ascertain and evaluate

the paralysis, particularly in the case of slight partial

paralysis. Therefore, an objective assessment

technique based on video processing is proposed in

this paper, to automatically quantify vocal cord

paralysis, in order to aid and enhance current

diagnostic practices.

A number of approaches have been developed to

quantify vocal cord motion such as Glottal Area

Waveform or GAW (Panek et al., 2015; Woo, 2014;

Gonzalez et al., 2013), phonovibrography

(Lohscheller et al., 2008), kymography (Švec and

Schutte, 2012), glottography (Karakozoglou et al.,

2012), spatiotemporal analysis (Zhang et al., 2007)

etc. Most of the research studies have focussed on

quantitative assessment of vocal cord vibration

during voice production. The high frequency (100-

250Hz) vibrations are visualised using high speed

cameras with frame rates over 2000 frames per

second or by using stroboscopy. The latter technique

involves illuminating the vocal cords periodically

with bright flashes of light to produce the effect of

viewing the vibration in slow motion. The rigid

stroboscope inserted orally is the most commonly

used endoscope in these studies because good

quality images can be obtained (Verikas et al.,

2009). Such acquisition systems tend to be used

primarily in specialised voice clinics due to the need

for specialist expensive equipment for the technique

and its recording. In the UK, the majority of cases

are examined and diagnosed with the flexible fibre-

optic endoscope by observing the opening

(abduction) and closing (adduction) movements of

the vocal cords, which are slow enough to be

observed by the human eye and captured using an

ordinary 25 frame per second camera. Moreover, the

108

Menon R., Petropoulakis L., Soraghan J., Lakany H., MacKenzie K., Hilmi O. and Di Caterina G.

Automatic Quantiﬁcation of Vocal Cord Paralysis - An Application of Fibre-optic Endoscopy Video Processing.

DOI: 10.5220/0006231001080113

In Proceedings of the 10th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2017), pages 108-113

ISBN: 978-989-758-215-8

nasal insertion of the endoscope allows the vocal

cords to be viewed in a natural position and is better

tolerated by patients.

Therefore, in our study we aimed to exploit the

flexible fibre-optic endoscope videos to analyse

vocal cord abduction and adduction, in order to

derive a measurable descriptor of vocal cord

paralysis. To the best of our knowledge, an

automated algorithm developed for this purpose has

not been reported yet in the literature.

The algorithm proposed in this study caters to

two main challenges. Firstly, the techniques for

quantification of vocal cord motion using vibration

analysis cannot be directly applied to the slower

abduction/adduction movements of paralysed vocal

cords. For example, the accuracy of GAW based

methods and the phonovibrography is limited by the

precise identification of the glottal midline

(Karakozoglou et al., 2012). Determining the

midline becomes challenging when there is a shift in

the position of the arytenoids (anatomical structures

bordering the posterior side of the glottal area in a

laryngeal image). Moreover, the normal vocal cord

may cross the midline when adducting, in an attempt

to compensate for the reduced motion of the

abnormal vocal cord. For these reasons, for the work

presented in this paper, we resorted to a technique

that was not based on the identification of the

midline or glottal area. The movement of each vocal

cord is tracked using an optical flow algorithm and

features are extracted from the resulting flow vector

patterns. In (Zorrilla et al., 2012), a block matching

technique has been used to differentiate between

normal and paralysed vocal cords but the degree of

paralysis was not measured by the authors.

Secondly, the videos acquired using the flexible

fibre endoscope are of poorer image quality than

those recorded with the rigid laryngoscope.

Therefore, video pre-processing is required to

remove artefacts and enhance the image frames to

enable proper segmentation of the vocal cord edges.

The remainder of the paper is organised as

follows: Section 2 explains the methodology for data

acquisition, pre-processing, ROI detection and

motion estimation using the optical flow technique.

Section 3 contains the results and discussion.

Finally, Section 4 concludes the paper and provides

the course of future work.

2 METHODOLOGY

An outline of the methodology is provided in

Figure1 and is explained in detail in the following

subsections.

2.1 Data Acquisition

Routine clinical video data were acquired with the

consent of the subjects. The motion of the vocal

cords was acquired by inserting a flexible fibre-optic

endoscope through the nose and recording the scene

using a 25 frame per second camera. RGB video

frames of resolution 768x576 were produced. Figure

2 provides some sample frames of the raw data. The

subject was asked to phonate making an "ee" sound,

followed by taking a deep breath. This sequence was

performed at least twice. A database consisting of 10

videos of approximately 30 seconds’ duration each

of normal and paralysed vocal cords has been

created in our study so far. In this paper, we use 3

videos (2 normal and 1 severe right palsy cases)

from this database, with an aim to provide a proof of

concept for automated processing of fibre-optic

videos and quantification of left-right motion

symmetry of vocal cords.

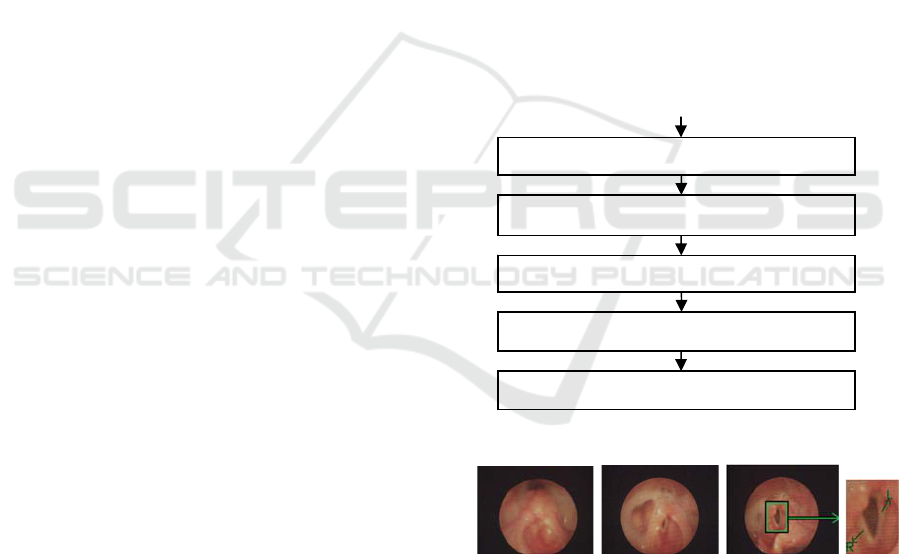

Figure 1: Overview of proposed technique.

Figure 2: From left to right - selected frames from raw

video sequence of right vocal cord palsy showing

maximally adducted to maximally abducted positions, and

zoomed region showing the right and left vocal cords,

marked with ‘R’ and ‘L’, respectively.

2.2 Video Pre-processing

After extracting the image frames from a video, a

sequence of frames representing abducted (opened)

vocal cords were manually selected. This sequence

of frames was provided as input to the automated

ut video

Pre-

rocessin

Automated glottal area segmentation

Vocal cord ed

e tracin

Motion estimation using Optical Flow

Quantitative paralysis assessment

Automatic Quantiﬁcation of Vocal Cord Paralysis - An Application of Fibre-optic Endoscopy Video Processing

109

algorithm developed in this study using MATLAB.

A honey-comb structure is observed in the

original image frames as seen in Figure 3. This

artefact is produced due to the sub-sampling of the

scene by the amount of glass fibres present in the

fibre-optic bundle. It was eliminated by spectral

filtering using a star shaped band stop filter (Winter

et al., 2006). The filtered image was smoothed with

a wiener filter. Figure 3 shows the resultant image.

The next step in the pre-processing stage served

the purpose of automatically stabilising the video as

well as cropping the region of interest from each

frame. Video stabilisation is required to minimise

the translational movement of the vocal cords from

frame to frame due to the motion of the larynx itself

or that of the endoscope. Since the structures in the

larynx are mostly pink or red coloured, only the red

channel was used for data processing from this stage

onwards. The technique involved manually selecting

a template containing the region of interest (ROI) in

the first frame and then applying normalised cross

correlation to find the best match for this template in

the second frame. Subsequently, the ROI located in

the second frame was used as the template to search

for the ROI in the following frame, and then the

process was automatically repeated for all the

frames. This resulted in a new video sequence where

every frame comprised the ROI centred in the frame.

Figure 4a provides a sample image of normal vocal

cords from a pre-processed video sequence.

2.3 Glottal Area Segmentation

The glottal area can be segmented with the

knowledge that it appears darker than the

surrounding anatomical structures due to limited

illumination. A two-phase procedure was used to

segment the glottal area. In the first phase, a

preliminary segmentation of the glottal area was

obtained by thresholding using a non-linear

transform, followed by the use of morphological

operations including dilation, boundary object

removal, hole filling and selecting the largest object

in the image. In the second phase, the segmented

regions were used as masks to provide an initial

contour for an active contour algorithm (Kass,

1988), to identify the glottal area boundaries more

accurately.

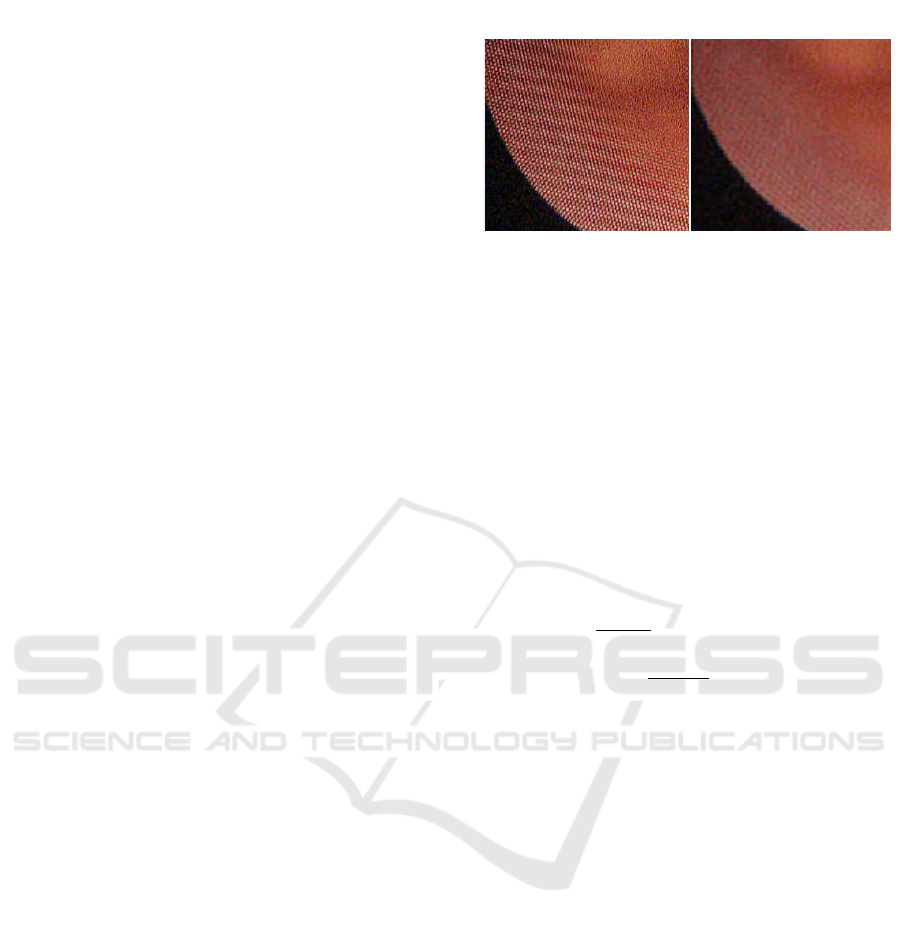

Figure 3: Left- cropped section of original RGB image to

illustrate the honey-comb structured artefact caused by the

fibre-optic bundle; Right: pre-processed image with

artefact suppressed.

A non-linear transform, shown to be effective in

the presence of uneven illumination (Andrade-

Miranda et al., 2015) was used for thresholding the

image. Consider an image with intensity I(x,y) ∈ [0,

255], where x = 1,2,…,N and y = 1,2,…,M denote

the number of a pixel in the horizontal and vertical

directions, i.e., column and row numbers, resp. The

transformed image is computed as follows:





(

,

)

=

255, 

(

,

)

>



255 ∗ 

(,)









, 

(

,

)

≤



(1)

where, 



=

∑

(,)









The factor L

accounts for the row-wise varying

lighting conditions. The parameters α and γ were

determined empirically to be 1.5 and 2, respectively.

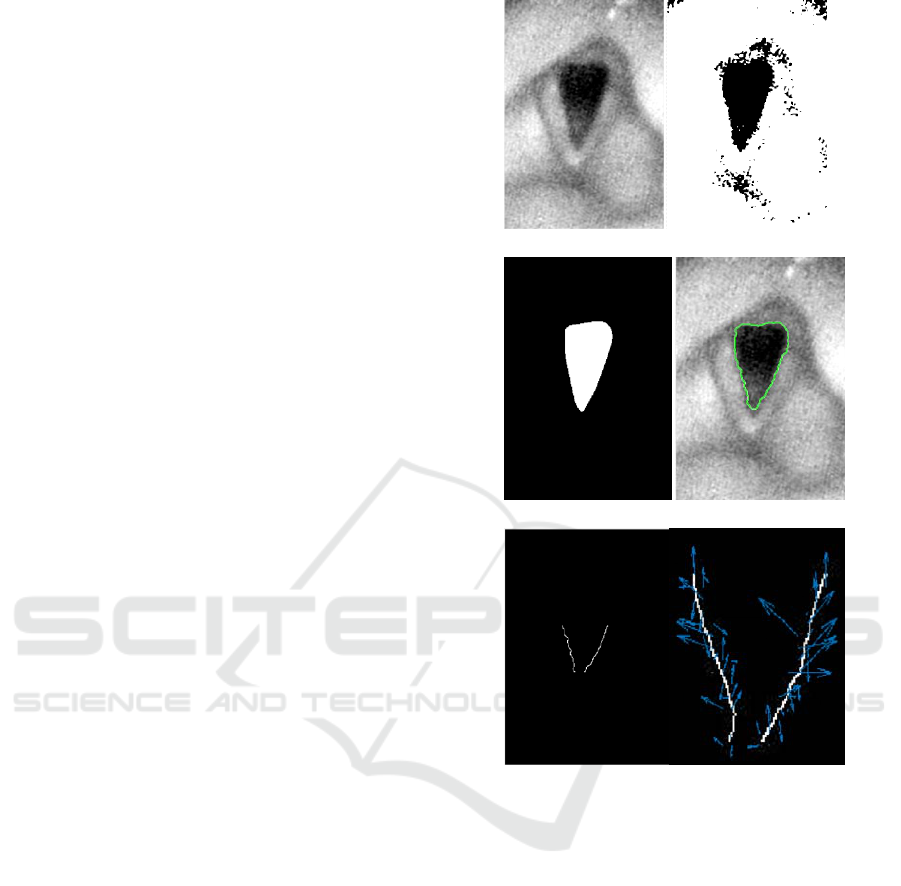

Figure 4b illustrates the binarised image using this

technique. Note the glottal area localised in the

centre of the image.

Thereafter morphological operations were

performed on the binarised images, commencing

with dilation operation. The images were then

complemented and boundary object removal was

performed because the glottal area is not expected to

be near the image borders, as the ROI has been

centred in the frames. Consequently, holes were

filled and finally all the objects except the largest

one were erased. The resultant image after all the

morphological operations is shown in Figure 4c.

Active contours have shown to be successful in

glottal area segmentation and was therefore adopted

as the technique for the final segmentation

(Karakozoglou et al., 2012; Yan et al., 2006). The

method is an energy minimisation scheme that is

used to detect the boundary of objects by curve

evolution influenced by internal and external factors

(Kass, 1988). The energy of a curve 



= (x

, y

) is

given as:

BIOIMAGING 2017 - 4th International Conference on Bioimaging

110





= 



(





)

+



(





)

+



(





)









(2)

The internal spline energy, E

int

, provides a

measure of the tension and rigidity of the curve

during bending. E


results in the curve being

pulled towards lines, edges and corners. E

con

represents the energy of the external constraint

forces that influence the curve being attracted to

local minima. The algorithm is initially provided as

input a contour that closely matches the boundary to

be detected; thereafter the curve is deformed by

iteratively minimising its energy. Figure 4d provides

the final contour bordering the glottal area detected

by the active contour algorithm.

2.4 Vocal Cord Edge Tracing

In order to discard non-vocal-cord structures

bordering the segmented area, empirically

determined values of 40% and 5% of the vertical

contour length were used to erase the top and bottom

sections, resp., of the extracted boundary. This

resulted in two curves, each corresponding to one

vocal cord edge, as shown in Figure 4e. Note the left

edge of the extracted boundary corresponds to the

anatomic right vocal cord edge and vice versa.

2.5 Optical Flow Analysis

The movement of the vocal cord edges between

successive frames were computed using the optical

flow algorithm, which provides an approximation to

the velocity field associated with each pixel in an

image sequence. By assuming that pixel intensities

are translated spatially between consecutive time

frames, the velocity of a pixel can be computed

using a least squares estimation (Barron et al., 1994)

over a window of neighbouring pixels. For each

block the following squared error is minimised:













+ 







+ 







(3)

where, I

and I

are spatial image intensity gradients,

the intensity gradient over time, and v

and v

the

horizontal and vertical pixel velocities, resp. W is a

weighting function to focus on constraints centred in

the window and is implemented as a 5x5 kernel with

1D weights (0.0625, 0.25, 0.375, 0.25, 0.0625) in the

horizontal and vertical directions. The arrows, in the

enlarged view of the image in Figure 4f, depict the

motion velocities of the vocal cord edges.

(a) (b)

(e) (f)

Figure 4: Demonstration of methodology with a sample

image frame of normal vocal cords: (a) Pre-processed

image (b) Image thresholded using non-linear thresholding

Segmented glottal area by applying active contour method

using image c as initial mask (e) Left and right vocal cord

edges (note that the edge appearing on the left side of the

image is the anatomical right vocal cord edge) (f) zoomed

view of flow vectors indicating motion of vocal cords

compared to the previous frame in the image sequence.

2.6 Quantitative Assessment

In order to quantify the degree of paralysis, the mean

value of the magnitude of the optical flow vectors

for each vocal cord was computed in every frame.

This produced two vectors, each representing the

mean flow magnitudes per frame for the left and

right vocal cords. The vectors, which can be plotted

as one-dimensional signals as depicted in Figures 5a

Automatic Quantiﬁcation of Vocal Cord Paralysis - An Application of Fibre-optic Endoscopy Video Processing

111

and 5b, follow the change in average flow

magnitude in the image sequence. Each signal can

be considered as a signature or pattern of the motion

of a vocal cord. A feature known as the waveform

length, which has been widely used in EMG signal

processing (Hudgins et al., 1993), was then

calculated for the left and right sides. It is the

cumulative length of a signal and provides a

measure of waveform complexity. Finally, the

contribution of each vocal cord to the overall motion

is computed by the following equation:













+



× 100%

(4)

where, C

represents the contribution of the left vocal

cord edge to the overall motion occurring in the

image sequence, WL

and WL

are the waveform

lengths of the left and right vocal cords,

respectively. Similarly, C

can be calculated. Normal

vocal cords move in synchronisation with each other

and therefore motion symmetry can be used as an

indicator of normal functioning.

3 RESULTS AND DISCUSSION

The results from applying the proposed algorithm to

two normal cases and one right palsy patient are

provided in Figure 5. The plots in Figures 5a and 5b

show the mean flow magnitudes for individual vocal

cords. It is observed that the blue waveform in the

graph in Figure 5b, associated with the right vocal

cord of the palsy subject, is smaller than the red one.

An objective measure of the degree of paralysis is

provided in Figure 5c. The measure depicts the

contribution of a vocal cord to the total motion in the

image sequence and is expressed in percentage. It is

obvious that the normal cases demonstrate almost

equal contribution by both vocal cords, whereas the

palsy case shows reduced motion of the right vocal

cord.

While these results appear promising, further

analysis of more videos needs to be performed in

order to derive a calibrated measure that corresponds

to the degree of paralysis identified by clinicians.

This shall be done in future work and validation of

the results by comparing with subjective evaluation

by experienced clinicians will also be performed.

Moreover, to achieve a robust quantitative

assessment tool, other features that can be extracted

from the motion vectors shall also be investigated.

In order to prove the advantage of our method

over other midline based approaches such as the

GAW, a similar measure of contribution to motion

using the waveform length was computed - but

instead of using the motion magnitudes as the

signature, the glottal area waveforms of the left and

right sides were used to calculate the waveform

length. The left and right sides were determined

automatically by fitting an ellipse on the segmented

glottal area and assigning its major axis length as the

midline of the glottal area (Panek et al., 2015). As

can be observed in Figure 6, the glottal area

technique is inappropriate for identifying paralysis

of the vocal cords.

(a) Subject: Normal1

(b) Subject: Palsy

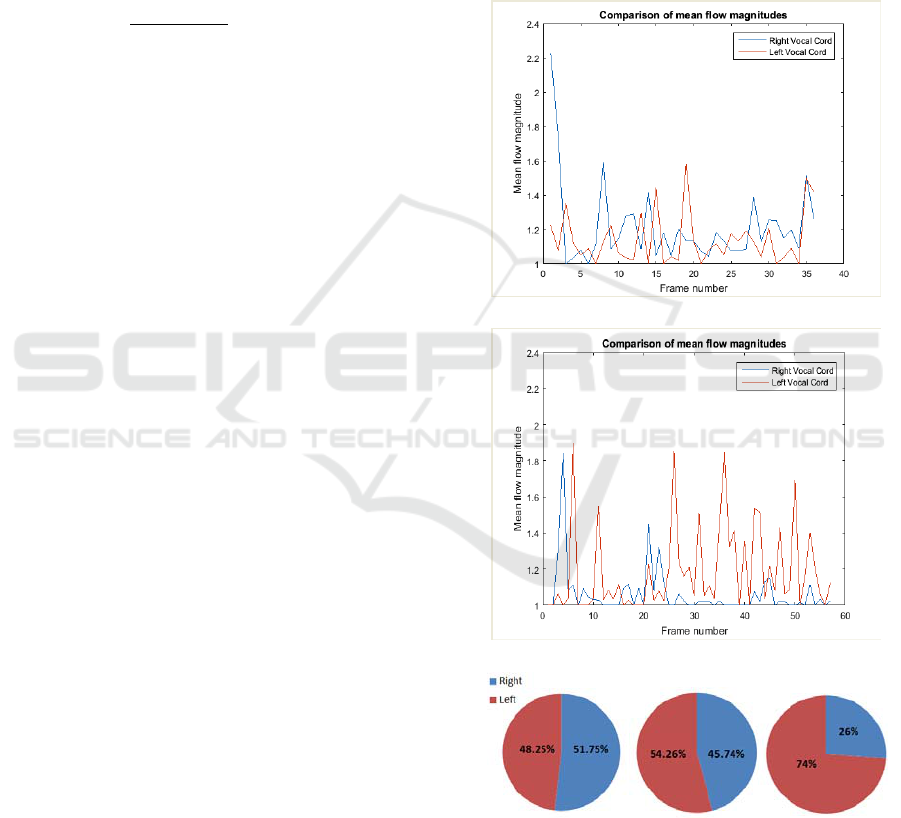

Figure 5: Results- (a) Plot of average flow magnitudes for

a normal case (subject id Normal1) for right (blue curve)

and left (red curve) vocal cords; (b) Similar plot for right

palsy patient; (c) Quantitative measure of paralysis.

BIOIMAGING 2017 - 4th International Conference on Bioimaging

112

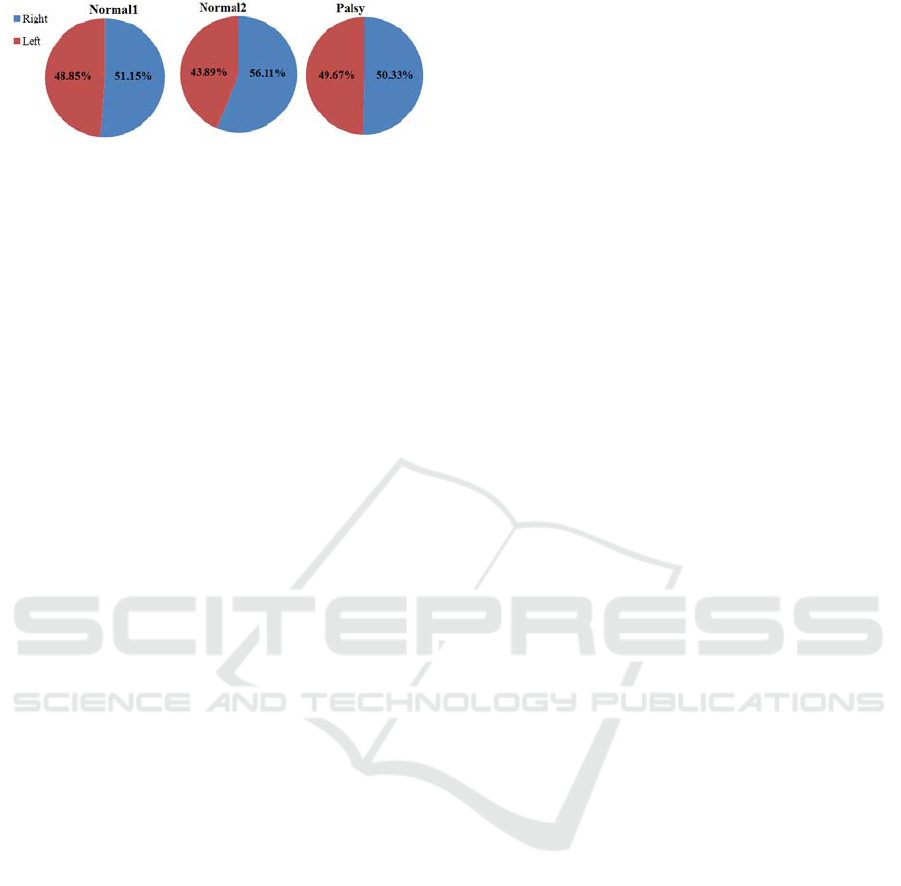

Figure 6: Quantitative measures using Glottal Area

Waveform (GAW) as a signature of motion in the image

sequence.

4 CONCLUSIONS

Our work emphasises the use of data acquisition

procedures which are widely used in hospitals

worldwide, in order to develop a generalisable

technique that can be seamlessly integrated with

current clinical practices, rather than utilising state-

of-the-art systems for developing techniques that

have limited scope of implementation outside the

laboratory. Towards this end, we aimed to utilise the

commonly used fibre-optic videos in order to assess

abduction/adduction movements of the vocal cords

as done by clinicians in the current clinical practice.

However, the diagnosis can be enhanced by

introducing quantitative measures, potentially being

useful for trainees or for very challenging cases,

particularly where the degree of paralysis is subtle or

where there may be subtle pathology of a vocal cord

affecting its movement.

Our results are very encouraging to further

analyse fibre-optic endoscopy videos for

quantification of vocal cord paralysis using motion

estimation techniques.

REFERENCES

Andrade-Miranda, G. et al., 2015. An automatic method to

detect and track the glottal gap from high speed

videoendoscopic images. BioMedical Engineering

OnLine, 14(1), p.100. Available at:

http://www.biomedical-engineering-

online.com/content/14/1/100.

Barron, J.L. et al., 1994. Performance of optical flow

techniques. Proceedings 1992 IEEE Computer Society

Conference on Computer Vision and Pattern

Recognition, 12(1), pp.236–242. Available at:

http://ieeexplore.ieee.org/lpdocs/epic03/wrapper.htm?

arnumber=223269.

Gonzalez, J., Wood, S. & Yan, Y., 2013. Fourier

descriptor based diagnosis of vocal-fold partial

asymmetry from high speed image sequences.

Conference Record - Asilomar Conference on Signals,

Systems and Computers, pp.263–267.

Hudgins, B. et al., 1993. A new strategy for multifunction

myoelectric control.pdf. , 40(I), pp.82–94.

Karakozoglou, S.Z. et al., 2012. Automatic glottal

segmentation using local-based active contours and

application to glottovibrography. Speech

Communication, 54(5), pp.641–654.

Kass, 1988. Snakes: Active Contour Models. International

Journal of Computer Vision, pp.321–331.

Lohscheller, J. et al., 2008. Phonovibrography: Mapping

high-speed movies of vocal fold vibrations into 2-D

diagrams for visualizing and analyzing the underlying

laryngeal dynamics. IEEE Transactions on Medical

Imaging, 27(3), pp.300–309.

Panek, D. et al., 2015. Voice pathology classification

based on High-Speed Videoendoscopy. Proceedings

of the Annual International Conference of the IEEE

Engineering in Medicine and Biology Society, EMBS,

2015–November, pp.735–738.

Švec, J.G. & Schutte, H.K., 2012. Kymographic imaging

of laryngeal vibrations. Current Opinion in

Otolaryngology & Head and Neck Surgery, 20(6), p.1.

Verikas, A. et al., 2009. Advances in laryngeal imaging.

European Archives of Oto-Rhino-Laryngology,

266(10), pp.1509–1520.

Winter, C. et al., 2006. Automatic adaptive enhancement

for images obtained with fiberscopic endoscopes.

IEEE Transactions on Biomedical Engineering,

53(10), pp.2035–2046.

Woo, P., 2014. Objective measures of laryngeal imaging:

What have we Learned since Dr. paul moore. Journal

of Voice, 28(1), pp.69–81. Available at:

http://dx.doi.org/10.1016/j.jvoice.2013.02.001.

Yan, Y., Chen, X. & Bless, D., 2006. Automatic tracing of

vocal-fold motion from high-speed digital images.

IEEE Trans Biomed Eng, 53(7), pp.1394–1400.

Available at:

http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?cmd=

Retrieve&db=PubMed&dopt=Citation&list_uids=168

30943.

Zhang, Y. et al., 2007. Quantifying the complexity of

excised larynx vibrations from high-speed imaging

using spatiotemporal and nonlinear dynamic analyses.

Chaos, 17(4).

Zorrilla, A.M. et al., 2012. Vocal folds paralysis

clasiffication using flda and pca algorithms suported

by an adapted block matching algorithm. In

Proceedings of the 5th International Symposium on

Communications, Control and Signal Processing. pp.

2–4.

Automatic Quantiﬁcation of Vocal Cord Paralysis - An Application of Fibre-optic Endoscopy Video Processing

113
