A Revisit to Web Browsing on Wearable Devices

Jinwoo Song, Hyunjune Kim, Ming Jin and Honguk Woo

Software R&D Center, Samsung Electronics, Seoul, Korea, Republic of

Keywords: Wearable Devices, Fast Access Browsing, Widget View, Constrained Web Specification.

Abstract: Wearable devices and smartwatches have become prevalent in recent years, yet consuming web contents on

those devices are not common mainly due to their restricted IO capabilities. In this paper, we revisit the web

browser model and propose the notion of fast access browsing that incorporates the lightweight, always-on

web snippets, namely widget view, into web applications. This allows smartwatch users to rapidly access

web contents (i.e., within 200ms) similarly as they interact with notification. To do so, we analyse about 90

smartwatch applications, identify the quick preview pattern, and then define the constrained web

specifications for smartwatches. Our implementation, the wearable device toolkit for fast access browsing,

is now being tested and deployed on commercialized products and the developer tool for building widget

view enabled web applications will be soon available as the smartwatch SDK extensions.

1 INTRODUCTION

Notification and application are two main smart

experiences that wearable devices provide nowadays.

The benefit of notification on wearable devices is

considered well justified since the rapid access to

contextually relevant information e.g., messages,

appointments, and news, is usually important, yet

running applications presumably need significant

improvement. It is naturally anticipated that the

smartphone users’ experiences of playing with

various applications and browsing web contents can

be readily migrated to smartwatches and equally

accepted, but unfortunately, our internal statistics on

the app store activities indicates that smartwatch

applications do not reach the wide popularity level

of mobile app ecosystems.

Furthermore, in general,

the existing platforms rarely prioritize the

application of web browsing as an important feature

on wearable devices.

It is mainly due to their

inherent physical limitations such as tiny display and

battery power that can degrade the browsing

experience. For instance, Samsung Gear S2

(released on October 2015) smartwatch has

Same insight can be found from www.argusinsights.com/wearable-apps-

2016

watchOS, Tizen wearable, and Android wear haven’t included web

browsers as preload applications on their commercial devices, and there is

no smartwatch version of web browsers from major browser providers.

1.2inches 360x360 pixels display, 512MB RAM,

and 300mAh battery while Samsung Galaxy S7

smartphone (released on March 2016) has several

times capabilities including 5.1inches 1440x2560

pixels display, 4GB RAM, and 2550mAh battery.

Web browsing is a main part of daily life and

gets more valuable as more time people are online

through various devices and networks. It should be

noted that web browsing is usually performed not

only through conventional web browsers but also

with web-enabled applications that are common in

mobiles e.g., WebView applications of Android. In

the aforementioned circumstance, however, web

browsing would not be soon prevalent on wearable

devices unless the way to dealing with web contents

is essentially reformulated.

In this paper, we propose a new model for

browsing web contents on wearable devices,

specifically commonly available smartwatches,

addressing the limitation of smartwatch applications

and making the best use of the beneficial

characteristics of notification, that is, the rapid

access to the information. In doing so, (1) we first

extend the web application structure by introducing

a snippet of web contents, namely widget view that

contains the most important contents provided by a

web application and runs on the always-on mode for

the fast access in a way analogous to how

notification interacts with users. (2) We then analyse

a set of existing smartwatch applications so as to

212

Song, J., Kim, H., Jin, M. and Woo, H.

A Revisit to Web Browsing on Wearable Devices.

DOI: 10.5220/0006232102120224

In Proceedings of the 13th International Conference on Web Information Systems and Technologies (WEBIST 2017), pages 212-224

ISBN: 978-989-758-246-2

identify the information patterns for the fast access

and define the web-based specifications for those

patterns. Note that the specifications are not new but

generally constrained from existing

HTML/CSS/JavaScript. (3) We finally implement

the concept of fast access browsing on smartwatches

in which web applications can be provisioned and

accessed through widget view.

As a result, loading the constrained web contents

by widget views takes less than 200ms and has only

26 percent of memory footprint compared to when

using a conventional web browser. In principle, such

rapid loading and timely response satisfy the

requirement of wearable specific swipe-based

navigations similarly as notification does, while the

constrained specifications do not much compromise

whole web experiences. Our work has been tested on

Tizen-based smartwatches. The runtime

implementation for the constrained specifications is

now being deployed commercially, and the

developer tool for building widget view-enabled web

applications will be soon available as the smartwatch

SDK extensions.

2 BACKGROUND

Compared with smartphones’ sophisticated

applications, modern smartwatch applications have

several limitations such as restricted touch

interaction and runtime environment due to the fact

that smartwatches have lower hardware capabilities

and smaller displays (Apple, 2015, ‘Apple watch

human interface guidelines’; Samsung, 2014,

‘Samsung gear application programming guide’;

Connolly et al., 2014, ‘Designing for wearables’).

There have been several smartwatch OS platforms

including watchOS, Android Wear and Tizen

wearable profile, and they provide the common

application types for similarly establishing the fast

information access under such limitations: Glance of

watchOS 2, Always-on app of Android Wear, and

Widget app of Tizen. In the following, we analyse

the application model of such three OS platforms,

particularly concentrating on their common

characteristics relevant to the fast information access

so as to identify the concept and requirement of the

fast access browsing.

2.1 Apple WatchOS

watchOS is the operating system of Apple Watch

that provides the watch application project type

consisting of two separately composed bundles,

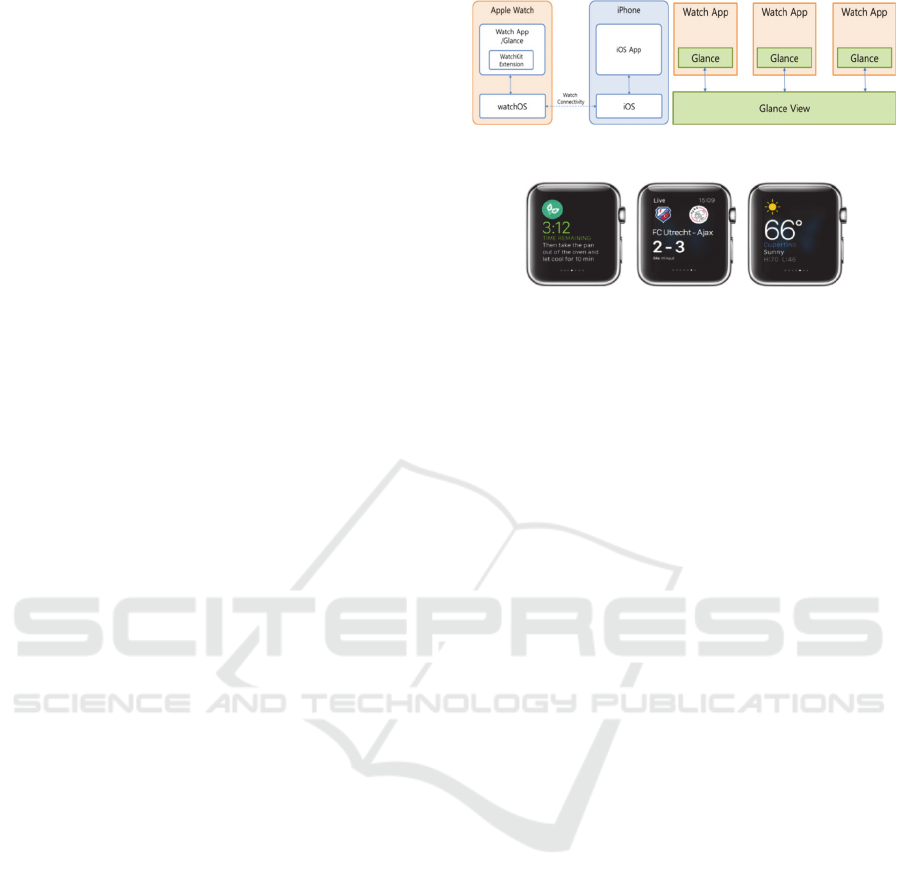

Figure 1: Apple Watch Application Structure.

Figure 2: Apple Watch Glance Examples.

a Watch app and a WatchKit extension. A Watch

app bundle contains the storyboards and resource

files associated with the user interfaces of a watch

application. A WatchKit extension bundle contains

the extension delegate and the controls for managing

those interfaces and responding to user interactions.

Those bundles are packaged and deployed inside the

iOS application on the mobile phone, and they are

then installed on the user’s watch and run locally as

illustrated in Figure 1 (Apple, 2016, ‘Apple watch

app architecture’).

For supporting the fast access to important

information, a Glance can be added in a WatchOS 2

project. Having a simple swipe at the bottom of the

watch face, a user can quickly launch a Glance with

a summarized view. Note that a Glance is part of a

watch application and thus tapping a Glance usually

makes its companion application displayed with the

main interface in a full-fledged manner. The right

diagram of Figure 1 describes the architectural view

of Glance. Glances form a swipe-able collection of

instant applications in that on each Glance, a user

can quickly navigate to other Glances by swiping to

left or right. Figure 2 depicts Glance examples that

facilitate quick information view. (Bos, 2015)

Limitations

As implied by the name, Glances are meant to be

quickly accessed and briefly looked, so there are

several restrictions on how they can deal with

contents. First, Glance contents and interfaces are

intended for statically fitting on a single screen of a

watch face. They are given non-scrolling in their UI

structure and their text and graphical data items are

set as read-only.

Moreover, Glances do not contain dynamic and

interactive UI controllers and thus their functional

capability is inherently limited. Glances do not

intend for providing rich interactivity in that tapping

A Revisit to Web Browsing on Wearable Devices

213

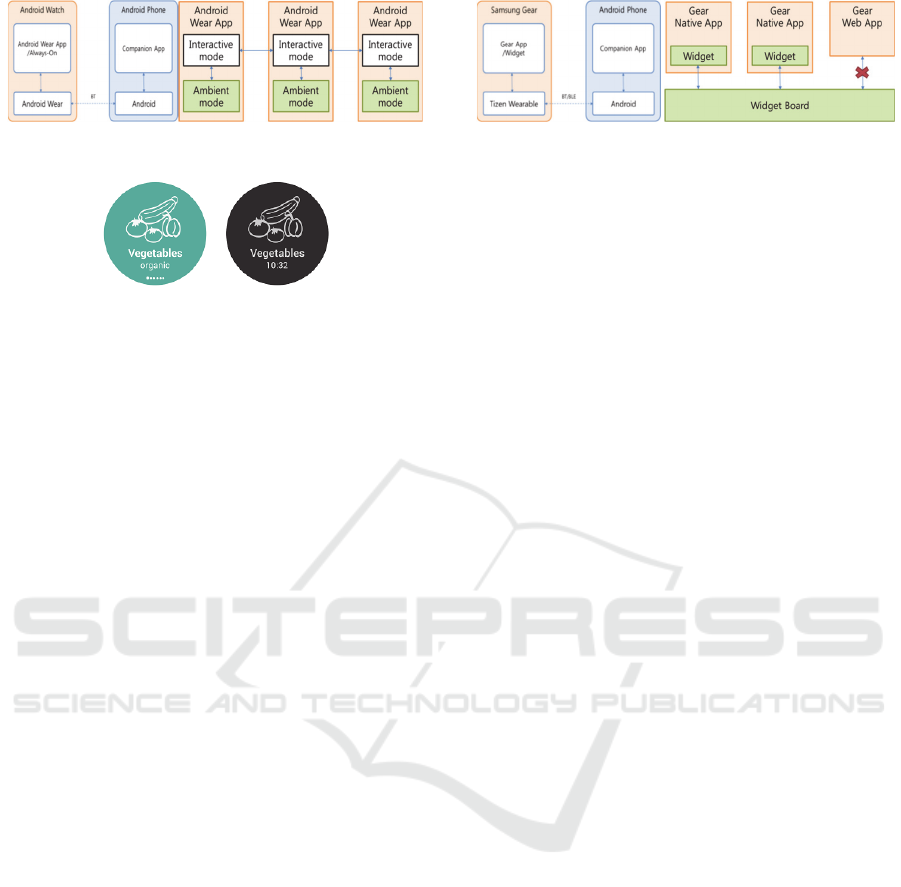

Figure 3: Android Wear Application Structure.

Figure 4: Android Wear always-on Application Example.

a Glance launches its companion application by

default. Therefore only static contents are considered

for Glance contents, indicating that buttons, switches,

sliders, and menus are not supported. Furthermore,

Glances are not able to directly access web contents.

As the watchOS does not support the UIWebview

controller that is commonly used for embedding web

contents into iOS mobile applications. It is possible

to have some workarounds to retrieve web contents,

e.g., using a transcoding proxy that interacts with a

web server and converts web contents to data

streams that can be embedded in labels and image

views. However, such a workaround requires

additional implementation according to the specific

rendering capability of watch applications and the

result ends up with being not compatible with

standard web architecture.

2.2 Android Wear

Android Wear is the Google’s Android operating

system specially tailored for smartwatches. An

Android Wear application is packaged within a

companion mobile application, and so a wearable

application is automatically pushed and installed

onto the Android Wear device while a user

downloads and installs a mobile application from the

Android store as illustrated in Figure 3 (Jeff, 2016).

Android Wear supports the low-power ambient

mode by which the contents displayed on the watch

face can be adaptively controlled for saving the

battery power. In principle, an application can be

configured as running in either such ambient mode

for low-power operations or interactive mode

(normal mode) with full functionalities. Note that

the applications supporting both modes are

categorized as always-on, and they are intended for

keeping always visible; that is, even while a user

drops her arm, an always-on application stays visible

Figure 5: Tizen Wearable Application Structure.

on the watch face. The right diagram of Figure 3

depicts the always-on application structure and the

navigation flow between applications. Figure 4

depicts an example always-on application, the

shopping list in which the remaining shopping items

are always shown even at the ambient mode.

Limitations

Similar to Glances, applications running on the

ambient mode restrict their functionalities. First, the

background color scheme is strictly limited to black,

white, and gray. Second, the screen cannot be

updated more frequently than every minute, so

animations are not supported. For those applications

that require more frequent updates, such as fitness,

time-keeping, and travel information, developers

may use AlarmManager object to wake up the

processor and update the screen frequently but this is

not recommended due to the overhead on the battery

consumption. Moreover, navigation of an always-on

application is restricted in that switching to other

applications cannot be made by a single swipe on the

ambient mode. An application needs to run on the

normal mode before switching to another application

as in Figure 3.

Current Android Wear does not support

WebView component that is used for embedding web

contents into Android mobile applications. This

limitation is same as that of watchOS. There are

downloadable web browsers for Android

smartwatches (Google, 2016, ‘Web browser for

Android Wear’) available from the Google Play but

these independent browsers cannot be used for

embedding web contents into other wearable

applications.

2.3 Tizen Wearable

Tizen is the operating system based on the Linux

kernel, being configured for supporting various

device profiles including wearable devices. Samsung

Gear devices based on Tizen wearable OS may be

paired with Android mobile phones as in Figure 5.

Tizen wearable applications can be written on both

native and web APIs, and they can be packaged

with .tpk (Tizen native package) and .wgt (Standard

web application package) formats respectively.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

214

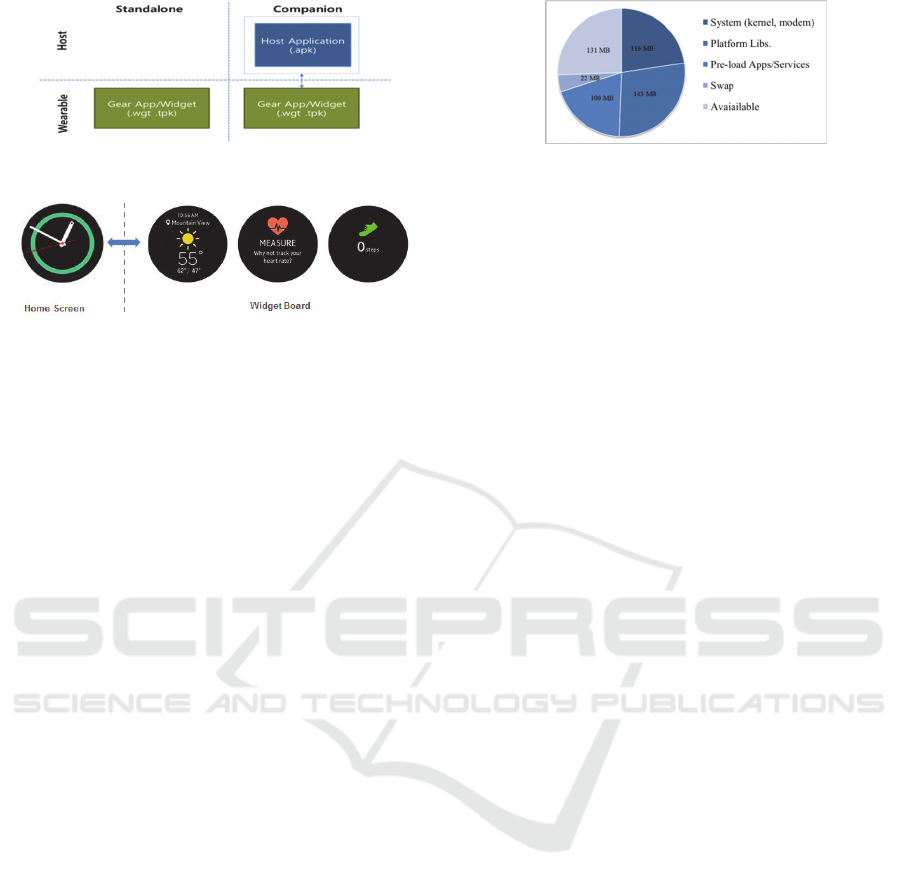

Figure 6: Tizen Wearable Application Structure.

Figure 7: Tizen Widget Application Example.

A Tizen wearable application for Samsung Gear

smartwatches can be configured to run on either the

standalone mode or the companion mode (Samsung,

2015, ‘Gear developer overview’) as in Figure 6.

Note that the standalone mode is not supported in

either Android Wear or Apple watchOS. A

standalone application runs independently while a

companion application runs with two parts, a Gear

application and a mobile host application (e.g.,

Android mobile application).

Similar to Glances of watchOS previously

explained, Tizen supports a lightweight application

model, namely Tizen widget that is used for the

home screen customization and the quick approach

to application functions. Widgets are displayed on

the widget board as in the right diagram of Figure 5

therefore a user may navigate the widgets quickly

from the widget board.

For a Gear device with the round design, widgets

are located on the right side of the home screen and

accessed by rotating the bezel. They offer important

information and access to quick actins without

requiring a user to open an application as shown in

Figure 7.

Limitations

In Tizen, widgets are available for wearable devices.

However, they are constrained in terms of the visible

size, the types of interactions, and the maximum

number of running instances. Generally a wearable

widget takes the whole screen. Thus interaction

events are restricted in that they are only available to

distinguish widget events and platform events.

Specifically rich interactions like vertical scrolling

are not supported and tapping usually leads to open

an application. Tizen allows up to 15 widgets on the

widget board and each of them can be rapidly

accessed from the right hand side of the home screen.

Figure 8: Memory Usages on Tizen Gear Device.

Different from the hybrid application model of

Tizen by which both native and web APIs are used,

widgets can be only written in Tizen native APIs as

illustrated in Figure 5. It is the design decision of

Tizen which considers the fact that multiple widgets

should run as always-on and executing web APIs

through a web engine (e.g., WebKit- or Chromium-

based) for those widgets require much more memory

than commercial products may provide. Our internal

tests show that running 15 web-based widgets using

the conventional WebKit-based web engine on a

Tizen-based smartwatch product may consume

350~400MB runtime memory. In practice, this is

hardly within the range of the available memory

after the system boot-up when considering the

512MB RAM equipment. In fact, after the booting-

up (running the system kernel, platform libraries and

several preloaded native applications), there is only

up to about 130MB available memory on those

devices as in Figure 8.

2.4 Problem Definition

As explained previously, the modern OS platforms

for smartwatches support the lightweight version of

applications, watchOS 2 Glance, Android Wear

Always-on, and Tizen widget, which commonly

enable the fast access to important information and

frequently used application features. These are

effective, yet are limited of significance particularly

in delivering web contents.

Our usability tests on the smartwatches significantly

indicate that the rapid response for user input

requests is critical in that e.g., switching the

information among notifications and widgets should

be done instantaneously with the swipe events on the

watch screen. To enable such a rapid responsiveness,

Tizen wearable generally maintains a set of

notifications and widgets on the runtime memory,

implying that runtime memory can easily be much

consumed without a well-defined management

policy. Suppose that a Tizen smartwatch has a

runtime system where each widget consumes 5MB

and it has 15 running widgets. In this case, out of

130MB available memory after the system booting-

up, 75MB for the widgets are consumed.

A Revisit to Web Browsing on Wearable Devices

215

It is our system safety configuration that 30MB

is reserved for out-of-memory status. Considering

these all memory consumption, the system ends up

with 25MB available memory for running other

applications. This calculation drives the requirement

of memory usages when dealing with web contents

on widgets.

In the following, under this consideration, we

propose the fast access browsing system particularly

dealing with web contents on smartwatches.

3 DESIGN OF FAST ACCESS

BROWSING SYSTEM

Our proposed system for supporting the fast access

browsing consists of three components: mobile

browser that runs on the smartphones (which is not

our focus in this paper), widget view runtime that

manages the lifecycles of widget views, and

wearable browser that supports the full-fledged

browsing on non-constrained mode, e.g. with snap-

scrolling (Rakow et al., 2016), of circular designs.

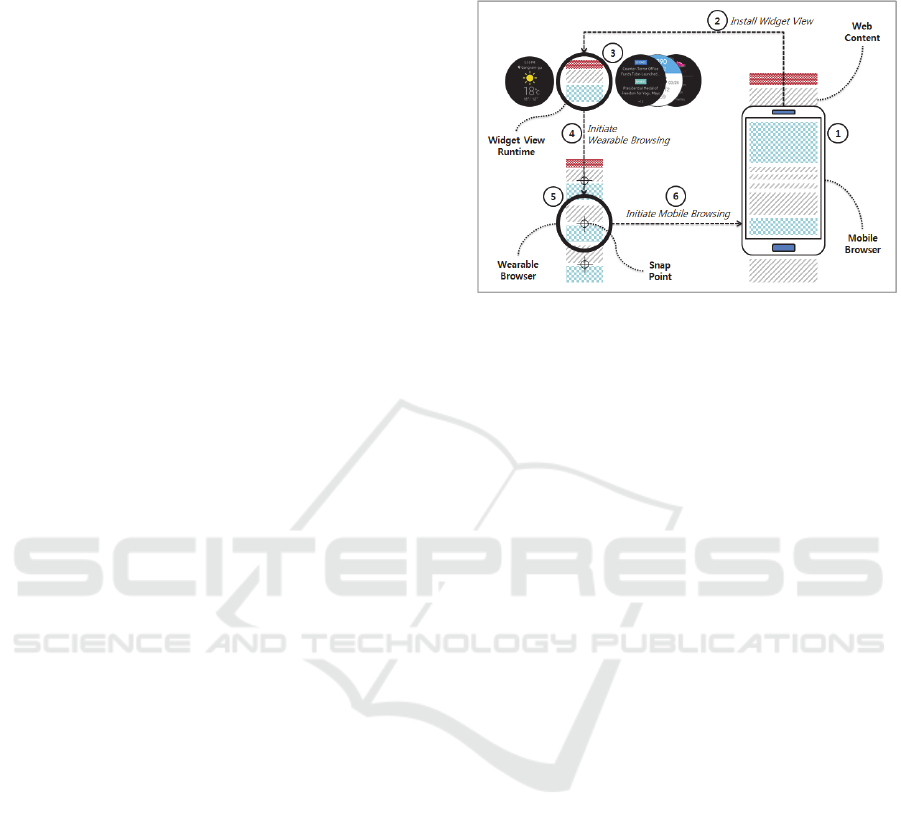

The web browsing session of our proposed system is

illustrated in Figure 9 where the interactions of three

components are described below.

1. Suppose the mobile browser accesses a website

example.com that has the widget view section in its

web app manifest (Caceres et al., 2016).

2. The manifest is first sent to the wearable’s widget

view runtime and then gets installed.

3. The user chooses the installed widget view, adding it

on the widget view screen. Note that the maximum

number of widgets on the widget view screen can be

configured depending on the device capability. The

contents of the selected widget view

(example.com/widget_view.html) are rendered and

periodically refreshed according to the predefined

configuration (e.g., once in 30min).

4. Upon a user event (e.g., touch interaction on the

widget view), the widget view runtime launches the

wearable browser with the pre-configured URL

example.com for showing the richer contents.

5. The wearable browser loads the website from the URL

and allows the wearable specific browsing experience.

6. Furthermore, the wearable browser can launch the

mobile browser, if needed.

The mobile browser is capable of parsing the

web app manifest associated with the website, and

prompting a user for the widget view installation

when it detects the wearable device being connected

to the mobile device. Upon the user’s consent, the

manifest is sent over to the wearable device through

an available connectivity such as Bluetooth. The

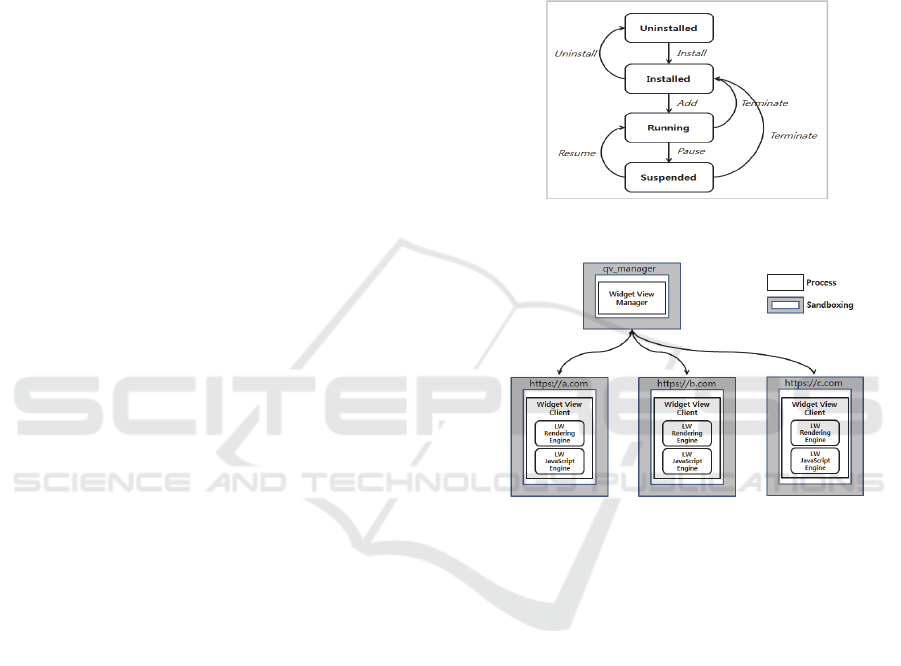

widget view runtime manages the lifecycle of a

widget view which has four states: installed,

running,

Figure 9: Overview of Fast Access Browsing System.

suspended, and uninstalled. After installation, the

widget view appears in the widget view list. The

user can select and put it in a position on the widget

view screen.

As the widget view screen is configured to locate

a set of widget views where the maximum number

depends on the device capability such as the

available memory for running always-on style

applications. Thus, the user may need to remove one

or more widget views from the widget view screen.

The widget view runtime can be configured to

periodically refresh the loaded widget view in order

to fetch the latest information through the network.

To save the battery power, the widget view is not be

refreshed at the suspended state.

A widget view can be configured to trigger and

launch the wearable browser application. Upon the

trigger, the URL associated with the widget view is

sent to the wearable browser over IPC, and the

wearable browser loads the website for full-fledged

browsing. Typically a well-designed website

combines the CSS media query with its content

styling so that the contents and layouts of the

website can be optimized for small screen devices.

One of the useful CSS styling techniques for small

screen devices is the snap scrolling which allows the

scrolling to stop at a predefined “snap point”

position so that the user does not have to manually

adjust the scroll stop position. When the wearable

screen is too small for browsing, the wearable

browser can send the URL back to the mobile

browser. In this case, the is being sent over together

with the URL so that the browsing experience on the

mobile device can be seamlessly continued.

The overall system design enables the different

modes of web content consumption: full site

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

216

browsing experience with mobile browsing, quick

glance experience with widget view, and quick and

richer experience with wearable browsing.

Table 1: Application Domains.

Applications

Health

Pedometer, Heartbeat, Drinking Water, Tracker

Planning

Scheduler, Alarm, Task Manger

Information

Weather, News, Stocks, Airline Ticketing, Traffic

Control

Music Play, App launch, System, Bluetooth

Table 2: Requirements for Widget View.

Layout

Requirements

No-scrolling support

Restricted interaction only with tap event

Simple layout having text, font, or image

Small screen with scrolling text

Feature

Requirements

Sharing data between widget and application

Timely data update via network connection

Accessing and controlling system information

Launching application

It is desirable that a user can choose her

preferred way of web content consumption

depending on the type of contents and contextual

situations. Notice that the fast access browsing in

this paper is introduced for web content

consumption particularly on smartwatches but can

be applied to other devices such as e.g., glasses with

specification adaptations.

4 SPECIFICATION OF FAST-

ACCESS BROWSING

4.1 Requirement Analysis

We analyse a set of representative smartwatch

applications including 45 Tizen widgets, 35

watchOS Glances and 10 Android Wear Always-on

applications whose domains are categorized as

health, planning, information and control. The

domains are denoted in Table 1. The applications in

the health domain display the health-related data

acquired from smartwatch sensors and update the

data through a simple user interaction. The

applications in the planning and the information

domains generally display the application specific

instant data, keeping them continuously updated

through the network connection. Note that about the

half of our analysed applications are in the

information domain, e.g., weather, news, stocks,

airline ticketing, traffic, etc. It is because

smartwatches are considered particularly suitable for

exposing the quick information to users and such

benefits have been widely accepted in the market so

far. Many applications in the information domain

also provide the location-based information. There

are also several control applications that play the

music, control the system information, or launch the

applications.

Table 3: Comparison of Wearable Features and Web APIs.

Feature API Health Planning Info.

DOM,

Forms,

Styles

HTMLF5 Forms X X X

Selectors API O O O

Media Queries X X X

CSS Transforms X X X

CSS Animations X X X

CSS Transitions O X O

CSS Color O O O

CSS Background/Border

O O O

CSS Fexible Box Layout

X X X

CSS Multi-col Layout X X X

CSS Text & Fonts O O O

Device

Touch Event X X X

Device Orientation Event

X X X

Graphics Canvas, SVG X X X

Media

Video & Auido X X X

Web Speech API X X X

Comm.

Web Socket API X X X

XMLHTTPRequest X O O

Web Messaging X X X

Geolocation X X O

Storage

Web Storage O O O

Application Caches X X X

Indexed Database X X X

Security

Cross-Origin Res Sharing

X X X

iFrame X X X

Content Security Policy X X X

Clipboard API X X X

Drag and Drop X X X

Perfor-

mance

Web Workers X X X

Page Visibility O O O

requestAnimationFrame O O O

Overall, these applications have the common

feature that present information quickly to

smartwatch users, and those are not web-based, but

native on watchOS, Android Wear, or Tizen

wearable. Based on this analysis, we take out the

requirements regarding the widget layouts and the

functional features so as to define the constrained

web specifications for implementing widget views

that render web contents. The requirements are

summarized in Table 2. In the following sections,

we explain the functional and the non-functional

specifications that meet the requirements.

4.2 Functional Specification

Having the comparison of the application features

and the W3C standard web APIs as shown in Table

3, we identify a subset of the web APIs that are

necessary for achieving the fast access browsing

through widget view. In addition, we include a

subset of the device APIs that enable widget view to

utilize the device native capabilities including

A Revisit to Web Browsing on Wearable Devices

217

Application, File System, Sensor, System

Information, and Message Port.

Application API provides a functionality to

launch applications. File System API and Message

Port API are used for the communication between

widget views and application to share data. Sensor

API provides the interfaces and methods for

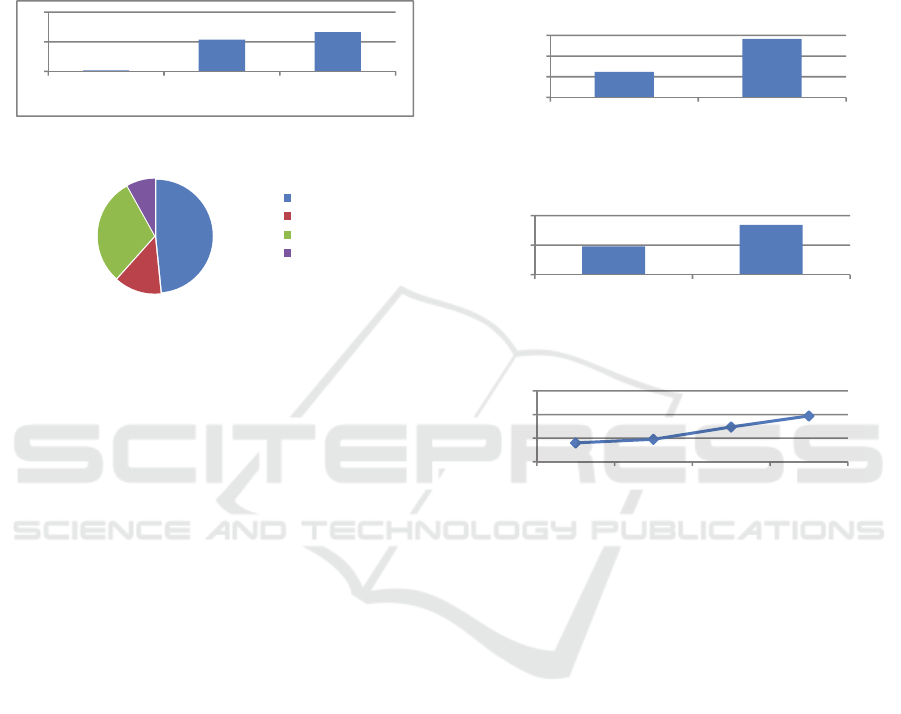

Figure 10: CPU Usage of Audio and Video.

Figure 11: Loading Time Ratio for External Web Site.

accessing internal device sensors. Sensor API is

particularly used in the health domain. System

Information API provides information about the

device’s display, network, storage and other

capabilities that are useful in the control domain.

Note that there are a couple of smartwatch

applications that control the music playlist. However,

we decide not to support the Audio and Video web

APIs since they consume much CPU and battery

resources. Maximizing the battery life is one of the

most critical issues in the smartwatch usability (Min

et al., 2015; Dredge, 2014; Proges, 2015;

Rawassizadeh et al., 2014). Our experiments with

different application types show that using the audio

and video incur the overheads of more than 100

times compared to non-multimedia applications, as

depicted in Figure 10. Therefore, we rather prefer

exploiting mobile device resources to play the audio

and video through the wearable interface.

4.3 Non-Functional Specification

In order to support the rapid loading of the web

contents with small runtime memory and power

consumption, we specify several non-functional

restrictions and best practices including:

• Do not allow to load heavy resources such as

CSS, JavaScript and images from external networks.

In principle, loading those resources via networks

not only takes much time with network roundtrips

but it can frequently block from rendering web

contents. Figure 11 illustrates the rendering pipeline

time when browsing an example site (e.g.,

m.naver.com) and indicates that loading resources

takes 49% of the complete processing time. This

pattern would heavily change depending on the

network connectivity but it is relevant since

wearable devices may not be always in a stable

network condition. AMP(Accelerated Mobile Page)

Figure 12: Loading Time by Different Resources.

Figure 13: Memory Usage by Different Resources.

Figure 14: Memory Usage by Increasing Image Resolution.

recommends blocking all third-party JavaScripts so

as to render web pages instantly (Google, 2016,

‘How AMP Speeds Up Performance’). It is because

third-party JavaScripts typically contains heavy

processing codes. In the same sense, we restrict

external resources when rendering widget views

except for what is required to display the widget

view contents. We consequently limit the

specification that only XHR (XMLHTTPRequest) is

allowed for directly interacting with external web

resources, i.e., XHR is allowed to retrieve specific

contents from backend web servers and update

dynamically with the latest data.

Restrict the size of HTML, CSS, JavaScript files

no more than 50KB. It is because our experiments

illustrate that large resources, especially JavaScript,

incur much loading delays as shown in Figure 12

and much memory consumptions as shown in Figure

13. We test several cases with different web

frameworks including the jQuery library and find the

same pattern in delays and memory usages. In the

figure, the average application sizes are 23KB and

Plain App Audio App Video App

CPU Usage (%)

49%

13%

30%

http://m.naver.com

Scripting

Rendering

Painting

1.15

1.25

1.35

1.45

App App with JQuery

Loading Time (sec)

App App with JQuery

Memory Usage (MB)

360x360 512x1024 1024x1024 1024x2048

Memory Usage (MB)

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

218

118KB respectively for base applications and

applications with JQuery. The restriction is set as

50KB heuristically as it is generally sufficient to

compose the UI layout and behavior logics of

wearable widget views.

• Restrict the image resolution less than 1.5 times of

the base image resolution. It is because higher

resolution images consume much more memory as

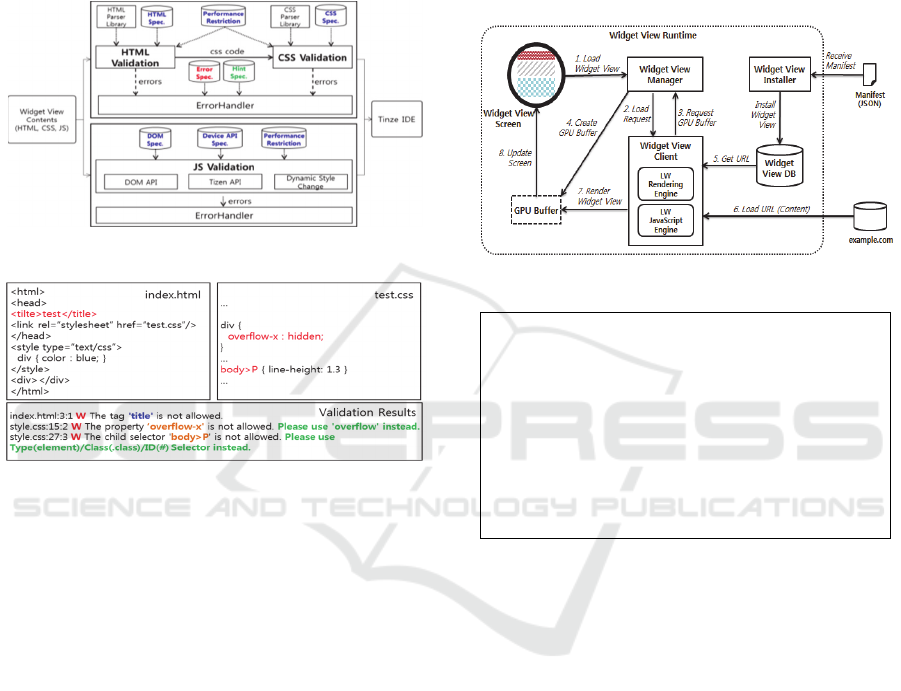

Figure 15: Widget View Validator.

Figure 16: Widget View Validation Example.

depicted in Figure 14. Also restrict the formats to

the popular image formats such as JPEG, PNG and

GIF. BMP is not allowed because the file size may

be often too large.

4.4 Specification Validation

As explained previously, the specifications of widget

views are based on web standards but constrained in

several ways. Therefore, if a code of widget views

contains unsupported HTML, CSS or JS API, the

widget view engine cannot interpret the code

correctly. For helping developers in this situation,

the widget view validator is additionally

implemented as a pluggable function in the IDE.

Our implementation is based on Tizen IDE for

wearable applications including widget views. The

validator checks the code with the widget view

specifications and then passes the results to the IDE

as in Figure 15. Subsequently the IDE notifies the

warning messages to a developer, if any. Note that

the validator includes both the functional and the

non-functional specification rules for checking.

Figure 16 illustrates a validation result of a

sample widget view code with constrained HTML

and CSS. The messages of the validator contain the

file name, lines, columns, the warning messages, and

the guide instructions so that developers can locate

errors and use alternative APIs from the constrained

specifications. In this example, CSS selector usages

are guided to use ‘Type/CSS selector’ instead of

restricted ‘Child Selector’.

Figure 17: Widget View Runtime Architecture.

1 {

2 "name": "My Daily News",

3 ...,

4 "start_url": "/index.html",

5 "widget_view": {

6 "widget_view_url": "/widget-view.html",

7 "icon": {

8 "src": "icon/news-widget-view.jpg",

9 "size": "128x128",

10 "type": "image/jpg"

11 },

12 "update_period": "60"

13 }

14 }

Figure 18: Sample Widget View Manifest.

5 SYSTEM IMPLEMENTATION

In this section, we explain the system

implementation of widget view runtime and

wearable browser extension which are the major

components of the fast access browsing system. Our

implementation is based on Tizen wearable and

deployed on Tizen-based smartwatches.

5.1 Widget View Runtime

The widget view runtime is the runtime environment

by which widget views are installed, managed, and

executed. Figure 17 depicts its internal architecture

having three sub-modules: widget view installer,

widget view manager, and widget view client, of

which details are explained in the following.

A Revisit to Web Browsing on Wearable Devices

219

Widget View Installer receives a manifest of a web

application from the mobile browser and performs

the subsequent installation steps. It is important that

the associated URL of the manifest is delivered over

a secure HTTP connection (i.e., HTTPS); this

ensures for the fast access browsing system to

retrieve the widget view from a trusted authority.

The installation steps consist of parsing the manifest,

extracting the relevant information such as widget

view name, start-page URL, refresh period, etc., and

registering the information into the entries database

of widget views. It is worthwhile to note that the

widget view installer is executed as a standalone

process, as the process requires additional system

privileges to perform a sequence of installation steps

including validating the manifest, writing files to the

system directory, registering to the package manager,

and so on.

Figure 18 shows an example code of the widget

view manifest that is slightly extended from the web

app manifest (Caceres et al., 2016) to include the

following data:

• “widget_view_url”: refers to the content URL

from which the widget view page is updated.

• “icon”: specifies the icon of the widget view that is

displayed on the widget view list menu.

• “update_period”: specifies how often the widget

view gets updated.

Widget View Manager is a daemon process that

coordinates widget views and manages their

lifecycle. The process is initialized at the system

startup, establishing a communication channel with

the widget view screen via the system IPC (inter-

process communication). When a user selects a

widget view from the installed widget view list, the

widget view screen requests the widget view

manager to load the selected widget view. The

widget view manager in turn requests the widget

view client to load and render the widget view on

the GPU buffer which is shared between the widget

view screen and the widget view client. As similarly

to the widget view installer previously explained, the

widget view manager has additional system

privileges to access a set of sensitive system

information including the installed widget list, the

running widget list and their GPU buffer pointers,

etc., and for this reason it runs on a separate process

being isolated from widget view clients.

Each widget view follows the four states as in

Figure 19. The widget view manager keeps track of

the running and suspended states of the loaded

widget views, and changes the states to be

synchronized with the widget view screen (e.g.,

displayed on the widget view screen). The widget

view manager also handles the update period of each

loaded widget view. Indeed, due to the system-wide

policy such that background processes are strictly

limited in their CPU usage, updating a widget view

in background (i.e., “suspended” state) is restricted.

If the update period expires and the widget view

is in background (i.e., “suspended” state), this

expiration is recorded by the widget view manager.

Figure 19: Widget View Runtime States and Transitions.

Figure 20: Widget View Client Process Sandboxing.

Later when the widget view transits from the

suspended state to the running state, the widget view

receives update event.

Widget View Client is a runtime process created by

the widget view manager when loading a widget

view is requested. To securely isolate the widget

view execution and its possible crash among

multiple executions of widget views and to reduce

the system vulnerability, each widget view runs in a

separate widget view client process. The process is

sandboxed at system level so that it has strictly

limited capabilities to access system calls, file

system, and platform APIs. Our implementation

exploits the security system policy of Tizen,

SMACK (Simplified Mandatory Access Control

Kernel) (Smack, 2011) for providing the fine-

grained system level sandboxing. Figure 20 briefly

shows the system architecture of the widget view

client process.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

220

SMACK implements the mandatory access

control security as a Linux kernel security module.

Executables and resource files installed on the

system are assigned with corresponding security

labels (also known as attributes). Whenever a

process attempts to access a system resource, an

authorization rule enforced by SMACK examines

the security labels and decides whether the access

can take place. For widgets, upon installation, the

widget view client executable file (implemented as a

soft link to the executable binary) and widget

resource files are uniquely labeled by SMACK, and

then a set of SMACK rules are generated and

provisioned so that the widget resource files can be

protected from illegal access from other widget

contents running on separate client processes.

The lightweight rendering and JavaScript engine

are implemented to render widget views in the

constrained specifications explained in Section 4 and

deployed as a shared library.

5.2 Wearable Browser Extension

The wearable browser works similarly as the mobile

browser except for some wearable specific

extensions which include CSS snap scrolling

(Rakow et al., 2016) and CSS media queries. CSS

snap scrolling allows web contents to be scrolled

and stopped at specifically designed positions, called

snap points. It aims at providing the better

readability in a small display. CSS media queries are

also extended for the circular shapes of wearable

devices. Our proposed extension of CSS media

queries is shown in Table 5. It is recommended that

web contents are designed to be responsive to device

capabilities. A typical smartwatch has less than

360pixel of viewport width which is different from

that of mobile devices, and web contents can be

adjusted to such a width through CSS media queries.

Furthermore, the wearable browser has the

context menu (e.g., named as “Open in Mobile

Browser”) for launching the mobile browser. This

menu is enabled only when a mobile device is

connected. Clicking the menu sends the URL and

the browsing session data such as the scrolling

position to the mobile browser and lets a user

continue browsing web contents across devices.

6 SYSTEM EVALUATION

We evaluated 32 widget view scenarios collected

from both existing applications and developer

requirements by implementing and running all the

scenarios on Tizen-based smartwatches. The initial

feedbacks from developers and test users are

positive in that the specification meets the functional

requirements. Regarding the non-functional

requirements, we evaluate the memory usage and the

loading time. We evaluate our implementation

together with two different architectural

configurations of a conventional rendering engine,

WebKit. Figure 21 shows single and multi-process

Table 4: Media Query Extension.

@media (-geometric-shape: value)

Value rectangle or circle

Applied to visual media types

Accept min/max prefixes no

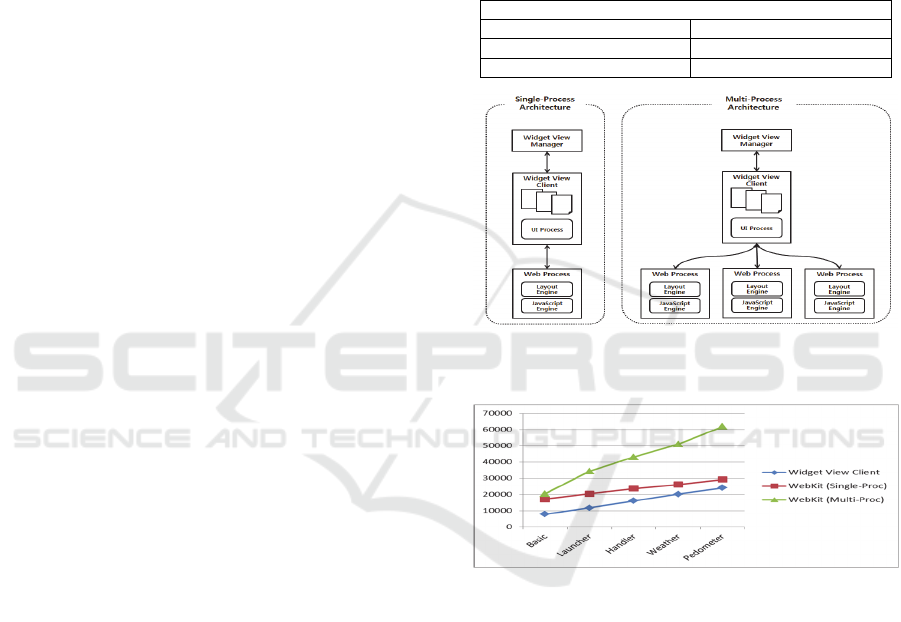

Figure 21: Single and Multi-Process Architecture

Configurations with WebKit Rendering Engine.

Figure 22: Accumulated Memory Usage of widget views.

architecture configurations of the widget view client

with the WebKit rendering engine.

Figure 22 demonstrates the accumulated memory

usage of loading five sample widget views on the

widget view client, comparing with the single-

process WebKit and the multi-process WebKit. In

this experiment, each widget view is launched in

sequence, from the basic to the pedometer, while

previously executed ones are running. Widget views

can run memory efficiently on the widget view

client in that they require no more than 5MB on

average for each execution whereas the single-

process WebKit and the multi-process WebKit

require about 6MB and 12MB respectively on

average. Having this small memory consumption,

A Revisit to Web Browsing on Wearable Devices

221

the widget view runtime can keep running up to 20

widget views on a smartwatch within 512 MB.

It should be noted that while the single-process

WebKit runs with less memory than the multi-

process WebKit and slightly more than the web view

client, it has been used only for comparison. Indeed,

it is not preferred for commercial products. It is

mainly because the single-process model does not

provide the system level sandboxing, thereby not

isolating the execution of a widget view from system

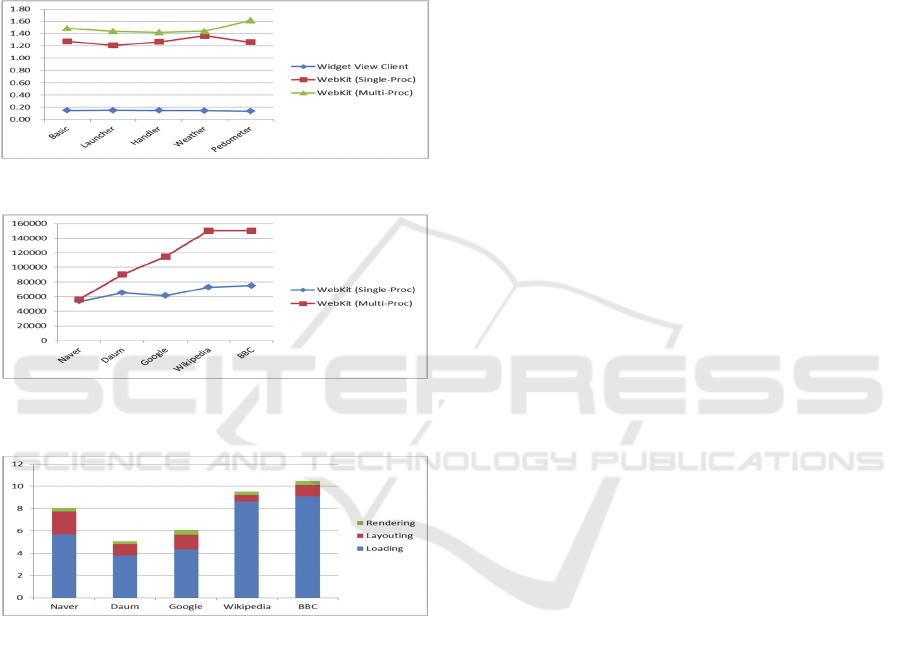

Figure 23: Widget View Loading Time.

Figure 24: Accumulated Memory Usage of Mobile

Websites.

Figure 25: Loading Time Breakdown of Mobile Websites

(Multi-Process WebKit).

crash and security vulnerabilities of other widget

views. Chrome browser’s multi-process architecture

can effectively address the reliability and security

problems that are common in real-world web

contents (Barth et al., 2008; Reis and Gribble, 2009).

Later WebKit community also adopted the similar

multi-process architecture (WebKit, 2009). We

include the single-process configuration in our

comparison for evaluation purpose intentionally.

The loading time of widget views is shown in

Figure 23. For loading sample web contents with

constrained spec., the widget view client takes less

than 200ms on average, while the single- and the

multi-process WebKit take 1200~1500ms.

We test loading mobile websites with the single-

and the multi-process WebKit configurations, and

Figure 24 and 25 show the memory consumption

and the loading time respectively. With the multi-

process architecture, the system incurs the out of

memory condition from the 4

website onwards, and

in that case, loading takes up to 5~10sec to complete.

From these results, we conclude that full-fledged

mobile websites are often too heavy for wearable

devices. The complicated web contents end up with

the huge resource loading time and the relatively

large memory usage in case of relying on a

traditional web pipeline. The evaluation result

implies that it is inappropriate to use a conventional

rendering engine and support mobile websites by

widget views.

7 RELATED WORK

Recently Google announced AMP project (Google,

2016, ‘AMP Project’) that allows developers to

build web pages that are rendered instantly on

mobile devices. AMP implements a set of custom

HTML elements and a JS library that together bring

the instant page loading performance. Some of

optimization techniques adopted in AMP include

disallowing of synchronous scripts, static resource

sizing, CSS inline, style recalculation minimization,

GPU-accelerated animations, etc. The custom AMP

specification introduces a certain degree of learning

curve to developers, and because of this barrier,

AMP project provides a validation tool that allows

developers to conveniently check syntax and

performance errors. Despite the performance gain in

loading time on mobile devices, both loading time

and memory usage are not acceptable when it comes

to wearable devices – the results shown in Figure 22

and 23 are not promising as the tested widget view

pages are even lighter than typical AMP pages.

The Chromium project has a few on-going

efforts to reduce Chromium Browser’s memory

usage (Chromium, 2015, ‘Chromium Memory

Team’). Some of these efforts include “compression

of large string objects”, “discarding layout trees”,

unifying internal allocators with a new allocator

called “Oilpan”, etc. It is not clear what will be the

reduction rate of this effort when it comes to simple

web pages like widget views, but we think it might

not be that significant as for simple pages the heap

memory allocated by the content will be much

smaller than real-world websites and as a result the

effect of memory reduction effort mentioned above

might not be that significant.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

222

Cobalt (2016) is a new lightweight rendering

engine effort from Google that is compatible with a

subset of the W3C HTML5 applications. It is built

up from scratch an implementation of a simplified

subset of HTML, CSS Box Model, and Web APIs

that were really needed to build a full-screen, single-

page web applications such as YouTube.com on

constrained devices such as Smart TVs, Set-Top

Boxes, Game Consoles, Blue-ray Disc Players, etc.

8 CONCLUSIONS

Smartwatches and wearable devices have gained

much attention, yet there is no substantial

improvement on delivering and rendering web

contents on those devices mainly due to their

restricted I/O capabilities. In this paper, we propose

a new web browsing model with the constrained

web specifications and the lightweight runtime

based on the specifications which conjunctively

provides the rapid access to web contents on

wearable devices. The constrained web

specifications are HTML, CSS, JavaScript with

some restrictions that are based on our analysis on

current smartwatch applications and focus on the

fast information access.

The evaluation tests demonstrate that our work

on recently commercialized smartwatches provides

users with the well balanced experiences regarding

functionality, expressiveness, and performance of

web applications. Our future work includes

developing a JavaScript framework and a server-

based pub/sub broker system for providing a reliable

performance of widget views with continuously

updated contents. This work will be incorporating

the concept of single page applications into the

smartwatch runtime environments.

REFERENCES

Apple, 2015. Apple watch human interface guidelines.

[Online] Available from: https://developer.apple.com/

library/prerelease/ios/documentation/UserExperience/

Conceptual/WatchHumanInterfaceGuidelines.

Samsung, 2014. Samsung gear application programming

guide. [Online] Available from: http://img-

developer.samsung.com/contents/cmm/Samsung_Gear

_Application_Programming_Guide_1.0.pdf.

Connolly, E., Faaborg, A., Raffle, H., and Ryskamp, B.,

2014. Designing for wearables. Google I/O.

Apple, 2016. Apple watch app architecture. [Online]

Available from: https://developer.apple.com/

library/ios/documentation/General/Conceptual/Watch

KitProgrammingGuide/DesigningaWatchKitApp.html.

Jeff, 2016. Architecture differences between wearable

platforms. [Online] Available from:

http://blog.tizenappdev.com/2016/03/04/architecutral_

differences_between_wearable_platforms/.

Google, 2016. Web browser for Android Wear. [Online]

Available from:

https://play.google.com/store/apps/details?id=com.app

four.wearbrowser.

Samsung, 2015. Gear developer overview. [Online]

Available from: http://developer.samsung.com/gear/

gear-develop-overview.

Caceres, M., Christiansen, K.R., Lamouri, M., and

Kostiainen, A. , 2016. W3C Web App Manifest Spec.

[Online] Available from:

https://www.w3.org/TR/appmanifest/.

Min, C., Kang, S., Yoo, C., Cha, J., Choi, S., Oh, Y., and

Song, J., 2015. Exploring current practices for battery

use and management of smartwatches. In Proceedings

of the 2015 ACM International Symposium on

Wearable Computers. New York: ACM, pp. 11-18.

Dredge, S., 2014. Apple Watch: battery life a challenge

for a round-the-clock health tracker. [Online]

Available from: https://www.theguardian.com/

technology/2014/sep/10/apple-watch-battery-life-

health-tracker.

Proges, S., 2015. These 4 Challenges Could Keep

Smartwatches From Succeeding. [Online] Available

from: http://www.forbes.com/sites/sethporges/2015/

02/25/these-are-the-4-challenges-keeping-

smartwatches-from-succeeding/.

Rawassizadeh, R., Price, B. A., and Petre, M., 2014.

Wearables: has the age of smartwatches finally arrived?

Communications of the ACM, 58(1), pp. 45-47.

Rakow, M., Rossi, J., Atkins-Bittner, Tab., and Etemad,

E.J., 2016. W3C CSS Snap Scroll Spec. [Online]

Available from: https://drafts.csswg.org/css-scroll-

snap/.

Barth, A., Jackson, C., Reis, C., and Google Chrome

Team., 2008. The Security Architecture of the

Chromium Browser. Technical report, Stanford

University.

Reis, C. and Gribble, S. D., 2009. Isolating Web

Programs in Modern Browser Architectures.

Proceedings of the 4th ACM European conference on

Computer systems, Nuremburg, New York: ACM, pp.

219-232.

WebKit, 2009. WebKit2 High Level Document. [Online]

Available from: https://trac.webkit.org/wiki/WebKit2.

Google, 2016. AMP Project. [Online] Available from:

https://www.ampproject.org/docs/get_started/about-

amp.html.

Chromium, 2015. Chromium Memory Team. [Online]

Available from: https://www.chromium.org/blink/

memory-team.

Bos, R., 2015. Designing for Apple Watch. [Online]

Available from: https://www.mangrove.com/en/

journal/2015-02-25-designing-for-apple-watch.

A Revisit to Web Browsing on Wearable Devices

223

Google, 2016. How AMP Speeds Up Performance.

[Online] Available from: https://www.ampproject.org/

docs/get_started/technical_overview.html.

Smack, 2011. The Smack Project. [Online] Available from:

http://www.webcitation.org/6AqzohCXq.

Cobalt, 2016. The Cobalt Project. [Online] Available from:

https://cobalt.googlesource.com/cobalt/.

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

224
