Towards Semantic KPI Measurement

Kyriakos Kritikos

, Dimitris Plexousakis

and Robert Woitch

Information Systems Laboratory, ICS-FORTH, Greece

BOC, Austria

Keywords:

KPI, Semantics, Ontologies, Quality, QoS, Linked Data, Analysis, SPARQL

Abstract:

Linked Data (LD) represent a great mechanism towards integrating information across disparate sources. The

respective technology can also be exploited to perform inferencing for deriving added-value knowledge. As

such, LD technology can really assist in performing various analysis tasks over information related to business

process execution. In the context of Business Process as a Service (BPaaS), the ﬁrst real challenge is to

collect and link information originating from different systems by following a certain structure. As such, this

paper proposes two main ontologies that serve this purpose: a KPI and a Dependency one. Based on these

well-connected ontologies, an innovative Key Performance Indicator (KPI) analysis system is then built which

exhibits two main analysis capabilities: KPI assessment and drill-down, where the second can be exploited to

ﬁnd root causes of KPI violations. Compared to other KPI analysis systems, LD usage enables the ﬂexible

construction and assessment of any KPI kind allowing experts to better explore the possible KPI space.

1 INTRODUCTION

Business processes (BPs) enable organisations to for-

mulate and realise internal and external procedures

which provide support or enable their core business.

Respective information systems and IT technology

then enables the execution and management of these

BPs to enable core service and product delivery. The

ﬂexible BP management and optimisation is enabled

via a lifecycle comprising the four main activities

of design, allocation, execution and evaluation. The

ﬁrst three activities focus on bridging the well-known

business-to-IT gap and enabling the BP execution.

The last activity facilitates deriving business intel-

ligence information via performing various analysis

tasks which can facilitate BP improvement, thus clos-

ing the aforementioned lifecycle.

A well-studied BP evaluation task concerns Key

Performance Indicators (KPIs) measurement and as-

sessment. KPIs map to certain indicators related the

BP quality. They usually include a metric and a

threshold imposed on it, thus deﬁning the minimum

respective performance level to be sustained. The

metric provides all measurement details needed to

measure different BP quality attributes, which can be

categorised into 4 groups: (a) time, (b) quality, (c)

customer satisfaction, and (d) ﬁnancial (Caplan and

Norton, 1992). As such, the main goal of an evalua-

tion expert would be to specify suitable KPIs, possi-

bly spanning all four categories, which can be mea-

sured by the BP evaluation system and enable assess-

ing the quality levels of BPs.

In this respect, various KPI measurement systems

were proposed in the past, relying on different tech-

nologies, such as OLAP (Chowdhary et al., 2006)

or SQL query evaluation (Castellanos et al., 2005).

While KPI assessment can be performed extremely

fast in these systems, we believe that the main goal of

a KPI measurement system should not be the KPI as-

sessment speed but to provide assistance to evaluation

experts in deﬁning the most suitable KPIs for a BP.

As such, there is a lack of ﬂexible and user-intuitive

mechanisms via which KPIs can be deﬁned in these

systems. Moreover, such systems are usually special-

purposed as they are designed to serve certain KPI

metric types, such that the introduction of a new met-

ric can require re-engineering the underlying system

database. Finally, they do not employ sophisticated

information integration mechanisms to integrate any

kind of information source, even external ones.

The latter issue is critical in the context of BP as a

Service (BPaaS), i.e., BPs that are moved to the cloud.

Such a migration is becoming a trend nowadays due

to the great advantages that cloud computing brings

about, such as reduced cost and elasticity. To this end,

support for this migration is greatly needed. This sup-

Kritikos, K., Plexousakis, D. and Woitsch, R.

Towards Semantic KPI Measurement.

DOI: 10.5220/0006238000910102

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 63-74

ISBN: 978-989-758-243-1

port can be realised in the form of a BPaaS manage-

ment system, able to manage the whole lifecycle of a

BPaaS.

As indicated in (Woitsch et al., 2015), an archi-

tecture to support the BPaaS management is quite

sophisticated, involving different environments and

components that can be hosted in different virtual ma-

chines (VMs). As such, to enable a BP’s measure-

ment, the system would have to collect and integrate

information coming from many of these components.

Even external information might be required, out of

the control of the BP management platform, as in the

case of platform as a service (PaaS) services.

To realise the vision of a BPaaS, enabling the ﬂex-

ible BP allocation and execution in the cloud, as well

as address the aforementioned drawbacks, this paper

endorses the usage of Linked Data (LD) technology

to support the KPI analysis of BPaaS. This technol-

ogy is selected based on the following reasons: (a)

allows performing inferencing tasks to deduce added-

value analysis information; (b) enables integrating in-

formation across disparate information sources, even

in unforeseen ways; (c) LD are expressed via ontolo-

gies which are closer to human conceptualisation.

The information integration task is assisted by in-

troducing two ontologies: (a) a dependency ontology

capturing the dependencies between BPaaS compo-

nents, across different abstraction levels (BP, software

and infrastructure), and their state; (b) a KPI ontology

as an extension of OWL-Q (Kritikos and Plexousakis,

2006) enabling the complete KPI speciﬁcation. The

ﬁrst ontology constitutes the major integration point

for information coming from different systems, en-

abling its suitable correlation for supporting KPI anal-

ysis. The second ontology enables formally specify-

ing how KPIs can be measured over which BPaaS hi-

erarchy components. As such, via introducing KPI

metric hierarchies that span the whole BPaaS hierar-

chy, the measurability of KPIs is guaranteed.

By building on these two ontologies, an innovative

KPI measurement system has been developed, able

to integrate information from many parts of a BPaaS

management system and offer two KPI analysis ca-

pabilities: KPI measurement and drill-down. The

second capability relies on connecting different KPIs

at both business and technical levels which enables

performing root cause analysis over a high-level KPI

violation. The proposed system enables the on-the-

ﬂy KPI metric formula speciﬁcation and assessment,

provided that the formula’s correlation to a certain

context is given. This showcases the great ﬂexibil-

ity in KPI measurement offered that greatly assists in

the best possible exploration of the KPI metric space.

The rest of this paper is structured as follows. Sec-

tion 2 reviews the related work. Section 3 offers back-

ground information necessary to better understand the

main paper contribution. Section 4 analyses the two

ontologies proposed. Section 5 provides the proposed

system architecture and exempliﬁes the way KPI anal-

ysis is performed. Finally, Section 6 concludes the

paper and draws directions for further research.

2 RELATED WORK

Based on the main paper contributions, related work

spans KPI & dependency modelling and KPI analysis.

Thus, its analysis is split in 3 sub-sections.

2.1 KPI Meta-Models

As KPI modelling is a pre-requisite for KPI assess-

ment, a great amount of research work was devoted

in producing KPI meta-models, languages and on-

tologies, especially as currently there is a lack of

standardised BP languages that cover appropriately

the BP context perspective (including goal-based and

measurement information aspects) [evaluation].

To evaluate the related work in KPI modelling, we

rely on a systematic approach which considers a set of

comparison criteria, it summarises the comparison in

the form of an evaluation table, where rows map to

the related work approaches, columns to the criteria

and cells to the performance of an approach over a

certain criterion, and then includes a discussion over

the presented evaluation results.

The comparison criteria considered were the fol-

lowing: (a) KPI coverage: how well the notion of a

KPI is covered; (b) metric formulas: computation for-

mulas are provided supporting the KPI metric mea-

surement; (c) measurability: other aspects comple-

menting metric speciﬁcation are needed to cover all

measurement details (e.g., units, measured objects);

(d) goal coverage: connecting KPIs to goals enables

to assess whether operational or even tactical goals

are satisﬁed by performing goal analysis; (e) seman-

tics: if the meta-model / language is semantic or al-

lows semantic annotations. Semantics enables for-

mal reasoning and reaching better evaluation accu-

racy levels; (f) information sources: ability of the lan-

guage to exploit both internal and external informa-

tion sources; (g) measurement origin: the language

ability to cover measurements and explicate their ori-

gin (probes, sensors, or humans); (h) level: the levels

covered (BP, SE - service, Inf - Infrastructure).

Based on the table evaluation results, we can see

that only our ontology scores well over all criteria, it

has better performance for almost all of them and can

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

Table 1: Comparison table over KPI modelling work.

Work KPI Metric Measur. Goal Semantics Inf. Meas. Level

Cov. Formulas Cov. Sources Origin

(Wetzstein et al., 2008a) moderate yes moderate no no internal probes BP, SE

(Motta et al., 2007) low no low yes no internal - BP, SE

(Pierantonio et al., 2015) good yes low yes no internal - BP

(Friedenstab et al., 2012) good yes moderate no no internal probes BP

(Frank et al., 2008) moderate no low yes no internal probes BP, Inf

(Gonz

alez et al., 2009) low yes low no no internal probes BP

(del R

ıo-Ortega et al., 2016) moderate yes good yes yes internal probes BP

(Costello and Malloy, 2008) low no low no yes internal probes BP

(Liu et al., 2010) low yes low no no both probes BP, Inf

OWL-Q KPI Extension good yes excellent yes yes both all BP, SE, Inf

be considered as the most prominent. The only mod-

elling work close to ours is the one in (del R

ıo-Ortega

et al., 2016). However, that work does not cover

all levels, does not correlate measurements to human

sources, exploits only internal information sources

and provides a moderate KPI coverage. In addition,

it does not directly model the notion of a metric but

intermixes it with that of an indicator. In our opinion,

this is wrong, especially when the latter notion is re-

used in the context of KPI computation formulas, as it

maps to a metric condition and not to the metric itself

which represents all appropriate measurement details

to enable the KPI computation. Please note, though,

that the metric formula deﬁnition in that approach is

quite interesting as it involves a kind of restricted nat-

ural language form. This might be more user-intuitive

but clarity and comprehensiveness might be lost when

recursive composite metric formulas need to be spec-

iﬁed. A more mathematical form might have been

more appropriate. This is actually an issue that we

currently explore.

2.2 Dependency Meta-Models

Dependency modelling is considered as a pre-

requisite for system monitoring and adaptation. With-

out such knowledge, both monitoring can be quite

limited, covering mainly low abstraction levels as

propagation to higher levels is prohibited, as well as

respective adaptation capabilities.

By following the analysis approach in the previous

section, we have come up with the following evalua-

tion criteria: (a) abstraction level: which levels (de-

noted as BE, SE, Inf) in the BPaaS hierarchy are cov-

ered; (b) formalism: the dependency model formal-

ism used; (c) runtime: whether the dependency model

covers a dynamic or just a static system view. Dy-

namic views enable to cover the system evolution and

provide support for realising monitoring and adapta-

tion mechanisms; (d) detail level: how well the com-

ponent dependencies are speciﬁed.

The respective work, apart from ours, encoded

in the table is the following: (a) SEE (Seedorf and

Schader, 2011), (b) GRU (Gruschke, 1998), (c) CUI

(Cui and Nahrstedt, 2001), (d) HASS (Hasselmeyer,

2001), (e) TOSCA

and (f) CAMEL

Table 2: Evaluation table over dependency modelling work.

Work Abst. Formal. Runtime Detail

Level Level

SEE BP, SE ontology no good

GRU SE, INF graph yes low

CUI SE, INF graph yes mod.

HASS SE, INF graph yes good

TOSCA SE, INF DSL no good

CAMEL SE, INF DSL yes good

Ours all ontology yes good

The comparison table results clearly show that

our ontology covers all possible levels, does capture

runtime information and includes a good informa-

tion level for the dependencies captured. It is thus

better than all other work. Sole competitors are the

approaches in (Seedorf and Schader, 2011; Rossini

et al., 2015) which do not cover all BPaaS hierar-

chy levels. Moreover, the approach in (Seedorf and

Schader, 2011) does not capture runtime information,

while CAMEL does not rely on semantics. We should

state that: (a) an ontology-based approach is essen-

tial to allow a better integration of dependency infor-

mation from different information sources as well as

interesting inferencing over this information; (b) the

good dependency detail level in some modelling ap-

proaches constitutes a place for improvement.

2.3 KPI Analysis Systems

Various KPI analysis frameworks have been proposed

employing techniques that mainly support KPI evalu-

ation while in some cases KPI drill-down is also sup-

http://docs.oasis-open.org/tosca/TOSCA/v1.

0/TOSCA-v1.0.html

www.camel-dsl.org

Towards Semantic KPI Measurement

ported. Most techniques focus on appropriately struc-

turing the underlying database to support KPI analy-

sis. In this sense, they employ relational or semantic

dbs or data warehouses.

By following the same approach as in previous

subsections, we have compiled the next evaluation

criteria: (a) analysis types: which KPI analysis kinds

are supported; (b) db type: type of db used to store

the information needed for KPI analysis; (c) evalua-

tion technique: the technique used to measure KPIs;

(d) drill-down technique: the technique used for KPI

drill-down; (e) evaluation ﬂexibility: system ﬂexibil-

ity in the exploration of the possible metric space; (f)

level: the BPaaS hierarchy levels supported.

From the evaluation results of Table 3, we see that

semantic dbs are do considered in more than half of

the systems, signifying that their added-value is being

recognised in terms of better linking information and

enabling various forms of reasoning. We also see that

almost half of the systems focus only on KPI evalua-

tion. The approaches supporting KPI drill-down ex-

ploit two main techniques: decision trees and com-

bination of metric & KPI hierarchies. The ﬁrst tech-

nique is suitable when there are measurability gaps

(disconnected metric trees) to be ﬁlled-in. The sec-

ond is suitable when connections between KPIs and

metrics exist such that we can go down to more tech-

nical KPIs and then continue from there by exploring

the respective metric hierarchies involved.

A great variation in evaluation techniques can be

seen, from SQL queries, OLAP and event-based met-

ric formula calculation to WSML rules and SPARQL

queries. We believe, however, that SPARQL queries

can be more expressive, even with respect to seman-

tic rules, as they: (a) allow different ways to link

the underlying semantic information; (b) have simi-

lar grouping and aggregation capabilities with SQL

queries; (c) they work on the conceptual level which

is more close to actual human conception.

Concerning evaluation ﬂexibility, our system

seems to be one step ahead from the work in (Wet-

zstein et al., 2008b; Chowdhary et al., 2006; Diaman-

tini et al., 2014) as it does not only allow to map

human-based formulations of metric formulas into

SPARQL queries but also to play around with the met-

ric and condition context. Combined also by the re-

spective KPI ontology capabilities, it can also support

exploiting various information sources, like metrics,

service properties and external ones, thus enabling a

better exploration of the metric space. In this respect,

our approach is more complete and user-intuitive with

respect to the other two systems.

Finally, We can see from the evaluation results that

only our system is able to cover all levels. In fact only

three our of seven systems do recognise the necessity

to cover more than one level in the BPaaS hierarchy.

3 BACKGROUND

This section shortly analyses OWL-Q, as it is the

basis for the KPI ontology proposed. OWL-Q is a

prominent (Kritikos et al., 2013) non-functional ser-

vice speciﬁcation ontology that captures all possible

measurability aspects. Each aspect is covered by a re-

spective OWL-Q facet. OWL-Q is also accompanied

by semantic rules enabling two semantic reasoning

types: (a) semantic OWL-Q model validation based

on the domain semantics; (b) added-value knowl-

edge generation in the form of term equivalence facts.

OWL-Q currently comprises 6 main facets which are

now analysed by focusing more on those facets that

are more relevant to this paper’s work.

The core facet enables specifying generic con-

cepts and properties, such as Schedule and name. Cat-

egory is one important facet concept, enabling con-

structing hierarchies of categories, i.e., partitions of

this and other element types, like quality metrics and

attributes. As such, this concept can assist in spec-

ifying structured quality models (see KPI categories

in Section 1) which can be re-used in the context of

non-functional capability and KPI description.

The attribute, unit and value type facets enable

specifying respective attribute, unit and value type el-

ements. Attributes (e.g., utilisation) represent prop-

erties that can be measured by metrics. Units can be

derived (e.g., bytes/sec), single (e.g., sec) or dimen-

sionless (e.g., percentage). Value types represent the

domain of values for metrics. As such, they can be

used to validate whether measurements or thresholds

in metric conditions are correct by checking whether

they are included in them.

The metric facet enables describing how attributes

can be measured via the conceptualisation of the Met-

ric concept. Metrics can be raw (e.g., uptime) or com-

posite (e.g., availability). Raw metrics are computed

from sensors or measurement directives posed over

service instrumentation systems. Composite metrics

are computed from formulas, i.e., function applica-

tions over a list of arguments, where an argument can

be a metric, attribute, service property or another for-

mula. Any metric can be related to respective contexts

detailing its measurement frequency and window.

The speciﬁcation facet enables describing non-

functional speciﬁcations as sets of respective capa-

bilities. Each capability is expressed as a constraint

which can be either a logical combination of other

constraints (i.e., a CompositeConstraint) or a simple

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

Table 3: Evaluation table over KPI analysis work.

Work Analysis DB Type Evaluation Drill-Down Evaluation Level

Types Technique Technique Flexibility

(Castellanos et al., 2005) all relational SQL queries decision trees low BP

(Wetzstein et al., 2009) all relational formula comp. decision trees low BP, SE

(Costello and Malloy, 2008) evaluation semantic formula comp. - low BP

(Wetzstein et al., 2008b) evaluation semantic WSML rules - moderate BP, SE

(Chowdhary et al., 2006) evaluation warehouse OLAP - moderate BP

(Diamantini et al., 2014) all semantic SPARQL queries KPI-based moderate BP

Our Framework all semantic SPARQL queries metric/KPI-based good all

condition over a metric (i.e., a SimpleConstraint. A

metric condition is associated to two different con-

texts: the metric and condition ones. The latter ex-

plicates which object (e.g., service or service input) is

measured and the way the condition should be evalu-

ated over this object’s instances.

4 KPI AND DEPENDENCY

ONTOLOGIES

To enable performing any KPI analysis kind, there

is a need to provide meta-models that structure and

link respective information on which the analysis re-

lies. As such, in the context of BPaaS KPI analysis,

we have developed two main ontologies: (a) the de-

pendency ontology covering BPaaS dependency mod-

els; (b) the KPI ontology covering KPI modelling.

These ontologies are interlinked in one main connec-

tion point, the actual BPaaS element measured within

the BPaaS hierarchy. Then, based on the BPaaS de-

pendency model and the interconnections between

different BPaaS elements, measurement propagation

hierarchies to cover measurability gaps and the dis-

covery of root causes for KPI violations can be en-

abled.

4.1 KPI Ontology

As OWL-Q completely covers the speciﬁcation of

QoS proﬁles and SLAs, it was decided to extend it to

cover the KPI speciﬁcation. This OWL-Q extension

builds upon OWL-Q constructs only a minimum but

sufﬁcient number of relevant new parts. The current

application of this extension over the CloudSocket

project

use cases shows that OWL-Q can model all

KPIs needed. This major evaluation step validates the

design of this OWL-Q extension.

Figure 1 depicts the KPI extension, where the grey

colour denotes core OWL-Q concepts, blue metric-

related concepts, green speciﬁcation-related concepts,

and yellow a concept from the Dependency ontology,

http://www.cloudsocket.eu

while red denotes the new KPI extension concepts

that maps to a sub-facet of the speciﬁcation one.

A KPI represents an indicator of whether BP per-

formance is satisfactory, problematic or erroneous

mapping to 3 states, captured by a warning and vi-

olation threshold. Performance for positively mono-

tonic metrics is satisfactory when is above the warn-

ing threshold, problematic when is between the warn-

ing and violation ones, and erroneous when is below

the violation one. For a negatively monotonic metric,

the order between warning and violation thresholds is

reversed and the state mapping is symmetric.

A KPI has been modelled as a sub-class of simple

constraint that carries extra information. As a sim-

ple constraint already includes a reference to a metric

and (violation) threshold, this extra information spans

a human-oriented description (for human consump-

tion), a validity period and the warning threshold.

While OWL-Q more or less fully covers the con-

ceptualisation of a metric, it was extended to address

the major issue of external information access via in-

corporating such information in metric formulas. By

considering that all modern information sources are

available in form of REST APIs or database end-

points, this extension was realised by introducing the

Query and APICall as sub-classes of Argument. As

such, instances of these classes can be directly used

as input arguments in metric formulas. A Query spec-

iﬁes in an implementation-independent way the re-

quired information to connect and query a db span-

ning: (a) the db’s connection URL; (b) the query lan-

guage; (c) the actual query; (d) the db type.

An APICall includes all information needed to

call the API and retrieve back the result, spanning: (a)

the API URL; (b) values to all input parameters for the

call; (c) input information encoding; (d) output format

(e.g., XML or JSON); (e) a JSON or XML-like script

(e.g., in XPath) to operate over the output returned.

It might be imperative in certain cases (e.g., cus-

tomer satisfaction metrics) to enable humans to man-

ually provide measurements in the system such that

the measurement-to-user linkage should be modelled.

When connected to certain aspects like human trust

and reliability, such linkage can enable reasoning over

Towards Semantic KPI Measurement

Category

Formula

Function

-scheduleType

-start

-end

-repetition

-interval

Schedule

-magnitude : Double

Unit

ValueType

Argument

MetricContext

Metric

Value

OWLList

CompositeMetric

-canBeManual

RawMetric

-timestamp

-value

Measurement

-accessModel

-accessURI

-directiveType

-timeout

MeasurementDirective

-level

Attribute

-downloadScript

-installScript

-runScript

-stopScript

Configuration

-measurementSize

-measurementTime

-timeSize

-windowType

-windowSizeType

Window

-accessModel

-accessURI

Sensor

ArgumentList MetricList

composingMetricList

argumentList

function

formula

window

sensor

configuration

directive

schedule

metric

context

subCategory

containsValue

unit

measuredBy

valueType

-validity

-transactionProtocol

-authenticationProtocol

Specification

Constraint

ComplexConstraint

-secondArgument

SimpleConstraint

OperatorBinary

Unary

N_Ary

ComparisonOperator

OptimisationOperator

LogicalOperator

-boundElementURI

-quantifierType

-isRelative

-minQuantifier

-maxQuantifier

ConstraintContext

-serviceURI

Service

ServiceProperty

containsConstraint

conditionContext

constraint

operator

logicalOperator

serviceComponents

property

firstArgument

-name

-description

-validityPeriod

-warningThreshold

KPI

-query

-connectionURL

-dbType

-language

Query

User

suppliedBy

child

metricContext

-trend

-isWarning

-isViolation

KPIAssessment

service

operator

-URL

-values

-inputEncoding

-outputEncoding

-script

APICall

-name

-description

-level

Goal

Functional

Strategic

NonFunctional

Operational

Tactical

Contribution

from

AND

Figure 1: OWL-Q KPI Extension.

measurements and their propagation to establish a so-

called trust level over them and a more suitable way

to aggregate them. This was accommodated in OWL-

Q by not only associating a measurement to a speciﬁc

sensor or directive but also to a human resource that

might produce this measurement.

To enable a drill-down from higher- to lower-

level KPIs to support root-cause analysis, we asso-

ciate KPIs to each other via a child relation. This

relation must conform to the respective relation be-

tween the metrics of the involved KPIs (i.e., the par-

ent KPI’s metric should be a parent metric of the child

KPI metric). For instance, a KPI for service response

time could be related to KPIs mapping to the service

execution time and corresponding network latency.

During KPI assessment, we are interested in

checking also other information, such as the value

trend with respect to the previous assessments, by

performing different analysis kinds. For instance,

we could assess whether the BPaaS performance gets

gradually reduced from the very beginning. As such,

to also make a connection to the original OWL-Q

concept called Measurement, specifying a measure-

ment’s value and its timestamp, a new sub-class was

created, called KPIAssessment, including information

parts focusing on covering the value trend and the KPI

violation kind (warning or fatal) occurred.

A KPI should be connected to a business goal that

must be satisﬁed to be used as an instrument to assess

the respective goal’s achievement. Such a linkage can

also enable performing goal-based analysis in order

to reach interesting conclusions related, e.g., to the

satisfaction of strategic goals from operational ones.

As such, OWL-Q was further extended to spec-

ify goals and their linking to KPIs. First, the Goal

concept, representing any goal kind, as well as re-

spective sub-concepts mapping to strategic, tactical,

operational, functional and non-functional goals were

introduced. Any goal was given a name, description

and application level, while operational goals were as-

sociated to the processes used to satisfy them (another

connection point with Dependency ontology). Goals

were also linked via AND/OR self-relations or con-

tribution relations to enable forming goal hierarchies

from strategic to operational goals. Contribution rela-

tions were modelled via the Contribution class which

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

links a goal with another goal or KPI and is mapped

to a speciﬁc level of contribution.

4.2 Dependency Ontology

To perform various analysis types over a certain sys-

tem, it is critical to model the evolution of the sys-

tem dependency model. Such a model reveals what

are the system components and how they are inter-

connected along with the interconnection direction.

Such a direction can indicate the way faults and mea-

surements can be propagated from lower to higher ab-

straction levels. The opposite direction enables per-

forming root cause analysis, i.e., from a current, issue

at a high-level component down to the actual compo-

nent to blame in a lower-level.

The proposed Dependency ontology covers both

deployment and state information about all compo-

nents in a BPaaS hierarchy. It extensively captures

many information aspects making it suitable for many

different kinds of BPaaS analysis, including: (a) KPI

analysis; (b) (semantic) process mining (De Medeiros

et al., 2007), as (semantic) I/O information for tasks

and workﬂows is covered; (c) best BPaaS deployment

analysis (Kritikos et al., 2016) as all possible deploy-

ment information across all levels is covered.

The Dependency Ontology, depicted in Figure

2, follows the well-known type-instance pattern, en-

abling the capturing of both the allocation decisions

made as well as the whole BPaaS allocation history

and evolution. The proposed ontology also covers

organisational information. In particular, the Ten-

ant concept was introduced to model an organisation

which is also associated to a User set. A tenant can

be a Broker, offering a BPaaS, a Customer, purchas-

ing a BPaaS, or a Provider, offering a cloud service

supporting the BPaaS execution. Customer organisa-

tions can be SMEs, start-ups or big companies (string

type enumeration denotes them).

The ontology analysis follows a top-down ap-

proach from the type to the instance level. At the type

level, the top concept represents the BPaaS which is

associated to an owner and an executable Workﬂow to

be run in the cloud. The latter is related to its main

Tasks. Tasks can have input and output Variables and

are related to a speciﬁc user or role that can be as-

signed to them. A Task can be further classiﬁed into a

ManualTask (performed by human workers), Script-

Task (performed automatically via a script) and Ser-

viceTask (performed automatically by calling a Soft-

ware as a Service (SaaS))

A BPaaS corresponds to an allocated executable

workﬂow. This means that: (a) a workﬂow can be

shared by many BPaaS; (b) within one BPaaS, a spe-

ciﬁc set of allocations can be performed over a work-

ﬂow. This resulted in modelling of the Allocation con-

cept to represent an allocation decision and link it to

a certain BPaaS and workﬂow.

Each allocation maps a service task to a SaaS, ei-

ther an ExternalSaaS or a (internal) ServiceCompo-

nent. In case of a ServiceComponent, the allocation is

also related to an Infrastructure as a Service (IaaS). A

IaaS is characterised by the number of cores and the

main memory & storage size properties.

At the instance level, BPaaSInstance represents an

actual instance of a BPaaS associated with the Cus-

tomer that has purchased it, its actual cost and the

DeployedWorkﬂow. The latter represents the BPaaS

workﬂow deployed in the context of a customer upon

successful purchasing. The instances of this workﬂow

are then associated to: (a) the instances of tasks (Task-

Instance) created; (b) its start and end time; (c) its re-

sulting state (“SUCCESS” or “ERROR”); (d) the user

that has initiated it; (e) the adaptations performed on it

to keep up with the SLOs promised. Instances of tasks

of this workﬂow are associated to similar information

which includes the user (if exists) executing them and

their generated input/output VariableInstances. The

latter map to the actual Variable concerned and pos-

sess the respective values generated.

Two types of concrete allocations are modelled:

(a) from a deployed workﬂow task to a SaaSInstance

realising its functionality; (b) from internal SaaSIn-

stance to the IaaSInstance hosting it. Both a SaaS

and IaaS instance are sub-classes of ServiceInstance,

encompassing their common features mapping to: the

service’s endpoint and its physical & cloud location.

Physical locations are captured via the FAO (United

Nations Food and Agriculture Organisation) geopolit-

ical ontology

. CloudLocations are used to structure

arbitrary hierarchies of cloud locations to cover the

hierarchy diversity across different cloud providers.

The most usual BPaaS adaptation types across the

literature have been modelled: service replacement

and scaling ones. Any Adaptation is associated to its

start and end time, its ﬁnal state and the adaptation

rule triggered. A ServiceReplacement is associated to

the service instance being substituted and the service

instance substituting it.

Any scaling maps to the IaaS to be scaled. 2

main scaling kinds are covered: (a) HorizontalScal-

ing where we specify one or more service compo-

nents hosted by the IaaS to be scaled plus the amount

of instances to be generated or removed; (b) Verti-

calScaling where we indicate the increase or decrease

amount of respective IaaS characteristic(s).

http://aims.fao.org/aos/geopolitical.owl

Towards Semantic KPI Measurement

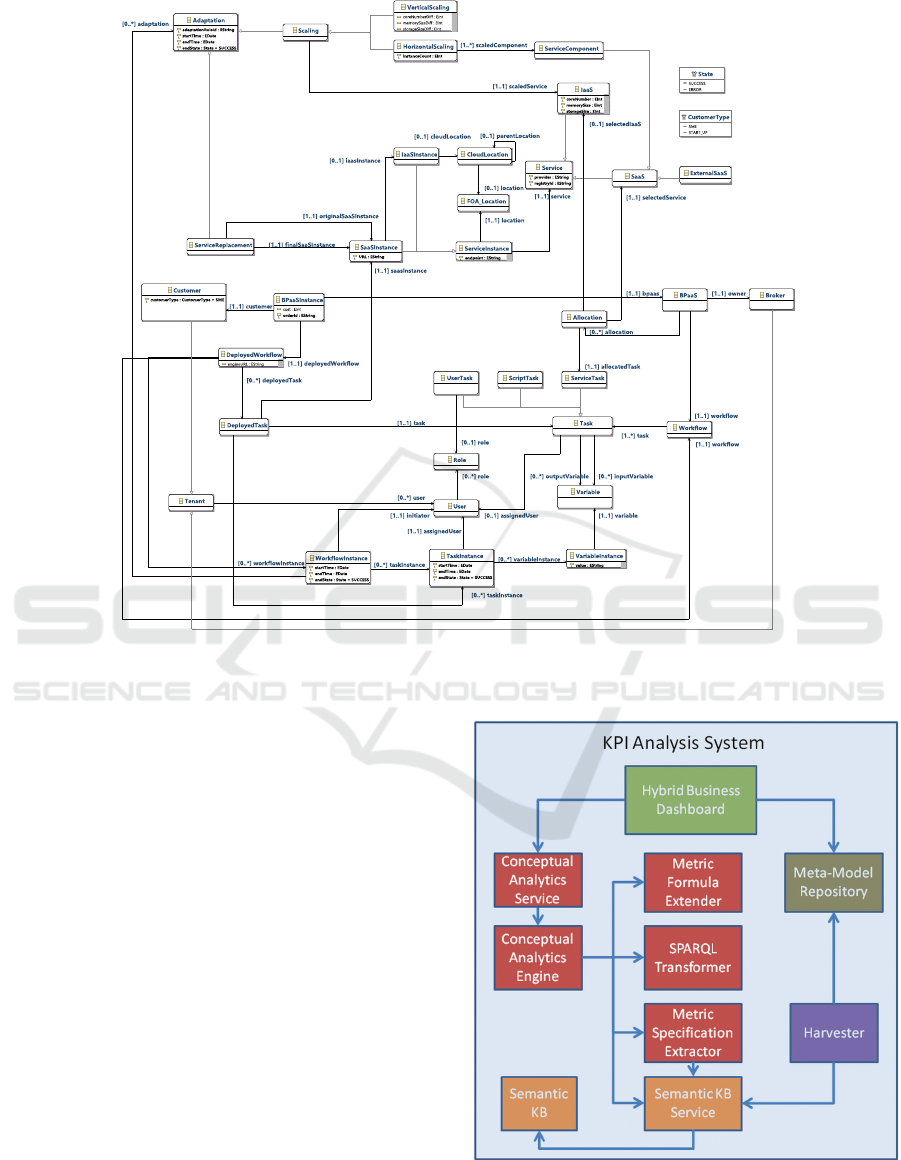

Figure 2: Dependency ontology UML class diagram.

5 KPI ANALYSIS SYSTEM

5.1 Architecture

The architecture of the KPI analysis system, depicted

in Figure 3, follows a Service-Oriented Architecture

and the known three-level implementation pattern of

UI-business logic-database. This system comprises

ten main components. The Hybrid Dashboard is the

main entry point to the system from which respective

analysis tasks can be performed and then represented

according to suitable visualisation metaphors.

The Conceptual Analytics Service is a REST ser-

vice offering the two main KPI analysis capabilities.

As such, it can be exploited by external components

to programmatically deliver these capabilities.

The Conceptual Analytics Engine orchestrates the

way the KPI analysis and drill-down can be per-

formed by invoking three main components: (a) the

Metric Speciﬁcation Extractor which extracts the KPI

metric deﬁnition from the Semantic KB; (b) the Met-

ric Formula Extender which expands the extracted

Figure 3: Architecture of the KPI Analysis System.

metric’s formula based on the metric’s derivation hier-

archy; (c) the SPARQL Transformer which transforms

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

the expanded metric formula into a SPARQL

query

to be assessed over the Semantic KB.

The Semantic KB is a semantic Triple Store en-

abling the management and storage of semantic infor-

mation, structured based on the two ontologies pro-

posed. To address the heterogeneity of different triple

store implementations and their exchange, a Seman-

tic KB Service was developed on top of this KB to

offer a RESTful interface enabling LD management

via methods that facilitate issuing SPARQL queries,

inserting as well as updating RDF graphs.

The Harvester populates the Semantic KB by us-

ing the Semantic KB Service. This component ﬁrst

obtains the needed information from disparate infor-

mation sources within the BPaaS management proto-

type and then semantically enhances, links and for-

mulates it based on the two proposed ontologies pro-

posed. The population is performed periodically to

not overwhelm the system but more frequently with

respect to the way KPI measurements are assessed.

Finally, the Meta-Model Repository includes ba-

sic information about BPs like their models and an-

notations to be exploited for visualisation and infor-

mation harvesting reasons. In the current implemen-

tation prototype, this component is shared between

the BPaaS Design and Evaluation environments. This

witnesses the closeness between the two BP lifecycle

activities and the respective level of cooperation that

has to be established between them.

5.2 KPI Analysis

No matter what is the KPI analysis form, the core KPI

metric evaluation functionality needs to be realised.

As such, we have selected a semantic approach for

this realisation for two main reasons: (a) the eval-

uation accuracy is higher; (b) semantic linking en-

ables exploring the actual space of possible KPI met-

ric computation formulas. In fact, the latter reﬂects

the current KPI evaluation practice where there might

be some KPI metrics that can be ﬁxed in advance

(e.g., cross-domain metrics) while the rest of the met-

rics must be computed based on the knowledge and

expertise of the (BP performance) evaluator.

In contrast to other forms of measurement stor-

age and aggregation, the semantic linking enables the

rich connection between different information aspects

to facilitate the metric formula construction. On the

other hand, measurement system alternatives, such as

Time Series Data Bases, require an apriori design of

the measurement space and do not allow advanced

forms of information linking and aggregation.

https://www.w3.org/TR/rdf-sparql-query/

By relying on a semantic approach and adopting

LD technology, the most intuitive way to express met-

ric formulas is via SPARQL queries. The main dif-

ﬁculty lies on the fact that SPARQL queries require

deep knowledge about LD technology and great ex-

pertise in SPARQL query modelling which might not

be possessed by a BP performance evaluation expert.

This expert would rather prefer to mathematically

specify the metric formula in a simpliﬁed language.

This observation has led to the need to transform the

KPI metric speciﬁcation, as speciﬁed in the KPI on-

tology, into a SPARQL query speciﬁcation. By re-

lying on an user-intuitive OWL-Q editor and the fact

that ontologies represent human conceptualisations of

a domain, the expert can more naturally specify the

metric formula. This obstacle could be further over-

passed by introducing a domain-speciﬁc language for

pure mathematical metric formula expressions.

This metric formula to SPARQL query transfor-

mation included a set of speciﬁc hurdles that had to

be overcome. First, it relies on the metric kind. We

distinguish between two metric kinds: (a) customer-

speciﬁc, pertaining to a certain BPaaS instance pur-

chased by the customer; (b) broker-speciﬁc, pertain-

ing to an overall performance of the BPaaS offered.

Customer-speciﬁc metrics have as a measurement

space all the measurements produced for the cus-

tomer’s BPaaS instance, while broker-speciﬁc metrics

have a broader measurement space spanning all mea-

surements over all instances of a BPaaS.

Second, the transformation is hardened by two

main factors: (a) it should not only consider the met-

ric itself (i.e., the actual computation) but also the

metric and condition context, which signiﬁes that all

this information should be linked together to obtain

the right set of measurements to be aggregated; (b) the

dynamic evaluation kind envisioned, where the ex-

pert can play with formulas, metric kinds, evaluation

(schedule & windows) and history periods, does not

enable storing the measurements in the physical stor-

age once they are derived. As such, the way lower-

level KPI metrics can be produced needs to be taken

into account when attempting to compute a high-level

KPI metric. This also signiﬁes that we might need

to go down even to the level of resource or low-level

metrics for which measurements are already produced

to derive the measurements for a high-level KPI.

By considering the above two issues, a particular

transformation algorithm has been developed which,

depending on the input provided, attempts to con-

struct dynamically the SPARQL query to be issued

for deriving the respective metric measurement. The

pseudo-code of this algorithm is shown in Listing 1.

Towards Semantic KPI Measurement

Listing 1: Transformation & Drill-Down Algorithms

Pseudo-code.

R e s u l t S e t e v a lKPI { M e t r i c m, O b j e c t o b j e c t , BPaaS b p aas ,

Da teTim e s t a r t , DateT im e end , S t r i n g c u s t I D }{

M e t r i c F o r m u l a mf = e xpand F o r mula (m. f o r m u l a ) ;

L i s t <S t r i n g > v a r s = g e t V a r s ( mf ) ;

S t r i n g c l a u s e = g e t C l a u s e ( mf ) ;

S t r i n g qu e r y = c r e a t e Q u e r y ( v a r s , c l a u s e , o b j e c t , b p aas ,

s t a r t , end ,m . m e t r i c C o n t e x t . s c h e d u l e , c u s t I d ) ;

r e t u r n r u nQuer y ( q u e r y ) ;

}

S t r i n g c r e a t e Q u e r y ( L i s t <S t r i n g > vars , S t r i n g c l a u s e ,

O b j e c t o b j , BPaaS bpa a s , D ateTi me s t a r t , Dat eT ime end ,

S c h e d u l e s c h e d u l e , S t r i n g c u s t o m e r I d ) {

S t r i n g qu e r y = i n s e r t P r e f i x e s ( ) ;

q u e r y += a p p l y C l a u s e ( c l a u s e , g e t B r o k e r G r a p h ( ) ) ;

q u e r y += c r e a t e M e a s u r e m e n t T r i p l e s ( v a r s , o b j . URI ) ;

q u e r y += c r e a t e I n t e r L i n k ( bpaa s , o b j e c t , c u s t o m e r I d ) ;

q u e r y += a p p l y F i l t e r s ( s t a r t , end , v a r s ) ;

q u e r y += ap p l y G r o u p i n g ( s c h e d u l e , v a r s ) ;

r e t u r n q u e r y ;

}

H a s h t a b l e<M e t r i c , R e s u l t S e t> d r i l l D o w n ( M e t r i c m,

O b j e c t o b j e c t , BPaaS bp a a s , D ateTi me s t a r t ,

Da teTim e end , S t r i n g c u s t I d ) {

M e t r i c T r e e mt = e x p a n d F o r m u l a I n T r e e (m. f o r m u l a ) ;

Set<Metr icN ode> m e t r i c s = g e t L e a v e s ( mt ) ;

H a s h t a b l e<M e t r i c , R e s u l t S e t> r e s u l t s =

new Ha s h t a b l e<M e t r i c , R e s u l t S e t > ();

w h i l e ( ! m e t r i c s . i sEmp t y ( ) ) {

f o r ( Me t ricN o d e mn: m e t r i c s {

i f (mn . i s L e a f ( ) ) r e s u l t s . u n i o n ( e v a l K P I ( mn . m e t r i c ,

o b j e c t , b p aas , s t a r t , end , c u s t I d ) ) ;

e l s e r e s u l t s . u n i o n ( m eas ure KPI ( mn , o b j e c t , s t a r t ,

end , c u s t I d , r e s u l t s ) ) ;

}

m e t r i c s = g e t P a r e n t s ( m e t r i c s ) ;

}

r e t u r n r e s u l t s ;

}

The algorithm (see evaluateKPI method) com-

prises ﬁve steps: (a) metric formula expansion which

involves the recursive substitution of component met-

rics, for which measurements are not stored in the Se-

mantic KB, with the derivation formula of these met-

rics; (b) derivation of query variables from those met-

rics, i.e., the leaf metrics, in the expanded formula for

which measurements have been stored; (c) production

of the (SPARQL) select clause from the expanded for-

mula; (d) production of the whole SPARQL query; (e)

evaluation of the SPARQL query over the Semantic

KB.

The SPARQL query production (see

createQuery method) includes the execution of

the following steps: (i) the creation of the query

preﬁxes; (ii) the application of the SELECT & FROM

clauses by also considering the respective LD graph

URI mapping to the individual RDF graph of the

broker from which the relevant information for the

query evaluation can be obtained; (iii) the creation

of triples mapping to the measurements of the leaf

metrics / variables; (iv) the enforcement of the

intelinking between measurements according to the

object being measured, the customer (if given as

input) and the respective BPaaS instances of the

measurements; (v) the application of the ﬁltering

(FILTER clause) over the history period to consider

measurements produced only on that period; (vi) the

application of SPARQL GROUP BY clauses based on

the KPI metric evaluation period, i.e., its schedule.

In order to exemplify the transformation algorithm

and raise its understanding level, we focus on high-

lighting its application on a speciﬁc example of a KPI

metric and we especially take a closer look at the re-

spective SPARQL query being generated.

Suppose that we need to measure the aver-

age availability metric AV G

for the whole BPaaS

workﬂow which can be computed from the formula

MEAN(RAW

), where RAW

represents the instance-

based availability metric for this workﬂow. Moreover,

further assume that: (i) the availability metric should

be calculated every 1 hour, while the raw availability

one every minute; (ii) the history period is 1 day.

The ﬁrst step of the transformation algorithm

will expand this formula based on the measur-

ability of its component metrics. In particu-

lar, as RAW

is not stored in the Semantic KB,

it is further expanded into its derivation formula

UPT IME

TOTAL OBSERVAT ION T IME

, where UPT IME is a raw

metric and T OTAL OBSERVAT ION T IME is a con-

stant. In this sense, the ﬁnal expanded formula will

become: MEAN



UPT IME

TOTAL OBSERVAT ION T IME



. From

this formula, the next two algorithm steps will pro-

duce a set of one variable (“?uptime”) and the se-

lect clause (“SELECT (AVG(?uptime / 60) as ?value)

(MAX(?uptime ms ts) as ?date)”). Please note that as

uptime is calculated every second, the total observa-

tion time constant is 60.

The fourth step will focus on generating the actual

SPARQL query which is depicted in Figure 4. This

ﬁgure is now explained by focusing over all the steps

involved in the createQuery method and the content

generated by them.

Figure 4: Constructed SPARQL query for the example.

Lines 1-2 indicate the preﬁxes of the two on-

tologies being exploited mapping to the ﬁrst query

generation step. Line 3-4 map to the second step

which completely speciﬁes the query SELECT & FROM

clauses.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

Lines 5-9 signify a set of triple patterns, generated

by the third step in query creation, linking the uptime

measurement to: (a) the Uptime metric; (b) its actual

value used in the Line 3 formula; (c) the actual date-

Time where this measurement was produced; (d) the

URI of the object measured (a workﬂow instance in

our case). While these lines guarantee that we operate

over Uptime measurements, they do not provide suit-

able connections to other major information aspects,

such as which BPaaS is actually concerned.

As such, Lines 10-13, mapping to the fourth query

creation step, realise the needed connections from the

object measured to both the BPaaS instance involv-

ing it and the BPaaS under investigation. Line 10

connects the current BPaaS to one of its instances,

while Line 11 links this BPaaS instance to a deployed

workﬂow. Line 12, currently commented, would link

this instance to a speciﬁc client that has purchased it,

in case we deal with a customer-speciﬁc metric. Fi-

nally, Line 13 maps the deployed workﬂow to the ac-

tual workﬂow instance measured. Lines 11-13 can be

differentiated based on the kind of object being mea-

sured. For instance, if a task instance is measured,

then we need to add another triple pattern indicating

that the workﬂow instance includes this task instance.

Line 15, currently commented, maps to the ﬁfth

query creation step and provides a SPARQL FILTER

constraint that can restrain the history period under

investigation. In particular, the dateTime of the mea-

surement is mapped to two simple constraints indi-

cating that this dateTime should be greater or equal

to the low bound dateTime of the considered period

and less than or equal to the upper bound dateTime of

this period. The commendation of this line signiﬁes

that the whole evaluation history of the KPI metric is

explored.

Finally, Line 17, generated by the last query cre-

ation step, provides a grouping statement where the

last sub-group maps to the evaluation period of the

KPI metric (per hour). This statement groups ﬁrst the

results according to the month, then according to the

day and then according to the respective hour.

The derivation of KPI drill-down knowledge is

handled by another algorithm which maps to the

drillDown method in Listing 1. As it can be seen,

this algorithm exploits the transformation one by also

considering the whole derivation tree of the current

KPI metric at hand. The drill-down algorithm steps

are the following: (a) start with the top metric’s

derivation list and expand on it recursively until leaf

metric nodes are reached. This leads to the produc-

tion of a metric (derivation) tree which has as nodes

either formula or metric nodes. The latter nodes map

only to metrics for which measurements exist in the

Semantic KB; (c) compute the needed metric values

according to the SPARQL-based transformation ap-

proach in a bottom-up way; The latter approach is

used only for the leaf metric nodes in the metric

derivation tree. Then, the produced measurements are

propagated up in the tree by considering the respec-

tive formula and metric nodes visited in a level-by-

level manner. Each time a KPI metric node is vis-

ited, its values are produced according to the metric

formula involved and the already produced measure-

ments and they are stored in the hashtable, from met-

rics to measurement result sets, to be returned.

6 CONCLUSIONS

This paper has presented a semantic approach to KPI

measurement which enables the clever and dynamic

exploration of the KPI metric space. This approach

relies on the appropriate deﬁnition of the KPI met-

ric, the expansion of its formula and its transforma-

tion into a SPARQL query that is then issued over a

semantic KB. A KPI drill-down capability is also of-

fered by the proposed KPI analysis system which cap-

italises over the KPI measurement algorithm and the

KPI’s hierarchy tree. This paper has also proposed

speciﬁc ontologies focusing on the complete KPI def-

inition and the capturing of BPaaS dependency mod-

els. Both ontologies can be exploited to semantically

link information originating from the BPaaS execu-

tion so as to populate the semantic KB and enable

various types of BPaaS analysis over it, apart from

the currently offered one, such as process mining or

best BPaaS deployment discovery.

The following research directions are planned.

First, further validating the two proposed ontologies

from use cases of the CloudSocket project to obtain

suitable feedback for optimising them. Second, eval-

uating the KPI analysis system based on both perfor-

mance and accuracy aspects. Third, realising addi-

tional BPaaS analysis algorithms into the respective

KPI analysis system to transform it into a full-ﬂedged

BPaaS evaluation environment.

ACKNOWLEDGEMENTS

This research has received funding from the European

Community’s Framework Programme for Research

and Innovation HORIZON 2020 (ICT-07-2014) un-

der grant agreement number 644690 (CloudSocket).

Towards Semantic KPI Measurement

REFERENCES

Caplan, R. S. and Norton, D. P. (1992). The Balanced

Scorecard Measures that Drive Performance. Har-

vard Business Review, 70(1):281–308.

Castellanos, M., Casati, F., Shan, M.-C., and Dayal, U.

(2005). ibom: A platform for intelligent business

operation management. In ICDE, pages 1084–1095,

Washington, DC, USA. IEEE Computer Society.

Chowdhary, P., Bhaskaran, K., Caswell, N. S., Chang, H.,

Chao, T., Chen, S.-K., Dikun, M., Lei, H., Jeng, J.-

J., Kapoor, S., Lang, C. A., Mihaila, G., Stanoi, I.,

and Zeng, L. (2006). Model Driven Development

for Business Performance Management. IBM Syst. J.,

45(3):587–605.

Costello, C. and Malloy, O. (2008). Building a Process Per-

formance Model for Business Activity Monitoring. In

Wojtkowski, W., Wojtkowski, G., Lang, M., Conboy,

K., and Barry, C., editors, Information Systems Devel-

opment - Challenges in Practice, Theory, and Educa-

tion, pages 237–248. Springer-Verlag.

Cui, Y. and Nahrstedt, K. (2001). QoS-Aware Depen-

dency Management for Component-Based Systems.

In HPDC, page 127. IEEE Computer Society.

De Medeiros, A. K. A., Pedrinaci, C., van der Aalst, W.

M. P., Domingue, J., Song, M., Rozinat, A., Norton,

B., and Cabral, L. (2007). An Outlook on Semantic

Business Process Mining and Monitoring. In OTM,

pages 1244–1255. Springer-Verlag.

del R

ıo-Ortega, A., Resinas, M., Dur

an, A., and Ruiz-

Cort

es, A. (2016). Using templates and linguistic pat-

terns to deﬁne process performance indicators. En-

terp. Inf. Syst., 10(2):159–192.

Diamantini, C., Potena, D., Storti, E., and Zhang, H. (2014).

An Ontology-Based Data Exploration Tool for Key

Performance Indicators. In ODBASE, pages 727–744,

Amantea,Italy. Springer-Verlag.

Frank, U., Heise, D., Kattenstroth, H., and Schauer, H.

(2008). Designing and utilising business indicator sys-

tems within enterprise models: Outline of a method.

In MobIS: Modellierung zwischen SOA und Compli-

ance Management, Saarbr

ocken, Germany.

Friedenstab, J.-P., Janiesch, C., Matzner, M., and Muller, O.

(2012). Extending BPMN for Business Activity Mon-

itoring. In HICSS, pages 4158–4167. IEEE Computer

Society.

Gonz

alez, O., Casallas, R., and Deridder, D. (2009). MMC-

BPM: A domain-speciﬁc language for business pro-

cesses analysis. In BIS, volume 21, pages 157–168,

Poznan, Poland. Springer.

Gruschke, B. (1998). Integrated Event Management: Event

Correlation Using Dependency Graphs. In DSOM.

Hasselmeyer, P. (2001). Managing Dynamic Service

Dependencies. In DSOM, pages 141–150, Nancy,

France. INRIA.

Kritikos, K., Magoutis, K., and Plexousakis, D. (2016). To-

wards Knowledge-Based Assisted IaaS Selection. In

CloudCom, Luxembourg. IEEE Computer Society.

Kritikos, K., Pernici, B., Plebani, P., Cappiello, C., Co-

muzzi, M., Benbernou, S., Brandic, I., Kert

esz, A.,

Parkin, M., and Carro, M. (2013). A survey on ser-

vice quality description. ACM Comput. Surv., 46(1):1.

Kritikos, K. and Plexousakis, D. (2006). Semantic QoS

Metric Matching. In ECOWS, pages 265–274. IEEE

Computer Society.

Liu, R., Nigam, A., Jeng, J., Shieh, C., and Wu, F. Y. (2010).

Integrated Modeling of Performance Monitoring with

Business Artifacts. In ICEBE, pages 64–71, Shanghai,

China. IEEE Computer Society.

Motta, G., Pignatelli, G., , and Florio, M. (2007). Perform-

ing Business Process Knowledge Base. In First Inter-

nation Workshop and Summer School on Service Sci-

ence, Heraklion, Greece.

Pierantonio, A., Rosa, G., Silingas, D., Th

onssen, B., and

Woitsch, R. (2015). Metamodeling Architectures for

Business Processes in Organizations. In Proceedings

of the Projects Showcase at STAF, L’Aquila, Italy.

CEUR.

Rossini, A., Kritikos, K., Nikolov, N., Domaschka, J.,

Griesinger, F., Seybold, D., and Romero, D. (2015).

D2.1.3 – CloudML Implementation Documentation

(Final version). Paasage project deliverable.

Seedorf, S. and Schader, M. (2011). Towards an Enterprise

Software Component Ontology. In AMCIS. Associa-

tion for Information Systems.

Wetzstein, B., Karastoyanova, D., and Leymann, F. (2008a).

Towards Management of SLA-Aware Business Pro-

cesses Based on Key Performance Indicators. In BP-

MDS, Montpellier, France.

Wetzstein, B., Leitner, P., Rosenberg, F., Brandic, I., Dust-

dar, S., and Leymann, F. (2009). Monitoring and Ana-

lyzing Inﬂuential Factors of Business Process Perfor-

mance. In EDOC, pages 118–127. IEEE Press.

Wetzstein, B., Ma, Z., and Leymann, F. (2008b). Towards

Measuring Key Performance Indicators of Semantic

Business Processes. In BIS, page 227238. Springer-

Verlag.

Woitsch, R., Albayrak, M., K

ohn, H., Utz, W., Ferrer, A. J.,

Iranzo, J., Leonforte, A., Gallo, A., Mihnea, V., Pacu-

rar, R., Avasilcai, C., Arama, G., Boca, R., Griesinger,

F., Seybold, D., Domaschka, J., Kritikos, K., and Plex-

ousakis, D. (2015). D4.1 – First CloudSocket Archi-

tecture. CloudSocket European Project.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science
