An on Demand Virtual CPU Arhitecture based on Cloud

Infrastructure

Erhan Gokcay

Software Engineering Department, Atilim University, Incek, Ankara, Turkey

Keywords: Cloud Framework, Parallel Computation, CPU on Demand, Cloud CPU.

Abstract: Cloud technology provides different computational models like, including but not limited to, infrastructure,

platform and software as a service. The motivation of a cloud system is based on sharing resources in an

optimal and cost effective way by creating virtualized resources that can be distributed easily but the

distribution is not necessarily parallel. Another disadvantage is that small computational units like smart

devices and less powerful computers, are excluded from resource sharing. Also different systems may have

interoperability problems, since the operating system and CPU design differs from each other. In this paper,

an on demand dynamically created computational architecture, inspired from the CPU design and called

Cloud CPU, is described that can use any type of resource including all smart devices. The computational

and data transfer requirements from each unit are minimized. Because of this, the service can be created on

demand, each time with a different functionality. The distribution of the calculation over not-so-fast internet

connections is compensated by a massively parallel operation. The minimized computational requirements

will also reduce the interoperability problems and it will increase fault tolerance because of increased

number of units in the system.

1 INTRODUCTION

Advances in cloud systems are increasing rapidly as

users are discovering cost and performance benefits

of cloud systems. Some features can be listed as

efficient resource sharing, security, flexibility and

on-demand service. Available hardware and

software resources can be shared among different

users and/or systems with a higher granularity than

before. This is important because most of the time

the computing resources of a system is never utilized

fully in standalone mode. There are different

deployment models (Vouk, 2008) (Zhang, 2010)

(Dillon, 2010) (Sonisky, 2011) like private, public,

community and hybrid models. Almost anything is

provided as a service.

The term cloud has different definitions. We

could say that clouds are a large pool of virtual and

easy to reach resources (hardware and/or software).

These resources can be dynamically adjusted and

assigned depending on the demand. Cloud

computing is based on several old concepts like

Service-oriented architecture (SOA), distributed and

grid computing (utility computing) (Foster, 2008)

and virtualization described in (Youseff, 2008)

(Vaquero, 2009) and (Vouk, 2008). Security is

always an issue in computing systems. With a

distributed approach protection, security and privacy

issues become more important and this issue is

analyzed in (Hashizume, 2013) (Liu, 2011) and

(Basu, 2012).

There is a great deal of work to create a standard

for the services provided such as Distributed

Management Task Force (DMTF) which is an

interoperable cloud infrastructure management

standard focuses on interoperability (Buyya, 2009).

Storage Networking Industry Association (SNIA)

SNIA standards are used to manage the data,

storage, information and also address the issues such

as interoperability, usability, and complexity

(Popovic, 2010) (snia.org). OGF standards Open

Virtual Machine Format (OVF) is a platform

independent format which provides the features like

efficiency, flexibility, security and mobility of

virtual machines (snia.org) in order to achieve

interoperability.

One of the studies in this area is done in (Botta,

2016) where the focus is on the integration of Cloud

and IoT. Although the integration is discussed in

Gokcay, E.

An on Demand Virtual CPU Arhitecture based on Cloud Infrastructure.

DOI: 10.5220/0006239803510357

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 323-329

ISBN: 978-989-758-243-1

323

detail, still IoT devices are passive elements, not

contributing to the computation power of Cloud.

The computational units are getting

decentralized but the limit of this process needs to be

answered. The growing IoT concept needs to be

merged to Cloud systems and the interoperability

problems need to be solved as well.

The research question is that how small the

computational units can get in a Cloud environment,

how these small units can be configured, how IoT

devices can contribute to the Cloud computation and

how smaller devices will help to the interoperability

problem.

Chapter 2 describes the basic challenges of cloud

systems and the motivation of the paper. Chapter 3

describes the new service architecture called Cloud

CPU. In Chapter 4, the basic building blocks of

Cloud-CPU architecture is explained. Chapter 5

describes the execution flow of Cloud-CPU

operations. Finally, Chapter 6 summarizes the

advantages of the Cloud-CPU system.

2 CLOUD CHALLENGES

The cloud computing faces many challenges that are

related to the data interoperability and portability,

governance and management, metering and

monitoring, security which are addressed by

MOSAIC (Opensource API and Platform for

Multiple Clouds) (Petcu, 2013). There are

interoperability problems between cloud systems

and services because of different services depend on

different operating systems and CPU types. Each

vendor is providing a different service with a

different set of tools. Most cloud computing systems

in operation today are proprietary, rely upon

infrastructure that is invisible to the research

community, or are not explicitly designed to be

instrumented and modified by systems researchers

(Nurmi, 2009).

Although there are many open-source cloud

systems for researchers as the development of cloud

computing, they still are using a different

Application Programming Interface (API) from each

other. For IaaS, there are some popular open-source

cloud systems, such as Eucalyptus (Nurmi, 2009),

Open Nebula (opennebula.org), Nimbus

(nimbusproject.org), etc.

A different weakness of cloud computing is the

exclusion of not-so-powerful units from the system

as a source of the services provided. Smart devices

and computational units with less resources are

basically consumers in a cloud system as described

in (Khan, 2004). Those devices, although very high

in terms of connected units, are using cloud systems

but not providing any resource back.

3 CONFIGURABLE ON DEMAND

SERVICE

In order to remove the dependency problem to the

service provider, a new framework is needed in such

a way that the consumer or user can configure the

services needed, including functionality and

computing power, from the cloud system. Instead of

providing a high level service and computation,

cloud systems will provide low level services or

computations without any final computational goal

and the user will combine these services to configure

its own customized and dedicated service.

The design is inspired from the design of a CPU

and therefore similar terminology will be used in the

paper. The framework will be called Cloud CPU

with references to CPU building blocks, although

the name similarity does not mean a one-to-one

duplication of CPU architecture and certainly there

is no intention to replace a CPU with the service.

The Cloud CPU represents the specific service that

the user is trying to configure. CPU instructions

represent minimized services or computations

received from cloud units. Registers represent basic

storage units needed in the service.

3.1 Reduced Cloud Service Model

The design of a CPU had faced a reduction in terms

of complexity of the instruction set. The early

designs include complex instructions (CISC),

whereas later designs include very simple

instructions (RISC) to execute a program with

higher efficiency. The building blocks of RISC

architecture can be designed with less errors.

The Cloud CPU framework is using a similar

approach where simple services are used instead of

complicated computations and therefore the

implementation is called a Reduced Cloud Service

Model (RCSM). The required computation is build

on top of very basic cloud services which are very

easy to implement by any unit attached to the cloud.

Because of basic service requirement from each

node, any smart device can contribute to the Cloud

CPU. A simple device can provide a simple

arithmetic operation whereas a complicated device

or unit can provide a more sophisticated calculation.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

324

3.2 Cloud CPU Execution Flow

The Cloud CPU execution flow is given in Figure 1.

The final collection of nodes and the sub-services

provided as a whole creates the Cloud CPU for this

particular application or service and it can be saved

for future use. For another computation or service

requirement, the same procedure will be repeated to

create another Cloud CPU (CCPU).

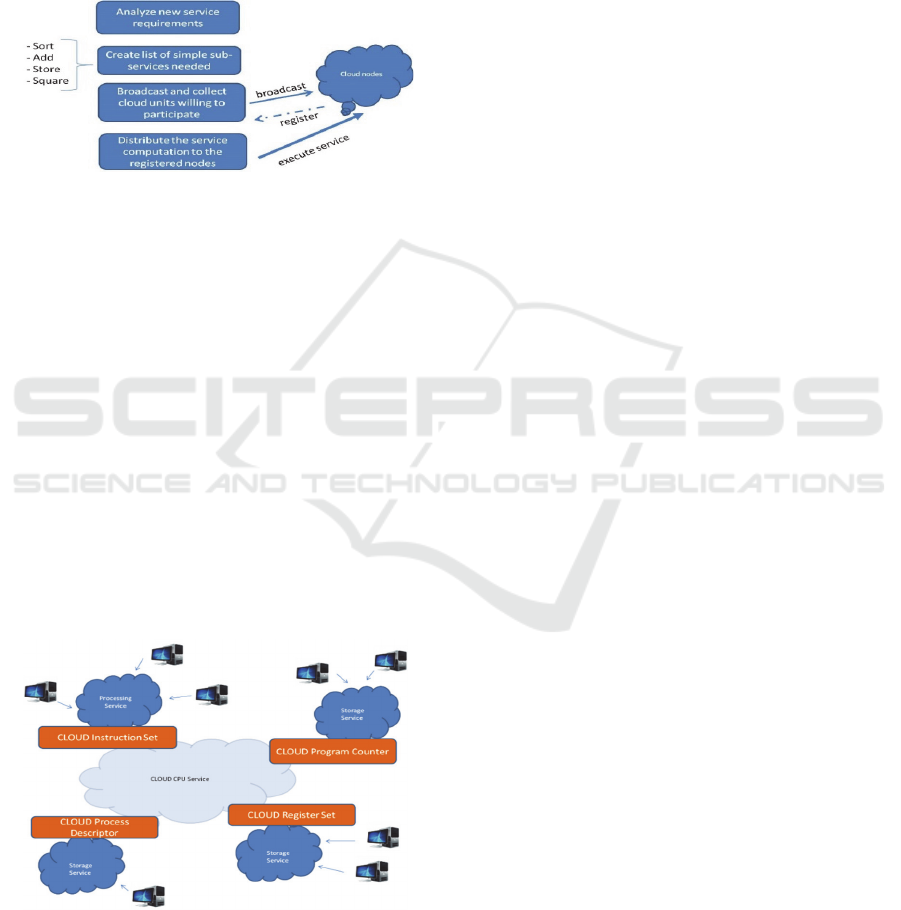

Figure 1: Execution Flow of Cloud CPU.

4 CLOUD CPU ARCHITECTURE

The configurable service is called Cloud CPU and

once it is created, it can be saved for future use. The

instruction set represents the minimized collection of

sub-services. Program counter represents a service

that controls the flow of the execution. Register sets

represent storage for the service. Process represents

all the information that represents the created service

or Cloud CPU. The Compiler here represents the

process to decide the services needed and created.

The configurable service will be explained as a

virtual CPU creation and execution. Helper services

needed in the flow can also be saved in the cloud

which decentralize the operation. The CCPU

architecture is given in Figure 2.

Figure 2: Cloud CPU basic elements.

A CCPU, as its names implies, needs

instructions to execute. The instruction set of a

CCPU is also provided as a service where the set

will be called Cloud Instruction Set (CIS). Since a

huge amount of nodes are connected to a cloud

system, the number of CCPU services that can be

provided by the system is limited only by the

capacity of the cloud system. Each Cloud CPU can

use different instruction sets, registers and

architecture.

For a given CCPU created in the cloud, nodes or

resources connected to the cloud will register

themselves to provide the required CCPU services.

The node assignments may change with time due to

failures or high load constraints where multiple

resource assignments for each service will provide

fault tolerance and protect the CCPU.

Since there are multiple CCPU's implemented,

each node in the cloud may registers itself to more

than one service, fully or partially. For example one

node may have resources to execute two instructions

from one CCPU and four instructions from another

CCPU. Another node may register itself to store ten

registers from one CCPU and four registers from

another CCPU.

4.1 Cloud CPU ID (CCPUID)

The virtual CCPU created should have an id, so that

it can be identified and referred later. During the

creation of CCPU, several nodes in the cloud should

track of all requests asking for a CCPU for

execution. The instruction and register set of the

CCPU, the set of nodes that registered themselves to

implement Cloud Instruction Set (CIS) and Cloud

attached to CCPU ID.

4.2 Cloud Instruction Set (CIS)

The instruction set provided by the cloud is called

Cloud-Instruction Set (CIS). Each node in the

system registers itself to execute some or all of the

CIS’s of a CCPU. Since multiple nodes can provide

this service, there is a great deal of fault tolerance

and parallel execution in the system. Each node can

serve to multiple CCPU's with a subset of CIS

depending its capacity and load. Since the

instruction set is user defined and not forced by the

hardware anymore, complicated high level

instructions can also be implemented as part of the

CCPU like sorting or like any other high level data

manipulation.

An on Demand Virtual CPU Arhitecture based on Cloud Infrastructure

325

4.3 Cloud Register Set (CRS)

Each instruction may need temporary storage (i.e.

registers). The register service provided by the cloud

is called Cloud Register Set (CRS). Since the cloud

provides a data storage service already to its clients,

CRS can use the underlying data storage services of

the cloud system. CRS will be associated differently

to each CCPU. High level register types can be

created like queue types or any other high level

storage types, since the register design is not limited

by the hardware.

4.4 Cloud CPU Compiler (CCC)

The compiler will have two basic functionalities in

the system. The first one is to compile the given

program (decide sub-services needed to finish the

required computation) using the specified CCPU as

the target. The other functionality, different from a

regular compiler, is to decide the instruction set

required to create a CCPU for the given program.

4.5 Cloud Program Counter (CPC)

Each computation or process needs a program

counter, so that the system can calculate the next

instruction (sub-service) to execute. Using the

distributed data storage service of the cloud, the

Cloud Program Counter (CPC) is implemented

easily. During the creation of the CCPU, nodes will

where the CPC created is associated with the process

through a Cloud Process Descriptor (CPD). Since

the CPC information is shared among the registered

nodes for this service, it will provide the required

fault tolerance. If one node fails, the other registered

node will continue the execution.

4.6 Cloud Process Descriptor (CPD)

There is a need to identify each process that executes

in the cloud. Also CPC should keep track of the

process in the cloud. It can locate the process using

CPD. This information again is saved in the cloud

by nodes who registered themselves to provide the

needed service.

5 CLOUD CPU OPERATIONS

There are several operations that may take place in

the system. The user will decide to the desired

service (represented by compiling a program) using

a specific CCPU as the target using the compiler

CCC and submit the program to the cloud as a Cloud

Process (CPR). In the cloud, a CPC will be formed

to execute the CPR. The operations required in the

system are explained below.

5.1 Cloud Program Compilation

The program compilation is very similar to a regular

compilation. Each compiler converts a programming

language to the assembler program using the

hardware platform that the compiler is running on. If

you are running the compiler on an I7 Intel

processor, the compiler will use the instruction set of

I7 CPU in the conversion. The difference in Cloud

Process Compilation (CCC) is that the CPU

hardware is not fixed anymore and the target CCPU

can be changed for each compilation and most

importantly it can be created from scratch. There are

regular cross-compilers for different targets but still

those target CPU’s are fixed and you need to move

the compiled program to the corresponding platform

to run. On the other hand several CCPU types can

coexist and run in this structure. The flow diagram is

given in Figure 3.

The decision for the target CPU can be handled

in different ways. The first decision is whether a

new CCPU should be created for compilation or an

existing one should be used. The user may also

specify the target CCPU. Depending on the level of

the similarity, either the compiler will use an

existing CCPU type and compiles the program for it,

or it creates a new CCPU and the program is

compiled for the new CCPU type created. If the

decision is left to the compiler, the decision should

be based on the programming language to be

compiled, cloud capacity, complexity of the new

CCPU needed and the time for the compilation for

an existing CCPU. The decision can change

depending on a system and it is not hard-wired.

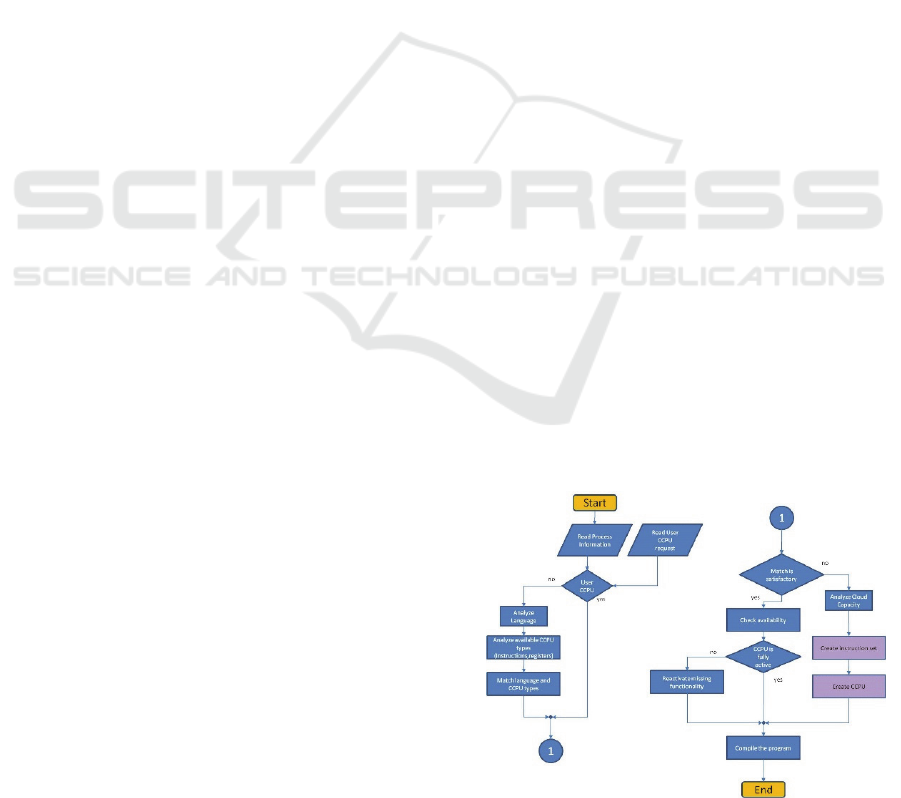

Figure 3: Cloud Program Compilation.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

326

5.2 Cloud Instruction Set Creation

Determining the instruction list and storage types of

the CCPU is a difficult process. There are almost

infinitely many combinations, since the virtual

hardware is flexible and it can behave as you wish,

the instructions are not limited by the hardware

anymore. In addition to the number of combinations,

there are other factors as the interconnection speed,

storage capacity and processing speed of nodes. An

exhaustive list cannot be created here as it will be

out of scope of this paper.

The creation of the CCPU process can be

initiated by the compiler as well as by the user. A

basic guideline can be given as follows and shown in

Figure 4.

 The programming language is analyzed.

 A decision will be made if the language should

be implemented as it is or it should be converted

to a different language. There are several

examples to this type of decision. We can have

a microcontroller that can execute BASIC

language directly. The second choice is to

convert (compile) the BASIC language to a

more basic RISC type language with few basic

machine instructions.

 The cloud will be analyzed in terms of capacity,

speed and availability.

 It is possible to have predefined templates for a

language carefully designed by a user.

 The compiler will check these templates if there

is a close match to the current language. It can

decide to use one of the templates or create a

new one.

 If a new template is needed by the compiler, the

scope will be limited to the instructions in the

current program. A new implementation may

not cover all possible constructs of the

language, since the compiler scope is limited by

the current program. On the other hand, a user

created template will cover the whole language

elements.

 If the decision is to create a new instruction set,

in that case the compiler will create a list of

needed instructions using a Cloud Instruction

Description (CID). Type can be class, function,

statement, arithmetic or other constructs

necessary. The description should list the

required functionality as an operation or as a

pseudo algorithm. Complexity can be given or

can be calculated from the algorithm. Required

storage types should also be listed. This

information is needed so that each node in the

cloud can respond to the request.

5.3 Cloud CPU Creation

Once the CCPU type is determined, the node

performs two different actions depending on the

state of the CCPU explained below and given in

Figure 5.

 Use an existing CCPU

The initiating node will check if all the nodes

registered to execute this CCPU are still active or

not. If not, new nodes are invited to join to execute

the missing instructions and/or architecture.

 Create a new CCPU

The instruction list created by the compiler for

a new CPU is sent as a broadcast to the cloud to

invite interesting nodes to implement the

required instructions. Systems with desired

properties to implement the required

functionality will respond and register

themselves to execute a specific function. For

example a system with high speed storage may

respond to create the registers and/or queues,

and another system with high speed processing

units may respond to implement a complicated

instruction in the CCPU

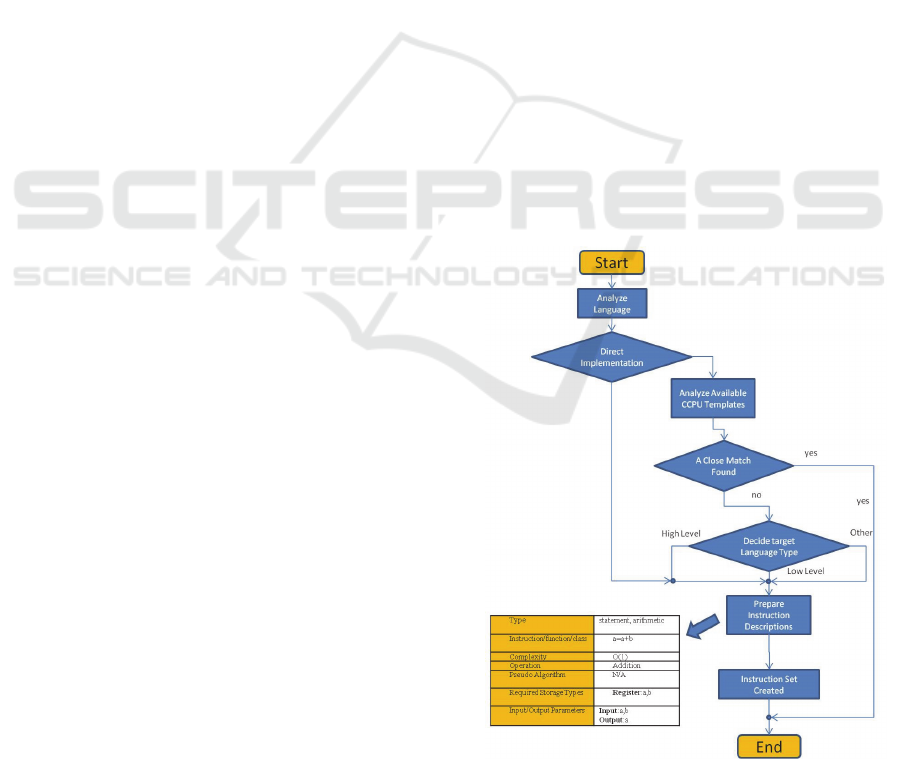

Figure 4: Cloud Instruction Set Creation.

An on Demand Virtual CPU Arhitecture based on Cloud Infrastructure

327

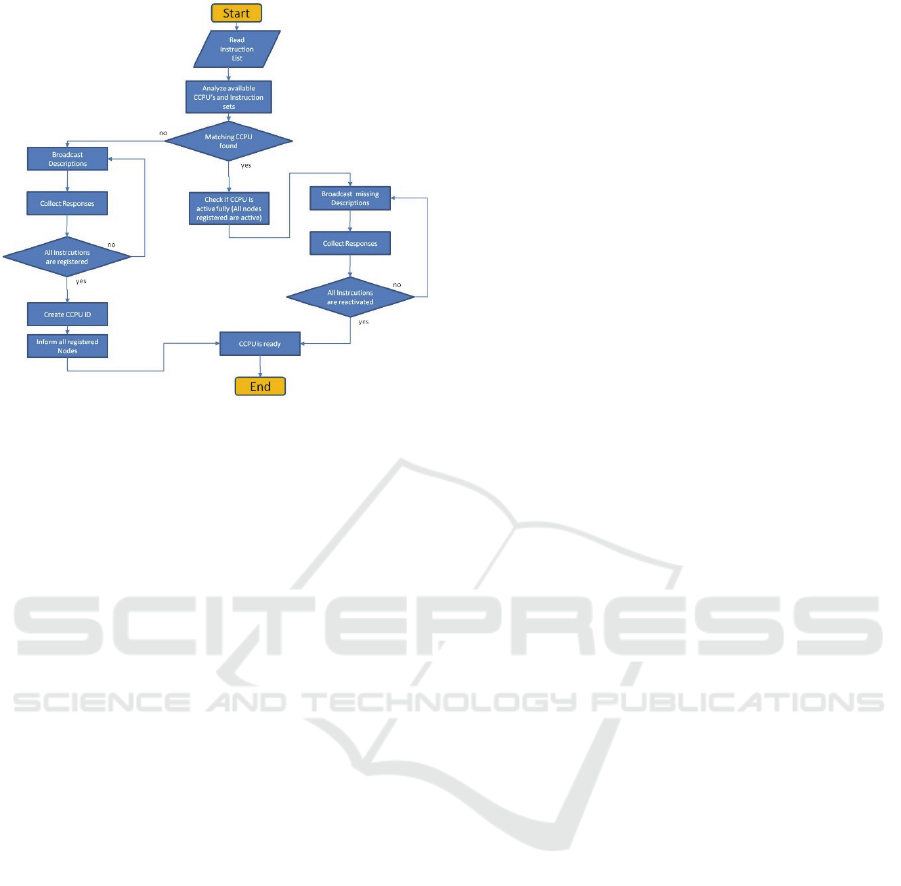

Figure 5: Cloud CPU Creation.

6 CONCLUSIONS

In this paper, a new idea to design and implement a

configurable service (virtual CPU) using the cloud

architecture is introduced where the units of a CPU

core represent nodes or services provided by a cloud

system and the data transfer between them is

replaced by a data transfer inside the cloud system.

The CPU functionality becomes a service provided

by the cloud system.

By pushing the CPU units to a cloud system, a

giant virtual CPU is created where each unit of the

CPU can have multiple implementations, support,

and parallel execution and fault tolerance. The basic

element of the new cloud service is the CPU. This

new service will be called as a virtual CPU or more

accurately as a Cloud CPU (CCPU).

The granularity of the service provided by each

node is minimized which means that the cloud

provides only the basic functional blocks and

instructions of a CPU. This minimization has several

advantages and the motivation can be listed as

follows.

 Fault tolerance: The first advantage is fault

tolerance where a node failure only will affect a

single instruction or register, not the whole

computation (which would have been provided

by that node in a normal cloud system). Since

the provided functionality is minimal, failure of

a CCPU service or node can be replaced easily

by another node.

 Security: Each node, executing only a few

instructions, does not see the whole program or

computation. The result of a single computation

or instruction on a node does not mean anything

at all by itself. This feature protects the process

from attackers on top of the normal security

measures.

 Scalability: The functionality provided by each

node to a specific CCPU is minimal; therefore

any required expansion and/or reduction can be

done very easily and quickly. It won’t be that

easy to add a large server with a computational

service to the system.

 Computational Requirements: Since only

small and minimal functions are implemented in

the cloud, nodes with minimal computational

power can join to the system. This is getting

more important as very small units are getting

connected to the internet (internet of things).

 Interoperability: To provide a service by a node

in a cloud system, the service should be written

by a programming language supported by the

operating system of that node. Different types of

nodes should agree on the data format and/or

calculation to distribute the computation to

several nodes. In the proposed system, the node

needs to provide a minimal computation where

the format is decided during setup for that

CCPU. Therefore even though each node may

have a different OS, providing the functionality

would be very easy.

 Optimization of resources: Adding or removing

servers on demand creates large fluctuations in

a cloud system where the resources may be over

determined or under determined respectively.

Since each resource comes with a cost attached

to it, a better optimized resource structure will

result in a better optimized budget.

 Heterogeneous CPU implementations: Since

each node contributes to CCPU using minimal

functionality, many virtual CPU’s can be

generated at the same time depending on the

capacity of the cloud system registered for the

service. Each CPU can have a completely

different set of instructions and/or registers and

other units different from each other. The cloud

can create a Pentium CPU and a SPARC CPU

at the same time. Instead of using a design

created before, each time a new CPU (on-

demand CPU) can be created in the system as

well. The new design can be reused later or

deleted.

 Hardware independent virtual CPU: Although

each regular CPU is different in hardware, a

high level language can hide this complexity

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

328

and difference from the user by converting the

high level language into a specific CPU

assembly language. The hardware differences

are hidden from the programmer. Using a

similar concept, a virtual CPU can be

implemented by using any combination of

simple or complicated instructions and data

storage units (registers, queues, sorted lists) and

the underlying hardware is hidden from the

user. A SPARC system can provide an “ADD”

instruction for the virtual CPU where a

PENTIUM CPU can provide a “SORT”

instruction. The virtual CCPU is hiding the

hardware details like how an instruction is

implemented and it is focusing on what is

implemented.

 Process and/or programming language

specific virtual CPU: The virtual CPU can be

created on demand or permanently in the

system. Depending on the process, either a

specialized virtual CPU is created and the

process is executed on it, or a general virtual

CPU is created and/or reused to execute the

process. With this implementation it is possible

to create a C-specific virtual CPU.

 Parallel Operation: The Cloud CPU creates a

massively parallel system where normal

systems are limited in terms of number of cores

and/or CPU’s.

REFERENCES

Youseff, L., Butrico, M. and Da Silva, D., 2008. Toward a

unified ontology of cloud computing, Grid Computing

Environments Workshop (GCE '08).

Vaquero, L., Rodero-Merino, L., Caceres J., and Lindner,

M., 2009. A break in the clouds: towards a cloud

definition. SIGCOMM Computer Communication

Review, Volume 39, Number 1, pp. 50-55, January.

Vouk, M., Cloud computing- issues, research and

implementations, 2008. Journal of Computing and

Information Technology (CIT) Volume 16, Number4,

pp. 235–246.

Sonisky, B., 2011. Chapter 1, Cloud computing

bible,Wiley publishing inc.

Zhang, Q., Cheng, L., and Boutaba,R.,2010. Cloud

computing : state of the art and research challenges.

Journal of Internet Services and Applications, vol. 1,

pp. 7–18.

Dillon, T., Wu, C., and Chang, E., 2010. Cloud

Computing: Issues and Challenges, in 24th IEEE

International Conference on Advanced Information

Networking and Applications, pp. 27-33.

Hashizume, L., G Rosado, D., Fernndez-Medina, E., B

Fernandez, E., 2013. An analysis of security issues for

cloud computing, Journal of Internet Services and

Applications, Page no 1-13.

Foster, I., Zhao, Y., Raicu, I., and Lu, S., 2008. Cloud

Computing and Grid Computing 360-degree

compared, in Grid Computing Environments

Workshop, pp. 1–10.

Liu, Y., Ma, Y., Zhang, H., Li, D., Chen, G., 2011. A

Method for Trust Management in Cloud

Computing:Data Coloring by Cloud Watermarking,

International Journal of Automation and Computing,

DOI: 10.1007/s11633-011-0583-3 ,Page no 280-285

Basu, A., Vaidya, J., Kikuchi, H., Dimitrakos, T., and

Nair, S., 2012. Privacy preserving collaborative

filtering for SaaS enabling PaaS clouds, Journal of

Cloud Computing: Advances, Systems and

Applications, Page no 1-14.

Buyya, R. Shin Yeo, C., Venugopal, S., Broberg, J.,

Brandic, I., 2009. Cloud computing and emerging IT

platforms: Vision, hype, and reality for delivering

computing as the 5th utility, Future Generation

Computer Systems, 25 ,Page no 599 616.

Popovic, K., Hocenski, Z., 2010. Cloud Computing

Security Issues and Challenges, MIPRO ,May 24-

28,Opatija, Croatia, Page no 344-349.

snia.org, Cloud Data Management Interface (CDMI),

Available at:

http://www.snia.org/techactivities/standards/currstanda

rds/cdmi, accessed on 9.8.

Petcu, D. Di Martino, B., Venticinque, S., Rak, M., Mhr,

T., Esnal Lopez, G., Brito, F., Cossu, R., Stopar, M.,

2013. Experiences in building a mOSAIC of clouds ,

Journal of Cloud Computing: Advances, Systems and

Applications, Page no 1-22.

Nurmi, D., Wolski, R., Grzegorczyk, C., Obertelli, S. So-

man, G., Youseff, L., and Zagorodnov, D., 2009. The

Eucalyptus open-source cloud-computing system,

IEEE International Symposium on Cluster Computing

and the Grid (CCGrid ’09).

opennebula.org, Open Nebular, Available at:

http://www.opennebula.org.

nimbusproject.org, Nimbus, http://nimbusproject.org.

Khan, A., Othman, M., Madani, A., and Khan, A., 2014.

A Survey of Mobile Cloud Computing Application

Models, in IEEE Communications Surveys &

Tutorials, vol. 16, no. 1, pp. 393-413, First Quarter.

Botta, A., Donato ,W., Persico V., Pescapé , A., 2016,

Integration of Cloud computing and Internet of

Things: A survey, Future Generation Computer

Systems, Volume 56, , Pages 684-700, March

An on Demand Virtual CPU Arhitecture based on Cloud Infrastructure

329
