Internet of Things Out of the Box: Using TOSCA for Automating the

Deployment of IoT Environments

Ana C. Franco da Silva

, Uwe Breitenbücher

, Pascal Hirmer

, Kálmán Képes

, Oliver Kopp

Frank Leymann

, Bernhard Mitschang

and Ronald Steinke

Institute for Parallel and Distributed Systems, University of Stuttgart, Stuttgart, Germany

Institute of Architecture of Application Systems, University of Stuttgart, Stuttgart, Germany

Next Generation Network Infrastructures, Fraunhofer FOKUS, Berlin, Germany

Keywords:

Internet of Things, TOSCA, Application Deployment, Device Software.

Abstract:

The automated setup of Internet of Things environments is a major challenge due to the heterogeneous nature

of the involved physical components (i.e., devices, sensors, actuators). In general, IoT environments consist

of (i) physical hardware components, (ii) IoT middlewares that bind the hardware to the digital world, and

(iii) IoT applications that interact with the physical devices through the middlewares (e.g., for monitoring).

Setting up each of these requires sophisticated means for software deployment. In this paper, we enable such a

means by introducing an approach for automated deployment of entire IoT environments using the Topology

and Orchestration Speciﬁcation for Cloud Applications standard. Based on topology models, all components

involved in the IoT environment (devices, IoT middlewares, applications) can be set up automatically. Moreover,

to enable interchangeability of IoT middlewares, we show how they can be used as a service to deploy them

individually and on-demand for separate use cases. This enables provisioning whole IoT environments out-of-

the-box. To evaluate the approach, we present three case studies giving insights in the technical details.

1 INTRODUCTION

The Internet of Things (IoT) paradigm has received

great attention in the last years. It relies on the in-

terconnection and cooperation of so-called smart de-

vices, attached with sensors and actuators, that are

able to sense the state of an environment and to adapt

it through their actuators (Atzori et al., 2010; Gubbi

et al., 2013). Such smart devices provide the founda-

tion for the existence of a multitude of so-called IoT

applications. An example of such an IoT application

is a smart home, which is able to automatically regu-

late its temperature based on sensor data. Using such

IoT applications requires setting up the whole IoT en-

vironment consisting of smart devices, middlewares

to bind the devices to IoT applications, and the IoT

applications themselves. However, the setup of such

IoT environments comes with major challenges. First,

physical hardware components (i.e., devices, sensors,

actuators) are highly heterogeneous since they em-

ploy different technologies, protocols, and data mod-

els. Second, heterogeneity emerges among the many

existing IoT middlewares, which are employed to bind

the physical hardware to higher-level IoT applications,

abstracting the complexity of the devices (Mineraud

et al., 2016). Third, although the connection between

an IoT application and the IoT middleware is typically

hard wired, an IoT application might require different

middlewares to fulﬁll its goals due to different use

cases and business constraints. Therefore, an impor-

tant aspect for the setup of IoT environment is also

the interchangeability of different IoT middlewares. A

high interchangeability enables building more ﬂexible

IoT applications, tailor-made for speciﬁc use cases.

Furthermore, it is important that the setup of IoT envi-

ronments is done in an automated manner because a

manual setup is time-consuming and error-prone due

to the high complexity and dynamic in the IoT.

In this paper, we show how the Topology and

Orchestration Speciﬁcation for Cloud Applications

(TOSCA) standard (OASIS, 2013) can be used to fully

automate the setup of entire IoT environments includ-

ing (i) physical hardware components, (ii) IoT middle-

wares that bind the hardware to the digital world, and

(iii) IoT applications that interact with the physical

devices through the middlewares. Using our approach,

we can set up entire IoT environments out-of-the-box,

i.e., once the IoT environment is modeled in TOSCA,

330

Silva, A., Breitenbücher, U., Hirmer, P., Képes, K., Kopp, O., Leymann, F., Mitschang, B. and Steinke, R.

Internet of Things Out of the Box: Using TOSCA for Automating the Deployment of IoT Environments.

DOI: 10.5220/0006243303580367

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 330-339

ISBN: 978-989-758-243-1

(DBMS)

(CloudProviderVM)

(OperatingSystem)

(WebServer)

(CloudProviderVM)

(Web Shop) (Database)

WAR

start, stop

deployWAR

installPkg

execScript

createVM

terminate

Implemented by Implementation Artifact

Deployment Artifact

Provision

VM & OS

Deploy

Web Shop

Create

Database

Install Web

Server

Provision

VM & OS

Install

DBMS

hostedOnconnectsTo

(OperatingSystem)

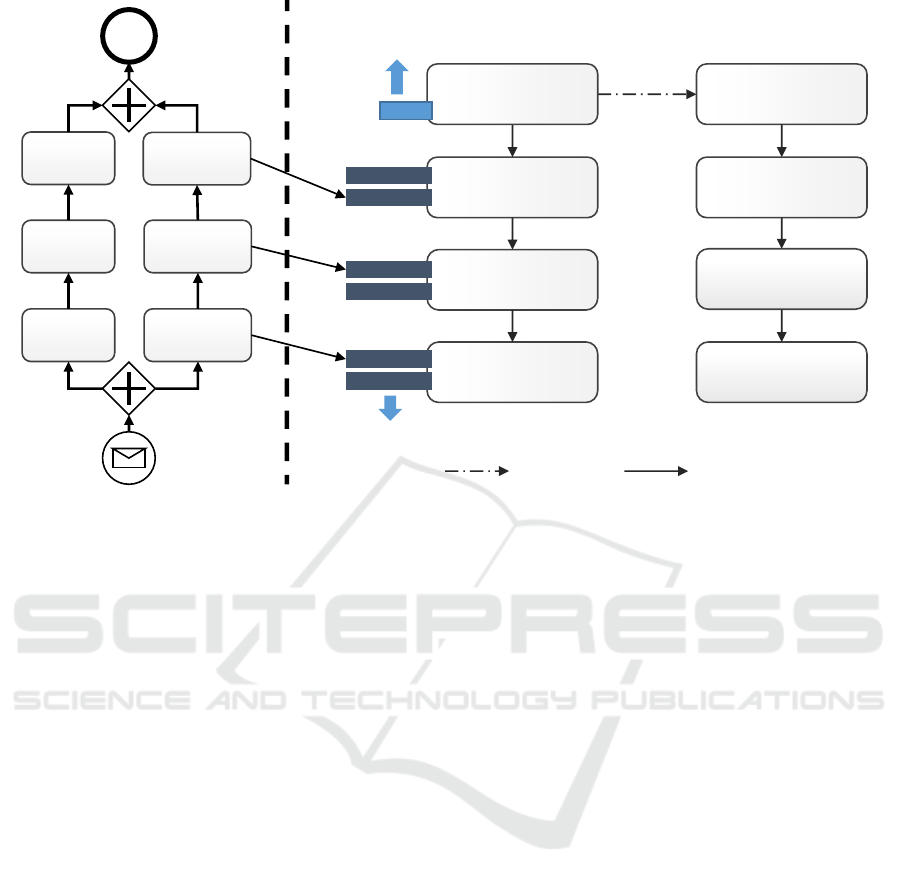

Figure 1: left: example of a TOSCA build plan, right: the corresponding TOSCA Topology Template to set up a web shop.

this model can be reused to set up the IoT environ-

ment without further conﬁguration or modiﬁcations in

the model. In particular, we present how the generic

TOSCA concepts can be used for modeling IoT sce-

narios, their technologies and how heterogeneous IoT

middleware systems can be deployed, wired, and ex-

changed by a standard-based TOSCA runtime environ-

ment. Moreover, the paper shows how IoT middleware

can be used as a service and how it can be deployed

individually and on-demand for separate use cases. We

additionally present three case studies giving insights

in the technical details of our approach.

The remainder of this paper is as follows: Sect. 2

introduces the background of our approach. Sect. 3

presents how to set up entire IoT environments out-

of-the-box using TOSCA. In Sect. 4, we evaluate our

approach based on three case studies. Finally, Sect. 5

describes related work and Sect. 6 gives a summary of

the paper and an outlook on future work.

2 BACKGROUND

Cloud computing is a recently emerged paradigm for

hosting and delivering services over the Internet (Ley-

mann et al., 2016; Zhang et al., 2010), which has been

increasingly employed together with the IoT paradigm

in order to provide IoT environments with properties

such as scalability and interoperability. Cloud com-

puting can enable a rapid setup and integration of new

physical components and IoT applications, while main-

taining low-costs for the deployment of entire IoT en-

vironments (Botta et al., 2016).

The OASIS standard TOSCA enables model-

ing, provisioning, and management of cloud applica-

tions (Binz et al., 2014). As indicated by its name, the

Topology and Orchestration Speciﬁcation for Cloud

Applications consists of two parts: (i) the topology

and (ii) the orchestration of cloud applications. The

topology describes the structure of the application, i.e.,

its software, platform, and infrastructure components.

Consequently, TOSCA uniﬁes the paradigms software-

as-a-service, platform-as-a-service, and infrastructure-

as-a-service. In these topologies – called Topology

Templates in TOSCA – software components (e.g.,

databases, application servers) are represented as so-

called Node Templates, and their connections, e.g.,

that one component is hosted on another component,

as Relationship Templates. Each template has a type.

Three Relationship Types are used in our approach: (i)

the Relationship Type hostedOn, (ii) the Relationship

Type connectsTo, describing a communication channel

between two software components, e.g., to access a

database, and (iii) the Relationship Type dependsOn,

describing that one software component depends on

another one (e.g., software packages, libraries), mean-

ing that it cannot be operated without it. Node and

Relationship Templates can be attached with proper-

ties (e.g., user credentials). Implementation Artifacts

(IA) and Deployment Artifacts (DA) can be linked to

Node Types and Relationship Types. Implementation

Internet of Things Out of the Box: Using TOSCA for Automating the Deployment of IoT Environments

331

Operating System

(e.g., Ubuntu)

Cloud Provider

(e.g., vSphere)

Raspberry Pi

Device Software

(e.g., Python Script)

Software

Dependency

Operating System

(e.g., Raspbian)

Smart Device

(e.g., Raspberry Pi)

Device

Software

(DA)

Operating System

(e.g., Ubuntu)

Cloud Provider

(e.g., vSphere)

IoT Middleware

(e.g., Message Broker)

IoT Application

(e.g. dashboard)

Software

Dependency

IoT Application Stack IoT Middleware Stack

Smart Device Stack

hostedOn dependsOnconnectsTo

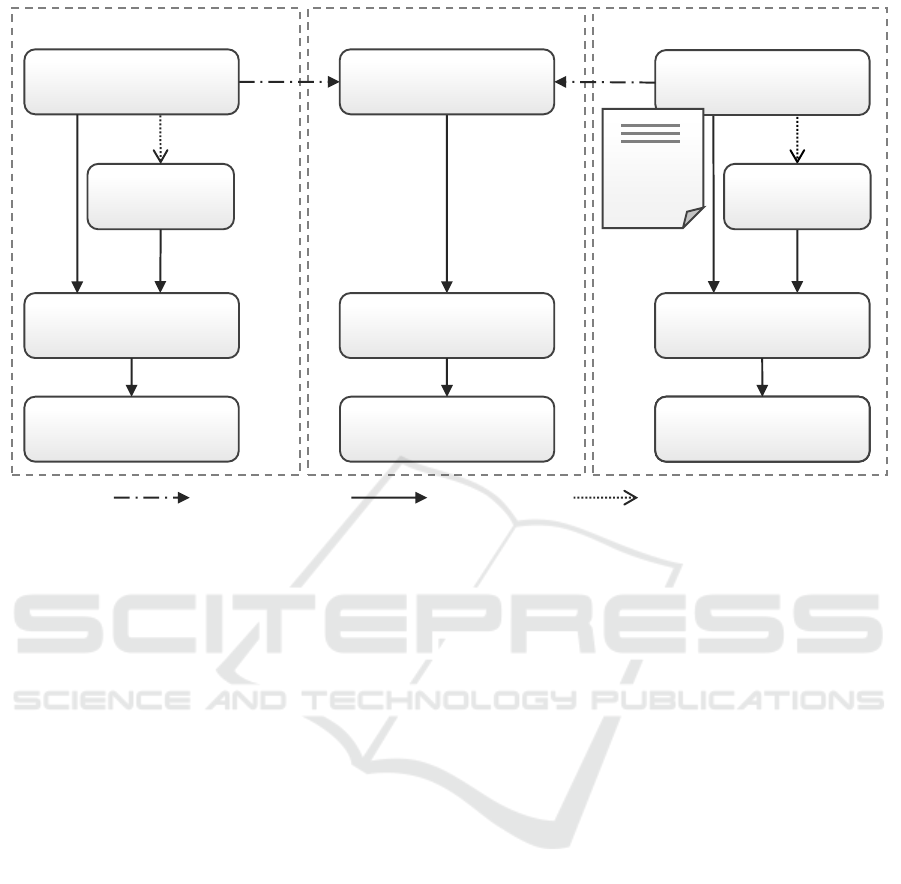

Figure 2: Abstract topology model for IoT environments.

Artifacts contain the logic, e.g., a piece of code, to

conﬁgure, install, start, or uninstall a component. De-

ployment Artifacts in contrast represent binary ﬁles,

such as installers, images or JAR ﬁles, that are required

to properly provision a component.

The orchestration part of TOSCA describes all ac-

tions necessary to provision, manage, and deprovi-

sion a cloud application based on its topology model.

TOSCA supports two approaches for application provi-

sioning: (i) an imperative approach, and (ii) a declara-

tive approach. The imperative approach requires deﬁn-

ing so-called Build Plans, which describe the con-

crete order of steps that need to be conducted to set

up the components. The declarative approach only

requires deﬁning the topology model. The correspond-

ing TOSCA runtime consequently provisions the ap-

plication by itself. However, in this manner, only com-

ponents can be set up that are known to the runtime

environment (Breitenbücher et al., 2015). The TOSCA

runtime OpenTOSCA (Binz et al., 2013) – used for our

prototypical implementation – combines the declara-

tive and imperative approaches through the generation

of Build Plans (Breitenbücher et al., 2014). Figure 1

depicts an exemplary TOSCA Topology Template and

its corresponding Build Plan.

Device software is deﬁned as the logic responsi-

ble for extracting data from sensors and sending it

to IoT middlewares, and for invoking attached actua-

tors (Guth et al., 2016). Usually, this device software

is implemented using lightweight scripts (e.g., Python-

based) due to the devices’ limited resources. These

scripts are able to read sensor values and invoke ac-

tuators through the hardware interface (e.g., GPIO).

The device software represents the bridge between

the hardware components and the IoT middlewares.

Through the middleware, IoT applications can receive

sensor data as well as send control commands to actua-

tors. Hence, the middleware serves as abstraction layer

between the IoT applications and the device software.

3 IoT OUT OF THE BOX USING

TOSCA

In this section, we present our approach for automated

setup of entire IoT environments including the device

software, the IoT middleware, and the IoT application.

To explain our approach, we use an IoT scenario com-

posed of: (i) a dashboard as the IoT application, which

monitors the environment with all its smart devices,

sensors, and actuators, (ii) a message broker as the IoT

integration middleware, and (iii) a Raspberry Pi as a

smart device. Figure 2 depicts the TOSCA topology

model of this scenario. The topology for our scenario

contains three different stacks, whereas each stack rep-

resents a different part of the IoT environment. The

stacks are: (i) the IoT application stack, (ii) the IoT

middleware stack, and (iii) the smart device stack. The

setup of these stacks is very similar. At the bottom,

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

332

the hardware resources are modeled. These resources

include physical hardware devices, such as a Rasp-

berry Pis, personal computers, and virtual machines

provided by a cloud provider. On the level above,

the corresponding operating system is modeled and

connected via a hostedOn relation. This means, that

the operating system is hosted on the corresponding

resource. On the top level of a stack, the actual com-

ponents are modeled, i.e., the device software, which

is responsible for reading sensor values and invoking

actuators, the IoT middleware, which serves as bridge

between devices and IoT applications, and, ﬁnally, the

IoT application itself. Dependencies of Node Tem-

plates, such as required libraries, packages, or other

software can also be modeled in TOSCA using the

dependsOn relation. The logic to set up the software

represented by the Node Templates is attached using

Implementation Artifacts. Furthermore, monolithic

elements, such as installers or scripts, are attached

as Deployment Artifacts. After the topology of this

IoT scenario is modeled, it can be used as input for

a TOSCA runtime engine. The engine consequently

sets up the IoT environment automatically. As a result,

the Raspberry Pi, which is connected to sensors and

actuators, is able to publish sensor values to the IoT

middleware, which allows the dashboard application

to access the data and to invoke the actuators.

In the following, we describe the modeling of the

devices, the middlewares, and the IoT applications in

detail. We assume the generic imperative provisioning

approach, meaning that an explicit Build Plan needs to

be provided to set the components up (cf. Section 2).

3.1 Modeling Devices and Device

Software

This section describes how to model smart devices,

their corresponding device software, and all corre-

sponding dependencies using TOSCA topology mod-

els. As described above and depicted in Figure 2 on

the right, the stack to deploy an smart device typically

consists of three Node Templates, which correspond

to three layers: the hardware resources (i.e., the smart

device), the operating system, and the device software.

To be able to model this stack in the topology model,

the corresponding TOSCA Node Types need to be pro-

vided. The Node Type for the device’s Node Template,

modeled on the bottom layer of the stack, requires a set

of properties. These properties comprise, e.g., the type

of the device, its MAC address, and hardware capabili-

ties such as the computing resources, available main

memory, and so on. Implementation Artifacts and

Deployment Artifacts are not required to create this

Node Type because it represents the actual hardware.

All involved software will be set up on the operating

system and not on the device itself.

The Node Type for the operating system is more

complex, because, additionally to a set of properties,

it requires Implementation Artifacts and Deployment

Artifacts. The properties comprise the type of the op-

erating system, the IP address that was assigned in

the network to access it, provided interfaces and ports

(e.g., SSH), and capabilities regarding supported soft-

ware (e.g., 32 bit software). Furthermore, the installer

and all corresponding dependencies for the operating

system need to be attached as Deployment Artifacts

and Implementation Artifacts that invoke the installer

and conﬁgure the operating system.

Finally, the Node Type for the device software is

attached with a Deployment Artifact containing the

logic to connect to the sensors and actuators as well

as to the middleware, e.g., a script. Furthermore, a

certain amount of properties needs to be provided that

is required by this Deployment Artifact. For example,

these properties comprise the pin set of sensors and

actuators, or in which interval sensor values are gath-

ered. Furthermore, an Implementation Artifact needs

to be provided that starts the Deployment Artifact as a

service of the operating system. Often, the device soft-

ware additionally requires speciﬁc libraries, packages,

or software, to be executable. These dependencies can

also be modeled as Node Templates and need to be

connected to the device software Node Template using

the dependsOn Relationship Template (cf. Figure 2).

This Relationship Template guarantees that all existing

dependencies are set up ﬁrst to avoid errors on exe-

cution of the device software. The Node Types of all

dependencies need to be created accordingly with all

their properties, IAs, and DAs.

Once all Node Types are provided, the above de-

scribed topology stack can be modeled, e.g., through

graphical modeling using the tool Winery (Kopp et al.,

2013). Once the topology is handed over to the

TOSCA runtime for execution, the operating system

can be automatically installed, the device software is

deployed on it and is being started.

3.2 Modeling IoT Middleware

In this section, we describe how to model IoT middle-

ware using TOSCA. The middleware can be modeled

in two different manners depending on whether it is

provided as a service, e.g., by a cloud provider, or

whether it is set up on an own infrastructure.

The more complicated way is setting up the IoT

middleware on an own infrastructure because it re-

quires modeling the infrastructure and platform com-

ponents (e.g., virtual machines, web servers). As de-

Internet of Things Out of the Box: Using TOSCA for Automating the Deployment of IoT Environments

333

picted in Figure 2 in the middle, the required stack

to set up the middleware consists of three Node Tem-

plates. Similar to the modeling of smart devices, these

Node Templates represent the hardware resources, the

operating system, and the IoT middleware itself. How-

ever, there are differences because the underlying run-

time can be very heterogeneous and is not dependent

on a certain kind of device. More precisely, all kinds

of hardware can be used to set up the IoT middle-

ware. This hardware comprises for example, virtual

machines hosted by a cloud provider, non-virtualized

web servers, personal computers, or even smart de-

vices. The great advantage of TOSCA is that these

runtimes can be easily interchanged for different sce-

narios. For example, a cloud provider can be chosen

based on different criteria such as costs, or how se-

cure data is stored. Because of the high heterogeneity

of the underlying hardware, the creation of the corre-

sponding Node Types differs greatly. Because of that,

we describe the creation of an exemplary Node Type

which represents a virtual machine hosted on a cloud

provider. This Node Type requires multiple properties

deﬁning the type of the virtual machine, and the virtual

resources, such as CPUs, main memory, or disc space.

On top of this virtual machine, the operating sys-

tem is hosted. As described in Sect. 3.1, the operating

system Node Type is provided with the mentioned

properties, IAs, and DAs. This Node Type is quite sim-

ilar to the operating system Node Type used to model

the smart devices and, thus, is not described again.

The IoT middleware itself is also represented by a

Node Template, which is connected to the operating

system via the hostedOn Relationship Template. IoT

middlewares are also very heterogeneous, however, all

corresponding Node Types require properties for their

conﬁguration, IAs that contain the logic to set up, and

DAs, e.g., for the installers. An exemplary modeling

of different IoT middlewares is described in Section 4.

If the IoT middleware is not hosted on an own

infrastructure but is provided as an external service

(e.g., hosted by an external cloud provider), the model

differs greatly. In this case, the IoT middleware stack

only consists of the IoT middleware Node Template,

because its infrastructure is hosted externally. This

means that only a single Node Type needs to be created,

which can be kept very simple because no IAs and

DAs are necessary due to the service being set up on a

remote host. Usually, certain properties are required,

such as credentials to authenticate at the cloud provider

and speciﬁc properties required by the IoT middleware

service, e.g., the payment plan to be used.

3.3 Modeling IoT Applications

In this section, we describe how IoT applications

can be modeled using TOSCA. The Node Types for

the underlying resource and the operating system of

the stack are the same as the ones used for the IoT

middleware. Consequently, they do not need to be

described. Of course, the IoT application could also

be hosted by an external service provider. In this

case, modeling the infrastructure is not necessary,

as described before. The Node Type for the IoT

application itself highly depends on the kind of

application. At least the IAs and DAs to set it up

are required. Furthermore, depending on the appli-

cation, a speciﬁc set of properties needs to be provided.

Once all three stacks are modeled as described

in the previous sections, and as depicted in Figure 2,

the whole IoT environment can be set up by using

the resulting topology as input for a corresponding

TOSCA engine. In the following, we will validate the

described approach based on two case studies.

4 VALIDATION: THREE CASE

STUDIES

In recent years, a large amount of IoT middle-

wares (Corici et al., 2012; Ramparany et al., 2014;

Alaya et al., 2014; Mineraud et al., 2016) have

emerged such as Eclipse Mosquitto

, FIWARE

, and

OpenMTC

. However, these middlewares do not offer

a homogeneous way of communication among smart

devices and applications. Different protocols, such as

MQTT, HTTP, and CoAP, are employed, as well as dif-

ferent interaction paradigms, such as publish/subscribe

and request/response interaction models. In this sec-

tion, we validate our approach by modeling and de-

ploying an IoT environment based on three different

IoT middlewares: (i) Eclipse Mosquitto, (ii) FIWARE

Orion Context Broker, and (iii) the OpenMTC plat-

form. In the following, we assume that the physi-

cal deployment of the involved devices has already

taken place.

Eclipse Mosquitto is an open-source message

broker implementing the OASIS standard MQTT

a lightweight publish/subscribe messaging protocol.

Mosquitto is a topic-based message broker to which

subscribers register their interest by subscribing to spe-

ciﬁc topics in order to get notiﬁed when publishers

send messages to these topics. The Orion Context

https://www.mosquitto.org/

https://www.ﬁware.org/

http://www.open-mtc.org/

http://www.mqtt.org/

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

334

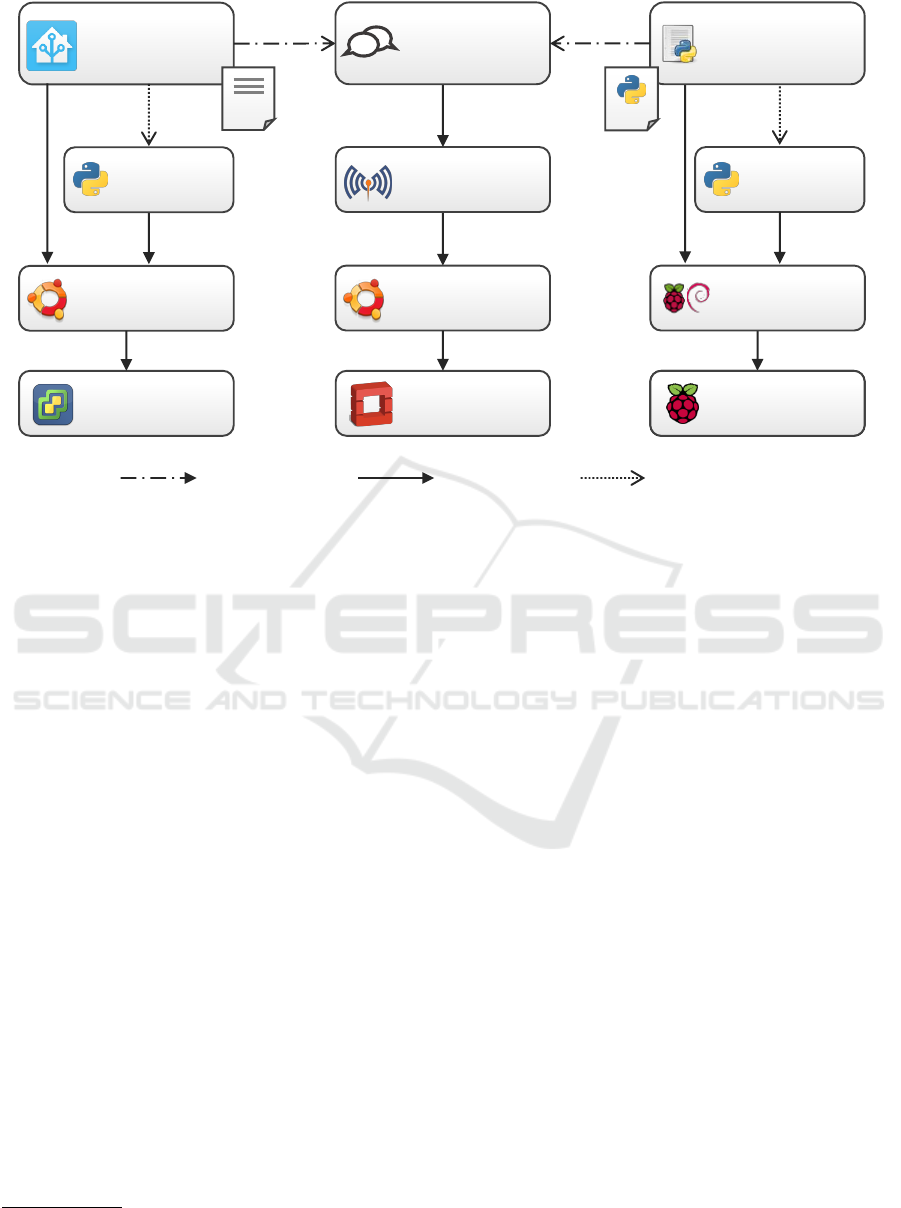

Temperature-

Subscriber

(HomeAssistant)

MessageBroker

(Mosquitto_3.1)

Temperature-

Publisher

(PythonApp)

Temperature-

Topic

(Topic)

Python1

(Python_2.7)

Python2

(Python_2.7)

Raspberry Pi

Device

(RaspberryPi3)

Device-OS

(RaspbianJessie)

Broker-OS

(Ubuntu14.04VM)

Hypervisor2

(OpenStack)

hostedOn dependsOn

connectsTo

App-OS

(Ubuntu14.04VM)

Hypervisor1

(VSphere_5.5)

Figure 3: TOSCA topology model of an IoT Application and Eclipse Mosquitto.

Broker

is an implementation of the Publish/Subscribe

Context Broker Generic Enabler developed as part

of the FIWARE platform. Through its REST API,

the Orion Context Broker allows the registration of

so-called context elements, which can be updated by

context producers. Furthermore, context consumers

can either query these context elements or subscribe

to them in order to be notiﬁed when they are up-

dated. The OpenMTC platform is an implementation

of the OneM2M standard

, which intends to support

machine-to-machine (M2M) communication for appli-

cations in a simpliﬁed way. It provides a REST API

and uses the CRUD principle for the resources. It has

a generic request/response model that can be mapped

on different transport protocols, e.g., HTTP, CoAP and

MQTT. The provided functionality includes registra-

tion of applications, discovery of resources, subscrip-

tion to new data, simpliﬁed addressing of resources,

scheduled communication and more.

In the following, we present the topology model

for the IoT environment based on Eclipse Mosquitto.

After that, we show the minimal changes necessary in

the topology to exchange the middleware, i.e., to use

the Orion Context Broker and the OpenMTC platform

instead of Mosquitto.

https://www.github.com/telefonicaid/ﬁware-orion/

http://www.onem2m.org/

4.1 Topology Model based on Eclipse

Mosquitto

Figure 3 depicts the TOSCA topology model, contain-

ing the necessary components and relationships for our

IoT scenario based on Eclipse Mosquitto. The stack

in the middle provides the infrastructure for Eclipse

Mosquitto, i.e., the Node Types

OpenStack

and

Ubuntu14.04VM

. The

Mosquitto_3.1

Node Type

contains shell scripts that can be executed in Linux

as Implementation Artifacts. They are responsible

for installing, conﬁguring and starting a Mosquitto in-

stance onto the Ubuntu Virtual Machine hosting it. As

property, the

Topic

Node Type has the topic name to

which the device software publishes sensor data and to

which the IoT application subscribes. The conﬁgura-

tion of topics differs in the many existing middlewares.

In our approach, this issue is addressed by attaching

the middleware-speciﬁc logic as an Implementation

Artifact to the Topic Node Template. Mosquitto, how-

ever, does not require the topics to be pre-conﬁgured,

i.e., topics are dynamically created by publishing. For

this reason, the Topic Node Template in this case does

not contain an Implementation Artifact and only has a

single property.

The stack on the right models the infrastructure

for a python-based application. The

RaspberryPi3

Node Type represents a physical Raspberry Pi 3, to

which sensors and actuators are attached. The

Rasp-

bianJessie

Node Type corresponds to the Raspbian

Internet of Things Out of the Box: Using TOSCA for Automating the Deployment of IoT Environments

335

Python1

(Python_2.7)

MessageBroker

(FIWARE-Orion_1.2)

MongoDB

(MongoDB-Server)

Hypervisor2

(OpenStack)

Broker-OS

(Ubuntu14.04VM)

Python2

(Python_2.7)

Raspberry Pi

Device

(RaspberryPi3)

Device-OS

(RaspbianJessie)

Temperature-

Subscriber

(HomeAssistant)

Temperature-

Publisher

(PythonApp)

Temperature-

Topic

(Topic)

App-OS

(Ubuntu14.04VM)

Hypervisor1

(VSphere_5.5)

hostedOn dependsOnconnectsTo

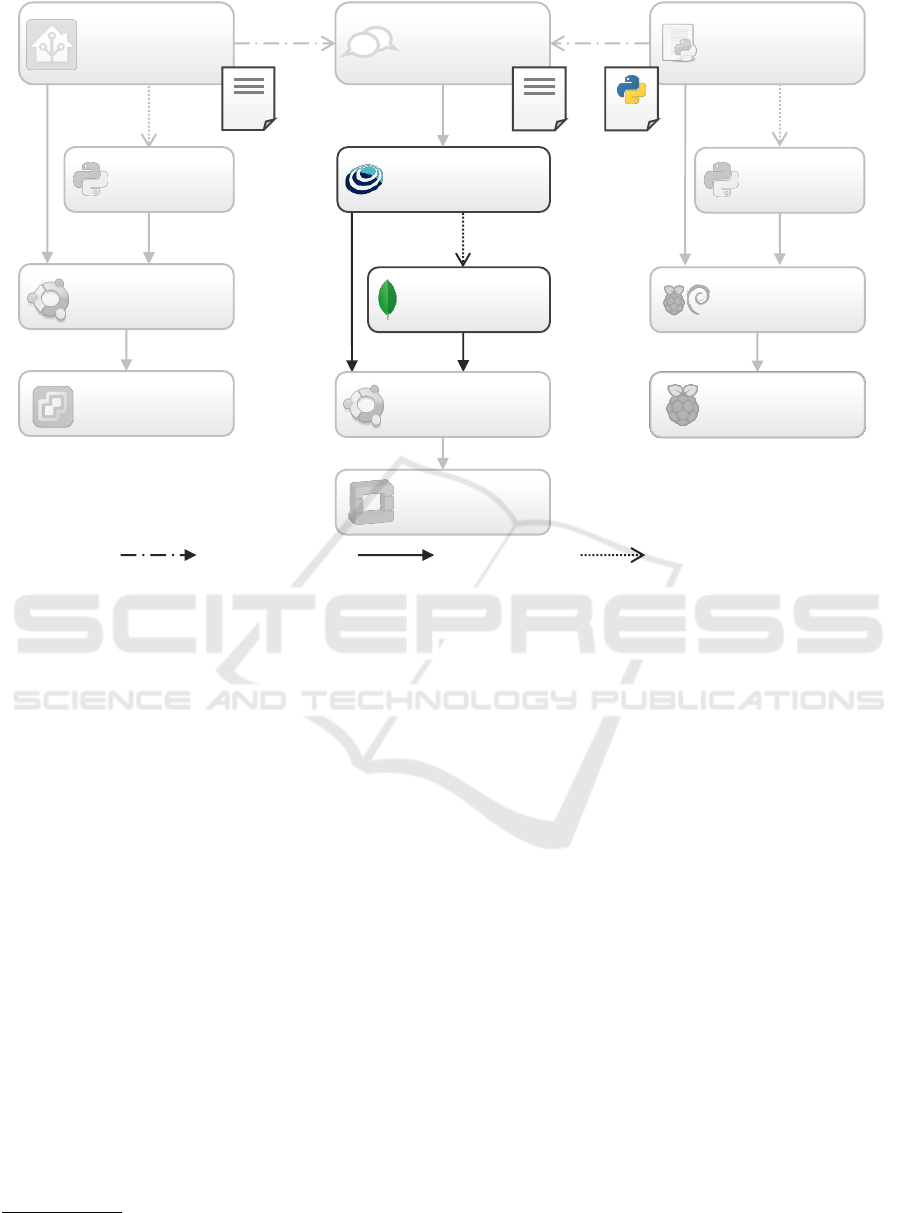

Figure 4: TOSCA topology model of an IoT Application and FIWARE Orion Context Broker.

operating system installed on the Raspberry Pi. The

PythonApp

Node Type models a generic Python-

based application with its implementation, a Python

script, attached as Deployment Artifact. This script

periodically reads values of a temperature sensor and

sends them to Mosquitto by using the open-source

MQTT client library Eclipse Paho

. To connect to

Mosquitto, the MQTT client needs (i) the IP address

of the Virtual Machine hosting Mosquitto, and (ii) the

topic name to which sensor data should be published.

This information is provided as a conﬁguration ﬁle,

which is generated by the Implementation Artifact of

the connectsTo relationship and copied to the Rasp-

berry Pi during the deployment.

Finally, the stack on the left provides the in-

frastructure, i.e., the Node Types

VSphere_5.5

and

Ubuntu14.04VM

, for the open-source, Python-based

IoT Application HomeAssistant

. The

HomeAssis-

tant

Node Type contains shell scripts as Implemen-

tation Artifacts for installing, conﬁguring and start-

ing a HomeAssistant instance in the Ubuntu Virtual

Machine hosting it. The HomeAssistant instance sub-

scribes to Mosquitto in order to receive the temperature

values and shows them in its graphical dashboard. For

that, it needs to know the IP address of the Virtual

https://www.eclipse.org/paho/

https://www.home-assistant.io/

Machine hosting Mosquitto and the topic name to sub-

scribe to. During the deployment, this information is

added to the HomeAssistant conﬁguration ﬁle, which

is attached to a HomeAssistant Node Template as a

Deployment Artifact.

4.2 Topology Model based on FIWARE

Orion Context Broker

Figure 4 depicts the TOSCA topology model of our

IoT scenario based on the FIWARE Orion Context

Broker. The highlighted components correspond to the

changes in the topology model in Figure 3. Only the

Mosquitto_3.1

Node Template needs to be exchanged

by the

FIWARE-Orion_1.2

Node Type, and its de-

pendency, the

MongoDB-Server

Node Type. The

FIWARE-Orion_1.2

Node Type contains the shell

scripts as Implementation Artifacts responsible for in-

stalling, conﬁguring and starting the Orion Context

Broker. In contrast to Mosquitto, Orion requires the

conﬁguration of topics. For that, we attach an Imple-

mentation Artifact to the

Topic

Node Template, which

contains Orion-speciﬁc logic for the conﬁguration of

topics. Finally, since Orion does not use MQTT but in-

stead provides a REST API to publish and query sensor

values, the Deployment Artifacts of the PythonApp

and

HomeAssistant

Node Templates are required to

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

336

Middleware

(OpenMTC)

Python1

(Python_2.7)

Python2

(Python_2.7)

Raspberry Pi

Device

(RaspberryPi3)

Device-OS

(RaspbianJessie)

Temperature-

Subscriber

(HomeAssistant)

Temperature-

Publisher

(PythonApp)

Temperature-

Topic

(Topic)

App-OS

(Ubuntu14.04VM)

Hypervisor1

(VSphere_5.5)

hostedOn dependsOn

connectsTo

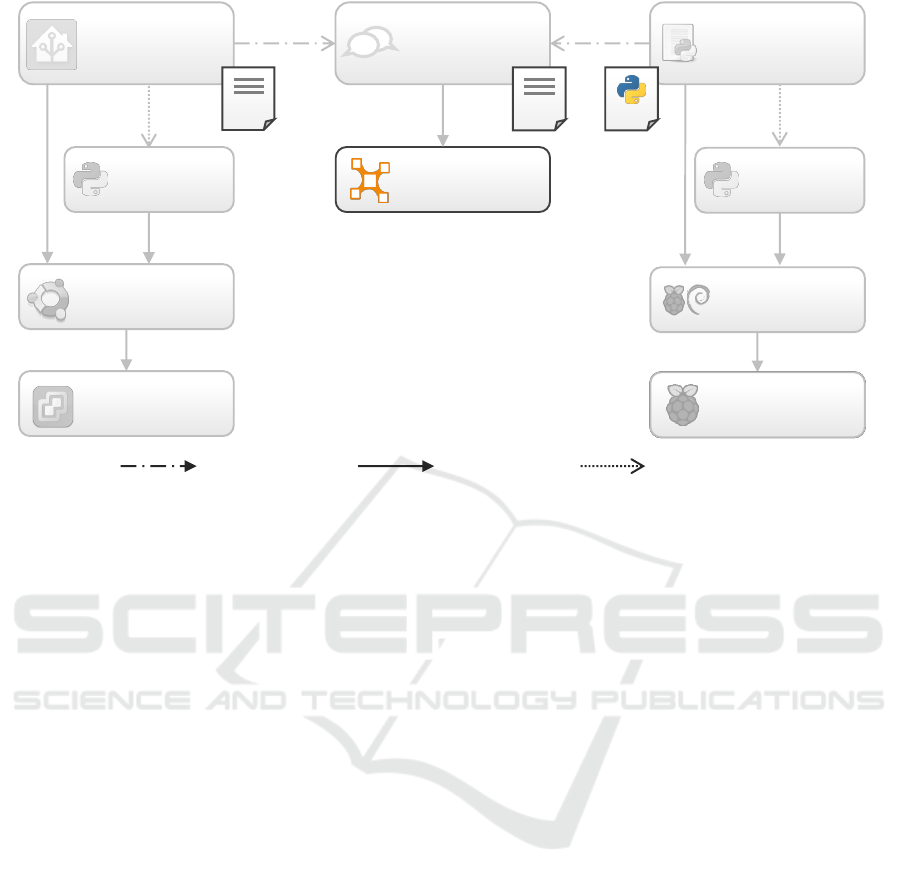

Figure 5: TOSCA topology model of an IoT Application and the OpenMTC platform as a service.

be exchanged.

4.3 Topology Model based on the

OpenMTC Platform

Besides deploying an IoT middleware on an own in-

frastructure (cf. Sect. 4.1 and 4.2), it is possible to

model a middleware, which is available on an external

infrastructure (e.g., an external cloud), as a service.

Figure 5 depicts the TOSCA topology model, contain-

ing the necessary components and relationships for our

IoT scenario based on the OpenMTC platform, which

is modeled as a service. The highlighted components

correspond to the changes in the topology model in

Figure 3. Only the

Mosquitto_3.1

Node Template

needs to be exchanged by the

OpenMTC

Node Tem-

plate. In this case, we do not need to provide the infras-

tructure Node Types for OpenMTC. The OpenMTC

Node Type solely contains the properties indicating the

IP address of the service’s host and the required cre-

dentials. An IA containing OpenMTC-speciﬁc logic

for the conﬁguration of topic is attached to the

Topic

Node Template. Finally, the

Deployment Artifacts

the

PythonApp

and

HomeAssistant

Node Templates

are also exchanged to be able to publish and query

sensor values.

We create the described Node Types and model the

TOSCA topologies of Figs. 3 to 5 using the graph-

ical modeling tool Winery. These topologies are

handed over to the TOSCA runtime environment Open-

TOSCA, which automatically sets up the modeled IoT

environments out of the box, i.e., once we have these

topologies, they can be reused to set up these environ-

ments without further conﬁguration or modiﬁcations

in the models.

5 RELATED WORK

This section describes the related work regarding soft-

ware provisioning. Li et al. (2013) propose to employ

the TOSCA standard to specify the basic components

of IoT applications (e.g., gateways, controllers, etc.)

and their conﬁguration, in order to automate IoT ap-

plication deployment in heterogeneous environments.

Extensions of this work were presented by Vögler

et al. (2015, 2016). The authors propose the deploy-

ment framework LEONORE for the deployment and

execution of custom application logic directly on IoT

gateways. However, for the framework to know the

available IoT gateways for the provisioning, the IoT

gateways must have a pre-installed local provision-

ing agent. This agent registers itself to the frame-

work by providing its unique identiﬁer and proﬁle data

of the gateway (e.g., MAC-address, instruction set,

memory consumption). In contrast, our approach does

not require any pre-installed components on the IoT-

gateways (i.e., on the devices) beside the operating

system because all the other necessary components are

set up automatically.

Internet of Things Out of the Box: Using TOSCA for Automating the Deployment of IoT Environments

337

Hur et al. (2015) propose a Semantic Service De-

scription (SSD) ontology and a system architecture to

automatically deploy smart devices to heterogeneous

IoT integration middlewares, aiming to solve interoper-

ability problems between them. Our paper also aims to

solve these problems, however we propose a standard-

based approach to automatically deploy smart devices

to the IoT integration middlewares, and to deploy these

middlewares as well.

Hirmer et al. (2016b,1016c) introduce an approach

for automated binding of smart devices using a middle-

ware called Resource Management Platform (RMP).

The RMP enables an easy registration of smart devices

and their binding through adapters. An adapter is a

piece of code containing the logic to read sensor val-

ues of smart devices, send the sensor values to the

RMP, and to invoke the devices’ actuators. For the

binding, adapter scripts are automatically deployed

onto the devices or – if the device does not provide the

necessary resources – on remote runtimes, e.g., web

servers. An extension of the RMP, which uses TOSCA

to deploy the adapters, is described by Hirmer et al.

(2016a). In contrast to our work, Hirmer et al. con-

centrate on the binding of hardware devices whereas

our approach focuses on the whole IoT environment

including the middleware and the IoT applications

themselves. Furthermore, in the approach by Hirmer

et al., the deployment of the adapters is conducted

based on predeﬁned packages that already contain pre-

modeled TOSCA Topology Templates. In this work,

we show how these models can be created tailor-made

for each use case scenario.

Clearly it is possible to employ other approaches

(e.g., Ansible, Vagrant, Docker) instead of TOSCA for

the automated deployment of IoT applications. How-

ever, in contrast to these approaches, TOSCA enables

a generic approach based on topology models and a

corresponding graphical notation (Breitenbücher et al.,

2012). These topology models are highly adaptable

in a way that software components can be easily in-

terchanged. In other approaches, this requires a large

adaptation effort, e.g., when editing Vagrant scripts. In

addition, through the concepts of Node and Relation-

ship Types, TOSCA offers a high reusability for the

deployment of software.

We (Franco da Silva et al., 2016) implemented

a prototype that realizes the ﬁrst case scenario – a

topology model based on Eclipse Mosquitto – and

can be seen as a proof-of-concept for the approach

introduced in this paper.

6 SUMMARY AND FUTURE

WORK

In this paper, we present an approach that employs the

Topology and Orchestration Speciﬁcation for Cloud

Applications (TOSCA) standard to set up entire IoT

environments automatically. Using our approach, it

is possible to set up entire Internet of Things envi-

ronments out-of-the-box, i.e., once the IoT environ-

ment is modeled using TOSCA, this model can be

reused without further conﬁguration or modiﬁcations

in the model. Furthermore, we give an overview of

the generic TOSCA concepts, and how they can be

used to model concrete IoT scenarios based on differ-

ent technologies. We also show how heterogeneous

IoT middleware systems can be deployed, wired, and

exchanged by a standard-based TOSCA runtime envi-

ronment. Moreover, the paper describes how an IoT

middleware can be used as a service available on an

external infrastructure, and how it can be deployed

individually and on-demand for separate use cases. Fi-

nally, we present technical details of our approach by

providing three detailed case studies based on the IoT

middlewares Eclipse Mosquitto, FIWARE Orion Con-

text Broker and OpenMTC platform. As future work,

we aim to develop more TOSCA Node Types related

to IoT environments, in order to support the automated

deployment of a wider range of IoT scenarios.

ACKNOWLEDGMENTS

This work was funded by the BMWi project Smart-

Orchestra (01MD16001F).

REFERENCES

Alaya, M. B., Banouar, Y., Monteil, T., Chassot, C., and

Drira, K. (2014). OM2M: Extensible ETSI-compliant

M2M service platform with self-conﬁguration capabil-

ity. Procedia Computer Science, 32:1079–1086.

Atzori, L., Iera, A., and Morabito, G. (2010). The internet

of things: A survey. Computer networks, 54(15):2787–

2805.

Binz, T., Breitenbücher, U., Haupt, F., Kopp, O., Leymann,

F., Nowak, A., and Wagner, S. (2013). OpenTOSCA

– A Runtime for TOSCA-based Cloud Applications.

In 11

International Conference on Service-Oriented

Computing, LNCS. Springer.

Binz, T., Breitenbücher, U., Kopp, O., and Leymann, F.

(2014). TOSCA: Portable Automated Deployment and

Management of Cloud Applications, pages 527–549.

Advanced Web Services. Springer.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

338

Botta, A., de Donato, W., Persico, V., and Pescapé, A.

(2016). Integration of Cloud computing and Internet

of Things: A survey. Future Generation Computer

Systems, 56:684–700.

Breitenbücher, U., Binz, T., Képes, K., Kopp, O., Leymann,

F., and Wettinger, J. (2014). Combining Declarative

and Imperative Cloud Application Provisioning based

on TOSCA. In Proceedings of the IEEE International

Conference on Cloud Engineering, pages 87–96. IEEE.

Breitenbücher, U., Binz, T., Kopp, O., Leymann, F., and

Schumm, D. (2012). Vino4TOSCA: A Visual Notation

for Application Topologies Based on TOSCA, pages

416–424. Springer Berlin Heidelberg, Berlin, Heidel-

berg.

Breitenbücher, U., Binz, T., Kopp, O., Leymann, F., and

Wettinger, J. (2015). A Modelling Concept to Inte-

grate Declarative and Imperative Cloud Application

Provisioning Technologies. In Proceedings of the 5

International Conference on Cloud Computing and

Services Science, pages 487–496. SciTePress.

Corici, M., Coskun, H., Elmangoush, A., Kurniawan, A.,

Mao, T., Magedanz, T., and Wahle, S. (2012). Open-

MTC: Prototyping Machine Type communication in

carrier grade operator networks. In 2012 IEEE Globe-

com Workshops, pages 1735–1740. IEEE.

Franco da Silva, A. C., Breitenbücher, U., Képes, K., Kopp,

O., and Leymann, F. (2016). OpenTOSCA for IoT:

Automating the Deployment of IoT Applications based

on the Mosquitto Message Broker. In Proceedings

of the 6th International Conference on the Internet of

Things (IoT), pages 181–182, Stuttgart. ACM.

Gubbi, J., Buyya, R., Marusic, S., and Palaniswami, M.

(2013). Internet of Things (IoT): A vision, architectural

elements, and future directions. Future Generation

Computer Systems, 29(7):1645–1660.

Guth, J., Breitenbücher, U., Falkenthal, M., Leymann, F.,

and Reinfurt, L. (2016). Comparison of IoT Platform

Architectures: A Field Study based on a Reference

Architecture. In CLOSER.

Hirmer, P., Franco da Silva, A. C., Wieland, M., Breiten-

bücher, U., Kálmán, K., and Mitschang, B. (2016a).

Automating the Provisioning and Conﬁguration of De-

vices in the Internet of Things. Complex Systems Infor-

matics and Modeling Quarterly. to appear.

Hirmer, P., Wieland, M., Breitenbücher, U., and Mitschang,

B. (2016b). Automated Sensor Registration, Binding

and Sensor Data Provisioning. In Proceedings of 28

International Conference on Advanced Information

Systems Engineering, volume 1612 of CEUR Workshop

Proceedings, pages 81–88. CEUR-WS.org.

Hirmer, P., Wieland, M., Breitenbücher, U., and Mitschang,

B. (2016c). Dynamic Ontology-based Sensor Binding.

In Proceedings of 20

East European Conference on

Advances in Databases and Information Systems, vol-

ume 9809 of Information Systems and Applications,

incl. Internet/Web, and HCI, pages 323–337. Springer.

Hur, K., Chun, S., Jin, X., and Lee, K.-H. (2015). Towards

a semantic model for automated deployment of iot

services across platforms. In Proceedings of the 2015

IEEE World Congress on Services, SERVICES ’15,

pages 17–20. IEEE.

Kopp, O., Binz, T., Breitenbücher, U., and Leymann, F.

(2013). Winery - A Modeling Tool for TOSCA-based

Cloud Applications. In Proceedings of 11th Interna-

tional Conference on Service-Oriented Computing, vol-

ume 8274 of LNCS, pages 700–704. Springer Berlin

Heidelberg.

Leymann, F., Fehling, C., Wagner, S., and Wettinger, J.

(2016). Native Cloud Applications: Why Virtual Ma-

chines, Images and Containers Miss the Point! In

Proceedings of the 6th International Conference on

Cloud Computing and Service Science, pages 7–15.

SciTePress.

Li, F., Vögler, M., Claeßens, M., and Dustdar, S. (2013).

Towards Automated IoT Application Deployment by

a Cloud-Based Approach. In Proceedings of the

2013 IEEE 6th International Conference on Service-

Oriented Computing and Applications, SOCA ’13,

pages 61–68. IEEE.

Mineraud, J., Mazhelis, O., Su, X., and Tarkoma, S. (2016).

A gap analysis of Internet-of-Things platforms. Com-

puter Communications, 89 - 90:5–16.

OASIS (2013). Topology and Orchestration Speciﬁcation

for Cloud Applications (TOSCA) Version 1.0.

Ramparany, F., Galan Marquez, F., Soriano, J., and Elsaleh,

T. (2014). Handling smart environment devices, data

and services at the semantic level with the FI-WARE

core platform. In 2014 IEEE International Conference

on Big Data, pages 14–20. IEEE.

Vögler, M., Schleicher, J. M., Inzinger, C., and Dustdar, S.

(2016). A Scalable Framework for Provisioning Large-

Scale IoT Deployments. ACM Transactions on Internet

Technology (TOIT), 16(2):11:1–11:20.

Vögler, M., Schleicher, J. M., Inzinger, C., Nastic, S., Se-

hic, S., and Dustdar, S. (2015). LEONORE–Large-

Scale Provisioning of Resource-Constrained IoT De-

ployments. In Proceedings of the 2015 IEEE Sympo-

sium on Service-Oriented System Engineering, pages

78–87. IEEE.

Zhang, Q., Cheng, L., and Boutaba, R. (2010). Cloud com-

puting: state-of-the-art and research challenges. Jour-

nal of Internet Services and Applications, 1(1):7–18.

Internet of Things Out of the Box: Using TOSCA for Automating the Deployment of IoT Environments

339
