IoDDoS — The Internet of Distributed Denial of Service Attacks

A Case Study of the Mirai Malware and IoT-Based Botnets

Roger Hallman, Josiah Bryan, Geancarlo Palavicini, Joseph Divita and Jose Romero-Mariona

US Department of Defense, SPAWAR Systems Center Paciﬁc, San Diego, California, U.S.A.

Keywords:

Internet of Things, Cybersecurity, Botnets, Mirai Malware, Emerging Threats.

Abstract:

The Internet of Things (IoT), a platform and phenomenon allowing everything to process information and

communicate data, is populated by ‘things’ which are introducing a multitude of new security vulnerabilities to

the cyber-ecosystem. These vulnerable ‘things’ typically lack the ability to support security technologies due

to the required lightweightness and a rush to market. There have recently been several high-proﬁle Distributed

Denial of Service (DDoS) attacks which utilized a botnet army of IoT devices. We ﬁrst discuss challenges to

cybersecurity in the IoT environment. We then examine the use of IoT botnets, the characteristics of the IoT

cyber ecosystem that make it vulnerable to botnets, and make a deep dive into the recently discovered IoT-

based Mirai botnet malware. Finally, we consider options to mitigate the risk of IoT devices being conscripted

into a botnet army.

1 INTRODUCTION

On 20 September, 2016, the cybersecurity blog, Kreb-

sOnSecurity

, was the target of a massive Distributed

Denial of Service (DDoS) attack, exceeding 620 giga-

bits per second (GBps) (US-CERT, 2016). The attack

was initially unsuccessful, but nearly double the size

of the largest previously seen DDoS attack, according

to the internet security ﬁrm Akamai

, and the deci-

sion was made to suspend KrebsOnSecurity (Krebs,

2016b; Ragan, 2016). Less than a month later, a

DDoS attack was launched on the Domain Name Sys-

tem (DNS) provider Dyn

that was clocked at 1.2 ter-

abytes per second (TBps), the largest ever recorded

(Woolf, 2016). Both attacks were believed to have

been perpetrated by a conscripted botnet army, where

devices are infected by malware and connected to an

outside command and control (C&C) server, of Inter-

net of Things (IoT) devices (US-CERT, 2016; New-

man, 2016). There were additional reports of the

same family of IoT-based botnets launching DDoS

attacks against French webhost OVH (Bertino and Is-

lam, 2017) and Liberian mobile infrastructure (Krebs,

2016a). There have been growing concerns about

cybersecurity vulnerabilities in IoT systems that are

rushed to market, and the risk of IoT-based botnets

http://krebsonsecurity.com/

https://www.akamai.com/

https://dyn.com/

has been theorized for several years (Holm, 2016;

Lin et al., 2014). The large DDoS attacks against

KrebsOnSecurity and Dyn demonstrate the magni-

tude of IoT security vulnerabilities and how unse-

cured ‘things’ on the internet may be conscripted into

an army capable of massive damage and disruption

(Symantec, 2016).

In this paper, we discuss the characteristics of the

IoT ecosystem that make its ‘things’ so vulnerable to

conscription for a massive botnet army and steps that

may be taken to mitigate these vulnerabilities. The

rest of this paper is organized as follows: Section

2 discusses IoT and gives examples of IoT environ-

ments as well as an overview of their cybersecurity

vulnerabilities. Section 3 gives a more in-depth anal-

ysis of botnets and DDoS attacks. Section 4 gives an

overview of the IoT-based botnets as well as an in-

depth analysis of the IoT-based botnet malware used

in the KrebsOnSecurity and Dyn DDoS attacks. Vul-

nerability mitigations will be dealt with in Section 5.

Finally, Section 6 will have concluding remarks.

2 THE IoT ECOSYSTEM

IoT is a platform and a phenomenon that allows ev-

erything to process information, communicate data,

and analyze context collaboratively or in the service

of individuals, organizations and businesses. IoT,

Hallman R., Bryan J., Palavicini G., Divita J. and Romero-Mariona J.

IoDDoS â

T The Internet of Distributed Denial of Sevice Attacks - A Case Study of the Mirai Malware and IoT-Based Botnets.

DOI: 10.5220/0006246600470058

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 47-58

ISBN: 978-989-758-245-5

with its ‘things’ connected to the Internet, is an in-

stantiation of the “Network of Things” concept (Voas,

2016). There are considerable beneﬁts of having nu-

merous devices connected to larger infrastructures,

with utility to be gained in multiple contexts (e.g.,

home, industrial environments) (Gubbi et al., 2013).

IoT is an explosive market, with estimates that the

number of Internet-connected smart devices will more

than triple to around 40 billion in use by 2019 (Thierer

and Castillo, 2015).

2.1 The Home IoT Environment

There has been an explosive growth in the number

of Internet-connected household devices which al-

low for monitoring and controlling a “smart home”

(Sivaraman et al., 2015). These devices include

smart plugs, lights, and electrical switches which

give insight into power consumption. Appliances

may be remotely monitored and controlled such as

a garage door opener, thermostat, or oven. Children

or pets may be monitored remotely through Internet-

connected cameras and microphone systems.

Internet-connected smart homes typically make

use of a home automation system, with multiple com-

mercially available systems to choose from. These

systems tend to have a central C&C unit and a di-

verse array of lightweight, sensor-enabled devices

that monitor one or more aspects of an area (e.g., the

number of people who have entered a room). An in-

teresting aspect of many home automation systems is

that they can be controlled with little or no authen-

tication credentials; a great deal of their system se-

curity comes from a “ﬁrewall” feature of the home

router’s network address translation between public

and private Internet Protocol (IP) addresses (Sivara-

man et al., 2016).

2.2 The Industrial IoT Environment

Industrial processes have been automated for decades,

with machine-to-machine communication protocols

(e.g., Modbus/TCP) for Supervisory Control and Data

Acquisition (SCADA) and other industrial control

Systems (Boyer, 2009). SCADA and other legacy

machine-to-machine communication systems are still

widely used, however the descendant of these older

systems is the Industrial Internet. The Industrial Inter-

net is a form of IoT in which the things are objects in

manufacturing plants, utilities, dispatch centers, pro-

cess control industries, etc. (Stankovic, 2014). These

operational technology (OT) systems were tradition-

ally kept separate from their information technology

(IT) counterparts, but with the ubiquity of IP this sep-

aration is vanishing (Beel and Prasad, 2016).

2.3 An Overview of Iot Cybersecurity

Vulnerabilities

IoT cybersecurity vulnerabilities are well docu-

mented. Some of these include (Bertino and Is-

lam, 2017; Romero-Mariona et al., 2016; Cruz et al.,

2016):

• Systems without well-deﬁned parameters which

are continuously changing due to device and user

mobility.

• Devices in an IoT system may be autonomous

themselves, functioning as a control for other IoT

devices.

• IoT systems may include components which were

never intended to be connected to the Internet, or

communicate by standardized protocols.

• IoT systems may be controlled by different par-

ties.

• Granular permission requests, common in smart-

phone applications, are problematic in IoT sys-

tems due to the diversity and number of devices.

• Firmware updates and system patching are difﬁ-

cult and often completely lacking.

• Many IoT devices possess only the memory and

processing capabilities to accomplish their as-

signed task and consequently cannot support stan-

dard security solutions.

• Devices often operate under unique constraints

(e.g., timing).

• Device lifespans may continue for many years af-

ter vendor support has ceased (e.g., patching).

• Vulnerable devices are deeply embedded within

networks.

An additional, detailed list of IoT cybersecurity vul-

nerabilities and attack vectors are described in Table

3 BOTNETS AND DDoS ATTACKS

A botnet is an organized network of software robots,

or ‘bots’, that run autonomously and automatically on

zombie machines that have been infected by malware

(Hachem et al., 2011; Zhu et al., 2008). Botnets are

used to conduct DDoS attacks, distributed computing

(e.g., mining bitcoins), spread electronic spam and

malware, conduct cyberwarfare, conduct click-fraud

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

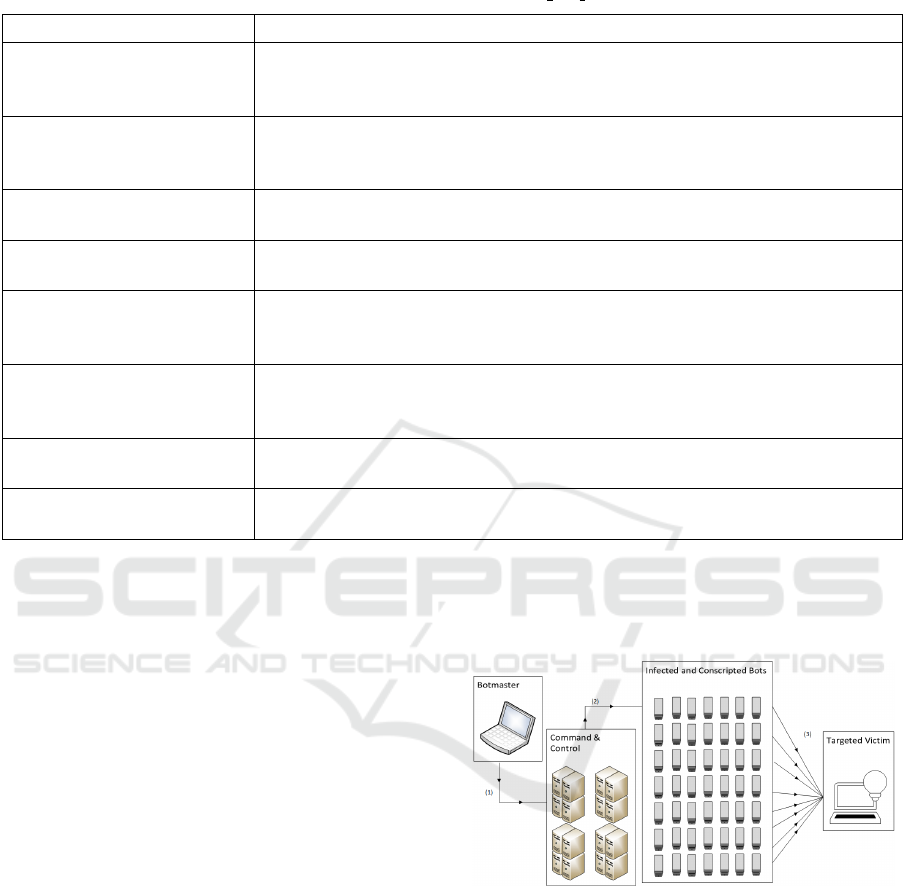

Table 1: Internet of Things Cybersecurity Vulnerabilities and Attack Vectors. Adapted from the Open Web Application

Security Project Top 10 IoT Vulnerabilities (www.owasp.org/index.php/Top IoT Vulnerabilities).

Vulnerability Attack Vectors

Insecure Interfaces Weak credentials, capture of plain-text credentials, insecure password recovery

systems, or enumerated accounts, and lack of transport encryption may be used

to access data or controls.

Insufﬁcient Authentication

and Authorization

Weak passwords, insecure password recovery mechanisms, poorly protected

credentials, and lack of granular access control may enable an attacker to ac-

cess a particular interface.

Insecure Network Services Vulnerable networks services may be used to attack a device or bounce an

attack off of a device.

Lack of Transport Encryp-

tion/Integrity Veriﬁcation

The lack of transport encryption allows an attacker to view data being passed

over the network.

Privacy Concerns Insecure interfaces, insufﬁcient authentication, lack of transport encryption,

and insecure network services all allow an attacker to access data which is

improperly protected and may have been collected unnecessarily.

Insufﬁcient Security Conﬁg-

urability

A lack of granular permissions, lack of encryption or password options may

allow an attacker to access device data and controls. An attack (malicious or

inadvertent but benign) could come from any device in an IoT system.

Insecure Software/Firmware Update ﬁles captured through unencrypted connections may be corrupted, or

an attacker may distribute a malicious update by hijacking a DNS server.

Poor Physical Security USB ports, SD cards, and other storage means allow attackers access to device

data and operating systems.

scams, and steal personal user information. They

are arguably the most potent threat to the security of

Internet-connected systems and users (Khattak et al.,

2014). A “botmaster” will seize control of a network

of infected computers and through a C&C system di-

rect the infected computers to conduct malicious ac-

tivities. More sophisticated botnets decentralize their

C&C system by structuring their network in a peer-

to-peer (P2P) manner such that any one infected com-

puter will only communicate with a small number of

‘locally’ infected computers. This makes the detec-

tion of all the infected computers, the bots that com-

prise the botnet, difﬁcult. Botnets, like virtually all

cyber-threats, have typically been targeted against IT

systems, but there are several recent incidences of

their use in attacks on OT systems.

The Internet was designed with functionality as

a primary concern with security often as an af-

terthought, and consequently there are very limited

resources available for the purpose. The ﬁrst well-

known DDoS attack was against the University of

Minnesota in 1999, attacking university servers with

User Datagram Protocol (UDP) packets from thou-

sands of machines for two days (Boyle, 2000). DDoS

attacks have increased in frequency and size, com-

monly being used in conjunction with conventional

warfare methods during times of conﬂict (Nazario,

2009). Because of the ease of conducting an at-

tack there are DDoS-for-hire services run by cyber-

criminals (Santanna et al., 2015). Figure 1 illustrates

a botnet-conducted DDoS attack.

Figure 1: A simpliﬁed model of a botnet conducting a

DDoS attack. Once an army of infected and conscripted

bots has been assembled, the botmaster issues attack in-

structions via proxy C&C servers in (1). The C&C servers

disseminate their attack instructions to their conscripted

bots in (2). In (3), the conscripted botnet army proceeds

to overwhelm the targeted victim’s system with a series of

short but continual attacks.

A recent high proﬁle botnet malware incident was

the use of BlackEnergy in the attack which took down

the Ukrainian power grid in December, 2015 (Khan

et al., 2016). The BlackEnergy malware was ﬁrst de-

scribed in 2007 (Nazario, 2007) as a simple Hypertext

Transfer Protocol (HTTP) based botnet which used

encryption at runtime to avoid detection. The vic-

IoDDoS â

T The Internet of Distributed Denial of Sevice Attacks - A Case Study of the Mirai Malware and IoT-Based Botnets

tims of this early BlackEnergy malware were the dis-

tributed compromised systems and the end targeted

systems of the DDoS attack. Arbor Networks located

27 active DDoS networks in Russia and Malaysia

with targets in Russian IP space (Khan et al., 2016).

There is wide speculation that Russia used the Black-

Energy malware to launch a DDoS attack during the

Russian-Georgian Conﬂict in 2008, although this has

never been conclusively proven (Nazario, 2009). The

software controlling several national critical infras-

tructures including electric grids, water ﬁltration sys-

tems, and oil and gas pipelines have been compro-

mised by BlackEnergy since 2011 (Pultarova, 2016a).

NATO Headquarters was also the victim of a Black-

Energy attack (Khan et al., 2016).

The Ukranian incident involved a coordinated at-

tack on three power distribution companies, utilizing

a new variant of BlackEnergy to illegally enter the

companies’ IT and OT systems. Opening the break-

ers to seven substations resulted in a power outage to

more than 225,000 people. This variant of BlackEn-

ergy included a KillDisk function which erased sev-

eral systems and corrupted the master boot records

in all three companies, extending the power outage.

While the BlackEnergy malware was not utilized as a

botnet in the classical sense, its use during the recon-

naisance phase of the attack shows the dangerous ver-

satility of botnet malware in coordinated cyber attacks

(Lee et al., 2016). Moreover, custom ﬁrmware was

deployed for serial-to-Ethernet converters which dis-

abled devices and prevented technicians from restor-

ing power until they bypassed those converters (Khan

et al., 2016).

3.1 A Taxonomy for DDoS Attacks

Specht and Lee (Specht and Lee, 2004) propose a tax-

onomy for DDoS attacks consisting, at the highest

level, of Bandwidth Depletion Attacks and Resource

Depletion Attacks. They describe Resource Depletion

Attacks as ﬂooding the victim network with unwanted

trafﬁc that prevents legitimate trafﬁc from reaching

the victim. A Resource Depletion Attack ties up the

victim system’s resources, making the processing of

legitimate requests for service impossible.

3.1.1 Bandwidth Depletion DDoS Attacks

Bandwidth Depletion Attacks are characterized as ei-

ther ﬂood or ampliﬁcation attacks (Specht and Lee,

2004). Speciﬁcally, these types of attacks are distin-

guished by adversary-controlled botnets which ﬂood

their victims with IP trafﬁc and ultimately saturate

their network and resources (Okafor et al., 2016).

These attacks are usually aimed at making the victims

unreachable or disabling their services (Gasti et al.,

2012).

3.1.1.1 Flood Attacks

Flood attacks involve a conscripted botnet army send-

ing extraordinarily large volumes of trafﬁc to a victim

network with the intent of congesting it to the point

of service degradation, or a crash. Some examples

of Flood attacks include (Singh and Gyanchandani,

2010):

• UDP ﬂooding is a host-based attack which send a

large number of UDP packets to a random port on

the target system, causing it to fail.

• Ping of Death, or Internet Control Message Pro-

tocol (ICMP) ﬂood attacks use a ping utility to

create IP packets exceeding the maximum 65,536

bytes allowed by IP speciﬁcation. The over-sized

packets are sent to the target system causing it to

crash, hang, or reboot.

3.1.1.2 Ampliﬁcation Attacks

Ampliﬁcation attacks involve the conscripted botnet

army sending messages to a broadcast IP address, a

feature found on many routers. All systems in the

subnet reached by the broadcast address send a re-

ply to the targeted victim system. The broadcast IP

address ampliﬁes and reﬂects attack trafﬁc to reduce

the victim system’s bandwidth. Examples of ampliﬁ-

cation attacks include (Specht and Lee, 2004; Singh

and Gyanchandani, 2010):

• Smurf attacks generate large amounts of trafﬁc on

the targeted victim’s computer. Packets are sent

as a direct broadcast to a subnet of a network to

which all of the subnet’s systems reply. However,

the packets’ source IP address is spoofed to be the

targeted victim, which is then ﬂooded.

• Fraggle attacks send packets to a network ampli-

ﬁer using UDP ECHO packets which target the

character generator in the systems reached by the

broadcast address. Each system then generates a

character to send to the echo service in the victim

system, which causes an echo packet to be sent

back to the character generator.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

3.1.2 Resource Depletion DDoS Attacks

Resource depletion attacks are characterized by an at-

tacker sending packets that are malformed or misuse

communication protocols, using network resources to

such an extent that there are none left for legitimate

users (Specht and Lee, 2004). The main difference

between a resource depletion attack and a bandwidth

depletion attack is that the former aims at exhaust-

ing the resources as opposed to the latter which at-

tempts to deny critical services (Amiri and Soltanian,

2015). Furthermore, resource depletion attacks can

allow adversaries to consume more energy in a net-

work than an honest node, thus affecting the actual

physical resources of certain IoT components (Gaya-

tri and Naidu, 2015).

3.1.2.1 Protocol Exploit/Misuse Attacks

Protocol exploit attacks misuse common Internet

communication protocols, such as Transfer Control

Protocol Synchronize (TCP SYN) and Acknowledge

(ACK). Examples of Protocol exploit attacks include

(Specht and Lee, 2004; Singh and Gyanchandani,

2010):

• TCP SYN ﬂooding uses a conscripted botnet army

to initiate an overwhelming number of three-way

handshakes to initialize new TCP connections.

The source IP address is spoofed, causing the vic-

tim system to send ACK+SYN responses to a non-

requesting system. The victim system eventually

runs out of memory and processor resources after

none of the ACK+SYN responses are returned.

• PUSH + ACK attacks involve sending the targeted

victim TCP packets with PUSH and ACK bits set

to 1, causing the victim to unload all data in the

TCP buffer and send an acknowledgement once

this is completed. The targeted system cannot

process the large volume of packets from multi-

ple senders and crashes.

3.1.2.2 Malformed Packet Attacks

Malformed packet attacks involve a botnet army send-

ing the targeted victim incorrectly formed IP packets,

which cause the victim system to crash. There are

two types of malformed packet attacks (Specht and

Lee, 2004):

• IP address attacks where the packet contains the

same source and destination IP addresses. This

confuses and crashes the targeted victim’s operat-

ing system.

• IP packet options attacks involve randomizing an

optional ﬁeld within IP packets sent from the bot-

net army, setting all quality of service bits to 1.

The targeted victim must use additional process-

ing resources to analyze the trafﬁc, exhausting its

processing ability.

IoDDoS â

T The Internet of Distributed Denial of Sevice Attacks - A Case Study of the Mirai Malware and IoT-Based Botnets

4 IoT-BASED BOTNETS AND THE

DDoS ATTACKS OF 2016

The number of Internet-connected devices in the IoT

environment is expected to triple by 2019 (Thierer

and Castillo, 2015). The consequence of this rush to

put products on the market is insufﬁcient security de-

signed into systems (Romero-Mariona et al., 2016).

This poor security makes IoT devices soft targets,

and attacks on IoT devices have been long predicted.

While there has been concern about the hijacking of

various devices in the home or industrial ecosystems

to exﬁltrate information on individual victims, IoT de-

vices are also easily conscripted into botnet armies for

multi-platform DDoS attacks (Symantec, 2016).

There were eight families of IoT malware families

discovered in 2015 (Symantec, 2016):

• The Zollard worm exploits the Hypertext Pre-

processor (PHP) ‘php-cgi’ Information disclosure

vulnerability that was patched in 2012. Once in-

fected, a backdoor on a TCP port opens to allow

remote command execution.

• Linux.Aidra spreads through TCP on port 23 and

looks for common username and password com-

bination in order to login into devices. A back-

door is opened on the device and the infected de-

vice is conscripted into a botnet army that uses

ﬂoods of TCP packets, UDP packets, or DNS re-

quests.

• XOR.DDos opens a backdoor in its device and

uses COR encryption in both the malware code

and in C&C server communication and its main

function is to conduct DDoS attacks.

• Bashlite-infected devices become part of a bot-

net army for launching DDoS attacks of EDP and

TCP ﬂoods. It also contains a function to brute-

force routers with common username and pass-

word combinations and can collect CPU informa-

tion from infected devices.

• LizardStresser was reputedly created by the

Lizard Squad hacker group and has the ability to

launch DDoS attacks. It is distributed by scan-

ning public IP addresses for Telnet services and

will attempt a variety of common username and

password combinations. After a successful logon,

it reports back to its C&C server and awaits fur-

ther instruction.

• AES.DDoS uses the AES algorithm to encrypt

communication with its C&C server. It carries out

DDoS attacks, but also collects information about

the compromised device and sends it to the C&C

server.

• PNScan is a Trojan that scans a network segment

for devices with an open port 22 and attempts

a bruteforce login with common username and

password combinations. It does not have botnet

functionalities, but can be used to download bot-

net malware like Tsunami.

• The Tsunami Trojan is used to launch DDoS at-

tacks. It modiﬁes ﬁles in such a way that it gets

run each time a user logs in or a device boots up.

Moreover, Tsunami is known to kill processes,

download and execute various ﬁles, and spoof IP

addresses of the infected device.

4.1 The Mirai Malware Family

The Mirai botnet malware, which was utilized for the

DDoS attacks against KrebsOnSecurity, Dyn, OVH,

and others, is part of a Trojan IoT malware family

that was ﬁrst discovered in May 2016 (Dr.Web, 2016).

The initial malware was named Linux.DDoS.87,

a later variant named Linux.DDoS.89 and ﬁnally

Linux.Mirai (referred to simply as ‘Mirai’) were dis-

covered in August. We highlight Linux.DDoS.87 and

Linux.DDoS.89 before an in-depth examination of

the Mirai Malware.

4.1.1 Linux.DDoS.87

Linux.DDoS.87 is a malicious program that uses the

uClibc

C Library for embedded systems and car-

ries out DDoS attacks. Prior to receiving and exe-

cuting commands, the malware makes the following

calls: fillConfig, init random, runkiller, and

fillCmdHandlers.

The fillConfig function uses a memory sector

to store conﬁguration information and some strings

may be stored in encrypted ELF ﬁles and decrypted

prior to recording. The generation of pseudo-random

sequences is achieved by the init random function.

Linux.DDoS.87 displays a certain “territorial” behav-

ior with a runkiller function that searches for the

running processes of other Trojans and terminates

them. fillCmdHandlers is a function that ﬁlls the

structure that stores command handlers. Once these

commands are run, Linux.DDoS.87 removes its name

to hide itself and child processes are subsequently

launched with simpliﬁed code and containing no re-

quests to the conﬁguration. The Linux.DDoS.87 Tro-

jan has a maximum uptime of one week on an infected

machine before it terminates its operation (Dr.Web,

2016).

Linux.DDoS.87 then attempts to connect to a

C&C server. The IP address of the used interface is

https://uclibc.org/

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

saved and a string containing information on the ar-

chitecture of the infected device is sent to the C&C

server. The process function parses command argu-

ments and ﬁlls respective structures (e.g., target ip,

sockaddr, etc.) and a run command function is called

after parsing is completed. This function receives a

time value, command number, quantities and arrays

of targets and parameters. Linux.DDoS.87 is capa-

ble of the following attacks: HTTP ﬂood, UDP ﬂood,

TCP ﬂood, Domain Name System (DNS) ﬂood, and

TSource Engine Query (TSource) ﬂood among others

(Dr.Web, 2016).

4.1.2 Linux.DDoS.89

Discovered in early August 2016, Linux.DDoS.89

is a modiﬁed version of Linux.DDoS.87 (Dr.Web,

2016). The command format is unchanged from

Linux.DDoS.87, but ﬁelds in some of the Trojan’s

structures have been moved. Rather than reallocat-

ing memory, a statically allocated area of memory is

used. A decode function decrypts stored conﬁgura-

tion values by an XOR operation and then re-encrypts

the value after use. Linux.DDoS.89’s pseudo-random

number generator as well as its order of performed

operations are different from Linux.DDoS.87.

It ﬁrst starts operating with signals, installing

signal handlers but ignoring SIGINT. Once the IP

addresses of the network interface are received,

Linux.DDoS.89 connects to the Internet via a Google

DNS server and a local server is launched. Once the

local server is launched, the C&C server information

is added to the sockaddr in structure. A SIGTRAP

signal is used for changing C&C servers. Finally, a

runkiller function uses PID. It will not terminate a

process if its PID is the same as the current or parental

process.

Linux.DDoS.89 uses a run scanner function that

is copied from the Linux.BackDoor.Fgt Trojan fam-

ily. It is capable of the following attacks: UDP ﬂood,

TSource ﬂood, DNS ﬂood, TCP ﬂood, UDP over

Generic Routing Encapsulation (GRE) ﬂood, and

Thread Environment Block (TEB) over GRE ﬂood.

4.2 The Mirai Malware

The DDoS attacks on KrebsOnSecurity and Dyn were

the largest known attacks to date (Woolf, 2016).

The attacks were perpetrated using the Mirai mal-

ware which scans the Internet for unsecured IoT

devices and has been active since at least August

2016, usually conscripting armies of CCTV cameras

(Zeifman et al., 2016; Pultarova, 2016b). Indeed,

since the source code was made publicly available,

there have been several low-volume application layer

HTTP ﬂoods which were characterized by relatively

low requests per second counts and small numbers of

source IPs and were likely new users of the malware

making test runs (Zeifman et al., 2016).

Mirai infects IoT devices and uses them as a

launch platform for DDoS attacks, as shown in Fig-

ure 2. Mirai’s C&C module is coded in Go

, its bots

are coded in C, and communication betwen infected

devices and the C&C server often occurs over port

48101 (US-CERT, 2016). Port 48101 is also used for

control purposes, coordinating bot instances (Mirai,

2016). Mirai performs wide-ranging scans of IP ad-

dresses in order to locate IoT devices that could be re-

motely accessed via easily guessable login credentials

(Mofﬁtt, 2016). Speciﬁcally, Mirai uses a dictionary

attack of at least 62 common default usernames and

passwords to gain access to networked cameras, dig-

ital video recorders, and home routers (Bertino and

Islam, 2017). The attack function enables Mirai to

launch HTTP ﬂoods and various network DDoS at-

tacks. Mirai is capable of launching Generic Routing

Encapsulation (GRE) IP and GRE Ethernet encapsu-

lation (ETH) ﬂoods, as well as SYN and ACK ﬂoods,

STOMP (Simple Text Oriented Message Protocol)

ﬂoods, DNS ﬂoods and UDP ﬂood attacks (Loshin,

2016). Interestingly, Mirai bots are programmed to

avoid certain IPs when performing their IP scans, in-

cluding the US Postal Service, the Department of

Defense, the Internet Assigned Numbers Authority

(IANA) and IP ranges belonging to Hewlett-Packard

and General Electric (Zeifman et al., 2016). Mirai

also has a segmented C&C feature which allows its

botnet to launch multiple DDoS attacks against mul-

tiple, unrelated targets (Loshin, 2016). Much like

its predecessors, the Mirai malware displays territo-

rial characteristics, for instance it’s runkiller hunt-

ing for and destroying competing malware such as

‘Anime’

, and closing all processes that use SSH, Tel-

net, or HTTP ports. Analysis of the Mirai malware

code shows that, in spite of the English C&C inter-

face, there are Russian strings in the code and this has

led to speculation that the malware originates from

Russian hackers (Zeifman et al., 2016).

The Mirai attacks against KrebsOnSecurity and

Dyn were so large that early estimates suggested that

more than 10,000,000 devices had been conscripted

for the botnet army (Zeifman et al., 2016), however

later forensics determined that the attack on Dyn may

have involved only 100,000 Mirai-infected devices

(Woolf, 2016). Thus far, Mirai malware has been

found to have infected 500,000 or more devices in 164

countries (Zeifman et al., 2016; Loshin, 2016).

https://golang.org/

https://evosec.eu/new-iot-malware/

IoDDoS â

T The Internet of Distributed Denial of Sevice Attacks - A Case Study of the Mirai Malware and IoT-Based Botnets

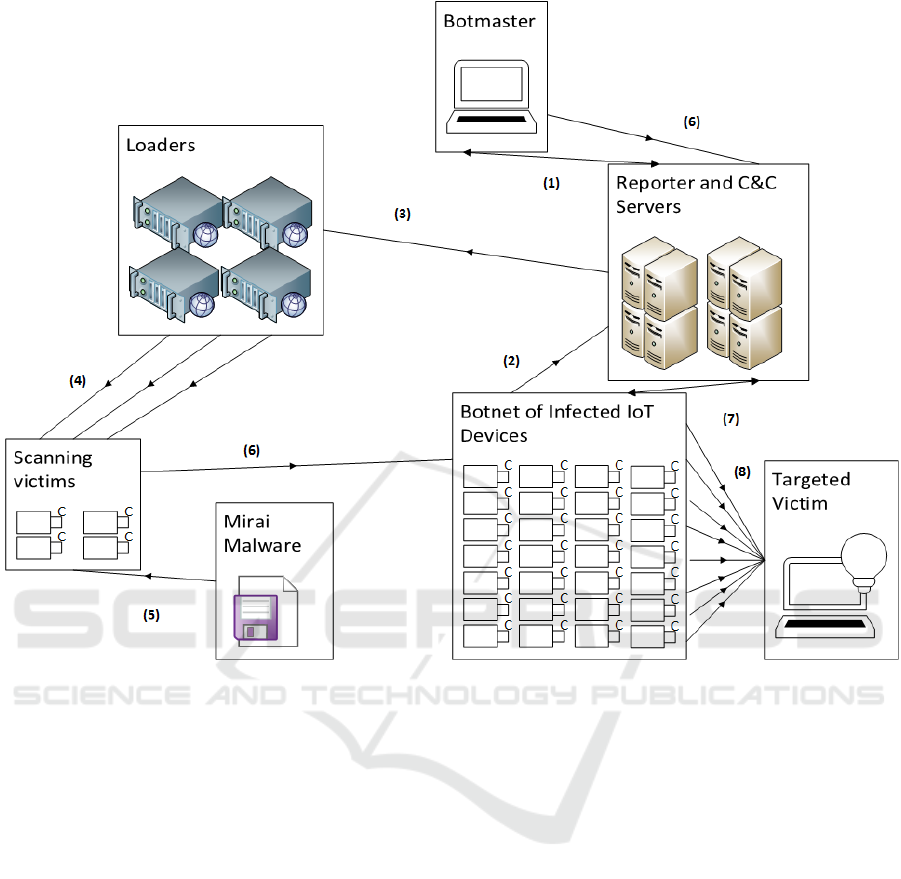

Figure 2: The Mirai Botnet Malware DDoS workﬂow, adapted from Level 3 Threat Research (http://netformation.com/level-

3-pov/how-the-grinch-stole-iot). In (1), the botmaster maintains connection to the reporter server via a TOR connection. In

(2), scan results are sent to the reporter servers. IP addresses of vulnerable IoT devices are sent to loaders in (3). In (4), loaders

log into devices and instruct them to download the Mirai botnet malware. As in structed, the vulnerable IoT devices download

and run the Mirai botnet malware (5) and are conscripted into a Mirai botnet (6). The botnet maintains communication with

the C&C servers in (7) which constantly change their IP addresses. Finally, the Mirai botnet army conducts a DDoS attack,

primarily with TCP and UDP ﬂoods in (8).

4.2.1 Analysis of Mirai Botnet C&C Behavior

The C&C portion of the Mirai malware (Mirai, 2016)

contains code for handling connections, adding new

clients (bots) to the conscripted botnet army, connect-

ing admin consoles, accepting API calls, and crafting

and delivering attacks for bot execution. Its database

is called mirai and server listens for connections on

the loop-back address only, with a default authentica-

tion of root and password. The main.go ﬁle man-

ages initial communication, setup, and handling of in-

coming requests:

1. The C&C server opens up listening ports on port

23 for telnet connections and on port 101 for re-

mote API calls on all IPv4 addresses.

2. A lightweight thread to handle API connections

on port 101 is created.

3. The C&C server goes into an inﬁnite loop waiting

for telnet connections.

4. The botmaster is alerted if the C&C server fails.

4.2.1.1 apiHandler

The apiHandler function (in main.go) uses func-

tionality from api.go to ﬁrst set a timeout for ac-

cepting API commands. Once it has retrieved the

command, the format for an API call embeds the

API user’s key with the command to verify that the

user is allowed access to the API and can request

attacks. Among other processes, it also checks the

users’ key against the database, creates a new attacks,

and queues attack command for delivery to bots. In

api.go, lines 24-30:

this.conn.SetDeadline(time.Now().Add(60 *

time.Second))

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

cmd, err := this.ReadLine()

if err != nil {

this.conn.Write([]byte("ERR|Failed

reading line\r\n"))

return

}

passwordSplit := strings.SplitN(cmd, "|",

Line 52:

atk, err := NewAttack(cmd,

userInfo.admin)

Line 57:

buf, err := atk.Build()

And line 71:

clientList.QueueBuf(buf, botCount, "")

4.2.1.2 NewAttack

NewAttack is a function in the attack.go ﬁle which

is used to parse attack commands received, set at-

tack type and duration, as well as network targets.

NewAttack also has the ability to modify attack be-

havior. From attack.go, we highlight excerpts from

lines 197-316:

func NewAttack(str string, admin int)

(*Attack, error) {

. . .

var atkInfo AttackInfo

if len(args) == 0 {

return nil, errors.New("Must specify

an attack name")

} else {

if args[0] == "?" {

validCmdList := "\033[37;1mAvailable

attack list\r\n\033[36;1m"

for cmdName, atkInfo := range

attackInfoLookup {

validCmdList += cmdName + ": " +

atkInfo.attackDescription + "\r\n"

}

return nil, errors.New(validCmdList)

}

var exists bool

atkInfo, exists =

attackInfoLookup[args[0]]

if !exists {

return nil, errors.New(fmt.Sprintf("\033

[33;1m%s\033[31mis not a valid

attack!",

args[0]))

}

atk.Type = atkInfo.attackID

. . .

}

4.2.1.3 admin.go

admin.go manages authentication and welcomes

users to Mirai’s C&C administration console. This

console provides functionality for the following com-

mands: adduser, botcount, quit, and exit. It car-

ries traces of potential Russian origin within the man-

agement interface, for example its prompt text,

я люблю куриные наггетсы

which translates to ‘I love chicken nuggets’. More

useful Russian strings in the administration console

include,

произошла неизвестная ошибка

which translates to ‘An unknown error occurred’, and

нажмите любую клавишу для выхода

which translates to ‘Press any key to exit’.

4.2.2 Analysis of Mirai Botnet Client Behavior

An analysis of the Mirai source code (Mirai, 2016)

illustrates the client’s behavior and workﬂow as fol-

lows:

1. The Trojan is launched, it immediately removes

its own executable from the disk and blocks SIG-

INT signals.

2. The Mirai malware attempts to open the

watchdog process, speciﬁcally /dev/watchdog

and /dev/misc/watchdog for reading/writing

and disables it.

3. The Mirai Trojan then attempts to obtain the IP

address of its network by sending a request to

Google’s Public DNS server at the IP address

8.8.8.8 on port 53.

4. Mirai next calculates a function from argv[0]

which will return an index in an array of com-

mands to run (an integer from 0-8), and will sub-

sequently open a local socket on the device.

5. Mirai then renames itself (to a random string),

forks a child process, and executes the functions

attack init, killer init, and scanner init,

which are described in detail below.

4.2.2.1 attack init

The function attack init contains structures that

consist of attack handlers. In attack.c, lines 26-41:

add attack(ATK VEC UDP,

(ATTACK FUNC)attack udp generic);

add attack(ATK VEC VSE,

(ATTACK FUNC)attack udp vse);

add attack(ATK VEC DNS,

(ATTACK FUNC)attack udp dns);

IoDDoS â

T The Internet of Distributed Denial of Sevice Attacks - A Case Study of the Mirai Malware and IoT-Based Botnets

add attack(ATK VEC UDP PLAIN,

(ATTACK FUNC)attack udp plain);

add attack(ATK VEC SYN,

(ATTACK FUNC)attack tcp syn);

add attack(ATK VEC ACK,

(ATTACK FUNC)attack tcp ack);

add attack(ATK VEC STOMP,

(ATTACK FUNC)attack tcp stomp);

add attack(ATK VEC GREIP,

(ATTACK FUNC)attack gre ip);

add attack(ATK VEC GREETH,

(ATTACK FUNC)attack gre eth);

//add attack(ATK VEC PROXY,

(ATTACK FUNC)attack app proxy);

add attack(ATK VEC HTTP,

(ATTACK FUNC)attack app http);

return TRUE;

4.2.2.2 killer init

The next function killer init, located in

killer.c, initializes the killer which terminates

Secure Shell (SSH), HTTP, and telnet services and

prevents them from restarting. This same ﬁle also

contains a function called memory scan match that

searches memory for other malware residing on the

system. In killer.c, lines 39-49:

#ifdef KILLER REBIND TELNET

#ifdef DEBUG

printf("[killer] Trying to kill port

23\n");

#endif

if (killer kill by port(htons(23)))

{

#ifdef DEBUG

printf("[killer] Killed tcp\23

(telnet)\n");

#endif

}

And lines 215-221:

if (memory scan match(exe path))

{

#ifdef DEBUG

printf("[killer] Memory scan match

for binary %s\n", exe path);

#endif

kill(pid, 9);

}

4.2.2.3 scanner

init

scanner init initializes the scanner scanner.c,

which generates random IP addresses to scan (with

the exception of those listed in Section 4.2), and con-

tains 62 default username and password sets used to

brute force other devices (scanner.c lines 124-185).

Examples of these (username, password) sets in-

clude:

• (admin, admin), line 127.

• (admin, password), line 136.

• (admin, 1111), line 145.

• (admin1, password), line 156.

• (ubnt, ubnt), line 160.

• (root, user), line 172.

• (admin, pass), line 182.

• (tech, tech), line 184.

4.3 A Potential Vulnerability in the

Mirai Botnet Malware

Interestingly, after reviewing the code for the Mirai

C&C server, there appear to be SQL injection vulner-

abilities within the server code. There is a lack of

input validation on the C&C server code which could

lead to a specially crafted API call to be used to leak

information or gain unauthorized access to the botnet.

5 DEFENDING AGAINST

CONSCRIPTION INTO A

MIRAI IoT-BASED BOTNET

The Mirai malware is designed to conduct wide-

ranging IP scans as it searches for IoT devices. Since

the Mirai malware infects IoT devices that have com-

mon factory default usernames and passwords, the

most obvious method for securing IoT devices is

to change the passwords and/or usernames (Zeifman

et al., 2016). Indeed, if a device is infected with

Mirai then simply shutting it down and restarting it

will disinfect it, however unless the login credentials

are modiﬁed it is almost guaranteed to be reinfected

within a few minutes (Mofﬁtt, 2016; Zeifman et al.,

2016). The United States Computer Emergency Re-

sponse Team recommends taking the following steps

to remove Mirai malware from infected devices (US-

CERT, 2016):

1. Disconnect device from the network.

2. Perform a reboot of the device while disconnected

to clear the malware from the dynamic memory.

3. Ensure that the device password has been changed

from the factory default.

4. Reconnect the device to the network only after re-

booting and ensuring that its password has been

changed.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

There are many preventative measures that can be

taken to strengthen an IoT system’s resistance to Mi-

rai and other malware, assuming that its devices are

not currently infected (US-CERT, 2016):

• Change device passwords before deployment on a

network.

• Update IoT devices with security patches as they

become available.

• Disable Universal Plug and Play on routers unless

necessary.

• Monitor IP ports 2323/TCP and 23/TCP for at-

tempts to gain unauthorized control of devices us-

ing network terminal protocol.

• Monitor port 48101 for suspicious trafﬁc.

Additionally, IoT devices and systems should be pur-

chased from manufacturers and vendors with a repu-

tation for providing secure products. Users and sys-

tem administrators should be aware of the capabili-

ties of devices and systems that they are bringing into

their homes and businesses; this may include medi-

cal devices or vehicles. It must be understood that

if a device uses or transmits data then it may be vul-

nerable to infection. If a device comes with a default

password or an open Wi-Fi connection, these must be

secured by changing the password and only allowing

it to operate on wireless networks with a secure router.

It is speculated that the DDoS attacks—

extraordinarily effective thus far—have been

perpetrated by non-state actors. As more and more

devices are connected to the Internet, the security

vulnerabilities of the IoT ecosystem will multiply

with ever-more devastating consequences. The Mirai

malware has taken advantage of IoT security vulner-

abilities to spectacular effect, but it will certainly not

be not the last malware to do so.

6 CONCLUSION

The Mirai malware is responsible for conscripting at

least 500,000 IoT devices in 164 countries into a bot-

net army and launching DDoS attacks on a cyberse-

curity blog, a DNS provider in the United States, and

numerous targets internationally. These IoT-botnet

armies are capable of launching DDoS attacks that

are larger than ever seen before, with rates exceeding

1 TBps. IoT offers revolutionary advances in many

contexts, from the home to almost every type of busi-

ness, but internet-connected ‘things’ bring security

vulnerabilities as they enter the cyber ecosystem.

This paper discussed the IoT ecosystem and some

of the beneﬁts and vulnerabilities that are unique to

its various environments (e.g., home use versus in-

dustrial use IoT). It discussed botnets and DDoS at-

tacks, giving a taxonomy for DDoS attacks as well

as examples, and using the BlackEnergy malware as

an illustrative example of botnet malware being uti-

lized in a coordinated campaign, before discussing the

DDoS attacks by Mirai malware-infected IoT botnet

armies. We reviewed the Mirai malware family, in-

specting the source code for various processes of both

the C&C and client modules. During our analysis of

the Mirai malware code, we discovered a vulnerabil-

ity to SQL injection attacks which render the botnet

susceptible to a counterattack. We are currently re-

searching the extent of this vulnerability. The Mi-

rai malware is a very recently released malware that

scans IP addresses searching for IoT devices with fac-

tory default usernames and passwords. Because the

vulnerabilities that it seeks out are easily remedied,

IoT devices can be strengthened against it with rela-

tive ease. (However, like BlackEnergy, future variants

of the Mirai malware will likely prove much more dif-

ﬁcult to defend against.)

The IoT ecosystem is so heavily populated with

unsecured devices, and the number of these devices

is expected to grow exponentially over the coming

years, it is therefore reasonable to expect IoT-based

DDoS attacks to become much more commonplace.

Indeed, there is a Twitter feed

which continually

monitors for Mirai botnet attacks worldwide. The

Mirai malware attacks targeted a cybersecurity blog

and a DNS provider, with consequences that were ﬁ-

nancial in nature. It is not unreasonable to anticipate

and prepare for large-scale IoT-based botnet DDoS at-

tacks on critical infrastructure, which would certainly

have more serious and disastrous results.

ACKNOWLEDGEMENTS

This research was funded by the Ofﬁce of Naval Re-

search’s Energy System Technology Evaluation Pro-

gram

. The authors would also like to convey their

gratitude to the Civilian and Uniform leadership at

SPAWAR Systems Center Paciﬁc and the United

States Department of the Navy for their support of

our cybersecurity research efforts.

https://twitter.com/miraiattacks

http://www.aptep.net/partners/estep/

IoDDoS â

T The Internet of Distributed Denial of Sevice Attacks - A Case Study of the Mirai Malware and IoT-Based Botnets

REFERENCES

Amiri, I. S. and Soltanian, M. R. K. (2015). Theoretical and

Experimental Methods for Defending Against DDoS

Attacks. Syngress.

Beel, J. and Prasad, R. (2016). Internet of everything (ioe):

Information technology (it) and operational technol-

ogy (ot). In Proceedings of the 2016 Advanced Ma-

chinery Technology Symposium. American Society of

Naval Engineers.

Bertino, E. and Islam, N. (2017). Botnets and internet of

things security. Computer, 50(2):76–79.

Boyer, S. A. (2009). SCADA: supervisory control and data

acquisition. International Society of Automation.

Boyle, P. (2000). Idfaq: Distributed denial of ser-

vice attack tools: trinoo and wintrinoo. Avail-

able at https://www.sans.org/security-resources/id

faq/distributed-denial-of-service-attack-t ools-trinoo-

and-wintrinoo/9/10 (2016/11/01).

Cruz, T., Queiroz, R., Sim

oes, P., and Monteiro, E. (2016).

Security implications of scada ics virtualization: sur-

vey and future trends. In ECCWS2016-Proceedings fo

the 15th European Conference on Cyber Warfare and

Security, page 74. Academic Conferences and pub-

lishing limited.

Dr.Web (2016). Investigation of

linux.mirai trojan family. Available at

https://st.drweb.com/static/new-www/news/2

016/september/Investigation of Linux.Mirai Tro-

jan family en.pdf (2017/02/21).

Gasti, P., Tsudik, G., Uzun, E., and Zhang, L. (2012). Dos &

ddos in named-data networking. arxive-prints. Tech-

nical report, Tech Rep 1208.0952 v2.

Gayatri, V. and Naidu, K. K. (2015). Resource depletion

attacks in wireless ad-hoc sensor networks. Inter-

national Journal of Innovative Research in Computer

and Communication Engineering, 3(6):81–86.

Gubbi, J., Buyya, R., Marusic, S., and Palaniswami, M.

(2013). Internet of things (iot): A vision, architectural

elements, and future directions. Future Generation

Computer Systems, 29(7):1645–1660.

Hachem, N., Mustapha, Y. B., Granadillo, G. G., and De-

bar, H. (2011). Botnets: lifecycle and taxonomy. In

Network and Information Systems Security (SAR-SSI),

2011 Conference on, pages 1–8. IEEE.

Holm, E. (2016). The role of the refrigerator in identity

crime? Cyber-Security and Digital Forensics, page 1.

Khan, R., Maynard, P., McLaughlin, K., Laverty, D., and

Sezer, S. (2016). Threat analysis of blackenergy mal-

ware for synchrophasor based real-time control and

monitoring in smart grid.

Khattak, S., Ramay, N. R., Khan, K. R., Syed, A. A., and

Khayam, S. A. (2014). A taxonomy of botnet be-

havior, detection, and defense. IEEE communications

surveys & tutorials, 16(2):898–924.

Krebs, B. (2016a). Did the mirai botnet re-

ally take liberia ofﬂine? Available at

https://krebsonsecurity.com/2016/11/did-th e-mirai-

botnet-really-take-liberia-ofﬂine / (2017/02/21).

Krebs, B. (2016b). Krebsonsecurity hit

with record ddos. Available at

https://krebsonsecurity.com/2016/09/krebso

nsecurity-hit-with-record-ddos/ (2016/09/22).

Lee, R. M., Assante, M. J., and Conway, T. (2016). Analysis

of the cyber attack on the ukrainian power grid. SANS

Industrial Control Systems.

Lin, K.-C., Chen, S.-Y., and Hung, J. C. (2014). Botnet de-

tection using support vector machines with artiﬁcial

ﬁsh swarm algorithm. Journal of Applied Mathemat-

ics, 2014.

Loshin, P. (2016). Details emerging on dyn dns

ddos attack, mirai iot botnet. Available

at http://searchsecurity.techtarget.com/news/

450401962/Details-emerging-on-Dyn-DNS-DDoS

-attack-Mirai-IoT-botnet (2016/11/01).

Mirai (2016). Github: Mirai source code. Avail-

able at https://github.com/jgamblin/Mirai-Source-C

ode (2017/02/22).

Mofﬁtt, T. (2016). Source code for mi-

rai iot malware released. Available at

https://www.webroot.com/blog/2016/10/10/so urce-

code-mirai-iot-malware-released/ (2016/11/01).

Nazario, J. (2007). Blackenergy ddos bot analysis. Arbor.

Nazario, J. (2009). Politically motivated denial of service

attacks. The Virtual Battleﬁeld: Perspectives on Cyber

Warfare, pages 163–181.

Newman, L. H. (2016). What we know about fri-

day’s massive east coast internet outage. Available

at https://www.wired.com/2016/10/internet-out age-

ddos-dns-dyn/ (2016/10/21).

Okafor, K., Okoye, J. A., and Ononiwu, G. (2016). Vulnera-

bility bandwidth depletion attack on distributed cloud

computing network: A qos perspective. International

Journal of Computer Applications, 138(7):18–30.

Pultarova, T. (2016a). Cyber security-ukraine grid hack is

wake-up call for network operators [news brieﬁng].

Engineering & Technology, 11(1):12–13.

Pultarova, T. (2016b). Webcam hack shows vulnerabil-

ity of connected devices. Engineering & Technology,

11(11):10–10.

Ragan, S. (2016). Some thoughts on the krebs situa-

tion: Akamai made a painful business call. Available

at http://www.csoonline.com/article/3123797/s ecu-

rity/so me-thoughts-on-the-krebs-situat ion-akamai-

made-a-painful-business-call.ht ml (2016/11/07).

Romero-Mariona, J., Hallman, R., Kline, M., Miguel, J. S.,

Major, M., and Kerr, L. (2016). Security in the indus-

trial internet of things - the c-sec approach. In Pro-

ceedings of the International Conference on Internet

of Things and Big Data - Volume 1: IoTBD,, pages

421–428.

Santanna, J. J., van Rijswijk-Deij, R., Hofstede, R., Sper-

otto, A., Wierbosch, M., Granville, L. Z., and Pras, A.

(2015). Booters—an analysis of ddos-as-a-service at-

tacks. In Integrated Network Management (IM), 2015

IFIP/IEEE International Symposium on, pages 243–

251. IEEE.

Singh, S. and Gyanchandani, M. (2010). Analysis of botnet

behavior using queuing theory. International Journal

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

of Computer Science & Communication, 1(2):239–

241.

Sivaraman, V., Chan, D., Earl, D., and Boreli, R. (2016).

Smart-phones attacking smart-homes. In Proceedings

of the 9th ACM Conference on Security & Privacy in

Wireless and Mobile Networks, pages 195–200. ACM.

Sivaraman, V., Gharakheili, H. H., Vishwanath, A., Boreli,

R., and Mehani, O. (2015). Network-level secu-

rity and privacy control for smart-home iot devices.

In Wireless and Mobile Computing, Networking and

Communications (WiMob), 2015 IEEE 11th Interna-

tional Conference on, pages 163–167. IEEE.

Specht, S. M. and Lee, R. B. (2004). Distributed denial

of service: Taxonomies of attacks, tools, and counter-

measures. In ISCA PDCS, pages 543–550.

Stankovic, J. A. (2014). Research directions for the internet

of things. IEEE Internet of Things Journal, 1(1):3–9.

Symantec (2016). Symantec security response: Iot devices

being increasingly used for ddos attacks. Avail-

able at https://www.symantec.com/connect/blogs/iot

-devices-being-increasingly-used-ddos-atta cks

(2016/11/07).

Thierer, A. and Castillo, A. (2015). Projecting the growth

and economic impact of the internet of things. George

Mason University, Mercatus Center, June, 15.

US-CERT (2016). Alert (ta16-288a): Heightened ddos

threat posed by mirai and other botnets. Available

at https://www.us-cert.gov/ncas/alerts/TA16-2 88A

(2016/10/17).

Voas, J. (2016). Networks of ‘things’. NIST Special Publi-

cation, 800:183.

Woolf, N. (2016). Ddos attack that disrupted internet was

largest of its kind in history, experts say. Avail-

able at https://www.theguardian.com/technology/201

6/oct/26/ddos-attack-dyn-mirai-botnet (2016/10/22).

Zeifman, I., Bekerman, D., and Herzberg, B. (2016). Break-

ing down mirai: An iot ddos botnet analysis. Avail-

able at https://www.incapsula.com/blog/malware-ana

lysis-mirai-ddos-botnet.html (2016/11/01).

Zhu, Z., Lu, G., Chen, Y., Fu, Z. J., Roberts, P., and Han, K.

(2008). Botnet research survey. In 2008 32nd Annual

IEEE International Computer Software and Applica-

tions Conference, pages 967–972. IEEE.

IoDDoS â

T The Internet of Distributed Denial of Sevice Attacks - A Case Study of the Mirai Malware and IoT-Based Botnets
