Understanding the Energy Saving Potential of Smart Scale Selection in

the Viola and Jones Facial Detection Algorithm

Noel P´erez, Sergio Faria and Miguel Coimbra

Instituto de Telecomunicac¸˜oes de Portugal, FCUP, Rua do Campo Alegre 1021/1055, 4169-007 Porto, Portugal

Keywords:

Face Detection, Battery Consumption, Viola and Jones Detector.

Abstract:

In this paper we study the energy saving potential of smart scale selection methods when using the Viola and

Jones face detector running on smartphone devices. Our motivation is that cloud and edge-cloud multi-user

environments may provide enough contextual information to create this type of scale selection algorithms.

Given their non-trivial design, we must ﬁrst inspect its actual beneﬁts, before committing important research

resources to actually produce relevant smart scale selection methods. Our experimental methodology in this

paper assumes the optimum scenario of a perfect selection of scales for each image (drawn from ground

truth annotation, using well-known public datasets), comparing it with the typical multi-scale geometrical

progression approach of the Viola Jones algorithm, measuring both classiﬁcation precision and recall, as well

as algorithmic execution time and battery consumption on Android smartphone devices. Results show that if

we manage to approximate this perfect scale selection, we obtain very signiﬁcant energy savings, motivating

a strong research investment on this topic.

1 INTRODUCTION

The problem of face detection has been considered as

one of the most important topics in computer vision

during the past 20 years. It has been widely studied by

the scientiﬁcs due to its application on face recogni-

tion (Taigman et al., 2014), face tracking (Kalal et al.,

2010), facial shape analysis (Chen et al., 2014) as well

as for facial behavioral analysis (Fu et al., 2010).

At present, facial image processing constitutes

a powerful resource for researchers involved in

the detection of potential psychiatric disorders (e.g.

melancholic depression) (Hyett et al., 2016), the

recognition of surgically altered faces (Bhatt et al.,

2013) and emotion detection in educational environ-

ments (Saneiro et al., 2014). These potential scenar-

ios could be beneﬁted with the use of facial detection

algorithms located on mobile device clouds (Li et al.,

2015). Two beneﬁts of using this type of cloud are re-

lated to (1) more storage and processing capacity and

(2) minimization of the mobile’s energy consumption

(e.g. since the prior knowledge of the image details

are shared among all nodes, the detector performance

could be optimized). However, those beneﬁts imply

the use of satisfactory cloud ofﬂoading strategies to

mitigate the issue of limited resources of mobile de-

vices (Barbera et al., 2013).

Although the majority of mobile energy optimiza-

tion research in the software layer have been focused

in cloud ofﬂoading (Khan, 2015) (Kwon and Tilevich,

2013), the algorithm complexity of implemented apps

deserve a special attention as well. The complexity of

a face detection app depends on the strategy to fol-

low (the goal) and the available resources in the host-

ing platform. Usually, these apps sacriﬁce accuracy

computations in order to avoid high-level battery con-

sumption or overheating (Oneto et al., 2015). Thus,

the implementation of face detection apps with low

battery consumption constitutes a challenging task.

After the seminal work of Viola and Jones

(VJ) (Viola and Jones, 2001), many face detectors

have been proposed using different sets of features.

In (Viola et al., 2003) and (Li et al., 2002), they used

a variation of Haar-like features for multi-view face

detection by capturing non-symmetrical details and

diagonal structures in the image. In (Zhang et al.,

2007), the detector used a set of multi-block local bi-

nary patterns features for capturing large scale struc-

tures. The evaluated set of features was 1/20 smaller

than Haar-like features for a basic resolution of 20x20

pixels. Moreover, in (Meynet et al., 2007), the use

of anisotropic Gaussian ﬁlters and its ﬁrst derivative

enabled the weak classiﬁer to capture contour singu-

larities with a smooth low resolution and, to approx-

122

Perez N., Faria S. and Coimbra M.

Understanding the Energy Saving Potential of Smart Scale Selection in the Viola and Jones Facial Detection Algorithm.

DOI: 10.5220/0006247501220127

In Proceedings of the 10th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2017), pages 122-127

ISBN: 978-989-758-215-8

 2017 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

imate the edge transition in the orthogonal direction

respectively. The introduction of speeded up robust

features, logistic regression based weak classiﬁer and

the area under receiver operating curve based crite-

rion (instead of detection rate and false positive rate)

produced a faster convergencein the detector by using

fewer cascade stages (cascade optimization) (Li et al.,

2011).

Despite the rapid growth of face detection ap-

proaches, the VJ detector (Viola and Jones, 2001)

arises as the most intuitive implementation for mobile

devices because of its fast performance and low al-

gorithm complexity. However, this detector explores

several pre-computed scales depending on the im-

age’s resolution, given its absence of prior knowledge

and context about the image to be processed. This ex-

cellent ability to adapt to any image comes with the

cost of processing many more scales than the ones

relevant for each speciﬁc image, leading to exces-

sive battery consumption that could be mitigated via

a smarter, context informed scale-selection. Rich in-

formation environments such as cloud or edge-cloud

ones associated with speciﬁc events, motivate us to

think that when a photo is actually taken, couldn’t we

exploit context information from nearby smartphones

taking photos, that give us insights about what to ex-

pect from this new photo? If so, we need to research

smart scale selection algorithms, based on informa-

tion obtained from this cloud environment, which is a

non-trivial task. Is it worth pursuing this goal? Will

the battery savings be relevant enough to justify all

this research investment?

In this paper we will address this research ques-

tion.

The reminder of the work is ordered as follows:

Section II describes the materials and methods of our

experiments, followed by its results and their asso-

ciated discussion on Section III. Finally, conclusions

are drawn in Section IV.

2 MATERIALS AND METHODS

2.1 Datasets

The public WIDER FACE dataset is a large face de-

tection benchmark dataset with 32,203 images and

393,703 face annotations. It presents a high degree

of variability in scale, pose, occlusion, expression, ap-

pearance and illumination. In this dataset, all the faces

are well-documented according to its bounding box

(the detection ground truth). The dataset distribution

is based on 61 event classes (Yang et al., 2016).

For our detection purposes, we selected two dif-

ferent datasets from the WIDER FACE set of datasets.

Both of these are mostly formed with images contain-

ing frontal faces from different event classes. The ﬁrst

dataset named DS1 is formed by 55 images and con-

tains a total of 3415 small faces representing the large

group, group team, group, meeting, press conference,

cheering, award ceremony, demonstration protesters

and family group event classes (see Figure 1 a).

Meanwhile the second dataset called DS2 is formed

by 55 images and has a total of 173 medium-large

faces belonging to the waiter, couple, family group,

large group and group event classes (see Figure 1 b).

Figure 1: Image examples from DS1 and DS2 datasets, a)

Group 12 108

and b)

Family Group 20 239

2.2 Viola and Jones Detector

Since 2001, the VJ face detector (Viola and Jones,

2001) has been consideredthe most popular algorithm

in the area of face detection. It implements three main

modules that enable it to perform as a real-time face

detector: the integral image consisting of a fast and

efﬁcient computation of the sum of values in a rect-

angle subset of a grid; the classiﬁer learning with ad-

aboost (adaptive boosting), which ﬁnds highly accu-

rate hypothesis by combining many “weak” hypothe-

sis (each with moderate accuracy) and, the attentional

cascade structure (viewed as a degenerate decision

tree in which each node contains a set of weak clas-

siﬁers), which rejects most of the negative examples

(in early stages) while keeping almost all the posi-

tive examples (in late stages). This detector has pal-

pable limitations such as: the cascade is constructed

manually, thus the threshold (for early rejections) and

the number of weak classiﬁers per node is also de-

ﬁned manually and, the training phase for a good face

detector can take weeks or even more time (depend-

ing on hardware conditions) for ﬁne-tuning. Never-

theless, the major concern of implementing this de-

tector on mobile devices is the exhaustive scales ex-

ploration, which dramatically increases the execution

time and battery consumption.

Understanding the Energy Saving Potential of Smart Scale Selection in the Viola and Jones Facial Detection Algorithm

123

2.3 Smart Scale Selection Method

The smart scale selection (SSS) method could be con-

sidered as an important module in the framework of

the VJ face detector due to the necessity of saving

energy on mobile devices. The concept behind this

method is a smart strategy able to determine the rel-

evant scale for each speciﬁc image independently of

the hosting platform.

The standard architecture of the VJ detector uses a

typical multi-scale geometrical progression approach

for performingthe face detection task. Thus, the taken

picture is processed by the detector until the last scale

is reached, leading to an excessive battery consump-

tion and execution time (see Figure 2 a). With the in-

troduction of the SSS method is possible to use the VJ

detector in a single device with only one scale (the rel-

evant one) for accomplishing the face detection task

and both the battery consumption and execution time

could be reduced.

In a more complex scenario such as a cloud

or edge-cloud where nearby smartphones are tak-

ing photos and sharing insights about them, the SSS

method performs the best scale selection by tak-

ing advantages of the current metadata (images, in-

dexes, GPS location, devices in the neighborhood,

etc.) that are being shared on these environments. As

it is shown in Figure 2 b) the SSS method receives

the shared metadata in the edge-cloud and process

them to determine the best performance scale (out-

put), which will be returned and shared throughout

the edge-cloud to all connected devices as well. Then,

each device will perform the face detection task by us-

ing the VJ detector with only one scale (the one shared

in the edge-cloud) instead of the whole pre-computed

set of scales (as in the Figure 2 a).

Some advantages of using the SSS method are re-

lated to: (1) reducing the number of the detector it-

erations; (2) minimizing the execution time per im-

age and, (3) maximizing the battery life of mobile

devices. Although these advantages provide an efﬁ-

cient way for saving energy on mobile devices, there

is a trend to lose detection precision and recall due to

the own nature of the method (avoids the exhaustive

scales exploration).

2.4 Experimental Methodology

This section outlines the experimental evaluation of

the VJ detector with the SSS method through the

consideration of an optimum scenario where the SSS

method makes a perfect selection of scales for each

image (the scales were selected from the ground truth

annotation of the datasets). Then, we compared it

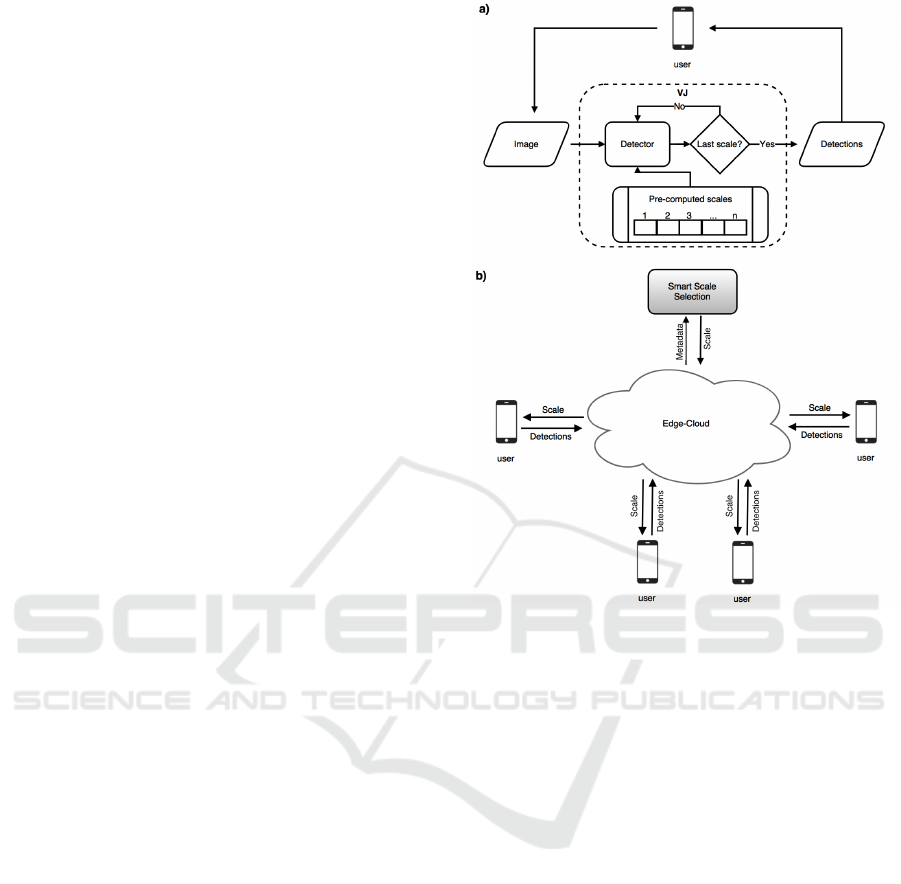

Figure 2: The VJ face detection framework a) in a single

device, b) in the edge-cloud with the SSS method.

against the standard VJ detector following the over-

all procedure:

• Applying the standard VJ detector and the VJ de-

tector with the SSS method to the DS1 and DS2

previously formed datasets.

• Validating the detection results and energy con-

sumption of both detectors according to the se-

lected ground truth and energy measurement pro-

tocol respectively.

• Establishing the comparative analysis of obtained

results according the mean of precision (mP), re-

call (mR), execution time (mET) and battery con-

sumption (mBC) metrics. All comparisons were

based on the Wilcoxon statistical test (Hollander

et al., 2013) with a conﬁdence level of alpha=0.05

to assess the meaningfulness of differences be-

tween both detectors.

2.4.1 Ground Truth Selection

The experimental datasets present a high degree of

variability in terms of detection scales, which could

lead to unfair detection results because of the min-

imum scale used by the detectors (24x24 pixels).

BIOIMAGING 2017 - 4th International Conference on Bioimaging

124

Thus, we implemented a procedure to ﬁnd the bor-

der line between the detector minimum scale and the

ground truth set by considering two variables: the di-

mension and area of the bounding box.

The procedure started by (1) removing the bound-

ing boxes with any dimension lesser than 10 pixels;

(2) removing the boundingboxes with area lesser than

100 square pixels; (3) validating the detection results

against the two new ground truth sets (outputs of the

steps 1 and 2) and, (4) selecting the ground truth

set that maximizes the detector’s precision and recall.

This procedure was repeated two more times by set-

ting the dimension and area to 15, 20 pixels and 225,

400 square pixels respectively. The optimal ground

truth set for our experiment was the one formed by

bounding boxes with an area equal and greater than

225 square pixels.

2.4.2 Detector Conﬁguration and

Implementation

We used the tree-based 20x20 gentle adaboost frontal

face detector kernel from the OpenCV project with

two changes made in the implementation as follows:

(1) the base scale and increment parameters were set

to 1 for producing linear integer scales instead of

ﬂoating point scales and (2) the displacement of the

detector was changed from a multiplicative increment

to additive one, for reducing the window’s step dur-

ing the displacement. The face detector app was de-

veloped in JAVA programming language and installed

in a Samsung SM-T530 tablet with Android 5.0.2 and

battery capacity of 2100 mAh (estimated by the de-

vice).

2.4.3 Energy Measurement Protocol

The Android Debug Bridge service (adb command

line tool) (Developers, 2014) facilitated us a satisfac-

tory way to recover two logs from the mobile device.

The BatteryStats log, containing important stats re-

garding the battery consumption of every single pro-

cess (for our purpose, we took only the information

from the process that executed the detector) and the

ProcessActivity log, containing stats about the execu-

tion time (in nanoseconds) of the detector, as well as

the number of detections per image. Both logs were

employed for further computationof the the execution

time and battery consumption scores.

3 RESULTS AND DISCUSSION

According to the experimental methodology section,

a total of 110 images containing 3588 faces were ana-

lyzed using the the VJ detector with the SSS method,

which used the scale 1 and 8 for processing the small

(DS1) and medium-large (DS2) datasets respectively.

The straightforward statistical comparison based on

four metrics over 100 runs exhibited interesting re-

sults for both datasets.

3.1 Performance on Small Faces Dataset

In this dataset, the VJ detector with the SSS method

was statistically better in precision than the standard

VJ detector (p<0.01), obtaining a value of mP=0.92

against mP=0.87 respectively. However, it was statis-

tically lower in recall (p<0.01), reaching a value of

mR=0.75 against mR=0.8 in the standard VJ detector.

Regarding the execution time, the VJ detector

with the SSS method reached a mean value of

mET=14.03 minutes versus the mET=21.71 minutes

needed by the standard VJ detector for processing the

whole dataset (see Figure 3). The difference value

of 7.68 minutes between both results was statistically

signiﬁcant (p<0.01).

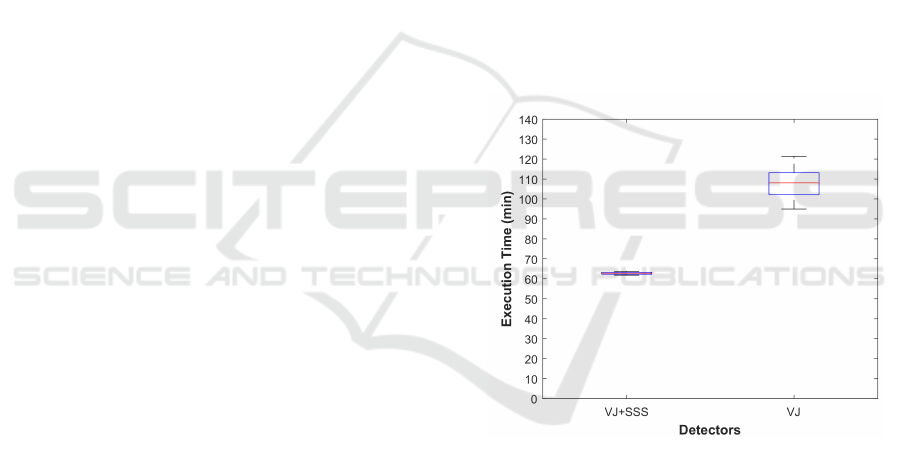

Figure 3: Detectors performance according to the mean of

execution time on DS1 dataset.

Concerning the battery consumption, the VJ de-

tector with the SSS method consumed a mean value

of mBC=18.14 mAh respect to the mBC=22.20 mAh

spent by the standard VJ detector (see Figure 4).

These results did not provide statistical evidence of

any difference between both detectors (p=0.01).

3.2 Performance on Medium-large

Faces Dataset

The best precision in this dataset was reached by the

VJ detector with the SSS method (with scale 8), ob-

taining a mP=1 score versus mP=0.24 reached by the

standard VJ detector. The score difference between

Understanding the Energy Saving Potential of Smart Scale Selection in the Viola and Jones Facial Detection Algorithm

125

Figure 4: Detectors performance according to the mean of

battery consumption on DS1 dataset.

both detectors was statistically signiﬁcant (p<0.01).

In term of recall there was also signiﬁcant difference

between both detectors performance. The VJ detec-

tor with the SSS method touched a mR=0.71 versus

mR=0.86 stretched by the standard VJ detector.

Regarding the execution time, the faster detector

was the VJ with the SSS method, reaching a mean

value of mET=0.94 minutes against mET=32.43 ob-

tained by the standard VJ detector (see Figure 5). The

difference between both detectors performance was

statistically signiﬁcant (p<0.01).

Figure 5: Detectors performance according to the mean of

execution time on DS2 dataset.

Concerning the battery consumption, the VJ de-

tector with the SSS method turned out in a mean

value of mBC=7.22 mAh versus mBC=46.36 mAh

consumed by the standard VJ detector (see Figure 6).

The high difference between both results was consid-

ered statistically signiﬁcant (p<0.01).

These results were partially expected since the VJ

detector with the SSS method explored only one scale

Figure 6: Detectors performance according to the mean of

battery consumption on DS2 dataset.

per dataset (scale 1 and 8 for DS1 and DS2 datasets

respectively). Thus, it is possible to reach higher

precision scores because of the lower introduction of

false positive detections. It is possible to decrease the

execution time and battery consumption because of

the fewer number of the detector iterations. However,

it is not possible to reach higher recall scores due to

the fewer number of true positive detections (based

on one scale). It should be noted that the similar val-

ues of battery consumption obtained on DS1 dataset

could be related to the particularity of this dataset and

the detectors iterations. Since this dataset is formed

by small faces, both detectors will interact more times

because of the smaller scales and the amount of bat-

tery consumed will increase too.

Likewise in DS1 dataset, the obtained results in

DS2 dataset were fully expected. With the excep-

tion of the recall metric, the VJ detector with the SSS

method statistically surpassed the standard VJ detec-

tor. This situation could be related to the fact of this

dataset being formed by medium-large faces, thus it

is reasonable to expect better performance when us-

ing large scales. In this case, the VJ detector with

the SSS method considered the scale 8 while the stan-

dard VJ detector had to explore several pre-computed

scales before and after the optimal one. This exhaus-

tive exploration process of the standard VJ detector

led to an increment in the precision, execution time

and battery consumption metrics as well.

4 CONCLUSIONS

The main contribution of this work is the study of

the energy saving potential of a smart scale selection

method when using the VJ face detector running on

mobile devices. According to the four evaluated met-

BIOIMAGING 2017 - 4th International Conference on Bioimaging

126

rics, the VJ detector with the SSS method was statisti-

cally better than the standard VJ detector in precision,

execution time and battery consumption and slighly

lower in recall on both datasets. These results show

that if we manage to approximatethis perfect scale se-

lection, we obtain very signiﬁcant energy savings on

limited resources devices. Thus it is worth to invest

research time on this topic.

Future work will be aimed to design and develop

smart scale selection methods.

ACKNOWLEDGEMENTS

The authors want to thank the “Instituto de

Telecomunicac¸˜oes” for the ﬁnancial support

through the HYRAX project (REF: CMUP-

ERI/FIA/0048/2013).

REFERENCES

Barbera, M. V., Kosta, S., Mei, A., and Stefa, J. (2013). To

ofﬂoad or not to ofﬂoad? the bandwidth and energy

costs of mobile cloud computing. In INFOCOM, 2013

Proceedings IEEE, pages 1285–1293. IEEE.

Bhatt, H. S., Bharadwaj, S., Singh, R., and Vatsa, M.

(2013). Recognizing surgically altered face images

using multiobjective evolutionary algorithm. IEEE

Transactions on Information Forensics and Security,

8(1):89–100.

Chen, D., Ren, S., Wei, Y., Cao, X., and Sun, J. (2014).

Joint cascade face detection and alignment. In Euro-

pean Conference on Computer Vision, pages 109–122.

Springer.

Developers, A. (2014). Android debug bridge.

https://developer.android.com/studio/command-

line/adb.html.

Fu, Y., Guo, G., and Huang, T. S. (2010). Age synthe-

sis and estimation via faces: A survey. IEEE trans-

actions on pattern analysis and machine intelligence,

32(11):1955–1976.

Hollander, M., Wolfe, D. A., and Chicken, E. (2013). Non-

parametric statistical methods. John Wiley & Sons.

Hyett, M. P., Parker, G. B., and Dhall, A. (2016). The utility

of facial analysis algorithms in detecting melancho-

lia. In Advances in Face Detection and Facial Image

Analysis, pages 359–375. Springer.

Kalal, Z., Mikolajczyk, K., and Matas, J. (2010). Face-tld:

Tracking-learning-detection applied to faces. In 2010

IEEE International Conference on Image Processing,

pages 3789–3792. IEEE.

Khan, M. A. (2015). A survey of computation ofﬂoading

strategies for performance improvement of applica-

tions running on mobile devices. Journal of Network

and Computer Applications, 56:28–40.

Kwon, Y.-W. and Tilevich, E. (2013). Reducing the en-

ergy consumption of mobile applications behind the

scenes. In ICSM, pages 170–179. Citeseer.

Li, J., Peng, Z., Xiao, B., and Hua, Y. (2015). Make smart-

phones last a day: Pre-processing based computer vi-

sion application ofﬂoading. In Sensing, Communi-

cation, and Networking (SECON), 2015 12th Annual

IEEE International Conference on, pages 462–470.

IEEE.

Li, J., Wang, T., and Zhang, Y. (2011). Face detection using

surf cascade. In Computer Vision Workshops (ICCV

Workshops), 2011 IEEE International Conference on,

pages 2183–2190. IEEE.

Li, S. Z., Zhu, L., Zhang, Z., Blake, A., Zhang, H., and

Shum, H. (2002). Statistical learning of multi-view

face detection. In European Conference on Computer

Vision, pages 67–81. Springer.

Meynet, J., Popovici, V., and Thiran, J.-P. (2007). Face de-

tection with boosted gaussian features. Pattern Recog-

nition, 40(8):2283–2291.

Oneto, L., Ghio, A., Ridella, S., and Anguita, D. (2015).

Learning resource-aware classiﬁers for mobile de-

vices: from regularization to energy efﬁciency. Neu-

rocomputing, 169:225–235.

Saneiro, M., Santos, O. C., Salmeron-Majadas, S., and Bot-

icario, J. G. (2014). Towards emotion detection in ed-

ucational scenarios from facial expressions and body

movements through multimodal approaches. The Sci-

entiﬁc World Journal, 2014.

Taigman, Y., Yang, M., Ranzato, M., and Wolf, L. (2014).

Deepface: Closing the gap to human-level perfor-

mance in face veriﬁcation. In Proceedings of the IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 1701–1708.

Viola, M., Jones, M. J., and Viola, P. (2003). Fast multi-

view face detection. In Proceedings of the IEEE Con-

ference on Computer Vision and Pattern Recognition.

Citeseer.

Viola, P. and Jones, M. (2001). Rapid object detection us-

ing a boosted cascade of simple features. In Proceed-

ings of the IEEE Conference on Computer Vision and

Pattern Recognition, volume 1, pages I–511–I–518.

IEEE.

Yang, S., Luo, P., Loy, C. C., and Tang, X. (2016). Wider

face: A face detection benchmark. In Proceedings of

the IEEE Conference on Computer Vision and Pattern

Recognition.

Zhang, L., Chu, R., Xiang, S., Liao, S., and Li, S. Z. (2007).

Face detection based on multi-block LBP represen-

tation. In International Conference on Biometrics,

pages 11–18. Springer.

Understanding the Energy Saving Potential of Smart Scale Selection in the Viola and Jones Facial Detection Algorithm

127
