Optimized Non-visual Information for Deep Neural Network in Fighting

Game

Nguyen Duc Tang Tri, Vu Quang and Kokolo Ikeda

School of Information Science, JAIST, 1-1 Asahidai, 923-1292, Nomi, Ishikawa, Japan

Keywords:

Deep Learning, Fighting Game, Convolutional Neural Network.

Abstract:

Deep Learning has become most popular research topic because of its ability to learn from a huge amount of

data. In recent research such as Atari 2600 games, they show that Deep Convolutional Neural Network (Deep

CNN) can learn abstract information from pixel 2D data. After that, in VizDoom, we can also see the effect of

pixel 3D data in learning to play games. But in all the cases above, the games are perfect-information games,

and these images are available. For imperfect-information games, we do not have such bit-map and moreover,

if we want to optimize our model by using only important features, then will Deep CNN still work? In this

paper, we try to conﬁrm that Deep CNN shows better performance than usual Neural Network (usual NN) in

modeling Game Agent. By grouping important features, we increase the accuracy of modeling strong AI from

25.58% with a usual neural network to 54.24% with our best CNN structure.

1 INTRODUCTION

Nowadays with the explosion of data, Deep Learning

has become one of the most popular research ﬁelds

with its efﬁcient in modeling and learning from data.

When we talk about Deep Learning, it means we talk

about the neural network with many layers and their

structure (how neurons in one layer connect to the

ones in other layers). Based on the problem, we have

to choose the ﬁttest structure to solve it. For example,

in image processing, for MNIST dataset-digit number

from ’0’ to ’9’ (Nielsen, 2015) and CIFAR 10-subset

of tiny image dataset (Krizhevsky et al., 2012), Deep

Convolutional Neural Network (Deep CNN) are cho-

sen and shows the good performance. In game infor-

matics, some video games which can be represented

as a bitmap (image) or some board games, Deep CNN

are also chosen as an effective approach. But the

question why does CNN work is still a mystery, some-

how when we group the neighborhood neuron to-

gether by a window and slide this window through

the image (we usually call it ﬁlter) we get better in-

formation about this image.

Even when DeepMind-Google published their re-

search (Atari 2600 games) and claimed that they suc-

ceeded in training Deep CNN as a network structure

with Q-learning algorithm, they only conﬁrmed that

using a Deep CNN to represent a Q-function is bet-

ter than a usual Q-Learning (Mnih et al., 2015). After

that, Kapathy in his research with Pong-game (Karpa-

thy, 2016), proved a usual neural network (one input

layer, one hidden layer, and one output layer) can also

be trained by a more general algorithm called Policy

Gradient. There has been no work compare the per-

formance of Deep CNN and usual neural network in

case inputs are features instead of an image.

In this research, we do our experiment with the

ﬁghting game and we select FightingICE, an environ-

ment developed and maintained by Intelligent Com-

puter Entertainment Lab, Ritsumeikan University (Lu

et al., 2013). In FightingICE environment, images of

the game are not available. Instead, AIs will receive

features such as hitpoint, energy level, or in-game po-

sitions as input. That information is necessary for our

experimental purposes. We want to verify the effec-

tiveness of position of features when they are used as

input in a convolutional neural network.

2 RELATED WORKS

In this section, we introduce related works using CNN

in modeling and training strong AI.

2.1 CNN in Modeling Strong AI

Modeling a strong AI is a difﬁcult task because it

requires a huge dataset and careful optimization of

many parameters. The more actions that AI can per-

676

Duc Tang Tri N., Quang V. and Ikeda K.

Optimized Non-visual Information for Deep Neural Network in Fighting Game.

DOI: 10.5220/0006248106760680

In Proceedings of the 9th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2017), pages 676-680

ISBN: 978-989-758-220-2

form the more difﬁculty we get. In particular, in

the game Go, it seems impossible for researchers to

model and predict the next move of the opponent.

But, with Deep CNN, ﬁnally, researchers are suc-

ceeded in that hard task. Christopher Clark used

81,000 professional games dataset and an average net-

work structure (four convolutional layers, one fully-

connected layer) and he gets a good accuracy 41%

in predict the next move (Clark and Storkey, 2014).

After that, DeepMind even did the impossible work

when creating the strong AI AlphaGo that defeat the

human champion. In supervised learning step, Al-

phaGo used 13 layers, 30 million samples, training

by 200 GPUs in 2 weeks and get an amazing accu-

racy 57% (Silver et al., 2016).

2.2 CNN in Training AI via

Reinforcement Learning

The results in Atari 2600 games show that CNN

works quite well in 2D games. Taking an 84x84x4

color image as an input, the agent can learn to distin-

guish many different states. It also has the ability to

evaluate how good a state is by calculating a ’quality’

base on the pair state-action-value. As it is successful,

DeepMind even copyrights the algorithm as the name

Deep Q-Network.

After that, in research with Doom game, Micha

Kempka and his team conﬁrm that CNN also works

well in 3D games. Using Deep Q Network, the agent

can be trained from an input image that contains depth

information, and it can clear many scenarios from

easy to hard smoothly (Kempka et al., 2016).

But, until now, there have no studies about using

features instead of pixel image for the input of Deep

CNN. The current hypothesis is that the relationship

of neighboring pixels contains high-level information

that can make our model better if we group them to-

gether by using a window.

3 GROUPING AND LOCATING

FEATURES IN CNN

In image processing, dividing a big image into many

sub-images is a common technique. For each sub-

image, we can extract some important local features.

This is the background knowledge for convolutional

neural network. By using a window slide from left

to right, from top to bottom through the image, CNN

can learn local information. Then, this information

is generalized in later layers to get a deeper under-

standing of the image. For example in Figure 1, CNN

can learn to distinguish the image of digit number ’0’

from other numbers by its curve.

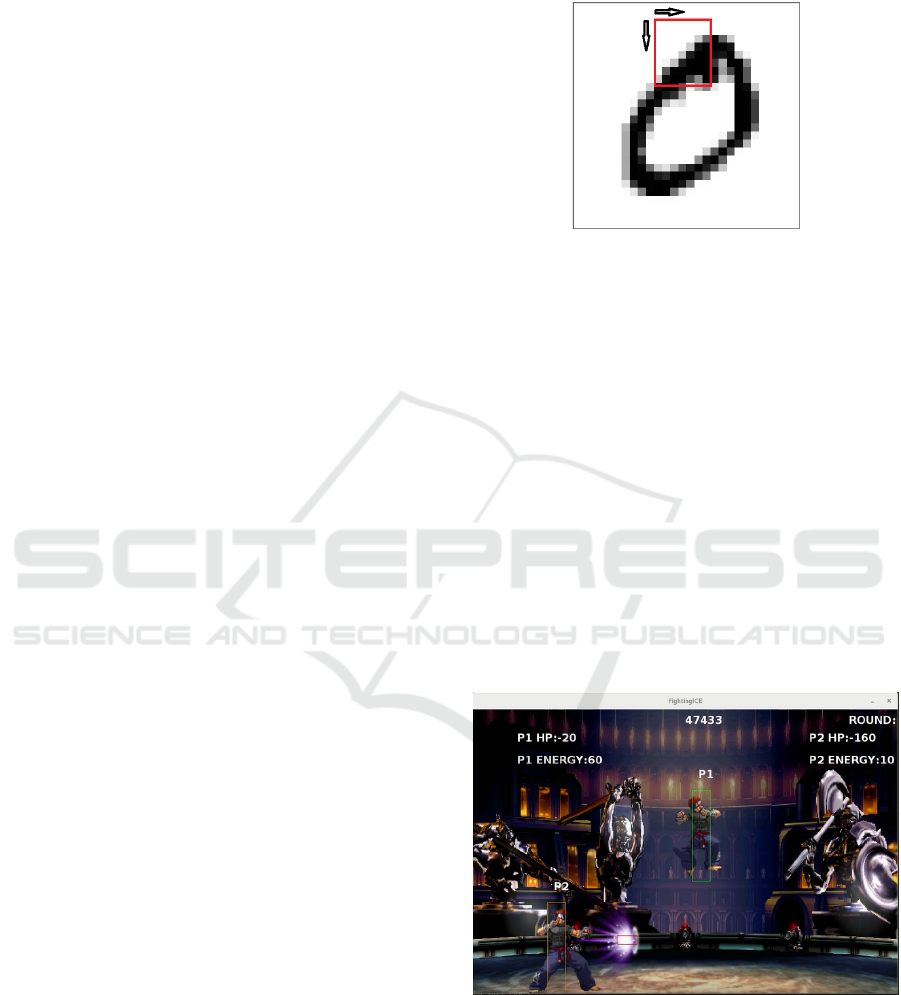

Figure 1: A window is a small sub-image. A CNN can learn

the curve of digit number ’0’ by sliding the window through

the image.

However, in the ﬁghting game, we have stand-

alone features which contain ﬁxed information. For

example, ’hitpoint’ indicates the health of characters,

’energy’ indicates the ability to use special skills, ’dis-

tance’ may indicate safety level (the further the dis-

tance between our character and opponent’s, the safer

our character gets) etc. When we combine some of

these features, we can get rules that strongly effective

in decision making. For example, if we combine ’dis-

tance’ and ’energy’ we can get some rules like this:











throw energy, if distance > 300 & energy > 60

normal kick, if distance < 300 & energy < 60

hard kick, if distance < 300 & energy > 60

jump, otherwise

Figure 2: Player 2 (P2) is a rule-based AI, when all condi-

tions are satisﬁed, it throw a energy ball to player 1 (P1).

Such combinations as the example in Figure 2 are

very popular in rule-based AIs. If features have a

strong relationship, we can make strong rules, other-

wise, the rule becomes weaker. Imagine rules com-

bined ’energy’ and ’size of character’, this strange

combination would make the agent act clumsily.

Optimized Non-visual Information for Deep Neural Network in Fighting Game

677

We hypothesize that the connection between rel-

ative features in Fighting game is similar to the re-

lation of neighboring pixels in an image. The nearer

neighboring pixels have strong connections, while the

further neighboring pixels have weaker or no connec-

tion to others. If grouping pixels help to improve the

performance of modeling strong AI then grouping rel-

ative features could also work. Although usual neural

network has the ability to combine these features if

we use multiple layers, we can not control which fea-

ture would combine with others because all neurons

in one layer are fully-connected with next layer. In

those networks, strange connections like ’energy’ and

’size of character’ in the previous example are redun-

dant.

By using CNN, we can reduce the numbers of in-

effective connections, and put features that we need

to a group. This idea can be implemented simply by:

• Represent input feature as a grid

• Find some important features and put them in a

group by using a window

• When sliding the window, make sure the window

always contain such important feature. This leads

us to duplicate the important feature.

4 EXPERIMENTS

4.1 Dataset

We collect 560 games between top 3 players of Fight-

ing AI Competition in 2015. Each game contains

3 rounds, each round last 60 seconds, and there are

60 frames per second. In other words, we have

560x3x60x60 = 6,048,000 pairs of state-action. We

use 70% for training and 30% for validating. From

FightingICE environment, we get information from

our character and the opponent’s character such as

hitpoint, energy, the location of characters, size of

characters, etc. Totally, we have 15 features from our

character and 15 features from the opponent, then we

compute 5 more important relative features such as

distance, difference in hitpoint, difference in energy

and 2 relative positions. Using this dataset, we try to

model the next move of the top 3 strong AIs.

4.2 Experimental Setup and Results

Since FightingICE is written in Java, we have to write

a short description in Java to get the dataset and save

it in CSV format. After that, we build our neuron

networks in Python with supported from two famous

libraries: Numpy and Theano. We also use GPU

GTX970 to run experiments.

In the ﬁrst experiment, we use a usual neural net-

work setting with 3 layers: one input layer, one hid-

den layer, and one output layer. The input layer has 35

neurons (because we have 35 features), hidden layer

has 100 neurons and output layer has 56 neurons (be-

cause our agent can perform 56 actions). Training this

network, we get a model which can archive an accu-

racy of 19.45% when predicting the next move. Tun-

ing the number of neuron in hidden layer, we get the

highest accuracy is 22.42%.

In the second experiment, we use a usual neu-

ral network setting with 4 layers: one input layer,

two hidden layers, and one output layer. This setting

based on the well-known fact that usual two hidden

layer networks have higher expressiveness than one

hidden layer. Training this network, we get a model

which can archive an accuracy of 25.38% (with 1000

neurons per hidden layer).

In the third experiment, we use a naive Deep CNN

setting: represent 35 features as a 5x7 grid input,

one convolutional layer with 20 ﬁlters size 2x2 stride

length 1, one fully-connected layer and one softmax

layer (Figure 3). Training this network, we get a

model which can archive an accuracy of 33.59%. It

is reasonable because the location of features are se-

lect at random. Some features which are grouped to-

gether may have strong relationships. As a result, our

model increased performance slightly compare with

usual NN in Table 1

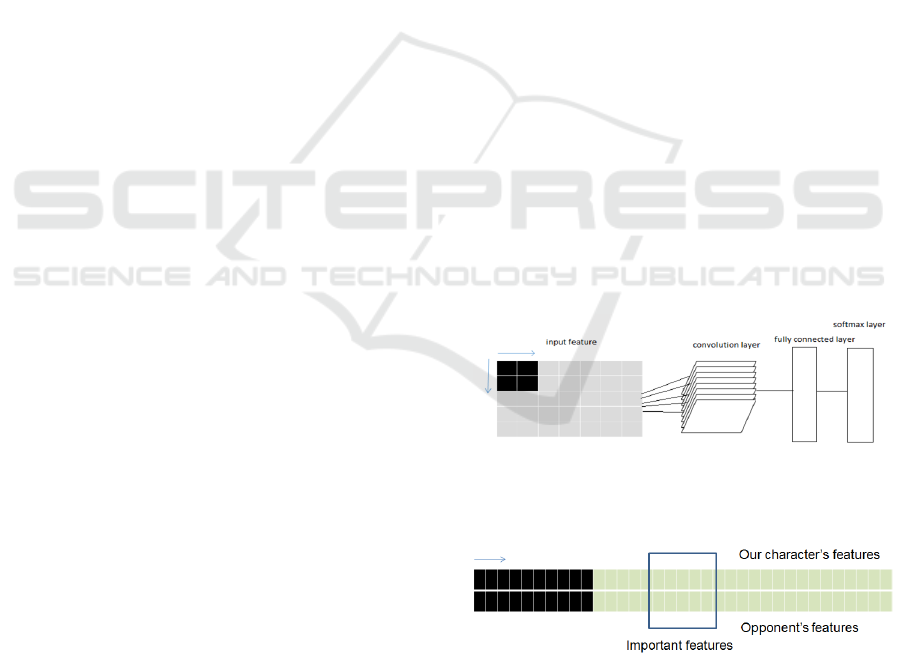

Figure 3: Naive CNN structure with 5x7 grid input, follow

by one convolutional layer, one fully-connected layer and

one softmax layer.

Figure 4: The structure of CNN in experiment 4. Infor-

mation of our character and opponent’s are separated: our

information is at the top row, opponent’s information is at

the bottom row.

In the fourth experiment, we improve our model

by separating information of our character and op-

ponent’s character (Figure 4). We duplicate all the

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

678

Table 1: Summary of our experimental results. The optimized CNN structure is clearly better than others and signiﬁcantly

better than a usual neural network.

input structure training time (min) accuracy

usual NN one-layer

35 features 1 fully connected-100 neurons 26.61 19.45%

35 features 1 fully connected-200 neurons 30.91 18.80%

35 features 1 fully connected-400 neurons 45.24 20.86%

35 features 1 fully connected-1000 neurons 83.36 22.42%

usual NN two-layer

35 features 2 fully connected-100 neurons 36.92 20.97%

35 features 2 fully connected-200 neurons 48.68 22.08%

35 features 2 fully connected-400 neurons 51.32 23.38%

35 features 2 fully connected-1000 neurons 167.84 25.38%

naive CNN

5x7 grid 5 ﬁlters size 2x2-1 fully connected 54.08 29.39%

5x7 grid 10 ﬁlters size 2x2-1 fully connected 81.66 33.93%

5x7 grid 20 ﬁlters size 2x2-1 fully connected 123.65 33.59%

CNN with 2x35 grid

2x35 grid 5 ﬁlters size 2x10-1 fully connected 43.62 33.70%

2x35 grid 10 ﬁlters size 2x10-1 fully connected 54.76 38.32%

2x35 grid 20 ﬁlters size 2x10-1 fully connected 77.12 37.98%

optimized CNN

4x15 grid 5 ﬁlters size 2x5-1 fully connected 77.10 49.20%

4x15 grid 10 ﬁlters size 2x5-1 fully connected 116.16 54.14%

4x15 grid 20 ﬁlters size 2x5-1 fully connected 182.22 54.24%

CNN with 3x5 ﬁlter

3x15 grid 5 ﬁlters size 3x5-1 fully connected 44.58 46.29%

3x15 grid 10 ﬁlters size 3x5-1 fully connected 55.38 49.09%

4x15 grid 5 ﬁlters size 3x5-1 fully connected 61.5 46.22%

4x15 grid 10 ﬁlters size 3x5-1 fully connected 86.64 49.26%

4x15 grid 20 ﬁlters size 3x5-1 fully connected 150.16 49.95%

Figure 5: The input grid of the optimized CNN. Important

features are duplicated 2 times and put between information

of the 2 players. Opponent information is also duplicated

and put at the bottom of the input grid.

features, so we have total 70 features and represent

them as 2x35 grid input. The ﬁrst row of the grid has

15 features from our character, 5 important features

and 15 features from our character again, in this or-

der. The second row has 15 features from opponent’s

character, 5 important features and 15 features from

opponent’s character again. We also use one convolu-

tional layer with 20 ﬁlters size 2x10 and stride length

1, one fully-connected layer and one softmax layer.

This setting lets the network compare the relationship

between our information and opponent’s information.

It also shows that the location of features in the input

grid has positive effects. When we sliding the window

from left to right, the same features of both characters

are accessible, allows the network to make compar-

isons between the states of the two characters. This

structure improves the performance of our model to

37.98%.

In the ﬁfth experiment, the input grid is expanded

to preserve characteristic of the previous experiment

while adding new potential combination. We dupli-

cate 5 important features 2 times and the opponent’s

features 1 time. Totally, we have 60 features, which

were represented as a 4x15 grid input. Information of

our character and opponent’s character are also sep-

arated in different row and the duplicated opponent’s

features are put at the bottom of the input grid, so that

information of both characters can be combined sim-

ilar to previous experiment (Figure 5). We use one

convolutional layer with 20 ﬁlters size 2x5 and stride

length 1, one fully-connected layer and one softmax

layer. By using a 2x5 ﬁlter and duplicating the im-

portant features, it is possible for every ﬁlter in our

CNN to have access to all 5 important features in any

position in the input grid. This structure improves the

performance of our model signiﬁcantly to 54.24%.

In the last experiment, we try to conﬁrm that if a

bigger window can improve accuracy. First, we try a

3x15 grid input which contains the same information

as the 4x15 grid input in previous experiment without

the last duplicated row. Then, we paired it with a 3x5

ﬁlter which will capture information of our character,

opponent and mutual information at the same time.

However, the accuracy is reduced to 49.09%. Even

when we duplicate the opponent’s feature again, the

result is only slightly improved to 49.95%. Table 1

summarizes the result of our experiments.

Optimized Non-visual Information for Deep Neural Network in Fighting Game

679

5 CONCLUDING REMARKS

In this paper, we have described a method to success-

fully incorporate CNN with optimized non-visual in-

formation. Before, CNN was mostly used with visual

information such as images. Our method has shown

that non-visual features can also be used effectively

with CNN. By intentionally arrange features as an in-

put grid, with the same information, CNN achieves

54.24% accuracy when predicting the next moves of

AIs in the experiment. Meanwhile, the normal neural

network can only reach 25.38% accuracy. With the

promising result, we can expect CNN to be applied in

even more type of problems where visual or similar

information is not available.

Although in current experiments, we can model

strong AI with high accuracy of 54.24% but it’s not

enough to win other strong AI. In future work, we

will improve the network by a reinforcement learning

method such as via Policy Gradient methods.

ACKNOWLEDGEMENTS

We thank to ’Research Grants for JAIST Students

2016-2017’ for funding us in this work.

REFERENCES

Clark, C. and Storkey, A. (2014). Teaching deep convo-

lutional neural networks to play go. arXiv preprint

arXiv:1412.3409.

Karpathy, A. (2016). Deep reinforcement learning: Pong

from pixels. Technical report.

Kempka, M., Wydmuch, M., Runc, G., Toczek, J., and

skowski, W. (2016). Vizdoom: A doom-based ai

research platform for visual reinforcement learning.

arXiv preprint arXiv:1605.02097.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. In Advances in neural information process-

ing systems, pages 1097–1105.

Lu, F., Yamamoto, K., Nomura, L. H., Mizuno, S., Lee,

Y., and Thawonmas, R. (2013). Fighting game ar-

tiﬁcial intelligence competition platform. In 2013

IEEE 2nd Global Conference on Consumer Electron-

ics (GCCE), pages 320–323. IEEE.

Mnih, V., Kavukcuoglu, K., Silver, D., Rusu, A. A., Veness,

J., Bellemare, M. G., Graves, A., Riedmiller, M., Fid-

jeland, A. K., Ostrovski, G., et al. (2015). Human-

level control through deep reinforcement learning.

Nature, 518(7540):529–533.

Nielsen, M. (2015). Neural Networks and Deep Learning.

Determination Press.

Silver, D., Huang, A., Maddison, C. J., Guez, A., Sifre, L.,

Van Den Driessche, G., Schrittwieser, J., Antonoglou,

I., Panneershelvam, V., Lanctot, M., et al. (2016).

Mastering the game of go with deep neural networks

and tree search. Nature, 529(7587):484–489.

APPENDIX

In this section, we show more details of our experi-

ments. Each character will be represented in our net-

work by 15 features:

• Hitpoint

• Energy

• Character’s size: width and height

• Character’s hitbox coordinates: left, right, bottom

and top

• Remaining frame of current action

• Type of current action

• Current speed of character: in x-axis and in y-axis

• Character’s current facing direction

• Character’s current state: can be controlled or not

• Information about projectiles in current state:

quantity and relative position to the character (in

front or behind)

The 5 important relative features:

• Distance between 2 characters

• Difference in hitpoint

• Difference in energy

• Difference of position in x-axis

• Difference of position in y-axis

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

680
