Evaluating Spatial Coverage of Breast Examination with Free-hand

Ultrasound Transducer

Zuzana B

ılkov

, Michal Barto

, Jan Schier

, Filip

Sroubek

, Barbara Zitov

, Jan Vydra

and Jan Dane

The Institute of Information Theory and Automation of the Czech Academy of Sciences, Prague, Czech Republic

Medico ltd., Prague, Czech Republic

First Faculty of Medicine, Department of Radiology, Charles University, Prague, Czech Republic

Keywords:

Breast Imaging, Ultrasound Examination, Tracking, Examination Quality Assessment, 3D Reconstruction.

Abstract:

Ultrasound examination plays an important role in both breast cancer screening and diagnostics. One of the

drawbacks of the US examination is the uncertainty whether the whole breast was scanned. The proposed

paper addresses the methodology how the completeness of the examination can be efﬁciently evaluated. We

propose an affordable solution for simultaneously tracking and grabbing a video from a free-hand 2D ul-

trasound transducer during standard breast examinations by means of the probe motion tracking. From the

recorded data we calculate duration in seconds, for which every part of the examined region has been captured

and perform algorithmically local 3D reconstruction. Thus the system can inform the specialist performing

the exam about regions that were insufﬁciently examined and minimize the risk of not detecting developing

harmful lesions. The measure for the evaluation and comparison of the individual examinations is proposed.

The functionality of the method is illustrated.

1 INTRODUCTION

Breast cancer is the most common malignancy in

women and the second most common cause in cancer-

related mortality. The widespread methodology for

the breast cancer screening is mammography, which

provides almost complete breast pictures at two pro-

jections with high sensitivity to microcalciﬁcation.

Breast ultrasound (US) is often used to evaluate breast

problems that are found by a mammogram, especially

for women with palpable lesions on physical exam or

with dense breast. For the latter situation, the study

(Boyd et al., 2007) revealed that extensive mammo-

graphic density, which is the case in more than 50 %

in the age group under 60 (for younger woman this

reaches even 75 %), is reproducibly associated with

an increased risk of breast cancer. Here, the role

of the US exams is hardly replaceable. US aids in

distinguishing normal ﬁndings such as cysts or fat

lobules from suspicious breast changes that require

biopsy. It helps to better evaluates the lymph node

involvement. Nevertheless, the US examination can-

not be used as the sole one because of the inappro-

priate high false negative rate. The current trend is to

use a combined set of diagnostic techniques for detec-

tion of breast cancer, usually mammography and US,

recently also magnetic resonance imaging (MRI) or

dedicated breast CT.

The US examination is painless and does not ex-

pose patients to radiation. On the other hand, the use

of US for breast cancer screening is often limited by

experience and skills of examiners, resolution of de-

vice, and, last but not least, by the length of examina-

tion. An important, albeit usually overlooked, draw-

back of the US examination is the uncertainty whether

the whole breast has been scanned. There was an at-

tempt to assess the completeness of freehand breast

ultrasound scans (Andrei et al., 2014) using the breast

phantom in simulated clinical exams.

The purpose of the work presented in this paper

is twofold: ﬁrst, it is intended as a base for develop-

ment of a system for systematic evaluation of breast

coverage, which will essentially provide feedback on

breast coverage. Second, the system is expected to

provide, using 2D scans and the data from a tracker, a

3D reconstruction of breast examination, with better

depiction of lesions.

There have been numerous attempts to reconstruct

3D data from the handheld US probe, either based on

128

BÃ lkovÃ ˛a Z., BartoÅ ˛a M., Schier J., Å

aroubek F., ZitovÃ ˛a B., Vydra J. and DaneÅ ˛a J.

Evaluating Spatial Coverage of Breast Examination with Free-hand Ultrasound Transducer.

DOI: 10.5220/0006249101280133

In Proceedings of the 10th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2017), pages 128-133

ISBN: 978-989-758-215-8

a solely algorithmic support (Yu et al., 2011) or using

some kind of tracking device for the 3D data compo-

sition (Huang et al., 2005; Huang and Zheng, 2008;

Coup

e et al., 2005). Recently, even the 3D volumes

were proposed to be registered by software methods

(Dyer et al., 2014) to obtain more complex represen-

tation of the scanned scene. Very good overview of

existing approaches can be found in (Gee et al., 2003).

Finally, it should be noted that there are 3D ultra-

sound systems working in an automatic manner (au-

tomated breast ultrasonography - ABUS) (Shin et al.,

2015), too. 3D ultrasound is considered as promis-

ing new technology, especially applicable to screen-

ing for breast cancer in women with dense breast tis-

sue. However there are certain limitations in acquisi-

tion geometries and in price level, which could limit

application of such equipment.

The rest of the paper is organized as follows.

Sec. 2 describes the proposed US setup and measures.

Sec. 3 shows ﬁrst results that were achieved with our

device and Sec. 4 concludes the paper.

2 METHODOLOGY

During a clinical breast exam, we record the ultra-

sound images and the position and orientation of the

ultrasound transducer. For this purpose we use an

off-the-shelf grabbing PC card in combination with

a tracking device.

In the proposed system the probe position data are

collected seamlessly without any need for human in-

teraction so the specialist performing the exam is not

distracted. With the help of the tracking system, we

can estimate the location of the probe and its trajec-

tory through the examined region, and from these data

also the frequency and duration of visits.

The hardware setup used to acquire all the neces-

sary data during ultrasound examination consist of a

computer with a digital video grabber and an electro-

magnetic six degrees of freedom tracking system

(TrakSTAR, Ascension Technology Corp., Shelburne,

VT, USA). The electro-magnetic ﬁeld generator, the

reference sensor and the sensor mounted on the US

transducer are connected to the computer through a

control unit. The arrangement of the tracker sensors

and reference points is outlined in Fig. 1. The accu-

racy of this technology is on par with the resolution

of the ultrasound device.

The video grabber and the tracking system are

controlled using the PLUS open-source software

package (Lasso et al., 2014), which also allows to per-

form the necessary sensor and temporal calibrations

(prior to examinations) and synchronization of video

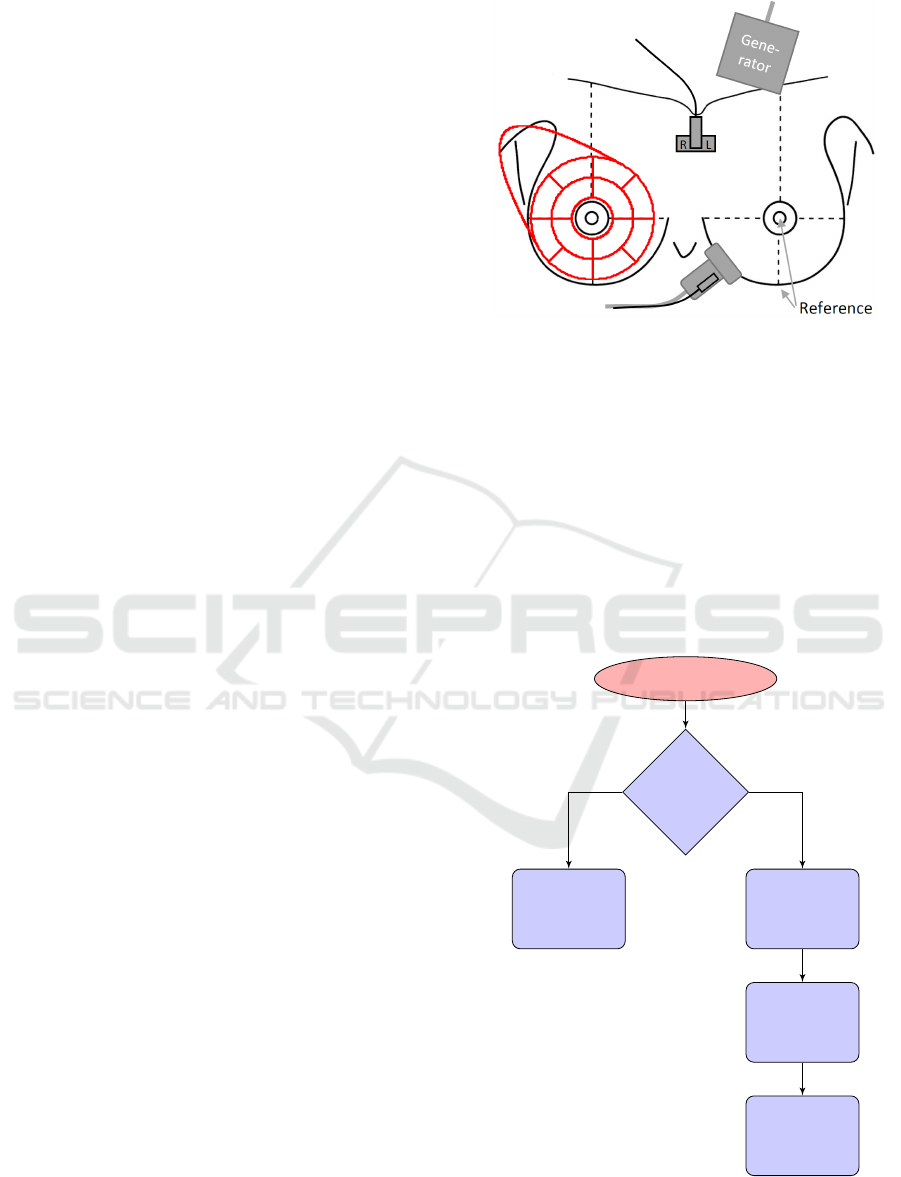

Figure 1: Outline of the system setup with deﬁned refer-

ence points (two cross marks). Two electro-magnetic track-

ing sensors are used in the setup, one attached to the ultra-

sound transducer and the “Reference” one, placed on pa-

tient’s sternum, which holds a ”Right-Left” plate. Prede-

ﬁned sectors for evaluation of an examination, for which

the average time spent and the entropy are calculated, are

outlined in red color.

and spatial data. The whole process of storing proper

data during examinations is controlled by an in-house

developed software. The software recognizes if the

US image is “frozen” or not, which allows the physi-

cian to simply interact with the system (see Fig. 2).

Image grabber

Freeze

detected?

Record

probe

position

Filter “Not

in touch”

condition

Evaluate

coverage

map

Display

frozen


yes

Figure 2: Operation modes of the coverage mapping sys-

tem.

Considered from the physician’s perspective, the

Evaluating Spatial Coverage of Breast Examination with Free-hand Ultrasound Transducer

129

Start

Place probe mark

on ref. point 1

(nipple)

Freeze

Place probe mark

on ref. point 2

Freeze

Start

examination

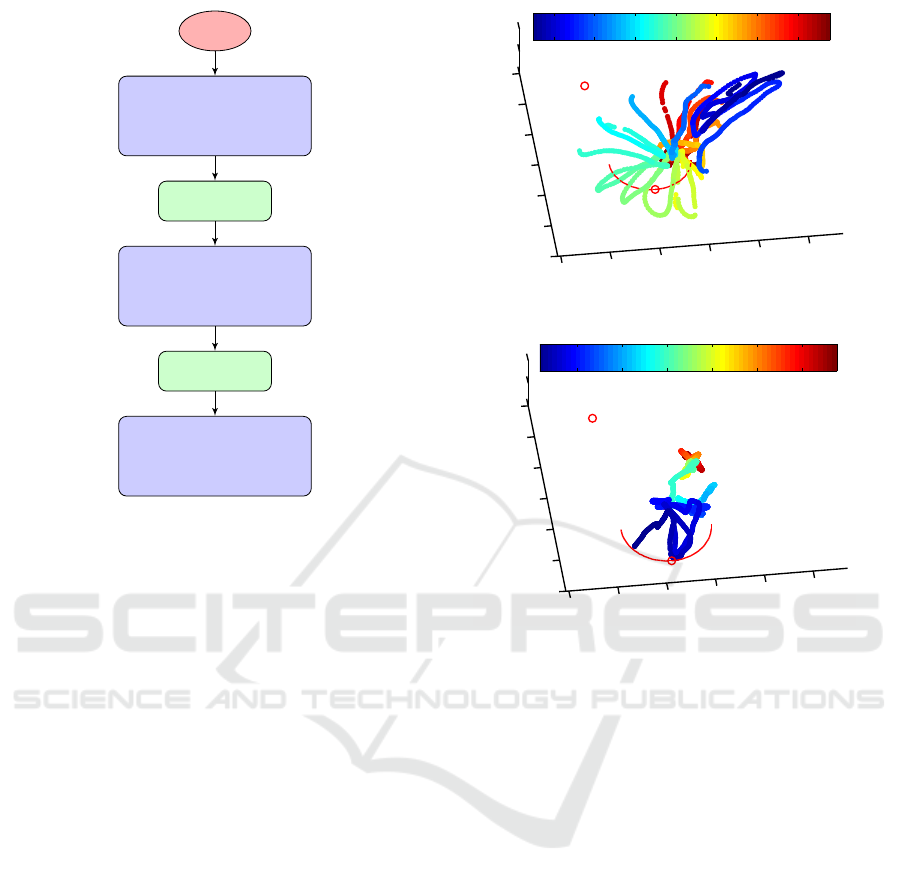

Figure 3: Calibration of the tracker system. Reference

point 1 is located at breast nipple, refernce point 2 is located

on the border between lower part of breast and the chest.

whole examination runs as follows: the physician

places the reference sensor on patient’s sternum un-

der jugulum and using computer, starts the tracking

system. He records the position of the two refer-

ence points (Fig. 1) by placing the “marked” side

of the transducer on each point and pressing the

“freeze” button. This allows us to calibrate the coor-

dinate system for the breast position (see the chart in

Fig. 3). Then the standard examination proceeds dur-

ing which the transducer is continuously tracked and

images are automatically stored with the maximum

frame rate of the ultrasound system (typically around

30 FPS). Locations of potential ﬁndings can be easily

stored by pressing the “freeze” button anytime during

the examination. The acquired data sequence (trans-

formation matrices and US images) is pruned to get

only the valid part. Typically, any data corresponding

with the periods when the transducer was not in touch

with the body are removed.

Transducer Trajectory Visualization

The valid data are analyzed in the 3D reference co-

ordinate system (R ) deﬁned by the reference sen-

sor and its axis, which coincides well with standard

anatomical planes. Choosing the coordinate system

of the sensor attached to a patient eliminates respira-

tory or other body motion. Let us denote the coordi-

nate system of US image acquired at time t by I

. The

−200

−150

−100

−50

−100

−50

100

150

200

−100

−50

x (mm)

y (mm)

z (mm)

10 20 30 40 50 60 70

(a) Screening

−200

−150

−100

−50

−100

−50

100

150

200

−100

−50

x (mm)

y (mm)

z (mm)

20 40 60 80 100 120

(b) Diagnosis

Figure 4: Color-coded trajectory of the probe center on skin

during (a) screening examination and (b) diagnostic exami-

nation (focused on suspect breast region). Colors show time

in seconds. The coordinate system in millimeters is deﬁned

by the reference sensor (origin denoted by the left-top cir-

cle) and the position of the breast is marked by the semi-

circle curve, which is calculated from the reference points.

tracking device calculates a geometrical transforma-

tion T

: I

→ R that maps image pixels at time t to

the reference coordinate system. The transformation

allows us to provide several useful visualizations:

to display the transducer trajectory in R , we apply T

to the central pixel of the image in I

and plot the 3D

points with color mapping derived from time t. Ex-

amples are given in Fig. 4.

Visualization of Examination Coverage

An important task is the visualization of time spent in

each part of the breast and adjacent tissues. In other

words, we want to know how frequently every loca-

tion of R has been captured in the images. This is

done by voxelization (discretization) of the reference

coordinate system R . Each voxel coordinate is trans-

formed by the inverse T

−1

to I

, the voxel value is

incremented if it lies in the respective image domain

BIOIMAGING 2017 - 4th International Conference on Bioimaging

130

(a) Screening

(b) Diagnosis

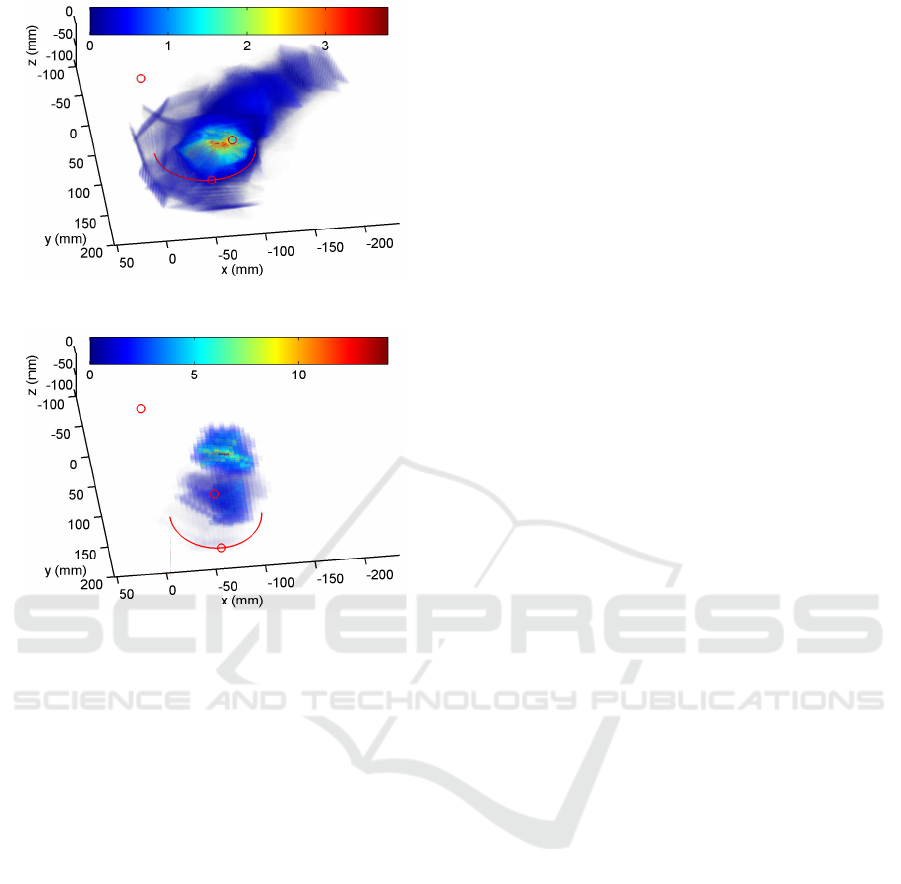

Figure 5: Time in seconds (coded in color) spent in breast

and adjacent lymph nodes voxels during (a) screening ex-

amination and (b) diagnosis examination. The coordinate

system in millimeters is deﬁned by the reference sensor

(origin denoted by the left-top circle), the breast position

is marked by the semi-circle curve and by the other two cir-

cles that represent the reference points (cf. Fig. 1).

and this is done for all t. The resulting 3D array, de-

noted as S, represents the number of images crossing

each voxel. To estimate the time spent in each voxel,

we divide the array by FPS; see examples in Fig. 5.

Evaluation of Physicians

We collect data from different physicians perform-

ing screening examinations with an aim to compare

their performance (and diligence). The reference

points are used to co-register different examinations

from the same physician as well as examinations

of various physicians. The proposed method does

not provide full registration but the results demon-

strated enough accuracy for mutual comparison. The

registered surfaces are divided into angular and cir-

cular sectors c

(Fig. 1, red structure) and in each

sector the average time spent

S(i) = |c

−1

∑

x∈c

S(x)

(Fig. 6 - left) and density of coverage D (Fig. 6

- right) is calculated, where |c

| is the area of the

i-th circular/angular sector. The density of cover-

age is estimated by calculating the entropy in sec-

tors. If S (x) is the time spent in position x, then

D(i) = −(ln |c

−1

∑

x∈c

S(x)lnS(x). More homoge-

neous coverage in a sector implies higher density D.

Both

S(i) and D(i) is averaged over all examinations

from each physician and then we compare different

physicians by comparing the averaged values.

3D Reconstruction

Finally, using the tracker system, it is possible to per-

form local 3D reconstruction of the breast image. Un-

like in the visualization of the “time-spent”, it is more

convenient here to work with the original transforma-

tion T

. For all t, every image pixel in I

is transformed

to discrete R . The pixel values in R are calculated ei-

ther with the nearest-neighbor or linear interpolation.

If collisions occur and more than one pixel transforms

into the same voxel, it is possible to apply a maxi-

mum or a mean rule. Holes, i.e. empty voxels, can

be ﬁlled by propagating values from neighboring vox-

els, an analogy to inpainting. The US transducer must

be in contact with skin, which causes unwanted tissue

deformation. Due to tissue elasticity it is unrealistic to

perform 3D reconstruction of the whole breast. How-

ever, we are able to run 3D reconstruction on small ar-

eas covering potential ﬁndings. The potential ﬁndings

are stored as a list of time instances t

’s, for which the

”freeze” button was pressed. We assume that in short

time intervals (couple of seconds) the transducer mo-

tion is continuous and the differences in tissue defor-

mation are negligible. We then select such short time

intervals around each t

and consider only images in

these intervals for 3D reconstruction.

3 EVALUATION

Our tracking and visualization setup is currently be-

ing tested in a Prague, CZ-based mammography cen-

ter. We are collecting data from different physicians

performing both diagnostic and screening examina-

tions on patients of various ages. Our goal in the ﬁrst

stage is to collect enough data for statistical analy-

sis of different screening methodologies. In the next

stage, we plan to deliver a solution (computer-aided

diagnosis), which would inform the physician of re-

gions inadequately examined, store the exact position

of potential ﬁndings for future references, and per-

form local 3D reconstruction to improve automatic

or semi-automatic detection and classiﬁcation of the

ﬁndings.

Evaluating Spatial Coverage of Breast Examination with Free-hand Ultrasound Transducer

131

(a) (b)

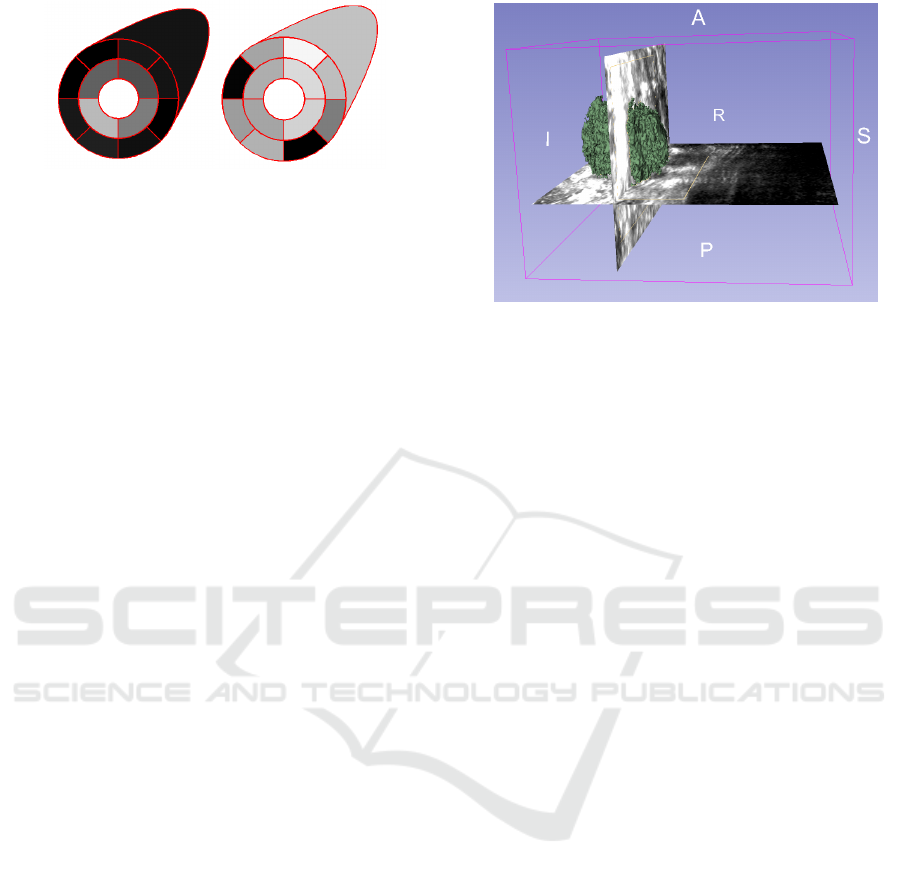

Figure 6: Evaluation of the screening quality: left - time

spent in sectors - lighter color means longer time; right -

density of coverage in sectors - lighter color means more ho-

mogeneous examination with less holes (neglected regions).

We demonstrate the visualization output of the US

setup on two real examples. The ﬁrst one is a screen-

ing examination, during which the whole breast and

adjacent lymph nodes should be covered. The sec-

ond one is a diagnostic examination, during which

the physician focuses only on areas with earlier ﬁnd-

ings. The transducer trajectory for both examinations

has been shown in Fig. 4. The trajectory is rendered

in the reference coordinate system R and the time is

coded in color. In the screening example Fig. 4(a),

the physician started in the axillary lymph nodes and

continued with a systematic examination of the breast

from the areola to its sides. In the diagnostic example

Fig. 4(b), only a small section of the breast is covered.

The differences between both examinations are even

more noticeable in our second type of visualization in

Fig. 5, which shows the time spent in each voxel. The

voxel color denotes the duration in seconds, for which

the corresponding area has been examined. We use

semitransparency of voxels to better visualize the vol-

ume. Note that in the screening example Fig. 4(a) the

most frequently visualized area is the areola, whereas

in the diagnostic example it is the area of the earlier

ﬁnding, which in this case is in the upper outer quad-

rant. In addition, we can perform 3D reconstruction

of the area and apply segmentation algorithms to 3D

reconstruction, such as GrowCuts (Zhu et al., 2014),

and visualize present lesions as shown in Fig. 7.

4 CONCLUSION

We have proposed an affordable enhancement of US

devices, which is currently being clinically tested. An

electro-magnetic tracking technology is used to si-

multaneously track the position of a patient and a free-

hand US transducer, which allows us to perform sev-

eral visualization tasks. We can for example display

spatial distribution combined with duration, for which

every location in our 3D space has been examined.

Figure 7: Example of 3D segmentation using GrowCuts.

The advantages of the proposed setup are twofold.

We can perform blind tests and evaluate physicians

during US examinations or we can guide the physi-

cians to regions insufﬁciently examined and show 3D

reconstruction of lesions.

Possible alternative to using the electro-magnetic

tracker would be to use an optical tracking system,

such as the Microsoft Kinect. In our opinion, how-

ever, the E-M tracker provides more robust opera-

tion with more accurate data, and, with fewer require-

ments on positioning, direct visibility, etc., it imposes

less stress both on the expert performing the examina-

tion, and on patient. Furthermore, using some video

tracking system, additional ethical issues could possi-

bly arise.

Future work includes an evaluation study of exam-

ination procedures over a larger number of specialists

and patients.

ACKNOWLEDGMENTS

This work has been supported by the Technol-

ogy Agency of the Czech Republic (TACR) Project

TA04011392.

REFERENCES

Andrei, S. S., Gao, J., Chiu, J., Turian, J., and Caluser, C.

(2014). Performance evaluation of an automated free-

hand breast ultrasound system for the completeness of

scanning assessment. European Congress of Radiol-

ogy, C-1382.

Boyd, N. F., Guo, H., Martin, L. J., Sun, L., Stone, J.,

Fishell, E., Jong, R. A., Hislop, G., Chiarelli, A.,

Minkin, S., and Yaffe, M. J. (2007). Mammographic

density and the risk and detection of breast cancer.

New England Journal of Medicine, 356(3):227–236.

BIOIMAGING 2017 - 4th International Conference on Bioimaging

132

Coup

e, P., Hellier, P., Azzabou, N., and Barillot, C. (2005).

3D freehand ultrasound reconstruction based on probe

trajectory. Medical image computing and computer-

assisted intervention: MICCAI International Confer-

ence on Medical Image Computing and Computer-

Assisted Intervention, 8(Pt 1):597–604.

Dyer, E., Ijaz, U. Z., Housden, R., Prager, R., Gee, A.,

and Treece, G. (2014). A clinical system for three-

dimensional extended-ﬁeld-of-view ultrasound. The

British journal of radiology.

Gee, A., Prager, R., Treece, G., and Berman, L. (2003).

Engineering a freehand 3d ultrasound system. Pattern

Recognition Letters, 24(4–5):757 – 777.

Huang, W. and Zheng, Y. (2008). MMSE reconstruction for

3D freehand ultrasound imaging. International Jour-

nal of Biomedical Imaging, 2008(1):1–9.

Huang, W., Zheng, Y., and Molloy, J. a. (2005). 3D ul-

trasound image reconstruction from non-uniform res-

olution freehand slices. ICASSP, IEEE International

Conference on Acoustics, Speech and Signal Process-

ing - Proceedings, II:125–128.

Lasso, A., Heffter, T., Rankin, A., Pinter, C., Ungi, T., and

Fichtinger, G. (2014). Plus: Open-source toolkit for

ultrasound-guided intervention systems. IEEE Trans-

actions on Biomedical Engineering, (10):2527–2537.

Shin, H. J., Kim, H. H., and Cha, J. H. (2015). Current sta-

tus of automated breast ultrasonography. Ultrasonog-

raphy, 34(3):165–172.

Yu, H., Pattichis, M. S., Agurto, C., and Goens, M. B.

(2011). A 3d freehand ultrasound system for multi-

view reconstructions from sparse 2d scanning planes.

Biomedical engineering online, 10(1):7.

Zhu, L., Kolesov, I., Gao, Y., Kikinis, R., and Tannenbaum,

A. (2014). An effective interactive medical image seg-

mentation method using fast GrowCut. In MICCAI

Workshop on Interactive Medical Image Computing.

Evaluating Spatial Coverage of Breast Examination with Free-hand Ultrasound Transducer

133
