Sequitur-based Inference and Analysis Framework for Malicious System

Behavior

Robert Luh

1,3

, Gregor Schramm

, Markus Wagner

and Sebastian Schrittwieser

Josef Ressel Center TARGET, St. P

olten University of Applied Sciences, Matthias Corvinus St. 15, St. P

olten, Austria

Institute for Creative Media Technologies, St. P

olten UAS, Matthias Corvinus St. 15, St. P

olten, Austria

Faculty of Technology, De Montfort University, Leicester, U.K.

Keywords:

Malware Analysis, System Behavior, Attribute Grammar, Knowledge Generation.

Abstract:

Targeted attacks on IT systems are a rising threat against the conﬁdentiality of sensitive data and the avail-

ability of critical systems. With the emergence of Advanced Persistent Threats (APTs), it has become more

important than ever to fully understand the particulars of such attacks. Grammar inference offers a powerful

foundation for the automated extraction of behavioral patterns from sequential system traces.

In order to facilitate the interpretation and analysis of APTs, we present a grammar inference system based on

Sequitur, a greedy compression algorithm that constructs a context-free grammar (CFG) from string-based in-

put data. Next to recursive rule extraction, we expanded the procedure through automated assessment routines

capable of dealing with multiple input sources and types. This enables the identiﬁcation of relevant patterns in

sequential corpora of arbitrary quantity and size. On the formal side, we extended the CFG with attributes that

help depict the extracted (malicious) actions in a comprehensive fashion. The tool’s output is automatically

mapped to the grammar for further parsing and discovery-focused pattern visualization.

1 INTRODUCTION

IT systems are threatened by a growing number of

different cyber-attacks. With the emergence of Ad-

vanced Persistent Threats (APTs), the focus shifted

from off-the-shelf malware to attacks that are tai-

lored to one speciﬁc entity. These targeted threats are

driven by different motivations and often cause sig-

niﬁcantly more damage thanks to their focus on espi-

onage or high-proﬁle sabotage typically conducted by

dedicated groups within organized crime, industry, or

nation state intelligence.

APTs are increasingly affecting less prominent

targets as well. In 2013 alone, “economic espionage

and theft of trade secrets cost the American econ-

omy more than $19 billion” (Munsey, 2013). 60%

of espionage attacks now target small and medium

businesses whereas each reported data breach exposes

over a million identities on average (Symantec, 2015).

The retail, healthcare, and ﬁnance sectors ﬁnd them-

selves in the crosshairs most often.

While APTs use malware like most conventional

attacks, their level of complexity and sophistication is

usually much higher. This is problematic especially

since defensive measures offered by security vendors

often utilize the same detection approaches that have

been used for years. The major drawback of these pri-

marily signature-based systems is that the binary pat-

terns required for detection are unlikely to exist at the

time of attack, as most APTs are tailored to one spe-

ciﬁc target, making them likely to utilize zero-day ex-

ploits (Bilge and Dumitras, 2012; Sood and Enbody,

2013). In addition, meta- and polymorphic techniques

are employed to throw off signature-based systems

while the multi-stage nature of APTs makes it gener-

ally difﬁcult to interpret ﬁndings individually (Filiol

et al., 2007; Luh et al., 2016a).

This increased complexity makes it necessary

to explore novel techniques for threat intelligence

and malicious activity detection on multiple layers.

Behavior-based approaches are a promising means to

identify illegal actions. No matter the stealth mecha-

nisms employed, the attacker will sooner or later exe-

cute his or her action on target – be it data theft, sab-

otage, or other fraudulent activity. Behavior patters

and anomalies signifying a deviation from a known

baseline can then be used to detect the threat.

However, both pattern and anomaly detection sys-

tems usually suffer from a lack of semantic inter-

pretation; the so-called semantic gap, the hard-to-

632

Luh, R., Schramm, G., Wagner, M. and Schrittwieser, S.

Sequitur-based Inference and Analysis Framework for Malicious System Behavior.

DOI: 10.5220/0006250206320643

In Proceedings of the 3rd International Conference on Information Systems Security and Privacy (ICISSP 2017), pages 632-643

ISBN: 978-989-758-209-7

bridge difference in syntactic event information and

actual attack semantics, remains an issue. Also, pat-

terns are often manually assigned to represent analyst

knowledge, while anomaly detection systems do not

usually attempt to explain the identiﬁed deviations.

This makes potential victims vulnerable to unknown

attacks and does little to further the exploration of

meaning behind the actions of malicious actors.

Successfully discovering potentially malicious

system behavior boils down to three major problem

domains: the automated generation of patterns that

contribute to detecting and understanding complex

multi-stage attacks, attack semantics, and the holistic

view on targeted attacks and their many properties.

Arguably, a powerful formal deﬁnition of malicious

behavior is the foundation for all of these aspects.

In this paper, we propose an IT system behav-

ior inference and classiﬁcation methodology based on

the Sequitur algorithm (Nevill-Manning and Witten,

1997) and formalized through a context-free gram-

mar (CFG) extended by semantic attributes (attribute

grammar). The approach combines a condensed

formal deﬁnition with the generation of knowledge

linked to the information security and malware anal-

ysis domains: Instead of manually deﬁning the many

terminals and production rules that the description of

a behavior trace would require, we automate the pro-

cess through an extension of Sequitur that is fully ca-

pable of determining and evaluating signiﬁcant rules.

This eliminates the analysts’ need to come up with

ﬁxed patterns describing harmful or benign behavior.

Speciﬁcally, we contribute by:

• Deﬁning an attribute grammar capable of depict-

ing sequential behavior while retaining informa-

tion about triggering process and parameters,

• Developing a grammar inference process based on

the Sequitur algorithm for arbitrary system event

traces,

• Expanding this approach to a knowledge discov-

ery system supporting automated evaluation and

extraction of potentially interesting patterns us-

able in further interpretation or visualization ef-

forts.

The remainder of this paper is structured as fol-

lows: In Section 1.1, similar works in the area of

security-related inference are discussed. In Section

2, the speciﬁcs of our input event data, the developed

attribute grammar, and the Sequitur algorithm are ex-

plained. Grammar inference and data analysis is de-

tailed in Section 3. Our implementation and a full

example (Section 4) as well as evaluated applications

of the approach (Section 5) conclude the paper.

1.1 Related Work

In light of the large number of operating systems and

programming languages currently available, a univer-

sal means of abstraction and classiﬁcation of mali-

cious behavior into a more generic representation is

paramount. (Jacob et al., 2009) present a detection

system based on attribute grammars, where syntac-

tic rules describe possible combinations of operations

constituting certain behavior, while semantic rules

control the data ﬂow between operations and assign

general meaning to a sequence. The authors’ system

is intended as formal foundation for developing ro-

bust intrusion and malware detection automata. On

the modeling side, (Filiol et al., 2007) propose a gen-

eralized model for malware detection which consid-

ers both sequence-based and behavior-based detec-

tion. An evaluation methodology for behavioral en-

gines of existing products is proposed.

In general, the discovery of program behavior is

key to understanding benign and malicious programs.

(Zhao et al., 2010) present a semi-automatic graph

grammar approach to retrieving the hierarchical struc-

ture of an application’s activity. This is achieved by

mining recurring behavioral patterns from execution

traces. The inferred graph grammar and a syntactic

parse tree visually represent reused structures found.

On the more traditional anomaly detection side,

(Creech and Hu, 2014) introduce a host-based detec-

tion method that uses discontiguous system call pat-

terns. The authors use a context-free grammar to de-

scribe (but not infer) benign and malicious call traces.

Several decision engines were tested and compared

in the paper, making it a good starting point for the

selection of learning algorithms applicable to system

call sequences.

In a patent submitted by (Eiland et al., 2012),

the authors describe an intrusion masquerade detec-

tion system that includes a grammar inference engine

based on Minimum Description Length (MDL) com-

pression. The compression algorithm is applied to

sets of input data to build user-speciﬁc grammars. The

use of intrusion masquerade is ultimately based on the

determined distance between template and observed

algorithmic minimum sufﬁcient statistic.

Visualization is a predominant theme in this ﬁeld.

With GrammarViz, (Senin et al., 2014) introduce a

grammar mining and visualization tool based on CFG

induction. While GrammarViz does not speciﬁcally

consider attributes or malicious software scenarios in

general, it describes a practical approach to manually

analyzing time series data. (Senin et al., 2015) ex-

pand on the concept of algorithmic incompressibility

for anomaly detection and present practical examples.

Sequitur-based Inference and Analysis Framework for Malicious System Behavior

633

2 PRELIMINARIES

In this chapter, we introduce the type of system event

data used as the foundation of semantic pattern analy-

sis, the formal deﬁnition of this information as part of

an attribute grammar, as well as the Sequitur compres-

sion algorithm we use to determine interesting pat-

terns.

2.1 Event Data

The proposed system is based on so-called event

traces, which are typically deﬁned as descriptions of

operating system kernel behavior invoked by appli-

cations and, by extension, a legitimate or illegitimate

user. More often than not, these events are abstrac-

tions of raw system and API calls that yield informa-

tion about the general behavior of a sample (Wag-

ner et al., 2015). Raw calls may include wrapper

functions (e.g. CreateProcess) that offer a sim-

ple interface to the application programmer, or na-

tive system calls (e.g. NtCreateProcess) that rep-

resent the underlying OS or kernel support functions.

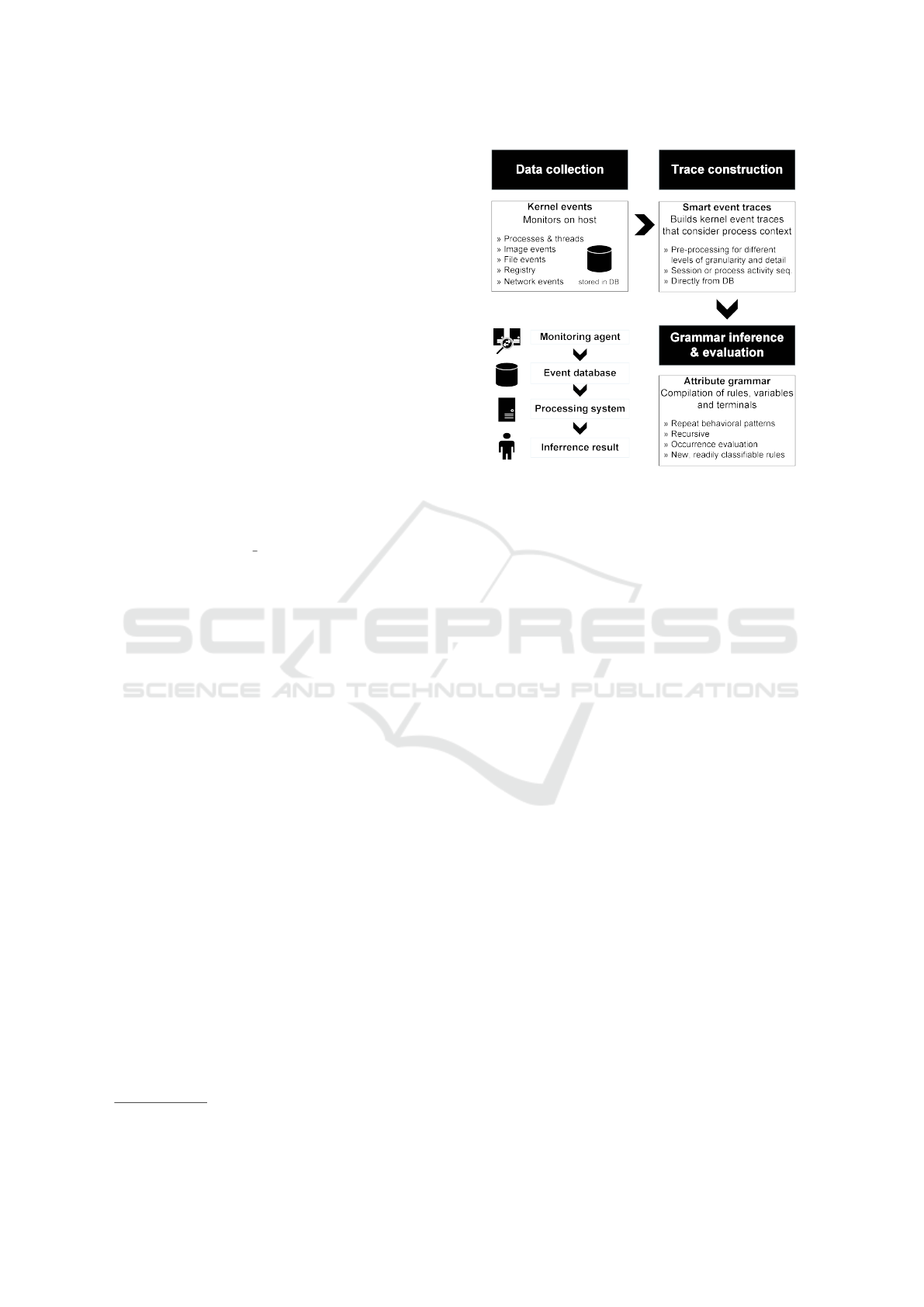

In the context of our system, event data is collected di-

rectly from the Windows kernel. We employ a driver-

based monitoring agent (Marschalek et al., 2015). de-

signed to collect and forward a number of events to

a database server. This gives us unimpeded access

to events depicting operations related to process and

thread control, image loads, ﬁle management, registry

modiﬁcation, network socket interaction, and more.

For example, a shell event that creates a new text

ﬁle on a system may be simply denoted as a triple

explorer.exe,file-create,document.txt. Ad-

ditional information captured in the background in-

cludes various process and thread ID information re-

quired to uniquely identify an event within a system

session.

2.2 Attribute Grammars

On the formal side, our system uses a context-free

grammar extended by attributes, known as attribute

grammar (Aho et al., 1986). This decision followed

a comprehensive review of several grammars and

languages, including graph grammars, state transi-

tion graphs based on NLC (Rozenberg, 1997), trace

languages, and the aforementioned attribute gram-

mars. The reason for our choice was grounded in the

fact that semantically interesting connections between

system events are often expressed by their parame-

ters; parameters, that can be aptly modeled by the at-

tributes of a context-free grammar. Performance and

the availability of parsing tools also factored into the

decision.

In order to enable the conversion of any kind of

trace into an applicable ruleset for behavioral classiﬁ-

cation, it is necessary to formally deﬁne relevant (ma-

licious) actions through distinct patterns that can be

integrated into the grammatical hierarchy. We do not

manually map system activity to concrete events but

use inference to automatically determine likely rules.

The derived patterns and, by extension, the full gram-

mar, can be deﬁned as follows:

Let AG = (G, A,R,V ) be an attribute grammar,

where:

• G = (N,T,P,S) is a context-free grammar

– N... Set of non-terminal symbols (variables)

– T ... Set of terminal symbols (alphabet)

– P... Production rules

– S... Start symbol

• A is a ﬁnite set of attributes

• R is a ﬁnite set of attribution rules (semantic rules)

• V is a ﬁnite set of values assigned to an attribute

Every symbol X ∈ (N ∪ T ) is assigned a ﬁnite set

of attributes A(X ). The attribute a ∈ A(X ) is denoted

X.a. Every attribute a ∈ A(X) also has a set of values

V (X.a). Typically, an attribute a of symbol X ∈ (N ∪

T ) that is e.g. assigned the value ”0” is denominated

as X.a = 0.

Our methodology uses attributes to store parame-

ters of system events, such as the names of particular

ﬁles that are being accessed or IP addresses that are

being contacted in the course of a network operation.

Attributes are also used to retain the connection to the

invoking process of an event. In above example, these

attributes would be the name of the ﬁle being created

(namely document.txt) and the name of the process

triggering the operation (e.g. explorer.exe).

Formally, the result is an attribute grammar

AG = (G,A, R,V ), where a

∈ A(X) is the at-

tribute trigger name and a

∈ A(X) is deﬁned as

element name. The value v

∈ V (X.a

) identiﬁes the

actual name of the observed process responsible for

triggering the individual event X ∈ (N ∪ T ). Value

∈ V (X.a

) denotes the process or ﬁle system ele-

ment the process interacted with.

Raw system events captured by our monitoring

agent are processed by the adapted Sequitur algo-

rithm, which infers a full grammar in accordance to

above deﬁnitions. This grammar is able to depict an

arbitrary number of input traces instead of only sin-

gle ﬁles (see Section 3.2 for details), thereby enabling

further parsing and semantic analysis.

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

634

2.3 Sequitur Algorithm

Sequitur is a greedy compression algorithm that cre-

ates a hierarchical structure from a sequence of

discrete symbols by recursively replacing repeated

phrases with a grammatical rule (Nevill-Manning and

Witten, 1997). The result is a representation of the

original sequence, which effectively results in the cre-

ation of a context-free grammar. The algorithm cre-

ates this representation through two essential proper-

ties, which are called rule utility and bigram unique-

ness. Rule utility checks if a rule occurs at least twice

in the grammar, while bigram uniqueness observes if

a bigram occurs only once. A bigram in this context

describes two adjacent symbols or terms. Assuming

we have a string abcdbcabcd, the ﬁrst bigram would

be ab, followed by a second bigram bc, and so forth.

See Table 1 for a complete example of the process.

Table 1: Operation of Sequitur after (Nevill-Manning and

Witten, 1997). Property application is highlighted.

Sym String Grammar Remarks

1 a S → a

2 ab S → ab

3 abc S → abc

4 abcd S → abcd

5 abcdb S → abcdb

6 abcdbc S → abcdbc bc appears 2x

S → aAdA bigram uniq.

A → bc

7 abcdbca S → aAdAa

A → bc

8 abcdbcab S → aAdAab

A → bc

9 abcdbcabc S → aAdAabc bc reappears

A → bc

S → aAdAaA bigram uniq.

A → bc aA appears 2x

S → BdAB bigram uniq.

A → bc

B → aA

10 abcdbcabcd S → BdABd Bd appears 2x

A → bc

B → aA

S → CAC bigram uniq.

A → bc B used only 1x

B → aA

C → Bd

S → CAC rule utility

A → bc

C → aAd

The system introduced in this paper also evalu-

ates the inferred grammar in addition to applying the

Sequitur algorithm and automatically highlights rules

describing potentially relevant behavior.

3 INFERENCE AND ANALYSIS

PROCESS

3.1 Preprocessing

Before Sequitur can be used on log ﬁles, behavioral

traces or other, sequential reports describing the ac-

tivity of malicious programs, the traces need to be re-

duced to their core components. In this normalization

stage, we have the choice to either strip away all at-

tributes or to retain them in an abstracted fashion as

part of the set of terminals. As we want to construct

a full, semantics-aware attribute grammar, most in-

formation is typically kept. We only reduce volatile

information such as (user) IDs, memory addresses,

and registry paths to a more manageable set of termi-

nals. Names of known system processes and libraries

are not modiﬁed in any way while unknown binaries

and modules (which are possibly randomly named)

are represented by extension-aware placeholders (e.g.

1.txt or 2.exe).

In order to compare the impact of different levels

of detail and granularity, we deﬁned a total of three

input formats. An example input and output scenario

is discussed in Section 4.2.

Verbose – This trace format uses full, attribute-

enabled events as individual words of the cor-

pus. In verbose mode, the input data is trans-

formed into the following format: triggering-

process,operation,element-name, which

translates to v

∈ V (X .a

),t

∈ T ,v

∈ V (X .a

). For

example, a speciﬁc ﬁle creation operation triggered

by the known explorer.exe process would be

preprocessed into the following textual input format:

explorer.exe,file-create,1.txt.

Reduced – In this preprocessing mode, we omit

attribute a

to generate a quick view of the high-level

activity exhibited by the processes under scrutiny.

Here, v

is not processed, resulting in a reduced for-

mat of triggering-process,operation, depicted

as e.g. explorer.exe,file-create.

Granular – The goal in granular mode is to inves-

tigate operations not as single word, but as elemen-

tary components. Each of the elements processed

in verbose mode is treated by Sequitur as one ter-

minal of the bigram. To maintain a level of sep-

aration between event triplets, a forth item denot-

ing the start of a new event is prepended before

each v

. This results in the following input (items

delimited by semicolon): <start>;triggering-

process;operation;element-name.

Sequitur-based Inference and Analysis Framework for Malicious System Behavior

635

3.2 Rule Extraction

Since Sequitur only takes a single input ﬁle per de-

fault, the algorithm had to be adapted to regard traces

individually while retaining all information of origin.

This way, grammar inference can be applied to sev-

eral ﬁles at once without simply concatenating the

input into a single, non-attributable compound trace.

Speciﬁcally, we altered Sequitur to be capable of con-

structing rules across ﬁle boundaries denoted by a

unique separator, which is ignored by the inference

engine. This ultimately enables comparative analy-

ses of larger, disconnected data sets that do not neces-

sarily share repeating behavior within a single trace,

which, under normal circumstances, is required for

the inference process to trigger.

The main stages of the rule extraction process are

the following:

Lexical Analysis – In this initial step, each unique

terminal t ∈ T is assigned a corresponding symbol,

called a token. This numerical representation is used

to streamline the process by reducing the processing

complexity of string-only comparisons. Each new

terminal is additionally stored in a translation (sym-

bol) table for later reference.

Grammatical Inference – After the lexical analysis

process the Sequitur algorithm is applied to generate

an execution trace grammar consisting of tokenized

terminal symbols. The ﬁrst rule p ∈ P of each gram-

mar is the start rule, or ‘zero rule’, which depicts the

full grammar of the compressed input data. Every line

thereafter contains the following extracted informa-

tion:

• Rule – The rule consists of a left-side rule name

(variable), which is sequentially numbered, as

well as right-side variables and terminals. The

non-terminals are, again, references to ﬁner-

grained rules while the terminals represent the ac-

tual system events. In line with the deﬁnition of

CFGs, there is only one single variable on the left

side of a rule.

• Resolved rule – In order to provide a detailed view

on individual rules, we recursively resolve each

sequence of non-terminals n ∈ N to their base ter-

minals t ∈ T .

3.3 Rule Evaluation

As part of the evaluation process, the ﬁnal grammar is

parsed to determine how many times a speciﬁc deriva-

tion occurs in each of the investigated input ﬁles.

Semantically interesting patterns include speciﬁc se-

quences that e.g. occur exactly once in each input

trace, making them potential common denominators

for a class of malicious behavior. Parsed information

includes:

• File Rule (FR) Count – This number shows how

many times a rule occurs in the current derivation

of the input ﬁle.

• Grammar Rule (GR) Count – The overall count

across all supplied input ﬁles is speciﬁed here. For

a single trace, this number is identical to the FR

count.

• Prevalence Count – This value speciﬁes the num-

ber of input ﬁles a particular derivation has been

found in. The result is displayed as x/y (x in y),

where x is the number of ﬁles the pattern is preva-

lent and y is the overall count of individual input

ﬁles.

• Match Flag – The extraction of interesting rules

is facilitated by determining rules that are iden-

tical in occurrence and number across all of the

processed input ﬁles, indicated by a Boolean ﬂag.

• Rule Length – this value deﬁnes the overall num-

ber of items seen in the entire derivation (i.e. the

resolved rule). Multiples of the input ﬁle count

y are likely to represent recursively compressed

rules.

• Rule Density – this support metric facilitates

anomaly detection by calculating the ratio be-

tween inferred rules and single terminals that are

present in rule zero.

The various counts calculated always include ref-

erences to the original input ﬁles, which help retain

each pattern’s connection to its semantic source. In

Section 4.2, we show an exemplary scenario for a

’verbose’ (see Section 3.1) input set.

3.4 Rule Transformation

In order to transform the newly inferred rules into

an attributed grammar as deﬁned in Section 2.2, a

set mechanism is required. In the initial version

of our tool, we map each operation to an attribute-

enhanced terminal while rule identiﬁers are trans-

formed into descriptive variables: Speciﬁcally, each

rule is dubbed in accordance to its semantic nature.

For example, a rule describing a process-create

operation followed by a file-delete operation is

transformed into the descriptive variable CREATE-

PROC DELETE-FILE. A rule that describes the load-

ing of two image ﬁles is dubbed LOAD2-IMG.

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

636

The full naming schema NS is currently deﬁned as

follows:

• NS = (O,E, MO,ME,L), where

– Operation O = {CREA, MOD, START, LOAD,

KILL, DEL, CONN}

– Event type E = {PROC, THR, IMG, FILE,

REG, NET}

– Operation mapping rules MO = {

CREA → create,

MOD → modify | change | edit,

START → start | spawn,

LOAD → load,

KILL → kill | stop | terminate,

DEL → delete,

CONN → connect

}

– Event mapping rules ME = {PROC → process,

THR → thread, IMG → image, FILE → ﬁle,

REG → registry, NET → network}

• and labeling rules L, where

– (O

|| ”-” ||E

||” ”,..., O

|| ”-” ||E

)

– If O

== O

n+1

then O

|| ”2”

The triggering process and element name are then

transformed into the attributes t p and en. Recursive

variable descriptors are supported – above naming

schema always considers the fully resolved rule. See

Section 4.2 for several examples of automatically de-

termined variables.

Future versions of the tool will replace the current

mapping with a true semantic descriptor that identi-

ﬁes speciﬁc attacker actions or objectives. While a

manual assignment of such variables is already possi-

ble (Dornhackl et al., 2014), it is not feasible in larger

analysis scenarios. The automation of the process is

an import research challenge to come.

4 IMPLEMENTATION

4.1 System Overview

Our grammar inference and evaluation tool is based

on the Sequitur application developed by Eibe Frank

All core and extended functionality (such as rule re-

solving, multi-ﬁle capabilities, and statistical assess-

ments) has been fully implemented in Java. The data

used as basis for the analysis process is collected us-

ing a kernel driver agent deployed on 10 actively used

and malware-free Windows 7 machines within a cor-

porate environment. An additional virtual Windows

https://github.com/craignm/sequitur/tree/master/java

Figure 1: Overview of the implemented system.

instance is used for dynamically analyzing malicious

software. The collected events are stored and pro-

cessed on a dedicated Postgres database server that

generates verbose or reduced traces (see Section 3.1)

of speciﬁc processes or even entire system sessions.

These traces are ultimately used as input for the Se-

quitur tool. See Figure 1 for a process overview.

In practical scenarios, it might be prudent to use

clustering algorithms to pre-classify traces that might

share common behavior. While these algorithms typ-

ically do not yield insight into event semantics, this

intermediate step helps an analyst to select sequences

that e.g. belong to a similar class of malware or de-

scribe a comparable attack stage. In such a scenario,

our inference tool can be used to speciﬁcally extract

behavioral patterns for a particular use case. In our

initial tests, we used Malheur (Rieck et al., 2011) for

this very purpose.

4.2 Example

With or without preselection, our grammar inference

and evaluation tool will generate variables and pro-

duction rules for a dynamically growing number of

terminals and attributes. Below example demon-

strates the use of our tool for two simpliﬁed ’ver-

bose’ input ﬁles generated from aforementioned ker-

nel event traces.

Input f i l e 1: V e r bose m o d e . De l i mite r : n e w line .

exp l orer . exe , file - create ,1. exe

exp l orer . exe , process - start ,1. exe

1. exe , image - load , ke r n el32 . dll

1. exe , image - load , ad v a pi32 . dll

1. exe , regist r y - modify , hklm / softw a r e / micr o s oft

Sequitur-based Inference and Analysis Framework for Malicious System Behavior

637

1. exe , process - create , c m d . exe

cmd .exe , process - c r e ate , net . e xe

1. exe , regist r y - create , mac h i ne / s ystem

1. exe , regist r y - modify , hklm / softw a r e / micr o s oft

cmd .exe , process - kill , net . e x e

1. exe , thread - terminate , t h read

exp l orer . exe , file - delete ,1. exe

The second input ﬁle has been determined by Mal-

heur to be similar, however the commonalities are yet

unclear. This is where our pattern evaluation exten-

sion comes in.

Input f i l e 2: V e r bose m o d e . De l i mite r : n e w line .

exp l orer . exe , file - create ,1. exe

exp l orer . exe , process - start ,1. exe

1. exe , thread - create , th r e ad

1. exe , image - load , ke r n el32 . dll

1. exe , image - load , ad v a pi32 . dll

1. exe , image - load , ws2_ 3 2 . dll

1. exe , regist r y - modify , hklm / softw a r e / micr o s oft

1. exe , process - create , c m d . exe

cmd .exe , process - c r e ate , net . e xe

cmd .exe , process - kill , net . e x e

1. exe , thread - terminate , t h read

exp l orer . exe , file - delete ,1. exe

Sequitur now infers the following rules and eval-

uates the frequency, prevalence and similarity of the

input (zero rule, resolved rules and the output for in-

put ﬁle 2 have been removed for legibility):

Outp u t : Rule ; F i l e r u le c ount ; G r a mmar r u l e c ount ;

Pr e v ale n c e coun t ; Match f l a g ; Rule le n g th

1 - > ex p l orer . exe , file - create , 1 . e x e e xplo r e r .exe ,

process - start ,1. exe ; 1; 2; 2/2; tru e ; 2

2 - > 1. exe , load - image , k ernel 3 2 . dll 1. exe , load -

image , a d v api3 2 . dll ; 1 ; 2; 2 / 2 ; t r u e ; 2

3 - > 4 1. exe , process - create , cmd . exe cmd . exe ,

process - create , net . e x e ; 1; 2; 2 / 2 ; t r u e ; 4

4 - > 1. exe , registry - modify , hklm / so f t ware / mi c roso f t

1. exe , regist r y - modify , hklm / softw a r e / micr o s oft

; 2; 3; 2/2; f a l se ; 2

5 - > c m d . exe , process - kill , net . exe 1. exe , threa d -

termina t e , thre a d ex p lorer . exe , delete - fil e ,1.

exe ; 1; 2; 2 / 2 ; true ; 3

In our example, the tool has successfully extracted

rules that describe behavior observed in both input

ﬁles. The output is transformed into an attribute

grammar as described in Section 2.2. Since seman-

tics is a major factor of rule construction, we assign

variables based on the nature of the inferred event.

Speciﬁcally, above example can be formalized into a

grammar as follows:

Let AG

= (G

,A, R,V ) be an inferred CFG ex-

tended by attributes, where:

• G

= (N, T,P,S), and where:

– N = {CREA-FILE START-PROC; LOAD2-

IMG; MOD-REGCREA2-PROC; MOD2-

REG; KILL-PROC KILL-THR DEL-FILE}

– T = {

ﬁle-create.t p, en = explorer.exe, 1.exe;

process-start.t p,en = explorer.exe, 1.exe;

image-load.t p,en = 1.exe, kernel32.dll;

image-load.t p,en = 1.exe, advapi32.dll;

process-create.t p,en = 1.exe, cmd.exe;

process-create.t p,en = 1.exe, net.exe;

registry-modify.t p,en = 1.exe, hklm/sw/ms;

process-kill.t p, en = cmd.exe, net.exe;

thread-terminate.t p, en = 1.exe, thread;

ﬁle-delete.t p, en = explorer.exe, 1.exe

}

– P = {

ZERO-RULE → CREA-FILE START-PROC

LOAD2-IMG MOD-REG CREA2-PROC

registry-create.t p,en = 1.exe, hklm/sys MOD2-

REG KILL-PROC KILL-THR DEL-FILE;

CREA-FILE START-PROC → ﬁle-

create.t p,en = explorer.exe, 1.exe process-

start.t p,en = explorer.exe, 1.exe;

LOAD2-IMG → image-load.t p,en = 1.exe,

kernel32.dll image-load.t p, en = 1.exe, ad-

vapi32.dll;

MOD-REG CREA2-PROC → MOD2-REG

process-create.t p,en = 1.exe, cmd.exe process-

create.t p,en = cmd.exe, net.exe;

MOD2-REG → registry-modify.t p,en = 1.exe,

hklm/sw/ms registry-modify.t p, en = 1.exe,

hklm/sw/ms;

KILL-PROC KILL-THR DEL-FILE →

process-kill.t p, en = cmd.exe, net.exe

thread-terminate.t p, en = 1.exe, thread ﬁle-

delete.t p,en = explorer.exe, 1.exe

}

– S = {ZERO-RULE}

• A = {tp; en}

• R is described as part of the preprocessing stage

and deﬁnes which portion of the data translates

into triggering process t p (v

), operation (t

), and

element en (v

• V = {explorer.exe; 1.exe; kernel32.dll; ad-

vapi32.dll; cmd.exe; net.exe; machine/soft-

ware/microsoft; thread}

Above attribute grammar has been generated au-

tomatically and can now be used as the foundation

for further (attribute-based) parsing efforts. The in-

ferred variables, if stored, can be used as new behav-

ioral templates for comparable input data sets. The

next Section discusses practical applications of this

approach.

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

638

5 PRACTICAL APPLICATIONS

AND EVALUATION

The introduced system has a wide variety of ap-

plications. Ranging from preliminary knowledge

extraction in malware analysis scenarios to under-

standing more complex attacks, the adapted inference

methodology is versatile in both terms of input data

as well as practical beneﬁt. Below, we introduce and

evaluate some of its applications and discuss future

and ongoing work.

5.1 Preparatory Data Reduction

5.1.1 Concept

In many malware and APT attack stage analysis sce-

narios, analysts are forced to deal with huge amounts

of data. Be it kernel events, raw system calls or even

assembler-level information, abstraction and reduc-

tion of input data is essential to decrease the complex-

ity of many an analysis task. Our solution provides

the means through its easily adaptable prepocessing

mechanism (see Section 3.1) and the grammar infer-

ence system itself. By using the Sequitur approach,

it is possible to reduce the input corpus to only rel-

evant bigrams, instead of working with the full, un-

ﬁltered set of event or code snippet unigrams. The

grammar transformation mechanism (see Section 3.4)

also enables us to work with an automatically gen-

erated placeholder variable n ∈ N instead of several

compound terminals.

5.1.2 Evaluation

Current efforts of the team include the pre-abstraction

of behavior graph data subsequently used for edit dis-

tance calculations (Luh et al., 2017). Minimizing the

amount of data to process drastically reduces the com-

putation requirements of expensive graph transforma-

tion operations. Speciﬁcally, we evaluated several

days’ worth of benign system events monitored by our

kernel driver, collecting 10k, 100k, and 200k sequen-

tial events across 525 uniquely named processes run-

ning on 10 clean Windows 7 machines. Under normal

circumstances, this data would have to be assessed

in its entirety, as it is used for creating baseline tem-

plates utilized in behavior deviation analysis. Thanks

to our Sequitur-enabled data reduction, we can focus

on event sequences (rules) that are representative for

speciﬁc processes, signiﬁcantly speeding up all sub-

sequent, potentially exponential complexity graph op-

erations.

In our largest exemplary dataset of 200k Windows

kernel events, we reduced the number of events to

13,275 (-93.4%), which effectively cut the process-

ing time for both graph template generation and graph

transformation calculations by >97%, saving a total

of 162 minutes by removing a large number of excess

events not required for the analysis. This bumped the

graph-based anomaly detection process signiﬁcantly

closer to real-time capabilities for smaller corpora.

Performance evaluation showed a maximum memory

utilization of around 3.6 GiB, with a total process-

ing time of 22.8 minutes on a 64-bit Intel Core i7-4*

workstation equipped with 16 GiB of RAM.

The overall process has been determined as scal-

ing at quadratic time O(n

), putting it in line with

many basic sorting algorithms. Sequitur without any

evaluation and rule dissemination is known to oper-

ate in linear time O(n) (Nevill-Manning and Witten,

1997), providing room for future optimization.

5.2 Anomaly Detection

5.2.1 Concept

In our above preprocessing example, we use grammar

inference to determine interesting repeating patterns

that are representative of the corpus under investiga-

tion. However, the reverse is also a viable scenario:

By focusing attention on patterns that do not exces-

sively reoccur, our approach can be used to identify

anomalies in a sequence or set of sequences. Parts of

the trace that are not replaced by variables during rule

construction (i.e. the remaining terminals in between)

represent unique events that, in such a scenario, are

of particular interest. Rule density (see 3.3) is also

important in scenarios where stable behavior is ex-

pected: the higher the share of terminals, the higher

the overall entropy, and, by extension, the likelihood

of anomalous behavior. All anomaly detection efforts

can be aided by visualization tools such as Grammar-

Viz (Senin et al., 2014) and our own ongoing research

introduced in Section 5.3 below.

5.2.2 Evaluation

The Sequitur tool is not limited to system events

but can be used with a wide range of sequential in-

put data formats. We speciﬁcally evaluated an APT

anomaly detection scenario on a set of temperature,

speed, and photoelectric sensor data generated by

a Siemens Simatic industrial control system (ICS)

within a testbed environment. We assessed 12 full

production runs in total, whereas one of the runs was

maliciously altered by illegally interfering with the

Sequitur-based Inference and Analysis Framework for Malicious System Behavior

639

Table 2: Extracted and evaluated rules for ICS sensor data traces with low rule density (≤ 40%) and prevalence count (≤ 2).

Each rule describes an anomaly not typically seen in other input data. FR...ﬁle rule, GR...grammar rule.

File Rule FR count GR count Prevalence Length

Ben-2 3→139 139 2 2 1/12 16

Ben-2 4→140 140 3 3 1/12 4

Ben-2 11→1-0-1-0-1-1-1-1-1-0-1-0-32 1-0-1-0-1-1-1-1-1-0-1-0-32 2 4 2/12 2

Ben-2 12→1-0-1-0-1-1-1-1-1-0-1-0-40 1-0-1-0-1-1-1-1-1-0-1-0-40 2 2 1/12 2

Ben-2 23→1-0-1-0-1-1-1-1-0-0-1-1-56 1-0-1-0-1-1-1-1-0-0-1-1-56 2 2 1/12 2

Ben-2 52→53 53 3 5 2/12 4

Ben-2 69→1-0-1-1-1-1-1-1-0-0-2-5-59 1-0-1-1-1-1-1-1-0-0-2-5-59 2 2 1/12 2

Ben-2 75→0-0-1-1-1-1-1-1-1-0-2-5-52 0-0-1-1-1-1-1-1-1-0-2-5-52 2 4 2/12 2

Ben-2 76→152 152 3 6 2/12 4

Ben-2 98→1-0-1-1-1-0-1-1-0-0-2-8-60 1-0-1-1-1-0-1-1-0-0-2-8-60 2 2 1/12 2

Ben-2 102→0-0-1-1-1-1-0-1-1-0-2-8-54 0-0-1-1-1-1-0-1-1-0-2-8-54 2 2 1/12 2

Ben-2 139→4 4 2 2 1/12 8

Ben-2 140→0-0-0-0-0-0-1-1-1-0-0-0-20 0-0-0-0-0-0-1-1-1-0-0-0-20 2 2 1/12 2

Mal-1 52→1-0-1-0-1-1-1-1-0-0-1-4-56 1-0-1-0-1-1-1-1-0-0-1-4-56 2 4 2/12 2

Mal-1 57→1-0-1-1-1-0-1-1-0-0-2-4-60 1-0-1-1-1-0-1-1-0-0-2-4-60 2 2 1/12 2

Mal-1 72→1-0-1-0-1-1-1-1-0-0-1-6-52 1-0-1-0-1-1-1-1-0-0-1-6-52 2 2 1/12 2

Mal-1 81→82 82 2 2 1/12 64

Mal-1 82→83 83 3 3 1/12 32

Mal-1 83→157 157 3 3 1/12 16

Mal-1 84→85 85 3 3 1/12 4

Mal-1 85→1-0-1-0-1-0-1-1-1-0-2-7-60 1-0-1-0-1-0-1-1-1-0-2-7-60 3 3 1/12 2

Mal-1 86→1-0-1-1-1-1-1-1-1-0-2-7-59 1-0-1-1-1-1-1-1-1-0-2-7-59 2 2 1/12 2

Mal-1 157→84 84 2 2 1/12 8

rotation. This caused a number of atypical sensor

readings that are nigh impossible to spot manually.

The full evaluated grammar for a total of 34,000

observed events was constructed almost instanta-

neously. Sequitur inferred a total of 2,155 rules (sans

zero rules), resulting in a 93.7% data compression

rate. In stage one, anomaly detection was conducted

by assessing rules with a low rule density value. By

that metric alone, it was already possible to single

out the anomalous trace. With a terminal-to-rule ra-

tio (TRR) of 62.8% (rule density of 37.2%), the ma-

licious sample contained less uniform behavior pat-

terns than the remainder of 11 traces with a mean ratio

of 57.3%. Only two benign traces came close to that

number, exceeding a TRR of 60%. The comparatively

small margin is due to the fact that, in this scenario,

anomalous data did not cause sensor spikes but rather

triggered a slow, continuous change in behavior.

Further analysis of the possibly deviating behav-

ior was (and is typically) required to solidify the ini-

tial verdict. To this end, we used our evaluation

system (Section 3.3) to ﬁlter rules that are present

in only a minority of ﬁles and that have a preva-

lence count of ≤2 out of 12. Armed with the pre-

selection based on rule density, we particularly fo-

cused on the 3 traces with a TRR of >60%. In benign

trace 1 (not pictured), only one rule was determined

as unique, effectively disqualifying the candidate. Be-

nign trace 2 (”Ben-2” in Table 2) contained 13 rules

that were not seen in the majority of the remaining

corpus, whereas the malicious trace (”Mal-1”) con-

tained 10 nearly unique rules. A direct comparison of

the two remaining anomalous candidates highlighted

one particularly interesting, recursively compressed

block per trace, which resolved into 16 (benign) and

64 (malicious) terminals, respectively. Patterns with

a higher average length are particularly interesting as

they identify larger, uninterrupted sequences unique

for the dataset under scrutiny.

A domain expert is now able to investigate further

and determine the individual events t that describe il-

legal sensor readings, thereby indicating an attack on

the production line.

See Table 2 for a direct comparison of the two de-

viating behavior traces. Rule 3 of ”Ben-2”, which re-

solves into 8 terminal pairs as inferred by rule 140 (a

rare, but valid sensor state), contributes most to the

trace’s analysis verdict. For ”Mal-1”, the same ap-

plies to rule 81 (32 iterations of rule 85), effectively

identifying the anomalous sensor state.

The extracted, semantically relevant rules can now

be formalized and stored for future parsing runs.

While this can be done textually, a visuals-assisted

solution promises even better results. In the next sec-

tion, we introduce a practical approach to discovering

new knowledge and assisting with anomaly detection

efforts through a dedicated visual event analysis tool

based on our Sequitur output.

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

640

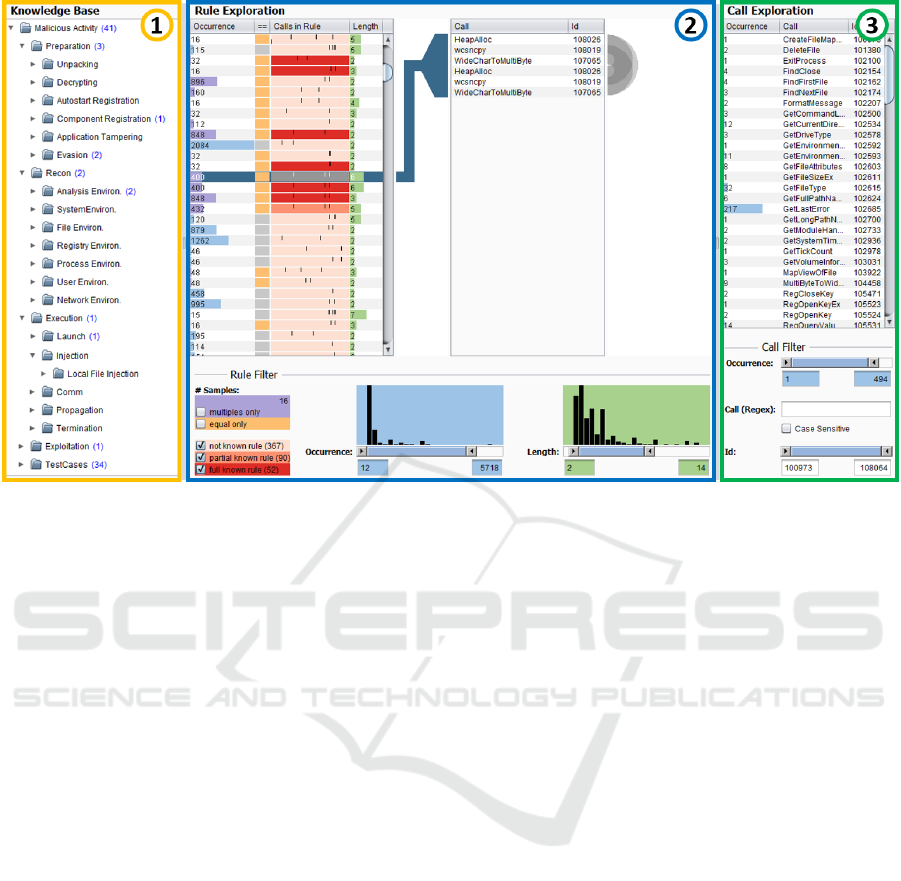

Figure 2: Illustration of the Knowledge-assisted Malware Analysis System (KAMAS) designed to support malware analysts

in their work. This system contains a (1) ‘Knowledge Base’ for automated analysis and knowledge sharing between the

analysts, a (2) ‘Rule Exploration’ area, and a (3) ‘Call Exploration’ area used to investigate individual events. Various ﬁlters

at the bottom help to remove redundant data.

5.3 Visualization & Knowledge

Discovery

One of the major uses of our tool is undoubtedly the

extraction of new domain knowledge. Inferred pat-

terns can be compiled into a permanent grammar used

to detect similar behavior in unknown traces. This

process can be supported by interactive visualizations

to drastically improve usability. This area of research

is typically referred to as visual analytics (VA).

5.3.1 Visual Analytics

Speciﬁcally, VA is “the science of analytical rea-

soning facilitated by interactive visual interfaces”

(Thomas and Cook, 2005).

A major tenet of VA is that analytical reason-

ing is not a routine activity that can be automated

completely (Wegner, 1997). Instead it depends heav-

ily on the analyst’s initiative and domain experience,

which is exercised through interactive visual inter-

faces. Such interfaces, especially information visu-

alizations, are high bandwidth gateways for the de-

piction of structures, patterns, and connections hid-

den in the data. Furthermore, visual analytics of-

ten involves automated analysis methods that perform

various computations on potentially large volumes of

data.

When analysts solve real world problems they typ-

ically have large volumes of complex and heteroge-

neous data at their disposal, as is evidenced by above

application scenarios (see Sections 5.1 and 5.2). Ex-

ternalization and storing of implicit knowledge will

make it available as explicit domain knowledge, which

is deﬁned as knowledge that “represents the results

of a computer-simulated cognitive process, such as

perception, learning, association, and reasoning (...)”

(Chen et al., 2009).

Through visualization, explicit knowledge can be

used to graphically summarize and abstract a dataset.

Put simply, it enables quicker and more precise anal-

yses of complex input data such as the set of traces

used in the above ICS example.

Using VA for security applications is a widely ac-

cepted practice. In (Wagner et al., 2014), the authors

surveyed tools for behavior-based malware analysis in

addition to visual representations best suited to vari-

ous domain challenges. Through a data–users–tasks

analysis (Miksch and Aigner, 2014), they ascertained

that the parse tree of a cluster grammar (such as the

one generated by the Sequitur algorithm), can be ab-

stracted to a directed acyclic graph, where each node

represents part of a sequence. This is where our VA

prototype comes in.

Sequitur-based Inference and Analysis Framework for Malicious System Behavior

641

5.3.2 Prototype Implementation

Based on above ﬁndings, we created an early proto-

type, KAMAS, that can be used to visualize and fur-

ther assess the data generated by the Sequitur tool.

Figure 2 depicts a screenshot of the KAMAS inter-

face.

The ”knowledge base” (1) contains the explicit

knowledge used for automated analysis. Newly ex-

tracted patterns can be stored in a database for later

use, whereas existing ones serve as real-time ﬁlter that

automatically highlights known patterns. In the ”rule

exploration” area (2), the analyst can see the different

rules (left side only) generated by Sequitur, includ-

ing all information pertaining to its ﬁle and gram-

mar count as well as its length. Selecting a speciﬁc

rule unfolds the fully resolved rule for further study.

Additionally, an arc diagram will be shown to high-

light events that constitute a known sequence. The

”call exploration” area (3) lists all events contained

in the loaded ﬁle(s). To cope with the potentially

huge amount of data, the analyst has the ability to use

different, regular-expression-enabled ﬁlters to locate

data of interest. New rules discovered through visual

analysis can be added into the knowledge base via a

simple drag and drop action.

A full evaluation of KAMAS (including a com-

prehensive usability study) will be disseminated at a

later date.

6 FUTURE WORK

One of the main areas of future improvement is un-

doubtedly the automated semantic interpretation of

inferred variables, which, in the tool’s current iter-

ation, are assigned based on the operations (termi-

nals) that constitute the respective rule. In the future,

this representation will be changed to include actual

attacker goals and actions. Ultimately, we plan to

link the process to the team’s previous work, which

focuses on the development of a targeted attack on-

tology (Luh et al., 2016b). Automatically extracted

events will be mapped to said ontology, thereby pro-

viding a complete view on likely attack scenarios in-

duced by the events in question.

In terms of validation, future work will encompass

a detailed proof of soundness for the attribute gram-

mar speciﬁcation used in the paper. Furthermore,

we will test our behavioral engine against evaluation

systems such as the one introduced by (Filiol et al.,

2007). Speciﬁc applications such as the anomaly de-

tection functionality discussed in Section 5.2 will also

be evaluated in greater detail.

On the knowledge discovery side, it is planned

to ﬁnalize development of the KAMAS visualization

tool mentioned in Section 5. Speciﬁc functional-

ity enabling further statistical assessment will be in-

cluded to facilitate (malware) forensics, automated

sample classiﬁcation, and various intrusion detection

scenarios coupled with a database of explicit domain

knowledge.

In general, the cross-integration of visual analytics

and knowledge discovery methods will be an integral

part of our future research into the practical applica-

tions of the Sequitur approach.

7 CONCLUSION

In this paper, we presented a grammar inference sys-

tem based on an adapted version of Nevill-Mannings’

Sequitur algorithm. Thanks to its versatile nature, the

tool offers various beneﬁts for the information secu-

rity community, ranging from knowledge discovery

in sequential system activity or malware execution

traces, to applied anomaly detection and grammar-

enabled behavior interpretation.

We have successfully tested the induction and

analysis system with several classes of input data.

When used to streamline input traces for other, com-

putationally expensive processes, we have achieved a

signiﬁcant reduction in complexity by extracting rep-

resentative variables that describe relevant patterns.

Anomaly detection based on the rule density met-

ric showed promising results in identifying deviating

traces and their behavioral sequences in close to real

time. With KAMAS, we additionally introduced a vi-

sual analytics platform that uses the generated data to

assist analysts in extracting relevant rules.

All in all, the grammar inference tool can be used

to quickly and accurately discover and highlight re-

curring patterns in sequential sets of arbitrary host

and network activity, thereby aiding in bridging the

semantic gap between captured event traces and at-

tacker behavior.

ACKNOWLEDGEMENTS

The ﬁnancial support by the Austrian Federal Min-

istry of Science, Research and Economy and the Na-

tional Foundation for Research, Technology and De-

velopment is gratefully acknowledged.

Furthermore, this work was supported by the Aus-

trian Science Fund (FWF) via the KAVA-Time project

(no. P25489).

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

642

REFERENCES

Aho, A. V., Sethi, R., and Ullman, J. D. (1986). Compilers,

Principles, Techniques. Addison Wesley.

Bilge, L. and Dumitras, T. (2012). Before we knew it: an

empirical study of zero-day attacks in the real world.

In Proc. of the 2012 ACM conference on Computer

and communications security, pages 833–844. ACM.

Chen, M., Ebert, D., Hagen, H., Laramee, R., Van Liere,

R., Ma, K.-L., Ribarsky, W., Scheuermann, G., and

Silver, D. (2009). Data, information, and knowledge

in visualization. Computer Graphics & Applications,

29(1):12–19.

Creech, G. and Hu, J. (2014). A Semantic Approach to

Host-Based Intrusion Detection Systems Using Con-

tiguousand Discontiguous System Call Patterns. Com-

puters, IEEE Transactions on, 63(4):807–819.

Dornhackl, H., Kadletz, K., Luh, R., and Tavolato, P.

(2014). Deﬁning malicious behavior. In Ninth In-

ternational Conference on Availability Reliability and

Security (ARES), pages 273–278. IEEE.

Eiland, E., Evans, S., Markham, T., and Impson, J. (2012).

Mdl compress system and method for signature infer-

ence and masquerade intrusion detection. US Patent

8,327,443.

Filiol, E., Jacob, G., and Le Liard, M. (2007). Evaluation

methodology and theoretical model for antiviral be-

havioural detection strategies. Journal in Computer

Virology, 3(1):23–37.

Jacob, G., Debar, H., and Filiol, E. (2009). Malware behav-

ioral detection by attribute-automata using abstrac-

tion from platform and language. In International

Workshop on Recent Advances in Intrusion Detection,

pages 81–100. Springer.

Luh, R., Marschalek, S., Kaiser, M., Janicke, H., and Schrit-

twieser, S. (2016a). Semantics-aware detection of tar-

geted attacks: a survey. Journal of Computer Virology

and Hacking Techniques, pages 1–39.

Luh, R., Schrittwieser, S., and Marschalek, S. (2016b).

Taon: An ontology-based approach to mitigating tar-

geted attacks. In Proc. of the 18th Int. Conference on

Information Integration and Web-based Applications

& Services. ACM.

Luh, R., Schrittwieser, S., Marschalek, S., and Janicke, H.

(2017). Design of an Anomaly-based Threat Detec-

tion & Explication System In Proc. of the 3rd Int.

Conference on Information Systems Security & Pri-

vacy. SCITEPRESS.

Marschalek, S., Luh, R., Kaiser, M., and Schrittwieser, S.

(2015). Classifying malicious system behavior us-

ing event propagation trees. In Proc. of the 17th

Int. Conference on Information Integration and Web-

based Applications & Services. Association for Com-

putational Linguistics.

Miksch, S. and Aigner, W. (2014). A matter of time: Ap-

plying a data-users-tasks design triangle to visual an-

alytics of time-oriented data. Computers & Graphics,

38:286–290.

Munsey, C. (2013). Economic Espionage: Competing For

Trade By Stealing Industrial Secrets. Accessed 2015-

09-15.

Nevill-Manning, C. G. and Witten, I. H. (1997). Identify-

ing hierarchical structure in sequences: A linear-time

algorithm. J. Artif. Intell. Res. (JAIR), 7:67–82.

Rieck, K., Trinius, P., Willems, C., and Holz, T. (2011). Au-

tomatic analysis of malware behavior using machine

learning. Journal of Computer Security.

Rozenberg, G. (1997). Handbook of graph grammars and

computing by graph transformation, volume 1. World

Scientiﬁc.

Senin, P., Lin, J., Wang, X., Oates, T., Gandhi, S., Boedi-

hardjo, A. P., Chen, C., and Frankenstein, S. (2015).

Time series anomaly discovery with grammar-based

compression. In EDBT, pages 481–492.

Senin, P., Lin, J., Wang, X., Oates, T., Gandhi, S., Boedi-

hardjo, A. P., Chen, C., Frankenstein, S., and Lerner,

M. (2014). Grammarviz 2.0: a tool for grammar-based

pattern discovery in time series. In Joint European

Conference on Machine Learning and Knowledge

Discovery in Databases, pages 468–472. Springer.

Sood, A. K. and Enbody, R. J. (2013). Targeted cyberat-

tacks: a superset of advanced persistent threats. IEEE

security & privacy, (1):54–61.

Symantec (2015). Symantec Internet Security Threat Re-

port Volume 20. Whitepaper.

Thomas, J. J. and Cook, K. A., editors (2005). Illuminating

the Path: The Research and Development Agenda for

Visual Analytics. IEEE.

Wagner, M., Aigner, W., Rind, A., Dornhackl, H., Kadletz,

K., Luh, R., and Tavolato, P. (2014). Problem char-

acterization and abstraction for visual analytics in

behavior-based malware pattern analysis. In Whitley,

K., Engle, S., Harrison, L., Fischer, F., and Prigent,

N., editors, Proc. 11th Workshop on Visualization for

Cyber Security, VizSec, pages 9–16. ACM.

Wagner, M., Fischer, F., Luh, R., Haberson, A., Rind, A.,

Keim, D., Aigner, W., Borgo, R., Ganovelli, F., and

Viola, I. (2015). A Survey of Visualization Systems

for Malware Analysis. In Eurographics Conference

on Visualization, pages 105–125. EuroGraphics.

Wegner, P. (1997). Why interaction is more powerful than

algorithms. Communications of the ACM, 40(5):80–

91.

Zhao, C., Kong, J., and Zhang, K. (2010). Program behav-

ior discovery and veriﬁcation: A graph grammar ap-

proach. IEEE Transactions on software Engineering,

36(3):431–448.

Sequitur-based Inference and Analysis Framework for Malicious System Behavior

643
