Thoth: Automatic Resource Management with Machine Learning for

Container-based Cloud Platform

Akkarit Sangpetch, Orathai Sangpetch, Nut Juangmarisakul and Supakorn Warodom

Department of Computer Engineering, Faculty of Engineering, King Mongkut’s Institute of Technology Ladkrabang,

1 Chalongkrung Road, Ladkrabang, Bangkok, Thailand

Keywords: Cloud Computing, Scheduling, Container, Platform-as-a-Service.

Abstract: Platform-as-a-Service (PaaS) providers often encounter fluctuation in computing resource usage due to

workload changes, resulting in performance degradation. To maintain acceptable service quality, providers

may need to manually adjust resource allocation according to workload dynamics. Unfortunately, this

approach will not scale well as the number of applications grows. We thus propose Thoth, a dynamic

resource management system for PaaS using Docker container technology. Thoth automatically monitors

resource usage and dynamically adjusts appropriate amount of resources for each application. To implement

the automatic-scaling algorithm, we select three algorithms, namely Neural Network, Q-Learning and our

rule-based algorithm, to study and evaluate. The experimental results suggest that Q-Learning can the best

adapt to the load changes, followed by a rule-based algorithm and NN. With Q-Learning, Thoth can save

computing resources by 28.95% and 21.92%, compared to Neural Network and the rule-based algorithm

respectively, without compromising service quality.

1 INTRODUCTION

Computing paradigm has been radically shifted in

the past decade: from dedicated, on premise

infrastructure to on-demand cloud computing. Many

enterprises and organizations turn to cloud for IT

services so that they can focus on the core

businesses. Cloud providers have been leveraging on

virtualization technology to provide elastic and

flexible IT infrastructure in a form of virtual

machines (VMs). However, using VMs tend to incur

inefficient resource usage since, in practice, many

VMs run the same operation system and similar

dependent software, wasting computing resources on

the same content. In order to mitigate this

inefficiency problem, the container concept has been

introduced. Many containers could share not only

the same infrastructure, but also the underlying

software and dependencies, such as operating

systems and runtime components, increasing the

resource usage efficiency.

Additionally, container technology can address

fundamental challenges found in software

development and deployment – that is the

discrepancies in terms of software versions and

runtime dependencies in development, testing and

production environments, increasing risk of software

malfunction. With containers, developers can

package all coupled components and dependencies

into a pod where all components are co-scheduled

and co-located. Hence, developers can

compartmentalize micro-services of an application

and exercise continuous integration process more

easily, allowing applications become more agile.

Container-based cloud, e.g. Docker, has

emerging in mainstream in the past few years. Then,

major cloud providers, such as Google, Microsoft,

Amazon, IBM, have followed. Scaling container

service is also available where developers can

specify parameters and rules to determine the trigger

thresholds for scaling containers. One challenge with

the existing approach is how to appropriately

configure parameters. Taking too long to adjust

container instances could risk performance

degradation, leading to poor customer satisfaction.

Immediately instantiating instances could also waste

resources, increasing the operational cost. To set the

parameters, developers need to quantify their

workload with observation and analysis on running

applications and hope to discover request patterns.

This stage could take hours, days or months,

depending on applications and usage. The situation

Sangpetch, A., Sangpetch, O., Juangmarisakul, N. and Warodom, S.

Thoth: Automatic Resource Management with Machine Learning for Container-based Cloud Platform.

DOI: 10.5220/0006254601030111

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 75-83

ISBN: 978-989-758-243-1

becomes even worse when workload is dynamic and

agile, like web applications.

Web usage could change rapidly, depending on

content and services offered on web applications.

Ability to quickly respond to load changes is crucial

to prevent degraded service quality. With existing

cloud services, this ability heavily relies on how

quickly and accurately developers can set

parameters for the automatically-scaling service. It is

difficult to maintain the desired service quality when

tuning parameters manually. To address such

challenge, we propose an automatic resource

management engine, called Thoth. Thoth can

automatically adjust container instances in order to

maintain acceptable service quality without

excessive provision. For Thoth’s decision-making

component, we evaluate two machine learning

algorithms, namely 1) a reinforcement learning-

based approach, called Q-Learning and 2) Neural

Network, against our rule-based scaling method. The

algorithms consider percentages of CPU and

memory utilization, the number of requests, the

number of replicas and service time. Service time is

the time that containers take to serve requests. The

resource utilization of the containers indicates how

busy containers are. The number of requests and

service time over time should imply the usage and

trend. All selected metrics can suggest when

container instances should be adjusted so that

containers can gracefully handle load changes.

We implement Thoth based on Docker, which

provides container-based infrastructure, and

Kubernetes as a container orchestrator, similarly to

Google App Engine. Unlike existing systems, we

also integrate HAProxy to serve as a load balancer

as well as a request monitoring endpoint. The target

workload for Thoth is web applications. With Thoth,

developers no longer need to manually set scaling

parameters to meet desired performance. Thoth

could help reduce the time that takes to respond load

changes. From the experiments, Thoth with Q-

Learning appropriately adjust the container instances

while achieving the desired request response time

and consuming the least resources.

This paper is organized as follows. Section 2

describes related work. We explain the architecture

of the implemented system in Section 3. We

evaluate the performance of the system in Section 4

and conclude in Section 5.

2 RELATED WORKS

Resource allocation problem in computing

infrastructure, especially in a shared environment

such as cloud computing, has been studied in

previous works. One of important factors is scale-

out latency which indicates the amount of time that

takes to create a sufficient number of working

instances. As discussed in ASAP (Jiang, 2011),

scale-out latency on a virtual-machine based

platform can significantly impact the ability to adjust

to the demand. To reduce scale-out latency, we

choose to build the infrastructure based on container

technology since each container instance can be

created or removed in a swift. A container instance

is also its light-weighted and agile. Many previous

works (Rao et al., 2009), (Dutreilh et al., 2011)

focus on a virtual-machine based infrastructure,

while our work situates on the container-based

platform.

There are previous studies (Rao et al., 2009),

(Dutreilh et al., 2011) that deployed data mining

techniques to predict the demand pattern, similarly

to our work. The derived patterns were used to

predict the upcoming workload in order to prepare

an adequate number of virtual machines (VMs). For

examples, Rao et al (2009) and Dutreilh et al (2011)

selected reinforcement learning algorithms to

allocate virtual machine resources based on resource

utilization. Jamshidi et al (2016) used self-learning

fuzzy logic controller to scale the resource.

Although our work also leverages the reinforcement

learning algorithms, it considers the service time in

addition to the resource utilization. Moreover, the

studies (Rao et al., 2009), (Dutreilh et al., 2011) also

propose the adjustments to the existing workflow

deployed in the cloud platform.

Dawoud et al (2012) suggested a fine-grain

resource adjustment in order to avoid the initial

boot-up latency. Dynamic optimization method has

been used in (Mao et al., 2010) to determine when to

increase or decrease virtual machine instances with

respect to budget, performance or energy constraints

(Dougherty, 2012).

Although there are existing solutions, such as

Kubernetes (2017), for providing container-based

infrastructure, their resource management

capabilities are not sufficient to manage web

applications where workload is quite dynamic.

Kubernetes is an open-source platform, it was

originally created by Google and offered to Cloud

Native Computing Foundation (CNCF). Kubernetes

and Thoth are similar in a sense that both try to

automatically adjust the system resources so that

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

they meet the incoming demand. However, the

Autoscaling feature in Kubernetes version 1.1 (as of

this writing) only supports the threshold-based

ruling. In other words, users need to specify the

target CPU utilization which will be compared with

the average CPU utilization. If the target value is

met, Kubernetes will automatically spawn one more

container to help relieve the load. This current

method is simple but still neglect other important

factors that can contribute to the quality of web

applications, such as network utilization and

memory utilization. Deis (2017) builds open-source

tools to manage applications on Kubernetes. Thus,

Deis inherently shares the same scaling challenge

found in Kubernetes. In contrast, Thoth takes other

information, such as service time, request rate,

memory utilization and CPU utilization, into account

in order to make the scaling decision more

accurately.

Flynn (2017) is an open-source platform-as-a-

service based on container technology, but not

utilized Kubernetes. Flynn helps developers in

application deployment. Flynn’s scale mechanism is

still quite static. Users need to specify the number of

target instances on a command line in order to scale

an application.

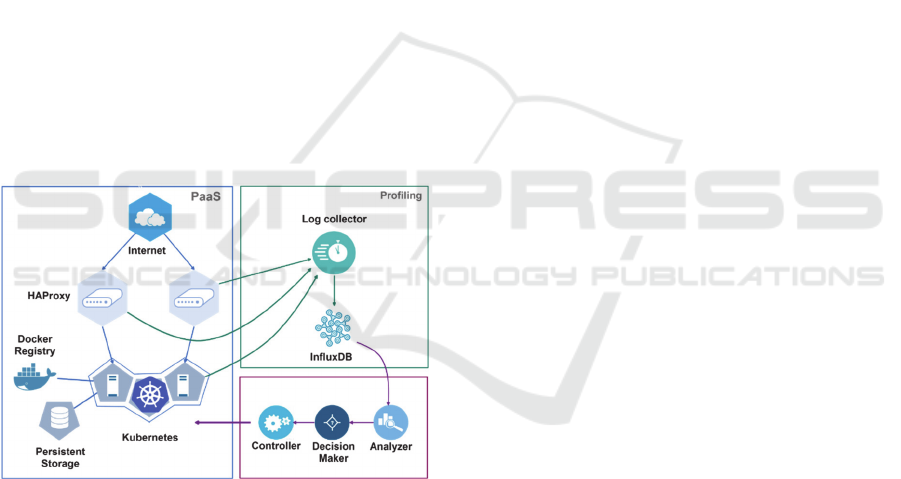

Figure 1: Thoth System Architecture Overview.

3 ARCHITECTURE

We design the Thoth’s architecture, as shown in

Figure 1. One of our key design rationale is that we

try to leverage existing tools as much as possible and

provide the necessary modifications to complete our

resource management mechanism. The existing tools

we utilize are, for examples, Kubernetes, HAProxy

and Docker Engine. The system architecture

contains three different modules: 1) Platform-as-a-

Service or PaaS Module, 2) Profiling Module and 3)

Scaling module.

3.1 PaaS Module

The PaaS module is responsible for managing the

container and runtime infrastructure for applications.

We leverage Docker Engine to execute packaged

containers submitted by users. We use Kubernetes to

manage a cluster of Docker-enabled servers and

perform the container-replica creation and

decommission. To run web applications, port-

mapping is also one of the important tasks. We also

use Kubernetes to oversee port-mapping. At the

physical level, we connect each physical server to a

shared persistent storage in order to store persistent

data, such as database or application configurations.

We assume that each packaged container is

stateless and the different instances of the packaged

container will be able to serve each incoming

request equivalently. This assumption is generally

true in practice for recently-created web

applications. One of the key design for web

applications is reliability. In modern applications,

reliability can be achieved through running multiple

instances in various datacenters, rather than

obtaining very expensive pieces of hardware. Hence,

new web applications are normally designed to have

many identical workers serve users. These workers

are replaceable if any problem occurs, while users

do not even notice the problem.

When a user sends a request to the web servers

running on Thoth, each incoming request is going

through HAProxy servers. HAProxy serves as a load

balancer and reverse proxy for services running on

our platform. We also use HAProxy to capture

request statistics, such as the number of incoming

request and the service time of each container.

Combining HAProxy and Kubernetes, we have a

flexible platform which can manage applications’

resource scaling as well as collect the resource usage

statistics of all tenants in the system. Our PaaS

module is designed similarly to existing PaaS

platform, such as Cloud Foundry (originally

developed by VMware) and OpenShift by Red Hat.

3.2 Profiling Module

The main task of the profiling module is profiling

performance and collecting the resource usage of

applications running on our platform. In this module,

we implement a centralized log collector to keep two

important information: 1) the application-request

statistics and the service time, reported from

Thoth: Automatic Resource Management with Machine Learning for Container-based Cloud Platform

HAProxy and 2) the CPU and memory utilization of

each container and each physical servers. The CPU

and memory utilization is monitored by Kubernetes.

All statistics are captured as time series and stored

into InfluxDB to be used for further analysis and

monitoring the status of the system.

3.3 Scaling Module

The scaling module is our primary contribution

which automatically analyses the stream of

information collected by the profiling module,

described in Sub-section 3.2. The goal of the

analysis is to determine whether a web application is

needed more resources in order to meet the

acceptable quality of service. Then, it needs to

identify an appropriate course of actions for the

system in order to achieve such goal.

The collected time-series data is normalized and

reformatted to fit the requirements of the selected

machine-learning algorithms. In this paper, we

choose to explore Q-Learning, a reinforcement

learning-based approach, and Neural Network. The

selected algorithms will be compared with our rule-

based scaling method, which mimics the existing

approaches. These algorithms will serve as a key

component in our decision maker sub-module in

order to decide whether or not to increase or

decrease the instances of application containers. The

final decision is forwarded to the controller which

interacts with the Kubernetes to scale the container

for the application.

We implement our decision maker component as

a service module so that it can utilize different plug-

ins for various algorithms including Q-learning and

artificial neural network. In the future, different

applications might be able to use different

algorithms as appropriate.

Our scaling module is similar to the Autoscaling

feature in Kubernetes version 1.1 (as of this writing)

in a way that it tries to automatically adjust the

resources in order to satisfy the performance

requirement. However, the Autoscaling feature in

Kubernetes version 1.1 only considers a threshold-

based scaling based on target CPU utilization. In

contrast, our scaling module includes various

metrics including the application-request-related

information and system utilization into the

consideration. And our system can be easily

extended to additional information in the future.

4 EVALUATION

The main objective of the evaluation is to investigate

and assess the resource-control effectiveness of each

selected algorithm. We consider how quickly each

algorithm can adjust the number of computing

containers to cope with changes in workload so that

the request response time is maintained at the

acceptable level. The best algorithm should be able

to achieve desirable response time, while using the

computing resources as little as possible. In the

cloud regime, the amount of computing resources in

use implies the cost of computing resources. Cloud

providers may charge users or developers in term of

the number of running containers in combination of

the time in use. The more running containers

developers have, the more expense would incur. In

the experiments, all containers are instantiated from

the same image, i.e. using the same programs.

We choose three algorithms, namely Q-Learning

(Section 4.1.1), Neural Network (Section 4.1.2) and

Rule-based algorithm which uses the parameters in

Table 2. The rule-based algorithm represents a fixed

solution where developers are able to come up with

appropriate rules to handle existing workloads. The

rules are defined by the scaling threshold for

monitored Quality of Service metrics (such as

service time and request/response rate), as well as

resource utilization metrics (CPU, Memory.)

However, if the access pattern changes, the rules

may need to be revised and manually changed

accordingly. In this case, we assume that developers

are knowledgeable to be able to identify the

appropriate rules for such workload. The

configuration details of each algorithm are described

in Section 4.1.

We conduct three experiments for each selected

algorithm using the generated workload with the

characteristics, elaborated in Section 4.2. While

running the experiments, we use HAProxy to collect

all performance data, i.e. response time, CPU and

memory utilization. The experimental results are

demonstrated and discussed in Section 4.3.

4.1 Experimental Settings

As mentioned earlier, we select three algorithms for

the evaluation, namely Q-Learning, Neural Network

and Rule-based algorithm. The goal of each

algorithm is the same that is trying to maintain the

response time below 500 milliseconds for each

request by increasing the number of containers to

keep up with the additional workload or removing

the containers to reduce the excess resource. The

configurations of each algorithm are described in the

following.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

4.1.1 Q-Learning

Q-Learning is a reinforcement-learning based

approach for machine learning. As shown in Figure

2, Q-Learning system simulates a state diagram with

variable link weight. After the system transition

from an initial state, the reward of the current state is

evaluated. Good state will yield high reward and

reinforcement the associated transition. Bad state

will yield lower reward and reflect back to ensure

that the system is less likely to take the transition. As

shown in Figure 2, state A is a current state. If no

change in the resource allocation is needed, for

example when the service quality is still in the

acceptable range, it still stays in state A. If we need

to add an additional container instance or a replica in

order to handle higher demand, it will transition

from state A to state B. If we want to remove a

replica due to diminished workload, it can transition

from state A to state C.

Figure 2: A state diagram showing states and transitions to

multiple states generated while performing Q-Learning

approach.

Typical Q-Learning implementation uses finite

matrix to store its state-space information. However,

in our settings, the state-space size could be

exceedingly large. There are numerous scenarios in

terms of the number of outstanding requests, request

response time, CPU and memory utilization. To

make the approach practical for actual deployment,

we use a sparse learning matrix and store the list of

indexed states instead. In practice, the number of

explored state is limited and the time required to

calculate the state transition is negligible.

In order to cope with the large number of

available states, we have implemented a delayed

reward calculation in order to properly capture the

effect of change in the system. After transition to a

new state, the actual reward for such transition is

calculated and stored in the database. The reward

calculation is presented in Figure 3. The calculation

is comprised of the selected factors as follows:

1) The average CPU utilization.

2) The average memory utilization.

3) The service time that takes a server to

respond to a request.

4) The ratio of the total number of requests to

the maximum number of requests that can

be served by a single instance. This ratio

suggests the degree of workload quantity.

5) The number of existing replicas running an

application.

Table 1 demonstrates how we configure each

factor in order to make the calculation shown in

Figure 3. After combining all factors or variables,

the result determines the current state of an

application. Each state is identified as a tuple of the

variables <CPULOW, MEMLOW, RTIMELOW,

REQFOLD, REPLICAS>. Each state is associated

with a Q matrix value and the initial reward matrix

value is set to zero.

Figure 3: Variables used to identify the Q-Learning state.

Table 1: Q-Learning State Variables.

System

Variables

Description

Possible

Values

CPULOW

Average CPU utilization is

less than 50 %

0, 1

MEMLOW

Average memory

utilization is less than 50%

0, 1

RTIMELO

Response time is less than

average response time

0, 1

REQFOLD

The ratio of the total

number of requests to the

maxinum number of requests

that can be served by a single

instance

0, 1, 2,

….

REPLICAS

The number of replicas for

the application

1, 2, 3,

…

4.1.2 Artificial Neural Network (ANN)

Artificial Neural Network, simply Neural Network

(NN) is usually utilized as pattern classification. As

depicted in Figure 4, NN normally has multiple

Thoth: Automatic Resource Management with Machine Learning for Container-based Cloud Platform

inputs, weighed with appropriate values. Then, all

weighted inputs are combined using a selected

transfer function. The result will go through an

activation function which defines the output of such

inputs.

In this work, we deploy NN to recognize patterns

of application characteristics that require scaling.

Similar to Q-Learning, we use the variables

identified in Table 1 to construct an artificial neural

network with back-propagation. As shown in Figure

5, we represent the application state with a three-

layer neural network with one hidden layer. There

are 36 nodes in total. The input nodes conform to the

same guidelines described in Table 1, similarly to Q-

Learning. The task of the network is to classify the

combination of the given inputs and then determine

an associate action which can be increasing or

decreasing the number of existing containers or

replicas.

Figure 4: Neural network architecture.

4.1.3 Rule-based Algorithm

The rule-based algorithm (Rule) is created as a

representation of a fixed resource control algorithm.

Appropriate rules are influenced by experts with

relevant knowledge and experiences. The objective

of these rules is to achieve acceptable application

performance while minimizing the resources utilized

by applications. Two common application

performance metrics are response time and

throughput. The application response time is the

amount time that takes from sending an application

request until receiving the response. If we exclude

the network round-trip time from the response time,

it will be the time that the application servers take to

complete the request, referred to as service time. In

the rule-based approach, we give the service time

higher priority than the throughput or request rate

because the response time is an important factor to

indicate interactivity level with users. We also use

the CPU and memory utilization to estimate the

resource usage of individual applications. However,

the rules that we have constructed are not adaptive to

load fluctuation. This approach is similar to what we

have in current PaaS infrastructures.

Figure 5: The artificial neural network that is used in our

scaling algorithm.

To construct the rules, we select four important

metrics, namely 1) service time, which determines

the amount time that takes the containers to finish a

request, 2) the request rate or the number of requests

per second, 3) memory utilization percentage of

running containers and 4) CPU utilization

percentage of running containers. If the values of the

metrics exceed the maximum, the system needs to

create an additional container to handle the

workload. However, if the number decreases below

the minimum setting, the system needs to remove a

container in order to release unnecessary resources.

Our rule-based algorithm will consider the

parameters according to the order in Table 2 – that is

the metrics are sorted by its priority. A higher

priority metric will get considered before a lower

priority metric. For example, the service time has

higher priority than CPU utilization. If the service

time exceeds 500 milliseconds but the number of

requests per second is below 1,200, the system still

needs to create another container. The reason is the

service time has a higher priority than a request rate.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

Table 2: Rule-based parameters and priorities.

Parameters Minimum Maximum

1) Service Time

(Milliseconds)

150 500

2) Request Rate (Requests per

Second)

1,200 2,500

3) Memory Utilization (%) 50 75

4) CPU Utilization (%) 50 75

4.2 Workloads

We use Locust (locust.io) to generate a synthetic

workload to simulate a dynamic usage scenario. The

test application is an eight-puzzle solver with

randomly-generated settings. The time to solve each

setting varies to mimic dynamic applications. The

generated workload pattern is shown in Figure 6.

Figure 6: The average number of requests per second for

the synthetic workload.

4.3 Experimental Results

From the experiments, both Neural Network

algorithm (NN) and Q-Learning algorithm (QL)

have very similar cumulative distribution functions

as shown in Figure 7A and 7B, while the rule-based

algorithm (Rule) has a little higher response time at

higher percentile. When we consider the response

time at the 90

percentile (Figure 7A), QL has the

best response time, followed by NN and Rule – that

is 6, 7 and 11 milliseconds respectively. Yet, the

CDF graphs of all three algorithms have long tails.

The 99

percentile response times of NN, QL and

Rule (Figure 7B) are 5,800, 3,782, 3,647

milliseconds respectively. The 99

percentile

response times are three orders of magnitude higher

than the 90

percentile response times. The average

response times of NN, QL and Rule are 169.76,

129.55, and 93.49 milliseconds respectively. NN has

the highest average response time, which is 23.68%

and 44.93% higher than the average response time of

QL and Rule respectively. From the experimental

results, NN has the worst capability to maintain the

acceptable response time, while QL has a bit better

overall response time than Rule.

Figure 7A: The zoomed-in response time cumulative

distribution function plot of NN, QL, and Rule (shown the

percentile).

Figure 7B: The zoomed-in response time cumulative

distribution function plot of NN, QL, and Rule (shown the

percentile).

0.8

0.82

0.84

0.86

0.88

0.9

0.92

0.94

0.96

0.98

0 5 10 15 20 25 30 35 40 45 50

CDF

ResponseTime(Milliseconds)

NeuralNetwork Q‐Learning

Rule

0.98

0.985

0.99

0.995

3400 3800 4200 4600 5000 5400 5800

CDF

ResponseTime(Milliseconds)

NeuralNetwork Q‐Learning

Rule

100

200

300

400

500

600

0 2000 4000 6000

Requestspersecond

Time(Seconds)

Thoth: Automatic Resource Management with Machine Learning for Container-based Cloud Platform

Figure 8: The number of replicas used with each

algorithm.

Figure 9: The average CPU and memory utilization for

each algorithm.

Consider the number of containers or replicas in

use for each experiment, as shown in Figure 8. The

number of replicas imply the expense that would

incur to developers. NN needs a lot more replicas

than QL and Rule in order to handle the same

amount of workload. Rule uses the containers a bit

more than QL, especially during the period of 3,400

and 4,100 milliseconds. Therefore, on average NN,

QL and Rule require 1.94, 1.38 and 1.68 replicas

respectively. Hence, QL should yield the least

computing cost to developers, followed by Rule and

NN.

Consider the CPU and memory utilization of all

in-use replicas, as shown in Figure 10 and 11. NN

and QL have the similar average utilization. As

shown in Figure 8 and 9, NN requires many more

replicas to do the same amount of work as QL since

the overall computing utilization of both NN and QL

is about the same. Rule has 35.16% and 9.59%

higher average CPU and memory utilization than the

others respectively. As shown in Figure 8, Rule is

Figure 10: The CPU utilization of the application

containers during the experiments with each algorithm.

Figure 11: The memory utilization of the application

containers during the experiments with each algorithm.

more sensitive to the workload changes than NN and

QL. Thus, Rule tends to trigger an additional

instance more quickly than QL, resulting in higher

CPU and memory resource usage. During the period

of 3,400 - 4,100 milliseconds, NN was unable to

respond to the load changes in time, which could be

the reason that NN has the worst overall response

time.

The results from Figure 6-11 suggest that QL is

a preferable choice over NN since QL yields better

service (i.e. 34.79% better response time at 99

percentile) with less computing cost (i.e. 28.96%

less containers in use). When we compare QL and

Rule, QL has overall slightly-better service at the

0 2000 4000 6000

Replicas

Time(Seconds)

NeuralNetwork Q‐Learning

Rule

AvgCPU(%) AvgMemory(%)

%ResourceUtilization

NeuralNetwork Q‐Learning Rule

100

200

300

400

500

600

0 2000 4000 6000

%CPUUtilization

Time(Seconds)

NeuralNetwork Q‐Learning

Rule

0 2000 4000 6000

%MemoryUtilization

Time(Seconds)

NeuralNetwork Q‐Learning

Rule

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

percentile and incurs less computing cost (i.e.

21.94% less containers in use). As mentioned

earlier, NN requires the most average number of

containers in order to achieve the same amount of

work. Additionally, the overall response time of NN

seems to be the worst. This is because NN tends to

have the slowest response to the load changes. In

other words, NN cannot spawn a sufficient number

of containers in time in order to cope with more

workloads and when the load becomes smaller, NN

does not reduce the in-use containers as quickly as it

should.

5 CONCLUSION

We have proposed Thoth, an automated resource

management system for container-based cloud

platform, using different learning algorithms to auto-

scale computing resources for web applications. The

goal is to assist developers so that they do not need

to manually adjust computing resources when

workload changes to maintain acceptable level of

service. Thoth utilized three algorithms as pluggable

scaling modules, namely Neural Network, Q-

Learning and Rule-based algorithm. These

algorithms are studied and evaluated in a container-

based platform as a service system. The

experimental results suggest that QL can achieve the

best quality of service with the least computing cost

since QL can adapt to the load changes more quickly

and appropriately than the others. Although Rule-

based algorithm can yield a similar quality of service

to QL, Rule requires 21.94% more computing

resources, resulting in more expense. Additionally,

the rule-based algorithm requires experts to

manually calibrate the rules and it cannot be

automatically adjusted to changes in the workload.

NN performs the worst in terms of the amount of

resources and service quality since it cannot adjust

the load changes quickly enough. From the

evaluation, QL could help developers maintain

acceptable service quality as well as automatically

adjust the proper amount of computing resources in

order to minimize the computing resource expense.

REFERENCES

Dawoud, W., Takouna, I. and Meinel, C. (2012) Elastic

virtual machine for fine-grained cloud resource

provisioning. In: Global Trends in Computing and

Communication Systems, Springer Berline Heidelberg,

pp. 11-25.

Deis.io, (2017). Deis builds powerful, open source tools

that make it easy for teams to create and manage

applications on Kubernetes. [online] Available at:

https://deis.io.

Dougherty, B., White, J. and Schmidt, D.C. (2012) Model-

driven auto-scaling of green cloud computing

infrastructure. In: Future Generation Computer

Systems, 28, no 2., pp.371-378.

Dutreilh, X., Kirgizov, S., Melekhova O., Malenfant, J.,

Rivierre, N. and Truck, I. (2011) Using Reinforcement

Learning for Autonomic Resource Allocation in

Clouds: Toward a Fully Automated Workflow. In: the

7th International Conference on Autonomic and

Autonomous Systems, Venice, Italy: ICAS, pp.67-74.

Flynn.io, (2017). Throw away the duct tape. Say hello to

Flynn. [online] Avaiable at: https://flynn.io/

Jamshidi, P., Sharifloo, A., Pahl, C., Arabnejad, H.,

Metzger, A. and Estrada, G. (2016) Fuzzy Self-

Learning Controllers for Elasticity Management in

Dynamic Cloud Architectures. In: the 12th

International ACM SIGSOFT Conference on Quality

of Software Architectures, Venice: QoSA, pp. 70-79.

Jiang, J., Lu, J., Zhang, G. and Long, G. (2013) Optimal

Cloud Resource Auto-Scaling for Web Applications.

In: the 13th IEEE/ACM International Symposium on

Cluster, Cloud and Grid Computing, Delft: CCGrid,

pp. 58-65.

Jiang, Y., Perng, C.S., Li, T. and Chang, R. (2011) ASAP:

A Self-Adaptive Prediction System for Instant Cloud

Resource Demand Provisioning. In: IEEE 11th

International Conference on Data Mining, Vancouver,

BC, pp. 1104-1109.

Kubernetes.io, (2017). Kubernetes is an open-source

system for automating deployment, scaling, and

management of containerized applications. [online]

Available at: https://kubernetes.io/

Mao, M., Li, J. and Humphrey, M. (2010) Cloud auto-

scaling with deadline and budget constraints. In: the

11th IEEE/ACM International Conference on Grid

Computing, Brussels, pp. 41-48.

Rao, J., Bu, X., Xu, C.Z., Wang, L., and Yin, G. (2009).

VCONF: a reinforcement learning approach to virtual

machine auto-configuration. In: the 6th International

Conference on Autonomic Computing, Barcelona,

Spain: ICAC, pp. 137-146.

Thoth: Automatic Resource Management with Machine Learning for Container-based Cloud Platform
