Multisensory Analytics: Case of Visual-auditory Analysis of Scalar

Fields

E. Malikova

, V. Pilyugin

, V. Adzhiev

, G. Pasko

and A. Pasko

LLC SMEDX, Samara, Russian Federation

National Research Nuclear University "MEPhI", Moscow, Russian Federation

National Centre for Computer Animation, Bournemouth University, Bournemouth, U.K.

Keywords: Multisensory Data Analysis, Visual Analytics, Sonification, Scientific Visualization, Scalar Field,

Multimedia Coordinates, Sound.

Abstract: A well-known definition of visualization is the mapping of initial data to a visual representation, which can

be perceived and interpreted by humans. Human senses include not only vision, but also hearing, sense of

touch, smell and others including their combinations. Visual analytics and its more general version that we

call Multisensory Analytics are areas that consider visualization as one of its components. We present a

particular case of the multisensory analytics with a hybrid visual-auditory representation of data to show how

auditory display can be used in the context of data analysis. Some generalizations based on using real-valued

vector functions for solving data analysis problems by means of multisensory analytics are proposed. These

generalizations might be considered as a first step to formalization of the correspondence between the initial

data and various sensory stimuli. An illustration of our approach with a case study of analysis of a scalar field

using both visual and auditory data representations is given.

1 INTRODUCTION

Visual analysis of graphical representation of data has

practically become an essential part of modern

scientific research. Through applying analytical

reasoning facilitated by visual representations

hypotheses about the data can be either confirmed or

rejected leading to a better understanding of the data

and subsequently about a phenomena that data

represents. Such a reasoning process using visual

representations of data is called Visual Analytics

(Wong, 2004; Keim, 2008).

Nowadays we deal with processes of intensive

human interaction with large amounts of data offering

the prospects of extracting useful hidden information.

The growing complexity and amount of raw data

require expanding the means of visual analytics,

involving multimedia, virtual and augmented reality,

tactile and haptic devices, 3D printing and other

means of information representation for human

perception and analysis. A general definition of

visualization as "a binding (or mapping) of data to a

representation that can be perceived" (Foley, 1994)

gives the ground to expansion of visual analysis to

become multisensory analysis. This expansion

requires involving other human senses besides vision,

namely hearing, sense of touch and others. Involving

multiple human senses into the process of data

analysis and analytical reasoning is the main feature

of the Multisensory Analytics approach as an

extension of the Visual Analytics. From the authors’

point of view, this approach can be the next emerging

topic in the field of comprehensive data interpretation

and analysis.

The formalization of the multisensory analytics

process and particularly of establishing

correspondences between the initial data and multiple

sensory stimuli is an open research question. In this

paper, we propose a general approach to multisensory

analytics and illustrate this approach with a case study

of scalar fields analysis using hybrid audio-visual

data representation.

2 RELATED WORKS

In this section we discuss related topics and concepts

such as visualization and visual analytics, sonification

and perceptualization, as well as geometric modeling

using real functions.

322

Malikova E., Pilyugin V., Adzhiev V., Pasko G. and Pasko A.

Multisensory Analytics: Case of Visual-auditory Analysis of Scalar Fields.

DOI: 10.5220/0006255003220329

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 322-329

ISBN: 978-989-758-228-8

2.1 Visualization and Visual Analytics

Informally, visualization can be understood as

making invisible visible, but more formally it can be

defined as the process of transforming data into a

visual form enabling viewers to observe and analyze

the data (McCormick, 1987). Visual analytics as a

method of data analysis is an extension of information

visualization and scientific visualization with a focus

on analytical reasoning enabled by interactive visual

interfaces (Wong, 2004). Visual analytics software

tools and techniques are used in various scientific

disciplines to form certain judgments on the basis of

the obtained data. Through applying analytical

reasoning facilitated by visual interfaces, hypotheses

about the data can be either confirmed or rejected

leading to a better understanding of the data (Keim,

2008). The paper (Keim, 2008) introduces a formal

description of the visual analytics process as

interconnected mappings from initial data to some

insight, which can be either directly obtained from

generated visual representations or in a combination

with automated analysis methods. We will provide a

similar formal description for the proposed approach

to multisensory analytics.

While (Keim, 2008) mentions a single-step

mapping from a data set to its visual representation

within the visual analytics process, (Pilyugin, 2013)

goes further and states that to obtain such a visual

representation (or a graphical image), one needs to

put some geometric model (multidimensional in the

general case) into correspondence with the initial

data. It means that a spatial scene, which is an

assembly of spatial objects with their geometric and

optical descriptions, has first to be constructed and

then a graphical image can be generated using some

rendering procedure for its further visual analysis.

2.2 Sonification and Perceptualization

Among the sensory stimuli other than visual, the

usage of sound has been widely investigated since

early 80-s (Yeung, 1980; Bly, 1982). The human

auditory perception is considered most quantitative

because of its sensitivity to subtle changes in the

sound characteristics. The technique of data

representation using variable sound characteristics

such as pitch, volume, note duration and others is

called data sonification (Kaper, 1999).

Auditory perception has always been the human's

early warning system, which operates in the

background mode and requires full attention, only

when the sound changes abruptly. In (Scaletti, 1991)

a small survey was made on the situations when using

audio analysis may be more effective than visual

perception. The main classes of data that fall in this

category are time-varying data and multidimensional

data. The auditory perception brings the unique

advantage to distinguish even small variations in the

parameters of the single sound wave and to compare

sound waves. Currently, it is considered that any

person may be trained to develop an ear for music. A

musical ear, traditionally viewed as a set of abilities

that allows to fully perceive music and to adequately

judge on all its nuances, but the presence of this

ability allows one to take advantage of the most

advanced extended analysis capabilities as well. In

(Mezrich, 1984) the procedures of time-varying data

representation in the graphical form using a musical

accompaniment are considered. In the paper (Lodha,

1997), there are examples of the presentation of

scientific data in the form of musical fragments. The

software product MUSE presented in (Lodha, 1997)

is the result of a collaboration of researchers and

musicians. This is largely a matter of sensory

capabilities of a specific researcher, but we can say

that combining auditory and visual perception allows

one to significantly enhance the ability to conduct

analysis more efficiently, taking advantages of two

sensory organs that work differently, and to perceive

the same information in different ways

complementing each other.

An extension of visualization through creating

additional perceptual human inputs or more general a

combination of several sensory stimuli for data

representation is called data perceptualization

(Grinstein, 1990; Ebert, 2004) or data sensualization

(Ogi, 1996). The typical combinations are between

visual and auditory stimuli (Grinstein, 1990; Jovanov,

1999), visual and tactile/haptic stimuli (Maciejewski,

2005), or three of these stimuli applied together (Ogi,

1996). Generalizing the above definition of

visualization, we can say that the purpose of

perceptualization is making abstraction perceivable.

Although some efforts have been made on the

development of data perceptualization, a formal

framework for establishing correspondences between

data and multiple sensory stimuli has not been yet

proposed. The concept of multimedia coordinates

was introduced and applied in multidimensional

shape modelling and rendering (Adzhiev, 1999)).

This concept provides a formalization of mapping

from a multidimensional geometric model to a

multimedia object including text, images, video,

sounds and other types of sensory stimuli.

Multisensory Analytics: Case of Visual-auditory Analysis of Scalar Fields

323

2.3 Function Representation in

Geometric Modeling

In geometric modelling, the necessity of compact

precise models with unlimited complexity has

resulted in the development of the new paradigm of

procedural modeling and rendering, where the

geometric shape and properties are evaluated upon

request using procedural rules. One of the approaches

to procedural modelling is to evaluate a real function

of point coordinates providing the point membership

for the shape at the given point along with the

measure of distance to its surface. A constructive

approach to the creation of such function evaluation

procedures for geometric shapes is called the

Function Representation (FRep) (Pasko, 1995). FRep

was extended in (Pasko, 2001) to the constructive

hypervolume model, where the object is represented

not by a single function, but by a vector-function with

one component responsible for the object geometry

and other components serving as point attribute

functions representing such object properties as

material, color, transparency, and others. Later, it will

be demonstrated that the use of the constructive

hypervolume model can bring significant advantages

to solving scientific data analysis problems.

3 AN APPROACH TO

MULTISENSORY ANALYTICS

As it was mentioned above, multisensory analytics

can be considered an extension of visual analytics

involving more than one human senses in the process

of data analysis. Based on the visual analytics process

as presented in (Keim, 2008) and the idea of an

intermediate multidimensional geometric

representation of initial data (Pilyugin, 2013), we

propose the following interpretation of the basic

multisensory analytics process.

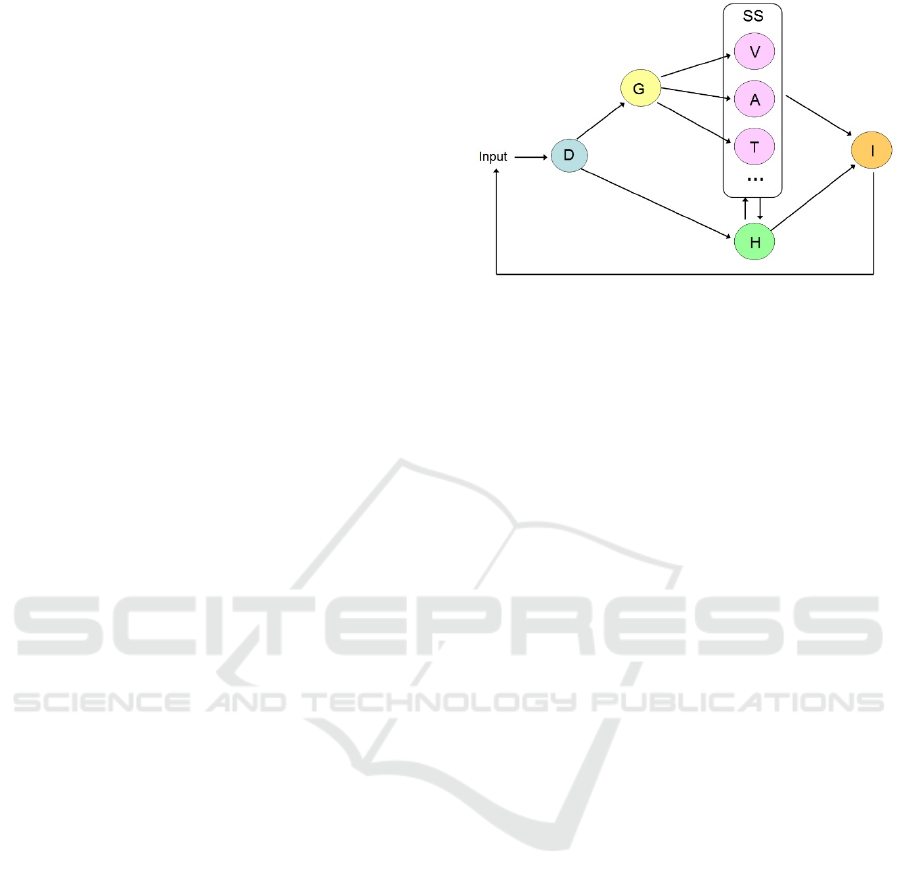

In the diagram (Fig. 1), the multisensory analytics

process is presented as a transformation (mapping)

M: D  I from initial data D to insight I, which is the

goal of the entire process. The mapping M is a

superposition of mappings from one set to another in

the diagram. Thus, the initial data undergo geometric

interpretation and are mapped to the set G of

multidimensional geometric models. The next step is

to generate several sensory stimuli SS for human

perception. The mappings from G to SS are facilitated

by the introduction of a spatial scene, which is an

assembly of spatial objects with their geometric,

optical, auditory, tactile and other properties.

Figure 1: Multisensory analytics process.

Note that the geometric objects in the spatial scene

can have their dimensionality reduced to 2D and 3D

using geometric cross-sections and projections,

which allows for applying well-known graphical

rendering algorithms. When such a spatial scene is

constructed, various sensory stimuli can be generated

using corresponding rendering procedures: visual

stimuli V (graphical images), auditory stimuli A

(sounds), tactile and haptic stimuli T, and others. The

final insight I can be either directly obtained from the

generated sensory stimuli through human perception

and analysis, or it is obtained in a combination with

generating a hypothesis H and its analysis including

automated methods. Note that the hypothesis H can

be also represented with visual and other sensory

stimuli, which can help to refine or redefine it in the

process of analysis. The entire process has iterative

character, which is shown by the feedback loop in the

diagram. The user may tune or redefine not only the

parameters of the data input, but also the introduced

geometric models, the hypothesis, the selection of

sensory stimuli and the type and parameters of

rendering procedures.

Applying the presented general approach the

process of data analysis involving both human vision

and hearing, we need to do the following:

1) To define a mapping of the given data onto its

representation in the form of images and sound. To

obtain a necessary model of a spatial scene, its

geometric and optical models need to be extended by

a sound model. Such a spatial scene augmented with

sonification needs to be put in correspondence to the

given data and then sound rendering can be applied

with output to speakers or some other sound output

device for further analysis.

2) To analyze the rendered images and sound and

to interpret the results of this analysis in terms of the

initial data.

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

324

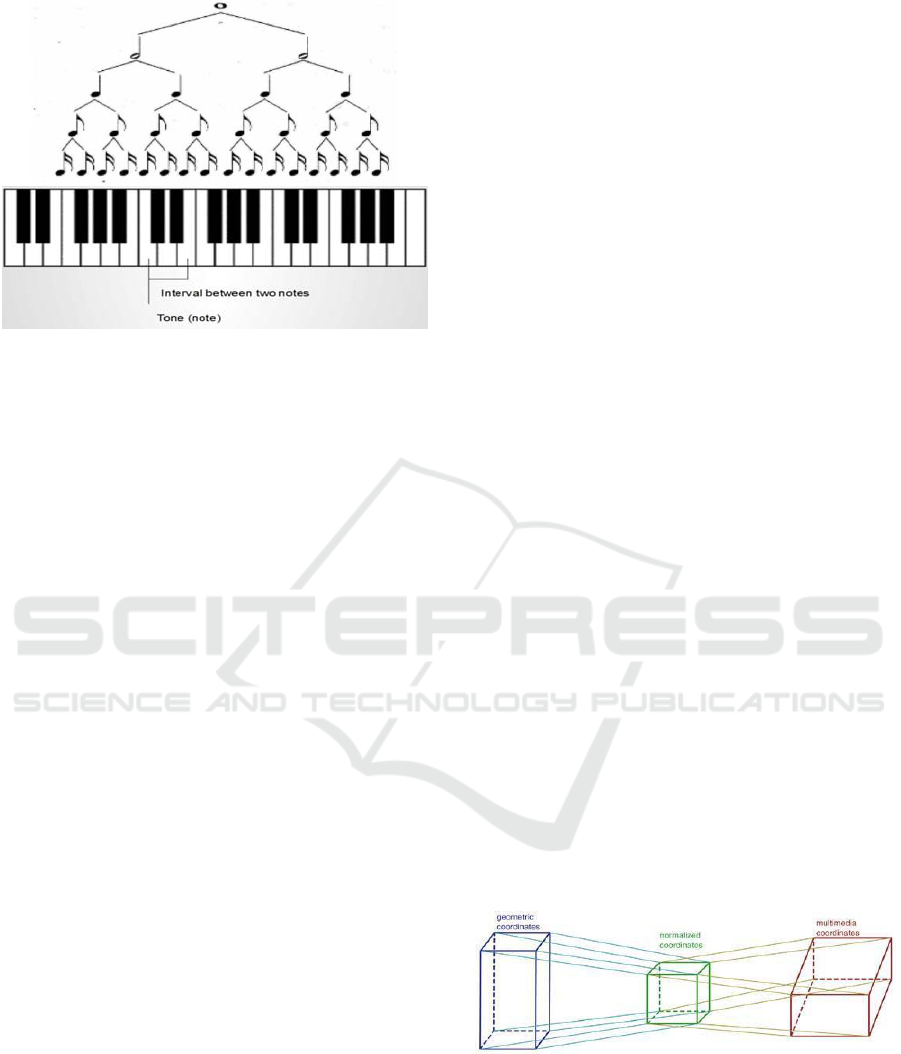

Figure 2: (Top) Aurally measuring the interval between two

notes and determine the tone (note itself). For this a musical

scale used in a musical composition should be defined first

of all (minor, major, based on C,D,F note and etc.).

(Bottom) Measuring the note duration. The basic rhythm

parameters in a musical composition should be defined first

of all.

The definition of the corresponding sound

mappings that can be concretely analyzed and easily

interpreted by researchers is also a question that

should be studied. Here, we suggest that a researcher

should be trained to interpret some not quite evident

sound mappings similar to musicians training their

ears for further music analysis. In our work, we take

advantage of musicians’ approach adopting well-

known concepts of music analysis and writing used

by musicians from simple properties of sound

analysis (pitch, volume, duration, etc.) to “music”

properties analysis (tone, interval between tones,

etc.). These concepts are taken as the base of sound

mapping and accordingly of sound analysis.

4 MAPPINGS VIA MULTIMEDIA

COORDINATES

To obtain a multisensory representation we need to

create a spatial scene, which is an assembly of spatial

objects with their geometric, optical, audio and others

properties. Then the corresponding visual, audio and

other stimuli can be generated using some specialized

mapping and rendering procedures for further

multisensory analysis.

Although some efforts have been made on the

development of data perceptualization, a formal

framework for establishing correspondences between

data and multiple sensory stimuli has not been yet

proposed. We believe that the concept of multimedia

coordinates introduced previously in (Adzhiev, 1999)

and applied in multidimensional shape modeling can

be a good framework for formalization of mapping

from a multidimensional geometric model to a

multimedia object. This object can be treated as a

multidimensional object with Cartesian, visual,

audio, haptic and other types of multimedia

coordinates, which represent various sensory stimuli.

A space mapping between geometric coordinates and

multimedia coordinates establishes correspondence

between the multidimensional shape and the

multimedia object. In this way, a correspondence can

be also established between the given scientific data

and a multimedia object, because introducing a

multidimensional geometric model is one of the steps

in the visualization pipeline presented previously.

Fig. 2 presents some musical (sound)

characteristics that musicians can distinguish

auditory and describe quantitatively: tone, note

duration, interval between two notes are most often

used ones. In this article we deal with a particular type

of musical hearing called harmonical hearing that is

believed to be developed practically by everyone after

some musical training (Zavadska, 2015).

From our point of view, a camera, a sound

receiver, a haptic cursor and other similar elements

need to be explicitly placed in the spatial scene as

spatial models of the human organs of perception.

Thus, a spatial scene includes spatial objects

representing data as well as other spatial objects

representing their influence on human senses.

Rendering of the spatial scene generates information

for output devices provided for consideration by

humans, namely a screen, speakers, a haptic device

and others. In this article we are going to go further

and propose some theoretical generalizations about

solving data analysis problem of complex

multidimensional data by multisensory visual-

auditory analytics.

Figure 3: Mapping of geometric coordinates to multimedia

coordinates.

To operate with multimedia coordinates, one can

introduce a system of normalized numerical

coordinates (a unit cube) and its one-to-one

correspondence to the multimedia space. By selecting

a real normalized value, one can use the

Multisensory Analytics: Case of Visual-auditory Analysis of Scalar Fields

325

corresponding value of the multimedia coordinate

(Fig. 3).

Each geometric coordinate variable takes values

within a given interval. On the other hand,

multimedia coordinates also have their own variation

intervals. For example, a time interval means life time

of the multimedia object, color varies inside the color

space (RGB cube) and so on. To define the mapping,

one has to establish a correspondence between these

intervals through the normalized numerical

coordinates.

There are some special ways of dealing with the

above mappings. By assigning a finite set of constant

values for some geometric coordinate, one can first

reduce the dimensionality of the introduced

geometric model before establishing some mapping

to multimedia coordinates.

Generally methods and approaches that aim at

visual analysis of geometrical objects representing

multidimensional data are called multidimensional

visualization methods (Wong, 1997). These

techniques usually suppose not only reducing

dimensionality through application of specific

geometric operations, but mapping data to different

photometric characteristics (color, transparency), and

include interactive techniques as well. Most well-

known of these techniques are covered by different

types of multimedia coordinates, introduces in

(Adzhiev, 1999), among them are:

 Dynamic coordinates represent continuous

coordinates that can be mapped onto physical

time

 Spreadsheet coordinates take discrete values

in the given bounding box.

 Photometric coordinates include color,

transparency, texture and other parameters of

visual appearance of the multimedia object.

Another type of multimedia coordinates,

mentioned previously is audio. In this paper, we

propose some generalizations on the basis of

multimedia coordinates approach for the specific type

of multidimensional data multisensory analysis,

namely of scalar fields, bringing together some most

well-known interactive, photometric and geometrical

techniques and demonstrating how they can be

extended by other multisensory techniques involving

sound.

5 MULTISENSORY ANALYSIS

OF SCALAR FIELDS

On the basis of the proposed approach to multi-

sensory analytics, let us describe the process for

solving high dimensional data analysis problem

involving hybrid visual-auditory representations. The

data analysis problem can be formulated as follows:

Given - numerical data D describing the object

under consideration;

Required - to obtain an insight I of interest to the

researcher regarding the initial object.

Let us consider the solution of the above stated

problem by reducing this problem to the following

two problems solved one after another:

1) the problem of obtaining a multisensory

representation (SS in Fig. 1) of considered data in the

hybrid visual-auditory form;

2) the problem of human sensory analysis and

interpretation of the results of the analysis with

respect to the original description.

Note that we will deal here only with the upper

path in the diagram in Fig. 1 from the initial data to

sensory stimuli, leaving the hypothesis H

formulation, visualization and analysis out of the

discussion.

It should be noted that initial data may be

multidimensional and very complex. From our

experience of research in nuclear physics, chemistry

and other disciplines, it is very often the case that the

initial data can be presented as a set of real functions

of several variables

f1(x1,x2,...xk) , f2(x1,x2,...xk) , ... fn(x1,x2,...xk)

or scalar fields in an abstract k-dimensional space

describing different characteristics of a complex

object under investigation. When the initial data is

given in the form of discrete samples, it still can be

presented in the above form by applying appropriate

interpolation procedures.

There are two alternative ways to introduce a

multidimensional geometric interpretation (set G in

Fig. 1) of such a data. One is quite straightforward as

each of the above set of real functions can be

considered as a definition of a k-dimensional surface

in a k+n-dimensional space. However, this

interpretation can turn too abstract for the further

multisensory perception and analysis. Alternatively,

all the given data functions can be presented in the

form of a vector function

f = (f1, ..., fn),

which then can be interpreted as an FRep

constructive hypervolume model (Pasko, 2001)

mentioned earlier. This means the function f1 is

describing some multidimensional geometric object

and all other components of the vector-function

represent the attributes associated with this

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

326

multidimensional geometric shape.

The latter geometric interpretation can effectively

be used for constructing a spatial scene description

that can be used by rendering procedures. If the

number of independent variables xi k  3, we first

need to assign constant values to some of the

variables to reduce the space dimensionality to 2D or

3D. Then, we can assign one or several values to f1,

which means applying geometric cross-sections and

projections to obtain 2D or 3D geometric objects

(isolines or isosurfaces correspondingly) for the

spatial scene. The attribute functions f2, ..., fn defined

on the obtained geometry can represent various object

properties such as material, color, emitted sound,

rigidity and others that can be directly mapped to

sensory stimuli. Rendering of the spatial scene

generates several sensory stimuli as outputs. This

process will be illustrated in more detail by the case

study below.

6 CASE STUDY OF VISUAL-

AUDITORY DISPLAY OF

SCALAR FIELDS

Figure 4: Effective multisensory analysis pipeline.

Let us illustrate the process of the multisensory

analysis with a certain class problems, where given

data represent various scalar fields. We will involve

both visual and auditory stimuli in the analysis

process. The effective multisensory analysis pipeline

for this case study is shown in Fig. 4.

 Problem statement

The objects under study are an electron density field

and an electrostatic potential field of CNH molecule.

These two scalar fields are used to be analyzed

together.

 Given

The mathematical model consists of the values of two

real functions of three variables f1(x,y,z) and f2

(x,y,z), where (x,y,z) are coordinates of points in

space. The fields are given in the tabular form at the

nodes of a rectangular regular grid in the function's

domain

 Required

To analyze variations of the functions depending on

changes of independent variables x,y,z.

 Geometric model

Let us introduce two interpolation functions

Y1(x,y,z) and Y2(x,y,z) corresponding to the initial

tabulated functions. The geometric interpretation of

the functions Y1 and Y2 are the hypersurfaces G14

and G24 in the Euclidean subspace E4 with

coordinates (x, y, z, γ), where γ is a function

coordinate. To facilitate further multisensory

analysis, we introduce the following additional

attribute functions:

1) A1=a1(x,y,z) that will correlate with Y1

function values and will correspond to some visual

attribute values. This function defines a hypersurface

A14 in the attribute subspace (x,y,z,a1).

2) A2=a2(x,y,z) that will correspond to some

auditory attribute and will correlate with Y1 function

value.

3) A3=a3(x,y,z) that will correspond to some

auditory attribute and will correlate with Y2 function

value.

4) A4=a4(x,y,z) that will correlate with Y2

function values and will correspond to some visual

attribute values.

Here the vector-function (Y, A1, A2, A3, A4) can

be considered a constructive hypervolume model

with each of its components representing a 4D

hypersurface in 8-dimensional space with coordinates

(x, y, z, γ, a1, a2, a3, a4).

 Spatial scene

The hypersurface G14 can be put into correspondence

with a collection of isosurfaces Cj in the space E3 by

selecting level values cj for the function Y1. We

choose a color scale of selected isosurfaces and thus

define the range for the A4 function values and map

points (xi,yi,zi) on each isosurface cj to

corresponding values Y2(xi,yi,zi) and assign the

corresponding color. We also map each value Y1 = cj

to transparency according to the value of A1 function

within the selected transparency scale. The sound

model includes an introduced point sound source to

be used in sound rendering. The location of the sound

source (xs, ys, zs) within the spatial scene defines the

selected point in space and the sound frequency w of

the generated sound is defined by the function A2

value at this point. We define the sound frequency as

w =k1*a2 (xs, ys, zs), where k is a scalar coefficient.

Also the sound volume as v=k2*a3 (xs, ys, zs) is

defined by the function A3 and thus we generate

complex sound with these two characteristics, pitch

and volume, analyzed simultaneously.

Thus we form the geometrical, optical and sound

models. Schematically the mapping of 4D

hypersurfaces in 8-dimensional space with

Multisensory Analytics: Case of Visual-auditory Analysis of Scalar Fields

327

coordinates (x, y, z, γ, a1, a2, a3, a4) into

corresponding multimedia coordinates will look like:

{x,y,z}  world coordinates “x”,“y”,“z”

{a1,a4}  photometric coordinates of

“transparency” and “color”

{a2,a3}  audio coordinates of “sound frequency”

and “sound volume”.

 Rendering and analysis

The results of the visual and auditory rendering of the

spatial scene are as follows (illustrated by Fig. 3):

- a graphical image of projections of semi-

transparent colored isosurfaces on a graphical

terminal;

- the point sound source represented by the red

sphere with the sound source located in its center. Its

location is specified interactively by the user;

- a sound wave generated by a sound terminal with

the frequency corresponding to the location of the

point sound source and perceived by the user as a

specific sound tone. Here, according to the

multimedia coordinates concept a “musical tone

scale” was defined. In this case we consider a simple

2-octave interval in Cmajor gamma to be such a scale.

These intervals and notes may be presented with a

piano. Quite often, when musicians aurally analyze a

musical composition, they determine note places on

the piano keyboard before writing corresponding

musical sheets. Here we will take the representation

of notes on the piano as our musical scale graphical

representation.

Each sound tone generated at the location of the

point source is defined on the musical Cmajor scale

(Fig.5). Here we receive the following tones

presented in Fig 5(top) and can graphically present

their place on musical scale Fig.5 (bottom). A basic

guitar tuner was also used to illustrate the current note

value (Fig.5 top). However, a well-trained musical

ear can distinguish intervals between these notes and

determine the current note itself and its place on the

piano musical scale. This allows for drawing

conclusions about of quantitative parameters of the

scalar field current value (according to the mapping

from the field value to an according tone) and then

change the value (according to the mapping from the

change in the field value to the interval).

Taking into consideration the presented multisensory

analytics concepts and the specific pipeline in Fig. 4,

we have developed an algorithm for visual-auditory

display of a scalar field. This algorithm has been

implemented as an application program in C++ using

3ds Max and OpenAL (OpenAL, 2016) as the

instrumental tools. The results of the visual and

auditory rendering of the spatial scene are illustrated

by Fig. 5.

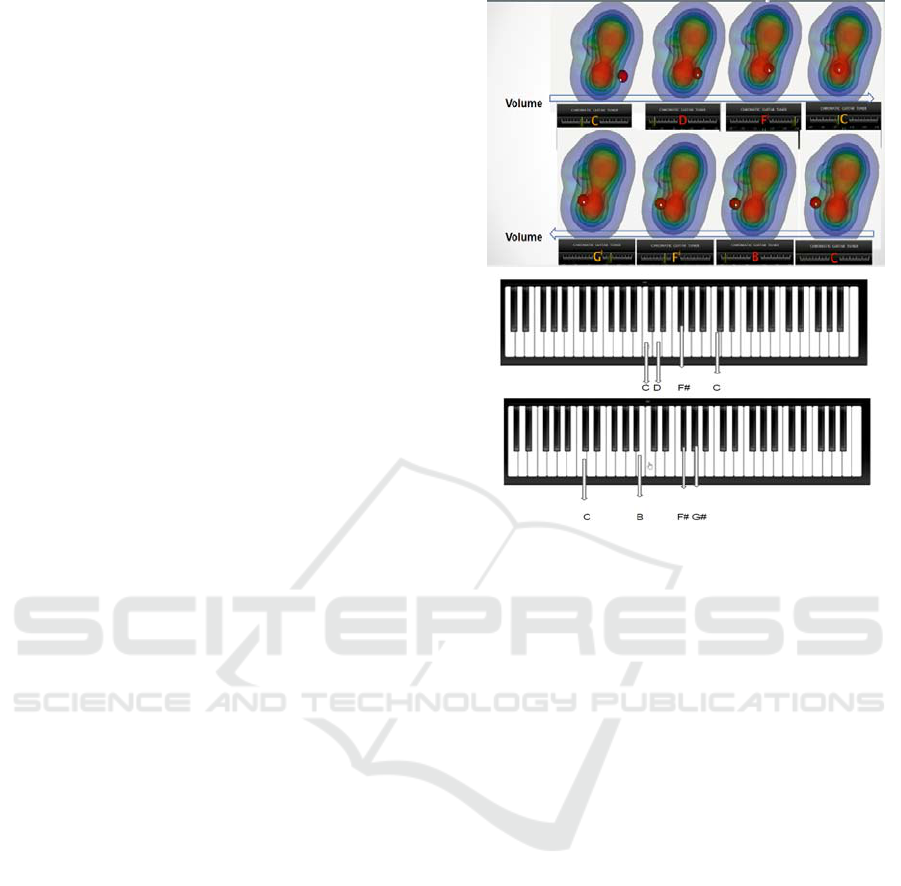

Figure 5: Exploration of two scalar fields dependency and

change with pitch and volume. (Top) Here we use an

interactive “sphere” widget to define sound

frequency w and volume v of the generated sound defined

by the functions A2 and A3 values at fixed values of world

coordinates x,y,z. (Bottom) Presentation of according notes

on Cmajor scale (2 octaves) on piano. A researcher with

well-trained musical ear and appropriate “auditory tuning”

on Cmajor scale can easily aurally determine these notes

and their place on piano musical scale and judge about how

quantitatively sound was changed.

7 CONCLUSIONS

This paper deals with the emerging area of

multisensory analytics involving human senses

besides vision, namely hearing, sense of touch and

others in the process of data analysis. We proposed an

interpretation of the multisensory analytics process as

a set of mappings starting with the initial data sets and

leading to some insight regarding this data. The key

steps of the process are introduction of

multidimensional geometric model of data, creation

of a spatial scene with lower dimensional geometric

models augmented by optical, sound and other

models related to the human senses, and rendering of

this spatial scene with the generation of visual,

auditory, tactile and other sensory stimuli for further

analysis.

The formalization of the mapping between the

multidimensional geometric models and the spatial

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

328

scene available for rendering multiple sensory stimuli

is the next research question to address. We have

shown a possible solution in the case of the initial data

represented by scalar fields (real functions of several

variables) and illustrated this by a case study of the

scalar field analysis using interactive visual-auditory

display. This specific approach of using vector

function gives researchers an opportunity to operate

with high-level abstraction, namely create their own

functional dependencies and use various

mathematical operations. They can introduce new

functions and their superpositions and thus build

geometric, optical and other components of the

spatial scene for further rendering and analysis.

In the more general case of input data, the

mapping to sensory stimuli can be more complex and

non-linear. We are planning to further develop the

concept of multimedia coordinates (Adzhiev, 1999)

as a way to establish more complex correspondences

between initial data, the introduced multidimensional

geometric models and multiple sensory stimuli.

REFERENCES

Wong, P. C., Thomas J., 2004. Visual analytics, IEEE

Computer Graphics and Applications, vol. 24, No. 5,

pp. 20–21.

Keim, D., Mansmann, F., Schneidewind, J., Thomas, J.,

Ziegler, H., 2008. Visual analytics: scope and

challenges, Visual Data Mining, Lecture Notes in

Computer Science, volume 4404, Springer, pp 76-90.

Foley, J., Ribarsky, B., 1994. Next-generation data

visualization tools, in Scientific Visualization,

Advances and Challenges, L. Rosenblum et al. (Eds.),

Academic Press.

McCormick, B., DeFanti, T., Brown, M. (Eds.), 1987.

Visualization in Scientific Computing, Computer

Graphics, vol. 21, No. 6.

Pilyugin, V., Malikova, E., Adzhiev, V., Pasko, A., 2013.

Some theoretical issues of scientific visualization as a

method of data analysis, Transactions on

Computational Science XIX, Lecture Notes in

Computer Science, vol. 7870, Springer-Verlag, pp.

131–142.

Yeung, E., 1980. Pattern Recognition by Audio

Representation of Multivariate Analytical

Data, Analytical Chemistry, vol. 52, No.7, pp. 1120–

1123.

Bly, S., 1982. Presenting information in sound,

Proceedings of the CHI '82 Conference on Human

Factors in Computer Systems, ACM, pp. 371-375.

Kaper, H., Wiebel, E., Tipei, S., 1999. Data Sonification

and Sound Visualization, Computing in science and

Engineering, vol.1, No.4, pp.48-58.

Scaletti, C., Craig, A.B., 1991. Using Sound to Extract

Meaning from Complex Data, In Proceedings SPIE,

1459, pp. 207–219.

Mezrich, J. J., Frysinger, S., Slivjanovski, R., 1984.

Dynamic representation of multivariate. Time Series

data, Journal of the American Statistical Association,

Vol. 79, N. 385. pp. 34–40.

Lodha Suresh, K., Beahan, J., Heppe, T. and etc., 1997.

MUSE: A Musical Data Sonification Toolkit, In

Proceedings of International Conference on Auditory

Display (ICAD), pp. 36–40.

Grinstein, G., Smith S., 1990. Perceptualization of

scientific data, Proc. SPIE 1259, Extracting Meaning

from Complex Data: Processing, Display, Interaction,

pp. 190-199.

Ebert, D., 2004. Extending Visualization to

Perceptualization: the Importance of Perception in

Effective Communication of Information, in The

Visualization Handbook, C. Hansen and C. Johnson

(Eds.), Academic Press, pp. 771-780.

Ogi, T., Hirose M., 1996. Multisensory Data Sensualization

based on Human Perception, VRAIS '96 Proceedings of

the 1996 Virtual Reality Annual International

Symposium, pp. 66-71.

Jovanov, E., Starcevic, D., Radivojevic, V., Samardzic, A.,

Simeunovic, V., 1999. Perceptualization of Biomedical

Data. An Experimental Environment for Visualization

and Sonification of Brain Electrical activity, IEEE

Engineering in Medicine and Biology Magazine,

vol. 18, No. 1, pp. 50–55.

Maciejewski, R., Choi, S., Ebert, D., Tan, H., 2005. Multi-

Modal Perceptualization of Volumetric Data and its

Application to Molecular Docking, WHC '05

Proceedings of the First Joint Eurohaptics Conference

and Symposium on Haptic Interfaces for Virtual

Environment and Teleoperator Systems, pp. 511-514.

Adzhiev, V., Ossipov, A., Pasko, A., 1999.

Multidimensional shape modeling in multimedia

Applications, in MultiMedia Modeling: Modeling

Multimedia Information and Systems, ed. A.Karmouch,

World Scientific, pp. 39-60.

Pasko, A., Adzhiev, V., Sourin, A., Savchenko, V., 1995.

Function Representation in Geometric Modeling:

Concepts, Implementation and Applications, The Visual

Computer, vol.11, No.8, pp.429-446.

Pasko, A., Adzhiev, V., Schmitt, B., Schlick, C., 2001.

Constructive Hypervolume Modeling, Graphical

Models, vol. 63, No. 6, pp. 413-442.

Zavadska, G., Davidova, J., 2015. The Development of

Prospective Music Teachers’ Harmonic Hearing at

Higher Education Establishments, Pedagogika /

Pedagogy Vol. 117, No. 1, pp. 72–85, Lietovus

Edukologijos Universitetas, Lituania.

Wong, P.C., Bergeron, R.D., 1997. 30 Years of

Multidimensional Multivariate Visualization,

Proceeding Scientific Visualization, Overviews,

Methodologies, and Techniques, EEE Computer

Society Washington, DC, USA, pp. 3-33.

OpenAL, 2016. Programmers Guide. Available at:

http://connect.creativelabs.com/openal/Documentation

/OpenAL_Programmers_Guide.pdf

Multisensory Analytics: Case of Visual-auditory Analysis of Scalar Fields

329
