Outsourcing Access Control for a Dynamic Access Conﬁguration of IoT

Services

Philipp Montesano, Marc H

uffmeyer and Ulf Schreier

Hochschule Furtwangen University, Robert-Gerwig-Platz 1, Furtwangen im Schwarzwald, Germany

Keywords:

Internet of Things, Attribute based Access Control, Safety and Security, Access Control as a Service, REST.

Abstract:

The paper describes a lightweight mechanism for authorizing access to IoT resources within distributed sys-

tems. As more and more IoT devices arise, the demand for privacy and security increases. But since current

solutions are developed for conventional devices, the paper pursues the target of simplifying and applying ap-

proved technologies, such as OAuth, to meet special requirements of IoT devices. Therefore, the implemented

architecture follows the idea of sourcing the access control logic out, simplifying the logic of the IoT device.

Furthermore, the great diversity and fast change of IoT environments is supported by ﬂexible policies and a

dynamic and scalable access control system. Performance tests show that sourcing the access control logic out

also helps to reduce the amount of consumed memory on an IoT device, in case that complex access logic is

given.

1 INTRODUCTION

Though the Internet of Things (IoT) is an emerg-

ing market, its popularity and chance of success is

highly associated with its safety and security. The

added value in the ﬁelds of assisted living (e.g. Smart

Home), sustainability (e.g. Smart City) and cost-

efﬁciency (e.g. Industry 4.0) contributes to IoT be-

ing a trendsetting technology. Due to private, pub-

lic and economic actors as key drivers, IoT services

are characterized by a large heterogeneity and a grow-

ing number which makes security concerns even more

serious (Zhang et al., 2014). Since the internet is

still the core of IoT, old security issues become more

important while new risks arise: Next to data se-

curity and privacy, the physical safety of machines

and human operators is a new aspect which need to

be considered when implementing IoT systems. But

IT security models are mostly designed for conven-

tional systems with high computing power and large

hard disk capacities, whereas IoT devices only pro-

vide limited resources (cf. Section 2.1) in terms of

CPU performance, memory capacity and energy sup-

ply (Jing et al., 2014). Further on, these limitations

must be involved in the process of implementing a

secure environment for IoT devices: As well as IoT

itself, security models must be scalable, manageable,

lightweight and must perform properly in distributed

systems (Gusmeroli et al., 2012).

This work therefore focuses on the special secu-

rity subtask of access control, i.e. who can access

which IoT services and data under what conditions. It

investigates the question of how approved techniques

can be simpliﬁed and applied to an IoT environment,

providing secure access to IoT resources while meet-

ing speciﬁc needs of IoT devices. Furthermore, it

needs to be analyzed if the great diversity and fast

pace of IoT environments can be covered by ﬂexible

policies and their dynamic conﬁguration. The goal

of our work is to outsource access control logic us-

ing widely established technologies such as OAuth.

By outsourcing the access control application logic to

a more powerful network participant, the actual de-

vice will be relieved. Outsourcing the access control

logic to a centralized component must be done with

respect to the constraints, given in the IoT context and

the challenges that come up in distributed systems.

In addition to the relief of the IoT device, the cen-

tralization of the access control system moreover en-

ables a redundancy-free and consistent management

of the access policies by which no synchronization

of access control information between IoT devices is

needed. The main focus of attention is the authoriza-

tion on the basis of Attribute Based Access Control

(ABAC) together with the employment of a User-to-

Token approach (Sandhu and Samarati, 1996) to min-

imize authentication and authorization efforts at the

IoT device. Thus, an access control system with a

Montesano, P., Hueffmeyer, M. and Schreier, U.

Outsourcing Access Control for a Dynamic Access Conﬁguration of IoT Services.

DOI: 10.5220/0006257000590069

In Proceedings of the 2nd International Conference on Internet of Things, Big Data and Security (IoTBDS 2017), pages 59-69

ISBN: 978-989-758-245-5

speciﬁc policy language is implemented, providing a

well performing authorization structure to outsource

access control logic. Furthermore, this approach en-

ables a dynamic conﬁguration of IoT devices to user

privileges. It is easy to express who might access

which devices under what conditions and to change

this conﬁguration.

One application scenario for such a system is a

smart home, where heating, lights or garage doors can

be controlled remotely and the front door locks/un-

locks automatically once dedicated devices enter or

leave a range of 1m. Heating and lights might be (re-

motely) controlled either by the residents or anyone

who is actually inside the house. The front door and

the garage door might be controlled from dedicated

devices, e.g. dedicated smart phones. Therefore, dif-

ferent policies are required that check different condi-

tions like is a resident or is inside the house.

This work ﬁrst provides a basic understanding of

the applied technologies and procedures (Section 2).

This leads to the conceptual architecture (Section 3),

whereupon a basic proof of concept is implemented

and evaluated (Section 4). Further on, the paper refers

to related work (Section 5). Finally, we draw some

conclusions and indicate future work (Section 6).

2 FOUNDATIONS

This section describes the foundations of this work,

introducing key characteristics of IoT devices and

existing technologies upon which the architecture

builds.

2.1 IoT Devices

IoT describes the networked integration and inter-

connection of formerly unconventional everyday ob-

jects with embedded systems into the internet. After

making the devices communicative by IP addressing,

the physical objects are now represented as Cyber-

Physical Systems (CPS) in a network. As a conse-

quence and due to their sensors and actuators, the

devices are capable of monitoring, operating, regu-

lating, optimizing and mining data. But as already

stated in Section 1, IoT devices lack of some charac-

teristics, compared to traditional technical appliances

(Gusmeroli et al., 2012; Jing et al., 2014):

Processing Performance and Memory Capac-

ity. Due to cost efﬁciency, devices are highly ori-

ented according to their target applications and needs,

which is why simple devices may only provide small

processors with low computing power. The same ap-

plies to the availability or capacity of memory.

Energy Supply. Moving devices are usually pow-

ered by batteries: Hence, their power supply is lim-

ited. This is why IoT devices must consume as little

energy as possible.

Bandwidth. A low connectivity can be a result of

operating in outdoor environments, requiring wireless

communication.

Updatability and Connectivity. Being dis-

tributed, updating IoT devices or whole environments

can be tough, once the system is in live operation.

Further on, IoT devices must be accessible by vari-

ous other devices and applications.

These limitations cause consequences in design

requirements for IoT applications:

Distributed Architecture. Outsourcing applica-

tion logic to powerful hosts reduces the processing

efforts of the actual IoT devices. Representational

State Transfer (REST) (Fielding, 2000) is an archi-

tectural style to describe highly scalable and well per-

forming, distributed systems. Therefore, REST is an

ideal candidate to build IoT applications on. Still, the

communication has to be reduced, using lightweight

protocols for instance.

Customized Scope of Application. The highly

tailored integration of software and hardware often re-

stricts IoT devices to very speciﬁc functions. There-

fore, the main focus of its software and processing ca-

pacity lies on the core application which allows addi-

tional logic (such as access control) to be outsourced.

Real-Time Ability. Availability and fast response

times are frequently demanded. On the application

layer, a lean software with as little processing time as

possible supports the requirement of quick responses.

Protocols. Since HTTP supports REST and is

one of the most widespread royalty-free protocols, it

brings together as many devices and applications as

possible.

After an awareness of the limitations of IoT de-

vices has been created, it is clear that IoT environ-

ments need adjusted architectures to fulﬁll their re-

quirements.

2.2 OAuth

OAuth is an open protocol, designed to share user data

(resources) between HTTP clients and server applica-

tions without revealing user credentials (Boyd, 2012;

Sun and Beznosov, 2012). Version 2.0 of the proto-

col is deﬁned by the Internet Engineering Task Force

in RFC 6749

. The protocol introduces four major

roles:

Resource Owner. The subject that is capable

to grant or prohibit access requests to dedicated re-

https://tools.ietf.org/html/rfc6749

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

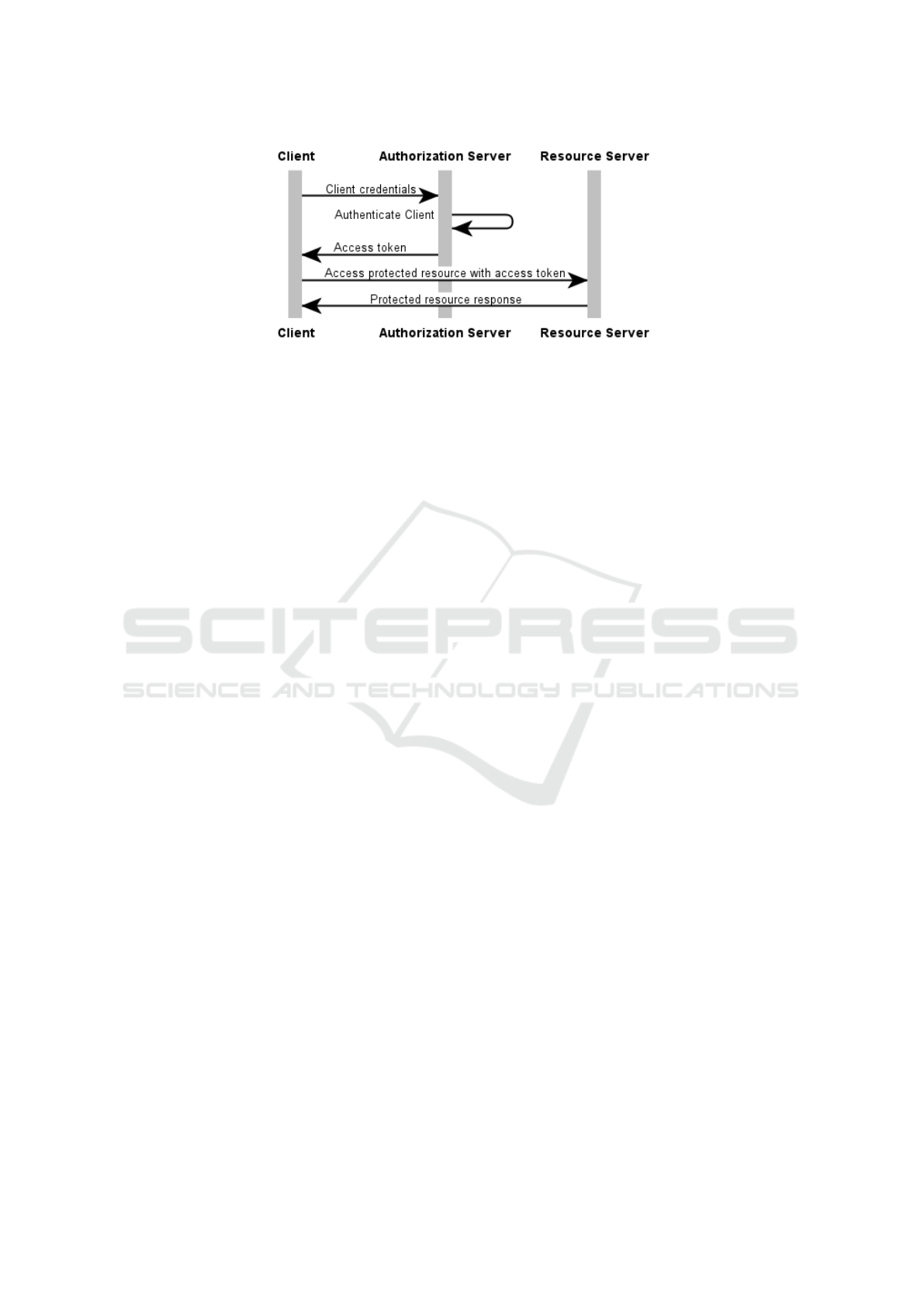

Figure 1: OAuth - Client Credential Grant ﬂow.

sources. This role is also referred to as User in case

that the resource owner is a human.

Resource Server. The aforementioned resources

are located at a resource server. The server only grants

access to the resources if the requesting party has a

valid access token.

Client. A client is an application that wants to

access protected resources of another application.

Authorization Server. A server that assigns ac-

cess tokens to clients, depending on the access deci-

sion of the resource owner.

OAuth also speciﬁes several authorization ﬂows

such as the Authorization Code ﬂow, also known as

Web Server ﬂow: A user (a resource owner) utilizes

an user agent, such as a browser, to access a client ap-

plication. The client application wants to access pro-

tected resources and therefore starts the OAuth pro-

cess. A redirect response from the client application

to the authorization server is returned back to the user.

For example, if the client application wants to access

the user’s data on Facebook or Twitter, the client ap-

plication sends a redirect to an authorization server,

including the privileges (scopes) that the client appli-

cation asks for. The user agent performs this redirect

and the authorization server responds with an autho-

rization interface. The user might enter its credentials

and either grant or prohibit the access request. If the

request is granted, the authorization server creates an

access code and returns it back to the user agent. The

agent in turn forwards it to the client application. The

client application can now request an access token

from the authorization server using the access code.

Once a valid access code is sent to the authoriza-

tion server, the server responds with an access token

that can be used to access the resource. The resource

server validates the access token either by asking a to-

ken inspection endpoint of the authorization server or

by checking the signature of the token. If the token is

valid, the server reads the associated scope informa-

tion of the access token and returns the requested re-

source to the client. To summarize, an user delegates

access rights on his own data from one application to

another application. These are ad hoc interactive de-

cisions by a resource owner using a browser (or more

generally, an user agent). Access rights are conveyed

as scopes which are identiﬁers with a simple struc-

ture. It is the task of the resource server to translate

the scope into an access right. Beyond this delegation

of access to owned resources, OAuth does not specify

any kind of access control model (deﬁning who can

access which resources under what conditions).

OAuth’s Client Credential Grant ﬂow (cf. Figure

1) is a simpliﬁed version of the Authorization Code

ﬂow. In this case, clients are allowed to access re-

sources without asking the user for permission. This

case can be used, if the client itself owns the data or if

there is a previous arrangement with the authorization

server (RFC 6749, section 4.4, p. 39).

2.3 ABAC with RestACL

Due to the fact that IoT devices are integrated in dis-

tributed systems, an efﬁcient access control system,

which meets the requirements of such environments,

is required. The large heterogeneity and a growing

number of devices must also be supported, as well

as an increasing complexity of access rules. In con-

trast to traditional access control models, Attribute

Based Access Control (ABAC) seems to be an appro-

priate concept that can handle these needs (Ferraiolo

et al., 2015). Role Based Access Control (RBAC), for

example, builds on thoughtful role engineering with

which users are assigned to certain roles. Permission

is associated with these roles, no matter which other

conditions exist. If only few roles exist, RBAC can

be the model of choice, but with a growing variety,

RBAC reaches its scalability limit as you cannot de-

ﬁne roles for every single access condition without

facing explosions in the number of roles (Gusmeroli

et al., 2012). The advantages of ABAC show up with

the need of complex, various and frequently chang-

ing access policies. Its biggest beneﬁt is the ﬂexibil-

Outsourcing Access Control for a Dynamic Access Conﬁguration of IoT Services

ity, as permission can be assigned to entities whose

attributes meet the criteria of certain policies: Per-

mission is no longer related to roles, but to attributes.

Permission to access other information can depend on

additional policies by which externals, such as after-

sales services, can monitor the devices.

Due to the higher complexity of evaluation,

ABAC needs an efﬁcient access control mechanism.

uffmeyer and Schreier, 2016a) introduces the REST

Access Control Language (RestACL) which is suited

for resource oriented environments due to its scala-

bility and utilization of the concepts of Representa-

tional State Transfer (REST) (Fielding, 2000). Fur-

thermore, RestACL is built on the paradigms of the

ABAC model (H

uffmeyer and Schreier, 2016b).

RestACL uses so called Domains to map between

resources and access policies. An entry consists of a

resource, addressed by a Uniform Resource Identiﬁer

(URI), and subresources of that resource are mapped

to access policies. Listing 1 shows a RestACL do-

main. The domain contains one resource (the garage

door from the application scenario) and GET or PUT

access to this resource is handled by policy P1. Send-

ing a PUT request to the state subresource of the

garage resource might open or close the physical

garage door. Sending a GET request reads the ac-

tual state which allows to check whether the door is

opened or closed. Policy P1 checks whether the PUT

request is sent from a dedicated device. For exam-

ple, a dedicated device might be the smart phone of a

single resident.

{

"uri":"https://my.smarthome.com",

"resources":[{

"path":"/garage/state",

"access":[{

"methods":["GET, PUT"],

"policies":["P1"]

}]

}

Listing 1: A RestACL domain protecting one resource.

During the winter break, the residents now might

go to holiday. While the residents are on vacation, the

neighbors might be allowed to park inside the garage.

Therefore, a new policy P2 can be created that checks

if the requesting subject is the device of the neighbor

(using a ﬁrst attribute like a device code) and if the

date is during the holidays of the residents (using a

second attribute like date/time). This policy can be

simply added to the policies that control access to the

garage door state to enable the neighbors to open or

close the garage door.

Due to space limits, Listing 2 shows a simpler

RestACL policy which checks against the attributes of

an access control request: According to the function

and its arguments, an effect is returned, if the

function computes to true. To access the garage

state resource mentioned in Listing 1, the value of

the attribute (the device code to identify dedicated

devices) must be equal to 123456789. If this applies,

the access request is permitted, which means that the

requesting subject is allowed to access the resource.

The implemented prototype therefore takes advantage

of RestACL as its security mechanism along with

ABAC as its security model.

{

"policies":[{

"id":"P1",

"effect":"permit",

"priority":"1",

"condition":{

"function":"equal",

"arguments":[{

"category":"device",

"designator":"code"

},{

"value":"123456789"

}]

}

}]

}

Listing 2: A RestACL policy depending on the device

code attribute.

Listing 3 shows an access control request using

RestACL. The above mentioned domain entry is used

to map such a request to a policy (cf. Listing 1). The

attributes of the access control request are then eval-

uated against the access conditions, speciﬁed in the

policy. Resource orientation matches both the dis-

tributed system and the access control logic and there-

fore enables a fast mapping of security policies, based

on the resource and the access method. Domains and

policies are held in different Repositories which en-

ables a simpliﬁed and independent permission man-

agement.

{

"uri":"https://my.smarthome.com/garage/state",

"method":"PUT",

"attributes":[{

"category":"device",

"designator":"code",

"value":"123456789"

}]

}

Listing 3: A RestACL access control request containing the

device code attribute.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

3 ARCHITECTURE

The architecture beneﬁts from the advantages of

ABAC and regards the limitations of IoT devices:

Outsourcing the access control system simpliﬁes the

actual application logic, but raises the communica-

tion effort. The centralized repositories as shared re-

sources furthermore implicate beneﬁts, such as non-

redundancy, changeability and data consistency. The

system can simply be extended, as only the domains

and policies of new resources have to be added to the

central repositories. Thus, it allows the integration

and modiﬁcation of both resources in the environment

and protection rules in the access control system with

little effort. Due to its architecture, the system is an

example for following the principles of REST.

3.1 Design Guidelines

Outsourcing access control logic is not a trivial task

and the architecture of the distributed access control

system should respect the following design guide-

lines.

Reduced Device Efforts. The CPU and memory

load of the IoT devices are to be reduced. Therefore,

an easy manageable, centralized access control sys-

tem with a dynamic conﬁguration of resource permis-

sion is required.

Simpliﬁed Client Authentication. All clients

have to authenticate themselves to the IoT device, ex-

cept trusted clients. Therefore, a token approach is

used to reduce authentication efforts at the IoT de-

vice side. A more powerful Authorization and Access

Control Server carries the authentication efforts and

issues Tokens that can be easily validated at the device

side. Therefore, no complex authentication procedure

is necessary between clients and IoT devices. Hence,

even the trust mechanism is relocated from the IoT

device to the authorization and access control server.

User Authentication. Besides authentication of

client applications, authentication of users has to be

considered when access conditions depend on user at-

tributes. If the client is trusted by the server, the client

might handle the user authentication itself and simply

include user attributes in the token request. Other-

wise, more complex solutions could redirect the user

authentication to the authorization and access con-

trol server using for instance the OAuth Authorization

Code ﬂow. This scenario would enhance the system

towards a complete identity and access management.

Since the research questions of this paper remain in

both cases the same, the implemented solution as-

sumes the simpler case of trusted clients although the

architecture supports both cases.

The following architecture assumes that user at-

tributes are part of the RestACL access control re-

quest (cf. Listing 3) and that the client can be trusted

directly by the authorization and access control server.

Mechanisms to establish trust in the triangle user, ac-

cess control and IoT are not in the scope of this paper.

Conﬁguration Regulations. All IoT devices

must be registered at an authorization and access

control server. The authorization and access control

server information is deposited whilst the setup of the

IoT device by a policy engineer. Note that this might

be automated, depending on the application. The con-

ﬁguration includes setting of the token lifetime and of

policy preferences.

Scalability. Several authorization and access con-

trol servers must be capable to manage a variety of

IoT devices. As further authorization and access con-

trol servers and especially IoT devices can be inte-

grated dynamically, the architecture must be scalable

and highly ﬂexible to support various kinds of appli-

cation and access logic.

Flexibility. Various types of access conditions

must be representable. Therefore, permissions are

only granted on the basis of attributes. The authoriza-

tion and access control server checks access rights of

all clients according to the attributes. The attributes

must comply with the semantics of the access poli-

cies.

Privacy. The transmission protocol is generally

universal. Nevertheless, a secure (and private) trans-

mission must be ensured (Section 4.1).

Reduced Communication Overhead. As the

least possible communication effort is intended, the

number of exchanged messages must be reduced to

a minimum. Hence, the IoT device should not con-

sult the authorization and access control server after

receiving a token.

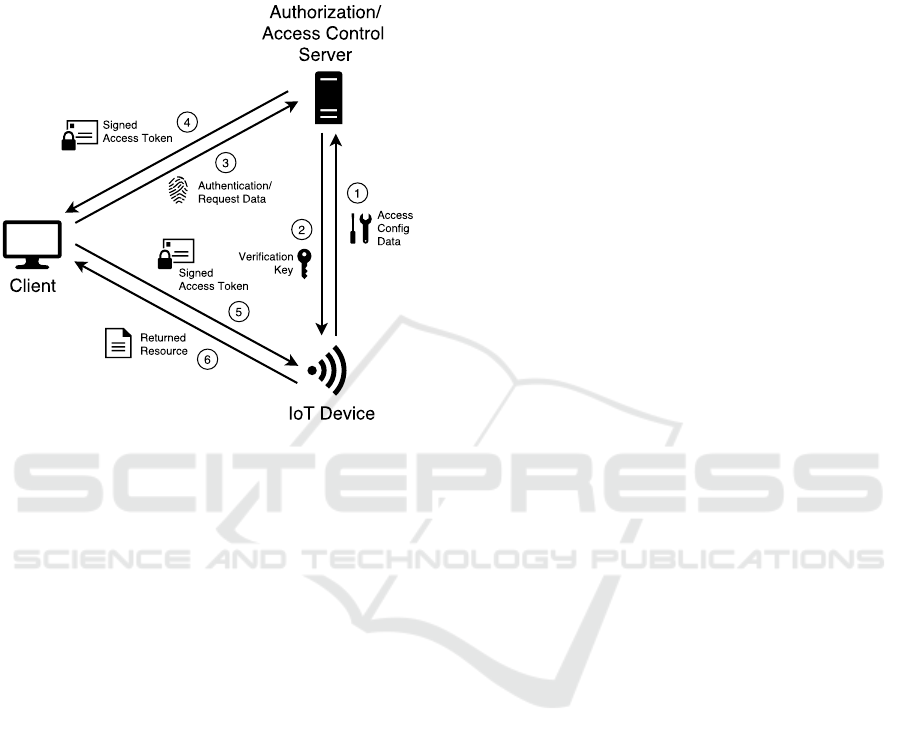

3.2 Components and Communication

Flow

Sharing data with multiple users is a crucial require-

ment in IoT environments. Because an IoT device

might provide several resources, it might not be suf-

ﬁcient to ask for user permission every time a re-

source is requested. Therefore, we utilize an attribute-

based access control system, that enables the user to

specify various kinds of access policies at the autho-

rization and access control server side. In addition,

we used the concept of Client Credential Grant ﬂow

(with slight modiﬁcations of the request and response

formats) as token ﬂow sequence between clients, au-

thorization and access control server and IoT devices.

Using this combination enables a much more dynamic

Outsourcing Access Control for a Dynamic Access Conﬁguration of IoT Services

access control system that is founded on established

technologies. If a client requests access to a resource

of an IoT device, the authorization and access control

server checks if the access policies for this resource

are met before granting an access token.

Figure 2: Distributed Access Control Architecture.

Figure 2 depicts the components and the main

communication ﬂow. Once an IoT device is set up and

the URI of the authorization and access control server

is conﬁgured, the device starts its one-time conﬁgu-

ration process. Therefore, the device sends conﬁg-

uration data to the authorization and access control

server (Message 1). These data contain the token life-

time as well as the access policies that must be eval-

uated, in case the resources of the device are tried to

be accessed. If the conﬁguration data are valid, the

authorization and access control server responds with

a veriﬁcation key that can be used to validate access

tokens that are issued by this authorization and ac-

cess control server (Message 2). From now on, the

IoT device does not need to contact the authorization

and access control server again. Note that the devices

still might send changes of the access conﬁguration to

the authorization and access control server if desired.

Resources are directly addressable, using their unique

URI. If a client requests a resource of the IoT device,

a token (including a signature) is expected and must

be successfully validated. Otherwise the IoT device

must not grant access to the resource. The IoT device

therefore compares the actual request to the request

conditions, given by the token (e.g. the device com-

pares whether the source IP address of the incoming

request matches the client IP address mentioned in the

token). If the request matches the token and the valid-

ity period has not already been expired, access can

basically be granted.

A client now may authenticate itself to the autho-

rization and access control server and ask for a token

(Message 3). Therefore, the client sends the user au-

thentication data as well as request data (the URI of

the desired IoT resource, the access method and, in

case that the client is trusted, the subject attributes,

which are supplied by the client). Further attributes,

e.g. attributes of the requested resource or environ-

mental attributes, like the actual date, are allocated at

the authorization and access control server. If the au-

thentication procedure was successful and the policy

evaluation indicates that the client is allowed to ac-

cess the resources, the authorization and access con-

trol server issues a token and returns it back to the

client (Message 4). The implemented prototype uses

special HTTP status codes to indicate whether a to-

ken could be issued. If a token was issued, the autho-

rization and access control server responds with the

code 280 and returns the token. If the token could

not be issued, the server responds with the status code

480. Note that Figure 2 shows a simpliﬁed version

of the communication ﬂow to increase the readability.

Clients likely do not know the related authorization

and access control server, if they try to access a re-

source of an IoT device for the ﬁrst time. Therefore,

a client usually tries to access the resources of an IoT

device without a token. The IoT device then refuses

this request and responds with a redirect that points

to its related authorization and access control server.

From now on the client might ask the authorization

and access control server for an access token before

trying to access the resource of the IoT device.

Finally, the client contacts the IoT device, trans-

mitting the issued token (Message 5). If the to-

ken matches the request and the signature is valid,

the resource is returned (Message 6). The imple-

mented prototype does so by using special HTTP sta-

tus codes: 290 for a successfully validated request,

490 in case that the validation has failed.

For example, the resident of the smart home might

want to open his garage door. The resident there-

fore sends a request to the authorization and access

control server containing his authentication data. The

authorization and access control server loads various

attributes of the requesting subject, the requested re-

source and environmental attributes like the actual

time and date. In the application scenario, for ex-

ample, the authorization and access control server

loads at least the device code attribute of the re-

questing device. The authorization and access con-

trol server therefore either must implement its own at-

tribute repository or employ external attribute sources

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

such as identity providers to load the attributes. De-

tails about attribute provisioning can be found in

uffmeyer and Schreier, 2016c). Note that clients

might also send attributes in case that the client can be

trusted. The authorization server formulates an access

request and passes the access request to a RestACL

engine. The engine then checks which policies need

to be evaluated in order to access the garage state re-

source. These policies are then evaluated against the

attributes. If the evaluation was successful, the au-

thorization and access control server delivers a signed

access token back to the resident. Using this token,

the resident now can open the garage door.

3.3 Token Concept and Integrity

Tokens provide the link between authorization and ac-

cess control servers and IoT devices and replace their

direct communication. Although clients need to ask

the authorization and access control server for a to-

ken, they are not generally valid, but issued for ded-

icated requests. If the attributes of a user match the

access policy of the authorization and access control

server, the client is given a reﬁned and specialized

OAuth like token. Considering Listing 4, tokens con-

tain the scope of the request (or a set of requests).

Therefore, a token has a validity period (resp. a ex-

piration time stamp) and contains all IP addresses of

all requesting subjects. Since the authorization and

access control server only authorizes explicit requests

and returns customized tokens, the IoT device simply

has to verify the terms of the token against the ac-

tual request (see Section 4.1 for thoughts on Replay

Attacks). If the token matches the request, access is

granted. Due to a signature, tokens cannot be modi-

ﬁed during their transference.

{

"token":[{

"lifetime":"01.01.2017 12:01:00",

"resources":["https://my.smarthome.com/

garage/state"],

"device":"https://my.smarthome.com/garage",

"client":"1.2.3.4",

"auth_server":"https://my.smarthome.com/

authorization",

"method":"GET"

}], "signature": [{

"value":"1a7b6062c6fb8fc2511036df6178 ..."

}]

}

Listing 4: A sample token as issued by the authorization

and access control server.

Every token is signed after its creation with a hash

value. To ensure integrity, the hash value is encrypted

by the authorization and access control server with

a private key. The authorization and access control

server provides the corresponding public key (the ver-

iﬁcation key) to IoT devices during its conﬁguration

process. Knowing the public key, the IoT device can

decrypt the signature and compare it with its own hash

computation to validate the integrity. To verify the in-

tegrity of the token, the IoT device hashes the token it-

self, decrypts the signature of the token and compares

both hash values. If they match, the token is valid and

the resource is returned to the client – if they differ,

the token has been modiﬁed during its transmission

(Section 4.1) and an error code is returned. Although

every participant can possibly decrypt the signature

(when knowing the public key), none of it can encrypt

a modiﬁed hash value, since the private key is merely

known by the authorization and access control server.

Furthermore, only authenticated clients can apply for

a token at the authorization server. Hence, no more

authentication against the IoT device is required.

4 PROOF OF CONCEPT

The proof of concept focuses on centralized access

control in distributed systems combined with token

concepts. It therefore only provides one component

in a whole security environment, as stated in Section

4.1. In return, it takes a closer look at the integration

of a particular access control system. Further on, the

concept realizes the setting of the token lifetime, an

entry in the domain repository and the applied access

polices through manual input at the IoT device. The

system relies on HTTP using proprietary status codes.

It makes use of HTTP, also because of its beneﬁts,

such as the native support for mobile devices, the con-

venient usage within Jersey

and the free use, due to

it being an open standard. It can also be replaced by

HTTPS subsequently. Further on, all of the data is

transmitted within header ﬁelds.

4.1 Security and Privacy

Considerations

As the concept offers a security mechanism on the

application layer, it can rely on additional security

mechanisms such as Transport Layer Security (TLS)

and authentication procedures. As the proof of con-

cept focuses on the interaction of RestACL, tokens

and IoT devices, it provides integrity of a token due its

signature (encrypted hash) in a ﬁrst version. In a sec-

ond version End-to-End Encryption (E2EE) is used

to fully encrypt the token. This ensures privacy and

https://jersey.java.net

Outsourcing Access Control for a Dynamic Access Conﬁguration of IoT Services

prevents identity theft or Man-in-the-Middle Attacks.

To enable E2EE, a symmetric key is exchanged be-

tween the authorization and access control server and

every IoT device during its conﬁguration phase (af-

ter the public key has been received): This PreShared

Key (PSK) cannot be spied out due to its asymmetric

encryption. In addition, replay attacks can be avoided

by including a unique usable Nonce to ensure that ev-

ery request is fresh.

4.2 Experimental Results

The implementation uses a Raspberry Pi 3 Model B

as its IoT device: It features a quad-core System on

a Chip (SoC) ARM processor with 1.2 GHz CPU

speed, 1 GB RAM and a (wireless) network interface.

It offers 4 resources, mapped to 3 physical compo-

nents: A temperature sensor, which constantly writes

the temperature into a ﬁle, can be accessed with a

GET request. Next, a LED diode can be switched

on brieﬂy, using a PUT request. POST and DELETE

requests are represented by a LCD module, which the

client can write on or clear. Further on, the autho-

rization and access control server and the client are

represented by a 3.2 GHz iMac (4 GB RAM) and a 2

GHz MacBook (8 GB RAM) within one wireless net-

work. Note that the 1.2 GHz Raspberry Pi 3 is still

a very powerful device and considerably longer run-

times are expected when running on smaller devices

(such as the ESP8266

The scalability depends on a dynamic integration

of entities, policies and resources into the environ-

ment and into the access control mechanism. Since

an authorization and access control server must han-

dle several IoT devices, which can have multiple re-

sources, RestACL must evaluate quickly, even when

the sizes of the repositories rise. Table 1 lists the av-

erage runtime for an access control request and its

evaluation with the help of RestACL (running on the

2 GHz MacBook) according to the amount of poli-

cies and domains. Table 2 shows the total memory

consumption is shown. As the experimental results

of (H

uffmeyer and Schreier, 2016a) already prove,

the runtime remains at a constant level although the

amount of domains and policies rises and the mem-

ory consumption increase.

To meet further needs of IoT devices, the process-

ing power and memory consumption has to be re-

duced. It is therefore to question if an own access

control mechanism on the side of every IoT device

performs better than the presented architecture. Ta-

ble 3 shows the result of a comparison between the

three different security mechanism implementations,

https://espressif.com/products/hardware/esp8266ex

all running on the Raspberry Pi: V

lists the runtime

when an IoT device implements its own RestACL

mechanism. Note that there will be additional ef-

forts, related to the authentication procedure which

was not included in the test series. In V

, these efforts

have to be provided by the IoT device additionally. V

lists the performance of the asymmetrically encoded

signature (based on RSA and SHA-512), comparing

a plain token to a request, generating an own signa-

ture and comparing both signatures (as implemented

in Section 4). V

represents end-to-end encryption of

the whole token and therefore uses symmetric token

decryption (based on AES and PSK) and compares

the token to a request.

According to the test series, the required CPU pro-

cessing power can be relieved best with a symmetri-

cally encrypted token (V

) since its efforts are close to

the efforts of the on-board RestACL system (V

) that

lacks the authentication procedure. Again, we expect

these results to differ if less powerful IoT devices are

employed. In terms of memory consumption, the best

solution depends on how many resources and poli-

cies must be supported. For larger amounts of re-

sources or policies V

and V

show clearly lower val-

ues while for small amounts of resources and policies

shows slightly better values. It can also be found

that RestACL is much more powerful when running

on a conventional device than running on a SoC (com-

paring the runtime in Table 1 and Table 3). The same

can be expected for an authentication procedure. The

most remarkable thing that one can see from Table 2

is that the On-Board solution shows variable memory

consumption depending on how many access policies

must be supported. In contrast, the outsourced so-

lution shows ﬁxed (and therefore predictable) values.

The required memory only depends on the implemen-

tation of the encryption library.

Next to scalability and single processing times, the

overall runtime of a request (from the very ﬁrst re-

quest of the client to the last received response) is a

further key question. Adding the propagation delay

(nodal processing and queueing) and the network

transmission delay t

to the runtime t

V x

of one of the

access control procedures (V

, V

or V

), the overall

runtime t

TotalV

is as follows:

TotalV

= t

+ t

Therefore, t

TotalV

can be computed as:

TotalV

= t

+ t

IoT

+ 2 ∗t

C−IoT

+ t

with t

being the propagation delay on the client

side, t

IoT

being the propagation delay of the IoT de-

vice and t

C−IoT

being the network runtime between

client and IoT device.

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

Table 1: Evaluation runtimes.

Policies

Domains

10 100 1.000 10.000

0.14 ms 0.14 ms 0.15 ms 0.15 ms

100

0.14 ms 0.14 ms 0.15 ms 0.15 ms

1.000

0.14 ms 0.14 ms 0.15 ms 0.16 ms

10.000

0.14 ms 0.14 ms 0.15 ms 0.16 ms

Table 2: Memory consumption.

Policies

Domains

10 100 1.000 10.000

1.25 MB 1.32 MB 1.92 MB 7.93 MB

100

1.32 MB 1.38 MB 1.97 MB 7.99 MB

1.000

1.87 MB 1.93 MB 2.52 MB 8.09 MB

10.000

7.35 MB 7.41 MB 8.0 MB 14.02 MB

Table 3: Security mechanism implementations.

Procedure Runtime Memory

: On-board 4.98 ms cf. Table 2

: Asymmetric 34.64 ms 1.7 MB

: Symmetric 5.22 ms 1.7 MB

Regarding V

and V

, t

TotalV

depends on whether

the client application performs an initial access re-

quest to the IoT device without knowing the autho-

rization and access control server and therefore with-

out a token. t

, t

IoT

and t

C−IoT

need to be consid-

ered twice in the very ﬁrst request if the client appli-

cation is capable to store the authorization and access

control server address for each IoT device (cf. Sec-

tion 3). If the client application is not capable to do

so, they need to be considered twice for every access

request.

TotalV

2/3

= t

C−AS

+ t

C−IoT

+ t

2/3

with

C−AS

= t

+ t

C−AS

C−IoT

= t

+ t

IoT

+ t

C−IoT

Because the propagation delay and network runtimes

depend on various conditions, no absolute test series

is adequate. But in general one can say that net-

work runtimes are usually in the dimension of hun-

dreds of milliseconds. Taking the long overall run-

time into consideration, the decision of sourcing ac-

cess control out becomes rather a question if a central-

ized, manageable access control system is required.

Notably faster runtimes can not be expected, but the

memory consumption can be reduced to a ﬁxed and

therefore predictable value on the IoT device. In case

that multiple resources are provided by the IoT device

and those resources have multiple individual access

policies, the memory consumption can be remark-

ably reduced. Consideration should also be given to

the fact that, if authentication was implemented, the

client would have to authenticate against the IoT de-

vice, leading to a longer runtime of V

and to a higher

memory consumption of the IoT device. Besides the

performance differences, the major beneﬁt of an out-

sourced access control system is the simpliﬁcation

of policy management, that allows to apply, create,

change and remove access permission on multiple de-

vices in a centralized fashion.

5 RELATED WORK

User Managed Access (UMA) is based on the OAuth

protocol and thus also offers authorization. It focuses

on keeping user login data secret, while allowing third

parties access to protected resources. It therefore sim-

ply passes on Credentials instead of unveiling the

actual access information (Machulak et al., 2010).

UMA generates more communication overhead, as all

clients have to be registered in advance and on ac-

count of further requests between the resource and

the authorization and access control server. Consid-

ering this, the beneﬁts of the introduced architecture,

such as a lower complexity and less communication

overhead, are explained. However, UMA does nei-

ther recommend or specify an explicit access control

mechanism, nor a policy language, nor the process

of validating a token. Therefore, the example archi-

tecture is a streamlined instance of an UMA imple-

mentation with RestACL as its access control mech-

anism, creating less communication effort and being

speciﬁed for the demands of IoT devices. It focuses

on the part of authorization, which is why the autho-

rization structure is signiﬁcantly more developed than

Outsourcing Access Control for a Dynamic Access Conﬁguration of IoT Services

speciﬁed in the core protocol of UMA. Unlike UMA,

the approach of this paper presupposes requirements

which allow a simpliﬁcation of the UMA protocol.

Problems with outsourcing and sharing data are

discussed in (di Vimercati et al., 2007). De Capitani

di Vimercati et al. challenge the problem of shar-

ing data in distributed systems without providing it to

the public by using selective encryption. Therefore,

shared resources are encrypted using a key. Tokens

are derived from that key and can be used to access

the shared resource. The approach focuses on encryp-

tion and the derivation of keys. Access methods are

always expected to be read only and an authorization

is deﬁned as a double of user and resource whereby

users also can be groups.

(Gusmeroli et al., 2012) focuses on a Capability

Based Access Control (CapBAC), having a token as

a representation of the capability to access resources.

In contrast to this paper, the initial credential is issued

by the owner of the resource, not by an authorization

and access control server. Furthermore, no semantics

of the access rules are deﬁned.

As Section 4.2 already shows, IoT devices lack

of efﬁcient decryption algorithms with which faster

processing times could be accomplished. (Zhang

et al., 2014) mentions that designing lightweight cryp-

tographic systems is still a challenging task: While

a public key system offers data integrity, data pri-

vacy and is suited for authentication, it produces more

computational overhead.

Constrained Application Protocol (CoAP) is

stated as an appropriate protocol for Machine-to-

Machine (M2M) communication – due to its simplic-

ity and low overhead, it is suited for IoT devices (Raza

et al., 2013). Since HTTPS is highly connected to

TLS as its security protocol, TCP is required which is

processed slower. CoAP utilizes Datagram Transport

Layer Security (DTLS), running over UDP which is

processed faster.

Next to simplifying protocols, (Shafagh and Hith-

nawi, 2014) focuses its attention on the hardware of

IoT devices: Although E2EE only needs the public

key crypto system at the conﬁguration process, its

memory is allocated during the whole running time

of the application – this means less memory for the

actual application logic during the entire time span.

Hardware encryption engines within recent SoC de-

vices are not only offered for symmetrical encryption,

with only little additional cost. Acceleration engines

are also offered for public key systems and contribute

to faster processing times of encryption tasks.

6 CONCLUSION AND FUTURE

WORK

Since SoC devices distinguish from conventional pro-

cessors, they imply limitations and therefore demand

special design requirements. After stating enabling

technologies, especially OAuth, ABAC and REST,

the overall architecture is revealed. This concludes

in a closer look at all involved entities, as well as

in demonstrating a proof of concept. Furthermore,

the experimental results give an impression of how

well RestACL meets the demands of the introduced

architecture: Since the runtime remains stable, de-

spite of rising repositories, all domains and policies

can be managed by one authorization and access con-

trol server. Therefore, it is approved that a centralized

access control system with ﬂexible policies can pro-

vide a dynamic conﬁguration of IoT entities within a

changing environment and therefore offer the possi-

bility of conﬁguring resources dynamically according

to attributes. As the introduced Raspberry Pi is still

a powerful device, compared to smaller IoT devices,

the rising ﬁle sizes do not meet the requirements of

IoT devices, according to their memory capacity. Es-

pecially when implementing authentication, the mem-

ory consumption of V1 increases further. This leads

even more to centralizing the access control logic and

the trust mechanism, relieving the IoT device. Con-

sidering the overall runtime (t

TotalV x

), the decision of

sourcing RestACL out depends on practical condi-

tions. Although the runtime increases due to a greater

communication effort, the practical beneﬁts of a cen-

tralized access control logic are high scalability, ease

of use, non-redundancy, changeability, data consis-

tency and more convenient data backups.

REFERENCES

Boyd, R. (2012). Getting Started with OAuth 2.0. O’Reilly

Media.

di Vimercati, S. D. C., Foresti, S., Jajodia, S., Paraboschi,

S., and Samarati, P. (2007). Over-encryption: Man-

agement of Access Control Evolution on Outsourced

Data. VLDB ’07 Proceedings of the 33rd International

Conference on Very Large Data Bases.

Ferraiolo, D., Kuhn, R., and Hu, V. (2015). Attribute-Based

Access Control. In Computer, Vol. 48. IEEE Computer

Society.

Fielding, R. T. (2000). Architectural Styles and the Design

of Network-based Software Architectures. University

of California, Irvine.

Gusmeroli, S., Piccione, S., and Rotondi, D. (2012). IoT

Access Control Issues: a Capability Based Approach.

In 2012 Sixth International Conference on Innovative

IoTBDS 2017 - 2nd International Conference on Internet of Things, Big Data and Security

Mobile and Internet Services in Ubiquitous Comput-

ing.

uffmeyer, M. and Schreier, U. (2016a). Analysis of an

Access Control System for RESTful Services. ICWE

’16 - International Conference on Web Engineering.

uffmeyer, M. and Schreier, U. (2016b). Formal Compar-

ison of an Attribute Based Access Control Language

for RESTful Services with XACML. SACMAT ’16 -

Symposium on Access Control Models and Technolo-

gies.

uffmeyer, M. and Schreier, U. (2016c). RestACL - An

Access Control Language for RESTful Services. In

ABAC ’16 Proceedings of the 2016 ACM International

Workshop on Attribute Based Access Control.

Jing, Q., Vasilakos, A. V., Wan, J., Lu, J., and Qiu, D.

(2014). Security of the Internet of Things: Perspec-

tives and Challenges. Wireless Networks.

Machulak, M. P., Maler, E. L., Catalano, D., and van

Moorsel, A. (2010). User-Managed Access to Web

Resources. In Proceedings of the 6th ACM Workshop

on Digital Identity Management.

Raza, S., Shafagh, H., Hewage, K., Hummen, R., and Voigt,

T. (2013). Lithe: Lightweight Secure CoAP for the

Internet of Things. IEEE Sensors Journal, 13(10).

Sandhu, R. and Samarati, P. (1996). Authentication, Access

Control, and Audit. ACM Computing Surveys, 28.

Shafagh, H. and Hithnawi, A. (2014). Poster Abstract:

Security Comes First, a Public-key Cryptography

Framework for the Internet of Things. In 2014 IEEE

International Conference on Distributed Computing

in Sensor Systems.

Sun, S.-T. and Beznosov, K. (2012). The devil is in the (im-

plementation) details: an empirical analysis of OAuth

SSO systems. In Proceedings of the 2012 ACM con-

ference on Computer and communications security.

Zhang, Z.-K., Cho, M. C. Y., Wang, C.-W., Hsu, C.-W.,

Chen, C.-K., and Shieh, S. (2014). IoT Security:

Ongoing Challenges and Research Opportunities. In

2014 IEEE 7th International Conference on Service-

Oriented Computing and Applications.

Outsourcing Access Control for a Dynamic Access Conﬁguration of IoT Services
