A Statement Level Bug Localization Technique using Statement

Dependency Graph

Shanto Rahman, Md. Mostaﬁjur Rahman and Kazi Sakib

Institute of Information Technology, University of Dhaka, 1205, Bangladesh

Keywords:

Statement Level Bug Localization, Search Space Minimization, Statement Dependency, Similarity Measure-

ment.

Abstract:

Existing bug localization techniques suggest source code methods or classes as buggy which require manual

investigations to ﬁnd the buggy statements. Considering that issue, this paper proposes Statement level Bug

Localization (SBL), which can effectively identify buggy statements from the source code. In SBL, relevant

buggy methods are ranked using dynamic analysis followed by static analysis of the source code. For each

ranked buggy method, a Method Statement Dependency Graph (MSDG) is constructed where each statement

acts as a node of the graph. Since each of the statements contains few information, it is maximized by com-

bining the contents of each node and its predecessor nodes in MSDG, resulting a Node Predecessor-node

Dependency Graph (NPDG). To identify relevant statements for a bug, similarity is measured between the bug

report and each node of the NPDG using Vector Space Model (VSM). Finally, the buggy statements are ranked

based on the similarity scores. Rigorous experiments on three open source projects named as Eclipse, SWT

and PasswordProtector show that SBL localizes the buggy statements with reasonable accuracies.

1 INTRODUCTION

In automatic software bug localization, ﬁnding bugs

in granular levels i.e., statement of the source code is

needed because it reduces maintenance effort. On top

of this, many bug localization techniques have alre-

ady been proposed which ranked buggy classes (Zhou

et al., 2012) or methods (Poshyvanyk et al., 2007).

The suggestion of buggy classes provide a large pro-

blematic solution search space where a bug can stay.

Among the suggested class list, it is almost impos-

sible to ﬁnd buggy statements because a class may

contain numerous statements. Although suggesting

buggy methods are better than suggesting classes, this

hardly reduces the maintenance effort because a met-

hod may also have large number of statements.

Although statement level bug localization is

required, there may exist several limitations such

as the availability of large irrelevant information

within a project for a bug and a small valid in-

formation within a statement. A software project

often contains a large number of statements having

massive amount of irrelevant information for a bug.

For example, Bug Id- 31779 of Eclipse is related to

src.org.eclipse.core.internal.localstore.Uni f iedTree.

java, whereas the total number of ﬁles in Eclipse

is 86206 and except the aforementioned buggy

ﬁle, other ﬁles are irrelevant for this bug. As bug

localization using bug report follows probabilistic

approach, the consideration of irrelevant information

can mislead to rank the buggy statements. Therefore,

it is needed to discard the irrelevant source code as

much as possible. Meanwhile, a single statement

contains very few information about a bug. For exam-

ple, for Eclipse Bug Id- 31779, line 122 (i.e., child =

createChildNodeFromFileSystem (node, parentLocal

Location, localName);) is one of the buggy state-

ments which contains few information about the

bug. Only using this information, suggesting buggy

statement is another challenging issue.

Fault localization is closely related to the bug lo-

calization, however the main difference is, fault lo-

calization does not consider bug report whereas bug

localization does (Zhou et al., 2012). In real life pro-

jects, user or Quality Assurance (QA) team reports

against a faulty scenario, and the bug is ﬁxed using

that report. Although several researches address bug

localization, to the best of the authors knowledge,

still no research has been conducted to suggest buggy

statements using bug report. Zhou et al. propose a

class level bug localization technique by considering

whole source code as a search space. As a result,

Rahman, S., Rahman, M. and Sakib, K.

A Statement Level Bug Localization Technique using Statement Dependency Graph.

DOI: 10.5220/0006261901710178

In Proceedings of the 12th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2017), pages 171-178

ISBN: 978-989-758-250-9

171

biasness may be introduced. As this technique sug-

gests classes, it demands manual inspection into the

source code ﬁles to ﬁnd buggy statements. Conside-

ring this issue, comparatively more granular level i.e.,

method level suggestion is addressed. Poshyvanyk

et al. propose PROMISER which suggests methods

as buggy (Poshyvanyk et al., 2007). Authors consi-

der whole source code which may degrade the accu-

racy of bug localization. To improve the accuracy,

recently Rahman et al. introduce MBuM where irre-

levant source code for a bug is discarded (Rahman and

Sakib, 2016). Still, developers need manual investiga-

tions to ﬁnd the buggy statements. Interestingly, the

minimized search space which is extracted in MBuM

can be used for reaching further granular level.

In this paper, Statement level Bug Localization

(SBL) is proposed where statements are suggested as

buggy. At ﬁrst, SBL extracts source code methods,

generated from (Rahman et al., 2016). As the state-

ments of the methods’ are related to each other, for

each suggested method, a dependency relationship is

developed among the statements, which is named as

Method Statement Dependency Graph (MSDG). The

information of each node is processed to produce cor-

pora. Later, a Node Predecessor-node Dependency

Graph (NPDG) is developed where the corpora of

each node (i.e., statements of the source code) and

its predecessor nodes in MSDG are combined. This

is because a statement often contains few information

about a bug. The combination of each node with its

predecessors increases the valid information of each

statement. The similarity between the bug report and

each node of NPDG is measured using VSM. These

statement similarity scores are weighted by the cor-

responding method similarity score. Finally, a list of

buggy statements are suggested using the descending

order of the similarity scores.

The effectiveness of SBL has been measured

using 230 bugs from three open source projects na-

mely Eclipse, SWT and PasswordProtector where

Top N Rank, Mean Reciprocal Rank (MRR) and

Mean Average Precision (MAP) are used as the eva-

luation metrics. In all the projects, SBL ranks more

than 28.33% buggy statements at the top 1 and more

than 58.33% within top 5. In case of MAP, 38.5%,

44.2% and 61% accuracies are gained for Eclipse,

SWT and PasswordProtector respectively. For MRR,

45.8%, 51.3% and 66% accuracies have been achie-

ved in the aforementioned projects respectively.

2 LITERATURE REVIEW

Since statement level bug localization is new, this

section focuses on researches that are conducted to

suggest buggy classes or methods.

2.1 Class Level Bug Localization

Zhou et al. propose BugLocator where class level

buggy locations are suggested (Zhou et al., 2012).

Here, two sets of corpora have been generated; one

for bug report and another for source code using se-

veral text-processing approaches such as stop word

removal, multi-word identiﬁers and stemming. Simi-

larity is measured between these two sets of corpora

by revised Vector Space Model (rVSM). This techni-

que considers whole source code for static analysis

which may degrade the accuracy. An improved ver-

sion is addressed by Ripon et al. where special weig-

hts are assigned on structural information including

class names, method names, variable names and com-

ments of the source code (Saha et al., 2013). Due to

considering whole source code for a bug, the accuracy

of the technique may get biased.

Another class level bug localization technique is

proposed by Tantithamthavorn et al. (Tantithamtha-

vorn et al., 2013). Here, an intrinsic assumption is

that when a bug is ﬁxed, a set of classes are changed

altogether. On top of this, co-change score is calcula-

ted and a list of co-change ﬁles are identiﬁed. Large

number of changes holds high score for those ﬁles to

be buggy. After ﬁnding the co-change score, these

results are adjusted with BugLocator. As this techni-

que suggests classes as buggy, manual searching is

needed to ﬁnd the actual buggy statements from the

source code which consumes lots of time.

Sisman and Kak incorporates version histories

(Sisman and Kak, 2012) to suggest buggy locations.

Similar to this, Wang et al. introduce a technique by

considering similar bug reports, version history and

the structure of the source code (Wang and Lo, 2014).

This technique also suggests class level buggy loca-

tions and so, developers have to spend time to ﬁnd

buggy statements. Based on this version histories and

structural information, Rahman et al. also propose a

class level bug localization technique (Rahman et al.,

2015). Here, authors identify suspicious score for

each class by combining the scores of rVSM (Zhou

et al., 2012) with the frequently changed ﬁle informa-

tion. Another score is generated from prioritization

component and these two scores are combined. Ho-

wever, as these techniques suggest classes, it demands

manual investigation to ﬁnd buggy locations in more

granular levels (e.g., buggy methods or statements).

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

172

2.2 Method Level Bug Localization

Since the suggestion of more granular level (i.e., met-

hods or statements) bug localization technique is nee-

ded, few techniques are available to suggest methods

as buggy. In method level bug localization, methods

are identiﬁed as the unit of suggestions.

Lukins et al. propose a method level bug loca-

lization technique (Lukins et al., 2008) where each

method of the source code is considered as the unit

of measurement. The source code is processed using

stop words removal, language speciﬁc keywords re-

moval, multi-word identiﬁers and stemming. Later,

Latent Dirichlet Allocation (LDA) model is generated

and is queried using bug report to get the buggy met-

hods. Another technique is proposed by considering

whole source code where semantic meanings of each

method have been extracted (Nichols, 2010). Authors

gather extra information from the previous bug his-

tory. When a new bug arrives, Latent Semantic In-

dexing (LSI) is applied on the method documents to

identify the relationships between the terms of the bug

report and the concepts of the method documents. Ba-

sed on that, a list of buggy methods is suggested.

A feature location based bug localization is intro-

duced in (Alhindawi et al., 2013) where source code

corpus is enhanced with stereotypes. Stereotypes re-

present the details of each word which are commonly

used in programming. For example, the stereotype

‘get’ means a method returns a value. These stere-

otype information are derived automatically from the

source code via program analysis. After adding stere-

otype information with the source code methods, IR

technique is used to execute the queries. However, as

the technique suggests method as buggy, it requires

lots of time to ﬁnd the buggy statements.

The ﬁrst dynamic analysis based bug localization

technique is proposed by Wilde et al. where minimi-

zation of source code has been performed by consi-

dering passing and failing test cases of the program

(Wilde et al., 1992). However, due to using passing

test cases, irrelevant features may be included in the

domain of search space. As a result, the accuracy of

bug localization may be hampered. An improved ver-

sion of this is proposed by Eisenbarth et al. where

both dynamic and static analysis of the source code

are combined (Eisenbarth et al., 2003). Here, static

analysis identiﬁes the dependencies among the data to

locate the features in a program while dynamic analy-

sis collects the source code execution traces for a set

of scenarios. Poshyvanyk et al. propose PROMESIR

where authors also use both static and dynamic ana-

lysis of the source code. Through dynamic analysis,

executed buggy methods are extracted for a bug.

Initially, the two analysis techniques produce bug si-

milarity scores differently without interacting with

each other. Finally, these two scores are combined

and a weighted ranking score for each method is me-

asured. Although this technique uses dynamic infor-

mation of the source code, it fails to minimize the so-

lution search space during static analysis.

Rahman et al. introduce MBuM which focuses

on the search space minimization by applying dyna-

mic analysis of the source code (Rahman and Sakib,

2016). Executed methods are identiﬁed by reprodu-

cing the bug, and during static analysis only the con-

tents of those executed methods are extracted. As a

result, irrelevant source code is removed from the se-

arch space. The remaining texts are processed to mea-

sure the similarity between the bug report and source

code method using a modiﬁed Vector Space Model

(mVSM). In mVSM, the length of the method is in-

corporated with the existing VSM.

From the above discussion, it is clear that the

accuracy depends on the identiﬁcation of valid infor-

mation domain by removing irrelevant source code.

Existing approaches suggest either classes or methods

as buggy which also demand manual inspections to

ﬁnd more granular buggy locations i.e., buggy state-

ments.

3 THE PROPOSED APPROACH

This section proposes Statement level Bug Localiza-

tion (SBL) which consists of two major phases such

as irrelevant search space minimization but maximi-

zing relevant data domain, and the ranking of buggy

statements from that relevant data domain. The de-

tails are described in the followings.

3.1 Minimizing Irrelevant Search Space

Since MBuM provides better ranking of buggy met-

hods than others, that ranked list of buggy methods is

used here as minimized search space (Rahman and

Sakib, 2016). To do so, irrelevant source code is

discarded by considering source code execution tra-

ces. Only the relevant method contents are proces-

sed using several text processing techniques such as

stop word removal, programming language speciﬁc

keyword removal, multi-word identiﬁcations, seman-

tic meaning extraction and stemming which produce

code corpora. Similarly, bug report is also processed

to generate bug corpora. Finally, textual similarity is

measured between code and bug corpora by mVSM.

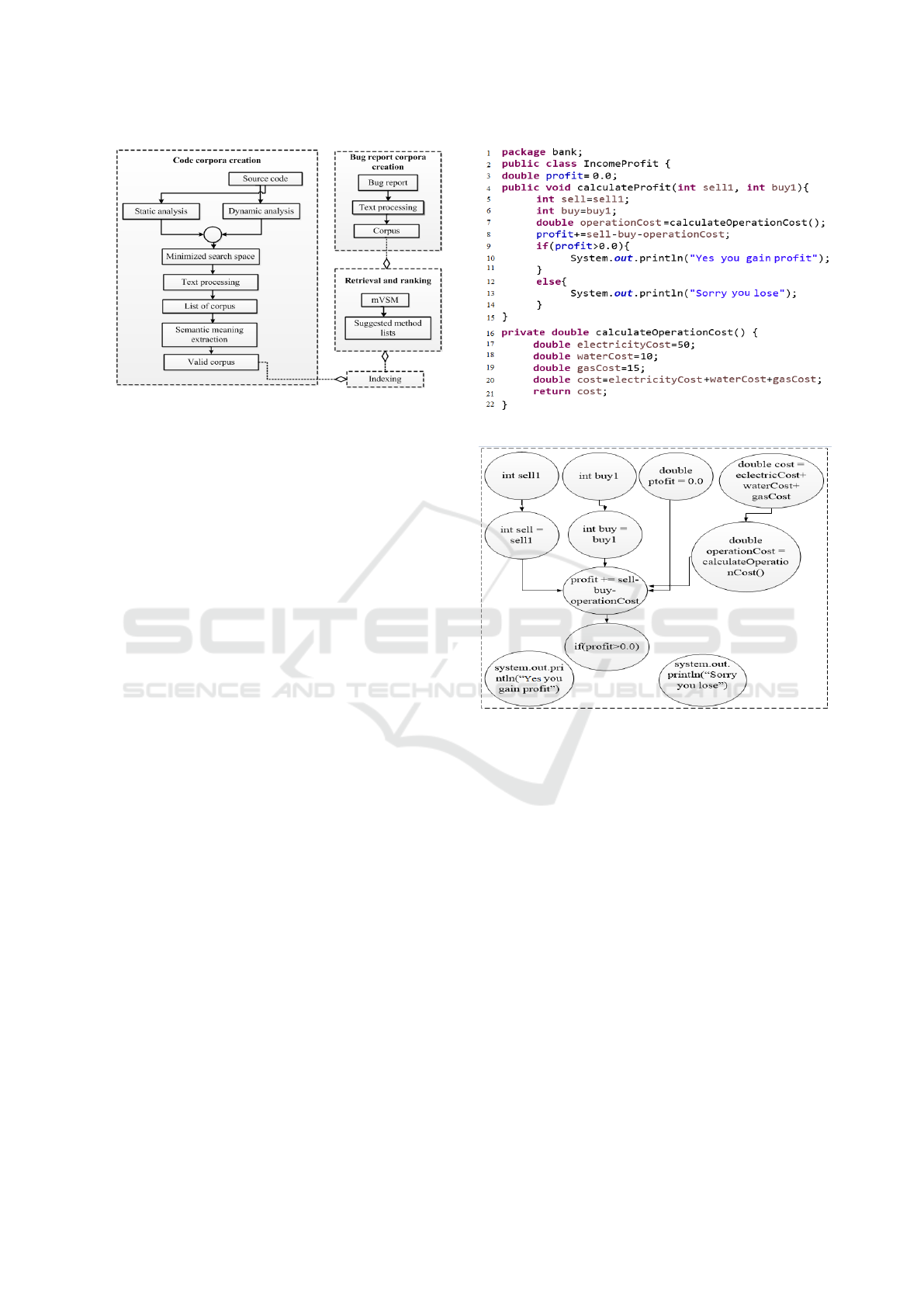

The overall procedure is demonstrated in Figure 1.

A Statement Level Bug Localization Technique using Statement Dependency Graph

173

Figure 1: The overall procedure of MBuM.

3.2 Statement Level Bug Localization

using Minimized Search Space

In this section, source code statements are sugge-

sted as buggy by only considering the ranked buggy

methods described in Section 3.1. For each ran-

ked method, a Method Statement Dependency Graph

(MSDG) is generated where each statement acts as

a node. For each node, a super node is generated

by combining the node and its predecessors, because

the execution of a node may depend on its predeces-

sor nodes. This process maximizes the valid infor-

mation of a statement. This graph is mentioned as

Node Predecessor-node Dependency Graph (NPDG).

To suggest a list of buggy statements, node similarity

score (N

) is measured between each node of NPDG

and the bug report using VSM. For each node, N

score is weighted by the score of the method (M

)

(obtained from MBuM) which contains the node.

3.2.1 Generation of Method Statement

Dependency Graph (MSDG)

MSDG is developed because one statement may de-

pend on other statements, and it is very often defects

propagate from one to another. As a result, the state-

ment which is executed ﬁrst may affect the statements

which use the result of that statement.

For a better understanding regarding the gene-

ration of MSDG, a Java source code class is con-

sidered (see Figure 2). Here, two methods na-

mely calculatePro fit and calculateOperationCost

are available within class IncomePro f it. Each met-

hod introduce some local, global and method call va-

riables. For example calculatePro f it contains sell,

buy, etc. as local variables where proﬁt is a global

variable. Except this, calculatePro fit also depends

on the result of calculateOperationCost method. So,

operationCost at line 7 is a method call variable.

Figure 2: Source code.

Figure 3: MSDG for calculatePro f it.

For calculatePro f it method, an MSDG is de-

picted in Figure 3 which is a directed graph. Let,

G = (V, E) is a graph where V is the set of verti-

ces or statements of the method. Each vertex sto-

res some properties of the source code (i.e., package

name, class name, method name, method score and

line number of the statement). Figure 4 shows these

properties of node int sell = sell1 of MSDG in Figure

3. Similar to this node, all other nodes also contain

these types of information. E is the set of directed

edges between statements which represents the data

ﬂow. If there exists an edge (v

, v

) from node v

, v

is said to be a predecessor of v

. In source code,

the predecessors can be deﬁned as follows: if a state-

ment contains an assignment such as x = y + z, the

last modiﬁed statements of y and z are the predeces-

sors of x. For arithmetic assignment operators such

as x+ = y, the last modiﬁcation of x is also consi-

dered as a predecessor. In case of increment (x++),

decrement (x- -) and conditional statements (e.g., if

(x > 0)), statement containing the last modiﬁcation

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

174

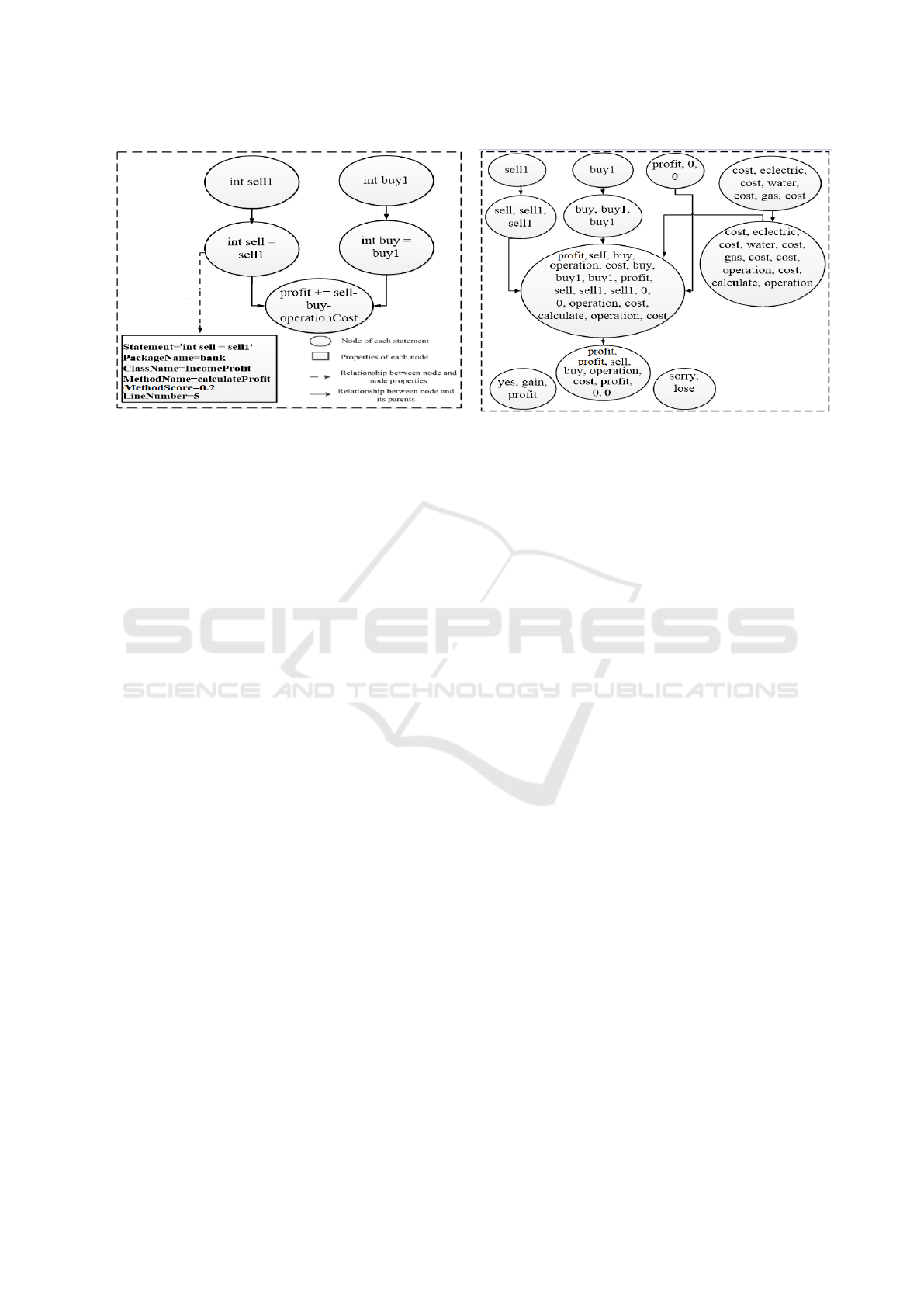

Figure 4: MSDG containing the details of a node.

of x is a predecessor. These are needed to maximize

the valid information of each statement which can im-

prove the accuracy of bug localization technique. To

ﬁnd the last modiﬁcation of a variable, three cases are

identiﬁed based on the types of predecessor variables

such as Local Variable Usage (LVU), Global Varia-

ble Usage (GVU) and Method Return Variable Call

(MRVC).

1. In LVU, scopes of predecessor variables are boun-

ded within that method. In calculatePro fit met-

hod of Figure 2, int sell1 affects sell, hence int

sell1 is the predecessor of sell. Similarly, int buy1

is the predecessor of buy (see Figure 2) and so on.

2. In GVU, the predecessor variable is globally de-

clared and multiple methods may use that varia-

ble. The declaration of the double pro fit = 0.0

in line 3 affects line 8 where pro f it is calculated

using sell, buy, operationCost and pro f it. There-

fore, line 3 is the predecessor of line 8.

3. MRVC indicates that a statement calls a method

which returns a value. In this case, the last mo-

diﬁcation of that called method’s return statement

is the predecessor of the current node. In Figure

2, line 7 shows that operationCost calls a met-

hod (i.e., calculateOperationCost), which returns

cost variable (see line 20). Therefore, line 20 is

the predecessor of the calling node (i.e., line 7),

as shown in Figure 3.

From Figure 3 it is found, the last two nodes such

as system.out.println(“Yes you gain proﬁt”) and sy-

stem.out.println(“Sorry you lose”) have no edge with

other nodes because these do not use any variables or

call any methods. As a result, the above mentioned

cases (i.e., LVU, GVU and MRVC) are not satisﬁed.

Figure 5: Node Predecessor-node Dependency Graph

(NPDG) corresponding to Figure 3.

3.2.2 Generation of Node Predecessor-node

Dependency Graph (NPDG)

In this phase, textual information is maximized by

combining the corpora of each node with its predeces-

sors (i.e., only the direct predecessors). At ﬁrst, each

node of MSDG containing a statement of the source

code is processed. To do so, text are processed using

the techniques, described in Section 3.1. Finally, a list

of valid code corpora is obtained.

As SBL depends on the similarity between the

bug report and statements of the source code, incre-

asing valid information of a statement is an implicit

demand. Hence, a super node is generated by combi-

ning each node with its predecessor nodes’ corpora

because predecessors may affect its successors, re-

sults in an NPDG. Figure 5 shows an NPDG which is

derived from Figure 3 by combining each node with

its predecessor nodes. In Figure 3, int sell = sell1

is a node while in NPDG, this node is incorporated

with its predecessor node (i.e., int sell1). As a re-

sult, the number of corpus is increased for statement

int sell = sell1.

After the generation of NPDG, similarity score is

measured between the bug report and each node of

NPDG. This graph is traversed to ﬁnd the frequencies

of shared terms between the bug corpora and each

node corpora of NPDG. As several kinds of term-

frequency (t f ) have already been available (e.g., loga-

rithm, boolean variants), logarithm variant performs

better than others (Croft et al., 2010). t f (t, n) and

t f (t, b) are calculated according to Equation 1 and 2.

t f (t, n) = log f

+ 1 (1)

t f (t, b) = log f

+ 1 (2)

and f

are the frequencies of a term of NPDG

node and bug report respectively, which are used for

A Statement Level Bug Localization Technique using Statement Dependency Graph

175

measuring the similarity between bug report and each

statement of the source code (see Equation 3).

(n, b) = V SM(n, b) = cos(n, b) =

∑

t∈b∩n

((log f

+ 1) ×(log f

+ 1))

√

∑

t∈n

(log f

+1)

√

∑

t∈b

(log f

+1)

(3)

Here, N

(n, b) denotes the similarity score of each

node. A statement containing large score (N

) repre-

sents that the statement has large similarity with the

bug report. Similarly, low score of a statement indi-

cates that the bug has minimum effect on that node.

The score of each statement is weighted by the

score of the method using Equation 4. This is be-

cause, a statement contains a few number of words

compared to a method (Moreno et al., 2013). So, it is

more obvious that the large ranking scored methods’

are more likely liable for being buggy.

SBL

score

= N

×M

(4)

and N

represent the score of a method contai-

ning statement s and the statement similarity score re-

spectively. SBL

score

denotes the ranking score of each

statement, and based on that, statements are ranked.

4 RESULT ANALYSIS

To measure the effectiveness of SBL, several bug

reports from three open source projects named as

Eclipse, SWT and PasswordProtector are considered.

The experiments are conducted for validating the ran-

king of buggy statements. To measure the accuracy

of SBL, Top N Rank, Mean Reciprocal Rank (MRR)

and Mean Average Precision (MAP) are used as me-

trics which are also commonly used in bug localiza-

tion. The data collection followed by the experimen-

tal details are discussed in the followings.

4.1 Data Collection

Eclipse, SWT and PasswordProtector are used as the

subject of evaluation. Eclipse is a widely used open

source Integrated Development Environment (IDE)

which is written in Java. SWT is a widget toolkit

which is integrated with Eclipse. PasswordProtector

is also an open source project used to encrypt pass-

words for accessing multiple websites.

Different versions of Eclipse and SWT (e.g., ver-

sion 2.1.0, 3.0.1, 3.0.2 and 3.1.0) are chosen which

contain large volume of source code. For example,

Eclipse 3.0.2 contains 12,863 classes, 95,341 met-

hods and 1,86,772 non-empty statements, SWT con-

tains 489, 18,784 and 32,032 classes, methods and

https://raw.githubusercontent.com/shanto-Rahman/

SBL/master/PasswordProtector.zip

Table 1: The performance of SBL by considering 230 bugs.

Project

name

Top 1 Top 5 Top 10 Top 20 MRR MAP

Eclipse

(28.33%)

(58.33%)

(65.83%)

(81.66%)

45.8% 38.5%

SWT

(38%)

(63%)

(72%)

(85%)

51.3% 44.2%

Password

Protector

(40%)

(90%)

(100%)

66% 61%

non-empty statements respectively. These benchmark

projects lack the available patches with statement le-

vel bug ﬁxing because, none of the researches are

conducted on statement level. Hence, SBL is evalua-

ted using 230 bugs from three projects (i.e., 120 from

Eclipse, 100 from SWT and 10 from PasswordProtec-

tor). These bugs are manually collected from Bugzilla

for Eclipse and SWT. For each bug, corresponding pa-

tched ﬁles are also collected to validate the results

provided by SBL. Meanwhile, the bug reports and

ﬁxed ﬁles of PasswordProtector are collected from the

developers of the projects (Rahman, 2016).

The details of each bug are available in (Rahman,

2016) where bug id, description and buggy locations

are given. It is noteworthy that stack trace is omitted

from the bug description as it may bias the evaluation.

4.2 Research Questions and Evaluation

In this section, SBL is validated by addressing two

research questions RQ1 and RQ2. RQ1 states how

many bugs are successfully located by suggesting

buggy statements. And RQ2 demonstrates the effect

of considering predecessors of each node. The follo-

wing discussion holds the detail description of each

research question along with their evaluation.

4.2.1 RQ1: How Many Bugs are Successfully

Located at Statement Level?

For each bug, the ranked list of buggy statements sug-

gested by SBL are compared with the original patched

buggy statements. If the buggy statements are ranked

at the top 1, top 5, top 10 or top 20, the bug is con-

sidered effectively localized. MRR and MAP metrics

are also used to prove the efﬁcacy of SBL.

Table 1 presents SBL locates 28.33% buggy sta-

tements at the top in Eclipse. This refers that develo-

pers may not traverse any more statements for 28.33%

bugs. Besides, 58.33% and 65.83% bugs are located

within top 5 and top 10 respectively. In case of SWT,

SBL locates 38%, 63% and 72% at the top 1, top 5

and top 10. For PasswordProtector, 40% bugs are

localized at the top 1, 90% and 100% bugs are cor-

rectly localized within top 5 and top 10 suggestions.

For Eclipse, SWT and PasswordProtector, MRR of

SBL is 45.8%, 51.3% and 66% while MAP is 38.5%,

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

176

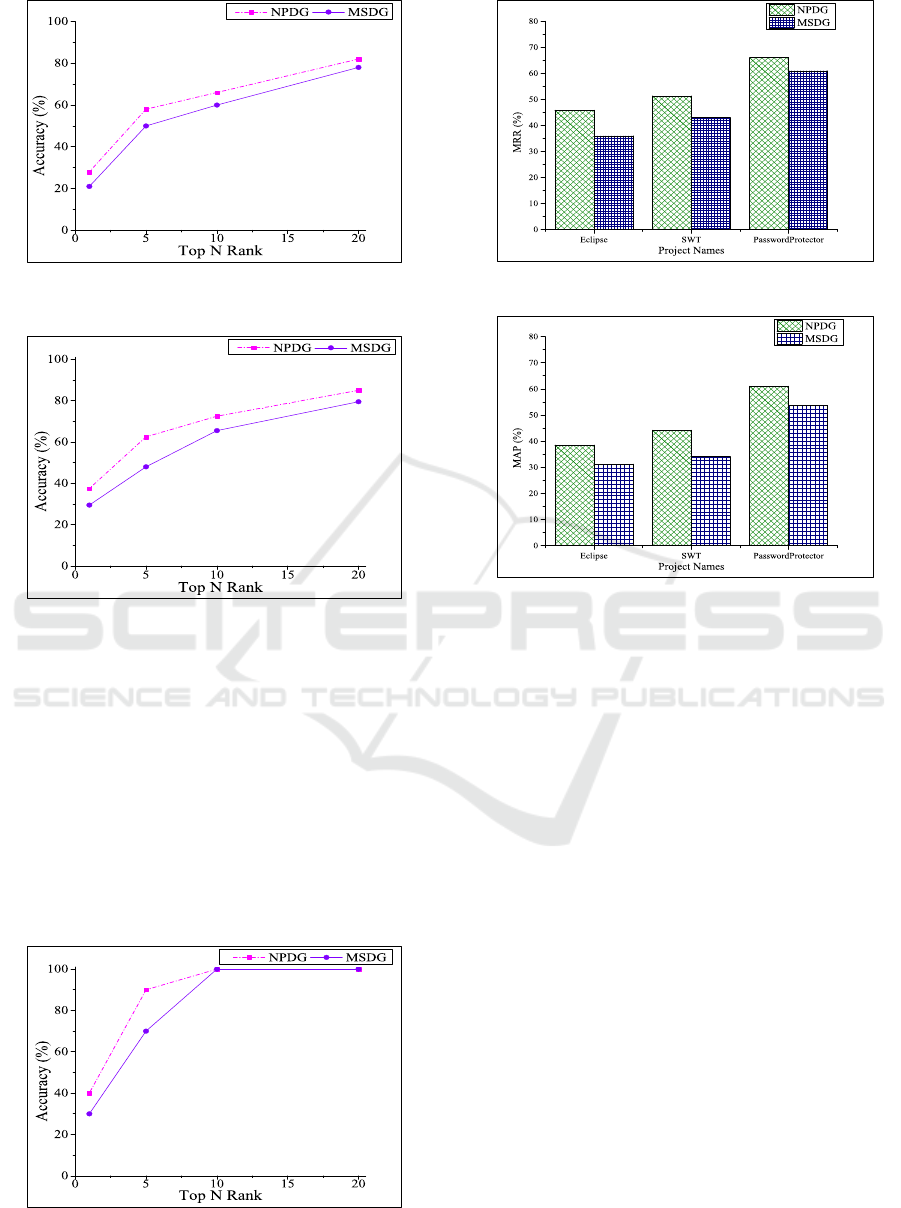

Figure 6: Demonstrating the effects of predecessor nodes in

120 bugs of Eclipse using Top N Rank.

Figure 7: Demonstrating the effects of predecessor nodes in

100 bugs of SWT using Top N Rank.

44.2% and 61% respectively. These results indicate,

SBL can effectively localize the buggy statements.

4.2.2 RQ2: Does NPDG Improve the Accuracy

of Bug Localization?

SBL creates super node by combining each node and

its predecessor nodes. Hence, it is an intrinsic de-

mand to show whether the consideration of these pre-

decessor nodes improve the bug localization accuracy

or not. To validate this, a comparison is made bet-

Figure 8: Demonstrating the effects of predecessor nodes in

10 bugs of PasswordProtector using Top N Rank.

Figure 9: Impact of the predecessor node using MRR.

Figure 10: Impact of the predecessor node using MAP.

ween without considering predecessor (i.e., MSDG)

and with consideration of predecessors (i.e., NPDG).

Figure 6-8 show the accuracy of ranking buggy

statements in Top N Rank by MSDG which is com-

paratively lower than that of NPDG for all the studied

projects. Because buggy statements depend on its pre-

viously executed statements. And NPDG is more ef-

fective when the bug is not stayed in a statement rather

it propagates from one statement to another.

Figure 6 holds a comparative study between the

results of considering NPDG and MSDG in case of

Eclipse. The ranking of buggy statements in Eclipse

shows that 21.66% and 28.33% bugs are located at the

position in case of MSDG and NPDG respectively.

For SWT, 29% and 38% bugs are located at the 1

po-

sition for MSDG and NPDG. Although PasswordPro-

tector is comparatively low volume project than other

two, here also NPDG performs better than MSDG,

i.e., 40% and 30% bugs are located at the 1

position

respectively. Thus NPDG improves 6.67%, 9% and

10% performance in case of Eclipse, SWT and Pass-

wordProtector respectively over MSDG.

The effects of using predecessors are shown in Fi-

gure 9 and 10 where MRR and MAP are considered

as metrics respectively. NPDG also shows higher va-

lues than MSDG. In case of MRR, 9.8%, 8.3% and

5% (Figure 9) improvements are found by conside-

A Statement Level Bug Localization Technique using Statement Dependency Graph

177

ring NPDG instead of MSDG for Eclipse, SWT and

PasswordProtector respectively. Meanwhile, 7.3%,

10.1% and 7.3% (Figure 10) accuracy improvements

have been found (on MAP) by NPDG over MSDG in

the aforementioned three projects respectively.

5 CONCLUSION

In this paper, a novel statement level bug localization

technique named as SBL is proposed where irrele-

vant search space is discarded using the source code

dynamic analysis. The relevant search space is furt-

her minimized by ranking the buggy methods. Later,

for each suggested method, a Method Statement De-

pendency Graph (MSDG) is generated which holds

the relationship among the statements. For invoking

predecessor node information, a Node Predecessor-

node Dependency Graph (NPDG) is generated for

each method where bag of words of each node and its

predecessor nodes are combined. The similarity bet-

ween each node (i.e., statement) of NPDG and the bug

report is measured to rank the buggy statements. Ef-

fectiveness of SBL has been evaluated on three open

source projects. The experimental results show that

SBL can successfully rank buggy statements. It is

also evident from the results, the consideration of pre-

decessor nodes improve the accuracy.

Since SBL performs well in different types of pro-

jects, in future it can be applied in industrial projects

to assess its effectiveness in practice.

ACKNOWLEDGEMENT

This research is supported by the fellows-

hip from ICT Division, Bangladesh. No-

56.00.0000.028.33.028.15-214 Date 24-06-2015.

REFERENCES

Alhindawi, N., Dragan, N., Collard, M. L., and Maletic,

J. I. (2013). Improving feature location by enhancing

source code with stereotypes. In 2013 IEEE Inter-

national Conference on Software Maintenance, pages

300–309. IEEE.

Croft, W. B., Metzler, D., and Strohman, T. (2010). Search

engines: Information retrieval in practice. Addison-

Wesley Reading.

Eisenbarth, T., Koschke, R., and Simon, D. (2003). Loca-

ting features in source code. IEEE Transactions on

Software Engineering, 29(3):210–224.

Lukins, S. K., Kraft, N., Etzkorn, L. H., et al. (2008).

Source code retrieval for bug localization using la-

tent dirichlet allocation. In 15th Working Conference

on Reverse Engineering, WCRE’08, pages 155–164.

IEEE.

Moreno, L., Bandara, W., Haiduc, S., and Marcus, A.

(2013). On the relationship between the vocabulary

of bug reports and source code. In International Con-

ference on Software Maintenance (ICSM), pages 452–

455. IEEE.

Nichols, B. D. (2010). Augmented bug localization using

past bug information. In 48th Annual Southeast Regi-

onal Conference, page 61. ACM.

Poshyvanyk, D., Gueheneuc, Y.-G., Marcus, A., Antoniol,

G., and Rajlich, V. C. (2007). Feature location using

probabilistic ranking of methods based on execution

scenarios and information retrieval. IEEE Transacti-

ons on Software Engineering, 33(6):420–432.

Rahman, S. (2016). shanto-rahman/source code: 2016.

https://github.com/shanto-Rahman/SBL.

Rahman, S., Ganguly, K., and Kazi, S. (2015). An im-

proved bug localization using structured information

retrieval and version history. In 18th International

Conference on Computer and Information Technology

(ICCIT), pages 190–195. IEEE.

Rahman, S., Rahman, M. M., and Sakib, K. (2016). An im-

proved method level bug localization approach using

minimized code space. Communications in Computer

and Information Science (Accepted).

Rahman, S. and Sakib, K. (2016). An appropriate method

ranking approach for localizing bugs using minimized

search space. In Proceedings of the 11th International

Conference on Evaluation of Novel Software Approa-

ches to Software Engineering, pages 303–309.

Saha, R. K., Lease, M., Khurshid, S., and Perry, D. E.

(2013). Improving bug localization using structured

information retrieval. In 28th International Confe-

rence on Automated Software Engineering (ASE), pa-

ges 345–355. IEEE.

Sisman, B. and Kak, A. C. (2012). Incorporating version

histories in information retrieval based bug localiza-

tion. In 9th IEEE Working Conference on Mining Soft-

ware Repositories, pages 50–59. IEEE Press.

Tantithamthavorn, C., Ihara, A., and Matsumoto, K.-i.

(2013). Using co-change histories to improve bug

localization performance. In Software Engineer-

ing, Artiﬁcial Intelligence, Networking and Paral-

lel/Distributed Computing (SNPD), 2013 14th ACIS

International Conference on, pages 543–548. IEEE.

Wang, S. and Lo, D. (2014). Version history, similar report,

and structure: Putting them together for improved bug

localization. In 22nd International Conference on

Program Comprehension, pages 53–63. ACM.

Wilde, N., Gomez, J. A., Gust, T., and Strasburg, D. (1992).

Locating user functionality in old code. In Software

Maintenance, 1992. Proceerdings., Conference on,

pages 200–205. IEEE.

Zhou, J., Zhang, H., and Lo, D. (2012). Where should the

bugs be ﬁxed? more accurate information retrieval-

based bug localization based on bug reports. In

34th International Conference on Software Engineer-

ing (ICSE), pages 14–24. IEEE.

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

178
