Brute Force Cryptanalysis of MIFARE Classic Cards on GPU

Cihangir Tezcan

Department of Mathematics, Middle East Technical University, Ankara, Turkey

Informatics Institute, Department of Cyber Security, CYDES Laboratory, Middle East Technical University, Ankara, Turkey

cihangir@metu.edu.tr

Keywords:

MIFARE Classic, CRYPTO1, Cryptanalysis, GPU.

Abstract:

MIFARE Classic is the most widely deployed contactless smartcard on the market. However, many active and

passive attacks are provided after its proprietary stream cipher CRYPTO1 was reverse engineered. The short

48-bit key of the CRYPTO1 cipher, leaked parity bits and the encrypted error code that is sent after a failed

authentication (which is corrected in the hardened new cards) allow the adversary to perform ofﬂine brute

force attack and avoid detection. Such an attack requires wireless interaction with a card for less than a second

and then a brute force attack which was shown to take around 9 days on a single GTX280 GPU. We optimized

this brute force attack on modern GPUs by using bitsliced implementation technique and observed that a brute

force attack on a GTX970 GPU can be performed in less than 5 hours. Although this attack is not applicable

to hardened MIFARE Classic cards, a similar attack using the short key length and the leaked parity bits can

be performed when a single key is known, possibly using the default keys for unused sectors. Such an attack

requires wireless interaction with a card for less than a second and then a brute force attack which was shown

to take approximately one month on a single GTX460 GPU. Our bitsliced implementation of this attack takes

less than 7 hours on a GTX970 GPU.

1 INTRODUCTION

ISO/IEC 14443-A standard about identiﬁcation, con-

tactless integrated circuit, and proximity cards con-

sists of four parts: Physical characteristics, radio

frequency power and signal interface, initialization

and anticollision, and transmission protocol. MIFARE

Classic, which is the most widely used contactless

smartcard on the market, is compatible with the ﬁrst

three parts but it uses its own secure communica-

tion layer. It uses a proprietary stream cipher called

CRYPTO1 to provide data conﬁdentiality and authenti-

cation between card and reader. Although kept secret

by the manufacturer NXP Semiconductors, both the

cipher CRYPTO1 (Nohl et al., 2008) and the commu-

nication layer (Garcia et al., 2008) have been reverse

engineered.

After the reverse engineering, many vulnerabili-

ties and attacks were provided. Most of the card-only

attacks rely on non-cryptographically related imple-

mentation ﬂaws and some of these ﬂaws are mitigated

by issuing replacement cards.

Currently the best known active card-only attack

is the ciphertext-only attack of (Meijer and Verdult,

2015), which only requires wireless interaction with

the card for a few minutes with consumer-grade har-

dware. Active attacks on these cards are summarized

in Table 1.

Moreover, ofﬂine attacks on these cards are possi-

ble due to the short key and the parity bit vulnerability.

If the card also has the keystream leakage through er-

ror vulnerability, it was shown in (Chih et al., 2010)

that the brute force attack provided in (Garcia et al.,

2009) can be performed in around 9 days on a single

GTX280 GPU. If the card does not have this vulnera-

bility, it was shown in (Meijer and Verdult, 2015) that

a brute force attack using the nested authentication

property can be performed in a month using a single

GTX460 GPU provided that a single key of a sector

is already known. Thus, one can perform these at-

tacks in a few hours by building a huge farm of GPUs.

However, we observed that the CRYPTO1 stream cip-

her of the MIFARE Classic card is very suitable for a

bitsliced (Biham, 1997) optimization and we reduced

the time of these attacks to 5 and 7 hours, respectively

on a single GTX970 GPU.

524

Tezcan, C.

Brute Force Cryptanalysis of MIFARE Classic Cards on GPU.

DOI: 10.5220/0006262705240528

In Proceedings of the 3rd International Conference on Information Systems Security and Privacy (ICISSP 2017), pages 524-528

ISBN: 978-989-758-209-7

 2017 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

Table 1: Comparison of card only attacks.

Attack Traces Gather Compute

a b

(Garcia et al., 2009) 2 <1 sec <1 sec × X

(Courtois, 2009) 300 3 min <1 sec × ×

(Chiu et al., 2013) ∼ 100, 000 10-20 hours 2-15 min X ×

(Meijer and Verdult, 2015) ∼ 10, 000 6-12 min 5-10 min X X

Does not require a weak PRNG

Does not require the error code after a failed authentication

2 MIFARE CLASSIC CARDS

2.1 Memory Structure

The memory of a MIFARE Classic card is divided into

sectors that are divided into 16-byte blocks. The last

block of each sector stores two sector keys and the

access conditions for that sector. To perform an action

on a block, the reader must ﬁrst authenticate itself for

that sector with a sector key.

2.2 CRYPTO1

Nohl et al. reverse engineered CRYPTO1 stream cip-

her by slicing a MIFARE Classic chip and taking pic-

tures with a microscope (Nohl et al., 2008). It consists

of a 48-bit linear feedback shift register (LFSR) and

a non linear ﬁlter function f . Contents of the LFSR

are shifted one position to the left and the most signi-

ﬁcant bit is discarded. A new bit is generated by the

feedback function L. During the authentication phase,

the input is also XORed to the output of L.

Deﬁnition 2.1. (Nohl et al., 2008) The feed-

back function L(x

. . . x

) : F

→ F

is deﬁned by

L := x

⊕ x

⊕

⊕ x

⊕x

⊕ x

Deﬁnition 2.2. (Garcia et al., 2008) The ﬁlter

function f (x

. . . x

) : F

→ F

is deﬁned by

f := f

( f

, x

), f

, x

), f

, x

) )

and f

, f

: F

→ F

and f

: F

→ F

are deﬁned by

, y

): = ((y

∨ y

) ⊕ (y

∧ y

))⊕

∧ ((y

⊕ y

) ∨ y

))

, y

): = ((y

∧ y

) ∨ y

)⊕

((y

⊕ y

) ∧ (y

∨ y

))

, y

): = (y

∨ ((y

∨ y

) ∧ (y

⊕ y

)))

⊕((y

⊕ (y

∧ y

))∧

((y

⊕ y

) ∨ (y

∧ y

)))

If we denote the LFSR-stream with a

. . . and

keystream b

. . ., they are obtained as follows:

Deﬁnition 2.3. (Garcia et al., 2009) Given a key k =

. . . k

∈ F

, a tag nonce n

= n

T,0

T,1

. . . n

T,31

∈

, a uid u = u

. . . u

∈ F

, and a reader nonce

= n

R,0

R,1

. . . n

R,31

∈ F

, the internal state of the

cipher at time i is α

:= a

i+1

. . . a

i+47

∈ F

Here the a

∈ F

are given by

:= k

∀i ∈ [0, 47]

48+i

:= L(a

, . . . , a

47+i

) ⊕ n

T,i

⊕ u

∀i ∈ [0, 31]

80+i

:= L(a

32+i

, . . . , a

79+i

) ⊕ n

R,i

∀i ∈ [0, 31]

112+i

:= L(a

64+i

, . . . , a

111+i

) ∀i ∈ N

Furthermore, the keystream bit b

∈ F

at time i is

deﬁned by

:= f (a

1+i

. . . a

47+i

) ∀i ∈ N

Structure of CRYPTO1 stream cipher is provided

in Figure 1.

2.3 Tag and Reader Authentication

Protocol

The reverse engineered authentication protocol

(de Koning Gans et al., 2008) is as follows: The tag

is selected in the anticollision phase and it sends its

uid u to the reader. Then the reader asks to authenti-

cate for a speciﬁc memory block b. Consequently the

tag sends a challenge nonce n

. The reader responds

by encrypting its own challenge n

and the answer

= suc

) where

suc(x

. . . x

) := x

. . . x

)

and

. . . x

) := x

⊕ x

The authentication is concluded with the tag answer

= suc

2.4 Known Vulnerabilities

Previous works provided many serious vulnerabilities

of MIFARE Classic. They are thoroughly explained

in (Meijer and Verdult, 2015) and we summarize the

ones that are used in this paper:

Brute Force Cryptanalysis of MIFARE Classic Cards on GPU

525

out

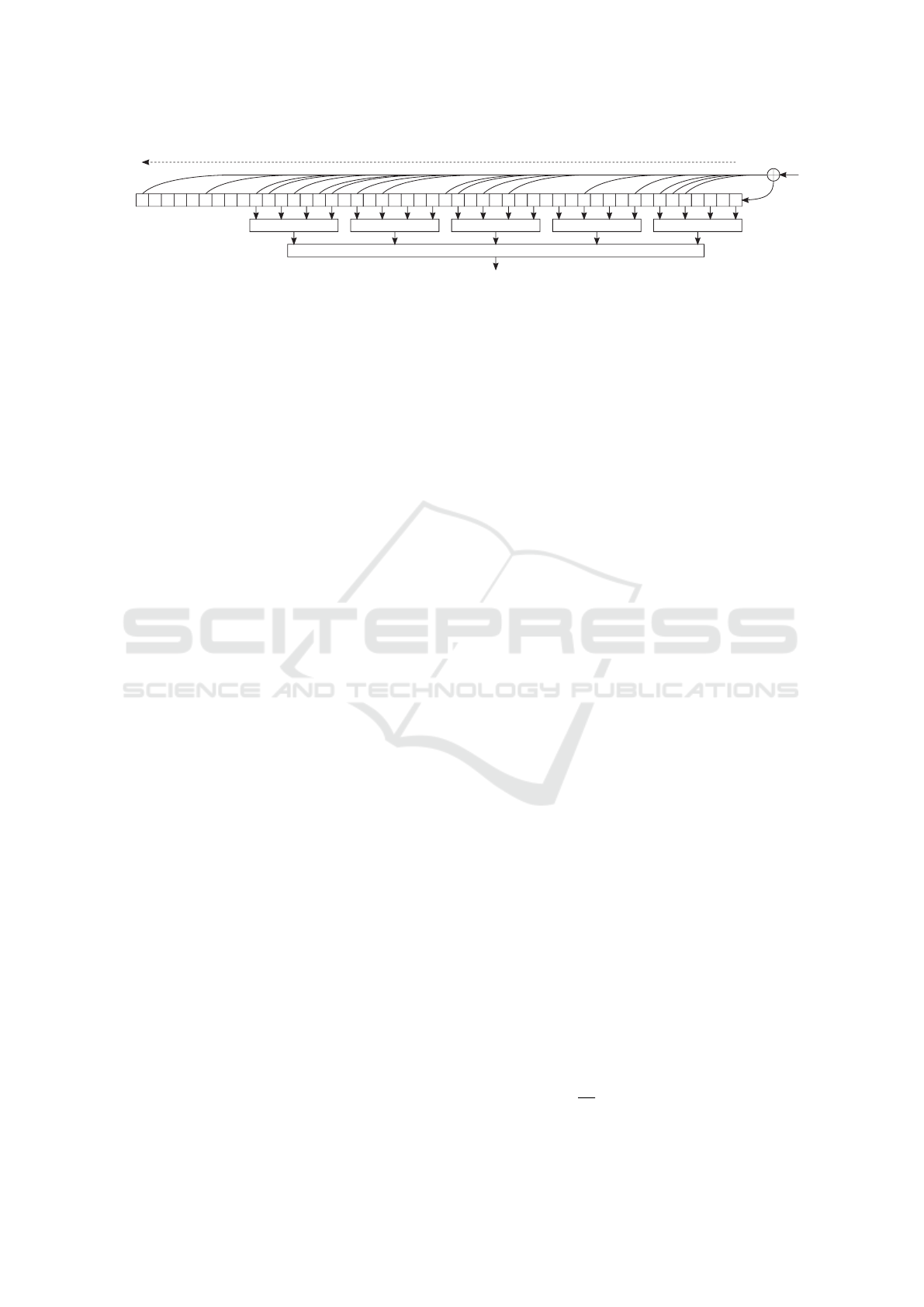

Figure 1: Structure of CRYPTO1 stream cipher.

1. Short key length: The key size of 48 bits is too

small. Although the delay introduced by the com-

munication and authentication procedure prevents

an online brute force attack, reverse engineering

of CRYPTO1 algorithm allowed ofﬂine brute force

attacks.

2. The nested authentication: When the authentica-

tion for a sector is completed, the reader can re-

quest another authentication for a different sector

and key. This request initializes the internal cip-

her state to the key of that sector. But this time,

the nonce n

is also sent encrypted. In case the

card has the weak pseudo-random number gene-

rator vulnerability, the attack provided in (Garcia

et al., 2009) can be used to recover 32 bits of key-

stream by only wirelessly interacting with a card.

3. Parity bits: The MIFARE Classic sends a parity bit

for each byte it transmits but these parity bits are

computed over plaintext instead of ciphertext.

4. Keystream leakage through error: During authen-

tication protocol, the card always ﬁrst checks the

parity bits and if the parity bits are correct but the

answer a

is wrong, the card provides the 0x5 fai-

led authentication error code. But this error is sent

encrypted and thus 4 bits of the keystream is le-

aked. This weakness is removed with hardened

MIFARE Classic cards since they do not send au-

thentication error code.

Note that it is important for the adversary to re-

trieve all data for every sector because deployed sys-

tems using MIFARE Classic sequentially authenticate

for several sectors verifying the data in the card. It

was observed in (Meijer and Verdult, 2015) that the

only way left in hardened cards that leak secret key

information without communicating with a genuine

reader is through parity bits. Using this vulnerability,

(Meijer and Verdult, 2015) provided an online attack

for these hardened cards that requires data gathering

for 6-12 minutes and an ofﬂine attack that requires

wireless interaction with a card for less than a second

and then a brute force attack which take approxima-

tely one month on a single GTX460 GPU. Authors

noted that their implementation is not bitsliced (Bi-

ham, 1997) and a bitsliced implementation would im-

prove the attack performance by at least a factor of

four. In Section 3.2, we show that a bitsliced optimi-

zation of this attack provides much better speed ups

and the attack takes only 7 hours on a GTX970 GPU.

3 BRUTE FORCE ATTACKS ON

GPU

CRYPTO1 stream cipher uses a short key of 48 bits,

tag serial, tag nonce, and reader nonce to produce key-

stream. Thus, if the attacker captures the keystream

and the nonces, then a 48-bit exhaustive search on a

GPU can ﬁnd the key in less than an hour. In this at-

tack the adversary can check the keystream for each

bit produced by a key and thus early abort the search.

However, the proposed attacks in the literature can-

not capture the keystream directly but can capture the

parity of bytes of the keystream. Moreover, early ver-

sions of MIFARE classic cards send 4-bit encrypted

error code after failed authentication. Thus, we can

divide brute force attacks on MIFARE Classic into two

categories which depends on if the card sends encryp-

ted error code after failed authentication or not.

3.1 Brute Force using Encrypted Error

Code

The brute force attack in the presence of encrypted

error code is proposed in (Garcia et al., 2009). In

this attack, the attacker tries to authenticate for a sec-

tor and answers the challenge of the tag with eight

random bytes and eight random parity bits for n

and

. When the parity bits are correct but the answer

is wrong, the tag sends the encrypted 4-bit error

code. Thus, a success leaks 12 bits of entropy about

the key. Therefore, we need at least 4 authentication

sessions with correct parity bits but in practice 6 au-

thentication sessions are generally used to avoid false

positives. Since the probability of correctly guessing

8 parity bits is

256

, gathering six authentication ses-

sions with correct parity bits takes 6 · 256 = 1536 au-

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

526

thentication attempts on average and it can be done in

less than one second.

In (Garcia et al., 2009), it was pessimistically

assumed that COPACOBANA which ﬁnds a 56-bit

DES key in on average 6.4 days can ﬁnd the 48-

bit CRYPTO1 key in 36 minutes if once can ﬁt the

same number of CRYTO1 checks on FPGA as DES-

decryptions. Note that COPACOBANA costs approx-

imately 10,000 USD. In another work (Chih et al.,

2010), it was shown that 16 GTX280 GPUs can per-

form this attack in 14 hours. Thus, it takes around 9.3

days for a single GTX280 (240 cores, processor clock

1296 MHz) to perform this attack.

In our bitsliced implementation, we kept the 48-

bit keys using 48 32-bit registers and thus performed

each operation on 32 different keys simultaneously.

We also kept the nonce, uid, and parity information on

the shared memory of the GPU to reduce the number

of used registers. Data on the shared memory can be

reached on 32 memory lanes and two threads in warp

trying to use the same warp causes collision. Howe-

ver, if each 32 threads in a warp tries to access the

same memory bank, then the data is broadcast and

no collision occurs. Since every thread uses the same

nonce, uid, and parity information, no collisions occur

in our implementation. We used CUDA SDK version

6.5 instead of 7.5 because it provided better results.

Our implementation uses 154 registers, 2080 bytes

of shared memory and 360 bytes of constant memory

when compiled with compute capability 5.0 or 5.2 but

number of registers and performance vary for diffe-

rent compute capability. We noted that using 48 64-bit

registers for bitslicing increases the number of regis-

ters and reduce the performance. We performed our

experiments on a medium range desktop and a laptop

GPUs. Brute force attack results are provided in Table

Table 2: Brute Force Attack on MIFARE Classic.

GTX 860M GTX 970

Cores 640 1664

Clock 1020 MHz 1253 MHz

Compute Capability 5.0 5.2

Keys per second 6,673 M 15,575 M

48-bit search 11.7 hours 5 hours

3.2 Brute Force Attack on Hardened

MIFARE Classic

It was noted in (Meijer and Verdult, 2015) that most

deployed systems leave default keys intact for unu-

sed sectors and nearly all deployed systems that use

key diversiﬁcation leave at least one sector key non-

diversiﬁed because it is recommended in the manufac-

turer guidelines for system integrators. Therefore, we

can assume that the adversary always knows at least

one key of a sector. Once the adversary authenticates

against that sector, they can send another authentica-

tion request for a different sector and key. This new

authentication command sets the internal state of the

cipher to the key of the new sector but this time the

challenge generated by the tag n

is also sent encryp-

ted. Thus, the adversary can perform brute force at-

tack on the parity bits of the encrypted nonce sent by

the tag. Since an encrypted 32-bit nonce has 4 parity

bits, on average 12 encrypted nonces are required to

determine the 48-bit key. This requires wireless inte-

raction with a card for less than a second.

A brute force attack with an Nvidia GTX460 GPU

(336 cores, 1350 MHz processor clock) was perfor-

med in (Meijer and Verdult, 2015) and it was dedu-

ced that a full 48-bit exhaustive search would take

approximately 1 month. Thus, the authors conclude

that 180 Nvidia GTX460 GPUs would cost around

$12, 600 USD and would recover a single key within

an hour. However, this implementation is not bitsli-

ced and CRYPTO1 stream cipher is very suitable for

bitsliced implementation on GPUs.

In our bitsliced implementation, we kept the 48-

bit keys using 48 32-bit registers and thus performed

each operation on 32 different keys simultaneously.

We also kept the nonce and parity information on

the shared memory of the GPU to reduce the number

of used registers. Since every thread uses the same

nonce and parity information, no collisions occur in

our implementation when shared memory is acces-

sed. We again used CUDA SDK version 6.5 instead

of 7.5 because it provided better results. Our imple-

mentation uses 95 registers, 1952 bytes of shared me-

mory and 356 bytes of constant memory when compi-

led with compute capability 5.0 or 5.2 but number of

registers and performance vary for different compute

capability. We noted that using 48 64-bit registers for

bitslicing increases the number of registers and reduce

the performance. We performed our experiments on a

medium range desktop and a laptop GPU. Brute force

attack results are provided in Table 3.

Table 3: Brute Force Attack on Hardened MIFARE Classic.

GTX 860M GTX 970

Cores 640 1664

Clock 1020 MHz 1253 MHz

Compute Capability 5.0 5.2

Keys per second 3,635 M 11,105 M

48-bit search 21 hours 7 hours

This attack is slower than the brute force attack

of Section 3.1 because in this case we do not have

the leaked 4-bit keystream. This is because harde-

ned MIFARE classic cards do not send encrypted er-

Brute Force Cryptanalysis of MIFARE Classic Cards on GPU

527

ror code. However, we get a speed up because our

implementation uses only 95 registers per thread of

the GPU, compared to 154 registers of the attack of

Section 3.1. This way we can call 512 threads per

block of GPU to get better occupancy, compared to

256 threads used in the other attack. During these ex-

periments, although our GTX970 GPU has a proces-

sor clock of 1253 MHz, it was clocked to 1329 MHz

due to its GPU Boost technology.

4 CONCLUSIONS

MIFARE Classic is the most widely deployed contact-

less smartcard on the market and many vulnerabili-

ties are provided in the literature. Ofﬂine attacks on

these cards are possible due to the short key, parity

bit vulnerability, and keystream leakage through er-

ror vulnerability. In this work, we optimized these

brute force attacks on GPUs using a bitsliced imple-

mentation and observed that it takes less than only 5

hours to perform the attack of (Garcia et al., 2009) on

a single GTX970 GPU when we have the keystream

leakage through error vulnerability. Hardened cards

do not have this vulnerability and we showed that the

brute force attack of (Meijer and Verdult, 2015) for

these cards takes around 7 hours to perform it on a

single GTX970 GPU. Thus, we show that these brute

force attacks to clone MIFARE Classic cards are way

more practical than it was assumed.

ACKNOWLEDGEMENTS

This work was supported by The Scientiﬁc

and Technological Research Council of Turkey

ITAK) under the grant 115E447 titled ”Quasi-

Differential Factors and Time Complexity of Block

Cipher Attacks”.

REFERENCES

Biham, E. (1997). A fast new DES implementation in soft-

ware. In Biham, E., editor, Fast Software Encryption,

4th International Workshop, FSE ’97, Haifa, Israel,

January 20-22, 1997, Proceedings, volume 1267 of

Lecture Notes in Computer Science, pages 260–272.

Springer.

Chih, M.-Y., Shih, J.-R., Yang, B.-Y., Ding, J., and Cheng,

C.-M. (2010). MIFARE Classic: Practical attacks and

defenses. In Proceedings of the 19th Cryptology and

Information Security Conference (CISC 2010), Hsin-

chu, Taiwan.

Chiu, Y., Hong, W., Chou, L., Ding, J., Yang, B., and

Cheng, C. (2013). A practical attack on patched MI-

FARE classic. In Lin, D., Xu, S., and Yung, M., edi-

tors, Information Security and Cryptology - 9th In-

ternational Conference, Inscrypt 2013, Guangzhou,

China, November 27-30, 2013, Revised Selected Pa-

pers, volume 8567 of Lecture Notes in Computer

Science, pages 150–164. Springer.

Courtois, N. (2009). The dark side of security by obscurity

- and cloning mifare classic rail and building passes,

anywhere, anytime. In Fern

andez-Medina, E., Ma-

lek, M., and Hernando, J., editors, SECRYPT 2009,

Proceedings of the International Conference on Secu-

rity and Cryptography, Milan, Italy, July 7-10, 2009,

SECRYPT is part of ICETE - The International Joint

Conference on e-Business and Telecommunications,

pages 331–338. INSTICC Press.

de Koning Gans, G., Hoepman, J., and Garcia, F. D.

(2008). A practical attack on the MIFARE classic.

In Grimaud, G. and Standaert, F., editors, Smart Card

Research and Advanced Applications, 8th IFIP WG

8.8/11.2 International Conference, CARDIS 2008,

London, UK, September 8-11, 2008. Proceedings, vo-

lume 5189 of Lecture Notes in Computer Science, pa-

ges 267–282. Springer.

Garcia, F. D., de Koning Gans, G., Muijrers, R., van Ros-

sum, P., Verdult, R., Schreur, R. W., and Jacobs, B.

(2008). Dismantling MIFARE classic. In Jajodia,

S. and L

opez, J., editors, Computer Security - ESO-

RICS 2008, 13th European Symposium on Research

in Computer Security, M

alaga, Spain, October 6-8,

2008. Proceedings, volume 5283 of Lecture Notes in

Computer Science, pages 97–114. Springer.

Garcia, F. D., van Rossum, P., Verdult, R., and Schreur,

R. W. (2009). Wirelessly pickpocketing a mifare clas-

sic card. In 30th IEEE Symposium on Security and

Privacy (S&P 2009), 17-20 May 2009, Oakland, Ca-

lifornia, USA, pages 3–15. IEEE Computer Society.

Meijer, C. and Verdult, R. (2015). Ciphertext-only crypta-

nalysis on hardened mifare classic cards. In Ray, I., Li,

N., and Kruegel, C., editors, Proceedings of the 22nd

ACM SIGSAC Conference on Computer and Commu-

nications Security, Denver, CO, USA, October 12-6,

2015, pages 18–30. ACM.

Nohl, K., Evans, D., Starbug, and Pl

otz, H. (2008). Reverse-

engineering a cryptographic RFID tag. In van Oor-

schot, P. C., editor, Proceedings of the 17th USE-

NIX Security Symposium, July 28-August 1, 2008, San

Jose, CA, USA, pages 185–194. USENIX Association.

ICISSP 2017 - 3rd International Conference on Information Systems Security and Privacy

528
