Security Requirements Verification for Existing Systems

with Model Checking Technique and UML

Saeko Matsuura

, Shinpei Ogata

and Yoshitaka Aoki

Graduate School of Engineering and Science, Shibaura Institute of Technology, Saitma, Japan

Graduate School of Science and Technology, Shinsyu University, Nagano, Japan

Nihon Unisys Ltd., Tokyo, Japan

Keywords: UML, Security Requirements, Source Code Verification, Model Checking, Reverse Engineering.

Abstract: In software development, when making migration or specification changes to an existing system, it is

important to verify that the new source code meets the original specifications. We propose an effective use

of model checking techniques and a supporting tool that allows non-specialized developers to easily verify

specification conformance. In this study, we verify security requirements for an ongoing learning

management system that has insufficient specification documentation and discuss the applications and

challenges for developing the model checking technology.

1 INTRODUCTION

The model checking technique is regarded as an

effective method for improving reliability during the

early stages of software development. Model

checking tools use temporal logic to model a system

as a network of automata extended with integer

variables, structured data types, user defined

functions, and channel synchronization. A system

model and query expressions can be defined based

on these structures and be used to specify which

properties need to be checked. When the specified

properties are not satisfied, the tool provides

counterexamples to demonstrate how these

properties cannot be satisfied. The simulator then

helps detect the causes for these defects by tracing

the processes in which the counterexamples occur.

Model checking techniques automatically verify

a model by exhaustively checking all paths in the

model to detect properties that developers often

overlook. However, developers typically find it

difficult to define an appropriate model and formulas

for a given system, because items in the model

should be used to define paths and state formulas.

We have been studying a method that allows

non-specialized developers to reap the benefits of

automatic and exhaustive verification without

directly operating a model checking tool.

Figure 1 shows the relationship between the

model checking tool, the input data used to derive a

system model, and query expressions that are

inputted directly. Users directly input a target

document and a list of requirements to be satisfied.

An input document can be a requirements

specification document written in UML (OMG), or

the source code of an existing system.

The problems indicated by the red stars in Figure

1 must be solved in order to effectively use the

model checking tool without direct operation.

This paper presents a method of verifying

security requirements for an existing system based

on two different proposed approaches to verification

in the early and final stages of software development.

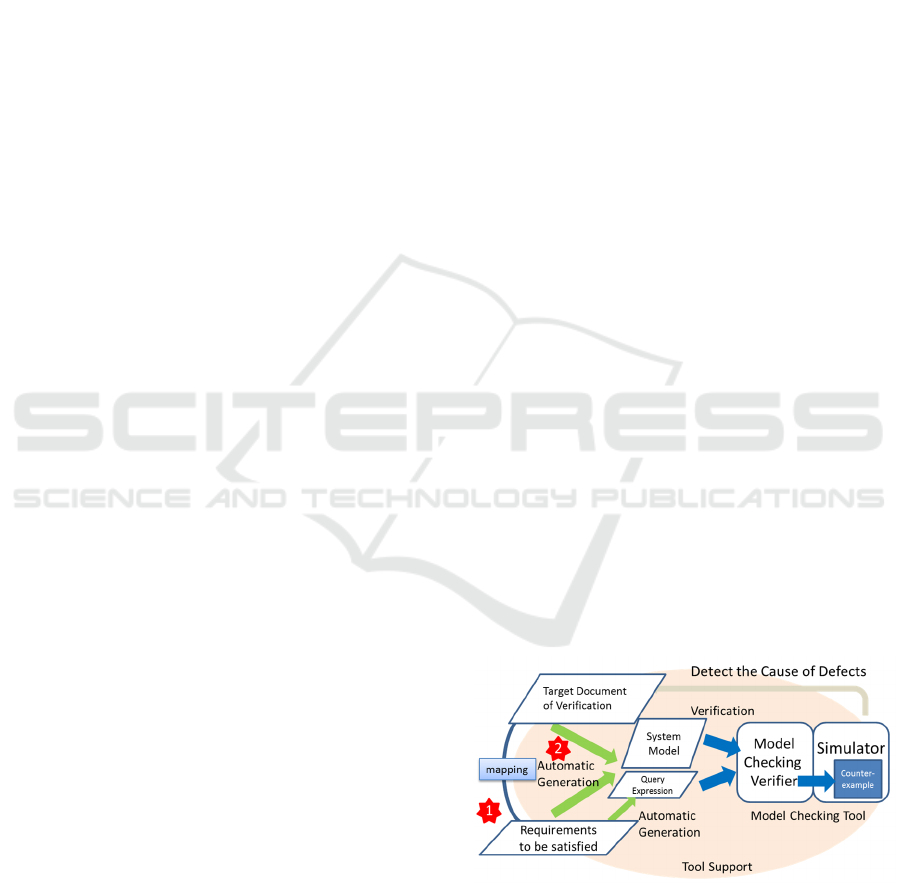

Figure 1: Basic principles of model checking techniques.

The rest of this paper is organized in the

following manner. Section 2 briefly summarizes our

two approaches and describes a method for solving

the two marked problems in Figure 1. Section 3

describes the process of source code verification

Matsuura S., Ogata S. and Aoki Y.

Security Requirements Veriﬁcation for Existing Systems with Model Checking Technique and UML.

DOI: 10.5220/0006267105290535

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 529-535

ISBN: 978-989-758-210-3

529

used for the existing system. Finally, we discuss our

results, conclusions, and future research possibilities.

2 VERIFICATION METHOD

2.1 Requirements Specification

Verification

Figure 2 presents an overview of the proposed

method (Aoki et al., 2013 and September 2014) for

verifying Security Function Policies (SFPs) of UML

requirements analysis models (RA Model) with the

model checking tool UPPAAL (UPPAAL).

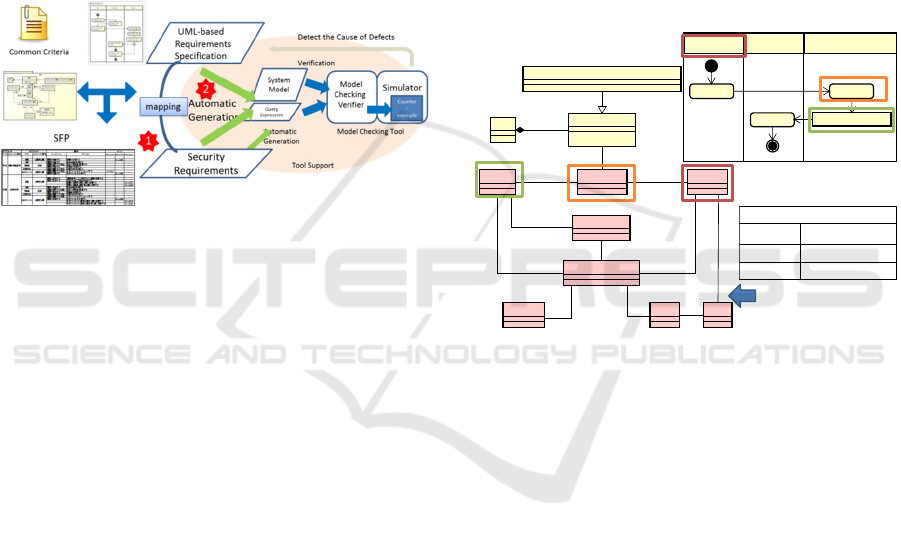

Figure 2: Method for requirements specification.

In this case, the target document is an RA Model

using the UML-based requirements specification

developed in (Ogata et al., 2008) and based on a use

case analysis, which is known to be an effective

method for clarifying functional requirements. This

model defines a use case in the form of an activity

diagram that consists of several action flows as well

as object nodes with a class classifier.

Furthermore, the requirements to be satisfied are

SFPs. In the proposed security requirements analysis

method (Aoki et al., September 2014), we define

security requirements as SFPs by relating them to

RA Models, according to the Common Criteria

(Common Criteria ) guide. The Common Criteria for

Information Technology Security Evaluation is an

international standard (ISO/IEC 15408) for

computer security certification.

The first problem can be solved by using a

mapping rule between a model for SFPs and RA

models, as shown in Figure 3. The mapping rule

combines the SFPs with data and actions from the

UML RA model, defined through activity diagrams

and a class diagram. A rule in SFPs is defined by the

relationship between a subject, an operation, and a

target object with the subject performing the

operation on the target. An RA model consists of

actors, use cases (activity diagrams), classes, and

actions in the activity diagram. Figure 3 illustrates

the mapping rules; a subject corresponds to an actor,

an object corresponds to a class, and an operation

corresponds to an action in a use case. Some new

security attributes need to be defined for both the

assets needing protection from malicious users and

the subjects who carry out controlled operations.

This is because SFPs control action flows through

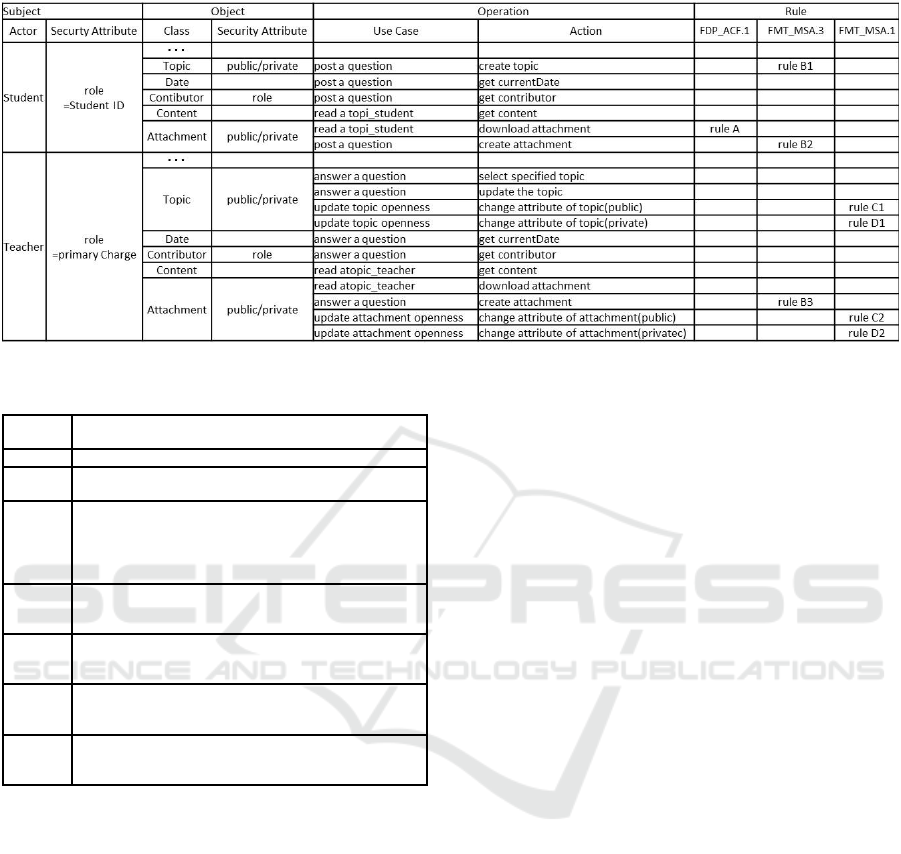

rules based on security attributes. Table 1 shows that

SFPs can be defined by actions and data in the target

system, according to the relationship between the

two. Using these added security attributes from an

object, the policy was defined in a state machine

diagram.

This correspondence allows the target UML-

based requirements specification to define properties

that need to be satisfied.

Figure 3: Mapping rule between SFPs and RA model.

To solve the second problem, we developed the

automatic translation tool UML2UPPAAL (Aoki et

al., 2013) to translate from an RA model to the

required system model. The details of this tool are

described in (Aoki et al., September 2014). The RA

models and the added state machine diagrams were

translated into a system model that consisted of

processes related to each other by the channel

synchronization mechanism in UPPAAL. As

detailed in Section 3, SFPs can be translated from

the logical expressions between attributes of classes

into query expressions.

2.2 Source Code Verification

Figure 4 presents an overview of the proposed

method (Aoki et al., May 2014, Matsuura, 2014) for

verifying defects caused by an infinite loop, or by

the user-defined business rules of certain system

functions in the source code, with the model

checking tool UPPAAL.

In this case, the target document is some source

code written in Java. To verify a defect caused by an

Security attribute based access control

Session

SFP

Information

User

+ apply() : void

Rule

Object Subject

SecurityAttribute

- property

- target

- property

- target

0..*

- property

Operation

Role

- property

- target

1..*

- property

- target

SystemIntera ctio nActor

Action Action

Action

ObjectNode : Class

A Class Diagram of SFP

A Meta Model of

Activity Diagram

Correspondence

Subject Actor

Operation Action

Object ObjectNode:Class

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

530

infinite loop, the property that must be satisfied is

the non-occurrence of a dead lock in the system. In

this case, the query expression is independent of the

source code, so the first problem discussed does not

occur. However, it is somewhat difficult to create a

mapping between the user-defined business rules

and the source code.

In (Aoki et al., May 2014, Matsuura, 2014), this

problem was solved by defining the business rules in

a decision table. It is a prerequisite for a tester to

extract actions, conditions, and their resulting states

from the business rule documents. In this case, the

query expression was derived from the decision

table.

In the case of source code verification, the

second previously discussed problem is a difficult

one. This is because a large and complicated source

code needs to be well abstracted to avoid an issue

known as “state explosion,” where the number of

states becomes intractably large.

We solved this problem by allowing developers

to select appropriate candidate functions based on

the previously generated decision table. We also

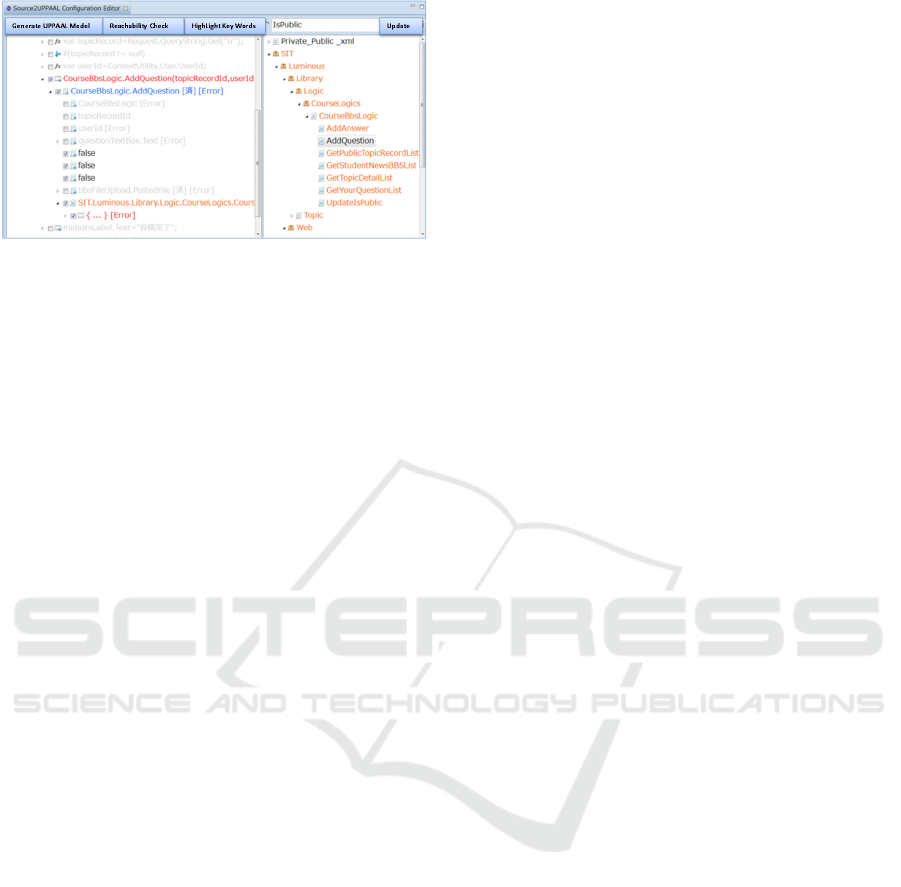

implemented a verification support tool called

Source2UPPAAL (Aoki et al., May 2014) as an

Eclipse plug-in. This tool converts a Java source

code control sequence into finite automata in order

to detect the cause of defects through the use of

UPPAAL.

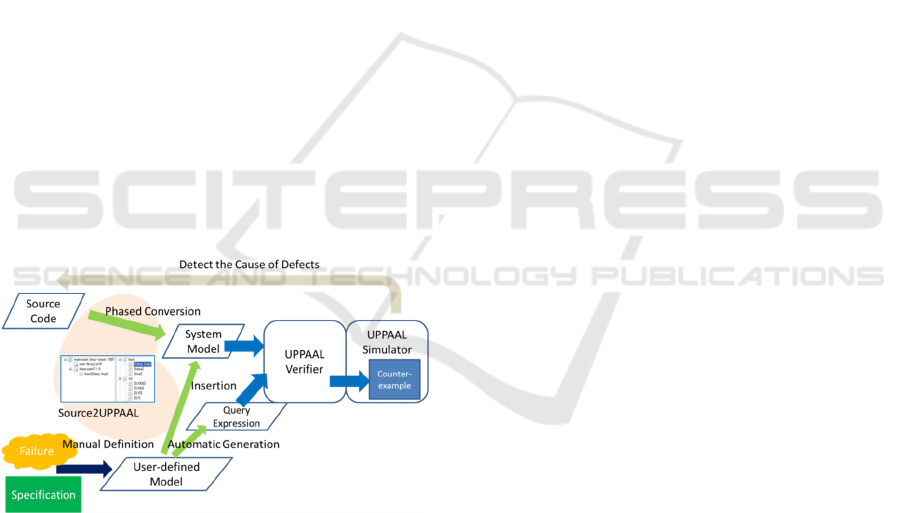

Figure 4: Method for source code verification.

Rather than using the method from the case

mentioned in Section 2.1, we use a different

technique to more easily and accurately create a

mapping. The tester correlates a word in the decision

table with a variable or method from the source code

and finds an adequate level of abstraction that

preserves the related states with the properties to be

verified.

Based on the two different approaches proposed

for verification at the early and final stages of

software development, we present an experiment for

verifying security requirements in the source code of

the existing system, LUMINOUS.

3 SOURCE CODE

VERIFICATION ON AN

EXISTING SYSTEM

3.1 Overview of the Existing System

LUMINOUS (LUMINOUS) is a learning manage-

ment system in our department that enables teachers

and students to manage learning materials, reports,

questionnaires, etc. We apply our security require-

ments analysis method to the development of a

Bulletin Board System (BBS) for LUMINOUS.

There are two kinds of actors, teachers, and students.

The BBS has three use cases; a student can post a

question, a teacher can answer a question, and both

can view topics. Both types of actors can attach a

file to a question or answer if necessary and can

download an attached file while viewing a topic. A

teacher can post anonymous public questions and

answers if necessary. Students can read only public

questions and answers.

The security requirement for the LUMINOUS

BBS is the protection of personal topics, including

attached files, without being obstructive to usability.

LUMINOUS is running in our department and

has 36,352 steps on the logic side, and 25,973 steps

on the user interface side.

3.2 Verification Process

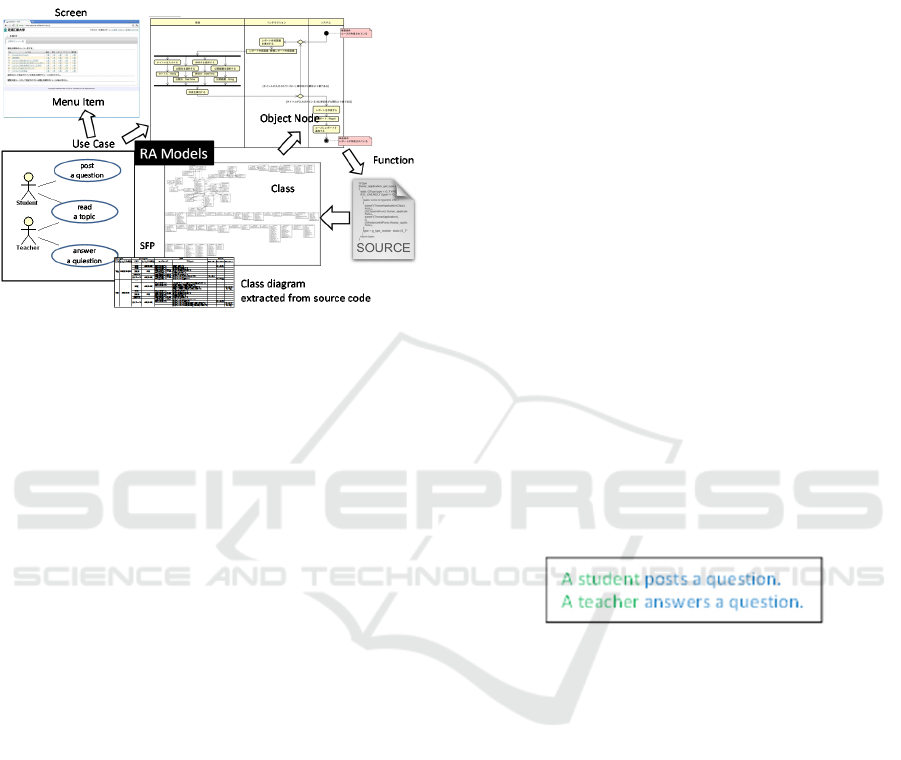

Initially, we create a mapping of RA models and

security requirements (outlined in section 2.1) to

connect the RA models and source code of the

existing system as shown in Figure 5.

Each rule in an SFP is a logical expression

relating a use case and some added class attributes.

A use case is a function defined by an activity

diagram that is typically connected to a function in

the source code. In the example of the LUMINOUS

BBS, it is also connected to a menu item in the user

interface for the system.

All classes can be extracted from the source code

as a class diagram. Each class then appears in the

activity diagram as an object node.

As a result, we can create a mapping rule

between the source code and the properties that need

to be satisfied by using identifiers in the source code.

To abstract the source code and to avoid state

explosion, we focus on a block of statements that

Security Requirements Veriﬁcation for Existing Systems with Model Checking Technique and UML

531

correspond with a use case and update methods of

the added attributes in the SFPs.

An SFP rule is expressed through the expected

state of its related attributes under a scenario in

which several use cases are called in proper order.

Figure 5: Connection between RA models and source code.

3.3 Reconstructing Requirements

Specification

Because there were only a few RA models in

LUMINOUS, we reconstructed the RA models in

the following manner.

Through direct operation of the system, we

created RA models including a use case diagram,

activity diagrams for each of the use cases, and a

class diagram. Each screen consists of several menu

items and links. By focusing on menu items that

correspond to target use cases, we can specify a

sequence of functions that are available through the

links as follows:

• For each menu item on the top screen, define

a use case diagram.

• The normal flow of a use case is defined with

an activity diagram. Pre and post conditions

are then specified and exceptional conditions

for every target action are gathered into a

guard condition.

To connect these models to the source code, the

class name of an object node that appears in the

activity diagram translated by referencing the entity

class diagram, extracted from the source code, as

follows:

• Correlate the object word of an action in the

activity diagram with the name of the object

node.

• Correlate words in the pre, post, and guard

conditions with names in the entity classes.

Furthermore, to analyze the correspondence

between a use case and a method in the source code,

we define classes corresponding with screens. In this

case, each attribute of a class needs to be correlated

with an actual label on the screen.

As shown in Figure 5, after these tasks have

been completed, we can create RA models that are

linked to identifiers in the source code.

3.4 Defining Security Requirements

In LUMINOUS, there are four different user roles:

student, main teacher, sub teacher, and teaching

assistant. By giving different authority to each role,

we can control user access to the functions of

LUMINOUS. Some roles have assets that need to be

protected from the other roles and from individual

students.

Adding certain attributes to the roles or assets

allows us to protect against inappropriate access.

This security property must be verified.

As mentioned in Section 2.1, we define SFPs

against the RA models reconstructed in Section 3.3

based on the Common Criteria as follows:

• Define a scenario that should be verified by

combining several use cases according to the

pre-conditions of those use cases

The following is an example scenario that

consists of actors and use cases:

• According to the mapping rules shown in

Figure 3, the SFPs shown in Table 1 were

derived from these use cases by extracting all

actions and classes from their related activity

diagrams.

• Table 1 expresses the SFPs of a BBS that

manage questions and answers between a

student and a teacher. The class Topic is a

data asset that is generated by executing the

use case post a question. A Topic is updated

by the use case answer a question, which is

executed by a teacher. At the time of

answering, a teacher can decide whether the

Topic is public or private.

• Add security attributes that control a subject

and object against data assets. In this case,

Topic and Attachment are considered to be

assets in the system, and have security

attributes.

• Required rules based on the Common

Criteria are defined in Table 2.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

532

Table 1: Partial SFPs of LUMINOUS BBS.

Table 2: Access Control Rules.

rule A Prior to executing the action, attachment.security_attrubute

== public||contributor.role ==student_id

rule B1 After executing the action, topic.security_attribute == private

rule B2 After executing the action, attachment.security_attribute ==

private

rule B3 After executing the action, (topic.security_attribute ==

public implies attachment.security_attribute == public||

attachment.security_attribute == private) &&

(topic/security_attribute == private implies

attachment/security_attribute == private)

rule C1 Prior to executing the action, topic.security_attribute ==

private implies that after executing the action,

topic.security_attribute == public

rule C2 Prior to executing the action, attachment.security_attribute

== private implies that after executing the action,

attachment.security_attribute == public

rule D1 Prior to executing the action, topic.security_attribute ==

public implies that after executing the action,

topic.security_attribute == private

rule D2 Prior to executing the action, attachment.security_attribute

== public implies that after executing the action,

attachment.security_attribute == private

In order to connect to variables in the source

code, the extracted entity class diagram identifies

added security attributes.

Furthermore, state transitions of an object related

to the security attribute are defined in a state

machine diagram.

3.5 Source Code Analysis for Mapping

Specification to Source Code

LUMINOUS is an ASP.NET application. Up to this

point, we have obtained the entity classes from the

source code and defined the UI (User Interface)

classes from screen images in the live system.

However, several troublesome tasks must be

performed in order to connect this information with

the real identifiers in the source code. To extract

entity class names and attributes, we need to analyze

an edmx file that expresses an entity data model in

the Entity Framework of C#. We must also analyze a

cs file to extract UI class names and methods.

We perform static analysis on these files to

retrieve the five following pieces of data as a

correspondence table between UI components and

identifiers in the source code.

1) Entity class name

2) Attribute names of the entity class

3) UI class name

4) Method names of the UI class

5) Identifiers for UI components such as a

button or checkbox

A tester manually selects items that will be used

to verify a scenario.

Up to this point, the correspondence between

items in the activity diagram (use case) and

identifiers in the source code is still not clear. We

specify the relationship between items in the activity

diagram (use case) and identifiers in the source code

as follows:

• A user operation typically corresponds with a

UI component such as a button, checkbox, or

an input tag in the web application. Based on

the identity of the component that submits a

method call to the transition destination

screen, we can derive the name of the called

method.

• We define the basic data operations of Create,

Read, Update, and Delete in an activity

diagram because LUMINOUS uses a

database system. We can then create a

correspondence between these CRUD actions

in the activity diagram and the API

(Application Programming Interface) of the

database system.

Security Requirements Veriﬁcation for Existing Systems with Model Checking Technique and UML

533

3.6 Generating a System Model and

Query Expressions

A system model and query expressions were

generated from the previously defined scenario, and

the table mentioned in Section 3.4, by using the data

mentioned in Section 3.5 with the Source2UPPAAL

tool.

As shown in Figure 6, a system model consists of

the following processes that are connected to the

channel synchronization mechanism in UPPAAL:

• The verification scenario was translated into

a UPPAAL model that combines use cases

from the scenario in the proper order.

• Each use case model defined in the activity

diagram was translated into a UPPAAL

model that correctly maps the control flow of

actions.

• A state machine diagram that defines a

property of a security attribute was translated

into a UPPAAL model. This model can

connect to use case models via an API model

for updating security attributes using the

channel synchronization mechanism.

In Figure 6, an arrow denotes channel

synchronization between two processes.

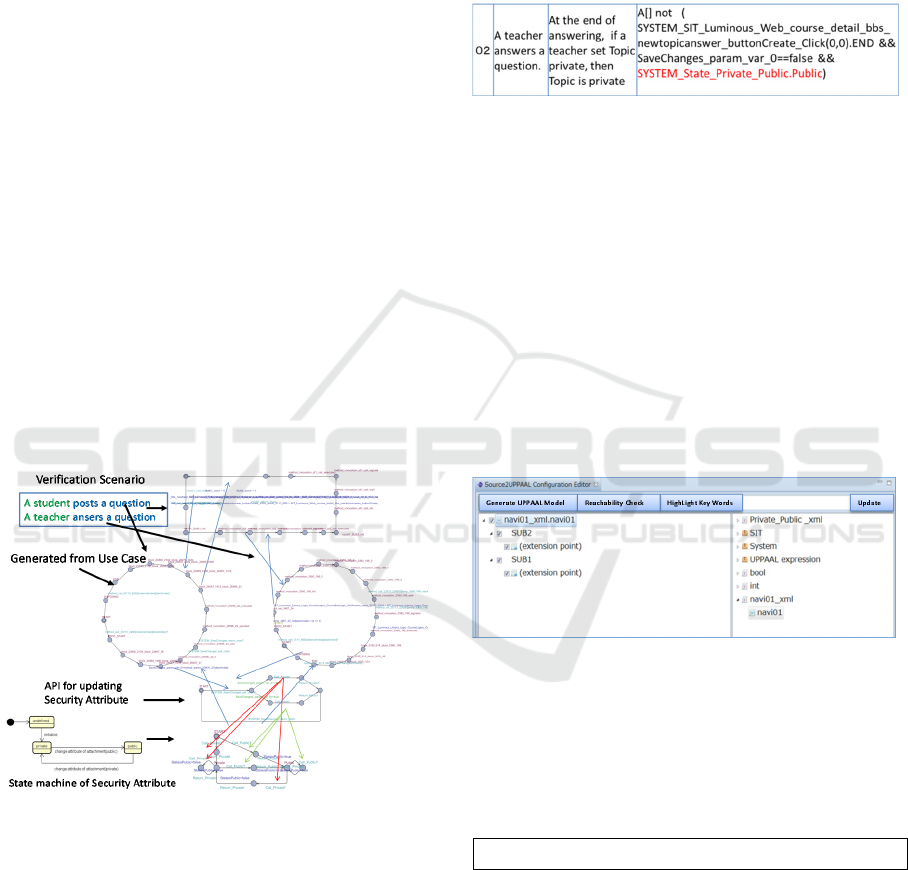

Figure 6: System model generated in UPPAAL.

We generate a query expression from the rules

shown in Table 2. Figure 7 shows the query

expressions generated for the scenario in Figure 6. It

is expressed in the UPPAAL model through

variables, location names, etc., that are generated by

the support tool Source2UPPAAL.

The scenario is as follows:

• A student posts a question. At the time of

posting, the Topic is private. Next, a teacher

answers the question. At this time, the Topic

can be set to public or private at the teacher’s

discretion.

The query indicates that after answering the

question, if a teacher sets the topic Topic private,

then the Topic will have never been given public

access.

Figure 7: Query expression generated based on the

scenario.

We now discuss improvements that have been

made to the verification support tool

Source2UPPAAL.

Figure 8 shows the interface for editing a

scenario. The left screen is a template for a scenario

and the right screen expresses the abstract syntax

tree of the target source code. A tester selects a

component from a use case and applies it to SUB1

or SUB2 on the left screen. To analyze the use case

effectively, they then use the UI correspondence

table mentioned in Section 3.5. Source2UPPAAL

has a function that highlights the key words

extracted through this static analysis.

Figure 8: Editing of a scenario.

Figure 9 shows the process of assigning a

function to the scenario template. A tester searches

for a function by using the UI correspondence table.

They then follow the path on the right screen. An

actor of the target use case is a student and the

function is a function of BBS.

SIT.Luminous.Web.student.detail.bbs::buttonCreate_Click

If the user finds the button Create_Click method,

then that component corresponds to a goal function.

They can then drag it to the target statement on the

left screen as shown in Figure 9. As a result, the

target method can be unfolded in the verification

scenario.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

534

Figure 9: Assigning a function to the scenario.

4 DISCUSSION AND

CONCLUSIONS

This paper presented an experiment on the

verification of security requirements for the source

code of an existing system. The experiment showed

that we could verify whether the existing system

satisfied the security requirements. Generally, source

code verification is difficult and time consuming.

There are several different approaches to source

code verification (

Beyer

et al., 2004,

Thompson

et al.,

2008). A tester needs to analyze the details of the

target source code and insert assertion statements. In

this case, requirements specification implementation

will be dependent on the document.

To optimize the approach shown in Figure 1, we

solved the following problems through

experimentation:

• RA Models are an effective approach for

specifying functional requirements. Security

requirements are a kind of non-functional

requirement related to functional

requirements; they can be specified through

the systematic method shown in Figure 3. It

is important to design and manage concepts

such as Cross-Cutting Concerns and Context

Awareness modularly so that we can formally

verify them. Furthermore, such designs need

to be implemented in a clear and consistent

manner for the duration of the project.

• In this paper, RA Models were defined

manually. We are planning the development

of a support tool for these manually defined

RA Models to improve their

comprehensiveness and accuracy.

• Several problems impede the creation of a

correspondence table through static analysis

of the source code. Various different

technologies such as programming languages,

platforms, and application frameworks are

used to implement a software system.

Because analysis methods depend on the

technologies used, an analysis tool can be

very expensive to develop. It is also common

that developers do not comply with standard

coding conventions during the project and

team members can vary during the course of

the project. This causes inconsistency in

definition of operations and fields.

REFERENCES

OMG, “UNIFIED MODELING LANGUAGE”,

http://www.uml.org/

Y. Aoki and S. Matsuura, Verifying Security

Requirements using Model Checking Technique for

UML-Based Requirements Specification, Proc. of 1st

International Workshop on Requirements Engineering

and Testing, pp.18-25, September,2014.

Y. Aoki, S. Ogata, H. Okuda and S. Matsuura, Data

Lifecycle Verification Method for Requirements

Specifications Using a Model Checking Technique,

Proc. of The Eighth International Conference on

Software Engineering Advances (ICSEA 2013),

pp.194-200, 2013.

UPPAAL, http://www.uppaal.com/, 2016.

S. Ogata and S. Matsuura, “A UML-based Requirements

Analysis with Automatic Prototype System

Generation,” Communication of SIWN, Vol. 3,

pp.166-172, 2008.

Common Criteria, “CC/CEM v3.1 Release4”,

http://www.commoncriteriaportal.org/cc/

Y. Aoki, S. Matsuura, “Verifying Business Rules Using

Model-Checking Techniques for Non-specialist in

Model-Checking.” IEICE TRANSACTIONS on

Information and Systems, Vol. E97-D, No. 5,

pp.1097-1108, May, 2014.

S. Matsuura, Y. Aoki, and S. Ogata, Practical Behavioral

Inconsistency Detection between Source Code and

Specification using Model Checking, ISSRE 2014,

pp.124-125, 2014.

LUMINOUS, https://lmns.sayo.se.shibaura-it.ac.jp/

D. Beyer, T.A. Henzinger, R. Jhala, and R. Majumdar, An

Eclipse Plug-in for Model Checking, Proceedings.

12th IEEE International Workshop on Program

Comprehension, pp. 251-255, 2004.

S. Thompson and G. Brat, Verification of C++ Flight

Software with the MCP Model Checker, Aerospace

Conference 2008 IEEE, pp.1-9, 2008.

Security Requirements Veriﬁcation for Existing Systems with Model Checking Technique and UML

535
