Reducing Visual Complexity in Software Maps

using Importance-based Aggregation of Nodes

Daniel Limberger, Willy Scheibel, Sebastian Hahn and J

urgen D

ollner

Hasso Plattner Institute, University of Potsdam, Potsdam, Germany

Keywords:

Treemap, Aggregation, Filtering, Level-of-Detail, Information Visualization, Interaction Technique.

Abstract:

Depicting massive software system data using treemaps can result in visual clutter and increased cognitive

load. This paper introduces an adaptive level-of-detail (LoD) technique that uses scoring for interactive aggre-

gation on a per-node basis. The scoring approximates importance by degree-of-interest measures as well as

screen and user-interaction scores. The technique adheres to established aggregation guidelines and was eval-

uated by means of two user studies. The ﬁrst investigates task completion time in visual search. The second

evaluates the readability of the presented nesting level contouring for aggregates. With the adaptive LoD tech-

nique software maps allow for multi-resolution depictions of software system information while facilitating

annotation and efﬁcient identiﬁcation of important nodes.

1 INTRODUCTION

Software maps are 2.5D treemaps that visualize soft-

ware system information. They were introduced to

make code quality of software systems visible to

“stakeholders in the development process, particu-

larly, to the management” by means of visualiza-

tion of automated software analysis, metrics, and ac-

tivity data (Bohnet and D

ollner, 2011). Depending

on their conﬁguration, they facilitate exploring struc-

tures, monitoring development processes and soft-

ware quality over time, and identifying areas that re-

quire attention in the ongoing development process.

For a given task, a map theme conﬁgures a software

map by specifying the mapping of attributes to the vi-

sual variables (adequate color scheme, layout, etc.).

Treemaps represent well-known tree-structured

data by means of space-constrained, recursively

nested sets of rectangles that express data elements

(nodes). Their sizes are proportional to per-node

weights (Johnson and Shneiderman, 1991). Data as-

sociated with nodes, the attributes, can be mapped

by the visual variables (Bertin, 1967) such as rect-

angle size, color, texture, and shading. Variants of

treemaps are applied in a large number of applications

and systems to interactively display, explore, and an-

alyze multi-variate, hierarchical data of, e.g., ﬁle sys-

tems (Shneiderman, 1992), software system informa-

tion (Wettel and Lanza, 2008), business data (Vliegen

et al., 2006), stock markets (Wattenberg, 1999), or

controller performance data (Mitchell et al., 2004).

2.5D treemaps extend treemaps by using the third

dimension: rectangles are extruded to cuboids, keep-

ing the regular treemap’s two-dimensional reference

space and layout (Bladh et al., 2004). 2.5D treemaps

provide additional information display, that is, we can

also map attributes to the cuboids’ height and to visu-

ally relate more attributes in a single view.

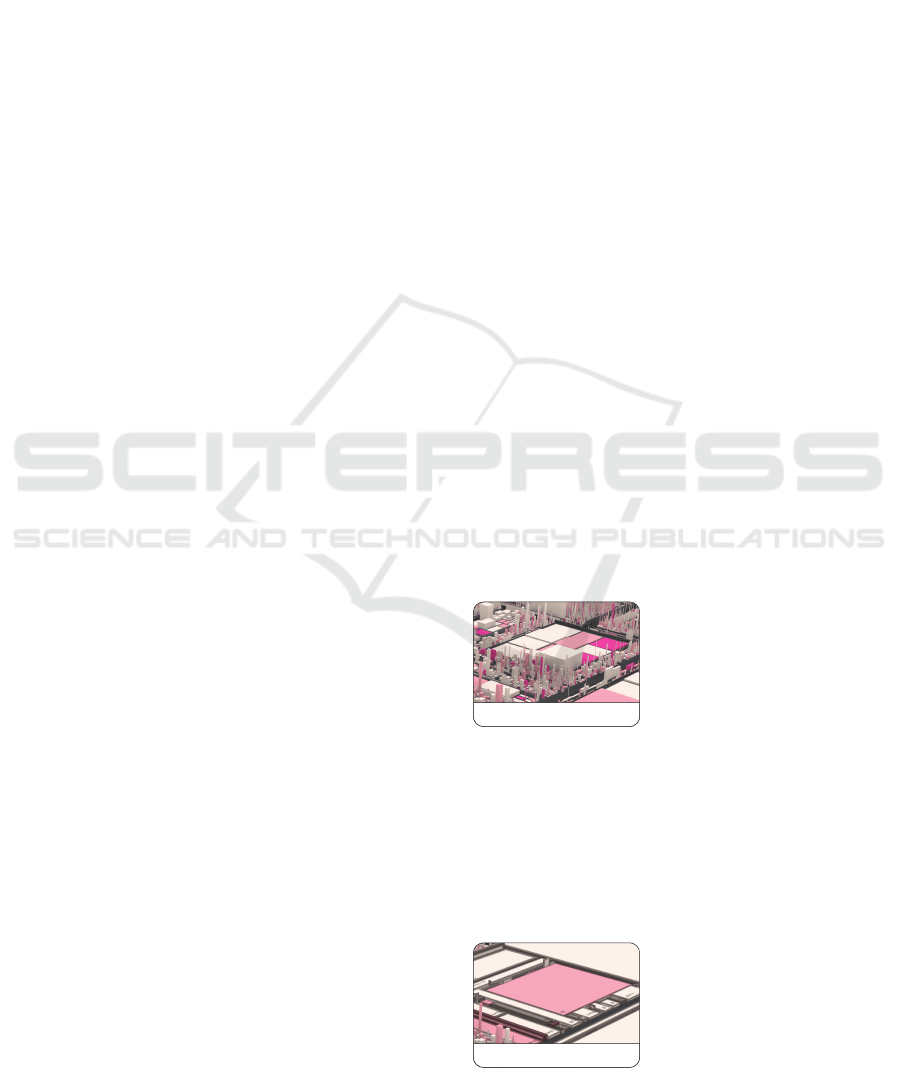

excerpt w. visual clutter

When depicting large struc-

tures, however, the com-

mon 1:1 mapping of nodes

to cuboids can lead to vi-

sual clutter (Rosenholtz et al.,

2005) and increase their visual

complexity, an implicit mea-

sure of cognitive load and perceived interaction com-

plexity (Harper et al., 2009). Cognitive load thereby

describes the effort being used in working memory to

accomplish the given task. At worst, multiple nodes

are depicted within sub pixel space, which corrupts

the visual display (visual clutter) and prevents any

meaningful interpretation of the underlying data.

excerpt w. adaptive LoD

This article addresses these

limitations by introducing an

aggregation technique that re-

duces the visual complexity

by means of an importance-

based level-of-detail (LoD).

The LoD is implemented by means of adaptive ag-

176

Limberger D., Scheibel W., Hahn S. and DÃ ˝ullner J.

Reducing Visual Complexity in Software Maps using Importance-based Aggregation of Nodes.

DOI: 10.5220/0006267501760185

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 176-185

ISBN: 978-989-758-228-8

(a) (b) (c)

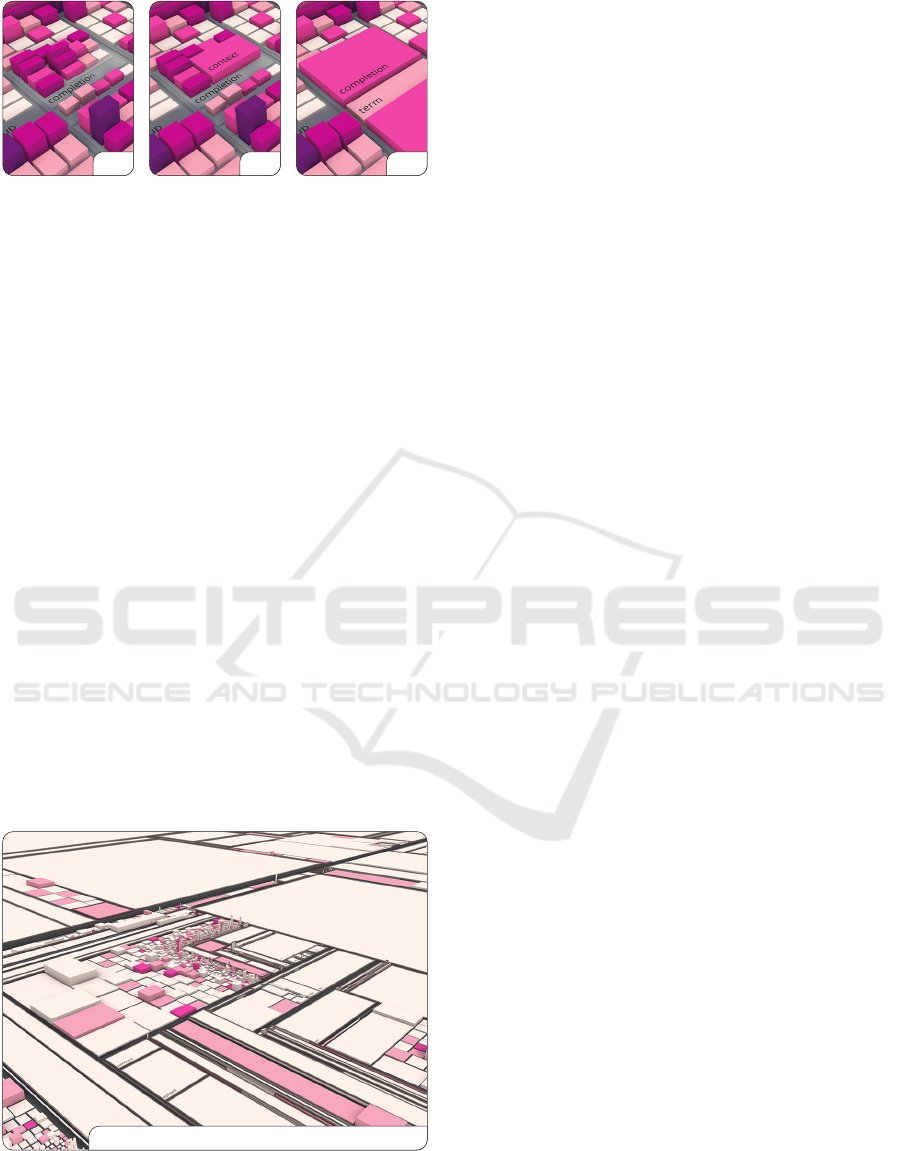

Figure 1: f.l.t.r.: stepwise bottom-up aggregation with con-

sistent mapping and avg. accumulation of underlying data.

gregation on a per-node basis. For it, we introduce an

importance measure that scores each node, e.g., based

on its attribute values, resulting area on screen, or user

interaction. This scoring is basically a “Degree of In-

terest [DoI] function which assigns to each point in

the structure, a number telling how interested the user

is in seeing that point, given the current task” (Furnas,

1986). The use of map themes narrows the impor-

tance of every node down to the attributes, mapping,

and user interaction, and thus, enabling approximate

scoring. A subsequent aggregation evaluates scores

on a per-node basis, resulting in drawing a node ei-

ther with or without its children. In the latter case

a node is denoted as aggregate and depicts the accu-

mulated underlying data using the same or a similar

visual mapping (Figure 1).

With this adaptive LoD technique, we introduce

software maps of minimum aggregation of areas con-

sidered interesting while maintaining valuable con-

text information summarized at lower resolutions

(Figure 2). We further describe the scoring and aggre-

gation steps and introduce enhancements to the visual

display of aggregates in the context of aggregation de-

sign guidelines. Finally, we discuss best practices and

evaluate several implications to user interaction.

Software map of 835.555 nodes with aggregation

Figure 2: Importance-based LoD reduces the software maps

visual complexity while preserving important information.

2 RELATED WORK

With respect to our approach, related work comprises

the ﬁelds of interactive treemaps, level-of-detail tech-

niques as well as hierarchical aggregation guidelines.

Interactive Treemaps. Since the original presen-

tation of 2D treemaps (Johnson and Shneiderman,

1991) a number of treemap layout variations have

been published, improving readability, stability, and

the graphical elements’ aspect ratio (Bruls et al.,

1999; Bederson et al., 2002; Tak and Cockburn,

2013). With the extension of 2D treemaps to 2.5D

treemaps (Bladh et al., 2004), several challenges

emerged, such as increased rendering costs, occlu-

sion of graphical elements, supplementing padding

(to enable the distinction of parents and auxiliary

for reducing occlusion), as well as the need for ad-

ditional, effective navigation techniques. Extruded

2D treemap shapes allow for a 3D attribute space

mapping to 3D substitutes within a treemap’s two-

dimensional reference space, hence, 2.5D. In contrast,

various visualization techniques such as treecube or

3D polar treemap (Johnson, 1993) are classiﬁed as

3D treemap that lay out hierarchy elements within

a three-dimensional reference space (Schulz et al.,

2011). However, it should be noted that the term 3D

treemap is often used to denote 2.5D treemap as well.

Similarly, we prefer the term software maps over

code cities (Wettel and Lanza, 2008), since (1) the

maps do not focus solely on source code, (2) the maps

lack any analogues for parks, streets, rivers, trafﬁc,

etc, and (3) spatialization approaches usually do not

originate from city planning processes.

Implementing software maps in industry applica-

tions necessitates meaningful labeling. To this end,

our software maps utilize a concept ﬁrst applied to

cascaded treemaps (L

u and Fogarty, 2008), except

that the cascaded representation does not naturally

transfer to 2.5D. Instead, nested representation with

additional padding at one lateral surface of a parent

cuboid is used to provide sufﬁcient space for labeling.

Level-of-Detail Techniques. The visualization of

massive amounts of items using 2D treemaps (Fekete

and Plaisant, 2002) causes visual clutter which drasti-

cally increases the cognitive load and is even worse

for 2.5D treemaps. “Clutter is the state in which

excess items, or their representation or organization,

lead to a degradation of performance at some task”

(Rosenholtz et al., 2005). This is resolvable via ab-

stracted depiction of cluttering nodes by means of ei-

ther temporal, spatial, or appearance distortion (El-

lis and Dix, 2007). Map themes applied to software

Reducing Visual Complexity in Software Maps using Importance-based Aggregation of Nodes

177

maps typically use a lines of code measure as weight

for spatialization in order to maintain a stable, recog-

nizable layout and consistent footprint mapping (e.g.,

when exploring different datasets of a single software

revision). In addition, even non-interactive depictions

should convey maximum information (e.g., for re-

ports on paper and other static provisioning), thus, we

rely on appearance distortion which constitutes the

abstraction through aggregation by means of strate-

gies changing the gestalt of node representation.

For aggregation of 2D and 3D graph clusters the

clusters’ bounding box can be used for the aggre-

gates’ shape (Balzer and Deussen, 2007). Aggrega-

tion strategies for tree visualizations (Munzner et al.,

2003) as well as for polar treemaps (Chuah, 1998)

were described, though, limited to planar represen-

tations and using no or basic LoD control. For 2D

treemaps, a progressive reﬁnement strategy (Rosen-

baum and Hamann, 2009) as well as an aggrega-

tion approach using subdivided shapes were described

(Elmqvist and Fekete, 2010). Both approaches, how-

ever, focus on scarceness of rendering resource and

limited screen size only. For identiﬁcation and explo-

ration of areas of interest through user navigation, the

hierarchical structure can be used as basis for zoom-

ing stages (Blanch and Lecolinet, 2007; Liu et al.,

2008). Our technique supports this implicitly through

navigation (e.g., zoom) and explicitly through user in-

teraction (e.g., fold/unfold) both by means of scores.

However, our approach aims to reduce the need for

user navigation in the ﬁrst place and rely on auto-

mated DoI approximation instead. A multi-resolution

technique by means of data-dependent level-of-detail

with per-node aggregation was introduced (Hao et al.,

2007) for pattern detection in time series. Though,

pursuing the similar goal—utilize lower resolutions

for less important areas and higher resolutions for im-

portant ones—the technique uses adaptive layouting

and does not directly consider visibility constraints.

Aggregation Guidelines. Elmqvist and Fekete in-

troduced guidelines for hierarchical aggregation de-

scribing the characteristics of the resulting display of

aggregates from an observer’s perspective (Elmqvist

and Fekete, 2010):

G1 Entity Budget states that a maximum of dis-

played entities should be maintained.

G2 Visual Summary advises that aggregates should

convey information about their underlying data.

G3 Visual Simplicity requires aggregates to be

clean and simple in their presentation.

G4 Discriminability demands a distinguishable pre-

sentation of aggregates and data items.

G5 Fidelity indicates that abstractions and thus, their

resulting aggregates may lie about their underly-

ing data.

G6 Interpretability suggests aggregates to remain

always correctly interpretable within the visual

mapping.

These guidelines cannot be used as binary checklist,

but require interpretation within the visualization and

domain. Though not speciﬁcally designed for 2.5D

treemaps, we apply all of the above guidelines for the

design and evaluation of our LoD technique.

Generalization. The scoring and visual depictions

of aggregates described herein, though focusing on

rectangular-based software maps, can be generalized

for treemaps that are based on inclusion. We note that

there might be other scores for rectangular and non-

rectangular treemaps or 3D treemaps that are not dis-

cussed herein but can be accounted for by the gener-

alized scoring approach. The comprehensive work of

Schulz et al. 2011 enlists various 2D and 3D hierar-

chy visualizations and can be used for easy identiﬁca-

tion of suitable visualization concepts.

3 AGGREGATION OF NODES

Rectangular software maps use cuboids to depict leaf

nodes and inner nodes. The map themes conﬁgura-

tion induces a leaf cuboid’s appearance with respect

to its visual variables—usually footprint, color, and

height. The tree-structure of the depicted data in-

duces a nesting of inner cuboids—nested representa-

tion with padding (L

u and Fogarty, 2008)—and com-

municates module afﬁliation and hierarchy level in-

formation. We prefer to add labels on the top faces

of inner cuboids, sufﬁcient space provided (additional

padding at one lateral surface), designating the rela-

tive path of depicted software module and choose to

use their luminance to encode the nesting level.

For the aggregation of an inner node, we replace

the associated inner cuboid and all subjacent leaf and

inner cuboids by a single aggregate cuboid. From

the perspective of visualization, the inner node then

becomes, essentially, a leaf node and could be rep-

resented as such: the aggregate cuboid’s visual vari-

ables, i.e., color and height, are now used to summa-

rize the mapped attribute values of underlying nodes

appropriately. Due to the recursive weight mapping,

the footprint of all underlying nodes is inherently ag-

gregated by the aggregate cuboid (padding included).

Using aggregation, topological overviews of large

datasets can be created, that help users to recognize

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

178

and remember patterns and correlations of a dataset

in its entirety—the mental map (Misue et al., 1995).

The aggregation, as a consequence of scoring, has to

ensure that obvious, coarse features of a dataset are

not disguising less prominent but signiﬁcant details

conveyed by nodes with high DoI (nodes-of-interest).

Therefore we present a multi-resolution scoring that

enables aggregation control on a global as well as lo-

cal, per-node basis. Globally, aggregation might be

omitted for nodes of certain hierarchy levels, e.g., the

ﬁrst two hierarchy levels to prevent unnecessary ag-

gregation. Locally, the virtual camera’s viewport and

its distance to graphical elements can be used to pro-

vide adaptive LoD. A user may also like to explore

the treemap with locally adapting information density,

e.g., by means of elaborated focus+context concepts

such as lenses (Trapp et al., 2008).

A node n is scored by score functions s

that map

to the closed interval [−1, +1], striving either for or

against aggregation with s

> 0 or s

< 0, respectively.

c ∈ C thereby denotes one of various DoI criteria,

based on attribute, view, and user interaction metrics.

The total score of a node

γ can be accumulated using

a weighted mean of the set of scores:

γ =

∑

, (1)

with ω

allowing for non-negative, domain or use-

case speciﬁc emphasis on speciﬁc scores. The adap-

tive level-of-detail process by means of scoring and

aggregation is illustrated in algorithm 1: it processes

a given tree-structured dataset with respect to a map

theme by accumulating attributes, scoring nodes, de-

riving total scores, and, ﬁnally, rendering and thereby

aggregating the nodes. The functions accumulate

and score denote fold operations, which recursively

aggregate attribute values and scores, respectively.

Various attribute aggregation operators are described

in section 4. For scoring and score weights ω

(used

in weighted_mean) use-case speciﬁc strategies might

be applied, accounting for the given task and domain.

In this article, however, we focus on attribute, view,

and user-interaction based scoring described in the

following subsections.

3.1 Attribute-based Scoring

Attribute-based scoring analyzes and assesses data at-

tributes mapped to the nodes’ visual variables and

their characteristics. For any given map theme,

attribute-based scoring provides principal scores for

automated DoI approximation and appropriate initial

aggregation. The usefulness of such scores strongly

depend on the map theme. We, therefore, brieﬂy de-

scribe only a few scores typically used in our software

Algorithm 1: Scoring and aggregation of nodes.

1 Function process(tree, map theme)

2 nodes ← nodes of tree

3 attributes ← attributes in map theme

// attribute accumulation

4 foreach attribute in attributes do

5 accumulate(post order(nodes),

attribute, aggregation operator)

// calc scores for criteria (s

)

6 f unctions ← score functions in map theme

7 foreach function in functions do

8 score(post order(nodes), function)

// derive each node’s score (

γ)

9 foreach node in nodes do

10 scores ← list of the node’s scores

11 node.score ← weighted mean(scores)

// render tree

12 root ← root node of tree

13 threshold ← aggr. threshold of map theme

14 draw(root, threshold)

15 Function draw(node, threshold)

16 if node is leaf then

17 render leaf cuboid(node)

18 return

// aggregation

19 if node.score ≥ threshold then

20 render aggregate cuboid(node)

21 return

22 render inner cuboid(node)

23 foreach child in node’s children do

24 draw(child, threshold)

maps. A variance score s

var

that calculates the vari-

ance or value range of an attribute, for example, can

be used to indicate inhomogeneous distribution of at-

tribute values among child nodes. It can be an impor-

tance measure conﬁgured to score against aggregation

and thereby encourage additional exploration.

Likewise, a child count score s

either quanti-

fying the number of immediate children or absolute

number of all contained leaf nodes can be used to

lessen the chance of aggregation of structural com-

plex nodes (which not necessarily correlates to the

nodes’ footprint). Alternatively, the computation of

local outliers measuring a nodes isolation with respect

to its surrounding neighborhood can be implemented

using a local outlier factor (Breunig et al., 2000).

Reducing Visual Complexity in Software Maps using Importance-based Aggregation of Nodes

179

3.2 View-based Scoring

View-based scoring is common to most LoD tech-

niques and scores the visibility of graphical elements

on screen based on their screen space area. We use

a screen-space area score s

ssa

that approximates the

number of pixels eventually used for the visual dis-

play of a single cuboid. For it, the axis-aligned bound-

ing box of each cuboid is projected into screen space

in order to obtain its screen-space area. If a cuboid

obtains insufﬁcient screen space for the visual display

of its children or resides in sub-pixel space itself, at

least for one major axis, it can be scored for aggrega-

tion. This reduces visual clutter resulting from (1) leaf

nodes depicted smaller than single screen pixels and

(2) Moir

e and other aliasing artifacts due to under-

sampling of both the axis-aligned cuboids and their

spacing due to the inner nodes’ nested representation

with padding. Furthermore, we use a screen-space

threshold to invoke aggregation much earlier in less

important areas, which results in bigger cuboids and

facilitates meaningful labeling of context areas.

Aside from that, we experimented with an occlu-

sion score s

occ

that uses occlusion queries to score ir-

relevant nodes for aggregation, if they themselves or

their children cause lots of occlusion. However, a map

theme should typically conﬁgure the height mapping

to not cause extensive occlusion in the ﬁrst place.

Since view-based scoring depends on the virtual

camera’s conﬁguration and state, it is implicitly con-

trolled, e.g., by user navigation. We suggest to per-

form scoring immediately after a user has completed

a navigation operation and is presumably continuing

to explore the data. Continuous scoring during ongo-

ing navigation operations might cause distraction.

3.3 Interaction-based Scoring

Interaction-based scoring is used to score nodes

within areas that are in the user’s focus-of-attention

based on user interaction. It is essential to software

maps as it complements user navigation with direct

node interaction capabilities required to support the

visual information-seeking mantra: “Overview ﬁrst,

zoom and ﬁlter, then details-on-demand” (Shneider-

man, 1996). To this end, we use a quasi-binary pick-

ing score s

agg

to provide explicit user control over the

aggregation state of inner nodes by means of toggling

(e.g., mouse click or touch on a node). The score, be-

ing initialized with 0, toggles to either +1 or −1 de-

pending on the scored node’s aggregation state. Per-

node interactions often occur in alternation with user

navigation (such as zoom, pan, and rotate) and need

to be processed immediately.

We further experimented with the following scores in-

dented as focus-of-attention measures:

• look-at direction of the camera (spot score s

cam

);

• cursor position (mouse-over score s

mov

);

• gaze data (gaze score s

eye

) using eye-tracking.

We found these measures, however, to appear unsta-

ble and distractive due to frequent incomprehensible

aggregation state changes, and postponed any further

investigation at the time of writing.

Furthermore, we implemented a temporal focus-

density map that enabled to capture various attention

metrics per node over time (locus-of-attention score

loa

). The idea is to increase or decrease the nodes fo-

cus density over time, if the minimal distance between

a cuboid and the users locus of attention resides be-

low or above a certain threshold. We intended to use

the score to hinder nodes of recent user interaction to

aggregate and thus providing coherent, recognizable

areas-of-interest and interaction. Instead, it resulted

in mostly in-comprehensive and unexpected, distract-

ing aggregation state changes: thus, we rejected this

approach for actual use at the time of writing.

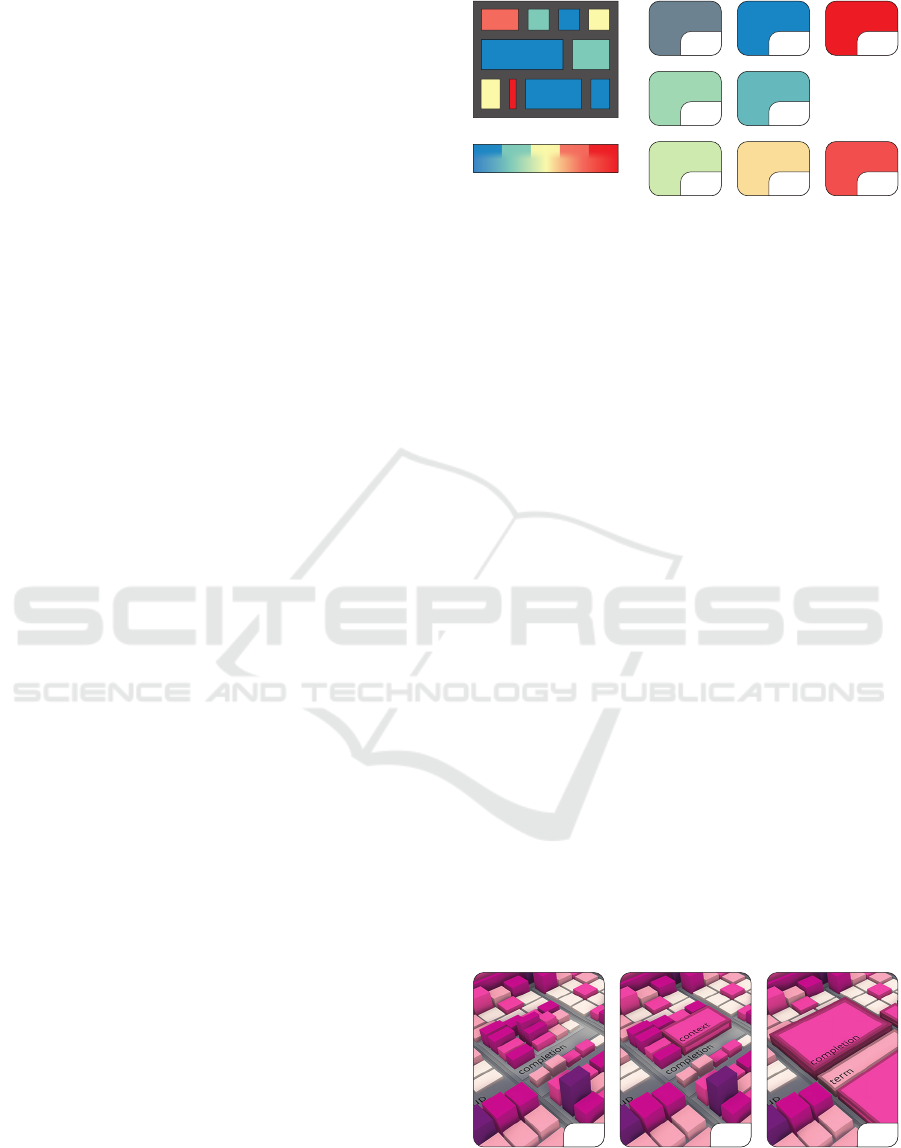

4 DISPLAY OF AGGREGATES

Observing the use of software maps in industry appli-

cations provided us insights on how map themes are

typically designed and applied: a lines of code mea-

sure is almost always mapped to the nodes weight

for spatialization in order to maintain a stable, rec-

ognizable layout and consistent footprint. To utilize

preattentive processing the most relevant attribute for

a given task is usually mapped to color. Finally, the

height mapping is used for attributes that, when lo-

cally correlating to the color attribute, provides valu-

able insights. Two examples of software map themes:

Technical dept maps logic lines of code to footprint,

a nesting level metric to color, and McCabe com-

plexity (McCabe, 1976). It is used to reveal and

monitor the ’technical debts’ inherent to a soft-

ware system’s implementation.

Risk of knowledge drain maps logic lines of code

to footprint, the number of active developers (per-

node) to color, and a composite, nesting-level

or McCabe based complexity measure indicating

difﬁcult-to-comprehend code to height. It is used

to identify complex code units known only by few

developers and reveal knowledge distribution.

In addition, non-linear attribute mapping modiﬁers

are sometimes used such as logarithmic scaling in

order to emphasize or account for certain aspects of

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

180

the depicted data. For simplicity, we assume any

mapping modiﬁer to be the identity function. Even

though, software maps can be used to depict qualita-

tive data, we focus on sequential and diverging data.

With respect to our working prototype three presump-

tions were conﬁrmed. First, maintaining the same

color mapping for aggregates can hide important data.

Second, aggregate cuboids are indiscernible from leaf

cuboids. And third, abrupt aggregation state changes

might attracted the users focus of attention. In the

following subsections we discuss steps to at least par-

tially resolve these issues.

4.1 Extended Aggregation Operators

In order to diminish the loss of information caused by

aggregation (e.g., loss of underlying data distribution

and structure) we introduce additional accumulation

strategies for the attribute mapping applied to aggre-

gates. For example, instead of averaging all underly-

ing attribute values and use this average for the ag-

gregates color mapping, we might use the minimum

or maximum attribute value. To this end, we formal-

ize the aggregation in attribute space and introduce

extended aggregation operators that allow to account

for speciﬁc data characteristics, e.g., outliers, vari-

ance, weighted average, minimum, maximum, etc.

For a given inner node i we can apply a fold (higher-

order function) Ξ (i, v, o). This fold traverses the re-

cursive structure of i and builds up a single, aggre-

gated attribute value using an aggregation operation o

on the map theme’s attribute v.

A fold using an arithmetic mean operator for ag-

gregation can now be denoted as Ξ (i, v, ¯n) with ¯n as

operator that calculates the mean within a set of at-

tribute values. This mean attribute-aggregation opera-

tor, however, might be insufﬁcient for a given task: in-

teresting attributes might cancel out each other or re-

main unnoticed because of their marginal share (e.g.,

due to a high number of children). Instead, attribute

aggregation operators might favor attributes that devi-

ate from the mean. For this purpose, we use Ξ (i, v, ¯n

)

and Ξ(i, v, σ

). The operator ¯n

derives the weighted

mean, i.e., each attribute value is weighted by the at-

tribute mapped to the node’s footprint. This accounts

for the node’s spatial layout favoring large node foot-

prints over small ones. For large treemaps, however,

we observed that, e.g., outliers of height or color at-

tribute primarily reside in nodes of medium to small

footprints. σ

is a deviation attribute-aggregation op-

erators that weights each attribute by its deviation to

the mean:

a − ¯n

with a as attribute value and e as

exponential deviation ampliﬁer. Figure 3 illustrates

the effect of these operators on the aggregates color.

(b) (c)(a)

(e)(d)

Unaggregated Node

Color Scheme

(g) (h)(f)

Figure 3: For a unaggregated inner node and a color scheme

(left) and color mappings as the result of different attribute-

aggregation strategies (right): (a) visual average (as refer-

ence), (b) minimum, (c) maximum, aggregate operators (d)

¯n, (e) ¯n

, (f) σ

, (g) σ

, and (h) σ

4.2 Nesting Level Contouring

The visual display of aggregates is, without further

specialization, indiscernible to the display of leafs.

This can be resolved, by either truncating the aggre-

gate cuboids or adding a contour (by means of a lumi-

nance offset) causing resemblance to padding. Trun-

cation, however, is not applicable in 2D, increases the

visual complexity of the cuboids, and is sometimes

difﬁcult to recognize, which makes contouring our

preferable choice. The contouring alone is already

sufﬁcient to satisfy discriminability of aggregates to

non-aggregates.

The contouring can be used to convey additional

information about the underlying structure. More

speciﬁcally, multiple contours can hint the degree of

aggregation, i.e., the number of an aggregate’s subja-

cent hierarchy levels (nesting level). We denote this

approach as nesting level contouring and use consec-

utive luminance offsets for the nested contours (Fig-

ure 4). To avoid cluttering due to too many nested

contours for aggregates with high nesting levels, we

apply line-stippling to the inner-most contour if the

aggregate’s nesting level exceeds the level of the

inner-most contour. During exploration of datasets of

various sizes, we empirically determined that up to

three nested contours are quite useful.

(a) (b) (c)

Figure 4: f.l.t.r.: stepwise aggregation of nodes in (a). For

the aggregates in (b) and (c) nesting level contouring indi-

cates the number of underlying hierarchy levels.

Reducing Visual Complexity in Software Maps using Importance-based Aggregation of Nodes

181

4.3 Animated State Transitions

Due to the preattentive nature of motion, aggrega-

tion state changes both instantaneous or by tempo-

rary transition have to be applied with care. To sup-

port the user during the exploration, we apply brief,

animated transitions to aggregation state changes. It

allows to smoothly transform a node state from not

aggregated to aggregated and vice versa. For it, a

node-local transition timing linked to the cause of ag-

gregation was implemented. This dynamic timing en-

ables transitions ranging from explicit, noticeable/fast

to less distractive, unobtrusive/slow and can be setup

by the map theme. Transitions directly caused by user

interaction can be fast or even instant to not hinder

the user in his task; Transitions caused due to data

changes, or view-based scoring, on the other hand,

can be slower and more unobtrusive. For the anima-

tion itself we used the following animation. When

a node transitions into an aggregate, the aggregate

fades out and reveals the inner cuboid as well as all its

child nodes with their height limited to the aggregate’s

height. After the aggregate resolved, child nodes pre-

viously limited in height grow to their actual height.

We found this to be helpful when changing the aggre-

gation threshold or enabling view-based scoring.

5 EVALUATION

The presented LoD technique was evaluated in three

steps. We (1) measured the reduction of visual clutter

induced by aggregation, (2) performed a user study, to

investigate the impact of aggregation to visual search,

and (3) performed a user study to investigate the read-

ability of nesting level contouring.

5.1 Evaluation of Visual Clutter

To conﬁrm the actual reduction of visual clutter, we

used the feature congestion method for visual clut-

ter (Rosenholtz et al., 2005). Since it is a measure

of difﬁculty in searching through a complex display it

can be used as usability indicator of importance-based

aggregation. The feature congestion was computed

for each of the image pairs used in the following user

study. In average our LoD technique caused a reduc-

tion of about 50% over these image pairs (Figure 5).

5.2 Evaluation of Visual Search

User Study Design. A qualitative and quantitative

user study was performed with 18 participants (age:

18-35, 15 males, 3 females). The participants were

(a) (b)

0.0 (low) Feature Congestion Histogram (high) 1.0

# 5k

(a) non-aggregated (b) aggregated

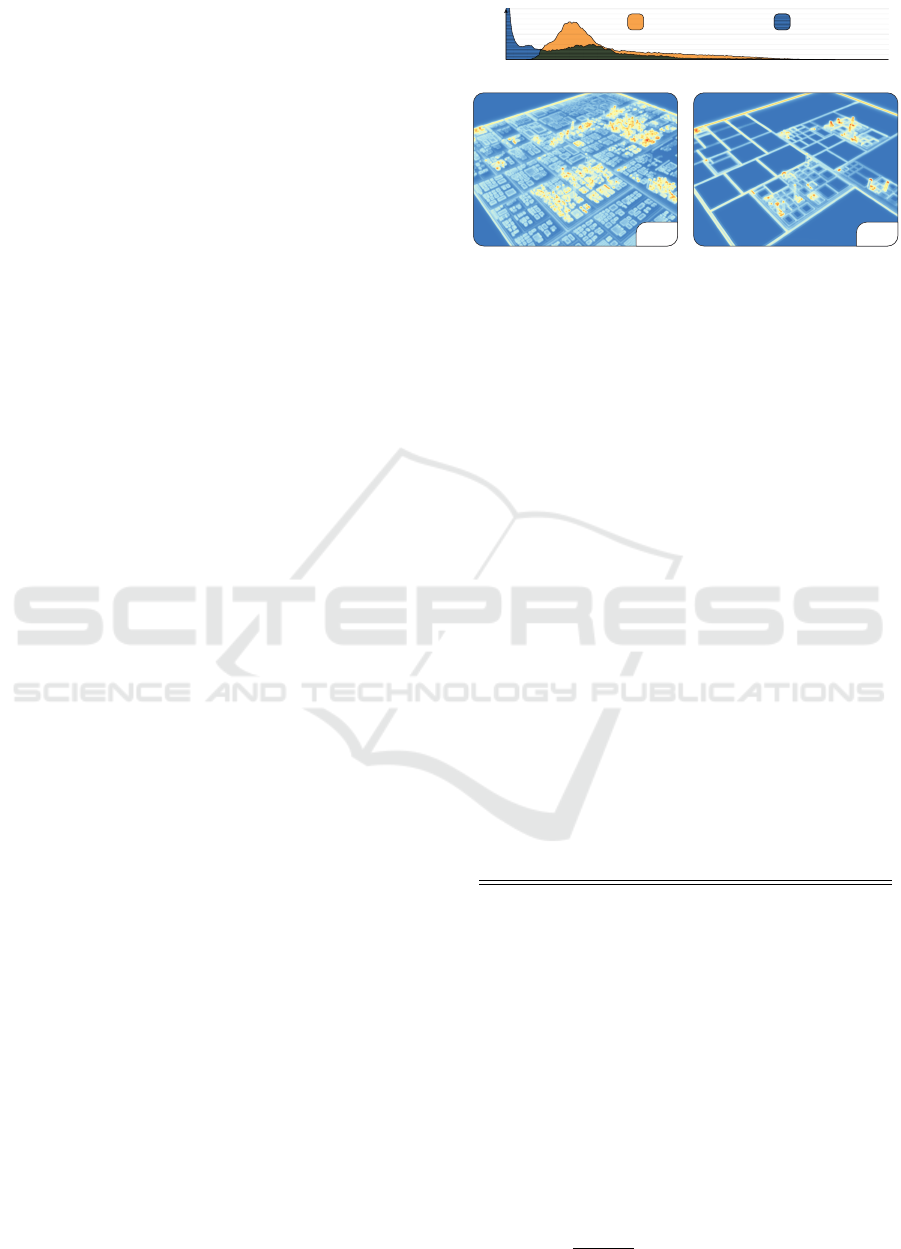

Figure 5: As a measure for visual clutter, color-mapped

feature congestions for a software map is shown. The his-

tograms indicates reduced visual clutter for (b).

asked to ﬁnd 10 nodes of interest in different software

maps with respect to height and color mapping. For

it, we created a set of six pairs of images, contain-

ing an non-aggregated view and a view using auto-

mated attribute-based scoring, using different camera

perspectives, and datasets. After an introduction to

software maps (especially the color and height map-

ping), the participant could complete the visual search

by selecting the nodes of interest in the static images.

We ensured that a set of images shown to a partici-

pant did not contain a pair with the same view and

dataset. The top nodes of interest (forming the ground

truth for the error rates) for each dataset were selected

by values of a normalized average function of values

mapped to height and color and a threshold of 95%.

For the quantitative analysis we measured the

task-completion time and error rate for each partic-

ipant and each task. After completing the tasks, each

participant was asked to answer questions about the

user itself and to rate (from (1) strongly disagree to (5)

strongly agree) the following eight statements with re-

spect to the study and tasks:

Statements with T denoting our LoD technique

I noticed the use of T.

The task was hard to complete without T.

The task was hard to complete using T.

I had problems identifying NoI

∗

without T.

I had problems identifying NoI

∗

using T.

I could easily identify aggregated nodes.

T was useful in the decision making process.

I think the use of T hides important information.

∗

node of interest

The error rate and task-completion time serves as

an indicator for the usability of the presented tech-

nique. Therefore, we state the following hypotheses

for the user study:

The use of our LoD technique (attribute-based

scoring) reduces the error rate.

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

182

with LoD techniquewithout LoD technique usefulness

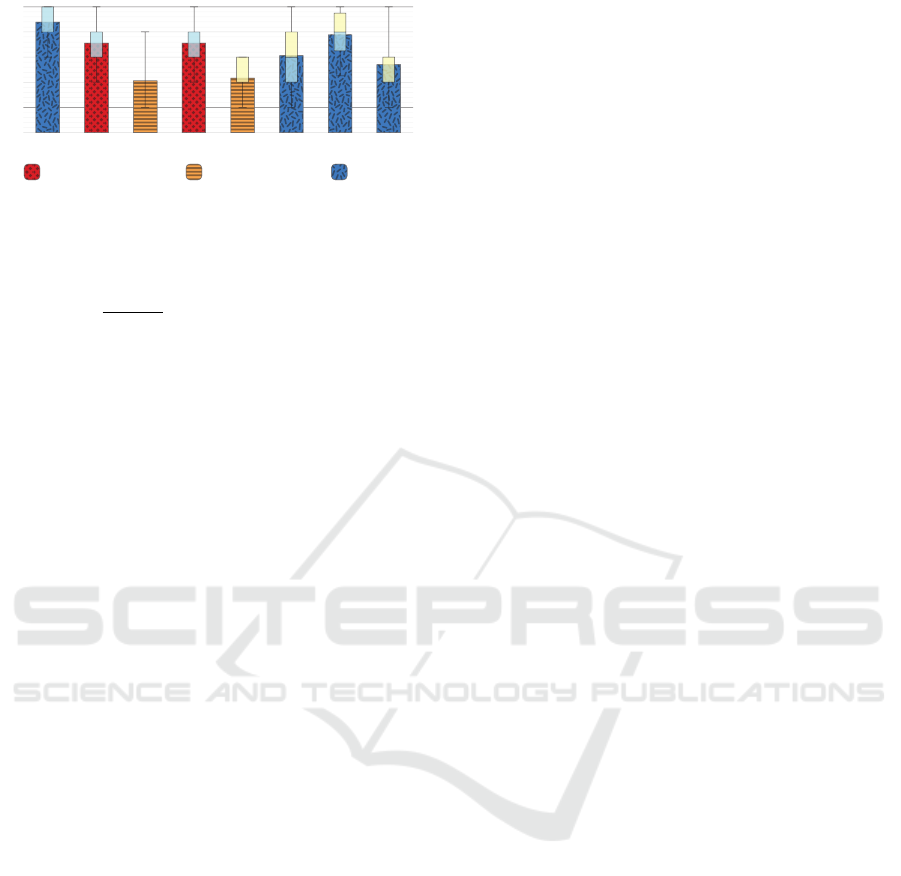

Figure 6: Results of the user study statements S

to S

rated

by the participants. The value domain is: (1) strongly dis-

agree, (2) disagree, (3) neutral, (4) agree, (5) strongly agree.

The use of our LoD technique (attribute-based

scoring) reduces the task-completion time.

User Study Results. Most users (11 of 18) stated

that they were familiar with the concept of 2D and

2.5D treemaps while only a few of them (3 of

18) stated that they were frequently working with

treemaps. The results of the statement ratings (Fig-

ure 6) show that almost every participant recognized

the use of the LoD (S

, µ = 4.39) and rated the tech-

nique as useful for the given task (S

, µ = 3.89). The

statement ratings of S

(µ = 3.56) and S

(µ = 2.06),

as well as S

(µ = 3.56) and S

(µ = 2.17), compar-

ing the difﬁculty estimation for the given tasks with

respect to the LoD technique, show that the technique

improves the usability of software maps for the given

task signiﬁcantly (S

vs. S

p = 3e-4; S

vs. S

p = 2e-4). Besides that, the visual separation of ag-

gregated and non-aggregated nodes needs some im-

provements (S

, µ = 3.06). Additionally, the study

shows that both, error rates and task completion time,

are reduced signiﬁcantly by using our technique. The

lower error rate (without LoD: µ = 2.52; with LoD:

µ = 0.85; p < 0.01) for the non-aggregated software

map underline the participants opinion with respect

to the statements S

to S

. Finally, the average task

completion time was reduced in our experiment from

about 38.5 seconds (without LoD) to 31.1 seconds

(with LoD), but failed closely to show a signiﬁcant

effect (p = 0.057) within an independent t-test.

5.3 Evaluation of Contouring

A second user study was performed to determine if

users are able to correctly identify (readability) aggre-

gated datasets using nesting level contours. For it, an

aggregated version of a treemap was shown together

with a set of 4 valid or invalid depictions (multiple

correct answers possible). The study was performed

as an online survey with 12 participants.

User Study Design. Every participant had to an-

swer 15 questions with four different depictions

shown. This results in a number of 720 answers (=

15 questions × 12 participants × 4 possible answers).

User Study Results. The majority of answers were

correct with 504 correct answers (208 true positives,

296 true negatives). The precision of the participants

classiﬁcation was about 62 % with a recall of 70%

and a small effect size (φ = −0, 165). A chi-square

test with Yates’ continuity correction showed a sig-

niﬁcant difference between the number of correct and

incorrect answers and the participants recognition of

the correct aggregates (p < 0.001).

6 DISCUSSION

The aggregation of nodes was speciﬁcally designed

to satisfy the aggregation guidelines suggested by

Elmqvist et al. (Elmqvist and Fekete, 2010).

G1 Entity Budget. A simple entity budget is intro-

duced with the viewport size; the view-based scoring

and the used minimal screen-space area threshold im-

plicitly limit the number of cuboids. In addition, the

number of depicted nodes can be restricted for certain

hierarchy levels. Technically, our scoring could just

accumulate the number of children of the inner node

that is scored (provided a persistent node traversal)

and score for aggregation when the budget exceeded.

G2 Visual Summary. Aggregates use the same or

at least a similar attribute mapping, depending on the

used aggregation operators, thus, they always repre-

sent the underlying data. The presented nesting level

contouring further allows for assumptions about the

node’s nesting depth. However, the aggregate does

not capture the underlying data structure in terms of

data localization, quantity of nodes, or value or distri-

bution patterns of the mapped attributes.

G3 Visual Simplicity. We decided not to introduce

an additional shape nor to modify the cuboid’s geom-

etry, but instead rely on the basic cuboid for an aggre-

gation inherent to the 2.5D treemap.

G4 Discriminability. The contouring of aggregates

as well as the option to label their top faces (which

more likely provide the required additional space for a

meaningful annotation) makes our aggregate cuboids

easily discernible from inner and leaf cuboids.

Reducing Visual Complexity in Software Maps using Importance-based Aggregation of Nodes

183

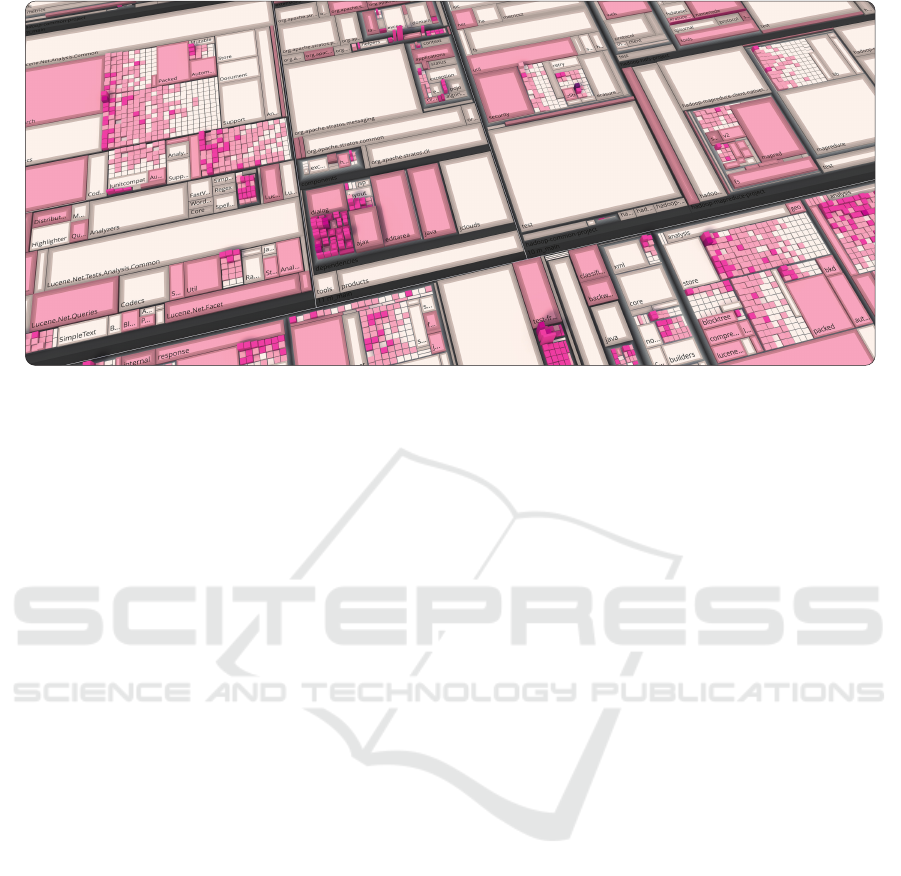

Figure 7: Software map of 50.363 nodes with importance based ﬁltering and outlier-aware aggregation operator.

G5 Fidelity. With the presented aggregation oper-

ators the aggregates visual display and thus its con-

veyed information can be conﬁgured accordingly to

the given task and importance measure.

G6 Interpretability. For the depiction of aggre-

gated nodes the same visualization approach used for

the depiction of inner nodes and leaf nodes is used.

Except for the nesting level margin, which is orthog-

onal to the color mapping, the user is not confronted

with any inconsistencies and, as our evaluations in-

dicate, has no problems in interpreting the software

map using our LoD technique. However, even though

a user easily understands a thematic mapping, the se-

lection of aggregation operators used for aggregates

might impact the users performance and is currently

not directly communicated.

7 CONCLUSIONS

We have presented a technique for importance-based

aggregation of nodes for the visual display of multi-

dimensional, hierarchical data using 2.5D treemaps.

The technique was shown to be capable of “reduc-

ing a large dataset into one of moderate size, while

maintaining dominant characteristics of the original

dataset” (Cui et al., 2006) while satisfying common

guidelines for aggregation (Figure 7). It (1) requires

no layout re-computation, (2) allows for (mostly) un-

ambiguous and self-consistent aggregates, (3) imple-

ments well-known interaction concepts, and (4) al-

lows for additional annotation. Finally, the technique

enables multi-resolution depictions of complex infor-

mation, facilitates efﬁcient identiﬁcation of important

nodes, and thereby supports the Visual Information

Seeking Mantra (Shneiderman, 1996).

Future Work. Experimenting with various, large

datasets, we identiﬁed ares for further improvement.

First, sometimes, a software system consists of very

few inner nodes with massive number of children, ei-

ther resulting in visual clutter or useless aggregates.

For such cases, we plan to investigate in partial ag-

gregation strategies, e.g., using procedural texturing

for aggregate masking. Second, the aggregates as vi-

sual summary can be further improved by supporting

the aggregation of qualitative data as well as convey-

ing the underlying data distribution using, e.g., color

weaving (Hagh-Shenas et al., 2006) or small diagrams

rendered to the aggregate cuboids top faces. Last, we

want to explore how aggregation can be used in com-

munication and locus of attention guiding.

ACKNOWLEDGEMENTS

This work was funded by the Federal Ministry of

Education and Research (BMBF), Germany, within

the InnoProﬁle Transfer research group “4DnD-Vis”

(www.4dndvis.de). We also want to thank seerene

for providing us insights into their visual analytics

services and access to massive datasets.

REFERENCES

Balzer, M. and Deussen, O. (2007). Level-of-detail visu-

alization of clustered graph layouts. In Proc. IEEE

APVIS, pages 133–140.

IVAPP 2017 - International Conference on Information Visualization Theory and Applications

184

Bederson, B. B., Shneiderman, B., and Wattenberg, M.

(2002). Ordered and quantum treemaps: Making ef-

fective use of 2D space to display hierarchies. ACM

Trans. Graph., 21(4):833–854.

Bertin, J. (1967). S

emiologie graphique. Mouton.

Bladh, T., Carr, D. A., and Scholl, J. (2004). Extending

tree-maps to three dimensions: A comparative study.

In Proc. APCHI, pages 50–59.

Blanch, R. and Lecolinet, E. (2007). Browsing zoomable

treemaps: Structure-aware multi-scale navigation

techniques. IEEE Trans. Vis. Comput. Graph.,

13(6):1248–1253.

Bohnet, J. and D

ollner, J. (2011). Monitoring code quality

and development activity by software maps. In Proc.

ACM MTD, pages 9–16.

Breunig, M. M., Kriegel, H.-P., Ng, R. T., and Sander, J.

(2000). LOF: Identifying density-based local outliers.

In Proc. ACM SIGMOD, pages 93–104.

Bruls, M., Huizing, K., and van Wijk, J. (1999). Squariﬁed

treemaps. In Proc. Eurographics/IEEE TCVG Sympo-

sium on Visualization, pages 33–42.

Chuah, M. C. (1998). Dynamic aggregation with circular

visual designs. In Proc. IEEE InfoVis, pages 35–43.

Cui, Q., Ward, M., Rundensteiner, E., and Yang, J. (2006).

Measuring data abstraction quality in multiresolution

visualizations. IEEE Trans. Vis. Comput. Graph.,

12(5):709–716.

Ellis, G. and Dix, A. (2007). A taxonomy of clutter reduc-

tion for information visualisation. IEEE Trans. Vis.

Comput. Graph., 13(6):1216–1223.

Elmqvist, N. and Fekete, J.-D. (2010). Hierarchical aggre-

gation for information visualization: Overview, tech-

niques, and design guidelines. IEEE Trans. Vis. Com-

put. Graph., 16(3):439–454.

Fekete, J.-D. and Plaisant, C. (2002). Interactive informa-

tion visualization of a million items. In Proc. IEEE

IV, pages 117–124.

Furnas, G. W. (1986). Generalized ﬁsheye views. In Proc.

ACM CHI, pages 16–23.

Hagh-Shenas, H., Interrante, V., Healey, C., and Kim, S.

(2006). Weaving versus blending: A quantitative as-

sessment of the information carrying capacities of two

alternative methods for conveying multivariate data

with color. In Proc. ACM APGV, pages 164–164.

Hao, M., Dayal, U., Keim, D., and Schreck, T. (2007).

Multi-resolution techniques for visual exploration of

large time-series data. In Proc. EG/VGTC EA, pages

27–34.

Harper, S., Michailidou, E., and Stevens, R. (2009). Toward

a deﬁnition of visual complexity as an implicit mea-

sure of cognitive load. ACM Trans. Appl. Percept.,

6(2):10:1–10:18.

Johnson, B. and Shneiderman, B. (1991). Treemaps: A

space-ﬁlling approach to the visualization of hierar-

chical information structures. In Proc. IEEE VIS,

pages 284–291.

Johnson, B. S. (1993). Treemaps: Visualizing hierarchical

and categorical data. PhD thesis, University of Mary-

land. HCIL-94-04, UMI-94-25057.

Liu, S., Cao, N., and Lv, H. (2008). Interactive visual anal-

ysis of the nsf funding information. In Proc. IEEE

PaciﬁcVis, pages 183–190.

u, H. and Fogarty, J. (2008). Cascaded treemaps: Ex-

amining the visibility and stability of structure in

treemaps. In Proceedings of Graphics Interface

2008, GI ’08, pages 259–266, Toronto, Ont., Canada,

Canada. Canadian Information Processing Society.

McCabe, T. J. (1976). A complexity measure. In Proc.

IEEE ICSE, pages 407–.

Misue, K., Eades, P., Lai, W., and Sugiyama, K. (1995).

Layout adjustment and the mental map. Journal of

Visual Languages & Computing, 6(2):183–210.

Mitchell, W., Shook, D., and Shah, S. L. (2004). A picture

worth a thousand control loops: An innovative way

of visualizing controller performance data. In Invited

Plenary Presentation, Control Systems.

Munzner, T., Guimbreti

ere, F., Tasiran, S., Zhang, L., and

Zhou, Y. (2003). TreeJuxtaposer: Scalable tree com-

parison using focus+context with guaranteed visibil-

ity. ACM Trans. Graph., 22(3):453–462.

Rosenbaum, R. and Hamann, B. (2009). Progressive pre-

sentation of large hierarchies using treemaps. In Proc.

ISVC, pages 71–80.

Rosenholtz, R., Li, Y., Mansﬁeld, J., and Jin, Z. (2005).

Feature congestion: A measure of display clutter. In

Proc. ACM CHI, pages 761–770.

Schulz, H.-J., Hadlak, S., and Schumann, H. (2011). The

design space of implicit hierarchy visualization: A

survey. IEEE Trans. Vis. Comput. Graph., 17(4):393–

411.

Shneiderman, B. (1992). Tree visualization with treemaps:

A 2D space-ﬁlling approach. ACM Trans. Graph.,

11(1):92–99.

Shneiderman, B. (1996). The eyes have it: A task by

data type taxonomy for information visualizations. In

Proc. IEEE Symposium on Visual Languages, pages

336–343.

Tak, S. and Cockburn, A. (2013). Enhanced spatial stability

with hilbert and moore treemaps. IEEE Trans. Vis.

Comput. Graph., 19(1):141–148.

Trapp, M., Glander, T., Buchholz, H., and D

ollner, J.

(2008). 3D generalization lenses for interactive fo-

cus + context visualization of virtual city models. In

Proc. IEEE IV, pages 356–361.

Vliegen, R., van Wijk, J. J., and van der Linden, E.-

J. (2006). Visualizing business data with general-

ized treemaps. IEEE Trans. Vis. Comput. Graph.,

12(5):789–796.

Wattenberg, M. (1999). Visualizing the stock market. In

Proc. ACM CHI EA, pages 188–189.

Wettel, R. and Lanza, M. (2008). CodeCity: 3d visualiza-

tion of large-scale software. In Proc. ACM ICSE Com-

panion, pages 921–922.

Reducing Visual Complexity in Software Maps using Importance-based Aggregation of Nodes

185
