Building the Monitoring Systems for Complex Distributed Systems:

Problems and Solutions

Olga Korableva

1,2

, Olga Kalimullina

and Ekaterina Kurbanova

1,3

ITMO University, S-Petersburg, Russian Federation

St. Petersburg State University, S-Petersburg, Russian Federation

“CS Information Technology” Ltd, S-Petersburg, Russian Federation

Keywords: Monitoring Systems, Complex Distributed Systems, Big Data, System Approach, Innovations,

Strategic Management.

Abstract: Complex distributed systems are of more significance nowadays, due to a broader range of its use and

because of provision of better services to users. It is clear, that system health needs continuous monitoring,

while running software apps that are ensuring the implementation of the business processes, working with

Big Data, etc. In the course of this study a monitoring system has been developed. It meets all modern

requirements, such as scalability, flexibility, comprehensiveness of necessary data and ease of use. In order

to identify unified problems in development of monitoring systems for complex distributed systems and

respectively - the solutions for their elimination, the data regarding IT-architecture most common types used

in modern companies, related to fault-points of business apps has been gathered and analysed. All of

identified problems and optimal solutions to eliminate them were aggregated in line with the three

development stages of monitoring system, such as: development of servicing model for system-of-interest,

implementing tools to detect objects of monitoring, generating a health map of system-of-interest. In order

to develop monitoring systems for complex distributed systems taking into account the architecture of these

systems, all of the gathered data was analysed, and we articulated all problems and optimal solutions for

their elimination as well.

1 INTRODUCTION

The result of this study is the development of

monitoring system of software package, designed for

production records and further turnover for all of

company’s manufactured products. The

serviceability of the software package was crucial

for the company's business, because in the case of its

failure, the shipment of manufactured products

would become impossible. To get up-to-date

information on the status of the software package, it

was necessary to design a monitoring system.

The study identified algorithm, enabling to make

this system integrated, scalable, and easy-to-use. The

implementation of the designed monitoring system

onto one of the largest Russian company gave the

option for testing of the developed algorithm.

Now, the company is already successfully

interacts with the system for 7 months. The

developed algorithm, articulation of problems and

optimal solutions of their elimination, formulated

concepts – all of it contributes to the theory and

practice of building monitoring systems, including

working with such systems as Big Data.

“Big Data” is a term, used for the combination of

complex algorithms, approaches and techniques for

gathering, processing and display of massive volume

of data (Russom, 2013), which are rapidly emerging

as a result of technological and business innovations

(Thakuriah, et al., 2015). These methods should be

not only effective in the environment of continuous

growth, but shall also possess a high level of fault

tolerance and availability (Toporkov et al., 2015).

Many algorithms are multithreaded, volumes of

information are enormous, and therefore, even

sporadic failures can lead to the loss of huge

amounts of data. Monitoring system gives you the

option to inform the administrator about detected

negative trends, what in turn, speeds up the reaction

of the administrator, and therefore increases the

level of system sounded (healthy) functioning (Yang

and Chang, 2011; Korableva and Litun, 2014 ).

The term “Monitoring system” refers to a

system, intended to track health (sound) status, as

Korableva, O., Kalimullina, O. and Kurbanova, E.

Building the Monitoring Systems for Complex Distributed Systems: Problems and Solutions.

DOI: 10.5220/0006271002210228

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 221-228

ISBN: 978-989-758-248-6

221

well as displaying warnings for troubleshooting on

the monitored object (Guo et al., 2010; Dourish et

al., 2000; Coulouris, 2013). Monitoring of

distributed systems includes the gathering,

interpretation and display of data, related to the

interactions between processes, including running in

parallel (Joyce et al. 1987).

There is IT- architecture in any kind of business,

monitoring of serviceability of which is necessary

for early detection of failures and having solutions

for their elimination (Latyshev and Akhmetshin,

2015; Korableva and Kalimullina, 2016a). A

malfunction of IT-infrastructure for some companies

leads to downtime, which often involve material

losses.

Therefore, there is a burning reason to arrange

the system, which would allow checking on status of

all company’s IT-architecture components, as well

as timely sending alerts regarding impending

failures in work (Becker et al., 2016; Korableva and

Kalimullina, 2014).

This article describes a design concept for

monitoring systems of complex distributed systems,

developed in the course of this study and which

meets the following requirements:

• Scalability of solution

• System usability

• Comprehensiveness of developed fault-adaptive

map of system-of-interest

Based on gathered and analyzed data, have been

defined solutions for problems, which would be

faced during the process of building monitoring

system.

2 METHODOLOGY

Any system is a set of components, each of which is

subdivided into modules, which in turn can be

represented as the sum of even smaller components.

To monitor such hierarchical structures, we shall be

able to identify each component of the system. This

feature provides the following concept:

1. A class to identify the specific component of the

system is created

2. The conditional description helps clearly

determine, whether existing objects in the

monitoring system are the desired components or

not. For example, one of the most common types

of verification is the search for key in the

registry.

3. The scope of existing objects for verification in

the monitoring system is determined.

4. Based on preset parameters, the monitoring

system performs search of specified criterion on

the specified scope of objects. In case of

successful validation – an instance of a Class is

created on the object and identifies a component

of the system-of-interest.

Thus, all components of the company’s IT-

architecture identified in the monitoring system as

playing a specific role. If the same architectural

object plays multiple roles (for example, one server

is used to handle company’s database and some user

application), then this object will be identified in

monitoring system as multitasking.

Identification of roles of monitored objects

allows to get list of the system key components,

serviceability of which is crucial for this company.

To build a servicing model, it is also essential to

specify the relationship between used components.

The most common are the following types of

relationships:

• Hosting relationships

• Containment relationships

• Reference relationships

Servicing model, built in such way for the

system-of-interest, reflects all key components, their

levels and interoperations, but does not reflect the

state of the system healthy functioning. To ensure

serviceability of monitored components, a series of

validations allowing identify the health status shall

be performed In general such validations are called

monitors, and are split into 3 categories, such as: 1)

Unit monitors; 2) Dependency monitors; 3)

Aggregate monitors.

3 RESULTS

3.1 Summary of Contributions

Building monitoring systems for complex distributed

systems investigated in a number of excellent

previous articles, among which are (Sigelman et al.,

2010; Sloman, 1994; Ferdowsi et al., 2014). There

are a number of studies in the field of monitoring of

distributed systems, part of which mainly focused at

troubleshooting (Phuc and Son, 2012, 2013;

Kshemkalyani and Singhal 2008), while others

focused at performance optimization (Sharma et al.,

2013, Sambasivanm et al., 2014; Korableva and

Guseva, 2015).

This study aims to identify the problems

encountered in the process of building monitoring

system, as well as to search for solutions and their

testing during all three-development stages, such as -

development of servicing model for system-of-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

222

interest, implementing tools to detect objects of

monitoring, generating a health map of system-of-

interest. The study proposed the solutions for the

some issues. A concept, allowing minimizing the

load on objects of the company infrastructure has

been introduced. It have been also introduced some

principles, following of which allows you to obtain a

complete, concise information about system’s

health. These concepts also focus at minimizing

administrator’s response time. The identified best

practices of using dependency and aggregate

monitors allow you to get a comprehensive health

scheme of the system, taking into account all of

existing, both explicit and hidden relationships

between objects of monitoring system. We have also

formulated principles for system’s faultfinding.

The study found the answers to the following

questions: exactly what kind of components are the

key components of the system; what is required

level of detail for key components; what values

should be set as Class variables; and whether this

setting may have a harmful impact on the

monitoring system activity. All these issues can be

combined into a single overall objective - an

implementation of scalable monitoring system,

which would not require drastic revisions due to new

input data. Such requirements are also relevant when

dealing with Big Data (Son and Phuc, 2010;

Korableva and Kalimullina, 2016b).

Completing of this task requires thorough

comprehensive approach to the analysis of the

system-of-interest. This article will describe such

approach from the perspective of the following three

scale steps:

• Development of servicing model for the system-

of- interest.

• Implementing tools to detect objects of

monitoring

• Generating a health map of system-of-interest.

3.2 Development of the System

Servicing Model

The system-servicing model is a set of Classes, as

well as a set of the relationship between them, which

as a whole is cloning the structure of the system

itself.

3.2.1 Issue 1: Choosing an Approach to

Build Servicing Model

The main dilemma when choosing an approach for

building servicing model is to define the necessary

scope of monitoring. It could be either the entire

complex distributed system or just its specific

module, serviceability of with is crucial. Moreover,

a scope of monitoring may not only be restricted by

system-of-interest, but also include the pool of all

systems that are integrated with it.

This study exposed two approaches for building

servicing model, which are in line with planned

scope of monitoring. Table 1 reflects all the

advantages and disadvantages of both approaches.

However, you cannot select one of them as all-in-

one approach to build servicing models for all kind

of systems. Each system-of-interest requires its own

optimal approach. Therefore, the best approach for

the analyzed software package is a comprehensive

approach and, in the case of monitoring for Big

Data, it is better to choose a modular approach.

Table 1 shows advantages and disadvantages of

comprehensive and modular approaches.

Table 1. Advantages and disadvantages of comprehensive

and modular approaches.

Advantages Disadvantages

Comprehensiv

e approach

Reflection of

information about: 1. the

whole system under

consideration 2. systems

integrated with system

consideration

Great efforts for the

implementation of all

stages of the project

Modular approach

Saving time at the

following stages:

• Planning of

Architecture

• Development of

documentation

•Phase matching

•System Development

• Narrowly specialized

data

• More complex process

of system scaling

•Inability to obtain

information on the

status of related systems

• Lack of information on

the premises of negative

trends

• A large number of

blind spots

3.2.2 Issue 2: Definition of Level of Detail in

Servicing Model

The next issue of developing servicing models for

the system-of-interest is to define a list of its key

components for monitoring. Even though there is a

need to obtain full and comprehensive data

regarding monitored object, the designed monitoring

system shall be concise and user-friendly. Based on

experience in building monitoring systems for

complex distributed systems, the following

algorithm has been developed to set the level of

detail in the servicing model. This innovative

Building the Monitoring Systems for Complex Distributed Systems: Problems and Solutions

223

algorithm is taking into account all the key

components of the system and avoiding cluttering in

the design of servicing model (see Figure 1):

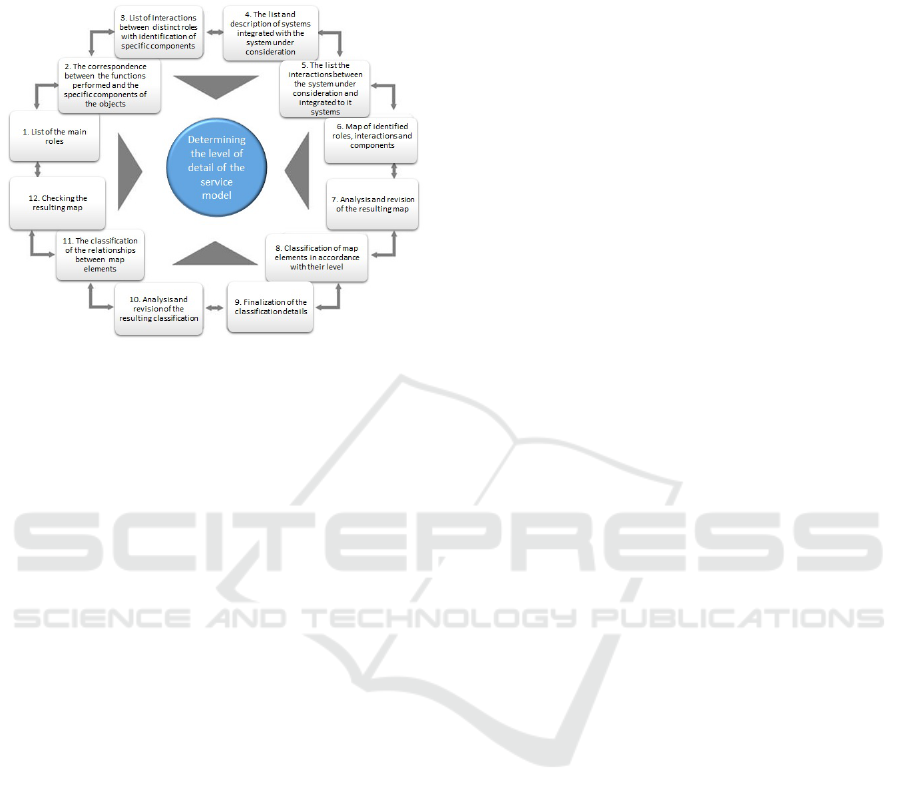

Figure 1: Algorithm to set the level of detail in the

servicing model.

1. Making list of essential roles, played by the

system, description of its intended use and a list

of functionalities.

2. Setting up correspondence between executing

functions and specific object components.

3. Identifying interactions between selected roles,

specifying specific components to play these

roles, involved in each of the interactions. When

it is done, one can see an outline of future

servicing model, especially a list of the essential

roles, its mandatory components, as well as

operational interrelations.

4. Definition of the list of other systems, integrated

with this system-of-interest, as well as a

description of their intended use.

5. Identification of all interactions between the

system-of-interest and other systems integrated

with it, taking into account the specific

components involved in these interactions.

6. Mapping detected roles, components and

interactions.

7. Make the analysis of the obtained map, as well as

a study of the system-of-interest for missing

components, used for system functions

execution. Making adjustments for existing map.

8. Make classification of elements on the map in

line with their levels. A good example of such a

classification is a clustered SQL Server. The top

level is the cluster itself, the next level consists

of nodes (servers) of the cluster, each of which

runs a number of utilities, ensuring the integrity

of SQL Server. In this way, the following chain

represents the classification of levels for SQL

Server in a simplified form: cluster – server –

utilities. It is also possible to make allotment into

separate classes, database roles, tasks, and other

components that play a key role for serviceability

of the system-of-interest.

9. Finalize details of the obtained classification in

line with functional tasks, performed by the

mapped elements. A good example of it might be

the scope of utilities running on the server, when

SQL Server is in place. In addition to those

utilities, that provide operability of the SQL

Server, some other Agents utilities of

contiguously allocated system can also be used

any related systems. In such case, it makes sense

to deepen classification of Class services,

making it more detailed.

10. Make analysis of the obtained classification,

refinement of the details.

11. Make classification of relationships between

mapped elements, which is based on three types

of existing relations (Hosting, Containment

relations, Reference relationships).

12. Do verification of the obtained map, which is a

framework of the servicing model under

development.

The above-described approach for choosing level of

detail, as well as identification of the scope of

monitored objects, permits to take into account

all of employed system components, and at the

same time - not overloading the design with

irrelevant data.

3.2.3 Issue 3: Choosing Concept of Setting

Objects Variables

A good practice in building a servicing model is to

set key data about objects of monitoring as variables

(parameters). This information either would be used

for health checking or would be information of

interest for system administrator and for other users.

A server name, AD site, regional location, software

version and many others that describe the given

object could serve like such parameters.

However, use of large number of parameters may

overload monitoring system and make it less

convenient to use. To avoid such situation, this study

suggested innovative concepts of setting up

parameters of objects. Figure 2 displayed their

descriptions and advantages of using.

Use of the described innovative concepts in

design of a servicing model helps to complement the

map of system-of-interest seamlessly, without

overloading database and not complicating

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

224

operational process of monitoring system, which is

under development.

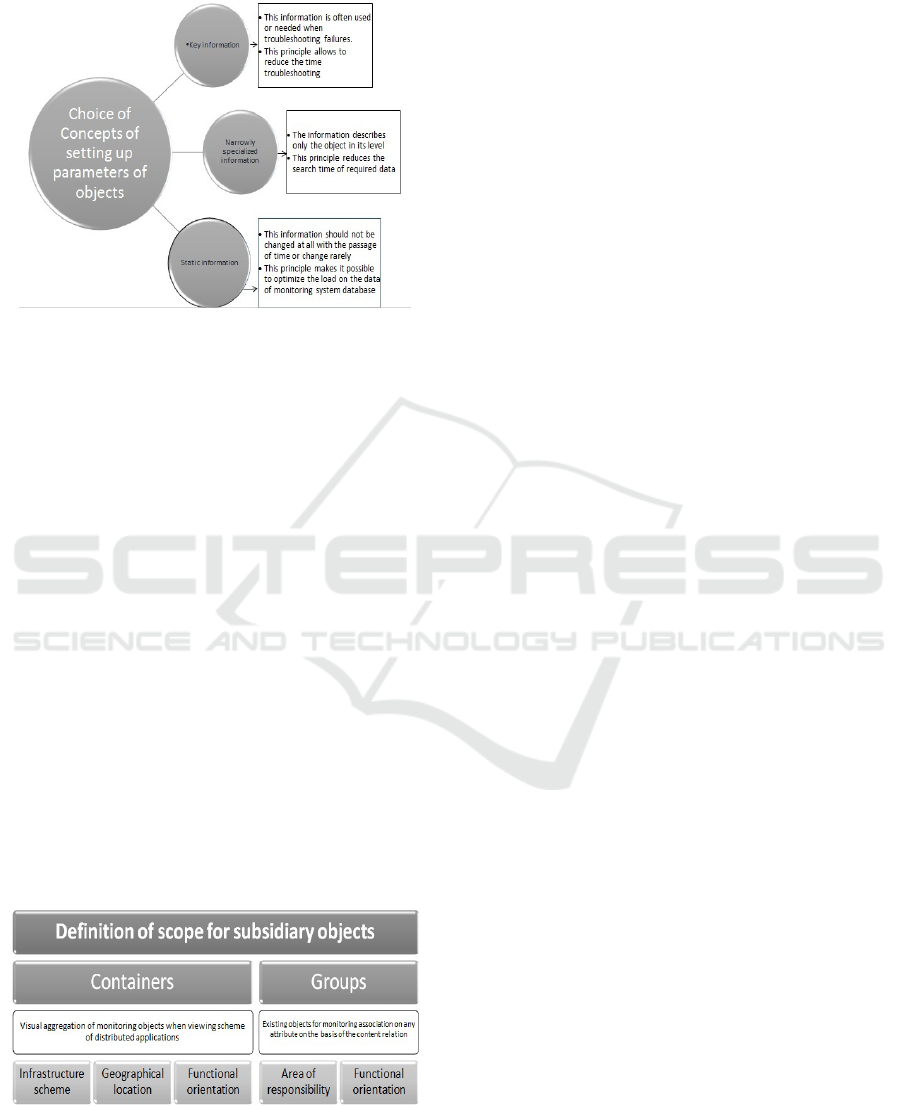

Figure 2: Concepts of setting up parameters of objects.

3.2.4 Issue 4: Definition of Scope for

Subsidiary Objects

An aggregation of existing Classes on any grounds

is required in order to have an easy review on the

structure of a distributed application, as well as for

configuring a number of additional functions, when

setting up the monitoring system.

This can be configuring of various alerts and

warning messages to system administrators of

specific brunch, regarding the failures of the system

components that belong to this Office. In addition,

the optimal solution for monitoring of complex

distributed system, that has several branches, is a

logical separation of monitored objects with respect

to branches involved.

For additional logical classification of existing

objects, it is necessary to create an additional scope

for subsidiary objects. Such subsidiary objects are

Groups and Containers. The design intent of these

objects, as well as examples of their successful use

reflected in Figure 3 - "Definition of scope for

subsidiary objects".

Figure 3: Definition of scope for subsidiary objects.

3.3 Implementing Tools to Detect

Objects of Monitoring

To generate a health map of system-of-interest, the

monitoring system has to detect the required objects.

The development of this aspect of monitoring

system requires special attention, because sloppy

implementation of it could lead to a performance

downturn not only of all components and monitoring

area, but of the entire company infrastructure as a

whole. Within the framework of this study, we

identified the reasons for this negative impact and

articulated the following solutions and key

principles for implementing detection tools.

We can articulate the following key points in the

implementation of detection tools for monitored

objects:

1. To set up the optimal time-out value between

two search iterations of objects.

2. To select the lowest possible scope of existing

objects for search for the required objects.

3. To make an intense use of the detection tools,

consistent with registry data.

3.4 Generating a Health Map of

System-of-Interest

Making of health map for any system is always

based on the data, received upon verifications that

system components are compliant with some preset

condition. These verifications are called monitors,

and are divided into 3 categories: unit, aggregate and

dependency. Experience has shown that a number

of practices allow to use such categories of monitors

to build a complete and easy-to-use monitoring

system.

3.4.1 Best Practices of using Unit Monitors

Unit monitors are designed to check on any state

aspect of the system-of-interest. Given aspect could

be described by an execution of just one task or by a

number of such tasks. Within the framework of this

study, the following best practices of using unit

monitors have been articulated:

1. Allocating separate monitors to carry out of

individual tests intended for checking on the

same state aspect of the system

2. Using the smallest number of monitor states

3. Making use of warning condition, providing that:

a. there is a possibility of preventive measures

b. absence of error does not ensure health aspect

of the system

4. Making adjustments for timeout duration

Building the Monitoring Systems for Complex Distributed Systems: Problems and Solutions

225

between the verification activities based on

criticality state aspect.

All of the above-specified practices are focused on

getting of such picture healthy functioning of

monitored object, which contains complete but

concise information about occurring faults,

substantially minimizing, therefore, administrators’

response.

3.4.2 Best Practices of using Aggregate

Monitors

Usage of aggregate monitors allows you to create a

hierarchical map of health, consequently simplifying

the process of handling the monitoring system.

There are 3 the most common guidelines to

aggregate monitors:

• Accessibility

• Configuration

• Performance capacity

Further development of the monitoring system may

lead to increase in the number of unit monitors to

such an extent, that even split of conducted

verification into these 3 categories will not permit to

get rid of unreadable huge list of carried out

verifications. In such a case, if it is possible, it is

essential to set up additional subcategories that

should be a satisfactory to the only principle:

aggregating of several monitors in one aggregate

monitor should be based on any criteria, which is

common to all of the above-mentioned unit

monitors.

3.4.3 Best Practices of using Dependency

Monitors

Dependency monitors are used to verify state of any

object in the state of another object. Figure 4 shows

Code of dependency monitor in xml.

<DependencyMonitor ID="

USAIS.SQL.Cluster.Dependency.SQL.Filial

Watchers"

Accessibility="Internal" Enabled="true"

Target="BEL!USAIS.SQL.Cluster"

ParentMonitorID="Health!System.Health.A

vailabilityState" Remotable="true"

Priority="Normal"

RelationshipType="BEL!USAIS.SQL.Cluster

.Contains.USAIS.SQL.FilialWatchers"

MemberMonitor="Health!System.Health.Ava

ilabilityState">

<Category>AvailabilityHealth</Category>

<Algorithm>WorstOf</Algorithm>

</DependencyMonitor>

Figure 4: Code of dependency monitor in xml.

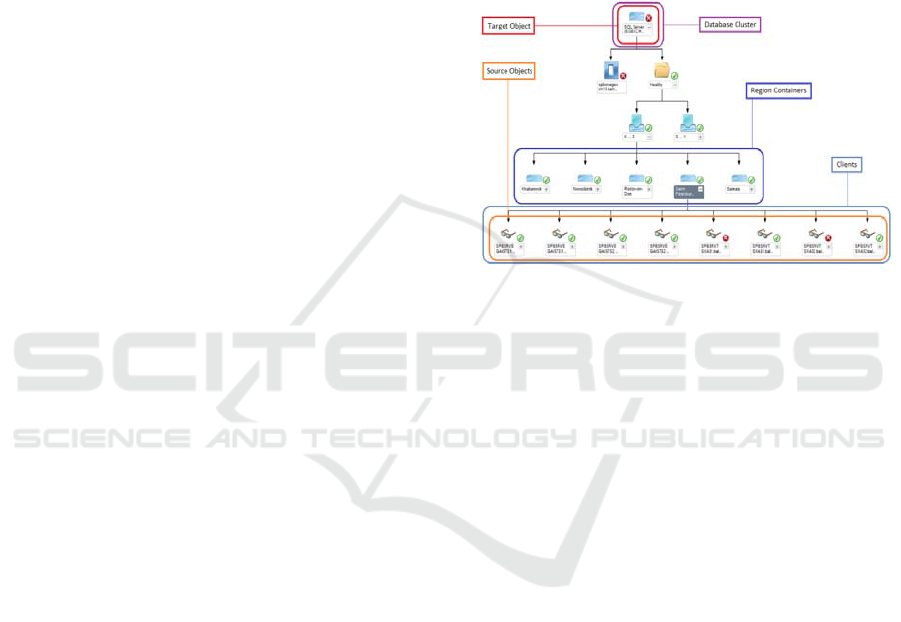

The essence of the design is to detect, state of what

element should be duplicated in the state of another

element. The presented section of code bears not

only identity code of dependency monitor, but also

code of the target object and source-object of the

state. Figure 5 shows the illustrative example of

dependency monitor usage – it represents a

hierarchical model of dependency monitor relating

to workflow. The client, from whom a check-up of

the database availability is carried out, plays the role

of source-object of the state.

Figure 5: The hierarchical model of dependent monitor.

The cluster of database itself plays the role of the

target object. In this case, the duplication of the state

is needed, due to specifics of verification: even

though database availability is carried out on the

client side, this aspect of health refers not to the

client, but to the database itself.

Figure 5 shows the structure of monitoring

system for under review software package, used to

display testing procedure of system workflow

availability. All clients are distributed across regions

and are subordinated to the cluster. Quantity of

dependency monitors is equal to the number of

clients monitors are set for the cluster itself. Each

dependency monitor of the cluster corresponds to

one of the clients.

Therefore, we can mark the following best

practices of using dependency monitors:

1. Using dependency monitors, if health state of

one object depends on health of another object.

2. Using dependency monitors for estimation of

subsidiary objects health status.

3.4.4 Creating a Summary Report on

Negative Trends in Running Software

Package

Thanks to all conducted work, we have a chance of

getting a summary report regarding negative trends

in running of the whole software package. This

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

226

innovative report is presented in the form of monthly

statistics, where aggregation was carried out by

month, by region, by computers that have failed, as

well as by a specific date. Moreover, statistics was

done just for those regions, where faults in system

functioning have been registered.

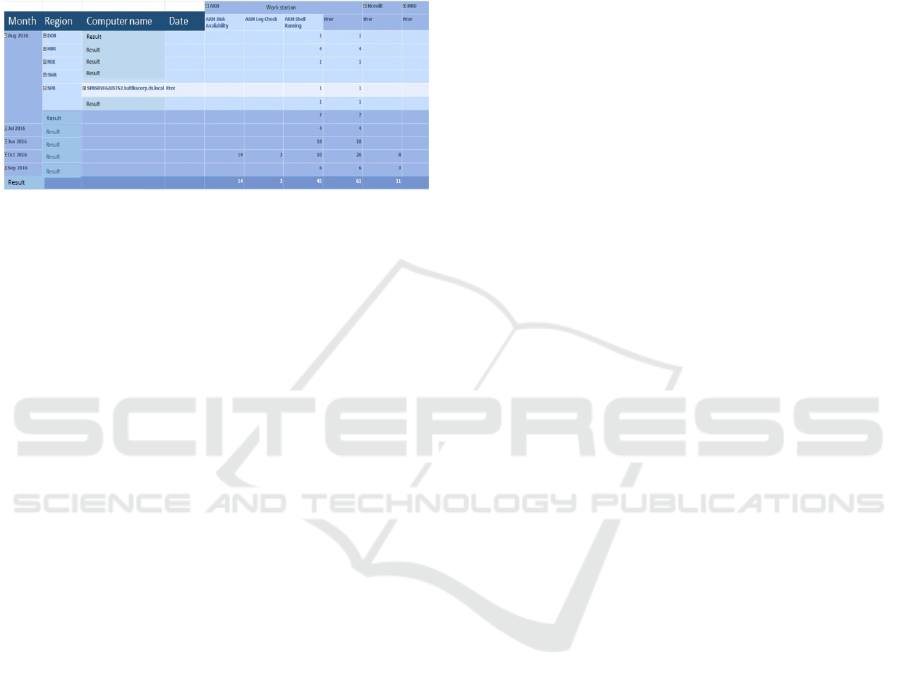

Figure 6 shows monthly statistics on the negative

trends in running analyzed software package.

Figure 6: Monthly statistics on the negative trends in

running analyzed software package.

4 CONCLUSIONS

In the course of this study, we managed to articulate

issues (problems) and solutions, with which

developer will be facing while building of

monitoring systems for complex distributed systems.

These concepts provide means for covering of all

the key system-of-interest components, provide ease

of handling of designed monitoring system, as well

as contribute to building of relevant, complete and

concise health map.

The described innovative concepts also facilitate

ability to make the system more flexible in the

course of its further modernization. In the process of

identifying the described concepts, all the major

stages of development for monitoring system, have

been reviewed, specifically:

1. Development of servicing model.

2. Implementing tools to detect objects of

monitoring

3. Generating a health map of system-of-interest.

All data, obtained in the study, serve the

possibility to deepen into the task of building of

visualization maps for status of the system-of-

interest, as well as to explore the possibility of

implementing automatic solution for emerging

failures in operation. That is also very important

when working with Big Data, for it is a perfect

example of an integrated system of many

components and transactions with high availability

demands.

However, for applying of preventive measures is

often require to get some statistics for the reporting

period. Such data can be formed, if an optimal

monitoring system, which is not overloaded with

redundant information, but contains a description of

all key aspects of operation for system-of-interest is

in place.

ACKNOWLEDGMENTS

The research is supported by the RFBR grant 16-29-

12965.

REFERENCES

Becker J., Kozyrev O., Babkin E., V. Taratoukhine, N.

Aseeva. 2016. Emerging Trends in Information

Systems: Recent Innovations, Results and Experiences.

Springer Int. Publ., Switzerland, ISBN 978-3-319-

23929.

Coulouris G., Dollimore J., Kindberg T., Blair G. 2013.

Distributed Systems: Concepts and Design. Fifth

edition. Addison-Wesley.

Dourish P., Swinehart D., and Theimer M.. 2000. The

Doctor Is In: Helping End Users Understand the

Health of Distributed Systems. In Proc. of the

IFIP/IEEE International Workshop on Distributed

Systems: Operations and Management, December

2000.

Ferdowsi M., Benigni A., Löwen A., McKeever P., Monti

A., and Ponci F.. 2014. New Monitoring Approach for

Distribution Systems. Proc. of 2014 IEEE

International Instrumentation and Measurement

Technology Conference (I2MTC), 12-15 May 2014.

Ferdowsi M., Zargar B., Ponci F. and Monti A.. 2014.

Design Considerations for Artificial Neural Network-

based Estimators in Monitoring of Distribution

Systems, 2014 IEEE International Workshop on

Applied Measurements for Power Systems (AMPS

2014), (24-27 September 2014, Aachen, Germany).

GE Intelligent Platforms. http://www.ge-ip.com.

Guo, C.G., Zhu, J., Li, X.L. 2010. A Generic Software

Monitoring Model and Features Analysis. Proc. of the

2010 Second International Conference on Networks

Security, Wireless Communications and Trusted

Computing, Washington DC, 2010, pp. 61–64.

Joyce, J., Lomow, G., Slind, K., Unger, B. 1987.

Monitoring Distributed System. ACM Transactions on

Computer Systems, Vol. 5(2), pp. 121–150.

Korableva, O., Guseva, M. 2015. Activation of innovation

processes in banks as a result of the implementation of

basic basel accord provisions. Ikonomicheski

Izsledvania, Volume 24, No 3, pp. 108-128.

Korableva O., Kalimullina O. 2014. The Formation of a

single legal space as a prerequisite for overcoming

systemic risk. Asian Social Science, Vol. 10 (21), 256-

260.

Building the Monitoring Systems for Complex Distributed Systems: Problems and Solutions

227

Korableva, O., Kalimullina, O. 2016 a. An Innovative

Approach to Strategic Risk Management in Banking:

Russian Banks Case Study. WSEAS Transactions on

Business and Economics, Volume 13, Art. #25, pp.

269-282.

Korableva O., Kalimullina O. 2016 b. Strategic Approach

to the Optimization of Organization Based on the BSC

SWOT Matrix. Proceedings of the International

Conference on Knowledge Engineering and

Applications. ICKEA, 2016. Singapore, September

28-30, 2016. p. 212-215.

Korableva O., Litun V. 2014. The potential of transitive

economies’ growth based on innovative strategy.

WSEAS Transactions on Business and Economics. 11

(68), 725-736.

Kshemkalyani, A.D., Singhal, M. 2008. Distributed

Computing Principles, Algorithms, and Systems.

Cambridge University Press.

Latyshev, I. O., & Akhmetshin, E. M. 2015.

Methodological approaches to analyzing the indicators

of human capital management in the interests of

innovation development of enterprise. International

Business Management, 9(6), 1565-1570.

doi:10.3923/ibm.2015.1565.1570.

Yang, S.Y., Chang, Y.Y. 2011. An active and intelligent

network management system with ontology based and

multi agent techniques. Expert Systems with

Applications, Vol. 38(8).

Phuc, T.N.H., Son, L.V. 2012. Monitoring of large scale

distributed systems based on SNMP development. The

Journal of Science and Technology. Danang

University, Vol. I(8), 2012, pp. 79–84.

Phuc, T.N.H, Son, L.V. 2013. An Online Monitoring

Solution for Complex Distributed Systems Based on

Hierarchical Monitoring Agents. Springer Int. Publ.

Proc. of the Fifth International Conference KSE 2013,

Volume 1, pp. 187-198.

Russom Ph.. 2013. Operational intelligence. Real-Time

Business Analytics from Big Data. TDWI Cheсklist

Report. http://www.splunk.com/pdfs/white-papers/

real-time-business-analytics-from-big-data.pdf-3.

Sambasivanm R., Fonseca, R., Shafer, I., and Ganger, G.

2014. So, you want to trace your distributed system?

Key design insights from years of practical experience.

CMU PDL Technical Report, CMU-PDL-14-102,

April 2014.

Sharma A., Chen H., Ding M., Yoshihira K., Jiang G..

2013. Fault Detection and Localization in Distributed

Systems using Invariant Relationships. 43rd Annual

IEEE/IFIP International Conference on Dependable

Systems and Networks (DSN), 24-27 June 2013, pp. 1

– 8.

Sigelman, B., Barroso, L., Burrows, M., Stephenson, P.,

Plakal, M., Beaver, D., Jaspan, S., and Shanbhag, C.

2010. Dapper, a large-scale distributed systems tracing

infrastructure. Technical Report dapper-2010-1,

Google, April.

Sloman, M. 1994. Network and Distributed Systems

Management. Addison Wesley.

Son, L.V., Phuc, T.N.H. 2010. Researching on an online

monitoring model for large-scale distributed systems.

Proc. of the 13th National Conference in Information

and Communication Technology, (Hungyen, Vietnam,

2010).

Thakuriah, P., N. Tilahun and M. Zellner (2015). Big Data

and Urban Informatics: Innovations and Challenges to

Urban Planning and Knowledge Discovery. In Proc. of

NSF Workshop on Big Data and Urban Informatics,

pp. 4-32.

Toporkov V., Toporkova A., Tselishchev A., Yemelyanov

D., Potekhin P.. 2015. Metascheduling and heuristic

co-allocation strategies in distributed computing.

Computing and Informatics, Vol. 34 (1), pp. 45–76.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

228
