Towards Including Layout Properties for Modeling Graphical User

Interfaces

Generic Properties for GUI Metamodels

Sarra Roubi

, Mohammed Erramdani

and Samir Mbarki

High School of Technology, Mohamed First University, Oujda, Morocco

Department of Computer Science, Ibn Tofail University, Kenitra, Morocco

Keywords: Model Driven Engineering, Layout, Transformation, Model, Meta Model, User Interface, Position.

Abstract: Software applications have come to simplify the task for users and offer them automated functionalities.

These applications must therefore contain high-performance and efficient user interfaces in order to

translate correctly the user’s needs. Indeed, several elements contribute to the ergonomics of these

interfaces, among them the position and layout of the graphical components which play a very important

role to ensure this. However, the design and implementation of such user interfaces for different platform

using several programming languages can be tedious and time consuming, especially when the application

gathers a large number of interfaces or screens. Since the model driven engineering aims at automating the

process of development and raising the level of abstraction, we can use model driven principles to help

users choose the right component in the right position on the interface. That is why we present an approach

that combines model driven engineering principles and the graphical user interfaces to handle automated

layout and position.

1 INTRODUCTION

Today, developing high level applications requires

an approach to software architecture that helps

architects evolve their solutions in flexible ways.

Besides, generating application and reuse of code to

focus on functionalities rather that code effort is

required.

These ideas, among others, were considered

central by the Object Management Group (OMG) to

address several challenge raised by new software

technologies.

The OMG, which is a consortium of software

organizations, aims at developing and supporting

specifications to improve the practice of enterprise

software development and deployment. It

encourages efficient use of system models in the

software development process and puts the model at

the heart of the development process. Such

approaches promise improvements in terms of

quality and cost by raising the abstraction level of

the development.

Moreover, it is through the graphical interfaces

that the user can interact with the application and use

the functionalities that are offered. Besides, the

presentation layer should be ergonomic and well

presented. On the other hand, it should face several

challenges, among them, the diversity of the

interaction devices which certainly involves

multiples interaction platforms.

That is why several researches have applied

model-driven techniques to the specification of

software application and precisely interfaces and

user interactions. Among them, the ones focusing on

Web interfaces like OOH-Method (Gmez et al,

2001), WebML (Ceri et al, 2002) and RUX-Model

(Linaje et al, 2007). Furthermore, some approaches

apply model driven techniques for multi-device UI

modeling, such as TERESA (Berti et al, 2004),

MARIA (Paterno et al, 2009), IFML (Brambilla et

al, 2014), (Roubi, Erramdani and Mbarki, 2016).

However, there is no complete approach that handles

layout and constraints for components and user

interface.

In this paper, we propose a model driven

approach taking into account the layout and position

from the input model of the whole process.

The paper is organized as follows section 2

summarizes related works. Section 3 and 4 present

556

Roubi S., Erramdani M. and Mbarki S.

Towards Including Layout Properties for Modeling Graphical User Interfaces - Generic Properties for GUI Metamodels.

DOI: 10.5220/0006272505560560

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 556-560

ISBN: 978-989-758-210-3

respectively the proposed approach with examples

and Section 5 concludes.

2 RELATED WORK

This work is related to several previous works

dealing with conceptual modeling of software

applications, especially the graphical aspect. Some

of these works focused on the web platform: The

Web Modeling Language (WebML) (Ceri, 2002),

defined as a conceptual model for data-intensive

Web. Also, the OO-HDM method by (Schwabe and

Rossi, 1995) presents an UML-based approach for

modeling and implementing Web application

interfaces. Moreover, WebDSL (Groenewegen et al.,

2008) is a domain-specific language consisting of a

core language with constructs to define entities,

pages and business logic.

Some researches apply model based approaches for

multi-device user interface development. Among

them we can cite: TERESA (Transformation

Environment for inteRactivE Systems

representations) (Berti et al, 2003) and MARIA with

(Paterno et al, 2009). Also, UsiXML (USer Interface

eXtended Markup Language) (Vanderdonckt, 2005).

Another related work on applying MDA approach

for Rich Internet Applications is found in (Martinez-

Ruiz et al, 2006). The approach is based on XML

User Interface description languages using XSLT as

the transformation language between the different

levels of abstraction

Other recent proposals in the Web Engineering

field represent the RIA foundations (Urbieta et al,

2007) by extending existing Web engineering

approaches. We also find combination of the UML

based Web Engineering (UWE) method for data and

business logic modeling with the RUX-Method for

the user interface modeling of RIAs was proposed as

model-driven approach to RIA development

(Preciado et al, 2008).

These methods focused on generating the

application code in general and several elements that

handle layout management are not taken into

account. Consequently, these methods do not focus

on generating the application and its interfaces

without taking into account the position and layout

manager. This task is done by hand and can be time

consuming and needs more rework.

In this paper, we propose an idea to develop

which consider completing Meta Models with

generic elements that help generating the layout

manager while transforming the whole model. Those

meta elements should be generic and not related to a

specific platform or technology, so it can be used

with several methods and approaches.

3 PROPOSED MODEL DRIVEN

ENGENEERING

3.1 Proposed Meta Model

In order to automate the process of generating

graphical interfaces for Web and Desktop, we

proposed a Meta Model as a Platform Independent

Model. This Meta Model simplifies the task for

users to design their application in terms of major

functionalities. Each one of these functionalities is

divided into operation and action performed by the

user.

The proposed PIM meta model contains the

following :

 Use Case: describes the main functionality

offered by the system.

 MainOperation: express the concept of the

generic operation performed by the user to

interact with the system. This operation is

divided into several atomic activities.

 Task: represents the atomic task done by the user

to handle a part of the main operation; (select an

element from a list, input information).

 Property: gives further information about the

activity, such as if it is a single or multiple

choice. This property narrows the translation

into graphical component in the PSM meta

model.

 TaskType: enumeration that lists the basic types

that an activity could belong to

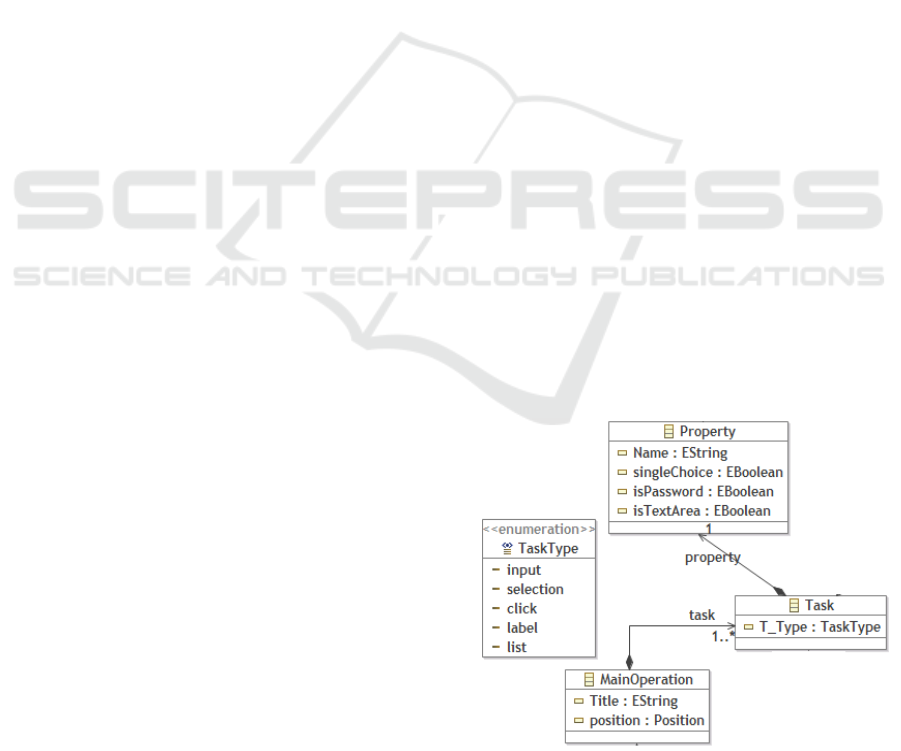

Figure 1: Proposed meta elements for modeling the

graphical user interface.

Towards Including Layout Properties for Modeling Graphical User Interfaces - Generic Properties for GUI Metamodels

557

When creating a model as an instance of the

proposed meta-model, the graphical interface is

hierarchized. Indeed, in the first row, we find the use

case with the main functionality of the application.

This functionality is divided into one or more major

operations, each of which has atomic activities that

describe user actions produced by the user towards

graphic components.

In order to complete the meta-model, we have

added elements to include the choice of the user in

terms of positions in the interface. In fact, these

elements will be used in the transformation phase to

choose the most suitable layout.

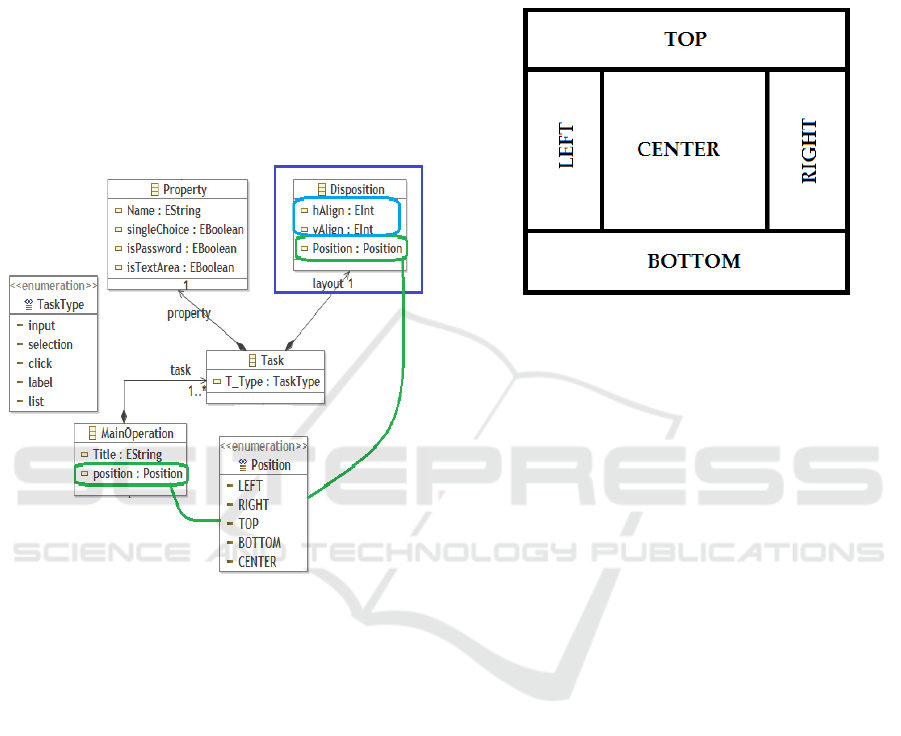

Figure 2: Position elements for the main operation.

First, we added an enumeration with the five

positions as explained bellow. Each major operation

is placed in the right position.

Second we added the meta element Disposition

that describes the vertical and horizontal location

besides the relative position itself. The idea is to

divide the interface into boxes of a grid and this

activity is localized by a peer (V, H) which allows

associating the position in the most appropriate

layout manager.

3.2 Proposed Process for Component’s

Position

For the proposed approach, we thought of having

two levels of layout in dependence with the two

elements MainOperation and Task of the proposed

metamodel.

First, the MainOperation is positioned relative to

the entire Interface. To do this, we divided the

interface into five regions, Top, Bottom, Centre, Left

and Right. Each major operation will be placed in

one position depending on the user wishes which

will be added to the input model. Later with the

transformation engine, the whole interface will take

a container as a grid with the five positions.

Figure 3: The five region in the graphical Interface.

Second, since each operation contains one or

several tasks, these tasks need to be placed in their

container properly. At this level, the mainOperation

will be the container for the gathered tasks. That’s

why we integrated the pair (V, H) for each atomic

task performed by the user to describe the vertical

and horizontal positions. Again, in the

transformation process, we will take into

consideration these information and choose the

proper layout and place the generated component in

the right position. These elements are integrated in

the input model as described in Fig.4. They are

added as properties to both MainOperation and Task

elements.

We can say that we still are independent from

any platform since we did not use any technical

detail or specific layout manager at this stage. This

helps the user to define one model that can be used

for several platforms and technologies.

These elements are independent from any

specific platform or meta modeling elements. So we

can add them as an extension to the IFML also, since

it is an extensible Meta Model. Indeed, those

properties can complete the extension presented in

(Roubi et al, 2016) with the Field element

extensions.

Moreover, we are working on a more advanced

transformation algorithm to choose properly the

right layout and expand the range of choices and not

be limited to the three types already included.

Indeed, we can add the constraints manager for the

transformation algorithm without adding more

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

558

complex elements to the meta models themselves.

Indeed, we should not have too complex Meta

Models or related to a specific execution platform.

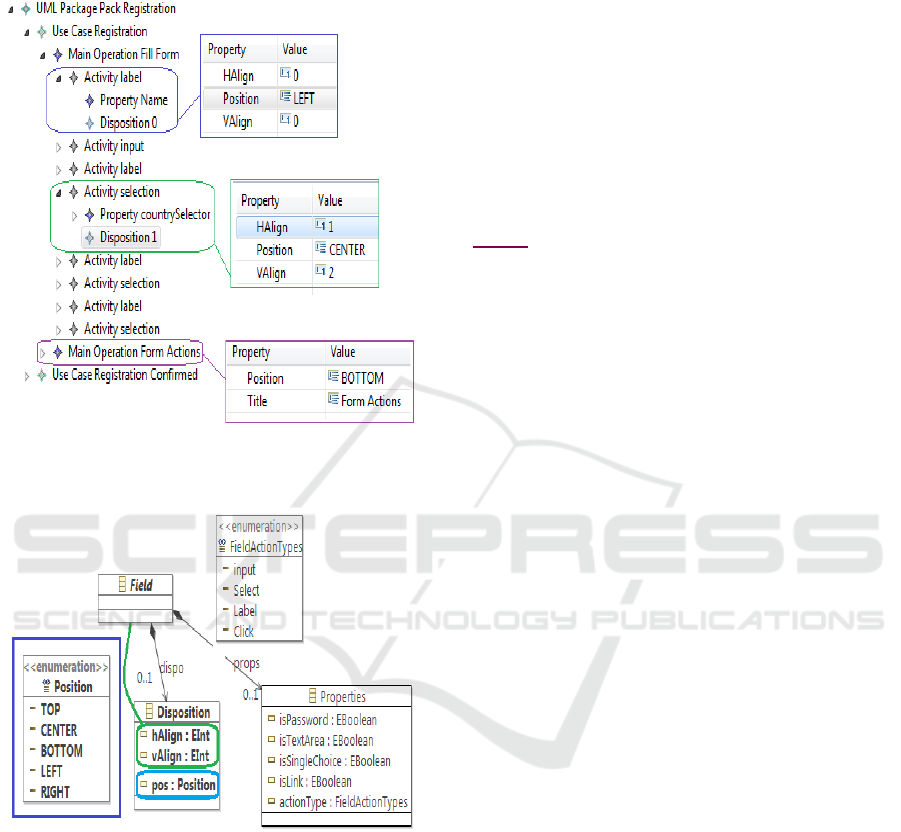

Figure 4: Model Instance of the proposed metamodel with

proposed position properties.

Figure 5: Extension of the IFML by the proposed position

elements.

4 TRANSFORMATION PROCESS

In order to automate the whole process, we

developed a Model To Model transformation engine

that takes into account the elements added for the

position of components. Indeed, we used Query

View Transformation for the Model To Model

Transformation process. We chose the Swing

desktop application and Rich internet Applications.

The code excerpt below describes transformation

from the input abstract elements to their

corresponding ones respecting Rich Internet

Application for both the position and the layout.

mapping

GUIMVP::Disposition::layoutToPosition(

) : JAVAFXMVP::CDispos {

result.xPos := self.hAlign;

result.yPos := self.vAlign;

result.cellPos :=

self.Position.guiPositionToJavaFXPosit

ion();

}

query

GUIMVP::Position::guiPositionToJavaFXP

osition() : JAVAFXMVP::Position {

switch {

case(self=Position::LEFT)

{

return JAVAFXMVP::Position::LEFT;

}

case(self=Position::RIGHT)

{

return JAVAFXMVP::Position::RIGHT;

}

case(self=Position::CENTER)

{

return JAVAFXMVP::Position::CENTER;

}

case(self=Position::TOP)

{

return JAVAFXMVP::Position::TOP;

}

case(self=Position::BOTTOM)

{

return JAVAFXMVP::Position::BOTTOM;

}};

Afterwards, with the Model To Text

transformation, we consider the generated elements

to choose the corresponding layout and positions for

each component. The result of the generated source

code :

<[theRoot.position.toString().toLowerC

ase()/]>

<[if(theRoot.Type=RootType::GridPane)]

GridPane[/if]>

<TextField id="[item.value/]"

text="[item.value/]"

GridPane.rowIndex="[widget.position.xP

os/]"

GridPane.columnIndex="[widget.position

.yPos/]"/>

Towards Including Layout Properties for Modeling Graphical User Interfaces - Generic Properties for GUI Metamodels

559

5 CONCLUSIONS

In this paper, we presented an approach based on

Model Driven Development to design and generate

graphical user Interface. We focused on the

graphical part of the application by adding new

elements to the proposed Meta Model. These

elements improve the resulting interface by taking

into account the user’s wishes for positions and

Layouts. However, the algorithm behind

transformation is limited to grid layout type. We

should improve it and gather more complex layout

manager and constraints.

The idea is to stay separated from a specific

platform and keep the Meta Models as much simple

as possible by reducing the elements and properties

added.

REFERENCES

Berti, S., Correani, F., Mori, G., Paterno, F., and Santoro,

C., 2004. Teresa: a transformation-based environment

for designing and developing multidevice interfaces.

In CHI Extended Abstracts, pages 793–794.

Brambilla, M. et al., 2014. Extending the Interaction Flow

Modeling Language ( IFML ) for Model Driven

Development of Mobile Applications Front End To

cite this version : Extending the Interaction Flow

Modeling Language ( IFML ) for Model Driven

Development of Mobile Applications Front End.

Brambilla, M., Fraternali, P., et al, 2014. The interaction

flow modeling language (ifml), version 1.0. Technical

report, Object Management Group (OMG),

http://www.ifml.org.

Ceri S,., Fraternali, P., Bongio, A., Brambilla, M., Comai,

S., and Matera, M., 2002. Designing Data-Intensive

Web Applications. The Morgan Kaufmann Series in

Data Management Systems. Morgan Kaufmann

Publishers Inc.

Gmez, J., Cachero, C., Pastor, O., 2001. Conceptual

modeling of device-independent web applications.

pages 26–39.

Groenewegen, D., Zef Hemel, Lennart C. L. Kats, and

Eelco Visser, 2008. Webdsl: a domain-specific

language for dynamic web applications. In Gail E.

Harris, editor, OOPSLA Companion, pages 779–780.

ACM.

Linaje, M., Preciado, J.C., and Sanchez-Figueroa, F.,

2007. A Method for Model Based Design of Rich

Internet Application Interactive User Interfaces. In

Proceedings of International Conference on Web

Engineering, July 16-20, 2007, Como, Italy, pages

226–241.

Martinez-Ruiz, F.J., Arteaga, J.M., Vanderdonckt, J., and

Gonzalez-Calleros, J.M., 2006. A first draft of a

model-driven method for designing graphical user

interfaces of Rich Internet Applications. In LA-Web

06: Proceedings of the 4th Latin American Web

Congress, pages 3238. IEEE Computer Societ.

Paterno, F., Santoro, C., and Spano, L.D., 2009. Maria: A

universal, declarative, multiple abstraction-level

language for service-oriented applications in

ubiquitous environments. ACM Trans. Comput.-Hum.

Interact., 16(4).

Roubi, S., Erramdani, M. and Mbarki, S. 2016, Extending

graphical part of the interaction Flow Modeling

Language to generate Rich Internet graphical user

interfaces, MODELSWARD 2016 - Proceedings of the

4th International Conference on Model-Driven

Engineering and Software Development, pp. 161.

Schwabe, D. and Rossi, G., 1995. The object-oriented

hypermedia design model. Communications of the

ACM, 38(8), pp.45–46.

Schwabe, D., Rossi, G., 1995. The object-oriented

hypermedia design model. pages 45–46.

Urbieta, M., Rossi, G., Ginzburg, J., and Schwabe, D.,

2007. Designing the Interface of Rich Internet

Applications. In Proc. LA-WEB’07, pages 144–153.

Vanderdonckt, J., 2005. A MDA-compliant environment

for developing user interfaces of information systems.

In CAiSE, pages 16–31.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

560
