Measuring the Latency of an Augmented Reality System for

Robot-assisted Minimally Invasive Surgery

Martin Kibsgaard and Martin Kraus

Department of Achitecture, Design and Media Technology, Aalborg University, Aalborg, Denmark

Keywords:

Augmented Reality, Latency, Teleoperation, Telepresence, Medical Training, Robot-assisted Surgery.

Abstract:

Minimal latency is important for augmented reality systems and teleoperation interfaces as even small in-

creases in latency can affect user performance. Previously, we have developed an augmented reality system

that can overlay stereoscopic video streams with computer graphics in order to improve visual communication

in training for robot-assisted minimally invasive surgery with da Vinci surgical systems. To make sure that

our augmented reality system provides the best possible user experience, we investigated the video latency of

the da Vinci surgical system and how the components of our system affect the overall latency. To measure the

photon-to-photon latency, we used a microcontroller to determine the time between the activation of a light-

emitting diode in front of the endoscopic camera and the corresponding increase in intensity of the surgeon’s

display as measured by a phototransistor. The latency of the da Vinci S surgical system was on average 62 ms.

None of the components of our overlay system (separately or combined) signiﬁcantly affected the latency.

However, the latency of the assistant’s monitor increased by 14 ms. Passing the video streams through CPU or

GPU memory increased the latency to 147 ms and 256 ms, respectively.

1 INTRODUCTION

During training for robot-assisted minimally invasive

surgery, visual communication is limited as the im-

mersive interfaces of most surgical robots block the

line of sight between instructors and trainees. To bet-

ter support visual communication during training on

the da Vinci surgical systems, we have developed a

system that overlays the stereoscopic video streams

with computer graphics. We describe the system in

detail in (Kibsgaard and Kraus, 1999) and a speciﬁc

application of the system in (Kibsgaard and Kraus,

2016). The core of the system is a computer with two

video capture cards that can overlay the video streams

with low latency.

The system intercepts the main video streams be-

tween the camera control units and the surgeon’s con-

sole that is used to control the robot. Even though

the video capture cards can overlay the video streams

in less than 1 millisecond, we know from previous

experience (Matu et al., 2014) that introducing ad-

ditional latency can affect the overall latency signif-

icantly more than just the time it takes to overlay

the video streams. Unfortunately, increasing overall

latency of teleoperation in augmented reality or vir-

tual reality systems reduces user performance and in-

creases error rates (Azuma et al., 2001; Ellis et al.,

1997; Ware and Balakrishnan, 1994).

In this paper, we investigate the video latency of

the da Vinci surgical system and how our system and

its components affect the overall latency. In Section 2,

we present the current setup of our system and how

others have measured latency of augmented reality

systems. The approach we use to measure latency

and a description of different overlay setups and com-

ponents is described in Section 3. The measured la-

tencies of the different setups are presented and dis-

cussed in Section 4.

2 PREVIOUS WORK

Most previous works on augmenting the video

streams of the da Vinci surgical systems introduce sig-

niﬁcant additional latency on the video signals. Many

approaches (Ali et al., 2008; Su et al., 2009; Matu

et al., 2014; Jarc et al., 2016) transfer image data from

the video streams to a CPU and in some cases also to

a graphics card, which in both cases results in more

than 100 ms additional latency of the video signals.

Azuma et al. claimed that delays as small as 10 ms

can have a negative effect on user performance for

Kibsgaard M. and Kraus M.

Measuring the Latency of an Augmented Reality System for Robot-assisted Minimally Invasive Surgery.

DOI: 10.5220/0006274203210326

In Proceedings of the 12th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2017), pages 321-326

ISBN: 978-989-758-224-0

321

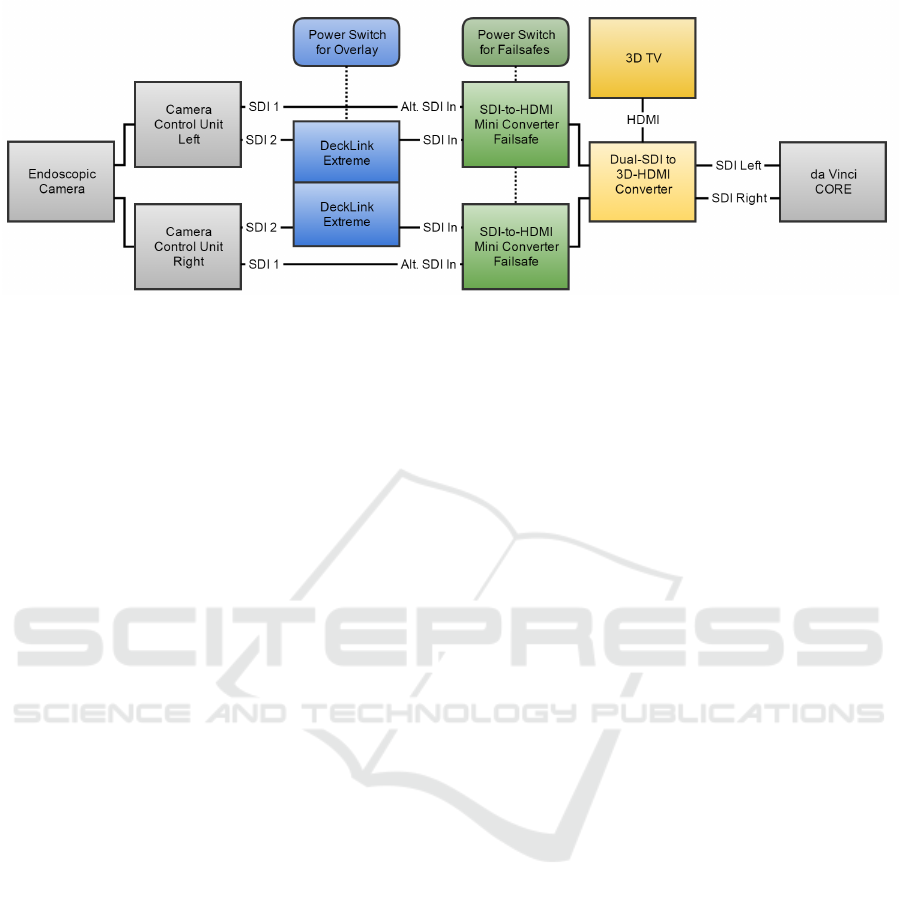

Figure 1: Overview of the setup we use to overlay the video streams of the da Vinci S surgery system with computer graphics

including failsafes and a 3D TV. Grey: standard da Vinci S components. Blue: overlay system (video capture cards in a

computer). Green: Mini-converters used as loss-of-signal switches. Yellow: 3D HDMI conversion and 3D TV.

some tasks (Azuma et al., 2001), thus an additional

100 ms latency is unwanted. The approaches that can

overlay the video streams with low latency only work

with the SD-SDI format of the ﬁrst generation robot

(Figl et al., 2010) or employed now obsolete and dis-

continued hardware (Hattori et al., 2003).

Our system (Kibsgaard and Kraus, 1999) uses two

generation DeckLink HD Extreme video capture

cards to overlay the HD video streams of the da Vinci

S surgical system with computer graphics: one video

capture card for the left channel and one for the right

channel. To generate the computer graphics, we have

integrated the DeckLink API with the popular Unity

game engine. The system generates stereo graphics

using a virtual camera setup that is similar to the en-

doscope of the surgery robot and outputs it through

the DeckLink cards using internal keying (overlay-

ing). The manufacturer of the video capture cards,

Blackmagic Design, claims that the internal keying

introduces less than 1 millisecond of additional la-

tency on the video stream passing through the video

capture cards The hardware setup and connections for

the overlay system are illustrated in detail in Figure 1.

The output of each of the two video capture cards

is connected to separate SDI-to-HDMI converters

along with the redundant output of each camera con-

trol unit of the surgery robot, which are connected

to the converters’ alternate input. In this conﬁgura-

tion, the converters function as loss-of-signal switch-

ers that revert the video streams to the original video

signal in case the overlay system malfunctions and/or

is shut down.

The standard da Vinci S surgical system pro-

vides monoscopic monitors for assistants and instruc-

tors. To provide them with a stereoscopic view of

the surgery ﬁeld and the computer graphics, our sys-

tem also includes a Matrox MC-100 Dual-SDI-to-3D-

HDMI converter which is connected to a 3D TV with

passive stereo glasses. The MC-100 is connected be-

tween the loss-of-signal switchers and the surgeon’s

console to make sure that the 3D TV always shows

the same images as the console. The drawback of this

placement is that the video signals rely on an addi-

tional component even when the rest of the overlay

system is off.

Previous works that measure latency of aug-

mented reality systems with video see-through dis-

plays distinguish between two categories of latency:

photon-to-photon latency and motion-to-photon la-

tency. The ﬁrst is in some cases also called visual

latency and relates to the time it takes from a pho-

ton entering a camera until a corresponding photon

is emitted and visible on a display. In our case,

that is the latency between light entering the stereo-

endoscopic camera until it is displayed on the sur-

geon console’s displays. Motion-to-photon latency is

sometimes called input latency and is the time from

the user providing an input to a corresponding change

that is visible on a display. As our overlay system only

affects the video streams, measuring the photon-to-

photon latency is sufﬁcient for measuring how much

the motion-to-photon latency is affected by our sys-

tem.

To measure photon-to-photon latency, Jacobs et

al. placed a light emitting diode (LED) in front of a

camera and powered the LED using a low frequency

signal generator (Jacobs et al., 1997). They placed

a photoelectric sensor on the display and connected

it and the signal generator to an oscilloscope. The

photon-to-photon latency could then be determined

by the oscilloscope as the time offset between the two

signals. Because of the discrete nature of video, the

measured latency is dependent on when the LED is

triggered in relation to the shutter of the camera. To

get a representative sample, the measurements have to

be repeated many times. This setup is most useful if

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

322

only a few setups have to be measured.

To automatically record the measurements, Bliss-

ing and Bruzelius replaced the signal generator and

oscilloscope with a computer (Blissing and Bruzelius,

2015). This makes it possible for the computer to

quickly measure multiple times and correlate the mea-

surements with events and performance of the host

computer. They provide no speciﬁcs on the hardware

and software that was used to obtain the measure-

ments. Bachhuber and Steinbach implemented sim-

ilar test equipment using an Arduino Uno microcon-

troller to control the LED and measure the change in

light intensity of the display (Bachhuber and Stein-

bach, 2015). The microcontroller samples the light-

to-voltage sensor at 2 kHz achieving a resolution of

0.5 ms.

Sielhorst et al. proposed a setup that can mea-

sure the absolute latency more precisely with fewer

measurements (Sielhorst et al., 2007). It does so by

recording the display of the augmented reality system

with the camera of the same system. It is then able

to measure the time it takes from the time when the

overlay system outputs an image to the time when the

same image is captured by the camera and it arrives

in system memory. However, as some of the setups

that we are interested in do not pass the image data

through system memory, this approach is not usable

for our system.

3 MEASURING LATENCY

3.1 Test Equipment

To measure photon-to-photon latency of our overlay

system, we have developed test equipment that is sim-

ilar to previously proposed setups (Bachhuber and

Steinbach, 2015; Blissing and Bruzelius, 2015) using

basic electronic components and a microprocessor. A

light emitting diode (LED) controlled by a microcon-

troller is placed in front of the stereoscopic camera

and a high-speed light-to-voltage sensor is placed in

front of the display in the surgeon’s console (Fig-

ure 2). To determine the photon-to-photon latency,

the microcontroller switches on the LED and mea-

sures the time it takes to detect the corresponding rise

in light intensity of the display.

A schematic of the circuit that is connected to the

microcontroller can be seen in Figure 3. The LED we

chose is a high brightness white LED to ensure a sig-

niﬁcant change in intensity of the display. The light-

to-voltage sensor is a visible-light phototransistor in

series with a resistor. The varying voltage from the

sensor is connected to the built-in voltage comparator

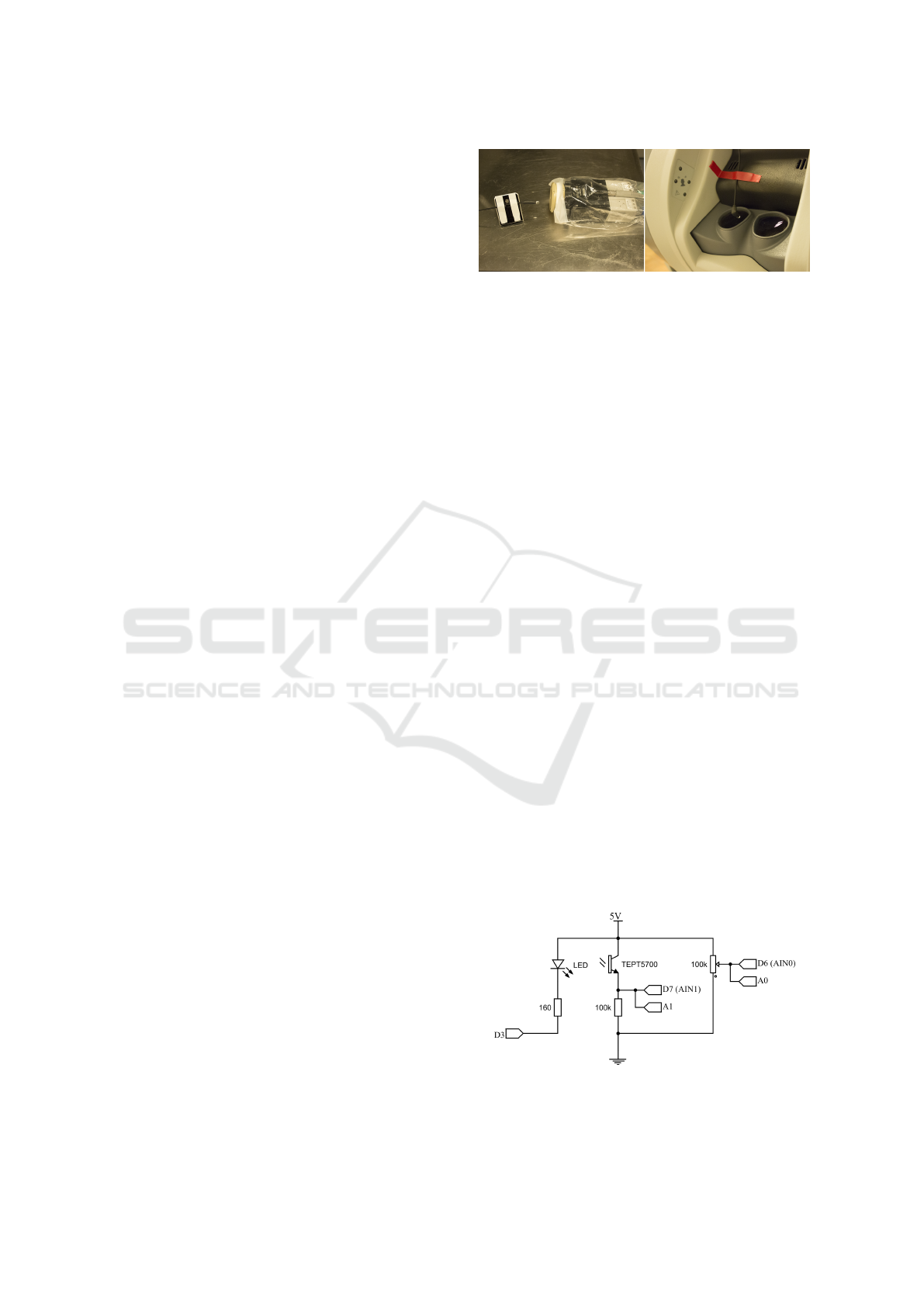

Figure 2: Test setup. Left: LED in front of endoscopic cam-

era (without lens). Right: Light to voltage sensor in front of

displays in the surgeon’s console. Both were covered during

measurements to block light from the environment.

of the ATmega328P microcontroller on an Arduino

Uno. This makes it possible for the microcontroller to

immediately trigger and stop timing when the sensed

voltage rises past a set threshold. The beneﬁt of this

approach is that it provides a higher resolution (4 µs

vs. 100 µs) compared to sampling at a ﬁxed frequency

in previous works (Bachhuber and Steinbach, 2015;

Blissing and Bruzelius, 2015). However, this prevents

us from using an automatic threshold adjustment and

ﬁltering (Bachhuber and Steinbach, 2015). The ref-

erence voltage for the comparator (threshold) is in-

stead set by an external potentiometer that has to be

adjusted to match the monitor’s intensity range.

To automate the measurements further, we im-

plemented a simple application that communicates

with the microcontroller via USB (UART). The ap-

plication can start tests and save the results to a ﬁle

with a user-speciﬁed number of measurements and

ﬁle name. To avoid aliasing artefacts, a random de-

lay is introduced between each measurement. The

delay has to be larger than the highest measured la-

tency to avoid triggering on the previous measure-

ment’s intensity change. Source code is available at

https://github.com/Kibsgaard/latency-measurement.

To avoid that other light sources in the environ-

ment affect the measurements, we covered the cam-

era and display with opaque sheets of fabric. This

also makes it possible to set the threshold of the com-

parator lower, which makes the system react faster to

rises in light intensity.

Figure 3: Schematic of the test equipment. The labels are

based on Arduino Uno pin mapping. “A0” and “A1” are

used during calibration.

Measuring the Latency of an Augmented Reality System for Robot-assisted Minimally Invasive Surgery

323

3.2 Overlay Setups

To measure our system’s effect on the photon-to-

photon latency we used the test equipment with the da

Vinci S surgical system where our system is installed

and used during training at Aalborg University Hos-

pital. The installed overlay system uses two Deck-

Link HD Extreme 2 video capture cards, two SDI-

to-HDMI converters and one Matrox MC-100 SDI-

to-3D-HDMI converter. Note that the SDI-to-HDMI

converters are only used as loss-of-signal switchers

and the HDMI signal is not used. The MC-100 out-

puts both a 3D-HDMI signal for the 3D TV and pass-

through SDI signals that are connected to the surgical

system. We measured the latency of multiple com-

binations of the components to investigate their indi-

vidual and combined latency as well as to see if any

combination of the components has an effect on the

synchronization of the signals.

Furthermore, we tested the system with different

DeckLink video capture cards to investigate claims

of slower internal keying (1-2 frames) on some of

the newer generation cards (Jefferson, 2015). In one

setup, we exchanged the DeckLink HD Extreme 2

cards with a DeckLink 4K Extreme card and in an-

other setup with a DeckLink Quad 2 card. Further-

more, we measured the photon-to-photon latency of

the assistant’s monitor both with and without the at-

tached overlay system. The latency of the installed 3D

TV was also measured to compare it to the standard

monitor that is available to the assistants.

With the current setup, the image data from the

video signals is never transferred to the system mem-

ory of the computer that overlays the video streams

with computer graphics. Instead, the computer sends

the computer graphics to the video capture card,

which then overlays the incoming video signal a few

lines at a time and immediately outputs them. Thus,

it is not possible for the system to do any form of im-

age processing on the incoming data (apart from the

alpha blending that is used for overlaying). By using

a DeckLink Quad it is possible to transfer the image

data to system memory, modify it and output it again;

although with a signiﬁcant latency increase as it has

to wait for a complete frame (33.3 ms) and do at least

two memory transfers.

The newer DeckLink Quad 2 is capable of keying

HD video signals, which makes it possible to input the

image data and process it while simultaneously over-

laying the input signals with computer graphics. Note

that the image data still arrives later in system mem-

ory compared to the signal being overlaid, which re-

sults in delayed graphics in cases where the graphics

rely on information from the processed image data.

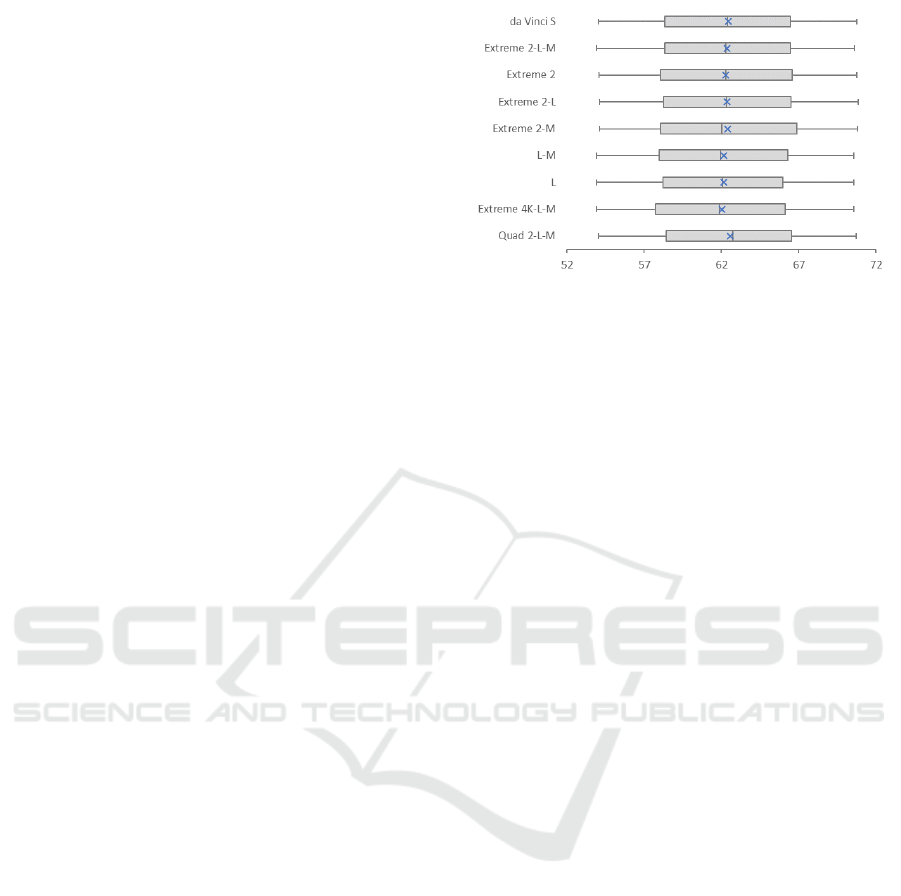

Figure 4: Photon-to-photon latency (in ms) of the da Vinci S

surgical system with various conﬁgurations of our system.

(“L” stands for loss-of-signal switchers; “M” for the MC-

100 SDI-to-3D-HDMI converter.) The blue “×” marks the

average latency.

In addition, we also measure the latency intro-

duced by transferring the image data to a graphics

card’s memory, modifying it and copying it back.

This was done using sample code from the Deck-

Link SDK. The overlay system has a NVIDIA Quadro

4000 graphics card, which makes it possible to utilize

GPUDirect. This feature removes one memory copy

operation by giving the video capture card and graph-

ics card access to the same system memory. However,

the image data still has to be copied from the video

capture card to system memory and then to the graph-

ics card’s memory (and back again).

The last setup we measured was using a video

switcher with built-in keying functionality instead of

keying using the DeckLink cards. We tested this with

the Blackmagic Design ATEM Television Studio that

supports downstream, chroma and luma keying.

4 RESULTS

All measurements were performed on a da Vinci S

surgical system, which uses a video signal with a

1080i video format and a refresh rate of 59.94 ﬁelds

per second. (One frame of an interlaced video for-

mat consists of two ﬁelds.) We measured the in-

herent photon-to-photon latency of the standard da

Vinci S surgical system to be 62.4 ms (SD = 4.7 ms,

N = 1000) with a minimum measurement of 54.0 ms

and maximum of 70.7 ms. As shown in Figure 4,

there were no noticeable differences in measured la-

tency between the surgery system without and with

the overlay system that we presented previously (Kib-

sgaard and Kraus, 1999). This includes different

combinations of components and measurements with

the newer generation DeckLink video capture cards,

DeckLink 4K Extreme and DeckLink Quad 2, which

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

324

were claimed to introduce higher latency (Jefferson,

2015).

The measurements are evenly spread and stayed

within the duration of one ﬁeld (16.7 ms). This in-

dicates that the displays of the surgeon’s console are

well synchronized with the camera control units and

none of the setups displayed in Figure 4 disrupted this

synchronization.

The measurements of the assistant’s monitor

(telestrator) are more spread and here the overlay sys-

tem has a noticeable effect on the photon-to-photon

latency (Figure 5). The latency of the telestrator is

on average 110.7 ms (SD = 8.0 ms, N = 1000) with-

out the overlay system and 125.1 ms (SD = 7.6 ms, N

= 1000) with the attached overlay system resulting in

14.3 ms increased latency.

As shown in Figure 6, passing the image data

through the overlay system’s memory increases the

photon-to-photon latency from the endoscopic cam-

era to the surgeon’s console signiﬁcantly. By trans-

ferring the image data to system memory, modify-

ing a few pixels using the CPU and immediately out-

putting it through the DeckLink cards, the photon-to-

photon latency is increased by 84 ms to an average of

145.6 ms (SD = 4.9 ms, N = 999). One extreme outlier

(50 ms), which was lower than the inherent latency of

the system, was removed from the measurements. It

is possible that the light sensor was not completely

covered and it got prematurely triggered by changing

light in the environment.

If the data is also transferred to the graphics

card, modiﬁed and transferred back, the latency is

increased by 177 ms to an average of 237.7 ms (SD

= 7.8 ms, N = 100). Utilizing NVIDIA’s GPUDi-

rect feature does not reduce this latency signiﬁcantly

(0.9 ms lower). However, it does reduce the amount

of work the CPU has to do and utilizes asynchronous

readback from the graphics card. As previously men-

tioned, these tests were done using the pass-through

examples from the DeckLink SDK. As shown in

Figure 6, the DirectX example had some very high

latency measurements and dropped several frames,

which caused the displays to blink. The cause of this

is unknown.

Using the keying functionality of the ATEM Tele-

vision video switcher adds close to one ﬁeld of la-

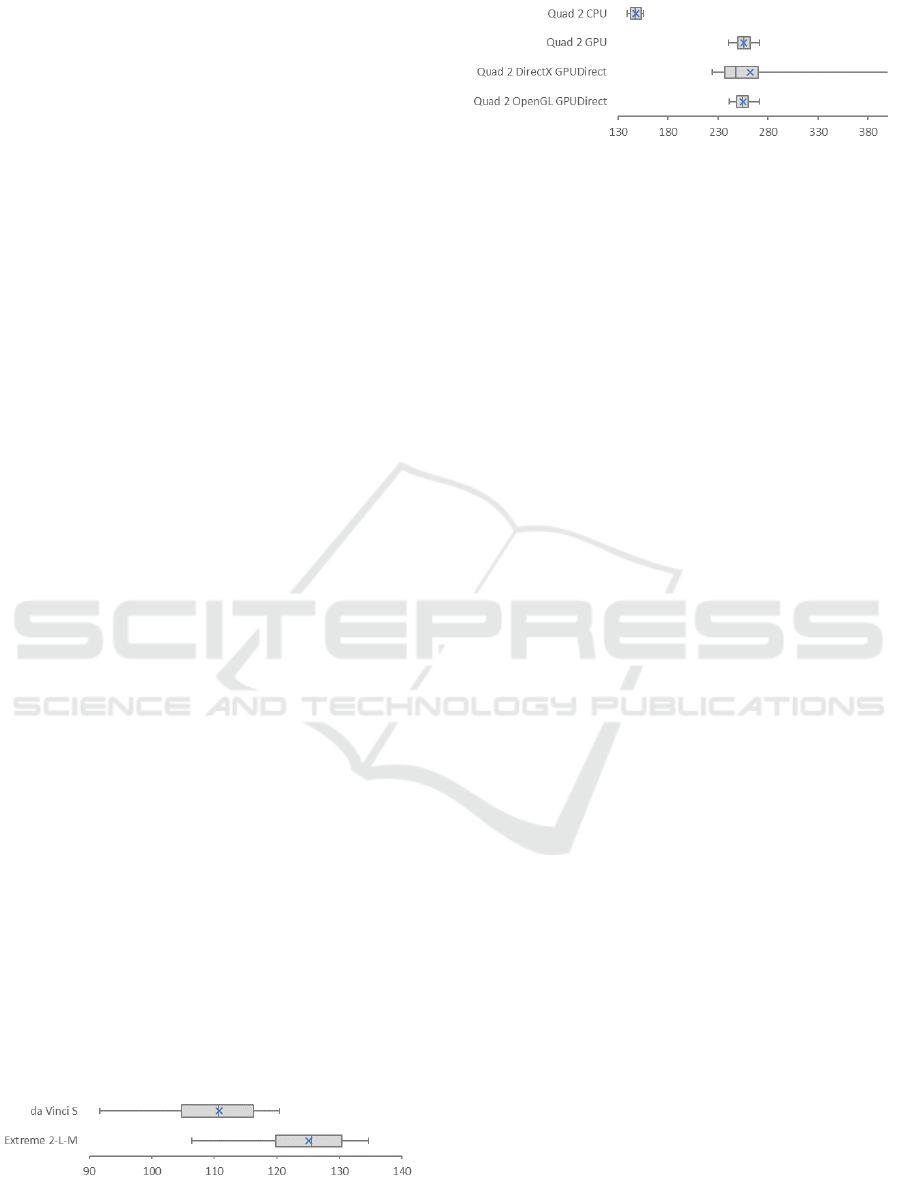

Figure 5: Photon-to-photon latency (in ms) from the en-

doscopic camera to the assistant’s display. The blue “×”

marks the average latency.

Figure 6: Photon-to-photon latency (in ms) from the endo-

scopic camera to the surgeon’s display when passing im-

age data through CPU or GPU memory. The DirectX setup

dropped some frames and has been purposely cropped in

the plot to better show the results of the other setups. The

blue “×” marks the average latency.

tency when chroma keying (79.5 ms (SD = 5.2 ms, N

= 100)) and two ﬁelds (one frame) of latency when us-

ing luma keying (96.2 ms (SD = 4.8 ms, N = 100)) or

downstream keying (96.1 ms (SD = 5.0 ms, N = 100)).

Thus, it is not able to replace the functionality of the

DeckLink video capture cards in our overlay system.

Additionally, we measured the photon-to-photon

latency from the endoscopic camera to the 3D TV

(including loss-of-signal switchers and SDI-to-3D-

HDMI converter) to be 181.9 ms (SD = 5.0 ms, N =

1000), which is 71.2 ms higher than the telestrator

(110.7 ms).

5 CONCLUSIONS

We have measured the photon-to-photon latency of

the da Vinci S surgical system with and without a pre-

viously presented system that can overlay the video

streams with computer graphics. The latency of the

surgery system from the endoscopic camera to the

surgeon’s display was measured to be 62 ms, and the

overlay system has no signiﬁcant effect on that la-

tency. However, the overlay system does increase the

photon-to-photon latency from the endoscopic cam-

era to the assistant’s display by 14.3 ms on average.

The overlay system consists of two video capture

cards in a computer, two loss-of-signal switchers and

an SDI-to-3D-HDMI converter. The newer genera-

tion video capture card DeckLink Quad 2 can replace

the two cards in the previously proposed system as

it has similar latency, is more accessible, offers more

functionality, and is more compact.

With the current system, the image data from the

video streams is not transferred to system memory

to avoid excessive additional latency. Passing the

data through system memory increases the photon-to-

photon latency to 147 ms and further to 256 ms when

transferred to the graphics card and back.

Measuring the Latency of an Augmented Reality System for Robot-assisted Minimally Invasive Surgery

325

6 FUTURE WORK

Passing the image data from the video streams

through system memory with our current setup is

too slow for real-time interaction, especially in cases

where the graphics card needs to have access to

the data. AMD’s DirectGMA might be faster than

NVIDIA’s GPUDirect, as it enables the video capture

cards to access graphics card memory directly with-

out an intermediate transfer through system memory.

An alternative approach is to use a DeckLink

Quad 2 to overlay the video streams while simultane-

ously using two other channels of the Quad 2 to cap-

ture and process the image data. Future work should

investigate how a system where the overlaid graphics

are delayed affect user acceptance and how to design

around that problem (e.g. by extrapolating motion).

Future work could also involve measuring the la-

tency of video capture cards by other manufactures,

the motion-to-photon latency of the surgical system

and further investigate the increased latency of the as-

sistant’s display when our system is active.

ACKNOWLEDGEMENTS

We thank the staff of the Department of Urology at

Aalborg University Hospital and Minimal Invasiv Ud-

viklings Center for sharing their expertise with us and

providing access to their training system.

REFERENCES

Ali, M. R., Loggins, J. P., Fuller, W. D., Miller, B. E., Has-

ser, C. J., Yellowlees, P., Vidovszky, T. J., Rasmussen,

J. J., and Pierce, J. (2008). 3-d telestration: a teach-

ing tool for robotic surgery. Journal of Laparoendo-

scopic & Advanced Surgical Techniques. Vol. 18, Is-

sue 1, pages 107–112.

Azuma, R., Baillot, Y., Behringer, R., Feiner, S., Julier, S.,

and MacIntyre, B. (2001). Recent advances in aug-

mented reality. IEEE Computer Graphics and Appli-

cations, 21(6):34–47.

Bachhuber, C. and Steinbach, E. (2015). A System for Pre-

cise End-to-End Delay Measurements in Video Com-

munication. IEEE International Conference on Image

Processing (ICIP 2016).

Blissing, B. and Bruzelius, F. (2015). A technical plat-

form using augmented reality for active safety testing.

Road Safety & Simulation International Conference

Proceedings, (October 2015):793–803.

Ellis, S., Breant, F., Manges, B., Jacoby, R., and Adel-

stein, B. (1997). Factors inﬂuencing operator inter-

action with virtual objects viewed via head-mounted

see-through displays: viewing conditions and render-

ing latency. Proceedings of IEEE 1997 Annual In-

ternational Symposium on Virtual Reality, pages 138–

145.

Figl, M., Rueckert, D., Hawkes, D., Casula, R., Hu, M.,

Pedro, O., Zhang, D. P., Penney, G., Bello, F., and

Edwards, P. (2010). Image guidance for robotic mini-

mally invasive coronary artery bypass. Computerized

Medical Imaging and Graphics: The Ofﬁcial Jour-

nal of the Computerized Medical Imaging Society,

34(1):61–68.

Hattori, A., Suzuki, N., Hashizume, M., Akahoshi, T., Kon-

ishi, K., Yamaguchi, S., Shimada, M., and Hayashibe,

M. (2003). A robotic surgery system (da vinci) with

image guided function–system architecture and chole-

cystectomy application. Studies in Health Technology

and Informatics, 94:110–116.

Jacobs, M. C., Livingston, M. A., and State, A. (1997).

Managing latency in complex augmented reality sys-

tems. In Proceedings of the 1997 symposium on In-

teractive 3D graphics - SI3D ’97, pages 49–ff., New

York, New York, USA. ACM Press.

Jarc, A. M., Shah, S. H., Adebar, T., Hwang, E., Aron,

M., Gill, I. S., and Hung, A. J. (2016). Beyond 2D

telestration: an evaluation of novel proctoring tools

for robot-assisted minimally invasive surgery. Jour-

nal of Robotic Surgery, 10(2):103–109.

Jefferson, M. (2015). Blackmagic Forum View topic - In-

ternal keyer and channels on Decklink Quad 2.

Kibsgaard, M. and Kraus, M. (1999). Real-time augmented

reality for robotic-assisted surgery. In The 3rd AAU

Workshop on Robotics: Proceedings, pages 19–23.

Aalborg Universitetsforlag.

Kibsgaard, M. and Kraus, M. (2016). Pointing with a one-

eyed cursor for supervised training in minimally in-

vasive robotic surgery. In Lecture Notes in Computer

Science (including subseries Lecture Notes in Artiﬁ-

cial Intelligence and Lecture Notes in Bioinformatics),

volume 9515, pages 12–21. Springer, Cham.

Matu, F. O., Thøgersen, M., Galsgaard, B., Jensen, M. M.,

and Kraus, M. (2014). Stereoscopic augmented real-

ity system for supervised training on minimal invasive

surgery robots. In Proceedings of the 2014 Virtual Re-

ality International Conference on - VRIC ’14, pages

1–4, New York, New York, USA. ACM Press.

Sielhorst, T., Sa, W., Khamene, A., Sauer, F., and Navab,

N. (2007). Measurement of absolute latency for video

see through augmented reality. In 2007 6th IEEE and

ACM International Symposium on Mixed and Aug-

mented Reality, ISMAR, pages 1–4. IEEE.

Su, L. M., Vagvolgyi, B. P., Agarwal, R., Reiley, C. E.,

Taylor, R. H., and Hager, G. D. (2009). Augmented

Reality During Robot-assisted Laparoscopic Partial

Nephrectomy: Toward Real-Time 3D-CT to Stereo-

scopic Video Registration. Urology, 73(4):896–900.

Ware, C. and Balakrishnan, R. (1994). Reaching for objects

in VR displays: lag and frame rate. ACM Transactions

on Computer-Human Interaction, 1(4):331–356.

GRAPP 2017 - International Conference on Computer Graphics Theory and Applications

326
