Search based GUI Test Generation in Java

Comparing Code-based and EFG-based Optimization Goals

Mathias Menninghaus, Falk Wilke, Jan-Philipp Schleutker and Elke Pulverm

uller

Institute of Computer Science, University of Osnabr

uck, Wachsbleiche 27, 49090 Osnabr

uck, Germany

Keywords:

GUI Testing, Test Generation, Test Automation, Search based Software Engineering, Genetic Algorithms.

Abstract:

Modern software systems often communicate with their users by graphical user interfaces (GUI). While the

underlying business logic may be fully covered by unit tests, the GUI mostly is not. Despite the widespread use

of capture and replay tools, which leave the test generation of GUI tests to the user, recent research also focuses

on automated GUI test generation. From the numerous approaches, which include symbolic execution, model-

based generation, and random testing, search based test data generation seems to be the most promising. In

this paper, we create GUI tests using hill climbing, simulated annealing and several genetic algorithms which

deal differently with the sequence length and use multi or single objective algorithms. These different test data

generators are compared in terms of runtime and coverage. All approaches are also compared using different

optimization goals which are a high coverage of the event ﬂow graph (EFG) of the GUIs and a high coverage

of the underlying source code. The evaluation shows that the genetic algorithms outperform hill climbing and

simulated annealing in terms of coverage, and that targeting a high EFG coverage causes the best runtime

performance.

1 INTRODUCTION

Graphical user interfaces (GUI) are a common com-

ponent in todays software systems (Myers et al.,

2000). As they handle the human - computer inter-

action, their correct functionality is a crucial part to

fullﬁll the requirements and to guarantee the qual-

ity of a software system. The underlying code base

is only accessed indirectly by the interactions on the

GUI. Also, often a sequence of interactions is needed

to access certain functionalities in the software. For

instance, in order to open a ﬁle to be edited in a text

editor, one may need to open at least one dialog frame

to choose the correct ﬁle. A GUI and all decisions that

are possible through the lifetime of that GUI can be

displayed in an event ﬂow graph (EFG). An event ﬂow

graph consists of nodes, each representing an event on

a GUI component, and edges, one for each possible

action which leads from one event on a GUI compo-

nent, i.e. node in the EFG, to another. One criteria for

an appropriate GUI test is a high coverage on the over-

all software system and the challenge is to determine

such tests. With at least one loop in the EFG there are

an inﬁnite number of possible paths through the GUI.

For instance, consider the example GUI as shown in

ﬁgure 1. The corresponding EFG is shown in ﬁgure 2

and already contains a loop, because the toggle button

is not dismissed after it has been clicked. Systemat-

ically running through all possible paths in an EFG

in order to ﬁnd a minimal set of GUI tests would be

too much overhead to compute. Instead, in this paper

search based approaches (Harman et al., 2012a; Har-

man et al., 2012b) are used to create the desired test

sets.

click

toggle

Figure 1: A simple GUI to toggle the color of a panel.

event

on label

event

on button

Figure 2: Event ﬂow graph (EFG), the different possible

events on the components (e.g. right and left mouse click)

already have been merged.

Menninghaus, M., Wilke, F., Schleutker, J-P. and Pulvermüller, E.

Search based GUI Test Generation in Java - Comparing Code-based and EFG-based Optimization Goals.

DOI: 10.5220/0006277801790186

In Proceedings of the 12th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2017), pages 179-186

ISBN: 978-989-758-250-9

179

2 RELATED WORK

Previous approaches on general automated test gen-

eration include symbolic execution (Khurshid et al.,

2004) which is used by the tools KLEE (Cadar et al.,

2008) and Barad (Ganov et al., 2008), random tests,

either directed and checked (Pacheco et al., 2007)

or unchecked and therefore often crashing (Csall-

ner and Smaragdakis, 2004) and model based ap-

proaches, which use different models such like activ-

ity diagrams (Vieira et al., 2006; Chen et al., 2009)

or the event ﬂow graph (Memon, 2007; Yuan and

Memon, 2010). The latter approach is used in this

paper. Symbolic execution suffers from path ex-

plosions and random testing, even if directed, pro-

duces a lot of infeasible tests to be discarded. Search

based software testing (SBST) (McMinn, 2011) uses

metaheuristic search algorithms such as simulated an-

nealing, hill climbing and evolutionary algorithms to

systematically scan the search space. Search based

automated testing frameworks are CUTE (Sen and

Agha, 2006), DART (Godefroid et al., 2005), Test-

Ful (Baresi et al., 2010) and GAMDR (Aburas and

Groce, 2016). Search based testing is also success-

fully used to generate GUI tests (Carino, 2016). Static

approaches, such like GUITAR (Nguyen et al., 2014)

build the GUI model using a ripping procedure be-

fore generating the test cases. Dynamic approaches

build the model and generate the test cases dynami-

cally. EXYST (Gross et al., 2012) uses the experi-

ences made with EVOSUITE to generate small GUI

test sequences with a high code coverage. Pigdin

Crasher (Dan et al., 2014) is developed to ﬁnd GUI

sequences which cause system crashes. Additionally

to the mentioned tools, (Soffa et al., 2001) focus on

coverage criteria for inter- and intra-component cov-

erage. (Yuan et al., 2011) extend that idea with cover-

ing arrays (Chee et al., 2013) to unfold faults more di-

rected by controlling the sequence length, the possible

positions of events and certain combination of events.

(Arcuri, 2012) investigate the best sequence length of

tests regarding to speciﬁc conﬁgurations. (Fraser and

Arcuri, 2011) stress the correct bloat control, with a

bloat being the disproportional quickly growth of the

length of test sequences. Different appraoches on in-

corporating the sequence length and bloat control are

discussed in section 5.1.

(Ingber and Rosen, 1992) and (Mitchell et al.,

1993) compare genetic algorithms with hill climbing

and simulated annealing and discuss when and how

genetic algorithms may outperform the latter. In this

paper, genetic algorithms are compared to simulated

annealing and hill climbing in terms of code coverage

for GUI tests.

Before presenting our approach, it should be

noted, that a test always has to be connected to a cor-

responding test oracle which deﬁnes when the out-

come of a test case is correct or not. In a recent survey,

(Barr et al., 2015) state that the generation of oracles

is still an open problem and “Much work on test or-

acles remains to be done”. In this paper, we focus

on the pure generation of GUI tests leaving the oracle

problem to the user for now.

3 GUItoolkit

This section roughly describes our GUItoolkit, it is

limited to the Java Swing framework and some other

limitations will also be described in this section.

The generation of test sequences starts with the

detection phase in which all accessible GUI compo-

nents are detected and their representations are incor-

porated into an event ﬂow graph. Its algorithm (Fig-

ure 3) uses AssertJ

to detect all active GUI compo-

nents and activates them one by one. For instance,

it clicks every visible button in a JFrame. Text in-

put is derived from a user deﬁned ﬁle with appropri-

ate strings. If no speciﬁc ﬁle is invoked, GUItoolkit

uses a set of short dummy strings. More complex

text input generators may use a speciﬁc interface and

override the ﬁle input. After the initial detection of

all elements which are visible with the initialization

of the system under test (SUT), the detection is re-

peated over all new elements until no new elements

appear. At this point, the detection is limited to ele-

ments which are allocated to their parents when the

SUT is ﬁrst invoked. It also expects only one JFrame

per SUT and only one pop-up window to be on screen

at once. In contrast to GUITAR (Nguyen et al., 2014)

the detection only stops when no new elements ap-

pear.

initial

detection

start

unused

elements?

end

activate

next element

detect

new elements

yes

Figure 3: Flow chart of the GUI detection algorithm.

With the detection all necessary information for

the following test generation is captured. This in-

cludes the components type, the optional text, all reg-

istered listeners in order to avoid unnecessary actions

http://joel-costigliola.github.io/assertj/

assertj-swing.html

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

180

and the optional precondition. In order to identify

the detected elements the path through the elements is

stored. After detection, the recorded structure of the

GUI is transferred into an EFG. The class ﬁles are in-

strumented in order to capture the coverage when the

generated test cases (Section 4) are executed. So far,

statement, branch and path coverage are supported.

During execution, also the coverage on the EFG is

recorded. The GUItoolkit is implemented in Java,

version 1.8.

4 SEARCH BASED GUI TEST

GENERATION

This section describes the test generation techniques

used by GUItoolkit. Generally, each of the test cases

consists of a sequence of GUI actions which may

each include a number of mouse and keyboard events.

Therefore, the atomic part of a test is one speciﬁc ac-

tion on a GUI which triggers one event on a compo-

nent.

4.1 Local Search Algorithms

Two local search algorithms are used to generate the

desired test data, hill climbing and simulated anneal-

ing (Russell et al., 2003). In contrast to (Korel, 1990),

which adapt hill climbing for unit test generation, the

original approach (Russell et al., 2003) is used. The

next state is simply the maximum of the neigbouring

states according to a user deﬁned function h. The ma-

jor drawback of hill climbing is, that it may get stuck

in a local optimum.

In contrast to hill climbing, simulated annealing

uses an additional temperature function. It indicates

how far the search reaches out for an optimum. The

longer the algorithm runs, the colder the temperature

gets. The colder the temperature is, the more unlikely

it is for the algorithm to choose another state if the

current state is an optimum.

Both optimization algorithms choose one transi-

tion to the next state in every of their optimization

steps. The GUItoolkit employs two different types

of transitions. One for starting a new sequence of

GUI actions and one for adding a new GUI action

to an existing GUI action sequence. By incorporat-

ing the EFG into the decision, only valid actions are

choosen in order to be added to an existing or new

sequence. For the implementation of both heuristics

the AIMA3e-Java

framework is used and incorpo-

https://github.com/aimacode/aima-java

rated into GUItoolkit. Other heuristics from AIMA3e

could be easily incorporated in future work.

4.2 Genetic Algorithms

A genetic algorithm starts with an initial popula-

tion of solutions, or generation. The next genera-

tion is created by selecting a set of solutions from

the previous generation regarding to a ﬁtness func-

tion. The solutions of every generation are then re-

combined (crossover) and also mutated. In terms of

GUI test generation one solution consists of a set of

action sequences, with each action representing one

event on a certain GUI component. For the selec-

tion of new generations binary tournament selection

is applied(Goldberg and Deb, 1991), which randomly

chooses two solutions and selects the better of the

two. Generally, a crossover takes a fraction of two

or more solutions and interchanges them. In more de-

tail, for GUI test generation single-point crossover is

used. That means, of two parents P

and P

one point

for both is chosen as an index to separate them. Ev-

erything in the ﬁrst part of the ﬁrst parent P

is then

combined with the second part of P

. Vice-versa the

ﬁrst part of P

is combined with the second part of

. Thus, the action sequences of two solutions are

mixed up. A mutation operates on one solution and

alters it. Here, a mutation may be the insertion of a

new action inside a sequence, the deletion of an ac-

tion from an existing sequence, or both. Mutation is

also applied on the whole solution, i.e. new action

sequences are inserted or deleted. With every alter-

ation via crossover or mutation, the validity of the al-

tered sequences is checked. The change is discarded

if it causes an invalid action sequence. A genetic al-

gorithm terminates, if either a maximum number of

generations has been generated, a solution is found

that satisﬁes a minimal criteria, a ﬁtness plateau is

reached, the allocated resources (e.g. time) are con-

sumed, or a combination of these criteria has reached

its deﬁned limit.

As not only the achieved coverage on the code or

the EFG should be maximized, but also the sequence

length minimized, multi objective genetic algorithms

are used. In contrast to classic genetic algorithms,

multi-objective approaches (Zitzler et al., 2006) use

a vector to be minimized or maximized instead of a

single value. Along this simple deﬁnition a lot of

different approaches on genetic algorithms have been

proposed. For generating GUI tests only the NSGA-

II (Deb et al., 2000), PESA-II (Corne et al., 2001)

and SPEA-II (Laumanns et al., 2001) are considered,

as they represent a good fraction of the recent ap-

proaches on genetic algorithms. All three algorithms

Search based GUI Test Generation in Java - Comparing Code-based and EFG-based Optimization Goals

181

are implemented within the Multi Objective Evolu-

tionary Algorithm (MOEA) - Framework

which is

used by the GUItoolkit.

5 EVALUATION

This section describes the evaluation on the presented

GUItoolkit and the applied search based optimization

algorithms. Simulated annealing, hill climbing and

three genetic algorithms are compared. The main goal

of the algorithms is to achieve a maximized branch

coverage. Therefore two different optimization goals,

a high branch coverage in the code and a maximized

EFG coverage are compared.

5.1 Setup

The setup is derived from previous work (Section 2),

personal experience and in order to achieve a max-

imum coverage on the possible settings. The eval-

uation is performed on two example GUIs, a rather

simple and a complex one. Since mostly all conﬁgu-

rations cause a very high coverage on the simple GUI,

only the results for the more complex GUI, depicted

in Figure 4, are shown.

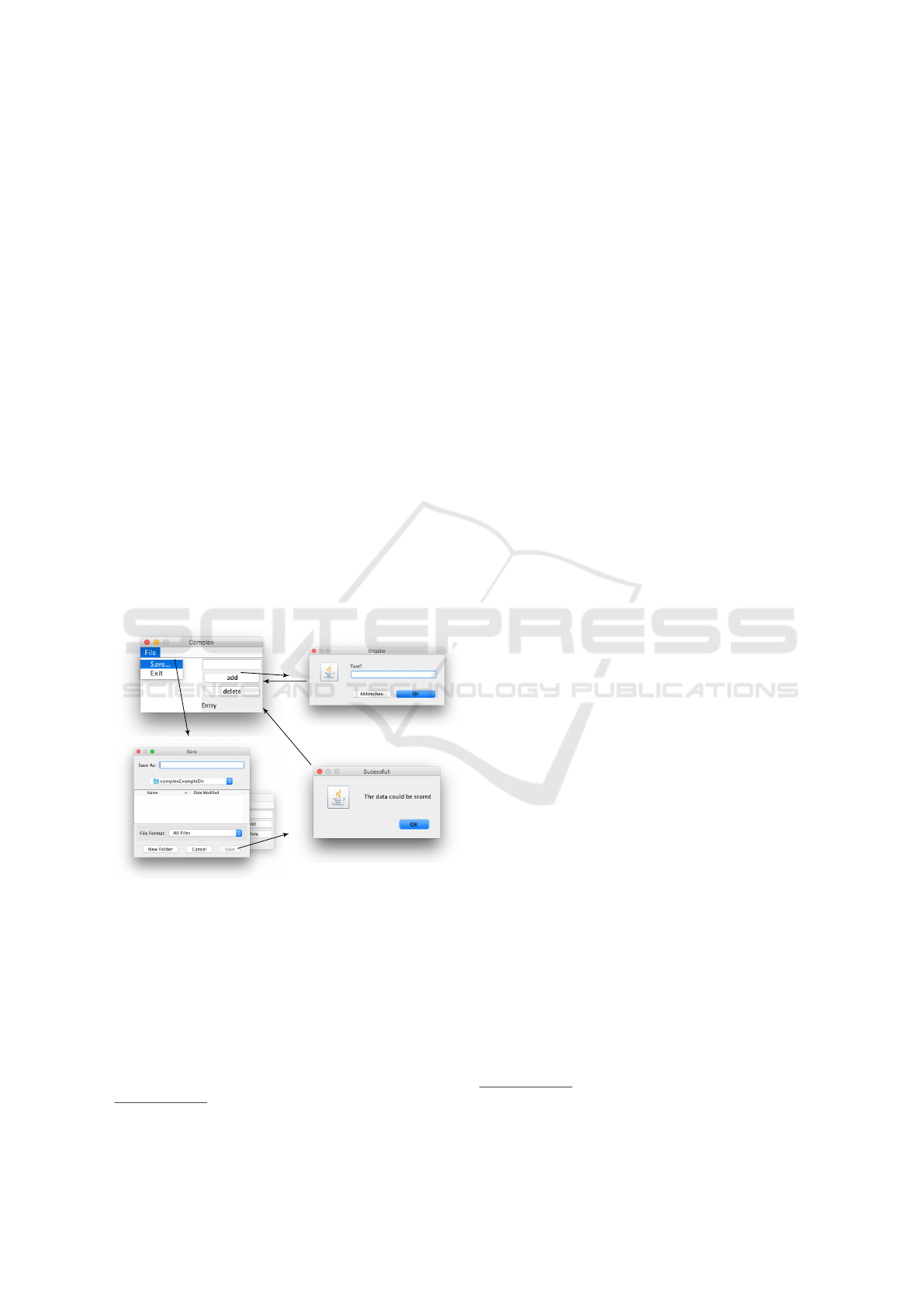

Figure 4: Excerpt from a more complex GUI, creating and

deleting entries in a list, and saving the list in a certain ﬁle.

The standard actions on the JFileChooser (bottom left) are

not shown.

5.1.1 Local Search Algorithms

In contrast to simulated annealing, the presented

approach on hill climbing is strictly deterministic.

Therefore, less evaluation runs are needed. As the

evaluation is very time consuming, the maximum

number of iterations is limited according to Table 1,

http://moeaframework.org

third column. Also, the maximum number of attempts

in using the same action in one sequence is limited

in order to avoid loops and local optima (fourth col-

umn). Taking bloat control into account (Fraser and

Arcuri, 2011), the maximum sequence length is also

limited according to the ﬁfth column in Table 1. An

automated process may set the limitations after pre -

evaluating the EFG of a speciﬁc GUI.

5.1.2 Genetic Algorithms

Three different genetic algorithms (NSGA-II, SPEA-

II and PESA-II) are compared together with a random

search algorithm

. All of them use binary tourna-

ment selection, single point crossover on test sets, and

mutate test sets and action sequences by inserting or

deleting GUI actions from sequences and sequences

from test sets, respectively. For both, mutation and

crossover, a probability of 0.2 and 0.8 is investigated,

resulting in 4 different probability setups. The set-

tings of the genetic algorithms are set to the standard

values used in the MOEA framework. The branch

coverage of the underlying code and the coverage on

nodes in the EFG are used as ﬁtness functions. Us-

ing the EFG coverage as ﬁtness function only requires

one goal, whereas when using the branch coverage of

the code the overall coverage on the complete code,

the average coverage on the methods and the median

coverage on the methods is used. The average and

median coverage on methods are used in order to not

only cover the methods with a big control ﬂow graph

but cover all methods equally. Initially, three se-

quences with three vertices each are created. The pop-

ulation size is set to 100 for EFG-based approaches,

and to 10 for code-based approaches. For EFG-based

approaches, the maximum number of evaluations is

set to 5000, and for code-based approaches to 150.

The selected values are set due to the corresponding

computation costs, as the branch coverage calculation

costs are higher than EFG coverage calculation costs.

The length is added to both types of ﬁtness func-

tions to minimize it. In order to achieve a greater im-

pact of the length also every conﬁguration is run by

not only using the length as additional objective, but

by using length categories. The ﬁtness is set to 0.1

for lengths < 6, 0.2 for lengths < 12 and 0.3 other-

wise when using the EFG-based approach. For code-

based coverage the thresholds are set to 8 and 16, re-

spectively. As for the limitation on local search algo-

rithms, the length categories might be set after auto-

matically pre - evaluating the EFG.

In contrast to the multi objective approaches, the

http://moeaframework.org/javadoc/org/moeaframework

/algorithm/RandomSearch.html

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

182

Table 1: Limitations for the generation of GUI tests with simulated annealing and hill climbing. Coverage is always meant to

be branch coverage on the given code.

Algorithm Coverage goal Max Iterations Max Tries Max Length

Hill climbing EFG 40 30 3

Simulated annealing EFG 8 5 3

Hill climbing code 40 30 3

Simulated annealing code 8 5 3

Table 2: Evaluation setups for genetic algorithms. The dashed path shows one example conﬁguration choosing the multi

objective setup with coverage and minimized length as optimization goal using the PESA-II algorithm, the EFG as coverage

goal and a mutation and crossover rate of 0.8. The random setup is not depicted here.

Basic variant Algorithm Coverage

goal

Mutation

Rate

Crossover

Rate

A: no length

NSGA-II

EFG 0.2 0.2B: with minimized length

C: with minimized length in categories

SPEA-II

D: single additive objective

code 0.8 0.8E: single additive objective with normalized length

PESA-II

F: single objective

genetic algorithms are also computed with two other

types of optimization criteria. First, the multiple ob-

jectives are transferred into a single additive objec-

tive, meaning that all objectives are weighted and

summed up to a single objective. For the EFG-based

approaches, the coverage is weighted with 0.9 and the

length is weighted with 0.1. For the code-based ap-

proaches the three coverage types are weighted with

0.3 each and the length is weighted with 0.1. As the

results are not promising, the length is also normal-

ized with the maximum length, in order to be com-

parable to the coverage which always lies within the

range [0, 1]. Second, only one objective is used. For

the EFG-based approaches only the node coverage on

the EFG is used and for the code-based approaches

only the overall coverage is used.

Summing up, six basic variants are created, each

of them is computed with all three genetic algorithms

plus the random approaches and each of them is

computetd with four different probability setups and

two different major optimization goals, EFG-based

or code based. An overview of all variants for the

genetic algorithms is given in Table 2, resulting in

6 × 3 × 2 × 2 × 2 = 144 variants. Note, that every

basic variant is also computed using each coverage

goal with the random algorithm, thus adding another

6 × 2 = 12 variants.

5.2 Results

The results are presented in the scatter plot in Fig-

ure 5. Using the coverage on the EFG as optimiza-

tion goal instead of the code improves the runtime.

All EFG-based computations have a smaller runtime

than any code-based computations. Speaking of ge-

netic algorithms, variants A, F and E, i.e. the vari-

ants not minimizing the length, using a single addi-

tive objective with normalized length and using only

a single objective, perform best in terms of coverage.

Variant A has the highest average coverage for the

code based approaches (0.65), whereas variant F has

the highest average coverage for the EFG-based ap-

proaches (0.64). A also shows the best performance

for both approaches (0.7469 code-based and 0.7407

EFG-based), with the best results from F being only

slightly worse (0.7407 code-based and 0.7407 EFG-

based). Variant F also produces the best test set in

terms of runtime, even when achieving higher cover-

age (see lower right of Figure 5). The simple hill-

climbing approach is able to compete with variant F,

but only for the EFG-based approaches. The perfor-

mance of the three different genetic algorithms can

not be divided as clearly as the performance of the dif-

ferent variants. Because of the high diversity within

and between the different genetic algorithms, none

performs signiﬁcantly better or worse than the oth-

ers. Also, mutation and crossover rate show either

best and worse performances in every conﬁguration.

The distinction between overall, average and median

coverage as optimization goal only shows an isolated

effect on the generated approaches. Summing up, us-

ing the EFG as optimization goal may not lead to a

smaller coverage on the overall code and always per-

forms better in terms of runtime. Additionally, local

search algorithms are able to compete against genetic

algorithms in terms of coverage and runtime, and the

genetic algorithms perform best when using a single

objective.

Search based GUI Test Generation in Java - Comparing Code-based and EFG-based Optimization Goals

183

0.25

0.3

0.35

0.4

0.45 0.5 0.55 0.6 0.65

0.7

0.75

1,000

2,000

3,000

4,000

5,000

6,000

7,000

average overall coverage on code [-]

average runtime [s]

NSGA-II (code) PESA-II (code) SPEA-II (code) Random (code) NSGA-II (EFG) PESA-II (EFG)

SPEA-II (EFG) Random (EFG) SA (code) HC (code) SA (EFG) HC (EFG)

Figure 5: Scatter plot of the average overall code coverage and average runtime on every conﬁguration. EFG-based approaches

are ﬁlled in gray, code-based approaches are not ﬁlled. The variants are identiﬁed with respect to Table 2.

6 CONCLUSION AND OUTLOOK

In this paper, we investigated the automatic genera-

tion of test cases for graphical user interfaces. The lit-

erature review emphasized the usage of search-based

techniques to create GUI tests which have a good

coverage of the underlying code base. We used hill-

climbing, simulated annealing and several genetic al-

gorithms to produce the GUI tests. Instead of using

the EFG only as model for the test generation, the

coverage of the EFG was also used as optimization

goal. After a detailed evaluation, it seems that the ge-

netic algorithms using only a single objective perform

best in terms of runtime and coverage. Moreover, hill

climbing was able to compete with these approaches.

Using the EFG coverage as optimization goal leads

to a coverage of the underlying code base which is

equal to the coverage generated with the coverage of

the code as optimization goal. Additionally, the EFG-

based approaches have a much smaller runtime.

For the future, the employment of the EFG cover-

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

184

age as optimization goal has to be studied further. The

evaluation presented in this paper has to be performed

on more and especially more complex GUIs. There-

fore, the presented test generation framework, GUI-

toolkit, has to be optimized. It also may be beneﬁcial

to incorporate GUITAR for future projects with the

presented algorithms and their conﬁgurations. The

generated test cases may also be used for fair per-

formance tests which depend on highly covering test

cases (Menninghaus and Pulverm

uller, 2016).

REFERENCES

Aburas, A. and Groce, A. (2016). A Method Dependence

Relations Guided Genetic Algorithm. In International

Symposium on Search Based Software Engineering,

pages 267–273. Springer International Publishing.

Arcuri, A. (2012). A Theoretical and Empirical Analysis of

the Role of Test Sequence Length in Software Testing

for Structural Coverage. IEEE Transactions on Soft-

ware Engineering, 38(3):497–519.

Baresi, L., Lanzi, P. L., and Miraz, M. (2010). TestFul: An

Evolutionary Test Approach for Java. In Third Inter-

national Conference on Software Testing, Veriﬁcation

and Validation, pages 185–194. IEEE.

Barr, E. T., Harman, M., McMinn, P., Shahbaz, M., and

Yoo, S. (2015). The Oracle Problem in Software Test-

ing: A Survey. IEEE Transactions on Software Engi-

neering, 41(5):507–525.

Cadar, C., Dunbar, D., and Engler, D. R. (2008).

KLEE: Unassisted and Automatic Generation of

High-Coverage Tests for Complex Systems Programs.

In 8th USENIX conference on Operating systems,

pages 209–224.

Carino, S. (2016). Dynamically Testing Graphical User In-

terfaces. PhD thesis.

Chee, Y. M., Colbourn, C. J., Horsley, D., and Zhou, J.

(2013). Sequence Covering Arrays. SIAM Journal

on Discrete Mathematics, 27(4):1844–1861.

Chen, M., Qiu, X., Xu, W., Wang, L., Zhao, J., and Li,

X. (2009). UML Activity Diagram-Based Automatic

Test Case Generation For Java Programs. The Com-

puter Journal, 52(5):545–556.

Corne, D. W., Jerram, N. R., Knowles, J. D., Oates, M. J.,

and J, M. (2001). PESA-II: Region-based Selection

in Evolutionary Multiobjective Optimization. In Pro-

ceedings of the genetic and evolutionary computation

conference.

Csallner, C. and Smaragdakis, Y. (2004). JCrasher: an au-

tomatic robustness tester for Java. Software: Practice

and Experience, 34(11):1025–1050.

Dan, H., Harman, M., Krinke, J., Li, L., and Marginean,

A. (2014). Pidgin crasher: searching for minimised

crashing GUI event sequences. SSBSE 2014 - Sympo-

sium on Search -Based Software Engineering.

Deb, K., Agrawal, S., Pratap, A., and Meyarivan, T. (2000).

A Fast Elitist Non-dominated Sorting Genetic Algo-

rithm for Multi-objective Optimization: NSGA-II. In

International Conference on Parallel Problem Solving

From Nature, pages 849–858. Springer Berlin Heidel-

berg.

Fraser, G. and Arcuri, A. (2011). It is Not the Length That

Matters, It is How You Control It. In 2011 IEEE

Fourth International Conference on Software Testing,

Veriﬁcation and Validation (ICST), pages 150–159.

IEEE.

Ganov, S. R., Killmar, C., Khurshid, S., and Perry, D. E.

(2008). Test generation for graphical user interfaces

based on symbolic execution. In Proceedings of the

3rd international workshop on Automation of software

test, pages 33–40. ACM.

Godefroid, P., Klarlund, N., and Sen, K. (2005). DART:

directed automated random testing. ACM SIGPLAN

Notices, 40(6):213–223.

Goldberg, D. E. and Deb, K. (1991). A Comparative Analy-

sis of Selection Schemes Used in Genetic Algorithms.

Foundations of Genetic Algorithms, pages 69–93.

Gross, F., Fraser, G., and Zeller, A. (2012). EXSYST:

search-based GUI testing. In ICSE Proceedings of

th International Conference on Software Engineering,

pages 1423–1426. IEEE Press.

Harman, M., Mansouri, S. A., and Zhang, Y. (2012a).

Search-based software engineering: Trends, tech-

niques and applications. ACM Computing Surveys

(CSUR), 45(1).

Harman, M., McMinn, P., de Souza, J. T., and Yoo, S.

(2012b). Search Based Software Engineering: Tech-

niques, Taxonomy, Tutorial. In Empirical Software

Engineering and Veriﬁcation, pages 1–59. Springer

Berlin Heidelberg.

Ingber, L. and Rosen, B. (1992). Genetic Algorithms

and Very Fast Simulated Reannealing: A comparison.

Mathematical and computer modelling, 16(11):87–

100.

Khurshid, S., Visser, W., P

areanu, C. S., and Khur-

shid, S. (2004). Test input generation with java

PathFinder. ACM SIGSOFT Software Engineering

Notes, 29(4):97–107.

Korel, B. (1990). Automated software test data genera-

tion. IEEE Transactions on Software Engineering,

16(8):870–879.

Laumanns, M., Thiele, L., and Zitzler, E. (2001). SPEA2:

Improving the strength Pareto evolutionary algorithm.

Eurogen, 3242(103):95–100.

McMinn, P. (2011). Search-Based Software Testing: Past,

Present and Future. In 2011 IEEE Fourth Interna-

tional Conference on Software Testing, Veriﬁcation

and Validation Workshops (ICSTW), pages 153–163.

IEEE.

Memon, A. M. (2007). An event-ﬂow model of GUI-based

applications for testing. Software Testing, Veriﬁcation

and Reliability, 17:137–157.

Menninghaus, M. and Pulverm

uller, E. (2016). Towards

Using Code Coverage Metrics for Performance Com-

parison on the Implementation Level. In the 7th

ACM/SPEC, pages 101–104. ACM.

Mitchell, M., Holland, J. H., and Forrest, S. (1993). When

will a genetic algorithm outperform hill climbing?

Ann Arbor.

Search based GUI Test Generation in Java - Comparing Code-based and EFG-based Optimization Goals

185

Myers, B., Hudson, S. E., and Pausch, R. (2000). Past,

present, and future of user interface software tools.

ACM Transactions on Computer-Human Interaction

(TOCHI), 7(1):3–28.

Nguyen, B. N., Robbins, B., Banerjee, I., and Memon, A.

(2014). GUITAR: an innovative tool for automated

testing of GUI-driven software. Automated Software

Engineering, 21(1):65–105.

Pacheco, C., Lahiri, S. K., and Ernst, M. D. (2007).

Feedback-directed random test generation. In Pro-

ceedings of the 29th International Conference on Soft-

ware Engineering.

Russell, S. J., Norvig, P., Canny, J. F., Malik, J. M., and

Edwards, D. D. (2003). Artiﬁcial intelligence: a mod-

ern approach, volume 2. Prentice hall Upper Saddle

River.

Sen, K. and Agha, G. (2006). CUTE and jCUTE: Concolic

Unit Testing and Explicit Path Model-Checking Tools.

In International Conference on Computer Aided Veri-

ﬁcation, pages 419–423. Springer Berlin Heidelberg.

Soffa, M. L., Pollack, M. E., and Memon, A. M. (2001).

Coverage criteria for GUI testing. ACM SIGSOFT

Software Engineering Notes, 26(5):256–267.

Vieira, M., Leduc, J., Hasling, B., Subramanyan, R., and

Kazmeier, J. (2006). Automation of GUI testing us-

ing a model-driven approach. In Proceedings of the

2006 international workshop on Automation of soft-

ware test, pages 9–14. ACM.

Yuan, X., Cohen, M. B., and Memon, A. M. (2011). GUI

interaction testing: Incorporating event context. IEEE

Transactions on Software Engineering, 97(4):559–

574.

Yuan, X. and Memon, A. M. (2010). Generating Event

Sequence-Based Test Cases Using GUI Runtime State

Feedback. IEEE Transactions on Software Engineer-

ing, 36(1):81–95.

Zitzler, E., Deb, K., and Thiele, L. (2006). Comparison

of Multiobjective Evolutionary Algorithms: Empiri-

cal Results. Evolutionary computation, 8(2):173–195.

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

186
