Dynamic Map Update Protocol for Highly Automated Driving Vehicles

Florian Jomrich

1,2

, Aakash Sharma

, Tobias R

uckelt

1,2

, Daniel Burgstahler

and Doreen B

ohnstedt

Adam Opel AG, Bahnhofsplatz, 65423, R

usselsheim, Hessen, Germany

KOM Multimedia Communications Lab, Technical University of Darmstadt, Rundeturmstr. 10, 64283,

Darmstadt, Hessen, Germany

Keywords:

Highly Automated Driving, High Deﬁnition Street Map, Map Updates, Provisioning, Context Speciﬁc, Data

Efﬁcient.

Abstract:

Highly automated driving vehicles are currently subject of strong research efforts to enable novel mobility

experiences. To achieve this goal a high deﬁnition street map is required. It provides the vehicles with

centimetre accurate references to all geographic objects in its surrounding. So this street map enables driving

capabilities of the automated vehicle in terms of safety and comfort for the passengers that could not be

obtained while only relying on the cars own inbuilt sensor equipment. This high deﬁnition street map has to

ensure the accuracy and timeliness of its data, necessary for the task of highly automated driving, at any time.

Therefore those maps have to be constantly provided with updates from a remote server. This paper describes

a protocol based mainly on preselection of contextual relevant map data to provide a car in an efﬁcient way

with such a continuous stream of updates. The capabilities of the protocol have been evaluated on a map

database of Berlin. The obtained results verify that it achieves a signiﬁcant decrease in transmission data and

processing time, compared to existing map update approaches.

1 INTRODUCTION

With the development of highly automated driving ve-

hicles also a new kind of navigational map a so called

high deﬁnition street map is introduced. This map has

got much higher requirements in terms of detail and

updates compared to the currently available naviga-

tion systems (see Section 2.1 and 2.2). The reasons

therefore are explained in the following.

At the current technological development status

(2016) the sensor system inside an automated driving

car is not able to replace completely the capabilities

of a human driver (Aeberhard et al., 2015),(Barker,

2015). Various weather conditions, but also bad

markings on the road, occlusion of objects through

other vehicles or just high speeds are sources of po-

tential sensor inaccuracy and false detection events

(Ziegler et al., 2014). For such scenarios, a high

deﬁnition street map is necessary to compensate the

sensor insufﬁciencies (Lawton, 2015). Companies

like Google (Madrigal, 2014), HERE (Stevenson,

2016), TomTom (TomTom, 2016), Continental (Ham-

merschmidt, 2016) and car manufacturers like BMW

(Bender et al., 2014), (Aeberhard et al., 2015) and

Tesla (Perkins, 2015) rely on high deﬁnition street

maps for their own highly automated vehicle pro-

grams. The map itself serves as an additional ”vir-

tual” sensor in the sensor system of the car. It signiﬁ-

cantly enhances the performance and accuracy of per-

ception and localisation algorithms, which are neces-

sary for the vehicle to drive on its own (Jo and Sun-

woo, 2014). Only with the support of the high def-

inition street map the algorithms are able to perform

well, since they can rely on its weather independent

and centimetre accurate (Schumann, 2014) informa-

tion as reference.

To achieve this enhanced functionality and keep

the map operational it has to be constantly pro-

vided with a continuous stream of updates (Hammer-

schmidt, 2016). Only in this way it is possible to en-

sure constant validity of the maps data for the vehicles

manoeuvre planning. Any obtainable information rel-

evant to the car should be provided to it in advance

through the representation as a map object (Madrigal,

2014). This could be for example major events like

accidents or trafﬁc jams as well as highly detailed

geographic references like the position and orienta-

tion of lane markings, curbs and trafﬁc lights. In this

way the high deﬁnition street map changes its purpose

from sole road guidance to a severe feature (Boensch,

Jomrich, F., Sharma, A., Rückelt, T., Burgstahler, D. and Böhnstedt, D.

Dynamic Map Update Protocol for Highly Automated Driving Vehicles.

DOI: 10.5220/0006279800680078

In Proceedings of the 3rd International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2017), pages 68-78

ISBN: 978-989-758-242-4

2016) to ensure safety and comfort for the passengers

inside the car.

To conclude, the high deﬁnition street maps neces-

sary for highly automated driving require an amount

of data to describe their highly detailed information,

which is increased by several factors compared to cur-

rently existing navigational maps. The timely con-

straints regarding the contained information further

require a constant stream of map updates. This makes

it necessary to think about new approaches to further

decrease the amount of data, which has to be trans-

mitted to the highly automated driving vehicles. Ex-

isting map update concepts as presented in Section

2 have been developed with a human driver and a

normal navigational map in mind. As explained the

car as an automated machine has got different and

more challenging requirements. Therefore those ap-

proaches are not sufﬁcient enough to fulﬁll those re-

quirements while keeping the operational costs of the

high deﬁnition street map in a near minimum range.

Our approach, the Dynamic Map Update Protocol,

presented in this work aims to solve this problem by

investigating the contextual relevance of map updates

for a vehicle.

The outline of the remaining paper is described in

the following. In Section 2 current navigation sys-

tems and already existing map update concepts are

referenced. Afterwards the general idea of our ap-

proach and the concept in its details is explained in

Section 3. In Section 4 the evaluation scenario of the

city of Berlin to test the capabilities of our protocol is

described and the obtained results are stated. We con-

clude the paper with a short summary and an outlook

regarding future work.

2 RELATED WORK

The development of navigation systems for cars

started more than 25 years ago (Ishikawa et al., 1991)

and nowadays they are a widely used equipment.

Most of these systems can be grouped into two dif-

ferent categories in terms of how they obtain the map

information for routing purposes.

There are the so called ofﬂine navigation systems

that use map information from a data storage built

into the device itself. Examples for such systems are

fully integrated devices offered directly by the car-

manufactures or speciﬁc mobile navigation devices

provided by companies like Garmin

and TomTom

www.garmin.com

www.tomtom.com

On the other hand, there are the online navigation

systems mostly represented by smart phone applica-

tions like Google Maps

. Such systems are storing

their data on a distinct internet server, which is con-

taining the newest map material data. Each time a

route is requested by the user, the required route cal-

culation is performed on the server. The associated

map material and the guidance instructions are sub-

sequently downloaded on the device over a wireless

data connection.

Both approaches have got speciﬁc advantages and

disadvantages when compared to each other as ex-

plained in the following.

2.1 Ofﬂine Navigation Systems

The biggest advantage of an ofﬂine navigation system

is the fact that it can operate completely independent

from any kind of data connection. The whole naviga-

tion map material is stored and processed completely

within the device. To store as much information as

possible and to perform route calculations in shorter

time, proprietary binary storage formats are used for

the representation. This however renders the system

incapable of introducing updates to the initially stored

dataset as stated by Min et al.(Min, 2011). When an

updated map version is available, the complete map

material has to be exchanged, even though there might

only be some slight changes to the map itself. This of-

ten results in the copying of several gigabytes of data.

The update procedure therefore has to be performed

by the user himself and takes a long time to complete

it.

However, if an ofﬂine navigation system is never

updated its routing performance will degrade over

time, since the overall structure of the street network,

the base of the navigation system, is subject to change

(Ling, 2013).

Asahara et al. (Asahara et al., 2008) describe

in their work that the map material of Japan, which

they used for research on updates for normal street

maps, had to ﬁll in 70 Megabyte of new roadside in-

formation over a period of 4 months. Mapping and

navigation company HERE

as well states that their

own worldwide map database receives 2.7 million up-

dates every day, leading to huge efforts in keeping the

map material up-to-date (Plack, 2013). Current of-

ﬂine navigation systems are incapable of responding

to such quick changes, because the update cycle of the

https://play.google.com/store/

apps/details?id=com.google.android.apps.maps&hl=de

https://here.com/en

Dynamic Map Update Protocol for Highly Automated Driving Vehicles

mapping companies (e.g. TomTom

) is normally in

the range of months.

2.2 Online Navigation Systems

Otherwise online navigation systems obtain up-to-

date map material over a wireless connection (e.g.

a smartphones cellular connection), each time the

user requests information about a new route. The

map server, which provides this information, gets

itself constantly updated through information pro-

vided by local authorities and other related informa-

tion sources. This advantage of always new data how-

ever is also a great disadvantage of online navigation

systems. They often do not have their own storage

space to save the obtained map data for future reuse.

Each time a route is being calculated the system has

to obtain the full map material for the speciﬁed area

again. This might lead to unnecessary redundancy in

the data transmission, which is directly connected to

increased costs for the cellular connection. It also

might happen that a data connection is not available

because of the users current position. In such a case,

online navigation systems cannot be used at all, since

a route calculation is not possible.

2.3 Provisioning of Incremental Map

Updates

To overcome the problems of current online and of-

ﬂine navigation system approaches, as mentioned in

Section 2.1 and 2.2, versatile research has been con-

ducted in the ﬁeld of map representation and over the

air map updates. Several different approaches provid-

ing so called incremental map updates have been pub-

lished (Cooper and Peled, 2001), (Bastiaensen and

others, 2003), (Min et al., 2008), (Asahara et al.,

2008), (Liu et al., 2010), (Min, 2011), (Lee and Lee,

2013).

The common idea presented by all these publica-

tions is that a navigation system (equipped with its

own storage space for map data) only receives incre-

mental updates of the initial map via over the air up-

dates. Only the changes between the old map version

of the car and the newly available version have to be

transmitted. This required update information is pro-

vided through a dedicated map server. The server it-

self has to keep track of the history of changes that

have been applied to its own database. When in-

formed about the current database version of the re-

questing car, the server then can generate individual

http://uk.support.tomtom.com/app/content/id/9/locale/en -

gb/page/4

updates for it. Obviously this approach reduces the

necessary data volume and update time tremendously

in comparison to the before mentioned common of-

ﬂine and online approaches.

Min et al. (Min, 2011) develop and implement

such a database management system (DBMS) that

sends incremental map updates through a wireless

connection to a mobile device.

To be able to calculate the incremental map up-

dates the map itself is divided into smaller parts

through a grid. This common indexing approach di-

vides the initial map into sub parts. Each sub part

is than treated as a self maintained individual smaller

map, a so called map tile. These tiles are treated as in-

dividual and independent sectors regarding updates.

2.4 Ensuring Consistency between Map

Updates

To rely on this segmentation and to be able to build up

a reliable version history of all the map tiles, different

concepts exist and further requirements have to be sat-

isﬁed. For example it might be the case that through

an update of a single map tile the streets, which are

going through this tile, are losing their previous con-

nections to the streets of the surrounding map tiles. In

this situation a proper path planning for a vehicle is

not possible any more. Asahara et al. (Asahara et al.,

2008) provide a solution to this problem. They pro-

pose an updating concept that keeps track of the con-

nections of roadways. The proposed concept there-

fore updates the neighbouring map tiles as well, if

direct connections are effected through the initial up-

date. Through this approach it is ensured that the map

material is always consistent and correctly routeable.

Asahara et al. also stated that these intelligent updates

should only be applied locally to keep the amount of

update data which has to be provided via an over the

air connection as low as possible. Hence they propose

an area of 20 km to be updated in the surrounding of

the car as a good compromise between update consis-

tency and amount of data which has to be transferred.

Members of Hitachi Automotive Systems, Ltd.

(Hitachi, 2016) claim that the general approach of up-

dating individual map tiles as proposed by Asahara

et al. leads to unwanted ”updating cascades”. This

means if one map tile gets updated the neighbour-

ing tiles also have to be updated to ensure the rout-

ing capability of the map. Then the cascades lead

to unnecessary control data trafﬁc over the network

for the exchange of further map updates. To solve

this problem they propose a different map update ap-

proach. Instead of updating speciﬁc map tiles, the up-

dates are provided through individual map update ob-

VEHITS 2017 - 3rd International Conference on Vehicle Technology and Intelligent Transport Systems

jects. They consist of all the changes that have to be

applied to a certain, connected area of the map. Thus

no individual updates of all the affected map tiles are

necessary. The amount of data needed to store the

update information is also reduced.

2.5 Map Updates Along a Speciﬁc Route

Min et al., Asahara et al. and also the approach of

Hitachi do not directly take the calculated route of the

car into consideration for requesting the map updates.

They just describe the necessity of updating the map

in general.

An approach, which does in this way for the

update process, is described by Bastiaensen et al.

(Bastiaensen and others, 2003) as result of the

discussions made in the ActMap-Project. The basic

idea described in the paper, is to update only the map

tiles, which are crossed by the calculated route of

the car. Bastiaensen therefore describes the example

of a car driving through the city area of Bruessel.

Consequently, the car is only interested in updates

regarding the city of Bruessel, but not the whole

country of Belgium.

2.6 Foundation for the Dynamic Map

Update Protocol

Besides the ActMap Project (Bastiaensen and others,

2003) none of the mentioned papers in Section 2 ad-

dresses the requirements of the scenario of highly au-

tomated driving cars. All presented solutions have

been developed to update normal navigation maps,

which are currently in use. The general concepts

thereby can also be applied on high deﬁnition street

maps. However, the requirements and speciﬁcations

of high deﬁnition street maps as explained in Section

1 make it necessary to develop more sophisticated so-

lutions to provide map updates.

One of the ﬁrst approaches, which focuses on ad-

vanced driver assistance systems and has been stan-

dardized by the European Telecommunications Stan-

dards Institute (ETSI), is the so called Local Dynamic

Map (ETSI, 2011). The ETSI however states that the

design speciﬁcation does not include a high deﬁnition

street map for navigation purposes. The representa-

tion and the provisioning of such a map is seen as

area of further research.

Our approach as presented in Section 3 was built

on the existing concepts and provides a solution

speciﬁcally designed for these new requirements.

3 CONCEPT OF A DYNAMIC

MAP UPDATE PROTOCOL

The fundamental idea for our Dynamic Map Update

Protocol, which is presented below, is based on the

fact that the autonomous car has to be well aware of

its current driving course through a navigation sys-

tem. The protocol uses this fact to further decrease

the amount of data, which has to be provided as map

updates. Therefore it focuses on the relevance of the

data, which has to be transmitted to the vehicle. All

the existing incremental map update approaches of

Section 2 do not take the contextual relevance of the

update information into account. They provide map

tile updates to the vehicle whether they are relevant

for its current driving task or not. The Dynamic Map

Update Protocol now closes this gap by providing the

functionality to take information regarding the rele-

vance into consideration for processing map updates.

Therefore, it enables signiﬁcant savings in terms of

transmission of data for a map update as shown in

Section 4.2. The speciﬁcation of relevance or irrele-

vance of information however is subject to individual

selection criteria. The Dynamic Map Update Protocol

conﬁgured for the presented evaluation results consid-

ers a map update as relevant, if it is directly effecting

the current route on which the car travels. Other up-

dates in the surrounding are only considered as op-

tional updates with not such a high relevance for the

car. This is further illustrated by the example shown

in Figure 1. The Dynamic Map Update Protocol how-

ever can be conﬁgured with individual selection cri-

teria regarding the relevance. The stated deﬁnition of

relevance is just one possibility. The protocol there-

fore could be conﬁgured to provide relevant informa-

tion for special interest groups like bus, truck (NDTV,

2017) or taxi drivers, police ofﬁcers and ﬁre ﬁghters.

Different routing functions can be deﬁned for these

interest groups, satisfying their requirements. The re-

questing vehicles can then tell the map server via the

Dynamic Map Update Protocol which routing func-

tion is required for them.

3.1 Basic Example

The example in Figure 1 illustrates the general work-

ing principle of the Dynamic Map Update Protocol.

The map database of a highly automated driving ve-

hicle is represented by six different map tiles. The

road network on which the car can base its navigation

is drawn in grey colour. The car wants to reach the

destination from its current start point. Therefore it

exchanges information regarding its own database as

explained in Section 3.3 with the map server through a

Dynamic Map Update Protocol for Highly Automated Driving Vehicles

Car

Server

Destination

Mandatory

Map Tile

Optional

Map Tile

Start

Route

Figure 1: General working principle of the Dynamic Map

Update Protocol.

wireless connection. The server itself has got a newer

version of the map database with two available up-

dates indicated by black colour. The approaches pre-

sented in the Related Work (Section 2) would provide

both map tiles, which include the updates for the car.

The Dynamic Map Update Protocol instead takes the

relevance of the updates into account before the provi-

sion. Therefore it will only directly provide the right

of the two map tiles indicating available updates as

a mandatory update. This is due to the fact, that the

update directly inﬂuences the optimal path on which

the car travels to reach its destination. The update

in the left map tile is not mandatory for the car to

reach its current destination. The map tile therefore

is ﬂagged as an optional update. The car can decide

itself whether it wants to receive this update or not.

The update for example might be of certain interest to

the car if it drives often in this area.

3.2 Protocol Fundamentals

Modern routing algorithms divide the amount of

streets into different subcategories accordingly to

their type. This hierarchical layering enhances the

overall performance of the route calculation process

as described by Min et al. (Min, 2011). For exam-

ple for longer travel distances only highway routes

are taken into consideration. Streets on lower lay-

ers like in the city or urban area are used when ar-

riving at the destination or for short distance calcu-

lations. Min et al. discuss this concept only to be

used for the routing algorithm, not for the map up-

date process. However we ourselves see it as a great

opportunity to provide map updates with the consider-

ation of their actual street layer (highway, urban road,

city street, ...) to further shrink down the amount of

data, which has to be provided to the vehicles in the

context of high deﬁnition street maps. As one of the

contributions of the Dynamic Map Update Protocol

we adapted and modiﬁed this general concept for the

use case of map updates. The division of different

Figure 2: Division of streets into highway and city layer in-

dicated by thick and thin lines for streets.

OpenStreetMap

contributors

Figure 3: Size of a city street layer map tile (bold) in com-

parison to a highway layer map tile.

OpenStreetMap con-

tributors

road types is performed as a preprocessing step on

the map database. All street types are clustered into

two different map layers. The ﬁrst layer contains all

highways, the second the remaining other streets (see

Figure 2). Each of the two layers is than divided into

map tiles of different size (see Figure 3). This is done

due to the different available speed limits. The high-

way layer map tiles are larger than the city street map

tiles, as there the vehicles can drive a long distance

in less time. Highways are therefore expected to be

more important than city streets in terms of updates,

since they are more frequently used by the routing al-

gorithms. This design decision helps to reduce the

amount of control trafﬁc, which has to be conducted

in the process of the protocol when requesting further

map tiles. When calculating its new route the highly

automated car receives only the map tile updates re-

quired for the currently used layer. While driving on

a highway for example it is not interested in the city

streets of a town nearby, because normally it never

goes through the town on its trip. It will therefore

only get updates regarding the highway, but not the

city streets layer in this area.

For the identiﬁcation of a speciﬁc map tile we

use the indexing structure provided by the concept of

Geohashes (Suwardi et al., 2015). A Geohash is a

VEHITS 2017 - 3rd International Conference on Vehicle Technology and Intelligent Transport Systems

CAR Server

1. Start, Destination, Map Tiles used by

Car(ID, Versionnumber), Hash(Car Route)

2. Hash(Server Route), Map Tiles used by

Server(ID, Versionnumber), Updates for Car

Map Tiles

4. Request Updates for missing Map Tiles

based on the check

3. Car checks

own version of

Server Map

Tiles

5. Server

generates

necessary

Map Updates

6. Further Updates for Car Map Tiles7. Check if server

route hash =

car route hash

now

1. Start, Destination, Map Tiles used by

Car(ID, Versionnumber), Hash(Car Route)

Figure 4: The map exchange protocol sequence.

unique string that identiﬁes a certain geographic area

on the globus. Each of them identiﬁes its personal

rectangular bounding box. Neighbouring geographic

areas just differ in the last letter of the Geohash. By

adding up further letters to the end of the it the area

of the bounding box is shrinked accordingly. Geo-

hashes therefore are a well suited indexing structure

for the Dynamic Map Update Protocol. They satisfy

the needs of easy transitions between the different lay-

ers of the map, because upper layers cover completely

the area of a discrete amount of lower layer map tiles.

For the evaluation of the scenario of the city of Berlin

in Section 4 we chose the Geohash string length of

four letters for our highway street layer and ﬁve for

the city street layer. These string lengths correlate on

bounding box sizes of 39.1km x 19.5km for the high-

way layer and 4.89km x 4.89km for the city street

layer. Thus one highway layer map tile covers the

same area as 24 city street layer map tiles. The dif-

ferent sizes shall reduce the control ﬂow overhead for

their provisioning by taking the achievable travel dis-

tances due to speed limits into account. The general

concept of different map layers can be enhanced fur-

ther by adding up more ﬁne granular layers if bene-

ﬁcial for future use cases of the Dynamic Map Up-

date Protocol. Also a different more speciﬁc indexing

scheme might be worth of consideration for future im-

provements.

3.3 Protocol in Detail

The Dynamic Map Update Protocol has to ensure that

after a performed map update, the requesting vehicle

will calculate the same route as the map server with

its updated personal database. However it should not

provide unnecessary map updates to keep the foot-

print of transmission costs as low as possible. The

necessary steps to solve this challenging task are ex-

plained in the following. Additionally they are illus-

trated by the sequence diagram in Figure 4.

1.) The car requests an update for its calculated route

Route

Route-Hash-Code:

50414C4B4F2

Destination

Start

ID: 5741, Layer 2

Version: 16

ID: 1

Version: 7

ID: 0

Version: 12

ID: 1

Version: 16

Car

Server

Figure 5: The sequence of used map tiles.

by providing the server the following parameters.

First of all the car sends the start- and destination-

point based on which it calculates the route by

itself. It further provides the server with the in-

formation about which tiles on the available map

layers it has used for the calculation of its route.

Figure 5 illustrates this in further detail. Provid-

ing this list of map tiles is done in a data efﬁcient

way. Only the map tile that contains the start point

will be speciﬁed through a complete identiﬁcation

ID (eg. ID 5741 in the example) and layer level

number (e.g. 1 for highway and 2 for city streets).

The following map tiles used by the car will be de-

scribed in relation to the previous map tile. There-

fore only one number (ID 0-3) is required, which

indicates the possible ways (up, down, left, right

from the last tile) in which the vehicle can move.

If the current map layer is changed it is indicated

by the provisioning of an additional new layer

number. Cause of drawing reasons the example

assumes that the car is travelling only on one layer

(2 for city streets). For each traversed map tile the

car will also provide its current personal version

number (e.g. version 16 of the map tile containing

the start point). The exact route, which the car will

use, is identiﬁed through a unique hash-code. The

hash-code of the exact route is mandatory to iden-

tify the relevance of the related map tiles, which

contain the route. Therefore each individual street

segment, that the car has to take on its course, is

identiﬁed by an own personal identiﬁer and adds

up as an additional input value to a hash function.

After the completion of this process the generated

hashcode (e.g. 50414C4B4F2) of the current spe-

ciﬁc route is sent to the server.

2.) Based on the start and destination point, which

the server received from the car, it will calculate

the shortest available route between the two points

relying upon its own up to date map material. Af-

terwards it compares its own generated hashcode

and the provided one of the car. If both do not

Dynamic Map Update Protocol for Highly Automated Driving Vehicles

match, this implies that the car has got an outdated

status of the map and needs to receive mandatory

updates from the server as explained in the fol-

lowing. If both hashcodes match, it means that at

least the current road to drive on is up to date in

terms of the server’s database.

It still might be the case that optional updates for

the car are available. These are updates for the

speciﬁc map tiles the car traverses, which do not

belong to the actual road it drives on (see Section

3). In future situations the car could drive in these

areas as well. So an update might still be ben-

eﬁcial for the car. Therefore the server checks

the different versions of the traversed map tiles.

If they also match everything is up to date. The

server then just replies with a short response mes-

sage, which indicates that the map material of the

car does not require updates for the route.

If optional map updates are available, the server

will provide the car the IDs of the map tiles, which

could receive an update. Based on its driving cri-

teria and other parameters like remaining cellu-

lar data volume, the car can decide if and when it

wants to receive those updates later on.

If mandatory updates have to be provided, the

server directly generates those updates and sends

them back to the car.

If the server’s route uses other map tiles than the

car, the server provides its own hashcode and the

map tile IDs and version numbers used for calcu-

lation to it . This step is necessary to ensure that

the car does not ﬁnd another as well outdated al-

ternative route in its own database.

3.) till 6.) Then the car has to complete the update

of its own map database for the newly provided

route. Therefore it checks the map tiles indicated

by the server in its own database for mandatory

map updates. It requests them accordingly and

gets them provided by the server.

7.) In rare occasions the provided map updates might

not be enough to ensure an up to date routing ca-

pability of the car for its current route. It still

might be the case that the car ﬁnds a faster, but

outdated alternative route using other map tiles.

The protocol has to ensure that the car uses the

currently fastest route now and in future calcula-

tions. Therefore the car has to check whether its

personal hash code matches with the server’s code

or not. If it does not, the whole procedure has to

be repeated with the new conditions. This how-

ever should not happen very often because of the

actual size of the map tiles. It makes shorter alter-

native routes most unlikely.

4 EVALUATION

To verify the capabilities of the Dynamic Map Up-

date Protocol, we conducted our evaluation on the

scenario of the German city of Berlin as explained

in the following Section 4.1. The obtained results are

presented than afterwards in Section 4.2.

4.1 Berlin OpenStreetMap Scenario

The currently most common map formats for high

deﬁnition street maps are OpenDrive(VIRES, 2011)

and the Navigation Data Standard with its Open Lane

Model (NDS Navigation Data Standard e.V, 2016).

To the best of our knowledge there exist no public

databases for testing and evaluation of those map for-

mats. Only small sample maps are available. They

are only usable to show the capabilities of the speciﬁc

map format. A map database with a long version his-

tory and a certain magnitude of applied changes how-

ever is necessary to properly test the capabilities of the

Dynamic Map Update Protocol. To satisfy these re-

quirements we decided to use the available map mate-

rial of the OpenStreetMap project (Haklay and Weber,

2008). OpenStreetMap itself offers database dumps

of its map material in intervals of up to one minute,

one hour and one day between the newest database

dump and its predecessor. The open source mapping

project is community-driven and has got a strong user

base of volunteers. However to take the update fre-

quency of a high deﬁnition street map into account

we selected the daily database dumps as the dataset

to be tested with the Dynamic Map Update Protocol.

By this decision it is ensured that the map material of

OpenStreetMap has a comparable amount of changes

that can be expected for a high deﬁnition street map

in far less time (well below one day). As the main-

tenance of map material is community-driven, we se-

lected the city of Berlin, Germany as the map mate-

rial to be considered for the evaluation process. The

map material of Berlin is highly detailed compared

to other areas of the world, which are often mapped

only very sparsely. This is due to the fact that the

community of OpenStreetMap in Berlin is consider-

ably active. This fact also ensures that the protocol

is tested under realistic conditions for the scenario of

highly automated driving. However it can be stated

that the Dynamic Map Update Protocol can be applied

to any form of navigational map, that includes a fea-

ture to weight the relevance of its content. The actual

amount of data, which can be saved in the process of

map updates, will scale accordingly to its update fre-

quency. As stated in Section 3.2 the map is divided up

into different layers regarding the type of streets. All

VEHITS 2017 - 3rd International Conference on Vehicle Technology and Intelligent Transport Systems

the streets considered as highways by OpenStreetMap

deﬁnition are grouped into one layer. All the other

streets form their own layer.

To ensure the signiﬁcance of our test results we

conducted the evaluation as explained in the follow-

ing with a test data set of 30 consecutive days of

OpenStreetMap map dumps (from 1st August till 31st

August 2016).

With this data set we tested the protocol on dif-

ferences of 1 day and of 15 days between two map

databases to show the effects of map updates. The

setup with 1 day differences resembles the daily driv-

ing use case of a vehicle, the 15 day differences re-

sembles a situation, where a highly automated vehi-

cle is not used for a longer period of time. This could

be for example the case, when his owner has been on

vacation before.

4.2 Results

To verify the hypothesis that the Dynamic Map Up-

date Protocol has a signiﬁcant impact on the reduc-

tion of transmitted map updates, the following two

tests described in Section 4.3 and 4.4 have been ex-

ecuted. For each test we compared the performance

between an existing simple incremental map update

approach (see Section 2) and the Dynamic Map Up-

date Protocol. The amount of processed map tiles

(processing load for the map server) and of changed

map objects (the actual data transmitted to the vehi-

cle) have been selected as quality metrics (see Table

1). The simple approach provides the vehicles with all

available map tile updates for its currently calculated

route as proposed by Bastiaensen et al. (Bastiaensen

and others, 2003). The Dynamic Map Update Pro-

tocol is conﬁgured to provide only updates for map

tiles along the route, which have been identiﬁed as

relevant, as deﬁned in Section 3. To make sure that

the expected beneﬁts are only gained through the Dy-

namic Map Update Protocol, both approaches have

been applied on the same preprocessed map database

(see Section 3.2). For each test a speciﬁc set of ran-

dom trips through the city of Berlin has been gener-

ated. The average trip driving distance of a European

is between 10 to 30 km, as stated by (Pasaoglu et al.,

2012). We included this fact in the evaluation process

and set up 60% of all the trips to be in this range. Half

of the remaining trips were conﬁgured to be either

above or below this value range. For the process of

routing we used the Dijkstra algorithm included in the

Each route consists out of a unique sequence of nodes

and connecting way IDs as speciﬁed by the Open-

StreetMap database, which we imported into pgRout-

ing. An exemplary excerpt of the achieved test results

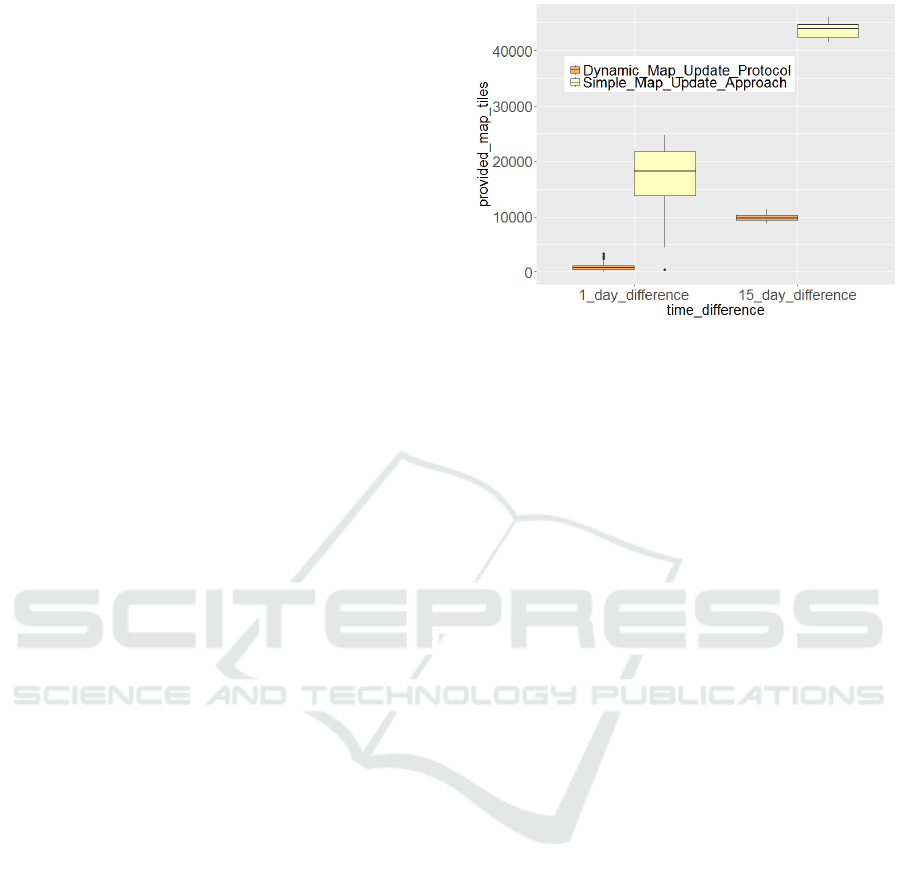

Figure 6: Number of Map Tiles which have to be processed

for transmission for 10,000 independent trip requests.

is presented in Table 1.

4.3 Savings on the Server Side

The ﬁrst test was conducted to gain an insight into

the amount of data that could be saved from being

processed and provided by the server side (e.g. tile

updates in Table 1). Therefore 10,000 individual trips

were processed by the two algorithms (see Figure 6).

For the whole set of trips the simple map update ap-

proach had to process an average of 17,272 map tiles

for a one day difference between the databases. For

the same set the Dynamic Map Update Protocol only

had to provide an average of 928 map tiles. This

means that the server had to process only 5% of the

overall update data when using the Dynamic Map Up-

date Protocol. As we expected, for the databases with

15 days of difference this ratio degraded to 22%. This

is due to the fact that the overall amount of updates to

be provided for the older map database increased. The

Dynamic Map Update Protocol had now an average of

9,945 map tiles to handle for transmission compared

to 43,732 for the simple map update approach. The

amount of savings is still huge.

4.4 Savings for a Highly Automated

Driving Car

In contrast to the map server the actual amount of map

data, which has to be transmitted to a requesting vehi-

cle, is its most important quality criteria. The request-

ing vehicle has to pay the cellular network provider

directly. The on board processing costs of the data

are negligible in comparison. To consider this situa-

tion we executed a second test. It was conducted to

evaluate the amount of actual map objects, which had

to be transmitted to the vehicles (e.g. objects with

Dynamic Map Update Protocol for Highly Automated Driving Vehicles

Table 1: Exemplary excerpt of the achieved test results.

Execution

Run

Old Map

Date

New Map

Date

Dynamic

Map

Update

Proto-

col Tile

Updates

Simple

Map

Update

Approach

Tile

Updates

Tile Sav-

ings in %

Dynamic

Map

Update

Protocol

Objects

with

Changes

Simple

Map

Update

Approach

Objects

with

Changes

Object

Savings

in %

1 1-8-2016 2-8-16 1,128 7,413 84.78% 30,427 85,734 64.51%

2 2-8-2016 3-8-16 169 3,252 94.80% 597 9,567 93.76%

... ... ... ... ... ... ... ... ...

changes in Table 1). The amount of map tiles, used as

evaluation metric in the ﬁrst test, is not a direct indi-

cator therefore. It is expected that different trips will

often use the same connecting streets (e.g. main roads

or highways), which results in a decreasing amount of

map objects to be delivered to a car over time. To re-

semble this behaviour we created a scenario of a car

requesting 100 consecutive trips. In contrast to the

server scenario the provided map updates were stored

as already available in the databases of the vehicle for

the remaining amount of requests. After each of 10

requests we took a snapshot of the additionally pro-

vided map objects. The obtained results are presented

by Figure 7 for one day and by Figure 8 for 15 days

of difference in time. Both ﬁgures show that the Dy-

namic Map Update Protocol in average always stays

below the amount of data, which is provided by the

simple map update approach. The Dynamic Map Up-

date Protocol only had to provide an average of 43.1

map objects for the full sequence of 100 trips com-

pared to an average of 70.6 for the simple map up-

date approach for one day time difference. For the

time difference of 15 days we achieved similar results

(an average amount of 775.4 map objects for the Dy-

namic Map Update Protocol and 962.5 for the simple

map update approach). To ensure the statistical signif-

icance of the achieved means we further conducted a

paired t-test on the test results. The obtained p-values

for the different amount of requests are presented in

Table 2 and indicate clearly that we can reject the

null hypotheses H

: ”The two approaches provide the

same overhead in terms of update data.”

: µ

dynamicMap

= µ

simple

(1)

Thus we accept the alternative hypothesis H

: ”The

Dynamic Map Update Protocol transmits less data

than the simple map update approach.”

: µ

dynamicMap

< µ

simple

(2)

Where µ is the mean of the number of updated map

objects.

To conduct 100 trips in a temporal sequence would

only leave around 5 minutes for each of the trips to

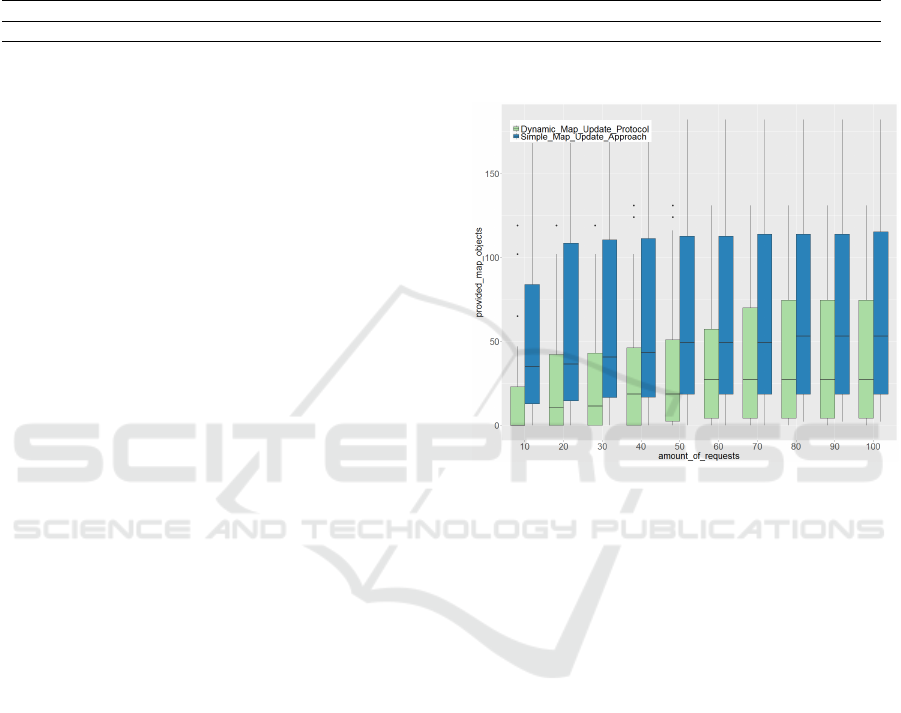

Figure 7: Map objects provided after 10 to 100 consecutive

requests. Databases with 1 day difference.

be ﬁnished in average over an 8 hours working day. It

is highly expected with reference to (Pasaoglu et al.,

2012) that nearly all drivers won’t come close to this

huge amount of requests. Therefore the behaviour of

the Dynamic Map Protocol is beneﬁcial too. It can

be seen in both ﬁgures that the simple map update

approach provides most of the overall map updates

very early (e.g. after 20 requests for 1 day of differ-

ence). The Dynamic Map Update Protocol however

shows a more steady increase in providing the neces-

sary map updates. Therefore it saves even more data

when not requesting a huge amount of daily naviga-

tion requests.

To ensure that the achieved results were not inﬂu-

enced by the chosen set of 100 trips we conducted an-

other test in which 1,000 independent cars performed

10 consecutive trips. These results are presented in

Figure 9 and show that the Dynamic Map Update Pro-

tocol outperforms the simple map update approach

also under those test conditions.

VEHITS 2017 - 3rd International Conference on Vehicle Technology and Intelligent Transport Systems

Table 2: Obtained p-values of the paired t-test for the results of the second test.

number of re-

quests

10 20 30 40 50 60 70 80 90 100

1 day time dif-

ference

1.90e-06 1.46e-06 1.06e-06 2.69e-06 9.75e-07 5.40e-07 1.40e-06 1.42e-06 1.36e-06 1.40e-06

15 days time

difference

8.60e-09 3.96e-09 1.36e-09 7.14e-11 1.39e-12 1.69e-13 3.43e-11 2.12e-10 4.14e-11 8.03e-11

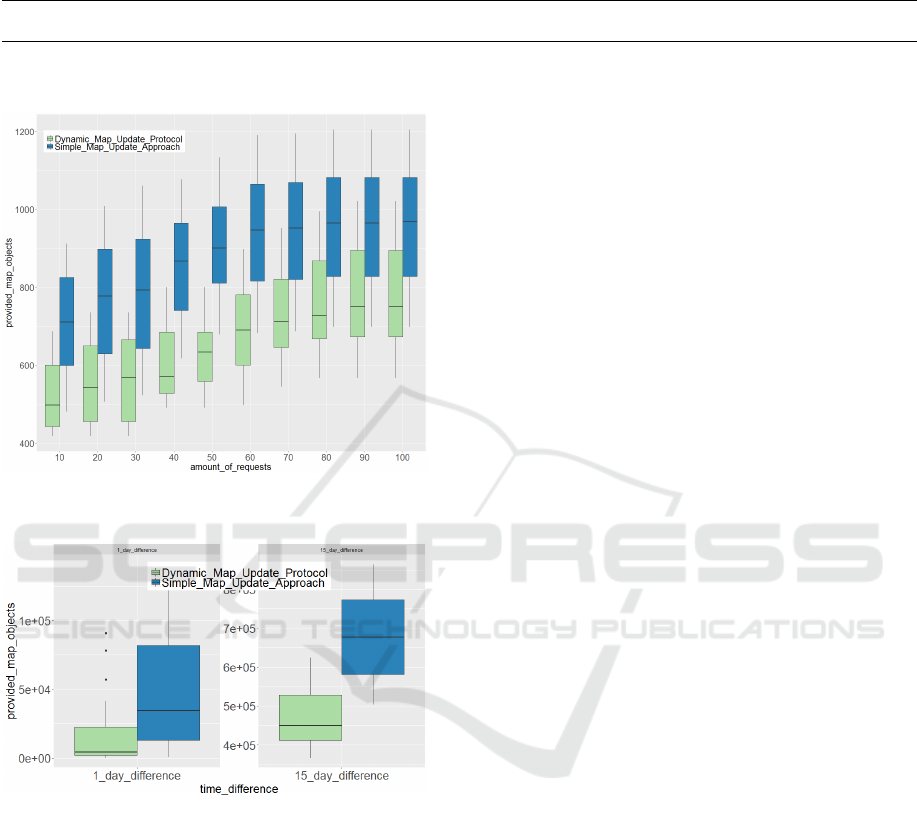

Figure 8: Map objects provided after 10 to 100 consecutive

requests. Databases with 15 day difference.

Figure 9: Map objects provided to 1,000 independent vehi-

cles performing 10 consecutive trips.

5 CONCLUSIONS AND FUTURE

WORK

This paper presents the Dynamic Map Update Proto-

col. The protocol has been developed to provide a

new data efﬁcient strategy to update high deﬁnition

street maps, which are required for future highly au-

tomated vehicles to be able to drive. In contrast to ex-

isting map updating concepts our protocol takes the

relevance of the map data into account for the pro-

cess of update generation. To verify the capabilities

of the newly developed protocol extensive evaluation

tests with OpenStreetMap databases of the German

city of Berlin have been conducted. The gained re-

sults show that the Dynamic Map Update Protocol

achieves a signiﬁcant decrease in transmission data

and processing time to enable the same driving tasks

compared to existing solutions. The current conﬁgu-

ration of the protocol still leaves further optimisation

potential for future work. Dynamic indexing struc-

tures that adapt themselves to the requirements of the

highly automated driving vehicle and even more ef-

ﬁcient data transmission concepts (resolving the gen-

eral concept of map tiles) are two research directions,

which we will investigate further.

REFERENCES

Aeberhard, M., Rauch, S., Bahram, M., Tanzmeister, G.,

Thomas, J., Pilat, Y., Homm, F., Huber, W., and

Kaempchen, N. (2015). Experience, results and

lessons learned from automated driving on germany’s

highways. In IEEE Intelligent Transportation Systems

Magazine, volume 7, pages 42–57.

Asahara, A., Tanizaki, M., Morioka, M., and Shimada,

S. (2008). Locally differential map update method

with maintained road connections for telematics ser-

vices. In Mobile Data Management Workshops, 2008.

MDMW 2008. Ninth International Conference on,

pages 11–18. IEEE.

Barker, P. (2015). Industry expert explains why

autonomous cars need a map - HERE 360.

http://360.here.com/2015/05/07/brad-templeton-

autonomous-cars-maps/, [online accessed 2016-04-

08].

Bastiaensen, E. and others (2003). ActMAP: real-time map

updates for advanced in-vehicle applications. In Pro-

ceedings, 10th World Congress on ITS, Madrid.

Bender, P., Ziegler, J., and Stiller, C. (2014). Lanelets:

Efﬁcient map representation for autonomous driving.

In Intelligent Vehicles Symposium Proceedings, 2014

IEEE, pages 420–425. IEEE.

Boensch, R. (2016). With high resolution into the

autonomous world. VDI Nachrichten Ausgabe

03, http://www.vdi-nachrichten.com/Technik-

Wirtschaft/Hochauﬂoesend-in-autonome-Welt,

[online accessed 2016-12-05].

Cooper, A. and Peled, A. (2001). Incremental updating and

versioning. In Proceedings of 20 th International Car-

tographic Conference, pages 2804–2809.

Dynamic Map Update Protocol for Highly Automated Driving Vehicles

ETSI (2011). ETSI TR 102 863, Intelligent Transport Sys-

tems ( ITS ); Vehicular Communications; Basic Set of

Applications; Local Dynamic Map (LDM ); Rationale

for and guidance on standardization.

Haklay, M. and Weber, P. (2008). Openstreetmap: User-

generated street maps. In IEEE Pervasive Computing,

volume 7, pages 12–18.

Hammerschmidt, C. (2016). With data from the

cloud to the living map. VDI Nachrichten Aus-

gabe 03, http://www.vdi-nachrichten.com/Technik-

Wirtschaft/Mit-Daten-Cloud-lebenden-Karte, [online

accessed 2016-05-12].

Hitachi, A. L. (2016). Map update ser-

vice/solution. http://www.hitachi-

automotive.co.jp/en/products/cis/02.html, [online

accessed 2016-04-26].

Ishikawa, K., Ogawa, M., Azuma, S., and Ito, T. (1991).

Map navigation software of the electro-multivision of

the’91 toyoto soarer. In Vehicle Navigation and Infor-

mation Systems Conference, 1991, volume 2, pages

463–473. IEEE.

Jo, K. and Sunwoo, M. (2014). Generation of a precise

roadway map for autonomous cars. In IEEE Trans-

actions on Intelligent Transportation Systems, vol-

ume 15, pages 925–937.

Lawton, C. (2015). Why an HD map is an essen-

tial ingredient for self-driving cars - HERE

360. http://360.here.com/2015/05/15/hd-map-

will-essential-ingredient-self-driving-cars/, [online

accessed 2016-04-08].

Lee, S. and Lee, S. (2013). Map generation and updating

technologies based on network and cloud computing:

A survey. In International Journal of Multimedia and

Ubiquitous Engineering, volume 8, pages 107–114.

Ling, H. (2013). NavInfo: Incremental Update is

the Revolution for Map Production System.

http://www.navinfo.com/en/news/detail.aspx?id=944

&sort=3, [online accessed 2016-04-05].

Liu, Y., Yang, Z., and Han, X. (2010). Research for incre-

mental update data model applied in navigation elec-

tronic map. In Advanced Computer Control (ICACC),

2010 2nd International Conference on, volume 1,

pages 261–265. IEEE.

Madrigal, A. C. (2014). The Trick That Makes Google’s

Self-Driving Cars Work - The Atlantic - GOOGLE.

http://www.theatlantic.com/technology/archive/2014/

05/all-the-world-a-track-the-trick-that-makes-

googles-self-driving-cars-work/370871/, [online

accessed 2016-05-01].

Min, K. (2011). A system framework for map air update

navigation service. In ETRI Journal, volume 33, pages

476–486.

Min, K.-W., An, K.-H., Kim, J.-W., and Jin, S.-I. (2008).

The mobile spatial DBMS for the partial map air up-

date in the navigation. In Intelligent Transportation

Systems, 2008. ITSC 2008. 11th International IEEE

Conference on, pages 476–481. IEEE.

NDS Navigation Data Standard e.V (2016). NDS

Open Lane Model Press Release. http://www.nds-

association.org/wp-content/uploads/20160914-PR-

E.pdf, [online accessed 2016-11-14].

NDTV (2017). How UPS Trucks Saved Mil-

lion of Dollars by Eliminating Left Turns.

http://gadgets.ndtv.com/transportation/features/how-

ups-trucks-saved-million-of-dollars-by-eliminating-

left-turns-1657808.

Pasaoglu, G., Fiorello, D., Martino, A., Scarcella, G., Ale-

manno, A., Zubaryeva, C., Thiel, C., European Com-

mission, Joint Research Centre, and Institute for En-

ergy and Transport (2012). Driving and parking pat-

terns of European car drivers: a mobility survey. Pub-

lications Ofﬁce. OCLC: 847460656.

Perkins, C. (2015). Tesla is mapping out ev-

ery lane on Earth to guide self-driving cars.

http://mashable.com/2015/10/14/tesla-high-

precision-digital-maps/#v3xHW6i4QSqU, [online

accessed 2016-04-06].

Plack, J. (2013). The unmatched quality

of HERE Maps content - HERE 360.

http://360.here.com/2013/03/27/the-unmatched-

quality-of-here-maps-content/, [online accessed

2016-05-01].

Schumann, S. (2014). Why were mapping down

to 20cm accuracy on roads - HERE 360.

http://360.here.com/2014/02/12/why-were-mapping-

down-to-20cm-accuracy-on-roads/, [online accessed

2016-05-01].

Stevenson, J. (2016). Making the invis-

ible visible with the HD Live Map.

http://360.here.com/2016/09/23/making-the-

invisible-visible-with-the-hd-live-map-video-demo/,

[online accessed 2016-11-14].

Suwardi, I. S., Dharma, D., Satya, D. P., and Lestari, D. P.

(2015). Geohash index based spatial data model for

corporate. In Electrical Engineering and Informat-

ics (ICEEI), 2015 International Conference on, pages

478–483. IEEE.

TomTom (2016). TomTom Enables Autonomous Driving.

http://automotive.tomtom.com/uploads/assets/993/14

75151547-autonomous-driving-product-info-

sheet.pdf, [online accessesd 2016-05-15].

VIRES (2011). OpenDRIVE - managing the road ahead.

http://www.opendrive.org/docs/VIRES ODR -

OCRG.pdf, [online accessed 2016-11-14].

Ziegler, J., Bender, P., Schreiber, M., Lategahn, H., Strauss,

T., and et. al. (2014). Making bertha drive - an au-

tonomous journey on a historic route. In IEEE In-

telligent Transportation Systems Magazine, volume 6,

pages 8–20.

VEHITS 2017 - 3rd International Conference on Vehicle Technology and Intelligent Transport Systems
