Application of Heuristics in Business Process Models to Support

Software Requirements Specification

Fernando Aparecido Nogueira and Hilda Carvalho de Oliveira

Institute of Geosciences and Exact Sciences, São Paulo State University (Unesp), Rio Claro, Brazil

Keywords: Requirements Engineering, Business Process Model, BPMN, XPDL, Heuristics, UML.

Abstract: Requirements Engineering has suffered difficulties caused by communication failures between business and

Information Technology teams (IT). The knowledge of the enterprise's business domain is very important for

the systems analysts when developing software solutions to automate activities and processes. However, these

analysts come across frequent changes in the system scope and requirements descriptions incomplete or erro-

neous. This work presents a systematic process that takes into account the business process models to auto-

matically extract functional and non-functional requirements, which compose the Software Requirements

Specification document. This automatic process uses requirements heuristics implemented by a freeware soft-

ware system that generates software requirements documents with use cases and UML diagrams. The system-

atic process uses XML to facilitate systems integration, as well the re-use and visualization of the results.

Additionally, this work presents business heuristics that enable significant improvements in the documenta-

tion of the business process models, bringing advantages for the business and IT. Assessment tools for the

level of documentation level are proposed for both the business process models as for software requirements

documents.

1 INTRODUCTION

The knowledge about the organization's business do-

main is very important for systems analysts when de-

veloping software solutions to automate activities and

processes. Kalinowski et al. (2015) observe that the

Requirements Engineering activities have suffered

from the difficulties caused by communication fail-

ures between the Business and Information Technol-

ogy (IT) teams. These teams use different vocabular-

ies, languages and technical models. This hinders the

elicitation and modeling software requirements

(Bousetta et al., 2013). Although there are standards

such as ISO/IEC/IEEE 29148:2011, Mafra et al.

(2016) note that there is a lack of a standard for the

software requirements specification document. The

consequence of all these problems can be seen in the

frequent changes in the system scope and the descrip-

tion of incomplete or erroneous software require-

ments.

This paper presents a solution that defends that

software requirements can be determined more asser-

tively if the organization's business process models

are considered. The more documentation software re-

quirements are similar to the organization's processes,

the greater the level of compliance of these require-

ments with the customer's needs (Vieira et al., 2012).

Consequently, the positive effects will affect the next

stages of software development. Thus, the software

product delivered to the end client will meet more ef-

fectively the needs of users and stakeholders of the

organization.

Well-defined business processes provide a better

understanding of what the company does in their

business and how the process is executed in different

departments. The cross-interaction between their dif-

ferent organizational divisions is documented by the

business process models. These models provide a

clear scenario for improvements in the processes ex-

ecution, considering the use of software and other re-

sources. This has helped to emphasize the adoption of

the BPM (Business Process Management) approach,

which involves the analysis, definition, execution,

monitoring and management of business processes

(Van der Aalst, 2013). For this, the BPMN business

process models are essential. They can be built by us-

ing various languages and notations, but the graphical

notation BPMN (Business Process Model Notation)

is considered the standard of the current market. Ac-

cording to BPMN specification maintained by the

Nogueira, F. and Oliveira, H.

Application of Heuristics in Business Process Models to Support Software Requirements Speciﬁcation.

DOI: 10.5220/0006280400400051

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 2, pages 40-51

ISBN: 978-989-758-248-6

Consortium OMG (Object Management Group), tex-

tual documentation of its elements can make to sup-

port the modeling of business processes.

In this context, this paper presents a systematic

process that takes into account the business process

models of an enterprise to extract requirements for the

systems analysts team, maintaining the vocabulary

and language used in the business environment. The

process automatically extracts functional and non-

functional requirements from the business process

models in BPMN v2.0 notation. For this reason, other

important instruments have been developed to sup-

port systems analysts. Because of the need for infor-

mation to compose the Software Requirements Spec-

ification document, some instruments to improve the

documentation of the BPMN elements have also been

developed. This way, the organization gains with a

more knowledgeable IT team in the business environ-

ment, with better software to their needs and with bet-

ter-documented models in business processes.

In order to apply this systematic, the business pro-

cess models in BPMN v2.0 must be converted to

XPDL (XML Process Definition Language) v2.2 us-

ing modeling systems available in the market. XPDL

establishes a structured format based on XML (eX-

tensible Markup Language) for representation of pro-

cess definitions. Thus, considering the specification

of single metamodel, different modeling tools can in-

teract and generate documents in the XPDL standard

from BPMN models, without losing information in

this transformation process (Van der Aalst, 2003).

The extraction of information from business pro-

cess models in XPDL is possible with the support of

heuristics set ("business heuristics") which helps to

identify the elements of functional and non-functional

requirements. The extracted content is structured in a

requirements document in XML, containing use cases

and diagrams in UML (Unified Modeling Language).

For the automation of the presented process, it

was developed a software system called SRPD (Soft-

ware Requirements from Process Definitions). The

inputs are XPDL files that represent the business pro-

cess model and the outputs are the functional and non-

functional requirements document in XML, that facil-

itates the viewing. These documents comprise the in-

itial version of the Software Requirements Specifica-

tion, in order to ease the communication between the

requirements analysts and the company and to im-

prove the time spent in the specification of software

requirements. In addition, it is worth mentioning that

this paper presents a feature that helps analysts in

evaluating the level of information in this document.

Based on this, Section 2 presents some works

that also use business process models to support the

elicitation of software requirements, although in a

different and more limited way. Section 3 presents

concepts related to business process models in BPMN

and XPDL, which are relevant to the job. The system-

atic process for automatic extraction of software re-

quirements from business process model is presented

in Section 4. This section includes various tools and

heuristics used in the systematic process as well the

SRPD system. Section 5 presents the application of

the proposed methodology, using real business pro-

cess models. The final considerations and perspec-

tives for future works are presented in Section 6.

2 RELATED WORK

There are some works in the literature that also pre-

sent approaches for extraction of software require-

ments from business process models of an enterprise.

These papers differ in many aspects, such as model-

ing notation, complexity, business processes details,

software requirements handling, among others. How-

ever, none of them proposes the automatic extraction

of requirements in the same way as this work does.

Although some studies use heuristics, they differ

from the heuristics defined in this paper regarding its

type, purpose, and scope.

Some papers consider BPMN notation for model-

ing business processes, such as Xavier et al. (2010),

Bousetta et al. (2013), Vieira et al. (2012), Macek and

Richta (2009) and Cruz et al. 2014). However, they

do not use the conversion of these business process

models to XPDL to extract software requirements, as

proposed in this paper. Moreover, Dias et al. (2006)

explore the relationship between activities from busi-

ness processes and use cases. However, business pro-

cess models are designed using UML language in-

stead of BPMN.

Bousetta et al. (2013), Dias et al. (2006) and Cruz

et al. (2014) use sentences in pre-defined formats for

the business process activities documentation. There-

fore, it requires that the process modelers and special-

ists are aware of these sentence patterns instead of us-

ing their own business language. For instance,

Bousetta et al. (2013) propose the use of a standard

documentation based on the concepts of “term” and

“fact” to describe business rules in business process

models. This standard allows the use of natural lan-

guage and aims to assist the generation of use cases,

class and sequence diagrams using UML. It is worth

mentioning that this is executed in a semiautomatic

mode in which the authors use a software tool, how-

ever, it is necessary to adjust manually the diagrams

generated at the end of the process.

Application of Heuristics in Business Process Models to Support Software Requirements Speciﬁcation

In another direction, Xavier et al. (2010) highlight

that the BPMN notation does not provide elements to

represent explicitly non-functional requirements.

Then, the authors propose a technique that extends the

BPMN notation, placing labels on the activities that

present non-functional requirements. Non-functional

requirements are also considered in this work’s guide-

lines. They are described by using "extended attrib-

utes", which are available in BPMN and must be

added to the appropriate elements of the business pro-

cess models, as will be presented in Section 4.

Vieira et al. (2012) use instructions to guide the

systems analysts during the elicitation of require-

ments from the activities of business process models.

These instructions are called by the authors as "heu-

ristics" and they are performed manually. It is noted

that the business process models are designed by

Vieira et al. (2012) using BPMN. The use of heuris-

tics gives support to register, validate and repeat the

procedures performed. However, the application of

heuristics is restricted to a very small set of require-

ments by Vieira et al. (2012). In addition, the heuris-

tics do not consider resources of the business process

modeling tools, such as the indication of the activity

performer (actor) and the use of extended attributes.

However, the proposal presented in this paper, con-

sider these business process modeling tools features.

As shown in Section 4, this work also uses heuristics

to extract requirements from business process mod-

els, called "requirements heuristics". These heuristics

are principles automatically identified in the corre-

sponding XPDL code of the business model, allowing

the automatic generation of a requirements document.

Following this idea, it is emphasized that only the

procedures used by Dias et al. (2006) are performed

automatically. The authors use a specific software

tool that enables to model business processes in UML

and makes the extraction of requirements by trans-

forming them into UML diagrams. The procedures

are performed in a semi-automatic way by Bousetta

et al. (2013) and manually in the other works men-

tioned in this section, impacting the time required and

the results obtained.

The works of Bousetta et al. (2013), Dias et al.

(2006) and Cruz et al. (2014) generate UML diagrams

for use cases, while Macek and Richta (2009) only

generate activity diagrams. These papers do not use

any structure for the Software Requirements Specifi-

cation (SRS) document. This would help the business

and IT teams to understand and validate the software

requirements. On the other hand, the purpose of this

work generates a software requirements document ac-

cording to the ISO/IEC/IEEE 29148:2011 standard

and best practices of Requirements Engineering. The

requirements document is generated in XML, using a

metamodel, which defines a hierarchical structure for

the identified requirements representation.

In a different direction, Herden, Farias, and Albu-

querque (2014) present a way to support the prototyp-

ing phase in the agile approaches with use case de-

scriptions using the BPMN notation. However, the

authors do not explain how the information handled

by the process activities are represented. On the other

hand, the proposal presented in this paper uses the fol-

lowing BPMN elements for representing such infor-

mation: artifacts and data repositories. It is appropri-

ate to mention that Inayat et al. (2015) point out that

the use of agile methodologies can present negligence

about the non-functional requirements.

3 BUSINESS PROCESS MODELS

According to the CBOK (Business Process Manage-

ment Common Body of Knowledge) guide (ABPMP,

2013), business process modeling is the set of activi-

ties involved in creating representations of the exist-

ing or proposed business processes in a complete and

accurate way. These activities are critical to the man-

agement of an enterprise, supporting the understand-

ing, communication, and management of the business

processes (ABPMP, 2013). The representations can

be done by using graphical notations, although addi-

tional textual information is important to document

the resulting models.

According to Jung et al. (2004), business process

modeling can be done in two different ways: using a

graphical notation such as BPMN, EKD, and UML,

or through an execution language, such as BPML

(Business Process Modeling Language), BPEL (Busi-

ness Process Execution Language) and XPDL. Gen-

erally, these languages are based on XML and allow

the understanding of information that make the pro-

cess run. Considering the purposes of this paper, sub-

sections 3.1 and 3.2 approaches BPMN and XPDL,

respectively.

3.1 Considerations on BPMN

The OMG Consortium is responsible for the BPMN

notation specifications. This paper considers the lat-

est version, v2.0, published in 2011, which includes

seventy-five graphic elements. It is a comprehensive

and flexible notation that can be used by professionals

with different levels of expertise. According to OMG

(2011), BPMN is currently the business process mod-

eling notation used by most of BPM professionals.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

The full specification of BPMN v2.0 defines attrib-

utes grouped into four basic categories of elements:

objects, connecting objects, swimlanes and artifacts.

Flow objects are the graphic elements represent

events, activities, and gateways (for decisions). Con-

necting objects interconnect Flow Objects through

different types of arrows. Swimlanes (Lanes and

Pools) group activities into separate categories, ac-

cording to their functional capabilities or responsibil-

ities. Artifacts add information to the process, such as

processed data or comments. Fig. 1 illustrates a busi-

ness process diagram, with some elements of BPMN

notation identified through information notes, high-

lighted in red.

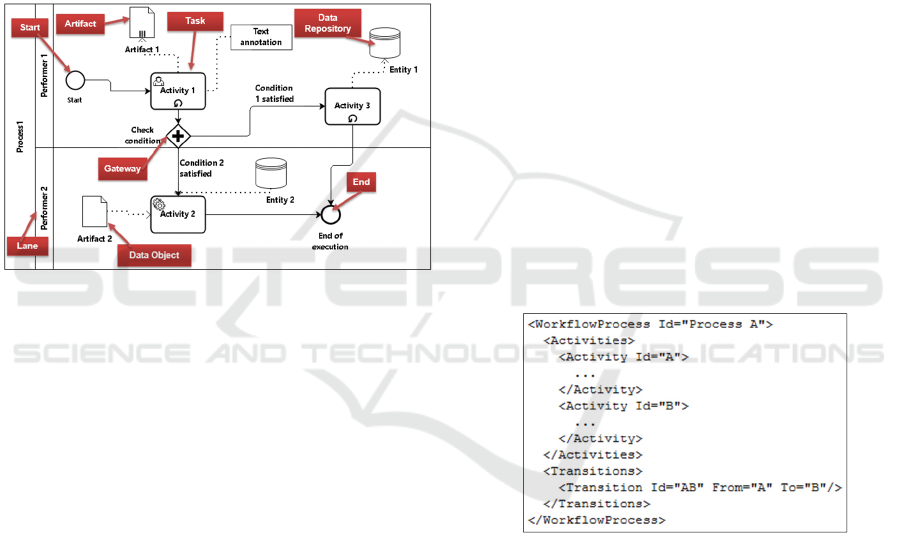

Figure 1: An example of a business process diagram in

BPMN.

It is worth mentioning that OMG does not specify

the rules nor the elements for the documentation of

business processes. Because of this gap, business pro-

cess modelers systems in BPMN, which are part of

complete BPM systems, must implement effective

ways to document the elements of the business pro-

cess models. This documentation is critical to the

BPM lifecycle. However, the diversity of modeling

systems brings problems when exporting the com-

plete model (graphics and documentation) to other

modeling systems.

Another issue that deserves attention is the lack of

a guide of procedures for business process modeling

using BPMN. However, some studies suggest good

modeling practices so that the integrity and logic of

the processes execution are maintained (Correia and

Abreu, 2015).

3.2 Mapping from BPMN to XPDL

The Consortium Workflow Management Coalition

(WfMC) is responsible for the XPDL language spec-

ifications. This paper considers its latest version,

v2.2, published in 2012, the business process defined

by the XPDL structure can be interpreted by different

software tools. According to the XPDL specification,

the BPMN business process modeling tools should

provide two operations: (1) export a business process

model to XPDL, according to the tool's internal rep-

resentation for the business process definition; (2) im-

porting a business process definition from the corre-

sponding XPDL code. To perform these operations,

the BPMN modeling tool should conform to the XSD

(XML Schema Definition) schema provided by the

XPDL specification.

The XPDL language specification defines a basic

set of entities and attributes for representing lanes,

pools, processes, participants and message flows, as

well as different types of elements that represent the

flow control in the business process models. The

specification also defines the serialization of the busi-

ness process models in XML format, including con-

ceptual and graphical information for the representa-

tion of the processes (Weske, 2012).

Fig. 2 shows an example of the structure of a busi-

ness process in XPDL. It is possible to identify the

workflow process, which is the process definition for

the "Process A" process. Then, the activities identi-

fied as "A" and "B" are represented, highlighting the

"Transition" element (identified as "AB"), which con-

nects them.

Figure 2: An example of a business process in XPDL.

For this paper, business process models in BPMN

are exported to the XPDL format. Afterward, these

models are validated and processed by a software tool

presented in Section 4, which is responsible for the

automation of the proposed systematic process.

The OMG and WfMC consortia do not define rules

for mapping the elements of BPMN and XPDL mod-

els. The modeling tools must define and implement

how to associate each BPMN element with an XPDL

element (and vice versa). Due to the conceptual dif-

ference between these models, some graphics are not

used in XPDL, although the modeling tools export

them. Table 1 shows the main elements used in this

Application of Heuristics in Business Process Models to Support Software Requirements Speciﬁcation

study to relate BPMN and XPDL elements, based on

the works of Van der Aalst (2003), Mora et al. (2007)

and White (2003). The complete set of mappings used

in this work and the description of requirements heu-

ristics will be presented in Section 4. This mapping

does not include all associations between BPMN and

XPDL elements but is sufficient for the extraction of

requirements proposed in this paper.

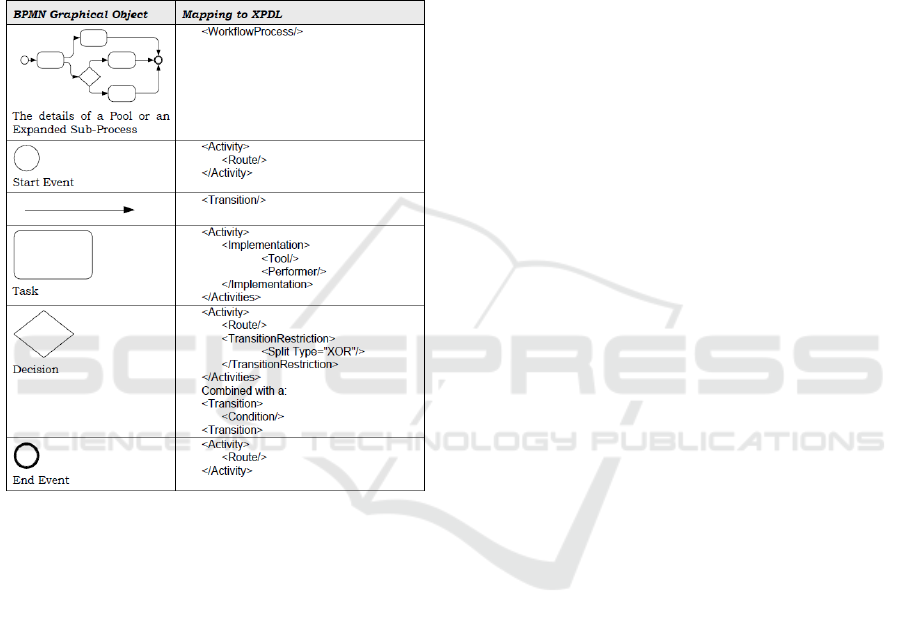

Table 1: The mapping between BPMN and XPDL elements

(White, 2003).

4 PROCESS FOR EXTRACTION

AND SPECIFICATION OF

SOFTWARE REQUIREMENTS

This section presents a systematization of the actions

to extract functional and non-functional requirements

from business process models of an enterprise, to sup-

port the development of software solutions for pro-

cess automation. Due to the complexity of a business

process model, with several sub-processes, it is rec-

ommended that the application of the systematic pro-

cess is done separately for each sub-process. The ap-

plication of the systematic generates a requirements

document, which is structured according to the guide-

lines in the ISO/IEC/IEEE 29148:2011. Eventually,

the requirements documents generated in each appli-

cation of the systematic process must be analyzed to

reach a set of requirements that is in accordance with

the scope of the software to be built. The final docu-

ment is an early version of the Software Require-

ments Specification, which will support systems ana-

lysts to understand the business.

In order to apply the systematic process, the com-

pany must have well-defined processes designed in

BPMN notation v2.0, including descriptive and tex-

tual parts of the model elements. The model must

have a start event, at least one end event, at least one

lane and one pool. The textual part of the model

should provide sufficient information to understand

the implementation particularities of the company's

business processes. This information must be clear

and accurate, covering the roles of the processes per-

formers, the documentation of the BPMN elements in

the chain of processes, existing software systems, and

other information relevant to the processes.

However, due the lack of a standard for the textual

description of the model and often the lack of skills

and time of the business process modelers, a consid-

erable part of all these information is missing or in-

complete in the business models. So, before applying

the systematic process, it is important that these

amount of information is properly present in the busi-

ness process models.

In this work, the extended attributes feature of

BPMN notation was used to facilitate the identifica-

tion of some software elements. These attributes are

structured according to the "key-value" pattern and

can be added to the documentation of any element of

a BPMN model using the modeling system interface.

Three types of extended attributes were defined in

this work, with the following identifications: "NFR",

to be added to the activities or decision flows, repre-

senting non-functional requirements; "ATTRIB-

UTES", for data repositories or artifacts, representing

their attributes and respective data types; "RULE",

for the business process activities, representing the re-

lated business rules.

The proposed systematic process is organized in

three steps that must be performed sequentially in this

order:

 STEP 1: exportation of the BPMN v2.0 model to

XPDL v2.2 using a modeling tool for business

processes. At this step, the input is the business

model in BPMN, and the output is composed of

XPDL files, where an XPDL file is generated for

the whole model and a file is generated for each

sub-process model if any;

 STEP 2: execution of the SRPD system for each

XPDL file created in Step 1. The output is a re-

quirement document in ".xml" file extension,

which shall form the Software Requirements

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

Specification (SRS) document. An XSLT (eX-

tensible Stylesheet Language for Transfor-

mation) stylesheet is attached to the ".xml" file

for formatting the requirement document and

thus improve the presentation of the content of

this document. The SRPD system (Fig. 3) per-

forms the following activities in this order:

2.1 - automatic extraction of functional and non-

functional requirements using a set of heuristics

("requirements heuristics"), presented in Sub-

section 4.1;

2.2 - automatic generation of an ".xml" file with

the specification of the use cases identified and

the following UML diagrams: use cases, classes,

and activities. The structure of the document and

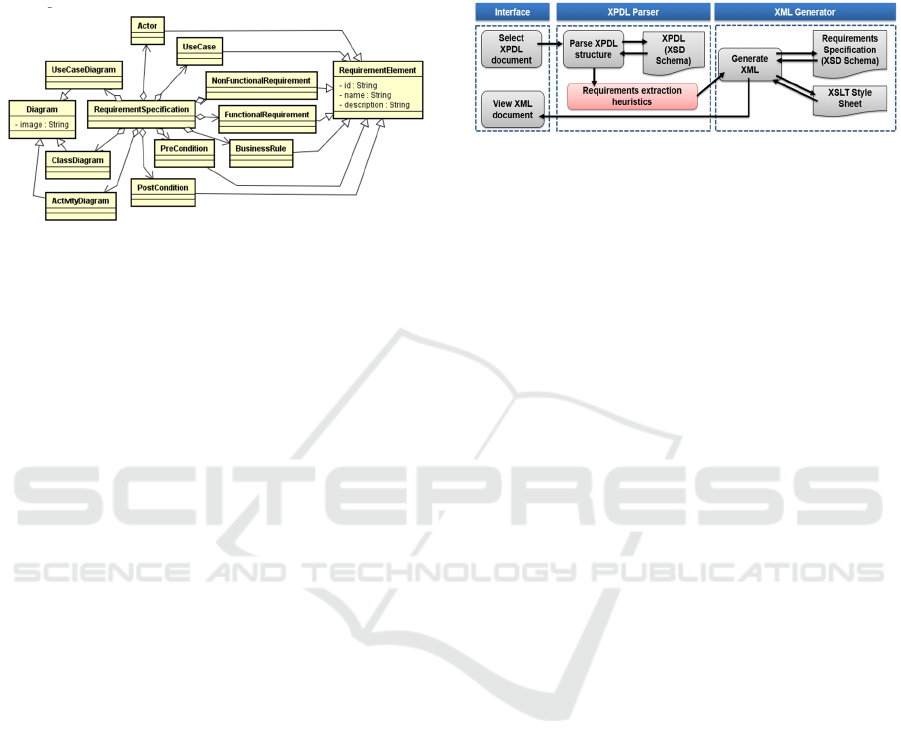

the generation of diagrams are discussed in Sub-

section 4.2.

 STEP 3: composition of the SRS document. The

inputs are the requirement document (".xml")

generated in Step 2. The systems analysts team,

to enable further adjustments, must compose this

initial version of the SRS document.

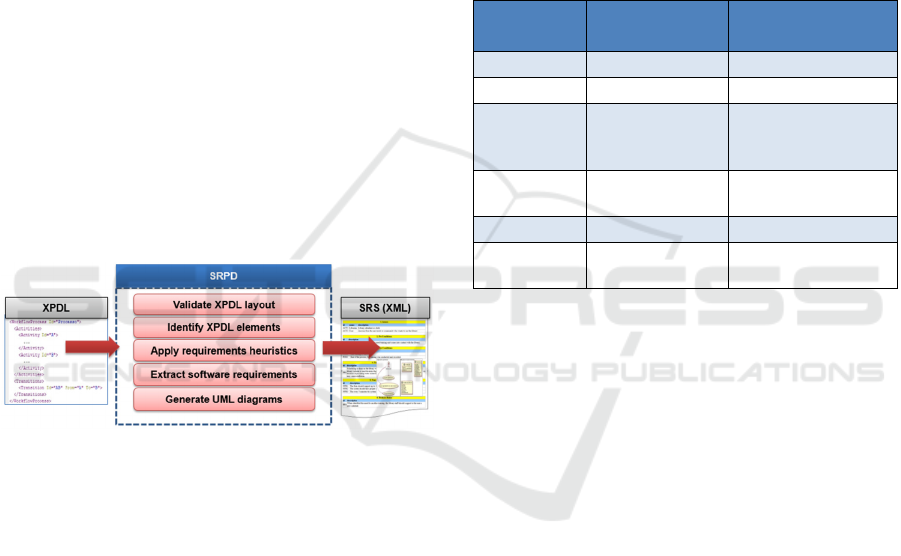

Figure 3. Overview of SRPD software.

It is recommended to repeat the implementation

of the systematic process if any changes are made in

the business process models. However, if the change

is made in a sub-process, the systematic process shall

be applied again only in the XPDL file for the sub-

process. Thus, the requirements documentation will

be updated and aligned with the company's business

processes. It is worth mentioning that Step 1 is the

only step in which manual intervention is required.

Step 3 can be performed automatically, although this

is not discussed in this article.

4.1 Automatic Extraction of Software

Requirements

The input for the extraction phase for software re-

quirements is a XPDL file that represents a business

model for a process or sub-process. The SRPD system

inspects the XPDL file and applies nine heuristics,

called "requirement heuristics." These heuristics ena-

ble a mapping for the textual elements that will com-

pose the requirements document (part of the Software

Requirements Specification). Table 2 shows the cor-

respondence between the BPMN elements used in

this work, XPDL structures and the software require-

ments elements generated. It is important to observe

that all the associations between BPMN and XPDL

elements presented in Table 2 have been considered

in the automatic conversion performed by the model-

ing tools analyzed.

Table 2: The relation between BPMN, XPDL and software

elements.

BPMN

element

XPDL element Software element

Diagram WorkflowProcess Scenario

Performer Performer Actor

Activity

Functional require-

ment / use case /

activity

Decision

Flow

Route Business rule

Artifact DataObject Class and attributes

Data

Repository

DataStoreRefer-

ence

Class and attributes

The requirement heuristics are classified accord-

ing to the software requirements elements. The three

categories of these heuristics are shown in Tables 3 to

5, respectively: heuristics for extraction of use cases

scenario, heuristics to extract textual requirements

and heuristics to generate UML diagrams. Require-

ments heuristics are identified by "RH" and a sequen-

tial number. Each heuristic presents a principle that is

considered in the SRPD system instructions.

Table 3 shows that the RH1 heuristics are used to

identify the event that starts the process, to obtain a

pre-condition for the use cases. The documented in-

formation about this event will be mapped to the "Pre-

condition" section of the document. Similarly, the

RH2 heuristic is used to extract the post-conditions

from the documentation of the process end events.

The application of RH4 heuristic depends on the

annotation "NFR" in the documentation of the busi-

ness process models. It is observed that the inclusion

of multiple non-functional requirements in the same

activity, must use the character semicolon (";") to di-

vide the non-functional requirements.

The RH5 heuristic uses the documentation of the

decision flows of the business process diagrams to ex-

tract the software business rules. Decision flows rep-

resent decision-making to perform activities of one or

more different paths. The constraints associated with

Application of Heuristics in Business Process Models to Support Software Requirements Speciﬁcation

decision-making must be documented in the respec-

tive decision flows of the model using natural lan-

guage, according to the organization's business

knowledge.

Table 3: Requirement heuristics to extract use cases scenar-

ios.

Heuristic Description

RH1

pre-

conditions

 The start event element must be identified.

 The precondition for performing the busi-

ness process must be registered in the

event documentation.

RH2

Post-

conditions

 End events must be identified.

 The documentation of the end event must

represent the post-condition required after

the execution of the business process.

 The post-condition must be registered in

the “Post Conditions” section of the SRS

document.

Table 4: Requirements heuristics to extract textual require-

ments.

Heuristic Description

RH4

Non-

Functional

Require-

ments

 The type of the activity must be identified:

“User”, “Service” or “Script”.

 The extended attributes of the type “NFR”

must be identified in the activities.

RH5

Business

ules (deci-

sion flows)

 The decision flows must be identified.

 The business rules must be identified from

the documentation of the decision flows.

RH6

Business

ules (activ-

ities)

 The activities with the types “User”, “Ser-

vice” or “Script” must be identified.

 The business rules must be identified from

the extended attributes of the type “RULE”.

RH8

Functional

Require-

ments

 The type of the activity must be identified:

“User”, “Service” or “Script”.

 The functional requirements must be iden-

tified from the textual documentation of

the activities.

On the other hand, there are business rules that are

not documented in the decision flow of the business

processes, for example, when a given task must be

performed in a certain time by a given user. This re-

striction should be recorded in their activity with the

insertion of extended attributes of the type “RULE”.

Then the RH6 heuristic can identify these attributes

in the business process activities.

The RH3 heuristic aims to establish a relation-

ship between the role of the activities in the business

process and the use cases. Similarly, the RH3 heuris-

tic aims to relate the role of the business process ac-

tivities and functional requirements of the software.

For this, RH3 and RH8 identify the activities of the

business processes that are "User", "Service" and

"Script". The activities of the type "User" represent

the execution of a task by a human being with the help

of a computational tool. "Service" represents actions

performed by a computer system only. "Script" are

performed using mechanisms created in a language

that is understood by the business process.

Table 5: Requirements heuristics to generate UML dia-

grams.

Heuris-

tic

Description

RH3

Use Cases

 Use cases must be identified from activities

with the type “User”, “Service” and “Script”.

 Actors must be identified from the resources

that perform the activity.

RH7

Domain

Classes

 Domain classes must be identified from each

artifact and data repository.

 Class attributes must be identified from the

extended attributes of the type “ATTRIB-

UTES”.

RH8

Activities

Diagram

 The activity diagram start must be identified

from the start event of the business process.

 The activities of the activity diagram must be

identified from the activities with the types

“User”, “Service” and “Script”.

 The end of the activity diagram must identify

from the end event of the business process.

Thus, functional requirements are identified and

recorded in the requirements document, at "Func-

tional Requirements" section, considering the docu-

mentation of each activity. The generation of the use

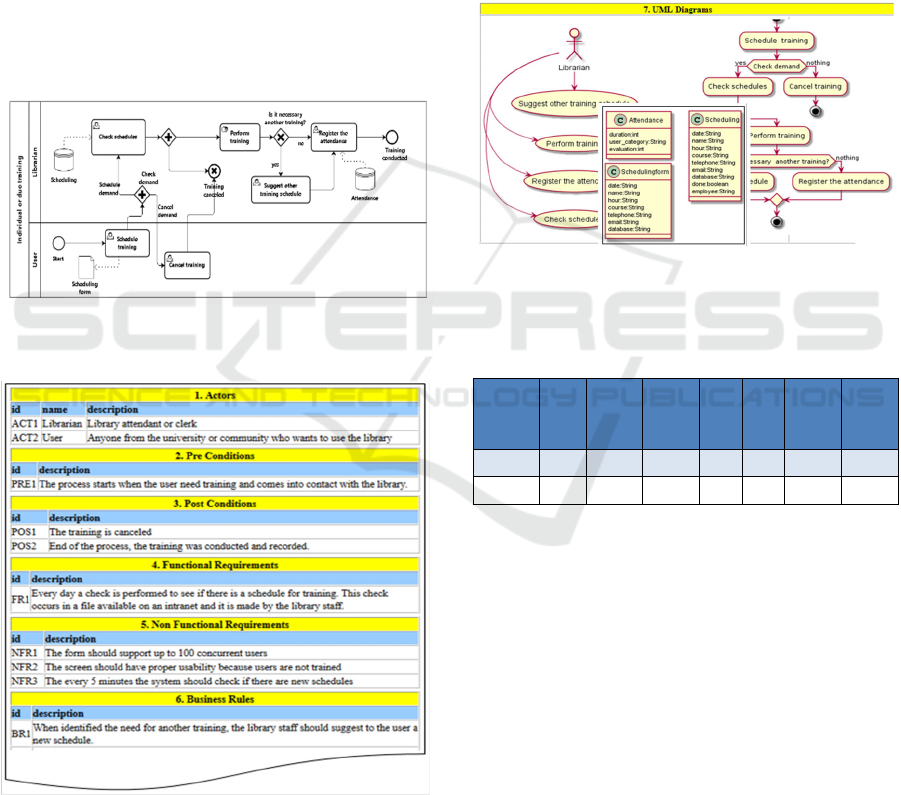

case diagram in UML is started when the executors of

each activity are identified; they will be the actors in

the use case diagram. This identification is provided

in the BPMN notation and XPDL language by using

information the "performer" information". The iden-

tified actors are recorded in the "Actors" section of

the document. The illustrations of the use cases are

generated from the textual description of each activity

selected and are represented with the respective actor

who implements it.

The identification of the software domain classes

is performed by RH7 heuristic (Table 5), using the

structured documentation of data repositories and

data objects from the business process diagrams as

well as the associations of these elements with the ac-

tivities. These elements represent information storage

objects that are managed during the execution of the

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

business process. Each data object and each data re-

pository correspond to a domain class. The attributes

representation of the identified classes is possible

with the use of the “ATTRIBUTES” extended attrib-

utes in the documentation of these elements in the

business process models. These extended attributes

must record the data attributes types of each data ob-

ject or data repository so that the area of representa-

tion is possible by RH7 heuristic.

The definition of a formal sentence for represent-

ing the attribute name and its respective data type

meant to reduce problems arising from the use the

natural language in the identification of these attrib-

utes process. In addition, a dictionary of terms for the

representation of data types was defined. This dic-

tionary was created for two reasons: ease the registra-

tion of the data types during the business process

modeling and restrict the use of natural language. The

data types of the attributes from the class diagrams

present in the software requirements document are

primitive type commonly used in programming lan-

guages, as shown in Table 6. The information about

the identifier and data type of each attribute is found

in the documentation of the extended attribute of the

type "ATTRIBUTES" in the model in BPMN. For ex-

ample, if the documentation of the extended attribute

"ATTRIBUTES" has the text "status: B;" then the

class attribute is identified as "status" with the data

type "boolean".

Table 6: The domain of data types for the design of UML

activity diagrams.

Symbol Description

Datatype in class

diagram

C Char char

T Text string

D Decimal float

I Integer int

B Boolean boolean

The data types of the attributes from the class di-

agrams present in the software requirements docu-

ment are primitive types commonly used in program-

ming languages, as shown in Table 6. The infor-

mation for these attributes is in the documentation of

the extended the attribute with the annotation "AT-

TRIBUTES "in the BPMN model. The identification

and type of each attribute of the class diagrams

depend on the documentation of the extended attrib-

ute "ATTRIBUTES". For example, if the documenta-

tion of the extended attribute "ATTRIBUTES" has

the text "status: B;" then the class attribute is identi-

fied as "status" with the data type "boolean".

4.2 Software Requirements Document

The requirements document generated by SRPD sys-

tem is structured according to the recommendations

of the ISO/IEC/IEEE 29148:2011 standard. This doc-

ument ".xml" also includes contents indicated by

Pressman (2015), Sommerville (2015) and Yayici

(2013). The requirements document consists in the

following sections, with the structure shown in Fig. 4:

• Versioning: information about the considered

business process models;

• References: provides information about the

XPDL document that contains the definition of

the business process;

• Software features: textually describes the ac-

tors, functional requirements, non-functional

requirements, and business rules; it also presents

the pre-condition and post-conditions for imple-

mentation of use cases;

• Requirements model: presents the following

UML diagrams: use cases, classes and activities.

Regarding the traceability of software require-

ments, a relationship between business process mod-

els and the extracted the software requirements has

been established. Textually, the features traceability,

sources, and dependencies are recorded is registered

in the generated requirements document.

Figure 4: The structure of the requirements document.

Each requirements document is associated with an

XPDL file, which represents a subprocess or the en-

tire business process model in BPMN. Thus, more

than one requirement document can be generated for

a business process model. These documents must be

gathered and organized by the systems analysts team

to compose the Software Requirements Specification

(SRS) document. Other documents and information

can complement this document, which will form the

basis for the alignment of the communication be-

tween business and software development teams.

Fig. 5 shows a metamodel in UML for the defini-

Application of Heuristics in Business Process Models to Support Software Requirements Speciﬁcation

tion of the requirements classes considered in the re-

quirements document. This metamodel allowed to

create an XSD schema for serialization of the docu-

ment in XML format - which enables its use in other

phases of the software development (e.g.: design and

testing).

Figure 5: Metamodel for the requirements document.

It is worth mentioning that the activities of the

business process models processes can indicate the

use of software systems that are already in operation

in the process chain. In these cases, the requirements

document generated contains classes that represent

information that is maintained by these systems and

used in the implementation of the company's business

processes. Moreover, the use cases identified may

help to identify the activities that are already auto-

mated by these systems. This supports the process of

requirements analysis, identifying what should be au-

tomated by a software solution to be developed. It is

also possible to identify some characteristics of the

interaction between new systems and the already op-

erational ones, aimed at automation of the business

processes.

4.3 SRPD System for Automation of

Software Requirements Extraction

The SRPD (Software Requirements from Process

Definitions) system was developed for automation of

Step 2 in the proposed systematic process. The input

is an XPDL v2.2 file corresponding to the business

process model or a subprocess of this model in BPMN

v2.0. The output is a requirements document accord-

ing to the structure presented in the previous subsec-

tion. The SRPD system can be requested free of

charge for use and evaluation. The system was devel-

oped in Java SE (Standard Edition) V1.8 and can be

executed on Windows, Linux and Mac platforms.

The SRPD consists of two modules (Fig. 6):

• XPDL Parser, which parses the XPDL v2.2

code and uses the requirements heuristics,

which were defined in Subsection 4.1;

• XML Generator, which generates require-

ments document in XML and one XSLT style

sheet, in order to provide the visualization of

the XML document and the UML diagrams

using Web browsers.

Figure 6: Architecture of the SRPD tool.

The library PlantUML (Plantuml, 2012) was used

to generate the UML diagrams It is a free and open

source library that uses a proprietary language to gen-

erate several UML diagrams. The library can be used

together with many programming languages and de-

velopment tools. In this work, the diagrams were gen-

erated in PNG (Portable Network Graphics) format,

suitable for the structure of the XML document gen-

erated. The user interface allows the user to select the

desired XPDL file.

The progress of the process can be followed by

the user through a panel, which also displays error

messages in case of failure.

5 EVALUATION

The systematic process and the SRPD system were

evaluated with business process models in BPMN

v2.0 available at the public repository: http://www.bi-

zagi.com/en/community/processxchange. In that re-

pository, there are models with different complexities

and directed to different business areas. The textual

documentation of these models contributes to the un-

derstanding of the business domain of the companies

for which were designed. It must be observed that the

models from the repository use the modeling tool Bi-

zagi Modeler, which offers numerous features for tex-

tual and graphical documentation models in BPMN.

The models used to evaluate the proposed system-

atic process have the following characteristics: -

BPMN v2.0 notation; - More than one pool, which

means that the process activities are performed by dif-

ferent departments of the organization; - Activities

using actual forms and information that can be stored

using databases; - Documentation that identifies busi-

ness rules.

In this section, two business process models will be

discussed to show the applicability of the proposal:

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

(1) model for the accounts payable department of a

company, which has processes to validate the docu-

mentation submitted by suppliers and subsequent re-

lease of payment; (2) model for software permissions

control area department in an organization.

The original models were exported to XPDL v2.2

using two freeware modelers: Bizagi and Camunda.

So, each XPDL document was submitted to SRPD

tool for the generation of requirements documents.

The results were similar, regardless of the modeler

system, without interfering in the requirements result-

ing documents.

The evaluation of each requirements document was

performed manually, with the support of a classifica-

tion presented in Table 7. This rating scale is from 1

to 4, where 4 indicates the highest level of desirable

information in an element of the requirements docu-

ment structure. This classification allows analyzing

the adequacy of the documentation of each require-

ment element resultant from the SRPD system. In all

cases, the results showed that most of the elements in

the requirements structure have not reached the level

4, then BPMN models were not properly documented.

Thus, some adjustments were necessary for these two

business models, considering the insertion of ele-

ments such as data repositories, artifacts, and ex-

tended attributes. In addition, the textual documenta-

tion of the BPMN elements and the identification of

the executors and types of each activity were adjusted

when necessary.

The adjusted models were again subjected to the

same initial procedures, showing significant improve-

ment over the completeness and content of the re-

quirements document. This process was repeated un-

til the set of identified requirements were rated at

level 4, that is, the documentation is considered "com-

plete".

In addition to the models available in the repository

mentioned, other models were used, highlighting the

business process models of the Library of a public

University, with high organizational complexity. The

models of this Library used a variety of BPMN v2.0

notation elements which are not normally used in

most of BPMN models (based on literature and public

repositories). Furthermore, the models are composed

of several sub-processes and include activities auto-

mated by software systems and semi-automated ac-

tivities. These business process models were devel-

oped by members of a research group of the Univer-

sity.

The data shown in this section are related to the

business process models conducting training for stu-

dents and other users of the Library (Pucci, 2016).

The textual documentation of the BPMN elements al-

lowed applying the classification presented in Table

7. Most of the elements were classified as level 2 or

3, although some elements showed level 4. It must be

observed that few elements were without any docu-

mentation, but most of them were not in accordance

with the "term-fact" standard.

Table 7: Classification of the SRS elements.

Level Description

 Undocumented: The requirement element was

not identified using the proposed technique.

 Labeled: Only the name of the requirement el-

ement was identified. There is no detailed in-

formation in the documentation of the require-

ment element, or the information available is

syntactically invalid, according to the “term-

fact” expression;

 Example:

Actor 1: manager

 Syntactically documented: In addition to the

name (level 1), the requirement documentation

is enhanced with syntactically valid textual in-

formation, according to the use of the “term-

fact” expression.

 Example:

Actor 1: Financial Manager  The financial

manager is in charge of the Financial and Ac-

counting departments.

 Complete: In addition to the level 3 premises,

the requirement element must have infor-

mation for the questions of the 5W1H tech-

nique, considered in the business heuristics.

 Example:

Actor 1: Financial Manager  The Financial

Manager is in charge of the management of the

activities of the Financial and Accounting de-

partments. The Financial Manager is hierarchi-

cally below the President of the company. Eve-

ryone that works at these departments is subor-

dinated to Financial Manager.

The original BPMN model was exported to XPDL.

As it has four sub-processes, five XPDL files were

generated (one for the main model). All underwent

SRPD system for document generation requirements.

The requirements were classified according to Table

7 and it was recorded for later comparison.

As an example in this section, the sub-process on

individual training or couple will be considered. In

this case, no requirement reached level 4, demanding

adjustments in the BPMN model documentation. This

Application of Heuristics in Business Process Models to Support Software Requirements Speciﬁcation

involved the analysis of the documentation of the

BPMN elements together with the staff that design

the business process models. Thus, adjustments were

made in graphic and textual form. An example of

adjustment was to represent the forms to request

training as data repositories, with attributes to register

the information considered in the process: validation,

scheduling, and execution.

After the application of the adjustments, the ad-

justed model (Fig. 7) was converted to XPDL and

then submitted to SRPD tool. Figs. 8 and 9 show re-

spectively an overview of the requirements document

and UML diagrams generated. The requirements

were classified according to Table 7 and most reached

level 4, "complete". This was recorded for compari-

son with previous results.

Figure 7: Overview of the BPMN model for the Library

training schedule.

Figure 8: Parts of the SRS document generated from the

business process for the Library training schedule process.

Table 8 shows significant improvement in the

number of requirements obtained in the adjusted

model. However, the most important are that obtained

a number of conditions where most 4 has reached the

level "complete". Furthermore, the BPMN model had

significant improvements in its documentation, con-

tributing to the Library business processes.

In general, the results showed a considerable in-

crease in the quantity of identified requirements after

the application of adjustments to the BPMN models.

Given the identification of functional requirements, it

was found that the indication of the type of activity

plays an important role in the improvement of pro-

cesses allowing the identification of activities that

will be transformed into use cases.

Figure 9: Detail of the UML diagrams generated from the

business process for the library training schedule process.

Table 8: Summary of the results for the Library training

model.

Model

version

unc.

Req.

Actor

Non

Func.

Req.

Bus.

Rule

Use

Case

Dom.

Class

Dom.

Class

Attr.

Original

2 0 1 6 0

djuste

2 3 4 6 3

6 CONCLUSIONS

This paper presented a systematic process that takes

into account the business process models of a com-

pany to extract requirements for the systems analysts

team, maintaining the vocabulary and language used

in business environment. The business process model

can be composed of several sub-processes and in-

clude automated activities for an operating software

in the organization. The systematic process automat-

ically extracts functional and non-functional require-

ments business process model in BPMN v2.0.

For this, a system (SRPD) was developed to auto-

matically generate software requirements documents

with use cases structures and UML diagrams (use

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

cases, classes, and activities). Efforts are being in-

vested to enable the inclusion of other UML dia-

grams. The system uses a set of heuristics to inspect

XPDL files that represent models of business process

models. A technique that evaluates the degree of in-

formation of the requirements extracted was also de-

fined. If the software requirements document ob-

tained a low classification, the business analyst can

complete/adjust the model, bringing benefits to the

organization and improving communication with the

development team.

For future works, DMN (Decision Model and No-

tation) and CMMN (Case Management Model and

Notation) notations should be considered in business

process modeling.

REFERENCES

ABPMP (Association of Business Process Management

Professionals) (2013), “CBOK - Guide to the Business

Process Management Common Body of Knowledge

Version 3.0”, available at: www.abpmp.org.

Bousetta, B., El Beggar O. and Gadi, T. (2013), “A meth-

odology for CIM modeling and its transformation to

PIM”, Journal of Information Engineering and Appli-

cations, Vol. 3, pp. 1-21.

Correia A. and Abreu, F. B. (2015), “Enhancing the correct-

ness of BPMN models”, in Varajão, J. E. Cruz-Cunha,

M. M. and Martinho, R. (Eds.), Improving organiza-

tional effectiveness with Enterprise Information Sys-

tems, Hershey: IGI Global, pp. 241-261.

Cruz, E. F., Machado, R. J. and Santos, M. Y. (2014),

“From business process models to use case models: a

systematic approach”, Proceedings of the 4th Enter-

prise Engineering Working Conference, Funchal, pp.

167-181.

Dias, F., Morgado, G., Oscar, P., Silveira, D., Alencar, A.,

Lima, P. and Schmitz, E. (2006), “An approach for au-

tomatic transformation from business model to require-

ments model”, Proceedings of the 6th Workshop em

Engenharia de Requisitos, Rio de Janeiro, pp. 51-60.

Herden, A., Farias, P. P. M. and Albuquerque, A. B. (2014),

“An approach based on BPMN to detail use cases”, New

Trends in Networking, Computing, E-learning, Systems

Sciences, and Engineering. Springer International Pub-

lishing, pp. 537-544.

Inayat, I., Salim, S. S., Marczak, S., Daneva and M. Sham-

shirband, S. (2015), “A systematic literature review on

agile requirements engineering practices and chal-

lenges”, Computers in human behavior, Vol. 51, pp.

915-929.

Jung, M., Kim, H. S., Jo, M. H., Tak, K. H., Cha, H. S. and

Son, J. H. (2004), “Mapping from BPMN-formed busi-

ness processes to XPDL business processes”, Proceed-

ings of the 4th International Conference on Electronic

Business, Beijing, pp. 422-427.

Kalinowski, M., Spinola, R. O., Conte, T., Prikladnicki, R.,

Fernandez, D. M. and Wagner, S. (2015), “Towards

Building Knowledge on Causes of Critical Require-

ments Engineering Problems”, Proceedings of the. 27th

Internacional Conference on Software Engineering and

Knowledge Engineering, Pittsburgh.

Macek, O. and Richta, K. (2009), “The BPMN to UML ac-

tivity diagram transformation using XSLT”, Proceed-

ings of the 9th International Workshop on Databases,

Texts, Specifications and Objects, Spindleruv Mlyn, pp.

119-129.

Mafra, P., Kallinowski, M., Fernandez, D. M., Felderer, M.

and Wagner, S. (2016), “Towards Guidelines for Pre-

venting Critical Requirements Engineering Problems”,

Proceedings of the. 42th Euromicro Conference on

Software Engineering and Advanced Applications, Li-

massol, 2016

Mora, B., Ruiz, F., Garcia, F. and Piattinin, M. (2007), “Ex-

periments on business process transformation from

BPMN to XPDL” Proceedings of the. 10th Congreso

Iberoamericano en Software Engineering,Isla de Mar-

guerita, pp. 165-178.

PlantUML (2012), “PlantUML Language Reference Guide

v.8048”, available at: http://plantuml.com.

Pressman, R. S. (2015), Software Engineering: a practi-

tioner's approach, 8th ed., McGraw-Hill.

Pucci, M. A. F. S. (2016), "Business process management

aimed at software engineering, with emphasis on pro-

cess modeling”.

Sommerville, I. (2015), Software Engineering, 10th ed.

Pearson Prentice Hall.

Van der Aalst, W. M. P. (2003), “Patterns and XPDL: a crit-

ical evaluation of the XML Process Definition Lan-

guage”, available at: www.bpmcenter.org.

Van der Aalst, W. M. P. (2013), “Business Process Man-

agement: a comprehensive survey”, ISRN Software En-

gineering.

Vieira, S. R. C., Conte, T., Nascimento, R. and Viana, D.

(2012), “Evaluating a technique for requirements ex-

traction from Business Process Diagrams through em-

pirical studies”, Proceedings of the 38th Conferencia

Latinoamericana en Informatica, Medelin, pp. 245-

254.

Weske, M. (2012), Business process management: con-

cepts, languages, architectures, Springer, Heidelberg.

White, S. A. (2003), “XPDL and BPMN”, in Fischer, L.

(Ed.), Workflow Handbook, Future Strategies, Light-

house Point, FL.

Xavier, L., Alencar, F., Castro and J. and Pimentel, J.

(2010), “Integration of non-functional requirements

and business processes: integrating BPMN and NFR”,

Proceedings of the 10th Workshop Engenharia de Req-

uisitos, Cuenca, pp. 29-50.

Yayici, E. (2013), Business analyst's mentor book: with

best practice business analysis techniques and software

requirements management tips, Emrah Yayici, Istam-

bul.

Application of Heuristics in Business Process Models to Support Software Requirements Speciﬁcation
