Stack Wars: The Node Awakens

Steven Kitzes and Adam Kaplan

Department of Computer Science, California State University Northridge, Northridge, CA, U.S.A.

Keywords: Web Server, LAMP, Node.Js, Benchmark, Cloud Technology.

Abstract: As the versatility and popularity of cloud technology increases, with storage and compute services reaching

unprecedented scale, great scrutiny is now being turned to the performance characteristics of these

technologies. Prior studies of cloud system performance analysis have focused on scale-up and scale-out

paradigms and the topic of database performance. However, the server-side runtime environments

supporting these paradigms have largely escaped the focus of formal benchmarking efforts. This paper

documents a performance study intent on benchmarking the potential of the Node.js runtime environment, a

rising star among server-side platforms. We herein describe the design, execution, and results of a number

of benchmark tests constructed and executed to facilitate direct comparison between Node.js and its most

widely-deployed competitor: the LAMP stack. We develop an understanding of the strengths and limitations

of these server technologies under concurrent load representative of the computational behaviour of a

heavily utilized contemporary web service. In particular, we investigate each server’s ability to handle

heavy static file service, remote database interaction, and common compute-bound tasks. Analysis of our

results indicates that Node.js outperforms the LAMP stack by a considerable margin in all single-application

web service scenarios, and performs as well as LAMP under heterogeneous server workloads.

1 INTRODUCTION

Cloud technologies and their proliferation have

revolutionized the ways in which we live our lives

(Welke, Hirschheim and Schwarz, 2011). Service

domains that have come to rely on the cloud include

retail commerce, entertainment, and business

functions across the board, including, in a circular

fashion, software development itself. Many service

and research domains would not be possible at

current scale without the cloud. These include

contemporary social networks and big-data

analytical science. These domains leverage massive

amounts of instantly-accessible data which can be

collected, moved, and analysed upon a flexible

collection of computing resources deployed across

the world.

A need has arisen to assess the various popular

web frameworks, and to produce an understanding

of their performance characteristics. In the absence

of such understanding, a web-service company may

find itself under- or over-provisioning resources,

and/or poorly utilizing developer effort. For a

modern technology company developing a web-

service product, an ideal design includes a thorough

analysis of existing web-stack technologies, such

that their strengths and weaknesses can be identified

and their performance capabilities estimated. Such

an analysis can guide selection of the most

promising technology stack upon which to host a

given service.

Existing research has focused on scaling up the

hardware on which cloud technologies are hosted,

by upgrading or expanding hardware resources to

become more performant (Appuswamy et al., 2013),

or to scaling out the host hardware by adding more

computational resources upon which to distribute

compute workloads (Ferdman et al., 2012).

Investigations have also targeted database

performance (Pokorny, 2013), resulting in extensive

database benchmarking standards (Transaction

Processing Performance Council, 2016). These

standards may guide web-service architects through

the database design space.

However, less focus has been paid to the

comparative performance of the web application

software being run on these hardware platforms.

This software is often deployed on numerous load-

balanced machines, and facilitates business logic for

thousands of concurrent users or more (Chaniotis,

Kitzes, S. and Kaplan, A.

Stack Wars: The Node Awakens.

DOI: 10.5220/0006280702390249

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 3, pages 239-249

ISBN: 978-989-758-249-3

239

Kyriakou and Tselikas, 2015). In this work, we

investigate the performance of these web application

service engines as they compare under concurrent

user load when run on the same hardware. We

specifically focus attention on Node.js in

conjunction with the Express.js framework, together

part of an increasingly popular, recently deployed

web application server stack known as MEAN

(MEAN.JS, 2014). We compare Node.js to its more

entrenched competitor, namely the Apache web

server in conjunction with PHP, which together form

part of the famous LAMP stack, still the most

widely distributed web platform in production

(Netcraft, 2015).

It is worth noting that Node.js functions as a

complete platform that allows developers to write

server-side software and web applications using

JavaScript. By comparison, Apache does not

contain an engine for executing PHP code, but rather

integrates with the PHP interpreter and serves the

resultant output of a given script to the requesting

client as appropriate. Node.js is special in this

regard, because an application can be written in

JavaScript that handles all aspects of an

application’s duties, from serving client requests, to

database interaction, to executing server side

JavaScript code. Since Node.js is capable of

managing static file hosting, handling business logic,

serving dynamic content, and handling database and

file I/O, this platform has proven to be an attractive

solution, in some cases winning a place over other

popular frameworks in the development

environments of industry leaders including eBay,

LinkedIn, PayPal, Uber and many others (Github,

2016). To these early adopters, Node.js provides

tremendous community support and a broad

selection of libraries made available both officially

and unofficially via the NPM (Node Package

Manager) system; as well as the ability to code

entire web applications from front to back entirely in

a single programming language (JavaScript).

Also attractive to Node.js users is the enticing

possibility of superior web application performance

(Chaniotis, Kyriakou and Tselikas, 2015). The

attention Node.js has attracted from the community

and from industry leaders generates the confidence

that this is a framework that is worthy of further

performance investigation, especially in direct

comparison against the current industry leader,

Apache/PHP.

The remainder of this paper is organized as

follows. In Section 2, we provide a background

description of the Node.js and Apache runtime

architectures, and discuss the most closely related

work. In Section 3, we detail our experimental

methodology for comparing Node.js and Apache.

Section 4 provides experimental results over

multiple contemporary web-service benchmarks.

Finally, in Section 5, we provide concluding remarks

and a brief discussion of future work.

2 BACKGROUND AND RELATED

WORK

Node.js employs an event loop, executed on a single

thread, to carry out execution of all user defined

program code, as shown in Figure 1. However, only

the management of the event loop and the tasks

placed upon it are executed by this single thread.

Many other threads are involved in the process of

managing a full Node.js instance. Node.js is built

upon a bedrock of supporting technologies, most

importantly Google’s V8 Runtime and the libuv

support library. V8 allows JavaScript to be run

efficiently on server side hardware whereas libuv

provides the asynchronous event handling structure

which holds the promise of enhanced application

performance (Libuv, 2016).

At a high level, libuv’s architecture can be

described as follows. An event is placed into the

Node.js event queue by a client request, and the

event loop will process this event. The client

request will then be handled by user code. In cases

requiring asynchronous operations, such as database

or file system interaction, the user code will invoke

Node.js (or third party) function calls for these tasks.

These function calls spawn asynchronous processes

on one of several worker threads running in a thread

pool behind the scenes. Node.js, as well as third

party library developers, provide this asynchronous

behaviour by default, and implicitly encourage its

Figure 1: The Node.js Event Loop.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

240

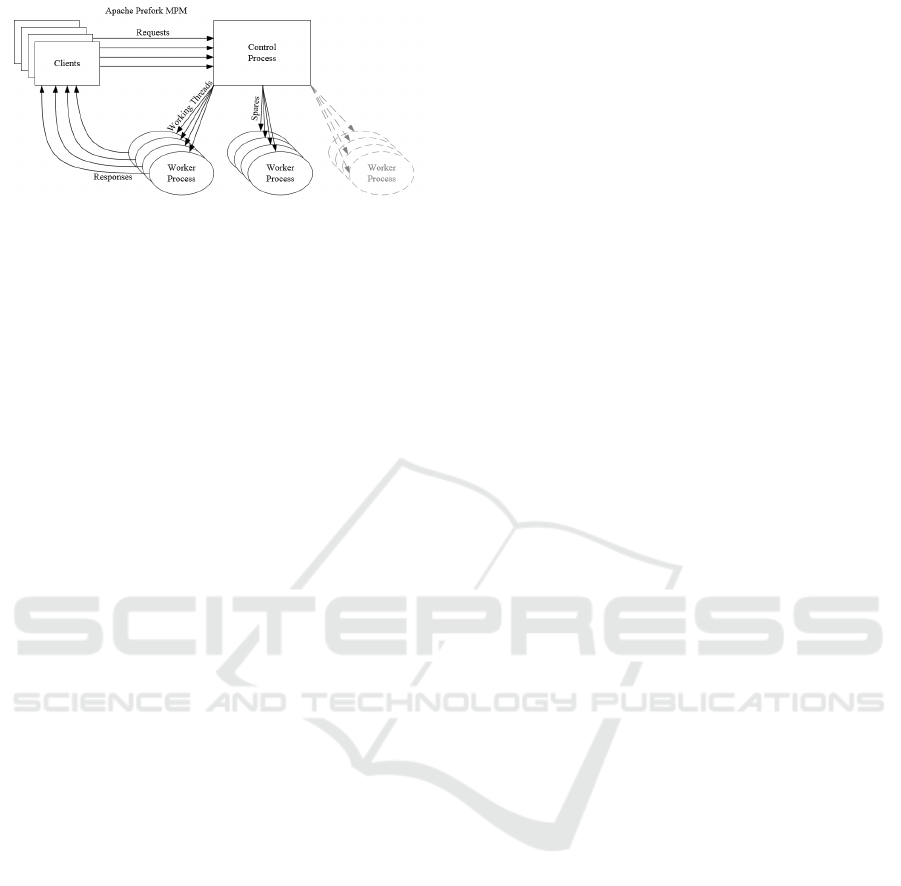

Figure 2: The Apache Prefork Multi-processing Module.

use.

Otherwise, as asynchronous tasks execute upon

separate worker threads, the event loop thread

continues serving other pending requests, invoking

callbacks, or spawning additional asynchronous

tasks upon worker threads as needed. Asynchronous

tasks, once completed, return control to the

application developer via callbacks, which are

placed on the end of the event queue as new events,

and wait their turn to be handled by the Node.js

event loop as appropriate.

For performance reasons, it is critical that users

take care to avoid introducing computationally

heavy code, or other synchronous tasks, into either

request handlers or callbacks that are executed on

the event loop thread, as these block execution of the

event loop. In fact, programmers must explicitly

specify when and if they wish to use a synchronous

version of a given operation, as any synchronous

implementation will block the event loop until its

task completes (Tilkov and Vinoski, 2010).

However, if the asynchronous functionality that

comes packaged with Node.js is employed, and the

event loop remains unburdened with synchronous

operations, then the load of processing each

individual item on the event loop queue remains

relatively light, and chiefly consists of spawning an

asynchronous task on a worker thread.

As Figure 2 demonstrates, Apache employs a

configurable multi-process, multi-threaded solution

to concurrency. This modern Apache architecture

represents a departure from the original Apache

engine, which was designed at a time when

concurrency was not a severely limiting factor for

most use cases. The contemporary Apache maintains

a thread pool (in varying patterns by version,

configuration, and host operating system) for

handling request service operations in parallel

(Menasce, 2003). However, as mentioned above,

while these processes are carried out in true parallel

fashion on multiple threads – and possibly even on

multiple processors – each individual thread will

block in its own right while waiting on outstanding

operations that might take long stretches of time,

such as database or file system access. Moreover,

the construction, tear-down, and context switching

of these threads can be costly in and of itself. We

aim to mitigate the computational overhead of

Apache/PHP’s management of many parallel

threads, each of which may individually block as it

handles a single user request. We compare against

the aforementioned Node.js event queue model,

where a single thread responds to multiple requests

and multiple responses using the same single queue,

and farms subtasks to a pool of worker threads.

The first efforts to provide web benchmarks

include SPECweb and SPECjbb from the Standard

Performance Evaluation Corporation. Although

SPECjbb, specific to Java servers and JVMs,

continues to be supported with a 2015 release

(SPECjbb, 2015), SPECweb’s collection of server-

side applications implemented in JSP, PHP, and

ASPX has retired as of 2012 (SPECweb, 2009).

Although these benchmarks have been used to

compare web server implementations before,

including power characteristics (Economou et al.,

2006) and maximum concurrent users (Nahum,

Barzilai and Kandlur, 2002), the underlying

architecture of these servers has changed in recent

years, and the applications are no longer

representative of the feature-set nor asynchronous

APIs provided by modern web services. Studies

using WebBench or other traffic generators to load-

test Apache and other web-servers have measured

server performance when accessed by tens of

simultaneous clients (Haddad, 2001), rather than the

hundreds or more expected on contemporary

services.

Prior work has also investigated the performance

of JavaScript virtual machines on different mobile

platforms (Charland and Leroux, 2011), or have

compared the benchmarks offered by JavaScript

engines to the execution of JavaScript on the

websites of famous web applications

(Ratanaworabhan, 2010). Both of these studies limit

performance analysis of JavaScript to client-side

execution, either measured coarsely over the

application duration, or by analysing fine-grain

events recorded by instrumented client browsers.

Although these studies compare different browsers

and/or different client hardware, they do not

demonstrate the scaling advantages of JavaScript

when executed on the server side.

One recent study in particular measures the

server-side execution of Node.js in comparison to

Apache/PHP and Nginx, another open source web

server competitor (Chaniotis, Kyriakou and Tselikas,

Stack Wars: The Node Awakens

241

2015). The results found that for most purposes,

under concurrency stress testing, Nginx performed

better at scale than Apache/PHP, but also that

Node.js outperformed both, except in the case of

static file hosting, where Nginx was the winner. The

ultimate performance solution proposed by

Chaniotis et al was to develop a hybrid system in

which Nginx was used to serve static files and

Node.js was used for all other purposes. However, it

was also acknowledged that Node.js as a singular

web server environment bore other advantages,

including the fact that an entire web application

could be developed, front to back, all in JavaScript,

a single language.

To refresh and enhance the results of prior

investigation into server-side performance, we focus

on the server-side benchmarking process in

particular, using a number of operations commonly

employed by contemporary web services. Beyond

the results reported by the most recent web-server

measurements (Chaniotis, Kyriakou and Tselikas,

2015), other contemporary studies focus on database

benchmarking (Pokorny, 2013), and cloud scaling

techniques (Ferdman et al., 2012). Moreover, the

web workloads employed by Chaniotis et al are

limited to static file retrieval, hashing operations,

and basic client/server I/O. Thus, investigation into

web application framework performance remains

relatively quiet at the time of this writing. In this

work, we extend the efforts of prior art by

developing more extensive benchmarks that allow us

to directly exercise, measure, and compare the

performance of Node.js and Apache/PHP as they

fare in typical client-server interactions.

Furthermore, we exercise these servers with

heterogeneous workloads comprised of multiple

simultaneous combinations of different operations.

These workloads are more representative of the

diverse set of functions executed on-demand by

modern web service APIs.

3 METHODOLOGY

Three physical machines were employed as nodes

for this study. A Lenovo X230 ThinkPad with 8GB

of RAM and a 64-bit 2.60GHz Intel i5 processor

hosts a pair of virtual servers. The guest virtual

machines thereon run atop Oracle VM VirtualBox,

and feature a dual-core configuration with 4GB of

RAM powering an installation of 32-bit Ubuntu

14.04. The server versions of Apache and Node.js

are 2.4.18 and v5.6.0 respectively. Apache Bench

was executed upon a client desktop machine

boasting a six-core 64-bit AMD Phenom II clocked

at 3.0 gigahertz and running Windows 7 on 4GB of

RAM. Finally, our MySQL server was executed

upon a desktop machine featuring a six-core 64-bit

AMD FX clocked at 3.3GHz and running Windows

10 on 8GB of RAM.

Using Apache Bench (Apache Software

Foundation, 2016), we execute several tests against

both Apache/PHP and Node.js. These tests vary

load, in terms of total requests made; as well as

concurrency, in terms of requests sent to the server

concurrently by Apache Bench. In this work, we

generate up to 8192 concurrent requests for our

simplest benchmark in Section 4.1.

To provide a direct “apples-to-apples”

comparison, each benchmark is implemented both in

PHP and Node.js using the APIs available in each

framework. In Section 4.5, we employ child

processes in both frameworks to measure the impact

of this programming practice on workload

performance.

We address performance variability in our

measurements by testing each reported level of

concurrency 10 times, and averaging these results

into a single value represented by each bar

(measurement) in the figures of Section 4. Put

differently, for each benchmark, we executed each

web server configuration 10 times at each

concurrency level, and average these 10 executions

to provide the single reported result per concurrency

level per benchmark.

The metric concurrent mean is defined by

Apache Benchmark as the mean time per request

“across all concurrent requests.” This refers to the

amount of time spent on each individual request, as

a calculated mean value (Apache Software

Foundation, 2016). If a given test executes N

requests, at some constant concurrency level, for a

total execution time of T, the concurrent mean is

defined in Equation 1 as follows.

concurrent mean = /

(1)

In this work, we employ the concurrent mean

metric to represent how much time a server spends

working on each single request, on average.

4 EXPERIMENTAL RESULTS

4.1 Web Service Baseline Measurement

In Figure 3 we compare the bandwidth in requests

handled per second of Node.js and Apache under the

"no-op" scenario: a simple call-and-answer test

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

242

employing a small, constant response string. This

test effectively reports the maximum possible

performance (measured as response time) of which

our server frameworks are capable, as they are

performing the smallest possible amount of work per

request. This will serve as a baseline against which

we consider other bandwidth results from a variety

of scenarios. The results of this simple test,

measuring the number of requests served per unit

time at exponentially increasing levels of

concurrency, demonstrate a clear advantage in favor

of Node.js for the "no-op" scenario. For this test,

both executions of Apache Benchmark make 10000

total requests. In this test, we begin at concurrency

level 2, meaning 2 requests outstanding from clients

at any given moment, and ramp concurrency up by

powers of 2 through concurrency level 8192.

At low concurrency levels, and as concurrency

begins to ramp up slowly, Apache/PHP bandwidth

wavers near 300 requests/second, before collapsing

to a plateau level, so named as performance levels-

off beyond (to the right of) this point. Node.js, on

the other hand, performs similarly to Apache under

testing conditions of up to concurrency level 256,

but only wavers slightly near the plateau level of

Apache/PHP. Positive results for Node.js persist

longer than expected, and far beyond the

concurrency level at which performance for

Apache/PHP drops off.

In Figure 4, mapping mean request time against

longest request service time for both Node.js and

Apache/PHP at exponentially increasing levels of

concurrency, we begin to see the effects of high

concurrency as it taxes both of our server stacks.

We see a number of interesting results surfacing

from this particular manifestation of the data. First,

we see that mean time and longest time do not

deviate far from each other for either technology set.

Next, we observe that Node.js appears to enjoy a

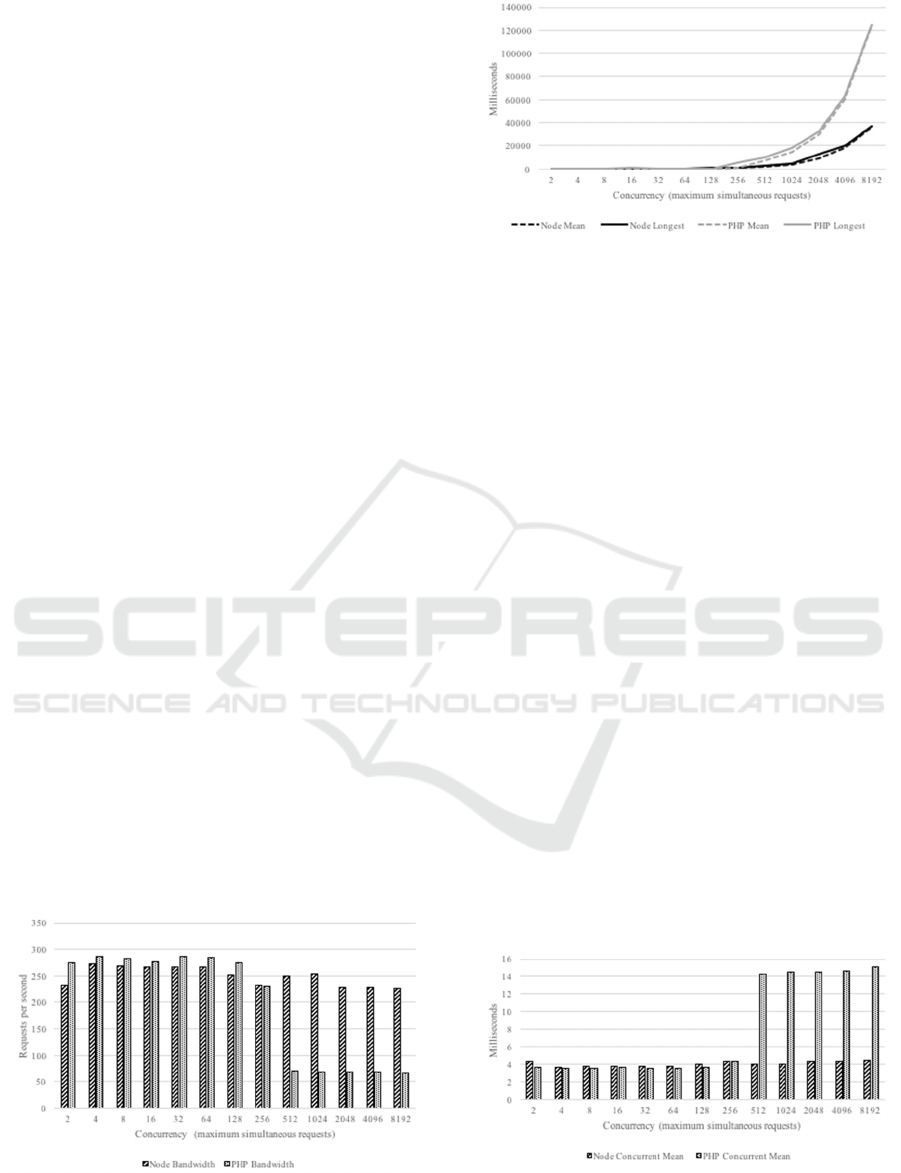

Figure 3: Bandwidth for the Baseline “No-Op” (Requests

per Second).

Figure 4: Mean vs Longest Request Time for Baseline

“No-Op” (in ms).

tremendous advantage over Apache/PHP, although

this is partially an illusion created by our charting

methodology. If the same chart were presented with

a logarithmically scaled Y-axis (not pictured here

due to space constraints), we would see that the

performance for our two technologies, with respect

to mean and longest times, actually tracks linearly

with respect to concurrency, and that the

performance difference between the two

technologies likewise tracks linearly. This result

suggests that across all levels of concurrency,

Node.js can be expected to maintain a considerable

lead over Apache/PHP.

In Figure 5 we observe the concurrent mean

across all concurrent requests. As might be predicted

based on the results shown above in Figure 3, we see

the average time per request rising precipitously

from approx 4 to 15 milliseconds for Apache/PHP at

the plateau level beyond 256 concurrent requests.

The average time per request for Node.js remains

relatively flat, showing no significant rise as

concurrency crosses the plateau level for

Apache/PHP.

4.2 Search over Large Strings

Our next test is designed to stress the computational

Figure 5: Concurrent Mean for Baseline “No-Op” (in ms).

Stack Wars: The Node Awakens

243

efficiency of each technology. To that end, we

devise a test in which a very large body of text is

searched using regular expressions for target strings

of various length and frequency. Again, this test was

run at exponentially increasing levels of

concurrency, beginning with 2 and ramping up 64.

Due to time constraints and the computational cost

of large string searches, we are herein prevented

from testing at concurrency levels beyond 64.

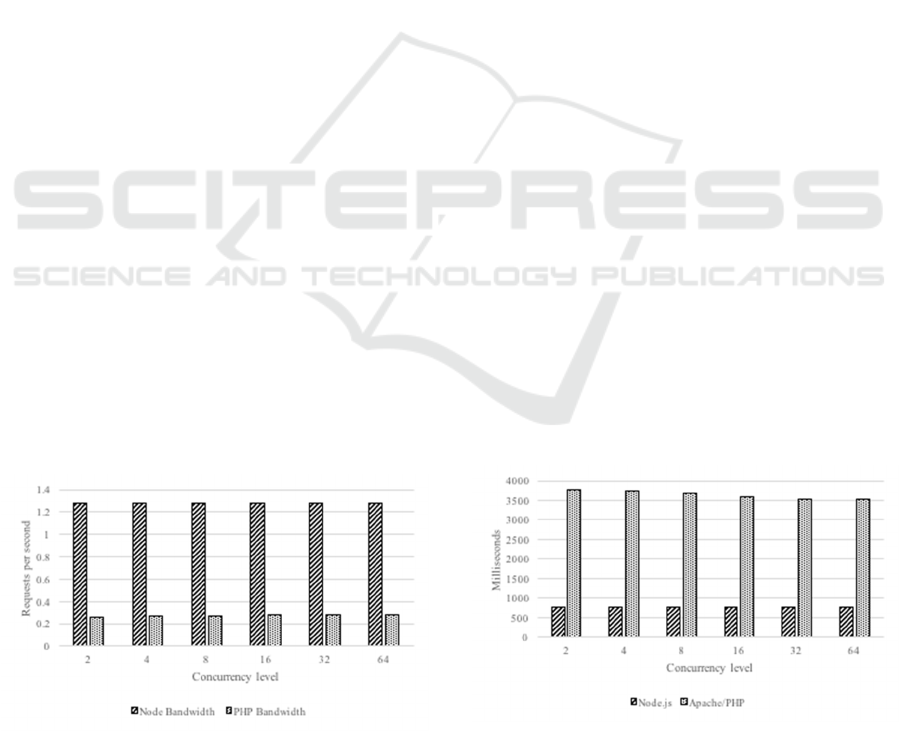

In Figure 6 we see that concurrency for this

particular test had no noticeable impact on

performance overall, but we do see Node.js

outperforming Apache/PHP in dramatic fashion,

again, by a constant factor. Monitoring system

performance during our tests at various

concurrencies, we have observed that over all of our

test runs, Node.js used 100% of all available

processing resources on a single core, and

Apache/PHP used 100% of all computational

resources on both of the cores available to our

virtual machine. In the case of Node.js, this took the

form of one, single process, occupying 100% of the

processor to which it had access, whereas

Apache/PHP spawned many processes, each of

which divided all available computational resources

among themselves.

In other words, when Apache/PHP received two

concurrent requests, our performance monitors

report two Apache/PHP processes, each occupying

99% of computational resources (effectively 100%

of all resources not demanded by the operating

system). Note that this totals 198% of resources,

this being due to the fact that our performance

monitor reports the percentage of a given processor

core’s utilization that is being used by a process, not

the percentage of all system-wide processor

availability. (This is why we know that Node.js only

occupied a single core, but did occupy the entirety of

that core’s computational resources, based on the

99% utilization drawn by a single process.)

Figure 6: Bandwidth for the String Search Service

(Requests per Second).

When Apache/PHP received four concurrent

requests, we saw reported four Apache/PHP

processes, each utilizing approximately 49.5% of

computational resources (again, totaling 198%,

meaning 99% of each of two cores). When

Apache/PHP received eight concurrent requests, we

observed eight Apache/PHP processes, each

utilizing approximately 24.7% of computational

resources, and so on. This reinforces our

understanding of the Apache/PHP model of handling

multiple concurrent client requests by dedicating one

process to each. Despite that, and the verification at

the system level that Apache/PHP was successfully

processing requests in parallel, Node.js still

managed to outperform Apache/PHP by a near

constant factor of more than 5 over tests at all

concurrency levels.

We attempt to explain this surprise in our results

as follows. First, it is possible that Node.js’s string

search and regular expression engine is far more

efficient for this particular type of task than

Apache/PHP’s. It is also likely that the cost to

Apache/PHP of building up and tearing down

threads and processes to carry out this parallelization

is damaging to its overall performance. The

constant and costly context switching among

Apache processes is potentially a contributing factor

as well. Regardless, the evidence suggests that, for

this particular type of computationally intensive

task, Node.js performance is superior to Apache.

We note that in this test, performance is not

impacted by increasing concurrency. We observe

that the performance of this test is not bound by the

efficiency of concurrency management, but by the

computation of the task itself. Even if we reduce our

concurrent load to a single outstanding request, the

server would still require approximately the same

time to service that single request, since it is the

string search itself that produces a response delay.

Figure 7: Concurrent Mean for the String Search Service

(in ms).

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

244

Figure 7 shows the concurrent means for the

large body string search tests, with results closely

tracking those in Figure 6. Differences in our

Node.js results are nearly indiscernible across the

board in this test. The same is true for Apache/PHP,

which takes a near-constant factor of 5 times longer

than Node.js per request.

4.3 Serving Large Static Files

Static file service is another application domain that

we investigate with respect to the performance of

our two web application engines under heavy

concurrent load. The goal in testing this particular

scenario was to evaluate whether Apache/PHP

would continue to be outperformed by Node.js in

this service domain, as in prior work (Chaniotis,

Kyriakou and Tselikas, 2015). Our strategy in

designing this test is to stress the servers by making

requests for large static files. For this test, we

selected a JPEG file of approximately 3.2MB in

size, representing the common transfer of profile

pictures and other photos in social media and similar

web service scenarios.

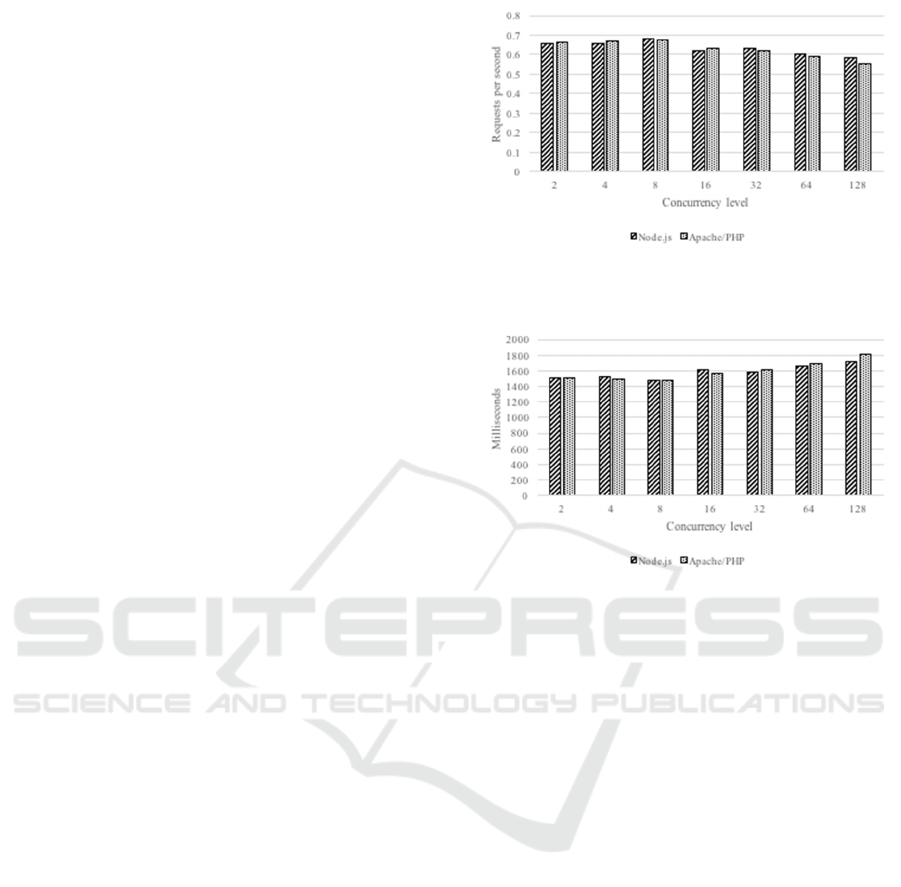

In Figure 8, we observe a more pronounced

effect on performance with increased concurrent

load for this test, as opposed to the results of the

string search results in Figure 6. However, the

results for both of our servers tracked more closely

to each other than in any other test. This close

tracking indicates that the server platform hosting

our application has less impact on performance in

this scenario than limitations of the host hardware.

Figure 9 shows that Node.js has a small performance

advantage at a concurrency level of 32 simultaneous

requests and beyond, beating Apache/PHP by more

than 100 ms per request (on average) at a

concurrency level of 128. In this test, we were

forced to limit the number of requests both in total,

and under heavy concurrency, due to the amount of

time required to serve static files of this size. We

believe that a similar test with much smaller static

files would yield results that highlight the

performance benefits and limits of our servers

themselves, rather than the hardware hosting them,

and we consider this a prime candidate for future

work.

4.4 Database Operations

The final benchmark used to compare Apache/PHP

to Node.js measures their performance in fielding

client requests for database operations. These

requests demand little computation from the

Figure 8: Bandwidth for Static Files (Requests per

Second).

Figure 9: Concurrent Mean for Static Files (ms).

web-server itself, but require a tremendous amount

of database communication by the servers to satisfy

client requests. We anticipated this test would stress

our server memory utilization, since state would

need to be maintained on outstanding database

requests, and in very large quantities as our

concurrency level ramped up into the thousands.

We intentionally designed the database queries to

perform relatively high-latency work, such as

complex join functions, in order to force our servers

to hold onto request state longer.

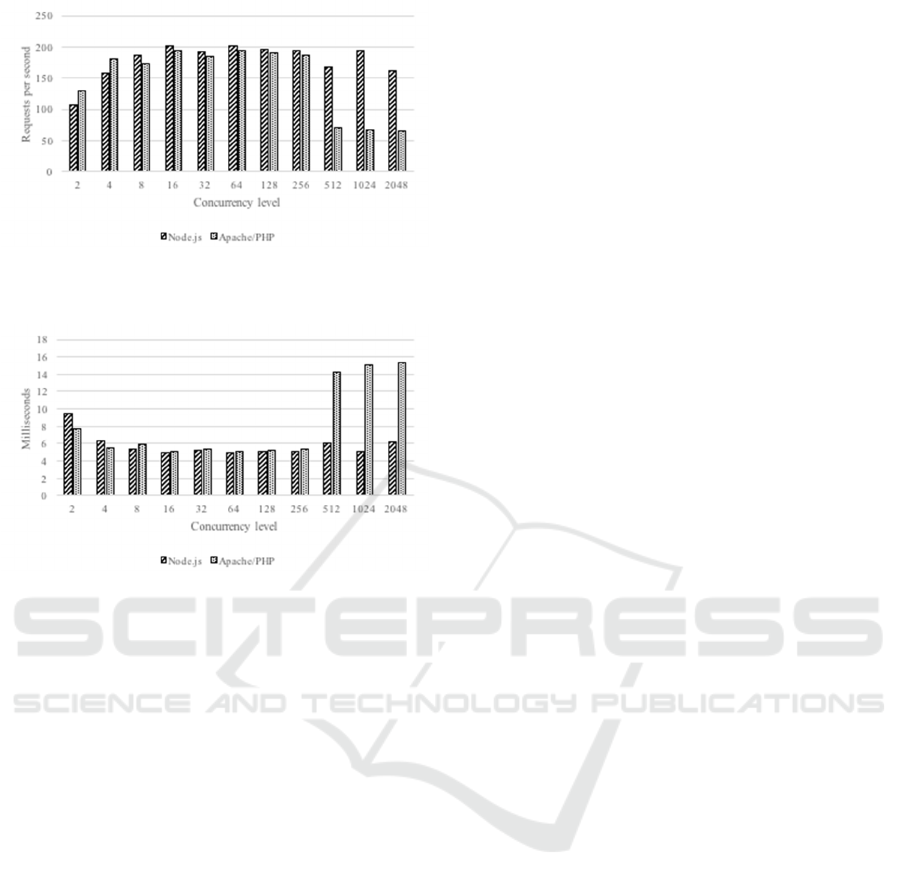

Figure 10 displays the bandwidth results for this

database scenario, and shows a pattern very similar

to that observed during our “no-op” testing in

Section 4.1. Performance for both platforms

improves early on as concurrency begins to ramp up,

then levels off. Later, when concurrency ramps

beyond 256 simultaneous client requests, we see

Apache/PHP take a precipitous dive in performance,

falling down to a plateau level very much like the

one we saw during “no-op” testing. Node.js

continues to perform admirably by comparison,

despite some heavy turbulence in results near the

same concurrency level where Apache/PHP

performance drops. The reason for this plateau level

cropping up in multiple test scenarios for

Apache/PHP, and the reason for turbulence in

Stack Wars: The Node Awakens

245

Figure 10: Bandwidth for Database Ops (Requests per

Second).

Figure 11: Concurrent Mean for Database Ops (ms).

Node.js’s results pattern at the same point in its

curve on our graphs, is a chief target for future work,

as discussed in our conclusion below.

In Figure 11 we display the concurrent means for

the same database query carried out by our two

database benchmark applications on their respective

platforms. As observed in Figure 10, we see the

concurrent mean dropping (improving) with early

concurrency ramp-up, with some light turbulence.

Later, once we reach our plateau level of 512

concurrent requests, the concurrent means for

Apache/PHP skyrocket beyond 14 ms per request.

Meanwhile, Node.js performance results

demonstrate some turbulence, but hover around 6 ms

per response as seen at lower concurrency, even as

Apache/PHP experiences a sudden performance

drop.

4.5 Heterogeneous Workloads

Our final test employs a heterogeneous mix of

concurrent requests, generated by three

simultaneously instantiations of Apache Bench –

one to make requests that require heavy

computation, one to make static file requests, and

one to make requests necessitating heavy database

interaction with the server. Instead of performing a

single test multiple times at varying levels of

concurrency, we ran three tests simultaneously at

constant concurrency levels. These include (for both

Node.js and Apache/PHP) 10,000 database

interaction requests at a constant concurrency level

of 64, 30 computationally heavy requests at a

constant concurrency level of only 1, and 30 large

static file requests at a constant concurrency level of

only 1.

Since it is known to be poor practice to make the

event loop responsible for time consuming

computation, we employ better (if more complex)

practices by moving that computation off of the

Node.js event loop. This allows us to explore the

impact of good programming practice on Node.js

performance under a heterogeneous request load.

We accomplish this by taking advantage of child

processes, which are supported by first-party

libraries in both Node.js and Apache/PHP. To begin,

we implemented a standalone version of our time

consuming, computationally intensive large string

search that could be executed from the command

line. We implemented this as a standalone string-

search script in PHP. Next, we adjusted our server

scripts (both Node.js and Apache/PHP) so that

incoming requests for this heavy computation would

be handled by child processes spawned by our

servers, rather than in code executed by the web

servers themselves. Also, by implementing the

string-search script in PHP, we remove any potential

advantage that Node.js may realize via better regular

expression implementation.

Of particular note is that in Node.js, the function

that kicks off a child process is implicitly

asynchronous, meaning that Node.js spawns the

process, allowing it to run in parallel on the

operating system, then receives the result packaged

as a new callback event on the event loop. Thus, we

anticipated that Node.js would handle our

computationally heavy task in a dedicated process,

freeing the event loop to handle lighter requests

quickly in parallel, just as Apache/PHP does by

default at scale (for better or worse).

In Figure 12, we compare bandwidth results for

heterogeneous workloads with and without child

processes, for both Apache/PHP and Node.js. In this

heterogeneous workload, Node.js trails behind

Apache/PHP with respect to database operations per

second, but with the use of child processes, the

margin of difference can be reduced from a gap of

over 15% (without child processes) to less than 2%

(with child processes). In this workload, Node.js

with child processes takes the lead over Apache/PHP

for static file requests, with a narrow advantage of

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

246

less than 0.1 requests per second. However, without

employing child processes, Node.js falls behind

Apache/PHP by approximately 0.2 requests per

second. Interestingly, though both Node.js and

Apache/PHP are spawning identical PHP child

processes to perform the string search task, Node.js

performs slightly worse than Apache on this

workload, losing the entire advantage it had when

executing the regular expression in its own engine

(without child processes).

In Figure 13 we observe that the mean time for

concurrent database interactions is nearly

indistinguishable between Node.js and Apache/PHP

with child processes, though Apache/PHP does have

a slight advantage (barely lower time per request).

The mean time per static file request tracks very

closely between our two applications with child

processes, with Node.js eking out a narrow lead

here. Comparing the mean time per string search

request, however, shows a more dramatic advantage

of nearly 10% for Apache/PHP with child process.

This margin of victory is particularly large as the

performance bottleneck for this task lies in a

separate child process executing in parallel to our

web applications. Moreover, this 10% advantage

amounts to nearly a full second of time per request,

which is significant.

We identify two potential reasons for this result.

First, it is possible that the libraries used by Node.js

to spawn child processes, and pass data between the

Node.js context and the context of a child process

itself, is itself slow, resulting in the lag time of

nearly a full second when compared to Apache/PHP

with child processes in Figure 13. Second, this may

be an artefact of implementing the child processes in

PHP, as the Apache server already has the PHP

engine loaded to handle other service requests when

the child process is spawned. Thus, the ready

availability of the PHP engine may save time

creating the child process context, as caches and

other system resources are warmed-up and ready for

the child code to execute. By comparison, Node.js

must spin up this PHP engine from scratch when the

child process is executed. This may account for the

nearly full second of lag time between the two

engines.

5 CONCLUSION AND FUTURE

WORK

In this study, we design and execute a number of

benchmark tests against Node.js and its most

popular competitor and predecessor, Apache/PHP.

These benchmarks are designed to determine which

of these web application engines is best suited to a

variety of common server-side tasks. We identify

three major types of server tasks for examination,

these being database interaction, heavy computation,

and static file service. We compare these against a

baseline “no-op” benchmark, wherein the web server

always responds with a short constant string literal.

We have found that database interactions

considerably favor Node.js, as do computationally

heavy tasks (as represented by pattern matches on a

long string). No distinguishable difference in

performance was experienced between Apache and

Node.js engines when serving large static files,

although Node.js enjoys a modest lead at higher

levels of concurrency.

We further benchmark our server engines by

Figure 12: Bandwidth for Heterogenous Workloads with and without Child Processes (Requests per Second).

100

120

Database bandwidth

Requests per second

0,2

0,4

0,6

0,8

1,2

String search bandwidth Static file bandwidth

Requests per second

Node.js Node.js w/ child

Apache/PHP Apache/PHP w/ child

Stack Wars: The Node Awakens

247

employing a heterogeneous mixture of request types

– database, static file, and heavy computation– all

being executed concurrently by each of our server

stacks. In this scenario, Node.js demonstrates

sensitivity to good coding practices, as

computationally heavy tasks will block the

synchronous event loop unless child worker

processes are employed.

With the Node.js event loop freed from burden of

heavy computation, Node.js falls behind

Apache/PHP in performance with respect to the

management of string search tasks in child

processes, but manages to nearly match the

performance of Apache/PHP on database

interactions, and maintains a modest performance

edge in static file service.

Our conclusion from the generated test data is

that Node.js is the clear winner in homogeneous

workload cases, i.e. wherein the web-server

performs the same type of work repeatedly for

numerous clients. In some tests, Apache/PHP

outperforms Node.js at very low levels of

concurrency, though in such cases the difference in

performance between the two server stacks was

insignificant. At higher concurrency levels, the

advantages enjoyed by Node.js become apparent.

Although Node.js and its associated libraries

enjoy growing community support and a rich

repository of ready source code, PHP has a long

history and a breadth of existing libraries and open

templates that can be leveraged by industry adopters.

We note that if abundant legacy code is an issue, or

a team consists of developers with a strong

background in one language or framework and no

experience with another, then performance may not

be the sole factor on which to base the selection of a

server technology. However, all other things being

equal, we can report that Node.js is the more

performant server when compared with

Apache/PHP. We have shown that Apache/PHP is

capable of very slightly outpacing Node.js under

certain types of light load, but we have also shown

that Node.js is capable of keeping pace with – and

sometimes dramatically outshining – its most

popular competitor.

We hope to strengthen our claims in future work

by experimenting with the fine-tuning of server

configurations – for example, experimenting with

multi-processing modules other than prefork in

Apache, or tinkering with server caching settings.

Moreover, exploration of this configuration space

may yield custom tuning of these server engines to

best suit each application type. In future work we

also aim to characterize the “plateau level” exhibited

by Apache/PHP, at which point performance drops

and levels off with increasing concurrency. By

exploring the shape of the performance curve in the

neighbourhood of this plateau level, we aim to better

understand Apache’s behaviour at this level of

concurrency, and gain further insight about its

performance when hosting contemporary web

services.

ACKNOWLEDGEMENTS

The authors wish to thank Professor Steven

Fitzgerald of CSUN, who suggested the “no-op”

scenario as a starting point, and who identified a set

Figure 13: Concurrent Mean for Heterogenous Workloads Workloads with and without Child Processes (ms).

Database concurrent

mean

Milliseconds

1000

2000

3000

4000

5000

6000

7000

8000

9000

10000

String search concurrent mean

Milliseconds

Node.js Node.js w/ child

Apache/PHP Apache/PHP w/ child

500

1000

1500

2000

2500

3000

Static file

concurrent mean

Milliseconds

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

248

of representative web-service operations that

informed our benchmark selection.

REFERENCES

Apache Software Foundation, 2016. ab – Apache HTTP

server benchmarking tool. Available at:

http://httpd.apache.org/docs/2.2/programs/ab.html.

Appuswamy, R., Gkantsidis, C., Narayanan, D., Hodson,

O., Rowstron, A., 2013. Scale-up vs scale-out for

Hadoop: time to rethink? In 4

Annual Symposium on

Cloud Computing. ACM.

Chaniotis, I., Kyriakou, K., Tselikas, N., 2015. Is Node.js

a viable option for building modern web applications?

A performance study. In Computing (Vol. 97, No.

10m pp. 1023-1044). Springer.

Charland, A., Leroux, B., 2011. Mobile application

development: web vs. native. Communications of the

ACM (Vol. 54, No. 5). ACM.

Economou, D., Rivoire, S., Kozyrakis, C., Ranganathan,

P., 2006. Full-system power analysis and modeling for

server environments. In Proceedings of the

International Symposium on Computer Architecture

(ISCA). IEEE.

Ferdman, M., Adileh, A., Kocberber, O., Volos, S.,

Alisafaee, M., Jevdjic, D., Kaynak, C., Popescu, A.D.,

Ailamaki, A., Falsafi, B., 2012, March. Clearing the

clouds: a study of emerging scale-out workloads on

modern hardware. In ACM SIGPLAN Notices (Vol.

47, No. 4, pp. 37-38). ACM.

Github, 2016. Projects, Applications, and Companies

Using Node. Available at: https://github.com/

nodejs/node/wiki/Projects,-Applications,-and-

Companies-Using-Node.

Haddad, I., 2001. Open-Source Web Servers: Performance

on a Carrier-Class Linux Platform. Linux Journal

(Issue No. 91). Belltown Media.

Libuv, 2016. Design overview – libuv API documentation.

Available at: http://docs.libuv.org/en/v1.x/design.html.

MEAN.JS, 2014. MEAN.JS – Full-Stack JavaScript Using

MongoDB, Express, AngularJS, and Node.js.

Available at: http://meanjs.org.

Menasce, D.A., 2003. Web Server Software Architectures.

In IEEE Internet Computing (Vol. 7, No. 6). IEEE.

Nahum, E., Barzilai, T., Kandlur, D.D., 2002.

Performance issues in WWW servers. IEEE/ACM

Transactions on Networking (TON) (Vol. 10, No. 1).

IEEE.

Netcraft, 2015. September 2015 Web Server Survey.

Available at:

http://news.netcraft.com/archives/2015/09/16/septemb

er-2015-web-server-survey.html.

Pokorny, J., 2013. NoSQL databases: a step to database

scalability in web environment. In International

Journal of Web Information Systems (Vol. 9, No. 1,

pp. 69-82). Emerald Group.

Ratanaworabhan, P., Livshits, B., Zorn, B.G., 2010.

JSMeter: Comparing the Behavior of JavaScript

Benchmarks with Real Web Applications. WebApps

(vol. 10). Usenix.

SPECjbb, 2015. SPECjbb®2015. Available at:

https://www.spec.org/jbb2015/.

SPECweb, 2009. SPECweb2009. Available at:

https://www.spec.org/web2009/.

Tilkov, S., Vinoski, S., 2010. Node.js: Using JavaScript to

Build High-Performance Network Programs. IEEE

Internet Computing (Vol. 14, No. 6). IEEE.

Transaction Processing Performance Council, 2016. About

the TPC. Available at: http://www.tpc.org/

information/about/abouttpc.asp.

Welke, R., Hirschheeim, R., Schwarz, A., 2011. Service

Oriented Architecture Maturity. In IEEE Computer,

(Vol. 47, No. 2). IEEE.

Stack Wars: The Node Awakens

249
