Unikernels for Cloud Architectures: How Single Responsibility can

Reduce Complexity, Thus Improving Enterprise Cloud Security

Andreas Happe

, Bob Duncan

and Alfred Bratterud

Dept. Digital Safety & Security, Austrian Inst. of Tech. GmbH, Vienna, Austria

Computing Science, University of Aberdeen, Aberdeen, U.K.

Dept. of Computer Science, Oslo and Akershus University, Oslo, Norway

Keywords:

Cloud Security and Privacy, Attack Surface, Compliance, Complexity.

Abstract:

Unikernels allow application deployment through custom-built minimal virtual machines. The authors inves-

tigate how unikernels and their inherent minimalism beneﬁt system security. The analysis starts with common

security vulnerability classes and their possible remediation. A platonic unikernel framework is used to de-

scribe how unikernels can solve common security problems, focusing both on a micro- and macro level. This

theoretical framework is matched against an existing unikernel framework, and the resulting mismatch is used

as a starting point for the research areas the authors are currently working on. We demonstrate how using a

single responsibility unikernel- based architectural framework could be used to reduce complexity and thus

improve enterprise cloud security.

1 INTRODUCTION

There is a commonly held view in security circles

that software complexity is the enemy of security.

Virtualisation is often employed to split up applica-

tions into manageable isolated parts. Figure 1 gives

a rough overview about different virtualization tech-

niques. Unikernels combine lightweight virtualisa-

tion while placing limitations upon potential applica-

tion code. These limitations yield solutions that heed

the single responsibility principle, which, by reducing

complexity, ensures security is more easily achieved.

In previous work [Duncan et al., 2016a], we out-

lined how a new approach to cloud security and pri-

vacy might provide a better solution to the challenges

of good cloud security and privacy. In that work, we

identiﬁed 10 key management challenges, and sug-

gested how a unikernel could assist in addressing 7

of these challenges to ensure good cloud security and

privacy can be achieved. The deﬁning theme was that

complexity is the natural enemy of security; unikernel

systems with their enforced minimalism can help pre-

vent common security problems. In [Bratterud et al.,

2017], we looked at the technical solution in much

more depth, deﬁning and demonstrating how uniker-

nels work. We took a detailed look at how the ap-

proach is likely to work in the real world, considering

how unikernels ﬁt into a larger software project, what

capabilities are currently lacking and how those can

be incrementally added to a unikernel framework.

Our contributions for this paper are to map the

OWASP Top 10 towards idealized unikernel environ-

ments; to compare unikernels to serverless architec-

tures; to identify unikernel’s shortcomings in devel-

opment environments; and to lay the groundwork for

a multi-unikernel framework.

We base this work on empirical security ﬁndings

from real-world security breaches. We start by dis-

cussing currently exploited vulnerabilities for web ap-

plications in Section 2, analyzing which vulnerabili-

ties will be prevented by the use of unikernels in Sec-

tion 3. Unikernels are part of an overall software ar-

chitecture, and in Section 4 we examine patterns for

that architecture that can aid secure software devel-

opment. In Section 5, we examine how an existing

unikernel framework—UniK—ﬁts our proposed ideal

framework. Following this, in Section 6 we clarify

how a future framework might improve on the status

quo. In Section 7, we discuss our conclusions, cur-

rently performed research and potential future steps.

Happe, A., Duncan, B. and Bratterud, A.

Unikernels for Cloud Architectures: How Single Responsibility can Reduce Complexity, Thus Improving Enterprise Cloud Security.

DOI: 10.5220/0006282800300041

In Proceedings of the 2nd International Conference on Complexity, Future Information Systems and Risk (COMPLEXIS 2017), pages 30-41

ISBN: 978-989-758-244-8

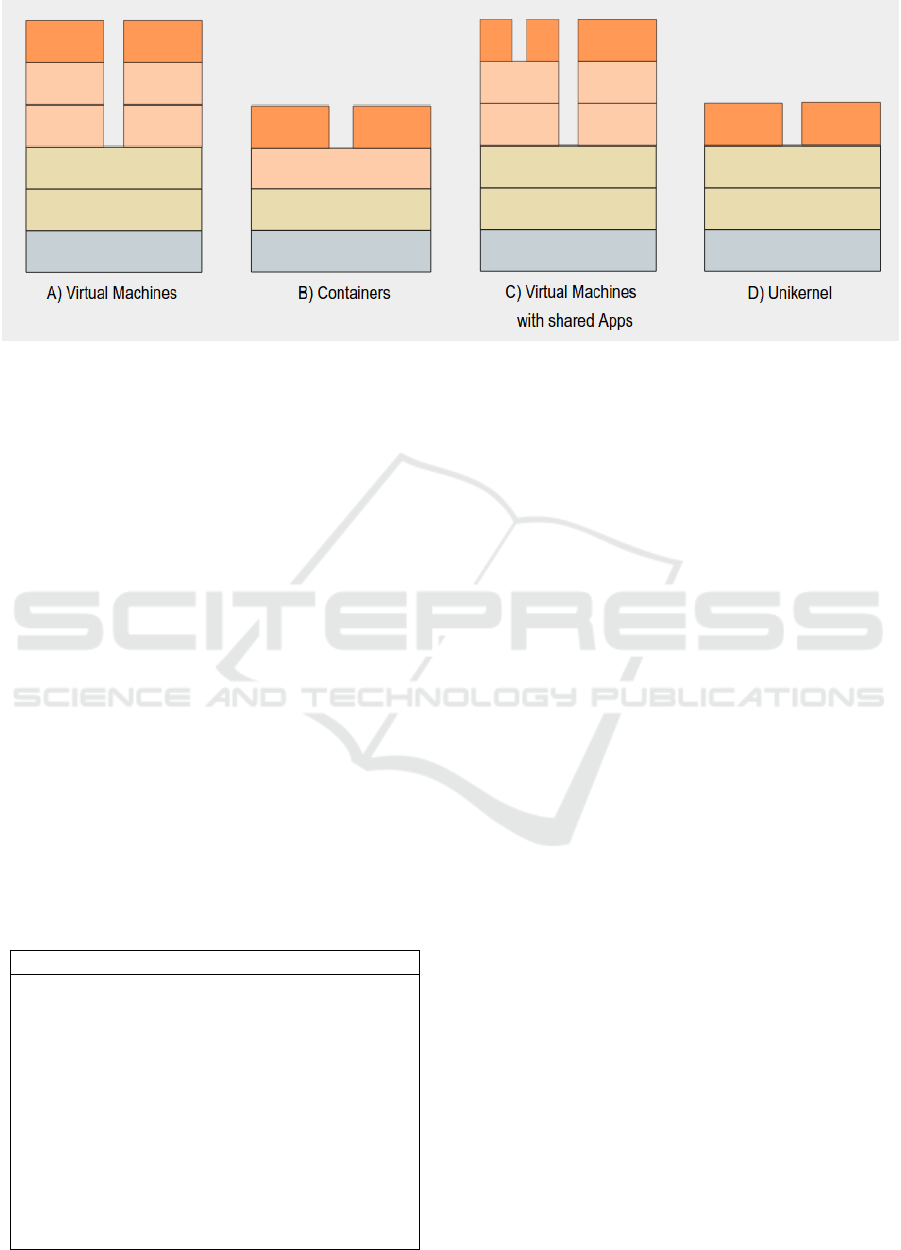

Figure 1: A) Traditional virtual machines offer the highest level of service isolation but introduce high overhead as each

application should—theoretically—be placed within a virtual machine of its own. B) Containers improve efﬁciency by reusing

large parts of the host operating system and kernel, but are thus not able to provide the security guarantees of fully separated

virtual machines, e.g., resource starvation as well as kernel-level exploits can have cross-container impact. C) A new trend

is to encapsulate one or more containers into virtual machines on their own. This improves security and service isolation

but introduces the overhead of virtual machine based solutions. D) Unikernels, in contrast, are minimal virtual machines thus

yield the high security assumptions of virtual machine based approaches while improving efﬁciency through their minimalism.

2 THE OWASP TOP 10

Security breaches have a negative monetary and pub-

licity impact on companies, thus are seldom pub-

licly reported. This limits the availability of em-

pirical study data on actively exploited vulnerabili-

ties. The OWASP Foundation Top 10 report [OWASP,

2013], is a rare exception: it provides a periodic list

of exploited web-application vulnerabilities, ordered

by their prevalence. OWASP focuses on deliberate

attacks, each of which might be based on an under-

lying programming error, e.g., an injection vulnera-

bility might be the symptom of an underlying buffer-

overﬂow programming error.

The current 2013 report lists these vulnerabilities:

Table 1: OWASP Top Ten Web Vulnerabilities —

2013 [OWASP, 2013].

Code Threat

A1 Injection Attacks

A2 Broken Authentication and Session

Management

A3 Cross Site Scripting (XSS)

A4 Insecure Direct Object References

A5 Security Misconﬁguration

A6 Sensitive Data Exposure

A7 Missing Function Level Access Control

A8 Cross Site Request Forgery (CSRF)

A9 Using Components with Known

Vulnerabilities

A10 Unvalidated Redirects and Forwards

Based on software development impact, different

vulnerabilities can be grouped into three classes:

1. low-level vulnerabilities can be solved by apply-

ing local defensive measures, e.g., using a library

at a vulnerable spot;

2. high-level vulnerabilities cannot be solved by

local changes but need systematic architectural

treatment; and

3. application speciﬁc vulnerabilities cannot be

solved in a generic manner but depend on thought-

ful developer intervention.

Two of the top three vulnerabilities (A1, A3) can

be categorized as “low-level” and are directly related

to either missing input validation or output sanitiza-

tion, which can be mitigated by consistently using

defensive security libraries. Another class of attacks

that can similarly be solved is A8. In contrast, “high-

level” vulnerabilities must be solved on an architec-

tural level. Examples are A2, A5 and A7. The soft-

ware architecture should provide generic means for

user authentication and authorization, and should en-

force validations for all operations. Examples for the

ﬁnal class can be seen in A4, A6 and A10: these di-

rectly depend on application workﬂow and can only

be solved through application-dependent changes.

Some vulnerabilities can be prevented by con-

sistently using security libraries while others can be

reduced by enforcing architectural decisions during

software development. Recent years have given rise

to opinionated software development frameworks,

Unikernels for Cloud Architectures: How Single Responsibility can Reduce Complexity, Thus Improving Enterprise Cloud Security

e.g., Ruby on Rails [37signals, ]. Those frameworks

guide software development by providing a sensi-

ble collection of support libraries (including defen-

sive security libraries) as well as strongly favouring a

given architectural programming style, e.g., Ruby on

Rails favouring the MVC pattern [Burbeck, 1992], in

combination with the ActiveRecord data-access pat-

tern [Fowler, 2002]. Software security is commonly a

non-functional requirement and thus hard to get fund-

ing for. Opinionated frameworks allow software de-

velopers to focus on functional requirements while

taking care of many security implications.

Those security frameworks have grown in size and

functionality, and being software themselves, can in-

troduce additional security problems into otherwise

secure application code. While the Ruby on Rails

framework, when properly used, prevents many oc-

currences of XSS-, SQLi- and CSRF-Attacks, prob-

lems with network object serialization recently in-

troduced remotely exploitable injection attacks [Cli-

mate, 2013]. This capability was not commonly used,

but was included in every Ruby on Rails installation.

Similar problems have plagued Python and its Django

framework [Blankstein and Freedman, 2014]. This is

further aggravated as software frameworks are by de-

sign generic: they introduce additional software de-

pendencies not used by the application code at all.

Their conﬁguration often focuses on usability includ-

ing easy debug infrastructure—from a security per-

spective everything that aids debugging aids penetra-

tion. In its 2013 report OWASP acknowledged this

problem by introducing A9, to address “the growth

and depth of component based development has sig-

niﬁcantly increased the risk of using known vulnera-

ble components” [OWASP, 2013].

Another recent security battleground is the

Internet-of-Things (IoT). Recent examples are the

1TB/sec attack against “Krebs on Security” or the

DDoS Attack taking out Dyn in October 2016

While the generic security landscape is already com-

plex, IoT adds additional problems such as hard de-

vice capability restrictions, manifold communication

paths and very limited means of updating already de-

ployed systems. In addition, software is often an

after-thought. This leads to a situation where security

updates are scarce in the best scenario.

3 UNIKERNELS

While Madhavapeddy provides an in-depth review

of unikernels in [Madhavapeddy and Scott, 2013],

https://www.theguardian.com/technology/2016/oct/25/

ddos-cyber-attack-dyn-internet-of-things

[Madhavapeddy et al., 2013], we can use a simpler

deﬁnition. From a security perspective, the most in-

triguing aspect of unikernels is their capability as a

minimal execution environment. We view unikernels

as black-boxes providing the following attributes:

• a minimal execution environment for a service;

• provides isolation between different services;

• the unikernel image is immutable, i.e., no data al-

teration can be persisted within the unikernel it-

self;

• a single-execution ﬂow in a single-process names-

pace, i.e., neither multi-tasking nor multi-

threading. The unikernel is the synthesis of an

operating system kernel and the application.

Cloud computing consolidates processing power

within data centres to achieve maximum utilization

and high energy efﬁciency. Multiple applications run

on the same computing node. Control on node place-

ment or concurrently running applications is seldom

possible, making isolation between different applica-

tions, users, or services, critical for security. A com-

mon but inefﬁcient solution is to place each applica-

tion or service within a virtual machine [Jithin and

Chandran, 2014]. This is very similar to the initial us-

age of virtualization within host-based systems; Mad-

nick gives a good overview of the impact of virtual-

ization in [Madnick and Donovan, 1973]. Containers

offer a more efﬁcient approach [Soltesz et al., 2007],

but originally developed to improve deployment, their

security beneﬁts are still under debate [Bui, 2015].

Go programs [Pike, 2009], are statically compiled

and linked, thus creating a single binary including all

needed dependencies for execution. While this is con-

ceptually similar to unikernels, Go programs still de-

pend on a shared operating system kernel—impacting

negatively on service isolation and security.

Minimization is performed during unikernel

building, meaning the system image only includes

required software dependencies: implying no bina-

ries, shell or unused libraries are included within the

unikernel image. Further, even unused parts of li-

braries should not be included in the image at all.

This radically reduces included functionality and thus

— if that functionality was network-accessible — re-

duces the network attack surface tremendously

. Also

this can loosen the need for updates after vulnera-

bilities have been discovered in included third-party

We use OWASP’s deﬁnition of attack surface, which

includes the sum of all paths for data/commands into and

out of the applications as well as all valuable data used by

the application. In addition, all protection mechanisms are

included within the attack surface [OWASP, ].

COMPLEXIS 2017 - 2nd International Conference on Complexity, Future Information Systems and Risk

components — if the vulnerable function was not in-

cluded within the set of used functions, an update

can be moot. A similar theme can be found with

the ongoing Gnome Flatpak [Flatpak, ], and Ubuntu

Snap [Ubuntu, ], projects: both provide packaging for

application containers. Flatpak can police the allowed

access to system resources (processes, ﬁle system)

from within the application container, but by their

own deﬁnition, is not intended to be used for servers.

Another beneﬁt of the applied minimalism is a

reduced memory footprint [Bratterud and Haugerud,

2013], [Bratterud et al., 2015], and quick start-up time

of unikernel-based systems. Madhavapeddy et al.,

used this for on-demand spin-up of new virtual im-

ages [Madhavapeddy et al., 2015], allowing for higher

resource utilization and improved energy efﬁciency.

Minimalism also beneﬁts next-generation

hardware-supported memory protection tech-

niques. Intel Secure Guard Extensions [Anati et al.,

2013, Costan and Devadas, ], allow for protected

memory enclaves. Direct access to those enclaves is

prohibited and protected through specialized CPU

instructions; as the protection is enforced by hard-

ware, even the hypervisor can be constrained from

accessing protected memory. Rutkowska has shown

[Rutkowska, 2013], that deploying this protection

scheme for applications has severe implications: just

protecting the application executable is insufﬁcient

as attacks can inject or extract code within linked

libraries. This leads to the conclusion that the whole

application including its dependencies must be part

of the secure-memory enclave. Simplicity leads

to a “one virtual machine per application” model.

Unikernels inherently support a single application per

unikernel. We propose unikernels are a perfect ﬁt for

usage with advanced memory protection techniques.

With unikernels, the situation after a security

breach vastly differs to traditional systems. The at-

tacker is able to exploit a vulnerability, e.g., buffer

overﬂow, gaining access to the unikernel system’s

memory. Having no binaries and reduced libraries,

writing shell [Arce, 2004], code is complicated

Pivot attacks that depend on shell-access are thwarted.

On the other hand, all direct attacks against the appli-

cation, e.g., data extraction due to insecure applica-

tion logic, are still possible. A good example is the

recent OpenSSL heartbleed vulnerability [Durumeric

et al., 2014]. A unikernel utilizing OpenSSL would

also be vulnerable, allowing an attacker to access sys-

tem memory, including the private SSL key. We ar-

Shellcode is machine code that is used as a payload

during vulnerability execution. Common payloads spawn

command shells or abuse existing libraries to give attackers

unintended possibilities.

gue that functionality should be split between multi-

ple unikernels, compartmentalizing breaches.

The lack of shell access requires mental read-

justment for many UNIX-period system administra-

tors. On the other hand, the growing DevOps move-

ment [Bass et al., 2015], abolishes the traditional sep-

aration into software development and system admin-

istration, but places high importance on the commu-

nication between and integration of those two areas.

Unikernels offer an elegant deployment alternative:

the minimized operating system implicitly moves sys-

tem debugging to application developers. Instead of

analysing errors through shell commands, developers

can utilize debuggers to analyse the whole system,

which might be beneﬁcial for full-stack engineering.

Returning to the theme of “software development

frameworks provide sensible defaults but get bloated,

and thus vulnerable over time”, unikernels provide an

elegant solution: while the framework should include

generic defence measures, the resulting unikernel will

only include needed parts to reduce the attack surface.

3.1 Inﬂuence of Language Selection

In contrast to general purpose operating systems,

most unikernels are written with a target program-

ming language in mind.

As the application code will

be implemented with this language, the language se-

lection has enormous impact on application security.

An especially error-prone area is memory-safety

and memory management. Flexible programming

languages such as C [Kernighan et al., 1988], or

C++ [Stroustrup, 2015], allow direct manipulation

of memory areas, e.g., pointer arithmetic, casting

and manual memory allocation. While necessary for

high-performance applications this introduces vari-

ous potential security problems such as buffer over-

ﬂows, dangling pointers, use-after-free, typecast er-

rors, etc. Many high-level languages disallow pointer

arithmetic and exchange manual memory manage-

ment with a garbage collector.

Strongly-typed languages allow detection of com-

mon programming errors during compile time, pre-

venting vulnerabilities that could potentially be ex-

Please note, that the unikernel itself might be written in

multiple different programming languages. Memory-safe

and type-safe languages lack the ﬂexibility of raw memory

access/type-casting and thus are too limited for kernel im-

plementation [Duncan et al., 2016b]. This commonly yields

a combination of unsafe languages for low-level memory

interactions and safe high-level languages interfacing the

application code, for example, Microsoft’s Verve [Yang

and Hawblitzel, 2010], combines C++ and managed C#,

HalVM uses C/Assembler and Haskell, MirageOS is based

on C and OCaml.

Unikernels for Cloud Architectures: How Single Responsibility can Reduce Complexity, Thus Improving Enterprise Cloud Security

ploited by runtime attacks, thus a strongly typed

language is preferable. Determining the strong-

typedness of a language is not easy. Strongly typed

languages such as C or C++ allow unsafe explicit type

conversions. Languages such as Java are based on

type erasure [Bracha et al., 1998]: they perform type

checking during compilation but remove details dur-

ing run-time, thus preventing dynamic type checking.

The selected programming language should pro-

vide usable abstractions suitable for the intended ﬁeld

of operation. If object-oriented programming is in-

tended, then the unikernel’s programming language

should support this style. Furthermore the language

should provide means of programming ﬂuently within

the chosen paradigm, e.g., for object-oriented pro-

gramming styles SOLID [Martin, 1995], principles

should be supported, as SOLID’s principles are also

important for security. SOLID’s S — Single Respon-

sibility Principle — and I — Interface Segregation

Principle — yields software designs that depend on

multiple distinct objects, each offering minimal but

self-contained functionality. This resonates with the

unikernel paradigm.

Another important aspect for security efﬁciency is

tooling and library support. Recently we have seen

programming languages providing good tooling en-

joying better uptake by the community [Meyerovich

and Rabkin, 2013]. Such an example where uptake

was improved by tooling is Ruby with the Ruby on

Rails web-development framework. The Go program-

ming language goes a step further and includes its

own package management system out of the box. Li-

brary support can be security-relevant, e.g., the C lan-

guage does not provide for memory-safety with re-

spect to memory management but add-on libraries

that introduce memory-safety [Bhatkar et al., 2005],

[Cowan et al., 1998], or automated garbage collec-

tion [Detlefs et al., 1994], are available.

To summarize the impact on language selection

for unikernels:

• must support the targeted programming paradigm;

• should support usable software-development ab-

stractions;

• strongly-typed and memory-safe programming

languages yield security beneﬁts;

• good tooling support (e.g., safety checkers, static

code analysis) can improve security and developer

efﬁciency.

3.2 Unikernels and Serverless Stacks

Another recent addition to the hosting repertoire

are serverless frameworks. With those frameworks,

source code is directly uploaded to the cloud service.

Execution is triggered in response to events; resources

are automatically scaled. Developers do not have any

system access except through the programming lan-

guage and provided libraries. Most current offerings

for this software stack are highly vendor-dependent,

e.g., Amazon Lambda, Google Cloud Functions, Mi-

crosoft Azure Functions.

We do see unikernel and serverless frameworks

as two solutions to a very similar problem: reduc-

ing the administrative overhead and allowing devel-

opers to focus their energy on application develop-

ment. Serverless stacks signify the “corporate-cloud”

aspect: developers upload their code to external ser-

vices and thus invoke vendor lock-in in the long run.

Unikernels also allow users to minimize the non-

application code; in contrast to serverless architec-

tures, this approach maintains ﬂexibility with regard

to hosting. Users can provide on-site hosting or move

towards third-party cloud offerings.

We expect serverless architecture providers to uti-

lize unikernels within their own offerings. They are

well suited to include user provided applications and

further increase security of their infrastructure.

3.3 Inﬂuence on Architecture

High-level vulnerabilities cannot be solved on a low-

level but must be re-mediated through architectural

decisions. As mentioned, we entertain a black-box

view of a unikernel as an immutable isolated single-

execution-ﬂow execution environment. This inﬂu-

ences both the internal architecture of applications

running within unikernels as well as the overall ar-

chitectural structure of software systems.

The single-execution-ﬂow approach leads natu-

rally to a reactive [Bon

er et al., 2014], event-driven

architecture [Fielding, 2000]. In such an architec-

ture, the application sequentially retrieves and fulﬁlls

user requests. There is emphasis on the non-blocking

processing of incoming requests

. If no unprocessed

request is available, the application enters a sleeping

state, thus preserving system resources. No two re-

quests are processed at the same time by the same

unikernel process—this prevents race conditions, as

there can be no shared data. In addition, there is ef-

ﬁcient operating-system support for event-loops, al-

lowing for resource efﬁcient implementations, thus

This is in contrast to traditional procedural processing

where blocking function calls are common. While blocking,

the caller waits for an external entity to answer, which im-

plies network-communication or waiting on an additional

process. The latter is not allowed with our unikernel-

approach and the former is bad for efﬁciency.

COMPLEXIS 2017 - 2nd International Conference on Complexity, Future Information Systems and Risk

reducing energy consumption. If parallel process-

ing is mandatory, an additional unikernel running the

same operation can be spawned. We assume that no

state or data is shared between those unikernels, i.e.,

they can perfectly run in parallel without any locking

up on shared data. A prominent example of an event-

driven architecture is the nginx web server.

Unikernel images are immutable. This implies

that all data alteration operations cannot be executed

within the unikernel, but must be delegated to an ex-

ternal service. While initially sounding like a lim-

iting factor this actually is good architectural prac-

tice as it separates data processing from data stor-

age. Please note, that unikernels are not side-effect

free (also called “pure” within functional program-

ming languages [Wadler, 1992]) — while the data it-

self is immutable, side-effects can be introduced, e.g.,

through usage of a random number generator.

The combination of immutable unikernel images

and event-driven execution allows for easier reason-

ing about the overall software system. Security-wise

complexity is the natural enemy of good security, thus

this change is highly appreciated. Performance-wise

this combination should allow for good scale-out be-

haviour, i.e., additional unikernels can be spawned

if increased processing throughput is needed. This

highly resembled the Lambda Architecture [Marz and

Warren, 2015], [Fan and Bifet, 2013], commonly

used for data warehousing. On the downside, a

purely event-driven programming style with a single-

execution-ﬂow is not well-suited for interactive user

interfaces that drive application logic: here input

processing—and thus the user interface—would stall

until the submitted operation is completed.

We assume this software architecture will primar-

ily be used for network-driven request processing.

Immutability moves the need for data synchronization

outside the unikernel: the overall framework must

provide some means of persistence for shared data.

However, this implementation must be able to cope

with concurrency, i.e., provide ACID

guarantees or

deal with the CAP theorem

. Note, that “shared data”

includes audit data, session data, perhaps even caches.

As shown, the natural evolutionary step would

be separation of operations into multiple unikernels.

This allows for better security compartmentalization

as well as positively enabling scale-out operations.

ACID describes a set of properties (Atomicity, Consis-

tency, Isolation and Durability) desirable for data transac-

tions [Haerder and Reuter, 1983].

The CAP theorem describes the non-reconcile-ability

between Consistency, Availability and Partition-Tolerance

— a maximum of two of those three desirable properties

can be provided [Abadi, 2012].

Creating the communication infrastructure between

those unikernels, plus performance monitoring, must

again be provided by the surrounding framework.

4 A FRAMEWORK FOR

UNIKERNELS

The generic scenario for our framework is providing

network-connected services through an immutable

single-execution-ﬂow unikernel. We limit ourselves

to single-execution-ﬂow kernels to optionally allow

for parallelism optimizations within multiple uniker-

nel systems later. The immutability assumption min-

imizes requirements for targeted unikernels. The net-

work interfaces are supposed to be accessible through

HTTP over TCP/TLS. We chose HTTP due to its

ubiquitous usage within internet applications. We

assume communication between unikernels will be

message based. This will be further addressed in our

work on unikernel frameworks, in which we investi-

gate whether this would be the right approach.

Figure 2 shows a realization of such a framework.

The separation of the responsibility principle led to

the split into multiple purpose-built unikernels. A

quick description of the request ﬂow shows the differ-

ent unikernels’ responsibilities. The initial TLS termi-

nator accepts incoming client SSL/TLS connections.

Its implementation as a separate unikernel shows both

advantages and problems of unikernel-based designs:

the TLS/SSL-endpoint inherently needs access to the

SSL private key. Using the unikernel approach allows

us to only include this key within the TLS uniker-

nel and exclude it from all other runtime processes,

thus greatly reducing the system’s attack surface. On

the downside, the unikernel-approach will not pro-

tect against a vulnerable SSL implementation (think

OpenSSL heartbleed bug [Durumeric et al., 2014]) —

in contrast, due to the reduced memory size, a heart-

bleed attack would be performed more efﬁciently due

to less memory copying needed. After TLS termi-

nation the request is passed to a transparent HTTP

Proxy which caches incoming requests based on their

HTTP headers. If the request is fresh, the Router

unikernel forwards the request to the matching uniker-

nel performing the corresponding operation. Dur-

ing operation execution, the unikernel may interact

with framework-provided components: it may ac-

cess persistent data stores or provide log entries to

the audit system.

The operation’s response is then

transformed by the Encoder into the client-speciﬁed

A full unikernel authentication and messaging solution

is currently under development by the authors.

Unikernels for Cloud Architectures: How Single Responsibility can Reduce Complexity, Thus Improving Enterprise Cloud Security

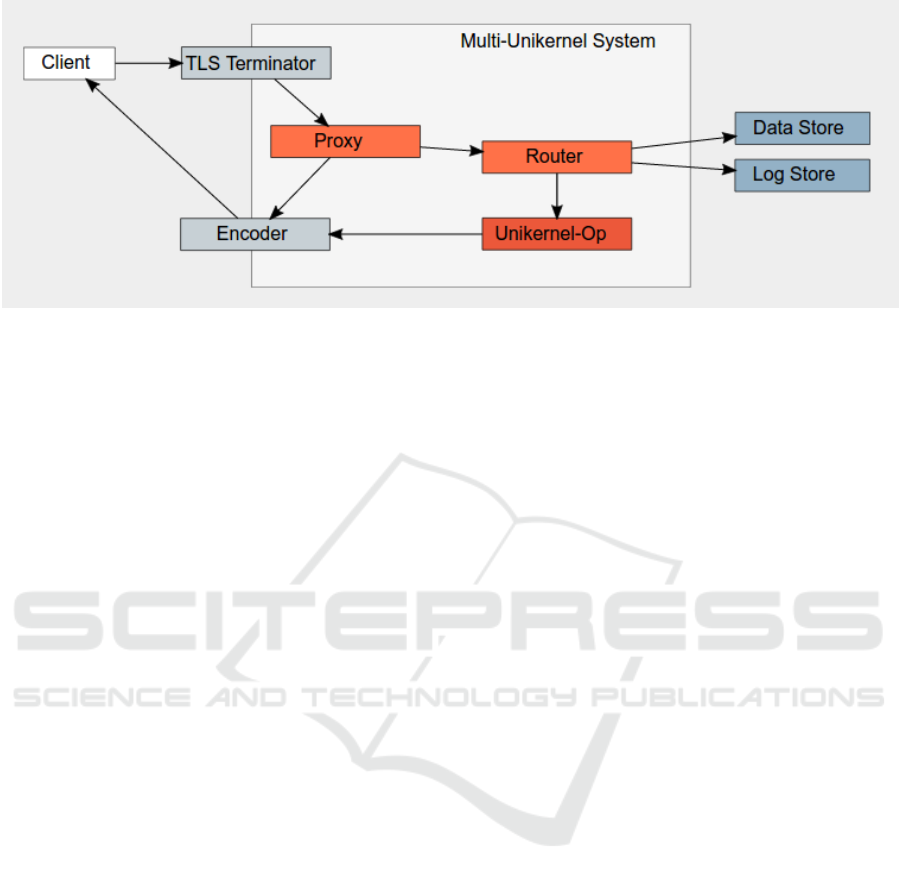

Figure 2: Multi-Unikernel System consisting of connected microservices and external components: Clients connect to the

system through the incoming TLS-Connector and outgoing Encoder component – both contain state and thus are not imple-

mented as unikernels. Framework-provided components, such as the transparent proxy or message router, are implemented

as functional unikernels if possible. Application functionality is provided through user-supplied unikernels (red) which may

depend on external stateful services (blue).

2016 Happe, Duncan and Bratterud.

representation — e.g., “application/xml”, “applica-

tion/json” or “text/html” — and then returned to the

original client. In case of generated HTML ﬁles we

envision the usage of templating engines. Additional

administrative services are provided by the frame-

work, including unikernel monitoring and updating.

Please note, that we have not included counter-

measures against OWSAP Top 10’s top vulnerabil-

ity: injection attacks. The commonly accepted way of

dealing with this attack vector is consistent input san-

itization of all provided user input. We can provide

this within a unikernel framework on multiple levels:

on a coarse level a new “anti-injection” unikernel em-

ploying a generic sanitization library which can be

placed between the HTTP Proxy and Router uniker-

nel, thus transparently ﬁltering the whole incoming

trafﬁc. Sometimes ﬁltering the whole trafﬁc is not

feasible due to performance constraints. In this case,

the ﬁltering unikernel might be placed directly be-

tween the Router and selected Operation unikernels,

thus only ﬁltering a fraction of the original trafﬁc.

4.1 High-level Concerns

The main purpose of the framework is the decon-

struction of business workﬂows into unikernel-based

operations. A single workﬂow can be implemented

through multiple chained unikernels. The surround-

ing framework is responsible for creation, monitoring

and stopping the different unikernel-services during

runtime. While unikernels themselves provide good

functional service isolation, external monitoring is

needed to prevent starvation attacks, i.e., one uniker-

nel performing a denial-of-service attack by consum-

ing all available host resources.

The framework must take care of creating commu-

nication channels between connected unikernels. It

should provide means of validating passed messages,

i.e., deep-packet inspection. This will be utilized to

further compartmentalize potential security breaches.

Real-world use-cases require mutable data, e.g.,

temporary states, logging information or persisted ap-

plication and or user data. Unikernels are by deﬁ-

nition immutable. To solve this mismatch, the sur-

rounding framework must provide means for persist-

ing and querying data in a race-free manner. Spe-

cialized data storage might be provided depending

on the use case. For example, log and audit data’s

special access patterns warrant special storage pro-

cedures enforcing its append-only nature. Persistent

data-storage is inherently contrary to our immutable

unikernel approach. Being pragmatic, we do not en-

force data storage within unikernels but defer this

functionality to the enclosing framework, i.e., means

of storage are provided by the environment.

The resulting framework fulﬁlls all requirements

of Crash-Only Software described ﬁrst by Candea

and Fox[Candea and Fox, 2003] during the 9th

Usenix Workshop on Hot Topics in Operating Sys-

tems. Crash-only software can safely be restarted in

case of errors. To allow for this, multiple require-

ments have to be fulﬁlled:

1. All important non-volatile state is managed by

dedicated state stores;

2. Components have externally enforced bound-

aries;

3. Interactions between components have timeouts;

4. All resources are leased;

5. Requests are entirely self-describing.

COMPLEXIS 2017 - 2nd International Conference on Complexity, Future Information Systems and Risk

Unikernel-based frameworks with their im-

mutable unikernel images automatically fulﬁll re-

quirements 1 and 2. This implicitly also fulﬁlls re-

quirement 5. The missing requirements (3 and 4)

must be implemented and fulﬁlled by the correspond-

ing framework’s environment.

4.2 Message- vs. Stream-based

Communication

In our proposed platonic framework we have chosen

a message-based communication architecture. On a

fundamental level an incoming HTTP request uses

both stream-based as well as message-based com-

munication mechanisms: each incoming HTTP mes-

sage is encapsulated within a TCP stream. The initial

HTTP/HTTPS endpoint component is responsible for

transforming the encapsulated messages into atomic

HTTP messages. Communication between compo-

nents is then based on a message-based approach.

This allows for easy storage of in-ﬂight messages.

This beneﬁts hot-replacement of unikernels: after a

unikernel has been restarted—or replaced—the in-

coming message queue is triggered to replay all stored

messages and thus ensures that all incoming opera-

tions are executed. The disadvantage of message-

based processing is the inherent memory overhead.

As all messages need to be stored within memory

this architecture is not well suited for applications that

process “large” requests, such as large ﬁle delivery.

4.3 Resilience and

Zero-Downtime-Updates

In addition to security beneﬁts, the combination of

immutable single-execution-ﬂow unikernels also al-

lows for improved availability. An essential step dur-

ing software lifetime is updates: a new version of the

software has to be deployed “over” an existing de-

ployment, data migrated to the new version should

happen without any impact on service availability.

The combination of immutable unikernel, external

data storage and the existence of an external uniker-

nel monitoring and management framework allows

for exactly that. When a new version of an opera-

tion is available, a new unikernel is compiled and de-

ployed. Incoming messages for the old unikernel are

paused, the framework waits until the old unikernel

has ﬁnished processing. Afterwards, incoming mes-

sages are forwarded to the new unikernel and mes-

sage processing is resumed. If database alterations are

needed, those are performed after the old unikernel

has stopped and the new unikernel is receiving mes-

sages. Due to the immutable nature of unikernels this

hot-replacement of unikernels is possible.

Special consideration has to be given for the ini-

tial TLS-Terminator unikernel: TCP is a stream-based

protocol, the initial unikernel has to keep track of the

SSL/TLS-state within its volatile memory. This pre-

vents simple transparent replacement operations, but

due to the minimal provided functionality we assume

replace operations of this unikernel to be infrequent.

We assume the software system comprises multi-

ple unikernels, i.e., one unikernel per offered opera-

tion, allowing us to replace defective parts of the soft-

ware system without introducing overall downtime.

5 CURRENT STATE: UNIK

We hold the beneﬁts of a framework centred around

unikernel creation and deployment to be self-evident.

This begs the question, if such a framework already

exists, or if not, which capabilities are currently miss-

ing to achieve the desired functionality.

EMC’s UniK is the the prime unikernel compila-

tion and deployment platform. This characterization

comes easy, as it also is the only solution that supports

multiple unikernel implementations, e.g., rumprun,

IncludeOS, MirageOS, and OSv, as well as mul-

tiple deployment backends—AWS/Xen, VirtualBox,

Qemu/KVM, vSphere and Photon Controller

. Build-

ing unikernels into virtual machine images is inter-

nally delegated to the corresponding toolkits, UniK

manages those virtual machine images, instantiates

them, and provides limited runtime monitoring and

logging.

5.1 A Comparison to the Serverless

Framework

To get a better feel of UniK’s capabilities we com-

pared it with the serverless [Serverless.com, 2016],

function-as-a-service framework. Both aim to reduce

the amount of system preparation and administration

needed to be performed by software developers. To

have a concrete test-case, we wrote a simple microser-

vice that takes Amazon S3 credentials and returns a

polynomial hash computed over a subset of an Ama-

zon S3 bucket’s contents. This operation was then

deployed to the Amazon cloud.

We started with a serverless setup. The project

consists of roughly two parts: the function’s im-

plementation and deployment metadata. We opted

As noted by https://github.com/emc-advanced-

dev/unik, date 2016-11-06.

Unikernels for Cloud Architectures: How Single Responsibility can Reduce Complexity, Thus Improving Enterprise Cloud Security

for a simple Python program utilizing the Ama-

zon Boto library as well as a single custom Python

GF256 mathematical library. The metadata is used to

map an incoming HTTP requests to the correspond-

ing python function, e.g., to map the “GET /cre-

ate hash HTTP/1.1” operation to the deployed python

function “create hash”. Thus the framework blends

application-level logic with deployment issues. The

working example can be found on github

. The

code was deployed using the serverless command

line interface. Additional serverless features that

were utilized during development were command-

line web-service invocation and the integrated log-

ging facilities. The latter give information about func-

tion runtime, which is important as Amazon Lambda

functions are billed based on call count and length

of function execution. All those features worked

out-of-the-box, not too surprising given that we re-

lied on Amazon-provided libraries to work within an

Amazon-provided execution environment.

Then we turned to UniK’s python support pro-

vided through a rumprun unikernel. We expected to

deploy the same code base with slight modiﬁcations

into the Amazon cloud as an EC2 instance. In con-

trast to serverless, where a mapping from HTTP end-

point to python methods is utilized to create HTTP

endpoints, our unikernel had to provide a web-server

on its own. We opted for the python-included web

server implementation and added a simple HTTP han-

dler that then calls our original python function taken

from our serverless code. This has the beneﬁt, that

we were able to easily test our microservice locally

by just starting the web server. We were able to build

and deploy a unikernel image to the Amazon cloud

but alas the microservice did not work as expected

and threw an exception. UniK handles virtual ma-

chines, not functions, so no logging facilities pro-

vided any help. We manually improved the func-

tions logging and were thus ﬁnally able to deduce

that the Boto library internally uses python’s multi-

processing package. As mentioned before, unikernels

do not generally support multiple execution ﬂows,

on which multiprocessing depends—thus producing

our microservice error. This is a deeply unsatisfying

situation as, with python being a dynamically inter-

preted language, there is no fail-safe and easy way

to detect such dependency problems prior to deploy-

ment. This makes selection of libraries for unikernel

projects risky and, in our opinion, favours statically

compiled languages for unikernel.

repository available at

https://github.com/andreashappe/serverless-python-aws.

repository available at

https://github.com/andreashappe/unik-python-aws.

5.2 Is This Even Within UniK’s Scope?

This is not directly UniK’s fault, but happened due to

the technology stack selection we unwittingly chose.

UniK manages virtual machines, thus has no informa-

tion about exported methods and their communication

endpoints. It only provides logging on a whole VM

base, i.e., provide a virtual console that captures and

stores the virtual machine’s “TTY” output, whereas

serverless integrates on a higher application level,

thus knows about deployed functions and can provide

detailed information on this ﬁne-granular level.

UniK creates a virtual machine that can be de-

ployed on multiple backends provided by the user.

This allows users to take back full control over the

software and hardware stack. In contrast, server-

less fully depends on the backend provider. In the

Amazon Cloud case, no information about the used

hardware or underlying software stack is available—

deeply troubling some reliability engineers, espe-

cially when sensitive data should be handled by the

deployed micro service.

6 THE VISION: THE BEST OF

BOTH WORLDS?

Compared to existing UniK compilation frameworks,

the serverless framework provides a better developer

experience. Seeing UniK and serverless as competi-

tors leads to a false dichotomy, we see both of them

as part of a potential solution to the exploding com-

plexity of software development and deployment.

6.1 Limit Unikernels and Integrate

Them with their Environment

Serverless focuses on creating an environment for

functions provided through an HTTP (web) interface

and thus can provide specialized logging and moni-

toring information tailored for this use-case. UniK

in contrast provides a compilation framework for

generic operating systems—without further special-

ization it is not possible to gather detailed information

for included services.

Unikernels provide a lean environment, focusing

on a single application. We propose the same mini-

malism when it comes to protocols and their integra-

tion. Instead of providing generic containers, we pro-

pose that a single unikernel should be tailored to pro-

vide the endpoint for a single web request. To achieve

this, additional external and internal components will

need to be devised. Externally a smart communica-

tion endpoint for HTTP trafﬁc must be introduced.

COMPLEXIS 2017 - 2nd International Conference on Complexity, Future Information Systems and Risk

This endpoint will take incoming HTTP/HTTPS re-

quests, extract the encapsulated request, match it

against provided unikernels and then forward a san-

itized operation towards the encapsulated operation

within the unikernel. It will be the starting point for

additional features such as providing unikernels on

demand, i.e., starting a new unikernel if an operation

request was received. As dispatched operations are

HTTP requests, logging can be specialized towards

the needs of this protocol. As seen with our UniK

experiments, currently each unikernel has to imple-

ment a whole web server stack on its own. We pro-

pose a small library for usage within the unikernel that

would accept an incoming web request from the exter-

nal HTTP server and calls the corresponding function

within the unikernel. This library would also include

the logging interface needed for advanced data gather-

ing. As each unikernel function will always be called

on behalf of an incoming request we assume that we

can gather logging information on a per-request basis.

The incoming (external) web-server is the perfect

place to implement SSL/TLS termination. This al-

lows for hot-plug of existing unikernels as the TLS

connection will be created between the client and the

HTTPS listener (and not between the client and the

unikernel). We have chosen the Go programming lan-

guage for implementation as this is also the program-

ming language used by the UniK project and we target

close interactions with their development community.

As communication between the external web

server and the unikernel is based on a technology

agnostic protocol (HTTP), we can couple multiple

unikernel implementations with a single external web

server. Due to this, we name the external web server

a “multi-unikernel web server”.

6.2 Tooling/Further Hardening of

Unikernels

Our tests with a python-based unikernel have shown

that tooling is of the highest importance when it

comes to successful unikernel adoption. While

dynamic programming languages commonly yield

higher developer efﬁciently, due to our problems with

Python, i.e., not being able to detect incompatible li-

braries during development time, we lean towards us-

age of statically compiled programming languages.

This allows us to perform all dependency and com-

patibility checks during compile time. We mandate

that the framework must provide and enforce a sensi-

ble selection of defensive libraries for input data vali-

dation and output sanitization.

When it comes to programming language selec-

tion, we assume that either the programming lan-

guage is memory-safe itself or the tooling provides

for vast amounts of static source code analysis during

compile- and run-time to mitigate potential vulnera-

bilities. In addition, a sensible selection of libraries

should be utilized to reduce negative security impli-

cations (i.e., memory management). If source code

is statically linked (which we imply), steps should be

taken to improve the resilience of code against secu-

rity attacks. There is a large repository of address

randomization [Shacham et al., 2004], and code-

execution protection [Childs Jr et al., 1984], tech-

niques which should be employed automatically.

Note, that additional security libraries might intro-

duce additional vulnerabilities. We propose that auto-

matic minimization offered by our unikernel-system

will offset this negative security impact. Static source

code analysis and defensive measures like address-

randomization do not add additional code to the com-

piled binary and thus do not increase the attack sur-

face.

6.3 Marry the Serverless Developer

Experience with Unikernels

So far, we talked about infrastructure mechanisms

that integrate unikernel compilation, deployment and

monitoring. In addition we forsee potential improve-

ments with regard to developer usability by integrat-

ing our web server/UniK stack backend with server-

less’ developer frontend.

Initially, we proposed a multi-unikernel web

server that allows for hot-plugging web-based uniker-

nels. The second step focused on improving the com-

pilation step of a single unikernel through usage of

defensive security libraries. This ﬁnal step will in-

tegrate with the serverless framework. A serverless

project consists of multiple functions and attached

metadata, i.e., under which HTTP address which op-

eration should be available. We propose to take this

information and use it to create a single web-based

unikernel per exported function. Information needed

for deployment within out multi-unikernel web server

will be extracted from serverless’ meta-data. Our log-

ging subsystem will also be integrated with server-

less’ logging front-end.

7 CONCLUSION AND FUTURE

WORK

We have shown how the use of unikernel based sys-

tems can be used to reduce complexity, and thus im-

prove security. We have looked at real world empir-

Unikernels for Cloud Architectures: How Single Responsibility can Reduce Complexity, Thus Improving Enterprise Cloud Security

ical security ﬁndings as a foundation for this work,

and have been able to highlight how unikernels can

be used to mitigate security risks. We discussed how

unikernels will form an integral part of the overall

software architecture and examined patterns for that

architecture which can be used to aid software devel-

opment. We therefore identiﬁed the requirement for

a unikernel-enabling surrounding framework to pro-

vide better support for the unikernel approach, and to

that end we discussed how this might be achieved, and

detailed a high- level architecture. We analyzed the

current state of unikernel compilation frameworks,

identiﬁed their shortcomings and offered sensible fu-

ture paths which could support powerful and scalable

multi-unikernel systems.

We are currently analysing different static and dy-

namic hardening mechanisms that can be added dur-

ing unikernel compilation. The result of this anal-

ysis will be a paper detailing the different potential

mechanisms which could be used and their impact on

runtime performance, unikernel image size as well as

runtime memory consumption. Early indications sug-

gest this work is likely to be of beneﬁt. In parallel we

are investigating the use of a dedicated unikernel web

server that allows for on-demand launching of uniker-

nels for scale-out. To achieve this in a developer

friendly manner, additional in-unikernel libraries will

have to be devised. This will likely take some effort,

but we believe this will greatly enhance the prospect

that a more secure approach could be achieved.

We have also carried out some preliminary work

on the use of unikernel systems to assist in deal-

ing with some of the worrying security weaknesses

in IoT technology, and we also continue with this

work. Based on the work in this, and three previ-

ous papers—[Duncan et al., 2016a], [Bratterud et al.,

2017], and [Duncan et al., 2016b]—we are convinced

that properly developed unikernel-based solutions can

provide a vital weapon in the armoury of enterprises

for ensuring improved levels of security can be both

achieved and maintained.

ACKNOWLEDGEMENTS

This work was in part funded by the European Com-

mission through grant agreement no 644962 (PRIS-

MACLOUD).

REFERENCES

37signals. Make Opinionated Software.

Abadi, D. J. (2012). Consistency tradeoffs in modern dis-

tributed database system design: CAP is only part of

the story. Computer (Long. Beach. Calif)., (2):37–42.

Anati, I., Gueron, S., Johnson, S., and Scarlata, V. (2013).

Innovative technology for CPU based attestation and

sealing. In Proc. 2nd Int. Work. Hardw. Archit. Sup-

port Secur. Priv., volume 13.

Arce, I. (2004). The shellcode generation. IEEE Secur.

Priv., 2(5):72–76.

Bass, L., Weber, I., and Zhu, L. (2015). DevOps: A Soft-

ware Architect’s Perspective. Addison-Wesley Profes-

sional.

Bhatkar, S., DuVarney, D. C., and Sekar, R. (2005). Efﬁ-

cient Techniques for Comprehensive Protection from

Memory Error Exploits. In Usenix Secur.

Blankstein, A. and Freedman, M. J. (2014). Automating

isolation and least privilege in web services. In Secur.

Priv. (SP), 2014 IEEE Symp., pages 133–148. IEEE.

Bon

er, J., Farley, D., Kuhn, R., and Thompson, M. (2014).

The reactive manifesto.

Bracha, G., Odersky, M., Stoutamire, D., and Wadler, P.

(1998). Making the future safe for the past: Adding

genericity to the Java programming language. Acm

sigplan Not., 33(10):183–200.

Bratterud, A., Happe, A., and Duncan, B. (2017). Enhanc-

ing Cloud Security and Privacy: The Unikernel Solu-

tion. In Cloud Comput. 2017 Eighth Int. Conf. Cloud

Comput. GRIDs, Virtualization, pages 1–8.

Bratterud, A. and Haugerud, H. (2013). Maximizing hyper-

visor scalability using minimal virtual machines. In

Cloud Comput. Technol. Sci. (CloudCom), 2013 IEEE

5th Int. Conf., volume 1, pages 218–223. IEEE.

Bratterud, A., Walla, A.-A., Engelstad, P. E., Begnum, K.,

and Others (2015). IncludeOS: A minimal, resource

efﬁcient unikernel for cloud services. In 2015 IEEE

7th Int. Conf. Cloud Comput. Technol. Sci., pages

250–257. IEEE.

Bui, T. (2015). Analysis of docker security. arXiv Prepr.

arXiv1501.02967.

Burbeck, S. (1992). Applications programming in

smalltalk-80 (tm): How to use model-view-controller

(mvc). Smalltalk-80 v2, 5.

Candea, G. and Fox, A. (2003). Crash-Only Software. In

HotOS, volume 3, pages 67–72.

Childs Jr, R. H. E., Klebanoff, J. L., and Pollack, F. J.

(1984). Microprocessor memory management and

protection mechanism.

Climate, C. (2013). Rails’ Remote Code Execution Vulner-

ability Explained.

Costan, V. and Devadas, S. Intel sgx explained. Technical

report, Cryptology ePrint Archive, Report 2016/086,

2016. https://eprint. iacr. org/2016/086.

Cowan, C., Pu, C., Maier, D., Walpole, J., Bakke, P., Beat-

tie, S., Grier, A., Wagle, P., Zhang, Q., and Hinton,

H. (1998). StackGuard: Automatic Adaptive Detec-

tion and Prevention of Buffer-Overﬂow Attacks. In

Usenix Secur., volume 98, pages 63–78.

Detlefs, D., Dosser, A., and Zorn, B. (1994). Memory al-

location costs in large C and C++ programs. Softw.

Pract. Exp., 24(6):527–542.

COMPLEXIS 2017 - 2nd International Conference on Complexity, Future Information Systems and Risk

Duncan, B., Bratterud, A., and Happe, A. (2016a). Enhanc-

ing Cloud Security and Privacy: Time for a New Ap-

proach? In Intech 2016, pages 1–6, Dublin.

Duncan, B., Happe, A., and Bratterud, A. (2016b). Enter-

prise IoT Security and Scalability: How Unikernels

can Improve the Status Quo. In 9th IEEE/ACM Int.

Conf. Util. Cloud Comput. (UCC 2016), pages 1–6,

Shanghai, China.

Durumeric, Z., Kasten, J., Adrian, D., Halderman, J. A.,

Bailey, M., Li, F., Weaver, N., Amann, J., Beekman,

J., Payer, M., and Others (2014). The matter of heart-

bleed. In Proc. 2014 Conf. Internet Meas. Conf., pages

475–488. ACM.

Fan, W. and Bifet, A. (2013). Mining big data: current sta-

tus, and forecast to the future. ACM sIGKDD Explor.

Newsl., 14(2):1–5.

Fielding, R. T. (2000). Architectural styles and the design

of network-based software architectures. PhD thesis,

University of California, Irvine.

Flatpak. The Future of Application Distribution.

Fowler, M. (2002). Patterns of enterprise application ar-

chitecture. Addison-Wesley Longman Publishing Co.,

Inc.

Haerder, T. and Reuter, A. (1983). Principles of transaction-

oriented database recovery. ACM Comput. Surv.,

15(4):287–317.

Jithin, R. and Chandran, P. (2014). Virtual machine isola-

tion. In Int. Conf. Secur. Comput. Networks Distrib.

Syst., pages 91–102. Springer.

Kernighan, B. W., Ritchie, D. M., and Ejeklint, P. (1988).

The C programming language, volume 2. prentice-

Hall Englewood Cliffs.

Madhavapeddy, A., Leonard, T., Skjegstad, M., Gazagnaire,

T., Sheets, D., Scott, D., Mortier, R., Chaudhry, A.,

Singh, B., Ludlam, J., and Others (2015). Jitsu: Just-

in-time summoning of unikernels. In 12th USENIX

Symp. Networked Syst. Des. Implement. (NSDI 15),

pages 559–573.

Madhavapeddy, A., Mortier, R., Rotsos, C., Scott, D.,

Singh, B., Gazagnaire, T., Smith, S., Hand, S., and

Crowcroft, J. (2013). Unikernels: Library operat-

ing systems for the cloud. ACM SIGPLAN Not.,

48(4):461–472.

Madhavapeddy, A. and Scott, D. J. (2013). Unikernels:

Rise of the virtual library operating system. Queue,

11(11):30.

Madnick, S. E. and Donovan, J. J. (1973). Application and

analysis of the virtual machine approach to informa-

tion system security and isolation. In Proc. Work. vir-

tual Comput. Syst., pages 210–224. ACM.

Martin, R. C. (1995). Principles of OOD. Von butuncle-

bob. com http//butunclebob. com/ArticleS. UncleBob.

Princ. abgerufen.

Marz, N. and Warren, J. (2015). Big Data: Principles and

best practices of scalable realtime data systems. Man-

ning Publications Co.

Meyerovich, L. A. and Rabkin, A. S. (2013). Empirical

analysis of programming language adoption. ACM

SIGPLAN Not., 48(10):1–18.

OWASP. Attack Surface Analysis Cheat Sheet.

OWASP (2013). OWASP Top Ten Vulnerabilities 2013.

Pike, R. (2009). The Go Programming Language. Talk

given Google’s Tech Talks.

Rutkowska, J. (2013). Thoughts on Intel’s upcoming

Software Guard Extensions (Part 1). \url{http://

theinvisiblethings.blogspot.co.at/2013/08/thoughts-

on-intels-upcoming-software.html}.

Serverless.com (2016). Serverless Architectures.

Shacham, H., Page, M., Pfaff, B., Goh, E.-J., Modadugu,

N., and Boneh, D. (2004). On the effectiveness of

address-space randomization. In Proc. 11th ACM

Conf. Comput. Commun. Secur., pages 298–307.

ACM.

Soltesz, S., P

otzl, H., Fiuczynski, M. E., Bavier, A., and Pe-

terson, L. (2007). Container-based operating system

virtualization: a scalable, high-performance alterna-

tive to hypervisors. In ACM SIGOPS Oper. Syst. Rev.,

volume 41, pages 275–287. ACM.

Stroustrup, B. (2015). Die C++-Programmiersprache: ak-

tuell zum C++ 11-Standard. Carl Hanser Verlag

GmbH Co KG.

Ubuntu. Snapcraf Overview.

Wadler, P. (1992). The essence of functional programming.

In Proc. 19th ACM SIGPLAN-SIGACT Symp. Princ.

Program. Lang., pages 1–14. ACM.

Yang, J. and Hawblitzel, C. (2010). Safe to the last instruc-

tion: automated veriﬁcation of a type-safe operating

system. In ACM Sigplan Not., volume 45, pages 99–

110. ACM.

Unikernels for Cloud Architectures: How Single Responsibility can Reduce Complexity, Thus Improving Enterprise Cloud Security
