Multiple-perspective Visual Analytics for GRC Platforms

Vagner F. de Santana

, David Byman

, Nathaniel Mills

, Beatriz S. Ribeiro

and Rogério de Paula

IBM Research, Tutoia St. 1157, Sao Paulo, SP, Brazil

IBM Research, Rogers St. 1, Cambridge, MA, U.S.A.

Keywords: Governance, Risk, and Compliance, Information Visualization, Visual Analytics, GRC Platform.

Abstract: GRC (Governance, Risk, and Compliance) data is voluminous and highly interrelated, yet sparsely

populated. This fact represents one of the biggest challenges when creating visualizations for such datasets:

the data does not align well in a tabular structure typically used to populate displays and reports. GRC

Platforms provide reporting capabilities and data visualization techniques to summarize data, yet most

common GRC visualizations are restricted to certain inflexible perspectives, e.g., Risk Matrix. This work

presents a Visual Analytics system that provides multiple visual perspectives over GRC data. The

evaluation of the system involved four GRC specialists. The results show that the multiple perspectives

approach supports the summarization of different portions of the GRC data, especially regarding business

process and business entity taxonomies, and risk/control relationships. The results provide useful insights

for specialists working to explore and summarize GRC data and to integrate Visual Analytics Systems with

GRC platforms. In addition, the multiple-perspective approach presented could also be applied in systems

sharing the same data structure GRP Platforms use.

1 INTRODUCTION

Governance addresses the processes, systems, and

controls by which organizations operate.

Governance is usually administered by governments,

which typically includes the exercise of legal and

regulatory authority, and considers the use of

institutional resources to manage organizations.

Corporate governance is the process by which an

organization defends the interests of the

stakeholders. Risk refers to the possibility of a loss

or an injury created by an activity or by a person.

Risk management seeks to identify, assess, and

measure risks, and then develop countermeasures to

handle them, typically minimizing any impact. Risk

should not be viewed as inherently bad, since all

opportunities come with some degree of risk. The

types of risks vary depending on the home country

location, industry, level of globalization, and many

other factors; e.g., banks worry about credit and

market risks. Compliance involves acting in

accordance with established laws, regulations,

protocols, standards, and specifications. Corporate

compliance typically includes compliance with

external laws, regulations, and internal protocols

(Tarantino, 2008).

The complexity of business and the relationships

among organizations guided the approach of

integrating the triad of Governance, Risk, and

Compliance (GRC). GRC is managed in a holistic

way, since tackling them separately is costly due to

duplicated efforts and greater chances of failure in

each of the three areas (Tarantino, 2008).

In this context, the role of GRC Platforms is to

provide an integrated set of tools that combines

multiple data sources, roles, and goals concerning

GRC. Challenges in such systems often involve the

following: sparsely populated data structures since it

takes time to determine ratings and test results;

numerous interrelationships between these different

structures, e.g., risks, controls, assessments,

taxonomies; and providing multiple views for the

many stakeholders involved in GRC management.

The critical issue for GRC is the cost of failing to

mitigate risk in civil, criminal, reputation, financial,

or market-based areas. For instance, a big oil and gas

company recently suffered serious image and

investment damage after a series of corruption cases;

one of the ways of showing investors, as well as

governments, that the company was working to

resolve these issues was announcing "a new

Governance, Risk and Compliance Office aimed at

stamping out fraud and corruption in the company"

(NY Times, 2015).

Santana, V., Byman, D., Mills, N., Ribeiro, B. and Paula, R.

Multiple-perspective Visual Analytics for GRC Platforms.

DOI: 10.5220/0006285900410052

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 3, pages 41-52

ISBN: 978-989-758-249-3

The plurality of tasks related to GRC Platforms,

ranging from management to accurate reporting of

GRC data, depends on multiple disciplines.

Moreover, the sparseness and heterogeneity of the

data structures commonly employed in GRC

platforms constitutes another challenge (Figure 1).

For input capabilities, GRC Platforms should

support flexible consistency tests and extensible

functions to adapt to business policies. For output,

GRC Platforms should offer standard GRC reporting

capabilities to inform decisions, identify critical

issues needing attention, highlight outliers, and

identify recurrent patterns and best practices. In this

context, this paper presents a system to be used to

augment existing GRC platforms, providing flexible

multiple-perspective visual analytics that address the

sparse yet complex, interrelated GRC data structures

(Figure 1).

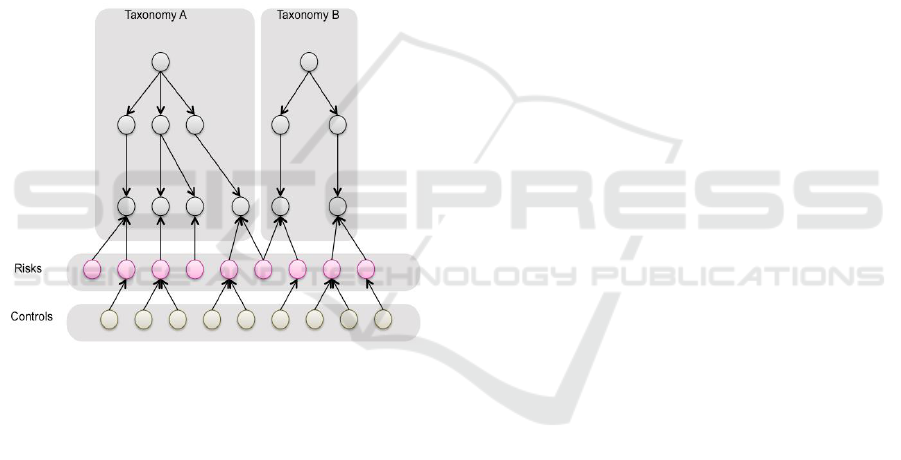

Figure 1: Example of the data structures commonly found

in GRC platforms, employing one or more organizational

taxonomies, and layers of shared risks and controls

connected with these taxonomies.

This paper contributes with a method on how to

structure GRC data and how to present it visually all

the voluminous and sparsely connected GRC data,

allowing users to consume GRC data via multiple

perspectives during multiple decision making tasks.

Moreover, we detail the system evaluation involving

GRC specialists and summarize the results obtained

from interviews realized with FI staff.

The next sections of this paper discuss the

following: related work, the developed system, the

evaluation performed, the results, and finally, the

conclusions.

2 RELATED WORK

As background, we have identified several

commercial GRC Platforms and have summarized

their main features and capabilities.

BWise GRC offers multiple role based solutions,

allowing departments across an organization to work

from one common risk taxonomy, focused on

business objectives using a common language for

internal audit, risk, and compliance (BWise, 2015).

Compliance 360 offers configurable modules

that help identify gaps and risks, eliminate duplicate

procedures and maintain the records needed to

demonstrate control of compliance, risk and audit

programs (Compliance 360, 2012).

IBM OpenPages offers a set of core services and

functional components that span all risk and

compliance domains including operational risk,

policy and compliance, financial controls

management, IT governance and internal audit, and

Issues Management (IBM Open Pages, 2015).

MetricStream GRC offers solutions for

managing risk to meet regulatory requirements while

lowering the associated costs and uses core modules

to support reporting, data integration, and workflow

(MetricStream Enterprise, 2015).

OneSumX GRC is an enterprise GRC

management tool for financial institutions. Its

modular components measure, monitor and manage

compliance, financial and operational risk. It

provides a cross-silo view of enterprise risk.

Featuring high-level reports, interactive dashboards

and multi-risk discipline support, the solution is

leveraged to support decision-making and resource

allocation (OneSumX GRC, 2015).

RSA Archer GRC allows you to adapt solutions

to your requirements, build new applications, and

integrate with external systems, without coding

(RSA Archer GRC Platform, 2015).

GRC SAP supports flexibility regarding changes

in business, technology, and regulations. It informs

business decisions by visualizing and predicting how

risk may impact performance (SAP GRC, 2015).

SAS GRC offers an integrated GRC platform,

supporting management of strategic and operational

risks, and consolidated information from all

financial risk management systems (credit risk,

market risk, etc.) (SAS GRC, 2015).

These GRC platforms provide their organizations

and stakeholders several features, capabilities, and

benefits through a common set of characteristics: (1)

Integrated approach to managing centralized GRC

data; (2) Flexible GRC data management; (3)

Simplified tooling configuration and management;

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

(4) Modular, extensible platform architecture; (5)

Standardized GRC reporting. However, these GRC

platforms also share the following limitations:

 Reports are usually risk-centric and are difficult

to create visualizations beyond the standard

table-based GRC reporting charts, for instance,

Risk Matrix (Figure 2).

 The flexibility offered by some tools may require

complex queries to connect related elements

typically found in the GRC Platform data

structures (Figure 1) because normalizing foreign

keys is not possible due to optional, sparsely

populated fields.

 The Visual Design Seeking Mantra suggests

presenting overview first, then zoom and filter,

then details-on-demand (Shneiderman, 1996).

However, these GRC platforms rely on standard

GRC visualizations to provide an overview, but

complicate the tasks of filtering and consuming

detailed GRC content from the visual analytics

they provide.

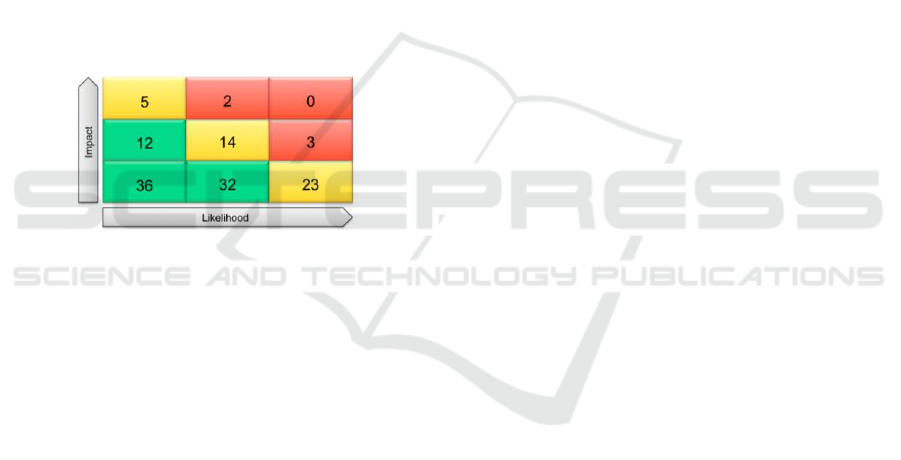

Figure 2: Risk Matrix, a risk-centric visualization and one

of the most common GRC charts.

3 PROPOSED SYSTEM

This year-long, applied research initiative involved

teams from two of our research labs and a major

American financial institution. The financial

institution (FI) used both RSA Archer and IBM

OpenPages platforms, so the expected outcome was

to provide useful business insights for corporate risk

managers across both platforms.

The requirements elicitation involved corporate

risk specialists from the financial institution and

knowledge engineers from our research labs.

Understanding the data structures from both data

sources also required interactions with specialists

from the partners’ IT department. We conducted

monthly semi-structured interviews with GRC

experts to help us comprehend current practices

involving both GRC platforms in use, and we

proposed different means of displaying and

interacting with their GRC data. After analyzing the

information gathered from the initial interviews and

reviewing feedback from our initial designs, we

proposed a Visual Analytics layer encompassing

data extracted and merged from both GRC platforms

used by the FI. Our system offered new integrated

perspectives for corporate risk management to

seamlessly explore all their GRC data; this was not

possible before given the disparate nature of the two

existing GRC Platforms.

3.1 System Requirements

In the development of the system, the primary goal

was to provide business insights for corporate risk

managers at FI. However, we were presented with

large, complex, disparate databases with hundreds of

tables containing highly related, but sparsely

populated real financial, operational, and IT risk

data. The requirements and limitations of traditional

web design driving requests for server side queries

to retrieve and display GRC data lead us to the

design discussed next.

To save money and improve management

consistency, the FI had centralized their financial

and operational risk data by asking their business

units to migrate content from disparate, home grown

point solutions into a single, comprehensive risk

management application. In doing so, they

compromised on requiring many data fields to

facilitate data entry and avoid heavy customization

to accommodate specific (sometimes contradictory)

business unit requirements. This enabled rapid

acceptance of the new GRC application, but resulted

in data that could not leverage explicit foreign key

relations due to missing content. Instead, the FI

required development of very complex SQL queries

to perform separate selections and joins to provide

needed views across tables. Some queries were 30 or

more pages long.

We sought to simplify matters and speed

reporting and data exploration by providing high

level, filterable, summaries of risk mitigation

positions organized across various business

taxonomies (e.g., by business units, business

processes, risk assessments, regulatory topics and

programs). These taxonomies used extensive one-to-

many relationships between the parent and child

elements, and had many cross dependencies, making

them inefficient to fit into a tabular view (there

would have been many empty cells). Because many

of the business insights were tied to how the data

were related, we decided to preserve the

relationships by using a directed graph to store the

content in an efficient manner.

Because the data resided in disparate databases

and did not change very often, and because data

Multiple-perspective Visual Analytics for GRC Platforms

analysis would typically result in a set of

coordinated (transactional) changes to be made, it

was deemed best to produce a graph on a regularly

scheduled (e.g., daily) basis. This ensured we had a

consistent data snapshot to support data exploration,

allowing users to explore the data without

interruption and confusion caused by real-time

updates, while empowering them to elect when they

wanted to refresh their content.

To further complicate matters, data being served

needed to be decrypted as well as restricted so

recipients only received the secured data they were

allowed to explore. The graph structure was

considered as we could reduce the exported graph

according to security policies, and decrypt its

content to form a personalized copy of the graph for

the individual user. When the user initially logged in

(or requested a data refresh) we then perform the

graph reduction and serve their personalized graph

to their browser to drive their visual analysis session.

On average, no fewer than half a million nodes and

edges would be served in a few seconds during log

in. From that point forward, no further server side

communications is required, allowing all analysis to

be performed using the client’s CPU and memory in

their browser. This ensures the system could scale

and perform well while preserving security and

providing flexible reporting and data exploration.

The visual analytics should provide summaries

that could be filtered to focus attention and highlight

anomalies. These visual analytics also needed to

preserve any filters the FI chose to apply while

exploring their data no matter which perspective

they chose to view. This ensures they could maintain

their exploratory focus on a consistent subset of the

GRC data graph. These filters should leverage the

data relationships enabling both logical tests (e.g.,

all risks with high inherent ratings, and having

control counts equal to 0 or greater than 5) as well as

(or combined with) taxonomy membership tests

(e.g., all risks in North American Business Units

relating to Retail Banking Business Processes).

Filter updates should also support collaboration

across the WAN and/or to drive multiple,

synchronized displays. The rationale of this

requirement is to allow for multi-site collaboration

to explore data by coordinating the focus among

collaborators while allowing them to view the data

from different perspectives.

3.2 The Multiple Perspective Rationale

The developed visual analytics provided

differentperspectives of related GRC graph data

(Figure 3). Figure 4 presents the visual analytic that

combines Perspective A and multiple Sunburst

charts (aka Risk Overview). A Sunburst chart is a

radial space-filling visualization that represents

trees, by placing the root node at the center and child

nodes adjacent to the parent in such a way that the

arc is proportional to some defined value (Stasko,

2000). Risk Overview is an adjacency diagram that

summarizes risk mitigation positions for multiple

taxonomies, showing the initial “inherent” risk

(Figure 4, top), the resulting “residual” risk based on

anticipated impact of controls associated with risks

(Figure 4, center), and the change magnitude

considering inherent-residual pair ratings as well

(Figure 4, bottom). Risk managers using this Risk

Overview visual analytic can quickly ascertain

which Business Units, Processes, or Risk

Assessments need attention based on change

magnitude color, and can quickly explore the

number of risks and the impact of their controls

using mouse hovering exploration or by clicking on

a Sunburst segment of interest.

Figure 5 shows the Risk Map designed to

highlight situations where errant risk ratings had

been introduced by showing outliers on the y-axis

compared with the expected locations of risk

groupings. Figure 6 shows the Risk Clusters

visualization. It provides a force directed graph that

helps visualize patterns of risk mitigation. The visual

analytic highlights situations where changes in

ratings are not supported by controls, or where

potentially excessive controls associated with risks

could raise questions about redundancy or the

possibility of automating them to save time and

money. Figure 7 shows the use of a Sankey diagram

to represent the relationship individual risks had

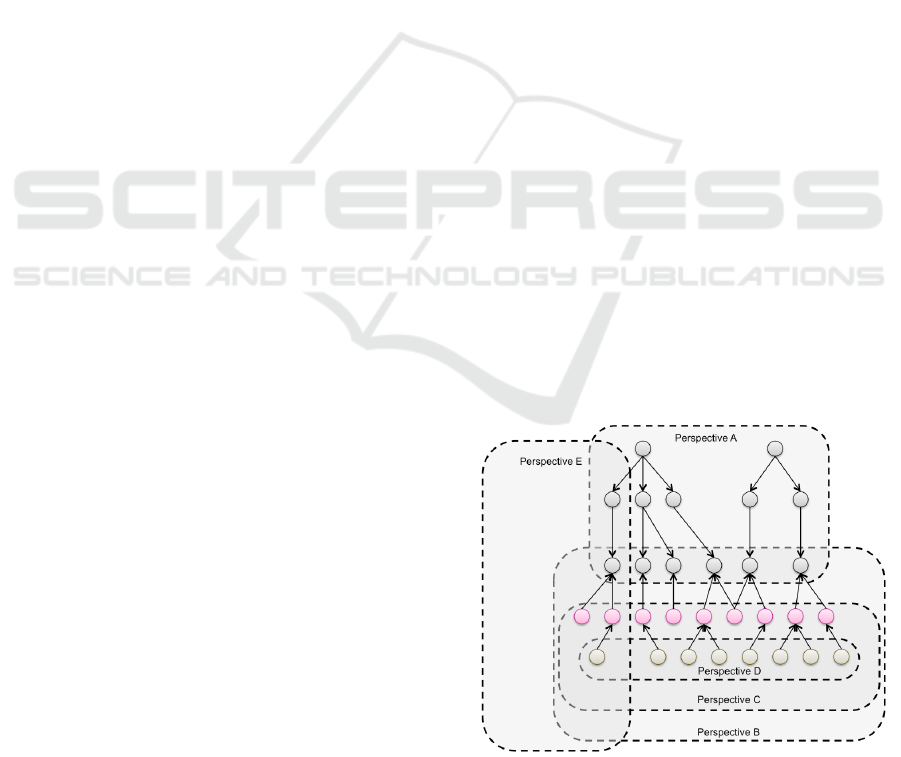

Figure 3: Multiple perspectives employed by various

visual analytics in the proposed system over the GRC data

structure presented in Figure 1.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

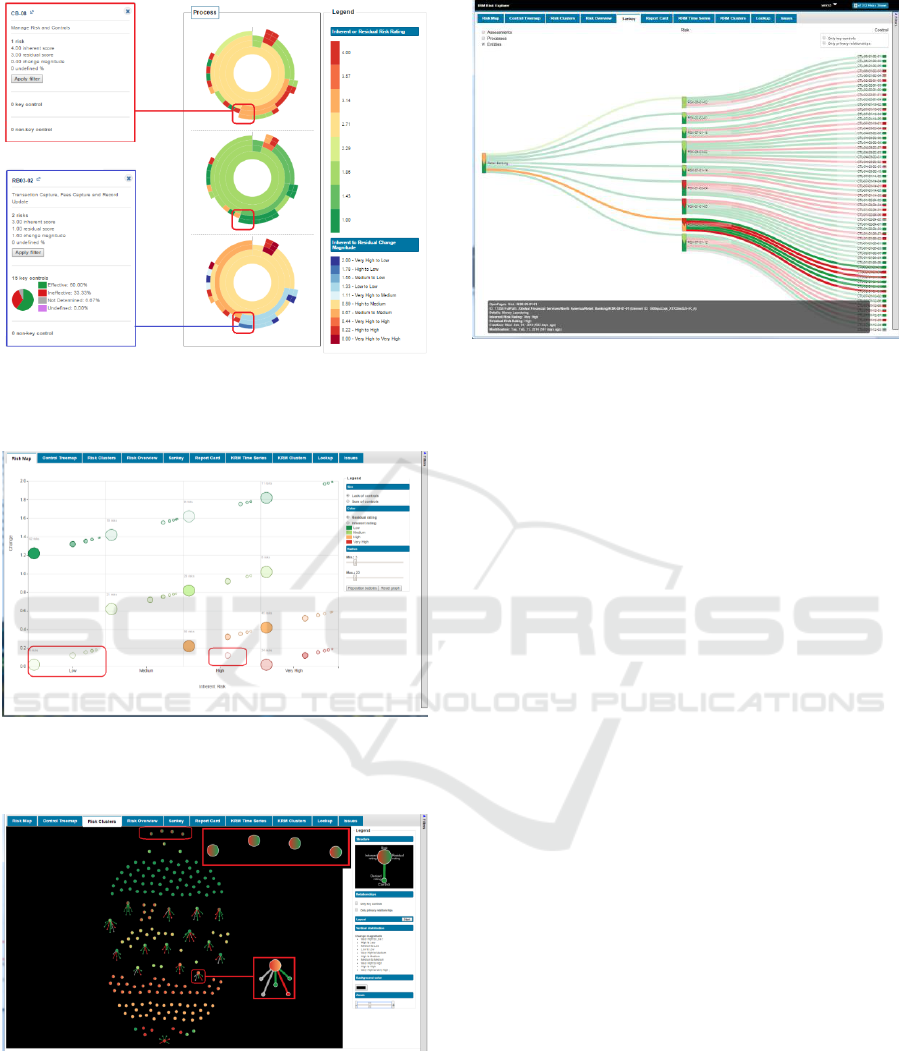

Figure 4: Risk Overview. In the top is shown a process

with high inherent rating. In the bottom a process counting

on 15 controls shows a rating lowered from high to low.

Figure 5: Risk Map. The highlighted circles represent risks

with errant risk ratings where the residual rating is worse

than the inherent rating.

Figure 6: Risk Clusters. The nodes highlighted at the top

show risks improving without controls. The node

highlighted at the bottom shows a risk is not well

mitigated (Very High down to High), but is linked to five

controls (two have not been tested (grey), one is

ineffective (red), and two are effective (green).

Figure 7: Sankey diagram. The highlighted node shows a

risk in Retail Banking related to Money Laundering was

only lowered from Very High (red) to High (orange).

with their parent taxonomies, e.g. Business Entities,

Business Processes, and Risk Assessments, as well as the

risk's relationships with controls used to mitigate it.

3.3 Data Structure

The system uses a JSON Graph data structure

produced by the extract, transform, and load (ETL)

process against multiple data sources to manage all

the GRC content. Each taxonomy element (e.g.,

Business Units, Business Processes, Risk

Assessments, Regulatory Topics, Regulatory

Programs) as well as the GRC elements (e.g., Risks,

Controls, Tests, Test Plans, Key Risk Indicators,

Issues, Applications) are each stored as richly

attributed objects in an Elements list. These objects

also maintain incoming and outgoing relationships

to other elements in this list based on the element's

ID and type of relationship.

Another section of the graph contains the

recursive taxonomy tree comprising each root

taxonomy element and an array of its child elements

based on their element IDs.

A third section of the graph contains commonly

referenced labels reflecting the ratings (e.g., Very

High, High, Medium, Low), or other textual

attributes used to classify elements. By using

indirection, the elements attributes point to these

labels, avoiding replicating the longer text

throughout the graph, and making it easier to support

multiple languages. When filters are applied to the

graph, element attributes are updated to reflect

whether they should be displayed.

Multiple-perspective Visual Analytics for GRC Platforms

3.4 System Architecture

The system uses a Single-Page Application

architecture (SPA). SPAs are web applications that

usually have just a single HTML page, and use

JavaScript in conjunction with asynchronous web

services to provide a richer user experience than the

traditional multiple-HTML page environment

(Figure 8).

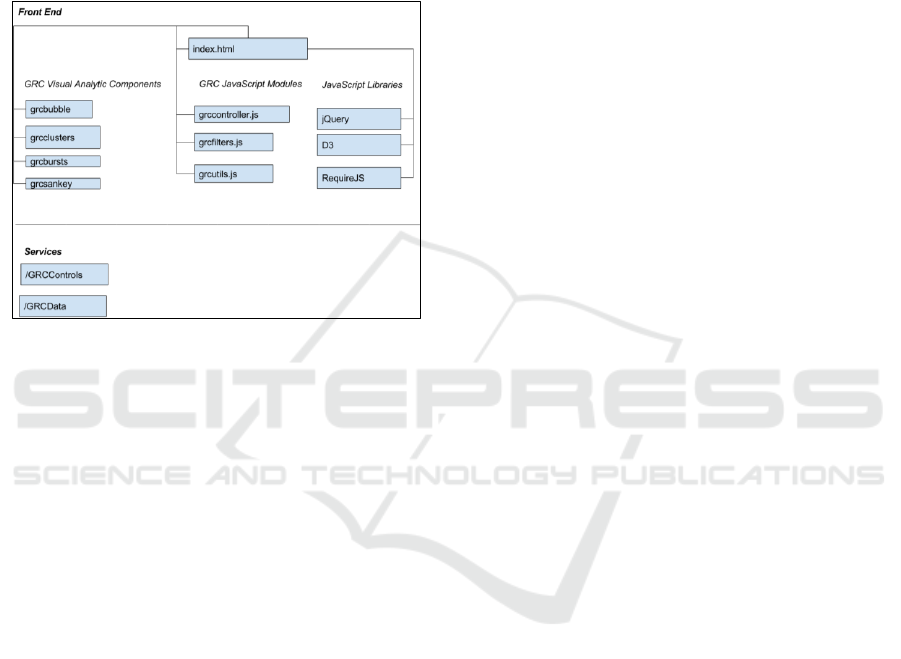

Figure 8: GRC Visual Analytics System Architecture.

3.4.1 Web Service Layer

When the client side visual analytic framework

application is initialized, all system configuration

and application data is retrieved asynchronously,

through the use of two web services, GRCControls

and GRCData.

The GRCControls service returns a small JSON

object that contains information about which Visual

Analytic components are to be loaded by the system,

as well as configurable parameters for the system,

such as colors and legend text labels.

After the GRCControls service is completed, the

system loads the required visual analytics

components through the use of the Asynchronous

Module Definition (AMD) JavaScript specification.

This reduces the overall latency due to parallel

retrieval, and prevents unnecessary JavaScript from

being loaded. In addition, users can extend the

system with their own visual analytics by listing

them in the GRCControls JSON file.

The GRCData service returns a large JSON

object that contains the personalized GRC data

graph allowed for the user to explore using the

system's visual analytics.

The GRCData service is called asynchronously;

however, the system will not complete loading until

all of the GRC graph data is loaded into client

memory. Depending on the amount of data the user

is allowed to receive, this may result in a slight delay

(typically less than a few seconds) when initializing

the application. Locally caching the GRC graph data

allows for a more responsive and interactive user

experience, thereafter.

3.4.2 Front End Layer

The front end consists of a single HTML page, GRC

JavaScript modules, visual analytic component

specific JavaScript and CSS, and open-source

JavaScript libraries.

The front end uses the publish/subscribe event

model to allow each component to listen for, and

respond to events.

Index.html is the HTML container of the core

GRC JavaScript modules, JavaScript for each

configured visual analytic, and CSS for each visual

analytic component. It also includes open-source

JavaScript libraries such as D3.js (D3, 2016), jQuery

(jQuery, 2016), and RequireJS (RequireJS, 2016).

3.4.3 GRC JavaScript Modules

The two main JavaScript modules are

GRCController.js and GRCFilters.js.

GRCController.js communicates with the server

for retrieval of JSON application control and graph

data, dynamically loads and initializes the visual

analytics that are configured for the system, and

manages the event communication between the

visual analytics.

GRCFilters.js manages the set of filters that are

shared by all of the visual analytics. It also controls

the interactive taxonomy navigation panel display

which displays the taxonomy structure in a tree

diagram, and is synchronized with the filters, so

when a node in the tree is selected, the filters change

accordingly.

3.4.4 Visual Analytic Components

Each visual analytic component has a corresponding

JavaScript module that creates the visualization, and

handles interactive events through its

publish/subscribe event model.

Each visual analytic component can also have a

CSS file that enhances the look and feel of the visual

analytic.

The following are some of the visual analytic

JavaScript components that have been configured

for this system:

• grcbursts.js: Sunburst diagrams that visualize

inherent and residual risk in a hierarchical

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

structure, as well as the effectiveness of controls

on risks.

• grcbubble.js: Bubble charts that illustrate the

effectiveness of controls on risk, using a

Cartesian layout.

• grcclusters.js: Cluster visualizations that use

animated force directed layouts to display

clusters of risks based on the inherent-residual

rating pairs and the effectiveness of their controls

on reducing risk.

• grcsankey.js: Visualizations of taxonomies leaf

nodes, risks and the effectiveness of controls

using a Sankey, or flow diagram.

3.4.5 Publish/Subscribe Event Model

This system uses a publish/subscribe event model.

In the publish/subscribe event model, senders, or

publishers of events are not aware of its subscribers,

which allows greater flexibility and modular in the

overall design.

Each event is triggered by either a data or user

action, and any JSON object can be included as part

of the event's message content.

The following events are part of the system:

• grcControlsLoaded: This event occurs

immediately after the configuration data has been

loaded into client memory. It publishes

configuration information for the system. This

includes the list of visual analytics, the default

visual analytic, and other configurable settings

such as colors and labels. This event only occurs

once, at application initialization.

• grcDataLoaded: This event occurs when the

graph data has been loaded into client memory. It

publishes the contents of the graph database, and

only occurs during application initialization.

• grcMenuSelection: This event occurs when a

visual analytic has been selected. It publishes the

name of the visual analytic that has been

selected. This event is published by the system

after the configuration information is loaded, and

is also published whenever a user selects a

different visual analytic by clicking on its tab.

The subscribers to this event typically include

individual visual analytic JavaScript components

such as grcsankey.js and grcbursts.js that

perform a specific action when that visual

analytic is selected.

• grcFiltersChanged: This event occurs each time a

user changes the filters. It publishes all of the

new filters that are available. Subscribers to this

event typically include individual visual analytic

JavaScript components.

• grcFiltersLoaded: This event occurs when the

Visual Analytics System loads the filters, during

application initialization. It publishes all of the

filters that are available. Subscribers to this event

typically include individual visual analytic

JavaScript components.

• grcVisualAnalyticsLoaded: This event occurs

after the Visual Analytics System has finished

initializing all of the configured visual analytics,

during application initialization. Subscribers to

this event typically include individual visual

analytic JavaScript components.

4 SYSTEM EVALUATION

This section details how the presented system was

evaluated, including how the participants were

invited, how materials were used, how the

experiment was designed, how the procedure was

performed, and how the data analysis was

conducted.

4.1 Participants

The evaluation participants included four specialists:

three females and one male. They averaged five

years of experience (standard deviation of 1.87

years) with GRC platforms. The participants work in

the risks and controls department of a major IT

company, in partnership with our lab. The

recruitment was done by email and the initial group

of contacts reached 18 GRC specialists; six

participants expressed interested in participating;

five scheduled the evaluation, four specialists ended

up participating in the evaluation.

The initial email contained a questionnaire

asking the participants four questions regarding

GRC platforms: years of experience with GRC

platforms, which GRC platforms the participant

uses, the reports generated by these platforms, and

the tasks performed in these GRC platforms. This

first email was structured to invite participants,

collect data regarding their GRC platform user

experience, and support the experiment design

regarding the most relevant tasks as well as the order

the tasks were organized.

4.2 Materials

The study was performed in a quiet room located at

the participants' workplace. The study was

conducted by a facilitator and counted on one

observer. The study used the Visual Analytics

Multiple-perspective Visual Analytics for GRC Platforms

System, a preparation checklist for the facilitator to

set up the evaluation consistently, an observer form,

a task list, an eye tracker (Figure 9), a MacBook Pro

with a 13" display used to the store the eye tracker

data, and an extra 19" display used by the

participants, and a mouse used by the participants to

interact with the system (Figure 9).

The observer form counted on fields for

gathering time intervals considering calibration and

the execution of the tasks. Observers also recorded

participants' comments and issues faced by

participants.

The device used to capture eye interaction was

the Eye Tribe eye tracker (The Eye Tribe Eye

Tracker, 2016). The data captured by the eye tracker

counts on coordinates for each of the eyes, the

average coordinates, pupil center, and pupil size for

each of the eyes, and a Boolean value indicating

whether or not the gaze was a fixation. The heat map

visualizations were created using D3 (D3, 2016).

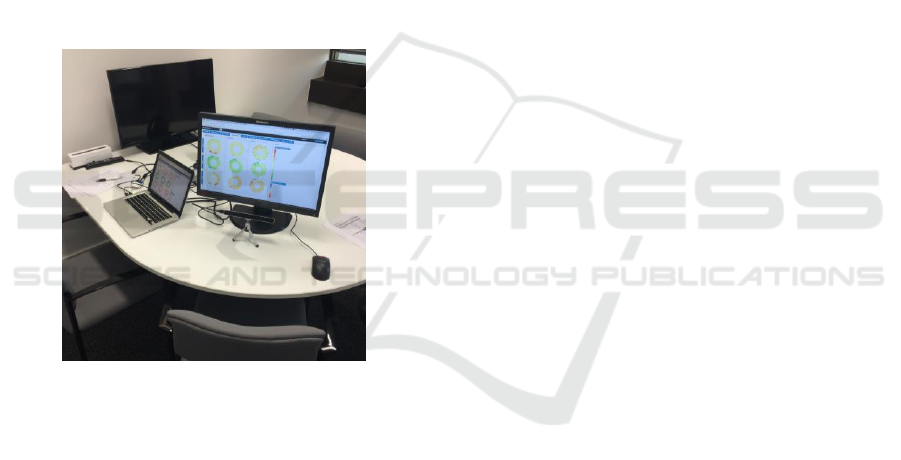

Figure 9: Test environment setup.

Heat maps present the areas where users looked at a

display. Heat maps can be created using the fixation

length—the time users spend looking at a specific

region, or by the number of times users looked at a

specific region (Pernice and Nielsen, 2009). In this

study, custom individual reports using the number of

gazes were generated.

4.3 Experiment Design

The experiment design consisted of in-depth user

test sessions that had each participant perform a set

of eight tasks. Information regarding task

completion success, and the time to complete the

tasks was also analyzed.

The data collected involved eye movements (via

eye tracker), client side events (via a Firefox Add-on

developed to log each triggered event), as well as

screen and audio (via QuickTime Player).

The participant tasks were designed based on the

feedback from the initial questionnaire, and were

ordered based on a meaningful sequence based on

the answers provided by participants.

The eye tracker experiment was designed based

on work from Pernice and Nielsen (2009). The

usability test plan and conduction was performed

according to Rubin’s work (1994). Furthermore, in

order to gather each participant's impressions about

the tasks and visualizations, users were instructed to

use the Thinking Aloud Protocol (Lewis and Mack,

1982) during the user test.

4.4 Procedure

The facilitator initiated the test session by providing

the participant with the consent form, clarifying the

evaluation goals, the role of the participant, and

explaining the type of data that would be captured.

The facilitator presented a brief overview of each

of the system's screens, explaining the goals of each

visualization, in order to standardize terms and

provide knowledge about the visualizations for

consistency amongst all of the participants. The

facilitator also recalled the structure of the GRC

data, standardizing (when needed) the terms used

throughout the session. The facilitator also explained

that the dataset used in the system was anonymized,

to be used for evaluation purposes.

Once the details about the underlying system

were presented, the facilitator explained to the

participant how the evaluation would be performed.

The facilitator explained that the participant would

perform tasks, using the Thinking Aloud Protocol,

which was explained in detail, and that during the

session the observer would take notes. After

presenting the procedure and answering any

participant questions, the participant was given five

minutes to explore the system prior to the

evaluation. The rationale was to allow participants to

review certain reports and terms without having a

task in mind. After that, the eye tracker calibration

began, and the facilitator started to record the eye

movements, user interface events, screen capture,

and audio. Once all recording setup was completed,

the list of tasks was presented to the participants.

Note that the next task was only presented after the

participant provided an answer to the task at hand.

The tasks were as follows:

1. What is the risk assessment / business entity /

business process that draws your attention

considering the highest inherent rating?

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

2. What is the risk assessment / business entity /

business process that draws your attention

considering the lowest inherent rating?

3. What is the risk assessment / business entity /

business process that draws your attention

considering the highest residual rating?

4. What is the risk assessment / business entity /

business process that draws your attention

considering the lowest residual rating?

5. Identify one risk that impacts more than one

taxonomy (e.g., business process and business

entity).

6. Identify one control that is reused in more

than one risk.

7. Identify one risk with a data entry issue

considering the rating, e.g., residual rating that is

improved without a control or a residual rating that

is worse than an inherent rating.

8. Identify one control with a data entry issue,

e.g., a control that is supposedly effective, but with

no effect when applied to a risk.

After the tasks were performed, the participants

were asked two questions about their preferences: 1)

What is the visualization that you have found the

most useful? 2) What is the visualization that you

have found the most useless?

Finally, the facilitator stopped all types of

recording and checked with the participant if he or

she had any final questions regarding the study or

the system in use.

4.5 Data Analysis

The data collected has three main components: eye

tracking data, user interface events, and audio and

video recordings. Eye tracking data were used for

creating heat maps involving the visualizations

created. This method enabled us to focus on

identifying hot spots when there was a task to be

performed, and to summarize the portions of the user

interface that were used by the participants. In this

study, the interaction data supported the filtering and

organization of the eye tracking data, since it

contained the exact timestamp that users scrolled the

screen, accessed a new page, and pinpointed other

user behavior. The audio and video recordings

provided additional information for the analysis of

eye tracking, user interface events, as well as

contextual information for insights found in the

explicit interaction data, allowing triangulation

among data captured and results obtained.

Moreover, the observer registered task completion,

time to complete tasks, and participant quotes.

For analysis of the eye tracking data after

filtering, heat maps were generated using the D3

library. For each single eye tracking data point

captured, D3 was used to draw a geometric shape at

that specified X-Y coordinate. In order to allow the

heat map to be drawn over the visualizations, a

custom colored heat map was created using low

opacity for the individual gazes, which highlighted

points where recurrent eye gazes occurred.

5 RESULTS

Next, we present results in terms of how the tool

supported the interaction with GRC data from the

multiple perspectives when used by the target users,

gathering user feedback from the tools he or she

used, and how the system differs in tasks related to

the identification of outliers, patterns,

inconsistencies, etc.

Table 1 shows the task completion. From this

data, one can see that the tasks 5, 6, and 7 were not

accomplished by three out of four participants. Table

2 shows the mean time to complete tasks. From

these results, one can infer that between tasks 1 and

4 there is a learning curve effect, because of the

subsequent tasks related to the prior tasks and the

fact that the participants commonly used the same

Risk Overview visualization; eye tracker data also

shows this effect (see Figure 13). Tasks 5, 6, 7, and

8 took the most time to complete, since they

Table 1: Task completion.

Participant

Task

Table 2: Time to complete tasks.

Task

Mean time

Standard deviation

1:07

0:44

0:35

0:36

0:32

0:31

0:26

1:07

0:50

2:39

1:21

2:44

1:54

3:03

1:41

Multiple-perspective Visual Analytics for GRC Platforms

required participants to recall the GRC data structure

and remember which visualizations would offer the

best solution for the task. During tasks 7 and 8,

participants interacted with filters in order to narrow

down the number of risks and controls to analyze.

Figure 10 shows the heat map for the Risk

Overview visualization, which recorded the eye gaze

data collected from the four participants. From this

data, one can infer that participants interacted most

frequently with the first row of sunburst diagrams.

When compared to other studied visualizations

(Figures 11 and 12), one can also infer that the Risk

Overview was the most frequently interacted

visualization in conjunction with the filters at the

right side of the screen.

Figure 11 shows the heat map generated using

the eye gaze data collected from the four participants

while they were interacting with the Risk Map

visualization. From this figure, one can infer that the

participants concentrated their gazes at the borders

of the chart, more intensively at the lower right and

lower left sections. Moreover, participants also

frequently interacted with the options panel

positioned at the right-hand section of the chart,

which allowed them to manipulate diameter,

position, and ranking of chart elements.

Figure 12 presents the eye gaze data collected

from the four participants and summarizes the

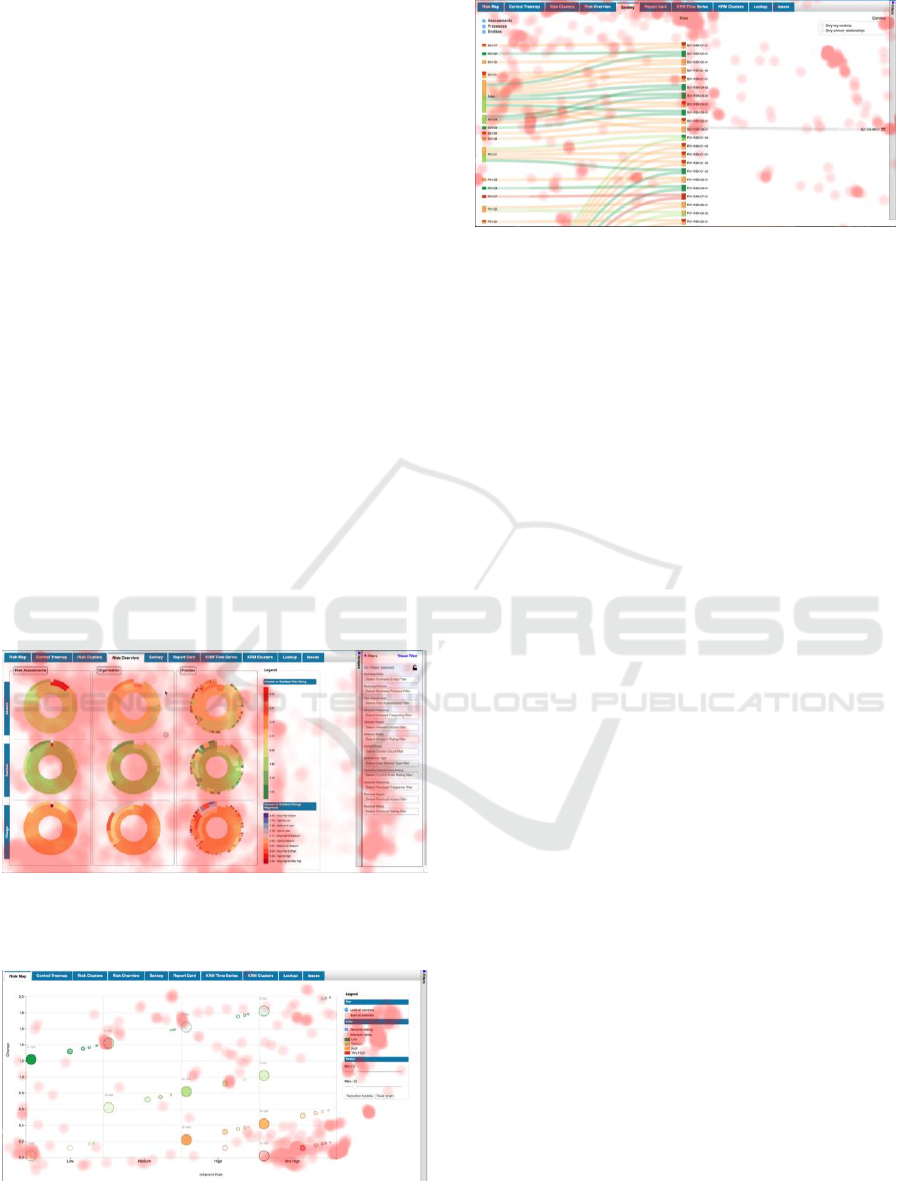

Figure 10: Heat map showing the data collected from the

four participants when interacting with the risk overview

visualization.

Figure 11: Heat map showing the data collected from the

four participants when interacting with the Risk Map

visualization.

Figure 12: Heat map showing the data collected from the 4

participants when interacting with the Sankey diagram.

regions that the participants looked at while

interacting with the Sankey diagram. The Sankey

diagram was developed to represent risks at the

center, connecting them with controls at the right

side and with the taxonomy leaves at the left side. In

the eye gaze heat map overlay, it is possible to verify

that the participants rarely interacted with the risks,

controls, and taxonomy leaves. Instead, most of the

interactions were concentrated at the label risks,

located at the top center of the chart, and several

gazes were captured at the center left, center, and

center right of the screen, at the links connecting the

risks with the controls and taxonomies.

Figure 13 shows how participant P1 performed

tasks 1 (top), 2, 3, and 4 (bottom) while interacting

with the Risk Overview. One can infer that in the

first task, participant P1 explored the user interface

and all the visualization elements. In task 2, the

participant focused on the row related to the charts

most relevant to the task. In tasks 3 and 4, there were

fewer eye gazes than the first two tasks; time to

complete task also shows this effect (see Table 1). It

is noteworthy in that the mean task completion time

and standard deviation were reduced as the

participants went through the first four tasks.

Participant P1 used the Sankey diagram path-

highlighting feature of the (presented in Figure 7) to

show connections of controls and taxonomies related

to a certain risk. After highlighting the connections,

the participant correctly identified how the risk is

related to business processes and business entities,

displayed in the Sankey diagram on the left-hand

side. Participant P1 was the only one to properly

perform task 5. Other participants faced difficulties

in identifying the visualization that showed the

relationship of risks to multiple taxonomies.

Participant P1 also used the Sankey diagram to

identify controls at the right-hand side of the screen

that were connected with more than one risk. For

tasks 5 and 6 participants P2, P3, and P4 focused on

the Risk Overview and spent time trying to find the

connections between taxonomies using the Sunburst

diagrams.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

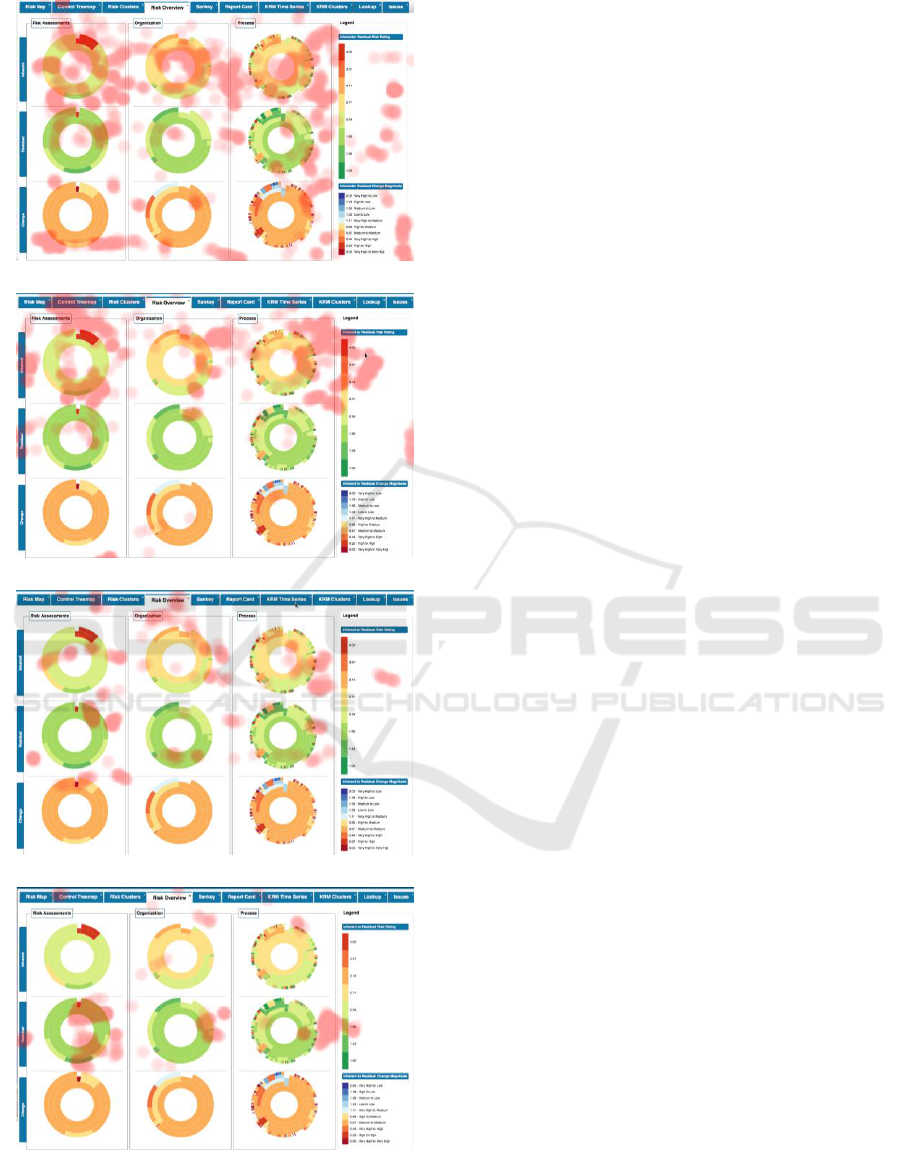

(a) Heat map for participant P1 performing task 1.

(b) Heat map for participant P1 performing task 2.

(d) Heat map for participant P1 performing task 4.

Figure 13: Heat maps for participant P1 performing tasks

1 (a), 2 (b), 3 (c), and 4 (d). It is possible to identify the

learning curve as gazes reduce for similar tasks.

For tasks 7 and 8, all participants explored the

filters and learned how to find inconsistencies and

anomalies in the data by selecting, for example, risks

that did not have any controls, or risks whose rating

increased after applying a control.

Participants had clear preferences for the most

and least-useful visualizations. They considered the

Risk Cluster (four votes) and the Risk Overview

(three votes) the most useful; the Control Treemap

was voted the least useful (three votes). When

choosing the preferred visualizations, all participants

picked two visualizations. When picking the least

useful visualizations, all participants picked only

one. Participants were free to point at any number of

visualizations. The answers provided for the

preferred visualizations reinforce the multiple

perspectives approach.

This study helped us identify two user interface

problems: 1) the filters panel response was

confusing for two out of four participants due to a

behavioral inconsistency in the chevrons used to

open and hide the panel; 2) some of the colors

selected for the Risk Overview scales were

confusing, e.g., the same orange color is used in both

the rating (located at the top right region of the Risk

Overview visualization) and change scales (located

at the top right region of the Risk Overview

visualization), but have different meanings.

6 CONCLUSIONS

The graph-empowered Visual Analytics System

designed, developed, and evaluated supported

insights beyond those available with typical tabular

reporting capabilities. This paper details the

techniques used for extracting, transforming, and

loading (ETL) data from multiple GRC platforms

and organizing it as a unified, directed graph in

order to provide a Multiple Perspective Visual

Analytics System for GRC Platforms. The

evaluation considered a set of tasks that represented

common duties performed by GRC specialists.

The Risk Clusters visualization was the most

preferred visualization, while the Risk Overview

was the most used. The Risk Clusters visualization

represents risk and controls in a graph, and the

placement of nodes is performed according to a

force-directed layout algorithm. Moreover, the

values representing the "weight" of nodes is set

according to the inherent-residual ratings pairs (e.g.,

high-high, high-medium, high-low). Risks with

similar ratings are clustered, providing specialists

with an overview of proportions and helping them

Multiple-perspective Visual Analytics for GRC Platforms

identify items (or clusters) that require attention.

During the evaluation P4 said: “I want this [Risk

Clusters visualization] in the tool I use.” The Risk

Overview features multiple Sunburst diagrams that

represent taxonomies used to organize risks. Each

node in a taxonomy summarizes the rating of the

risks associated with that taxonomy node and its

children. Furthermore, each taxonomy occurs on

three separate Sunburst charts: one that is colored by

the inherent rating (top), one by the residual rating

(middle), and one by the change magnitude between

the inherent and residual rating (bottom), which

takes into account the final mitigation position.

During the evaluation P2 emphasized: “this [Risk

Overview] is really useful.”

The visualization that participants identified as

the least useful was the Control Treemap. The

Control Treemap represents control ratings and

displays creation and maintenance dates that

highlight controls whose ratings may need to be

reviewed or controls needing to be tested. When

participants needed to interact with controls, they

used the Risk Clusters or Sankey diagram, since they

are focused on connections with other elements

(e.g., risks and taxonomies) that provide context for

the controls rendered at the display.

The successful completion of tasks, as well as

the overall task completion time, was adversely

impacted by tasks where participants had to recall

the overall GRC data structure in order to focus on a

certain perspective. Thus, a possible improvement

for the system would be to show an overview of the

GRC data structure, perhaps as the initial

visualization, which would help users choose the

appropriate perspective. This problem was identified

during tasks 6, 7 and 8, when participants P3 and P4

looked quickly at all the visualizations and were not

able to accomplish the tasks.

The main limitation of the study was the limited

number of specialists involved in the study.

However, bearing in mind that GRC is a highly

specialized and restricted domain, this study

provided useful insights, corroborating the value of

the multiple perspective approach for the visual

analytics system developed. Future works will

consider involving more specialists and a case study

involving multiple displays in a control center-like

environment.

Finally, the system addresses an existing gap

found in current GRC platforms, since it provides

reports beyond standard and risk-centric reports, and

instead leverages how GRC elements are

interrelated. We detailed the system's technologies,

the knowledge engineering and design approach, the

proposed visualizations, and the user study

performed to validate them. The user study

considered multiple data sources: eye gazes, user

impressions, observations, and audio/video

recording.

ACKNOWLEDGEMENTS

We thank all participants for taking time to

participate in this study and also for the valuable

feedback provided.

REFERENCES

BWise, 2015, http://www.bwise.com/solutions/integrated-

grc/bwise-grc-platform.

Compliance 360, 2012. http://www.compliance360.com/

D3 – Data Driven Documents. 2016. http://d3js.org.

IBM Open Pages, 2015. http://www-03.ibm.com/

software/products/en/openpages-grc-platform/

jQuery.js, 2016. http://jquery.com.

Lewis, C. and Mack, R. 1982. Learning to use a text

processing system: Evidence from “thinking aloud”

proto- cols. In Proceedings of the 1982 Conference on

Human Factors in Computing Systems (CHI '82).

ACM, New York, NY, USA, 387-392.

MetricStream Enterprise GRC, 2015. www.metricstream

.com/industries/banking/enterprise-grc-solutions.htm.

N. Y. Times. 2015. Former Petrobras Executive Held in

Brazil Corruption Probe. http://www.nytimes.com/ap

online/2015/01/14/world/americas/ap-lt-brazil-petrobr

as.html?_r=0.

OneSumX GRC, 2015. https://www.wolterskluwerfs.com/

onesumx/risk/GRC.aspx.

Pernice, K. and Nielsen, J. 2009. How to Conduct

Eyetracking Studies. NNGroup.

RequireJS – A module loader. 2016. http://requirejs.org/

RSA Archer GRC Platform, 2015. http://uk.emc.com/secu

rity/rsa-archer-governance-risk-compliance/rsa-archer-

platform.htm.

Rubin, J. 1994. Handbook of usability testing: how to

plan, design, and conduct effective tests. John Wiley

& Sons.

SAP GRC, 2015a. http://go.sap.com/solution/platform-

technology/governance-risk-compliance.html.

SAS GRC, 2015b. http://www.sas.com/en_us/ software/

risk-management/enterprise-grc.html.

Shneiderman, B. 1996. The eyes have it: A task by data

type taxonomy for information visualizations. In

Visual Languages, 1996. Proceedings, IEEE

Symposium on (pp. 336-343). IEEE.

Stasko, J. and Zhang, E. 2000. Focus+Context Display and

Navigation Techniques for Enhancing Radial, Space-

Filling Hierarchy Visualizations Proceedings of the

IEEE Symposium on Information Vizualization.

Tarantino, A. 2008. Governance, Risk, and Compliance

Handbook. John Wiley & Sons.

The Eye Tribe Eye Tracker. 2016. http://theeyetribe.com/

ICEIS 2017 - 19th International Conference on Enterprise Information Systems
