Internal Network Monitoring and Anomaly Detection through Host

Clustering

W. J. B. Beukema

, T. Attema

and H. A. Schotanus

Design and Analysis of Communication Systems (DACS), University of Twente, Enschede, The Netherlands

Cyber Security and Robustness, The Netherlands Organisation for Applied Scientiﬁc Research (TNO),

The Hague, The Netherlands

Keywords:

Internal Network Trafﬁc, Intrusion Detection, Host Clustering, Anomaly Detection, Advanced Persistent

Threats.

Abstract:

Internal network trafﬁc is an undervalued source of information for detecting targeted attacks. Whereas most

systems focus on the external border of the network, we observe that targeted attacks campaigns often involve

internal network activity. To this end, we have developed techniques capable of detecting anomalous internal

network behaviour. As a second contribution we propose an additional step in the model-based anomaly

detection involving host clustering. Through host clustering, individual hosts are grouped together on the

basis of their internal network behaviour. We argue that a behavioural model for each cluster, compared to a

model for each host or a single model for all hosts, performs better in terms of detecting potentially malicious

behaviour. We show that by applying this concept to internal network trafﬁc, the detection performance for

identifying malicious ﬂows and hosts increases.

1 INTRODUCTION

In order to detect activity related to targeted attacks

most network intrusion detection systems monitor the

borders of network infrastructures, in an effort to

make it harder for attackers to penetrate into the net-

work or exﬁltrate data from the network. By focusing

on this approach, the internal network is largely left

unmonitored (Shiravi et al., 2012). Both (Hutchins

et al., 2011) and (Dell SecureWorks, 2013) indicate,

however, that a signiﬁcant part of the life cycle of

a targeted attacks is execute within the targeted net-

work. Targeted attacks that are in these stages cannot

be detected by measures taken on the border of the

network, but may be detected by monitoring internal

network trafﬁc. The attack phase Expand access and

obtain credentials of the SecureWorks kill chain (Dell

SecureWorks, 2013) might, for example, result in an

unusual high volume of trafﬁc from an infected host

to authentication servers or other hosts.

Intrusion detection algorithms can generally be

classiﬁed into two different categories; misuse-based

approaches and anomaly-based approaches (Sabahi

and Movaghar, 2008). Misuse-based approaches try

to extract signatures of known threats such that they

can be detected, whereas anomaly-based approaches

try to detect substantial deviations from behaviour

that is considered to be normal. Misuse-based ap-

proaches are very effective in ﬁnding known threats,

missing however new threats that behave differently.

Anomaly-based approaches are aimed to detect also

new deviations from normal and benign network be-

haviour. The major challenge in applying anomaly

detection to internal network intrusion detection lies

in balancing the false positive and true positive rate.

In some traditional network-based anomaly detec-

tion approaches, a model is created for each individ-

ual host in a network. Such a model is a represen-

tation of normal behaviour for that host. Based on

these models, the intrusion detection system analyses

all network trafﬁc for each host and tries to detect de-

viations. However, this approach suffers from several

drawbacks. For instance, individual host models often

result in high false positive rates, caused by the fact

that minor changes in the host’s behaviour are con-

sidered to be anomalous. Additionally, this method

does not scale well to large networks, making this ap-

proach impractical for deployment in larger networks.

Another approach is creating a single model for a

network as a whole. Although this solves scalability

issues, the pitfall of this approach is that by taking too

many hosts together, important details get lost. Con-

694

Beukema, W., Attema, T. and Schotanus, H.

Internal Network Monitoring and Anomaly Detection through Host Clustering.

DOI: 10.5220/0006288606940703

In Proceedings of the 3rd International Conference on Information Systems Security and Privacy (ICISSP 2017), pages 694-703

ISBN: 978-989-758-209-7

sider, for example, a workstation that starts behaving

like a server. This behaviour is clearly anomalous,

but if both workstations and servers are included in

the same model the behaviour of this host is unlikely

to be detected.

In other words, the problem with existing ap-

proaches is that despite currently being the best op-

tion to identify undiscovered threats, anomaly-based

intrusion detection suffers from some serious limita-

tions which may make its use impractical. The ques-

tion therefore is how anomaly-based intrusion detec-

tion can be improved such that it is feasible to be used

it in practice.

The research presented in this paper is conducted

in the partial fulﬁlment of the requirements for the de-

gree of Master of Science at the University of Twente.

A more comprehensive description of the methods

and results can be found in (Beukema, 2016). This

research is aimed at developing techniques that con-

tribute to the detection targeted attacks.

To this end, we propose a novel anomaly detec-

tion algorithm that is based on internal network traf-

ﬁc, i.e. network trafﬁc between hosts on the internal

network that does not cross the border with the (exter-

nal) Internet. We argue that internal network trafﬁc is

a valuable source of information in detecting network

intrusions and we have developed new techniques to

make use of this source.

Secondly, we propose the use of clustering tech-

niques to enhance our anomaly detection approach.

These techniques allow us to group the hosts in a

network that display similar behaviour together. As

we will show, separately modelling the different clus-

ters results in models that are on the one hand ro-

bust to minor behavioural changes of hosts and on the

other hand capturing only a speciﬁc type of behaviour.

Hence, for each cluster, a model is created, describing

how entities within the cluster are expected to behave.

We will speciﬁcally focus on the internal network be-

haviour that is displayed by hosts.

The novelty of this study is twofold. First of all,

the presented approach models internal network be-

haviour and detects deviations from this behaviour.

Secondly, host clustering is used to improve the in-

trusion detection algorithms that are used.

More generally, the proposed clustering tech-

niques may be applied in other domains as well. Even

though this research focuses on internal network traf-

ﬁc, the proposed method may be applied to solutions

such as user behaviour analysis and host behaviour

analysis. In this sense, a more general contribution

of this research is providing a new way of enhancing

anomaly detection when dealing with vast amounts of

data.

1.1 Related Work

Research in the ﬁeld of targeted attack detection is

progressing rapidly. More and more intrusion de-

tection systems (IDSs) are becoming available, aim-

ing to mitigate cyber-security risks. In (Sabahi and

Movaghar, 2008) a taxonomy of different character-

istics of existing IDSs is given. This taxonomy in-

dicates that IDSs can be differentiated based on the

data source they use. Host-based IDSs, such as virus

scanners and other end-point protection mechanisms,

are installed on individual hosts and monitor in much

detail the behaviour of the host (Scarfone and Mell,

2007). In contrast, network-based IDSs monitor the

network trafﬁc generated by hosts.

In (Ehrlich et al., 2010) network trafﬁc is analysed

in order to detect spam bots and their controllers. This

article present a Bayesian classiﬁcation algorithm to

distinguish between legitimate mail servers and spam-

mers. In (Xiao et al., 2015) a method for detect-

ing temporal inconsistencies in network trafﬁc is pre-

sented. Many aspects of network behaviour are con-

sistent over time and inconsistencies can be a sign of

malicious behaviour. A more exhaustive overview of

network trafﬁc detection techniques is given in (Roy

and Chaki, 2014).

As was mentioned before, one can also differ-

entiate between misuse- and anomaly-based IDSs.

A survey of commonly used techniques is given

by (Lazarevic et al., 2005). Despite the progress made

in the ﬁeld of anomaly detection, available IDSs still

tend to focus on misuse-based techniques that require

knowledge about cyberattacks and system vulnerabil-

ities (Research and Markets, 2015).

Clustering techniques have been studied even

more extensively. Overviews of various network- or

graph-based clustering techniques are given in (Xu

et al., 2005) and (Akoglu et al., 2015). More re-

cent the concept of host clustering has also been stud-

ied (Xu et al., 2011; Wei et al., 2006). These studies

focus on clustering hosts that are active on the Inter-

net in order to detect, for example, botnets. The idea

of making use of clustering techniques to improve

anomaly-based approaches has been applied before.

(Hutchins et al., 2011) apply clustering techniques to

the results of their anomaly detection approach in or-

der to detect false positives. To the knowledge of the

authors, the use of clustering techniques to separately

model hosts with similar behaviour has not been pro-

posed before.

Internal Network Monitoring and Anomaly Detection through Host Clustering

695

2 INTERNAL NETWORK

TRAFFIC

With existing, common IDS technologies, networks

are often protected according to the eggshell princi-

ple (Shiravi et al., 2012): strong on the outside, soft

on the inside. In other words, the border between the

internal network and the (external) Internet is well-

monitored, while the activity of hosts on the internal

network is hardly taken into account. This implies

that once an attacker has gained foothold in the tar-

get environment, it can relatively easily move around

the network in order to expand its access, making it

more likely the attacker will be able achieve its goal.

In this section we argue that internal network trafﬁc,

i.e. trafﬁc inside the internal network, is another valu-

able source in detecting targeted attacks. Depending

on the amount and geographical dispersion of hosts

that are monitored, the internal network be anything

from a Local Area Network to a Wide Area Network.

The attack surface of common day networks is ever

increasing and the ﬁrst line of defence may not be

able to mitigate all attacks. Making use of this addi-

tional source of information provides monitoring be-

yond the ﬁrst line of defence to provide a more com-

plete overview of possible attackers activity.

2.1 Attack Campaigns

The life cycle of targeted attacks, such as presented

in (Dell SecureWorks, 2013) model the typical be-

haviour of targeted attacks. These life cycles de-

scribes the different phases of attack campaigns, start-

ing with the phase Deﬁne Target and ending with the

phase Cover Tracks.

As can be inferred from this life cycle, a number

of the attack phases involve Internet trafﬁc. However,

there are also some attack phases that take place be-

tween the borders of the targeted network. The phases

Expand access and obtain credentials, Strengthen

foothold and in some cases the phase Cover tracks

hardly result in any external network trafﬁc and there-

fore go undetected by most existing IDSs.

As intrusion detection ought not to depend solely

on intercepting attacks in the phases that generate

external network trafﬁc (Byrne, 2013), it is vital to

develop methods to detect intrusions in the other

stages as well. As the aforementioned phases have

a strong component of internal network trafﬁc, it is

worthwhile to investigate this area further. In the

next paragraphs, some bigger, well-described attack-

campaigns are evaluated for their internal network as-

pect.

Stuxnet (Langner, 2011) was an advanced attack

employing worms, targeted at an Iranian nuclear facil-

ity. This attack successfully changed the rotor speed

of the facility’s centrifuges causing them to be de-

stroyed. Stuxnet made use of several zero-day vul-

nerabilities to automatically spread itself within the

network in order to ﬁnd and infect the systems con-

trolling the centrifuges. Moreover, a P2P network

structure was set up between the infected hosts part

of the same (internal) network. This P2P network en-

abled the infected hosts to distribute updates among

each other. Since the targeted network was not con-

nected to the Internet this attack could not have been

detected by monitoring external network trafﬁc.

Duqu (Bencs

ath et al., 2012) was an attack that

is supposedly related to Stuxnet. Duqu seemed to

be aimed at acquiring sensitive information by col-

lecting, for example, keystrokes, screenshots, browser

history and system logs from the infected hosts. Sim-

ilar to Stuxnet, Duqu made use of a P2P network aim-

ing to connect protected systems to the Internet via

less protected hosts that were connected to the Inter-

net.

Flame (Virvilis and Gritzalis, 2013) (also known

as Flamer or Skywriter) was an attack with the main

objective of espionage, for example making screen-

shots and microphone recordings. An advanced way

in which Flame propagated itself through the network

was by impersonating the Windows Update Server.

Moreover if Flame would infect a domain controller,

it would infect the controlled hosts as well by creating

backdoor accounts.

Carbanak (Kaspersky, 2015) was an attack cam-

paign targeting ﬁnancial institutes. Carbanak enabled

cyber criminals to steal large sums of money (esti-

mations vary between 300 million USD and 1 bil-

lion USD). By taking its time to learn typical user

behaviour, the attackers were able to infect the right

systems and stay under the radar at the same time.

Each of the studied attack campaigns show that

there is a strong internal network trafﬁc aspect

present. Particularly in the Expand access and obtain

credentials, Strengthen foothold and Perform attack

stages of the attack life cycle of (Dell SecureWorks,

2013), it can be shown that an targeted attack might

lead to abnormal internal network trafﬁc patterns once

the attacker has completed the initial intrusion. Sup-

ported by this, we argue that it is beneﬁcial to take

internal network trafﬁc into account when looking for

advanced network intrusions.

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

696

3 ANOMALY DETECTION

Another important aspect of targeted attacks is that

they are typically highly sophisticated and targeted at

speciﬁc organisations or sectors making use of new

techniques and vulnerabilities. For this reason, we

aim to develop an anomaly-based approach in detect-

ing malicious internal network patterns that have not

been seen before. In particular, we are interested in

detecting unexpected and deviating communication

behaviour of hosts on the internal network.

The challenge in developing this anomaly-based

solution lies in creating an accurate model that de-

scribes normal communication behaviour of hosts.

Not all hosts will display similar behaviour. A net-

work consists of many different types of hosts such

as workstations, ﬁle servers, domain controllers and

printers. Behaviour that is typical for one type of host

might be anomalous for another type of host. There-

fore creating a single model for all hosts in a network

might result in an inability to detect relevant anoma-

lies. On the other hand, creating a different model for

each of the hosts might result in very speciﬁc models

that will detect even minor behavioural changes. As

reasoned before, this is likely to signiﬁcantly increase

the false positive rate, decreasing the overall accu-

racy of the intrusion detection. For this reason, we

propose to enhance the anomaly detection approach

by making use of host clustering. Host that exhibit

similar behaviour are clustered together and for each

of the resulting clusters a behavioural model will be

created. The behavioural model indicates which be-

haviour that is expected to be observed. Network ac-

tivity not adhering to this model is marked as anoma-

lous.

4 CLUSTERING

In many domains it is useful to identify patterns in a

given set of data for analysis of other (similar) data.

In other words, given training data, one wants to come

up with a pattern that helps predicting the behaviour

of (unseen) test data, or one wants to determine

whether (unseen) test data is part of the same cate-

gory as the training set. The process of recognising

a pattern, called learning, is divided into supervised

learning and unsupervised learning, also known as re-

spectively classiﬁcation and clustering (Jain, 2010).

The main goal of data clustering is to “discover

natural grouping(s) of a set of patterns, points, or ob-

jects” (Jain, 2010). In literature, there are many ways

to determine such natural groupings. There are nu-

merous clustering methods available, all using dif-

ferent algorithms that may result in different clus-

tering for the same input data. Research by Jain et

al. (Jain et al., 2004) compared 35 different clustering

algorithm and they were able to show that these al-

gorithms can be divided into three groups (heuristic-

based, density-based and model-based) giving similar

results within these groups.

By means of these clustering techniques, it is pos-

sible to create groupings of hosts that are in some

respect similar. This aspect of similarity might be a

valuable contribution in creating a wider understand-

ing of user behaviour.

The behaviour of hosts in a network follows to

some degree regular patterns, with many small and

harmless deviations, however. These deviations might

cause high false positive rates in the case of modelling

a single host. Clustering might overcome this phe-

nomenon by taking the ‘average’ behaviour of similar

hosts together. Since the hosts in a single cluster are

in some respect alike, it can be argued that the differ-

ences in behaviour between the hosts are acceptable,

and hence fall within the bounds of normal behaviour.

Using this ‘common’ or ‘average’ behaviour of the

clustered hosts, it might be possible to create a more

accurate deﬁnition of what normal behaviour is for

the hosts concerned.

Following this line of reasoning, this approach

will reduce the number of false positives, as what

might be seen as an anomaly for an individual host

might not be an anomaly for hosts of the same clus-

ter, hence not marking such events as anomalous. Yet,

it is expected that it will not reduce the true positive

rate, as true abnormalities are expected to be anoma-

lous compared to the cluster’s common behaviour as

well.

In this work, k-means (MacQueen, 1967), Mean

shift (Comaniciu and Meer, 2002), Louvain Com-

munity Clustering (Fortunato, 2010) and Stochastic

Blockmodel Clustering (SBM) (Holland et al., 1983)

are compared in the context of host clustering-based

anomaly detection. The main differences between the

algorithms are provided in table 1.

Table 1: Overview of the reviewed clustering methods, with

their classes and type of input.

Clustering method Class Type

k-means Heuristic-based→ Pattern-based Vector quantisation

Mean shift Density-based → Mode seeking Vector quantisation

Louvain Density-based Graph-based

Stochastic Blockmodel Model-based Graph-based

k-means and Mean shift are both based on vector

quantisation, meaning that the data subject to the clus-

tering method has to be expressed as points in a multi-

dimensional vector space. In this work, we investi-

gate vector-based clustering methods based on host-

Internal Network Monitoring and Anomaly Detection through Host Clustering

697

features such as the number of outgoing/incoming

connections, the number of bytes sent and received,

and the communication protocols used.

Graph-based clustering techniques focus on the

communication partners of hosts, whereas vector-

based approaches look at how (e.g. the number of

bytes and the protocols used) a host is communicat-

ing. Louvain and SBM, on the other hand, are graph-

based. Algorithms of this type of clustering require a

graph, of which the connectivity (i.e. the adjacency

matrix) is used to derive a clustering. As internal host

networks data is relational, this type of clustering can

be applied.

5 EVALUATION

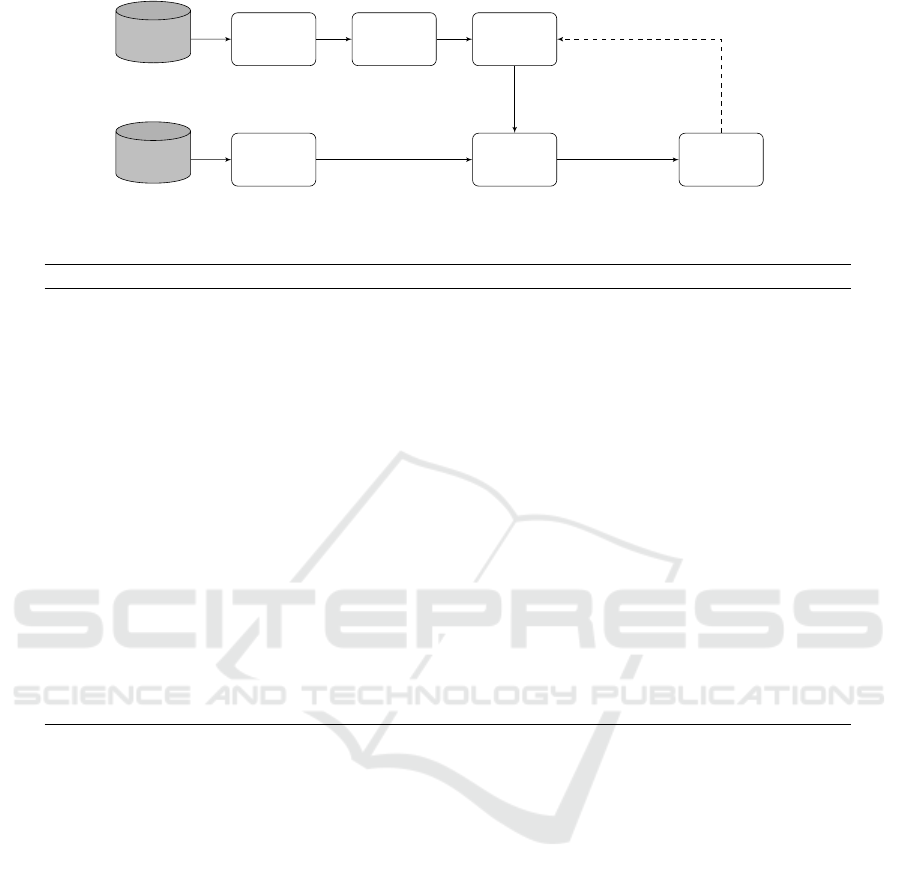

An overview of the proposed anomaly detection

method is provided in ﬁgure 1. See also (Beukema,

2016) for a more detailed description of the proposed

approach.

Training Phase. Training data is the data used to

create the model, which will serve as ’ground truth’.

The behaviour of this data is assumed to be the ‘nor-

mal behaviour’ of the network under investigation.

The data used in both training and test stage is ﬂow

data (Claise et al., 2015). Flow data is a common way

of summarising network activity. Capturing ﬂow data

requires the network environment to have deployed

internal network trafﬁc ﬂow probes, which are ag-

gregated at a single system so they can be analysed.

Table 2 shows the relevant ﬂow information that was

captured and that is used for clustering and anomaly

detection.

Normalisation. After collection, the data is nor-

malised ﬁrst, which involves parsing the data into a

common data format. Table 2 contains both numeri-

cal and categorical features. The categorical features

are transformed into numerical ones by applying one-

hot encoding (Harris and Harris, 2012). Moreover,

any noise present in the data is removed in this phase.

Typically lots of trafﬁc is communicated over the net-

work making it challenging to extract the relevant in-

formation. Network scans by other security products

might, for example, obfuscate the relevant host be-

haviour. Removing noise from the data set is there-

fore an important step in order to reveal the relevant

information. This is done by consulting experts with

good knowledge of the network under consideration.

These experts enable us to ﬁlter out network trafﬁc,

such as network scans, which is obfuscating relevant

information.

Host Clustering. After the normalisation, it is

possible to obtain a clustering of the hosts in the net-

work by applying one of the aforementioned cluster-

ing techniques. The result of this stage is a mapping

for each IP address to a single cluster. The two vector

quantisation clustering methods (Table 1) group the

hosts based on the numerical features obtained in the

previous normalisation phase. The graph-based clus-

tering methods group only make use of the (weighted)

graph structure of the network. In this graph the nodes

represent the hosts and the weight of the edges is de-

termined by the number of ﬂows from the source to

the destination host.

Modelling. The obtained clustering is used as in-

put for the modelling stage, in which for each clus-

ter a deﬁnition of common behaviour is determined.

This deﬁnition consists of several features that de-

scribe certain aspects of the behaviour of hosts within

the cluster.

Typically, histogram-based approaches have been

used in the past for this type of anomaly detec-

tion (Denning, 1987; Eskin, 2000; Eskin et al., 2001).

Sometimes referred to as frequency or counting-based

approaches, it is a simple non-parametric statistical

technique in which histograms are used to maintain a

proﬁle of the ‘normal’ data.

There are some strong drawbacks to the

histogram-based approach. Most importantly,

considering combinations of features is inefﬁcient

using this approach. For n features, one could just

consider n histograms. However, with this approach,

combinations of values are not taken into account

(e.g. bytes vs. duration, destination vs. port number).

In the end, n! histograms are needed to cover all

possible combinations of features. To overcome this,

we use Support Vector Machines (SVM) (Boser et al.,

1992; Sch

olkopf et al., 2001) to model the normal

behaviour of the different clusters. SVMs have been

as a network-based anomaly classiﬁer before in other

works (Zhang et al., 2015), (Eskin et al., 2002),

(Li et al., 2009). The big advantage of choosing

SVM over an histogram-based approach is that all

combinations of features are automatically taken

into account. In other words, each entry is evaluated

in terms of how anomalous the combination of all

features taken together is.

Thus, an SVM is created for each cluster and

trained with ﬂows from the training data. Speciﬁcally,

each ﬂow is represented in the SVM using the follow-

ing seven features:

Bytes A→ B Bytes A←B Relative Start

Packets A→B Packets A←B Duration

Destination Cluster

Except for the last attribute, all are numeric at-

tributes and can therefore be directly processed by an

SVM. The latter is a categorical attribute, and hence

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

698

Training

set

Test

set

Normal-

isation

Host

clustering

Modelling

Normal-

isation

Classiﬁer

Events

Anomalous

behaviour

Update

Figure 1: Flow diagram of the proposed host clustering-based anomaly detection algorithm.

Table 2: Overview of used IPFIX ﬁelds for anomaly detection.

Name ID Description

octetDeltaCount 1 The number of octets since the previous report (if any) in

incoming packets for this Flow.

packetDeltaCount 2 The number of incoming packets since the previous report

(if any) for this Flow.

deltaFlowCount 3 The conservative count of Original Flows contributing to

this Aggregated Flow.

sourceTransportPort 7 The source port identiﬁer in the transport header.

sourceIPv4Address 8 The ipv4 source address in the IP packet header.

destinationTransportPort 11 The destination port identiﬁer in the transport header.

destinationIPv4Address 12 The ipv4 destination address in the IP packet header.

flowEndSysUpTime 21 The relative timestamp of the last packet of this Flow.

flowStartSysUpTime 22 The relative timestamp of the ﬁrst packet of this Flow.

postOctetDeltaCount 23 The number of octets since the previous report (if any) in

outgoing packets for this Flow.

postPacketDeltaCount 24 The number of outgoing packets since the previous report

(if any) for this Flow.

sourceIPv6Address 27 The ipv6 source address in the IP packet header.

destinationIPv6Address 28 The ipv6 destination address in the IP packet header.

ipVersion 60 The IP version ﬁeld in the IP packet header.

is converted to a numerical one by applying one-hot

encoding. Hence, the number of attributes per ﬂow is

equal to a = 6 + c for c the total number of clusters.

After the training is complete, each SVM de-

scribes the boundaries in which the training data op-

erates. These boundaries are different for each cluster

and will be used in the next phase to identify anoma-

lies.

Test Phase. Test data (sometimes ‘validation

data’) refers to the data being tested, i.e. the data

in which the algorithm will look for anomalous be-

haviour. It should be captured in similar circum-

stances as the training set in order to be able to make a

valid comparison with the training data. The test data

is normalised in the same way the training data is. In

this phase, the actual anomaly detection takes place.

Classiﬁer. The classiﬁer takes the model derived

at the training phase and the normalised data from the

test phase and compares them. It is assessed whether

the characteristics of the network trafﬁc as observed

in the test data matches the behaviour as deﬁned in

the model. In other words, for each ﬂow, it is tested

whether it adheres to the behaviour as deﬁned in the

model corresponding to the cluster the host initiating

the ﬂow belongs to.

Each ﬂow in the test data is compared to its cor-

responding SVM, which was created during the train-

ing phase. The SVM will return the distance to the

derived boundary for each test data ﬂow, which is an

indication of the extent to which the ﬂow is similar to

the training data. If behaviour of a host is anomalous

to such an extend that it exceeds a set threshold, the

behaviour will be marked as anomalous.

Events. After the classiﬁer has completed its

work, it will return a set of events that should be in-

vestigated further. The resulting events have to be

evaluated by the operator of the proposed detection

system, upon which it might be decided to take fur-

ther action. These evaluations may be used for addi-

tional training of the model. The advantage of this is

twofold: the system gets new, labelled input that will

increase its ability to distinguish between anomalous

and non-anomalous behaviour, and secondly it allows

the system to learn and adapt to changing behaviour.

Internal Network Monitoring and Anomaly Detection through Host Clustering

699

6 DISCUSSION

Using the UNB ICSX 2012 set (Shiravi et al., 2012),

the methodology as set out in section 5 is carried out.

The set comprises seven consecutive days (11th of

June - 17th of June 2012) of IPFIX ﬂow data (Ta-

ble 2). The data included in the set is simulated data

based on characteristics of real network data. For each

day of the data set, there are up to 145 different hosts

generating up to 74, 370 internal network ﬂows. Most

interestingly, three of the seven days contain mali-

cious internal network ﬂows (Sunday 13 June - Tues-

day 15 June). Since most data is labelled (albeit only

the last six days), this set is suited for our purpose

of evaluating the proposed methodology. Data from

Saturday 12 June is used for model creation, while

the proposed intrusion detection system is evaluated

against the labeled data of Sunday, Monday and Tues-

day.

The ﬂow-based detection aims to detect anoma-

lous network ﬂows. Hence each network ﬂow is com-

pared to the SVM that is created in the modelling

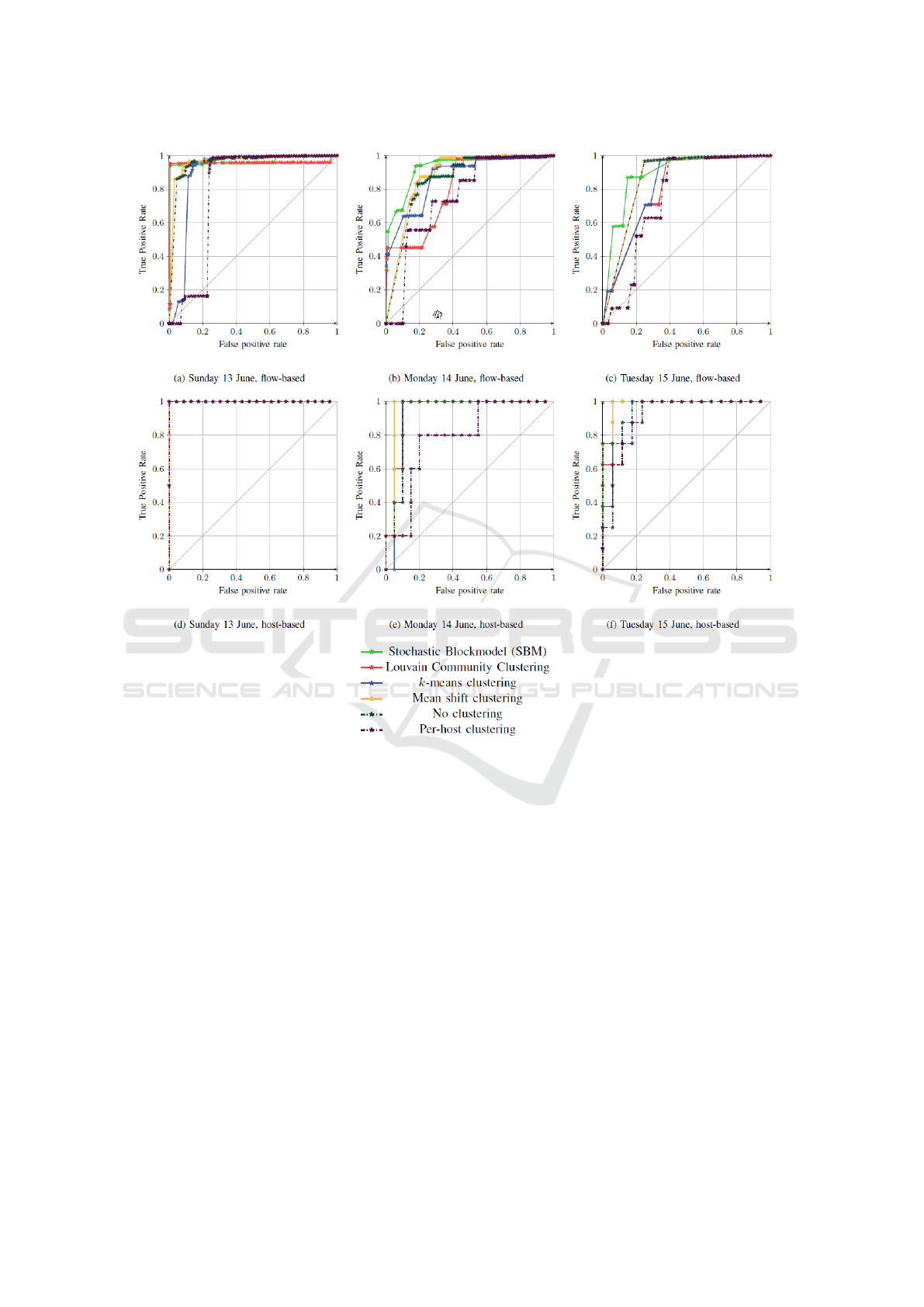

phase. Receiver Operating Characteristic (ROC)

curves for ﬂow-based anomaly detection are given

in Figure 2 (a-c). These ROC curves plot the ratio

of true positives against the ratio of false positives.

ROC curves enable us to compare the performance of

different detectors. The four clustering methods are

compared to single model and per-host model bench-

mark approaches.

There are a number of conclusions that can be

drawn from these results. First of all, it shows that

all six different approaches are able to detect the ma-

licious network trafﬁc at the cost of some false pos-

itives. Hence by monitoring internal network trafﬁc

we are indeed able to detect malicious network traf-

ﬁc. Moreover, we see that in most situations cluster-

ing performs better in terms of detection compared

to using no clustering or per-host modelling. We see

that Stochastic Blockmodel clustering in all cases is

better than applying no clustering. Both Mean-shift

and Louvain compare in some cases better, in some

cases worse than no clustering. k-means performs in

almost all cases worse than applying no clustering.

Within the scope of detection of targeted attacks,

it is more relevant to look at the classiﬁcation of hosts

rather than the classiﬁcation of ﬂows. For instance,

an infected machine might initiate ﬂows that are in

itself barely anomalous, but the number of these ﬂows

together makes the machine’s behaviour anomalous

altogether. One could therefore accumulate the scores

of each ﬂow initiated by a host, and assign that score

to the host. This enables us to identify anomalous

hosts rather than just anomalous ﬂows.

Therefore, it is also useful to consider ROC graphs

for the detection rate of anomalous hosts. Figure 2 (d-

f) shows the ROC curves per clustering method for

Sunday the 13th of June till Tuesday the 15th of June,

using Saturday the 12th of June as a training data.

Within this dataset hosts are labelled as malicious or

infected when they initiate at least one labeled con-

nection. Note that in the dataset used, the number of

hosts is rather small. Therefore these ROC curves are

based on signiﬁcantly less evaluations, hence the low

resolution of the ROC curves.

For the 13th of June, it does not matter whether

or not clustering is applied - this is probably due to

the fact that the attack carried out on that day is so

obvious that traditional methods are able to detect it

as well. For the 14th of June, all clustering methods

perform better on almost all false-positive ranges than

both not applying clustering and clustering per host.

The same conclusion applies to the 15th of June, al-

though the difference is slightly smaller.

The results lead to the conclusion that internal net-

work trafﬁc is a useful source of information that can

enable detection of malicious activity inside a net-

work. Important phases of targeted attacks can be

detected through analysis of internal network trafﬁc,

which remains unnoticed by most IDSs that focus on

external network trafﬁc.

Moreover, the clustering approach we propose,

improves the performance of anomaly-based detec-

tion mechanisms. We have shown that there is al-

ways at least one clustering approach that performs

better than the two benchmark approaches. Also,

we showed that all clustering methods perform better

when the method is applied to identifying malicious

hosts. Speciﬁcally, SBM clustering offers a consis-

tently better detection performance for detecting ma-

licious ﬂows. Hence, it is important to carefully con-

sider the clustering method depending on the type of

anomaly that must be detected.

If we compare the the trade-off between the pro-

cessing burden and the performance, the proposed ap-

proach is the best option as well. The computational

complexity of SVM is O(n

) for n training samples

(Bordes et al., 2005); therefore it is more efﬁcient to

have multiple SVM instances with some training sam-

ples than a single SVM with all the training samples.

As such, detection applying a single model is com-

putationally demanding, whereas per-host modelling

has a relatively low computational cost. In this re-

spect, our approach is in between of these two. Hence,

the proposed approach improves the detection accu-

racy and diminishes the processing burden in com-

parison to single-model detection.

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

700

Figure 2: ROC curves for the UNB ICSX 2012 data set.

7 CONCLUSION

The increasing complexity of targeted attacks was

primary motivation for this research. New and un-

seen attacks are frequently not detected by misuse-

based approaches whereas high false positives rates

may plague anomaly-based detection. Moreover, in-

ternal network trafﬁc is often overlooked by many in-

trusion detection systems yet still is a valuable infor-

mation source. We investigated how well anomaly

detection applying host clustering based on internal

network trafﬁc performs, in order to improve current

detection mechanisms, focusing on detection of tar-

geted attacks.

We have developed an anomaly detection system

based on internal ﬂow data as an initial demonstra-

tion of the usefulness of internal network trafﬁc anal-

ysis. Other information sources, for instance DNS-

queries, Identity and Access Management logs and

proxy logs, may also also suitable for revealing in-

ternal communication patterns and ﬁnding anomalous

behaviour therein. Since the developed framework is

generic further research could focus on the applica-

tion of the proposed methodology on other informa-

tion sources.

For furture work, the authors suggest evaluating

more clustering techniques and anomaly detection al-

gorithms. There are many more techniques available.

Furthermore, the choice for the optimal clustering

technique highly depends on the detection algorithm

that is used. Hence, further research is necessary to

apply application of clustering to be used for anomaly

detection.

Internal Network Monitoring and Anomaly Detection through Host Clustering

701

REFERENCES

Akoglu, L., Tong, H., and Koutra, D. (2015). Graph based

anomaly detection and description: a survey. Data

Mining and Knowledge Discovery, 29(3):626–688.

Bencs

ath, B., P

ek, G., Butty

an, L., and F

elegyh

azi, M.

(2012). Duqu: Analysis, detection, and lessons

learned. In ACM European Workshop on System Se-

curity (EuroSec), volume 2012.

Beukema, W. J. B. (2016). Enhancing network intrusion de-

tection through host clustering. Master’s thesis, Uni-

versity of Twente.

Bordes, A., Ertekin, S., Weston, J., and Bottou, L. (2005).

Fast kernel classiﬁers with online and active learning.

Journal of Machine Learning Research, 6(Sep):1579–

1619.

Boser, B. E., Guyon, I. M., and Vapnik, V. N. (1992). A

training algorithm for optimal margin classiﬁers. In

Proceedings of the ﬁfth annual workshop on Compu-

tational learning theory, pages 144–152. ACM.

Byrne, M. D. (2013). How many times should a stochastic

model be run - An approach based on conﬁdence in-

tervals. In Proceedings of the 12th International con-

ference on cognitive modeling, Ottawa.

Claise, B., Quittek, J., Meyer, J., Bryant, S., and Aitken,

P. (2015). Information Model for IP Flow In-

formation Export. doi:http://dx.doi.org/10.17487/

rfc510210.17487/rfc5102.

Comaniciu, D. and Meer, P. (2002). Mean shift: A robust

approach toward feature space analysis. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

24(5):603–619.

Dell SecureWorks (2013). Advanced persistent threat anal-

ysis. Accessed on 21/01/2016.

Denning, D. E. (1987). An intrusion-detection model. IEEE

Transactions on Software Engineering, 13(2):222–

232.

Ehrlich, W. K., Karasaridis, A., Hoeﬂin, D. A., and Liu, D.

(2010). Detection of spam hosts and spam bots using

network ﬂow trafﬁc modeling. In LEET.

Eskin, E. (2000). Anomaly detection over noisy data using

learned probability distributions. In In Proceedings

of the International Conference on Machine Learning.

Citeseer.

Eskin, E., Arnold, A., Prerau, M., Portnoy, L., and Stolfo,

S. (2002). A geometric framework for unsupervised

anomaly detection. In Applications of data mining in

computer security, pages 77–101. Springer.

Eskin, E., Lee, W., and Stolfo, S. J. (2001). Modeling sys-

tem calls for intrusion detection with dynamic win-

dow sizes. In DARPA Information Survivability Con-

ference & Exposition II, 2001. DISCEX’01. Pro-

ceedings, volume 1, pages 165–175. IEEE.

Fortunato, S. (2010). Community detection in graphs.

Physics Reports, 486(3):75–174.

Harris, D. and Harris, S. (2012). Digital design and com-

puter architecture. Elsevier.

Holland, P. W., Laskey, K. B., and Leinhardt, S. (1983).

Stochastic blockmodels: First steps. Social Networks,

5(2):109 – 137.

Hutchins, E. M., Cloppert, M. J., and Amin, R. M.

(2011). Intelligence-driven computer network defense

informed by analysis of adversary campaigns and in-

trusion kill chains. Leading Issues in Information

Warfare & Security Research, 1:80.

Jain, A. K. (2010). Data clustering: 50 years beyond K-

means. Pattern Recognition Letters, 31(8):651–666.

Jain, A. K., Topchy, A., Law, M. H. C., and Buhmann,

J. M. (2004). Landscape of Clustering Algorithms.

In Proceedings of the Pattern Recognition, 17th Inter-

national Conference on (ICPR’04) Volume 1 - Volume

01, ICPR ’04, pages 260–263, Washington, DC, USA.

IEEE Computer Society.

Kaspersky (2015). Carbanak APT: The Great Bank Rob-

bery. Accessed on 18/2/2016.

Langner, R. (2011). Stuxnet: Dissecting a cyberwarfare

weapon. IEEE Security and Privacy, 9(3):49–51.

Lazarevic, A., Kumar, V., and Srivastava, J. (2005). In-

trusion detection: A survey. In Kumar, V., Srivas-

tava, J., and Lazarevic, A., editors, Managing Cyber

Threats: Issues, Approaches, and Challenges, pages

19–78. Springer US, Boston, MA.

Li, Y., Wang, J.-L., Tian, Z.-H., Lu, T.-B., and Young,

C. (2009). Building lightweight intrusion detection

system using wrapper-based feature selection mecha-

nisms. Computers & Security, 28(6):466 – 475.

MacQueen, J. (1967). Some methods for classiﬁcation and

analysis of multivariate observations. In Proceed-

ings of the ﬁfth Berkeley symposium on mathematical

statistics and probability, volume 1(14), pages 281–

297. Oakland, CA, USA.

Research and Markets (2015). Advanced persistent threat

protection market - global forecast to 2020.

Roy, D. B. and Chaki, R. (2014). State of the art analy-

sis of network trafﬁc anomaly detection. In Applica-

tions and Innovations in Mobile Computing (AIMoC),

2014, pages 186–192. IEEE.

Sabahi, F. and Movaghar, A. (2008). Intrusion Detection:

A Survey. In Systems and Networks Communications,

2008. ICSNC ’08. 3rd International Conference on,

pages 23–26.

Scarfone, K. A. and Mell, P. M. (2007). SP 800-94. Guide to

Intrusion Detection and Prevention Systems (IDPS).

Technical report, National Institute of Standards &

Technology, Gaithersburg, MD, United States.

Sch

olkopf, B., Platt, J. C., Shawe-Taylor, J., Smola, A. J.,

and Williamson, R. C. (2001). Estimating the support

of a high-dimensional distribution. Neural computa-

tion, 13(7):1443–1471.

Shiravi, A., Shiravi, H., Tavallaee, M., and Ghorbani, A. A.

(2012). Toward developing a systematic approach to

generate benchmark datasets for intrusion detection.

Computers & Security, 31(3):357 – 374.

Virvilis, N. and Gritzalis, D. (2013). The Big Four - What

We Did Wrong in Advanced Persistent Threat Detec-

tion? In Availability, Reliability and Security (ARES),

2013 Eighth International Conference on, pages 248–

254.

Wei, S., Mirkovic, J., and Kissel, E. (2006). Proﬁling and

clustering internet hosts. DMIN, 6:269–75.

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

702

Xiao, H., Gao, J., Turaga, D. S., Vu, L. H., and Biem, A.

(2015). Temporal multi-view inconsistency detection

for network trafﬁc analysis. In Proceedings of the 24th

International Conference on World Wide Web, pages

455–465. ACM.

Xu, K., Wang, F., and Gu, L. (2011). Network-aware be-

havior clustering of internet end hosts. In INFOCOM,

2011 Proceedings IEEE, pages 2078–2086. IEEE.

Xu, R., Wunsch, D., et al. (2005). Survey of clustering

algorithms. Neural Networks, IEEE Transactions on,

16(3):645–678.

Zhang, M., Xu, B., and Gong, J. (2015). An Anomaly

Detection Model Based on One-Class SVM to De-

tect Network Intrusions. In 2015 11th International

Conference on Mobile Ad-hoc and Sensor Networks

(MSN), pages 102–107.

Internal Network Monitoring and Anomaly Detection through Host Clustering

703
