Extracting Android Malicious Behaviors

∗

Khanh-Huu-The Dam

and Tayssir Touili

University Paris Diderot and LIPN, Villetaneuse, France

LIPN, CNRS and University Paris 13, Villetaneuse, France

Keywords:

Malware Detection, Android Malwares, Static Analysis, Information Retrieval.

Abstract:

The number of Android malwares is increasing quickly. That makes the Android devices more vulnerable

while they are the target of malware’s writers. Thus, the challenge nowadays is to detect the malicious Android

applications. To this aim, we need to know what are the malicious behaviors that Android malwares apply.

In this paper, we introduce a method to automatically extract the malicious behaviors for Android malware

detection. We present the behaviors of an Android application by an API call graph and we use a malicious

API graph to represent the malicious behaviors. Then, given a set of malicious and benign applications, we

compute the malicious behaviors by extracting from the API call graphs the subgraphs that are relevant to the

malicious API call graphs but not relevant to the benign ones. This relevance is measured by applying the

TFIDF weighting scheme widely used in the Information Retrieval Community. These malicious API graphs

are applied to detect malicious applications. We obtained encouraging results with a recall rate of 92% and a

precision of 98%.

1 INTRODUCTION

Since the number of Android users is growing very

fast in recent years, the number of Android applica-

tions is also increasing as well. As a consequence of

that growth, the target of malware’s writers is chang-

ing and focusing on Android users. Thus, the num-

ber of variants of Android malwares increases year

by year. According to the report of Symantec

, this

number increased from 3262 in 2013 to 3944 in 2015.

Thus, the challenge is to detect the malicious Android

applications.

A well known technique for Android malware de-

tection is based on the analysis of the permission re-

quirements. This technique consists of the analysis

of the Android manifest ﬁle where all the required

permissions and necessary components of an Android

application are declared. These permissions are re-

quired by an application when users install it to their

device. Then, once these permissions are gained for

an application, it can make harmful operations to the

system without informing to the user. So, the permis-

sion requirements can be a signature to distinguish the

malicious applications. There are serval works (Aung

and Zaw, 2013; Zhang et al., 2013; Tchakount

e, 2014;

∗

This work was partially funded by the FUI project AIC

2.0.

https://www.symantec.com/security-center/threat-

report

Talha et al., 2015) that applied this technique to de-

tect Android malwares. However, (Aafer et al., 2013)

shows that detecting malwares by analyzing the per-

mission requirements is not robust, especially when

the malicious behavior can be executed without any

additional permission. Moreover, in Android OS ver-

sion 6.0 and later versions, the applications are able

to request the permissions at run-time

. Thus, these

permissions are not stored in the manifest ﬁle.

To overcome this limitation, other works (Bur-

guera et al., 2011; Dimja

sevic et al., 2015; Canfora

et al., 2015; Jang et al., 2016; Malik and Khatter,

2016) try to detect Android malwares by dynamically

analyzing the execution of the Android applications.

In these works, the behaviors of an application is an-

alyzed via its execution traces while running it in a

simulated environment. However, the dynamic anal-

ysis allows only to analyze the behaviors of Android

applications in a limited time interval. Thus, it can-

not detect the malicious behavior if it occurs after this

time interval.

To sidestep the limitations of the above ap-

proaches, (Aafer et al., 2013; Sharma and Dash, 2014;

Song and Touili, 2014) apply static analysis for de-

tecting the malicious applications. In these works, the

authors specify the malicious behaviors by sequences

of API calls of the Android application. APIs (Ap-

https://developer.android.com/guide/topics/security/

permissions.html

714

Dam, K-H-T. and Touili, T.

Extracting Android Malicious Behaviors.

DOI: 10.5220/0006288807140723

In Proceedings of the 3rd International Conference on Information Systems Security and Privacy (ICISSP 2017), pages 714-723

ISBN: 978-989-758-209-7

plication Programming Interfaces) are functions sup-

ported by the Android OS and Android applications

use them to access the system services and the system

data. Obviously, the harmful tasks related to the sys-

tem are operated by API calls. For instance, (Aafer

et al., 2013; Sharma and Dash, 2014) analyze the ap-

plications by looking at the different calls to these API

functions. In a more advanced analysis, (Song and

Touili, 2014) speciﬁes the behaviors (not the syntax)

of the Android applications by doing the static analy-

sis on the Android codes without installing/executing

it. However, in this work the malicious behaviors are

discovered by studying manually the Android codes.

This task is time consuming and requires a huge en-

gineering effort. Thus, one of the current challenges

in Android malware detection is the automatic extrac-

tion of malicious behaviors.

In this paper, we propose a way to extract the

malicious behavior of the Android applications au-

tomatically. Following (Aafer et al., 2013; Sharma

and Dash, 2014; Song and Touili, 2014), we model

the malicious behaviors via API calls. Let us look

at a typical behavior of an Android trojan SMS spy.

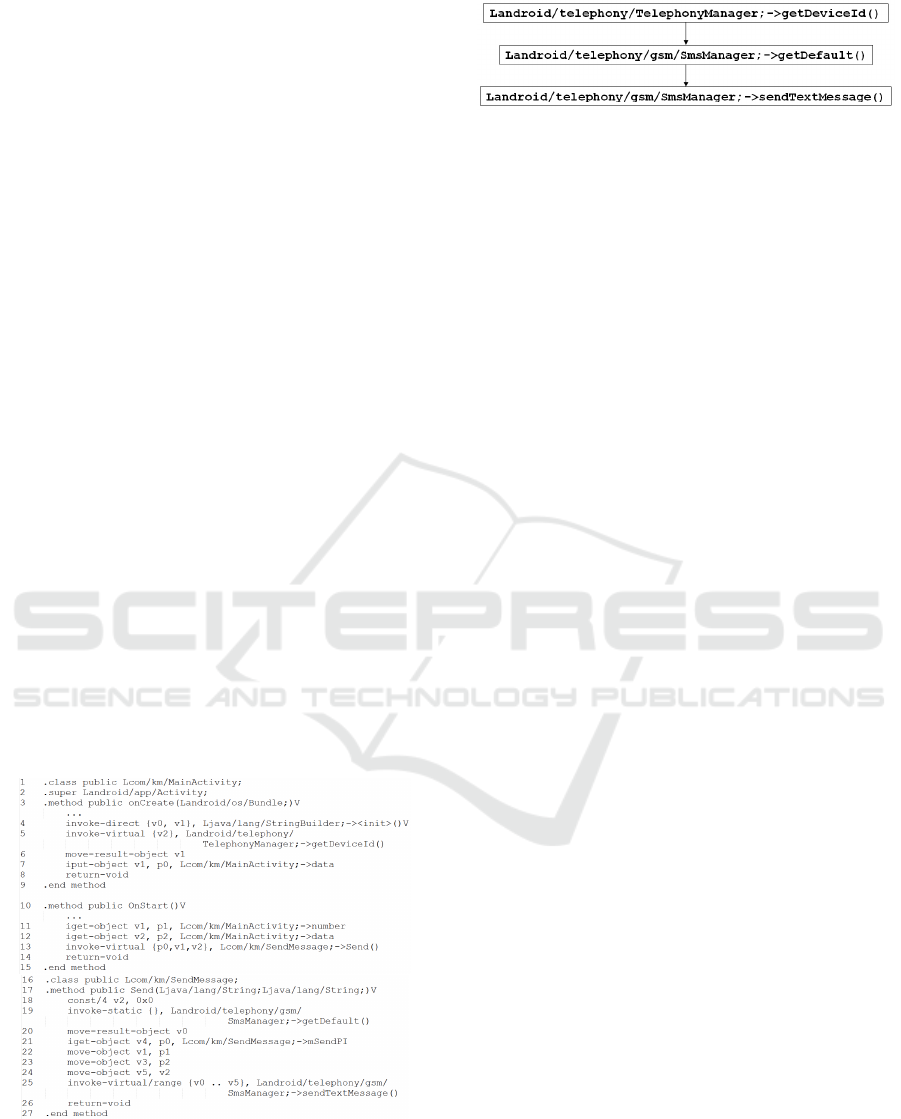

The smali code of this behavior is given in Figure

1. This behavior consists in collecting the phone

id and then sending this data via a text message.

This task is done by a sequence of API calls. First,

the function getDeviceId() is called at line 5 to col-

lect the phone id. Then, the TelephonyManager ob-

ject is gotten by calling getDefault() at line 19. Fi-

nally, the phone id is sent to an anonymous phone

number via a text message by calling sendTextMes-

sage() at line 25. To represent this behavior, we

Figure 1: A piece of smali code of an Android trojan SMS

spy.

use a malicious API graph which is a graph whose

nodes are API functions, and whose edges ( f , f

) ex-

press that API function f is called before API func-

Figure 2: A malicious API graph of an Android trojan SMS

spy.

tion f

. Figure 2 shows the malicious API graph

of this behavior. The edges express that a call to

the function Landroid/telephony/TelephonyManager;

-¿ getDeviceId() is followed by the calls to the func-

tions Landroid/telephony/gsm/SmsManager; -¿ get-

Default() and Landroid/telephony/gsm/SmsManager;

-¿ sendTextMessage().

Using this representation, the goal of this paper is to

automatically extract such malicious API graphs. In

order to do that, we represent the Android applica-

tion using an API call graph, which is a graph whose

nodes are pairs (m, f ) consisting of an API f and a

control point m, and whose edges ((m, f ),(m

, f

)) ex-

press that there is a call to the API f at the control

point m, followed by a call to the API f

at the control

point m

. After extracting this malicious API graph,

the malware detection phase is done by making a kind

of product between the API call graph of the new ap-

plication and the malicious API graphs. The applica-

tion is marked as malicious if the product contains a

feasible trace. Otherwise, it is marked as benign.

Then, given a set of API call graphs that corre-

spond to malicious applications and a set of API call

graphs corresponding to benign applications, we want

to extract in a completely automatic way the mali-

cious API graphs that correspond to the malicious

behaviors of these malicious applications. The mali-

cious API graph can be seen as a subgraph of the API

call graphs of the malicious applications that repre-

sents the malicious behavior. The sufﬁcient subgraphs

that should be extracted can be used to distinguish

the malicious API call graphs from the benign ones.

Thus, our goal is to isolate the few relevant subgraphs

from the irrelevant ones. This problem can be seen

as an Information Retrieval (IR) problem, where the

goal is to retrieve the relevant items and reject the ir-

relevant ones. The IR community have extensively

studied this problem over the last 35 years. Several

approaches have been proposed and successfully ap-

plied in several applications, such as email search-

ing, text searching, image searching, etc. One of the

most popular techniques in IR is the TFIDF weight-

ing scheme where relevant terms are extracted from

the documents in a collection by associating a weight

to each term. The term that has the higher weight is

the more relevant. In this paper, we adapt the TFIDF

weighting scheme in IR to our API call graphs in or-

Extracting Android Malicious Behaviors

715

der to generate the malicious graphs. For that, we

associate to each node and each edge in the API call

graphs of the Android applications in the collection a

weight. Then, the malicious API graphs are computed

by taking edges and nodes with the highest weights.

We implemented this technique in a tool which

consists of two phases: the training phase and the de-

tection phase. In the training phase, we extract the

malicious API graphs from the training set which is

a collection of malicious applications and benign ap-

plications: First, we unpack and decompile each An-

droid application from the Android package ﬁle (APK

ﬁle). Then, we construct the control ﬂow graph to rep-

resent the execution of this application. After that, we

model its behaviors in an API call graph. Once we

get the API call graphs of all the applications, we ap-

ply the TFIDF weighting scheme to get the relevant

terms in the malicious graphs and automatically ex-

tract the malicious API graphs. In the detection phase,

we use these malicious API graphs for detecting the

malicious behaviors in the new applications. In or-

der to evaluate the performance of our approach, we

apply the tool on a data set of 3100 malicious appli-

cations which are collected from Drebin data set (Arp

et al., 2014) and 459 benign applications taken from

apkpure.com. We obtained encouraging results with

a recall rate of 92% and a precision rate of 98%.

Outline. We present a way to construct the control

ﬂow graph for an Android application and deﬁne our

API call graph model in Section 3. Section 4 intro-

duces our malicious API graphs. In Section 5, we

present the malicious behavior computation. Experi-

ments are given in Section 6.

2 RELATED WORKS

Information retrieval techniques were applied for

malware detection in (Masud et al., 2008; Cheng

et al., 2013; Santos et al., 2013; Dam and Touili,

2016). . However, these works do not consider An-

droid malwares. In this work, we extend the work of

(Dam and Touili, 2016) to Android malwares.

The ﬁrst technique used for Android malware de-

tection is based on the analysis of the manifest ﬁle

where the required permissions are stored. (Aung and

Zaw, 2013; Talha et al., 2015) extract the set of per-

missions needed for malicious behaviors. (Aung and

Zaw, 2013) constructs a bit-vector of permissions to

represent android applications and implements a clas-

siﬁer to distinguish the malicious applications from

the benign ones. As for (Talha et al., 2015), they ex-

tract information from the Android manifest ﬁle, such

as application permissions, application services and

application receivers to build a database of signatures

for malware detection. As we have mentioned before,

Android malware detection based on the analysis of

permissions is not robust since the malicious behav-

iors may occur without any declaration in the Android

manifest ﬁle.

API calls are used for Android malware speciﬁcation

in (Aafer et al., 2013; Arp et al., 2014; Sharma and

Dash, 2014; Jang et al., 2016). (Sharma and Dash,

2014; Arp et al., 2014) analysze the manifest ﬁle and

the API calls to specify the behaviors. They ﬁlter out

the suspicious APIs which are potentially used in the

malicious behaviors. In (Sharma and Dash, 2014),

the authors select 35 features from the set of features

for classifying the malicious applications. (Arp et al.,

2014) construct a huge bit-vector of roughly 545,000

features to classify malicious applications.

(Aafer et al., 2013) use API calls to describe be-

haviors of an application and use common classiﬁers

such as ID3, SVM and C4.5 to classify the malicious

behaviors. (Jang et al., 2016) generates a proﬁle of the

API calls that are invoked in the application to specify

the behavior of the application. This proﬁle describes

the usages of all API functions and their objects in

an application. The authors introduce a decision pro-

cess to detect malicious applications by comparing

the similarities between proﬁles.

In another work, (Canfora et al., 2015) considers

sequences of system calls as a speciﬁcation of the

application’s behaviors. The occurrences of subse-

quences with length n in each sequence is taken into

account in the construction of the feature vector to

represent the applications. Then, the authors imple-

ment a SVM classiﬁer for malware detection. How-

ever, they use dynamic analysis to capture the traces

of the application’s execution. Thus, they take into

account only one execution of the application.

In our work, we also use API calls to represent the

behaviors of an Android application. However, with

the API call graph representation we take into account

the order of API function calls in all the executions of

an application. So, our API call graphs are more pre-

cise than the representations used in the works cited

above. Moreover, we are able to extract the malicious

behaviors of the malicious applications as malicious

API graphs while none of the above works extract

the malicious behaviors of Android applications auto-

matically. Our malicious API graphs are also used to

detect malicious applications. Furthermore, our tech-

nique is completely static, we do not use any dynamic

analysis.

(Song and Touili, 2014) apply static analysis for

Android malware detection. However, this work is

based on manually studying the codes of the Android

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

716

applications to extract the malicious behaviors while

our work allows to extract automatically these behav-

iors.

3 MODELING ANDROID

APPLICATIONS

During the execution of an Android application, dif-

ferent events from the users or the system need to be

taken into account. Thus, the entry points of an An-

droid application are speciﬁed by the event handlers

which are methods called when there is an event that

occurs in the system or from the user like opening the

application, touch on the screen, etc. By taking into

account the event handlers in the Android code, we

construct the control ﬂow graph which represents all

the operations in an Android application. Then, we

extract an API call graph to represent the behaviors

of the application. We introduce all these steps in this

section.

3.1 Android Applications

An Android application is installed into the Android

devices via an Android package (an APK ﬁle) which

consists of (1) Dalvik bytecode (a dex ﬁle) which is

executable, (2) all resources, and (3) an Android man-

ifest ﬁle which contains the declaration of all the per-

mission requirements and necessary components used

in the application’s execution. In order to analyze the

behaviors of an Android application, we have to look

into the Android byte code which is executed when-

ever the application runs. However, this code is a kind

of binary code for Android programs. It is hard for

humans to read. Thus, we use a tool to decompile this

byte code into a human readable code, called smali

code. Thanks to the Apktool

, the Android package

is unpacked and the byte code is decompiled into the

smali code. The smali code represents the Android

program in a form of an object oriented program-

ming language (like Java language) where a program

is constructed from objects that contain data and func-

tions known as methods. When the Android applica-

tion runs, one of its objects is executed and in this

executed object there are calls to other objects.

An Android application is implemented mainly using

four main components: Activity, Service, Broadcast

Receiver and Content Provider. Each component sup-

ports different functions in the application. For in-

stance, the component Activity provides a user in-

terface for interactions between the user and the ap-

https://ibotpeaches.github.io/Apktool

plication. Based on the component Service, the de-

veloper can make background executions. The com-

ponent Broadcast Receiver is a means to make com-

munications between applications in the system. Via

the Content Provider objects, the application can ac-

cess/modify data on the system such as Contact list,

Calendar, etc. Each component follows its own work

ﬂow. For example, in the component Activity, ﬁrst

the method onCreate() is called, then the method

onStart(), etc. These components contain the entry

points to execute the application. Thus, they are po-

tentially exploited for malicious behaviors.

As an example, Figure 1 shows the implementa-

tion of an Android application based on the compo-

nent Activity. The application starts by executing the

object MainActivity which is an implementation of

the component Activity. This object starts by calling

the method onCreate() and then calling the method

onStart(). Particularly, in the method onStart(), there

is a call to the method Send() at line 13 which belongs

to another object (the SendMessage object).

Moreover, there are several calls to the methods which

are supported by the Android OS such as the method

getDeviceId() at line 5 in the object TelephonyMan-

ager, the method getDefault() at line 19 and the

method sendTextMessage() at line 25 in the object

SmsManager. These methods are functions which

are provided by the Android OS to access the sys-

tem services. Each Android OS version supports a

library which includes all functions to implement an

application, called Application Programming Inter-

faces (APIs). The Android developers use these APIs

to create the application based on the above compo-

nents. Generally, the system operations are made via

API calls. The malicious behaviors in an Android ap-

plication are used to be done by sequences of API

calls. According to this fact, we represent the behav-

iors of an Android application as an API call graph

which represents all sequences of API calls. In order

to construct the behaviors of an Android application,

we build a control ﬂow graph which represents all op-

erations in the application. Then, we extract the API

call graph from the control ﬂow graph. The API call

graph is seen as the representation of the behaviors of

an Android application. In the following subsections,

we introduce control ﬂow graphs and API call graphs,

and explain how to compute them for Android appli-

cations.

3.2 Control Flow Graph

A control ﬂow graph (CFG) is a directed graph G =

(N,I,E), where N is a ﬁnite set of nodes, I is a ﬁ-

nite set of instructions in an Android application, and

Extracting Android Malicious Behaviors

717

E : N × I × N is a ﬁnite set of edges. Each node cor-

responds to a control point in the Android applica-

tion. Each edge speciﬁes the connection of two con-

trol points and is associated with an instruction. An

edge (n

,i, n

) in E expresses that in the Android ap-

plication, the control point n

is followed by the con-

trol point n

and is associated with the instruction i.

We construct the CFG of an Android application

as follows:

1. Build the CFG for each method in the application.

2. If at a given control point n there exists a call to

another method A (n

callA

−−−→ n

∈ E) , we remove

this edges from E and we make a link from point

n where the call occurs to the entry point of the

called method A and a link from the exit point of

the called method A to the next point n

of this

call.

3. By taking into account the event handlers of an

Android application, we make the link between

the CFGs of the methods which handle the events

according to the work ﬂow of each object. For in-

stance, to handle the initialization of a new activ-

ity object, there is a call to the method onCreate()

and then a call to the method onStart(). Thus, we

add a link between the exit points of the method

onCreate() to the entry points of the method on-

Start() in this object.

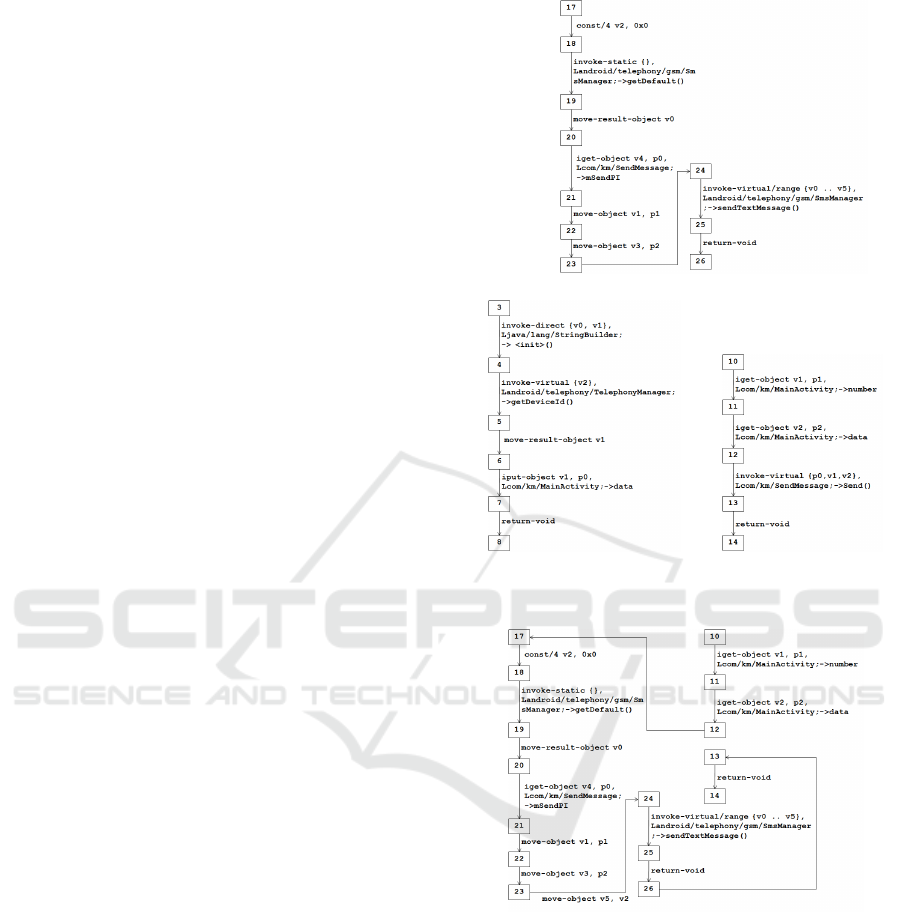

As an example, let us consider the smali code in

Figure 1. Firstly, we build the CFG for each method

as shown in Figure 3. Then, since there is a call to the

method Send() from the method onStart(), we make a

link from the point (12) where a call to the method

Send() will be made to the entry point (17) of the

method Send() and a link from the exit point (26) of

the method Send() to the next point (13) of this call.

This is shown in Figure 4.

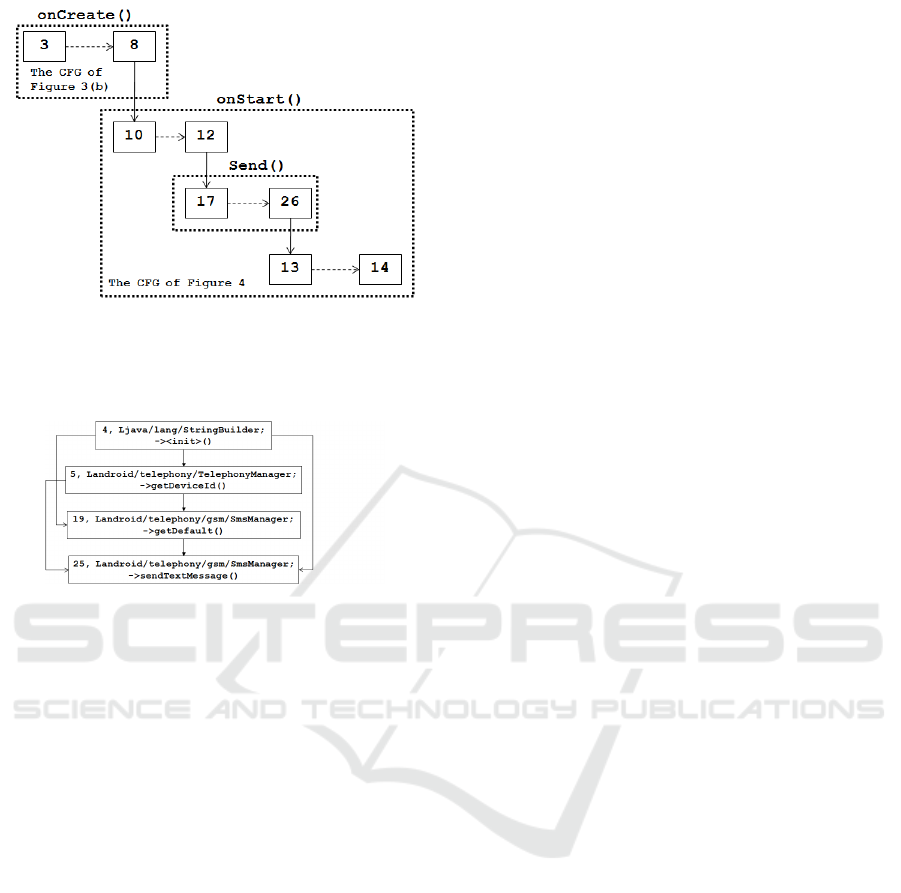

Moreover, in this application there is an activity

object. This object is started by calling the method on-

Create() and then calling the method onStart(). Thus,

we make a link from the exit point (8) of the method

onCreate() to the entry point (10) of the method on-

Start(). The CFG of the application is shown in Figure

3.3 API Call Graph

Let A be the set of all APIs in Android applica-

tions. An API call graph is a directed graph G

api

), where V

api

: N × A is a ﬁnite set of ver-

tices and E

api

: (N × A) × (N × A) is a ﬁnite set of

edges. A vertex (n, f ) means that at a control point

n, a call to the API function f is made. An edge

((n

, f

),(n

, f

)) in E means that the API function

(a) The CFG of method Send().

(b) The CFG of method onCreate(). (c) The CFG of method onStart().

Figure 3: The CFGs of the methods of the code in Figure 1.

Figure 4: The CFG of method onStart() linked to the CFG

of method Send().

called at the control point n

is executed after the

API function f

called at the control point n

. To com-

pute an API call graph from the CFG of an Android

application, we perform a kind of control point reach-

ability analysis on the CFG as described in (Dam and

Touili, 2016).

As an example, let us consider the construction

of the API call graph of the code in Figure 1. Since

the control ﬂow graph is constructed in Figure 5, we

simplify this graph to get an API call graph where

each node is a pair of the control point and the API

which is called at this control point. Then, we make

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

718

Figure 5: The CFG of the code in Figure 1.

the transitive closure for each node in this simpliﬁed

graph. The API call graph is shown in Figure 6.

Figure 6: The API call graph of the code in Figure 1.

4 MALICIOUS BEHAVIOR

SPECIFICATION

In this section we introduce malicious API graphs,

and we show how to apply these graphs to detect mal-

wares.

4.1 Malicious API Graphs

A malicious API graph is a directed graph G

), where V

⊆ A is a ﬁnite set of ver-

tices, E

: V

×V

is a ﬁnite set of edges, V

⊆ V

the set of initial nodes, i.e., the set of nodes v s.t. there

does not exist any edge coming to v, and V

⊆ V

the set of ﬁnal nodes, i.e., the set of nodes v s.t. there

does not exist any edge exiting v. An edge ( f

, f

)

in E

means that the API function f

is executed af-

ter the API function f

. Let f

,. .., f

be API func-

tions. A malicious behavior f

·· · f

is represented in

the malicious API graph if f

∈ V

, f

∈ V

, and for

every i, 1 ≤ i ≤ k − 1, ( f

, f

i+1

) ∈ E

For instance, the malicious behavior of the An-

droid trojan sms spy is expressed by the ma-

licious API graph of Figure 2. In this graph,

the behavior starts at the initial node Lan-

droid/telephony/TelephonyManager; -¿ get-

DeviceId() and ends at the ﬁnal node Lan-

droid/telephony/gsm/SmsManager; -¿ sendTextMes-

sage(). This graph represents the behavior of getting

and sending the Phone Id via a text message.

4.2 Malware Detection using Malicious

API Graphs

Given a program represented by its API call graph

api

= (V

api

), and a set M of malicious be-

haviors (sequences of API functions) represented by

a malicious API graph G

= (V

), we

check whether the program contains one of the mali-

cious behaviors in M , by performing a kind of prod-

uct as follows: G

= (V

) such that V

{(m, f ) ∈ V

api

| f ∈ V

}, V

= {(m, f ) ∈ V

api

| f ∈

}, and E

= {



(m, f ),(m

, f

)



∈ E

api

| ( f , f

) ∈

}. Then, the program contains a malicious behav-

ior in M iff G

contains paths that led from an initial

node in V

to a ﬁnal node in V

5 MALICIOUS BEHAVIORS

EXTRACTION

The problem is to compute the malicious API graph

from a set of malicious and benign API call graphs.

Following the work in (Dam and Touili, 2016), we

compute the subgraphs which are relevant to the ma-

licious graphs but not relevant to the benign ones. A

relevant subgraph contains nodes and edges that are

meaningful to the malicious API call graphs. Apply-

ing the techniques of the information retrieval com-

munity, we associate to each node/edge of the API

call graphs a weight to measure its relevance with

respect to the malicious graphs and wrt. the benign

ones. Using these weights, we construct the malicious

API graphs. In this section, we recall the approach

of (Dam and Touili, 2016) and show how to apply

the TFIDF scheme that was widely applied for docu-

ments by the IR community for our malicious graph

extraction problem.

5.1 Term Weighting Scheme

Relevance in a Graph. In what follows, we call

nodes and edges terms. The relevance of a term is

measured by a TFIDF weight. This scheme ensures

that if a term has a higher weight, then it is more rel-

evant in the graph. The TFIDF weighting scheme is

a well-known technique of the IR community that is

applied in many applications in web searching, text

Extracting Android Malicious Behaviors

719

searching, image searching, etc. It was mainly ap-

plied for documents. Following (Dam and Touili,

2016), we show here how to apply it for graphs. The

weight in the TFIDF scheme is measured from the oc-

currences of terms in a graph and their appearances in

other graphs. If a term occurs frequently in a graph

and appears rarely in other graphs, it is one of the rel-

evant terms in this graph. For a given term, its rel-

evance to an API call graphs in the collection G is

measured by the TFIDF weight as follows.

w(i, j) = F(tf(i, j)) × idf(i) (1)

where w(i, j) is the weight of a term i in graph j. The

idf factor ensures a higher weight for terms which ap-

pear in a few graphs of the collection. It varies in-

versely with the number of graphs df(i) that contain

a term i in a collection of N graphs. A typical factor

may be computed as log(

df(i)

). tf(i, j) is the number

of occurrences of term i in graph j, called term fre-

quency.

Moreover, a term in a large-size graph may have a

high term frequency. If in a collection the difference

between the sizes of graphs is high, the term frequen-

cies are taken over by the large-size graphs. Thus, one

needs to take into account the size of the graphs while

computing the term frequency. This is implemented

using the function F that involves a size normaliza-

tion component (Robertson et al., 1995; Singhal et al.,

1996). In our experiment, we apply several functions

of term frequency. They are deﬁned as follows:

• F

(tf(i, j)) = tf(i, j) leads to the raw factor.

• F

(tf(i, j)) =

+1)×tf(i, j)

tf(i, j)+k

(

S( j)

AVG(G)

×b+1−b)

implements

the size normalized BM25 factor (Robertson and

Zaragoza, 2009; Robertson et al., 1995).

• The size normalized logarithmic factor can be

implemented by the following function (Singhal

et al., 1999; Singhal and Kaszkiel, 2001):

(tf(i, j)) =

(

1+ln(1+ln(tf(i, j))

S( j)

AVG(G)

×b+1−b

if tf(i, j) > 0

0 if tf(i, j) = 0

• The size normalized sigmoid factor (Yao et al.,

2006) can be implemented by function F

deﬁned

as follows:

(

S( j)

AVG(G)

×b+1−b)+e

−tf(i, j)

if tf(i, j) > 0

0 if tf(i, j) = 0

Where

S( j)

AVG(G)

× b + (1 − b), 0 ≤ b ≤ 1 is a size nor-

malization component (Singhal et al., 1996) where

S( j) is the size of graph j and AVG(G) is the aver-

age size of graphs in the collection G. In the above

formulas, by setting b to 1, graph size normalization

is fully performed, while setting b to 0 turns off the

size normalization effect.

In the TFIDF weighting scheme, these functions are

applied and have shown good performances. How-

ever, there is no theoretical evidences to prove which

function is better than the others. Thus, we take into

account all these functions in our experiments to de-

termine which one is the best function for our prob-

lem.

Relevance in a Set. Given a set G of API call graphs

and a term i, the relevance of term i in G is measured

by its relevance in each graph in this set: it is com-

puted as the sum of the term weights of i in each graph

of G:

W (i,G) =

|G|

∑

j=1

w(i, j) (2)

where K = max

i, j

w(i, j) is a normalizing coefﬁcient.

It is used to normalize the term weight values in the

different graphs to make them comparable in the sum-

mation. w(i, j) is a TFIDF term weight of term i in

graph j ( j ∈ G). w(i, j) is computed using one of the

functions F as described above. W (i,G) is the weight

of term i in the set G. A term with a higher weight is

more relevant to graphs in set G.

Malicious Relevance. In our context, given G

and G

that are the sets of malicious graphs and be-

nign graphs respectively, we want to compute a term

weight that is high if the term is relevant for set G

but not for set G

. If a term i is relevant in both sets,

then it is not meaningful, as it does not correspond to

a malicious behavior. Thus, given a term i we need to

compute a new weight of term i to measure its rele-

vance in set G

with respect to set G

. This is com-

puted by two intuitive equations.

The ﬁrst equation is the Rocchio equation which

intuitively measures the weight of a term by the dis-

tance between its weights in the sets G

and G

(Christopher D. Manning, 2009). A higher distance

of a term means that it is more relevant for G

than

for G

. Given a term i, the relevance of term i in the

set G

against the other set G

is given by:

W (i,G

) = β ×

W (i,G

)

− γ ×

W (i,G

)

(3)

where |G

| and |G

| are the sizes of the sets G

and

, β and γ are parameters to control the effect of the

two sets G

and G

The second equation is the Ratio equation which

computes the relevance of a term i as follows:

W (i,G

) =

W (i,G

)

λ + |G

λ +W (i,G

)

(4)

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

720

Intuitively, this is a kind of quotient between the

weight of i in G

and its weight in G

. Thus, the

weight of term i is high if it has a high weight in G

and a low weight in G

As the two equations above (Rocchio and Ratio)

are natural and intuitive, a higher weight indicates a

higher relevance of a term i in G

. We have no the-

oretical evidence that shows the advantage of taking

one equation over the other. Thus, in our experiments,

we make a comparison of the performances of these

two equations in order to decide which one is the best

for our application. In our experiments, the values of

β,γ and λ are set to 0.15, 0.75 and 0.5, respectively.

(These are the typical values used in the IR commu-

nity.)

5.2 Computing Malicious API Graphs

A malicious API graph is a combination of terms

which have a high malicious relevance. Since terms

of a graph are either nodes or edges, we can compute

the malicious API graphs by several possible strate-

gies. These strategies depend on a parameter n which

is chosen by the user. n corresponds to the number of

nodes (resp. edges) that are taken into account in the

computation. In what follows, by “weight of a term i”,

we refer to W (i,G

). Let {(m

, f

),. .. ,(m

, f

)}

be the set of nodes that have the n highest weights.

Let A

= { f

,. .. , f

} ⊆ A be the corresponding API

functions. Let {e

,. .. ,e

} be the set of edges that

have the n highest weights. Intuitively, this means that

the API functions in A

and the edges in {e

,. .. ,e

}

are the most relevant ones. Then, the malicious API

graphs are computed using the following strategies:

Strategy 1. We take nodes which correspond the

API functions in A

and then add edges with the

highest weight to connect these nodes. No other node

is added.

Strategy 2. We start from nodes which corre-

spond to the API functions A

. For every node, we

consider all its outgoing edges, and we add the edge

with the highest weight, even if it involves a node that

is not in A

Strategy 3. We construct the graph from the edges

with the highest weights {e

,. .. ,e

6 EXPERIMENTS

We evaluate the performance of our approach on a

data set of 459 benign applications, which are col-

lected from the website apkpure.com and 3100 ma-

licious applications which are gotten from Drebin

dataset (Arp et al., 2014). We divide this data set

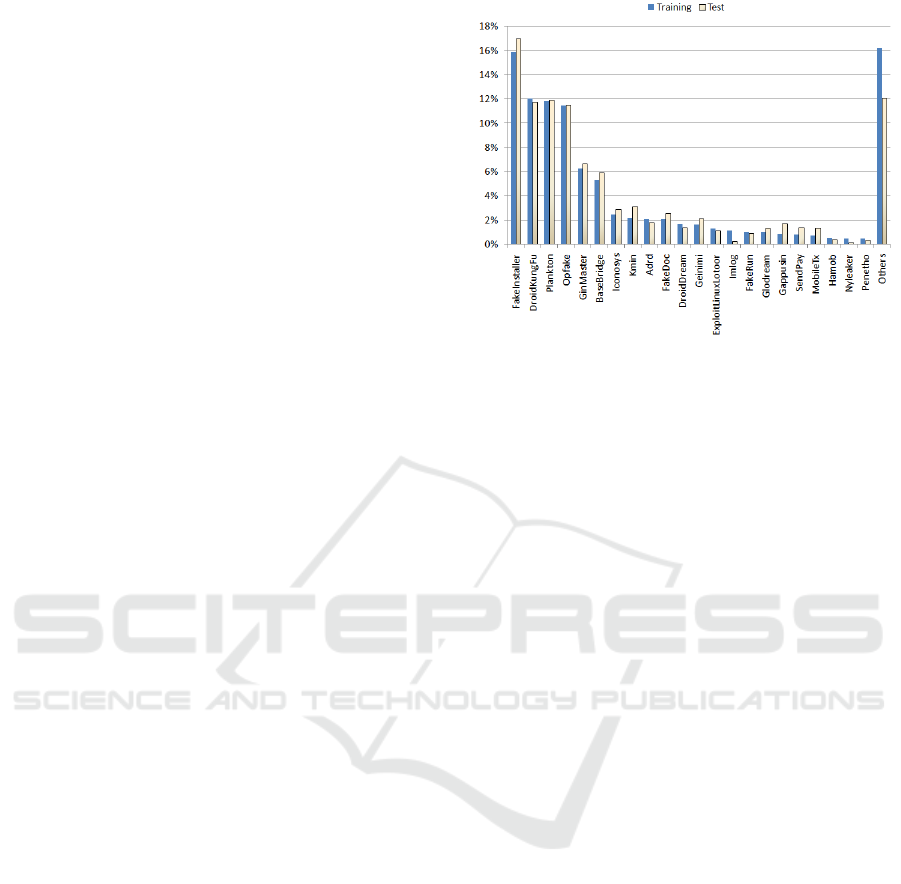

Figure 7: Proportions of malicious application categories in

training and test sets.

into two sets for training and testing. The training

set consists of 1900 malicious applications and 359

benign applications. The test set consists of 1200 ma-

licious applications and 100 benign applications. Fig-

ure 7 shows the proportions of each malware category

in the training set and in the test set. There are two

phases in this evaluation as follows.

- Training Phase. In this phase, we extract the ma-

licious API graphs from the data in the training

set as follows. Firstly, we take each input ap-

plication as an APK ﬁle. Then, this APK ﬁle is

unpacked and decompiled by Apktool. After get-

ting its smali code from Apktool, we construct the

CFG and the API call graph of this application.

Once we build the API call graph for each appli-

cation, we compute the malicious API graphs by

the strategies described in Section 5.2.

- Testing Phase. In this phase, we apply the mali-

cious API graphs to classify the applications in the

test set. We take each input application as an APK

ﬁle. Then, we unpack and decompile this APK

ﬁle to get its smali code by using Apktool. After

that, we construct its API call graph. As we de-

scribed in Section 4.2, this application is marked

as malicious if there is a feasible common path

between its API call graph and the malicious API

graphs. Otherwise, it is marked as benign.

We evaluate the performance of the functions

and F

(detailed in Section 5.1) with the

Rocchio and Ratio equations (equations 3 and 4). For

each combination, we construct the malicious API

graph from the training set. Then, these speciﬁca-

tions are evaluated on the test set. The performance

is measured by the following quantities. Recall (De-

tection rate) is the True Positives over the number

of malicious API call graphs. Precision is the True

Extracting Android Malicious Behaviors

721

Table 1: The best performance of each strategy.

Strategy n Recall Precision F-measure

S1 by F4 with Rocchio equation 100 82.8% 97.3% 89.5%

S1 by F2 with Ratio equation 80 85.4% 98.7% 91.6%

S2 by formula F4 with Rocchio equation 100 87.6% 97.5% 92.3%

S2 by formula F2 with Ratio equation 100 88% 98.8% 93.1%

S3 by formula F3 with Rocchio equation 85 92% 98% 94.9%

S3 by formula F3 with Ratio equation 85 92% 98% 94.9%

Positives over the sum of True Positives and False

Positives. F-Measure is a harmonic mean of pre-

cision and recall that is computed as F-Measure =

2×Precision×Recall/(Precision+Recall). These are

standard evaluation measures in the IR community.

The technique computes more relevant items than ir-

relevant if the precision rate is high. We can deduce

that most of the relevant items were computed if the

recall rate is high. As for the F-measure, it is 1 if all

retrieved items are relevant and all relevant items have

been retrieved.

The ﬁgures below show the F-measure obtained

from the combinations of different formulas and

strategies. In these experiments, we vary n from 5 to

120. According to the results, the ratio equation gives

the best performance with formulas F2 and F3 while

the Rocchio equation gives the best performance with

formula F4. Moreover, the F-measure is more stable

(no jumps) with the ratio equation than with the Roc-

chio equation. Table 1 shows the best obtained re-

sults for each combination. We obtain the best perfor-

mance from the strategy S3 by F3 with both weighting

equations. The detection rate reaches 92% with 98%

of precision at n = 85. Therefore, we use this conﬁgu-

ration (S3 by F3 with the ratio equation) for malicious

graphs extraction because the ratio equation is more

stable.

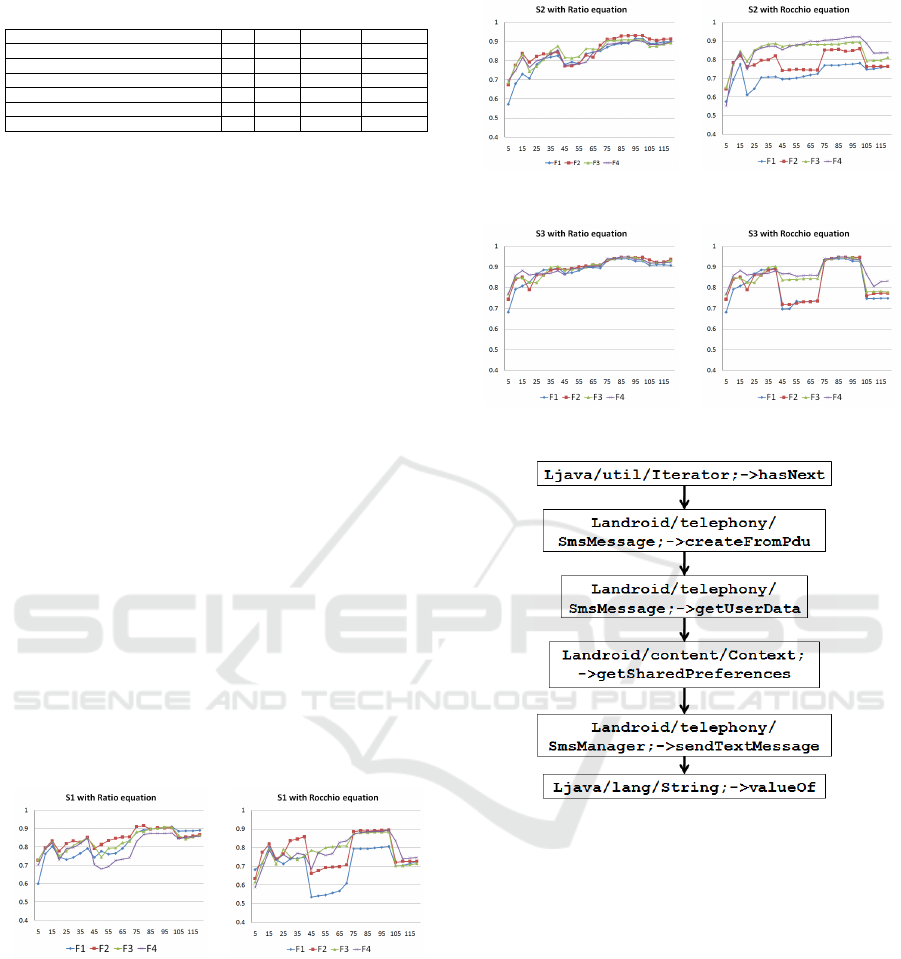

Figure 8: F-measures of strategy S1 on the test set.

Morever, our tool was able to automatically ex-

tract several graphs that represent real malicious be-

haviors. For example, it was able to extract the graph

of Figure 11 below.

This behavior consists of repeatedly sending the user

information by text messages. First, the method cre-

ateFromPdu() is called to create a new text message.

Then, the method getUserData() is called to get the in-

formation of the user. Additionally, more information

is gotten from calling getSharedPreferences(). The

message is sent by calling sendTextMessage(). This

Figure 9: F-measures of strategy S2 on the test set.

Figure 10: F-measures of strategy S3 on the test set.

Figure 11: Repeatedly sending text messages.

process is repeated by an iterator object.

7 CONCLUSION

In this paper, we consider the problem of automat-

ically extracting Android malicious behaviors. To

solve this problem, we consider a set of benign and

malicious Android applications. We model these ap-

plications using API call graphs, and we extract from

these graphs the relevant subgraphs that form the

malicious speciﬁcations by using and adapting well

known techniques in the Information Retrieval com-

munity. Using the graphs generated by our tech-

niques, we obtained interesting results: 92% of de-

tection rates with 98% of precision. As far as we

know, this is the ﬁrst time that information retrieval

ForSE 2017 - 1st International Workshop on FORmal methods for Security Engineering

722

techniques are applied for the automatic extraction of

Android malicious behaviors.

REFERENCES

Aafer, Y., Du, W., and Yin, H. (2013). Droidapiminer:

Mining api-level features for robust malware detec-

tion in android. In International Conference on Se-

curity and Privacy in Communication Systems, pages

86–103. Springer.

Arp, D., Spreitzenbarth, M., Hubner, M., Gascon, H., and

Rieck, K. (2014). Drebin: Effective and explain-

able detection of android malware in your pocket. In

NDSS.

Aung, Z. and Zaw, W. (2013). Permission-based android

malware detection. International Journal of Scientiﬁc

and Technology Research, 2(3):228–234.

Burguera, I., Zurutuza, U., and Nadjm-Tehrani, S. (2011).

Crowdroid: behavior-based malware detection system

for android. In Proceedings of the 1st ACM workshop

on Security and privacy in smartphones and mobile

devices, pages 15–26. ACM.

Canfora, G., Medvet, E., Mercaldo, F., and Visaggio, C. A.

(2015). Detecting android malware using sequences

of system calls. In Proceedings of the 3rd Interna-

tional Workshop on Software Development Lifecycle

for Mobile, pages 13–20. ACM.

Cheng, J. Y.-C., Tsai, T.-S., and Yang, C.-S. (2013). An

information retrieval approach for malware classiﬁca-

tion based on windows api calls. In 2013 International

Conference on Machine Learning and Cybernetics.

Christopher D. Manning, Prabhakar Raghavan, H. S.

(2009). An introduction to information retrieval.

Cambridge University Press.

Dam, K.-H.-T. and Touili, T. (2016). Automatic extraction

of malicious behaviors. In 11th International Con-

ference on Malicious and Unwanted Software 2016

(MALCON 2016), Fajardo, Puerto Rico.

Dimja

sevic, M., Atzeni, S., Ugrina, I., and Rakamaric, Z.

(2015). Android malware detection based on system

calls. University of Utah, Tech. Rep.

Jang, J.-w., Kang, H., Woo, J., Mohaisen, A., and Kim,

H. K. (2016). Andro-dumpsys: anti-malware sys-

tem based on the similarity of malware creator and

malware centric information. computers & security,

58:125–138.

Malik, S. and Khatter, K. (2016). System call analysis of

android malware families. Indian Journal of Science

and Technology, 9(21).

Masud, M. M., Khan, L., and Thuraisingham, B. (2008). A

scalable multi-level feature extraction technique to de-

tect malicious executables. Information Systems Fron-

tiers.

Robertson, S. and Zaragoza, H. (2009). The probabilistic

relevance framework: BM25 and beyond. Now Pub-

lishers Inc.

Robertson, S. E., Walker, S., Jones, S., Hancock-Beaulieu,

M. M., Gatford, M., et al. (1995). Okapi at trec-3.

NIST SPECIAL PUBLICATION SP.

Santos, I., Ugarte-Pedrero, X., Brezo, F., Bringas, P. G., and

omez-Hidalgo, J. M. (2013). Noa: An information

retrieval based malware detection system. Computing

and Informatics.

Sharma, A. and Dash, S. K. (2014). Mining api calls and

permissions for android malware detection. In Inter-

national Conference on Cryptology and Network Se-

curity, pages 191–205. Springer.

Singhal, A., Buckley, C., and Mitra, M. (1996). Pivoted

document length normalization. In Proceedings of the

19th annual international ACM SIGIR conference on

Research and development in information retrieval.

Singhal, A., Choi, J., Hindle, D., Lewis, D. D., and Pereira,

F. (1999). At&t at trec-7. NIST SPECIAL PUBLICA-

TION SP.

Singhal, A. and Kaszkiel, M. (2001). A case study in web

search using trec algorithms. In Proceedings of the

10th international conference on World Wide Web.

Song, F. and Touili, T. (2014). Model-checking for an-

droid malware detection. In Asian Symposium on Pro-

gramming Languages and Systems, pages 216–235.

Springer.

Talha, K. A., Alper, D. I., and Aydin, C. (2015). {APK}

auditor: Permission-based android malware detection

system. Digital Investigation, 13:1 – 14.

Tchakount

e, F. (2014). Permission-based malware detec-

tion mechanisms on android: Analysis and perspec-

tives. JOURNAL OF COMPUTER SCIENCE, 1(2).

Yao, J., Wang, J., Li, Z., Li, M., and Ma, W.-Y. (2006).

Ranking web news via homepage visual layout and

cross-site voting. In European Conference on Infor-

mation Retrieval.

Zhang, Y., Yang, M., Xu, B., Yang, Z., Gu, G., Ning, P.,

Wang, X. S., and Zang, B. (2013). Vetting undesirable

behaviors in android apps with permission use analy-

sis. In Proceedings of the 2013 ACM SIGSAC Confer-

ence on Computer & Communications Security,

CCS ’13, pages 611–622, New York, NY, USA. ACM.

Extracting Android Malicious Behaviors

723
