Semantic SLA for Clouds: Combining SLAC and OWL-Q

Kyriakos Kritikos

and Rafael Brundo Uriarte

ISL, ICS-FORTH, Heraklion, Greece

IMT School for Advanced Studies Lucca, Italy

Keywords:

SLA, Cloud Computing.

Abstract:

Several SLA languages have been proposed, some speciﬁcally for the cloud domain. However, after extensively

analysing the domain’s requirements considering the SLA lifecycle, we conclude that none of them covers the

necessary aspects for application in diverse real-world scenarios. In this paper, we propose SSLAC, where we

combine the capabilities of two prominent service speciﬁcation and SLA languages: OWL-Q and SLAC. These

languages have different scopes but complementary features. SLAC is domain speciﬁc with validation and

veriﬁcation capabilities. OWL-Q is a higher level language based on ontologies and well deﬁned semantics.

Their combination advances the state of the art in many perspectives. It enables the SLA’s semantic veriﬁcation

and inference and, at the same time, its constraint-based modelling and enforcement. It also provides a complete

formal approach for deﬁning non-functional terms and an enforcement framework covering real-world scenarios.

The advantages of SSLAC, in terms of expressiveness and features, are then shown in a use case modelled by it.

1 INTRODUCTION

The services provided in the cloud require formal guar-

antees in the form of an SLA for delivering a certain

service level. However, the large majority of providers

offer only a textual description of the SLA terms and

conditions, without any formal guarantee. This textual

approach has many drawbacks; for instance, it leads

to ambiguity and difﬁculties in automating the service

discovery and negotiation activities.

A Service Level Agreement (SLAs) is a formalised

contractual document representing the obligations and

rights for the signatory parties in the delivery of the

(cloud) service concerned. Several SLA languages

have been proposed, even tailored exclusively for the

cloud domain. However, after a comprehensive analy-

sis of domain requirements (see Section 2), we can con-

clude that none of them captures all possible aspects

required to support the SLA management lifecycle.

In light of this gap, this paper proposes SSLAC

(Semantic SLA for Clouds), which combines two of

the most prominent service speciﬁcation and SLA lan-

guages: OWL-Q (Kritikos and Plexousakis, 2006)

and SLAC (Uriarte et al., 2014). These languages

have complementary features and their combination

advances the state of the art from many perspectives.

It enables, in the same combined language, semantic

veriﬁcation and inferencing as well as constraint-based

SLA modelling and validation. Moreover, it provides a

complete formal approach for deﬁning non-functional

terms and modifying them on demand as well as an

enforcement framework for real-world scenarios.

To enable a practical implementation and ease of

use, we took as a base the deﬁnition of SLAC. Based

on its complementarity with OWL-Q, we ﬁrst anal-

ysed SLAC’s main gaps and extended it to cover some

of them. The rest of the gaps were ﬁlled in by cross-

referencing OWL-Q (term) speciﬁcations to cover the

needed expressiveness as well as possess the suitable

analysis power. The advantages of the result, a power-

ful SLA deﬁnition language and framework in terms of

expressiveness, features, and SLA lifecycle coverage,

are ﬁnally shown via its application on a real use case.

The rest of the paper is organised as follows. Sec-

tion 2 systematically analyses the related works and

unveils the shortcomings of the existing languages.

Section 3 describes the extensions on SLAC and its

combination with OWL-Q. Section 4 presents an use

case on which SSLAC and its framework have been

applied. Finally, Section 5 concludes the paper.

2 RELATED WORK AND

BACKGROUND

The various SLA languages proposed differ in level of

expressiveness, formality and compactness. To review

404

Kritikos, K. and Uriarte, R.

Semantic SLA for Clouds: Combining SLAC and OWL-Q.

DOI: 10.5220/0006299804320440

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 404-412

ISBN: 978-989-758-243-1

them, a synthesis of two frameworks was constructed:

(a) the framework in (Kritikos et al., 2013), which

was deﬁned according to the service lifecycle; and

(b) the one in (Uriarte et al., 2014), which deﬁnes a

complementary set of criteria and focus on description,

model validation capabilities and tool support. The

latter is discussed, while the details of the former can

be found in (Kritikos et al., 2013).

In the sequel, we describe the evaluation criteria

of our comparison, summarise the results in Table 1

and discuss these results. We analyse the following

SLA languages: WSLA (Keller and Ludwig, 2003),

WS-Agreement (Andrieux et al., 2007), WSOL (Tosic

et al., 2003), RBSLA (Paschke, 2005), Linked USDL

(LUA for short) (Pedrinaci et al., 2014), SLALOM

(Correia et al., 2011) and SLAC (Uriarte et al., 2014).

Description refers to (a) the formalism in SLA

description; (b) the coverage of both functional and

non-functional aspects; (c) the re-usability in terms of

SLA constructs to be used across different SLAs; (d)

the ability to express composite SLAs; (e) the cover-

age of the cloud domain (wrt. cloud service types); (f)

price model coverage (schemes & computation model);

(g) dynamicity (i.e., capability to move between ser-

vice levels (SLs) or modify SLOs based on certain

conditions or per request); (h) (model) validation capa-

bilities (i.e., capability to perform syntactic, semantic

and constraint validation of SLAs); and (i) editor sup-

port. For the cloud Coverage, the evaluation considers

whether the SLA language covers all cloud service

types and if it is generic enough (assessed as ’a’ denot-

ing this ability), and whether it can cover all or some

service types by providing respective cloud domain

terms (’y’ means all service types, ’p’ means some).

Non-coverage is denoted by ’n’.

Price model deﬁnes if a language: ‘n’: does

not support price models; ‘p’: covers only pricing

schemes; ‘y’: covers also the price computation model.

Dynamicity denotes: (a) ‘n’: if the language does not

cover this aspect; (b) ‘SLO’: if it covers it at the SLO

level; (c) ‘SL’: if it covers it at the SL level enabling to

transition from one SL to another or to modify a SL.

The language evaluation over its validation capabil-

ities can map to multiple values: (a) ‘n’: no validation

capabilities are offered; (b) ‘sy’: syntactic validation

is enabled; (c) ‘se’: semantic validation is enabled; (d)

‘c’: constraint-based validation is enabled.

A language can provide: ‘s’: a domain-speciﬁc Ed-

itor; ‘g’: a generic one; ‘n’: no editor. The Discovery

criterion includes: (a) metric deﬁnition, which refers

and also deﬁne quality metrics; (b) alternatives, which

speciﬁes alternative SLs; (c) soft constraints, which

uses soft-constraints to address over-constrained re-

quirements; (d) matchmaking metric, which supports

metrics explicating the speciﬁcation matching.

Negotiation. Meta-negotiation refers to the supply

of information to support negotiation establishment;

and negotiability to the ability to indicate in which way

quality terms are negotiable. For Monitoring, an SLA

language should deﬁne: (a) the metric provider respon-

sible for the monitoring and (b) the metric schedule

indicating how often the SLO metrics is measured.

Assessment deﬁnes: (a) the condition evaluator,

i.e., the party responsible for SLO assessment; (b)

qualifying conditions for SLOs; (c) the obliged party

to deliver an SLO; (d) the SLOassessment schedule;

(e) the validity period in which an SLO is guaranteed;

(g) recovery actions to remedy for SLO violations.

The Settlement with respect to particular situations

enables the deﬁnition of: (a) penalties; (b) rewards;

with the ability to specify the SLA’s validity period.

Management. Framework assesses whether an

open- or closed-source management framework has

been built on top of a SLA language. The respective

assessment values are: (a) ‘o’: open-source framework

exists; (b) ‘y’: framework exists but is not open-source;

Based on the evaluation results in Table 1, no SLA

language scores well in all criteria across all life-cycle

activities. By considering all criteria, we could nomi-

nate WSLA and LUA as the most prominent languages

but they still need to be substantially improved.

Concerning the description activity, SLAC (Uri-

arte et al., 2014) is the best, since it exhibits a good

composability and dynamicity levels. Pricing mod-

els are also partially covered, a domain-speciﬁc editor

is also offered and it is the sole language supporting

constraint-based SLA model validation.

As far as matchmaking and negotiation activities

are concerned, WS-A (Andrieux et al., 2007) seems to

be slightly better than the rest, especially with respect

to the second activity. However, matchmaking is not

actually well covered by any language. For monitoring

and assessment, LUA and WSLA seem to be the best

languages, with WSLA being slightly better on the as-

sessment part and the recovery action coverage. More

than half of the languages provide a SLA management

framework. Most of these are open-source, enabling

possible adopters to extend it according to their needs.

Based on the above analysis, no SLA language pre-

vails; so there is a need to either introduce yet another

SLA language or improve an existing one. In this

paper, we take the second direction and combine the

capabilities of the OWL-Q (Kritikos and Plexousakis,

2006) and SLAC (Uriarte et al., 2014) languages to

offer a language agglomeration that advances the state-

of-the-art. The last column in Table 1 depicts the

Semantic SLA for Clouds: Combining SLAC and OWL-Q

405

Table 1: Evaluation results of SLA languages.

Life-cycle

Criteria WSLA WS-A WSOL RBSLA LUA SLALOM SLAC SSLAC

Description

Formalism Informal Informal Informal RuleML Ontology UML CSP CSP

Ontologies Ontology

Coverage [p,y] [y,p] [p,p] [p,y] [y,y] [p,y] [p,p] [p,p]

Reusability yes yes yes yes yes yes yes yes

Composability no fair no no no no good good

Cloud Domain a a a a a y p p

Price Model n n n n y n p y

Dynamicity n n n SL n n SLO SLO

Validation sy sy sy sy,se sy,se sy sy,c sy,se,c

Editor g g g g s s s s

Discovery

Metric Deﬁnition yes no no yes no no no yes

Alternatives impl impl impl impl no no no yes*

Soft Constraints no yes no no no no no yes*

Matchmaking Metric no no no no no no no yes*

Negotiation

Meta-Negotiation poor fair poor poor no no no good*

Negotiability no part no no no no no yes*

Monitoring

Metric Provider yes no yes no yes no no yes

Metric Schedule yes no no yes yes no no yes

Assessment

Condition Evaluator yes no yes no yes no no yes

Qualifying Condition impl yes no no yes no yes yes

Obliged yes yes yes yes yes yes yes yes

Assessment Schedule yes no no no yes no no yes

Validity Period yes no no yes yes no yes yes

Recovery Actions yes no yes yes no no yes yes

Settlement

Penalties no SLO SL SL SLO SLO SLO SLO

Rewards no SLO no SL SLO no yes yes

Settlement Actions yes no no yes no no yes yes

Archive

Validity Period yes yes no no yes yes yes yes

Enforcement

Framework y o o n n n o o

respective agglomeration result. As it can be seen, this

agglomeration maps now to the best language covering

nearly all aspects. Only the description and negotia-

tion activities are yet not fully covered; full coverage

is considered as future work direction.

The SSLAC evaluation values with asterisk denote

individual OWL-Q features. Since the combination of

SLAC and OWL-Q covers all lifecycle activities, in

Section 3 we describe their actual combination.

2.1 Background

We now analyse the OWL-Q and SLAC languages to

set up the background necessary to understand how

their combination is realised in the next sections.

2.1.1 OWL-Q

OWL-Q is a prominent (Kritikos et al., 2013) semantic

non-functional service speciﬁcation language, care-

fully designed into various facets to cover all appro-

priate measurability aspects. It can specify 2 types of

speciﬁcations: (a) quality models deﬁning hierarchies

of non-functional terms, such as metrics and attributes,

along with their relationships; (b) non-functional ser-

vice proﬁles specifying service non-functional capa-

bilities as constraints over non-functional terms. This

paper focuses on the ﬁrst speciﬁcation type that en-

ables enriching the SLA language capabilities.

OWL-Q supports 2 model validation types: (a) syn-

tactic; (b) semantic based on OWL semantics and se-

mantic rules incorporated in OWL-Q. It is assorted by

algorithms supporting: (a) the semantic alignment of

non-functional speciﬁcations based on their terms; (b)

their matchmaking (Kritikos and Plexousakis, 2014);

OWL-Q comprises 6 facets: general, attribute, met-

ric, unit, value type, and speciﬁcation, each mapping

to a different measurability aspect. The general facet

includes generic concepts, properties and relations,

the attribute facet speciﬁes non-functional properties,

while the value type facet describes domains of value

for terms like metrics. The focus now is on the remain-

ing facets as they are related to this paper contribution.

The metric facet explicates how a non-functional

property can be measured via the conceptualisation of

a Metric. A metric can be mapped to a unit of measure-

ment and value type; it can be raw or composite. Raw

metrics (e.g., raw CPU utilisation) can be measured

by a sensor or a measurement directive over a service

instrumentation system. Composite metrics (e.g., av-

erage CPU utilisation) can be measured via formulas

that apply a mathematical or statistical function over

a set of arguments. An argument can be a metric, an

attribute, a service property or another formula. Met-

rics can be mapped to one or more metric contexts

explicating their measurement frequency and window.

The unit facet focuses on specifying units. Any

unit is associated to a quantity kind (e.g., speed) and

quantity (e.g., light speed). A unit can be single, di-

mensionless or derived. Derived units are produced

by dividing sets of other units (e.g., bytes per second).

Single units (e.g., second) can no longer be decom-

posed. A dimensionless unit (e.g., percentage) is a

single unit that does not map to a quantity kind.

The speciﬁcation facet models non-functional ser-

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

406

vice proﬁles. For this facet, we analyse 2 main con-

cepts of interest: (a) condition contexts and (b) price

models. Condition contexts are attached to simple con-

straints / conditions to denote their application context.

They mainly map to the object being measured (e.g.,

IaaS service, SaaS input parameter) and the measure-

ment context of the metric involved in the constraint.

PriceModels represent the computation procedure

to calculate a service’s price. They also set hard con-

straints over the price’s low and upper limits and its

monetary unit (e.g., euros). Price models can be split

into one or more PriceComponents which explicate

the way the service pricing can be computed based

on certain aspect (e.g., IaaS or network utilisation).

The overall service price equals the sum of the prices

that can be computed from these components. A price

component can also specify aspect-speciﬁc low and

upper bounds over service price and is associated to a

formula mapping to the price computation procedure.

2.1.2 SLAC

SLAC is a SLA language for cloud services, which

focuses on: (i) formal aspects of SLAs; (ii) supporting

multi-party agreements; (iii) ease-of-use; (iv) proactive

management of cloud SLAs.

Its main differences with existing SLA languages

are: it is domain speciﬁc; its semantics are formally

deﬁned to avoid ambiguity; it supports the main cloud

deployment models; it enables specifying multi-party

agreements. SLAC also comes with an open-source

software framework

enabling cloud SLA speciﬁca-

tion, evaluation and enforcement. A novel mecha-

nism over SLAC to cope with the cloud dynamism

(Uriarte et al., 2016) has been proposed. Intuitively,

the SLAC’s formal semantics associates a set of con-

straints to each language term, which are evaluated, at

design-time, to identify inconsistencies in the speciﬁ-

cation and, at run-time, to verify the compliance with

monitoring data collected from the cloud system.

An SLA comprises a unique identiﬁer and at least

two involved parties. The agreement’s terms express

the features of the service together with their expected

values. Each SLA requires deﬁning at least one term,

either a Metric or a Group of terms (which enables

term re-use in different contexts). For each term, the

party responsible to fulﬁl it is deﬁned along with the

contractors of the respective service. SLAC supports

different metric types, e.g., numeric, constrained by

open or closed value Intervals and a certain Unit. Fi-

nally, Guarantees specify the commitment to ensure

the agreement terms and, in case of a term violation or

other events, explicate the actions to be taken.

http://rafaeluriarte.com/slac/

3 COMBINING OWL-Q AND

SLAC

Section 2.1 highlighted OWL-Q and SLAC comple-

mentarity. OWL-Q can enable the semantic descrip-

tion of any kind of non-functional term, even those

not covered by SLAC. As such we aim at combining

these two languages together to produce a combination

advancing the state-of-the-art (see Section 2).

This combination resolves the main SLAC draw-

backs, shown in the 2nd last column of Table 1, to

reach the combination’s evaluation results, shown in

the table’s last column. These drawbacks are sum-

marised as follows: (a) a higher formality degree is

missing; (b) new metrics cannot be deﬁned and only a

ﬁxed metric set, mainly on the IaaS level, is available;

unit set; (d) metric and condition context information

is missing; (e) the metric measurement provider and

condition evaluator are not speciﬁed; (f) pricing com-

putation models cannot be expressed; (g) matchmaking

metrics do not accompany the SLA speciﬁcation to

guide the SLA matchmaking & negotiation activities.

To realise this combination, two main approaches

were followed: (a) for some information aspects not

covered by SLAC, an extension was created to ac-

commodate them; (b) missing gaps are covered by

cross-referencing OWL-Q speciﬁcations which cover

the description of metrics, units, metric & condition

contexts, and pricing models.

We mainly extended SLAC syntax, see Table 2, to

support specifying information related to matchmak-

ing and negotiation activities. This modiﬁcation led to

differentiating between the syntax of a template for ne-

gotiation and of an agreement. This extension provides

ﬂexibility to negotiation and enables specifying prefer-

ence relations and negotiable terms, while facilitates

matchmaking via negotiable metric intervals.

The syntax is formally deﬁned in the Extended

Backus Naur Form (EBNF), in which italic denotes

non-terminal symbols and teletype terminal ones. The

symbol

::=

is used when a new rule is added to the

SLAC syntax, while

+ =

is used to extend an existing

syntactic core language rule, i.e., the extensions are

added into the existing language deﬁnition. The /=

speciﬁes a special case of core language rule extension

which can be used only in template speciﬁcation.

Templates are extended SLA speciﬁcations also

including general aspects of Negotiation between the

involved parties, described in a certain section. This

section deﬁnes the negotiation’s Strategy and Protocol.

The supported strategies are: Vertical (user budget is

used to enhance the quality for the term with highest

priority), and Horizontal (user budget is exploited to in-

Semantic SLA for Clouds: Combining SLAC and OWL-Q

407

Table 2: Modiﬁcation on the syntax of SLAC to make it

compatible with OWL-Q.

SLATemplate ::= SLA Negotiation

Negotiation ::= Strategy Protocol

Strategy ::= Vertical | Horizontal

Protocol ::= Auction | SingleTextMediated

| Bilateral Negotiation

TermTemplate /= Term Weight∗

Weight ::= Literal

SLA += . . . ContractDates

ContractDates += (EffectiveDate ExpirationDate)

Term += (monitoring frequency Expr

Unit window Expr Unit by Parties)

Metric += . . . | OWLQ

URI

Unit += . . . | OWLQ URI

crease overall quality proportionally to the user prefer-

ences given). The protocol can be: Auction, where con-

sumers bid for resources; SingleTextMediated where a

single document is used to mediate between conﬂict-

ing participant preferences; and Bilateral Negotiation,

where the SLA is deﬁned by a bilateral negotiation.

The

Terms

deﬁnition in templates is also extended.

The

TermTemplate

enables specifying

Term

s deﬁned

in the core language with a

Weight

representing their

relative importance for the respective negotiation party.

This weight is optional and used to build a preference

model, exploited also for relaxed service matchmaking.

It is deﬁned in the scale of 10, i.e., the sum of all

term weights must be 10. For non-weighted terms,

the weight assumes the value necessary to reach 10.

More formally, Equation 1 deﬁnes the weight of all

non-weighted terms (

), where

and

are the

set of weighted and non-weighted terms, respectively.

10 −

∑

∈T

(1)

The general language modiﬁcations (denoted with

+ =

) cover missing SLAC information and make the

languages composable. In particular, the agreement va-

lidity period (speciﬁed via the effective and expiration

dates) can now be deﬁned. Moreover, the monitoring

frequency, window and agent that monitors a respec-

tive term can be speciﬁed. SLAC now cross-references

Metric

s and

Unit

s to their respective speciﬁcation in

OWL-Q via an

OW LQ URI

to resolve the ﬁxed term

list drawback. This powerful mechanism enables to

provide a formalism for these terms and exploit inter-

esting OWL-Q features in SLAC, such as semantic

veriﬁcation and metric equivalence derivation.

3.1 Lifecycle Activity Coverage

Apart from the improved modelling features of SS-

LAC, we now describe its main beneﬁts over the whole

service lifecycle. These beneﬁts come from employ-

ing a speciﬁc method which explicates where in the

lifecycle each language is used individually and where

in the combined form. Figure 1 reﬂects this method by

depicting the lifecycle and the way it is covered by the

combined framework of the language agglomeration.

The combined framework comprises 2 sub-

frameworks. Initially, a SSLAC template is speciﬁed

via the SLAC editor, then parsed and converted to

OWL-Q to cover the service description activity. The

latter OWL-Q speciﬁcation is then exploited by the

ﬁrst sub-framework, the OWL-Q one, to support the

service advertisement, matchmaking and negotiation

activities. As such, OWL-Q is exploited until that life-

cycle point, a well expected fact from the analysis in

(Kritikos et al., 2013) regarding the service lifecycle

coverage of service quality speciﬁcation languages.

The negotiation result, i.e., the agreement, is then

converted to its SSLAC form to preserve the semantics

of the OWL-Q speciﬁcation and incorporate the cross-

references needed. From that point and on, the SLA

enforcement sub-framework built around SLAC can

be used as the produced SSLAC speciﬁcation includes

all the information needed to support the remaining

activities. This framework is currently extended to

support the monitoring and evaluation of dynamically

deﬁned metrics. It is also integrated with the OWL-Q

one to support the semantic validation and processing

of the SLA parts that cross-reference OWL-Q.

The bidirectional SSLAC-to-OWL-Q transformer

is the main connection point between the 2 sub-

frameworks exploited. It guarantees the consistency

of models produced from one language to the other.

By combining both sub-frameworks and languages,

the end result is a complete and powerful SLA man-

agement framework which apart from language com-

pleteness, supports the whole service lifecycle with

Advertisement Discovery Negotiation Monitoring Adaptation

Parser

Aligner

Term

Matcher

Discovery

Engine

Negotiation

Engine

CP Engine

Semantic

OWL-Q Framework

Monitoring

Parser

Guarantee

Evaluator

SLA Parser

Consistency

Checker

Constraints

Composer

SLAC Framework

Bidirectional

OWL-Q To

SLAC

Transformer

Description

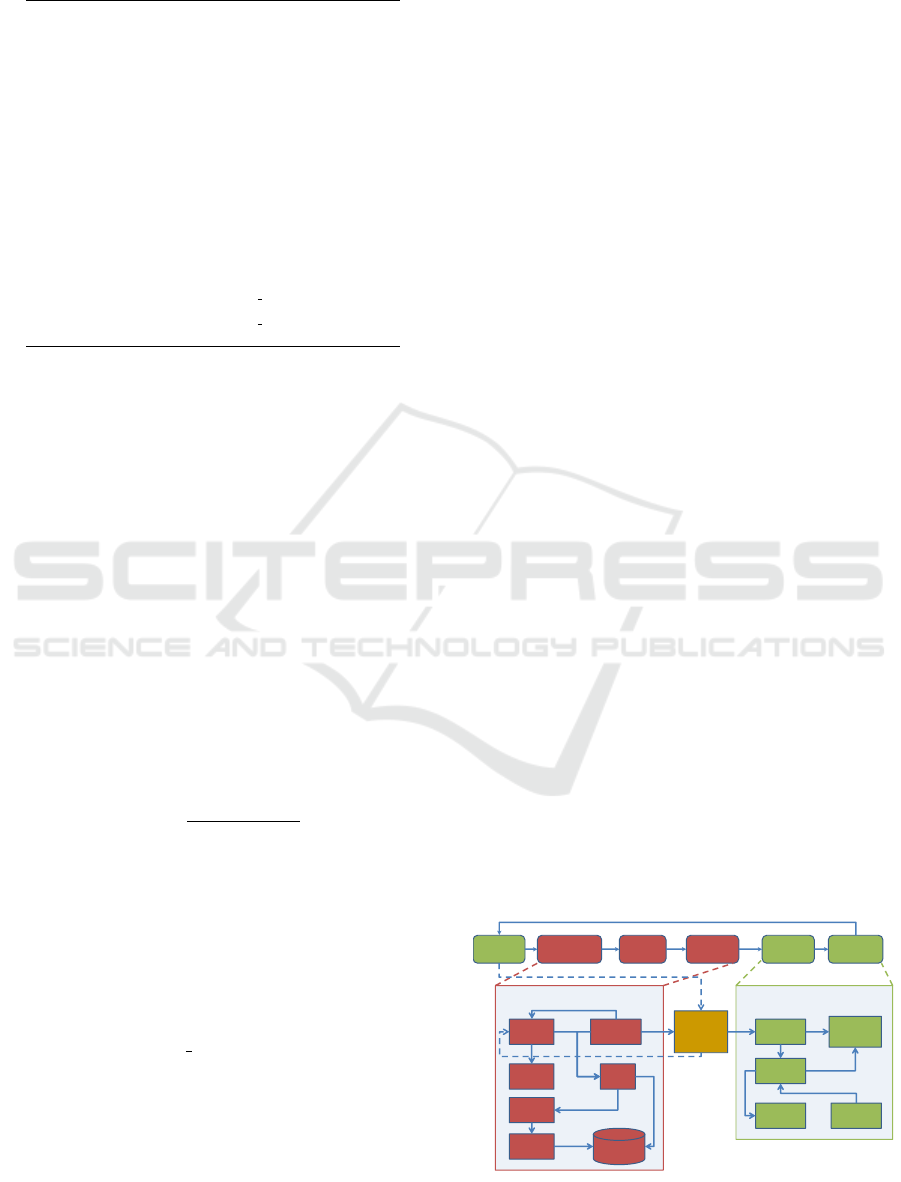

Figure 1: Architecture of integrated SLA frameworks.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

408

specialised capabilities spanning: (a) all model vali-

dation types where semantic validation concerns val-

idating elements cross-referenced in OWL-Q, while

constraint-based validation caters for checking com-

plex metric conditions; (b) semantic matchmaking and

alignment over non-functional terms is supported by

the OWL-Q framework (see Section 2.1); (c) SLA en-

forcement able to handle dynamically speciﬁed parts

and the transitioning between service levels. Please

note that support for negotiation is under-way.

4 USE CASE MODELLING WITH

SSLAC

A hospital provides diagnostics based on Magnetic

Resonance Imaging (MRI). Instead of having a data-

center, which could lead to high costs and loss of focus

on core business, the hospital decides to outsource it to

a cloud provider, which uses machine learning for MRI

analysis and veriﬁcations of the connection between

the brain regions and their functions.

This relatively common use case is not fully sup-

ported by the existing SLA languages. For example,

the ﬂexibility required to change the valid SLA terms

is only partially supported via renegotiation, which

does not guarantee the possibility to change the terms

when required. Moreover, the capability to deﬁne

new metrics and their context (e.g., measurement fre-

quency) as well as the involved parties in each term

is also only partially supported. In this section, we

demonstrate the SSLAC advantages over the above

issues via describing its application in this use case.

4.1 Modelling Consumer Requirements

The hospital poses requirements on three metrics: re-

sponse time, i.e., the time needed to produce the MRI

diagnostics, the availability of the service and maxi-

mum number of requests per hour. The provider must

also offer the ﬂexibility to change the SLA terms based

on the consumer needs in a pre-deﬁned manner to cater

for different classes of consumers. The hospital man-

agers deﬁne 3 main situations: normal, where at least

6 MRIs/requests can be sent for diagnosis/hour with

response time from 6 to 10 minutes; advanced, where

from 9 to 14 MRIs can be sent per hour with guaran-

teed response time of 4 to 7 minutes; and emergency

with signiﬁcantly reduced response time (at most 2

minutes) and at least 12 MRIs per hour. Availability

should be greater or equal to 98% in all cases.

The service charging should be hourly based; upon

consumer request, the service can change state (map-

ping to the above 3 situations) for the next 1 hour. For

example, the service is in normal state and a doctor has

an urgent case. The doctor will then request to change

the service level to emergency such that all MRIs sent

in the next hour will be diagnosed within 2 minutes.

Based on the expected pricing scheme of hour-based

charging, the hospital can only pay at most 1.2 euros

per hour in the normal class; at most 2.4 euros in the

advanced; and at most 4.2 euros in the emergency.

As the managers desire to negotiate the service

terms with potential conforming service providers,

they deﬁne requirements and priorities over all 3 terms,

which are negotiable based on an horizontal negotia-

tion strategy. The priorities are: 5 for availability and

price; 2.5 for response time and request rate.

In SSLAC, each service class is modelled as a

group, whose terms are valid only in that context. The

service level changes are speciﬁed in the Dynamic sec-

tion of the SLA and can be applied under consumer

request. The priorities and negotiable terms are speci-

ﬁed via the extension proposed in this paper, which is

compatible with OWL-Q. This compatibility enables

using several matchmaking algorithms proposed for

this language (Kritikos and Plexousakis, 2014).

The hospital sends a template to a broker that ranks

providers compatible with the request. Before match-

making, the SLA consistency from different perspec-

tives (syntactic, semantic and constraints), now avail-

able in SSLAC, is veriﬁed. The following examples of

consistency error types can be detected: constraint: a

deﬁnition of the same term in a Group and in the Term

section would lead to a constraint error (2 constraints

refer to the same term at the same level); semantic:

metrics are subclassed via reasoning based on axioms.

As such, it could be discovered that a metric is both

raw and composite as it is associated to both a sensor

and a metric formula. As these two subclasses are

disjoint, a semantic error will be raised.

4.2 Offer, Negotiation and Final

Agreement

3 functionally-equivalent services match the request

(see Table 3). They include the same service levels and

charging scheme and enable moving from one level to

another when needed. From these 3 providers, only

the ﬁrst 2 non-functionally match the request, since

the 3rd violates the 2 minutes response time constraint

for the critical level. While almost all providers and

hospital managers adopt the same metrics set from an

OWL-Q ontology, the second provider uses her own

metrics for availability and response time which are

equivalent to the others. The latter is derived after

aligning all non-functional speciﬁcations together.

Concerning the alignment, there is a perfect match

Semantic SLA for Clouds: Combining SLAC and OWL-Q

409

CompositeMetric:RT_AVG

CompositeMetric:AV_AVG

RawMetric:RT_Raw

Formula:F1

Function:AVG

-accessModel = PULL

-accessURI = http://198.51.100.2:2031/getMetric?metric=RAW_RT

Sensor:RTSensor

ArgumentList:AL1

-scheduleType = FIXED_RATE

-interval = 30

Schedule:SchRT

-timeSize = 30

-windowType = FIXED

-windowSizeType = TIME_ONLY

Window:WRT

sensor

contents

argumentList

formula

MetricContext:Cxt_AVG_RT

metricContext

window

schedule

function

RawMetric:AV_Raw

RawMetric:Uptime

-accessModel = PULL

-accessURI = http://198.51.100.2:2031/getMetric?metric=UPTIME

Sensor:UptimeSensor

sensor

MetricContext:Cxt_RAW_Uptm

metricContext

-scheduleType = FIXED_RATE

-interval = 10

Schedule:SchUp

Dimensionless:Percentage

schedule

Function:DIV ArgumentList:AL2

-value = 60

IntValue:Sixty

Formula:F2

MetricContext:Cxt_RAW_AV

-scheduleType = FIXED_RATE

-interval = 10

Schedule:SchRAV

-timeSize = 10

-windowType = FIXED

-windowSizeType = TIME_ONLY

Window:WRV

Formula:F3

ArgumentList:AL2

MetricContext:Cxt_AVG_AV

-scheduleType = FIXED_RATE

-interval = 1440

Schedule:SchRAV

-timeSize = 1440

-windowType = FIXED

-windowSizeType = TIME_ONLY

Window:WAV

SingleUnit:SEC

SingleUnit:MIN

unit

argumentList

function

formula

contents

metricContext

schedule

window

schedule

metricContext

formula

argumentList

contents

Figure 2: OWL-Q speciﬁcation for the use case metrics.

Table 3: Service offerings of three cloud providers.

Provider Level RT AV RR Price

M-Images Nor. [6,8] [99,99.4] [7,9] [1.0,1.2]

M-Images Adv. [4-6] [99,99.6] [10,12] [2.4,2.8]

M-Images Em. [1-3] [99.5,99.9] [13,15] [3.9,4.2]

H-Analysis Nor. [7,9] [98.5,99] [6,8] [0.8,1.0]

H-Analysis Adv. [4-7] [99,99.4] [9,11] [2.0,2.4]

H-Analysis Em. [2-3] [99.4,99.7] [12,14] [3.5,3.9]

MedImage Nor. [8,9] [98,98.5] [6,7] [0.5,0.8]

MedImage Adv. [6-7] [98,98.5] [9,10] [2.0,2.3]

MedImage Em. [3-5] [98,98.5] [12,14] [3.1,3.5]

between the response time metrics by considering that

for the 2nd provider, response time is computed via

a formula which subtracts the times that the service

response is received and request sent, while for the

other providers, it is computed from a sensor. Based on

the metric matching cases in the alignment algorithm

(Kritikos and Plexousakis, 2014), when two metrics

measure the same property and differ in one level,

they can be considered equivalent (unless in our case a

statistical function was used in the composite metric).

The availability metrics perfectly match on the

higher level as they use the same statistical function

and measure the same property. However, they are

computed from different component metrics. The raw

availability metric for the 2nd provider is computed by

formula:

uptime

downtime+uptime

while the same metric for the

other providers is computed by:

1 −

downtime

uptime+downtime

By taking the difference between these formulas and

performing symbolic mathematical simpliﬁcation, this

difference is inferred as 0 such that we can conclude

the raw availability metrics equivalence and the conse-

quent composite availability metrics equivalence.

While explicating the matchmaking result, the

main issue that the hospital managers face is which

providers from those matched should be contacted to

start negotiation, where 3 alternative cases hold in our

scenario: (a) the 2 results are ranked and negotiation

takes place only with the topmost result’s provider;

(b) both providers participate in the same negotiation;

ported and preferred negotiation protocols. The hospi-

tal managers follow the third case and negotiate with

the 2nd provider, as it matches the required negotiation

protocol (single-text mediated protocol), by exploiting

the respective broker service which exploits the already

possessed knowledge about the hospital’s negotiation

preferences and strategy from its SLA template.

The 2nd provider also adopts a horizontal nego-

tiation strategy. She also requires that all terms are

negotiable. The preferences lead to price having the

highest weight of 5, followed by availability with 3,

and request rate and response time with a weight of 2.

By considering the preferences from both parties,

a successful negotiation result is produced.The fol-

lowing facts can be derived: (a) for the normal and

emergency levels, the maximum price provided, as it

was lower than the maximum bound requested, was

used to select the best possible values for each metric;

(b) for the advanced level, the middle value for price

was selected which also led to obtaining middle values

for the rest of the metrics.

In the ﬁnal agreement, it is speciﬁed that quality

metrics are assessed and measured by an auditor. In

particular, the response time should be reported by the

customer and assessed by the auditor, while availability

measurement and assessment bares only the auditor.

For an availability violation, the provider must of-

fer 10% discount, while a 5% discount must be given

for each response time violation. The discounts sum

up to 60% of the spending. Availability is averaged

over 24 hours, where raw availability is calculated ev-

ery 10 minutes based on uptime computed every 10

seconds. Response time is averaged over 30 minutes

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

410

Table 4: Final agreement of the use case in SSLAC (excerpt).

SLA, term groups:

Normal:

Provider → consumer:RT 7 minutes monitoring

frequency 10 min window 24 hours by Auditor

Provider → consumer:sslac/Throughput 8 #

Provider → consumer:Availability 99 %

Consumer → provider:cost 1 hour

Advanced: . . .

terms:

[1,1] of Normal

guarantees:

on violation of availability:

if total discount < 60

discount +10 % of total cost win month

dynamism:

on consumer request:

if week violations > 3

terminate contract . . .

from the raw response time values reported by the cus-

tomer. If availability is violated more than 3 days or

response time more than 12 times in a week, the con-

sumer may end the contract without any penalty, by

paying only the amount due to the number of requests

issued within the current period till that time point.

Table 4 shows an excerpt of the ﬁnal agreement.

The service is deﬁned in the term groups, including

their monitoring frequency and window, and instan-

tiated in the terms section (initially in Normal class).

The guarantees section describes the violation and

penalty for the deﬁned terms, in form of discount

over total cost within a month. Finally, the dynamism

section speciﬁes the aforementioned settlement cases,

where the consumer has the right to terminate the

agreement unilaterally, and the possible changes in

the quality of service (omitted for the sake of brevity).

5 CONCLUSIONS

This paper has proposed SSLAC to ﬁll the gaps in

the current SLA languages in the cloud. SSLAC is

a combination of OWL-Q, a prominent service non-

functional speciﬁcation language, and SLAC, a promi-

nent domain-speciﬁc SLA language. The complemen-

tarity of these languages and the language integration

mechanism have led to a combination that covers most

SLA lifecycle aspects and enables the SLA syntactic,

semantic and constraint veriﬁcation and validation.

To realise this combination, we ﬁrst extended

SLAC to become compatible with OWL-Q. Then, we

described the integration of the frameworks developed

for these languages, including the bi-direction SLA

transformation, to cover the whole SLA lifecycle. The

beneﬁts of SSLAC and its framework were demon-

strated by applying it over a real use case.

Concerning future work, we plan to further en-

hance SSLAC so as to score optimally across all SLA

lifecycle activities. Moreover, we will thorough evalu-

ate SSLAC against a series of use cases. Finally, we

will explore additional language and integrated frame-

work extensions to further support service negotiation.

ACKNOWLEDGEMENTS

This research has received funding from the European

Community’s Framework Programme for Research

and Innovation HORIZON 2020 (ICT-07-2014) under

grant agreement number 644690 (CloudSocket).

REFERENCES

Andrieux, A., Czajkowski, K., Dan, A., Keahey, K., Ludwig,

H., Nakata, T., Pruyne, J., Rofrano, J., Tuecke, S., and

Xu, M. (2007). Web Services Agreement Speciﬁcation

(WS-Agreement). Technical report, Open Grid Forum.

Comuzzi, M., Kritikos, K., and Plebani, P. (2009). A se-

mantic based framework for supporting negotiation in

Service Oriented Architectures. In CEC. IEEE Com-

puter Society.

Correia, A., e Abreu, F. B., and Amaral, V. (2011).

SLALOM: a language for SLA speciﬁcation and moni-

toring. CoRR, abs/1109.6740.

Keller, A. and Ludwig, H. (2003). The WSLA Framework:

Specifying and Monitoring Service Level Agreements

for Web Services. Journal of Network and Systems

Management, 11(1):57–81.

Kritikos, K., Pernici, B., Plebani, P., Cappiello, C., Comuzzi,

M., Benbernou, S., Brandic, I., Kert

esz, A., Parkin,

M., and Carro, M. (2013). A survey on service quality

description. ACM Comput. Surv., 46(1):1.

Kritikos, K. and Plexousakis, D. (2006). Semantic QoS

Metric Matching. In ECOWS, pages 265–274. IEEE

Computer Society.

Kritikos, K. and Plexousakis, D. (2014). Novel optimal

and scalable nonfunctional service matchmaking tech-

niques. IEEE Trans. Services Computing, 7(4):614–

627.

Paschke, A. (2005). RBSLA: A declarative rule-based Ser-

vice Level Agreement Language based on RuleML.

In CIMCA-IAWTIC, pages 308–314. IEEE Computer

Society.

Pedrinaci, C., Cardoso, J., and Leidig, T. (2014). Linked

USDL: A vocabulary for web-scale service trading. In

ESWC, pages 68–82.

Tosic, V., Pagurek, B., and Patel, K. (2003). WSOL - A

Language for the Formal Speciﬁcation of Classes of

Service for Web Services. In ICWS, pages 375–381,

Las Vegas, Nevada, USA. CSREA Press.

Semantic SLA for Clouds: Combining SLAC and OWL-Q

411

Uriarte, R. B., Tiezzi, F., and De Nicola, R. (2014). SLAC: A

Formal Service-Level-Agreement Language for Cloud

Computing. In UCC, pages 419–426. IEEE.

Uriarte, R. B., Tiezzi, F., and De Nicola, R. (2016). Dynamic

SLAs for Clouds, pages 34–49. Springer International

Publishing, Cham.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

412
