The GRADE Decision Canvas for Classiﬁcation and Reﬂection on

Architecture Decisions

Eﬁ Papatheocharous

, Kai Petersen

, Jakob Axelsson

, Claes Wohlin

, Jan Carlson

Federico Ciccozzi

, S

everine Sentilles

and Antonio Cicchetti

Swedish Institute of Computer Science, Kista, Stockholm, Sweden

Blekinge Institute of Technology, Karlskrona, Sweden

alardalen University, V

aster

as, Sweden

Keywords:

Software Engineering, Architecture Knowledge, Decision Documentation, Decision Canvas, Decision

Template.

Abstract:

This paper introduces a decision canvas for capturing architecture decisions in software and systems engineer-

ing. The canvas leverages a dedicated taxonomy, denoted GRADE, meant for establishing the basics of the

vocabulary for assessing and choosing architectural assets in the development of software-intensive systems.

The canvas serves as a template for practitioners to discuss and document architecture decisions, i.e., capture,

understand and communicate decisions among decision-makers and to others. It also serves as a way to re-

ﬂect on past decision-making activities devoted to both tentative and concluding decisions in the development

of software-intensive systems. The canvas has been assessed by means of preliminary internal and external

evaluations with four scenarios. The results are promising as the canvas fulﬁlls its intended objectives while

satisfying most of the needs of the subjects participating in the evaluation.

1 INTRODUCTION

The growing complexity and size of modern software-

intensive systems have put architectural design de-

cisions at the forefront of the concerns of software

and system engineers. Many intricate factors need to

be considered in decision-making, such as continuous

deliveries and qualitative large-scale complex systems

to be developed with ﬂexible architectures for future

adaptations and maintenance. An important factor

which allows the efﬁcient adaptation and evolution

of architectures is enabling access to information and

resources to make appropriate decisions in a timely

manner.

Towards achieving this, a decision canvas tem-

plate has been developed within the ORION research

project (http://orion-research.se/). The canvas can be

used for carrying out meaningful discussion among

decision-makers and gives support in the process of

decision-making by introducing the most important

elements to document and describe a decision. The

canvas is also making use of a dedicated decision tax-

onomy (denoted GRADE taxonomy and introduced

in (Papatheocharous et al., 2015)).

In particular, the proposed decision canvas al-

lows software and system engineers to express deci-

sion scenarios in a unique illustrative and structured

manner, by using a template, which takes into ac-

count relevant properties and contextual elements re-

garding a decision. These characteristics comprise

of for example relevant decision requirements, ben-

eﬁts, constraints and contextual information which

once deﬁned, are useful to position decisions in rela-

tion to other decisions made in the complex software-

intensive systems landscape. Once the related ele-

ments to a decision are captured, they can be easily

accessed to classify decisions and serve as facilitators

for decision discussions.

This paper presents the GRADE decision canvas

template, a development motivated by the observa-

tion that architectural decision-making is often con-

ceived as a complex problem with no tangible for-

mulation (Van Vliet and Tang, 2016). Decision prob-

lems and their solutions are difﬁcult to describe, ac-

cess and reuse. Making better decisions heavily de-

pends on the ability to capture, understand and com-

municate the information involving the decisions to

the decision-makers and other respective stakeholder

roles. Yet many decisions lack this support, caus-

Papatheocharous, E., Petersen, K., Axelsson, J., Wohlin, C., Carlson, J., Ciccozzi, F., Sentilles, S. and Cicchetti, A.

The GRADE Decision Canvas for Classiﬁcation and Reﬂection on Architecture Decisions.

DOI: 10.5220/0006301301870194

In Proceedings of the 12th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2017), pages 187-194

ISBN: 978-989-758-250-9

187

ing inability to reﬂect on past decision-making activi-

ties for future circumstances of architectural knowl-

edge/decision reuse. Given the importance of this

topic and its consequences on the selection of tech-

nological solutions for the development of software-

intensive systems (e.g., software services, compo-

nents, platforms and systems), the lack of support for

capturing, understanding and communicating infor-

mation and the rationale behind decisions is surpris-

ing, even though the complexity and fuzziness of the

topic of architecture decisions for modern software-

intensive systems makes it understandable.

The GRADE decision canvas pursues two objec-

tives: (1) to serve as a common vocabulary and basis

for practitioners to capture, discuss, understand and

communicate decisions, and (2) to serve as a way to

reﬂect on past decision-making activities for tenta-

tive and concluding decisions in the development of

software-intensive systems. In this respect, this work

presents the decision canvas in detail and also exem-

pliﬁes its usage through a set of preliminary evalu-

ation activities. It discusses how the template can be

used to document decision scenarios by means of con-

crete cases, used as evaluation opportunities, and also

provide a basis for carrying out discussions among

decision-makers.

The remainder of the paper is organized as fol-

lows: Section 2 discusses existing work related to this

contribution, while Section 3 presents the GRADE

decision canvas. Section 4 describes the evaluation

conducted for the canvas. Section 5 concludes the pa-

per and presents future investigation directions.

2 RELATED WORK

A lot of the information involved in architecture

decision-making is sensitive and relatively hard to

access. Decision knowledge regarding current or

past cases of architectural design is of primal im-

portance to improve decision-making, or at least to

avoid falling into the same pitfalls as in the past.

Such knowledge about architectural decisions gets of-

ten lost among practitioners’ meeting minutes, oral

conversations, white boards, reports and note books,

and is not easily accessible to others (researchers, aca-

demics or practitioners).

Several efforts have been focused on the deﬁni-

tion of structures to support capturing of architectural

knowledge. For example, in (Tyree and Akerman,

2005) decision templates are presented in the form

of tables to capture the design rationale and context.

In (Van Heesch et al., 2012a) decision views based

on the conventions of ISO/IEC/IEEE 42010 are de-

scribed to support documentation. In (Van Heesch

et al., 2012b) the system context of decisions is de-

ﬁned by a set of forces affecting the problem, i.e., any

aspect of the problem considered when solving it. In

(Manteuffel et al., 2016) the implementation of a tool

for documenting decisions is presented. The authors

show that it increases quality of decision documen-

tation and productivity, while it is considered highly

useful to software architects. In the above works the

issues of usefulness, perceived ease of use and doc-

umentation effort are raised as primary concerns. As

such, they lack appropriate visualization support and

a common vocabulary as basis. This lack causes in-

ability to communicate and understand decisions as

well as to reﬂect and discuss on past decision-making

over time.

Understanding and documenting decisions within

the area of architectural design of software-intensive

systems is a great challenge. This is due to the fact

that the fundamental concepts related and affecting

the decision process are inherently complex and dif-

ﬁcult to capture, document and maintain. Some of

these concepts include for example information about

what the decision is about, who is participating in the

decision, what the considered alternatives are, and the

decision rationale. These concepts and speciﬁcally:

Goals, Roles, Assets, Decision, and Environment are

the fundamental concepts included in a decision sup-

port taxonomy, denoted GRADE, coined previously

in (Papatheocharous et al., 2015). The GRADE deci-

sion canvas proposed in this paper, makes use of this

taxonomy to support architecture knowledge capture.

In (Tang et al., 2008) the authors showed that

architecture design quality improves when design-

ers are equipped with knowledge on design reason-

ing. A repository to serve knowledge extraction and

evidence-based support for future decision support is

therefore needed. In order to construct the knowl-

edge repository, continuous, reliable, transparent and

practical data collection needs to be established. The

GRADE decision canvas, presented in the next sec-

tion, aims to support exactly this purpose.

3 GRADE DECISION CANVAS

The GRADE decision canvas has been created using

design science (Peffers et al., 2007), in which con-

crete artefacts are created and evaluated in an itera-

tive way. Speciﬁcally, we conducted two evaluation

rounds one internal and one external. The GRADE

decision canvas, shown in Figure 1 is used to provide

a useful architectural data collection and communica-

tion mechanism, as well as to carry out discussions

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

188

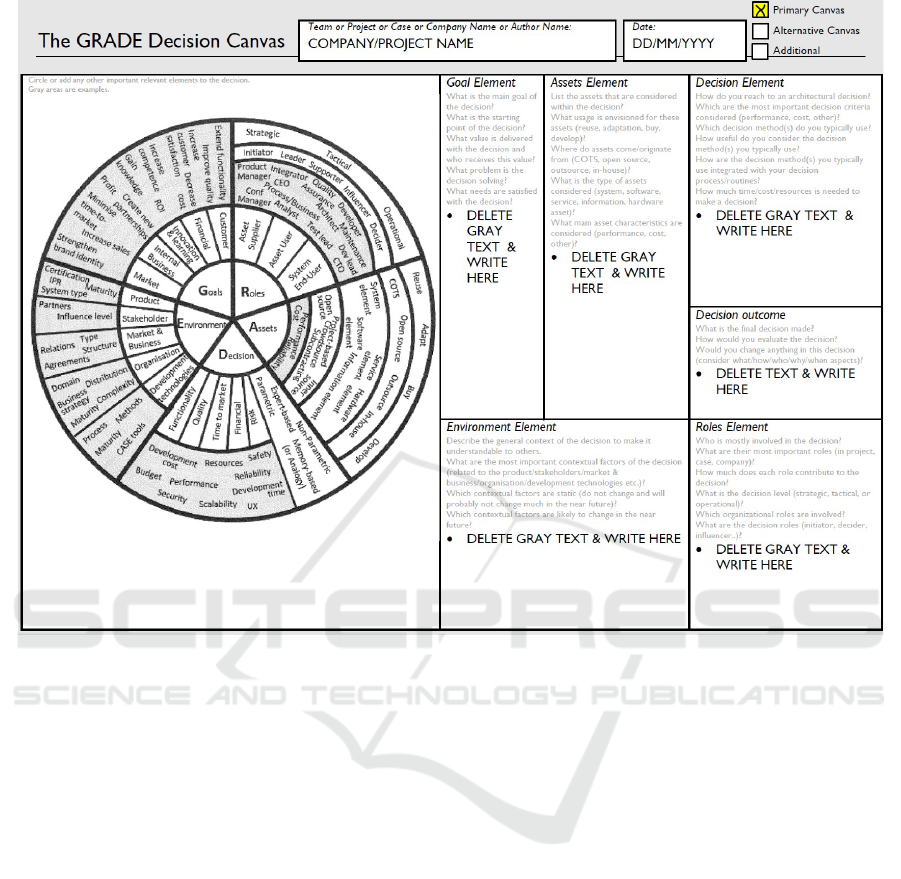

Figure 1: GRADE decision canvas template.

around the decision.

On the top of the template, meta-information

about the decision is speciﬁed: team or project or case

or company name involved in the decision, date and

whether the canvas is the primary one, an alternative

canvas or additional to other canvases.

In the main part of the canvas the left-hand side

depicts the GRADE taxonomy overview diagram,

which illustrates the high level categories used to de-

scribe decisions, along with lists of examples (shown

in gray). These categories are deﬁned in detail in (Pa-

patheocharous et al., 2015), and consist of the follow-

ing:

• Goals (G): describes the main goal of the de-

cision as a value which contributes to one or

more perspectives, such as customer-perspective,

ﬁnancial-perspective, innovation & learning per-

spectives, internal business-perspective, and

market-perspective.

• Roles (R): describes the stakeholders of a de-

cision. They are described based on literature

studies in decision-making, i.e., (Tan and Sheps,

1998), (Herrmann et al., 2004) and (Morisset

et al., 2014).

• Assets (A): describes the different alternatives or

options of considered assets.

• Decision (D) methods and criteria: describes the

way to reach to a decision and the criteria (or

properties) used.

• Environment (E): describes the context of the de-

cision one needs to know to understand the deci-

sion case.

Each of these categories is illustrated as a slice in the

GRADE taxonomy overview diagram (left-hand side

of Figure 1). They can be used as a checklist to cap-

ture the important elements in architectural decision-

making in software and systems engineering.

On the right-hand side of the canvas, the following

questions are listed for each GRADE decision canvas

category to capture their most important aspects:

• Goal (G) Element: What is the main goal of the

decision? What is the starting point of the deci-

sion? What value is delivered with the decision

and who receives this value? What problem is the

decision solving? What needs are satisﬁed with

the decision?

• Roles (R) Element: Who is mostly involved in

the decision? What are their most important roles

The GRADE Decision Canvas for Classiﬁcation and Reﬂection on Architecture Decisions

189

(in project, case, or company)? How much does

each role contribute to the decision? What is the

decision level (strategic, tactical, or operational)?

Which organizational roles are involved? What

are the decision roles (initiator, decider, or inﬂu-

encer)?

• Assets (A) Element: List the assets that are con-

sidered within the decision? What usage is envi-

sioned for these assets (reuse, adaptation, buy, or

develop)? Where do assets come/originate from

(COTS, open source, outsource, or in-house)?

What is the type of assets considered (system,

software, service, information, or hardware as-

set)? What main asset characteristics are consid-

ered (performance, cost, or other)?

• Decision (D) Element: How do you reach to an

architectural decision? Which are the most im-

portant decision criteria considered (performance,

cost, or other)? Which decision method(s) do you

typically use? How useful do you consider the de-

cision method(s) you typically use? How are the

decision method(s) you typically use integrated

with your decision process/routines? How much

time/cost/resources is needed to make a decision?

• Environment (E) Element: Describe the gen-

eral context of the decision to make it un-

derstandable to others. What are the most

important contextual factors of the decision

(related to the product/stakeholders/market &

business/organisation/development technologies

etc.)? Which contextual factors are static (do not

change and will probably not change much in the

near future)? Which contextual factors are likely

to change in the near future?

• Decision outcome: What is the ﬁnal decision

made? How would you evaluate the decision?

Would you change anything in this decision (con-

sider what/how/who/why/when aspects)? Deci-

sion outcome is a required addition to the ele-

ments described in the GRADE taxonomy, to be

able to track outcomes of the decision process to

be used in future decisions.

The questions may be used as guidelines to collect

issues of primary interest in decision cases. These

questions are based on points of interest identiﬁed

in previous work investigating architectural decisions

(Petersen et al., 2017). The decision canvas is pro-

vided in an electronic editable form (available here:

http://orion-research.se/GRADE/canvas16.pdf), i.e.,

the gray text is to be replaced by practitioner’s re-

sponses.

The GRADE decision canvas has been evaluated

by means of two preliminary evaluation rounds, de-

scribed in detail in the next section.

4 PRELIMINARY EVALUATION

We present the evaluation method (Section 4.1), and

the results of the evaluation (Section 4.2). First, an in-

ternal evaluation round was carried out (within the de-

velopment team of the canvas) and based on the feed-

back we created a new version of the canvas (as pre-

sented in Section 3). Then, we conducted an external

evaluation round (outside the development team, but

still within the project). The purpose of the evalua-

tion is to stand as static preliminary evaluation with a

limited scope. The plan is to further revise the canvas

based on more types of evaluations, including pilot-

ing in industry, to ensure a mature and useful decision

canvas for architectural decisions in industry.

4.1 Method

The evaluation method includes deﬁning the follow-

ing:

Deﬁnition of research questions: The following

research questions were considered to assess the ob-

jectives of the GRADE decision canvas (see Sec-

tion 1): RQ1: Would two individuals, who are in-

dependently classifying the same decision scenario,

reach similar classiﬁcations? RQ2: Would individu-

als using the canvas to convey the details of a deci-

sion scenario, ﬁnd the canvas useful for reﬂecting on

decision-making activities?

Selection of subjects: The evaluation was done in-

ternally (utilizing researchers who were also creators

of the GRADE taxonomy (Papatheocharous et al.,

2015)) and externally (utilizing researchers who were

not involved in neither the GRADE canvas nor taxon-

omy creation). For the internal evaluation we utilized

some of the co-creators of the GRADE taxonomy, to

identify shortcomings with respect to the usage of the

taxonomy as a common language. They made use

of two decision scenario descriptions produced in the

context of the ORION project and improvements to

the canvas were carried out based on the results of

this internal evaluation. The motivation for utilizing

the creators was that they were already familiar with

the GRADE taxonomy and its terminology and thus

did not require any training. Nevertheless, the risk

is that no other outsider perspective would be consid-

ered, which limits the external validity of the ﬁndings.

Thus, in the internal evaluation one researcher and in

the external evaluation two researchers who have not

been involved in the GRADE taxonomy creation were

involved to overcome the limitations.

Data collection: For the internal evaluation we

chose to utilise two decision scenarios to increase the

generalizability of the ﬁndings. The scenarios were

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

190

Table 1: Data Collection.

Scenario Scenario description Creator Evaluators

MOPED A decision problem of allocating an image pro-

cessing system to different ECUs

J. Axelsson Internal (K. Petersen and S. Sentilles)

Global A decision problem of outsourcing versus in-

house development

K. Petersen Internal (A. Cicchetti and F. Ciccozzi)

LiICSE Decisions to choose among COTS and OSS com-

ponents

(Li et al., 2006b) External (C. Wohlin and J. Carlson)

LiEMSE Decisions to choose among build or buy options (Li et al., 2006a) External (C. Wohlin and J. Carlson)

described independently by two persons and were

within the domains of automotive (MOPED) and au-

tomation (Global). The scenario descriptions were

9 and 4 pages long (contained about 2650 and 1400

words) respectively. The descriptions were reviewed

independently by two persons whom were not in-

volved in the scenarios’ creation. Using the GRADE

taxonomy overview in the decision canvas (see left-

hand side of Figure 1), they classiﬁed the scenar-

ios independently. This was carried out to validate

the consistency of using the GRADE decision canvas.

The right-hand section of the decision canvas was also

used as means for data collection. Table 1, ﬁrst two

rows, provides an overview, the evaluators and the

authors of the two scenarios (MOPED and Global).

Each evaluator marked on the canvas (either electron-

ically or using pen and paper) the parts in the canvas

they identiﬁed as relevant to the scenarios. When they

found information that was not present in the GRADE

taxonomy they added the information as additional

notes (using the provided questions as guidelines).

The information was extracted in a spreadsheet

and thereafter used to determine the consistency with

which the evaluators classiﬁed the scenarios. Subse-

quently, the creators and evaluators commented inde-

pendently on the actual usage of the decision canvas

for illustrating the scenario and its usability for re-

ﬂecting the decision for future activities. This feed-

back was used to improve the canvas. If, from the two

evaluators, similar elements are identiﬁed then this

was an indication that different persons interpreted

the scenario in the same way.

The external evaluation was performed in a similar

manner by two evaluators carrying out the following

steps:

• Select papers for scenario extraction. The ﬁrst au-

thor of a systematic literature review on architec-

tural decision-making (Badampudi et al., 2016)

was asked to select two papers from the papers in-

cluded in the review that she judged as being rea-

sonable to describe using the GRADE canvas. Not

all papers included in the literature review covered

actual decisions or studies of decisions; some pa-

pers presented methods for making a selection of

a software asset, and these papers are not suitable

for classiﬁcation using the GRADE canvas. Based

on this, random selection was discarded as a suit-

able method, and hence the ﬁrst author made an

informed recommendation of articles to use in the

external evaluation. The two papers selected are

presented in the last two rows of Table 1.

• Independently extract and classify the information

provided in the selected papers using the same

procedure as for the internal evaluation.

• The two evaluators discussed their ﬁndings and

observations with each other and with one of the

other authors observing and taking notes.

• The two evaluators provided individual sum-

maries of their ﬁndings and observations for anal-

ysis and comparison.

Data analysis: To answer the ﬁrst research ques-

tion (RQ1) we compared the classiﬁcation of the sce-

narios to determine the similarity. Each element iden-

tiﬁed by the ﬁrst evaluator is counted as part of set A

and each element identiﬁed by the second evaluator is

counted as part of set B. We then utilized the Jaccard

index (McCormick et al., 1992) for the comparison,

which is deﬁned as:

J(A, B) =

A ∩ B

A ∪ B

. (1)

The index provides a value of 0 ≤ J(A, B) ≤ 1, the

closer the index is to 1 the higher the similarity. To

answer the second research question (RQ2), analysis

and synthesis of the feedback received was carried out

and a summary is provided in the results section.

Validity threats: Two main threats have been iden-

tiﬁed with respect to the internal and external evalua-

tions. First, the evaluators are members of the project

where the GRADE canvas has been developed, and

they may have acquired some knowledge about the

canvas, even without participating in its development.

Second, K. Petersen (creator of one of the scenarios)

and D. Badampudi (selector of the papers from the

literature review) have both taken part in the devel-

opment of the GRADE taxonomy, and thus there is

a risk that they may have affected the formulation of

the evaluation of the GRADE canvas, i.e., may have

caused to favour aspects from the decisions in the sce-

narios over others. Despite the threats, it was identi-

The GRADE Decision Canvas for Classiﬁcation and Reﬂection on Architecture Decisions

191

Goals& Environment& Decision& Asset& Roles& TOTAL&

Internal:MOPED:(Kai;Severine)&

0.50&

0.17&

0.63&

0.54&

0.50&

0.51&

Internal:Global:(Antonio;Federico)&

0.50&

0.67&

1.00&

0.82&

0.76&

External:LiICSE2006:(Claes;Jan)&

0.50&

0.48&

0.63&

0.51&

External:LiEMSE2006:(Claes;Jan)&

0.00&

0.21&

0.38&

0.00&

0.19&

0.00&

0.10&

0.20&

0.30&

0.40&

0.50&

0.60&

0.70&

0.80&

0.90&

1.00&

Jaccard&Index&measuring&the&similarity&of&the&classiﬁca7ons&

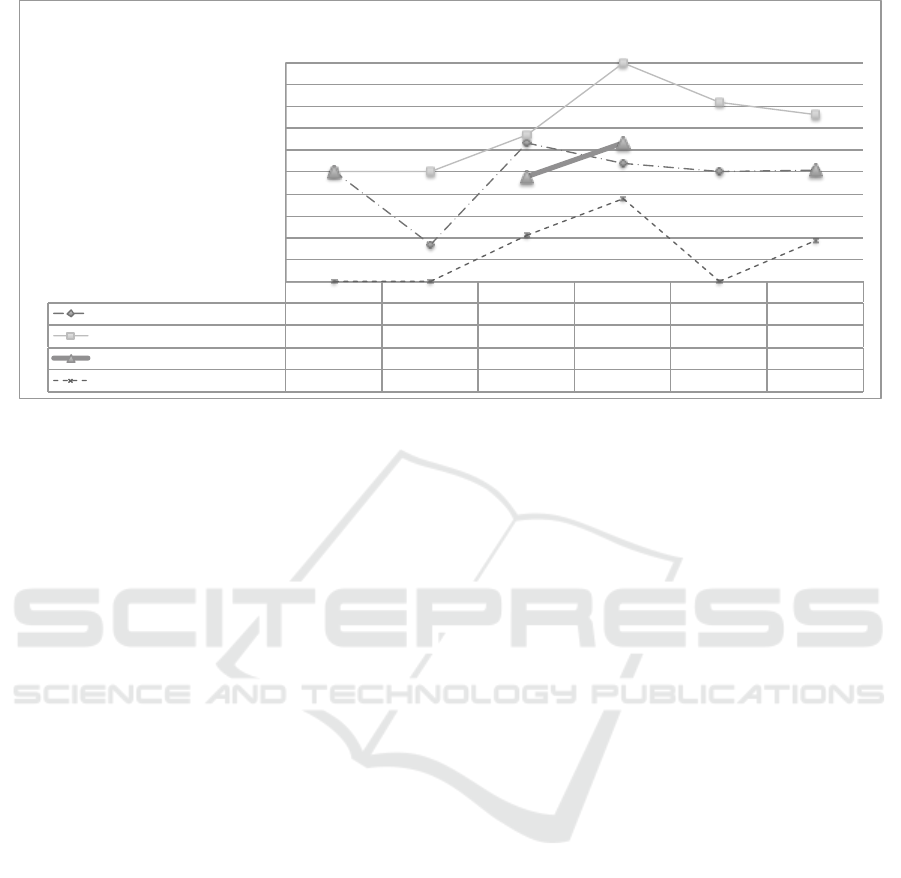

Figure 2: Jaccard Index for the evaluated scenarios and papers.

ﬁed that several aspects are not sufﬁciently covered

by the canvas, and hence areas for improvement were

identiﬁed.

4.2 Results

The results are structured according the research

questions formulated in Section 4.1.

4.2.1 RQ1: Similarity of Classiﬁcations

First, we present the quantitative ﬁndings and then the

qualitative feedback/reﬂections provided by the eval-

uators to explain the reasons for the differences and

the avenues for improvements to the canvas.

Quantitative ﬁndings: Figure 2 shows the Jaccard

index values for the decisions in the two evaluations.

When the Jaccard index is high then two evaluators

reading the same scenario have a more similar view

about the classiﬁcation of the scenario. Overall, the

Jaccard index shows rather low values for the con-

sistency among evaluators, both internally and exter-

nally. From the ﬁgure it is also visible that the similar-

ity was highest for the Global scenario. The main dif-

ference of the Global and the rest was that the Global

scenario’s description was much more structured, i.e.,

the decision-making steps were grouped and the in-

formation was easier to identify.

Furthermore, it is interesting to observe that the

Goals and Environment dimensions have the lowest

similarity values among the main elements. This is

due to some difference identiﬁed when it comes to

the level of detail marked down by the evaluators.

Qualitative reﬂections: We ﬁrst explore the rea-

sons for the differences. The internal evaluators iden-

tiﬁed that some of the canvas elements’ levels were

not clear. For example, they had difﬁculty to ﬁnd all

the categories of Roles applicable. The ordering of

the categories was also found confusing, i.e., Asset

origins, types, and properties. It was also unclear if

the term ”system” includes both software and hard-

ware. Some questions appearing in the right-hand

side of the canvas were also found unclear. Also,

deﬁning the connection between different decision

cases over time was not easy to do. The evaluators

also mentioned that the items’ placement in the right-

hand side of the canvas and the elements on the left-

hand side was not perhaps the optimal one.

Other remarks for improvement included: some

duplicate items appear within the Assets and Deci-

sion criteria (e.g., Cost), and as these are examples,

the canvas could have been better without examples

(i.e., the canvas could have the leaves of the taxon-

omy empty and based on the decision case to be ﬁlled-

in). A ﬁnal remark from the internal evaluation was

to consider renaming Assets to Alternatives.

The external evaluators highlighted that both pa-

pers they used discuss decision-making in general

rather than presenting a speciﬁc decision case. Based

on this, it was impossible to make a classiﬁcation of

the Environments and the Roles involved. It was im-

possible for two reasons, ﬁrst the demographics are

not described on that level of detail, and second even

if it would have been described the mapping to spe-

ciﬁc decisions is not described. Inconsistencies oc-

curred also due to one reviewer highlighting that it

was not possible to use Environment and Roles, while

the other used the GRADE taxonomy to describe the

demographics of the study. Hence, a well-deﬁned unit

of analysis (decision) may be used to increase the con-

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

192

sistency. Some indication of this is provided by the

high values achieved for the internal Global scenario,

which was a structured and focused decision case.

Further issues raised were: priorities are not sup-

ported in the canvas (e.g., with respect to what are the

most important decision criteria). It was unclear why

the last level of Roles (i.e., strategic, tactical, and op-

erational) appears in that category. It was typically

not explicitly stated in the papers if a certain role was

representing the strategic, tactical or operational level.

Hence, this information may be better suited to char-

acterize goals or decisions. The order by which roles

are presented was suggested to be changed, having the

items on the second and third level ﬁrst.

The structure of the GRADE taxonomy overview

diagram was also a source for inconsistencies. In par-

ticular, items or words were found in more than one

place. It was perceived unnecessary, since the objec-

tive is to support decision-making and not necessar-

ily ensuring completeness with respect to all aspects.

Two examples of redundant information is the pres-

ence of “Open Source” in two levels within Assets,

and the use of “Cost” in different shapes. Cost ap-

pears in the Goals category, but also in the Assets cat-

egory. Though, the goals will drive the aspects to be

considered in both the decisions and the expectations

of the assets. For example, if the goal is to decrease

cost then cost must be a key aspect in the decision and

strongly related to the actual asset. Given the redun-

dancy of items, both reviewers may want to indicate

the same, but in the statistical analysis a disagreement

is shown as they provide their information in different

places of the taxonomy. Thus, in practice the agree-

ment may in fact be higher than indicated by the Jac-

card index.

4.2.2 RQ2: Implications and Usefulness

The internal as well as external evaluators highlighted

the utility of the GRADE decision canvas. We ﬁrst

present the remarks of the internal evaluators:

• Ease of use: The main feedback from the eval-

uators of the canvas was that they found it to be

simple to use, intuitive and practical. The us-

age of the canvas was done without requiring al-

most any guidance. Some clariﬁcations might be

needed though for individuals not familiar with

the GRADE taxonomy. In the future it is sug-

gested that the elements deﬁned in the GRADE

taxonomy should be provided to practitioners to-

gether with the canvas.

• Accessibility after classiﬁcation: Decision cases

and their details captured with the canvas are eas-

ier to read. Reading the decision cases details in

the template format was more intuitive and faster

to process than in a textual descriptive form.

• Ability to completely capture a scenario: The au-

thors of the decision scenarios found that their

scenarios were well captured with the canvas by

both individuals to a sufﬁcient level of detail and

that nothing crucial was missing (complete when

doing in pairs). This is why the canvas is sug-

gested to be used for consensus discussions based

on individual usage of the canvas.

The following reﬂections and usages for the GRADE

decision canvas were presented by the external evalu-

ators:

• Ambition of GRADE with regard to completeness:

The GRADE taxonomy cannot ever be complete.

The latter would require including all quality as-

pects covered by all different quality models and

standards. This is infeasible, and hence incom-

pleteness has to be accepted.

• Usefulness for describing decisions: Despite the

relative low formal agreement, the canvas (in par-

ticular if improved) is helpful as a tool to describe

a decision. It makes a number of items (words)

explicit and as such a good basis for discussions.

Overall, the impression was that it is a useful tool

to capture important aspects of a decision case.

• Facilitator for a discussion around decisions: The

canvas supports the discussion around a decision,

but it is insufﬁcient to describe a decision without

a consensus discussion. In other words, the canvas

is primarily a facilitator for discussions around a

decision. This is further supported by the incon-

sistencies when individual reviewers conduct an

assessment, though the combined results and dis-

cussions allow convergence.

• Towards achieving reliability: To accurately doc-

ument and classify decision scenarios the external

evaluators suggested that practitioners should ﬁrst

use the canvas to capture their own view. Then,

carry out discussion in pairs to achieve more reli-

ability. They highlighted that through a discussion

on the disagreements they would be able to sug-

gest a joint classiﬁcation that they both agree on.

5 CONCLUSIONS

In this paper we proposed and carried out a set

of preliminary semi-formal evaluation rounds of the

GRADE decision canvas for decision-making support

in architecting software-intensive systems. We found

that, despite the relatively low levels of formal agree-

ment between the evaluators, the GRADE decision

The GRADE Decision Canvas for Classiﬁcation and Reﬂection on Architecture Decisions

193

canvas is a helpful tool to describe decisions. It makes

the characteristics of a decision explicit and thus pro-

vides a sound basis for discussions. The GRADE de-

cision canvas supports the discussion around a deci-

sion, but it is insufﬁcient to describe a decision with-

out a consensus discussions. In other words, the

GRADE canvas is primarily a facilitator for discus-

sions around a decision. Thus, the GRADE decision

canvas can be used to illustrate in a comprehensive

and structured way decision scenarios even from dif-

ferent individuals. It can serve as a common vocab-

ulary and basis to capture, understand and communi-

cate decisions, as well as reﬂect on decision-making.

One important limitation of the canvas is the difﬁ-

culty to effectively visualize the relations between the

elements describing a decision and even the relations

between different decisions. This makes it difﬁcult to

carry out trade-off and impact analysis of the options

within a decision. We are currently investigating pos-

sible ways to overcome this issue and thereby making

those analyses possible for the GRADE canvas.

ACKNOWLEDGEMENTS

The work is partially supported by a research grant

for the ORION project (reference number 20140218)

from The Knowledge Foundation in Sweden.

REFERENCES

Badampudi, D., Wohlin, C., and Petersen, K. (2016). Soft-

ware component decision-making: In-house, OSS,

COTS or outsourcing - A systematic literature review.

Journal of Systems and Software, 121:105–124.

Herrmann, T., Jahnke, I., and Loser, K.-U. (2004). The role

concept as a basis for designing community systems.

In COOP, pages 163–178.

Li, J., Bjørnson, F. O., Conradi, R., and Kampenes, V. B.

(2006a). An empirical study of variations in cots-

based software development processes in the norwe-

gian it industry. Empirical Software Engineering,

11(3):433–461.

Li, J., Conradi, R., Slyngstad, O. P. N., Bunse, C., Torchi-

ano, M., and Morisio, M. (2006b). An empirical study

on decision making in off-the-shelf component-based

development. In Proceedings of the 28th international

conference on Software engineering, pages 897–900.

ACM.

Manteuffel, C., Tofan, D., Avgeriou, P., Koziolek, H., and

Goldschmidt, T. (2016). Decision architect a decision

documentation tool for industry. Journal of Systems

and Software, 112:181 – 198.

McCormick, W., Lyons, N., and Hutcheson, K. (1992).

Distributional properties of jaccards index of similar-

ity. Communications in Statistics-Theory and Meth-

ods, 21(1):51–68.

Morisset, C., Yevseyeva, I., Groß, T., and van Moorsel, A.

(2014). A formal model for soft enforcement: inﬂu-

encing the decision-maker. In Security and Trust Man-

agement, pages 113–128. Springer.

Papatheocharous, E., Petersen, K., Cicchetti, A., Sentilles,

S., Shah, S. M. A., and Gorschek, T. (2015). Decision

support for choosing architectural assets in the devel-

opment of software-intensive systems: The grade tax-

onomy. In Proceedings of the 2015 European Con-

ference on Software Architecture Workshops, page 48.

ACM.

Peffers, K., Tuunanen, T., Rothenberger, M. A., and Chat-

terjee, S. (2007). A design science research method-

ology for information systems research. Journal of

management information systems, 24(3):45–77.

Petersen, K., Badampudi, D., Shah, S., Wnuk, K.,

Gorschek, T., Papatheocharous, E., Axelsson, J., Sen-

tilles, S., Crnkovic, I., and Cicchetti, A. (2017).

Choosing component origins for software intensive

systems: In-house, cots, oss or outsourcing?–a case

survey. IEEE Transactions on Software Engineering.

Tan, J. K. and Sheps, S. B. (1998). Health decision support

systems. Jones & Bartlett Learning.

Tang, A., Tran, M. H., Han, J., and Van Vliet, H. (2008).

Design reasoning improves software design quality. In

International Conference on the Quality of Software

Architectures, pages 28–42. Springer.

Tyree, J. and Akerman, A. (2005). Architecture decisions:

Demystifying architecture. IEEE software, 22(2):19–

27.

Van Heesch, U., Avgeriou, P., and Hilliard, R. (2012a). A

documentation framework for architecture decisions.

Journal of Systems and Software, 85(4):795–820.

Van Heesch, U., Avgeriou, P., and Hilliard, R. (2012b).

Forces on architecture decisions-a viewpoint. In Soft-

ware Architecture (WICSA) and European Conference

on Software Architecture (ECSA), 2012 Joint Working

IEEE/IFIP Conference on, pages 101–110. IEEE.

Van Vliet, H. and Tang, A. (2016). Decision making in soft-

ware architecture. Journal of Systems and Software,

117:638–644.

ENASE 2017 - 12th International Conference on Evaluation of Novel Approaches to Software Engineering

194
