An Ontological Template for Context Expressions in Attribute-based

Access Control Policies

Simeon Veloudis

, Iraklis Paraskakis

, Christos Petsos

, Yiannis Verginadis

, Ioannis Patiniotakis

and Gregoris Mentzas

South East European Research Centre (SEERC), The University of Sheffield, International Faculty CITY College,

Thessaloniki, Greece

Institute of Communications and Computer Systems, National Technical University of Athens, Athens, Greece

Keywords: Context-aware Security, Ontologies, Access Control, Data Privacy, Security-by-Design.

Abstract: By taking up the cloud computing paradigm enterprises are able to realise significant cost savings whilst

increasing their agility and productivity. However, due to security concerns, many enterprises are reluctant

to migrate their critical data and operations to the cloud. One way to alleviate these concerns is to devise

suitable policies that infuse adequate access controls into cloud services. However, the dynamicity inherent

in cloud environments, coupled with the heterogeneous nature of cloud services, hinders the formulation of

effective and interoperable access control policies that are suitable for the underlying domain of application.

To this end, this work proposes an ontological template for the semantic representation of context

expressions in access control policies. This template is underpinned by a suitable set of interrelated concepts

that generically capture a wide range of contextual knowledge that must be considered during the evaluation

of policies.

1 INTRODUCTION

Enterprises increasingly embrace the cloud

computing paradigm in order to gain access to a

wide range of infrastructure, platform, and

application resources that are abstracted as services

and delivered remotely, over the Internet, by diverse

providers. The main force that fuels this trend is the

significant cost savings that these services instigate,

as well as the acceleration of the development and

deployment of new applications that boosts

innovation and productivity.

However, due to security concerns, many

enterprises are reluctant to migrate their critical

operations and sensitive data to the cloud (CSA,

2015). A promising approach to alleviating these

concerns is to assist application developers in

infusing adequate access control policies in cloud

applications for safeguarding their data against

unauthorised accesses (Veloudis et al., 2016). In this

respect, we envisage a generic security-by-design

framework, essentially a PaaS offering, which

facilitates developers in devising, and ultimately

implementing, such policies. Nevertheless, for the

policies to be effective, they must take into account

the dynamically-evolving nature of cloud

environments. In particular, they must take into

account the contextual information that needs to be

associated with an access request in order for it to be

permitted or denied.

To this end, the work reported in (Veloudis et al.,

2016) outlined the construction of a generic

ontological model for access control policies, one

that bears the following characteristics. Firstly, it is

underlain by a suitable Context-aware Security

Model – an extensible framework of relevant

interrelated concepts that capture a wide range of

relevant contextual attributes, thus embracing the

attribute-based access control (ABAC) scheme (Hu

et al., 2014). Secondly, it uses a generic and

extensible formalism for expressing access control

policies, one which unravels the definition of a

policy from the code employed for enforcing it,

bringing about the following seminal advantages: (i)

it allows the policy-related knowledge to be

extended and instantiated to suit the needs of any

particular cloud application, independently of the

code employed by that application; (ii) it forms an

adequate basis for reasoning generically about the

Veloudis, S., Paraskakis, I., Petsos, C., Verginadis, Y., Patiniotakis, I. and Mentzas, G.

An Ontological Template for Context Expressions in Attribute-based Access Control Policies.

DOI: 10.5220/0006301501510162

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 123-134

ISBN: 978-989-758-243-1

123

correctness and consistency of the policies, hence

about the effectiveness of the access control that

they ultimately exercise.

Nevertheless, the ontological model devised in

(Veloudis et al., 2016) assumes that the contextual

attributes articulated in an access control policy are

invariably associated with the subject of a request. It

therefore ignores the fact that contextual attributes

may need to be associated with other entities such as

the object of a request, the request itself, or any

other entity that is deemed relevant for determining

whether the request should be granted or denied. As

an example, consider a policy whereby a particular

subject (say

) is allowed to read a sensitive data

object (say

) only when:

resides in a data centre

in the EU;

issues the request from within a

particular subnet (say

subnet1

); the request takes

place during a specific time interval; another entity

(say

s’

) resides in a particular geographical area –

say

bldg1

. Evidently, in addition to the subject

a request, this policy needs to attach context to the

object

of a request (namely, the location of the

object), to the request itself (namely, the time a

request is issued) and to the entity

s’

(namely, the

location in which

s’

resides).

This paper proposes an extension to the

ontological model outlined in (Veloudis et al., 2016)

that bears the following seminal characteristics.

Firstly, it is able to attach context to any entity that

is deemed relevant to a request at two distinct levels:

(i) at the level of the access control policy,

indicating the contextual conditions that must be

satisfied by an entity in order for an access request

to be permitted (or denied); (ii) at the level of the

request itself, indicating the actual context attached

to an entity at the time of the request. Secondly, it

provides the means to declaratively capture, in terms

of a suitable ontological model, the knowledge that

lurks behind the various contextual attributes that are

associated with the entities relevant to a request.

This is a crucial feature for the following reasons: (i)

It enables the evaluation of a request against an

access control policy to be performed, and reasoned

about, at the semantic level. For instance, referring

to the example above, suppose that, at the time a

request is issued by the subject

, the object

reported to reside in a data centre in Athens, Greece.

Clearly,

satisfies the contextual condition set by

the policy (Greece is an EU country). For this to be

inferred, however, the knowledge that lurks behind

the contextual attributes that participate in the

definition of the relevant context needs to be

accurately captured. (ii) It paves the way for

performing automated reasoning about potential

inter-policy relations such as the identification of

contradicting or subsuming polices. For instance, the

policy of the example above subsumes a policy that

permits

to read

from within

subnet1

between

09:00 and 17:00 and when

s’

resides in a location

within

bldg1

(say the location identified as

room123

The rest of this paper is structured as follows.

Section 2 presents the ontologically-expressed

context model that underpins our access control

policies. Section 3 outlines how the object properties

of this model can be utilised in order to perform

semantic inferencing at the level of access requests.

Section 4 proposes an ontological template for

access control rules and, crucially, for the context

expressions on which these rules rely. Section 5

outlines how context-based inferencing can be

performed in order to identify inter-policy relations.

Section 6 presents related work and, finally, Section

7 presents conclusions.

2 MODELLING CONTEXT

Figure 1 depicts an updated meta-model that

captures the main facets of the Context-aware

Security Model presented in (Veloudis et al., 2016).

The main change with respect to the meta-model of

(Veloudis et al., 2016) is the extraction of the classes

pcm:Object

pcm:Subject

pcm:Request

and

pcm:Handler

from the class

pcm:SecurityContextElement

(the namespace

prefix

pcm

, as well as all other namespace prefixes

encountered in this section, are defined as part of the

Context Model (PaaSword Deliverable 2.1, 2015)).

As discussed in Section 4, this change simplifies the

incorporation of context in access control policies.

In addition, as outlined in Section 3, it renders

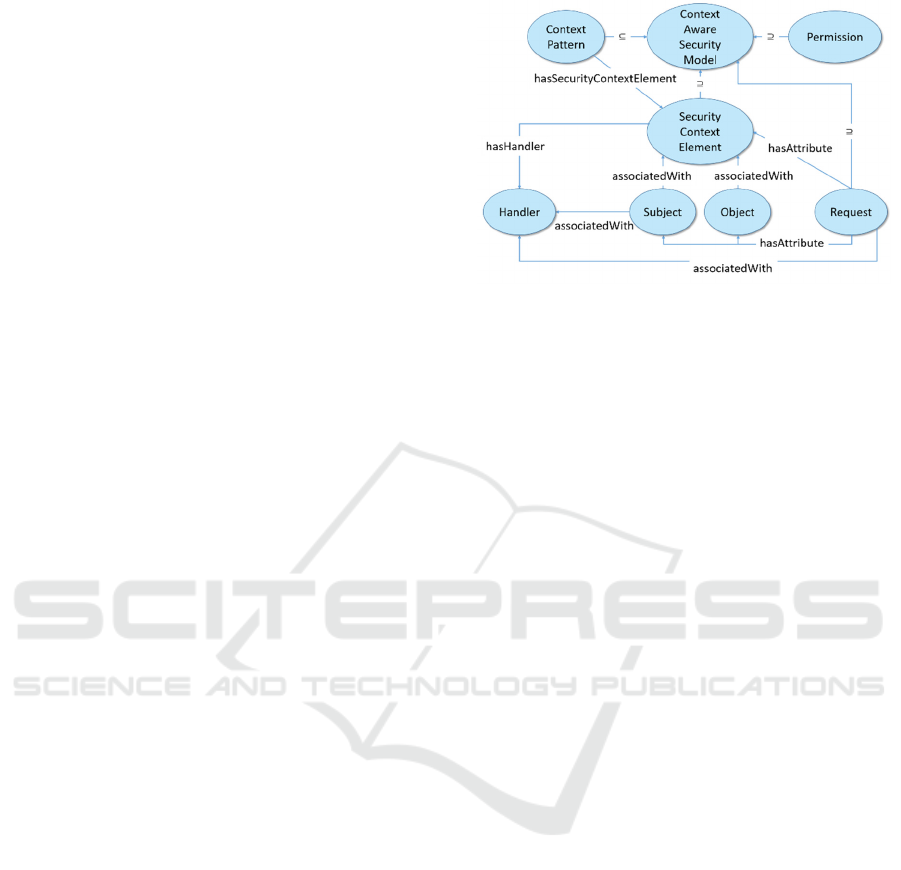

Figure 1: Context-aware security meta-model (namespace

prefixes are omitted to reduce clutter).

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

124

semantic inferencing at the level of requests simpler

to comprehend and exploit.

Ontologically, the facets of the Context-aware

Security Model are represented in terms of the

following classes:



pcm:Request

– Captures the characteristics

that should be considered for evaluating an

intercepted request.



pcm:Subject

– An instance of this class

represents either the entity seeking access to a

particular object (i.e. the ‘requestor’), or the

entity whose state should be considered for

allowing a certain requestor to access sensitive

data. Such an entity can be an organisation, a

person, a group or a service.



pcm:Object

– Describes the protected

resources – e.g. relational or non-relational

data, files, software artefacts that manage

sensitive data.

 pcm:Handler

– This class refers to the

characteristics of dedicated software

components that are used for federating and

processing raw data relevant to an access

control decision and semantically uplifting

them as instances of the Context Model.

Handlers are responsible for fusing a context-

aware policy enforcement mechanism with

contextual information in a usable format that

will allow for the evaluation of access control

policies. Different kinds of handler include,

for example, authentication handlers, request

handlers, location handlers, IP-address-to-city

handlers, etc.

 ppm:Permission

– This class refers to the

allowed actions that an individual of the class

pcm:Subject

is able to perform upon an

individual of the class

pcm:Object

, including

data permissions (e.g. Datastore, File, Web

endpoint, Volume permissions) and data

definition language (DDL) permissions (e.g.

Datastore, File system structure permissions).



pcpm:ContextPattern

– This class refers

to recurring motives of data accesses. Future

access requests on sensitive data can be

permitted, or denied, on the basis of such

information which may include, for example,

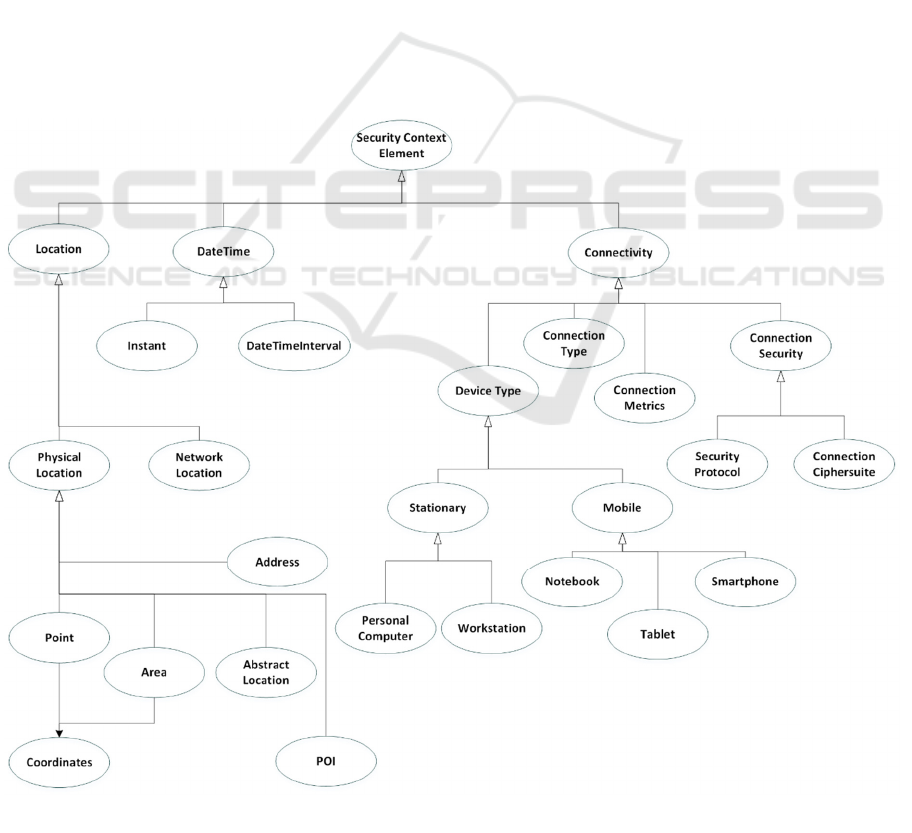

Figure 2: Security Context Element overview diagram (namespace prefixes are omitted to reduce clutter).

An Ontological Template for Context Expressions in Attribute-based Access Control Policies

125

the typical date/time interval during which

requests take place, or the most frequently-

used device type for issuing incoming access

requests.

The pcm:SecurityContextElement class

describes the various contextual attributes that may

be associated with the subjects and/or the objects of

a request, as well as with the request itself. As

depicted in Figure 2, it encompasses the following

top-level concepts.



pcm:Location – Describes a physical or a

network location where data are stored or

from where a particular entity is requesting

access to data, as well as the location of an

entity that must be taken into account in order

to permit or deny an access request. Its main

subclasses are

pcm:PhysicalLocation and

pcm:NetworkLocation. A physical location

may involve: an address, a geographical

position, an area, an abstract location and/or a

point of interest defined in terms of

geographical coordinates. A network location

corresponds to an identifier for a node or

network telecommunications interface from

which a particular entity is requesting access

to data.



pcm:DateTime – Describes the specific

chronological point expressed as an instant or

an interval that characterises an access

request. Its main sub-classes are:

pcm:Instant, pcm:DateTimeInterval.



pcm:Connectivity – Captures information

related to the connection used by an entity for

accessing sensitive data. Its main subclasses

are:

pcm:DeviceType,

pcm:ConnectionType

pcm:ConnectionMetrics and

pcm:ConnectionSecurity. The

pcm:DeviceType class describes the device

used for requesting access to sensitive data.

The

pcm:ConnectionType class refers to

the different ways of transmitting an access

request (e.g. LTE, 3G, WiFi, Cable, Satellite).

The class

pcm:ConnectionMetrics

provides quantitative characteristics of the

connection type used for accessing sensitive

data (e.g. the download rate). Finally, the

pcm:ConnectionSecurity class provides

details on the level of security in the

established connection for accessing sensitive

data (e.g. TLS_ECDHE_RSA_WITH_AES

_128_GCM_SHA256 as a connection cipher

suite).

3 CONTEXT-BASED

INFERENCING AT THE LEVEL

OF REQUESTS

The meta-model of Figure 1 provides a suite of

object properties that aims at: (i) interrelating a

request with its relevant subjects and objects; (ii)

interrelating the subjects and objects of a request, as

well as the request itself, with contextual attributes

drawn from the

pcm:SecurityContextElement

class. The former interrelation is achieved by

associating the class

pcm:Request with the classes

pcm:Object and pcm:Subject through the

property

pcm:hasAttribute. The latter

interrelation is achieved by associating the classes

pcm:Object and pcm:Subject with the class

pcm:SecurityContextElement through the

property

pcm:associatedWith. Contextual

attributes that are relevant to a request (and not to

the subjects or objects that are associated with a

request – e.g. the date/time at which a request takes

place) are piggy-backed to a request through the

object property

pcm:hasAttribute which

interrelates the classes

pcm:Request and

pcm:SecurityContextElement.

Finally, the subjects and objects associated with

a request, as well as the request itself, are

interrelated through the object property

pcm:associatedWith with the handlers that are

responsible for providing the actual measured

contextual values that these entities possess. The

pcm:associatedWith property interrelates the

classes

pcm:Object, pcm:Subject and

pcm:Request

with the class pcm:Handler.

Table 1: Inferred facts expressed as RDF triples (Turtle

notation (RDF 1.1 Turtle, 2014)).

Facts

:s a pcm:Subject;

pcm:isLocatedIn :Athens.

:Athens a pcm:City;

pcm:isLocatedIn :Greece.

:Greece a pcm:Area;

cm:

sLocatedIn :SE.

Inferred

facts

Athens pcm:isLocatedIn :SE.

:s pcm:isLocatedIn Greece.

:s pcm:isLocatedIn :SE.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

126

The aforementioned interrelations are exploited

during the evaluation of a request in order to

semantically infer the context that is attached to the

subjects and objects of a request, or to the request

itself. Suppose, for example, an access control

policy that demands that a subject is allowed to

access a sensitive data object as long as the subject

is located in South Europe (SE). Let us assume that,

based on the available handlers, the system is

capable of only collecting location information at the

city level. Once a request is intercepted with the

resolved location for the requestor being, say the city

of Athens, a number of facts can be semantically

inferred based on the transitivity of the

pcm:associatedWith

property and of the subclass

relation. These inferred facts (see Table 1 and Figure

3) essentially render the evaluation, hence the

application, of the access control policy feasible, as

the system is able to determine that the requestor is

actually located in SE, even though the intercepted

contextual information is specified at a different

level of abstraction (i.e. at the city level as opposed

to the European region level).

Note that in Table 1 and Figure 3, the property

pcm:isLocatedIn

is used instead of the property

pcm:associatedWith

. The former is a sub-

property of the latter that interconnects a subject

directly with the

pcm:Location

subclass of the

pcm:SecurityContextElement

class (Figure 2).

The use of this sub-property makes the inferencing

process more efficient as now the system can infer

from the outset that the individual ‘Athens’ is in fact

an instance of the class

pcm:Location

and not of

any of the other top-level concepts of the

pcm:SecurityContextElement

class. This

renders the process of determining which handler to

invoke for evaluating the request more efficient.

4 INCORPORATING CONTEXT

IN ACCESS CONTROL

POLICIES

4.1 An Ontological Model for ABAC

Policies

Figure 4 depicts the ontological model for ABAC

policies proposed in (Veloudis et al., 2016).

Following the XACML standard (OASIS, 2013),

each ABAC policy comprises one or more ABAC

rules. An ABAC rule is associated with a set of

relevant knowledge artefacts (see Table 2) that need

to be taken into account for deciding whether an

access request must be permitted or denied. In this

respect, ABAC rules can be regarded as knowledge

containers for their encompassing policies.

Ontologically, an ABAC rule takes the form of

an instance of the class

pac:ABACRule

depicted in

Figure 4 (the

pac

namespace prefix is defined as

part of the ontological model for ABAC policies

(PaaSword Deliverable 2.2, 2015)). The knowledge

Figure 4: Ontological model for ABAC policies

(namespace prefixes are omitted to reduce clutter).

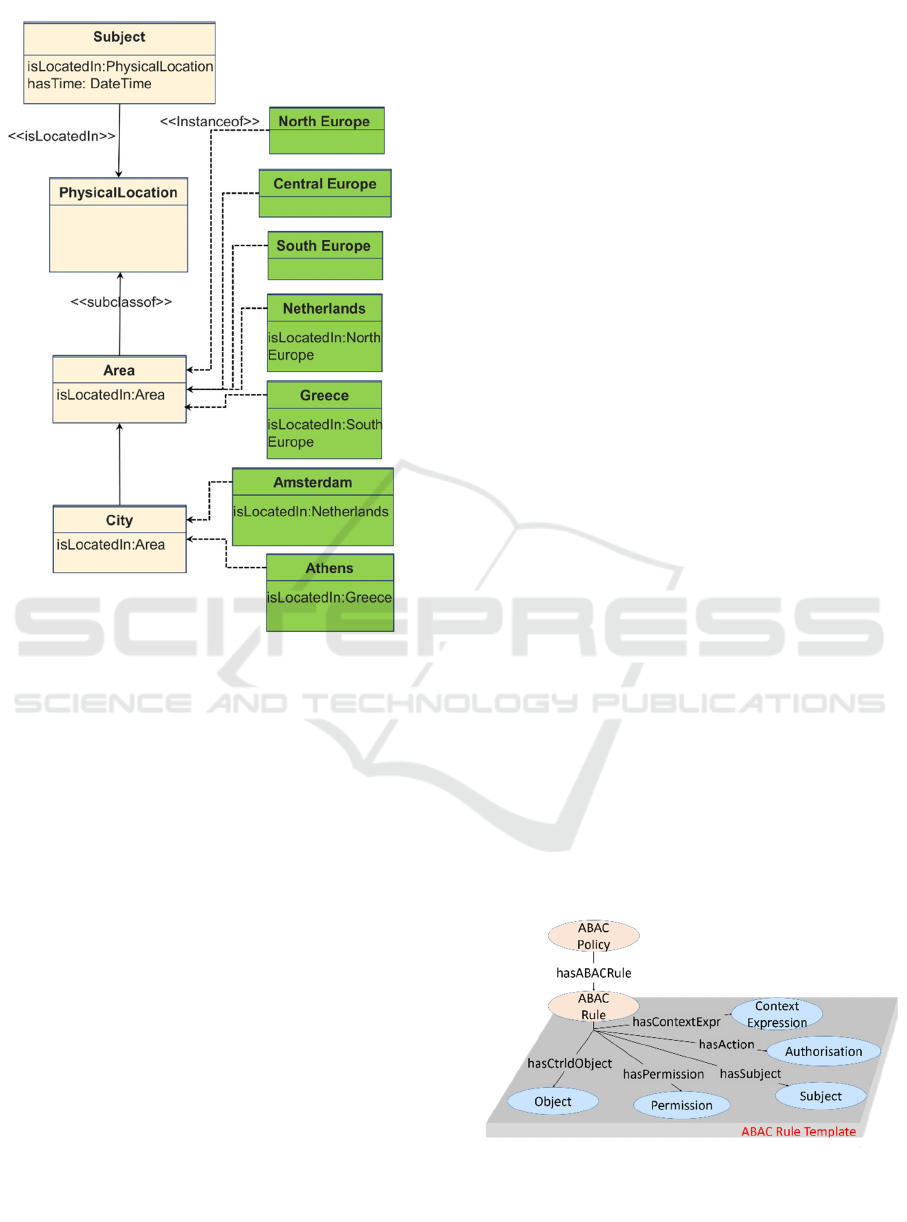

Figure 3: Inferencing based on property transitivity.

An Ontological Template for Context Expressions in Attribute-based Access Control Policies

127

artefacts attached to an ABAC rule are described

generically in terms of the ontological template of

Figure 4. More specifically, each class of this

template identifies a particular knowledge artefact,

whilst each object property associates such an

artefact with an ABAC rule. Table 2 briefly

elaborates on the classes and properties of the

ontological template of Figure 4. In the remaining of

this paper, we shall focus on the context expression

artefact.

4.2 An Ontological Model for ABAC

Policies

In (Veloudis et al., 2016), context expressions take

the form of reified versions of the ontological

template depicted in Figure 5. More specifically, a

context expression is represented by an instance of

the class

pac:ContextExpression

. The various

contextual attributes that are bound by a context

expression take the form of parameters of the

expression. Ontologically, these parameters are

represented as instances of the classes of the

Security Context Element depicted in Figure 2. They

are associated with the individual that represents a

context expression through the object property

pac:hasParameter

The parameters of a context expression may be

combined through the usual logical connectives. To

this end, the classes

pac:XContextExpression

(where

stands for one of

AND

XOR

NOT

) are

provided (see Figure 5). These are subclasses of the

pac:ContextExpression

class. Their intended

meaning is as follows: if a context expression is

represented by an instance of the class say

pac:ANDContextExpression

, its parameters, i.e.

the contextual attributes associated with it through

the

pac:hasParameter

property, are interpreted as

being pairwise conjuncted. Likewise, if a context

expression is represented by an instance of the class

say

pac:ORContextExpression

, its parameters

are interpreted as being pairwise disjuncted.

Analogous interpretations apply to the rest of the

classes. Table 3 presents an example context

expression that is represented by the individual

:expr

. The expression conjunctively combines two

parameters represented by the individuals

:para1

and

:para2

. The former is an instance of the class

pcm:AbstractLocation

of the Security Context

Table 2: Generic knowledge artefacts associated with the ABAC rule template.

Knowledge

artefact

Description Ontological representation Associating property

Controlled

object

Identifies the sensitive

object on which access is

requested.

Instance of the pcm:Object

class outlined in Section 2.

pac:hasControlledObject

Domain: pac:ABACRule

Range:

cm:Object

Authorisation

Determines the type of

authorisation granted

(either ‘permit’, or

‘deny’).

Instance of the class

pac:Authorisation

(either the instance

pac:permit or the instance

ac:deny).

pac:hasAuthorisation

Domain: pac:ABACRule

Range: pac:Authorisation

Action

Identifies the operation

requested to be performed

on the controlled object.

Instance of the class

ppm:DataPermission

(see Section 2).

pac:hasAction

Domain: pac:ABACRule

Range:

:DataPermission

Actor

Identifies the entity

requesting access to the

controlled object.

Instance of the

pcm:Subject class (see

Section 2).

pac:hasActor

Domain: pac:ABACRule

Range:

cm:Subject

Context

expression

A propositional logic

expression that identifies

the contextual conditions

that must be satisfied in

order to permit (or deny) a

request.

Instance of the class

pac:ContextExpression

outlined in Section 4.2.

pac:hasContextExpression

Domain: pac:ABACRule

Range: pac:ContextExpression

Figure 5: Ontological template fo

context expressions.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

128

Element depicted in Figure 2 and specifies the

location ‘Athens’. The latter is an instance of the

class

pcm:NetworkLocation and specifies a

network endpoint. The data properties

pcm:hasName and pcm:hasIPAddress form part

of the Security Context Element with the obvious

meanings.

A context expression may be defined recursively

in terms of one or more other context expressions.

Ontologically, this is represented by including the

class

pac:ContextExpression in both the

domain and the range of the object property

pac:hasParameter (see Figure 5). The example of

Table 4 shows a recursively-defined context

expression that includes the context expression

represented by the individual

:expr1 as a

parameter.

Nevertheless, context expressions that take the

form of instantiations of the model depicted in

Figure 5 make no provisions of indicating the entity

with which they are associated. In this respect, they

are assumed to be invariably associated with the

subject of a request. As discussed in Section 1, this

constitutes a limitation for it ignores the fact that

contextual attributes may need to be associated with

other entities such as the object of a request, the

request itself, or with any other entity whose context

is deemed relevant for deciding whether to permit or

deny a request. In this respect, Section 4.3 below

presents an extension to the ontological template for

context expressions of Figure 5 that allows

contextual attributes to be attached to any entity that

is associated with a request.

4.3 A Generalised Ontological

Template for Context Expressions

A straightforward approach to allowing a context

expression to be attached to any entity that is

associated with a request is to render the

pac:hasContextExpression property applicable

to: (i) any individual of the class

pcm:Subject of

the Security Context Element that may participate in

a request without necessarily this individual being he

the actual subject of the request; (ii) the controlled

object associated with a request. This can be readily

achieved by extending the domain of

pac:hasContextExpression to include, in

addition to the class

pac:ABACRule (see Table 2),

the classes

pcm:Subject and pcm:Object.

Nevertheless, associating a context expression solely

with a subject, or solely with a controlled object, is

problematic as demonstrated by the example of

Table 5.

In this example, two ABAC rules,

:rule1 and

:rule2, are defined. The intended meaning behind

the second rule is that the subject

:s can read the

object

:o only when the context expression :expr2

is satisfied;

:expr2 states that the IP address

associated with

:s must be equal to

120.120.120.120. However, from the triples of

the example of Table 5 there is no way of discerning

which context expression,

:expr1 or :expr2, refers

to which rule. This ambiguity stems from the fact

that the approach outlined above neglects that the

context expression that is associated with an entity

Table 4: Recursive context expression example. :para1

and :para2 are defined as in Table 3.

:expr a pac:ANDContextExpression;

pac:hasParameter :para1;

pac:hasParameter :expr1.

:expr1 a pac:NOTContextExpression;

ac:hasParameter para2.

Table 5: Associating context solely with a subject or an

object (:para2 is defined as in Table 3).

:rule1 a pac:ABACRule;

pac:hasAction :Read;

pac:hasActor :s;

pac:hasAuthorisation pac:positive;

ac:hasControlledObject :o.

:s pac:hasContextExpression :expr1.

:expr1 a pac:ContextExpression;

pac:hasParameter :para2.

:rule2 a pac:ABACRule;

pac:hasAction :Read;

pac:hasActor :s;

pac:hasAuthorisation pac:positive;

ac:hasControlledObject :o.

:s pac:hasContextExpression :expr2.

:expr2 a pac:ContextExpression;

pac:hasParameter :para3.

:para3 a pcm:NetworkLocation;

pcm:hasIPAddress

“

120.120.120.120”^^xsd:string.

Table 3: Context expression example.

:expr a pac:ANDContextExpression;

pac:hasParameter :para1;

pac:hasParameter :para2.

:para1 a pcm:AbstractLocation;

pcm:hasName :Athens.

:para2 a pcm:NetworkLocation;

pcm:hasIPAddress

“123.123.123.123”^^xsd:string.

An Ontological Template for Context Expressions in Attribute-based Access Control Policies

129

inside a rule is not the actual, or per se, context of

the entity but the context that the rule expects to be

associated with the entity. In other words, the mere

association of a context expression with an entity is

insufficient by itself to discern the context that a rule

requires from an entity to possess.

One solution that circumvents this problem is to

require that, each time the property

pac:hasContextExpression

is used to associate

a context expression with an entity, the same context

expression is also associated with the underlying

rule that requires the particular context expression to

be associated with that entity. This solution,

however, requires that the

pac:hasContextExpression

property is used

twice each time a context expression is associated

with an entity. This is demonstrated by the example

of Table 6.

A more elegant solution is to extend the

ontological template of Figure 5 through the

introduction of a new object property, namely

pac:refersTo

(see Figure 6). This property has as

domain the class

pac:ContextExpression

and as

range the union of the classes

pcm:Subject

and

pcm:Object

. As its name suggests, its purpose is to

attach a context expression to the entity that it refers

to. This way, when a context expression is

associated with an ABAC rule (through the

pac:hasContextExpression

property of Figure

4), it is already attached to the actual entity that it

refers to. Adhering to this solution, the example of

Table 6 now takes the form shown in Table 7. It is

to be noted here that the

pac:refersTo

property is

not obligatory in the sense that not all context

expressions need be associated with an entity from

the classes

pcm:Subject

pcm:Object

. This

might be the case under the following

circumstances: (i) When a context expression refers

to the request itself rather than an entity that is

associated with the request (e.g. when the context

expression constrains the time at which a request is

issued). (ii) When a context expression forms a

constituent part of another (recursively-defined)

context expression which is associated with an entity

from the classes

pcm:Subject

pcm:Object

and

the constituent expression refers to that same entity.

This is depicted, for example, in Table 8 where the

context expressions

:expr1

and

:expr2

form

Table 6: Using pac:hasContextExpression twice

(:para2 is defined as in Table 2).

:rule1 a pac:ABACRule;

pac:hasAction :Read;

pac:hasActor :s;

pac:hasAuthorisation pac:positive;

pac:hasControlledObject :o.

pac:hasContextExpression :expr1.

:s pac:hasContextExpression :expr1.

:expr1 a pac:ContextExpression;

pac:hasParameter :para2.

:rule2 a pac:ABACRule;

pac:hasAction :Read;

pac:hasActor :s;

pac:hasAuthorisation pac:positive;

pac:hasControlledObject :o;

pac:hasContextExpression :expr2.

:s pac:hasContextExpression :expr2.

:expr2 a pac:ContextExpression;

pac:hasParameter :para3.

:para3 a pcm:NetworkLocation;

pcm:hasIPAddress

“120.120.120.120”^^xsd:string.

Table 7: Associating context using the extended model of

Figure 6(:para2 is defined as in Table 3).

:rule1 a pac:ABACRule;

pac:hasAction :Read;

pac:hasActor :s;

pac:hasAuthorisation pac:positive;

pac:hasControlledObject :o;

pac:hasContextExpression :expr1.

:expr1 a pac:ContextExpression;

pac:hasParameter :para2;

pac:refersTo :s.

:rule2 a pac:ABACRule;

pac:hasAction :Read;

pac:hasActor :s;

pac:hasAuthorisation pac:positive;

pac:hasControlledObject :o;

pac:hasContextExpression :expr2.

:expr2 a pac:ContextExpression;

pac:hasParameter :para3;

pac:refersTo :s.

:para3 a pcm:NetworkLocation;

pcm:hasIPAddress

“

120.120.120.120”^^xsd:string.

Figure 6: Extended ontological template.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

130

constituent parts of the expression

:expr and

neither of

:expr1 and :expr2 is attached to an

entity from the classes

pcm:Subject or

pcm:Object as they both refer to the same entity

(

:s) that is referred to by the encompassing

expression

:expr.

Finally, it is to be noted that the

pac:refersTo

property is not functional: the same context

expression instance may be associated with two or

more distinct entities, i.e. two or more distinct

individuals from the classes

pcm:Subject or

pcm:Object.

5 OPTIMISING CONTEXT-

BASED INFERENCING AT THE

POLICY LEVEL

One of the main virtues of declaratively specifying

(through the ontological template of Figure 6) the

contextual conditions that must be satisfied in order

for a request to be permitted (or denied), is the fact

that it enables the identification of inter-policy

relations. In particular, it enables us to identify

whether one ABAC rule is subsumed by another.

Suppose two ABAC rules represented by the

instances

:rule1 and :rule2 of the class

pac:ABACRule. Naturally, a prerequisite for

:rule2 to be subsumed by :rule1 is that the

context expression associated with the former

logically subsumes the context expression associated

with the latter. In other words, the context

expression associated with

:rule2 must be

logically inferable from the context expression

associated with

:rule1. Let the context expressions

associated with the two rules be represented,

respectively, by the instances

:expr1 and :expr2

of the class

pac:ContextExpression. In order to

determine whether

:expr2 is logically inferable

from

:expr1, the following conditions must hold:

(i) If

:expr1 is attached, via the property

pac:refersTo, to an entity (say :e1), then

:expr2 must also be attached, via the same

property, to an entity (say

:e2) such that either :e1

and

:e2 represent the same entity, or :e1 represents

an entity that is considered more general than

:e2

(for instance, this could be the case when

:e1 and

:e2 represent groups of subjects). (ii) Each and

every association that

:expr2 has through the

pac:hasParameter property must be logically

inferable from a corresponding association of

:expr1.

We concentrate on the 2

condition above.

Checking whether this condition holds can be a

rather inefficient process. Consider, for instance, the

simple example of Table 9. Clearly,

:expr2 cannot

be considered to be subsumed by

:expr1 for the

former has as parameter a type of device (a tablet)

whereas the latter has as parameter a location.

Nevertheless, for this fact to be discovered in an

automated manner, it must be verified that the

individuals

:Athens and :iPadPro9.7 are indeed

mutually incomparable. Ontologically, this amounts

to discovering that the two individuals are not

instances of a common class from the Security

Context Element depicted in Figure 2. This

effectively means that the path of subclass relations

that leads from the class

pcm:Tablet (i.e. the

immediate class to which the individual

:iPadPro9.7 belongs) to the top-level class

pcm:SecurityContextElement, and the

corresponding path that leads from the class

pcm:AbstractLocation (i.e. the immediate class

to which the individual

:Athens belongs) to

pcm:SecurityContextElement must be

traversed in order to ensure that they do not share

any common classes. This is a computationally

expensive process.

Table 8: Associating context using the extended model of

Figure 6. :para1, :para2 and :para3 are defined as

in Table 3; para4 specifies the type of device (stationary

as opposed to mobile) through which a request must take

place, as well as the OS type of that device.

:expr a pac:XORContextExpression;

pac:hasParameter :expr1;

pac:hasParameter :expr2;

pac:refersTo :s.

:expr1 a pac:ORContextExpression;

pac:hasParameter :para1;

pac:hasParameter :para2;

:expr2 a pac:ANDContextExpression;

pac:hasParameter :para3;

pac:hasParameter :para4;

:para4 a pcm:Stationary;

pcm:hasStationaryOS

“Windows10”^^xsd:string.

Table 9: Checking property subsumption

:expr1 a pac:ContextExpression;

pac:hasParameter :Athens.

:expr2 a pac:ContextExpression;

pac:hasParameter :iPadPro9.7.

:Athens a pcm:AbstractLocation.

iPadPro9.7 a pcm:Tablet.

An Ontological Template for Context Expressions in Attribute-based Access Control Policies

131

One way to reduce this computational cost is to

define sub-properties of the

pac:hasParameter

property that directly associate a context expression

with one of the top-level concepts of the

pcm:SecurityContextElement depicted in

Figure 2. Thus, when a context expression has as a

parameter an instance of one of these subclasses, the

association takes place through the appropriate sub-

property rather than through the

pac:hasParameter property. These sub-properties

are shown in Table 10. For instance, the context

expressions represented by the individuals

:expr1

and

:expr2 in the example of Table 9, will now be

associated with their corresponding parameters

through the sub-properties

pac:hasLocationParameter and

pac:hasConnectivityParameter respectively.

In this way, the subsumption of

:expr2 by :expr1

can be precluded from the outset, without having to

traverse the aforementioned paths since now the two

parameters are associated with the context

expressions through different sub-properties of

pac:hasParameter ruling out any subsumption

relation between them. It is to be noted that the fact

that two parameters are associated with a context

expression through the same sub-property does not

necessarily imply that the two parameters are

mutually comparable.

6 RELATED WORK

A number of approaches to context modelling have

been proposed in the literature, recognising the

necessity of formally capturing knowledge in order

to drive interactions in service-based applications. In

(Strang & Linnhoff-Popien, 2004; Bettini et al.,

2010) detailed reviews of context models are

provided that range from key-value models, to

graphical models, mark-up schemes, object-oriented

models, logic-based models and ontology-based

models. Miele et al., (2009) propose a context model

approach that was initially developed for mobile

devices and later extended for capturing the

knowledge that lurks in service-based applications

(Bucchiarone et al., 2010). In (Truong et al., 2009)

an ontological model of the W4H classification for

context is proposed. W4H stands for “who, where,

when, what, how” and provides a set of generic

classes, properties, and relations that exploit the five

semantic dimensions of identity, location, time,

activity and device profiles. A similar approach is

reported in (Abowd and Mynatt, 2000), where the

‘five Ws’ of context are identified: Who, What,

Where, When, and Why. In (Sheng, 2005),

ContextUML is proposed – an approach that uses a

UML-based modelling language specifically

designed for Web services. ContextUML considers

that context contains any information that can be

used by a Web service to adjust both its execution

and its output.

Exploiting context in access control mechanisms

is a clear direction of on-going research. Even

dedicated context-aware extensions to traditional

access control models (e.g. Role-based Access

Control - RBAC) either do not cover all the aspects

of the contextual information required with a

reusable and extensible security related context

model, or are proven cumbersome to maintain in

dynamic environments where potential requestors

are not known at design-time and often change their

roles (Heupel, 2012). On the other hand, the

ontological models that exist (e.g. (Truong et al.,

2009)) do not cover all the security requirements

associated with the lifecycle of a cloud application

(i.e. both bootstrapping and operation phases).

Usually, they fail to cover the full range of

contextual elements that are associated with the

security enhancement of the sensitive data managed

by the cloud applications, or they are driven by

heavy inferencing that is inefficient (Verginadis et

al., 2015).

Turning now to the representation of policies and

policy rules, a number of relevant approaches have

been proposed in the literature (Uszok et al., 2005;

Kagal et al., 2003; Neijdl et al., 2005). These

generally rely on the expressivity of Description

Logics (DLs), and particularly on OWL (2004), for

capturing the various knowledge artefacts that

underpin the definition of a policy. In (Uszok et al.,

2005), KAoS is presented – a generic framework

offering: (i) a human interface layer for the

expression of policies that constrain the actions that

an agent is allowed to perform in a given context;

(ii) a policy management layer that is capable of

identifying and resolving conflicting policies; (iii) a

monitoring and enforcement layer that encodes

policies in a suitable programmatic format for

Table 10: Sub-properties of pac:hasParameter

Name Domain Range

(pcm prefix)

(pac prefix) (pac prefix)

hasLocation

Parameter

Context

Expression

Location

hasDateTime

Parameter

DateTime

hasConnectiv

ityParameter

Connectiv

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

132

enforcing them. Contextual conditions that must be

taken into account in access control decisions are

expressed as OWL property restrictions. A main

drawback of the KAoS approach is the fact that its

reliance on OWL raises concerns about the

efficiency with which semantic inferencing can be

performed dynamically, when policies are evaluated

against incoming access requests. In order to

alleviate these concerns, KAoS encodes policies in a

programmatic format. Nevertheless, this precludes

the performance of any updates to the policies

dynamically, during system execution, as such

updates naturally require the (updated) policies to be

re-compiled to the programmatic format.

In (Kagal et al., 2003) Rei is proposed – a

framework for specifying, analysing and reasoning

about policies. Rei adopts OWL-Lite for the

semantic specification of policies. A policy

comprises a list of rules that take the form of OWL

properties, as well as a context that defines the

underlying policy domain. Rei provides a suitable

ontological abstraction for the representation of a set

of desirable behaviours that are exhibited by

autonomous entities. Rei resorts to the use of

placeholders as in rule-based programming

languages for the definition of variables. These

variables are purportedly required for expressing

policy rules in which no concrete values are

provided for one or more of the contextual attributes

– e.g. rules of the form “subject

s is allowed to

access object

o only when s is located in the same

area as another subject

s’”. This, however,

essentially prevents Rei from exploiting the full

inferencing potential of OWL as policy rules are

expressed in a formalism that is alien to OWL. In

contrast, variables could have instead been modelled

in terms of OWL’s anonymous individuals.

In (

Nejdl et al., 2005) the authors propose

POLICYTAB for facilitating trust negotiation in

Semantic Web environments. POLICYTAB adopts

ontologies for the representation of policies that

guide a trust negotiation process ultimately aiming at

granting, or denying, access to sensitive Web

resources. These policies essentially specify the

credentials that an entity must possess in order to

carry out an action on a sensitive resource that is

under the ownership of another entity. Nevertheless,

no attempt is made to model the context associated

with access requests.

On a different note, markup languages such as

RuleML (2015), XACML (OASIS, 2013), SAML

(2008) and WS-Trust (2007) provide declarative

formalisms for the specification of policies.

Nevertheless, they do not provide any means of

capturing the knowledge that dwells in policies. This

brings about the following disadvantages: (i) it

precludes any form of semantic inferencing when

evaluating access request, as well as when

identifying inter-policy relations; (ii) it leads to ad-

hoc reasoning about policy compliance, one which is

tangled with the particular vocabularies that are

utilised for articulating the rules according to which

the reasoning takes place.

7 CONCLUSIONS

This paper has proposed an ontological template for

the semantic representation of context expressions in

access control policies. We argue that such a

template facilitates developers in expressing

effective security policies which give rise to security

controls that are appropriate for dynamic and

heterogeneous cloud environments. The proposed

template is founded on the basis of relevant

knowledge artefacts that accurately capture a wide

range of contextual attributes that must be taken into

account during the evaluation of a policy. One of the

virtues of the proposed ontological template is that it

enables the evaluation of a request against an access

control policy to be performed, and reasoned about,

at the semantic level; furthermore, our ontological

template paves the way for the performance of

automated reasoning about potential inter-policy

relations such as the identification of subsuming

polices.

Another seminal advantage offered by the

proposed template is the fact that it is expressed in a

generic, interoperable and extensible RDF

vocabulary that lends itself to, and thus paves the

way for, a series of correctness checks that are

performed automatically by a policy validator. These

checks aim at assessing the validity of a policy with

respect to a higher-level ontology (HLO) that

captures all those knowledge artefacts that a policy

may comprise. These correctness checks are clearly

of utmost importance for they increase assurance on

the effectiveness of the policies.

Currently, we are in the process of constructing

the policy validator and the HLO. The constraints

expressed through the HLO are articulated on the

basis of the Integrity Constraints (IC) semantics for

OWL 2 proposed in (Tao et al., 2010). We also

intend to construct an editor for priming the HLO.

An Ontological Template for Context Expressions in Attribute-based Access Control Policies

133

ACKNOWLEDGEMENTS

The research leading to these results has received

funding from the European Union’s Horizon 2020

research and innovation programme under grant

agreement No 644814.

REFERENCES

Abowd, G., & Mynatt, E., 2000. Charting past, present, and

future research in ubiquitous computing. ACM

Transactions on Computer-Human Interaction (TOCHI) -

Special issue on human-computer interaction in the new

millennium, 29-58.

Bettini, C., Brdiczka, O., Henricksen, K., Indulska, J.,

Nicklas, D., Ranganathan, A., & Riboni, D., 2010. A

survey of context modelling and reasoning techniques.

Pervasive and Mobile Computing, 161-180.

Bucchiarone, A., Kazhamiakin, R., Cappiello, C., Nitto, E., &

Mazza, V., 2010. A context-driven adaptation process for

service-based applications. In ACM Proceedings of the

2nd International Workshop on Principles of Engineering

Service-Oriented Systems (PESOS'10), pp. 50-56, Cape

Town, South Africa.

CSA, 2015. What’s Hindering the Adoption of Cloud

Computing in Europe? Available online:

https://blog.cloudsecurityalliance.org/2015/09/15/whats-

hindering-the-adoption-of-cloud-computing-in-europe/.

Cloud Security Alliance.

Heupel, M., Fischer, L., Bourimi, M., Kesdogan, D., Scerri,

S., Hermann, F., Gimenez, R., 2012. Context-Aware,

Trust-Based Access Control for the di.me Userware. In

Proceedings of the 5th International Conference on New

Technologies, Mobility and Security (NTMS'12), pp. 1-6,

Istanbul, Turkey, IEEE Computer Society.

Hu, V. C., Ferraiolo, D., Kuhn, R., Schnitzer, A., Sandlin, K.,

Miller R., and Scarfone K., 2014. Guide to Attribute

Based Access Control (ABAC) Definition and

Considerations. NIST.

Kagal, L., Finin, T., Joshi, A.: A Policy Language for a

Pervasive Computing Environment. In 4th IEEE Int.

Workshop on Policies for Distributed Systems and

Networks (POLICY '03), pp. 63-74, IEEE Computer

Society, Washington, DC (2003)

Miele, A., Quintarelli, E., Tanca, L., 2009. A methodology for

preference-based personalization of contextual data. In

ACM Proceedings of the 12th International Conference

on Extending Database Technology: Advances in

Database Technology (EDBT'09), pp. 287-298, Saint-

Petersburg, Russia.

Nejdl, W., Olmedilla, D., Winslett, M, Zhang. C.C.:

Ontology-Based policy specification and management. In

Gómez-Pérez, A. and Euzenat, J. (eds.) ESWC'05, pp.

290-302, Springer-Verlag, Berlin, Heidelberg (2005).

OASIS, 2013. OASIS eXtensible Access Control Markup

Language (XACML). Available: http://docs.oasis-

open.org/xacml/3.0/xacml-3.0-core-spec-os-en.html.

OWL Web Ontology Language Reference. W3C

Recommendation, 2004. Available online:

http://www.w3.org/TR/owl-ref/.

PaaSword Deliverable 2.1, 2015. Available online:

https://www.paasword.eu/deliverables/.

PaaSword Deliverable 2.2, 2015. Available online:

https://www.paasword.eu/deliverables/.

RDF 1.1 Turtle, 2014. Available: http://docs.oasis-

open.org/xacml/3.0/xacml-3.0-core-spec-os-en.html.

Specification of Deliberation RuleML 1.01, 2015. Available

online:

http://wiki.ruleml.org/index.php/Specification_of_Deliber

ation_RuleML_1.01.

Security Assertions Markup Language (SAML) Version 2.0.

Technical Overview, 2008. Available online:

https://www.oasis-

open.org/committees/download.php/27819/sstc-saml-

tech-overview-2.0-cd-02.pdf

Sheng, Q., & Benatallah, B., 2005. ContextUML: A UML-

Based Modeling Language for Model-Driven

Development of Context-Aware Web Services

Development. In Proceedings of the International

Conference on Mobile Business (ICMB'05), pp. 206-212,

IEEE Computer Society.

Strang, T., Linnhoff-Popien, C., 2004. A Context Modeling

Survey. In Workshop on Advanced Context Modelling,

Reasoning and Management, (UbiComp'04) - The Sixth

International Conference on Ubiquitous Computing.

Nottingham, England.

Tao, J., Sirin, E., Bao, J. and McGuinness, D. L.: Integrity

Constraints in OWL, In Proceedings of the 24th AAAI

Conference on Artificial Intelligence (AAAI-10), Atlanta,

Georgia, USA, July 11-15 (2010)

Truong, H.-L., Manzoor, A., Dustdar, S., 2009. On modeling,

collecting and utilizing context information for disaster

responses in pervasive environments. In ACM

Proceedings of the first international workshop on

Context-aware software technology and applications

(CASTA'09), pp. 25-28, Amsterdam, The Netherlands.

Uszok, A., Bradshaw, J., Jeffers, R., Johnson, M., Tate, A.,

Dalton, J. and Aitken, S., 2005. KAoS Policy

Management for Semantic Web Services. IEEE Intel.

Sys., vol. 19, no. 4, pp. 32 - 41.

Veloudis, S., Verginadis, Y., Patiniotakis, I., Paraskakis, I.,

Mentzas, G., 2016. Context-aware Security Models for

PaaS-enabled Access Control. In Proceedings of the 6th

International Conference on Cloud Computing and

Services Science (CLOSER’16), April 23-25, 2016,

Rome, Italy

Verginadis, Y., Mentzas, G., Veloudis, S., Paraskakis, I.,

2015. A Survey on Context Security Policies. In

Proceedings of the 1st International Workshop on Cloud

Security and Data Privacy by Design (CloudSPD'15), co-

located with the 8th IEEE/ACM International Conference

on Utility and Cloud Computing, Limassol, Cyprus,

December 7-10.

WS-Trust 1.3, 2007. Available online: http://docs.oasis-

open.org/ws-sx/ws-trust/200512/ws-trust-1.3-os.doc.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

134
