Towards Bandwidth Optimization in Fog Computing

using FACE Framework

Rosangela de F

atima Pereira Marquesone

Erico Augusto da Silva

, Nelson Mimura Gonzalez

Karen Langona

, Walter Akio Goya

, Fernando Frota Red

ıgolo

Tereza Cristina Melo de Brito Carvalho

, Jan-Erik M

angs

and Azimeh Seﬁdcon

Laboratory of Computer Networks and Architecture, Escola Polit

ecnica, University of S

ao Paulo, Brazil

Ericsson Research, Sweden

Keywords:

Fog Computing, Bandwidth Optimization, Video Surveillance.

Abstract:

The continuous growth of data created by Internet-connected devices has been posing a challenge for mobile

operators. The increase in the network trafﬁc has exceeded the network capacity to efﬁciently provide services,

specially for applications that require low latency. Edge computing is a concept that allows lowering the

network trafﬁc by using cloud-computing resources closer to the devices that either consume or generate data.

Based on this concept, we designed an architecture that offers a mechanism to reduce bandwidth consumption.

The proposed solution is capable of intercepting the data, redirecting it to a processing node that is allocated

between the end device and the server, in order to apply features that reduce the amount of data on the network.

The architecture has been validated through a prototype using video surveillance. This area of application was

selected due to the high bandwidth requirement to transfer video data. Results show that in the best scenario is

possible to obtain about 97% of bandwidth gain, which can improve the quality of services by offering better

response times.

1 INTRODUCTION

The widespread adoption of smartphones, many mo-

bile devices and sensors from the Internet of Things

(IoT) has been creating a world with ubiquitous con-

nectivity. According to a report published by Erics-

son, only in the year of 2014, 800 million smartphone

subscriptions were created worldwide. Consequently,

it is expected a total of 5.4 billion subscriptions of

mobile broadband by 2020 (eri, 2015).

Mobile subscribers take full advantage of existing

wireless network infrastructure, which allows them

to enjoy with a wide range of applications, includ-

ing video streaming, gaming and social networking.

These applications require faster response times to

provide efﬁcient and satisfying experience to the end

user. However, the rising use of these applications re-

sults in a continuous growth on the mobile data trafﬁc.

As a consequence, the data trafﬁc has been exceeding

the capacity of current network infrastructure, impact-

ing application performance and network efﬁciency.

As the data volume across the network increases,

application service providers are being challenged to

scale their data center with properly storage and pro-

cessing capacity. In this context, cloud computing

has been used to support the large volume of data

consumption by end users. Cloud computing allows

service providers to obtain computing and storage

resources on demand, providing them with ﬂexibil-

ity and dynamic resource allocation. However, even

in a cloud infrastructure, the data are generated or

terminated in a central location. For this reason,

cloud computing cannot solve the problem related to

network performance, since the data must be trans-

ferred through the network until it ﬁnds its destina-

tion. Therefore, the more mobile devices and appli-

cations are made available, larger and faster network

infrastructure becomes necessary.

An approach capable of reducing data trafﬁc

across the network is to process the data before it

reaches its destination. Edge computing can be a

promising way to address this requirement. It con-

sists of storage and computing resources allocated as

closer as possible to the edges of the network. This

approach makes possible to process the data as soon

as it reaches the network, thus reducing the amount of

Marquesone, R., Silva, É., Gonzalez, N., Langona, K., Goya, W., Redígolo, F., Carvalho, T., Mångs, J-E. and Seﬁdcon, A.

Towards Bandwidth Optimization in Fog Computing using FACE Framework.

DOI: 10.5220/0006303804910498

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 463-470

ISBN: 978-989-758-243-1

463

data that must be sent to the ﬁnal destination. There-

fore, edge computing allows the execution of many

applications on intermediary nodes, instead of only in

their central location. Fog and Edge computing are in-

terchangeable terms according to some authors (Gon-

zalez et al., 2016; Dastjerdi and Buyya, 2016; Hu

et al., 2016).

Given the computing capability offered by fog

computing, it is necessary to investigate how to en-

hance network performance from it. Considering this

context, in this paper we propose the FACE. It of-

fers a framework with functionalities capable of ei-

ther reducing or optimizing the network consumption.

The functions provided are (F)iltering, (A)ggregation,

(C)ompression and (E)xtraction. In this paper we ex-

plained the deﬁnition and objectives of each function

and also present potential scenarios where FACE can

be applied. In order to test the capabilities of our solu-

tion, we performed an experiment using FACE frame-

work in a video surveillance application. This context

was selected due to the large amount of data gener-

ated by video cameras and due to the need of such

applications for low latency. Results show that FACE

framework provides signiﬁcant reduction of data traf-

ﬁc, and it can be applied in the network infrastructure

in a transparent way.

The remainder of this paper is organized as fol-

lows. In Section 2 we present a contextualization

about fog computing, describing its deﬁnition and dis-

tinctions of cloud computing. The description in de-

tail of the FACE framework is presented in Section 3.

In Section 4 is described our experiment with a video-

surveillance use case. The tests, results and analy-

sis are presented in Section 5, and ﬁnally, Section 6

brings the conclusions and future work.

2 FOG COMPUTING

The current wireless network infrastructure provides

the connection between the end users and the data

center from application providers. A user of a mo-

bile phone when performing a search using a browser

on its device counts on the wireless network infras-

tructure to upload her/his request and deliver it to the

destination. The response to the user’s request will

be brought to her/his device by the wireless network

infrastructure. Therefore, the request from the user

has to reach the central server in order to provide the

response to the user. The data generated by an end

user on the edges of the wireless networks will have

to travel through the network until it ﬁnds its destina-

tion. The problems with this centralized processing

(conventional scenario) are:

• Delay insertion to the response time. This oc-

curs due to the time that it takes for the request

to be transferred from the user device to the cen-

tral server and then back, to bring the response to

the end user. This time can compromise the per-

formance of latency-sensitive applications such as

video streaming and gaming. Therefore, the faster

that a response can be issued to the end user, the

better the network meets the application response

time requirements.

• Trafﬁc addition to the network. Since all the end-

users requests have to be transferred through the

network until it ﬁnds its central server, more traf-

ﬁc is added to the network. With the growing

number of smartphone subscriptions, the telecom

operators will have to provide networks that sup-

port more trafﬁc and more users.

From these two observations, we can conclude

that telecom operators need to ﬁnd innovative ap-

proaches to support the continuous growth of data

trafﬁc. Therefore, fog computing emerges as an al-

ternative to meet this requirement (Margulius, 2002;

Pang and Tan, 2004). Considered an extension of

cloud computing paradigm, this concept was deﬁned

for the ﬁrst time in 2012 by the work of Flavio

Bonomi et al. (Bonomi et al., 2012) According to the

authors, fog computing is a virtualized platform that

brings cloud computing services (compute, storage,

and network) closer to the end user, in the edges of the

networks. By offering these services, the platform can

better meet the requirements of time-sensitive appli-

cations. It implies that the cloud computing resources

will be geographically distributed to locations closer

to the end users and/or IoT endpoints. This distributed

infrastructure allows to get bandwidth savings by ap-

plying data processing across intermediary processing

nodes, rather than only in the cloud.

3 FACE FRAMEWORK

The FACE framework consists of a set of speciﬁc

functions that aims at improving response time and

avoiding sending unnecessary trafﬁc through the net-

work. It was designed to perform data processing in

the edge or intermediary nodes of the network. As

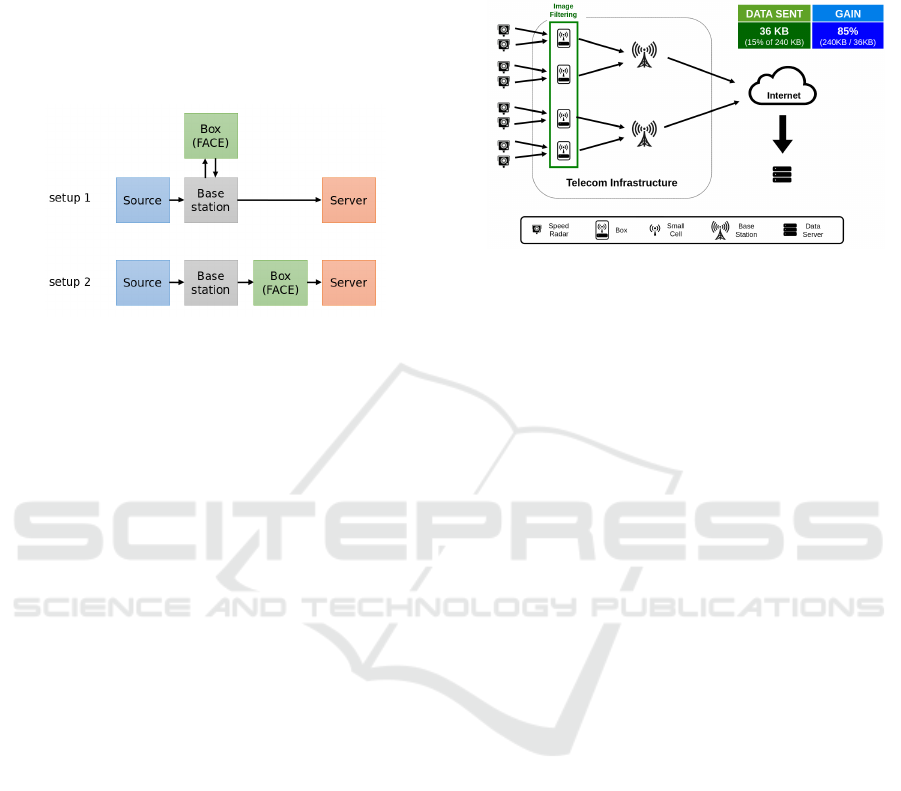

depicted in Fig. 1, the functions can be hosted in

a box composed by compute and storage resources.

This box may be placed either at the base station level

(setup 1) or right after it (setup 2). In both cases the

box is added to the network topology and is responsi-

ble for intersecting the data, applying the functions to

data processing, and delivering the data results to the

next component of the network.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

464

To reduce the data trafﬁc, decrease overhead and

allow better management of the network bandwidth,

this framework is composed by four different func-

tions: Filtering, Aggregation, Compression, and Ex-

traction. The name FACE is an acronym formed by

the ﬁrst letter of each function name. They can be ei-

ther individually or jointly applied to the input trafﬁc.

This choice is determined by each individual use case.

Figure 1: The box and the two network topologies.

In this section we describe the deﬁnition of each

function and also present potential scenarios that may

beneﬁt from the FACE functions.

Filtering

The ﬁltering function allows reducing data trafﬁc by

either analyzing or processing the data at the box. All

data collected are computed by this function and only

the data that satisfy a group of predeﬁned ﬁltering cri-

teria will be sent on the network. The criteria consist

of measures and/or attributes deﬁned by the applica-

tion service providers. Therefore, the ﬁltering func-

tion offer bandwidth savings by excluding data before

it reaches the central server. In addition, the same ap-

proach can be used for data cleaning mechanisms, by

deﬁning criteria to detect and discard inconsistent and

corrupted data.

Figure 4 illustrates an use case that applies the ﬁl-

tering function on pictures taken by surveillance cam-

eras installed along a freeway. The monitoring de-

vices help control the average speed allowed on the

freeway. For this example it was assumed that the

surveillance is done by eight installed cameras. As

the car passes by the ﬁrst set of cameras a picture is

taken at P1. When the car passes by the second set

of cameras another picture is taken at P2. Then the

function calculates the average speed and if it is over

the limit for that freeway the pictures will be sent to

the central server to be processed and a ticket will be

issued to that car. Assuming the size of a picture is

30KB, each set of eight cameras would send 240KB

to the network. However, if we assume that the infrac-

tion rate on the freeway is 15%, the ﬁltering function

will only allow the 15% of the data to be carried over

the network. The data that is collected on the edges of

the network is then ﬁltered and only 15% of it is sent

to a central location.

Figure 2: The gains of applying the ﬁltering function.

As stated before, the ﬁltering function can be ap-

plied to scenarios where parts of the data can be dis-

carded, in case a set of criteria is not satisﬁed. An

example could be the data collected from sensor net-

works used to control a device or an environment, e.g.

temperature sensor to prevent ﬁres. Using the ﬁltering

function, only the data that present abnormal event

will be sent to the ﬁnal destination, allowing to sub-

stantially reduce data trafﬁc.

Aggregation

The aggregation function reduces the overhead on the

network since it combines and accumulates data to be

sent through the network in batches. Therefore, a sin-

gle connection can be used to send data from multiple

users. This solution is suitable for scenarios that col-

lect large amount of small data in frequent times. If

the application is not latency sensitive, the aggrega-

tion function can store the data and send it only in

predeﬁned time intervals. Considering the previous

scenario, the surveillance cameras in a freeway, the

pictures taken at P1 and P2 do not need to be pro-

cessed in real-time. It is possible to archive the pic-

tures using the aggregation function and send batches

of them in predeﬁned intervals.

While the ﬁltering function requires processing

capacity from the box, the aggregation function re-

quires storage capacity to cache the data. Triggering

mechanisms can be used to deﬁne rules regarding the

data delivery. This trigger can also be turned off when

the amount of data is lower than usual. For example,

applications that concentrates higher data trafﬁc only

during the day, do not need to aggregate the data at

night. Therefore, it is necessary to investigate which

compression mechanism better reduces the data with-

out generating low responses.

Towards Bandwidth Optimization in Fog Computing using FACE Framework

465

Compression

Although the ﬁltering function allows reducing the

amount of data, it is not applicable when applications

require to store all the data in a central server, or in

cases when it is not possible to deﬁne ﬁltering cri-

teria for the data. A different strategy to reduce the

data trafﬁc is to use the compression function. This

function enables the execution of compression mech-

anisms according to the data structure. For exam-

ple, pictures collected from video surveillance cam-

eras can be compressed by converting the raw photos

to JPEG format.

In order to perform further processing over the

data in the central server, service providers must be

advised about which algorithm was used for data

compression. By knowing the algorithm they can

decompress the data. A service provider of video

streaming could add its own compression algorithm

to the box, so data from video uploads could be re-

duced.

Due to the large alternatives to compress the data,

the execution of compression function can represent

a trade-off. While it allows reducing the data size,

and consequently reducing data trafﬁc, some algo-

rithms may aggregate an additional overhead dur-

ing the compression, impacting the performance of

latency-sensitive applications.

Extraction

The extraction function, similar to the ﬁltering func-

tion, focuses on mechanisms to discard unnecessary

data. However, this function enables the data re-

duction by extracting only an speciﬁc portion of the

data. For example, considering the aforementioned

scenario that takes pictures of a car to calculate the

average speed. The extraction function can be used to

extract the license plate information from the picture

and send to the server only the text with this content,

instead of the whole picture. Since the text ﬁle with

only this speciﬁc portion contains just a few kilobytes,

the data trafﬁc can be reduced.

Similar to the compression function, the service

providers may determine the application logic in the

extraction function. There are many approaches to it.

Text mining algorithms can be applied on text data,

and only the output data from this computation can

be sent through the network. Pattern recognition tech-

niques and image segmentation can also be applied in

the box, allowing to determine the application logic

over the data in a faster response time. The data sent

to the server are the one that must be recorded.

The FACE functions can also be jointly applied

to the input trafﬁc. When two or more functions are

applied to the input trafﬁc, the data reduction can be

even higher. These possibilities result in many bene-

ﬁts, such as reduce costs related with network infras-

tructure for Telecom operators, optimize the perfor-

mance of application service providers and improve

end users experience. The experiment and evaluation

of FACE framework is presented in the next section.

4 PROPOSED ARCHITECTURE

In order to perform an experiment to analyze the per-

formance of the FACE framework, we designed an

use case applied to video surveillance. We demon-

strate our strategy to apply the compression function

over image data in a box closer to the base station.

The tests were performed to identify the bandwidth

savings by applying this function and to evaluate the

overhead to intersect, apply the processing and deliver

the data.

Fog computing applied to video surveillance can

improve the performance of the system by reduc-

ing the amount of data transmitted across the net-

work. This reduction allows improving the applica-

tion response times, since the transmission time is

decreased. The overall response time of the system

can also be improved by the bandwidth optimization.

A strategy to decrease the amount of data in a video

surveillance scenario that does not require high qual-

ity images is to convert the images to grayscale mode

and resize them to a lower resolution. Therefore, be-

fore the video data reaches a cloud infrastructure or

a data center to be processed, these optimizations can

be applied in a modular compute and storage device,

which is located closer to where the images have been

generated (e.g. cameras). Considering video surveil-

lance systems composed by several cameras, this ap-

proach can result in signiﬁcant bandwidth reduction

and high quality services.

In a traditional video surveillance scenario, the

source continuously sends images (IMG.png) directly

to a server. The system must provide an online view

of the scenes, specially for the ones that presents some

activity (Nilsson and Axis, 2017). As illustrated in

Figure 3, we designed an architecture that intercepts

the images from the source, redirecting them to the

Processing Node (PN), where, if applicable, the com-

pression functions are applied, and only then the im-

ages are sent to the ﬁnal destination. This model ap-

plies compression to a given image if there is a differ-

ence between this image and the previous one.

We proposed two ways to connect the PN to the

rest of the system: setup 1 connects the PN to the

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

466

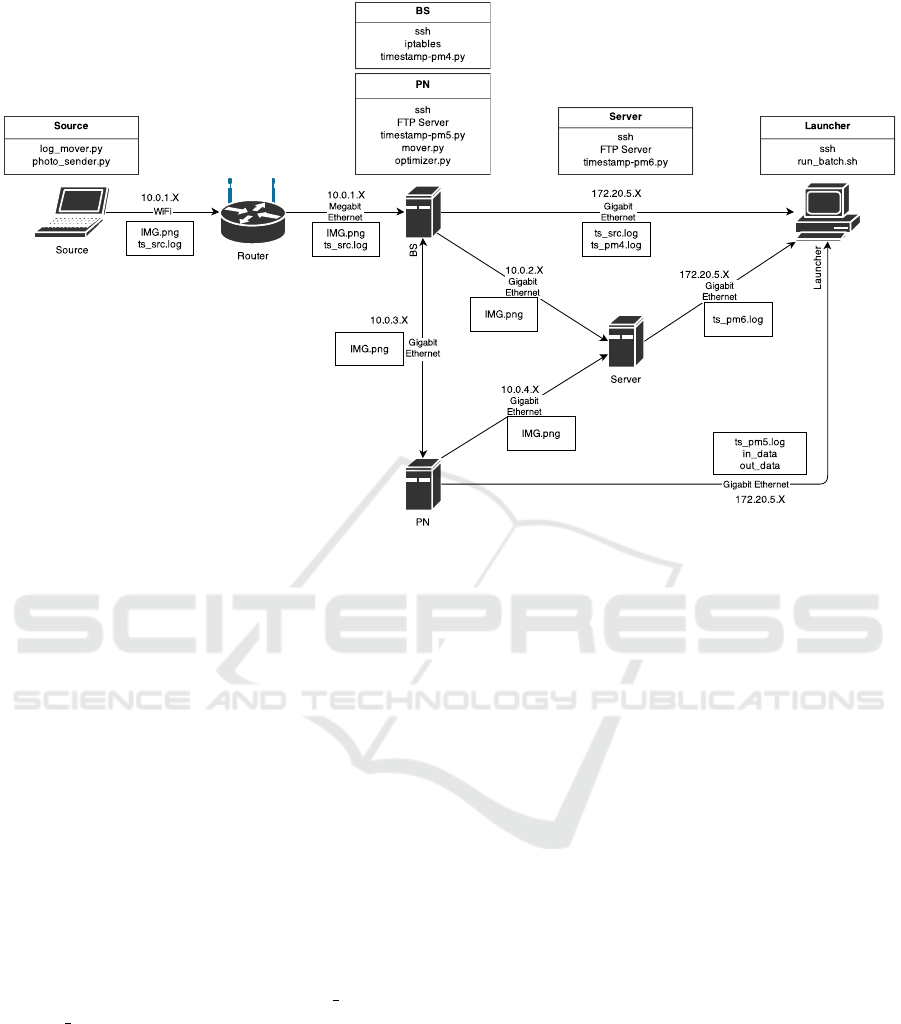

Figure 3: System architecture to apply compression function closer to the network.

Base Station (BS) only, the PN receives images from

the BS and sends them back, so BS can send them

to the server; setup 2 is a connection in series, where

PN is connected between the BS and the server, so the

PN receives images from BS and send them directly

to the server.

Data redirection is done through iptables con-

ﬁguration. The iptables are an administrative tool

for IPv4 packets ﬁltering and NAT (Network Address

Translation) and they are used to control packets in

transit within the machine through rules deﬁnitions.

The compression takes place in the PN and it is done

by the optimizer. This component is responsible for

comparing two images and deciding whether it should

apply compression. If so, the optimizer lowers the

image resolution and converts it to greyscale, which

reduces its size.

Within the PN there are the local mover and

remote mover. These mechanisms are responsible

for moving images within the machine ﬁle system and

starting the transfer between PN and server. These

mechanisms implement time-based differentiation al-

gorithm, which allows new ﬁles detection and the sub-

sequent processing of the previous ones. The idea be-

hind it is that if there is a new ﬁle listed in the ﬁle sys-

tem, the old ones are safe to be processed, without any

synchronization risks or race conditions. The system

generates two types of log ﬁles: timestamp logs and

bandwidth log. The ﬁrst one extracts latency metrics

and the second one evaluates the bandwidth gain by

keeping track of the size of incoming and outcoming

images.

5 TESTS AND RESULTS

In this section we present the testbed setup, the test

description and the metrics used in the prototype. We

also present results obtained from a set of experiments

performed to evaluate the effectiveness of the FACE

framework.

5.1 Testbed Setup

According to the architecture presented in Fig. 3,

the testbed is composed of one notebook with camera

(source), one wireless router, three physical machines

(BS, PN and server) and one PC (launcher), con-

nected to the laboratory network infrastructure. Table

1 shows the hardware specs used in the testbed. The

wireless router is a Netgear WPN824 v3 and we use

Secure Shell (SSH) to establish access to the hosts.

We used the laptop webcam to run the test because

we needed a custom application capable of collecting

some of the latency metrics. However, in a real video

surveillance scenario any type of camera with image

transfer capabilities could be used.

Towards Bandwidth Optimization in Fog Computing using FACE Framework

467

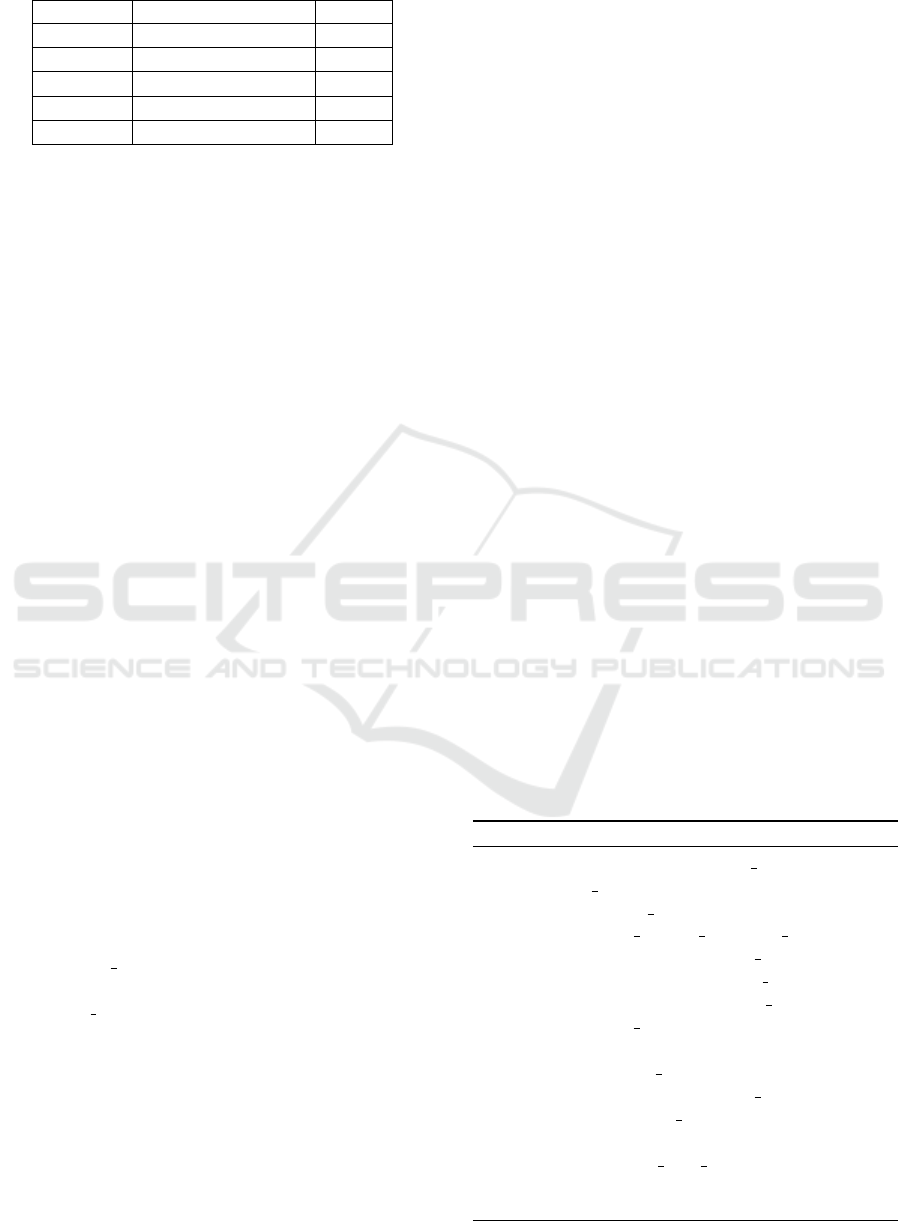

Table 1: Testbed hardware specs.

Host Processor RAM

Source

Intel Core i7-3635

8 GB

Intel Xeon E3-1230

16 GB

Intel Xeon E3-1230

16 GB

Server

Intel Xeon E3-1230

16 GB

Launcher

Intel Core i5-2500

8 GB

5.2 Tests Description

In order to identify the latency introduced by our so-

lution and the amount of bandwidth gain it can gen-

erate, we have used the metric ﬁles collected from

the testbed hosts. These ﬁles allowed us to identify

the amount of time consumed by each operation per-

formed during the tests.

The tests were performed with ﬁve different sce-

narios:

• Test 0: is the conventional scenario, without the

processing node;

• Test 1A: uses the processing node in the Setup 1,

without compression functionality;

• Test 1B: uses the processing node in Setup 1, but

now with compression functionality;

• Test 2A: uses the processing node in the Setup 2,

without compression functionality;

• Test 2B: uses the processing node in Setup 2, but

now with compression functionality;

Regarding latency measurements, each machine

listens to a set of events, which are described in Ta-

ble 2. When triggered, these events generate entries

in the timestamp log, containing the event type and

the time they occurred. These two pieces of informa-

tion are used to extract the amount of time consumed

by each step. We used Network Time Protocol (NTP)

to ensure the machines had their clocks synchronized.

PN is responsible for accounting the amount of

data received and sent. Once the image transfer be-

tween source and PN is completed, it registers the im-

age size in in data ﬁle and, before sending the image

to server (after processing it), in registers the image

size in out data ﬁle.

Algorithm 1 describes the steps for setting up the

testbed. The launcher runs code that sets the network

topology and triggers applications in the other ma-

chines, making remote call with ssh. These applica-

tions remove ﬁles generated in the previous test and

also collect the metrics for the current test, according

to the current topology. Once all applications are run-

ning, the launcher waits for the test to be completed,

collects all metric ﬁles and generates the analysis.

There are two environments considered: wired

and wireless. The ﬁrst one is used as a reference for

system architecture validation and the second one is

the target environment. We set the sending rate based

on preliminary network analysis that showed that the

network could only handle one image per second. We

repeat each test ten times. For both test environments,

we used two test loads: no movement and movement.

The ﬁrst one gives the results for the best case sce-

nario for the application, since it implies intensive use

of compression function. The second one gives re-

sults on the worst case scenario.

5.3 Results

Table 3 and 4 display the results from the tests per-

formed on the wired and wireless environments, re-

spectively. The tables contain all the average latency

for each operation, the total latency and the bandwidth

gain.

In both environments, the latency values for the

two topologies proposed are similar, even when com-

pared among different test loads. The PN introduced

about 2.37 seconds of latency in the wired environ-

ment and 5.12 seconds in the wireless, but only 0.03

seconds have been spent with compression. The rest

of the time has been spent with disk operations, such

as move and copy within the PN.

Most of the time operations was spent with image

transmission: before the compression starts, the im-

age transfer must be completed, and before the image

can be sent to the ﬁnal destination, the image com-

pression must be complete. These rules are imple-

mented through the mover time-based differentiation

algorithm.

Algorithm 1: Test execution algorithm.

1: for each scenario in scenarios list do

2: SETUP TOPOLOGY(scenario)

3: for i ← 0 to n repetitions do

4: CREATE LOCAL METRICS FOLDER

5: for each host in remote hosts do

6: CLEAN(host, images f older)

7: CLEAN(host, metrics f olders)

8: RUN PROGRAMS(scenario, host)

9: end for

10: SLEEP(test duration)

11: for each host in remote hosts do

12: COLLECT DATA(host)

13: end for

14: GENERATE LOG ANALYSIS

15: end for

16: end for

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

468

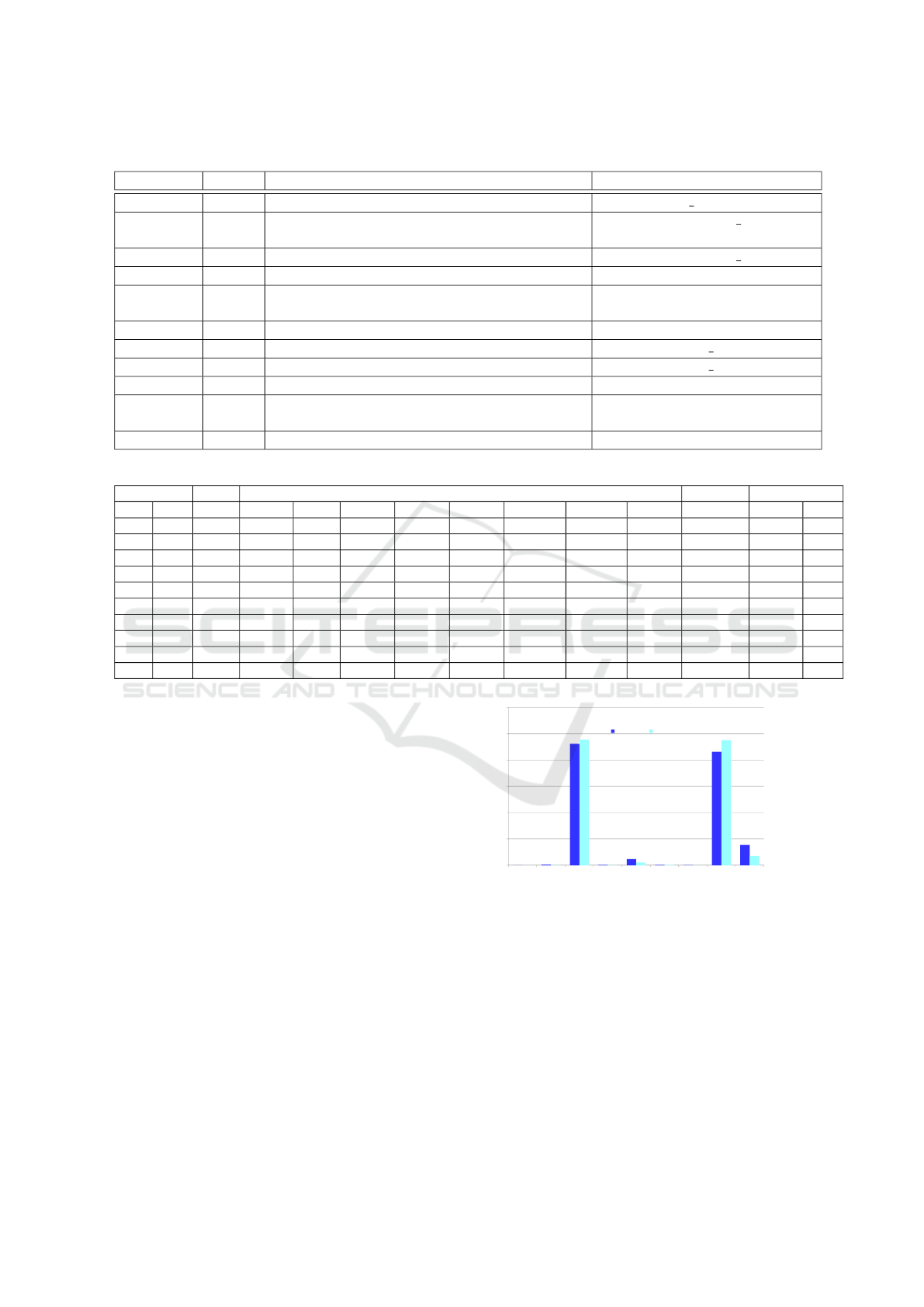

Table 2: Timestamps description.

Timestamp Host Event Program

T1 Source Image is created. photo sender.py

T2 BS Receives packet requesting FTP transfer for

server.

timestamp.sh, read stamps.py

T3 BS Redirects packet requesting FTP transfer to PN. timestamp.sh, read stamps.py

T4 PN Start receiving the photo in its FTP income folder. timestamp-pm5.py

T4A PN Mover is called to move the image from the in-

come folder to optimizer input folder.

mover.py

T5 PN Image is transferred for optimizer input folder. timestamp-pm5.py

T5A PN Optimizer starts the optimization process. camera v1.py

T5B PN Optimizer ﬁnishes the optimization process. camera v1.py

T6 PN Image is transferred to optimizer output folder. timestamp-pm5.py

T6A PN Mover is called to start FTP transfer to BS (topol-

ogy 1) or server (topology 2).

mover.py

T7 Server Start receiving the image in its FTP income folder. timestamp-pm6.py

Table 3: Wired test results.

(in seconds) BS PN Server

Test Mov T2-T1 T3-T2 T4-T3 T4A-T4 T5-T4A T5A-T5 T5B-T5A T6-T5(B) T6A-T6 T7-T2(6A) Latency Gain

0 Yes 4.297 0.002 4.299 0

1A Yes 4.340 4.66E-6 0.001 1.046 0.003 0.003 1.006 0.185 6.584 0

1B Yes 4.338 4.53E-6 0.001 1.055 0.003 0.055 0.004 0.003 1.017 0.184 6.659 0.01

2A Yes 4.332 4.39E-6 0.003 1.057 0.003 0.003 1.011 0.185 6.593 0

2B Yes 4.338 4.02E-6 0.006 1.214 0.007 0.060 0.004 0.003 1.051 0.186 6.867 0.01

0 No 4.222 0.002 4.224 0

1A No 4.267 4.61E-6 0.000 1.045 0.003 0.003 1.007 0.185 6.509 0

1B No 4.269 4.59E-6 0.013 1.134 0.004 0.057 0.004 0.000 1.030 0.184 6.695 0.97

2A No 4.265 4.51E-6 0.004 1.074 0.003 0.003 1.015 0.183 6.548 0

2B No 4.262 4.03E-6 0.002 1.060 0.002 0.054 0.004 0.000 1.021 0.184 6.588 0.96

The sending rate was set to one image per second

in both environments. The wired network was able

to handle this rate and the images were moved at al-

most the same rate they were created. On the other

hand, the wireless network was only able to handle

one image every 2.34 seconds, approximately, which

resulted in higher latency value. Table 5 shows the

comparison between the two environments.

Figure 4 shows the time ratio for each operation

inside of the PN (application of the compression al-

gorithm over data). As mentioned before, the main

cause for the latency was the characteristic of our so-

lution, which creates a dependency between the la-

tency and the image receiving interval.

Although the system showed a latency insertion in

the data transmission, it also presented a major beneﬁt

in the bandwidth consumption. Considering the best

scenario, where no movement was detected, in com-

parison to the traditional scenario the compression

function resulted in about 97% of bandwidth gain.

0.1

0.2

0.3

0.4

0.5

0.6

Operations

Time ratio

wired

→

wireless

Figure 4: Processing node time composition.

6 CONCLUSION AND FUTURE

WORK

In this paper we presented the FACE framework,

a fog-computing strategy to reduce bandwidth con-

sumption. It consists of data processing functions

Towards Bandwidth Optimization in Fog Computing using FACE Framework

469

Table 4: Wireless test results.

(in seconds) BS PN Server

Test Mov T2-T1 T3-T2 T4-T3 T4A-T4 T5-T4A T5A-T5 T5B-T5A T6-T5(B) T6A-T6 T7-T2(6A) Latency Gain

0 Yes 4.519 0.001 4.520 0

1A Yes 4.725 4.91E-6 0.000 2.175 0.002 0.002 2.164 0.175 9.244 0

1B Yes 4.755 5.17E-6 0.001 2.494 0.002 0.049 0.003 0.003 2.466 0.172 9.945 0.01

2A Yes 4.778 4.90E-6 0.001 2.514 0.003 0.003 2.507 0.172 9.978 0

2B Yes 4.788 5.01E-6 0.002 2.567 0.002 0.048 0.004 0.003 2.545 0.172 10.130 0.01

0 No 4.460 0.001 4.461 0

1A No 4.656 5.29E-6 0.001 2.076 0.002 0.003 2.064 0.176 8.978 0

1B No 4.693 5.10E-6 0.000 2.306 0.002 0.049 0.005 0.000 2.288 0.172 9.516 0.97

2A No 4.710 5.12E-6 0.001 2.236 0.002 0.003 2.227 0.174 9.353 0

2B No 4.782 5.08E-6 0.001 2.386 0.003 0.047 0.004 0.000 2.377 0.174 9.774 0.96

Table 5: Environment comparison.

Environment BS to PN (s) PN (s) PN to server (s) Total (s) Difference (s) Gain

Wired 0.000 2.192 0.184 2.376 0.113 96.50%

Wireless 0.000 4.735 0.173 4.907 0.425 96.50%

(ﬁltering, aggregation, compression, and extraction)

performed in the edges of the network, to reduce the

data trafﬁc from the end user until a central location.

Each function is applied for a different purpose, and

aims at meeting requirements of application service

providers. To evaluate the performance of the frame-

work, we designed an architecture that allows to ap-

ply compression function over the data between an

end device and a cloud server. Results evaluations

have identiﬁed savings in network infrastructure at

the cost of latency increase. The developed prototype

showed bandwidth gain in video surveillance when

image compression is applied in cases when the scene

does not change from one frame to another.

The tests related to the video surveillance scenario

showed that most of the latency introduced by the pro-

cessing node comes from the time spent in the image

transmission. The processing node holds the image

until it has completed the transmission, so it can be

processed and then forwarded. For applications that

are not latency-sensitive, this solution can be applied

to promote savings in network infrastructure. If ap-

plied to an environment with dynamic scene changes,

the advantages of using this solution are substantially

reduced. Other compression rules can also be applied

to ﬁt custom application requirements.

Next steps consist of further tests to investigate

how the latency could be improved. A set of tests

could be applied to a real video surveillance scenario,

using more cameras that continuously send data. It

would also be interesting to evaluate the architecture

on an infrastructure with telecommunication compo-

nents, such as base stations and small cells. Since the

mover mechanism was the main cause of latency, it is

important to study how to optimize it, by reducing the

time it takes to start sending images. This achieve-

ment would result in a signiﬁcant latency decrease,

and then provide a more effective solution. We also

plan to evaluate the other functions provided by FACE

framework in scenarios where data trafﬁc is intensive.

ACKNOWLEDGEMENTS

This work was sponsored by the Ericsson Innovation

Center, Ericsson Telecomunicac¸

oes S.A., Brazil.

REFERENCES

(2015). Ericsson Mobility Report. Technical report.

Bonomi, F., Milito, R., Zhu, J., and Addepalli, S. (2012).

Fog computing and its role in the internet of things. In

Proceedings of the ﬁrst edition of the MCC workshop

on Mobile cloud computing, pages 13–16. ACM.

Dastjerdi, A. V. and Buyya, R. (2016). Fog computing:

Helping the internet of things realize its potential.

Computer, 49(8):112–116.

Gonzalez, N. M., Goya, W., Pereira, R., Langona, K., Silva,

E., Carvalho, T., Miers, C., M

angs, J., and Seﬁdcon,

A. (2016). Fog computing: Data analytics and cloud

distributed processing on the network edges. In 35th

International Conference of the Chilean.

Hu, W., Gao, Y., Ha, K., Wang, J., Amos, B., Chen, Z.,

Pillai, P., and Satyanarayanan, M. (2016). Quantifying

the impact of edge computing on mobile applications.

Margulius, D. (2002). Apps on the edge. InfoWorld, 24(2).

Nilsson, F. and Axis, C. (2017). Intelligent Network Video:

Understanding Modern Video Surveillance Systems.

Taylor & Francis.

Pang, H. and Tan, K.-L. (2004). Authenticating query re-

sults in edge computing. In Data Engineering, 2004.

Proceedings. 20th International Conference on, pages

560–571. IEEE.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

470
