ROP Defense in the Cloud through LIve Text Page-level Re-ordering

The LITPR System

Angelo Sapello

, C. Jason Chiang

, Jesse Elwell

, Abhrajit Ghosh

, Ayumu Kubota

and Takashi Matsunaka

Intelligent IA Systems Research, Vencore Labs, Inc., Basking Ridge, NJ, U.S.A.

Network Security Laboratory, KDDI R&D Laboratories, Saitama, Japan

Keywords:

Return Oriented Programming, ROP Mitigation, Program Randomization.

Abstract:

As cloud computing environments move towards securing against simplistic threats, adversaries are moving

towards more sophisticated attacks such as ROP (Return Oriented Programming). In this paper we propose

the LIve Text Page-level Re-ordering (LITPR) system for prevention of ROP style attacks and in particular

the largely unaddressed Blind ROP attacks on applications running on cloud servers. ROP and BROP, re-

spectively, bypass protections such as DEP (Data Execution Prevention) and ASLR (Address Space Layout

Randomization) that are offered by the Linux operating system and can be used to perform arbitrary malicious

actions against it. LITPR periodically randomizes the in-memory locations of application and kernel code, at

run time, to ensure that both ROP and BROP style attacks are unable to succeed. This is a dramatic change

relative to ASLR which is a load time randomization technique.

1 INTRODUCTION

Cloud computing environments currently implement

several standard security protections such as network

ﬁrewalls to protect against simplistic threats. With

the incorporation of such protection and the increas-

ing number of IT operations moving to the cloud, ad-

versaries are exploring more sophisticated means to

breach these environments. Typically such breaches

occur via privilege escalation attacks. While privilege

escalation is a concern on any system, it is even more

so on cloud systems where an attacker gaining ele-

vated privileges in one domain could potentially dam-

age the hypervisor and other domains running on the

system. Return-Oriented Programming(ROP) attacks

are one way that an attacker can bypass defenses of a

running system to gain elevated privileges. We pro-

pose a two tiered system called LIve Text Page-level

Re-ordering (LITPR) to defend domain applications

from within the domain’s kernel and also defend the

domain’s kernel from within the hypervisor (see ﬁg-

ure 1).

At a high level, the LIve Text Page-level Re-

ordering (LITPR) system randomizes the location of

the code segment (i) periodically (not just at load

time) and (ii) at the ﬁne grained page-level rather than

at segment-level while the cloud based application is

executing (see ﬁgure 2). ROP attacks rely on the iden-

tiﬁcation of speciﬁc code blocks at speciﬁc memory

locations. These code blocks are used to perform at-

tack speciﬁc actions. LITPR relocates code blocks in

a randomized fashion. Therefore, an attacker is un-

likely to discover even a single address and even if

they do, they learn nothing about the layout of the re-

mainder of the application. They are restricted to a

single code page. To ensure that the randomized code

continues to run the LITPR system must ensure that

all pointers from the code to other parts of the code,

shared libraries and data are updated during the ran-

domization process.

1.1 Return Oriented

Programming(ROP) Attacks and

Related Work

Return-Oriented Programming (ROP) was ﬁrst dis-

cussed by Hovav Shacham in his seminal paper

(Schacham, 2007) as a technique that can cause Intel

x86 CPUs to interpret unmodiﬁed binary code in an

unintended manner and expanded upon later in (Roe-

mer et al., 2012). ROP controls the execution se-

quence of binary code through manipulating the con-

tent of the call stack in the memory. It starts with

Sapello, A., Chiang, C., Elwell, J., Ghosh, A., Kubota, A. and Matsunaka, T.

ROP Defense in the Cloud through LIve Text Page-level Re-ordering - The LITPR System.

DOI: 10.5220/0006305402190228

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 191-200

ISBN: 978-989-758-243-1

191

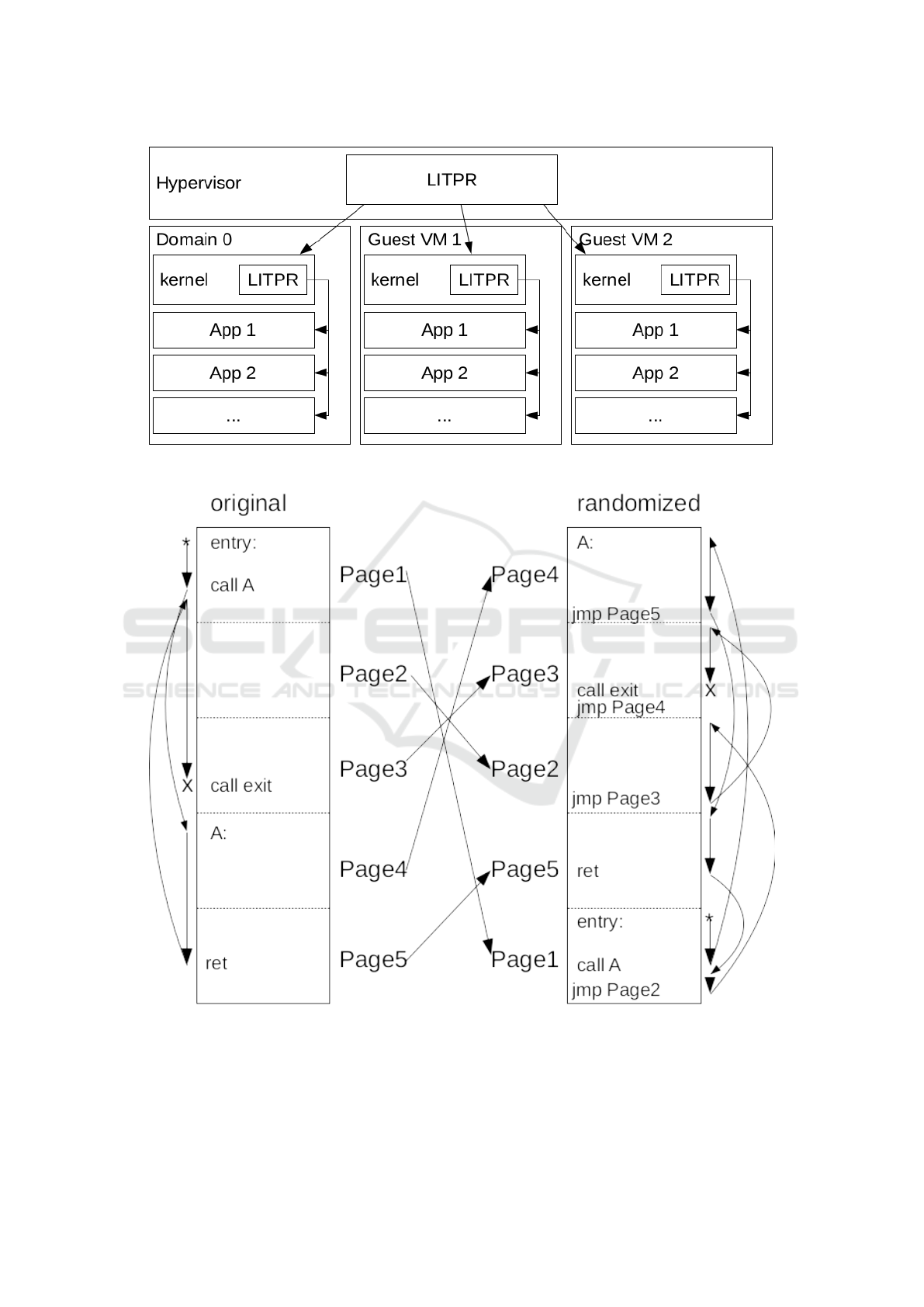

Figure 1: High level view of LITPR operating in a cloud machine.

Figure 2: Visual representation of page-randomized program execution. The arrows on the left side of the ﬁgure show the

normal execution path of a simple executable. On the right side of the ﬁgure is a randomized version of the same executable

with arrows on the right showing the new exection path.

identifying code blocks (a.k.a. gadgets) ending in re-

turn instructions, and then uses the call stack to chain

together a sequence of these gadgets to execute unin-

tended logic. Each gadget starts with a byte with a

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

192

value (in the range of 0x00 - 0xff) that can be inter-

preted by the CPU as a legitimate opcode and ends

with the value of the opcode of a return instruction

(e.g., 0xc3 on the Intel platforms), of a call instruc-

tion (0xff on the Intel platforms), or of any instruc-

tion with the semantics of return in their execution

context (Onarlioglu et al., 2010). These gadgets are

like short subroutines, always ending in a return, so

that when CPU hits the return instruction of a gadget

it fetches the return address on the stack to execute the

next gadget. If the stack is purposely ﬁlled with data

of malicious intent as a result of system vulnerability

such as buffer overﬂow being exploited, a sequence

of gadgets can be chained up to execute unintended

logic.

To thwart ROP attacks, it is critical to prevent at-

tackers from exploiting gadgets. Previous work has

focused on gadget removal (Onarlioglu et al., 2010)

and analysis of program execution sequences (Wang

and Jiang, 2010)(Abadi et al., 2009). Gadget removal

has been shown to be an inadequate protection since

gadget removal is not always possible (Checkoway

et al., 2010). Program execution sequence analysis

can be prone to inaccuracies as well as system efﬁ-

ciency issues. The high-level idea of the LITPR sys-

tem is that by changing the memory locations of pages

containing code (resulting in changed gadget loca-

tions) frequently enough, an attacker could be pre-

vented from identifying the memory locations of all

the gadgets needed for composing an attack. With

this approach, there is a high likelihood of ROP at-

tack failure since memory locations of at least some

of the discovered gadgets would be obsolete by the

time attacks are launched.

ROP attacks require some amount of time invest-

ment from an attacker attempting to exploit an ar-

bitrary application. Address space layout random-

ization (ASLR) (Team, 2016) and gadget removal

(Onarlioglu et al., 2010) represent means to protect

against such attacks but recent research (Bittau et al.,

2014) on BROP (Blind ROP) has shown that the for-

mer is not sufﬁcient protection while the latter is not

always feasible. Even more recent work (Gras et al.,

2017) shows that ASLR side-channel attacks can by-

pass ASLR without detection (crashes, exceptions,

etc.). However, searching for Page Table Entries

(PTEs) as suggested still suffers two ﬂaws against

the LITPR system, namely the attack as demonstrated

took approximately 25 seconds to obtain a single ad-

dress and the attack assumes that knowledge of a sin-

gle data buffer location is sufﬁcient to defeat the ad-

dress randomization defense. Our system deals with

both issues by periodically re-randomizing the code

and ensuring that knowledge of a data location does

not provide adequate knowledge about speciﬁc code

locations. Other attacks against ASLR include using

branch predictors (Evtyushkin et al., 2016), memory

de-duplication (Bosman et al., 2016), and other tim-

ing based attacks (Hund et al., 2013). However, these

too assume knowledge of a single address at a mo-

ment in time is sufﬁcient to bypass ASLR and while

this is true for ASLR, it is not sufﬁcient to defeat the

proposed LITPR system.

Other systems have been proposed to perform

ﬁne-grained address randomization even including re-

randomization such as (Giuffrida et al., 2012). How-

ever, these systems rely on the availability of source

code, heavy integration into a speciﬁc compiler and

have signiﬁcant overhead associated with relinking

code at runtime. Our proposed LITPR system can

be run against binary code for which the source is

unavailable, does not rely on the compiler used to

perform the original compilation of the source and

should perform signiﬁcantly faster at runtime (includ-

ing the ability to partially reorder code to minimize

impact on the running system).

1.2 ELF and Position Independent

Execution (PIE) Preliminaries

The LITPR system exploits and extends an existing

concept in the operating system known as dynamic

linking. Dynamically linked executables use a feature

called Position Independent Execution (PIE) provided

by the compiler to generate code that is not required

to be loaded at a ﬁxed memory address (either physi-

cal or virtual). On the Linux operating system, these

executables are stored in the Executable and Linkable

Format (ELF). Knowing the details of the information

stored in this format allows us to make use of the dy-

namic linking information to change the ordering of

the code pages of the executable.

Dynamic linking at a high level works as fol-

lows. At the time a compiler generates object code,

it does not know where the subroutines will be loaded

into the memory. As a result, the resulting object

code generated by the compiler contains a number of

symbols that need to be replaced by the starting ad-

dresses of the subroutines after the object code has

been loaded into memory. This process is called dy-

namic linking. In fact, what we propose to do, in a

sense, can be regarded as dynamic re-linking. This is

because code pages in the physical memory will be

pointed to by different virtual pages due to page table

updates. Whenever a new virtual page replaces the

current virtual page as the index for a physical page,

it is necessary to update all the subroutine references

pointing to the current virtual page with the new vir-

ROP Defense in the Cloud through LIve Text Page-level Re-ordering - The LITPR System

193

tual page. Symbol tables can be used to quickly iden-

tify the references affected by the change. The sym-

bol tables and relocation tables are stored in the ELF

binary.

2 LITPR DESIGN

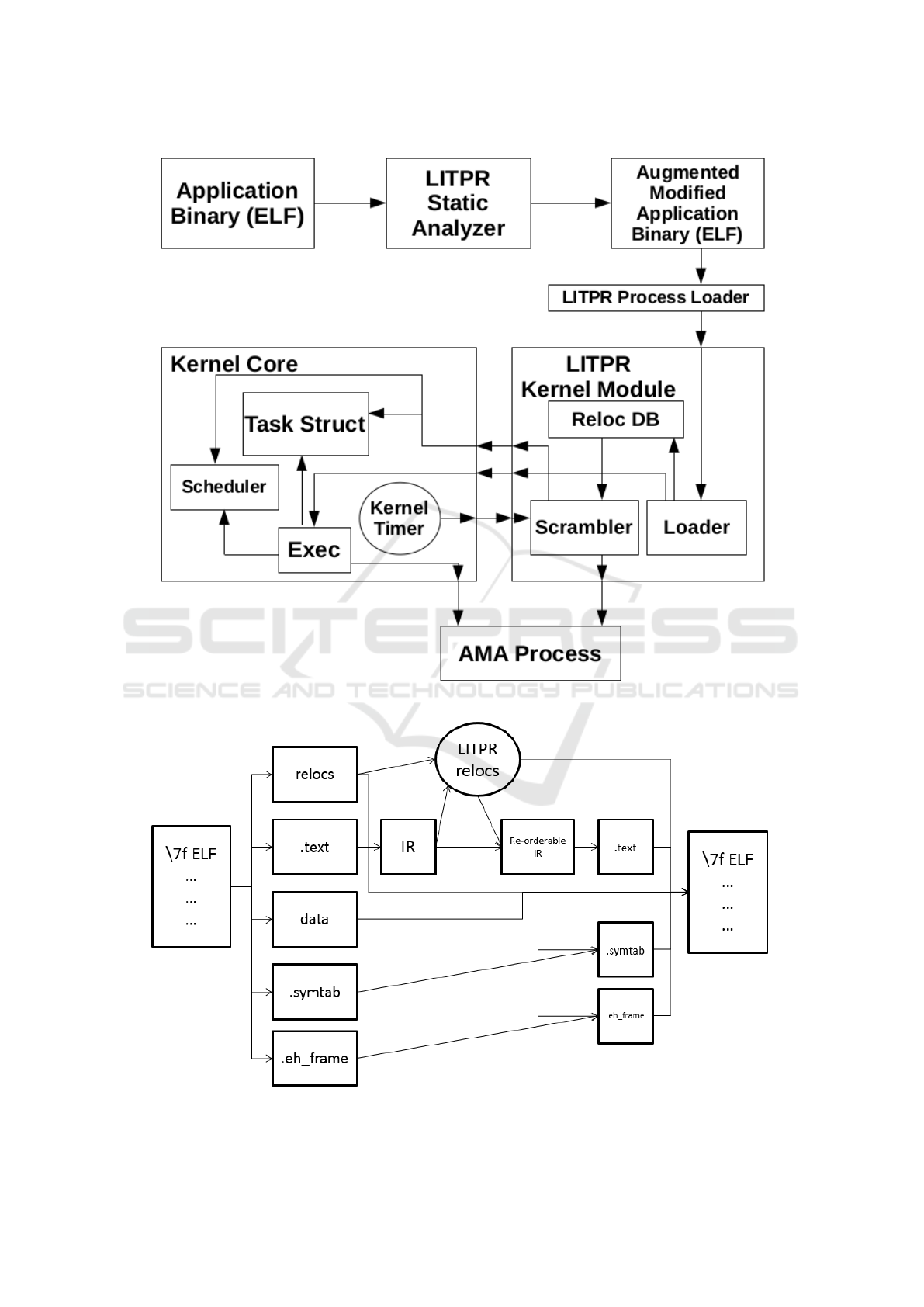

Figure 3 shows the overall system design for LITPR

application randomization. The system can be split

into two parts, static analysis preformed ofﬂine to

prepare an application binary and live re-ordering in

which an application is loaded, executed and periodi-

cally randomized.

This system implementation discussion deals with

the application level randomization, but similar tech-

niques can be applied to randomize virtual machine

kernels. In this case, static analysis is essentially the

same except it acts on the kernel image and random-

ization is carried out by the hypervisor. The two tech-

niques (application and kernel randomization) can be

combined to create an even more secure system.

2.1 Static Analysis

The static analysis stage of the LITPR system per-

forms the ofﬂine task of preparing application bina-

ries for live randomization (see ﬁgure 4). While some

of the information needed for randomization is pro-

vided by the compiler in the ELF binary in the form

of symbol and relocation tables, additional informa-

tion must be discovered. The steps involved in static

analysis are:

• Binary Parsing: the statically linked binary is

loaded and parsed, collecting up text and data sec-

tions and interpreting special sections including

relocations, symbols, exception handler frames

and string tables.

• Disassembly: the libcapstone disassembler is

used to interpret the machine code in the text sec-

tions of the binary. Since this process can some-

times be error prone (non-code in code sections,

padding with zeros instead of nops), the static an-

alyzer uses simple information to break the disas-

sembly at function boundaries so each function in

the program is disassembled independently.

• Symbol Relocation Mapping: special reloca-

tions are added to the relocation table to update

the binaries symbol table. This is necessary to en-

sure the resulting binary provides valid informa-

tion to a debugger such as gdb.

• Exception Frame Relocation Mapping: special

relocations are added to the relocation table to up-

date the exception handle frame (.eh frame) sec-

tion of the resulting binary. Again this ensures

that the resulting binary is properly loadable by

a debugger. In particular, the exception handler

frame provides the debugger the information it

needs to parse the stack and provide a back trace.

• Relocation Translation: the relocations stored in

the binary are interpreted and translated into the

format required by the randomizer. This involves

ﬁnding the source and target of the relocation and

linking them to the relocation so that any changes

in their addresses can be reﬂected in the output

relocation.

• Code Relocation Discovery: the disassembled

text sections are searched for relocations that may

not have been included in the relocation table.

These typically include short jumps and hard-

coded addresses in the startup code. The linker as-

sumes that even if the code is loaded at a different

virtual address the relative relationship between

jumps and their targets will not change and there-

fore providing relocation information is unneces-

sary. Since the static analyzer and randomizer do

change these relative relationships, we must know

about these relocations.

• Data Relocation Discovery: some binaries con-

tain hard-coded addresses that are not associated

with any relocation information. This is some-

what rare and this stage is therefore optional.

• Code Rewriting: the text sections are translated

in multiple passes, each time ﬁnding short jumps

whose targets are now too far away due to a pre-

vious pass (short jump targets can be at most 127

bytes away) or cross a page boundary (since ran-

domization will move these targets out of range).

Also during each pass no-operation (nop) instruc-

tions are inserted at the end of each page as neces-

sary to leave room for jumps to the next page and

cleanup nops that have been pushed onto the top

of the following page. After the code stabilizes

(which is guaranteed to happen in a ﬁnite number

of passes), a ﬁnal pass replaces the nops at the end

of each page with a long jump to the next page and

relocations for these jumps are added to the relo-

cation table.

• Relocation Site Updating: since the code has

moved around relocations must by reapplied to

the code and data to ensure that they point to the

correct targets in the code. During this stage relo-

cations that were only needed for code rewriting

but not for randomization are deleted to minimize

the time required to randomize the binary later.

For example, short jumps within a page will re-

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

194

Figure 3: Block diagram of LITPR system.

Figure 4: Transform diagram of static analysis.

ROP Defense in the Cloud through LIve Text Page-level Re-ordering - The LITPR System

195

main valid even if the page is relocated, so these

relocations can be deleted.

• Binary Writing: the results of the previous stages

are re-linked into a new binary. The relocation

table is written to the section .pjtdata in a custom

format so as not to be confused with standard ELF

relocations and also to simplify the randomization

process.

2.2 Live Re-ordering

The kernel module will obtain and store the relocation

information from the binary at application load time

and start a timer. (Alternatively, this timer could be

dynamically driven by application behavior such as

accepting a new connection.) Each time the timer ﬁres

the module will:

1. Pause the application.

2. Re-order the pages of the text segment (or a subset

of the pages of the text segment): This randomiza-

tion is done on the page table entries mapping vir-

tual to physical addresses. Updating these map-

pings is signiﬁcantly faster than copying/moving

the pages in physical memory.

3. Update the relocation sites in memory: Utilizing

the relocation data generated during static analy-

sis, code references are updated to reﬂect the new

page mapping.

4. Scan and update the stack: Return addresses and

temporary variables referencing code are held in

the stack and not part of the relocation data. These

pointers need to be discovered and updated to pre-

vent the program from crashing.

5. Update kernel structures referencing the applica-

tions code: The kernel keeps pointer to applica-

tion code for things such as exception and signal

handling and system callbacks for asynchronous

I/O. These pointers need to be updated as well.

6. Resume the application.

Of course, depending on system requirements the

time to complete this task could be signiﬁcantly short-

ened by only doing a partial re-ordering on only a sub-

set of the text pages. Doing this partial re-ordering

frequently enough should provide the same protec-

tion as a full re-ordering, although further study of

this claim would be needed.

During implementation we are likely to ﬁnd other

code references that need to be captured and updated

during randomization. As a catch all, randomization

can move the code to an entirely new location in vir-

tual address space. Attempts to execute code at the

old addresses will be caught by exception handlers

and analyzed to determine if these attempts were le-

gitimate or part of an attack.

2.3 Experiments

The current implementation of the LITPR system

takes a statically linked binary with relocations and

jump tables disabled (–static and –emit-relocs ﬂags

passed to the linker and -fno-jump-tables ﬂag passed

to the compiler), analyzes it and outputs a page-level

randomized version of the program. By doing this

any gadgets an attacker might ﬁnd with static anal-

ysis of the same binary will be located not only in

different locations (commonly thwarted by Address

Space Layout Randomization (ASLR)) but also with

different offsets relative to each other making it sig-

niﬁcantly harder to launch an attack. Ultimately, it

is envisioned that this randomization can be done re-

peatedly at run-time to thwart blind ROP attacks as

well.

2.3.1 User Space Experiment Setup

The testing environment was provided by an AMD

FX(tm)-8350 Eight-Core Processor @4.0GHz, with

16MB RAM running Ubuntu Linux 12.04.5 LTS.

We were interested in the following metrics:

• Randomization time: In the ﬁnal product, ran-

domization will occur in real time on the running

system. In the initial solution this will require

pausing the system. We have taken three sub-

measurements:

– Page list randomization: the time required to

select random numbers and generate the per-

muted list of pages. This is separated from the

rest as it may improve with a better shufﬂe al-

gorithm.

– Virtual memory remapping: the time required

to issue the full set of requests to remap the

code pages of the target program to achieve the

new layout. Currently this is done with three

mremap syscalls per page swap (the extra call

is due to the use of a temporary virtual address

since the physical address is unknown in user-

space). This may improve by ofﬂoading the

entire task to the kernel rather than issuing it

piecemeal. This would avoid repeated context

switches and reduce the number of remap oper-

ations by 33%.

– Relocation rewriting: the time required to iter-

ate through the relocation table, compute and

rewrite the relocation in the reordered code.

This is straight forward and not likely to im-

prove.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

196

• Test program task completion time: This is a com-

parison of the time required for the unmodiﬁed

test program to complete a deterministic task on a

ﬁxed input with the average time required for ran-

domized variants of the test program to complete

the same task with the same input. This will give

the performance penalty for randomizing the test

programs.

hash page static: This was the initial test pro-

gram due to its simple yet predictable behavior. This

program computes a SHA-1 hash of the standard in-

put using an assembly optimized SHA-1 hash im-

plementation. It is an entirely CPU-bound pro-

cess which provides a worst-case performance indi-

cator. The inputs used for testing the performance

of hash page static were random chunks of memory

generated by /dev/random, saved to disk and then

reloaded and fed to hash page static and each of its

variants with the “dd” application. The input sizes

were powers of 2 starting at 1MB and going up to

64MB. 11 variants were generated (the initial recoded

but not reordered output of the static analyzer and 10

randomized versions). Each variant was tested with

100 different random memory chunks of each input

size.

ffmpeg: This test program was selected for two

purposes. First, its complexity provided a good stress

test of the static analyzer to help ﬁnd bugs in user-

space before attempting to analyze a Linux kernel.

Secondly, it is again a very CPU intensive applica-

tion with highly optimized code intended for high per-

formance while at the same time behaving very pre-

dictably. The input to ffmpeg and its variants was an

M2TS (MPEG-2 Transport Stream) formatted video

ﬁle with a H.264 encoded video stream and AAC en-

coded audio stream with a combined encoding rate of

11Mbps VBR (variable bitrate). ffmpeg was tasked

with converting the ﬁrst 60 seconds of this input to

a mp4 formatted ﬁle with AC3 encoded audio and

MPEG-2 encoded video at the default encoding rate.

2.3.2 Kernel Experiment Setup

Kernel testing was performed on a Dell R620 server

with two Intel Xeon E5-2600 6 core processors run-

ning CentOS 5 XEN virtual machines with kernel

3.13.9. Each virtual machine was assigned two cores

to test symmetric multiprocessing (SMP) behavior.

Kernel experimentation was split into two experi-

ments. In the ﬁrst experiment a ROP attack was

launched against a kernel with a fabricated vulner-

ability. This attack was then performed again on a

randomized version of the same kernel to determine

whether this is an adequate defense against kernel

ROP attacks. The second experiment was a series

of performance evaluations to determine the perfor-

mance impact of randomized execution on the kernel.

To test our kernel defense against ROP attacks we

ﬁrst constructed a ROP attack that works in kernel

space. The goal of the attack was to clear the non-

executable (NX) bit of the supported pte mask vari-

able in the kernel. Doing so disables non-executable

page protection on all subsequently created virtual

memory pages. This allows an attacker to launch stan-

dard buffer overﬂow attacks (non-ROP attacks) on the

system by making all newly created data pages exe-

cutable.

The goal of our experiment was to determine if

we could prevent a ROP attack against the kernel

assuming some buffer overﬂow vulnerability exists.

To this end we created a new system call with such

a buffer overﬂow vulnerability. We then ran the

ROPgadget(Salwan, 2016) script on the newly cre-

ated vmlinux kernel binary image. This tool locates

and reports the locations of ROP gadgets. The out-

put of this script is then searched for gadgets that

could be used to build an attack that is equivalent

to “ supported pte mask &= 0x7fffffffffffffff”. From

these gadgets a payload is constructed to attack the

kernel.

The experiment then uses two user programs to

launch the attack. The ﬁrst program which we

will call shellcode is a toy program that contains a

buffer overﬂow vulnerability and launches a tradi-

tional (non-ROP) buffer overﬂow attack against itself

to try to obtain a shell. The second program which we

will call kernel attack calls the vulnerable system call

in the kernel and delivers the previously constructed

attack payload.

Performance was evaluated by running the Trinity

v1.6 system fuzzer (Jones, 2016) 150 times set to run

1000 random non-blocking system calls. Measure-

ments were taken using three separate timing meth-

ods:

• Bash time function: measures the total wall clock

time the process executed.

• rdtsc: measures the CPU ticks elapsed for each

system call (from the user application’s perspec-

tive)

• strace: measures the elapsed time of each system

call from the kernel’s perspective (using kernel

proﬁling)

ROP Defense in the Cloud through LIve Text Page-level Re-ordering - The LITPR System

197

Table 1: ﬁle statistics of the hash page static program before and after static analysis.

Binary size

(bytes)

Text segment

size (bytes)

“.text” section

size (bytes)

“.data” section

size (bytes)

Number of

relocations

Input

1320691

828233 612616

39007

N/A

Output

2089531

828233 615374

39007

24026

Table 2: ﬁle statistics of the ffmpeg program before and after static analysis.

Binary size

(bytes)

Text segment

size (bytes)

“.text” section

size (bytes)

“.data” section

size (bytes)

Number of

relocations

Input

25408763

18296744

13131784 862660 N/A

Output

35185027

18296744

13324265 862660 305508

Table 3: breakdown of times involved in randomization of

hash page static.

Mean (µs)

Standard

deviation (µs)

Page list

randomization

7.3205 0.562

Virtual

memory

remapping

968.2

15.6

Relocation

rewriting

500.7 7.67

Table 4: breakdown of times involved in randomization of

ffmpeg.

Mean (µs)

Standard

deviation (µs)

Page list

randomization

57.452

1.42

Virtual

memory

remapping

7599.1

68.3

Relocation

rewriting

4047.2 32.0

2.4 Results

2.4.1 User Space

Tables 1 and 2 show the sizes of hash page static

and ffmpeg before and after static analysis. Ran-

domization performs reasonably well taking a total of

11.7ms for ffmpeg as can be seen in table 4 and 1.5ms

for hash page static (table 3). The ﬁnal application

performance results were a little surprising. In table

5 we see that for hash page static it turned out that

in many cases the randomized version performs bet-

ter than the original program. We believe this is likely

due to more efﬁcient L1 instruction cache utilization.

This did not happen with ffmpeg (table 6), and that

makes sense since the code base is much larger and

less likely to beneﬁt from the randomization. What

we see instead is the expected result, that by moving

code around we de-optimize some compiler optimiza-

tions and this along with the added page jumps causes

CPU intensive applications to incur an additional 2-

3% performance drop. In particular the static analyzer

replaces a large number of 8-bit jumps with 32-bit

jumps to allow jump across page boundaries. Also,

moving the code causes jump targets that had previ-

ously been aligned to the 64-byte cache boundary to

no longer be so aligned. In the future we could im-

prove this by realigning jump targets as part of static

analysis. In any case we believe these performance

results are reasonable.

2.4.2 Kernel

To test whether our system provides adequate pro-

tection against kernel ROP attacks, prior to launch-

ing kernel attack we attempt to run shellcode. On

both the undefended and defended kernel, the shell-

code program causes a SIGSEG and fails. On the

undefended kernel, launching kernel attack causes a

SIGBUS appearing to fail. However, subsequently

launching shellcode succeeds demonstrating that the

kernel attack was in fact successful. On the defended

kernel, launching kernel attack causes a SIGSEG.

In this case however, subsequent attempts to launch

shellcode continue to cause a SIGSEG indicating that

the kernel attack has been thwarted.

Multiple methods of measurement were used for

measuring the kernel’s performance since the impact

of our system was quite small and difﬁcult to measure.

Even so, the raw numbers made little sense. Instead

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

198

Table 5: runtime performance of hash page static.

Input size

1MB 2MB 4MB

8MB 16MB 32MB 64MB

Unmodiﬁed

0.185700 ±

0.017044

0.374100 ±

0.027932

0.753900 ±

0.033163

1.496900 ±

0.053023

3.014800 ±

0.111476

6.004500 ±

0.187154

11.986300 ±

0.309292

Analyzed

0.187500 0.381400

0.769200

1.513300

3.049800 6.095600

12.160400

Randomized

0.182109 ±

0.019783

0.365818 ±

0.028135

0.773082 ±

0.044338

1.461582 ±

0.073405

2.929191 ±

0.129238

5.845982 ±

0.237880

11.689209 ±

0.491306

Performance drop

-1.93%

-2.21%

-2.76% -2.35% -2.84% -2.64% -2.48%

Table 6: runtime performance of ffmpeg.

Mean

(seconds)

Standard

deviation

Unmodiﬁed

123.958000 13.995810

Analyzed

127.042000

13.591639

Randomized

127.082000

14.098960

Performance drop

2.52%

Not

computed

we chose to bin the performance differences into his-

tograms for each measurement method. Figures 5, 6

and 7 show the percent performance degradation as

measured by bash time, strace and rdtsc respectively.

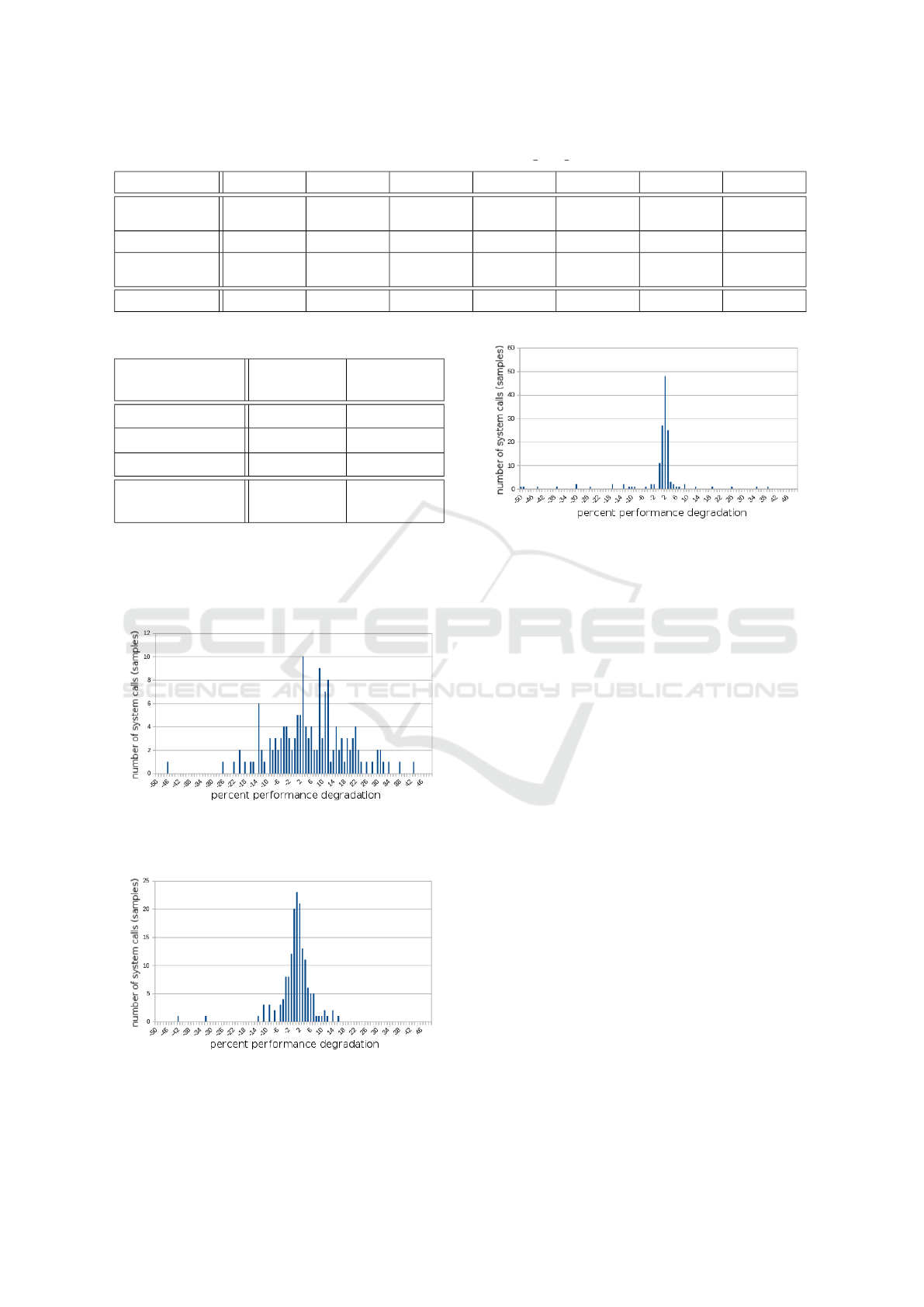

Figure 5: Histogram of kernel percent performance degra-

dation as measured by bash time.

Figure 6: Histogram of kernel percent performance degra-

dation as measured by strace.

Each measurement method had its own issues of

Figure 7: Histogram of kernel percent performance degra-

dation as measured by rdtsc.

either precision (spread) or outliers. While precision

is a natural issue related to the outputs of bash time

and strace, the outliers, particularly those present in

rdtsc, were a little more concerning. One reason for

the outliers is that while we modiﬁed the trinity pro-

gram to be as deterministic as possible, at times it

could still execute the same system call with the same

parameters and have the call be valid in one run, but

not valid on the next (such as accessing a particular

node in the procfs tree and having the the process exit

between runs). Another possibility is that the process

or VM was migrated to a different CPU and there-

fore the tick start and end times were not from the

same source. In any case the three ﬁgures clearly

show an approximate 2% average performance degra-

dation which was consistent with the previous user-

space ffmpeg results.

3 FUTURE WORK

The most important piece of future work to be done

is implementing the kernel and hypervisor modules

to perform the application and kernel randomization

at runtime. The results described in this paper give

us conﬁdence that this randomization can be done

quickly and efﬁciently without damaging the running

system.

While it was originally thought that such attacks

only apply to x86 or variable length encoded ISAs

ROP Defense in the Cloud through LIve Text Page-level Re-ordering - The LITPR System

199

(Instruction Set Architectures), a generalization to

ﬁxed-width ISAs and RISC architectures is possible

(Buchanan et al., 2008). As such, we would like to

extend our work to non-x86 ISAs. This should be

possible with little change to the overall design of the

LITPR system.

REFERENCES

Abadi, M., Budiu, M., Erlingsson, U., and Ligatti, J. (2009).

Control-ﬂow integrity - principles, implementations,

and applications. In ACM Transactions on Informa-

tion and System Security, volume 13.

Bittau, A., Belay, A., Mashtizadeh, A., Mazieres, D., and

Boneh, D. (2014). Hacking blind. In Proceedings of

the IEEE S&P conference, Oakland, CA, USA.

Bosman, E., Razavi, K., Bos, H., and Giuffrida, C. (2016).

Dedup est machina: Memory deduplication as an ad-

vanced exploitation vector. In Proceedings of IEEE

Symposium on Security and Privacy, San Jose, CA,

USA.

Buchanan, E., Roemer, R., Schacham, H., and Savage, S.

(2008). When good instructions go bad: generalizing

return-oriented programming to risc. In Proceedings

of the 15th ACM conference on Computer and commu-

nications security, pages 27–38, New York, NY, USA.

Checkoway, S., Davi, L., Dmitrienko, A., Sadeghi, A.-R.,

Schacham, H., and Winandy, M. (2010). Return-

oriented programming without returns. In ACM Con-

ference on Computer and Communication Security

2010, pages 559 – 572.

Evtyushkin, D., Ponomarev, D., and Abu-Ghazaleh, N.

(2016). Jump over aslr: Attacking branch predictors

to bypass aslr. In Proceedings of IEEE Symposium on

Microarchitecture, Taipei, Taiwan.

Giuffrida, C., Kuijsten, A., and Tanenbaum, A. S. (2012).

Enhanced operating system security through efﬁcient

and ﬁne-grained address space randomization. In Pro-

ceedings of USENIX Security Symposium, Bellevue,

WA, USA.

Gras, B., Razavi, K., Bosman, E., Bos, H., and Giuffrida, C.

(2017). Aslr on the line: Practical cache attacks on the

mmu. In Proceedings of the Network and Distributed

System Security Symposium, San Diego, CA, USA.

Hund, R., Willems, C., and Holz, T. (2013). Practical tim-

ing side channel attacks against kernel space aslr. In

Proceedings of IEEE Symposium on Security and Pri-

vacy, San Francisco, CA, USA.

Jones, D. (2016 (accessed Nov. 18, 2016)). Trin-

ity System Call Fuzzer. https://github.com/

kernelslacker/trinity.

Onarlioglu, K., Bilge, L., Lanzi, A., Balzarotti, D., and

Kirda, E. (2010). G-free: defeating return-oriented

programming through gadget-less binaries. In Pro-

ceedings of the 26th Annual Computer Security Appli-

cations Conference, Austin, Texas, USA.

Roemer, R., Buchanan, E., Schacham, H., and Savage, S.

(2012). Return-oriented programming: systems, lan-

guages, and applications. In ACM Transactions on

Information and System Security, volume 15.

Salwan, J. (2016 (accessed Dec. 12, 2016)). ROP-

gadget. https://github.com/JonathanSalwan/

ROPgadget.

Schacham, H. (2007). The geometry of innocent ﬂesh on

the bone: Return-into-libc without function calls (on

the x86). In ACM Conference on Computer and Com-

munications Security 2007, pages 552 – 561.

Team, P. (2016 (accessed Nov. 18, 2016)). PaX address

space layout randomization (ASLR). http://pax.

grsecurity.net/docs/aslr.txt.

Wang, Z. and Jiang, X. (2010). Hypersafe: A lightweight

approach to provide lifetime hypervisor control-ﬂow

integrity. In Proceedings of the 2010 IEEE Symposium

on Security and Privacy.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

200
