Anomaly Detection for Soft Security in Cloud based Auditing of

Accounting Systems

Mats Neovius

and Bob Duncan

Faculty of Natural Sciences and Technology,

Abo Akademi University, Turku, Finland

Computing Science, University of Aberdeen, Aberdeen, U.K.

Keywords:

Cloud Security, Accounting Systems Audit, Anomaly Detection.

Abstract:

Achieving information security in the cloud is not a trivial exercise. When the systems involved are accounting

software systems, this becomes much more challenging in the cloud, due both to the systems architecture in

use, the challenges of proper conﬁguration, and to the multiplicity of attacks that can be made against such

systems. A particular issue for accounting systems concerns maintaining a proper audit trail in order that

an adequate level of audit may be carried out on the accounting records contained in the system. In this

paper we discuss the implications of the traditional approach to such systems and propose a complementary

soft security solution relying on detecting behavioural anomalies by evidence theory. The contribution is in

conceptualising the anomalies and providing a somewhat theoretical solution for a difﬁcult and challenging

problem. The proposed solution is applicable within any domain consisting of rigorous processes and risk of

tampering or data exﬁltration, such as the cloud based accounting systems.

1 INTRODUCTION

In previous work (Duncan and Whittington, 2016b),

the authors highlighted a number of issues with deﬁn-

ing and maintaining a proper audit trail. This prob-

lematic issue is particularly important for the audit of

accounting software systems which run on the cloud.

Maintaining proper accounting records is a funda-

mental part of the process of preparing statutory ac-

counts for business enterprises. Where the audit trail

is compromised, assurance that the records contained

in the accounting system are accurate is reduced, or

at worst lost. Punitive penalties (Sox, 2002)(Law,

1996)(Crown, 1998) are levied for failure to prop-

erly maintain such records, or ensure proper privacy

protection of data held, thus it is vital to ensure ef-

fective steps are taken to ensure the security and pri-

vacy of all such data processed by enterprises. Next

year, when the EU General Data Protection Regula-

tion comes into force, enterprises must additionally,

in the event of a data breach, be able to identify all

records accessed, compromised, or deleted within a

period of 72 hours. Failure to do so can result in a

ﬁne of up to 4% of global turnover. This is why we

have chosen to investigate this important issue.

The systems architecture of enterprises has seen

little change over past decades, with the possible ex-

ception of cloud computing. Many of the attacks

against such systems are continuing to be success-

fully deployed against enterprises. The approach

on this problem is often by using technical means

alone frequently being expressed as policies authoris-

ing some action. But the business architecture of an

enterprise comprises people, process and technology

(PWC, 2012), not technology alone, thus such solu-

tions are generally doomed to failure, as suggested

by (Duncan et al., 2013)(Duncan and Whittington,

2014)(Duncan and Whittington, 2015d)(Duncan and

Whittington, 2015b), who note such approaches ig-

nore the impact of people and process on security.

Since the evolution of cloud, there has been some

reluctance on the part of enterprises to adopt the tech-

nology. Much of this resistance stems from a lack of

trust in the cloud service providers’ (CSP)’s ability

to maintain good levels of security and privacy (Arm-

brust et al., 2010). In the light of ever increasing glob-

alization, concern over difﬁculties in meeting cross

border data protection regulations (Kuner, 2010), also

has an impact on take-up of cloud. Concern, too, has

been expressed (Walden, 2011), over issues involved

in trying to obtain access to records held in foreign

jurisdictions. Concern has also been expressed about

the difﬁculties of cloud audit (Duncan and Whitting-

ton, 2015c)(Duncan and Whittington, 2016a), and in

Neovius, M. and Duncan, B.

Anomaly Detection for Soft Security in Cloud based Auditing of Accounting Systems.

DOI: 10.5220/0006305504990506

In Proceedings of the 7th International Conference on Cloud Computing and Services Science (CLOSER 2017), pages 471-478

ISBN: 978-989-758-243-1

471

particular the mechanics of maintaining a proper audit

trail (Duncan and Whittington, 2016b).

We therefore propose a novel complementary

means to address the issue of agent speciﬁc be-

havioural anomaly (in literature sometimes called out-

lier) detection in the context of audit in a cloud based

system. According to Chandola et al. “anomaly

detection refers to the problem of ﬁnding patterns

in data that do not conform to expected behaviour”

(Chandola et al., 2009). The challenges are quite

well understood, with a major one being categoris-

ing the “normal region” and deciding whether or not

an anomaly is of malicious character. Concerning re-

lated work, we are unaware of such algorithms for

detecting behavioural anomalies in cloud based au-

dit systems; with Doelitzscher et al. (Doelitzscher

et al., 2011) noting this as future work. In later work,

the same authors applied neural networks to learn a

behavioural model of the user (Doelitzscher et al.,

2013). This is a valid approach whenever the envi-

ronment is consistent, but in an ever changing en-

vironment, such as cloud, more adaptive means are

called for. Realistically, in accounting systems such a

change may be due to a judicial or a personnel change.

In this paper considering evolving cloud-based

systems, the anomaly detection mode is unsupervised,

making the assumption that the events of normal be-

haviour are far more frequent than those of anoma-

lous character. Hence, the contribution of this pa-

per is twofold: First we introduce a discussion on

the necessity of complementary security measures to

policy-based ones. This is characterised especially

in cloud-based systems where a customer may not

be aware/responsible of/for all vulnerabilities. Re-

alistic ones include personnel changes or migration

on the CSP’s part. Secondly we propose a theoret-

ical method addressing the ﬁndings of the ﬁrst con-

tribution. This method is mathematically sound and

complementary (proved in related work) and provides

means for prompt reaction in case of anomalous be-

haviour. Realistically, the reaction may be a further

approval by a higher ranking ofﬁcer.

The outline of the paper is as follows: In Sec-

tion 2, we ﬁrst look at major vulnerabilities identiﬁed

in security breach survey reports, and in Section 3,

we will consider the typical accounting software ar-

chitecture for an enterprise, and in Section 4, we con-

sider the motivation for this research. In Section 5,

we consider how we might approach resolving these

issues, in Section 6, we outline formally our experi-

ence based theory, in Section 7 we illustrate how our

approach might work, in Section 8. we discuss the

possible impact this might have on security and pri-

vacy, and in Section 9, we draw our conclusions and

discuss future work.

2 MAJOR ENTERPRISE BREACH

VULNERABILITIES

A quick look at the annual security breach re-

ports issued by many security companies (Verizon,

2014)(PWC, 2014)(Trustwave, 2013) clearly demon-

strate the security and privacy problems still faced to-

day, including the fact that the same attacks continue

to be successful year on year, as demonstrated by the

ﬁve year summary of the Verizon reports shown in

Table 1 below.

Table 1: Verizon Top 5 Security Breaches — 2011-

2014 (1=Highest) (Verizon, 2011)(Verizon, 2012) (Verizon,

2013)(Verizon, 2014).

Threat 2011 2012 2013 2014

Hacking 1 1 1 1

Malware 2 2 2 2

Misuse by comp. 4 5 5 5

employees

Physical theft or 3 4 3 4

unauth. access

Social Engine. 5 3 4 3

This raises an obvious question, why is it that the

same attacks are successful year on year? And the

obvious answer has to be that these vulnerabilities

continue to work, year after year after year. Thus we

should now study the details of a typical systems ar-

chitecture for an enterprise accounting system.

3 THE TYPICAL SYSTEMS

ARCHITECTURE OF AN

ACCOUNTING SYSTEM

Traditionally, bookkeeping has been done carefully

only by trained professionals and subject to rigor-

ous processes. The reason is simple, the bookkeep-

ing contains the true state of a business. Today,

bookkeeping is done with accounting software gen-

erating momentary reports on the state of the busi-

ness supporting the executives in their decision mak-

ing. However, accounting software systems have long

ceased to be just that — accounting software systems.

Since the evolution of Business Process Management

(BPM) and Service Oriented Architecture (SOA), es-

pecially since being enabled by continuing advances

in the development of technology, enterprises have

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

472

moved away from using a traditional accounting soft-

ware system to a more comprehensive Enterprise Re-

source Planning (ERP) model. This model comprises

an additional range of enterprise management pack-

ages, such as Finance Management (FM), Purchas-

ing/Procurement Management (PPM), Customer Re-

lationship Management (CRM), Supply Chain Man-

agement (SCM), Business Intelligence (BI), Human

Resources (HR), Distribution/Warehousing Manage-

ment(DWM), Inventory Control Management (ICM),

Project Management (PM),and Service Management

(SM) giving the executives a realistic forecast.

Where once this would have been provided by a

proprietary closed system, virtually all modern ERP

systems now use the client/server paradigm. If these

are hosted in-house, the business remains in control of

the access (physical and logical) to the data but need

to invest in hardware. An example of this would be

having the hardware in a room to which only some

people have access and storing the backups in a safe

with an accounting software requiring a remote desk-

top login accepting logins only within the LAN. The

bottleneck in such solutions will soon become the In-

ternet bandwidth especially as getting ever more ac-

curate and longer reaching forecasts, the amount of

internal and external data is increasing and more so-

phisticated algorithms are run on this data. For this

and because many enterprises operate globally, an ob-

vious solution was to move to a web based architec-

ture running a back end database with hardware pro-

vided on-demand, i.e. in the cloud. An obvious place

to start, then, is to look at vulnerabilities found in

web services. These provide the main point of con-

tact for adversaries trying to breach the enterprise’s

systems. For this, we turn to the Open Web Appli-

cation Security Project (OWASP) Top Ten Vulnera-

bilities list. OWASP is an international organisation

which engages in the conception, development, ac-

quisition, operation, and maintenance of applications

that can be trusted. Every three years, they produce a

Top Ten list of the most dangerous vulnerabilities.

Many of these vulnerabilities involve weaknesses

in databases, their conﬁguration and maintenance,

and it is fair to suggest that all of the top ten vulnera-

bilities in table 2 have the potential to impact on ERP

systems. While there are many defences that can be

deployed to address the OWASP vulnerabilities, it is

clear from the effect of the Verizon security breach

reports shown in table 1 that solving the OWASP vul-

nerabilities alone will not fully solve the problem.

For example, social engineering attacks come in

many forms. Typically one thinks of devastating

phishing attacks, but also less obvious ones like re-

vealing software versions etc., may prove to be of

a critical nature. Blind hacking can be very effec-

tive when being perpetrated by a skilled actor, but

when fuelled by information obtained through social

engineering attacks, the results can be lethal. Thus,

though social engineering attacks present (only) the

third highest successful attack on enterprises, they are

likely to be a great enabler for hacking.

Table 2: OWASP Top Ten Web Vulnerabilities — 2013 -

2007 (OWASP, 2013).

2013 2010 2007 Threat

1 1 2 Injection Attacks

2 3 7 Broken Authentication

and Session Management

3 2 1 Cross Site Scripting (XSS)

4 4 4 Insecure Direct Object

References

5 6 - Security Misconﬁguration

6 - - Sensitive Data Exposure

7 - - Missing Function Level

Access Control

8 5 5 Cross Site Request

Forgery (CSRF)

9 - - Using Components with

Known Vulnerabilities

10 - - Unvalidated Redirects

and Forwards

4 THE MOTIVATION FOR THIS

RESEARCH

No matter what technological assistance or rigorous

processes are complied with, this may not be enough

to thwart a new form of attack. Often, the more care-

fully safeguarded data, the more attractive a social

engineering attack gets. Examples include Stuxnet,

the data published by Wikileaks and, though not cat-

egorised as an attack, the case of the Snowden rev-

elations. Common to all are that very, very care-

fully guarded systems / information were compro-

mised. Accounting systems are different in the way

that data need not necessarily be exﬁltrated, or a sys-

tem interfered with, but mere inconsistency will prove

costly both in labour to restore them, and in the conse-

quences of possible wrong forecasts giving rise to bad

decisions. Hence, mere data inconsistency could cre-

ate havoc. Many enterprises are keen to achieve com-

pliance with standards bodies, such as the Interna-

tional Organization for Standardization (ISO). How-

ever, the pace of evolution of new technology far out-

strips the capability of international standards organ-

isations to keep up with the changes (Willingmyre,

1997), a point well illustrated by the fact that it took 8

Anomaly Detection for Soft Security in Cloud based Auditing of Accounting Systems

473

years for the ISO to even mention cloud in their stan-

dards. With cloud standards only now starting to ﬁlter

through, it is clear that it will still be some time before

a comprehensive cloud security standard will emerge.

It is also clear that some enterprises might also suffer

from the rapidity of technology change through being

unable to keep up with such rapid change. A good

point to consider with the ISO is that many global

enterprises are keen to achieve compliance with ISO

standards, and further, the shift from the compliance

based approach to a risk based approach is very wel-

come.

Conventional technical solutions can help address

the OWASP vulnerabilities, all of which in some way

might impact on our enterprise ERP solution. What

these technical solutions cannot do, however, is to

tackle the major security breach issues as outlined

in the Verizon breach list covered in table 1. As

we stated earlier, the business architecture of an en-

terprise comprises a combination of people, process

and technology. While technological solutions might

be well advanced, and processes might be well doc-

umented, the weakest link is generally people. But

even technology and processes can fall short as a

consequence of the rapidity of change, as discussed

above, meaning that documented technology changes

might very well not be up to date. The processes of

an enterprise basically document the internal informa-

tion ﬂow of all internal processes, and as stated, may

not be fully up to date. The third component, peo-

ple, should at least be very well documented by the

HR department. Guidance from management comes

in the form of Policies and Procedures. First, through

the development of a policy manual for the enter-

prise, where management express the general policies

which convey the thinking of management to guide

line management. This will, of necessity, be written

at a high level of abstraction. Second, procedure man-

uals will necessarily be written in some good level

of detail, so that those responsible for carrying out

process tasks understand in more depth what their re-

sponsibilities are. It is rare to ﬁnd an enterprise where

absolutely every element of technology, process, poli-

cies and procedures are all fully documented and up

to date.

While people might be very well documented by

HR, it is less likely that their training will be fully

up to date. Often, a new employee is started and put

to work right away, before training procedures can

be fully implemented, thus putting the enterprise at

an immediate disadvantage. Also, some people are

not very switched on, and can be susceptible to social

engineering attacks. Sadly, the security of enterprise

will only ever be as good as the weakest person em-

ployed by the enterprise. No matter how up to date

the documentation within an enterprise is, this may

not be enough to thwart a new form of attack. Thus,

it is essential that an enterprise keep their ﬁnger on

the pulse with regard to evolving attacks, and take

steps to mitigate these at the earliest opportunity. It

is clearly of vital importance that an enterprise pay

particular attention to change management, in order

to ensure all documentation can be maintained prop-

erly and kept up to date. Likewise, any change in any

element, should be checked through all the others to

ensure there is no knock on effect which has not been

considered.

Therefore, a change in technology should prompt

a review of the policies and procedures manuals, to

see if there is any impact there, and a review of pro-

cesses carried out to ensure the existing process doc-

umentation is still ﬁt for purpose. There should also

be a check on the people of the enterprise, in order

to understand whether this technology change will re-

quire more, or fewer, people to be involved in the pro-

cessing tasks. This is not a one way check. Every

change must be checked through to ensure no conse-

quential impact on the other aspects of the business

architecture. Given the propensity for systems archi-

tecture to be moving towards the client/server model,

the database systems in use merit special mention,

and this is especially important for cloud based sys-

tems. For the database, ensuring that a proper audit

trail is maintained is vital. Often, cloud instances are

spooled up on demand, and shut down when demand

falls. If special attention has not been paid to the col-

lection of audit trail data, which is often collected on

the running instance, once it is shut down, the data

collected dies with it, which means that other arrange-

ments must be made to ensure the data is properly

collected and stored. If the data is gone, then even the

best forensic scientist will not be able to help. When

data collected is part of the ﬁnancial system of the en-

terprise, then it is especially important to safeguard

both the data and the audit trail.

For the audit trail there are some key issues that

should be considered:

1) logs must not be stored on the same host that gen-

erates them;

2) they should be append-only;

3) their originator must be identiﬁable. Moreover,

the;

4) log’s integrity must be protected, and;

5) the log is subject to conﬁdentiality protection.

As this trail may not improve on the security level

provided by technology and processes as such, it pro-

vides an insight to the past usage of the database.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

474

This highlights some serious challenges. Often

the database is hosted on the same machine as the

rest of the systems. Proper security controls are rarely

properly speciﬁed, meaning many unauthorised users

can have access to logs. And should a malicious

user gain access to the system, and be able to esca-

late privileges, then there would be nothing to stop

them from modifying logs, or deleting them alto-

gether. Another concern springs from the people em-

ployed by the enterprise. If they use the systems im-

properly through misunderstanding, laziness, lack of

training, or through malicious intent, then this could

give rise to a serious issue. Indeed, where an inside

user works in collusion with an external malicious

agent, this presents one of the greatest dangers to an

enterprise. Yet another concern surrounds the attitude

of management. Duncan and Whittington (Duncan

and Whittington, 2015a) have warned of the dangers

present when management fail to take security seri-

ously. Where this is the case, we do recognise that

this is sometimes slow to change. In total, the tra-

ditional technology providing policy-based means to

improve security yearns for complementary means to

follow up on the agent’s behaviour. This paper intro-

duces a novel means that looks at the overall business

architecture of the enterprise by detecting behavioural

anomalies. The method would utilise the audit trail to

(learn) construct a behavioural normality for an agent.

In case this normality is broken (anomaly is recog-

nised), the actions are domain speciﬁc. Realistically

this could suggest a secondary approval by a manager.

We now turn to address how detecting anomalous be-

haviour might be effected.

5 DETECTING ANOMALOUS

BEHAVIOUR

Related work on anomaly detection by tracking be-

havioural patterns for soft security include that of De-

vice Comfort (Marsh et al., 2011). Device Comfort

has been developed to detect a mobile device’s level

of comfort on its user. It considers a situational com-

fort level to be the device ownership combined with

the context (location, task, etc.) where anomalies are

actions causing the situational comfort level to drop

under some given threshold level. Later research has

targeted the mobile device to “know” its user’s diur-

nal patterns in order to detect anomaly behavioural

patterns (Bicakci et al., 2014). This is used to detect,

for example, anomalies in the location and use of the

mobile device indicating a possible theft, giving rise

to further action based on an “anomaly score” that re-

mains undeﬁned.

Characterising for accounting systems means

however that their operational purpose remains un-

changed and all activity is exclusive and exhaustive.

A signiﬁcant change in an agent’s functional access

to the system is thereby a sign of anomaly. In cases

when the agent’s work duties have changed, this can

however be the “new normal” requiring the system to

adapt. In this paper we do present a method respond-

ing to these challenges. We do effectively the same

as with Device Comfort but for an audit system with

a focus on detecting temporal behavioural anomalies

instead of analysing the spatial context in which they

occur. The reason is obvious, as the spatial context

is the cloud, lacking any conventional spatial context.

For this we use experience based theory on exclusive

and exhaustive events to create a window of normal

behaviour in all a system’s interactions (dimensions).

We apply a factor of ageing providing the essentials

for adaption. Mathematically similar approaches have

been used for ﬁnding a level of belief and certainty on

aggregated information (Neovius, 2015). In the next

Section, we describe how the experience based theory

might be developed.

6 THE EXPERIENCE BASED

THEORY

Consider an experience deﬁned as a four tuple

(δ,ε

,ζ,η) inspired by Teacy et al. (Teacy et al.,

2006), and Krukow’s (Krukow, 2006) general model

augmented by a score. Here δ represent the agents,

ε the datum indexed by i (typically time), ζ the tasks

(events) and η the score of this experience. The his-

tory of such experiences is a set (δ,ε

,ζ, η).

The observing entity, in the context of this paper,

is always the audit system. For the sake of readability,

let the exclusive and exhaustive tasks on the audit trail

ζ = (n, r, e) where n = ‘new entry’, r = ‘read’, and e

= ‘edit an old entry’. Three exclusive and exhaustive

outcomes are spanned by an equilateral triangle; with

each additional outcome increasing one dimension on

the plane. Thus, with four outcomes, the faces span

a tetrahedron. Moreover, consider atomic behaviour,

where an agent conducts at most 1 task at any given

time.

Adding a new experience to the history is straight

forward: (δ, ε

,ζ, η) ∪ {(δ,ε

,ζ, η)} where 0 ≤ i.

Thus, the experience based behavioural view may be

retroactively constructed from the audit trail. On the

history, a projection provides a situational view on

some spanned plane, i.e. exp(usr

,ε

, x,η) = (ε

,η).

This projection provides all x ⊆ ζ entries of agent(s)

usr1 within the timespan denoted by {j}. In addition,

Anomaly Detection for Soft Security in Cloud based Auditing of Accounting Systems

475

aggregation of dimensions to a binomial view is easy

as for the exclusiveness of the tasks by letting x denote

a non-empty set of dimensions with ¯x = ζ \ x. More-

over, assume for the sake of this example the score

η indicating the task’s level of severity. Also assume

that the initiating agent is unique and known and that

it takes full responsibility for the task.

Having a history of experiences, any agents’ (one

or a group of agents) temporal behaviour can be ex-

amined over any time span or cycle as deﬁned by

the domain expert. For this, a decay constant 0

≤ λ ≤ 1 is implemented where the closer the con-

stant is to 1, the less the decay. For an hourly or

daily behaviour, temporally older experiences reason-

ably weigh less than recent, hence at ε

the decay d

is d

(exp(δ,ε

,ζ, η)) = {(δ, ε

,ζ, λ

−ε

∗ η)}. This

decay provides the “trend” of the current behaviour.

However, the current behaviour is not applicable on

cyclic (repetitive) behaviour such as weekly, quarterly

and yearly time frames. On these, we propose invers-

ing the decay 0 ≤ θ ≤ 1 where the closer to 0, the

more weight on the early readings, i.e. at ε

the cyclic

c is c

(exp(δ,ε

,ζ, η)) = {(δ,ε

,ζ, θ

−ε

∗η)}. Ob-

viously, to make this effective, the time span is the re-

curring pattern’s time span. This enables a reference

window calling for domain speciﬁc extreme cautious-

ness in deﬁning the parameters.

With the decay providing the current trend and the

inverse, an anomalous behaviour is deﬁned with a set

of rules on thresholds within the domain of discourse.

Optimally these thresholds are deﬁned by a function

on the experiences in an event over a period of time

with respect to a comparable period. For example,

consider X to be a time window right now, and Y to be

all events over a comparable period in the past, and let

α( Y ) =

∑

j∈Y

(exp(δ,ε

,n, η)) providing a score in-

dicating the new entries during that frame. To give an

example, a Boolean anomaly behaviour with thresh-

olds 0.8 ≤ x ≤ 1.15 is then identiﬁed if the predicate

0.8 ∗α( Y ) ≤

∑

j∈X

(exp(δ,ε

,n, η)) ≤ 1.15*α (Y )

does not hold, i.e. if the momentary situation X devi-

ates too heavily from the reference period Y (yester-

day, last week...). If this is the case, further domain

speciﬁc actions may be required, or an alert raised,

e.g. approval of an agent with more rights. Obviously,

an ensemble of complementary reference periods can

be deﬁned and included in the predicate as the domain

specialist wishes.

7 ILLUSTRATING THE

APPROACH

This section will illustrate the approach described in

Section 6. The example used above included three

exclusive and exhaustive tasks where anomalous be-

haviour is indicated by the level of “out of the or-

dinary”. For illustration, we need an n-dimensional

barycentric co-ordinate system where n is the car-

dinality of ζ, here 3 ({n,r,e}) and thus a tetrahe-

dron. For presentation purposes, we coarsen the 3-

dimensional space to 2-dimensions where x = n and

¯x = {r,e}. This gives us a 2 dimensional barycen-

tric space, i.e., a triangle (one face of the tetra-

hedron), and a way of illustrating, including the

transformation formulae (below), originally brought

forward by Jøsang (Jøsang, 1997). Moreover, let

∑

j∈X

(exp(δ,ε

,ζ, η)) = (1,3.6,0.06) for respective

ζ = (n,r,e) and for the comparable period 0.9,3.2,0.01.

Let the normalisation of these values include a con-

stant W for “do not know” with a given value 2 where

higher values require more experiences for certainty.

Then the values for each x is

∑

x/(

∑

x +

∑

¯x +W ).

The vectors on a proposition are deﬁned:

−→

b (x) =

∑

⊆x

−→

b (x

) and

−→

b (

x) =

∑

⊆ ¯x

−→

b (x

In the two-dimensional space, these two vectors

span the behaviour right now, and are vector-valued

functions on the ζ with range [0, 1]

. They are sub-

additive, as of the W, as illustrated in Figure 1 below.

The parameter a

is the base-rate parameter indicat-

ing the expected development.

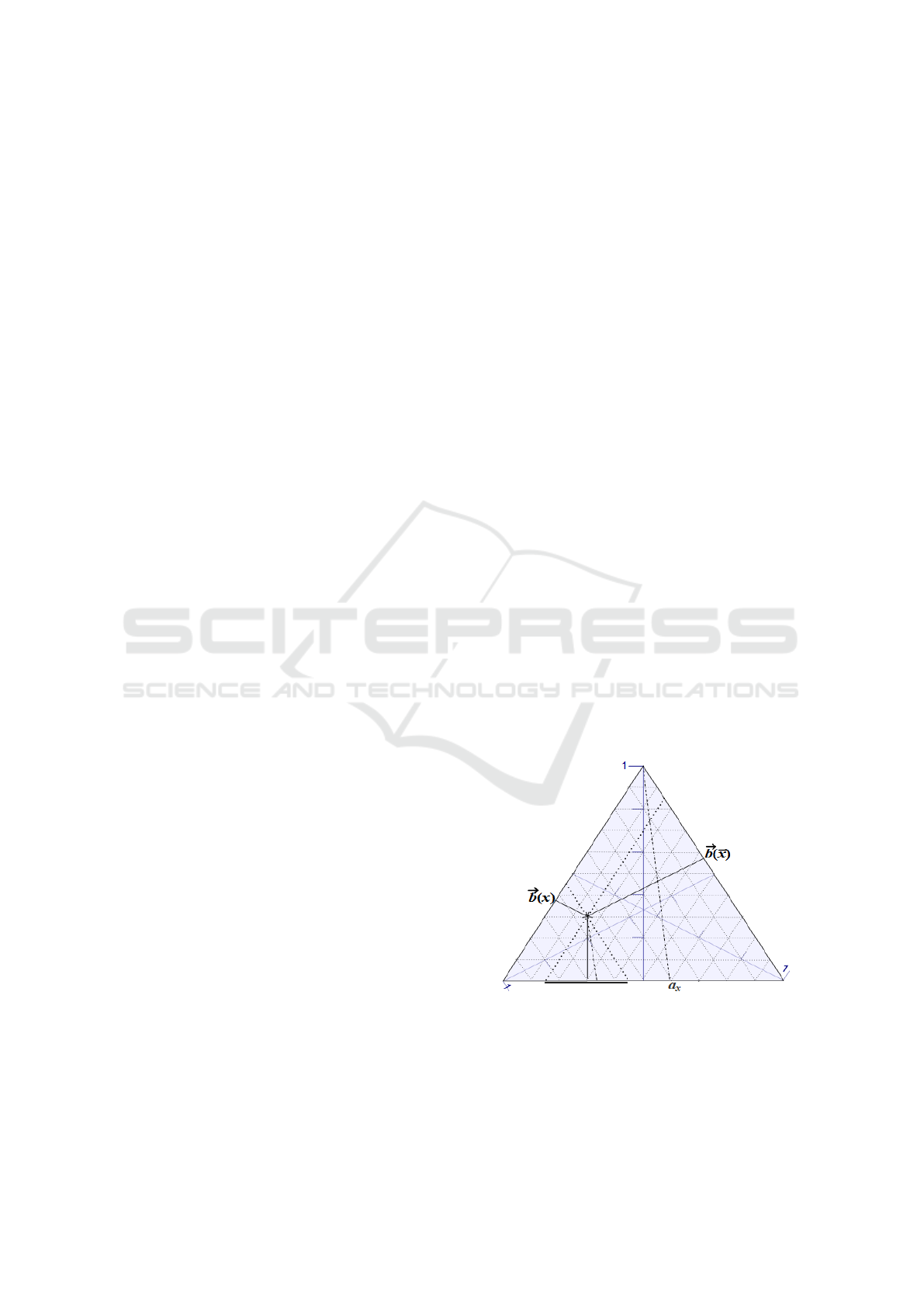

Figure 1: Situational behaviour.

The comparable periods centroid is calculated

similarly using the cyclic delay. The tolerance how-

ever spans an oval around this centroid, in this case

0.8 and 1.15 indicating the “normal” acceptable be-

havioural space of the agent. This is illustrated in Fig-

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

476

ure 2 below. Of note is that every time a window spans

an area of its own, where decisions on framing rules

of how many of these may be broken without being

tagged as anomalous behaviour, must be taken by the

domain expert. In a perfect world of consistent be-

haviour the time windows would span the same area.

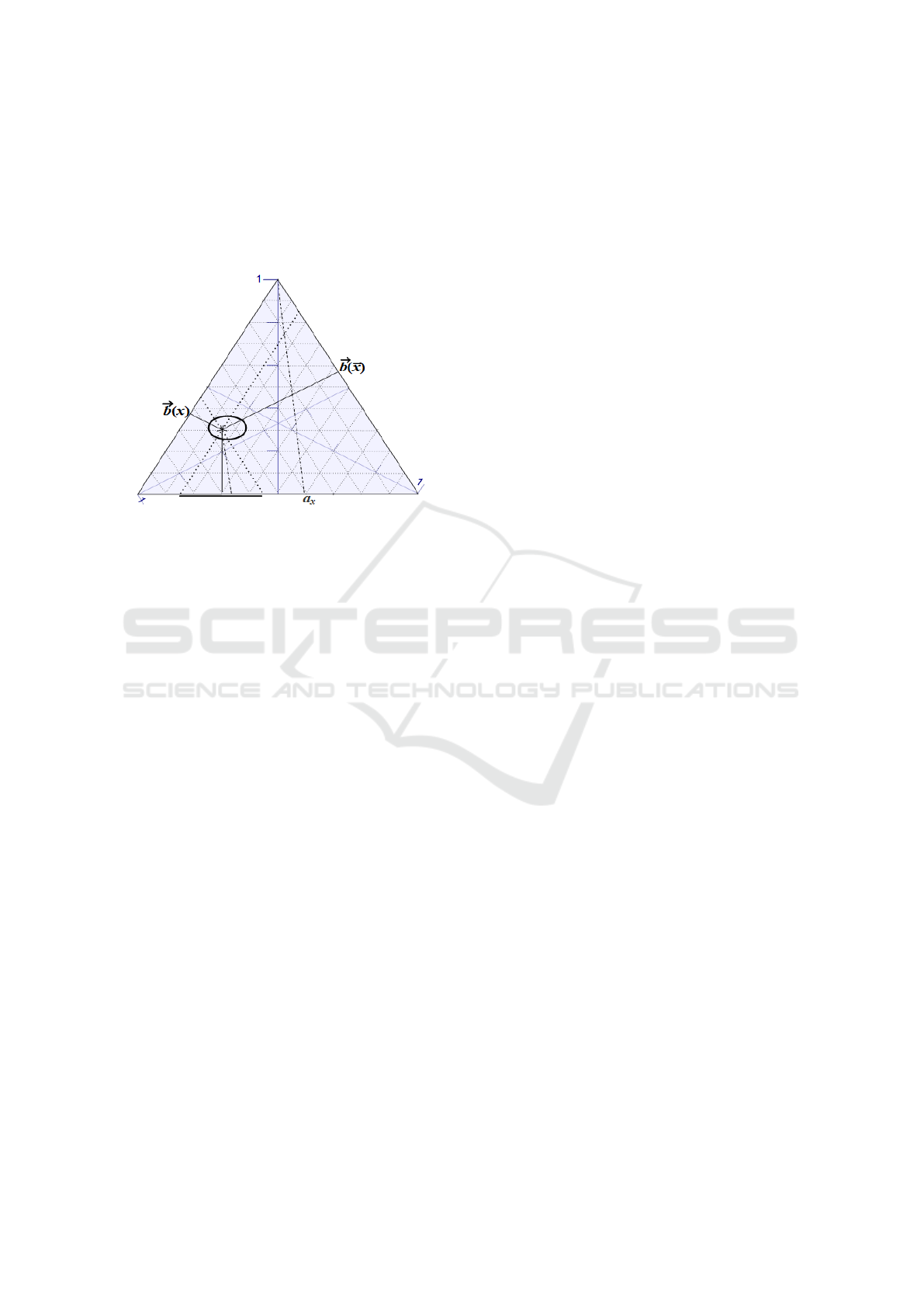

Figure 2: Comparable time window’s tolerance and situa-

tional behaviour within this.

The interpretation of the method is such, that the

reference period deﬁnes a point on which a level of

tolerance is put. If the current window deviates from

the reference period, the behaviour is anomalous. In

Figure 2, the oval spans the reference window with

tolerance and the dot the current behaviour. If the

dot slides outside the oval, the current behaviour is

anomalous with respect to its reference period. In the

next Section, we discuss various points which will re-

quire clariﬁcation in the use of this system.

8 DISCUSSION

There are a number of points that need to be clari-

ﬁed in the use of our proposed system. Every new

user will be highlighted on ﬁrst access to the system,

since there will be no historic data to compare against

current activities. This should trigger a need for a re-

sponsible person to investigate whether this activity

comes from a properly authorised user. If necessary, a

time or event count delay could be placed on process-

ing of their input until their actions are duly autho-

rised. An alternative would be to set up a set of default

expected behaviour whenever a new employee starts

with the enterprise. Thus any entries resulting from

a malicious user would instantly stand out as suspect.

Strict limits on the level of access granted to new users

should be in force until an established pattern of be-

haviour is developed. For this, other types of machine

learning approaches could be used. However, as we

considered a system already running, this is not the

prime focus of this paper.

Moreover, situations of anomalous behaviour that

are not of a malicious nature may be caused by a

change of duties of a user within the enterprise. At

the very least, such behaviour should be ﬂagged up,

validated and approved. As we have already stated,

reliance on the system alone would be foolhardy.

Rather, the system should be able to create useful

alerts to highlight anomalous behaviour as it happens,

so that it might be investigated before it becomes a

major issue. In effect, we are proposing a highly ef-

ﬁcient “management by exception approach”, rather

than either getting bogged down by too much man-

ual checking, or worse, by doing nothing at all. The

same method could be implemented as a service by

network providers to users. In the ﬁnal Section, we

discuss our conclusions and consider future work

9 CONCLUSIONS AND FUTURE

WORK

Achieving information security in the cloud calls for

new means of addressing security. Porting the tradi-

tional approach developed for static client-server or

mainframe system to the cloud is not possible. Prob-

lems relate to the very foundations of SaaS and the

cloud paradigm, including elasticity, spatial indepen-

dence etc. Moreover, as the fundamental operations

such as accounting systems of enterprises are run on

such foundations, the stakes are high. This sensitive

information attracts fraud and calls for means to de-

tect such attacks as soon as they happen. For this,

we have in this paper proposed an algorithm detect-

ing anomalies in the usage of the system. Stakehold-

ers on this include the enterprise as well as the SaaS

provider. This provides ‘soft’ security measures and

complements policy based security actions, such as

encryption, redundancy and many more.

The trend of IT systems today is that they become

ever more cloud based, whether this be IaaS, SaaS or

‘serverless computing’. For the enterprise to move the

operationally critical software to a place maintained

by hard core professionals is appealing. When sys-

tems are run by hard core professionals, they are bet-

ter updated and less prone to cyber physical attacks.

Thus, the trend has been, and is likely to continue, that

fraudsters will utilise social attacks. To countermea-

sure such social attacks, soft security measures such

as is proposed in this paper can address these issues.

As future work, we intend to validate this method on

a real-life benchmarking dataset.

The anomaly detection method could be run by the

Anomaly Detection for Soft Security in Cloud based Auditing of Accounting Systems

477

enterprise or by the CSP. We chose accounting sys-

tems as the application because of the readily avail-

able audit trail and the characteristic of having to be

adaptive to changes in agent.

This is the ﬁrst step to a successful spooﬁng at-

tack, where an intruder acts as a legitimate provider

acting as the man-in-the-middle.

REFERENCES

Armbrust, M., Stoica, I., Zaharia, M., Fox, A., Grifﬁth, R.,

Joseph, A. D., Katz, R., Konwinski, A., Lee, G., Pat-

terson, D., and Rabkin, A. (2010). A View of Cloud

Computing: Clearing the clouds away from the true

potential and obstacles posed by this computing capa-

bility. Commun. ACM, 53(4):50–58.

Bicakci, M. V., Esfandiari, B., and Marsh, S. (2014).

Anomaly detection for mobile device comfort. In

IFIP International Conference on Trust Management,

pages 93–108. Springer.

Chandola, V., Banerjee, A., and Kumar, V. (2009).

Anomaly Detection: A Survey. ACM Comput. Surv.,

41(3):15:1—-15:58.

Crown (1998). Data Protection Act.

Doelitzscher, F., Knahl, M., Reich, C., and Clarke, N.

(2013). Anomaly Detection In IaaS Clouds. In Cloud-

Com, pages 387–394.

Doelitzscher, F., Reich, C., Knahl, M., and Clarke, N.

(2011). An Autonomous Agent Based Incident Detec-

tion System for Cloud Environments. In Cloud Com-

put. Technol. Sci. (CloudCom), 2011 IEEE Third Int.

Conf., pages 197–204.

Duncan, B., Pym, D. J., and Whittington, M. (2013). De-

veloping a Conceptual Framework for Cloud Security

Assurance. In Cloud Comput. Technol. Sci. (Cloud-

Com), 2013 IEEE 5th Int. Conf. (Volume 2), Bristol.

IEEE.

Duncan, B. and Whittington, M. (2014). Compliance with

Standards, Assurance and Audit: Does this Equal Se-

curity? In Proc. 7th Int. Conf. Secur. Inf. Networks,

pages 77–84, Glasgow. ACM.

Duncan, B. and Whittington, M. (2015a). Company Man-

agement Approaches Stewardship or Agency: Which

Promotes Better Security in Cloud Ecosystems? In

Cloud Comput. 2015, pages 154–159, Nice. IEEE.

Duncan, B. and Whittington, M. (2015b). Information Se-

curity in the Cloud: Should We be Using a Different

Approach? In 2015 IEEE 7th Int. Conf. Cloud Com-

put. Technol. Sci., Vancouver.

Duncan, B. and Whittington, M. (2015c). Reﬂecting on

whether checklists can tick the box for cloud secu-

rity. In Proc. Int. Conf. Cloud Comput. Technol. Sci.

CloudCom, volume 2015-Febru, pages 805–810, Sin-

gapore. IEEE.

Duncan, B. and Whittington, M. (2015d). The Importance

of Proper Measurement for a Cloud Security Assur-

ance Model. In 2015 IEEE 7th Int. Conf. Cloud Com-

put. Technol. Sci., Vancouver.

Duncan, B. and Whittington, M. (2016a). Enhancing Cloud

Security and Privacy: The Cloud Audit Problem. In

Submitt. to Cloud Comput. 2016, Rome.

Duncan, B. and Whittington, M. (2016b). Enhancing Cloud

Security and Privacy: The Power and the Weakness of

the Audit Trail. In Cloud Comput. 2016, Rome. IEEE.

Jøsang, A. (1997). Artiﬁcial reasoning with subjective

logic. In Proceedings of the second Australian work-

shop on commonsense reasoning, volume 48, page 34.

Citeseer.

Krukow, K. (2006). Towards a theory of trust for the global

ubiquitous computer. Brics.Dk.

Kuner, C. (2010). Regulation of Transborder Data Flows

under Data Protection and Privacy Law: Past, Present,

and Future. Leg. Stud., (016):1–90.

Law, P. (1996). Health Insurance Portability and Account-

ability Act of 1996.

Marsh, S., Briggs, P., El-Khatib, K., Esfandiari, B., and

Stewart, J. A. (2011). Deﬁning and Investigating De-

vice Comfort. J. Inf. Process., 19(7):231–252.

Neovius, M. (2015). Adaptive experience-based compo-

sition of continuously changing quality of context.

In The Seventh International Conference on Adaptive

and Self-Adaptive Systems and Applications, page 21

26. IARIA.

OWASP (2013). OWASP Top Ten Vulnerabilities 2013.

PWC (2012). UK Information Security Breaches Survey

- Technical Report 2012. Technical Report April,

PWC2012.

PWC (2014). 2014 Information Security Breaches Survey:

Technical Report. Technical report.

Sox (2002). Sarbanes-Oxley Act of 2002.

Teacy, W. L., Patel, J., Jennings, N. R., and Luck, M.

(2006). Travos: Trust and reputation in the context of

inaccurate information sources. Autonomous Agents

and Multi-Agent Systems, 12(2):183–198.

Trustwave (2013). Trustwave Global Security Report. Tech-

nical report.

Verizon (2011). 2011 Data Breach Investigation Repeort:

A study conducted by the Verizon RISK Team in co-

operation with the United States Secret Service and

Others. Technical report.

Verizon (2012). 2012 Data Breach Investigation Report:

A study conducted by the Verizon RISK Team in co-

operation with the United States Secret Service and

Others. Technical report.

Verizon (2013). 2013 Data Breach Investigation Report:

A study conducted by the Verizon RISK Team in co-

operation with the United States Secret Service and

Others. Technical report.

Verizon (2014). 2014 Data Breach Investigations Report.

Technical report.

Walden, I. (2011). Law Enforcement Access in a Cloud

Environment. Leg. Stud., (74):1–19.

Willingmyre, G. T. (1997). Standards at the Crossroads.

StandardView, 5(4):190–194.

CLOSER 2017 - 7th International Conference on Cloud Computing and Services Science

478
