A Semi-automatic Approach to Identify Business Process Elements in

Natural Language Texts

Renato C

esar Borges Ferreira

, Lucin

eia Heloisa Thom

and Marcelo Fantinato

Department of Informatics, Federal University of Rio Grande do Sul, UFRGS, Porto Alegre, Brazil

School of Arts, Sciences and Humanities, University of S

ao Paulo, S

ao Paulo, Brazil

Keywords:

Process Models, Natural Language Processing, Process Element, Business Process Management, Business

Process Model and Notation, Process Modeling.

Abstract:

In organizations, business process modeling is very important to report, understand and automate processes.

However, the documentation existent in organizations about such processes is mostly unstructured and difﬁcult

to be understood by analysts. The extracting of process models from textual descriptions may contribute

to minimize the effort required in process modeling. In this context, this paper proposes a semi-automatic

approach to identify process elements in natural language texts, which may include process descriptions.

Therefore, based on the study of natural language processing, we deﬁned a set of mapping rules to identify

process elements in texts. In addition, we developed a prototype which is able to semi-automatically identify

process elements in texts. Our evaluation shows promising results. The analyses of 56 texts revealed 91.92%

accuracy and a case study showed that 93.33% of the participants agree with the mapping rules.

1 INTRODUCTION

Public or private organizations seeking for better in-

teraction with their customers and business partners

need to offer high-quality products or services. Fur-

thermore, they seek to achieve superior standardiza-

tion and efﬁciency in the performance of their busi-

ness processes (referred in this text as process). The

automation of processes performed in an organiza-

tion provides greater control over costs, time, errors

and redundancy in the execution of processes (Thom,

2012; Thom et al., 2009).

A business process is a “collection of events, ac-

tivities, and decision point actions, involving a num-

ber of actors and objects, which collectively lead to

results that bring value to the customer” (Dumas et al.,

2013). Business Process Management (BPM) is de-

ﬁned as a set of methods, techniques and tools to

discovery, analyze, redesign, implement and moni-

tor business processes (Weske, 2007; Dumas et al.,

2013). According to (Leopold, 2013), through BPM,

organizations can ﬂexibly adapt in a continuously

changing business environment. Therefore, BPM in-

volve many improvements to the organization, such as

the standardization of processes, improvement, qual-

ity and quick execution of the activities (Thom, 2012;

Thom et al., 2009).

The BPM lifecycle includes six steps: (i) pro-

cesses identiﬁcation, (ii) discovery, (iii) analyze, (iv)

redesign, (v) implementation and (vi) processes mon-

itoring and controlling (Dumas et al., 2013) . All life

cycle steps are particularly important for process au-

tomation. The process modeling can be considered

one of the most important and complex steps. In

this step, business processes executed in the organi-

zation are designed with the use of a graphical nota-

tion such as the Business Process Model and Notation

(BPMN). (Dumas et al., 2013) describe that the pro-

cess modeling is a prerequisite for analysis, redesign

and automation of business processes. An incorrect

process modeling compromises the next steps of the

BPM project, since a correct process automation orig-

inates from a precise process modeling.

We have learned from practice that the design of a

particular process (e.g., healthcare processes) can be

very complex, not only due to its variety and the need

for ﬂexibility but also because they require knowl-

edge of several domain terms (Thom et al., 2010).

Moreover, it lead to ambiguities and interpretation

problems between process analysts and domain ex-

perts. Process modeling comprises several methods

for processes discovery, such as user’s interviews,

workshops, brainstorming and documents of the or-

ganization (Dumas et al., 2012). These documents

250

Ferreira, R., Thom, L. and Fantinato, M.

A Semi-automatic Approach to Identify Business Process Elements in Natural Language Texts.

DOI: 10.5220/0006305902500261

In Proceedings of the 19th International Conference on Enterprise Information Systems (ICEIS 2017) - Volume 3, pages 250-261

ISBN: 978-989-758-249-3

can have many sources, such as reports, forms, letters,

notes from call centers, surveys, research, business

policies, textbooks, systems knowledge management,

e-mail messages, event data of information systems,

web pages, texts documents and interviews.

However, such methods may have limitations due

to miscommunication between analysts and users, the

lack of documentation and standardization of pro-

cesses, and the lack of user information. Content

management professionals consider that 85% of the

information in companies is stored in an unstructured

way, especially as text documents (Blumberg and

Atre., 2003). To develop meaningful process mod-

els, the process analyst obtains abstract information

on how these processes are implemented. To create

the initial process model (as-is model), the process

analyst usually collects several pieces of information

about the process through the mentioned methods to

establish the initial understanding of the process (Du-

mas et al., 2013). The acquisition of the initial process

model in a BPM project requires 60% of the total time

spent (Herbst, 1999).

Several works (Friedrich et al., 2011; Chueng

et al., 2007; Goncalves et al., 2011) have demon-

strated that the extraction of process models can

minimize the effort of the process analyst to cap-

ture, mainly through user’s interviews process mod-

els. These interviews rarely lead to the understanding

of the entire process, since they often only describe

knowledge from isolated parts of the process.

In this context, this paper proposes a semi-

automatic approach to identify process elements in

Natural Language texts. The identiﬁcation of pro-

cess elements in texts assists in the construction of

a processes template and can thus extract the process

models from it. We observed that most of the work

described in the literature considers that the texts in

natural language are described in a way that only an-

alysts are able to extract process models from that.

This means that the texts are developed with very spe-

ciﬁc keywords and sentences which denote process

elements. Therefore, novice process analysts cannot

extract process models from it. In addition, organi-

zations have several unstructured textual information,

which can be used as possible sources of information

for process design. Thus, natural language texts are

mostly not prepared to be directly used by process

model extraction tools. Therefore, this shows how

complex is to identify process elements in texts. Thus,

the approach presented in this paper not only con-

tributes to the identiﬁcation of process elements but

also to inform completeness of natural language texts

as well as missing process elements (e.g., start, end

events, tasks, swimlanes, parallel gateways (AND)

and exclusive gateways (XOR)).

We developed a prototype to semi-automatically

identify process model elements in natural language

texts. The tool uses as input a collection of doc-

uments such as reports, manuals, forms and norms

within organizations. We combined a large set of

tools from Natural Language Processing (NLP) based

on the mapping rules, which were particularly devel-

oped for our approach. The evaluation of our pro-

totype shows very encouraging results. Considering

a set of 56 texts, the accuracy was 91.92% based

on machine learning evaluation metrics and measures

for information retrieval. Furthermore, the validation

through a survey showed that most the of participants,

i.e. 93.33%, agree with the mapping rules.

For the identiﬁcation of process model elements in

natural language texts, we used the following method-

ology:

• Deﬁnition of mapping rules: in this step, the map-

ping rules were deﬁned and afterwards applied in

natural language texts.

• Development of a prototype: implementation of a

prototype to semi-automatically identify process

elements in natural language texts based on the

mapping rules.

• Evaluation of identiﬁed process elements: our ap-

proach follows two evaluation perspectives: First,

mapping rules validation through a survey with

potential users, in particular process experts. Sec-

ond, prototype validation based on the set of NLP

tools.

The remainder of this paper is structured as fol-

lows. Section 2 provides related works. Section 3

shows the proposed approach to identify process el-

ements in natural language texts. Section 4 shows

the evaluation and results analysis. Finally, Section

5 concludes the paper.

2 RELATED WORKS

In this section we review the most relevant works re-

garding process model extraction from natural lan-

guage texts. The state of art can be divided in two

related categories: the extraction of process models

from natural language texts and text generation from

process models. Table 1 provides an overview of the

identiﬁed state of art.

The analyses of works exploring process model

extraction from natural language texts shows two

main aspects.

First, we should consider the source of informa-

tion of the natural language texts. (Friedrich et al.,

A Semi-automatic Approach to Identify Business Process Elements in Natural Language Texts

251

Table 1: State of art for Identify Process Elements in Natu-

ral Language Texts.

Categories

Process Model Extraction from Text

- Generate Process Models From Text.

- (Friedrich et al., 2011)

- (Chueng et al., 2007)

- Process Mining from Natural Language Text

- (Santoro et al., 2009)

- (Jiexun et al., 2010)

- (Goncalves et al., 2011)

Text Generation from Process Models

- Generate Text from Process Models

- (Leopold et al., 2014)

- (Meitz et al., 2013)

- (Leopold, 2013)

- Inconsistencies Between Process Models and Text

- (van der Aa et al., 2015)

- (van der Aa et al., 2016)

- Text Structuring

- (Heinonen, 1998)

- (Hearst, 1994)

- (Hearst, 1997)

- (Hynes and Bexley, 2003)

2011) proposed by the extraction of process models

from textual descriptions. The proposed approach

considers three outlooks: ﬁrst, syntactic analysis, de-

termination of a syntax tree and grammatical relation-

ships between the parts of the sentences; second, se-

mantic analysis, extraction of the meaning of words

or phrases; and third, anaphora resolution, identify-

ing concepts that are referenced using pronouns (we,

he and it) and articles (this, that). In this work, the

source of information from text is a limitation. For

instance, the texts analyzed for the generation of pro-

cess models need to be grammatically correct in the

English language, i.e., it is necessary to remove and

manually correct words or sentences that are gram-

matically incorrect, so that the text becomes gram-

matically correct. Furthermore, the text must not

contain questions and needs to be described sequen-

tially. In order to solve this problem, in a previous

work (Ferreira and Thom, 2016), we conducted an in-

troductory approach to generate process-oriented text

from natural language, from this approach we con-

cluded that natural language text must be processed

before the extraction of process models. In particu-

lar, (Chueng et al., 2007) describe that the source of

information from text are heterogeneous information

sources (e.g., corporate documentation, web-content,

code etc.).

The second aspect refers to process models ex-

tracted from natural language texts. (Santoro et al.,

2009) and (Goncalves et al., 2011) described an ap-

proach that explores the narrative technique associ-

ated with text mining and natural language interpreta-

tion for generating process models. The paper shows

that miscommunications can occur, e.g. each author

represents their individual point of view within the

stories, there is always a possibility of multiple work-

ﬂows for the same business process (Wfmc, 2005).

Therefore, the source of information can have am-

biguities. (Jiexun et al., 2010) proposed a process

mining framework named policy-based process min-

ing (PBPM) for the automatic discovery of process

models based on business policies. Considering that

policy texts is a new topic in BPM research and text

mining, the approach requires additional research ef-

forts to be entire validated and produce practical so-

lutions. Thus, there is a small training set and a small

portion of positive examples in the approach.

Regarding text generation from process models,

we identiﬁed three main approaches from the works

we analyzed. (Leopold, 2013) described an approach

for generating natural language texts from process

models. In this approach, the author describes chal-

lenges to generate texts from process models such

as text planning; sentence planning; surface realiza-

tion and ﬂexibility. The limitations of this work refer

to the fact that the sentences generated are compara-

tively short and elementary. Another limitation is to

ensure a stable level of complexity of the texts cre-

ated manually so it would be necessary to train the

text classiﬁers. Finally, the modeling process is not

well documented since the text generated is not struc-

tured. To reduce the time and effort needed between

process model and textual description, (van der Aa

et al., 2015) and (van der Aa et al., 2016) describe an

approach to identify inconsistencies between a pro-

cess model and a corresponding textual description.

This approach can be used to identify process mod-

els in a collection that are likely to diverge from their

accompanying textual descriptions.

To reduce inconsistency or ambiguity of process

models extracted from natural language texts, a text

structuring is necessary. Many researches seek to

identify how to optimally structure natural language

texts using paragraphs. Similarity metrics such as

the semantic relatedness between words to compute

the lexical cohesion between the sentences of a text

are implemented by many methods (Hearst, 1994;

Hearst, 1997; Morris and Hirst, 1991). Therefore,

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

252

Figure 1: A semi-automatic approach to identify process elements in natural language texts.

a text can be heuristically subdivided into multiple

paragraphs. More approaches seek to use the similar-

ity distribution for identifying the optimal fragment

boundaries (Heinonen, 1998). (Hynes and Bexley,

2003) shows that paragraphs containing more than

100 words are less understandable than paragraphs

with fewer words.

3 AN APPROACH TO IDENTIFY

PROCESS ELEMENTS IN

NATURAL LANGUAGE TEXTS

In this section, we present an approach to identify pro-

cess elements in natural language texts. In our pre-

vious research (Ferreira and Thom, 2016), we con-

ducted an introductory approach to generate process-

oriented text from natural language. That research

serves as the foundation for the approach presented

in this paper.

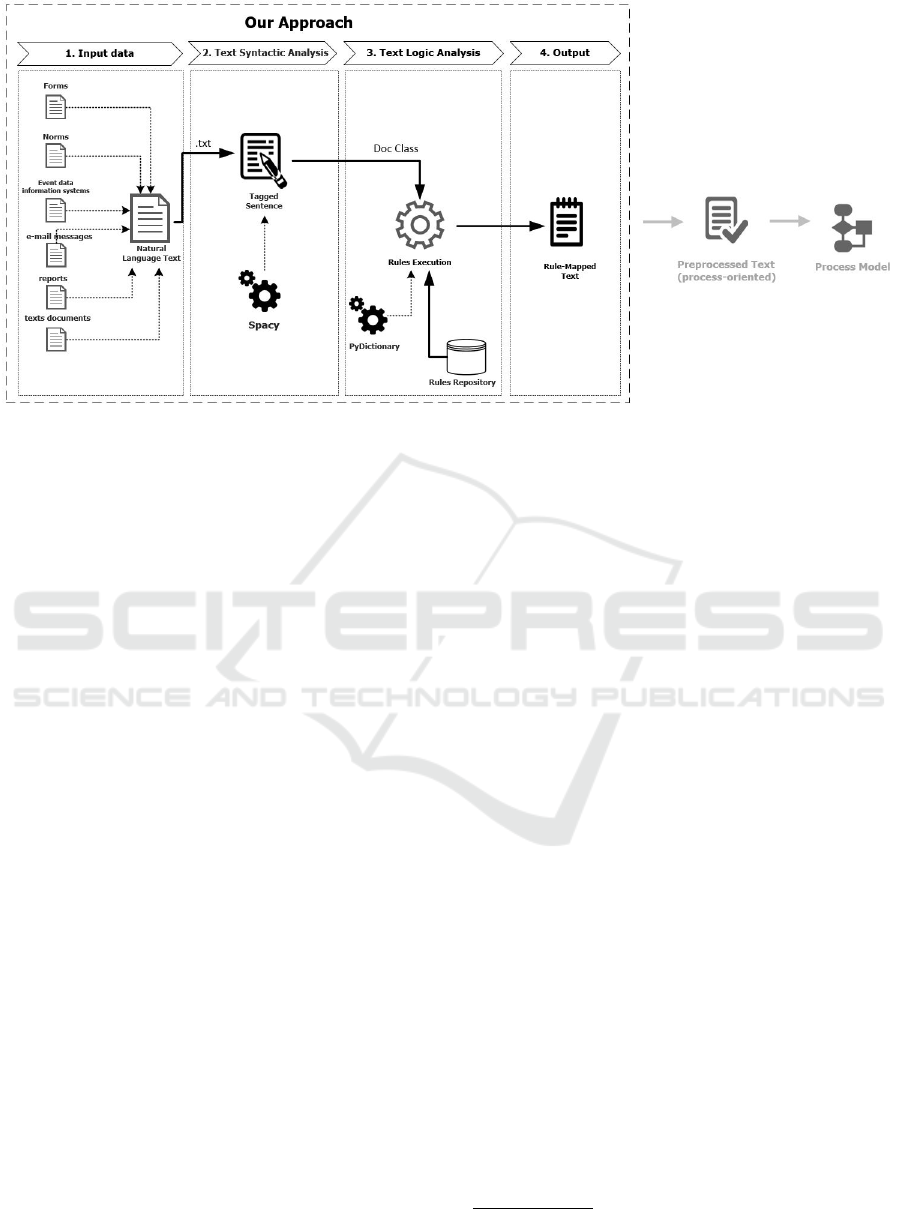

Figure 1 shows our approach to identify process

elements in natural language texts. This approach

consists of four main steps including input data, text

syntactic analysis, text logic analysis and output. In

the following sections, we introduce and explain each

of these steps.

3.1 Input Data

In the English language, there are many classiﬁca-

tions of texts. Each classiﬁcation has different char-

acteristics, such as words, phrases, and issues related

to each text particularity. Examples of classiﬁcations

include texts descriptor; comparison and contrast; or-

der of importance; problem and solution; cause and

effect; sequential. In sequential texts, the information

is organized in steps or process and is explained in the

order they occur

The characteristics presented in the sequential text

has similarities with business process models. There

are keywords common in sequential texts, such as

ﬁrst, second, near, then, ﬁnally, following, now, af-

ter, among others. These words show possible re-

lationships (correlations) with modeling elements of

BPMN such as activities, swimm, gateways, pools,

swimlanes, etc.

In this context, text documents can have many

sources, such as: forms, norms, event data of infor-

mation systems, e-mail messages, etc. These sources

are also called as natural language text, including sen-

tences not structured that do not correspond to the se-

quential texts and hence make very difﬁcult the ex-

traction of process models from it. The output of this

step are data with .txt format separated by sentences.

3.2 Text Syntactic Analysis

In order to obtain a tagged sentence is necessary to

consider the syntactic analysis parsing from text doc-

uments. The purpose of the syntactic analysis is to

determine the structure of the input text. Per (Allen,

1995), analyze the syntactical parser, we need to per-

form three aspects: ﬁrst, a parser has as input a sen-

tence and as a result produces the analysis; second, a

grammar has a set of rules that the parser can use; and

http://www.ereadingworksheets.com/text-structure/;

last accessed 2016-11-11

A Semi-automatic Approach to Identify Business Process Elements in Natural Language Texts

253

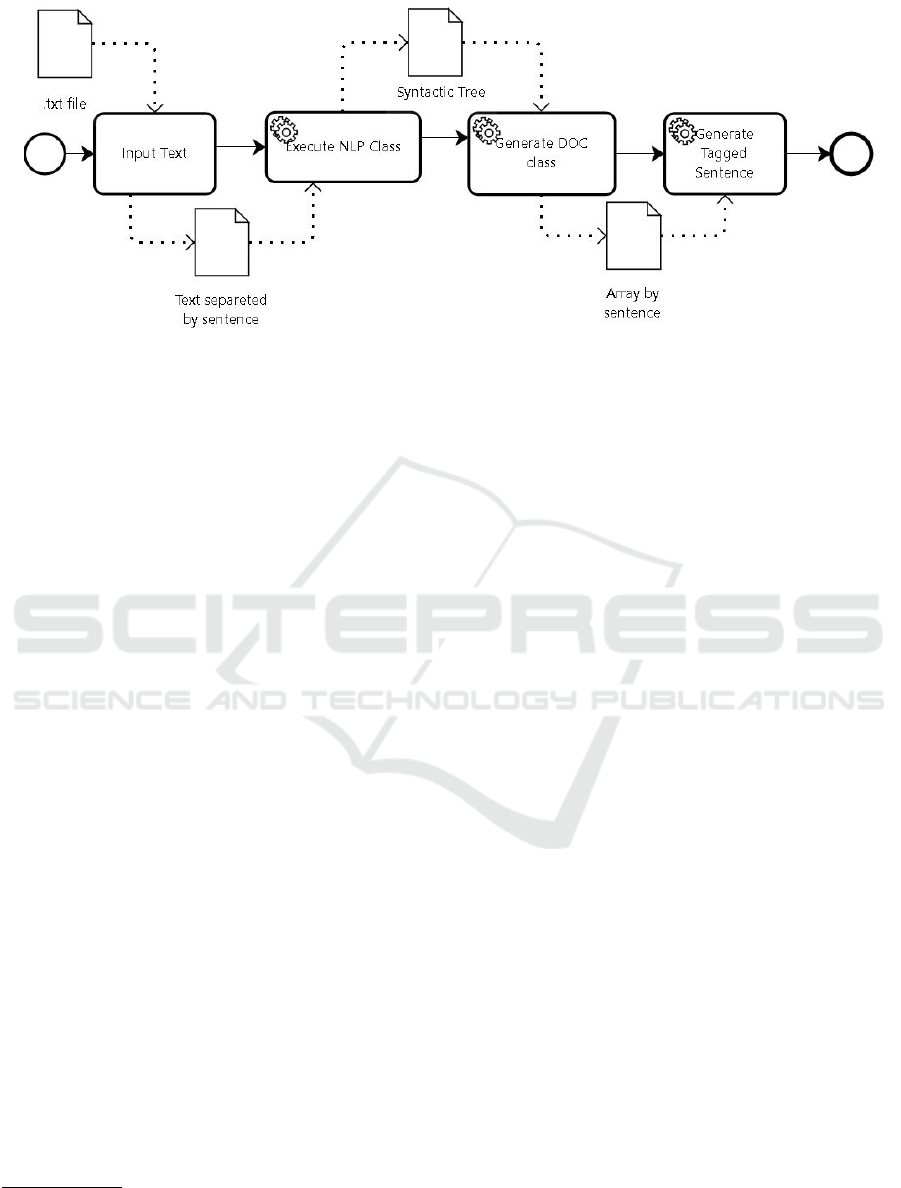

Figure 2: Structural overview of the step of text syntactic analysis in order to generate a tagged sentence.

third, a lexicon, which is a dictionary of legal words

and their parts of speech (e.g., verb, adverb, adjec-

tive, subject, direct object, indirect object etc.). Part

of speech tags provides signiﬁcant information about

the role of a word in its narrow context. It may also

provide information about the inﬂection of a word

(de Kok and Brouwer, 2011). There are many tools

refering to parts of speech (POS-taggers). Exam-

ples of POS-taggers are the Brill tagger (Brill, 1992),

GATE

, RASP system (Briscoe et al., 2006), and

NLTK

For our approach, we selected as syntatic parser

Spacy

. The selection of Spacy was based on ac-

curacy (Choi et al., 2015), and its supporting for all

the requirements of our prototype development (e.g.,

parts of speech).

In this work, syntactic parser and parts of speech

are an important factor to identify process elements

in sentences. In order to identify parts of speech of

sentences in Spacy, we need to divide all sentences

from text, the result is a txt ﬁle separated by sen-

tence as shown in task “input text” of Figure 2. Af-

terwards, to achieve all the syntactic analyze of the

sentence, it is necessary to execute a NLP class which

is identiﬁed and related in a syntactic tree (as shown

in the “execute NLP class” service task in Figure 2).

Such tree contains all words related to morphological

classes. Subsequently, the parser generates a DOC

class shown in a service task “generate DOC class”

of Figure 2. Such class is an array of the object with

the number of positions equivalent to the number of

words in the sentence, where each position is a word

of the sentence that would be handled in the next step

(text logic analysis). Furthermore, each position con-

https://gate.ac.uk/; last accessed 2016-11-12

http://www.nltk.org/; last accessed 2016-11-12

https://spacy.io/; last accessed 2016-11-12

tains all features (e.g., tokenization, sentence recog-

nition, part of speech tagging, lemmatization, depen-

dency parsing, and named entity recognition) of the

word on the text. Finally, tagged sentence is gener-

ated with all the sentences analyzed by the syntactic

parser. Figure 2 shows a structural overview of the

steps.

3.3 Text Logic Analysis

In order to support and minimize the effort of the pro-

cess analyst on the modeling step, we developed a

set of mapping rules and word correlations to identify

process elements in natural language texts.

The rules originate from a diverse set of grammat-

ical classes (part of speech), such as verb, pronoun,

article, numeral, and noun. Based on the study of

the grammatical classes, there is no pattern describ-

ing the way the grammar classes should be presented

in the text. This shows that they are related to each

other and represent some process elements. For in-

stance, the sentences that contains subject, verb and

object represent a process element, such as: manual

task and there is no dependence on the order in which

they occur in the text. In some sentences, grammar

classes merge among themselves, for example, sen-

tences containing the order of the verb, followed by a

subject and subsequently by an object representing a

manual task of the process and they are positioned in

different ways in the sentence.

Mapping rules have been deﬁned manually, and

each rule is classiﬁed according to a category of the

basic set of BPMN modeling elements (e.g., ﬂow ob-

jects, connecting objects, swimlanes etc.) proposed

by OMG (Object Management Group) which are re-

current in business processes. The complete set in-

cludes 33 mapping rules. From these, nine refers

to activities (manual tasks and service tasks), ten to

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

254

Table 2: Rules for identiﬁcation of primary activities.

Activities – primary rules

Rules Description Sentence example

Rule 1 <subject>+ <verb>+ <object > The Support Ofﬁcer <subject> updates <verb> all group calen-

dars <object>

Rule 2 <subject>+ <aux>+ <verb>+ <ob-

ject><in the future)

The secretary <subject>will <aux>send<verb>to dispatch

<object.>

Rule 3 <verb>+<article>+ <object>

- choose <verb>a <article>document <object>.

- it do <verb>a<article>order <object>.

Rule 4 <subject>+<verb>+ <object>+

A client <subject>calls <verb>the help desk <object>and

<conjunction >makes <verb>a request <object>.

Rule 5 <object>+<subject>+ <verb> The severity <object>of the claimant <subject>is evaluated

<verb>.

Rule 6 <subject (occult)>+ <verb>+ <con-

junction >+<verb>+ <object>

The ﬁrst activity is to check <verb>and <conjunction>repair

<verb>the hardware <object>.

Table 3: Rules for identiﬁcation of primary events.

Events – primary rules

Rules Description Sentence example

Rule 1 <subject>+ <verb>+ <object > After the agent <subject>has conﬁrmed <verb>the claim

Rule 2 <subject>+<verb>+ <agent >+

The SCT physical <subject>ﬁle was stored <verb in the past>by

<agent>the Back ofﬁce <object>. (passive voice)

Rule 3 <object>+ <verb present perfect> . . . Urgent document <object>has been received <verb>by the

Manager. . . .

Rule 4 <object>+<verb past> + <subject> . . . a message <object>was generated <verb>to the cus-

tomer<subject>.

Table 4: Rules for Identiﬁcation of Primary Exclusive Gateway (XOR).

Exclusive gateways (XOR) – primary rules

Rules Description Sentence example

Rule 1 <verb>+ <signal word>+ <sub-

ject>+ <object>

It ﬁrst checked <verb>whether <signal word>the claimant

<subject>is insured <object>by the organization.

Rule 2 <signal word>+ <condition>+

<task/event>+<alternative signal

word>+ <task/event>

If <signal word>the claimant requires two or more forms

<condition>, the Department of customer select the forms

<task>. Otherwise <alternative signal word>, Department of

customer it requires documentation <task>.

Rule 3 <task/event>+ <signal word>+

After that they enter into a ﬁrm commitment to buy the stock and

then offer it to the public <task>, when <signal word>they

haven’t still found any reason not to do it <condition>.

Rule 4 <task>+ <signal word>+ <con-

dition>+<alternative signal

word>+<task>

The clerk checks <task>whether<signal word>the beneﬁciary’s

policy was valid at the time of the accident <condition>. If not

<alternative signal word>, it send to Department of the intelli-

gence <task>.

events, four to parallel gateways (AND), seven to

exclusive gateways (XOR) and three to swimlanes.

Therefore, the mapping rules proposed in this paper

relate to categories of ﬂow objects and swimlanes.

The labels of the tasks and events are based on the

sentence, there will be at least one subject, verb and

object. According to (Mendling et al., 2010) and

(Mendling, 2013), the activity labels are represented

by the verb and object as for example “Inform Com-

plainant”. Therefore, the use of labels is an impor-

tant process modeling guidelines because it directly

affects the clarity and understanding of the process.

The mapping rules were deﬁned in two categories:

primary rules constituted by frequency in natural lan-

guage text and they represent a category of the ba-

sic BPMN modeling elements; and secondary rules

which were identiﬁed with less frequency in texts. In

this paper, we introduced only primary rules. The sec-

ondary rules is available at https://goo.gl/kpdEeF.

In the context of this research, for identifying

process elements in sentences, we observed the sen-

tences containing verbal tenses in the present or fu-

ture, which represent activities. On the other hand,

sentences that contain verbal tenses in the past or

present perfect of the English Language represent

events. Another difference is the elaboration of event

labels. According to (Mendling, 2013) and (Leopold,

2013), event labels are represented by an object of the

A Semi-automatic Approach to Identify Business Process Elements in Natural Language Texts

255

Table 5: Rules for identiﬁcation of primary parallel gate-

ways (AND).

Parallel Gateway (AND) – primary rules

Rules Description Sentence example

Rule 1 <task/event>+

<signal

word>+

Forward the docu-

ment <task>, In

parallel with this

<signal word>, the

RCC shall also notify

the Executive Board

<task>.

Rule 2 <signal

word>+

<task>+

<conjunc-

tion>+

<task>+

<task>

In parallel with

this <signal

word>Department

of sell send the doc-

ument <task>and

<conjunction>notify

the department of

engineering <task>.

Then, the document is

processed <task>.

Rule 3 <signal

word>+

In the meantime

<signal word>,

the engineering de-

partment prepares

everything for the as-

sembling of the ordered

bicycle <task>.

Table 6: Rules for identiﬁcation of swimlanes.

Swimlanes

Rules Description Sentence example

Rule

The subject of

the sentence.

<subject>perform

Rule

<task >+ <indi-

rect object >

She then submits an or-

der <task> to the cus-

tomer <indirect ob-

ject>.

Rule

<event >+ <in-

direct object >

The Manager for-

warded the form

<event> to Ofﬁcial

<indirect object>.

sentence and followed by a verb in the present partici-

ple like “Invoice Created”.

For instance, rule ﬁve from Table 2 provides an

example to identify activities in sentences. The rule

contemplates the sequence of an object, followed by

a subject and afterwards a verb. The process model-

ing of this sentence would become one task with the

label is the merge of the verb and object. Therefore,

such sentence will be a candidate for process mod-

eling. The rest of the rules for this process element

(activities) follows the same pattern of identiﬁcation

(see Table 2).

Rule two from Table 3 illustrates an example to

identify events in sentences. The rule considers the

sequence of a subject, followed by a verb, afterwards

by an agent

and ﬁnally by an object. Thus, such sen-

An agent is the complement of a passive verb that is

tence will be a candidate for process modeling. The

rest of the rules for this process element (events) fol-

lows the same pattern of identiﬁcation (see Table 3).

The mapping rules from Table 4 and Table 5, de-

scribes words that denote control ﬂow. Such words

are denominated as signal words and alternative sig-

nal words. Such words refer to a condition

in the

sentence (conditional clause). These words are di-

vided into two groups:

- Parallel gateways (AND): words that refer to par-

allelism

– signal words: while, meanwhile, in parallel,

concurrently, meantime, in the meantime, in

parallel with this, in addition to, simultane-

ously, at the same time, whereas.

- Exclusive gateways (XOR): words that refer to ex-

clusion

– signal words: if, whether, if not, or, in case [of],

otherwise, either, only, till, until (unless), when,

only if.

– alternative signal words: but, then, else, or, un-

less, without, either, otherwise, other, if its is

not, otherwise.

In order to identify synonyms of these signal

words and alternative signal words, we implemented

a Python module to get synonyms of words. Such

module referred to PyDictionary

For instance, rule two from Table 4 provides an

example to identify exclusive gateway (XOR) in sen-

tences. The rule considers the sequence of a signal

word, followed by a condition, afterward a task or

event, followed by an alternative signal word and ﬁ-

nally by a task or event. For this reason, such sentence

will be a candidate for process modeling. The rest of

the rules for this process element (XOR) follows the

same pattern of identiﬁcation (see Table 4).

The rule two from Table 5 describes an example

to identify parallel gateway (AND) in sentences. The

rule consider the sequence of a signal word, followed

by a task, then by a conjunction

, afterwards by a task

and ﬁnally a task once more. Therefore, such sen-

tence will be a candidate for process modeling. The

rest of the rules for this process element (AND) fol-

lows the same pattern of identiﬁcation (see Table 5).

the surface subject of its active form. In our approach, the

preposition “by” is included as a part of agent.

Conditions are deﬁned such as task or events in our ap-

proach

https://pypi.python.org/pypi/PyDictionary; last ac-

cessed 2016-11-14

A conjunct is a dependent of the leftmost conjunct in

coordination. The leftmost conjunct becomes the head of a

coordinated phrase.

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

256

Finally, the mapping rules from Table 6 further

illustrate an example to identify swimlanes from the

sentence. We observed that subject or indirect object

will always be the swimlanes of the sentence. Further-

more, the subject can be a human being, equipment,

system or something that practices the action.

In summary, we applied the mapping rules in the

sentences to identify process elements. Thereafter,

rule-mapped text is generated with all the sentences

analyzed by mapping rules.

3.4 Output

In order to obtain a rule-mapped text, it is necessary to

analyze all sentences of the text. Such sentences can

be understood as a candidate to extract process mod-

els from it according to the mapping rules identiﬁed.

In summary, to describe process elements in natu-

ral language texts this step can identify: start events,

end events, swimlanes, actions, tasks, task labels,

events labels and show the number of process ele-

ments in the analyzed text. In addition, to inform

completeness of natural language texts as well as

missing process elements.

Figure 1 shows the next step in this approach, de-

scribed as preprocessed text (process-oriented). Such

text is deﬁned as a structure that allows to identify:

the participant associated with an activity; swimlanes

associated with each pool; interaction between pools

(message ﬂow); events (start, intermediate and end)

and control ﬂows (parallel gateways, inclusive gate-

ways and exclusive gateways). It is expected to gen-

erate a template of how the text should be structured

for the extraction of process models from the text. In

other words, our approach is a prerequisite for gener-

ating preprocessed text (process-oriented).

4 EVALUATION

In this paper, we conducted two experiments to

demonstrate the feasibility of our approach. The ﬁrst

one refers to the validation of the mapping rules. To

do so we performed a survey with potential users, in

particular process experts. Second, the prototype val-

idation was based on a set of NLP tools.

We used a survey strategy to interact with poten-

tial users and obtain information considering their ex-

periences including mainly those ones in the process

experts (e.g., chief process ofﬁcer, business engineer,

process designer, process participant, process owner

etc) and from the BPM area. The only requirement

to answer the survey was basic knowledge in experi-

ence in BPMN. Thus, the survey was applied using

Google Forms

. The form was available from Oct

20 to Nov 10, 2016. We advertised it in social net-

works and websites, consequently, 43 answers were

collected from participants, including process experts,

software developer, students, among others. The sur-

vey was divided into three steps.

The ﬁrst step aimed to gather general information

on the participants’ background, including: profes-

sion, education, experience in BPM, amount of ex-

perience time in BPM, experience in BPMN, amount

of experience time in BPMN, knowledge in process

modeling guidelines and knowledge in the grammar

of the English Language.

In the second step, the goal was to get opinions

on the participants about the identiﬁcation of which

process elements could be identiﬁed in the sentence

considered in the survey. The purpose of this step is

to enable the agreement of the answers according to

the mapping rules created for process element shown

in the sentence. The sentences are:

1. A customer brings a defective computer and the

CRS checks the defect and hands out a repair cost

calculation back.

2. If the customer decides that the costs are accept-

able, the process continues, otherwise, she takes

her computer home unrepaired.

3. The ongoing repair consists of two activities,

which are executed, in a parallel order. The

ﬁrst activity is to check and repair the hardware,

whereas the second activity checks the software

and conﬁgures the hardware.

In the third step, our goal was to get an opinion

of the participants about the process modeling shown

in the survey. Thus, six process models were cre-

ated from sentences shown in the survey, and only two

process models were modeled according to the map-

ping rules. The rest of the process models were pur-

posefully modeled incorrectly. The reason is to verify

whether the participants’ answers are in accordance

with the mapping rules for such sentence.

In terms of results obtained with the three steps of

the survey, Figure 3, 4 and 5 shows all the related data

for each step respectively.

The evaluation conducted in this paper demon-

strated encouraging results. In order to get all the in-

formation given by process experts, we analyzed the

answers of 22 participants. We have selected the fol-

lows characteristics of participants:

1. Process experts

2. Experience in BPMN

https://www.google.com/forms/about; last accessed:

2016-11-17

A Semi-automatic Approach to Identify Business Process Elements in Natural Language Texts

257

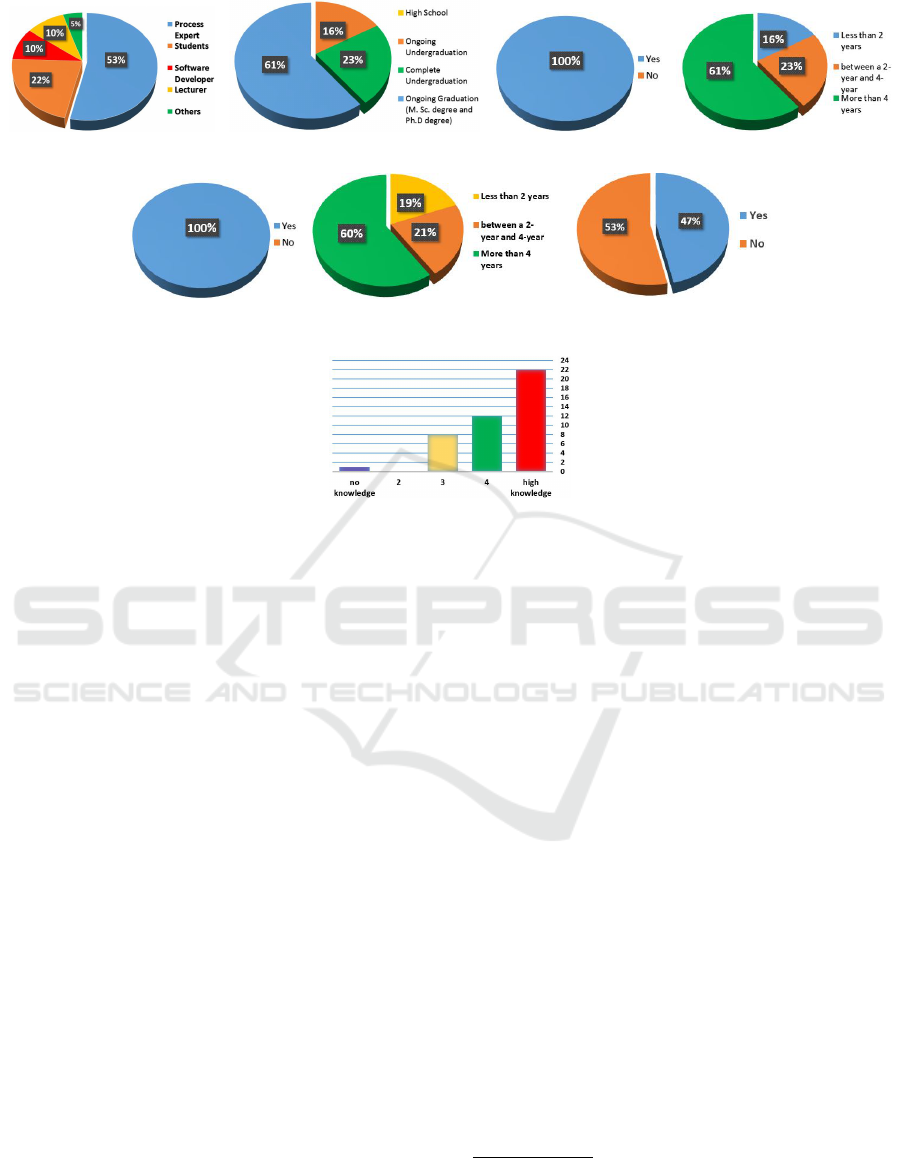

(a) Profession (b) Education (c) Experience in BPM (d) Amount of experience time in BPM

(e) Experience in BPMN (f) Amount of experience time in BPMN (g) Knowledge in process modeling

guidelines

(h) knowledge in grammar of the English

Language

Figure 3: Results obtained from the ﬁrst step of the survey with all participants. Figure3(a) shows that more than half of the

participants are process experts (53%), 22% are students, 10% are software developer and lecturer and ﬁnally 5% are other

professions. Figure 3(b) illustrates that 61% of the participants hold ongoing graduation (M.Sc. and Ph.D. degree), 23%

hold complete under graduation, 16% hold ongoing under graduation. Figure 3(c) describes that 100% of the participants

have experience in BPM. Figure 3(d) shows that 61% of the participants have more than four years of experience in BPM,

23% have between two and four years and 16% have less than two years. Figure 3(e) shows that 100% of the participants

have experience in BPMN. Figure 3(f) illustrates that 60% of the participants have more than four years of experience in

BPMN, 21% have between between two and four years and 19% have less than two years. Figure 3(g) shows that 53% of

the participants have knowledge in process modeling guidelines and 47% no knowledge. Finally, Figure 3(h) shows that 22

participants have a high knowledge in English Language, 12 have great knowledge, eight have good knowledge and only one

have no knowledge.

3. More than two years of experience in BPMN

The second step of the survey shows that 90% of

the participants agree with the model presented in the

ﬁrst sentence of the survey. Regarding the second sen-

tence 100% of the participants agree with the model-

ing while 90% agree with the modeling in the third

sentence. All sentences were modeled based on the

proposed modeling rules by our approach.

The third step of the survey also demonstrates

encouraging results. The results obtained from pro-

cess modeling of the Figures 5(a), 5(c), 5(e) and 5(f),

which represents purposefully incorrectly modeling

according to the mapping rules proposed by our ap-

proach, the majority of the participants selected dis-

agree (90%, 100%, 95% and 77% respectively) with

the proposed modeling. On the other hand, the second

and fourth modeling (Figures 5(b) and 5(d)), which

represent correct modeling according to the mapping

rules, the majority of the participants agree (68% and

81% respectively) with the proposed modeling.

In this study, we conducted one experiment to

demonstrate the feasibility of our prototype. Our ex-

perimental study includes four sets of natural lan-

guage text: the ﬁrst set is from the BMW owner’s

Manuals & Documents

, the second set is from

the Immigrant Visa Process

, the third set is from

Federal Network Agency of Germany

, and the

fourth set is from Vista Project Ofﬁce Documentation

Plan

. In total, the set of natural language text con-

tains 387 sentences in 56 texts. Altogether, we found

that 140 sentences represents activities, 106 events,

98 exclusive gateways (XOR) and 43 parallel gate-

ways (AND) (see Table 7).

We used standard machine learning evaluation

https://goo.gl/REUmu6; last accessed 2016-11-12

https://goo.gl/rPLqXE; last accessed 2016-11-12

https://goo.gl/KuQOBw; last accessed 2016-11-12

https://goo.gl/MxzAAH; last accessed 2016-11-12

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

258

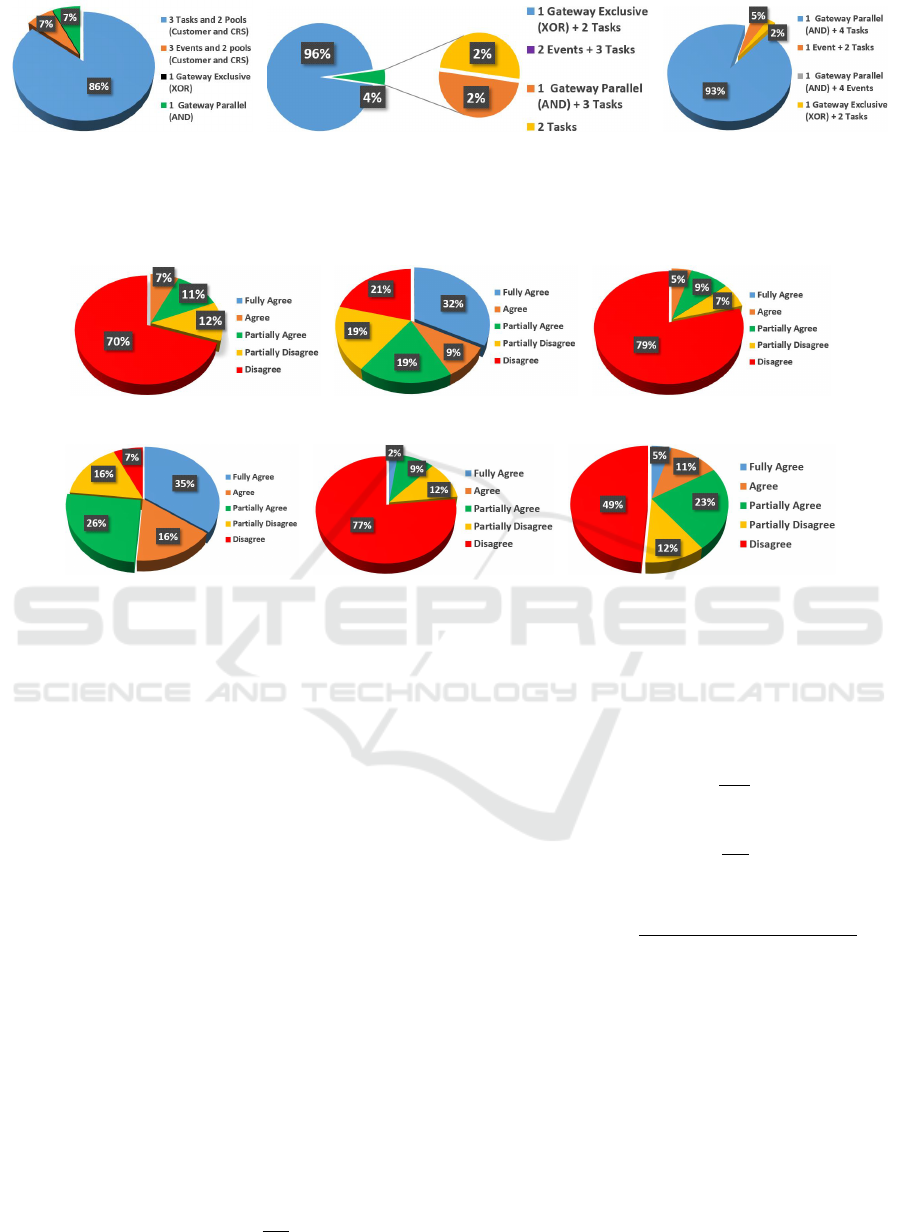

(a) First sentence (b) Second sentence (c) Third sentence

Figure 4: Results obtained from the second step of the survey with all participants. The results of the ﬁrst sentence shown in

Figure 4(a) describes that 86% of the participants agreed with the modeling. Figure 4(b) illustrate that 96% of the participants

agreed with the modeling. Finally, Figure 4(c) describes that 93% of the participants agreed with the modeling. In this step

of the survey, all sentences were modeled according to the mapping rules proposed by our approach.

(a) First modeling (b) Second modeling (c) Third modeling

(d) Fourth modeling (e) Fifth modeling (f) Sixth modeling

Figure 5: Results obtained from the third step of the survey with all participants. For the Figures 5(a), 5(c), 5(e) and 5(f)

which represents purposefully incorrectly modeling according to the mapping rules proposed by our approach, the majority

of the participants disagree (70%, 79%, 77% and 49% respectively) of the proposed modeling. On the other hand, the process

modeling Figures 5(b) and 5(d) are represented according to the mapping rules proposed by our approach, the majority of the

participants agree (60% and 77% respectively) of the proposed modeling.

metrics and measures for information retrieval (Jap-

kowicz and Shah, 2011; Forbes, 1995; Manning et al.,

2008), precision (equation 1), recall (equation 2), ac-

curacy (equation 3) and F-measure (equation 4), to

evaluate the performance of our prototype. Accu-

racy measures the overall correctness. Precision, re-

call, and F-measure evaluate the correctness for each

class (activities, events, parallel gateways and exclu-

sive gateways). F-measure is the harmonic mean of

precision and recall (Jiexun et al., 2010). Such met-

rics can be calculated as follow:

• Number of correctly identiﬁed instances (η);

• Total of number of instances (χ);

• Number of correctly identiﬁed instances for class

i (β);

• Total number of instances identiﬁed as class i (τ);

• Total number of instances in class i (Φ).

Precision(i) =

(β)

(τ)

(1)

Recall(i) =

(β)

(Φ)

(2)

Accuracy =

(η)

(χ)

(3)

F − measure(i) =

2 × precision(i)× recall(i)

precision(i)+ recall(i)

(4)

Table 7 summarizes the performance of our pro-

totype. We report precision, recall, accuracy and F-

measure values for the four process elements: ac-

tivities, events, parallel gateways and exclusive gate-

ways.

Class activity achieved 83.57% precision, 78%

recall, 80.68% F-measure and 85.52% accuracy.

Class event reached 93.39% precision, 81.14% re-

call, 86.84% F-measure and 92.24% accuracy. Class

exclusive gateways (XOR) describes that achieved

72.44% precision, 93.42% recall, 81.60% F-measure

and 91.73% accuracy. Class parallel gateways (AND)

A Semi-automatic Approach to Identify Business Process Elements in Natural Language Texts

259

Table 7: Results of performance of our prototype proposed by our approach.

Class Found Precision Recall F-Measure Accuracy

Activities 140 83.57% 78% 80.68% 85.52%

Events 106 93.39% 81.14% 86.84% 92.24%

Exclusive Gateway (XOR) 98 72.44% 93.42% 81.60% 91.73%

Parallel Gateway (AND) 43 88.37% 97.43% 92.68% 98.44%

Total 387 84.44% 87.49% 85.45% 91.92%

presents that obtained 88.37% precision, 97.43% re-

call, 92.68% F-measure and 98.44% accuracy. In gen-

eral, our prototype achieves higher performance.

4.1 Evaluation Analysis

This section brings the results of a survey which was

developed with the aim of demonstrate the users opin-

ion regarding our prototype.

The results of the survey show a great acceptance

of the mapping rules by process experts (22 partici-

pants). For instance, in the second stage of the survey,

the acceptance was on average 93.33%. Therefore, it

shows the feasibility of applying the mapping rules to

identify process elements in texts.

For prototype allowed us to evaluate the perfor-

mance. Despite the small number of sentences, we

can see through evaluation metrics very promising re-

sults in terms of mainly accuracy, precision and re-

call. On average 91.92%, 84.44%, 87.49% respec-

tively. Therefore, the prototype would allow semi-

automatically identify process elements in natural

language texts.

5 CONCLUSIONS

In this paper, we proposed a semi-automatic approach

to identify process elements in natural language texts.

We have created 33 mapping rules to identify process

elements in the texts. In addition, we have devel-

oped a prototype to semi-automatically identify pro-

cess elements in texts. We combine a large set of tools

from NLP based on the mapping rules. The evalu-

ation of our prototype which was based on a set of

56 texts presented 91.92% of accuracy. Furthermore,

the validation through the survey demonstrated that

93.33% of the participants agree with the mapping

rules. Thus, our approach minimizes the effort of the

process analyst to capture business process elements

from natural language texts and indicates complete-

ness of the texts based on BPMN rules.

Despite these promising results, one limitation of

our approaches refers to the automatically genera-

tion of rules. Hence, we intend to generate them

through artiﬁcial intelligence. Although our approach

contains a category of the basic BPMN modeling

elements, in future works we will explore the cre-

ation of mapping rules for other BPMN process el-

ements, such as message ﬂows, sub-processes, excep-

tion ﬂows, data object, sequence ﬂow and inclusive

gateways (OR), etc. In addition, Figure 1 shows the

next step in this approach, described as preprocessed

text (process-oriented). It is expected to generate a

template of how the text should be structured for the

extraction of process models from text. Our approach

can be considered as a prerequisite for generating pre-

processed text (process-oriented).

REFERENCES

Allen, J. (1995). Natural Language Understanding.

Benjamin-Cummings Publishing Co., Inc., Redwood

City, CA, USA.

Blumberg, R. and Atre., S. (2003). The problem with un-

structured data. DM Review.

Brill, E. (1992). A simple rule-based part of speech tagger.

In Proceedings of the Third Conference on Applied

Natural Language Processing, ANLC ’92, pages 152–

155, Stroudsburg, PA, USA. Association for Compu-

tational Linguistics.

Briscoe, T., Carroll, J., and Watson, R. (2006). The sec-

ond release of the rasp system. In Proceedings of the

COLING/ACL on Interactive Presentation Sessions,

COLING-ACL ’06, pages 77–80, Stroudsburg, PA,

USA. Association for Computational Linguistics.

Choi, J. D., Tetreault, J. R., and Stent, A. (2015). It de-

pends: Dependency parser comparison using A web-

based evaluation tool. In Proceedings of the 53rd An-

nual Meeting of the Association for Computational

Linguistics and the 7th International Joint Conference

on Natural Language Processing of the Asian Federa-

tion of Natural Language Processing, ACL 2015, July

26-31, 2015, Beijing, China, Volume 1: Long Papers,

pages 387–396.

Chueng, A., Koliadis, G., and Ghose, A. (2007). Process

discovery from model and text artefacts. 2007 IEEE

Congress on Services, 00(undeﬁned):167–174.

de Kok, D. and Brouwer, H. (2011). Natural Language Pro-

cessing for the Working Programmer.

Dumas, M., Rosa, M. L., Mendling, J., M

aesalu, R., Rei-

jers, H. A., and Semenenko, N. (2012). Understand-

ICEIS 2017 - 19th International Conference on Enterprise Information Systems

260

ing business process models: The costs and beneﬁts

of structuredness.

Dumas, M., Rosa, M. L., Mendling, J., and Reijers, H. A.

(2013). Fundamentals of Business Process Manage-

ment. Springer.

Ferreira, R. C. B. and Thom, L. H. (2016). An approach to

generate process-oriented text from natural language.

page 77. XII Brazilian Symposium on Information

Systems.

Forbes, A. D. (1995). Classiﬁcation-algorithm evaluation:

Five performance measures based onconfusion matri-

ces. Journal of Clinical Monitoring, 11(3):189–206.

Friedrich, F., Mendling, J., and Puhlmann, F. (2011). Pro-

cess model generation from natural language text.

pages 482–496.

Goncalves, J. C. A., Santoro, F. M., and Bai

ao, F. A. (2011).

Let me tell you a story - on how to build process mod-

els. volume 17, pages 276–295. Journal of Universal

Computer Science.

Hearst, M. A. (1994). Multi-paragraph segmentation of

expository text. In Proceedings of the 32Nd Annual

Meeting on Association for Computational Linguis-

tics, ACL ’94, pages 9–16, Stroudsburg, PA, USA.

Association for Computational Linguistics.

Hearst, M. A. (1997). Texttiling: Segmenting text into

multi-paragraph subtopic passages. Comput. Lin-

guist., 23(1):33–64.

Heinonen, O. (1998). Optimal multi-paragraph text seg-

mentation by dynamic programming. In Proceed-

ings of the 36th Annual Meeting of the Association

for Computational Linguistics and 17th International

Conference on Computational Linguistics - Volume 2,

ACL ’98, pages 1484–1486, Stroudsburg, PA, USA.

Association for Computational Linguistics.

Herbst, J. (1999). An inductive approach to the acquisi-

tion and adaptation of workﬂow models. In Proceed-

ings of the IJCAI’99 Workshop on Intelligent Work-

ﬂow and Process Management: The New Frontier for

AI in Business, pages 52–57.

Hynes, G. and Bexley, J. (2003). Understandability of

banks’ annual reports. In 69th Association for Busi-

ness Communication Annual Convention, pages 1–11,

Albuquerque.

Japkowicz, N. and Shah, M. (2011). Evaluating Learning

Algorithms: A Classiﬁcation Perspective. Cambridge

University Press, New York, NY, USA.

Jiexun, L., Wang, Jiannan, H., Zhu, and Leon, J. (2010). A

policy-based process mining framework: mining busi-

ness policy texts for discovering process models. In-

formation Systems and E-Business Management.

Leopold, H. (2013). Natural language in business process

models. Springer.

Leopold, H., Mendling, J., and Polyvyanyy, A. (2014). Sup-

porting process model validation through natural lan-

guage generation. volume 40. IEEE Transactions on

Software Engineering.

Manning, C. D., Raghavan, P., and Sch

utze, H. (2008). In-

troduction to Information Retrieval. Cambridge Uni-

versity Press, New York, NY, USA.

Meitz, M., Leopold, H., and Mendling, J. (2013). An ap-

proach to support process model validation based on

text generation. volume 33, pages 7–20.

Mendling, J. (2013). Managing Structural and Textual

Quality of Business Process Models, pages 100–111.

Springer Berlin Heidelberg, Berlin, Heidelberg.

Mendling, J., Reijers, H. A., and van der Aalst, W. M. P.

(2010). Seven process modeling guidelines (7pmg).

Inf. Softw. Technol., 52(2):127–136.

Morris, J. and Hirst, G. (1991). Lexical cohesion computed

by thesaural relations as an indicator of the structure

of text. Comput. Linguist., 17(1):21–48.

Santoro, F. M., Goncalves, J. C. A., and Baiao, F. A. (2009).

Business process mining from group stories. Interna-

tional Conference on Computer Supported Coopera-

tive Work in Design, pages 161–166.

Thom, L., Reichert, M., and Iochpe, C. (2009). Activity

patterns in process-aware information systems: Basic

concepts and empirical evidence. International Jour-

nal of Business Process Integration and Management

(IJBPIM).

Thom, L. H. (2012). Gerenciamento de Processos de

Neg

ocio e Aplicabilidade na Sa

ude e na Rob

otica.

Biblioteca Digital Brasileira de Computac¸

ao.

Thom, L. H., REICHERT, M., IOCHPE, and

C. OLIVEIRA, J. P. (2010). Why rigid process

management technology hampers computerized

support of healthcare processes. WIM - X Workshop

de Inform

atica M

edica.

van der Aa, H., Leopold, H., and Reijers, H. A. (2015).

Detecting inconsistencies between process models

and textual descriptions. In International Confer-

ence on Business Process Management, pages 90–

105. Springer.

van der Aa, H., Leopold, H., and Reijers, H. A. (2016).

Dealing with Behavioral Ambiguity in Textual Process

Descriptions, pages 271–288. Springer International

Publishing, Cham.

Weske, M. (2007). Business Process Management: Con-

cepts, Languages, Architectures. Springer-Verlag,

Berlin.

Wfmc, W. M. (2005). Wfmc: Process deﬁnition language:

Xpdl 2.0. page 164.

A Semi-automatic Approach to Identify Business Process Elements in Natural Language Texts

261
