Columbus: A Tool for Discovering User Interface Models in

Component-based Web Applications

Adrian Hernandez-Mendez, Andreas Tielitz and Forian Matthes

Software Engineering for Business Information Systems, Department of Informatics, Technische Universit

at M

unchen,

unchen, Germany

Keywords:

Component-based Web Applications, Model-based User Interfaces, UIML, Model Discovering.

Abstract:

The processes of replacing, maintaining or adapting the existing User Interfaces in Component-based Web

Applications to new conditions requires a signiﬁcative amount of efforts and resources for coordinating their

different stakeholders. Additionally, there are many design alternatives, which can vary according to the con-

text of use. Therefore, understanding the structure and composition of UIs and their contained elements can

provide valuable insights for future adaptations. In this paper, we present a tool for discovering UI models in

the source code of Component-based Web Applications, which could be used to support the reverse engineer-

ing process. Subsequently, we evaluated its capabilities of User Interface model extractions using open-source

project TodoMVC. The evaluation process shows the main limitations of the JavaScript frameworks for creat-

ing an abstract UI model (i.e. technology independent model) for Web Applications.

1 INTRODUCTION

Web Applications have become ubiquitous. They are

an essential element of any modern service, and ex-

amples are found in online shops or booking systems.

Therefore, different users and stakeholders demand

continuous improvements of them that can be adapted

to the natural changes in Web technologies. How-

ever, these demands put the developers to face diverse

challenges during the development and maintenance

of Web Applications.

One of the modern architectures used in the devel-

opment of Web Applications is the Single-Page Ap-

plications (SPA). This architecture divides Web Ap-

plications into two main components: User Interface

(UI) and Server component. The Server component

which remains constant across multiple environments

is most supported and understood due to the extensive

research in the ﬁeld of service-oriented architecture.

However, there is no dominant technology for creat-

ing the UI component, contrariwise there are many al-

ternatives, which can vary according to the context of

use. Therefore, understanding the structure and com-

position of UIs and their contained elements can pro-

vide valuable insights for future adaptations.

In this paper, we propose a tool, called Columbus,

for discovering UI models in Component-based Web

Applications. The design and development of Colum-

bus is based on the ﬁrst iteration of the Hevner’s three

cycle view of the design science research framework

(Hevner, 2007). The three cycles within this research

framework correspond to:

• Relevance cycle: We establish the need for an-

alyzing the most popular open-source JavaScript

Libraries in Github (e.g. AngularJS, PolymerJS,

and ReactJS).

• Design cycle: We present the platform and its ar-

chitecture design process as a research artifact.

• Rigor cycle: We evaluate the capabilities of the

existing UI modeling languages to describe Web

User Interfaces, and establish a small contribution

of our research ﬁndings to the model-based User

Interface knowledge base.

The remainder of this paper is organized as fol-

lows: In Section 2 we discuss the use of declara-

tive UI models and describe UI Modelling Language

(UIML). In Section 3, the model discovered process is

presented. The architecture of Columbus is discussed

in Section 4 and it is evaluated in Section 5. In Section

6, we present the related work and ﬁnally conclude

with Section 7.

324

Hernandez-Mendez, A., Tielitz, A. and Matthes, F.

Columbus: A Tool for Discovering User Interface Models in Component-basedWeb Applications.

DOI: 10.5220/0006307803240331

In Proceedings of the 13th International Conference on Web Information Systems and Technologies (WEBIST 2017), pages 324-331

ISBN: 978-989-758-246-2

2 USER INTERFACE MODELS

Declarative UI models were introduced to reduce rep-

etition in developing User Interfaces. By explicitly

deﬁning the UI’s information in an abstract model,

concrete UI implementations can be generated. Over

the time, many different declarative UI modeling for-

malisms have emerged for various purposes. For

example, companies like Microsoft introduced the

language Extensible Application Markup Language

(XAML

) and Oracle the XML-based User Inter-

face markup language (FXML

). These languages

allow the developers to model the static parts (e.g.

structure) of the UI and complementing the devel-

opment of the dynamic components using C# and

Java, respectively. Additionally, in the academic

and standardization environment formalisms such the

User Interface Modelling Language (UIML)(OASIS,

2008), the User Interface eXtensible Markup Lan-

guage (UsiXML)(Limbourg et al., 2004) and the Web

Modelling Language (WebML) (Ceri et al., 2000).

Unlike the formalisms created at the industry context,

the formers allow modeling of UI independently from

any technology or platform. These models them-

selves rely on predeﬁned sets of elements which can

be displayed, connected, and reused in whichever way

is necessary for the desired UI. Different groups of el-

ements can also be split up into distinctive sets with

similar functionalities or goals. We choose UIML as a

reference model for discovering the UI models in the

existing Component-based Web Applications.

2.1 UIML

The UIML describes any User Interface using a

canonical User Interface model (Abrams et al., 1999).

The composition of the User Interface is deﬁned as a

collection of interface elements which can be used in-

dependently in different environments, including the

web technologies.

UIML establishes a clear separation of concerns in

the UI models, with four sections as shown in Figure

The structure section speciﬁes how the template

of the interface looks and which parts are visible at

a given moment. The child elements of a structure

are composed of parts which represent individual ele-

ments or can contain nested interfaces.

The content holds multiple versions of the dis-

played information in different languages. This sec-

tion is used for internationalization and separation of

language speciﬁc information.

https://tinyurl.com/7wzsufu

https://tinyurl.com/j4cnysx

Interface

Behaviour

Style

Content

Structure

Figure 1: Separation of concerns in UIML.

The style contains a list of all properties of the

interface. It holds information regarding the styling

of the template, the association of content elements to

their respective parts, or variables that are shared with

other interfaces.

The behavior describes the user interactions with

the particular interface. Interactions like button clicks

or form submits are declared here. Additionally, the

behavior also contains entries for internal method in-

vocations that occur in the User Interface.

2.2 Simpliﬁcation of UIML

The focus of UIML lies on supporting and describ-

ing a wide variety of interfaces. Reused elements are

redeﬁned – rather than referenced – for each occur-

rence. Due to those limitations, a more streamlined

and simpliﬁed adaptation of the standard was required

to properly express modern web-based User Inter-

faces. Support for representations of non-browser

based visualizations was omitted from the model.

Instead of referring to interfaces, the more ﬁt-

ting term component was used instead, which is de-

scribed by a structure, behavior, content and style sec-

tion. The parts in the structure of UIML were supple-

mented with a Reference entity, which can point to

another component of the User Interface.

Properties are used to model the content in

the User Interface, as well as all attributes of the

JavaScript components. The content is ignored in this

case because the model discovery process cannot dis-

tinguish between different language sets.

The behavior remains unchanged and still con-

tains all user interactions. However, the life cycle

methods of a JavaScript components are part of the

model and they are described in the behavior.

Columbus: A Tool for Discovering User Interface Models in Component-basedWeb Applications

325

3 MODEL DISCOVERY PROCESS

The proposed model discovery process in Columbus

converts the source code of a web application into a

corresponding view model. The process itself is di-

vided into three steps: Semantic analysis, informa-

tion extraction, and model generation. This division

is based on a fundamental architecture of reverse en-

gineering tools (Chikofsky and Cross, 1990). The in-

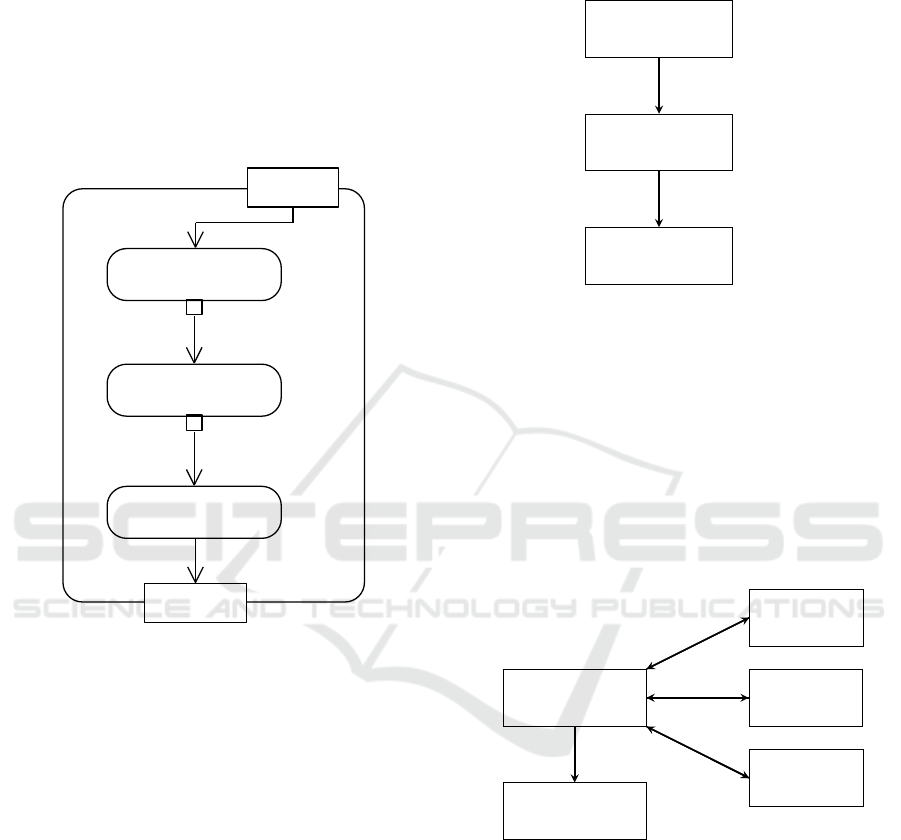

and outputs of each step are shown in Figure 2.

Extraction process

Semantic analyser

Information

extraction

Model generation

View model

Code

Information base

AST

Figure 2: Extraction process implemented in Columbus.

The application source code is automatically re-

trieved from a GitHub repository. The optional com-

mit hash and a regular expression can be supplied to

ﬁlter the retrieved source code.

3.1 Semantic Analyser

During the semantic analysis, a syntactical parser is

applied to the supplied source code and transforms

it into an abstract syntax tree. Relevant information

for the view model generation is encoded in the tree

nodes and can be accessed in a structured way.

In addition to the syntactical parser, pre- and post-

processing steps, as shown in Figure 3, allow alter-

ations to the in- and output.

As part of the pre-processing step, template ex-

pressions, like JSX, are translated into JavaScript

code before the syntactical analyzer processes the in-

put.

Differences in declarations of JavaScript source

code are uniﬁed by using a JavaScript compiler. Dif-

ferent syntax constructs with the same semantics are

enriched with additional information to align the pos-

sible input scope.

Pre-processing

Syntactical Parser

Post-processing

Uniﬁed Code

Complete AST

Figure 3: Workﬂow of the semantic analyser with in- and

outputs.

3.2 Information Extraction

The information extraction receives the abstract syn-

tax tree (AST) generated in the previous step as an

input. The step is designed as a rule-based system

as shown in Figure 4. Each rule is specialized in in-

dependently extracting a certain piece of information

from the AST and storing any retrieved information

under a unique identiﬁer in the information base.

Dispatcher

Rule 1

...

Rule n

Information Base

Store

Figure 4: Rule-based system for information extraction.

A typical rule initially queries the abstract syntax

tree for a certain pattern. The pattern corresponds to a

certain structure in the tree, and the query returns the

parent nodes of the matches. The contained informa-

tion in the returned subtrees can be extracted either by

further elimination or ﬂattening of the nodes and their

children.

3.3 Model Generation

The model generation operates on the aggregated set

of information in the information base. The view

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

326

model is constructed by selectively retrieving and pro-

cessing one or more sets of information and mapping

them to the entities in the model.

4 ARCHITECTURE

Columbus is an AngularJS web application which im-

plements the previously described extraction process.

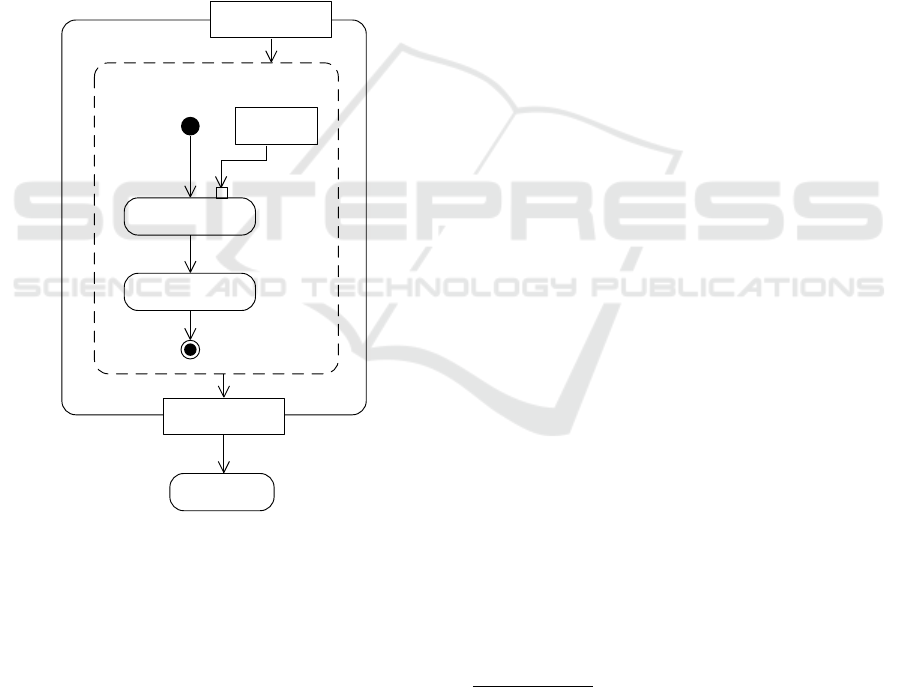

The implementation of the process is shown in Figure

5. The content of the GitHub repository is retrieved,

and the ﬁrst two steps of the extraction process are

performed on each ﬁle. During each iteration, addi-

tional information is added to the information base.

The model generation uses the aggregated informa-

tion to create the model.

Extraction Process

Repository content

<<struc t u r e d > >

Loop

Next file

Semantic analyser

Information extraction

Information base

Model generation

Figure 5: Extraction process implemented in Columbus.

The architecture of Columbus is centred around

the main controller AppCtrl as shown in Figure 6. The

controller directs the program ﬂow and is responsible

for displaying the output generated by each extraction

step in the user interface. Responsibilities are divided

up into the respective parts of the extraction process.

The semantic analyser classes translate the fetched

source code from GitHub into an abstract syntax

tree. Each subclass of Ast implements helper methods

to provide easier access to framework speciﬁc con-

structs. The library ESQuery is used to extract infor-

mation from the tree.

The information extraction is implemented as a

rule-based system with each rule extending the Ab-

stractExtractor. Every rule must be registered in the

SharedModelExtractor.

Model generation is implemented in the Abstract-

ModelGenerator, which stores information from the

information base in the corresponding Component-

Model.

The application uses the external libraries Es-

prima

and Babel

to transform and compile the

source code. The library ESQuery

is used to query

the abstract syntax tree generated by Esprima.

5 EVALUATION

The TodoMVC project

provides an example imple-

mentations for a simple ToDo manager. The project

contains a TodoMVC application, which is imple-

mented in multiple JavaScript frameworks and li-

braries. We evaluated Columbus by comparing the

model extraction process with available implemen-

tations of the TodoMVC for React, AngularJS, and

Polymer.

The TodoMVC is a Web Application which can

be used to manage tasks. The tasks are stored in a

remote database or the local storage of the browser.

The architecture of TodoMVC is composed of multi-

ple components. The components used to build the in-

terface differ between each implementation, but they

all share the design aspect of having two main com-

ponents: TodoApp and TodoItem, shown in Figure 7,

although their naming differs between implementa-

tions. However, the HTML structure is similar the

selected frameworks.

Initially, we analyzed each implementation and

refactored the existing code. The implementation for

React

could be used without any alterations since

the source ﬁles contain pure JavaScript in conjunc-

tion with JSX template syntax. The Polymer

and

AngularJS

implementations had to be stripped of all

non-JavaScript content ﬁrst. The AngularJS imple-

mentation was additionally refactored and migrated

to a component-based web application.

The evaluation of Columbus follows with the cre-

ation of two UI models. The ﬁrst model was gener-

ated manually and the second, using the tool itself.

http://esprima.org/

https://babeljs.io/

https://github.com/estools/esquery

http://todomvc.com/

https://git.io/vykNG

https://git.io/vykNZ

https://git.io/vykNc

Columbus: A Tool for Discovering User Interface Models in Component-basedWeb Applications

327

Columbus

Semantic analyser

Information extraction

Ap p Ct r l

AstParser

A s t

JsxParser

ReactAst

Model generation

SharedModelExtractorCha...

AbstractExtractor

AbstractModelGenerator

ComponentModelContainer

ComponentModel

GitHubEndpoint

Polyme rAst

Ang ular A st

0..*

< < u s e > >

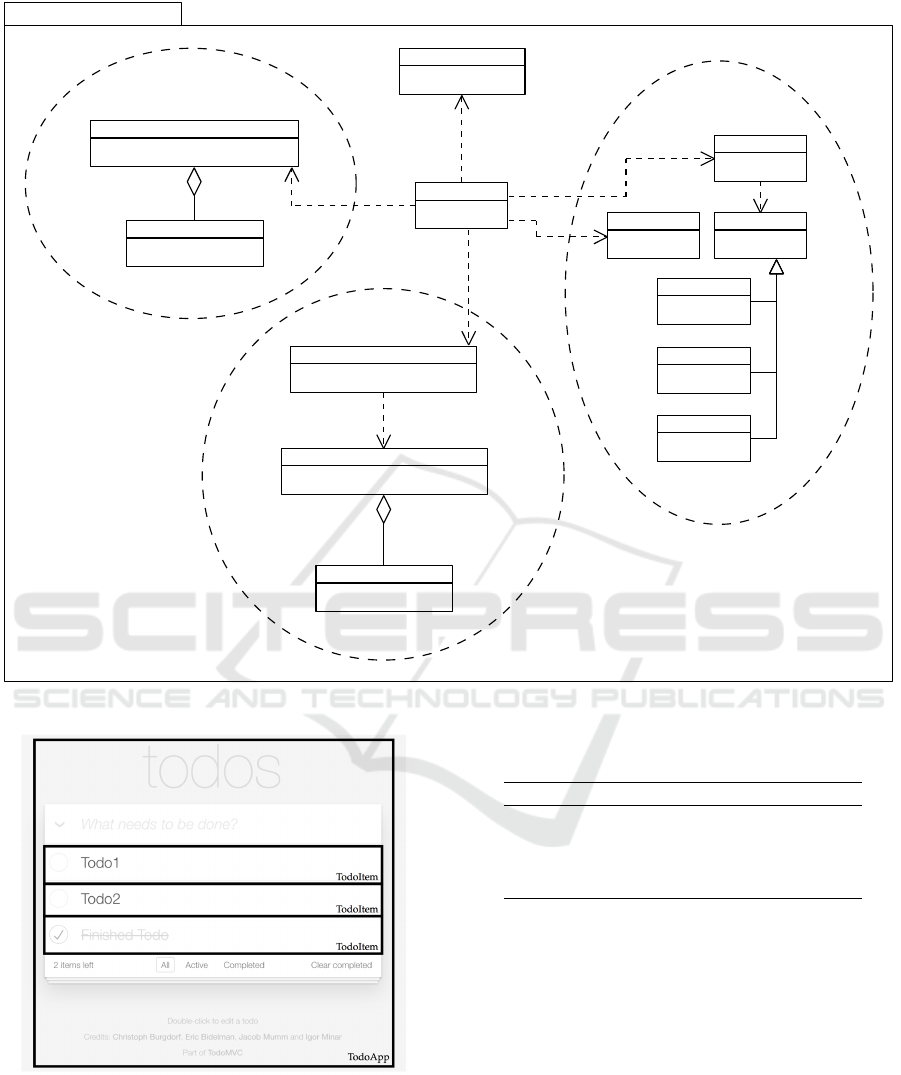

Figure 6: Architecture of Columbus.

Figure 7: Component composition of TodoMVCs user in-

terface.

Both models were compared and their deviations re-

garding structure, style and behavior were analyzed in

each implementation. The results are summarized in

the Table 1 and described in details in the following

subsections.

Table 1: Evaluation of correctly extracted entities of the

TodoMVC application with Columbus.

React Polymer Angular

Structure 84% 0% 0%

Style 88% 55% 50%

Behaviour 100% 11% 0%

Life cycle 100% 100% 100%

5.1 AngularJS

Without the possibility to analyze the template, the

extraction process could not extract most of the prop-

erties and any behavioral rules. AngularJS relies

heavily on annotations on template tags to deﬁne

custom event listeners who cannot be processed by

Columbus.

5.1.1 Limitations Identiﬁed in the Structure

Element

Unable to Process the Template.

The proprietary template syntax of AngularJS is not

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

328

supported by Columbus, which means that all infor-

mation from the template was unavailable to the ex-

traction process.

5.1.2 Limitations Identiﬁed in the Style Element

Missing Properties.

Without the template, any property deﬁned in the

DOM is inevitably lost to the view model generation.

This is critical to ordinary text fragments in HTML

elements since these are not deﬁned anywhere inside

the component deﬁnition.

Property Usage without Declaration.

Columbus requires the component to list all prop-

erties in either the bindings section or as a variable

declaration in the constructor function. If properties

are used without declaration, Columbus attempts to

detect them by tracking this context in conjunction

with variable usage, but it cannot guarantee that all

variables are detected.

Function Properties.

Some of the properties are functions which are passed

down from parent components. Currently, the view

model does not differentiate between a property

which is an attribute or a function. It is necessary to

alter the model to correctly reﬂect the different prop-

erties.

5.1.3 Limitations Identiﬁed in the Behavior

Element

Rules from Missing Parts.

Without the template, any behavioral rules deﬁned in

the DOM are inevitably lost.

5.2 ReactJS

The possibility to analyze the template in React re-

sulted in a high extraction rate of properties and be-

havioral rules. The missing and incorrect entries are

mostly due to the misinterpreted part constructs which

are not supported by Columbus.

5.2.1 Limitations Identiﬁed in the Structure

Element

Multiple Return Statements in Render Function.

Columbus uses static code analysis to extract in-

formation and is not capable of determining which

return statement should be evaluated. Due to this

limitation, the last return statement of the render

function is used per default. All template parts that

are not declared in the last return statement are not

part of the view model.

Building the DOM Piece by Piece with Variables.

If part of the DOM is built beforehand and printed out

as a variable in the ﬁnal return statement, Columbus

cannot extract the information contained in the

variable. The complete DOM must be constructed

inside the last return statement of the render function.

Misinterpreted References / Missing Parts.

Columbus traverses through the template structure

and tries to identify the nodes visited. Depending

on the type of node, different subsequent actions are

taken, like differentiating between an HTML element

and a component or determining if the current node

contains any children. If the tool encounters an unex-

pected construct, like a variable output which contains

further template tags, the traversal can not determine

how to proceed. The fallback routine for these cases

replaces unknown constructs with an empty part en-

tity. No further traversal of children is possible for

these misinterpreted nodes.

5.2.2 Limitations Identiﬁed in the Style Element

Property Usage without Declaration.

Columbus requires the component to list all proper-

ties in the propTypes section. If a property is used

without a preceding declaration, Columbus attempts

to detect it by tracking this context in conjunction

with variable usage. Special objects like this.props

and this.state simplify the search process to some de-

gree. Variables that start with one of these constructs

can always be treated as component properties. The

properties detection is currently limited to the render

statement which means that some properties might

not be detected.

Properties from Missing Parts.

If a property was never used in the JavaScript part of

the component, the detection is limited to all parts

of the template detected during the corresponding

extraction process. If a part was not correctly pro-

cessed by the template extraction rule, any property

is inevitably lost, and therefore unavailable during

the view model generation.

Detecting Default Values.

Columbus can only detect simple default values as

long as they are declared in the propTypes and get-

DefaultProps section of the component. More sophis-

ticated values, like the output of a function or as-

signments of global variables, are not detected. In

these cases, the default value of the property remained

blank.

Columbus: A Tool for Discovering User Interface Models in Component-basedWeb Applications

329

5.2.3 Limitations Identiﬁed in the Behavior

Element

Rules from Missing Parts.

Columbus is only capable of extracting behavior rules

which are either declared in the JavaScript conﬁgura-

tion or the template. The extraction of the behavior is

not limited to a speciﬁc return statement in the render

function, but instead, tries to capture all usages. If the

corresponding source part was not extracted due to

the limitations listed before, the source id of the be-

havior event does not point to a valid part of the view

model. Nonetheless, each rule contains a unique part

id which hints at an existing behavior.

5.3 PolymerJS

Without the possibility to analyze the template, the

extraction process could not extract most of the prop-

erties and behavioral rules. Only two of the behavior

rules were deﬁned according to the conventions for

Polymer application required by Columbus.

5.3.1 Limitations Identiﬁed in the Structure

Element

Unable to Parse the Template.

The proprietary template syntax of Polymer is not

supported by Columbus, which means that all infor-

mation from the template was unavailable to the ex-

traction process.

5.3.2 Limitations Identiﬁed in the Style Element

Missing Properties.

Without the template, any property deﬁned in the

DOM is inevitably lost to the view model generation.

This is critical to ordinary text fragments in HTML

elements since these are not deﬁned anywhere inside

the component deﬁnition.

Property Usage without Declaration.

Columbus requires the component to list all properties

in the properties section. If properties are used with-

out declaration, Columbus attempts to detect them by

tracking this context in conjunction with a variable

usage, but it cannot guarantee that all variables are

detected.

5.3.3 Limitations Identiﬁed in the Behavior

Element

Rules from Missing Parts.

Without the template, any behavioral rules deﬁned in

the DOM are inevitably lost. The requirements for

view model extraction of Polymer projects requires

the usage of the listener’s section to deﬁne event lis-

teners.

6 RELATED WORK

Considerable research has been conducted in the do-

main of reverse engineering of Web Applications.

However, the permanent changes in the technologies,

frameworks, tools and architectures in their domain

makes very challenging the comparison process of

Columbus with existing tools. However, we describe

selective relevant research in the domain which can be

either source of evaluation or inspiration for Colum-

bus.

Di Lucca et al. introduced their WARE tool

which allows users to visualize user interfaces in con-

junction with the frontend and backend architecture

(Di Lucca et al., 2002). However, the details of the

extraction process are not described deathly, yet they

state that the source code is transformed into an ab-

stract representation. Their tool is capable of extract-

ing the user interface of a web application and pro-

vide visualizations for structure and page ﬂow. The

reverse engineering was focused on providing post-

development documentation in the form of UML dia-

grams. We encounter the main differences with our

approach in the UI model deﬁnition, which makes

challenging the incorporation of all functionality that

can be found in modern JavaScript frameworks.

Laurent Bouillon compares different reverse en-

gineering tools and also introduces approaches to re-

verse engineer HTML documents (Bouillon, 2006).

He proposes a translation of HTML elements into an

extensible user interface markup model to gather an

abstract representation of the user interface. The tools

listed in the dissertation use static reverse engineering

to translate HTML ﬁles into the deﬁned markup lan-

guage. The process itself shares certain similarities,

like transforming the input into a more accessible data

structure, like a tree or in that case, as an XML doc-

ument. Rules are used to extract relevant information

from a knowledge base. The research itself is limited

to plain HTML documents, without any JavaScript in-

tegration. Columbus’ focus lies on reverse engineer-

ing JavaScript components, which most of the time

contain templates with HTML.

Morgado et al. elaborate on different reverse en-

gineering approaches to reduce the necessity of cre-

ating view models for testing purposes. They dis-

cuss rationales for static and dynamic reverse engi-

neering and introduce their tool called ReGUI (Mor-

gado et al., 2011). However, the approach using in

WEBIST 2017 - 13th International Conference on Web Information Systems and Technologies

330

this paper differs in the targeted environment and the

used process of extracting information. ReGUI uses

dynamic reverse engineering with try-and-error inter-

actions to obtain a graph of the different windows of a

user interface. Columbus tries to create a view model

of JavaScript components and their templates through

static reverse engineering. This work is extended with

the use of Machine Learning tools in (Morgado et al.,

2012), which is a relevant aspect to consider in further

research on using Columbus.

An interesting framework is proposed by Carlos

Eduardo Silva in his Ph.D. thesis (e Marques da Silva,

2015), which is capable of analyzing existing Web

Applications and generate the structure and behavior

models from them. This approach differs from the

approach used in Columbus because the inspections

are realized on the running applications instead to the

source code of the application.

7 CONCLUSIONS

In this paper, we present a tool for discovering UI

models in the source code of Component-based Web

Applications, which could be used to support the re-

verse engineering process. Subsequently, we evalu-

ated its capabilities of User Interface model extrac-

tions using open-source project TodoMVC. The eval-

uation process shows the main limitations of the tools

for creating an abstract UI model from the modern

JavaScript frameworks (i.e. technology independent

model) in Web Applications.

We plan to extend in the Columbus tool: ﬁrst,

adding new rules to support other web technologies

to evaluate the complexity of the integration of dif-

ferent presentation techniques. Additionally, we con-

tinue researching on the model-based UI formalisms

to facilitate the integration of the UI components and

evaluate the possible combinations of the current pro-

cess with Machine Learning techniques.

REFERENCES

Abrams, M., Phanouriou, C., Batongbacal, A. L., Williams,

S. M., and Shuster, J. E. (1999). Uiml: an appliance-

independent xml user interface language. Computer

Networks, 31(11):1695–1708.

Bouillon, L. (2006). Reverse Engineering of Declarative

User Interfaces. PhD thesis, Universit

e de Valenci-

ennes et du Hainaut-Cambr

esis.

Ceri, S., Fraternali, P., and Bongio, A. (2000). Web mod-

eling language (webml): a modeling language for de-

signing web sites. Computer Networks, 33(1):137–

157.

Chikofsky, E. J. and Cross, J. H. (1990). Reverse engineer-

ing and design recovery: a taxonomy. IEEE Software,

7(1):13–17.

Di Lucca, G. A., Fasolino, A. R., Pace, F., Tramontana, P.,

and De Carlini, U. (2002). Ware: a tool for the reverse

engineering of web applications. In Software Main-

tenance and Reengineering, 2002. Proceedings. Sixth

European Conference on, pages 241–250. IEEE.

e Marques da Silva, C. E. B. (2015). Reverse engineer-

ing of web applications. PhD thesis, Universidade do

Minho.

Hevner, A. R. (2007). A three cycle view of design sci-

ence research. Scandinavian journal of information

systems, 19(2):4.

Limbourg, Q., Vanderdonckt, J., Michotte, B., Bouillon,

L., Florins, M., and Trevisan, D. (2004). Usixml:

A user interface description language for context-

sensitive user interfaces. In In Proceedings of the

ACM AVI’2004 Workshop ”Developing User Inter-

faces with XML: Advances on User Interface Descrip-

tion Languages”, pages 55–62. Press.

Morgado, I. C., Paiva, A., and Faria, J. P. (2011). Re-

verse engineering of graphical user interfaces. In The

Sixth International Conference on Software Engineer-

ing Advances, ICSEA, pages 293–298.

Morgado, I. C., Paiva, A. C. R., Faria, J. P., and Cama-

cho, R. (2012). GUI reverse engineering with machine

learning. In 2012 First International Workshop on Re-

alizing AI Synergies in Software Engineering (RAISE),

pages 27–31, Zurich, Switzerland. IEEE.

OASIS (2008). User Interface Markup Language (UIML)

Version 4.0. Committee draft.

Columbus: A Tool for Discovering User Interface Models in Component-basedWeb Applications

331
